Norstan Inc.
- 1. Manufacturers and designersof precision electrical contacts. Norstan, Inc. 10333 82nd Ave. Pleasant Prairie, WI 53158 1-800-244-8338 www.norstaninc.com
- 2. PRODUCTS SERVING OURCUSTOMERS NEEDS Solid rivets and weld discs – composite (bi-metal) rivets and discs & specialty brazed components Switches Timers Relays Circuit breakers Thermostats Micro-switch Solenoids Special switches
- 3. PRODUCTS FOR ELECTROMECHANICAL DEVICES ➢Aerospace ➢Automotive ➢Appliances & Consumer Electronics ➢HVAC & Elevator ➢Motors & controls ➢Medical Devices
- 4. RECOGNIZE SOME OFOUR OTHER PARTNERS?
- 5. PROCESS CAPABILITIES Coining ➢35 -Single wire Cold Heading Brazing ➢17 - Dual wire (bi-metal) ➢5 – Specialty 2D 4B 2D 3B 2D 3B ➢3 Hi-temp ➢2 Lo-temp Controlled atmosphere belt fed systems 4 (+20 ton) bowl-fed systems for button and rivet
- 6. COLD HEADING CAPABILITIES BI-Metal ➢35- Single wire Single Wire Specialty ➢17 - Dual wire (bi-metal) ➢5 – Specialty 2D 4B 2D 3B 2D 3B 0.040-0.250” dia. 0.040-0.150” dia. 0.080-0.250” dia.
- 7. Dual Wire-Bimetal 17- Dualwire headers Wire sizes 0.050” to 0.200” Head diameters to 0.650”
- 8. Specialty heading capabilities TypeCopper/silver Stainless Steel Single wire headers Bi-metal headers small 0.050 - 0.115 N/A Bi-metal headers large 0.080 – 0.210 N/A 2D4B 0.100 - 0.312 0.375 max 2D3B 0.100 – 0.187 0.187 max 2D3B 0.80 - 0.187 0.125 max Specialty headers can a more complex part replacing Swiss- screw machine type operations

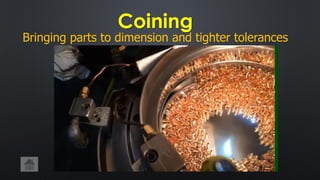

- 10. Coining Bringing parts todimension and tighter tolerances
- 11. Brazing Bonding two metalstogether in a furnace using another material

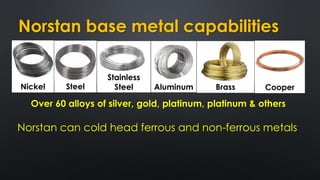

- 12. Norstan base metalcapabilities Over 60 alloys of silver, gold, platinum, platinum & others Nickel Steel Stainless Steel Aluminum Brass Cooper Norstan can cold head ferrous and non-ferrous metals
- 13. Norstan Manufacturing Norstan’s entireproduction area is temperature and humidity controlled to reduction/eliminate part oxidation.
- 14. L&J 15 - StampingPresses 2- 50 ton WALSH 2- 32 ton 1- 38 ton BLISS FEDERAL 2- 45 ton Piece Makers 1- 75 ton 2- 22 ton 1- 32 ton 1- 22 ton 1- 20 ton 1- 60 ton JOHNSON 1- 27 ton
- 15. Stampings Copper, brass, steel,stainless steel Stampings with contacts Contacts welded to Au, Ag & SSContacts “staked” to brassContacts “staked” to materialsResistance welded
- 16. NORSTAN IS YOURPARTNER Excellent quality and competitive pricing is a given Meeting our quoted lead-times 2017 on-time delivery of 98.6%! Excellent Customer Communication
- 17. QUALITY IS JOB1! Temperature & humidity controlled quality Department SPC-Statistical Process Control and other programs per customer request
- 18. SPECIALIZED TESTING EQUIPMENT Deltroniccomparators for accurate measurements Wilson/Rockford hardness tester
- 19. ADDITIONAL TESTING EQUIPMENT OASISoptical profile inspection system Vickers/micro hardness tester

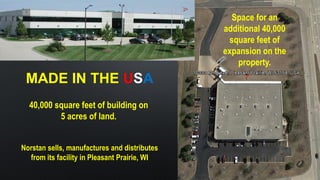

- 20. MADE IN THEUSA Norstan sells, manufactures and distributes from its facility in Pleasant Prairie, WI 40,000 square feet of building on 5 acres of land. Space for an additional 40,000 square feet of expansion on the property.
- 21. Norstan’s Workmanship Standards Manual Providesinformation and illustrations of manufacturing variations. A copy is available to you online

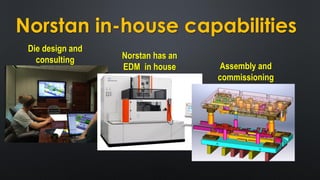

- 22. Norstan in-house capabilities Diedesign and consulting Norstan has an EDM in house Assembly and commissioning
- 23. HOW CAN WEHELP YOU? • DO YOU USE CONTACTS IN YOUR PRODUCTS? • GETTING QUALITY CONTACTS WHEN YOU NEED THEM? • ARE YOU GETTING THE CUSTOMER SERVICE YOU DESERVE? • JIT, KANBAN OR DOCK-TO-STOCK PROGRAMS. • ENGINEERING OR TECHNICAL ASSISTANCE. • PRICE IMPROVEMENT COST REDUCTION PROGRAMS? • NAFTA COMPLIANT MANUFACTURING SUPPLIERS • WHERE IS YOUR PAIN?
