Normalization is a technique to organize data into multiple tables to minimize data redundancy and anomalies. It involves dividing large tables into smaller tables and establishing relationships between them. The document discusses various normal forms including 1st, 2nd, 3rd normal forms and Boyce-Codd normal form. It provides examples of tables before and after normalization to show how normalization eliminates issues like data redundancy, insertion, deletion and update anomalies.

1. Normalization

2. CONTENT
What is Normalization?
2
Data Redundancy
Anomalies
First Normal Form
Second Normal Form
Third Normal Form
Boyce -Codd Normal Form

3. 1.
What is
Normalization

4. “
Normalization is a technique of
organizing data into multiple related
tables ,to minimize Data Redundancy
4

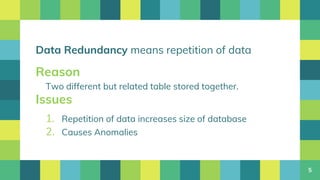

5. Data Redundancy means repetition of data
5
Reason
Two different but related table stored together.
Issues
1. Repetition of data increases size of database
2. Causes Anomalies

6. Anomalies are problems that can occur in poorly planned , un-
normalized databases where all data is stored in same table
Types
To insert redundant data for every new row is a data insertion
anomaly.
Loss of related dataset when some other dataset is deleted is
a deletion anomaly.
A data inconsistency that results from data redudancy and
partial update is updation anomaly.

7. Roll No. Name Branch HOD Office_tel
1
A CS Mr.x 2342
2
B CS Mr.x 2342
3
B CS Mr.x 2342
4
D CS Mr.x 2342
Roll No. Name Branch HOD Office_tel
1
A CS Mr.x 2342
2
B CS Mr.x 2342
3
B CS Mr.x 2342
Roll No. Name Branch HOD Office_tel
1
A CS Mr.x 2342
2
B CS Mr.x 2342
Roll No. Name Branch HOD Office_tel
1
A CS Mr.x 2342
Roll No. Name Branch HOD Office_tel
Student Table

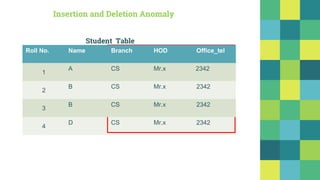

Insertion and Deletion Anomaly

8. Roll No. Name Branch HOD Office_tel
1
A CS Mr.x 2342
2
B CS Mr.x 2342
3
B CS Mr.x 2342
4
D CS Mr.x 2342
Roll No. Name Branch HOD Office_tel
1
A CS Mr.x Mr.y 2342
2
B CS Mr.x 2342
3
B CS Mr.x 2342
4
D CS Mr.x 2342
Roll No. Name Branch HOD Office_tel
1
A CS Mr.x Mr.y 2342
2
B CS Mr.x Mr.y 2342
3
B CS Mr.x 2342
4
D CS Mr.x 2342
Roll No. Name Branch HOD Office_tel
1
A CS Mr.x Mr.y 2342
2
B CS Mr.x Mr.y 2342
3
B CS Mr.x 2342
4
D CS Mr.x Mr.y 2342
Student Table
Updation Anomaly
Roll No. Name Branch HOD Office_tel
1
A CS Mr.x 2342
2
B CS Mr.x 2342
3
B CS Mr.x 2342
4
D CS Mr.x 2342

9. Roll No. Name BranchID
1 A 1
2 B 1
3 B 1
4 D 1
BranchID HOD Office_tel
1 Mr.x 2342
Student Table
Dept Table
By dividing Student Table into Student and
Department Table we can eliminate all anomalies .

10. 2.
1st Normal
Form

11. “
Every table in database should at least
follow the 1st normal form always . To be
in 1st normal form a table should follow
some rules.
11

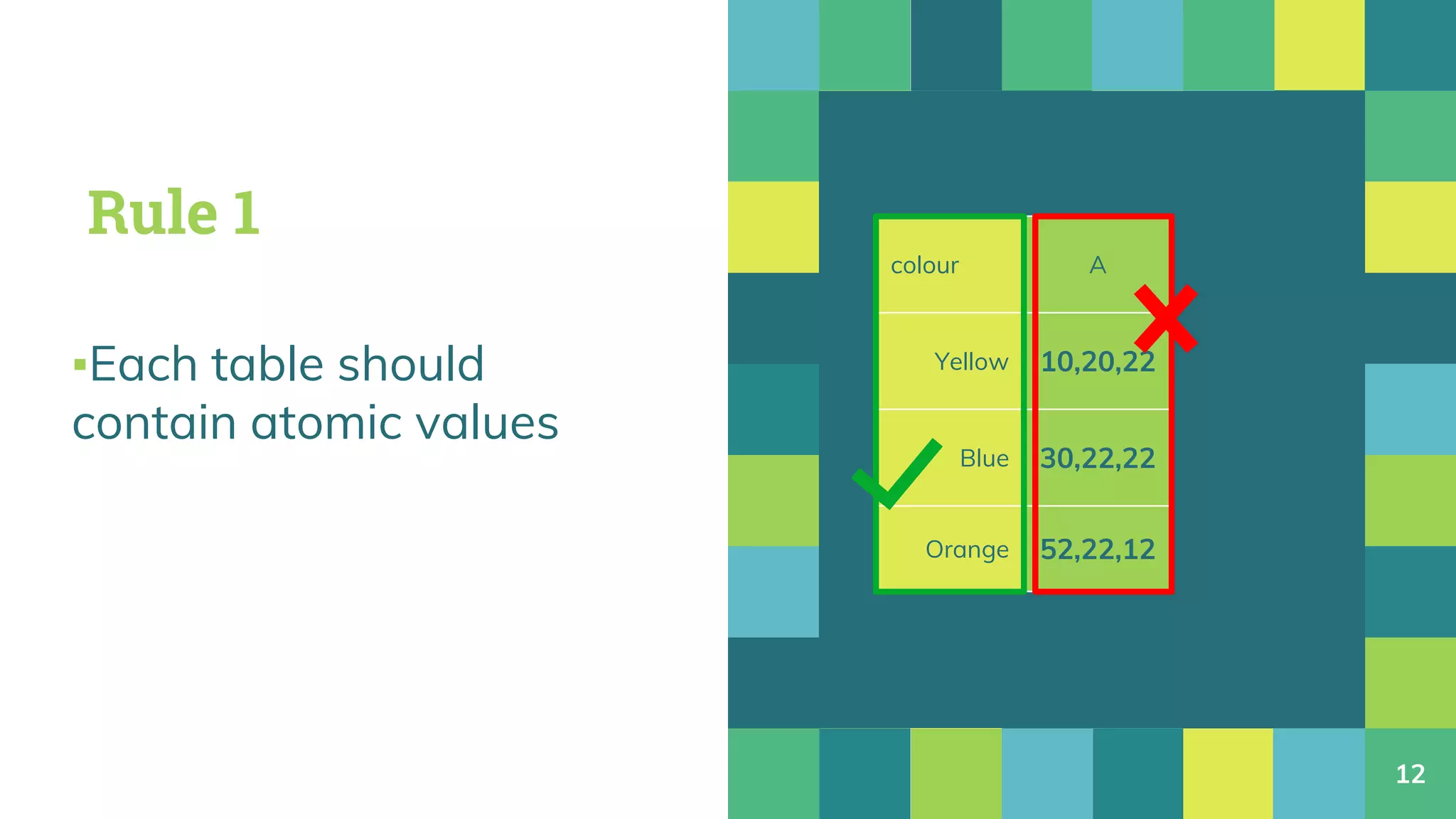

12. ▪Each table should
contain atomic values
12
Rule 1
colour A
Yellow 10,20,22
Blue 30,22,22
Orange 52,22,12

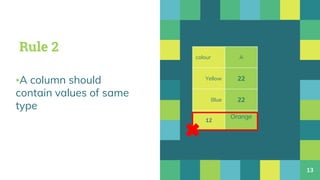

13. ▪A column should
contain values of same
type
13
Rule 2
colour A
Yellow 22
Blue 22
12
Orange

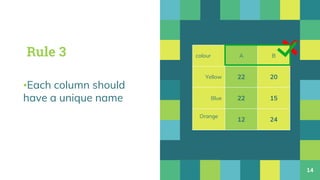

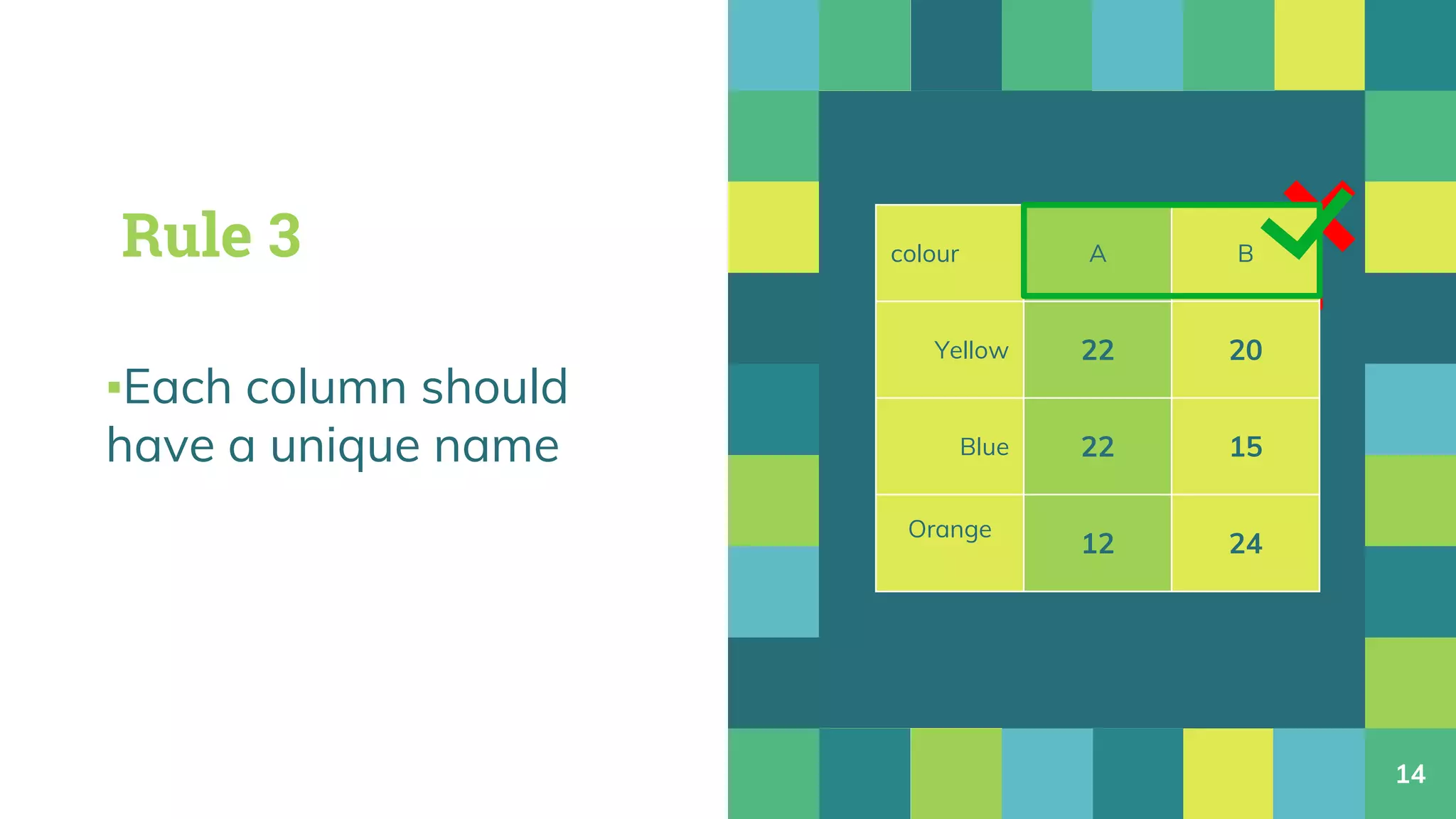

14. ▪Each column should
have a unique name
Place your screenshot here
14
Rule 3 colour A A
Yellow 22 20
Blue 22 15
Orange
12
24
colour A B
Yellow 22 20
Blue 22 15
Orange
12 24

15. 3.
2st Normal
Form

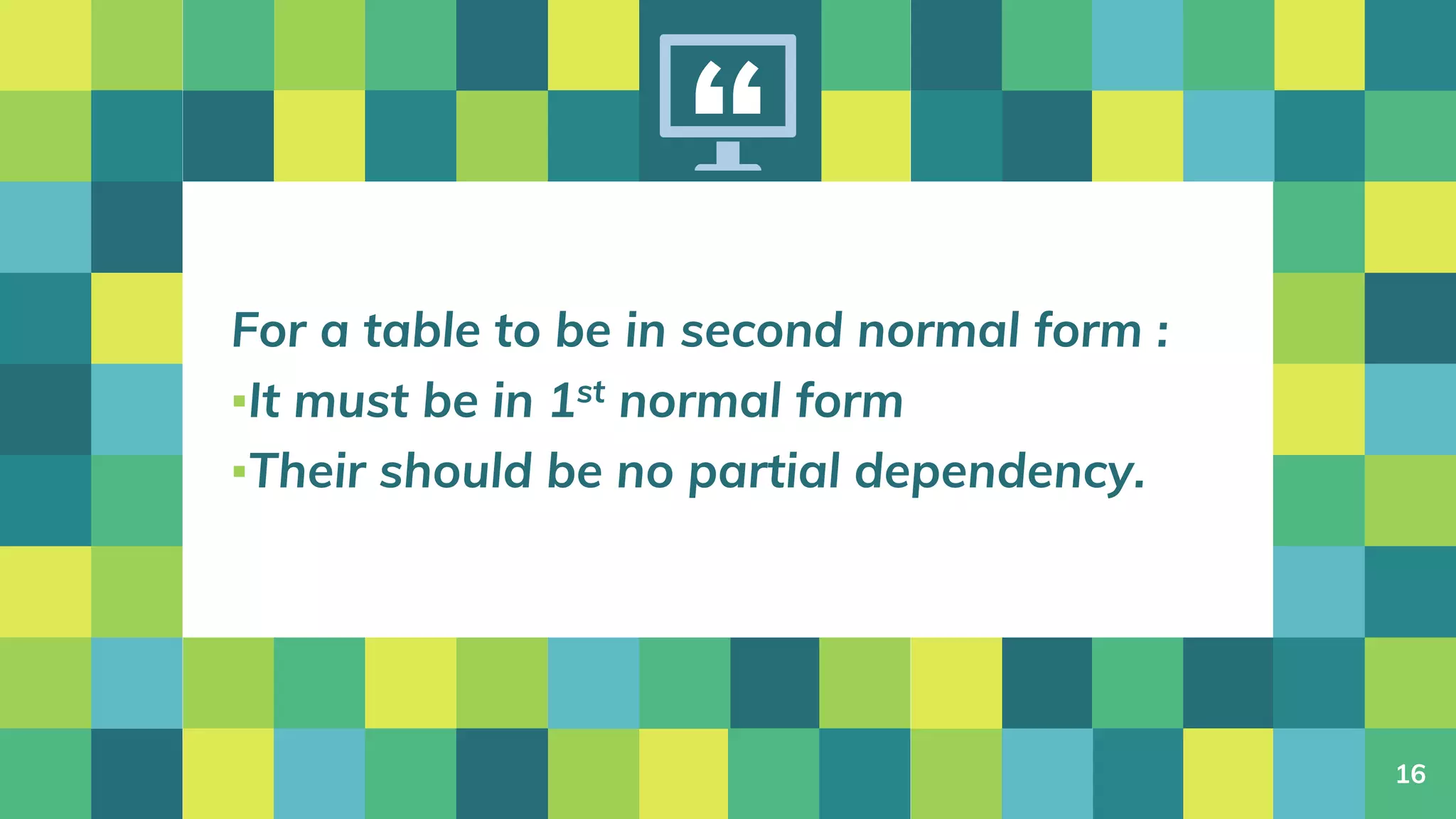

16. “
For a table to be in second normal form :
▪It must be in 1st normal form
▪Their should be no partial dependency.
16

17. 17

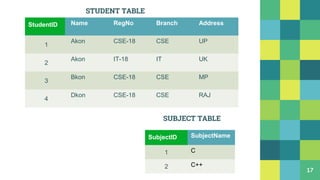

StudentID Name RegNo Branch Address
1
Akon CSE-18 CSE UP
2
Akon IT-18 IT UK
3
Bkon CSE-18 CSE MP
4
Dkon CSE-18 CSE RAJ
STUDENT TABLE
SubjectID SubjectName
1 C
2 C++
SUBJECT TABLE
SubjectID
StudentID

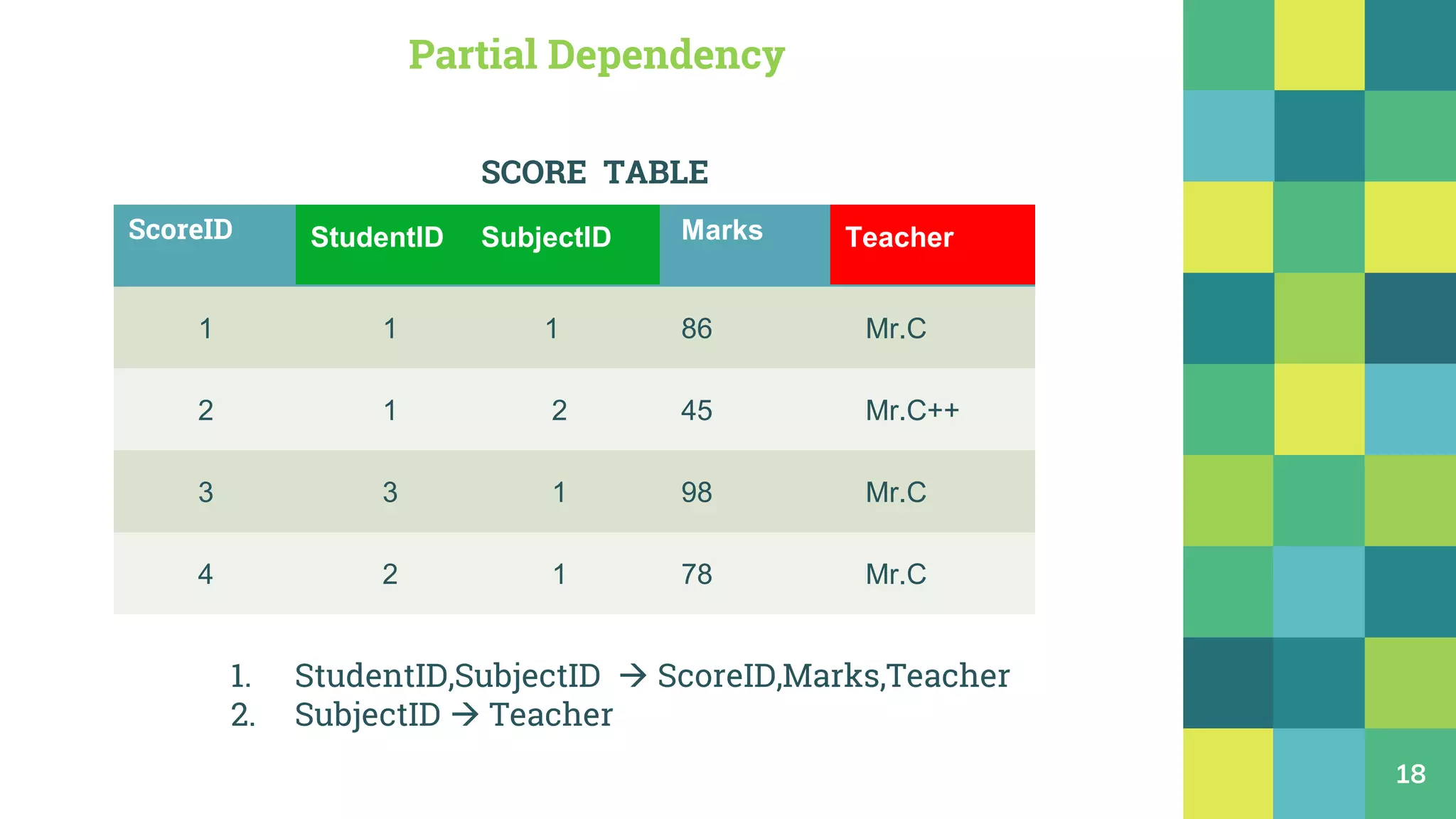

18. 18
ScoreID StudentID SubjectID Marks Teacher
1 1 1 86 Mr.C
2 1 2 45 Mr.C++
3 3 1 98 Mr.C
4 2 1 78 Mr.C
SCORE TABLE
Partial Dependency
StudentID SubjectID Teacher
1. StudentID,SubjectID  ScoreID,Marks,Teacher
2. SubjectID  Teacher

19. 19

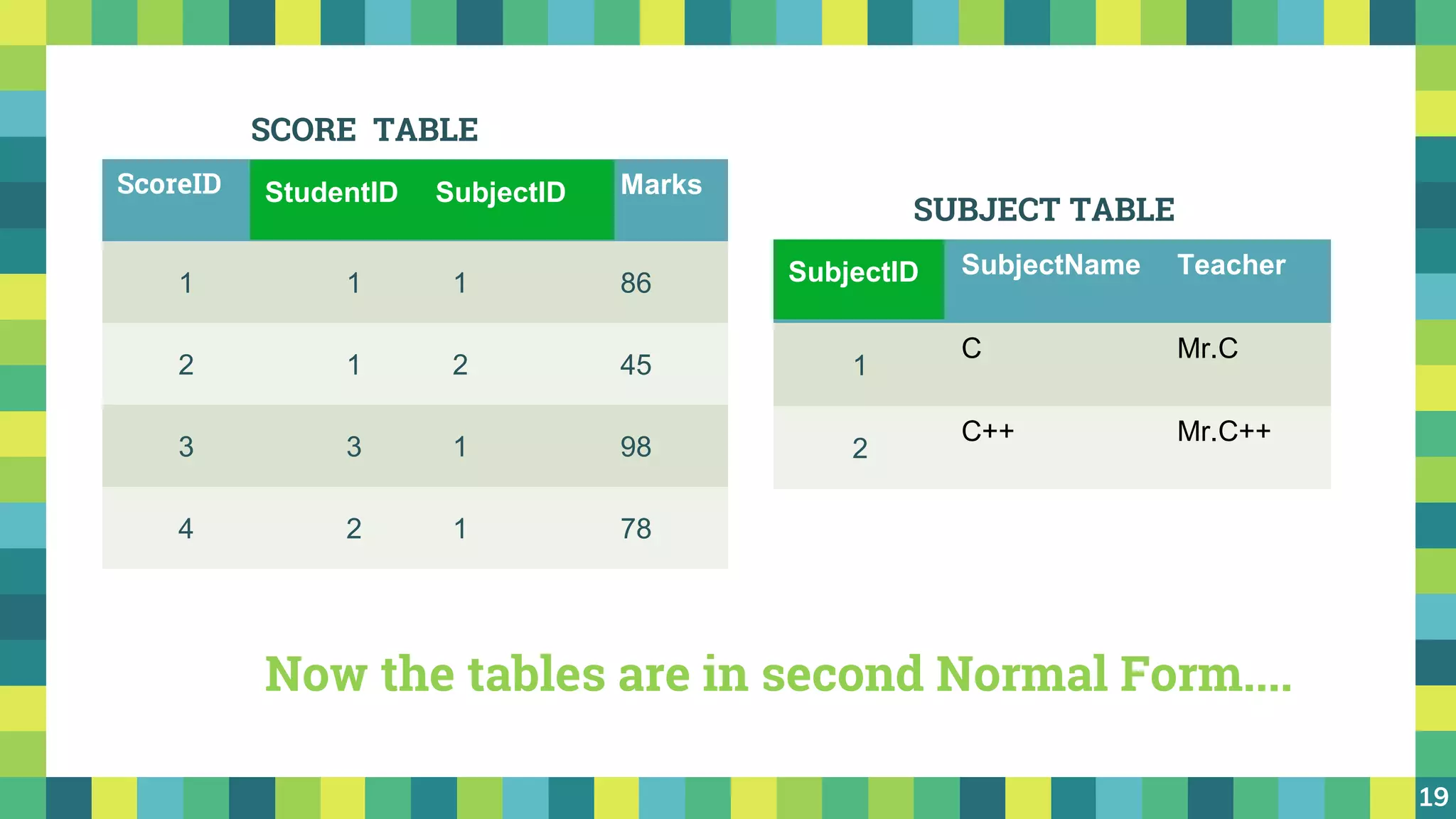

Now the tables are in second Normal Form....
SubjectID SubjectName Teacher
1
C Mr.C
2
C++ Mr.C++
SUBJECT TABLE
ScoreID StudentID SubjectID Marks
1 1 1 86
2 1 2 45
3 3 1 98
4 2 1 78
SCORE TABLE
StudentID SubjectID
SubjectID

20. 4.
3st Normal
Form

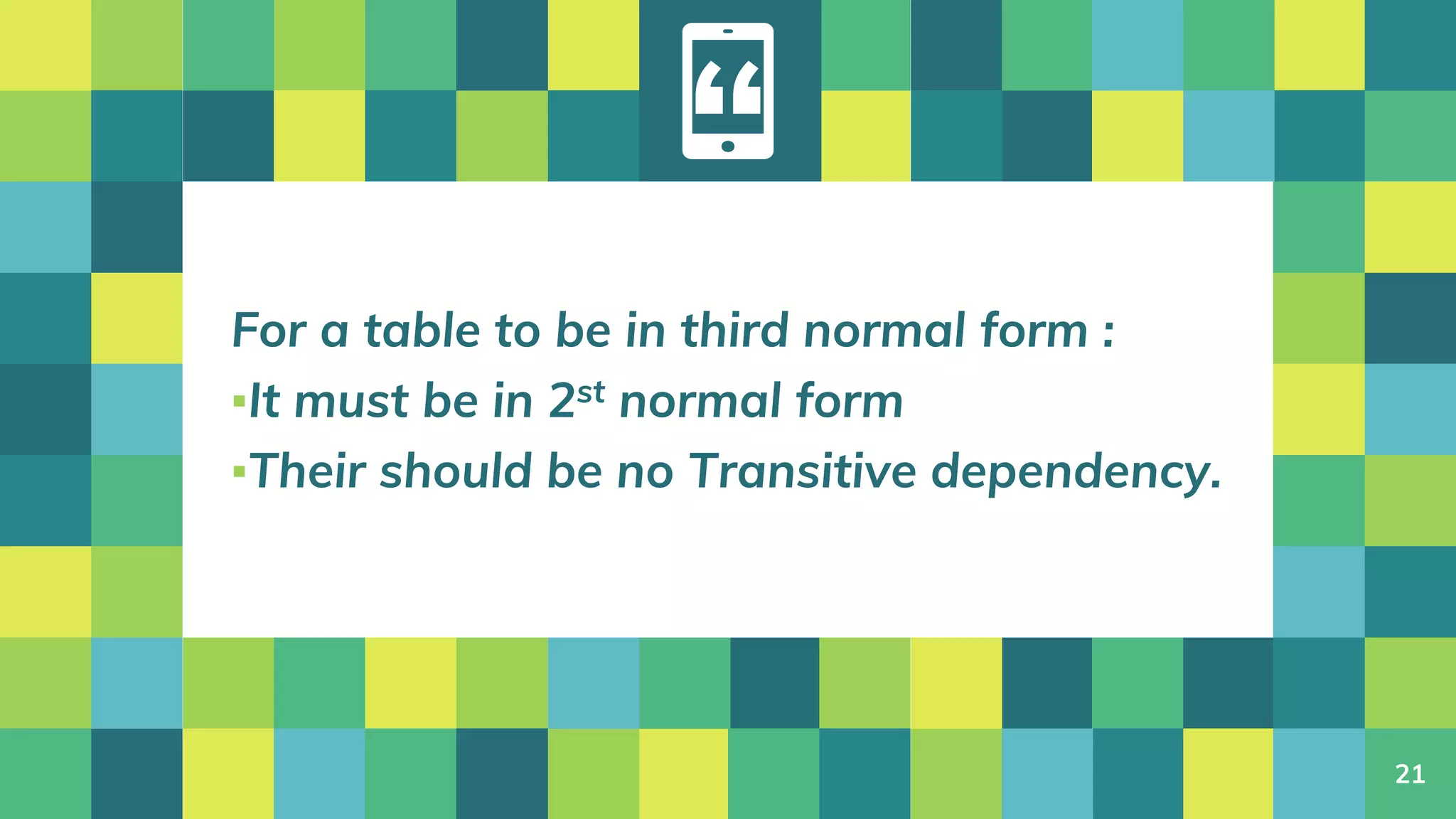

21. “
For a table to be in third normal form :
▪It must be in 2st normal form
▪Their should be no Transitive dependency.
21

22. 22

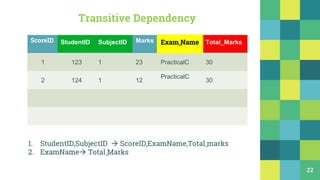

ScoreID StudentID SubjectID Marks Exam_Name Total_Marks
1 123 1 23 PracticalC 30
2 124 1 12
PracticalC
30
StudentID SubjectID Total_Marks
Transitive Dependency
Exam_Name
1. StudentID,SubjectID  ScoreID,ExamName,Total_marks
2. ExamName Total_Marks

23. 23
ScoreI
D
StudentI
D
SubjectID Mark
s
Teacher ExamID
1 123 1 23 Mr.C 1
2 124 1 12 Mr.C 1
Now the tables are in Third Normal Form....
ExamID Exam_N
ame
Total_Ma
rks
1
Practical
C
30
2
Practical
C++ 30
Student Table Exam Table

24. 5.
Boyce Codd
Normal Form

25. “

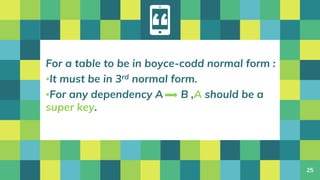

For a table to be in boyce-codd normal form :
▪It must be in 3rd normal form.
▪For any dependency A B ,A should be a
super key.
25

26. 26
StudentID Subject Professor
101 C++ p.Cpp
102 Python p.Python
103 Python p.Python2
104 Java p.java
COLLEGE ENROLLMENT TABLE
StudentID Subject

27. 27
StudentID Subject Professor
COLLEGE ENROLLMENT TABLE
StudentID Subject
(student_id,subject) Professor
Professor Subject
Non prime attribute Non prime attribute

28. 28
StudentID Professor
StudentID
Student Table
P ID Professor Subject
Student Table
P_ID
Professor Table
Now,our table is in BCNF

29. Thanks!
