1. Gaelectric Developments Limited
Invest NI Presentation
Opportunities in Onshore & Offshore O&M supply chain
Wednesday, November 27, 2013
1

2. Nick Cullen
Technical Manager
2

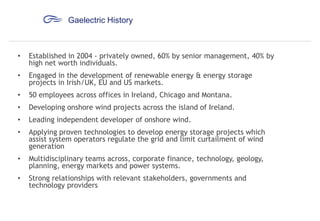

3. Gaelectric History
•
Established in 2004 - privately owned, 60% by senior management, 40% by
high net worth individuals.
•
Engaged in the development of renewable energy & energy storage
projects in Irish/UK, EU and US markets.
•
50 employees across offices in Ireland, Chicago and Montana.
•
Developing onshore wind projects across the island of Ireland.
•
Leading independent developer of onshore wind.
•
Applying proven technologies to develop energy storage projects which
assist system operators regulate the grid and limit curtailment of wind
generation
•
Multidisciplinary teams across, corporate finance, technology, geology,
planning, energy markets and power systems.
•
Strong relationships with relevant stakeholders, governments and
technology providers

4. Gaelectric – The Wider Group
Gaelectric Holdings plc is a renewable energy company with four separately managed business units, each at a
different stage in their development lifecycle
Gaelectric Holdings PLC
Group Holding Company
Onshore Ireland
Offshore Ireland
Energy Storage
Onshore USA
Development of wind
projects in Northern
Ireland and the
Republic of Ireland
Development of
offshore wind in Irish
coastal waters
Development of energy
storage solutions
Development of wind
projects in the United
States
 License application
made for
750 – 1000 MW
project off Irish
coast
 Compressed Air Energy
Storage
 Largest owner of wind
resource in Montana
 Flywheel
 Pipeline of 2600MW +
510 MW transmission
capacity
 200 MW in NI
 140 MW in RoI
 Wind speeds 8m/s+

5. Gaelectric – The Wider Group
Gaelectric Holdings plc is a renewable energy company with four separately managed business units, each at a
different stage in their development lifecycle
Gaelectric Holdings PLC
Group Holding Company
Onshore Ireland
Offshore Ireland
Energy Storage
Onshore USA
Development of wind
projects in Northern
Ireland and the
Republic of Ireland
Development of
offshore wind in Irish
coastal waters
Development of energy
storage solutions
Development of wind
projects in the United
States
 License application
made for
750 – 1000 MW
project off Irish
coast
 Compressed Air Energy
Storage
 Largest owner of wind
resource in Montana
 Flywheel
 Pipeline of 2600MW +
510 MW transmission
capacity
•
200 MW in NI
123.3MW planning
permission received
•
•
13.8MW in planning
•
63MW pre-planning
•
140 MW in RoI
 Wind speeds 8m/s+

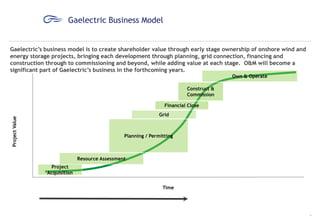

6. Gaelectric Business Model
Gaelectric’s business model is to create shareholder value through early stage ownership of onshore wind and
energy storage projects, bringing each development through planning, grid connection, financing and
construction through to commissioning and beyond, while adding value at each stage. O&M will become a
significant part of Gaelectric’s business in the forthcoming years.
Own & Operate
Construct &
Commission
Financial Close
Project Value
Grid
Planning / Permitting
Resource Assessment
Project
Acquisition
Time
6

7. Section I
Gaelectric’s Northern Ireland Wind Farm
Portfolio Overview

8. Northern Ireland Portfolio
Gaelectric’s NI assets include a development portfolio of 137.1MW
Dunbeg
This excludes expansion of existing sites and acquisition of projects in pre-planning,
42.0 MW
planning or in operation.
Monnaboy
9.2 MW
Cloonty
9.2 MW
Smulgedon
16.1 MW
Corby Knowe
5.4 MW
Cregganconroe
13.8 MW
Carn Hill
13.8 MW
Inishative
13.8 MW
Tullyneil
13.8 MW
Gaelectric's NI Developments Portfolio
Project Name
Planning Status
Commissioning
Date
Potential Construction
jobs (9-12 months)
Nameplate
capacity (MW)
Carn Hill
Received
May-13
Dunbeg
Received
Jun-14
40
13.8
42.0
Cregganconroe
Received
Mar-15
30
13.8
Inishative
Received
Sep-15
30
Projects in
Planning
13.8
5.4
Corby Knowe
Received
Jul-15
20
Monnaboy
Received
Mar-15
20
9.2
Smulgedon
Received
Mar-15
30
16.1
Cloonty
Received
Jun-15
20
9.2
Tullyneil
Submitted
Jun-17
30
Projects Under
Construction/Consented
13.8
Total
137.1
8

9. Northern Ireland Portfolio – Expansion into O&M
•
We need to grow out O&M capabilities significantly in the next 2-3 years.
The following areas have been identified as those with supply chain
opportunities:
•
Civils contractor – Both during construction phases and ongoing during
operational phase of the projects
•
Health & Safety consultants to advise on best practice
•
IT/Software – to assist in developing a suite of programs to analyse realtime turbine performance data
•
Remote sensoring technologies (LiDAR) to allow for performance
measurement of spinning assets
•
Technical consultancy services to assist in assessing site
validation/performance verification
•
Communications providers to ensure robust communications with the wind
farms.

10. Gaelectric – The Wider Group
Gaelectric Holdings plc is a renewable energy company with four separately managed business units, each at a
different stage in their development lifecycle
Gaelectric Holdings PLC
Group Holding Company
Onshore Ireland
Offshore Ireland
Energy Storage
Onshore USA
Development of wind
projects in Northern
Ireland and the
Republic of Ireland
Development of
offshore wind in Irish
coastal waters
Development of energy
storage solutions
Development of wind
projects in the United
States
 License application
made for
750 – 1000 MW
project off Irish
coast
 Compressed Air Energy
Storage
 Largest owner of wind
resource in Montana
 Flywheel
 Pipeline of 2600MW +
510 MW transmission
capacity
 200 MW in NI
 140 MW in RoI
 Wind speeds 8m/s+

11. Gaelectric – The Wider Group
Gaelectric Holdings plc is a renewable energy company with four separately managed business units, each at a
different stage in their development lifecycle
Gaelectric Holdings PLC
Group Holding Company
Onshore Ireland
Offshore Ireland
Energy Storage
Onshore USA
Development of wind
projects in Northern
Ireland and the
Republic of Ireland
Development of
offshore wind in Irish
coastal waters
Development of energy
storage solutions
Development of wind
projects in the United
States
•
200 MW in NI
123.3MW planning
permission received
•
•
13.8MW in planning
•
63MW pre-planning
•
140 MW in RoI
 License application
made for
750 – 1000 MW
project off Irish
coast
•
Compressed Air
Energy Storage
 Largest owner of wind
resource in Montana
 Pipeline of 2600MW +
510 MW transmission
capacity
 Wind speeds 8m/s+

12. Section II
Gaelectric Energy Storage

13. Gaelectric Energy Storage – CAES Larne Project
•
Energy storage concept using compressed air as the storage medium, safely stored circ.
600m below ground in excavated salt caverns (formed by solution mining), project is
located 2.5km south of Larne, co. Antrim
•
200MW Compression/268MW generation. Designed to allow a greater penetration of
renewable energy technologies onto the all-Ireland electricity grid.
•
Planning to be submitted in Q2 2014
•
Construction commence in Q4 2015
•
Commissioning in 2017
•
Total investment of £300m over 5 years
•
300 full and part time jobs during construction, 30-50 permanent jobs in the operational
phase.
•
Infrastructure will include:
•
110kV substation
•
CAES plant main building (plant equipment supplier identified)
•
Balance of plant including cooling/noise abatement, fuel delivery & storage
•
Routing and burying of 2 x 500mm diameter pipes from the plant site to the sea. These
pipes will remain a permanent fixture and will be in periodic use throughout the project
lifetime.

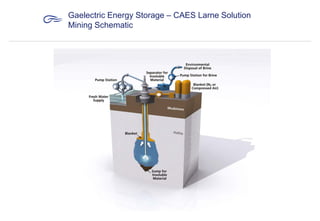

14. Gaelectric Energy Storage – CAES Larne Solution
Mining Schematic

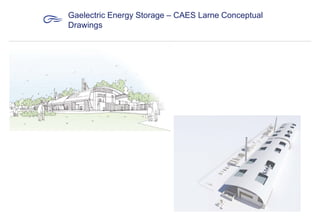

15. Gaelectric Energy Storage – CAES Larne Conceptual
Drawings

16. Gaelectric Energy Storage – CAES Larne Project
• Supply chain opportunities exist in the in the following fields:
• General engineering advisory services both through the
construction phase and into operations
• General construction
• Solution mining & disposal of saturated brine
• Directional drilling/trench excavation for the 2 x 500mm brine
pipes
• Supply and maintenance of pipework through construction and
throughout the life of the project, including:
• Pipework
• Pumping station
• Noise abatement technologies
• HV infrastructure

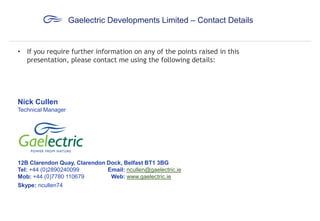

17. Gaelectric Developments Limited – Contact Details
• If you require further information on any of the points raised in this
presentation, please contact me using the following details:
Nick Cullen
Technical Manager
12B Clarendon Quay, Clarendon Dock, Belfast BT1 3BG
Tel: +44 (0)2890240099
Email: ncullen@gaelectric.ie
Mob: +44 (0)7780 110679
Web: www.gaelectric.ie
Skype: ncullen74

18. Thank you for your time.
