1. NGBP ATSC 3.0 - Overview
OPEN SOURCE MMT/ROUTE TOOLS | 03.06.2019
jjustman@ngbp.org

2. Introduction
Jason Justman
Sr. Principal Architect
SinclairDigital
jjustman@ngbp.org
Disclaimer: The views and forward-looking statements
presented in this document do not represent Sinclair Broadcast Group or OneMedia 3.0

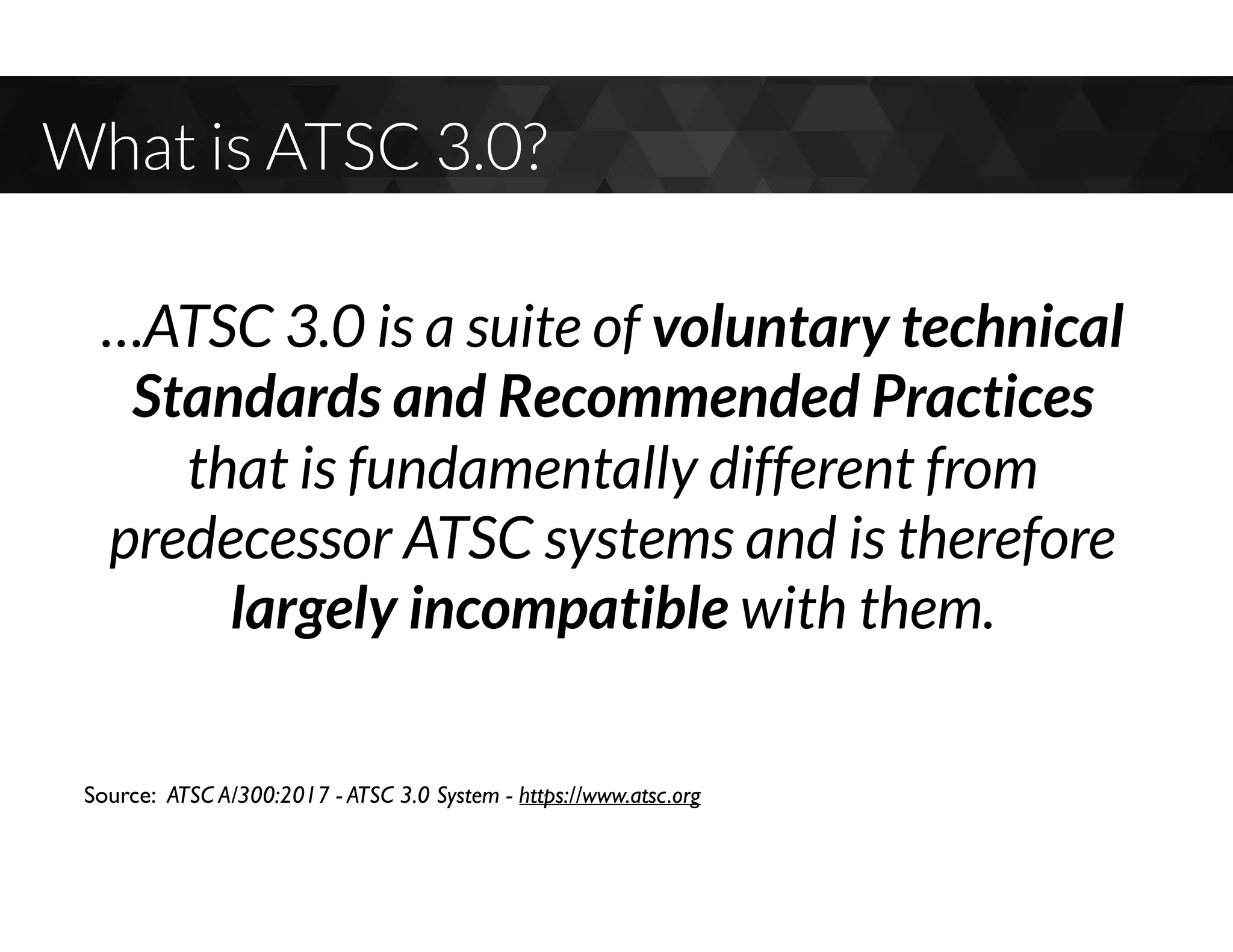

3. What is ATSC 3.0?
…ATSC 3.0 is a suite of voluntary technical
Standards and Recommended Practices
that is fundamentally different from
predecessor ATSC systems and is therefore
largely incompatible with them.
Source: ATSC A/300:2017 - ATSC 3.0 System - https://www.atsc.org

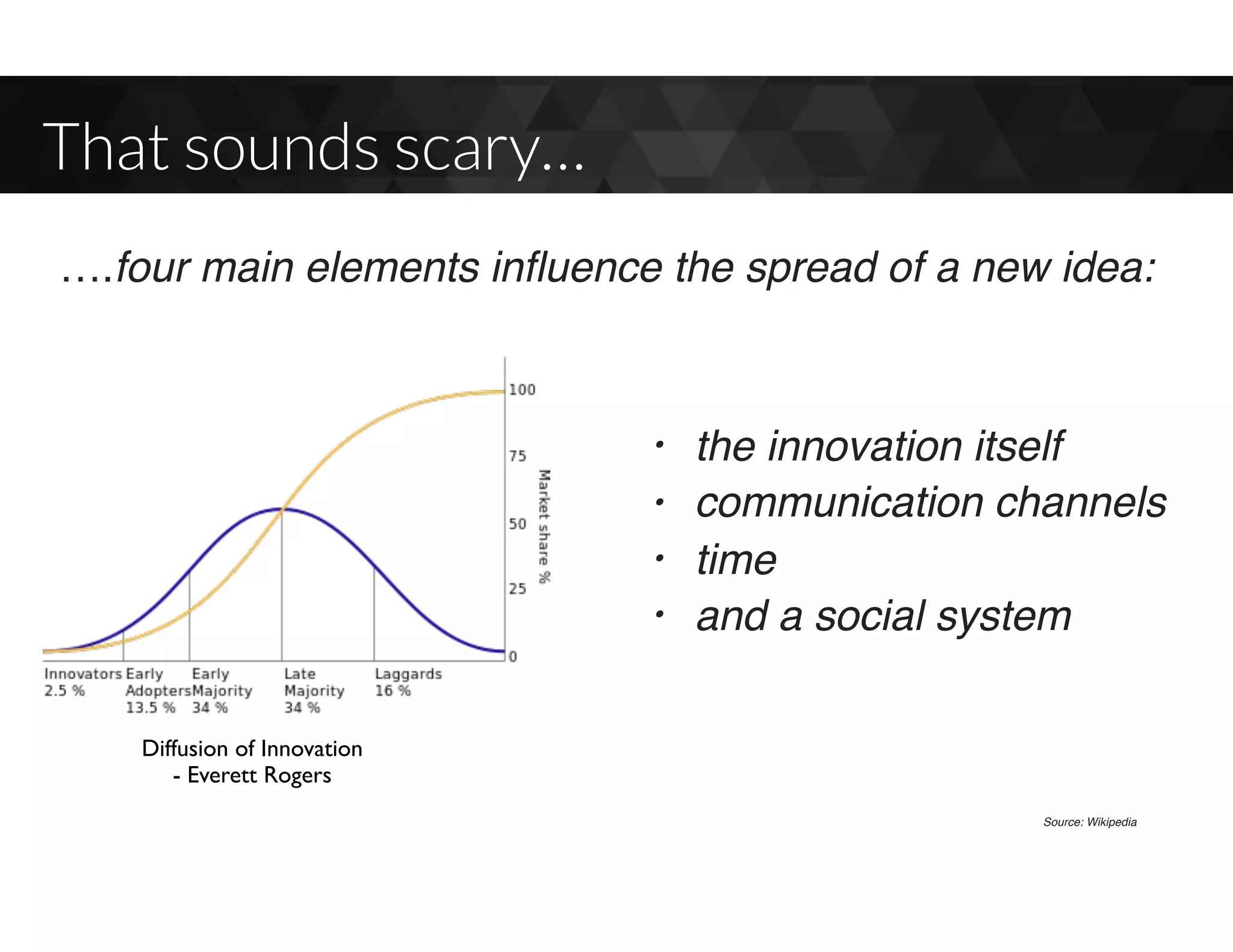

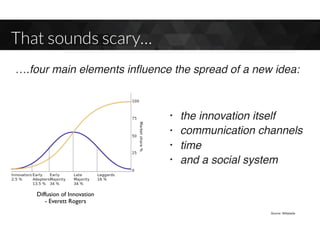

4. That sounds scary…
Diffusion of Innovation
- Everett Rogers
….four main elements influence the spread of a new idea:
Source: Wikipedia
• the innovation itself
• communication channels
• time
• and a social system

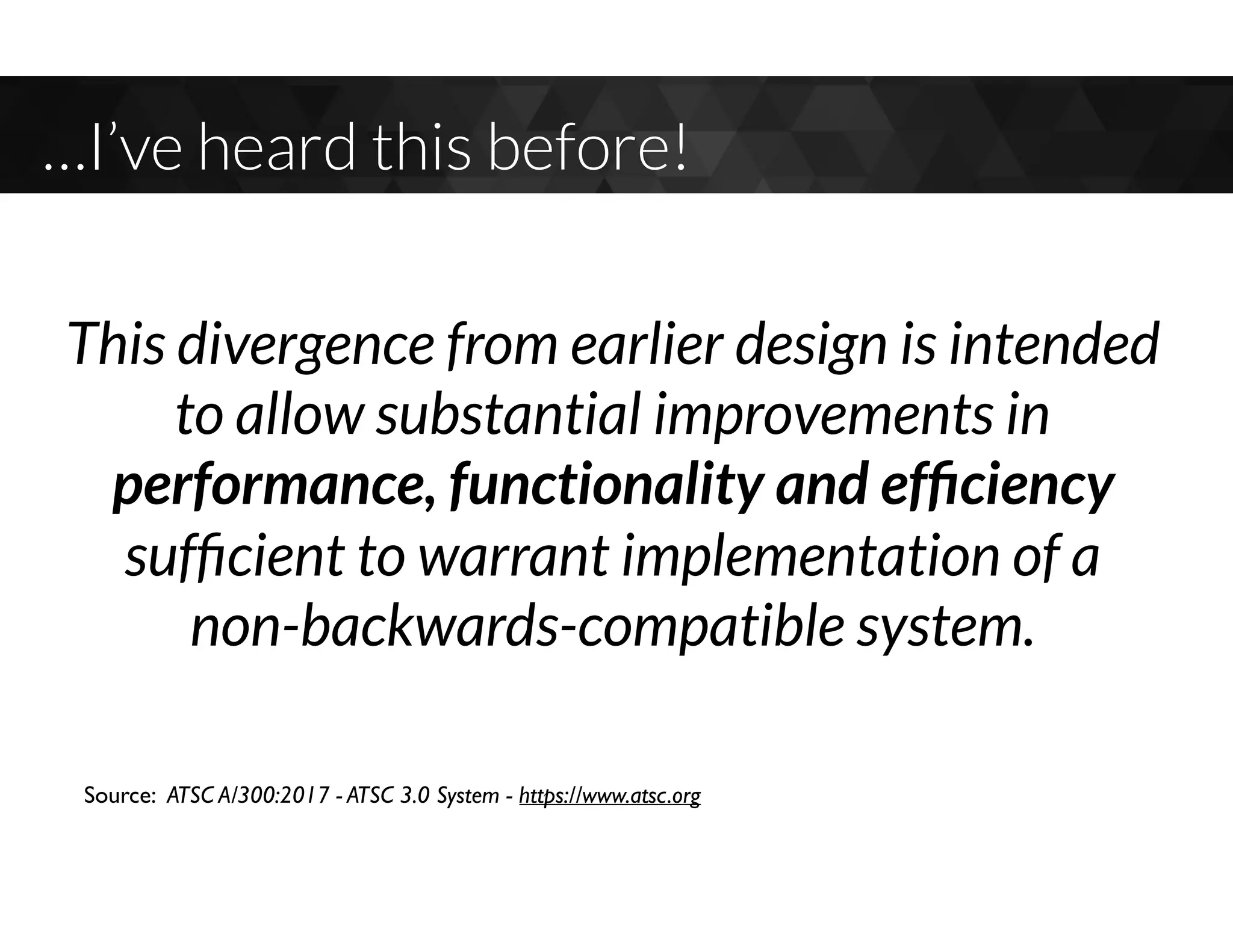

5. …I’ve heard this before!
This divergence from earlier design is intended
to allow substantial improvements in
performance, functionality and efficiency
sufficient to warrant implementation of a
non-backwards-compatible system.
Source: ATSC A/300:2017 - ATSC 3.0 System - https://www.atsc.org

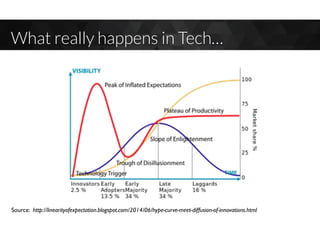

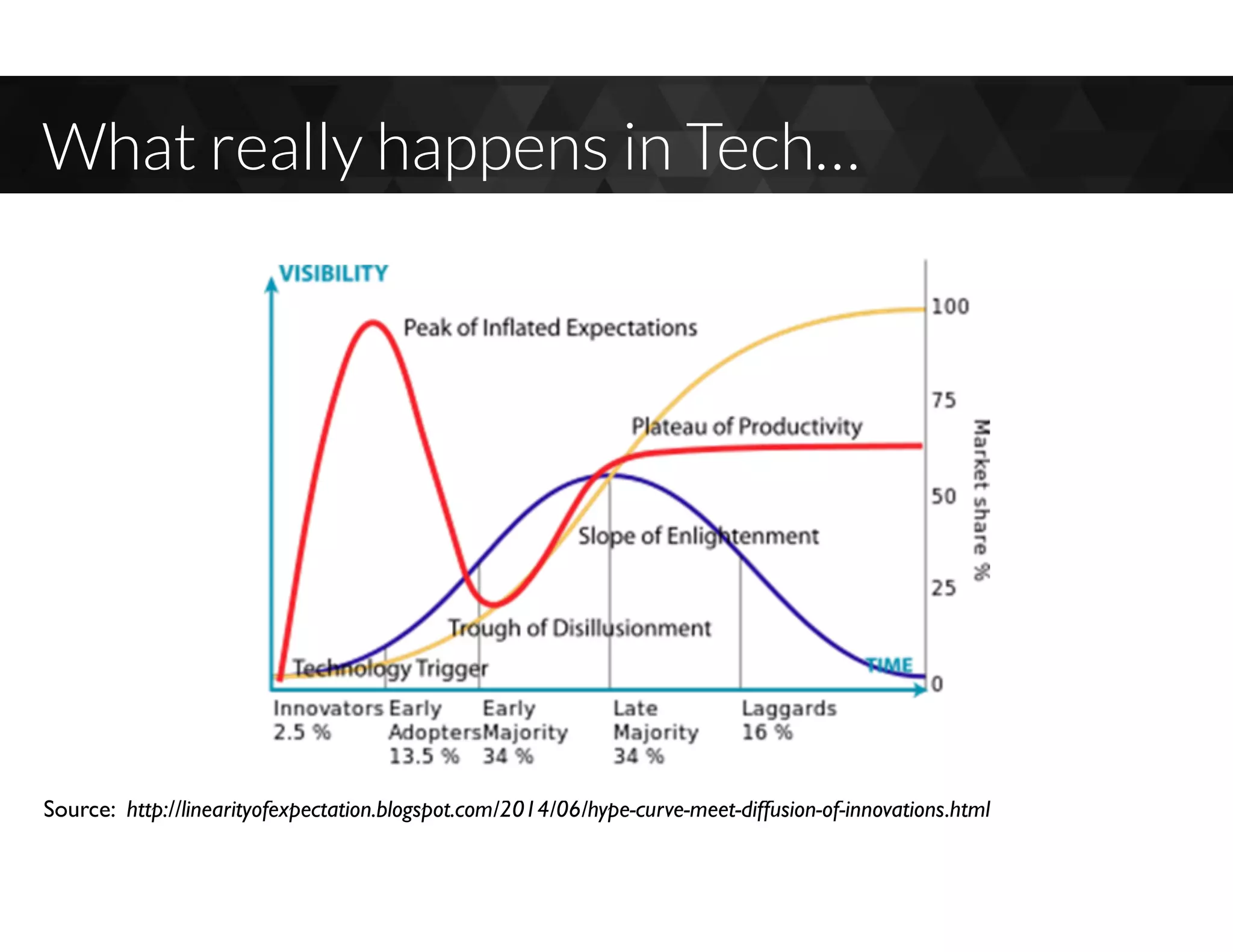

6. What really happens in Tech…
Source: http://linearityofexpectation.blogspot.com/2014/06/hype-curve-meet-diffusion-of-innovations.html

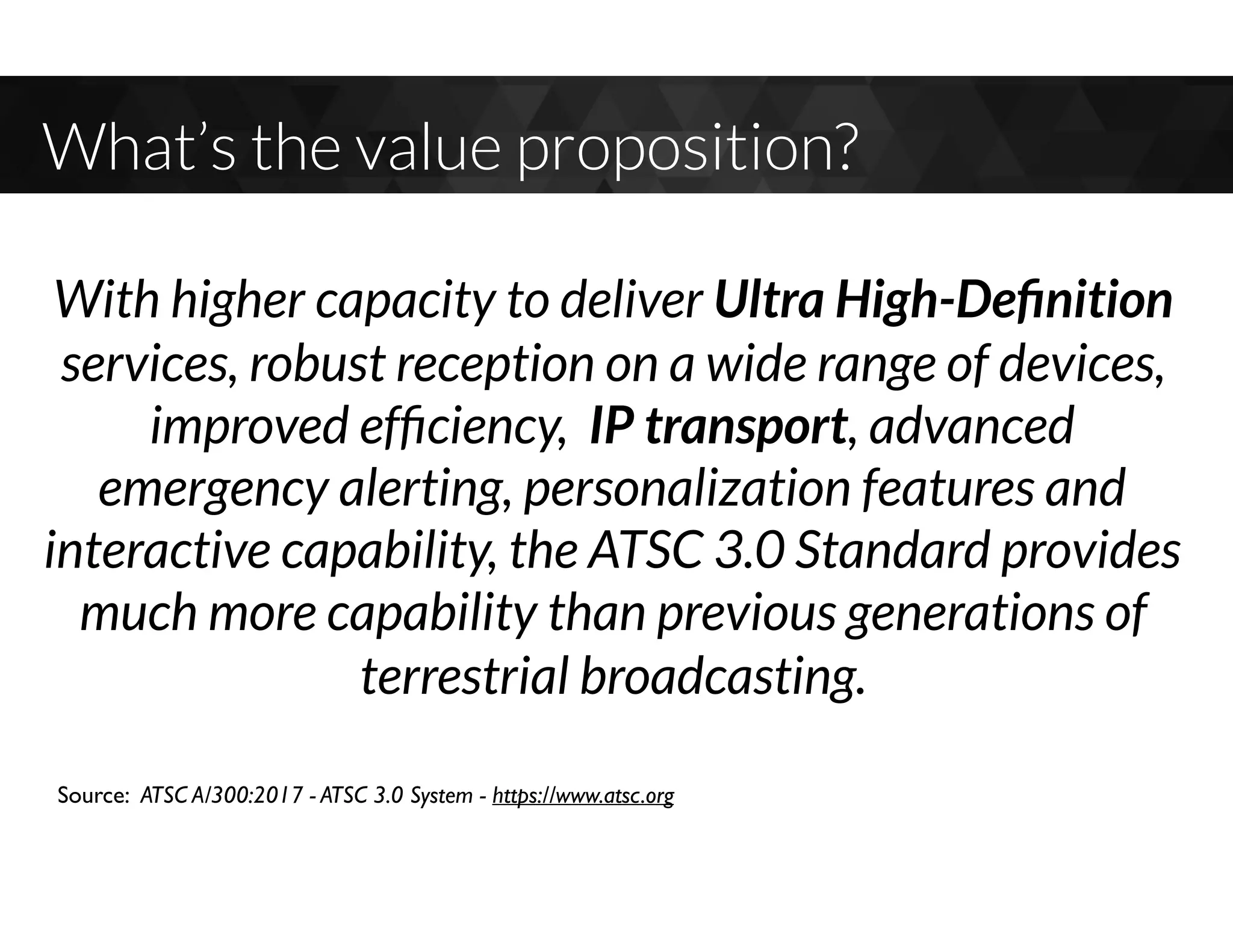

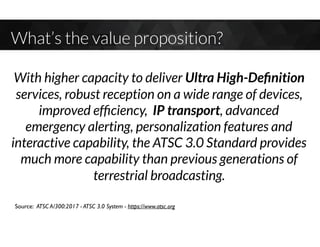

7. What’s the value proposition?
Source: ATSC A/300:2017 - ATSC 3.0 System - https://www.atsc.org
With higher capacity to deliver Ultra High-Definition
services, robust reception on a wide range of devices,
improved efficiency, IP transport, advanced
emergency alerting, personalization features and
interactive capability, the ATSC 3.0 Standard provides
much more capability than previous generations of
terrestrial broadcasting.

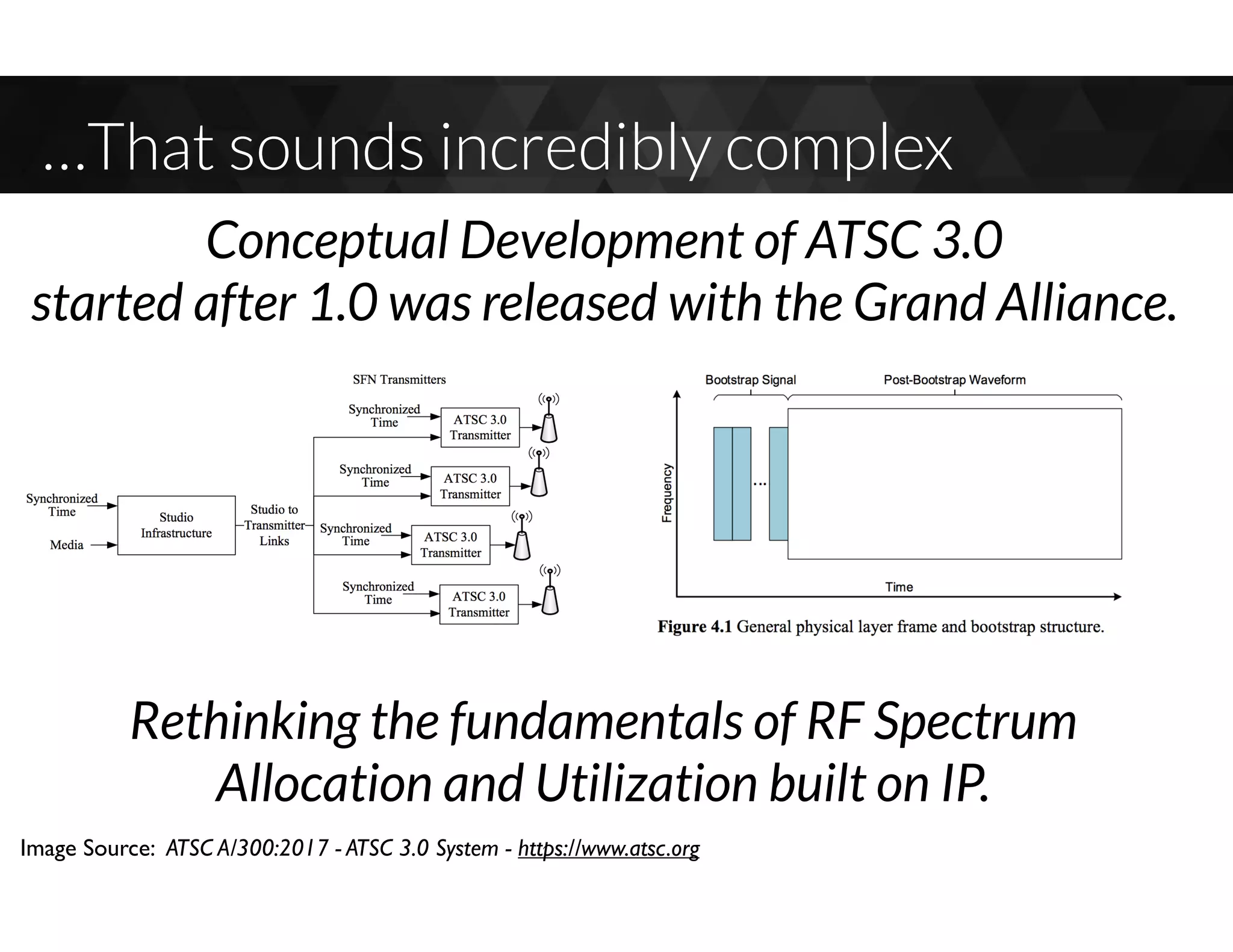

8. …That sounds incredibly complex
Image Source: ATSC A/300:2017 - ATSC 3.0 System - https://www.atsc.org
Conceptual Development of ATSC 3.0
started after 1.0 was released with the Grand Alliance.
Rethinking the fundamentals of RF Spectrum
Allocation and Utilization built on IP.

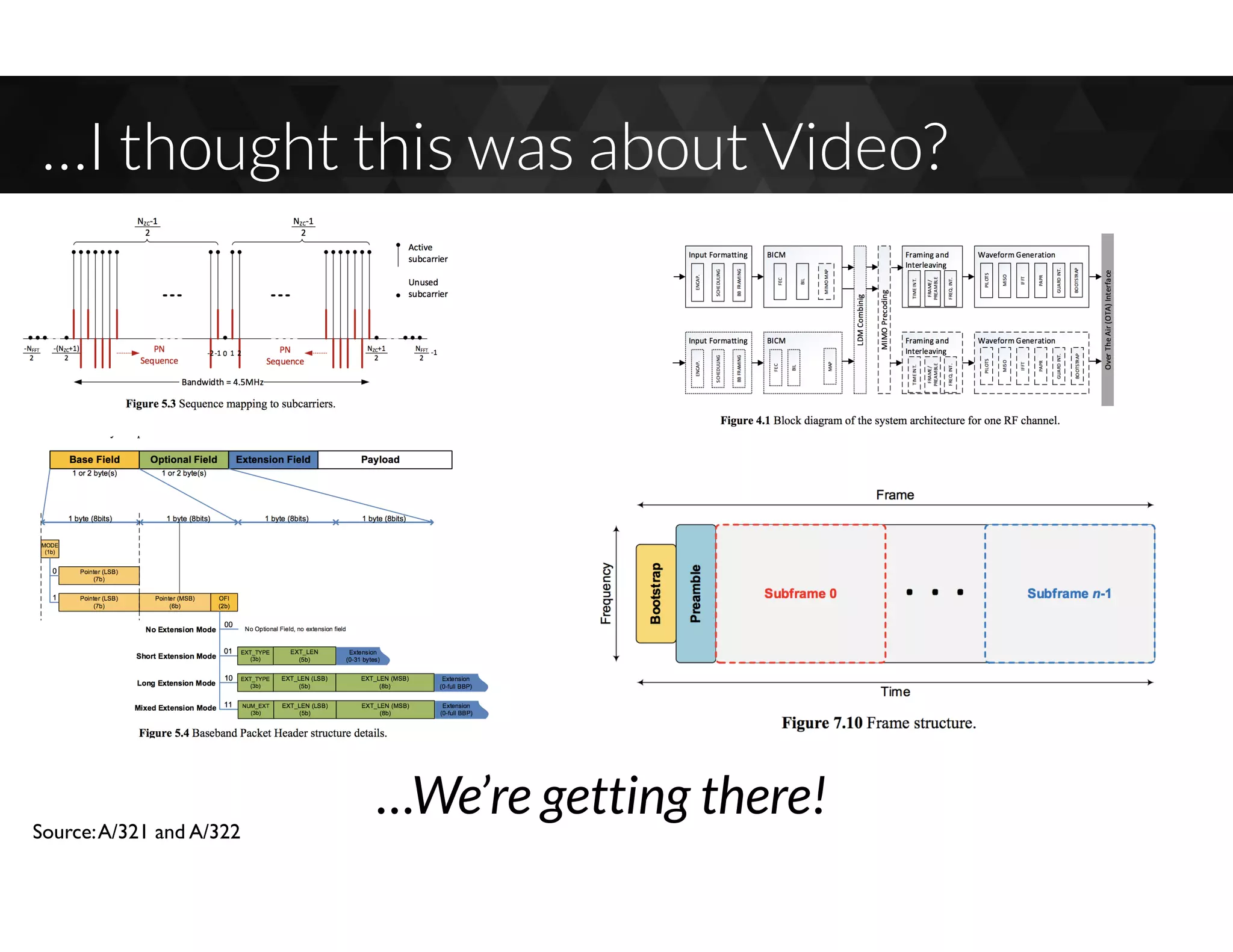

9. …I thought this was about Video?
…We’re getting there!Source:A/321 and A/322

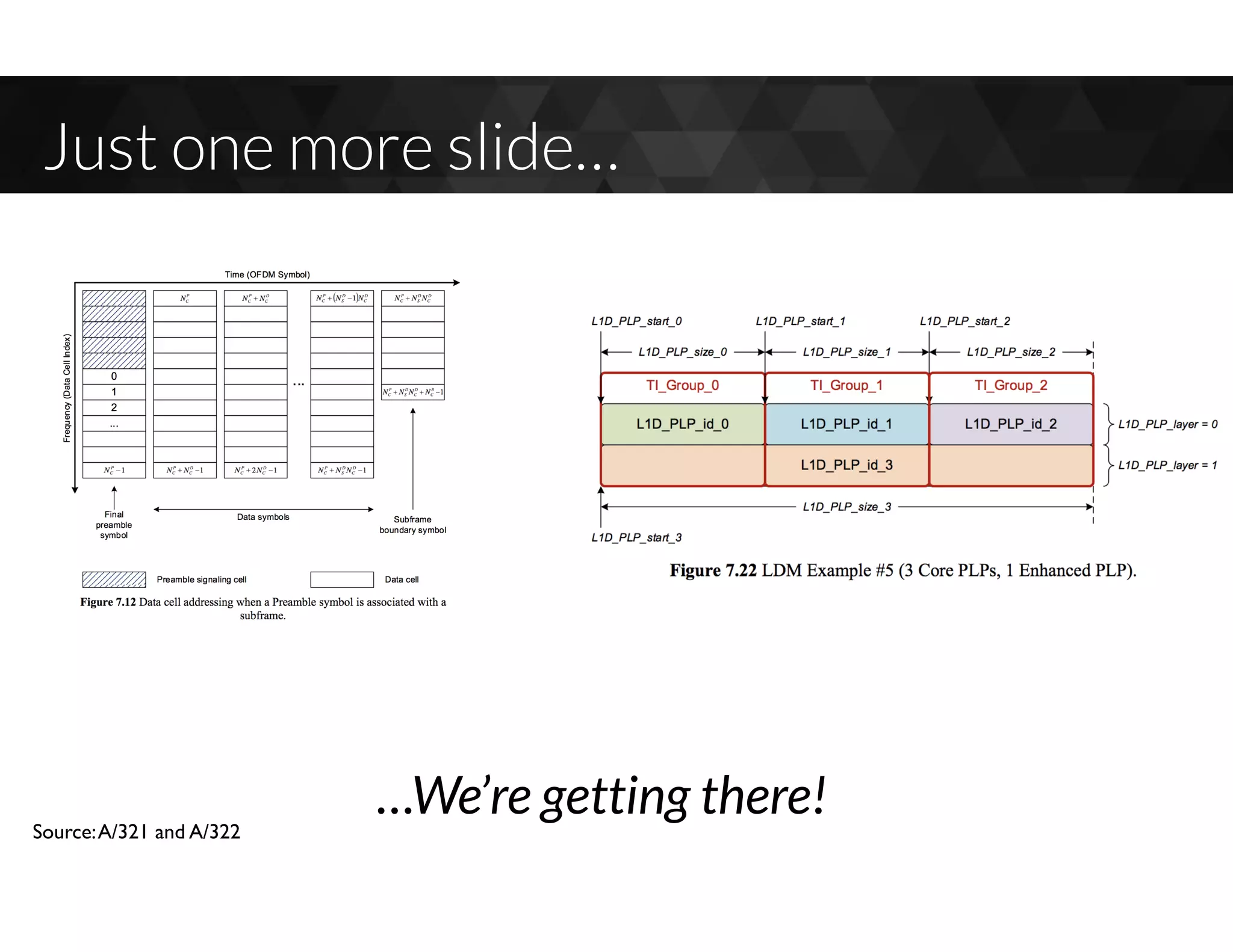

10. Just one more slide…
…We’re getting there!Source:A/321 and A/322

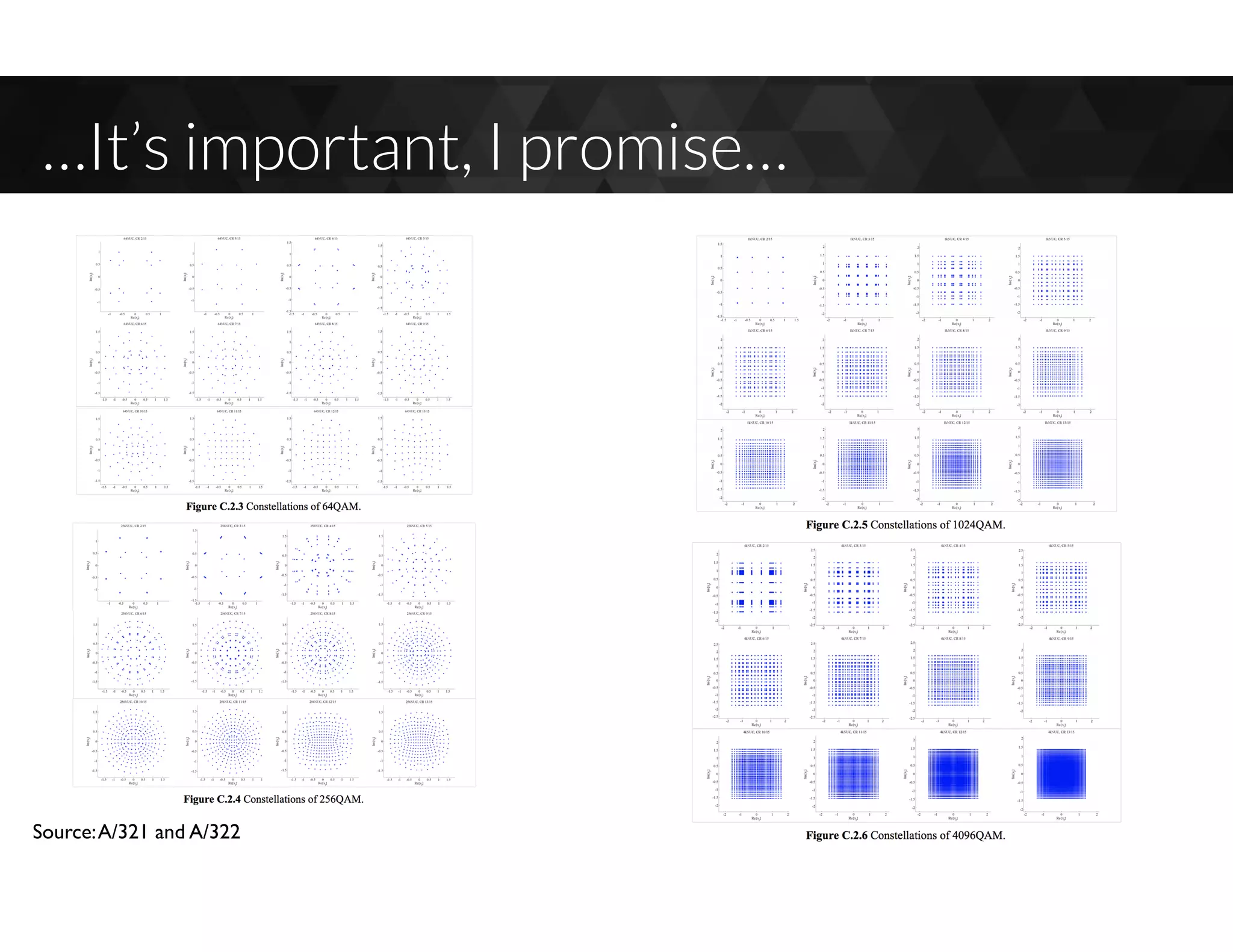

11. …It’s important, I promise…
Source:A/321 and A/322

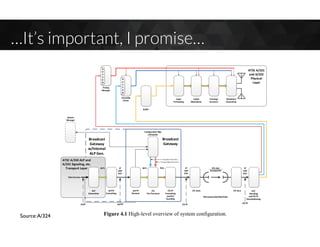

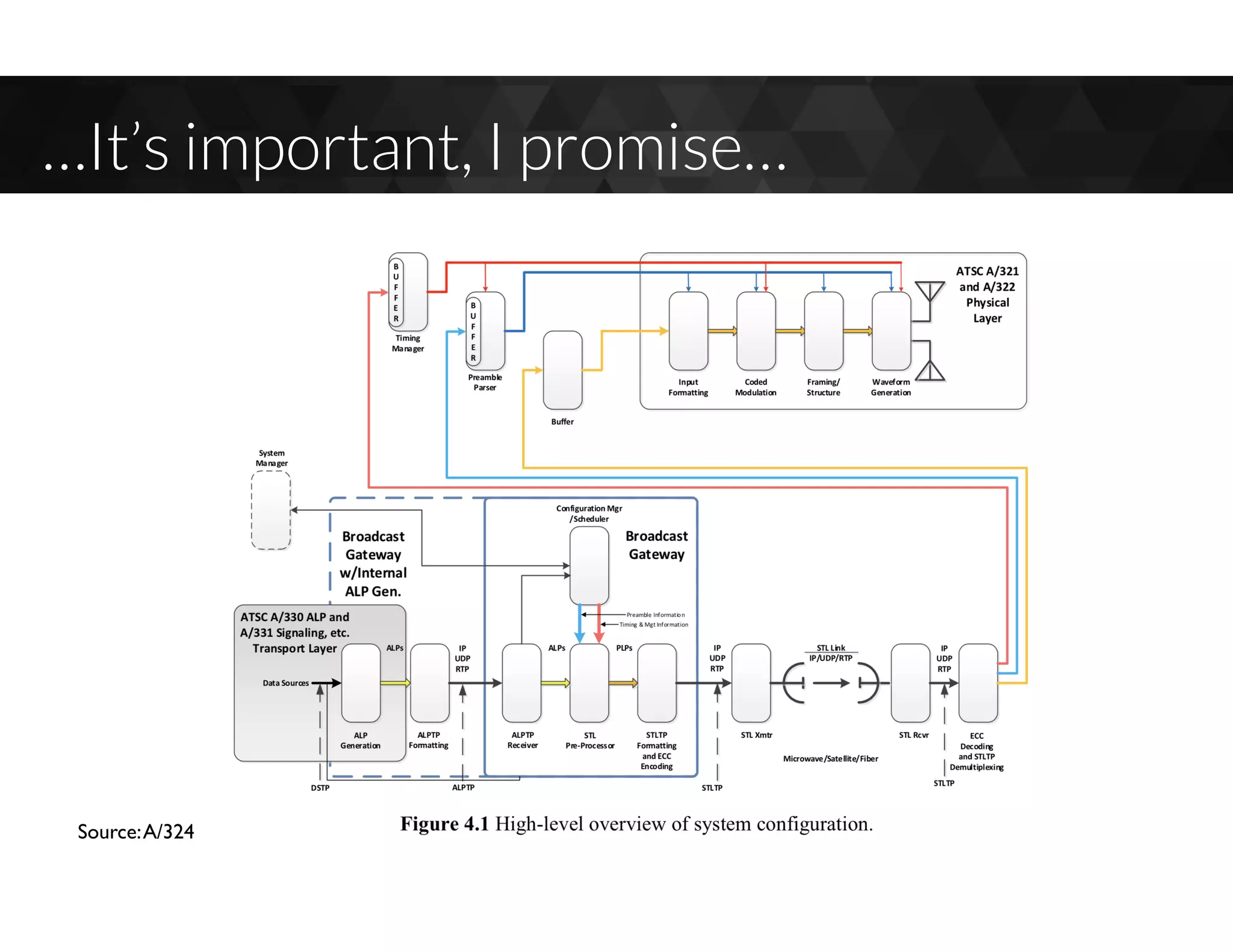

12. …It’s important, I promise…
Source:A/324

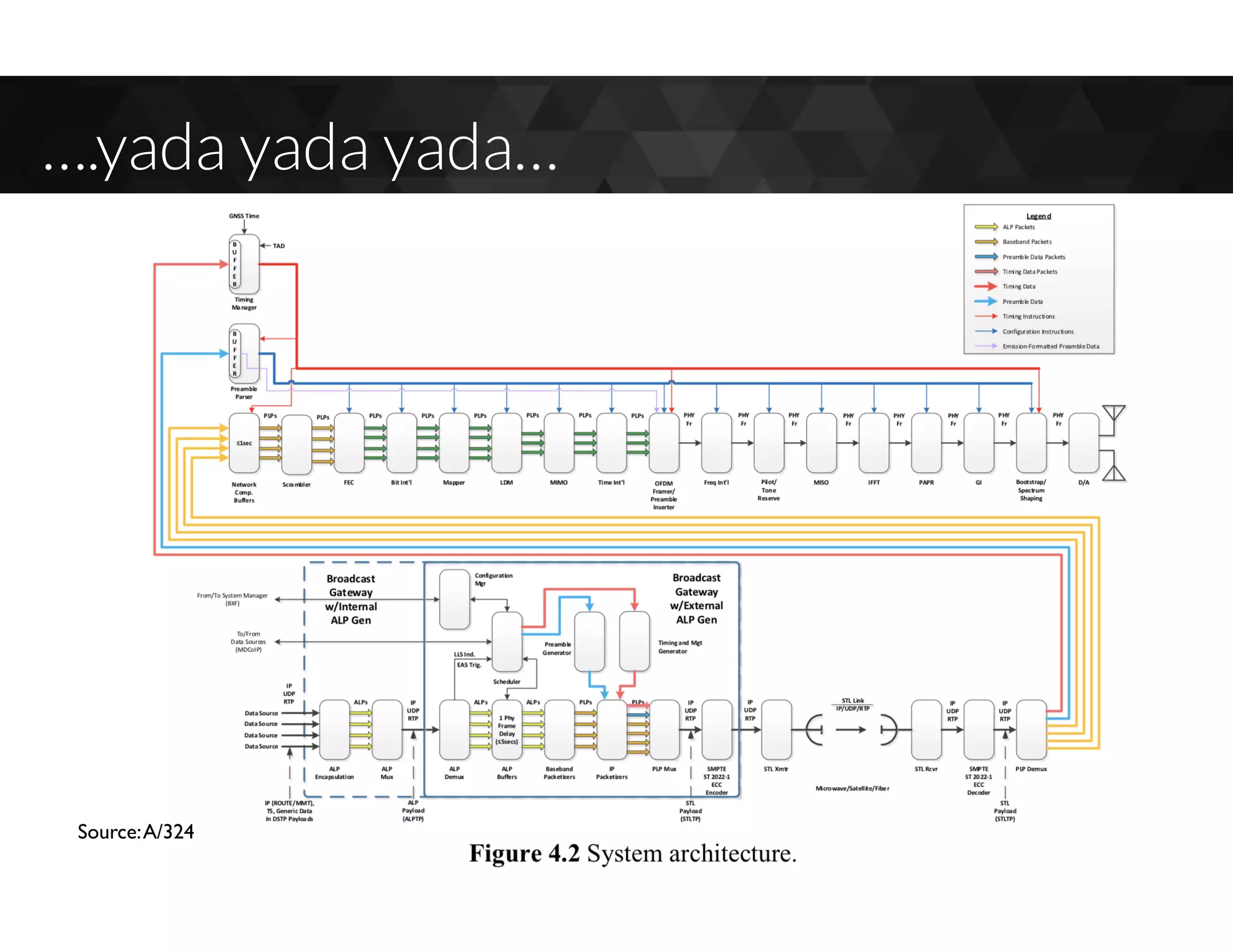

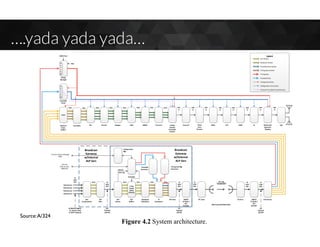

13. ….yada yada yada…
Source:A/324

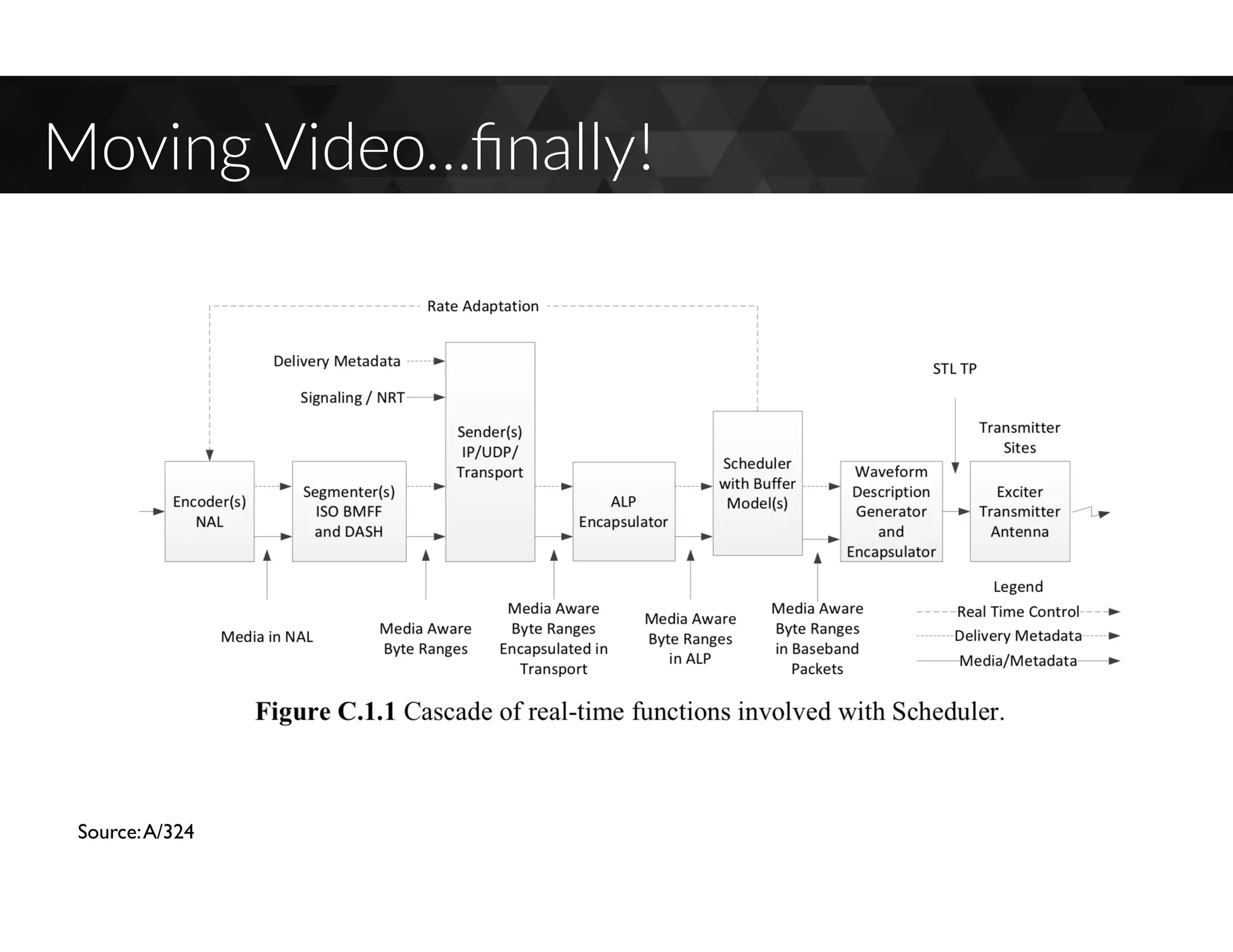

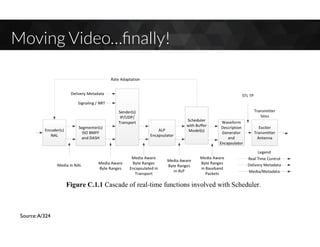

14. Moving Video…finally!
Source:A/324

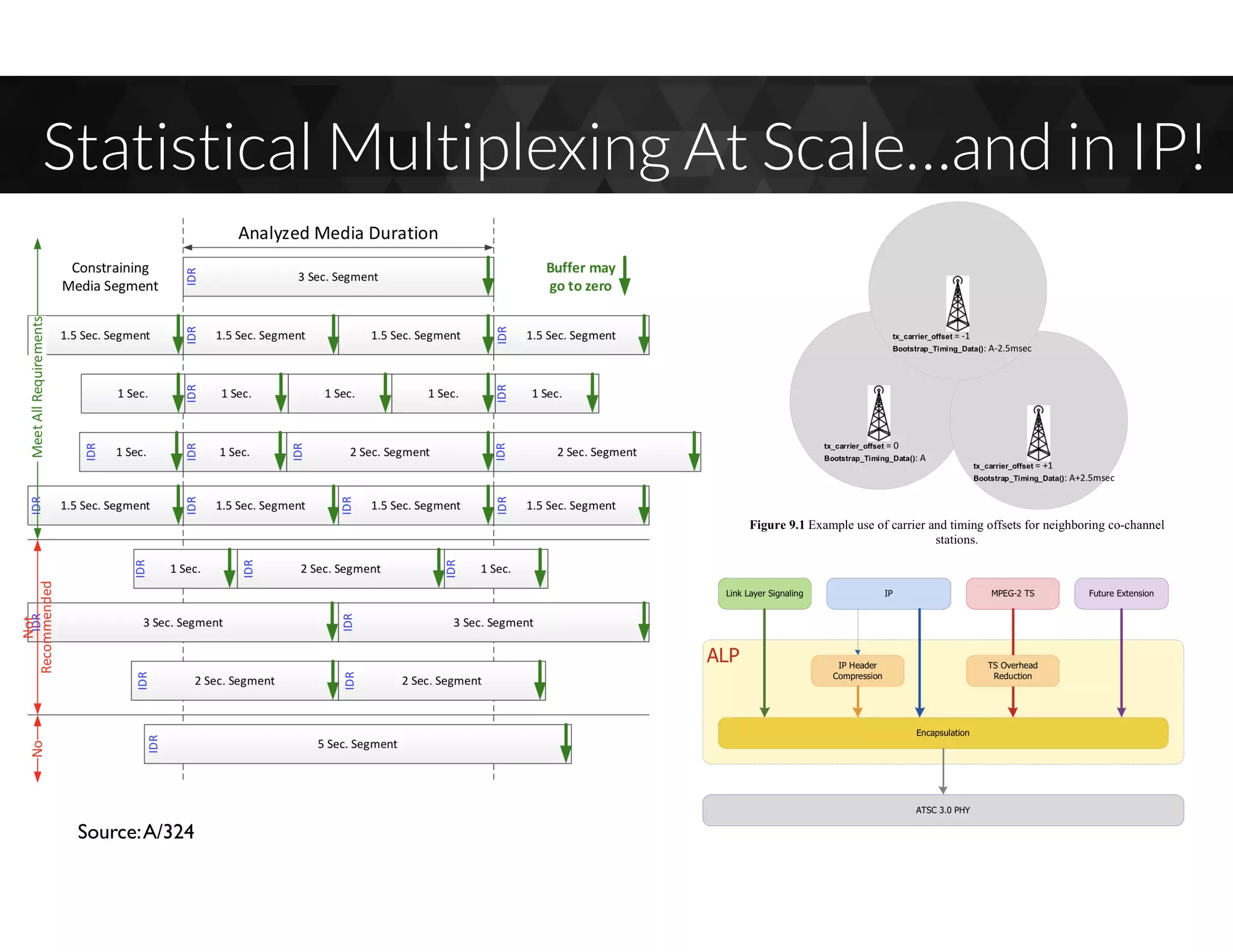

15. Statistical Multiplexing At Scale…and in IP!
Source:A/324

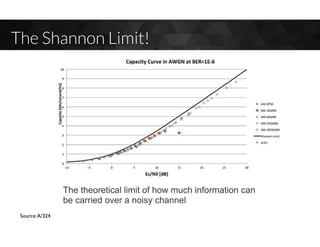

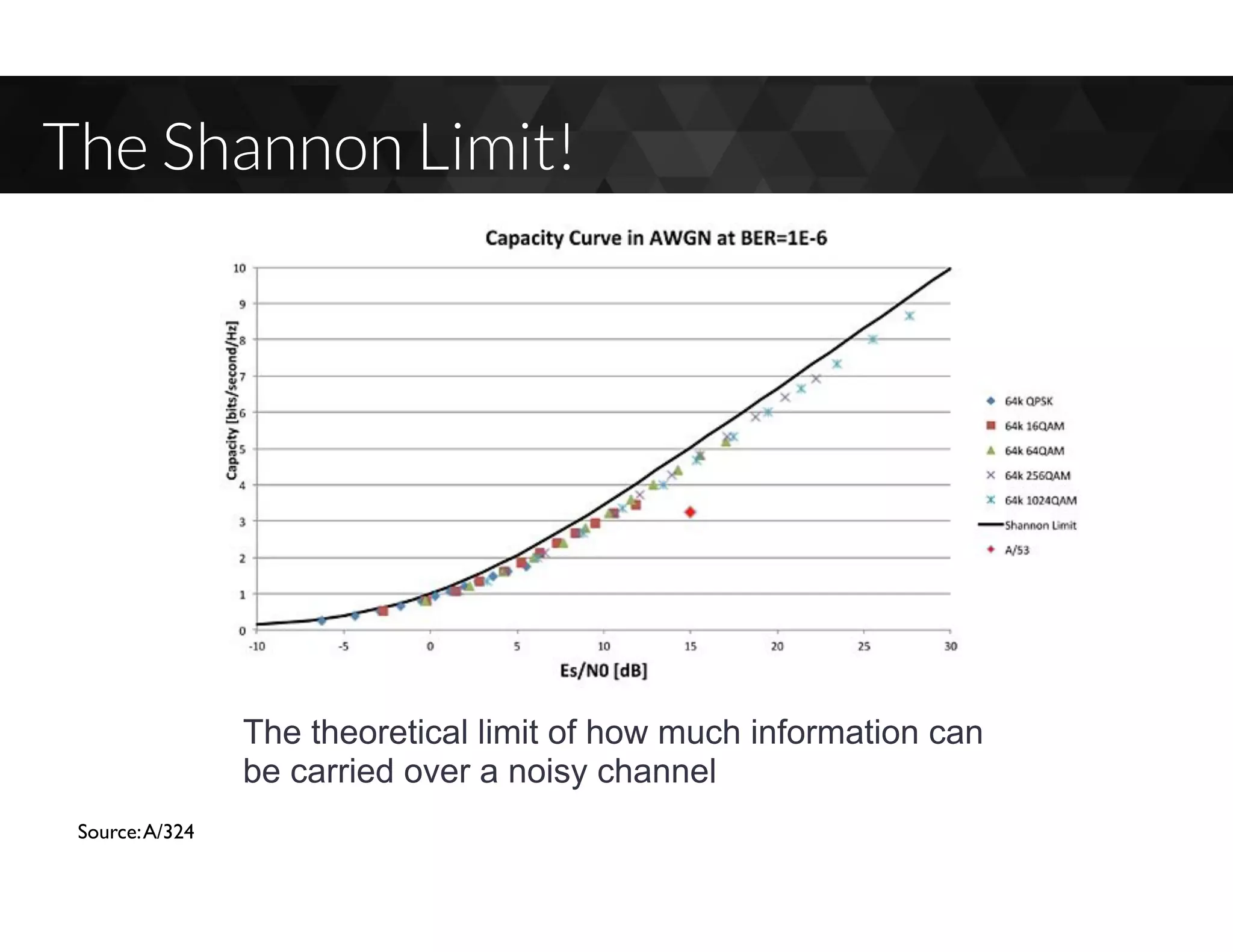

16. The Shannon Limit!
Source:A/324
The theoretical limit of how much information can
be carried over a noisy channel

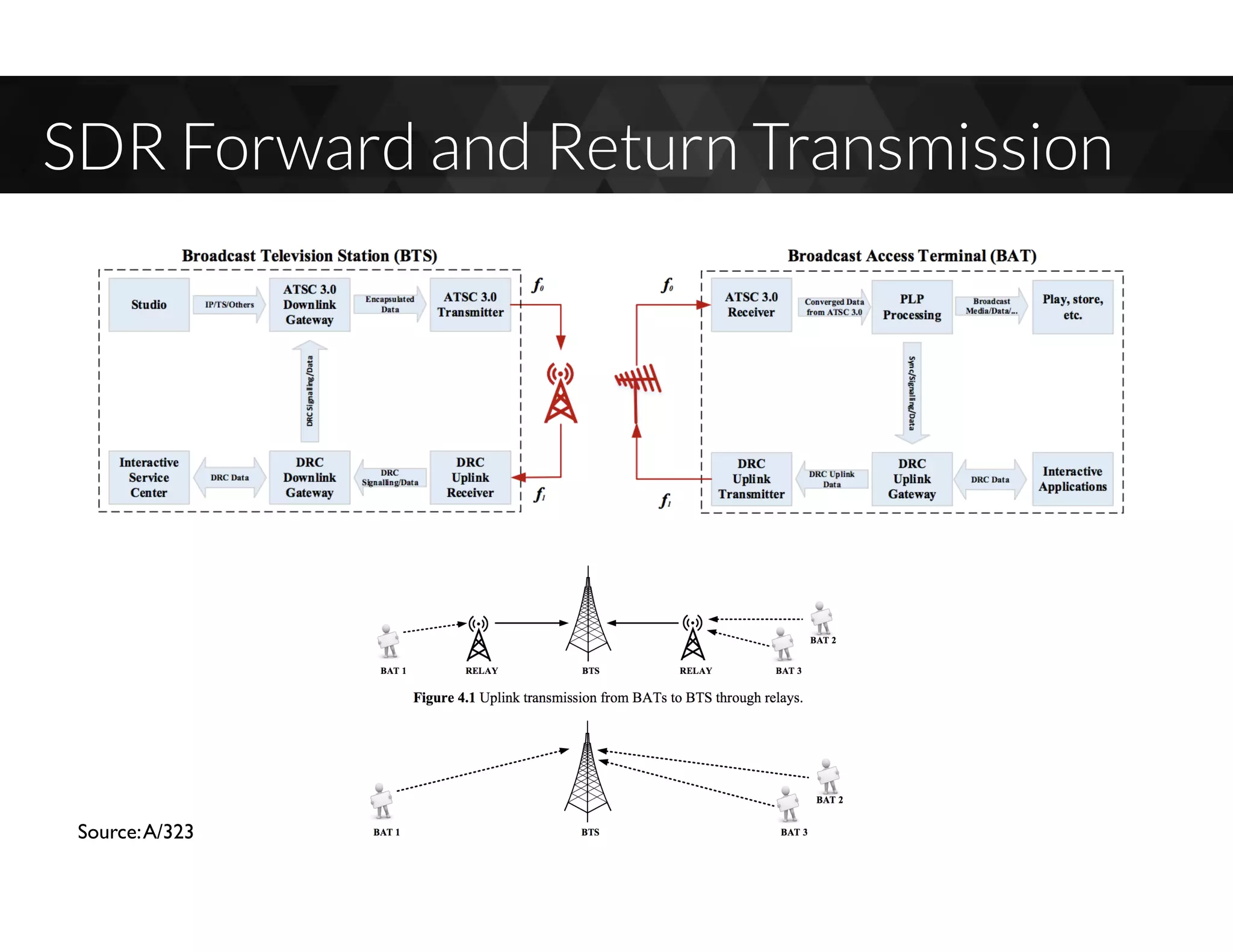

17. SDR Forward and Return Transmission
Source:A/323

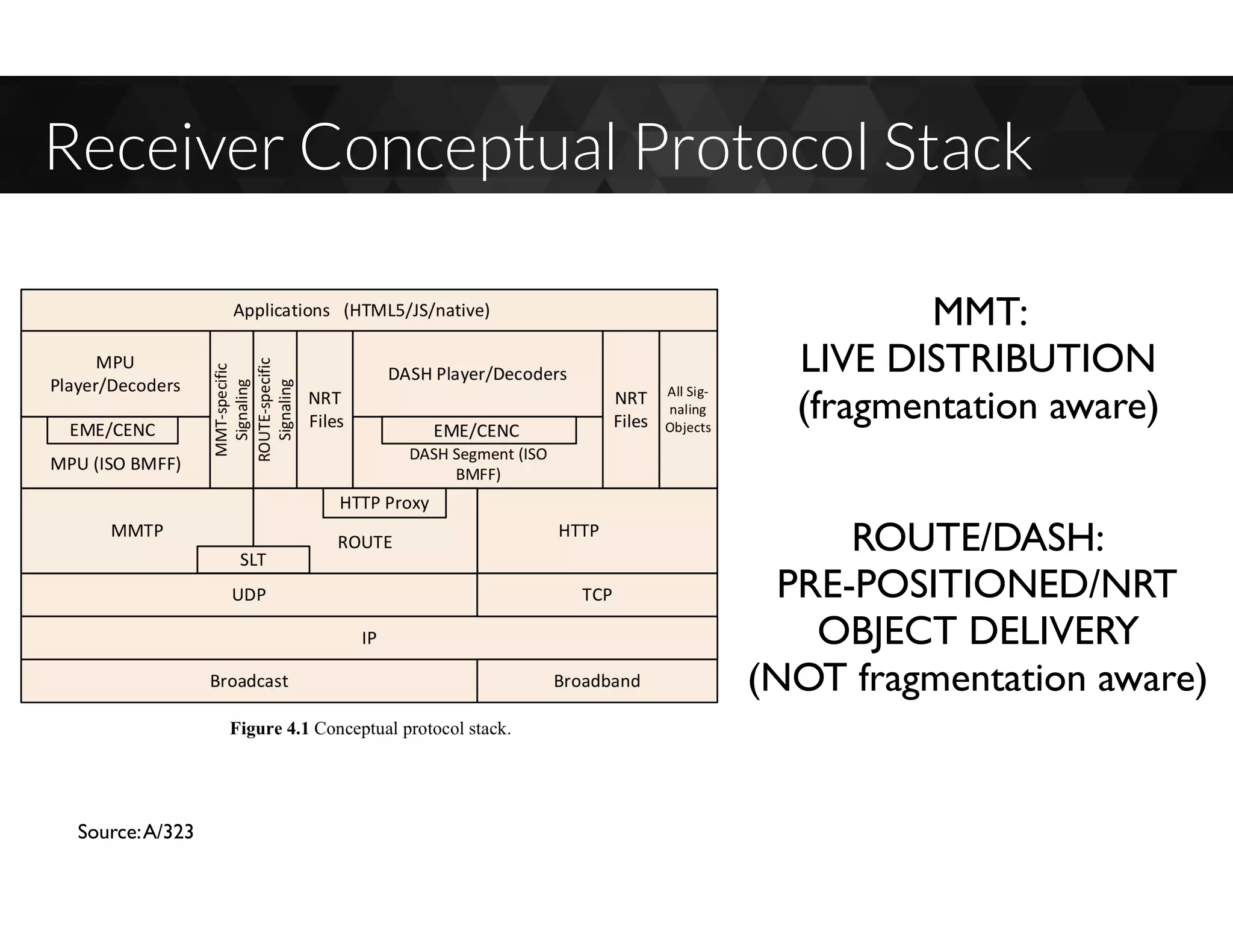

18. Receiver Conceptual Protocol Stack
Source:A/323
MMT:
LIVE DISTRIBUTION
(fragmentation aware)
ROUTE/DASH:
PRE-POSITIONED/NRT
OBJECT DELIVERY
(NOT fragmentation aware)

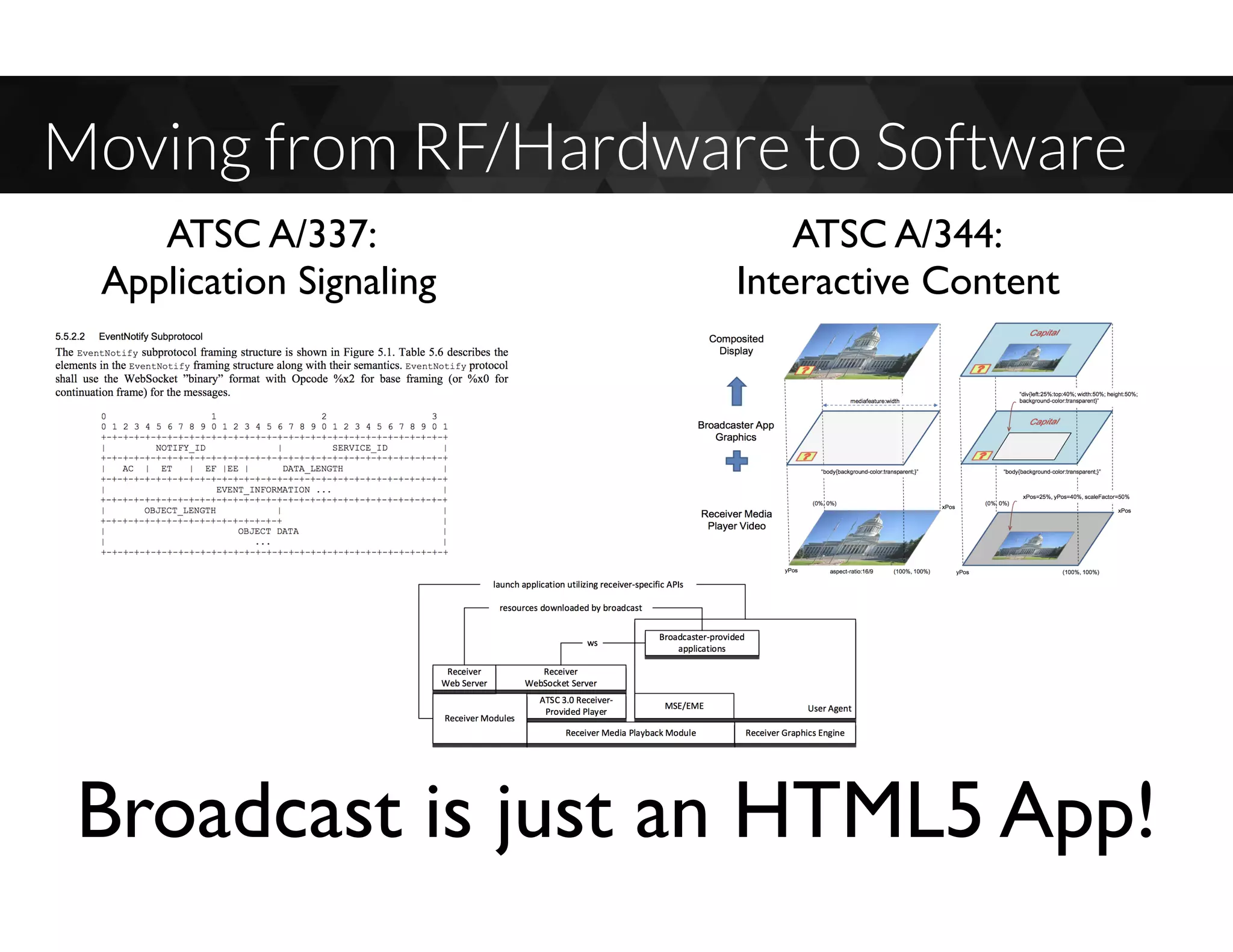

19. Moving from RF/Hardware to Software
Broadcast is just an HTML5 App!
ATSC A/337:
Application Signaling
ATSC A/344:
Interactive Content

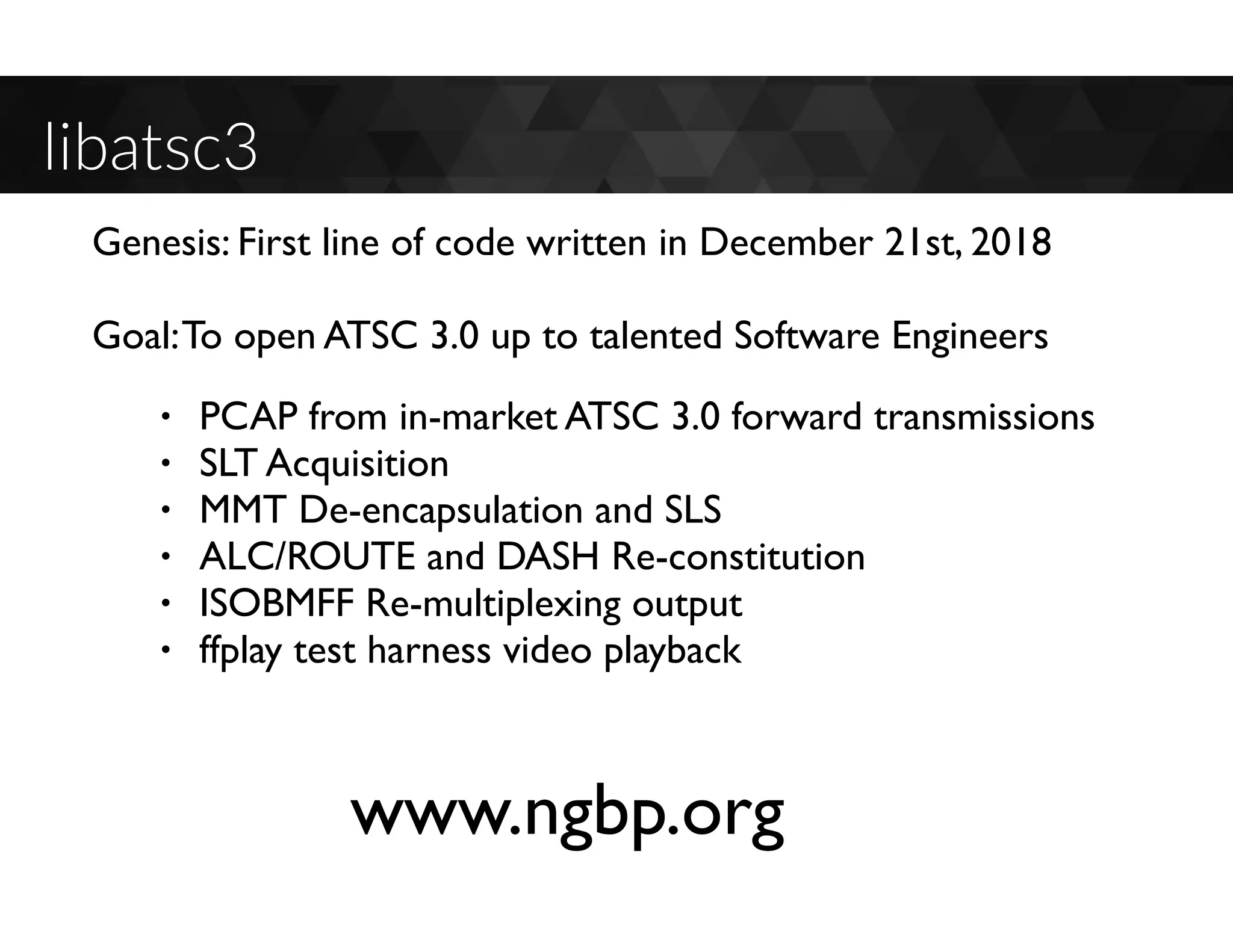

20. libatsc3
• PCAP from in-market ATSC 3.0 forward transmissions
• SLT Acquisition
• MMT De-encapsulation and SLS
• ALC/ROUTE and DASH Re-constitution
• ISOBMFF Re-multiplexing output
• ffplay test harness video playback
Genesis: First line of code written in December 21st, 2018
Goal:To open ATSC 3.0 up to talented Software Engineers
www.ngbp.org

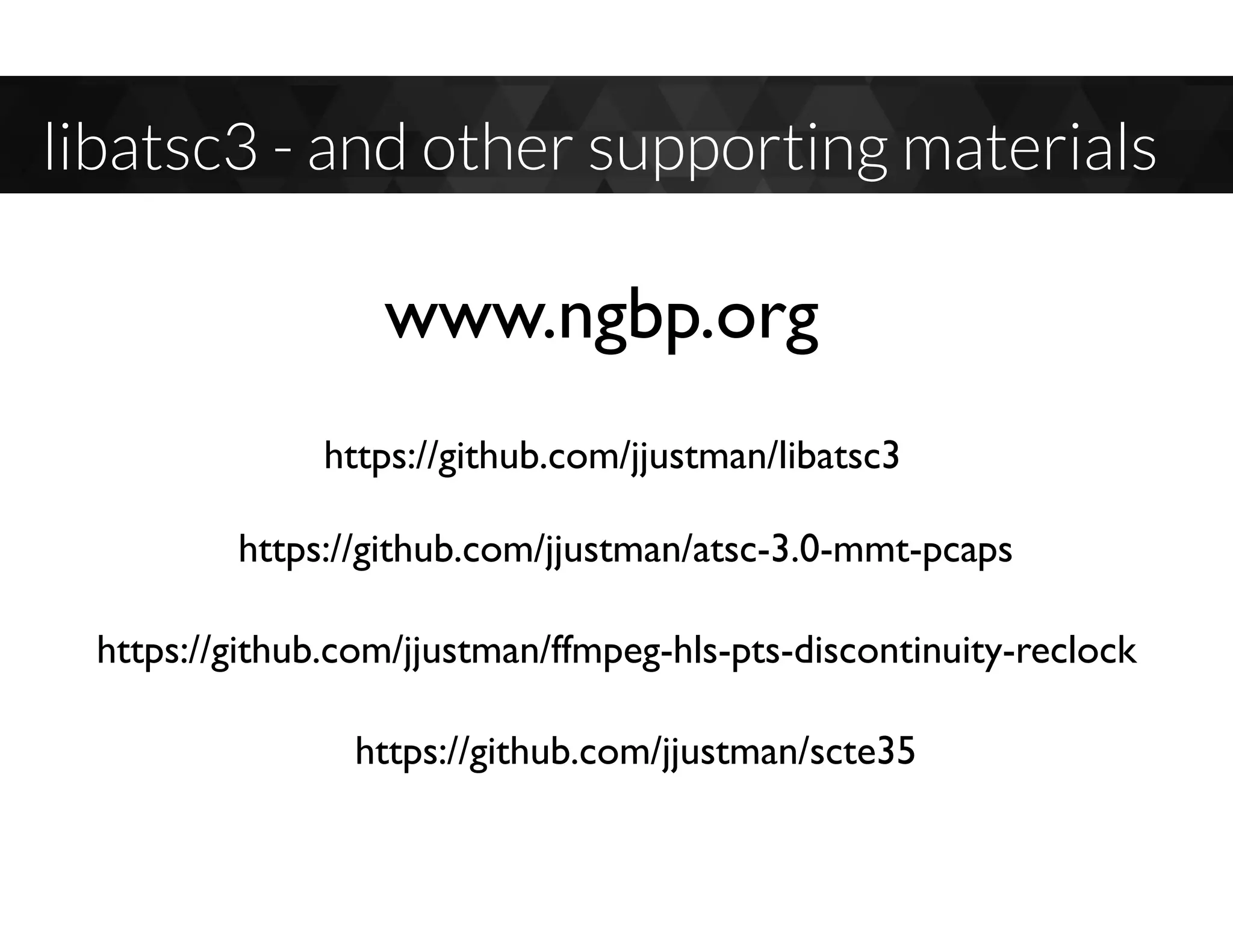

21. libatsc3 - and other supporting materials
https://github.com/jjustman/atsc-3.0-mmt-pcaps
www.ngbp.org
https://github.com/jjustman/libatsc3
https://github.com/jjustman/ffmpeg-hls-pts-discontinuity-reclock
https://github.com/jjustman/scte35
