82320
UTILITY TOOL KIT CASE
Tool features
Complete Utility Tool Kit compromises of the following:
1. WS64 Adjustable cable stripper
2. QC1 Quick clamp
3. WS76 Semi-con shaving tool
4. SCS Semi-con scoring tool
5. GBKG05-05 Chamfering tool
Weight of complete kit: 4.8kg Length: 44cm Height: 31cm Width: 11cm
The individual tools can be ordered separately.
Nexans Power Accessories (UK) Ltd, Castleford, West Yorkshire, WF10 2JA, United Kingdom.
Tel: +44 (0)1977 669966 Fax: +44 (0)1977 669977 Email: sales@nexansdirect.com
The tools within the Nexans Utility Tool Kit have been specially selected to ensure, that with the correct
usage, the preparation of medium voltage power cables can be easily undertaken. It contains all the
necessary tools required in order to prepare both bonded and peelable semi-conductive screened cores.
The Utility Tool Kit is supplied in a hard wearing, foam filled case which ensures, if properly used, that the
contents will be protected from damage ensuring a long and trouble free service.
Tel: +44 (0)191 490 1547
Fax: +44 (0)191 477 5371
Email: northernsales@thorneandderrick.co.uk
Website: www.cablejoints.co.uk
www.thorneanderrick.co.uk
Tel: +44 (0)191 490 1547
Fax: +44 (0)191 477 5371
Email: northernsales@thorneandderrick.co.uk
Website: www.cablejoints.co.uk
www.thorneanderrick.co.uk
Tool features
 “Universal” tool for end stripping or mid span stripping of outer jackets or insulating material.
 End stripping and mid span stripping with different blades (interchangeable).
 “Dual position” jaw for cable sizes from 1/2” up to 2-1/2” (12.7 to 63.5 mm) cable O.D. is
versatile for electric utility applications.
 Removes outer jacket on primary power cable (all major insulation shields)
 When using mid span blade stripping version, caution must be used when end
stripping concentric neutral cables.
 Versatile design also includes ability to strip secondary and primary cable insula-
tions.
 Quickly and easily adjusts to cable size with spring loaded “trigger-action” jaw.
 Micro adjustable blade allows accurate setup for a variety of insulation thicknesses.
 Self feeding tool design allows easy and efficient operation with minimal effort.
 Compact design for tighter work space requirements
 Rugged, all metal body design.
 Length: 8 in (200 mm) Weight: 1.9 lb. (860 g).
WS 64
ADJUSTABLE CABLE STRIPPER
Nexans Power Accessories (UK) Ltd, Castleford, West Yorkshire, WF10 2JA, United Kingdom.
Tel: +44 (0)1977 669966 Fax: +44 (0)1977 669977 Email: sales@nexansdirect.com
QC-1
QUICK CLAMP
Tool features
 “Quick  ac on”  cable  clamp  for  use  as  a  stop  for  jacket  stripping  opera ons.
 Spring  loaded  jaws  allow  fast   ghtening  onto  cables,  saving  valuable   me.
 Suitable  for  cable  sizes  from  0.50”  (12.7  mm)  up  to  2.5”  (63.5  mm)  O.D.
 Rugged,  bronze  cas ng  design  for  years  of  use.
 Length:  7”  (178  mm)  Weight:  3  lb.  4  oz  (875  g)
WS 76
SEMI-CON SHAVING TOOL
Nexans Power Accessories (UK) Ltd, Castleford, West Yorkshire, WF10 2JA, United Kingdom.
Tel: +44 (0)1977 669966 Fax: +44 (0)1977 669977 Email: sales@nexansdirect.com
Tool features
 Designed  to  shave  bonded  semi-con.
 Facilitates  removal  of  non  bonded  semi-con  from  older  deployed  cables.
 Shaves  15-35  kV  cable.
 Diameter  range  over  screen  0.71”  -2.36”  (18  mm-60  mm).
 Accurately  removes  semi-con  shield  within  25  mm  (spiral  ac on)  in  forward  posi on.
 By  reversing  the  tool,  accurately  removes  semi-con  shield  within  7  mm  (spiral  ac on)
 Winding  pin  to  remove  chip.
 Self  feeding  with  stop  posi on,  two  speeds  forward  and  two  speeds  reverse.
 Accommodates  a  max  semi-con  thickness  of  3/32  in  (2.4  mm).
 Blade  provides  a  20°  chamfer  cut  finish  at  the  semi-con  end.
 Blade  adjustment  with  0.004”  0.1  mm)  increments.
 Precision  self  feeding  bearings  guide.
 Easy  blade  replacement  without  the  need  for  addi onal  tools.
 Thumb  switch  to  allow  spiral  to  square  cut  without  requiring  a  stop  device.
 No  need  for  using  messy  cable  lubricant.
 Robust,  high  quality  steel  and  aluminium  construc on.
 Size:  3.44  in  (87.3  mm)  x  5.52  in  (140.3  mm)  x  2.03  in  (51.7  mm)  Weight:  1  lb  (454  g)
 Replacement  blades  available.
Application
cable preparation tools are used to splice and terminate cable for the Power Transmission and
Distribution, electrical construction and maintenance industries. All tools are designed and manufactured to
meet specific cable application needs, including accurate removal of insulation, semi-conductive sheathing,
protective jacketing and other materials to produce consistent, uniform preparation of cable ends for
splicing and termination.
Application
cable preparation tools are used to splice and terminate cable for the Power Transmission and
Distribution, electrical construction and maintenance industries. All tools are designed and manufactured to
meet specific cable application needs, including accurate removal of insulation, semi-conductive sheathing,
protective jacketing and other materials to produce consistent, uniform preparation of cable ends for
splicing and termination.
The SCS Semi-con Scoring Tool is used to make precision score depth cuts on high voltage power cables
with strippable semi-con for the purpose of proper semi-con removal. The cable size range is 8 mm to
45mm (.31 - 1.8”) diameter over the semi-con screen. The tool scoring depth is up to 4 mm (.16”).
SCS
SEMI-CON SCORING TOOL
Tool features
 Easy and precise blade adjustment from 0 to 0.16” (0-4 mm) depth with
0.002” (0.05 mm) increments for accurate semi-con scoring.
 Accommodates cable ranges of 0.31”-1.77” (8 mm-45 mm).
 Tri-action scoring capability: ring cut, spiral cut, longitudinal cut.
 2” envelope on larger cables.
 Four (4) spiral cut settings for optimal chip width.
 Micro indexing blade depth adjustment in 0.05 mm (.002”) increments.
 Blade squaring adjustment feature.
 Allows for easy blade change.
 Compact design for easier use and storage.
 Easily mounts on the cable.
 Length: 3.28in (83.30 mm) Weight: 0.61lb (0.27kg)
Nexans Power Accessories (UK) Ltd, Castleford, West Yorkshire, WF10 2JA, United Kingdom.
Tel: +44 (0)1977 669966 Fax: +44 (0)1977 669977 Email: sales@nexansdirect.com

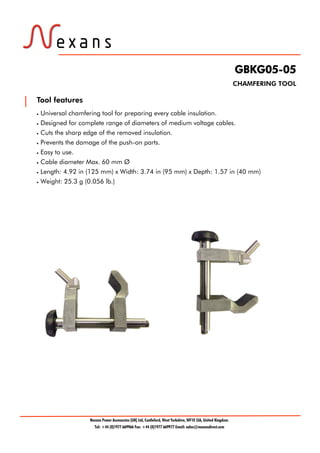

GBKG05-05
CHAMFERING TOOL
Tool features
 Universal chamfering tool for preparing every cable insulation.
 Designed for complete range of diameters of medium voltage cables.
 Cuts the sharp edge of the removed insulation.
 Prevents the damage of the push-on parts.
 Easy to use.
 Cable diameter Max. 60 mm Ø
 Length: 4.92 in (125 mm) x Width: 3.74 in (95 mm) x Depth: 1.57 in (40 mm)
 Weight: 25.3 g (0.056 lb.)
Nexans Power Accessories (UK) Ltd, Castleford, West Yorkshire, WF10 2JA, United Kingdom.
Tel: +44 (0)1977 669966 Fax: +44 (0)1977 669977 Email: sales@nexansdirect.com
Tel: +44 (0)191 490 1547
Fax: +44 (0)191 477 5371
Email: northernsales@thorneandderrick.co.uk
Website: www.cablejoints.co.uk
www.thorneanderrick.co.uk
