1. Continuous Deployment Showdown:
Traditional CI/CD vs. GitOps
Marc Müller
Principal Consultant
marc.mueller@4tecture.ch
@muellermarc
www.4tecture.ch

3. Slide Download
https://www.4tecture.ch/events/dotnetday2023

4. Agenda
▪ Intro
▪ Setup
▪ Implementing the Deployment
▪ Staging
▪ Automatic Updates
▪ Cluster Setup with Azure
Pipelines
▪ Conclusion

5. Intro

6. Once upon a time…
Source: https://pixabay.com/de/illustrations/ai-generiert-mann-designer-7974535/, https://imgflip.com/i/7x3amn, https://imgflip.com/i/7x3apt, https://imgflip.com/i/7x3at0
* pretty similar

7. Our playground…
▪ ASP.NET Core Application
▪ Dockerized
▪ Kubernetes deployment environment

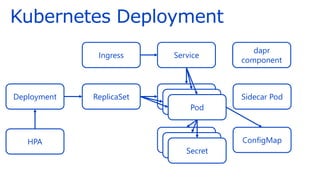

8. Kubernetes Deployment
Deployment Pod
Service
Pod
Pod
Ingress
Secret
Secret
Secret
ConfigMap
HPA
ReplicaSet
dapr
component
Sidecar Pod

9. We focus on deployment …this is the build

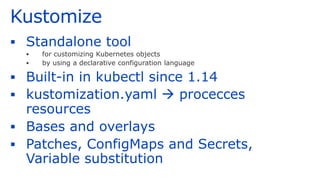

10. Kustomize
▪ Standalone tool
▪ for customizing Kubernetes objects
▪ by using a declarative configuration language
▪ Built-in in kubectl since 1.14
▪ kustomization.yaml → procecces
resources
▪ Bases and overlays
▪ Patches, ConfigMaps and Secrets,
Variable substitution

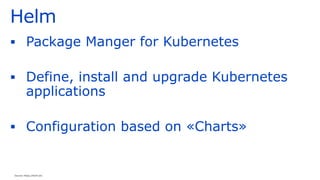

11. Helm
▪ Package Manger for Kubernetes
▪ Define, install and upgrade Kubernetes
applications
▪ Configuration based on «Charts»
Source: https://helm.sh/

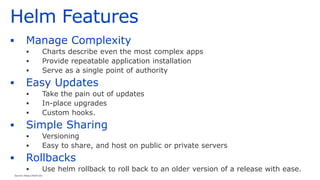

12. Helm Features
▪ Manage Complexity
▪ Charts describe even the most complex apps
▪ Provide repeatable application installation
▪ Serve as a single point of authority
▪ Easy Updates
▪ Take the pain out of updates
▪ In-place upgrades
▪ Custom hooks.
▪ Simple Sharing
▪ Versioning
▪ Easy to share, and host on public or private servers
▪ Rollbacks
▪ Use helm rollback to roll back to an older version of a release with ease.
Source: https://helm.sh/

13. Source: https://imgflip.com/i/7xal0f

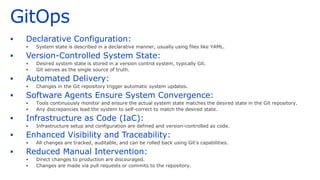

14. GitOps
▪ Declarative Configuration:
▪ System state is described in a declarative manner, usually using files like YAML.
▪ Version-Controlled System State:
▪ Desired system state is stored in a version control system, typically Git.
▪ Git serves as the single source of truth.
▪ Automated Delivery:
▪ Changes in the Git repository trigger automatic system updates.
▪ Software Agents Ensure System Convergence:
▪ Tools continuously monitor and ensure the actual system state matches the desired state in the Git repository.
▪ Any discrepancies lead the system to self-correct to match the desired state.
▪ Infrastructure as Code (IaC):
▪ Infrastructure setup and configuration are defined and version-controlled as code.
▪ Enhanced Visibility and Traceability:
▪ All changes are tracked, auditable, and can be rolled back using Git's capabilities.
▪ Reduced Manual Intervention:
▪ Direct changes to production are discouraged.
▪ Changes are made via pull requests or commits to the repository.

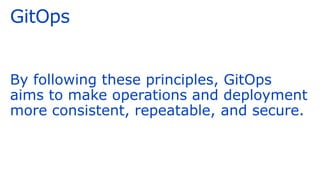

15. GitOps
By following these principles, GitOps
aims to make operations and deployment
more consistent, repeatable, and secure.

16. Setup

17. General Setup
Deployment Target (k8s)
Config
(Git)
Artifacts
(Container Registry)
Deployer App
Container
Helm
Chart

18. Azure Pipelines

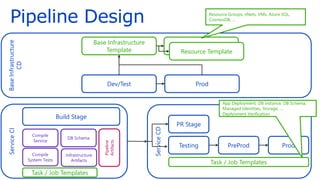

19. Base
Infrastructure
CD
Service
CD
Pipeline Design
Base Infrastructure
Template
Resource Template
Resource Template
Dev/Test Prod
Service
CI
Build Stage
PR Stage
Testing PreProd Prod
Compile
Service
DB Schema
Compile
System Tests
Infrastructure
Artifacts
Pipeline
Artifacts
Task / Job Templates
Task / Job Templates
Resource Groups, vNets, VMs, Azure SQL,
CosmosDB, …
App Deployment, DB instance, DB Schema,
Managed Identities, Storage, …
Deplyoment Verification

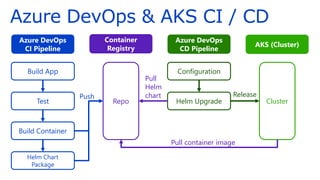

20. Azure DevOps & AKS CI / CD
Azure DevOps
CI Pipeline
Azure DevOps
CD Pipeline
Container
Registry
Build App
Test
Build Container
Repo
Configuration
Helm Upgrade
AKS (Cluster)
Helm Chart
Package
Push
Cluster
Pull container image
Release
Pull
Helm
chart

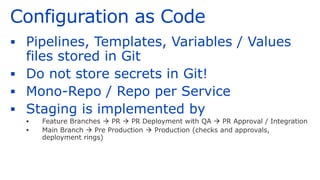

21. Configuration as Code
▪ Pipelines, Templates, Variables / Values
files stored in Git
▪ Do not store secrets in Git!
▪ Mono-Repo / Repo per Service
▪ Staging is implemented by
▪ Feature Branches → PR → PR Deployment with QA → PR Approval / Integration
▪ Main Branch → Pre Production → Production (checks and approvals,
deployment rings)

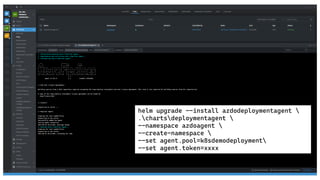

24. helm upgrade --install azdodeploymentagent
.chartsdeploymentagent
--namespace azdoagent
--create-namespace
--set agent.pool=k8sdemodeployment
--set agent.token=xxxx

25. Flux

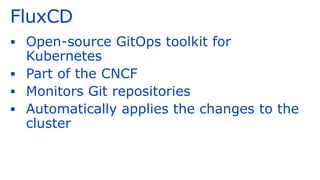

26. FluxCD
▪ Open-source GitOps toolkit for
Kubernetes
▪ Part of the CNCF
▪ Monitors Git repositories
▪ Automatically applies the changes to the
cluster

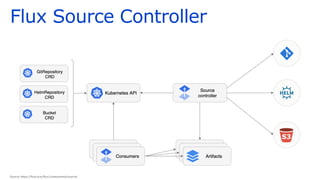

27. Flux Source Controller

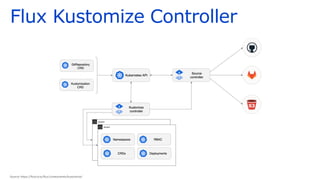

28. Flux Kustomize Controller

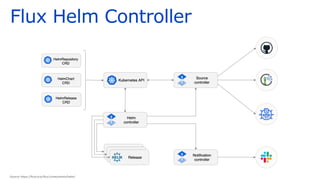

29. Flux Helm Controller

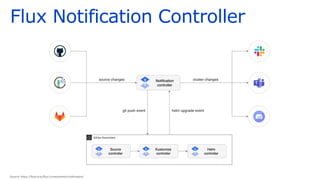

30. Flux Notification Controller

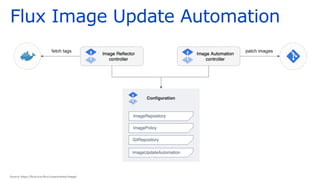

31. Flux Image Update Automation

32. Setup Flux
▪ Install the CLI
▪ Installation in k8s
▪ flux bootstrap
▪ flux install
▪ Add kustomizations, sources, …
Deployment Target (k8s)
Config
(Git)
Artifacts
(Container Registry)
Flux
Controller
Flux
Controller
Flux
Controller
Flux
Controller

33. Implementing the
Deployment

34. Azure Pipelines

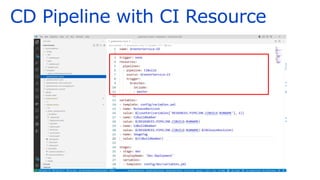

35. CD Pipeline with CI Resource

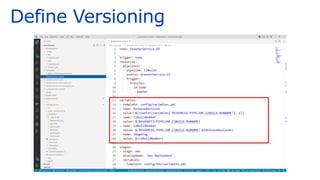

36. Define Versioning

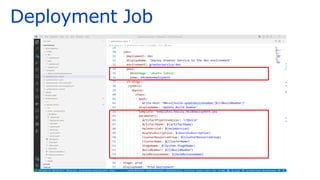

37. Deployment Job

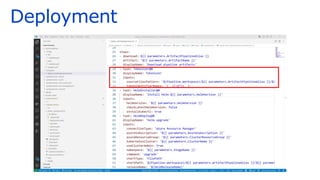

38. Deployment

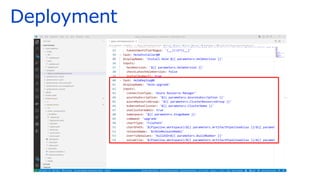

39. Deployment

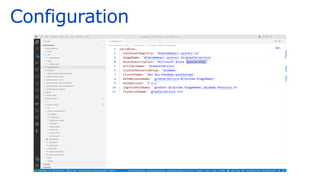

40. Configuration

41. Flux

42. Kustomization

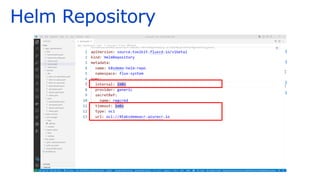

43. Helm Repository

44. Helm Release

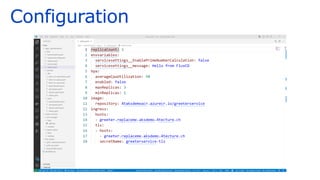

45. Configuration

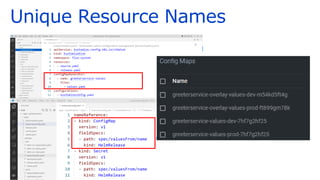

46. Unique Resource Names

47. Staging

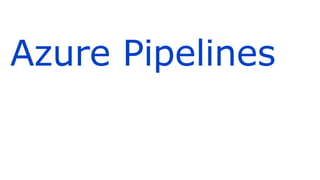

48. Azure Pipelines

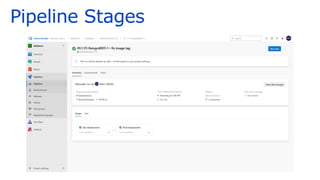

49. Pipeline Stages

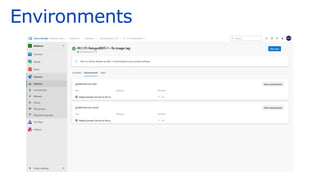

50. Environments

51. Dedicated Settings per Stage

52. Dedicated Settings per Stage

53. Flux

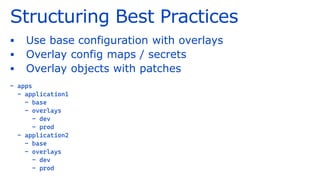

54. Structuring Best Practices
▪ Use base configuration with overlays
▪ Overlay config maps / secrets
▪ Overlay objects with patches
- apps
- application1
- base
- overlays
- dev
- prod
- application2
- base
- overlays
- dev
- prod

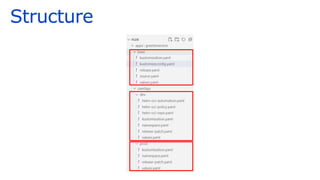

55. Structure

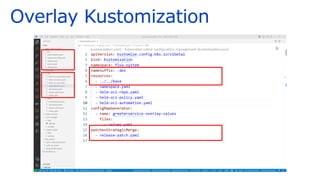

56. Overlay Kustomization

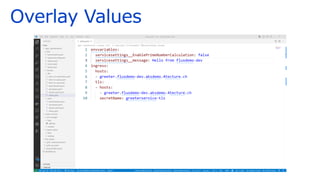

57. Overlay Values

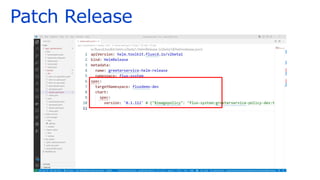

58. Patch Release

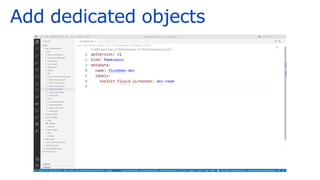

59. Add dedicated objects

60. Automatic Updates

61. Azure Pipelines

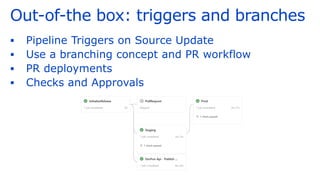

62. Out-of-the box: triggers and branches
▪ Pipeline Triggers on Source Update
▪ Use a branching concept and PR workflow
▪ PR deployments
▪ Checks and Approvals

63. Flux

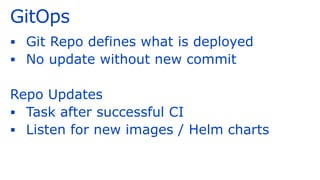

64. GitOps
▪ Git Repo defines what is deployed
▪ No update without new commit
Repo Updates
▪ Task after successful CI
▪ Listen for new images / Helm charts

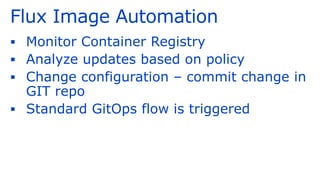

65. Flux Image Automation
▪ Monitor Container Registry
▪ Analyze updates based on policy
▪ Change configuration – commit change in
GIT repo
▪ Standard GitOps flow is triggered

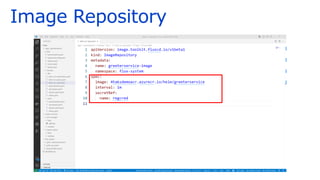

66. Image Repository

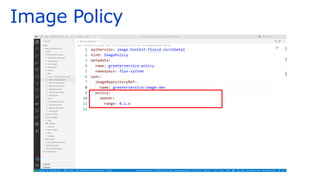

67. Image Policy

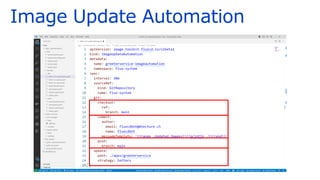

68. Image Update Automation

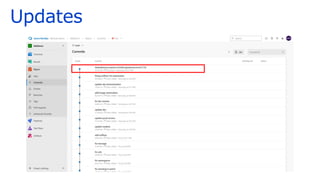

70. Updates

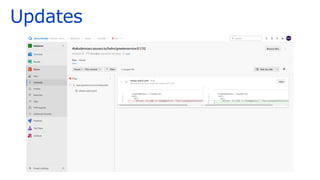

71. Updates

72. Cluster Setup
with Azure Pipelines

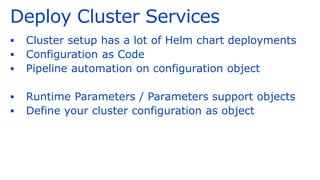

73. Deploy Cluster Services
▪ Cluster setup has a lot of Helm chart deployments
▪ Configuration as Code
▪ Pipeline automation on configuration object
▪ Runtime Parameters / Parameters support objects
▪ Define your cluster configuration as object

74. Parameter with all charts

76. Add and update Helm Repos

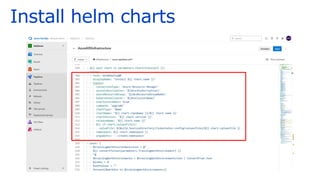

77. Install helm charts

78. Conclusion

79. Comparison
Pipelines
▪ Everything in Git
▪ Versatile
▪ Full DevOps Lifecycle
▪ End-to-end
Traceability
▪ Integrated Test
Automation
Flux
▪ Everything in Git
▪ K8s Deployments
▪ Focus on Continuous
Deployment
▪ Independent /
Various Sources

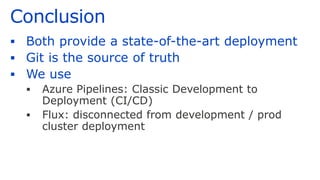

80. Conclusion
▪ Both provide a state-of-the-art deployment
▪ Git is the source of truth
▪ We use
▪ Azure Pipelines: Classic Development to
Deployment (CI/CD)
▪ Flux: disconnected from development / prod
cluster deployment
