![Method: POST
URI: https://dev.azure.com/4tecture-demo/_apis/public/distributedtask/webhooks/prupdated?api-version=6.0-preview
HTTP Version: 1.1
Headers:
{
Content-Type: application/json; charset=utf-8
}
Content:
{
"subscriptionId": "1de80ac8-b9a7-42d0-a2fe-5441c2b7ffc2",
"notificationId": 14,
"id": "af07be1b-f3ad-44c8-a7f1-c4835f2df06b",
"eventType": "git.pullrequest.updated",
"publisherId": "tfs",
"message": {
"text": "Jamal Hartnett marked the pull request as completed",
"html": "Jamal Hartnett marked the pull request as completed",
"markdown": "Jamal Hartnett marked the pull request as completed"
},
"detailedMessage": {
"text": "Jamal Hartnett marked the pull request as completedrnrn- Merge status: Succeededrn- Merge commit: eef717(https://fabrikam.visualstudio.com/DefaultCollection/_apis/git/repositories/4bc14d40-c903-45e2-872e-0462c7748079/commi
"html": "Jamal Hartnett marked the pull request as completedrn<ul>rn<li>Merge status: Succeeded</li>rn<li>Merge commit: <a href="https://fabrikam.visualstudio.com/DefaultCollection/_apis/git/repositories/4bc14d40-c903-45e2-872e-
0462c7748079/commits/eef717f69257a6333f221566c1c987dc94cc0d72">eef717</a></li>rn</ul>",
"markdown": "Jamal Hartnett marked the pull request as completedrnrn+ Merge status: Succeededrn+ Merge commit: [eef717](https://fabrikam.visualstudio.com/DefaultCollection/_apis/git/repositories/4bc14d40-c903-45e2-872e-0462c7748079
},
"resource": {
"repository": {
"id": "4bc14d40-c903-45e2-872e-0462c7748079",
"name": "Fabrikam",
"url": "https://fabrikam.visualstudio.com/DefaultCollection/_apis/git/repositories/4bc14d40-c903-45e2-872e-0462c7748079",
"project": {
"id": "6ce954b1-ce1f-45d1-b94d-e6bf2464ba2c",
"name": "Fabrikam",
"url": "https://fabrikam.visualstudio.com/DefaultCollection/_apis/projects/6ce954b1-ce1f-45d1-b94d-e6bf2464ba2c",
"state": "wellFormed",
"visibility": "unchanged",
"lastUpdateTime": "0001-01-01T00:00:00"
},
"defaultBranch": "refs/heads/master",
"remoteUrl": "https://fabrikam.visualstudio.com/DefaultCollection/_git/Fabrikam"
},
"pullRequestId": 1,
"status": "completed",
"createdBy": {
"displayName": "Jamal Hartnett",
"url": "https://fabrikam.vssps.visualstudio.com/_apis/Identities/54d125f7-69f7-4191-904f-c5b96b6261c8",
"id": "54d125f7-69f7-4191-904f-c5b96b6261c8",
"uniqueName": "fabrikamfiber4@hotmail.com",
"imageUrl": "https://fabrikam.visualstudio.com/DefaultCollection/_api/_common/identityImage?id=54d125f7-69f7-4191-904f-c5b96b6261c8"
},
"creationDate": "2014-06-17T16:55:46.589889Z",
"closedDate": "2014-06-30T18:59:12.3660573Z",
"title": "my first pull request",
"description": " - test2rn",
"sourceRefName": "refs/heads/mytopic",](https://image.slidesharecdn.com/pullrequestdeployments-230626134004-487b70e0/85/DWX-2023-Schnelles-Feedback-mit-Pull-Request-Deployments-67-320.jpg)
Uploaded byMarc Müller
DWX 2023 - Schnelles Feedback mit Pull-Request Deployments
The document outlines a continuous integration and deployment (CI/CD) pipeline process involving multiple stages such as code testing, stabilization, deployment, and verification for applications and databases. It details various tasks, configurations, and tooling, including pull request status updates, environment setups, and deployment verification mechanisms. It also references specific services, infrastructure components, and workflows using Azure DevOps and Docker for managing and deploying applications efficiently.
More Related Content
Similar to DWX 2023 - Schnelles Feedback mit Pull-Request Deployments
DWX 2023 - Schnelles Feedback mit Pull-Request Deployments
- 6.

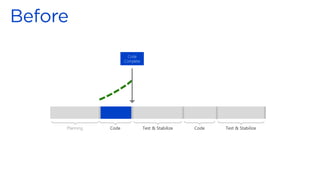

- 9. Code Test &Stabilize Code Test & Stabilize Code Complete Planning
- 11.
- 12.
- 14.
- 16.
- 17.
- 19.
- 20.

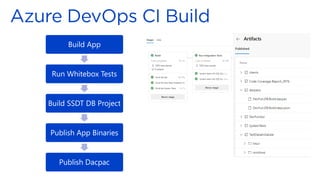

- 21. Build App Run WhiteboxTests Build SSDT DB Project Publish App Binaries Publish Dacpac
- 23.
- 24.
- 25.

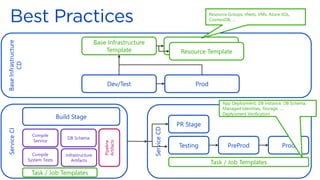

- 27. Base Infrastructure CD Service CD Base Infrastructure Template Resource Template ResourceTemplate Dev/Test Prod Service CI Build Stage PR Stage Testing PreProd Prod Compile Service DB Schema Compile System Tests Infrastructure Artifacts Pipeline Artifacts Task / Job Templates Task / Job Templates Resource Groups, vNets, VMs, Azure SQL, CosmosDB, … App Deployment, DB instance, DB Schema, Managed Identities, Storage, … Deplyoment Verification
- 28.

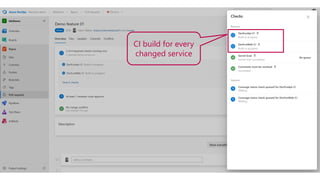

- 29. CI build forevery changed service

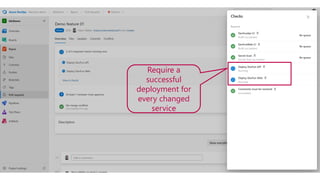

- 30. Require a successful deployment for everychanged service
- 31.
- 32.
- 33.
- 41.
- 42.
- 44.

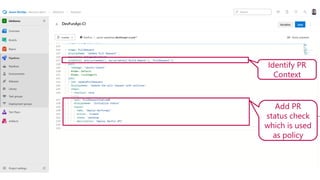

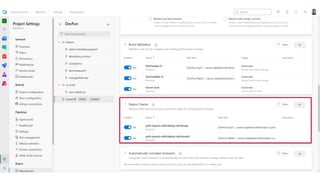

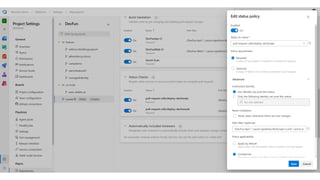

- 45. Identify PR Context Add PR statuscheck which is used as policy
- 46.

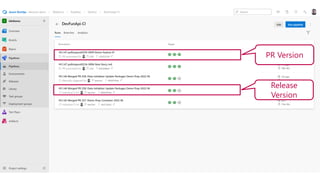

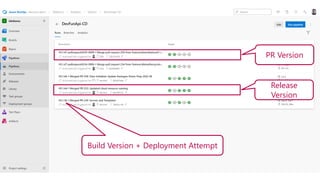

- 47. PR Version Release Version Build Version+ Deployment Attempt

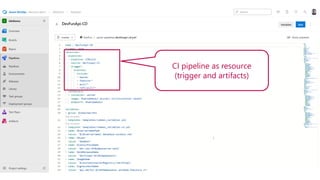

- 48. CI pipeline asresource (trigger and artifacts)

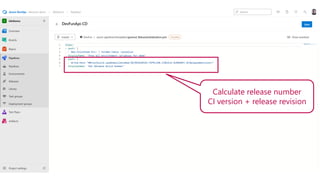

- 49. Calculate release number CIversion + release revision

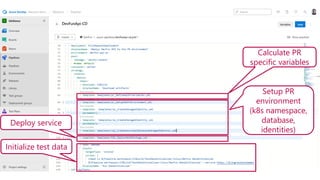

- 50. Calculate PR specific variables SetupPR environment (k8s namespace, database, identities) Deploy service Initialize test data

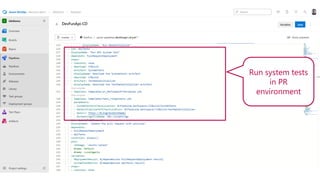

- 51. Run system tests inPR environment

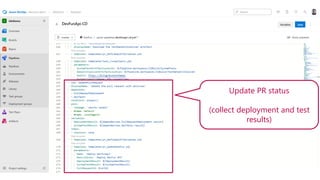

- 52. Update PR status (collectdeployment and test results)

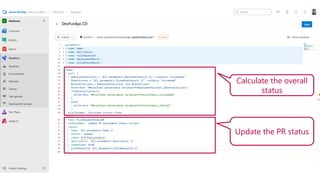

- 53. Calculate the overall status Updatethe PR status
- 54. Extract deployment URL (PRspecific) Only run for PR Add a PR comment with deployment info
- 55.
- 56.
- 58.
- 59.
- 60.
- 61.
- 65.

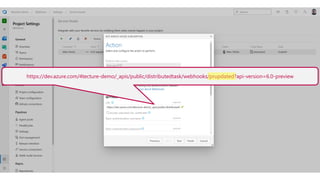

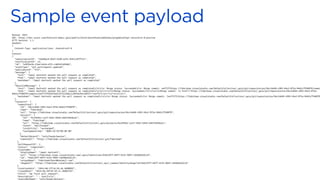

- 67. Method: POST URI: https://dev.azure.com/4tecture-demo/_apis/public/distributedtask/webhooks/prupdated?api-version=6.0-preview HTTPVersion: 1.1 Headers: { Content-Type: application/json; charset=utf-8 } Content: { "subscriptionId": "1de80ac8-b9a7-42d0-a2fe-5441c2b7ffc2", "notificationId": 14, "id": "af07be1b-f3ad-44c8-a7f1-c4835f2df06b", "eventType": "git.pullrequest.updated", "publisherId": "tfs", "message": { "text": "Jamal Hartnett marked the pull request as completed", "html": "Jamal Hartnett marked the pull request as completed", "markdown": "Jamal Hartnett marked the pull request as completed" }, "detailedMessage": { "text": "Jamal Hartnett marked the pull request as completedrnrn- Merge status: Succeededrn- Merge commit: eef717(https://fabrikam.visualstudio.com/DefaultCollection/_apis/git/repositories/4bc14d40-c903-45e2-872e-0462c7748079/commi "html": "Jamal Hartnett marked the pull request as completedrn<ul>rn<li>Merge status: Succeeded</li>rn<li>Merge commit: <a href="https://fabrikam.visualstudio.com/DefaultCollection/_apis/git/repositories/4bc14d40-c903-45e2-872e- 0462c7748079/commits/eef717f69257a6333f221566c1c987dc94cc0d72">eef717</a></li>rn</ul>", "markdown": "Jamal Hartnett marked the pull request as completedrnrn+ Merge status: Succeededrn+ Merge commit: [eef717](https://fabrikam.visualstudio.com/DefaultCollection/_apis/git/repositories/4bc14d40-c903-45e2-872e-0462c7748079 }, "resource": { "repository": { "id": "4bc14d40-c903-45e2-872e-0462c7748079", "name": "Fabrikam", "url": "https://fabrikam.visualstudio.com/DefaultCollection/_apis/git/repositories/4bc14d40-c903-45e2-872e-0462c7748079", "project": { "id": "6ce954b1-ce1f-45d1-b94d-e6bf2464ba2c", "name": "Fabrikam", "url": "https://fabrikam.visualstudio.com/DefaultCollection/_apis/projects/6ce954b1-ce1f-45d1-b94d-e6bf2464ba2c", "state": "wellFormed", "visibility": "unchanged", "lastUpdateTime": "0001-01-01T00:00:00" }, "defaultBranch": "refs/heads/master", "remoteUrl": "https://fabrikam.visualstudio.com/DefaultCollection/_git/Fabrikam" }, "pullRequestId": 1, "status": "completed", "createdBy": { "displayName": "Jamal Hartnett", "url": "https://fabrikam.vssps.visualstudio.com/_apis/Identities/54d125f7-69f7-4191-904f-c5b96b6261c8", "id": "54d125f7-69f7-4191-904f-c5b96b6261c8", "uniqueName": "fabrikamfiber4@hotmail.com", "imageUrl": "https://fabrikam.visualstudio.com/DefaultCollection/_api/_common/identityImage?id=54d125f7-69f7-4191-904f-c5b96b6261c8" }, "creationDate": "2014-06-17T16:55:46.589889Z", "closedDate": "2014-06-30T18:59:12.3660573Z", "title": "my first pull request", "description": " - test2rn", "sourceRefName": "refs/heads/mytopic",

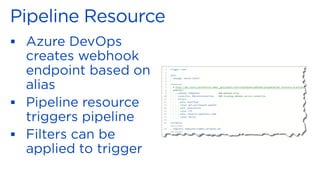

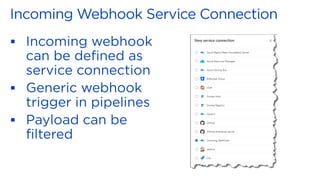

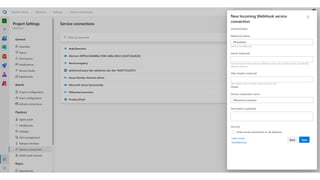

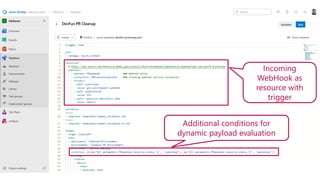

- 68. Incoming WebHook as resource with trigger Additionalconditions for dynamic payload evaluation

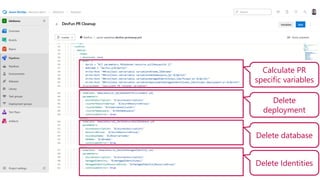

- 69. Calculate PR specific variables Delete deployment Deletedatabase Delete Identities
- 71.

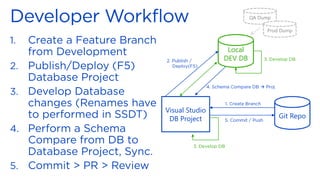

- 72. Local DEV DB Visual Studio DBProject Git Repo → QA Dump Prod Dump
- 73.
- 74.

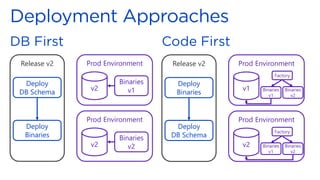

- 75. Release v2 Deploy DB Schema Deploy Binaries ProdEnvironment v2 Binaries v1 Prod Environment v2 Binaries v2 Release v2 Deploy Binaries Deploy DB Schema Prod Environment v1 Binaries v1 Binaries v2 Factory Prod Environment v2 Binaries v1 Binaries v2 Factory

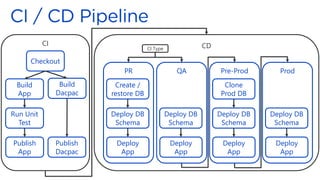

- 76. CD PR CI Checkout Build App Run Unit Test Build Dacpac Publish Dacpac Publish App Create / restoreDB Deploy DB Schema Deploy App QA Deploy DB Schema Deploy App Pre-Prod Clone Prod DB Deploy DB Schema Deploy App Prod Deploy DB Schema Deploy App CI Type
- 78.
- 79.
- 80.
- 81.

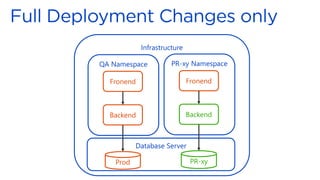

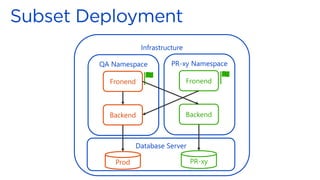

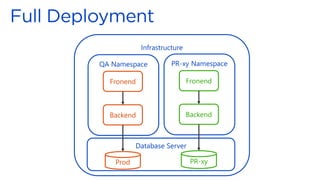

- 82. Infrastructure QA Namespace Fronend Backend PR-xy Namespace Fronend DatabaseServer Prod Backend PR-xy
- 83.
- 84.

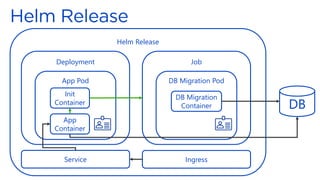

- 85. Helm Release Deployment App Pod App Container Init Container Job DBMigration Pod DB Migration Container Service Ingress DB
- 87.
- 88.

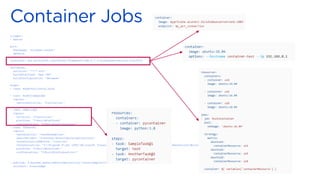

- 89. trigger: - master pool: #vmImage: 'windows-latest' default container:mcr.microsoft.com/dotnet/framework/sdk:4.7.2-windowsservercore-ltsc2019 variables: solution: '**/*.sln' buildPlatform: 'Any CPU' buildConfiguration: 'Release' steps: - task: NuGetToolInstaller@1 - task: NuGetCommand@2 inputs: restoreSolution: '$(solution)' - task: VSBuild@1 inputs: solution: '$(solution)' platform: '$(buildPlatform)' configuration: '$(buildConfiguration)' - task: VSTest@2 inputs: testSelector: 'testAssemblies’ searchFolder: '$(System.DefaultWorkingDirectory)' vstestLocationMethod: 'location' vstestLocation: 'C:Program Files (x86)Microsoft Visual Studio2019TestAgentCommon7IDECommonExtensionsMicrosoftTestWindowvstest.console.exe' platform: '$(buildPlatform)' configuration: '$(buildConfiguration)' - publish: $(System.DefaultWorkingDirectory)ConsoleAppbinRelease artifact: ConsoleApp
- 90.

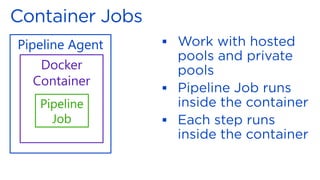

- 91. Pipeline Agent Docker Network Container PipelineJob Build Container Publish Container Container Job Container API App Container SQL Server Deploy DB Run Test Docker Registry
- 92.

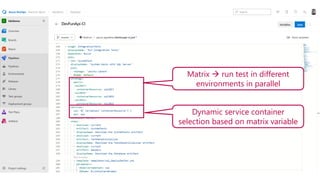

- 93. Matrix → runtest in different environments in parallel Dynamic service container selection based on matrix variable

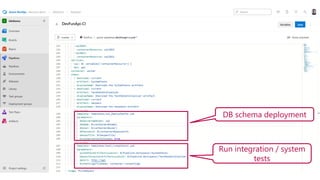

- 94. DB schema deployment Runintegration / system tests

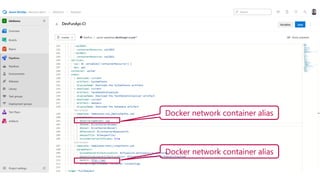

- 95. Docker network containeralias Docker network container alias

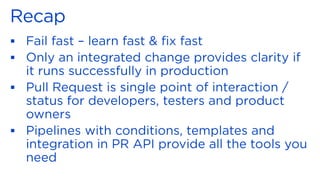

- 97.
