name: CI
on:
push:
branches: [ main ]
jobs:
container-test-job:
runs-on: ubuntu-latest
container:
image: node:14.16
env:
NODE_ENV: development
ports:
- 80
volumes:
- my_docker_volume:/volume_mount
options: --cpus 1
steps:
- name: Check for dockerenv file
run: (ls /.dockerenv && echo Found
dockerenv) || (echo No dockerenv)](https://image.slidesharecdn.com/devsecopswithgithub-220725062749-332859ff/85/DWX-2022-DevSecOps-mit-GitHub-51-320.jpg)
Uploaded byMarc Müller
DWX 2022 - DevSecOps mit GitHub

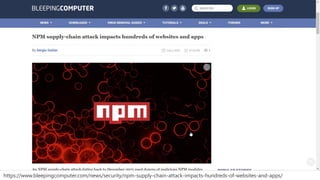

A supply chain attack has affected hundreds of websites and applications by targeting npm packages, demonstrating significant vulnerabilities in the ecosystem. The incident underscores the importance of securing dependencies and implementing proactive measures to detect and mitigate security threats. Recent efforts include enhanced alerts for vulnerabilities and improved scanning capabilities throughout the development lifecycle.
More Related Content
Similar to DWX 2022 - DevSecOps mit GitHub
DWX 2022 - DevSecOps mit GitHub
- 3.
- 4.
- 8.
- 9.

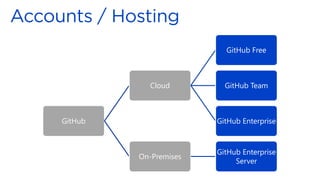

- 11. GitHub Cloud GitHub Free GitHub Team GitHubEnterprise On-Premises GitHub Enterprise Server

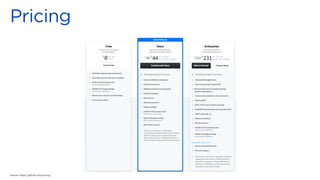

- 12.
- 13.
- 15.
- 16.
- 17.
- 18.
- 21.

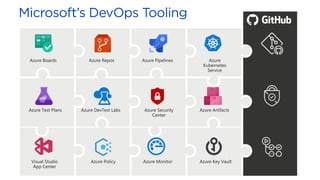

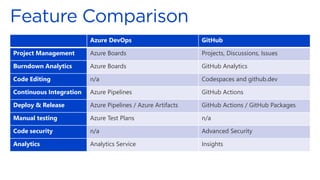

- 22. Azure DevOps GitHub ProjectManagement Azure Boards Projects, Discussions, Issues Burndown Analytics Azure Boards GitHub Analytics Code Editing n/a Codespaces and github.dev Continuous Integration Azure Pipelines GitHub Actions Deploy & Release Azure Pipelines / Azure Artifacts GitHub Actions / GitHub Packages Manual testing Azure Test Plans n/a Code security n/a Advanced Security Analytics Analytics Service Insights
- 24.

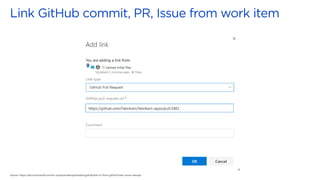

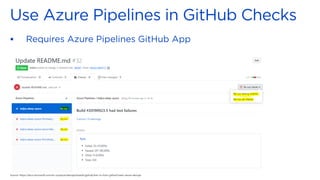

- 25. Commit message Action FixedAB#123 Links and transitions the work item to the "done" state. Adds a new feature, fixes AB#123. Links and transitions the work item to the "done" state. Fixes AB#123, AB#124, and AB#126 Links to Azure Boards work items 123, 124, and 126. Transitions only the first item, 123 to the "done" state. Fixes AB#123, Fixes AB#124, Fixes AB#125 Links to Azure Boards work items 123, 124, and 126. Transitions all items to the "done" state. Fixing multiple bugs: issue #123 and user story AB#234 Links to GitHub issue 123 and Azure Source: https://docs.microsoft.com/en-us/azure/devops/boards/github/link-to-from-github?view=azure-devops
- 26.
- 28.
- 29.
- 30.
- 33.
- 34. Assign Issue Create Feature Branch Developand Commit Push to Remote Create Pull-Request Notify team & wait for review Develop and Commit Approved? Merge PR & delete branch Finished?
- 37.
- 41.

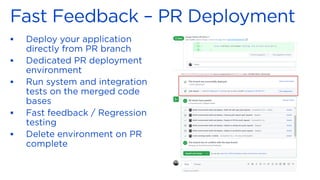

- 42.
- 44.

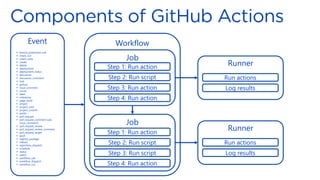

- 45. Workflow Event ▪ branch_protection_rule ▪ check_run ▪check_suite ▪ create ▪ delete ▪ deployment ▪ deployment_status ▪ discussion ▪ discussion_comment ▪ fork ▪ gollum ▪ issue_comment ▪ issues ▪ label ▪ milestone ▪ page_build ▪ project ▪ project_card ▪ project_column ▪ public ▪ pull_request ▪ pull_request_comment (use issue_comment) ▪ pull_request_review ▪ pull_request_review_comment ▪ pull_request_target ▪ push ▪ registry_package ▪ release ▪ repository_dispatch ▪ schedule ▪ status ▪ watch ▪ workflow_call ▪ workflow_dispatch ▪ workflow_run Job Step 1: Run action Step 2: Run script Step 3: Run action Step 4: Run action Job Step 1: Run action Step 2: Run script Step 3: Run script Step 4: Run action Runner Run actions Log results Runner Run actions Log results

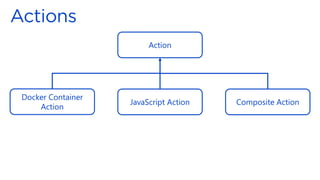

- 46. Action Docker Container Action JavaScript ActionComposite Action
- 47.

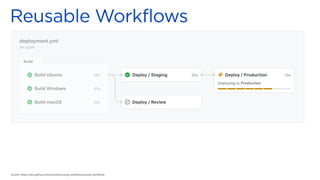

- 48. Source: https://docs.github.com/en/actions/using-workflows/reusing-workflows name: Reusableworkflow example on: workflow_call: inputs: username: required: true type: string secrets: token: required: true jobs: example_job: name: Pass input and secrets to my-action runs-on: ubuntu-latest steps: - uses: ./.github/workflows/my-action with: username: ${{ inputs.username }} token: ${{ secrets.token }} jobs: call-workflow-1-in-local-repo: uses: octo-org/this-repo/.github/workflows/workflow-1.yml@172239021f7ba04fe7327647b213799853a9eb89 call-workflow-2-in-local-repo: uses: ./.github/workflows/workflow-2.yml call-workflow-in-another-repo: uses: octo-org/another-repo/.github/workflows/workflow.yml@v1

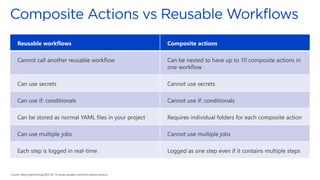

- 49. Reusable workflows Compositeactions Cannot call another reusable workflow Can be nested to have up to 10 composite actions in one workflow Can use secrets Cannot use secrets Can use if: conditionals Cannot use if: conditionals Can be stored as normal YAML files in your project Requires individual folders for each composite action Can use multiple jobs Cannot use multiple jobs Each step is logged in real-time Logged as one step even if it contains multiple steps Source: https://github.blog/2022-02-10-using-reusable-workflows-github-actions/

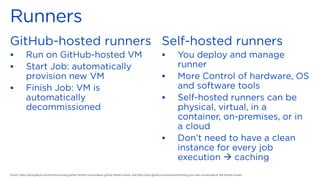

- 50. ▪ ▪ ▪ ▪ ▪ ▪ ▪ → Source: https://docs.github.com/en/actions/using-github-hosted-runners/about-github-hosted-runners andhttps://docs.github.com/en/actions/hosting-your-own-runners/about-self-hosted-runners

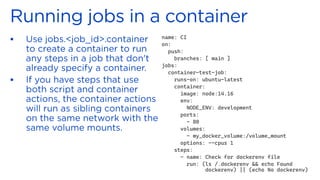

- 51. ▪ ▪ name: CI on: push: branches: [main ] jobs: container-test-job: runs-on: ubuntu-latest container: image: node:14.16 env: NODE_ENV: development ports: - 80 volumes: - my_docker_volume:/volume_mount options: --cpus 1 steps: - name: Check for dockerenv file run: (ls /.dockerenv && echo Found dockerenv) || (echo No dockerenv)
- 52.
- 53.
- 54.

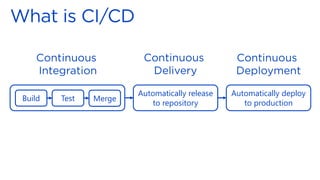

- 56. Build Test Merge Automaticallyrelease to repository Automatically deploy to production

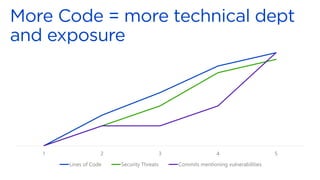

- 59. 1 2 34 5 Lines of Code Security Threats Commits mentioning vulnerabilities
- 61. Code CI Deploy:Dev/QA Dev Deploy: Pre- Prod Deploy: Prod Ops Sec
- 62.

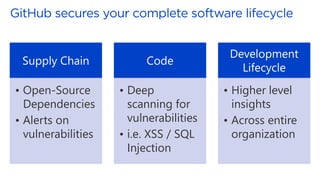

- 63. Supply Chain • Open-Source Dependencies •Alerts on vulnerabilities Code • Deep scanning for vulnerabilities • i.e. XSS / SQL Injection Development Lifecycle • Higher level insights • Across entire organization
- 65.

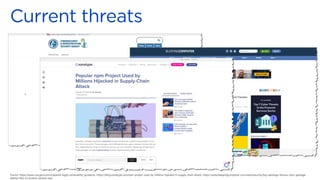

- 66. Source: https://www.cisa.gov/uscert/apache-log4j-vulnerability-guidance, https://blog.sonatype.com/npm-project-used-by-millions-hijacked-in-supply-chain-attack,https://www.bleepingcomputer.com/news/security/big-sabotage-famous-npm-package- deletes-files-to-protest-ukraine-war/
- 67.

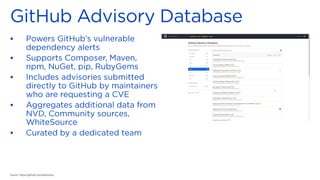

- 68.
- 70.
- 72.
- 76.
- 78.

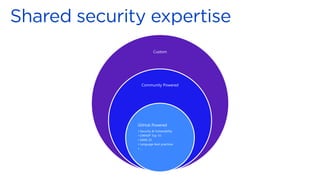

- 80. Custom Community Powered GitHub Powered •Security & Vulnerability • OWASP Top 10 • SANS 25 • Language best practices • …
