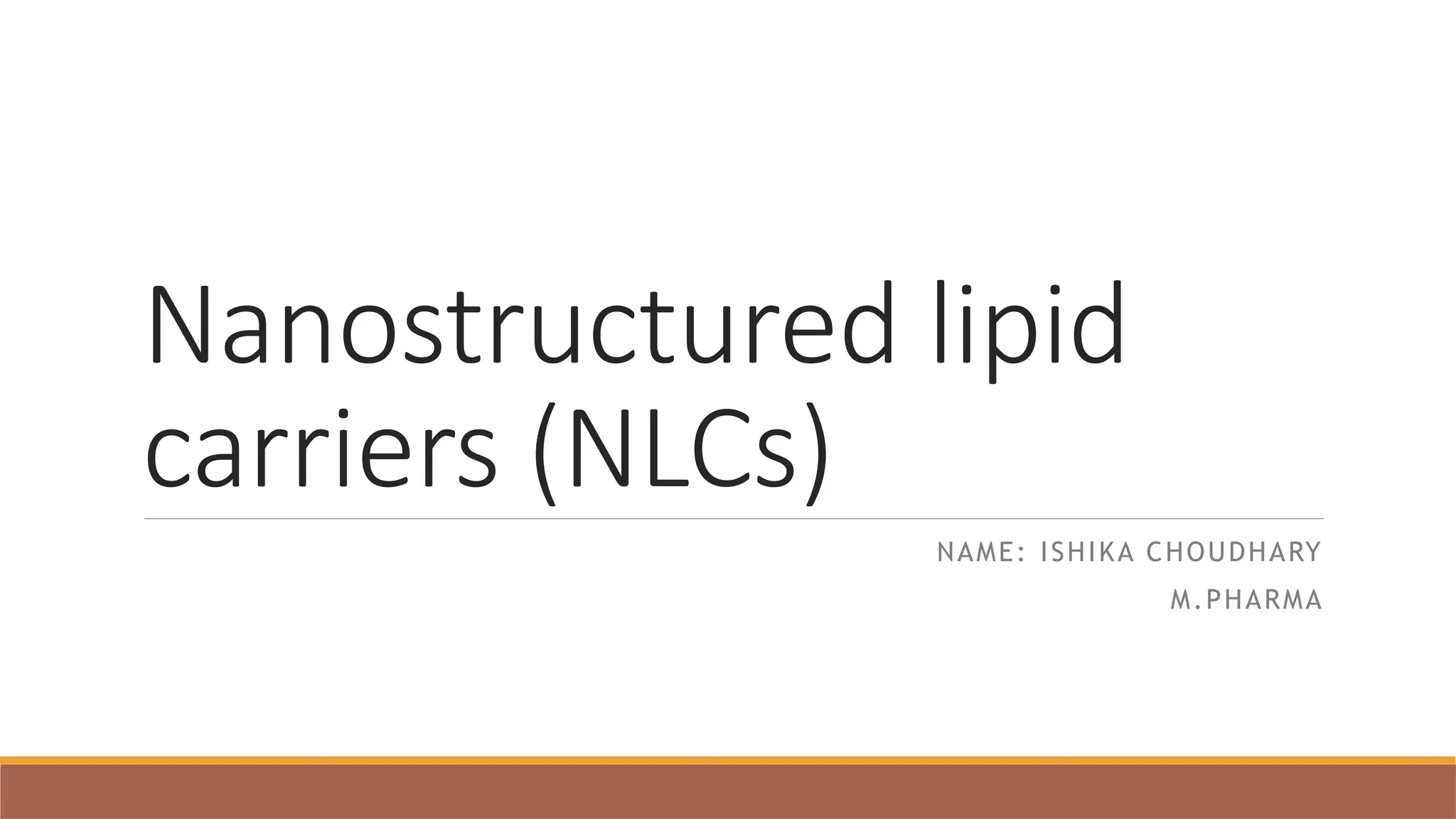

Nanostructured lipid carriers (NLCs)

1. Nanostructured lipid
carriers (NLCs)
NAME: ISHIKA CHOUDHARY
M.PHARMA

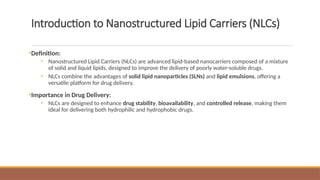

2. Introduction to Nanostructured Lipid Carriers (NLCs)
•Definition:
• Nanostructured Lipid Carriers (NLCs) are advanced lipid-based nanocarriers composed of a mixture
of solid and liquid lipids, designed to improve the delivery of poorly water-soluble drugs.
• NLCs combine the advantages of solid lipid nanoparticles (SLNs) and lipid emulsions, offering a
versatile platform for drug delivery.
•Importance in Drug Delivery:
• NLCs are designed to enhance drug stability, bioavailability, and controlled release, making them
ideal for delivering both hydrophilic and hydrophobic drugs.

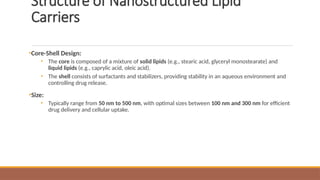

3. Structure of Nanostructured Lipid
Carriers
•Core-Shell Design:
• The core is composed of a mixture of solid lipids (e.g., stearic acid, glyceryl monostearate) and
liquid lipids (e.g., caprylic acid, oleic acid).
• The shell consists of surfactants and stabilizers, providing stability in an aqueous environment and
controlling drug release.
•Size:
• Typically range from 50 nm to 500 nm, with optimal sizes between 100 nm and 300 nm for efficient
drug delivery and cellular uptake.

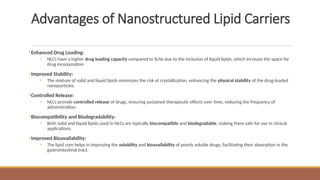

4. Advantages of Nanostructured Lipid Carriers
•Enhanced Drug Loading:
• NLCs have a higher drug loading capacity compared to SLNs due to the inclusion of liquid lipids, which increase the space for
drug incorporation.
•Improved Stability:
• The mixture of solid and liquid lipids minimizes the risk of crystallization, enhancing the physical stability of the drug-loaded
nanoparticles.
•Controlled Release:
• NLCs provide controlled release of drugs, ensuring sustained therapeutic effects over time, reducing the frequency of
administration.
•Biocompatibility and Biodegradability:
• Both solid and liquid lipids used in NLCs are typically biocompatible and biodegradable, making them safe for use in clinical
applications.
•Improved Bioavailability:
• The lipid core helps in improving the solubility and bioavailability of poorly soluble drugs, facilitating their absorption in the
gastrointestinal tract.

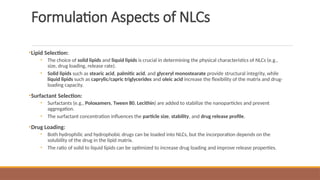

5. Formulation Aspects of NLCs
•Lipid Selection:
• The choice of solid lipids and liquid lipids is crucial in determining the physical characteristics of NLCs (e.g.,
size, drug loading, release rate).
• Solid lipids such as stearic acid, palmitic acid, and glyceryl monostearate provide structural integrity, while
liquid lipids such as caprylic/capric triglycerides and oleic acid increase the flexibility of the matrix and drug-
loading capacity.
•Surfactant Selection:
• Surfactants (e.g., Poloxamers, Tween 80, Lecithin) are added to stabilize the nanoparticles and prevent
aggregation.
• The surfactant concentration influences the particle size, stability, and drug release profile.
•Drug Loading:
• Both hydrophilic and hydrophobic drugs can be loaded into NLCs, but the incorporation depends on the
solubility of the drug in the lipid matrix.
• The ratio of solid to liquid lipids can be optimized to increase drug loading and improve release properties.

6. Methods of Preparation of NLCs
•High-Pressure Homogenization:
• The lipid mixture (solid and liquid lipids) and drug are heated, then dispersed in an aqueous phase
containing surfactants. The mixture is homogenized at high pressure to form nanoparticles.
•Solvent Evaporation Method:
• A solution of solid and liquid lipids containing the drug is emulsified in an aqueous phase. The
organic solvent is then evaporated under reduced pressure to form NLCs.
•Microemulsion-based Method:
• A microemulsion is formed with the lipid, surfactant, and drug, followed by removal of the water
phase to form the nanoparticles.
•Cold Homogenization:
• In this method, the lipid and drug are emulsified at lower temperatures and high-pressure
homogenization is used to reduce the particle size.

7. Drug Release Mechanism of NLCs
•Controlled Release:
• NLCs release the encapsulated drug through diffusion from the lipid matrix or via matrix
degradation.
•Sustained Release:
• The combination of solid and liquid lipids in the core allows for a sustained release profile, which
can extend the drug’s therapeutic effect and reduce the need for frequent dosing.
•Factors Affecting Release Rate:
• The lipid composition, particle size, surfactant type, and drug loading all influence the release rate
and pattern of the drug from the NLCs.

8. Applications of Nanostructured Lipid Carriers
•Cancer Therapy:
• NLCs can be used to deliver chemotherapeutic agents to cancer cells, improving tumor targeting and reducing side
effects.
•Gene Delivery:
• NLCs are effective in delivering DNA, RNA, or siRNA for gene therapy, offering protection to the genetic material from
degradation and enhancing its uptake by target cells.
•Dermal Drug Delivery:
• NLCs are ideal for topical drug delivery. They improve skin penetration and provide controlled release of active
ingredients, such as anti-inflammatory or anti-aging agents.
•Oral Drug Delivery:
• NLCs enhance the oral bioavailability of poorly soluble drugs, improving their absorption through the gastrointestinal
tract.
•Vaccines:
• NLCs can serve as carriers for vaccine antigens, providing adjuvant effects and enhancing immune response.

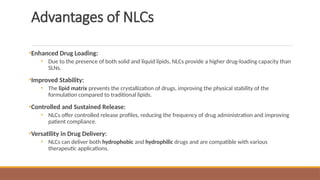

9. Advantages of NLCs
•Enhanced Drug Loading:
• Due to the presence of both solid and liquid lipids, NLCs provide a higher drug-loading capacity than
SLNs.
•Improved Stability:
• The lipid matrix prevents the crystallization of drugs, improving the physical stability of the
formulation compared to traditional lipids.
•Controlled and Sustained Release:
• NLCs offer controlled release profiles, reducing the frequency of drug administration and improving
patient compliance.
•Versatility in Drug Delivery:
• NLCs can deliver both hydrophobic and hydrophilic drugs and are compatible with various
therapeutic applications.

10. Challenges in Formulating NLCs
•Crystallization of Lipid Matrix:
• Despite the advantages, crystallization of lipids can sometimes occur, leading to reduced stability
and drug release performance.
•Scalability Issues:
• Some of the methods used to prepare NLCs (like high-pressure homogenization) may be challenging
to scale up for large-scale production.
•Toxicity Concerns:
• The long-term safety of certain lipids and surfactants in NLCs needs to be assessed to avoid potential
toxicity issues in clinical use.
•Regulatory Hurdles:
• NLC formulations must pass rigorous regulatory requirements, especially for clinical trials and
market approval.

11. Future Directions of NLCs
•Smart Nanocarriers:
• NLCs can be designed to respond to external stimuli such as pH, temperature, or light, offering
targeted and controlled drug release in specific environments (e.g., tumor sites).
•Personalized Medicine:
• NLCs can be tailored for individual patients, optimizing drug delivery based on genetic or disease-
specific factors.
•Combination Therapy:
• NLCs can be engineered to co-deliver multiple drugs, such as chemotherapeutics and
immunomodulatory agents, to improve treatment efficacy.
•3D Printing and NLCs:
• The integration of 3D printing technology with NLCs can enable the creation of personalized and
customizable drug delivery systems.

12. Conclusion
•Summary:
• Nanostructured Lipid Carriers (NLCs) are a promising drug delivery system, offering enhanced
stability, controlled release, and improved bioavailability.
• NLCs have diverse applications in cancer therapy, gene delivery, dermal delivery, and vaccines.
•Future Potential:
• With ongoing research, NLCs are poised to revolutionize drug delivery by enabling personalized
treatments, smart drug release, and combination therapies.

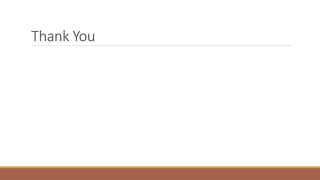

13. Thank You
