This document provides an overview of the Anypoint Platform from MuleSoft. It introduces the components of the platform including Mule runtimes, CloudHub, and the Runtime Manager. CloudHub is described as MuleSoft's integration platform as a service (iPaaS) that provides secure, cloud-based infrastructure to install, manage, and scale Mule runtimes. Applications can be deployed to both CloudHub workers or on-premises machines, and share data between runtimes. Benefits of CloudHub include lower costs, automatic updates, security, scalability, and load balancing.

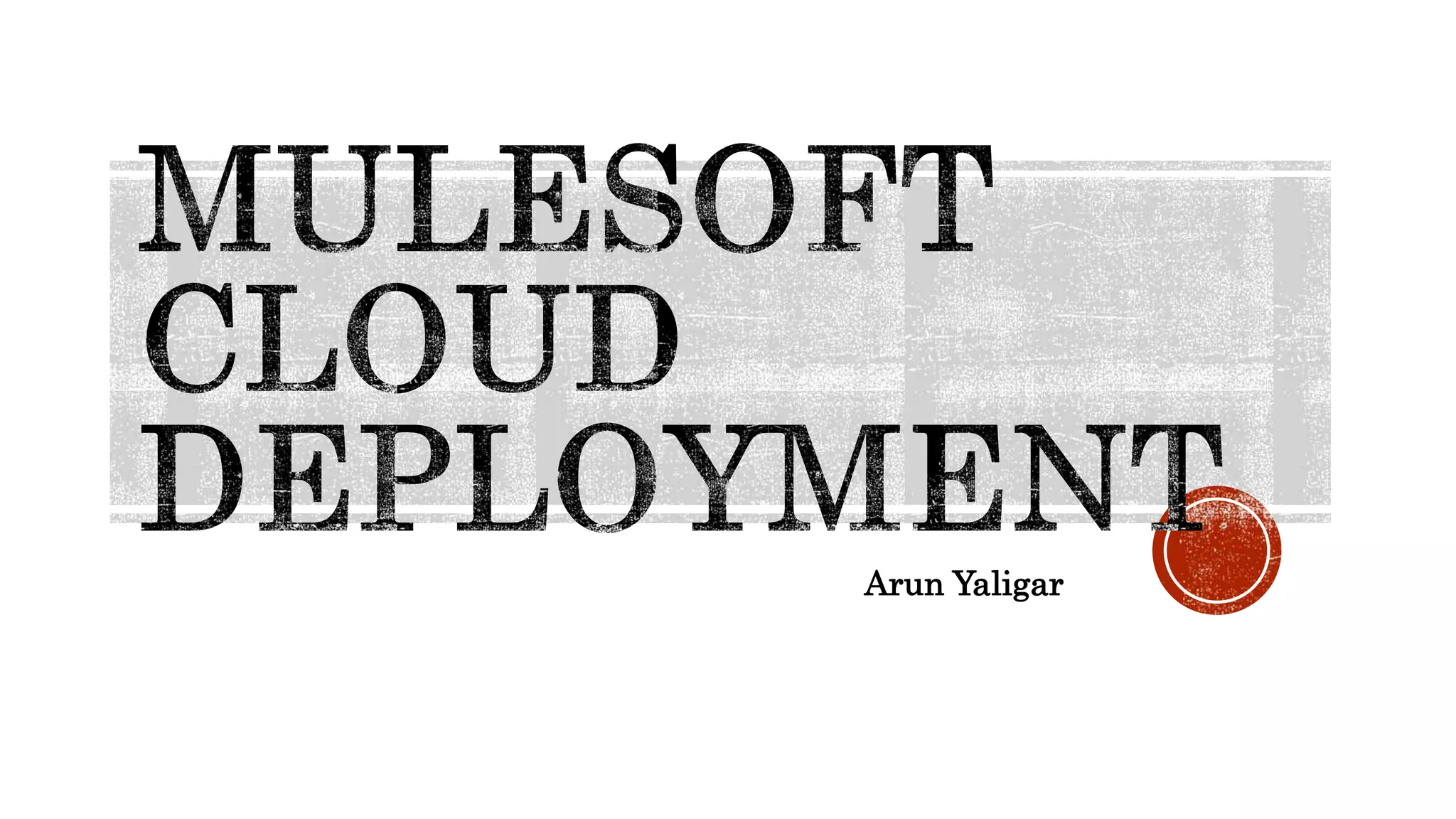

1. Arun Yaligar

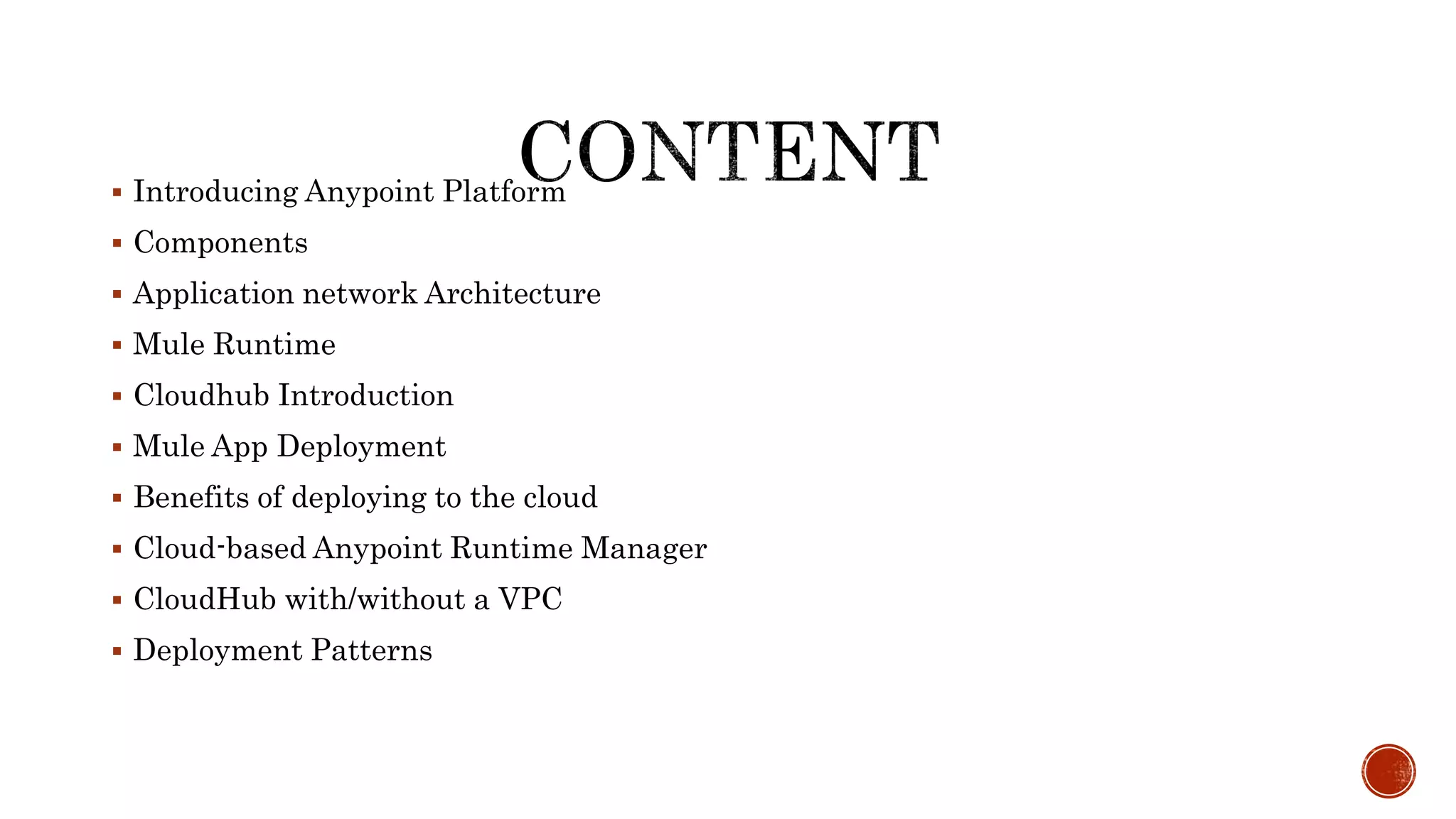

2.  Introducing Anypoint Platform
 Components
 Application network Architecture
 Mule Runtime
 Cloudhub Introduction
 Mule App Deployment
 Benefits of deploying to the cloud
 Cloud-based Anypoint Runtime Manager
 CloudHub with/without a VPC
 Deployment Patterns

3. Anypoint Platform solves the most challenging
connectivity problems across SOA, SaaS, and APIs.
Enables an application network
A unified, highly productive, hybrid integration platform
Building blocks based on APIs
 Flexible
 Secure
 Discoverable
 Managed
 Future proof

4. A collection of runtimes, frameworks, tools, and
web applications
Tools and frameworks for building applications
Mule runtimes for running applications and
applying policies
On-prem or in the cloud
Web applications, management consoles , and REST
APIs for
Deploying, running, managing, and monitoring
applications
Defining, discovering, governing, and managing APIs

6. A Mule runtime is
The runtime engine used to host and run Mule
applications
Similar to an application server
Includes a native component to start the Mule
runtime as an OS service
Runs inside a compatible JVM
Oracle JRE 1.8 or 1.7
IBM JVM 1.7
Open JDK 8

7. INTRODUCING
CLOUDHUB MuleSoft's integration platform as a service
(iPaaS)
 Provides secure, cloud-based, multi-tenant
infrastructure to install, manage, and scale
Mule runtimes.
 The virtual machine which runs the
Mule runtime is called a worker
 This infrastructure is provisioned and
managed by MuleSoft.
 A cloud-based Management console can be
used to manage CloudHub workers
 The console is called Anypoint Runtime
Manager

8.  Mule applications can be deployed into Mule runtimes hosted in either CloudHub
workers or in customer managed (on-prem) machines.
 Applications can also share and communicate data with other Mule runtimes through
external resources
 Examples: external object stores, files, messaging servers, databases.

9.  Lower cost of ownership
 No hardware or virtual machines needed
 Automatic software updates and maintenance performed by MuleSoft
 Built in security certifications
 PCI, HiTrust, and SSAE-16 certified
 Global reliability and SLAs
 Distributed data centres
 Compliance with regional regulatory requirements
 Automatic application monitoring and restarting
 Increase or decrease capacity with zero downtime
 Built-in elastic scalability
 Automatic load balancing across multiple cloud-based runtimes

10.  A centralized management console to
 Deploy applications to cloud-based and on-prem Mule runtimes
 Manage cloud-based workers and on-prem Mule runtimes
 Define, view and manage alerts
 Part of the Anypoint Platform suite (anypoint.mulesoft.com)

11. CLOUDHUB WITH A VPC

12. CLOUDHUB WITH NO VPC

13.  Read this MuleSoft blog
 http://blogs.mulesoft.com/dev/anypoint-platform-dev/zen-api-platform-deployment-
architecture/
 Deployment choices include
 To deploy apps to CloudHub or on-prem Mule runtimes?
 To use an on-prem or cloud-based management console?
 If you need an API proxy to control client access to your API implementations?
 Will on-prem apps and servers need to directly access CloudHub apps on other
 ports besides HTTP port 80 or HTTPS port 443?
 Do you need a virtual private cloud (VPC)?

14.  CloudHub provides MuleSoft managed Mule runtimes and related infrastructure
services to run your Mule applications
 Mule applications are packaged as deployable archive ZIP files then deployed into
Mule runtimes
 Anypoint Platform includes cloud-based management consoles
 Including Runtime Manager to deploy and manage apps
 Can manage both cloud-based and on-prem Mule runtimes
