Introduction to the Microsoft Graph :
Getting Started Quickly & Getting the
Most Out of It
Vincent Biret
Microsoft
Microsoft Graph SDKs Software developer
Montréal
@baywet
Thank you
Sponsors!!!
#M365Ottawa @SPSOttawa

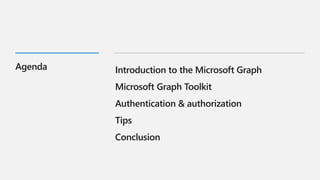

Introduction to the Microsoft Graph
Microsoft Graph Toolkit
Authentication & authorization
Tips
Conclusion
Agenda

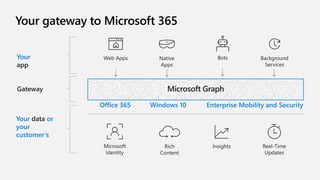

Your gateway to Microsoft 365
Your
app
Gateway
Your data or
your
customer’s
Office 365 Windows 10 Enterprise Mobility and Security
1Microsoft Graph

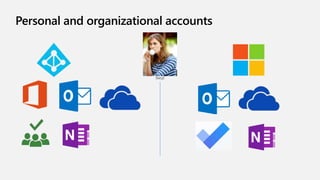

Personal and organizational accounts
(lucy)
What data is available?
https://graph.microsoft.com
Users, Groups, Organizations
Outlook
SharePoint
OneDrive
Teams
Planner
Excel
OneNote
Activities
Devices relays
Commands
Notifications
Azure AD
Intune
Identity Manager
Advanced Threat Analytics
Advanced Threat Protection
Email, Calendar,
Contacts and Tasks
Sites and Lists
Disks and Files
Channels, Messages
Tasks and Plans
Worksheets
Notes, and more…
Identity management
Access control
Synchronization
Domains
Organizational units
Applications and Devices
Threats analysis
Threats protection
Alerts
Policies
And more…
Office 365 Windows 10 Enterprise mobility and security
Dynamics 365
Finances

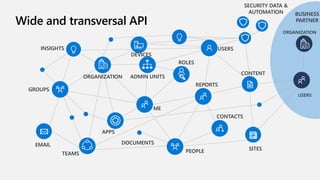

Wide and transversal API
SITES
GROUPS
USERSINSIGHTS
CONTACTS
PEOPLE
ORGANIZATION
EMAIL
CONTENT
DOCUMENTS
DEVICES
TEAMS
REPORTS
ME
ADMIN UNITS
ROLES
APPS
SECURITY DATA &
AUTOMATION
ORGANIZATION
USERS
BUSINESS
PARTNER

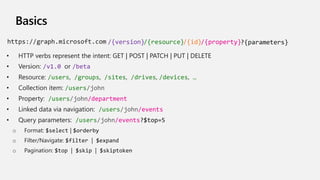

Basics
• HTTP verbs represent the intent: GET | POST | PATCH | PUT | DELETE
• Version: /v1.0 or /beta
• Resource: /users, /groups, /sites, /drives, /devices, …
• Collection item: /users/john
• Property: /users/john/department
• Linked data via navigation: /users/john/events
• Query parameters: /users/john/events?$top=5
o Format: $select | $orderby
o Filter/Navigate: $filter | $expand
o Pagination: $top | $skip | $skiptoken
/{version} ?{parameters}/{resource}/{id}/{property}
SDKs
Generally Available ( /v1.0 ) Preview ( /beta )

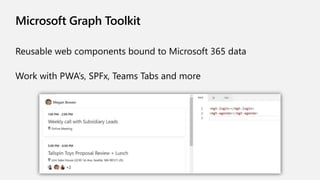

Microsoft Graph Toolkit
Reusable web components bound to Microsoft 365 data
Work with PWA’s, SPFx, Teams Tabs and more

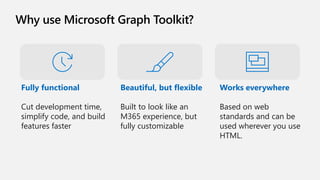

Why use Microsoft Graph Toolkit?
Fully functional
Cut development time,
simplify code, and build
features faster
Beautiful, but flexible
Built to look like an
M365 experience, but
fully customizable
Works everywhere
Based on web
standards and can be
used wherever you use
HTML.
The components
Login Person
Agenda
Person Card
People People Picker
Tasks
Teams Channel Picker
Get
Try them all on the playground at https://mgt.dev!
Basics
access_tokenMSAL
Your APP
Microsoft
Graph
id_token
access_token refresh_token
Microsoft
Identity

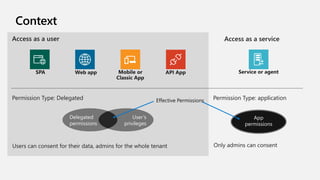

Context
Users can consent for their data, admins for the whole tenant Only admins can consent
Delegated
permissions
User’s
privileges
App
permissions
Permission Type: applicationPermission Type: Delegated
Access as a user Access as a service
Effective PermissionsEffective Permissions

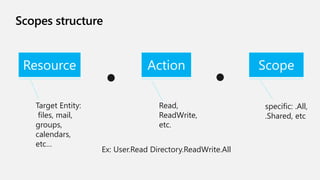

Scopes structure
specific: .All,
.Shared, etc
Read,
ReadWrite,
etc.
Target Entity:
files, mail,
groups,
calendars,
etc…
Ex: User.Read Directory.ReadWrite.All
Resource Action Scope
Know your OData!
Sets
$count
$filter
$expand
$orderby
$select
$skip/$skipToken
$top
Search
$search
Values
$ref
$value

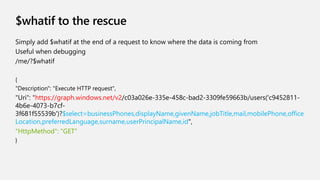

$whatif to the rescue
Simply add $whatif at the end of a request to know where the data is coming from
Useful when debugging
/me/?$whatif
{
"Description": "Execute HTTP request",
"Uri": "https://graph.windows.net/v2/c03a026e-335e-458c-bad2-3309fe59663b/users('c9452811-
4b6e-4073-b7cf-
3f681f55539b')?$select=businessPhones,displayName,givenName,jobTitle,mail,mobilePhone,office
Location,preferredLanguage,surname,userPrincipalName,id",
"HttpMethod": "GET"
}
Additional concepts
Batching
Throttling
Change notifications
Change tracking
Schema/Open extensions

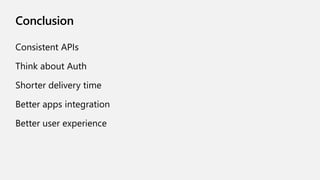

Conclusion
Consistent APIs
Think about Auth
Shorter delivery time
Better apps integration
Better user experience
THANK YOU
Feedback form
https://bit.ly/3dcSfSw
https://graph.microsoft.com
