The document discusses MPLS Traffic Engineering (TE) concepts including: 1. MPLS TE can be used with IS-IS to signal tunnels and establish paths between routers. 2. Explicit paths can be used to avoid issues if a link fails and dynamic paths cannot be established. 3. Bandwidth reservations can be made for tunnels using RSVP to ensure sufficient resources. 4. The TE metric can be manipulated separately from the IGP metric to influence path selection. 5. Static routing can be used over TE tunnels to establish connectivity between routers.
Mpls TE
- 1. INE MPLS TEDRAFT Alp ISIK

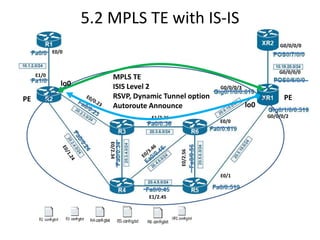

- 2. 5.2 MPLS TEwith IS-IS G0/0/0/0 E0/0 MPLS TE G0/0/0/0 E1/0 ISISMPLS TE Level 2 lo0 ISIS Level 2 RSVP, Dynamic Tunnel option G0/0/0/3 lo0 lo0 RSVP, Dynamic Tunnel option Autoroute Announce PE PE Autoroute Announce lo0 E1/2.36 G0/0/0/2 E0/0 E0/2.34 E0/2.56 E0/1 E1/2.45

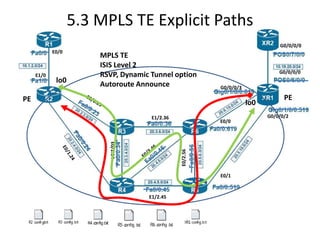

- 3. 5.3 MPLS TEExplicit Paths G0/0/0/0 E0/0 MPLS TE ISIS Level 2 G0/0/0/0 E1/0 RSVP, Dynamic Tunnel option lo0 Autoroute Announce G0/0/0/3 PE PE lo0 E1/2.36 G0/0/0/2 E0/0 E0/2.34 E0/2.56 E0/1 E1/2.45

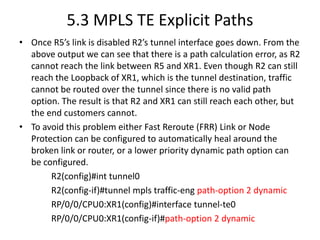

- 4. 5.3 MPLS TEExplicit Paths • Once R5’s link is disabled R2’s tunnel interface goes down. From the above output we can see that there is a path calculation error, as R2 cannot reach the link between R5 and XR1. Even though R2 can still reach the Loopback of XR1, which is the tunnel destination, traffic cannot be routed over the tunnel since there is no valid path option. The result is that R2 and XR1 can still reach each other, but the end customers cannot. • To avoid this problem either Fast Reroute (FRR) Link or Node Protection can be configured to automatically heal around the broken link or router, or a lower priority dynamic path option can be configured. R2(config)#int tunnel0 R2(config-if)#tunnel mpls traffic-eng path-option 2 dynamic RP/0/0/CPU0:XR1(config)#interface tunnel-te0 RP/0/0/CPU0:XR1(config-if)#path-option 2 dynamic

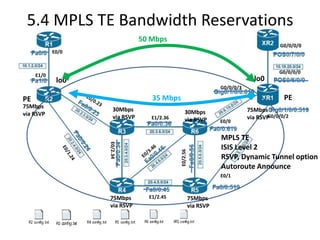

- 5. 5.4 MPLS TEBandwidth Reservations 50 Mbps G0/0/0/0 E0/0 G0/0/0/0 E1/0 lo0 lo0 G0/0/0/3 PE 35 Mbps PE 75Mbps 30Mbps 30Mbps 75Mbps via RSVP G0/0/0/2 via RSVP E1/2.36 via RSVP via RSVP E0/0 MPLS TE E0/2.34 ISIS Level 2 E0/2.56 RSVP, Dynamic Tunnel option Autoroute Announce E0/1 75Mbps E1/2.45 75Mbps via RSVP via RSVP

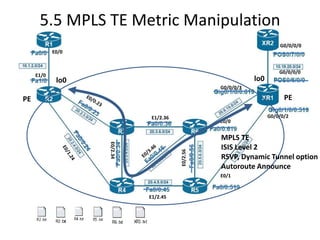

- 6. 5.5 MPLS TEMetric Manipulation G0/0/0/0 E0/0 G0/0/0/0 E1/0 lo0 lo0 G0/0/0/3 PE PE E1/2.36 G0/0/0/2 E0/0 MPLS TE E0/2.34 ISIS Level 2 E0/2.56 RSVP, Dynamic Tunnel option Autoroute Announce E0/1 E1/2.45

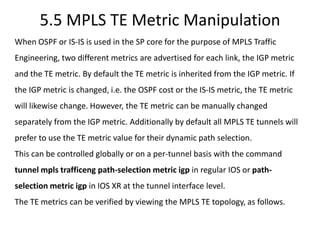

- 7. 5.5 MPLS TEMetric Manipulation When OSPF or IS-IS is used in the SP core for the purpose of MPLS Traffic Engineering, two different metrics are advertised for each link, the IGP metric and the TE metric. By default the TE metric is inherited from the IGP metric. If the IGP metric is changed, i.e. the OSPF cost or the IS-IS metric, the TE metric will likewise change. However, the TE metric can be manually changed separately from the IGP metric. Additionally by default all MPLS TE tunnels will prefer to use the TE metric value for their dynamic path selection. This can be controlled globally or on a per-tunnel basis with the command tunnel mpls trafficeng path-selection metric igp in regular IOS or path- selection metric igp in IOS XR at the tunnel interface level. The TE metrics can be verified by viewing the MPLS TE topology, as follows.

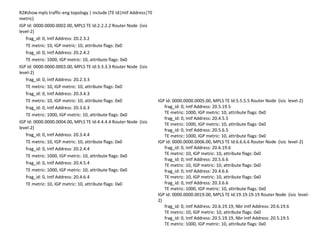

- 8. R2#show mpls traffic-engtopology | include (TE Id|Intf Address|TE metric) IGP Id: 0000.0000.0002.00, MPLS TE Id:2.2.2.2 Router Node (isis level-2) frag_id: 0, Intf Address: 20.2.3.2 TE metric: 10, IGP metric: 10, attribute flags: 0x0 frag_id: 0, Intf Address: 20.2.4.2 TE metric: 1000, IGP metric: 10, attribute flags: 0x0 IGP Id: 0000.0000.0003.00, MPLS TE Id:3.3.3.3 Router Node (isis level-2) frag_id: 0, Intf Address: 20.2.3.3 TE metric: 10, IGP metric: 10, attribute flags: 0x0 frag_id: 0, Intf Address: 20.3.4.3 TE metric: 10, IGP metric: 10, attribute flags: 0x0 IGP Id: 0000.0000.0005.00, MPLS TE Id:5.5.5.5 Router Node (isis level-2) frag_id: 0, Intf Address: 20.3.6.3 frag_id: 0, Intf Address: 20.5.19.5 TE metric: 1000, IGP metric: 10, attribute flags: 0x0 TE metric: 1000, IGP metric: 10, attribute flags: 0x0 frag_id: 0, Intf Address: 20.4.5.5 IGP Id: 0000.0000.0004.00, MPLS TE Id:4.4.4.4 Router Node (isis TE metric: 1000, IGP metric: 10, attribute flags: 0x0 level-2) frag_id: 0, Intf Address: 20.5.6.5 frag_id: 0, Intf Address: 20.3.4.4 TE metric: 1000, IGP metric: 10, attribute flags: 0x0 TE metric: 10, IGP metric: 10, attribute flags: 0x0 IGP Id: 0000.0000.0006.00, MPLS TE Id:6.6.6.6 Router Node (isis level-2) frag_id: 0, Intf Address: 20.2.4.4 frag_id: 0, Intf Address: 20.6.19.6 TE metric: 1000, IGP metric: 10, attribute flags: 0x0 TE metric: 10, IGP metric: 10, attribute flags: 0x0 frag_id: 0, Intf Address: 20.5.6.6 frag_id: 0, Intf Address: 20.4.5.4 TE metric: 10, IGP metric: 10, attribute flags: 0x0 TE metric: 1000, IGP metric: 10, attribute flags: 0x0 frag_id: 0, Intf Address: 20.4.6.6 frag_id: 0, Intf Address: 20.4.6.4 TE metric: 10, IGP metric: 10, attribute flags: 0x0 TE metric: 10, IGP metric: 10, attribute flags: 0x0 frag_id: 0, Intf Address: 20.3.6.6 TE metric: 1000, IGP metric: 10, attribute flags: 0x0 IGP Id: 0000.0000.0019.00, MPLS TE Id:19.19.19.19 Router Node (isis level- 2) frag_id: 0, Intf Address: 20.6.19.19, Nbr Intf Address: 20.6.19.6 TE metric: 10, IGP metric: 10, attribute flags: 0x0 frag_id: 0, Intf Address: 20.5.19.19, Nbr Intf Address: 20.5.19.5 TE metric: 1000, IGP metric: 10, attribute flags: 0x0

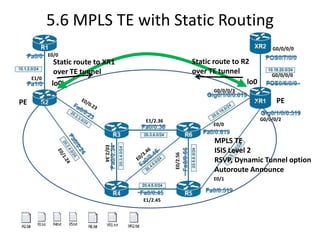

- 9. 5.6 MPLS TEwith Static Routing G0/0/0/0 E0/0 Static route to XR1 Static route to R2 over TE tunnel over TE tunnel G0/0/0/0 E1/0 lo0 lo0 G0/0/0/3 PE PE E1/2.36 G0/0/0/2 E0/0 MPLS TE E0/2.34 ISIS Level 2 E0/2.56 RSVP, Dynamic Tunnel option Autoroute Announce E0/1 E1/2.45

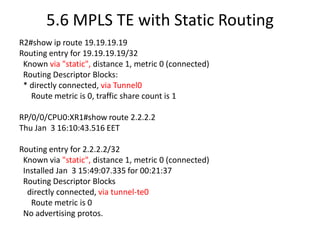

- 10. 5.6 MPLS TEwith Static Routing R2#show ip route 19.19.19.19 Routing entry for 19.19.19.19/32 Known via "static", distance 1, metric 0 (connected) Routing Descriptor Blocks: * directly connected, via Tunnel0 Route metric is 0, traffic share count is 1 RP/0/0/CPU0:XR1#show route 2.2.2.2 Thu Jan 3 16:10:43.516 EET Routing entry for 2.2.2.2/32 Known via "static", distance 1, metric 0 (connected) Installed Jan 3 15:49:07.335 for 00:21:37 Routing Descriptor Blocks directly connected, via tunnel-te0 Route metric is 0 No advertising protos.
- 11. 5.7 MPLS TEwith Targeted LDP Adjacencies G0/0/0/0 E0/0 RSVP G0/0/0/0 E1/0 Static route via tunnel to XR1 MPLS TE Static route via tunnel to R2 G0/0/0/3 PE PE ldp ldp ldp E1/2.36 Target ldp G0/0/0/2 E0/0 Target ldp E0/2.34 E0/2.56 E0/1 E1/2.45 ldp

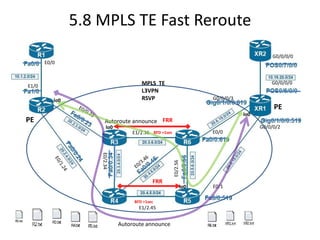

- 12. 5.8 MPLS TEFast Reroute G0/0/0/0 E0/0 E1/0 MPLS TE G0/0/0/0 L3VPN lo0 RSVP G0/0/0/3 PE lo0 PE Autoroute announce FRR lo0 G0/0/0/2 E1/2.36 BFD >1sec E0/0 E0/2.34 E0/2.56 FRR lo0 E0/1 BFD >1sec E1/2.45 Autoroute announce

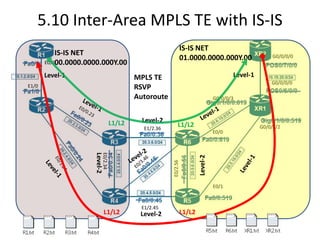

- 14. 5.10 Inter-Area MPLSTE with IS-IS IS-IS NET IS-IS NET G0/0/0/0 01.0000.0000.000Y.00 E0/000.0000.0000.000Y.00 Level-1 MPLS TE Level-1 G0/0/0/0 E1/0 RSVP Autoroute G0/0/0/3 L1/L2 Level-2 E1/2.36 L1/L2 G0/0/0/2 E0/0 Level-2 E0/2.34 Level-2 E0/2.56 E0/1 E1/2.45 L1/L2 Level-2 L1/L2

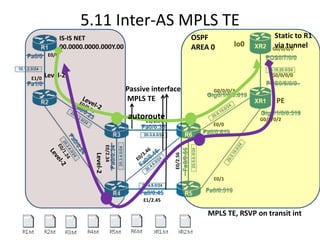

- 15. 5.11 Inter-AS MPLSTE IS-IS NET OSPF Static to R1 00.0000.0000.000Y.00 AREA 0 lo0 via tunnel G0/0/0/0 E0/0 E1/0 Level-2 G0/0/0/0 Passive interface G0/0/0/3 MPLS TE PE autoroute E1/2.36 G0/0/0/2 E0/0 E0/2.34 E0/2.56 Level-2 E0/1 E1/2.45 MPLS TE, RSVP on transit int
Editor's Notes
