This document contains specifications for several LED display product lines from Shenzhen GEO Vision Technology Co.,Ltd. It includes pixel pitch, resolution, brightness, power consumption, size, weight, and other key specs for the GPN, GNX, GMN, GFL, Gposter, and GPO series of LED display modules and video walls. The document emphasizes features like high performance, direct mounting, front installation and maintenance, multi-pixel pitch options, and flexible installation shapes for some products.

1. Shenzhen GEO Vision Technology Co.,Ltd
*All specification are subject to change without prior notice.
COOPERATION·WIN-WIN·INNOVATION

2. Shenzhen GEO Vision Technology Co.,Ltd
*All specification are subject to change without prior notice.
GPN Specification
Product Model GPN1.2 GPN1.5 GPN1.8 GPN2 GPN2.5 GPN3 GPN4
Pixel Pitch(mm) 1.25 1.538 1.86 2 2.5 3.076 4
Pixel Composition SMD1010 SMD1212 SMD1515 SMD1515 SMD2020 SMD2020 SMD2121
Scan method 1/64 scan 1/52 scan 1/43 scan 1/40 scan 1/32 scan 1/26 scan 1/20 scan
Brightness(cd/m2) 600 600 600 600 800 800 800
Refresh Rate(Hz) Support 3840
Power Consumption(Max/A
ve) (W/m2)
650/220 600/200 580/195 580/195 550/185 550185 600/200
Module Size/W×H(mm) 320×160
Panel Size/W×H(mm) 640 x 480 / 640 x 640 / 960 x 480 / 320 x 640
Panel Material
Die casting
aluminum
Die casting
aluminum
Die casting
aluminum
Die casting
aluminum
Die casting
aluminum
Die casting
aluminum
Die casting
aluminum
Weight(kg/㎡) 21
Power Requirement
AC 100-240V(50- 60Hz)
IP Rating (front/rear) IP40/IP20
Viewing Angle(H/V) 160°/160°
Gray Scale(Bit) 16
Maintenance Front
Working
Temperature/Humidity(°C/RH)
-20-+65/10%- 90%
Storage
Temperature/Humidity(°C/RH)
-30-+70/10%- 90%
Cabinet installation Fixed
GPN Series
GPN (1.25/1.53/1.86/2/2.5/3.076/4)
FEATURES
• High Performance
• Direct wall mounting
• Front Installation, Front Maintenance
• Full HD scale options
• Multi pixel pitch for option

3. Shenzhen GEO Vision Technology Co.,Ltd
*All specification are subject to change without prior notice.

4. Shenzhen GEO Vision Technology Co.,Ltd
*All specification are subject to change without prior notice.

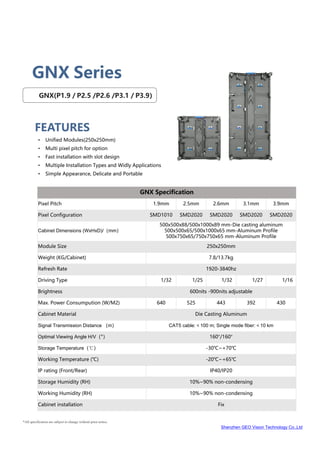

GNX Series
HRN
Series
FEATURES
GNX(P1.9 / P2.5 /P2.6 /P3.1 / P3.9）
• Unified Modules(250x250mm)
• Multi pixel pitch for option
• Fast installation with slot design
• Multiple Installation Types and Widly Applications
• Simple Appearance, Delicate and Portable
GNX Specification
Pixel Pitch 1.9mm 2.5mm 2.6mm 3.1mm 3.9mm
Pixel Configuration SMD1010 SMD2020 SMD2020 SMD2020 SMD2020
Cabinet Dimensions (WxHxD)/（mm）
500x500x88/500x1000x89 mm-Die casting aluminum
500x500x65/500x1000x65 mm-Aluminum Profile
500x750x65/750x750x65 mm-Aluminum Profile
Module Size 250x250mm
Weight (KG/Cabinet) 7.8/13.7kg
Refresh Rate 1920-3840hz
Driving Type 1/32 1/25 1/32 1/27 1/16
Brightness 600nits -900nits adjustable
Max. Power Consumpution (W/M2) 640 525 443 392 430
Cabinet Material Die Casting Aluminum
Signal Transmission Distance （m） CAT5 cable:＜100 m; Single mode fiber:＜10 km
Optimal Viewing Angle H/V（°） 160°/160°
Storage Temperature（℃） -30℃~+70℃
Working Temperature (℃) -20℃~+65℃
IP rating (Front/Rear) IP40/IP20
Storage Humidity (RH) 10%~90% non-condensing
Working Humidity (RH) 10%~90% non-condensing
Cabinet installation Fix

5. Shenzhen GEO Vision Technology Co.,Ltd
*All specification are subject to change without prior notice.

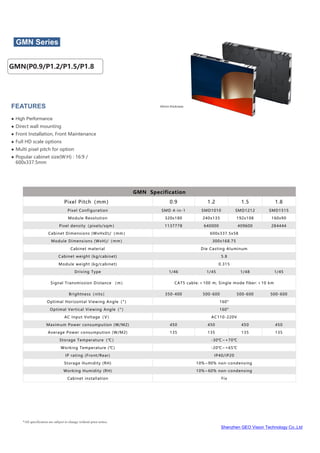

40mm thickness
GMN Series
FEATURES
● High Performance
● Direct wall mounting
● Front Installation, Front Maintenance
● Full HD scale options
● Multi pixel pitch for option
● Popular cabinet size(W:H) : 16:9 /
600x337.5mm
GMN Specification
Pixel Pitch（mm） 0.9 1.2 1.5 1.8
Pixel Configuration SMD 4-in-1 SMD1010 SMD1212 SMD1515
Module Resolution 320x180 240x135 192x108 160x90
Pixel density（pixels/sqm） 1137778 640000 409600 284444
Cabinet Dimensions (WxHxD)/（mm） 600x337.5x58
Module Dimensions (WxH)/（mm） 300x168.75
Cabinet material Die Casting Aluminum
Cabinet weight (kg/cabinet) 5.8
Module weight (kg/cabinet) 0.315
Driving Type 1/46 1/45 1/48 1/45
Signal Transmission Distance （m） CAT5 cable:＜100 m; Single mode fiber:＜10 km
Brightness（nits） 350-400 500-600 500-600 500-600
Optimal Horizontal Viewing Angle（°） 160°
Optimal Vertical Viewing Angle（°） 160°
AC Input Voltage（V） AC110-220V
Maximum Power consumpution (W/M2) 450 450 450 450
Average Power consumpution (W/M2) 135 135 135 135
Storage Temperature（℃） -30℃~+70℃
Working Temperature (℃) -20℃~+65℃
IP rating (Front/Rear) IP40/IP20
Storage Humidity (RH) 10%~90% non-condensing
Working Humidity (RH) 10%~60% non-condensing
Cabinet installation Fix
GMN(P0.9/P1.2/P1.5/P1.8

6. Shenzhen GEO Vision Technology Co.,Ltd
*All specification are subject to change without prior notice.

7. Shenzhen GEO Vision Technology Co.,Ltd
*All specification are subject to change without prior notice.
FEATURES
• Ultra Flexible;
• Light Weight;
• Seamless Connection;
• Various installation shapes including
concave, convex, round, wave, S type, flat led screen
GFL Series
GFL(P1.2/P1.5/P1.6/P1.8/P2.5/P3/P4
GFL Specification
Pixel Pitch（mm） 1.25 1.56 1.667 1.875 2.5 3 4
Pixel Configuration SMD1010 SMD1010 SMD1010 SMD1515 SMD2121 SMD2121 SMD2121
Pixel Density (dot/sqm) 640000 410881 360000 284444 160000 111111 62500
Module pixel(W×H） 160*120 128*96 120*90 128×64 96×48 80*40 64x32
Module Size(mm） 200（W）*150（H） 240（W）×120(H) 256（W）×128(H)
Driving Model 1/60 scan 1/48 scan 1/45 scan 1/32 scan 1/24 scan 1/20 scan 1/16 scan
Brightness (cd/ m2) 600～800 adjustable
Viewing Angle 140/140 (Horizontal /Vertical )
Power Consumption (max) (W/m2） 620
Power Consumption (avg)（W/m2） 200
Refresh Rate（Hz） 1920-3840HZ
Signal Transmission Distance （m） CAT5 cable:＜100 m; Single mode fiber:＜10 km
Storage Temperature（℃） -30-70
Working Temperature (℃) -20-65
IP rating (Front/Rear) IP40/IP20
Storage Humidity (RH) 10%~90% non-condensing
Working Humidity (RH) 10%~60% non-condensing
Lifetime Typical Value（hrs） 100000
Maintenance Front

8. Shenzhen GEO Vision Technology Co.,Ltd
*All specification are subject to change without prior notice.

9. Shenzhen GEO Vision Technology Co.,Ltd
*All specification are subject to change without prior notice.

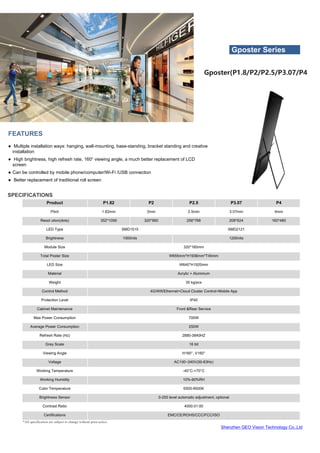

SPECIFICATIONS
Product P1.82 P2 P2.5 P3.07 P4
Pitch 1.82mm 2mm 2.5mm 3.07mm 4mm
Resol ution(dots) 352*1056 320*960 256*768 208*624 160*480
LED Type SMD1515 SMD2121
Brightness 1000nits 1200nits
Module Size 320*160mm
Total Poster Size W655mm*H1936mm*T45mm
LED Size W640*H1920mm
Material Acrylic + Aluminum
Weight 35 kg/pcs
Control Method 4G/Wifi/Ethernet+Cloud Cluster Control+Mobile App
Protection Level IP40
Cabinet Maintenance Front &Rear Service
Max Power Consumption 700W
Average Power Consumption 250W
Refresh Rate (Hz) 2880-3840HZ
Grey Scale 16 bit
Viewing Angle H160°, V160°
Voltage AC100~240V(50-63Hz)
Working Temperature -40°C-+70°C
Working Humidity 10%-90%RH
Color Temperature 6500-9500K
Brightness Sensor 0-255 level automatic adjustment, optional
Contrast Ratio 4000:01:00
Certifications EMC/CE/ROHS/CCC/FCC/ISO
FEATURES
● Multiple installation ways: hanging, wall-mounting, base-standing, bracket standing and creative
installation
● High brightness, high refresh rate, 160° viewing angle, a much better replacement of LCD
screen
● Can be controlled by mobile phone/computer/Wi-Fi /USB connection
● Better replacement of traditional roll screen
Gposter Series
Gposter(P1.8/P2/P2.5/P3.07/P4

10. Shenzhen GEO Vision Technology Co.,Ltd
*All specification are subject to change without prior notice.

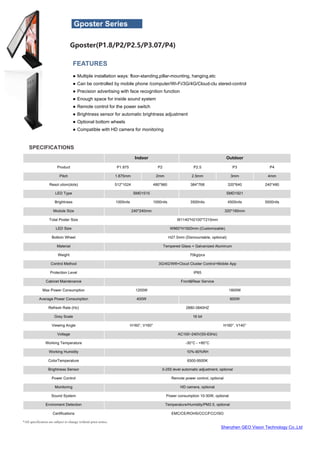

SPECIFICATIONS
Indoor Outdoor
Product P1.875 P2 P2.5 P3 P4
Pitch 1.875mm 2mm 2.5mm 3mm 4mm
Resol ution(dots) 512*1024 480*960 384*768 320*640 240*480
LED Type SMD1515 SMD1921
Brightness 1000nits 1000nits 3500nits 4500nits 5500nits
Module Size 240*240mm 320*160mm
Total Poster Size W1140*H2100*T210mm
LED Size W960*H1920mm (Customizable)
Bottom Wheel H27.5mm (Dismountable, optional)
Material Tempered Glass + Galvanized Aluminum
Weight 70kg/pcs
Control Method 3G/4G/Wifi+Cloud Cluster Control+Mobile App
Protection Level IP65
Cabinet Maintenance Front&Rear Service
Max Power Consumption 1200W 1800W
Average Power Consumption 400W 600W
Refresh Rate (Hz) 2880-3840HZ
Grey Scale 16 bit
Viewing Angle H160°, V160° H160°, V140°
Voltage AC100~240V(50-63Hz)
Working Temperature -30°C - +80°C
Working Humidity 10%-90%RH
ColorTemperature 6500-9500K
Brightness Sensor 0-255 level automatic adjustment, optional
Power Control Remote power control, optional
Monitoring HD camera, optional
Sound System Power consumption 10-30W, optional
Enviroment Detection Temperature/Humidity/PM2.5, optional
Certifications EMC/CE/ROHS/CCC/FCC/ISO
FEATURES
● Multiple installation ways: floor-standing,pillar-mounting, hanging,etc
● Can be controlled by mobile phone /computer/Wi-Fi/3G/4G/Cloud-clu stered-control
● Precision advertising with face recognition function
● Enough space for inside sound system
● Remote control for the power switch
● Brightness sensor for automatic brightness adjustment
● Optional bottom wheels
● Compatible with HD camera for monitoring
Gposter Series
Gposter(P1.8/P2/P2.5/P3.07/P4)

11. Shenzhen GEO Vision Technology Co.,Ltd
*All specification are subject to change without prior notice.

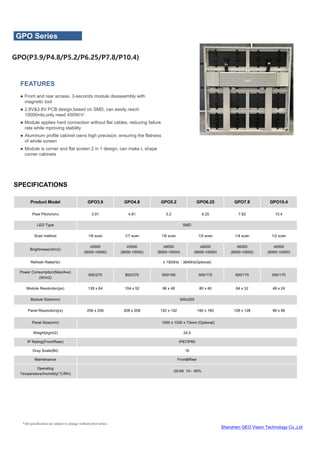

SPECIFICATIONS
FEATURES
● Front and rear access, 3-seconds module disassembly with
magnetic tool
● 2.8V&3.8V PCB design,based on SMD, can easily reach
10000nits,only need 450W/㎡
● Module applies hard connection without flat cables, reducing failure
rate while mproving stability
● Aluminum profile cabinet owns high precision, ensuring the flatness
of whole screen
● Module is corner and flat screen 2 in 1 design, can make L shape
corner cabinets
Product Model GPO3.9 GPO4.8 GPO5.2 GPO6.25 GPO7.8 GPO10.4
Pixel Pitch(mm) 3.91 4.81 5.2 6.25 7.82 10.4
LED Type SMD
Scan method 1/8 scan 1/7 scan 1/6 scan 1/5 scan 1/4 scan 1/2 scan
Brightness(cd/m2)
≥5000
(8000-10000)
≥5500
(8000-10000)
≥6000
(8000-10000)
≥6000
(8000-10000)
≥6000
(8000-10000)
≥6500
(8000-10000)
Refresh Rate(Hz) ≥ 1920Hz（3840HzOptional)
Power Consumption(Max/Ave)
(W/m2)
800/270 800/270 550/185 500/175 500/175 500/175
Module Resolution(px) 128 x 64 104 x 52 96 x 48 80 x 40 64 x 32 48 x 24
Module Size(mm) 500x250
Panel Resolution(px) 256 x 256 208 x 208 192 x 192 160 x 160 128 x 128 96 x 96
Panel Size(mm) 1000 x 1000 x 73mm (Optional)
Weight(kg/m2) 24.5
IP Rating(Front/Rear) IP67/IP65
Gray Scale(Bit) 16
Maintenance Front&Rear
Operating
Temperature/Humidity(°C/RH)
-20-65 10〜 90%
GPO Series
GPO(P3.9/P4.8/P5.2/P6.25/P7.8/P10.4)

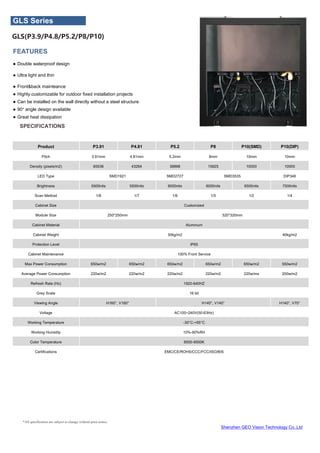

12. Shenzhen GEO Vision Technology Co.,Ltd
*All specification are subject to change without prior notice.
SPECIFICATIONS
FEATURES
● Double waterproof design
● Ultra light and thin
● Front&back mainteance
● Highly customizable for outdoor fixed installation projects
● Can be installed on the wall directly without a steel structure
● 90° angle design available
● Great heat dissipation
Product P3.91 P4.81 P5.2 P8 P10(SMD) P10(DIP)
Pitch 3.91mm 4.81mm 5.2mm 8mm 10mm 10mm
Density (pixels/m2) 65536 43264 36868 15625 10000 10000
LED Type SMD1921 SMD2727 SMD3535 DIP346
Brightness 5500nits 5500nits 6000nits 6000nits 6500nits 7500nits
Scan Method 1/8 1/7 1/6 1/5 1/2 1/4
Cabinet Size Customized
Module Size 250*250mm 320*320mm
Cabinet Material Aluminum
Cabinet Weight 30kg/m2 40kg/m2
Protection Level IP65
Cabinet Maintenance 100% Front Service
Max Power Consumption 650w/m2 650w/m2 650w/m2 650w/m2 650w/m2 550w/m2
Average Power Consumption 220w/m2 220w/m2 220w/m2 220w/m2 220w/ms 200w/m2
Refresh Rate (Hz) 1920-840HZ
Grey Scale 16 bit
Viewing Angle H160°, V160° H140°, V140° H140°, V70°
Voltage AC100~240V(50-63Hz)
Working Temperature -30°C-+65°C
Working Humidity 10%-90%RH
Color Temperature 6500-9500K
Certifications EMC/CE/ROHS/CCC/FCC/ISO/BIS
GLS Series
GLS(P3.9/P4.8/P5.2/P8/P10)

13. Shenzhen GEO Vision Technology Co.,Ltd
*All specification are subject to change without prior notice.
SPECIFICATIONS
Product P10.42 P15.6(SMD) P15.6(DIP) P15.6^5 P15.671.25
Pitch 10.42mm 15.6mm 15.6mm H25*V15.6mm H31.25*V15.6mm
Density (pixels/m2) 9216 4096 4096 2560 2048
LED Type SMD2727 SMD2727 DIP346 DIP346 DIP346
Brightness 5500~6000nits 7500nits 8500 nits 7500nits 7500nits
Scan Method 1/3 Static Static Static Static
Cabinet Size 500*1000mm
Module Size 250*500mm
Cabinet Material Diecasting Aluminum
Cabinet Weight 9.5KG 9KG 10.5KG 10.5KG 10KG
Protection Level IP65
Cabinet Maintenance Front &Rear Service
Transparency 20% 30% 30% 45% 55%
Max Power Consumption 800w/m2 800w/m2 500w/m2 400w/m2 350w/m2
Average Power Consumption 280w/m2 280w/m2 150w/m2 140w/m2 120w/m2
Refresh Rate (Hz) 2880H3840HZ
Grey Scale 16 bit
Viewing Angle H140°, V140° H140°, V70°
Voltage AC100~240V(50-63Hz)
Working Temperature -30°C- +65°C
Working Humidity 10%-90%RH
Color Temperature 6500-9500K
Certifications EMC/CE/ROHS/CCC/FCC/ISO/BIS
GMO Series
FEATURES
● High Transparency
● Can be installed into a cubic shape
● Ultra light and slim
● Front&back maintenance
● Optional smart lock system, easy installation
● Curve cabinet available
● High brightness
● Can be used in both outdoor fixed and rental projects
GMO(P10.4/P15.6/P25/P31.25)

14. Shenzhen GEO Vision Technology Co.,Ltd
*All specification are subject to change without prior notice.
SPECIFICATIONS
GTO Series
FEATURES
● Waterproof and moisture-proof
Glue filling design to form a waterproof protective layer for the
entire box body,
Outdoor screen protection level≥IP65
● Anti-high temperature, anti-exposure
The outdoor screen must have the function of preventing the
sun and rain, and the maximum temperature of the sun can
reach 50 ℃
● Modular design
Modular design, easy to assemble and install
● Customizable
Solution can be customized according to different site size to
make full use of the site.
Products GTO 3 GT0 5 GTO 8 GTO 10
Pixel Pitch 3.91*7.8mm 5.2*10.4mm 7.8*7.8mm 10.4*10.4mm
Pixel 32,768 dot/m² 18,432 dot/m² 16,384 dot/m² 9,216 dot/m²
Module Resolution 128*16 dots 96*12 dots 64*16 dots 48*12 dots
Cabinet Resolution 256*64 dots 192*48 dots 128*64 dots 96*48 dots
Transparency >30% >35% >40% >45%
Cabinet Size 1000*500mm
Cabinet Weight <12kg
Brightness 800-5500 nits
Refresh Rate ≥1,920 Hz ≥1,920 Hz ≥1,920 Hz ≥1,920 Hz
Current
Consumption
160-240 W/m² 160-240 W/m² 160-240 W/m² 160-240 W/m²
Max Power 400/800 W/m² 400/800 W/m² 400/800 W/m² 350/700 W/m²
----------------Customizable size, brightness, refresh, color, etc----------------
GTO(P3.9/P5.2/P7.8/P10.4)
