1. Presented By:
Swantika Gupta
Software Consultant
Morpheus - Cypher
for Apache Spark

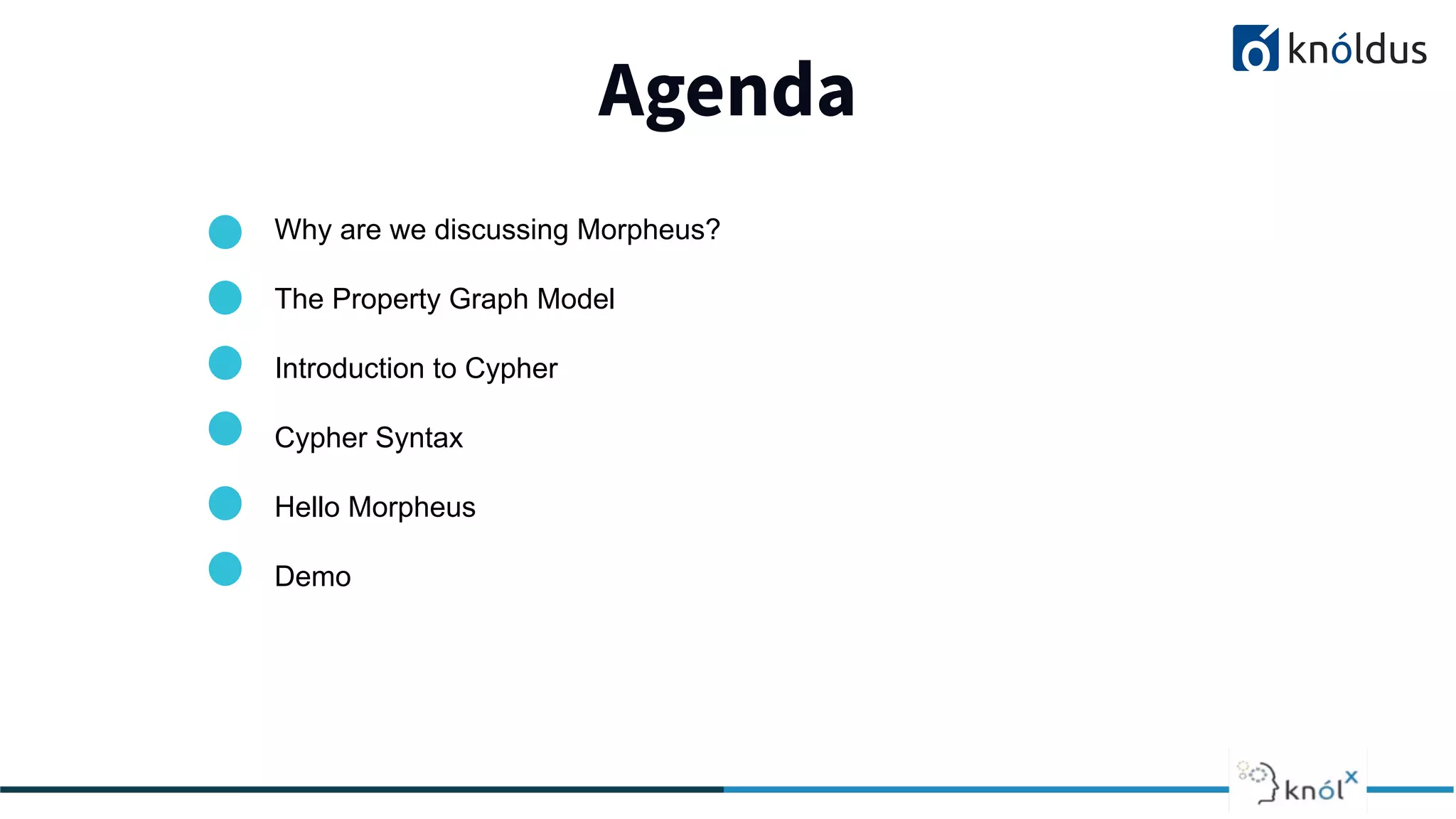

2. Agenda
Why are we discussing Morpheus?
The Property Graph Model
Introduction to Cypher
Cypher Syntax
Hello Morpheus
Demo

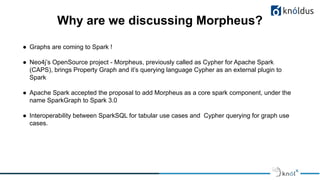

3. Why are we discussing Morpheus?
● Graphs are coming to Spark !
● Neo4j’s OpenSource project - Morpheus, previously called as Cypher for Apache Spark
(CAPS), brings Property Graph and it’s querying language Cypher as an external plugin to
Spark
● Apache Spark accepted the proposal to add Morpheus as a core spark component, under the
name SparkGraph to Spark 3.0
● Interoperability between SparkSQL for tabular use cases and Cypher querying for graph use
cases.

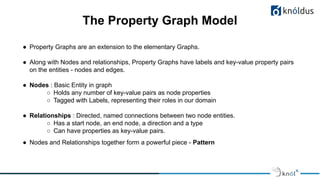

4. The Property Graph Model
● Property Graphs are an extension to the elementary Graphs.
● Along with Nodes and relationships, Property Graphs have labels and key-value property pairs
on the entities - nodes and edges.
● Nodes : Basic Entity in graph
○ Holds any number of key-value pairs as node properties
○ Tagged with Labels, representing their roles in our domain
● Relationships : Directed, named connections between two node entities.
○ Has a start node, an end node, a direction and a type
○ Can have properties as key-value pairs.
● Nodes and Relationships together form a powerful piece - Pattern

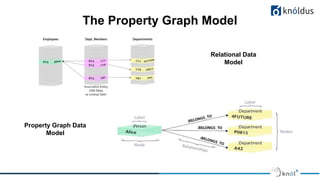

5. The Property Graph Model
Relational Data
Model
Property Graph Data
Model

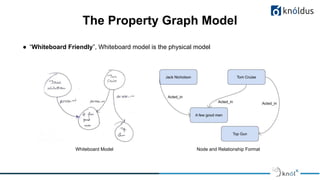

6. The Property Graph Model
● “Whiteboard Friendly”, Whiteboard model is the physical model
Node and Relationship FormatWhiteboard Model

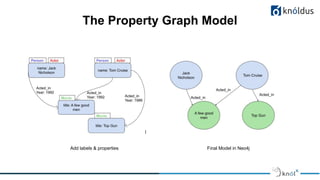

7. The Property Graph Model
Final Model in Neo4jAdd labels & properties

8. Introduction to Cypher
● Neo4j’s Graph Query Language
● Declarative, SQL-inspired
● Allows use of ASCII-Art Syntax to write queries for the graph
● Describes visual patterns in graph
● Heavily based on patterns and is designed to recognize various versions of patterns of nodes
and relationships.
● Key Inspiration for ISO Project creating a Standard GQL

9. ● Cypher uses ASCII-Art to create patterns
( p:Person {name:'Gloria Foster'} ) - [ a:ACTED_IN ] -> (m:Movie{name:’The Matrix
Reloaded’})
● For Nodes: Represented using Parentheses
○ ( ) or ( p ), where p is a variable
○ (p: Person), p is a variable representing a Person node
● For Relationships: Represented using -->, <--, --
○ -[:Acted_in]->, specifies the type of relationship to search for
○ -[rel:Acted_in]->, rel is the variable name to the relationship
● For Node or Relationship Properties:
○ (p:Person {name:”Jennifer”}), a person node ‘p’ with name “Jennifer”
○ -[rel:Acted_in {year:”2012”}]->, an Acted_in relationship ‘rel’ between 2 nodes with year 2012
Cypher Syntax

10. Reserved Keywords to depict actions in a pattern
● MATCH : Searches for a node, relationship, property, label or pattern in a graph database
○ Similar to SQL’s “SELECT”
● RETURN : Specifies what values or results should be returned by the cypher query
○ Return nodes, relationships, properties, patterns
● MATCH and RETURN together form the most important property of Cypher and Property
Graphs, Pattern Matching
Cypher Syntax

11. ● Find all nodes with label ‘Person’:
MATCH (p:Person) RETURN p
● Find a node with label ‘Person’ and name ‘Hugh Jackman’
MATCH (p:Person{name:’Hugh Jackman’}) RETURN p
● Find the movie node in which a ‘Person’ node with name ‘Hugh Jackman’ worked
MATCH (p:Person{name:’Hugh Jackman’}) -[:ACTED_IN]-> (m:Movie) RETURN m
● Find the name of the movie in which the ‘Person’ node with name ‘Hugh Jackman’ worked
MATCH (p:Person{name:’Hugh Jackman’}) -[:ACTED_IN]-> (m:Movie) RETURN m.name
● Find the name of the movies in which ‘Hugh Jackman’ acted in year 2010
MATCH (p:Person{name:’Hugh Jackman’}) -[:ACTED_IN{year:2008}]-> (m:Movie)
RETURN m.name
Cypher Syntax

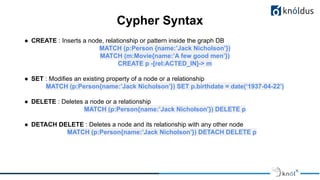

12. ● CREATE : Inserts a node, relationship or pattern inside the graph DB
MATCH (p:Person {name:’Jack Nicholson’})
MATCH (m:Movie{name:’A few good men’})
CREATE p -[rel:ACTED_IN]-> m
● SET : Modifies an existing property of a node or a relationship
MATCH (p:Person{name:’Jack Nicholson’}) SET p.birthdate = date(‘1937-04-22’)
● DELETE : Deletes a node or a relationship
MATCH (p:Person{name:’Jack Nicholson’}) DELETE p
● DETACH DELETE : Deletes a node and its relationship with any other node
MATCH (p:Person{name:’Jack Nicholson’}) DETACH DELETE p
Cypher Syntax

13. ● Originally called as Cypher for Apache Spark (CAPS)
● Brings the world of Graph processing and querying to Apache Spark, though as an external
plug-in right now
● Allows integration with Hive, Neo4j, Relational DB, and files stored in HDFS or S3
● Use Spark cluster to run Analytical Graph Queries
● Builds on Spark SQL Dataframe API, offers integration with Standard Spark SQL processing
● Uses Spark features such as Catalyst Optimizer
● Provides conversion from SQL Dataframes to Graphs and back to Dataframes too.
Hello Morpheus

14. ● Initiate Morpheus Session from Spark Session
Hello Morpheus

15. ● Create Nodes from Dataframe and it’s Mapping
Hello Morpheus

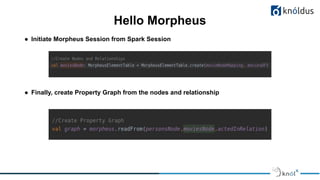

16. ● Initiate Morpheus Session from Spark Session
● Finally, create Property Graph from the nodes and relationship
Hello Morpheus

17. Demo

18. Thank You !
