Zabbix is an open source monitoring solution that can monitor all elements of an IT infrastructure including operating systems, databases, applications and network devices. It collects metrics using agents and SNMP and analyzes the data to detect problems, generate alerts and trigger automatic actions. Zabbix uses triggers to define problems and can forecast and predict issues. It provides visualizations, reporting and centralized management for monitoring large, complex environments.

1. The Universal Open Source Enterprise Level Monitoring Solution
Monitoring All Elements of
Your Database Operations with
Zabbix

2. Who am I?
Alexei Vladishev
Founder of Zabbix
CEO, Architect and Product Manager
Twitter: @avladishev
Email: alex@zabbix.com
2

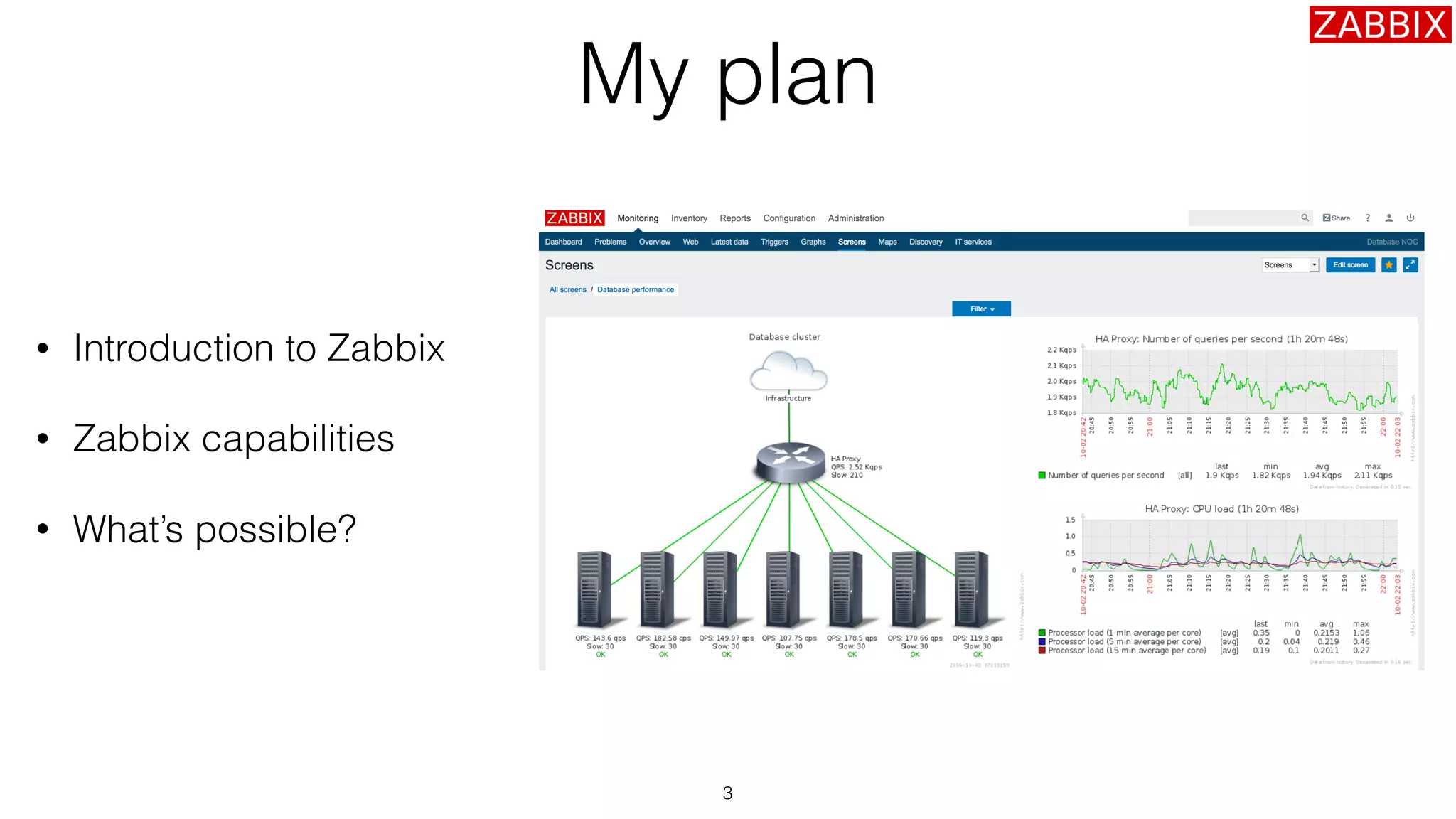

3. My plan
• Introduction to Zabbix
• Zabbix capabilities
• What’s possible?
3

4. History of Zabbix

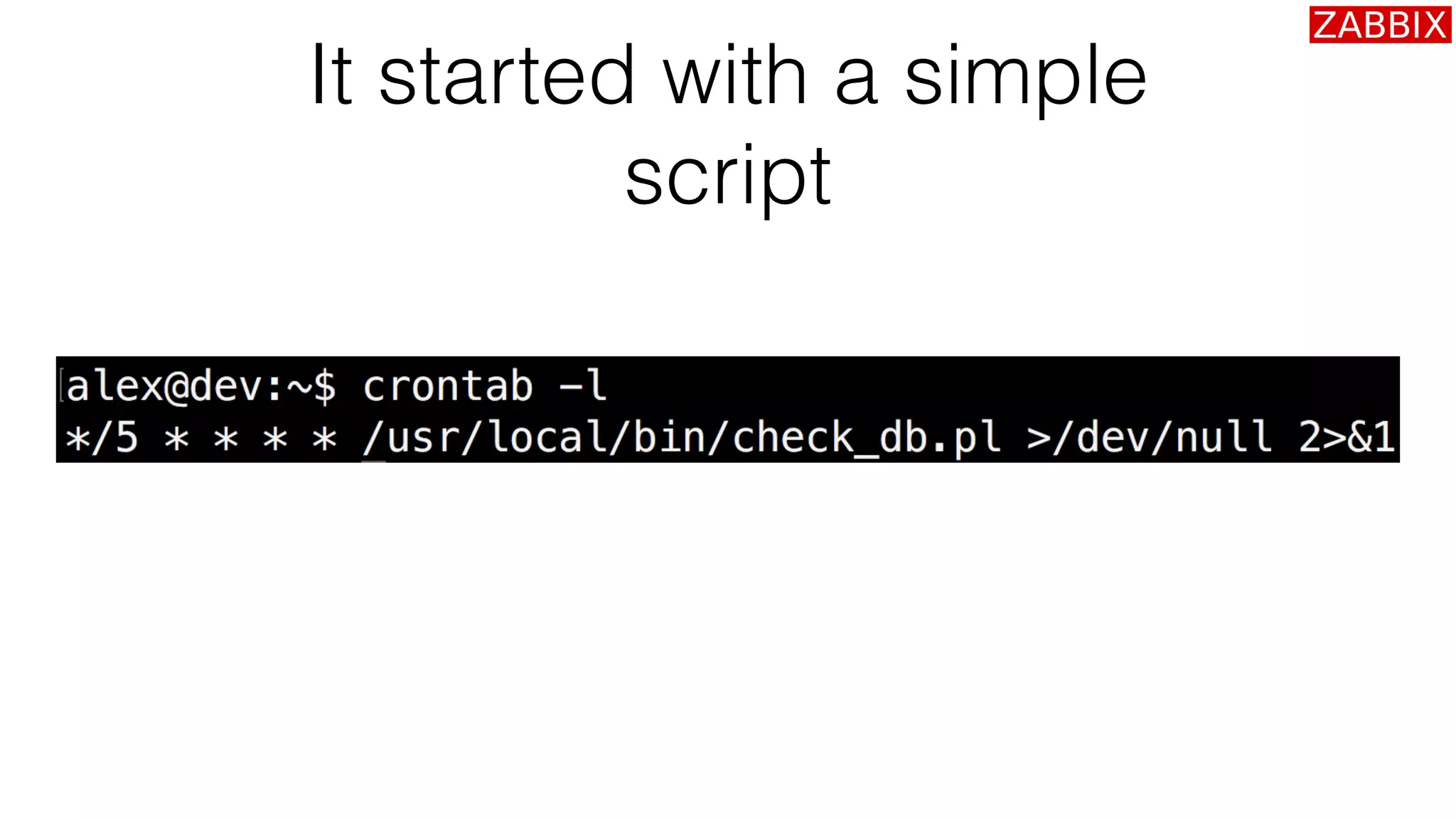

5. It started with a simple
script

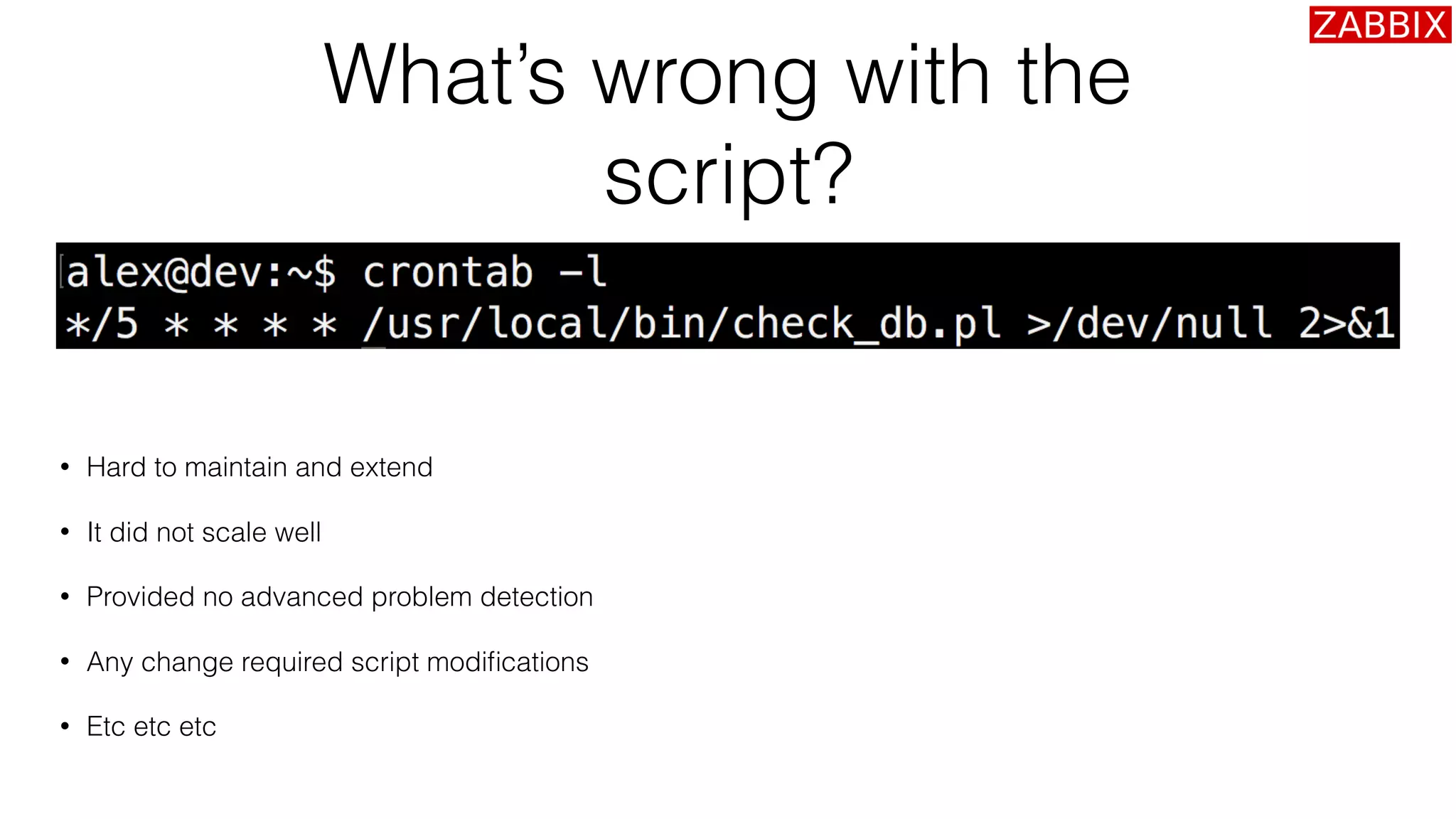

6. What’s wrong with the
script?
• Hard to maintain and extend
• It did not scale well
• Provided no advanced problem detection
• Any change required script modifications
• Etc etc etc

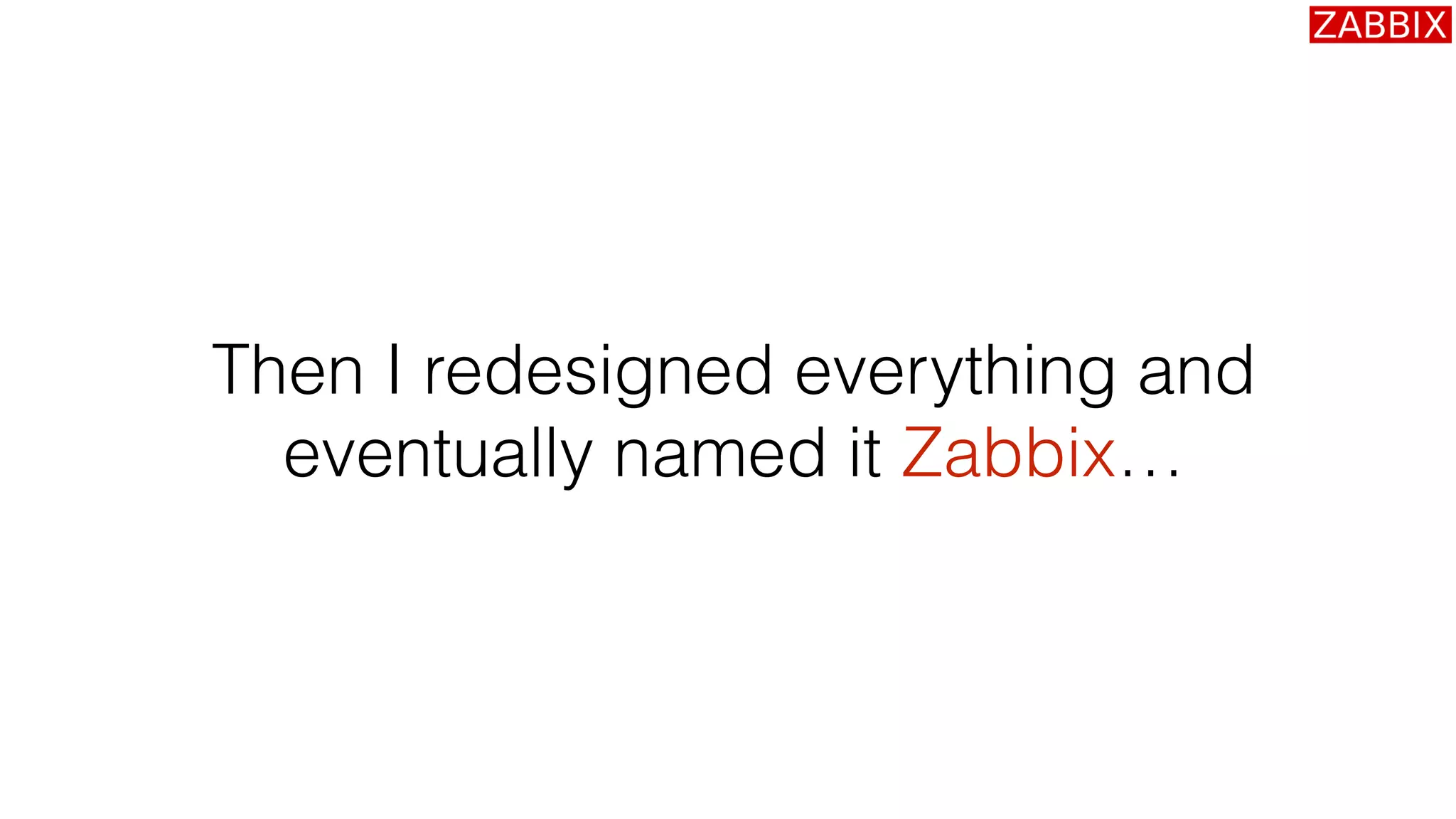

7. Then I redesigned everything and
eventually named it Zabbix…

8. Zabbix is a universal open
source enterprise level
monitoring solution

9. Zabbix team
45 members working full-time
Offices in Riga
(Headquarters), Tokyo and
New-York
9

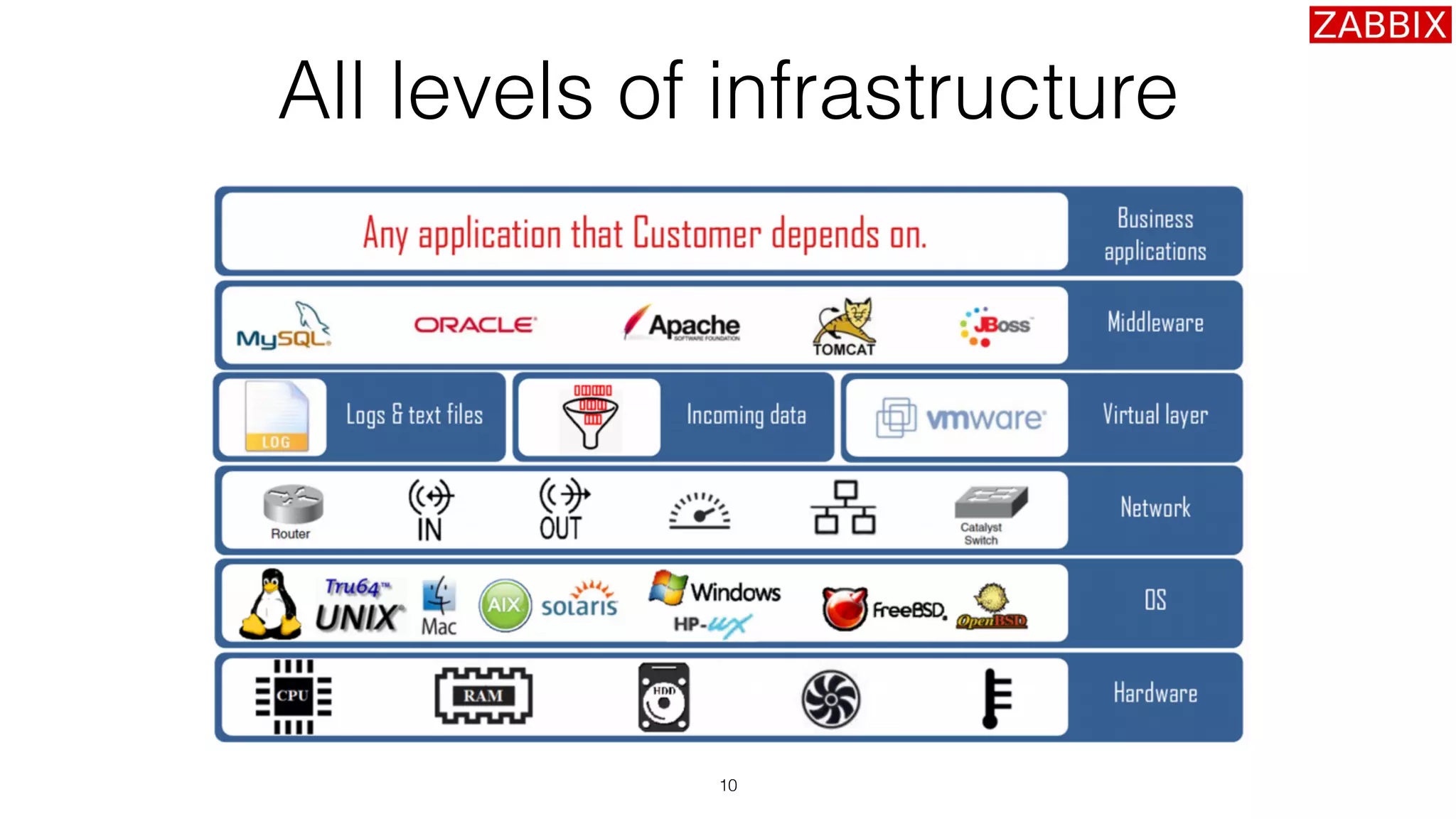

10. All levels of infrastructure
10

11. All platforms and OS
All platforms
All vendors
Any metrics
11

12. Zabbix Architecture

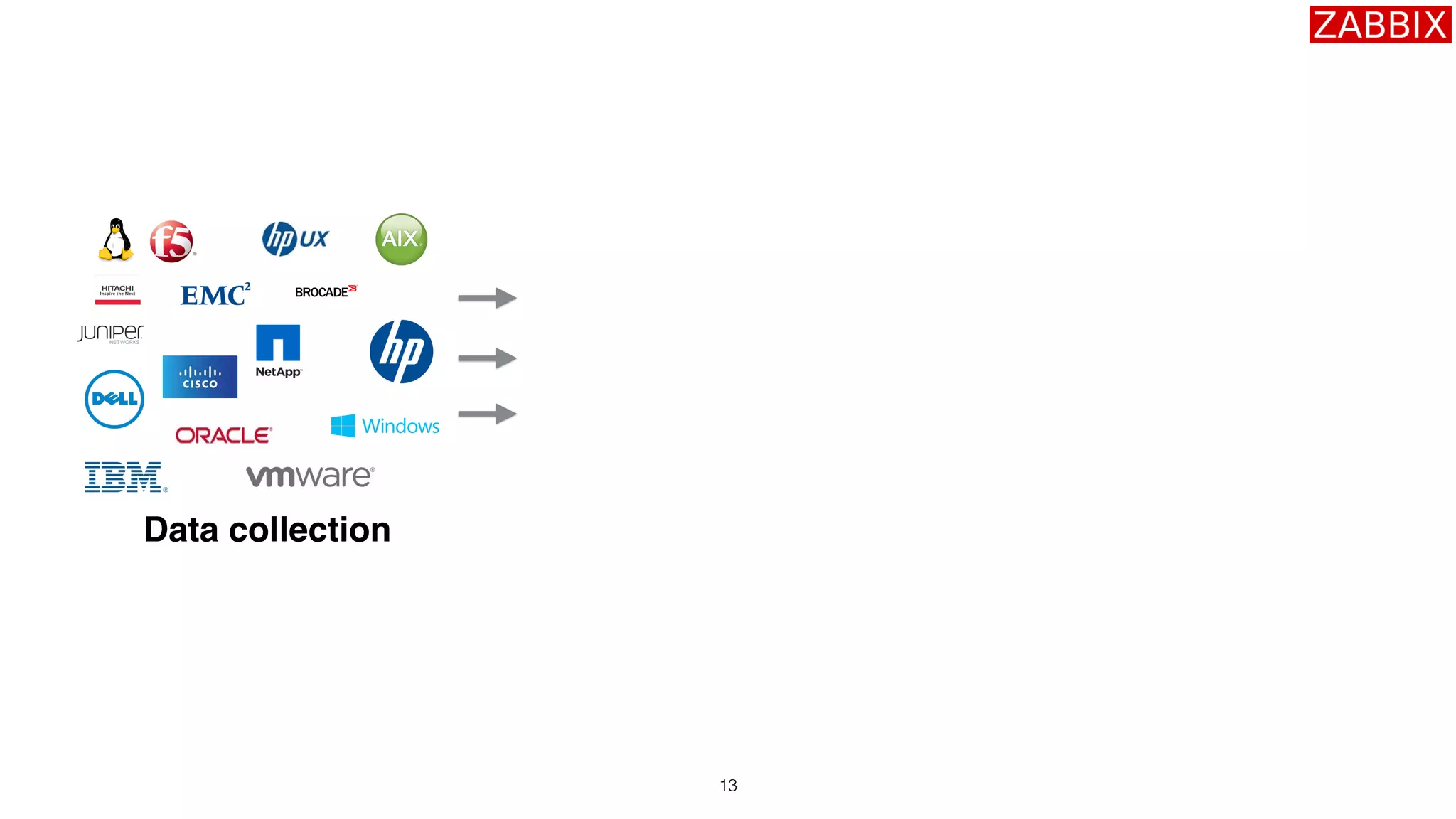

13. 13
Data collection

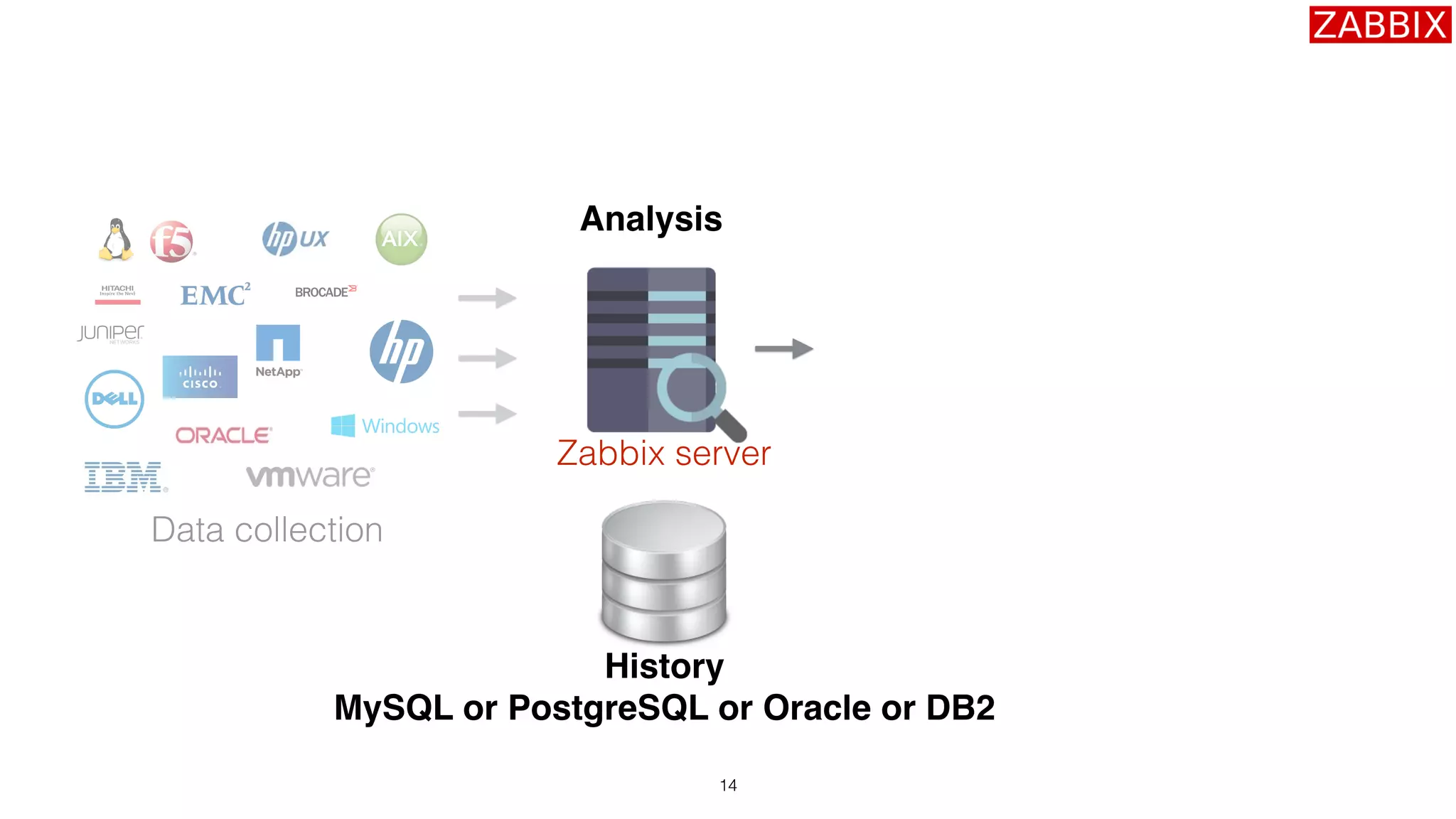

14. 14
History
MySQL or PostgreSQL or Oracle or DB2
Analysis
Zabbix server
Data collection

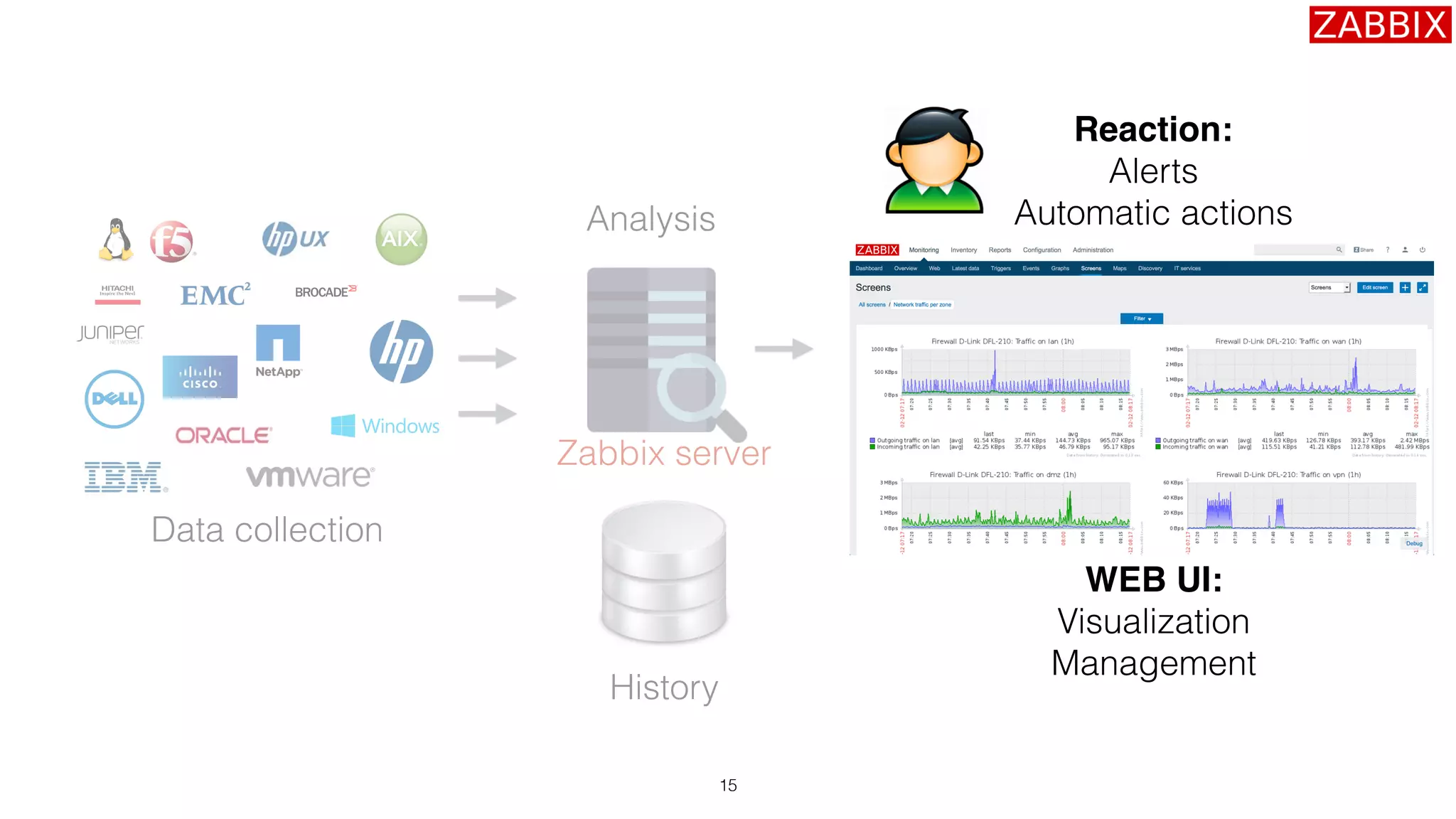

15. 15
History
Analysis
Data collection
Reaction:
Alerts
Automatic actions
Zabbix server
WEB UI:
Visualization
Management

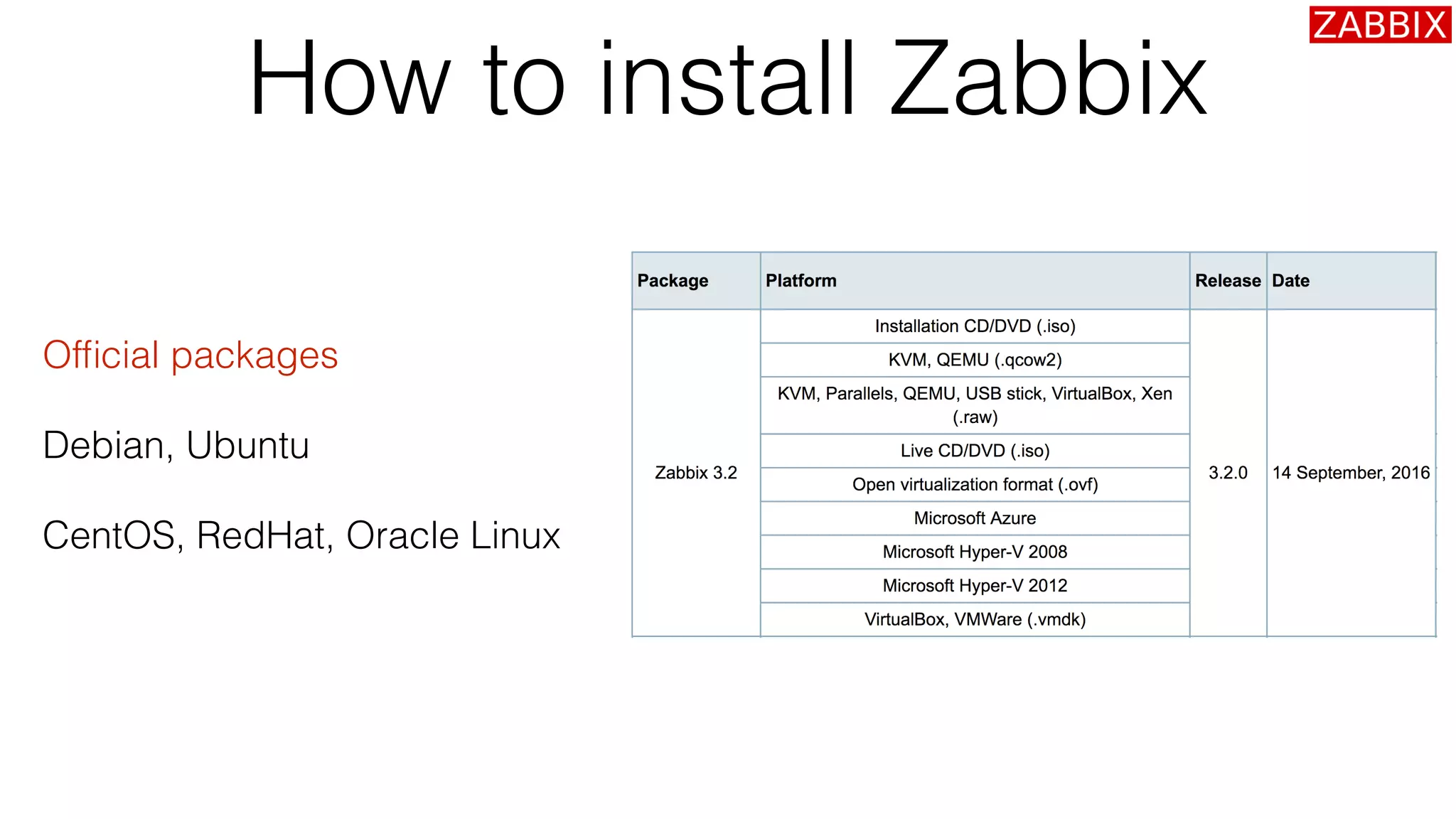

16. How to install Zabbix
Official packages
Debian, Ubuntu
CentOS, RedHat, Oracle Linux

17. Database monitoring
17

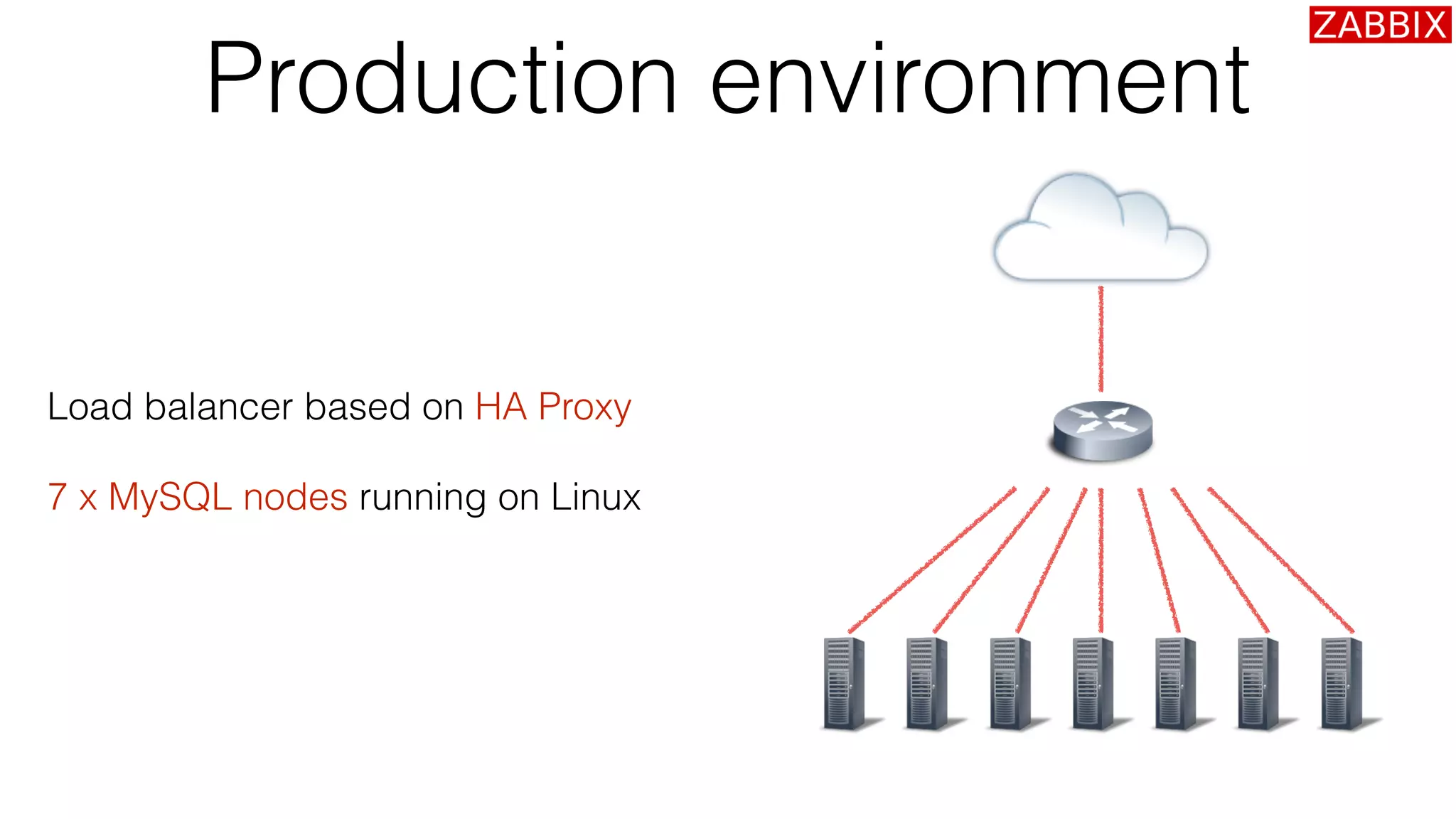

18. Production environment
Load balancer based on HA Proxy
7 x MySQL nodes running on Linux

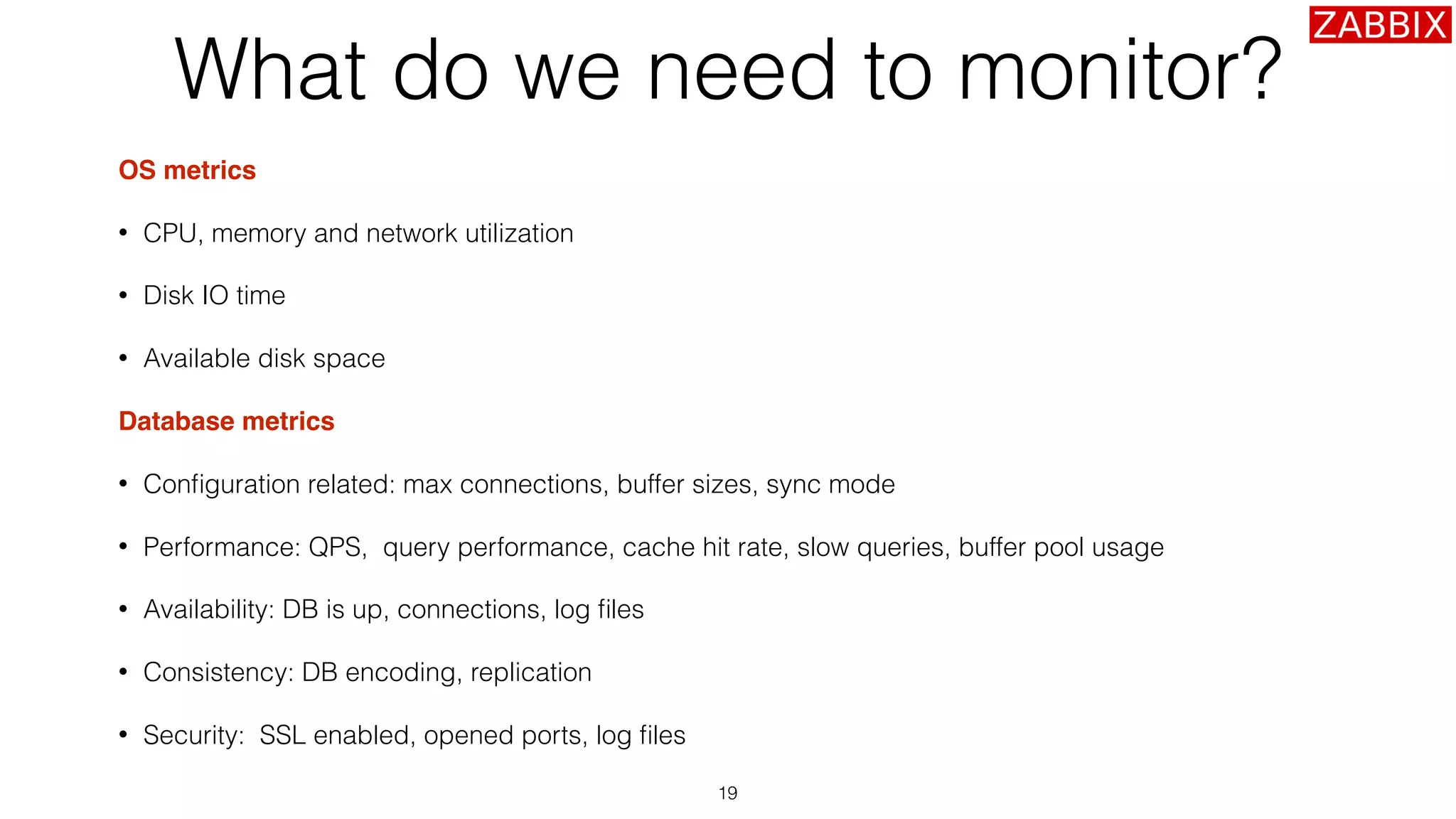

19. What do we need to monitor?
OS metrics
• CPU, memory and network utilization
• Disk IO time
• Available disk space
Database metrics
• Configuration related: max connections, buffer sizes, sync mode
• Performance: QPS, query performance, cache hit rate, slow queries, buffer pool usage
• Availability: DB is up, connections, log files
• Consistency: DB encoding, replication
• Security: SSL enabled, opened ports, log files
19

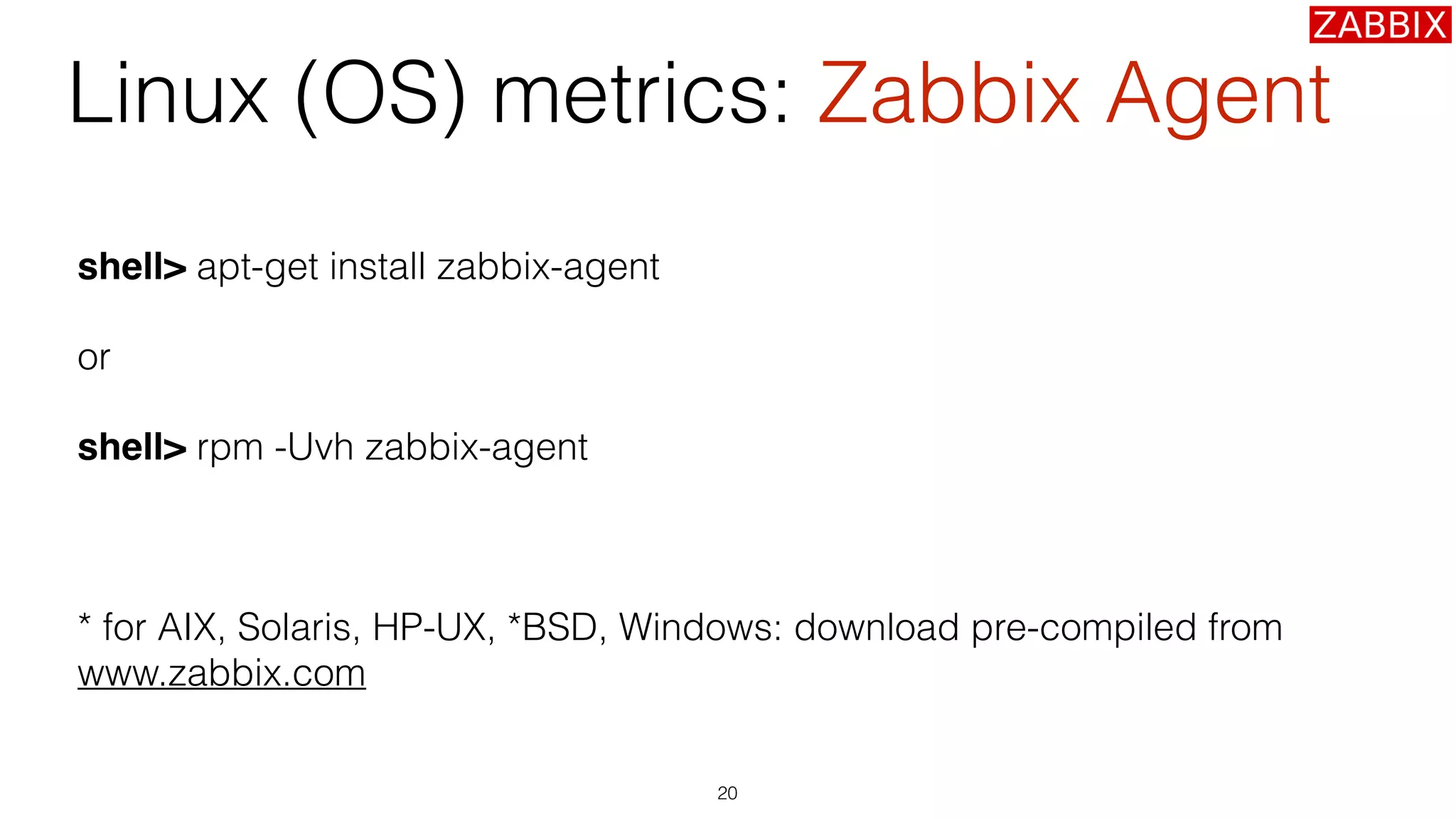

20. Linux (OS) metrics: Zabbix Agent
shell> apt-get install zabbix-agent
or
shell> rpm -Uvh zabbix-agent
* for AIX, Solaris, HP-UX, *BSD, Windows: download pre-compiled from
www.zabbix.com
20

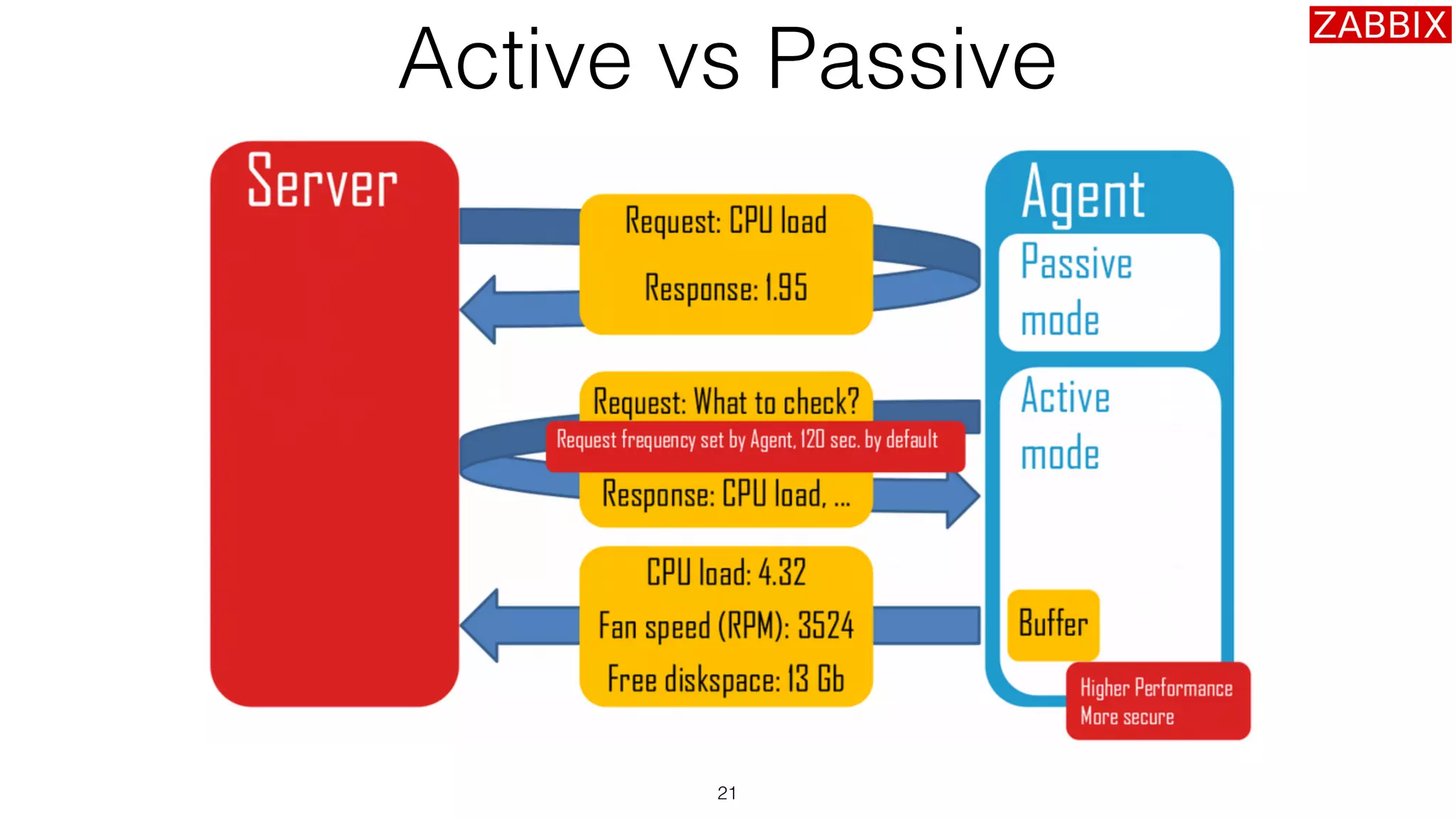

21. Active vs Passive
Pull
• Service checks
• Passive agent
• SSH and Telnet
Push
• Active agent
• Zabbix Trapper and SNMP Traps
• Monitoring of log files
21

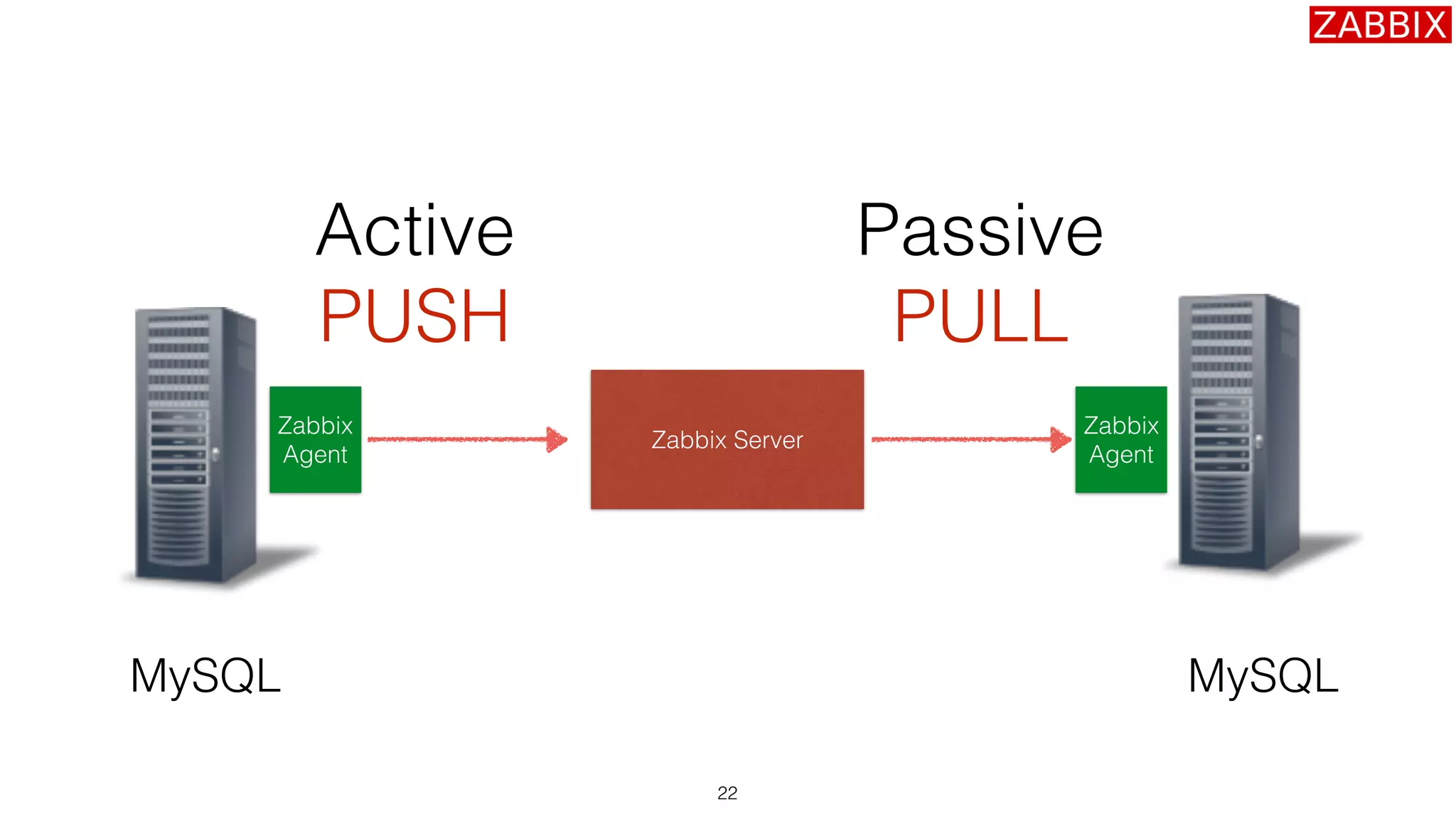

22. Passive
PULL
22
Zabbix Server
Zabbix
Agent
Zabbix
Agent
Active
PUSH
MySQL MySQL

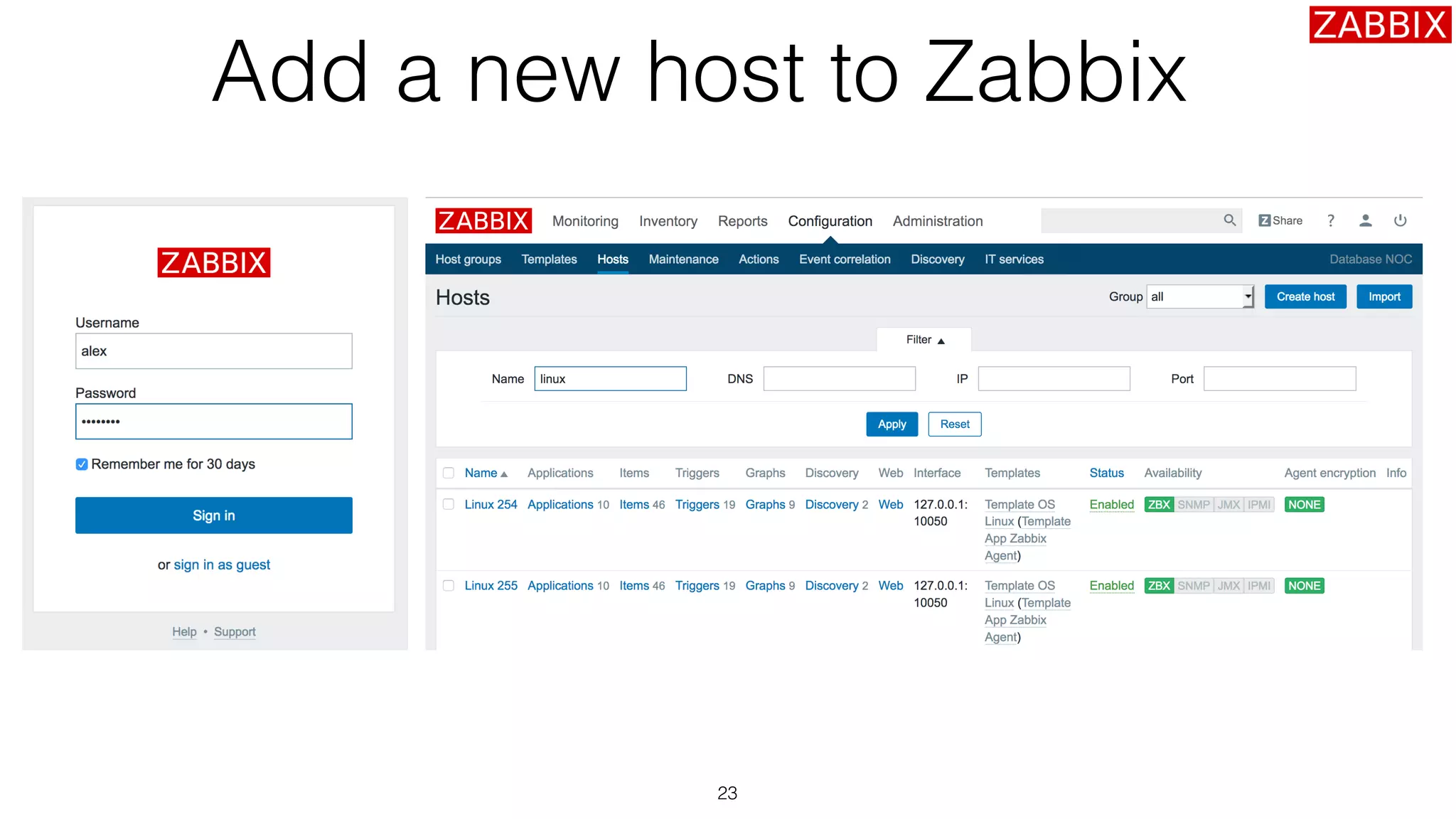

23. Add a new host to Zabbix
23

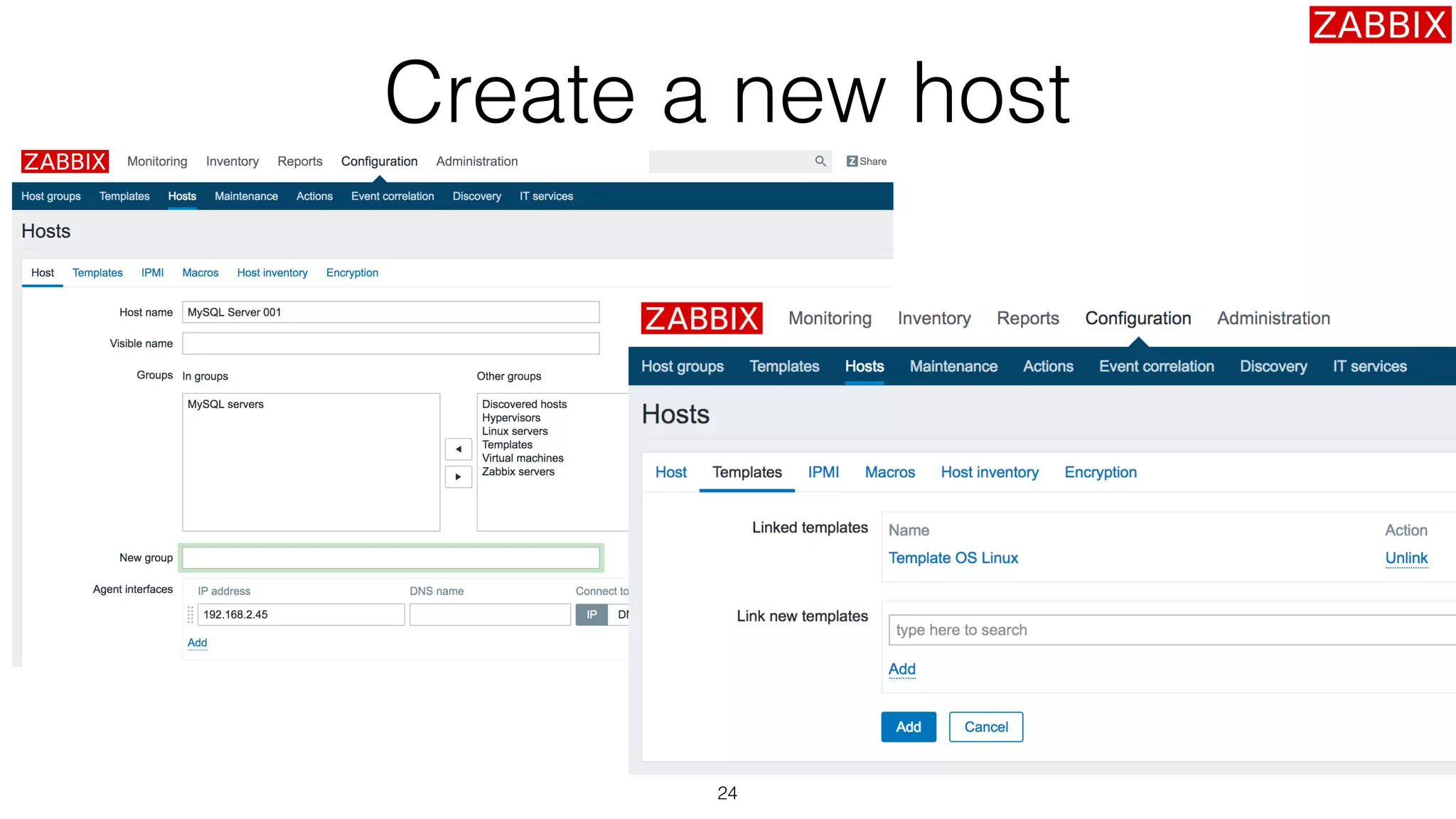

24. Create a new host
24

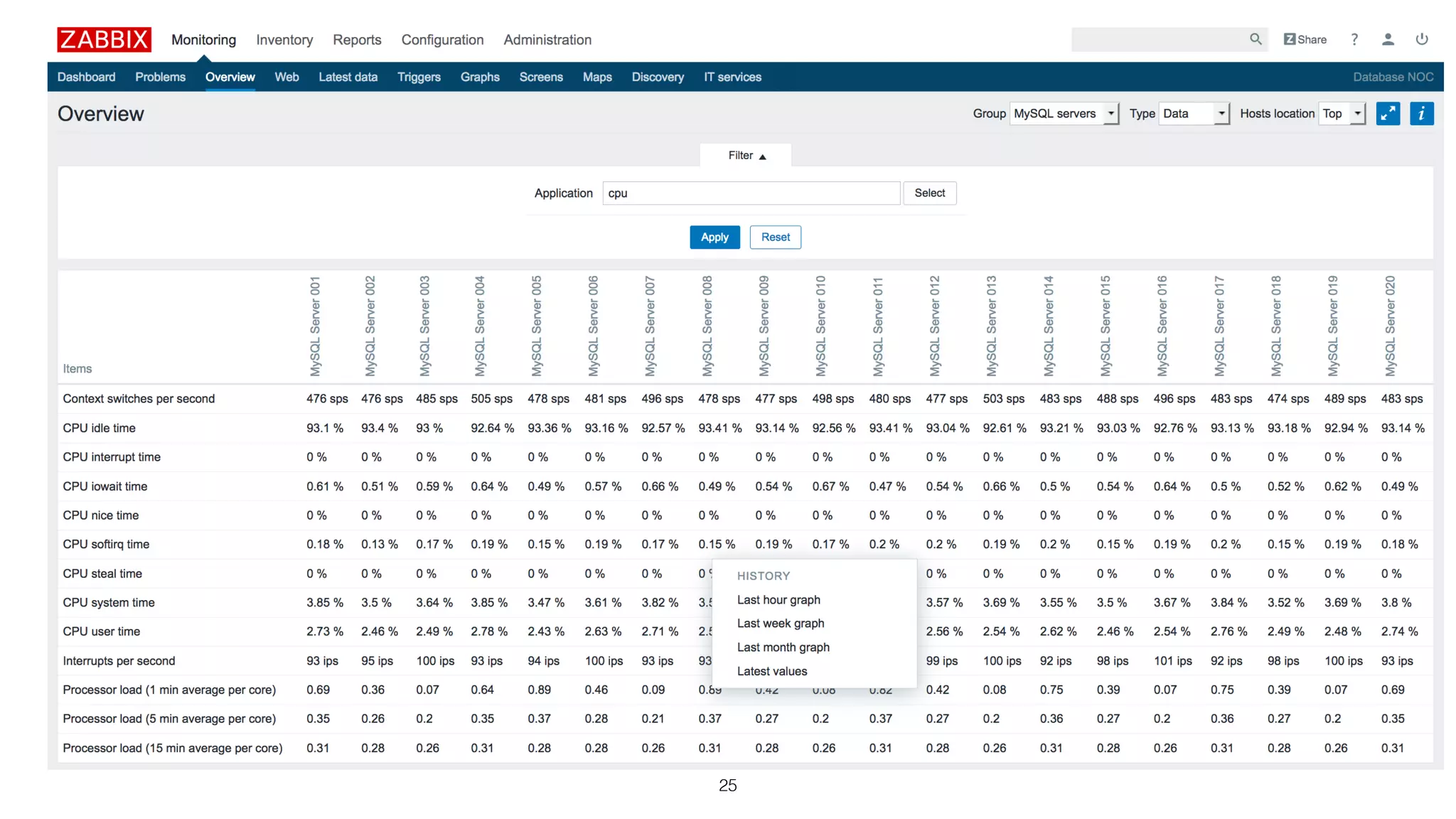

25. 25

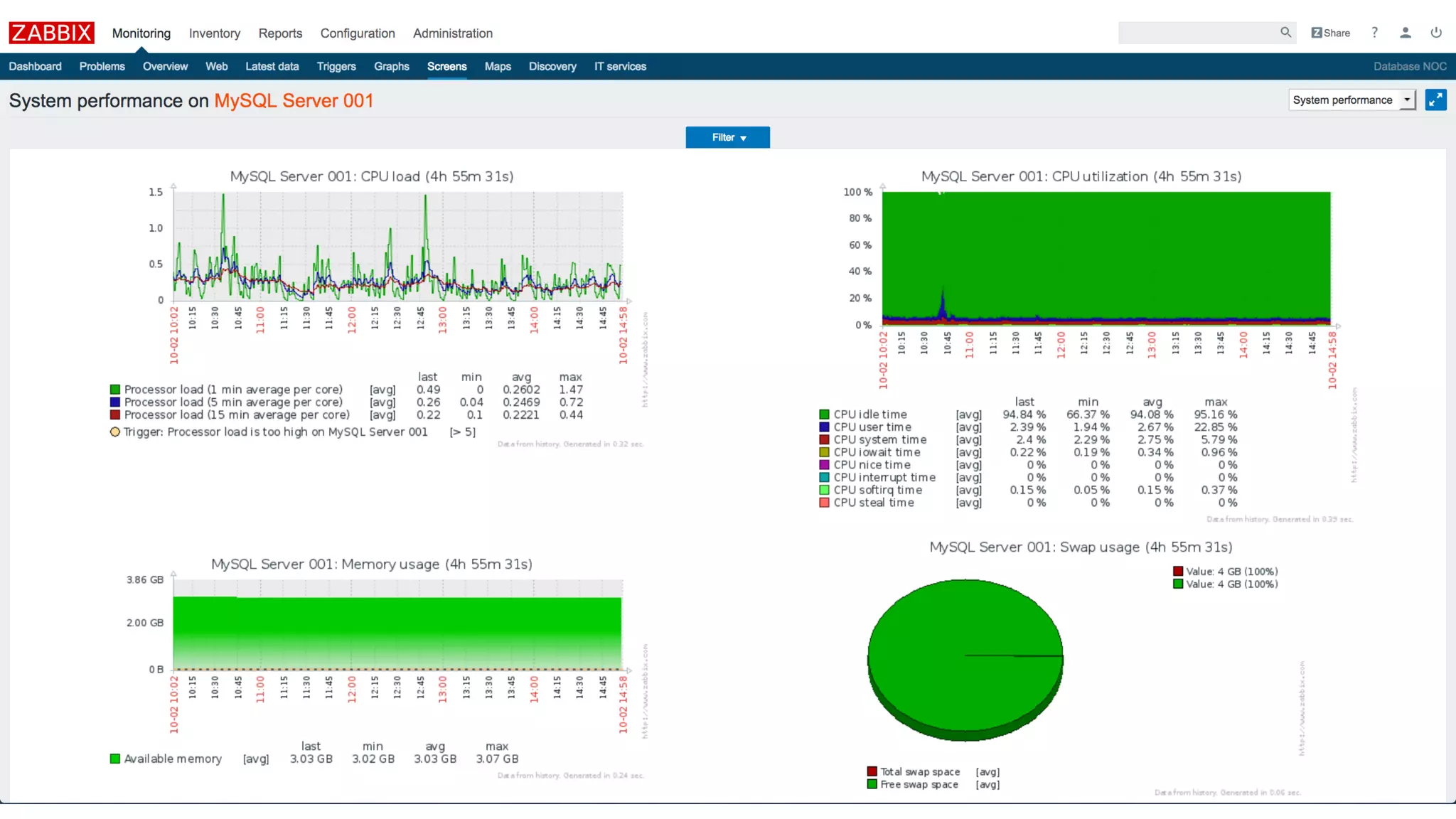

26. 26

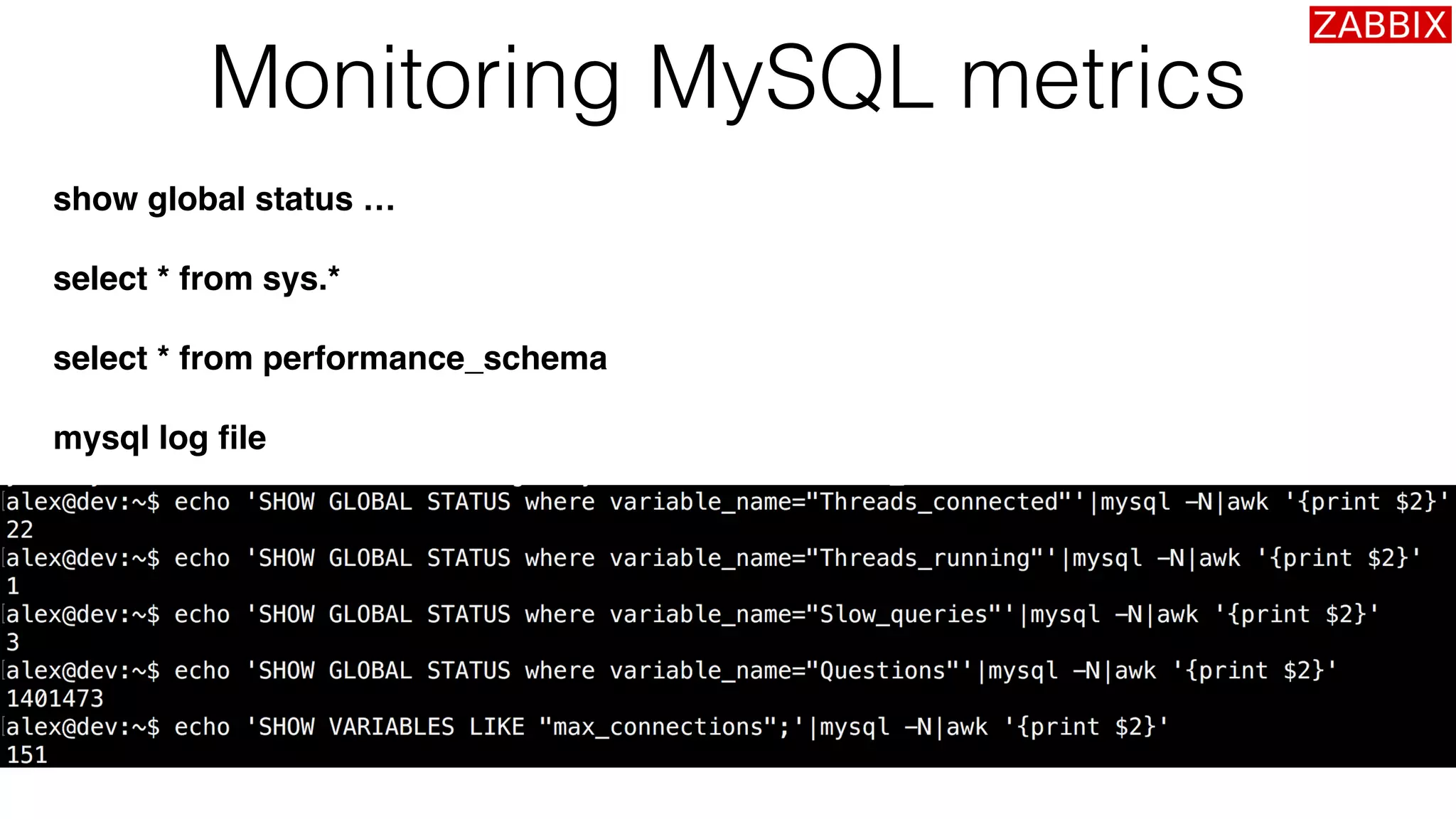

27. Monitoring MySQL metrics
show global status …
select * from sys.*
select * from performance_schema
mysql log file

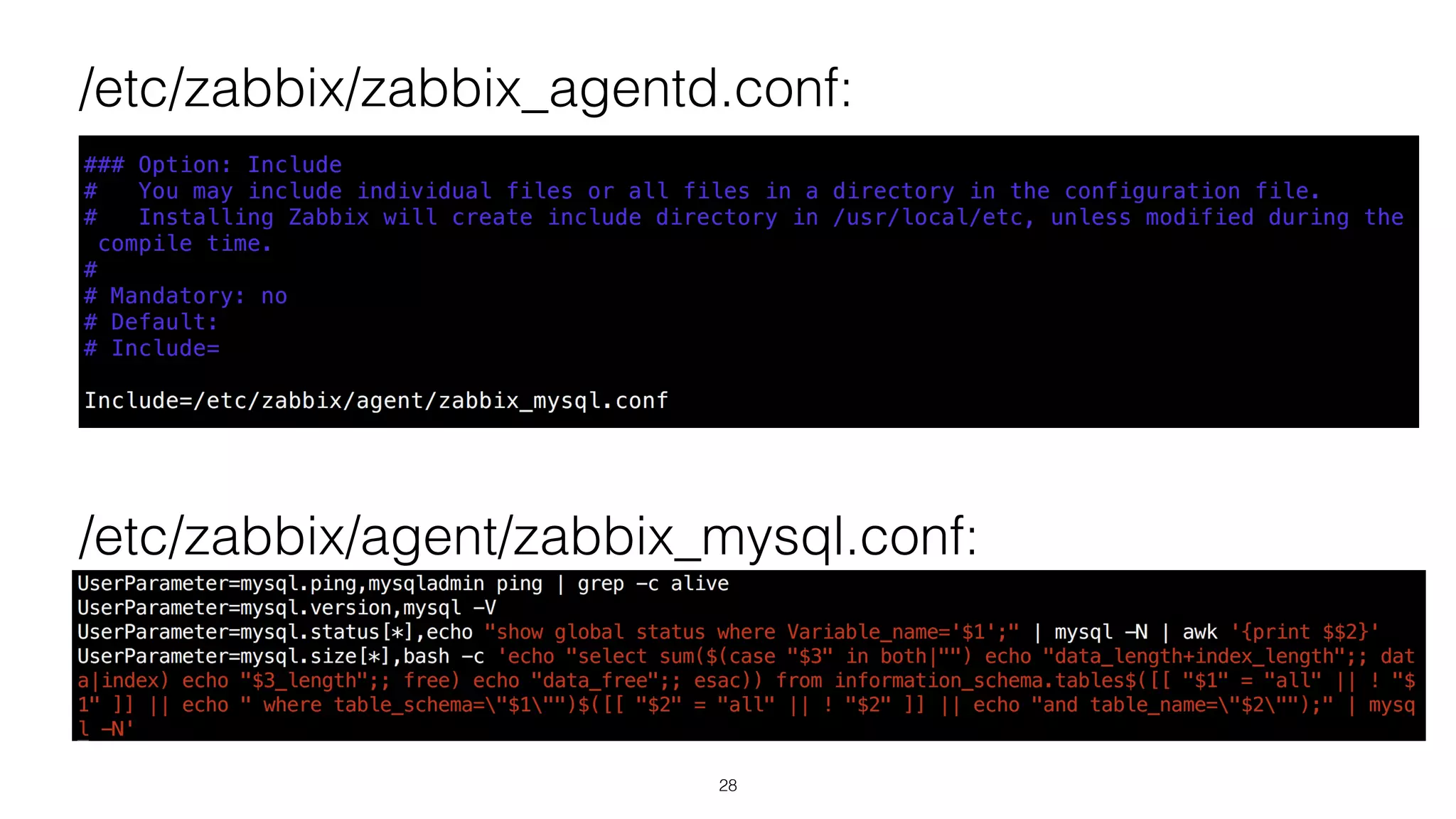

28. 28
/etc/zabbix/agent/zabbix_mysql.conf:
/etc/zabbix/zabbix_agentd.conf:

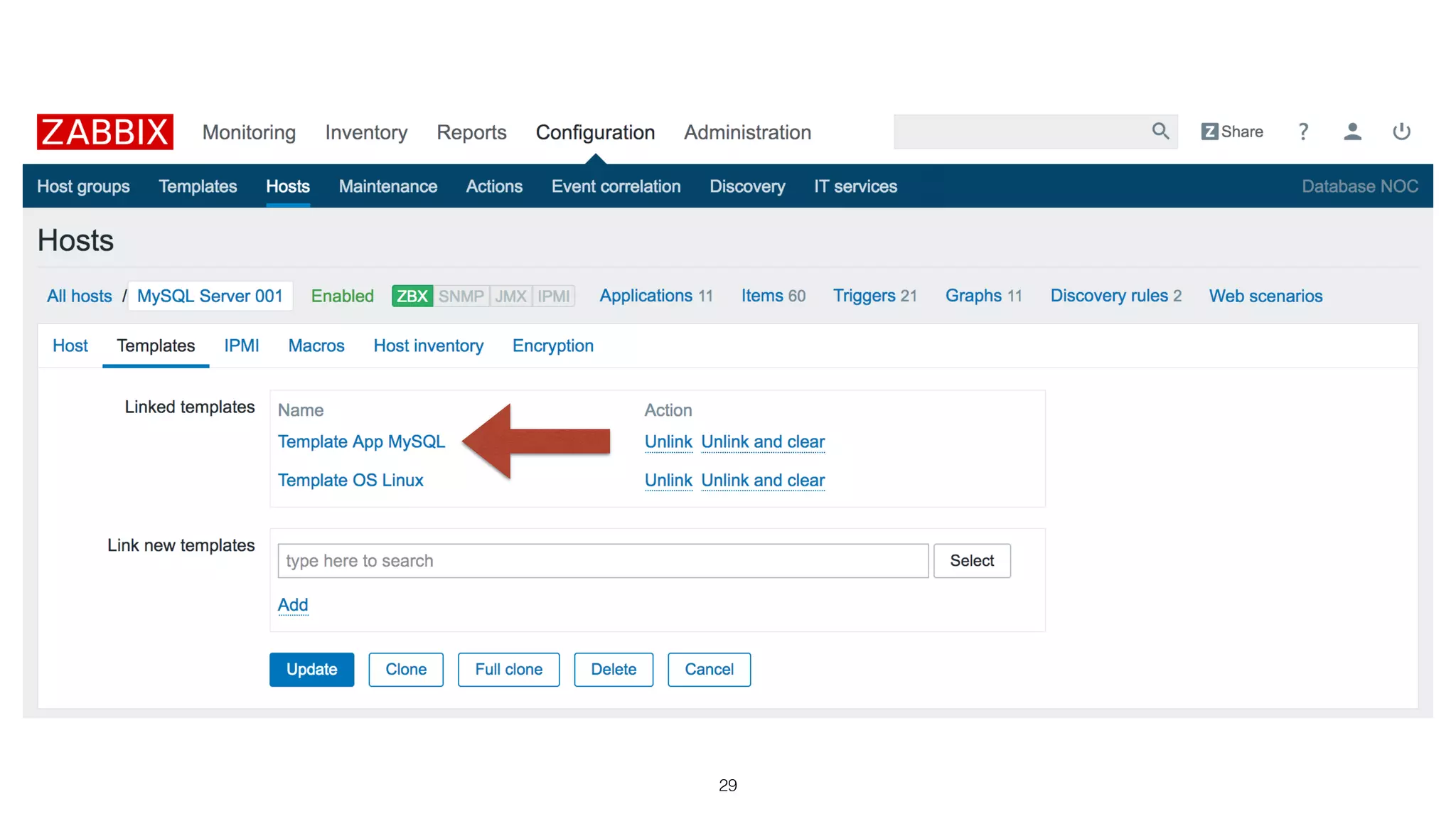

29. 29

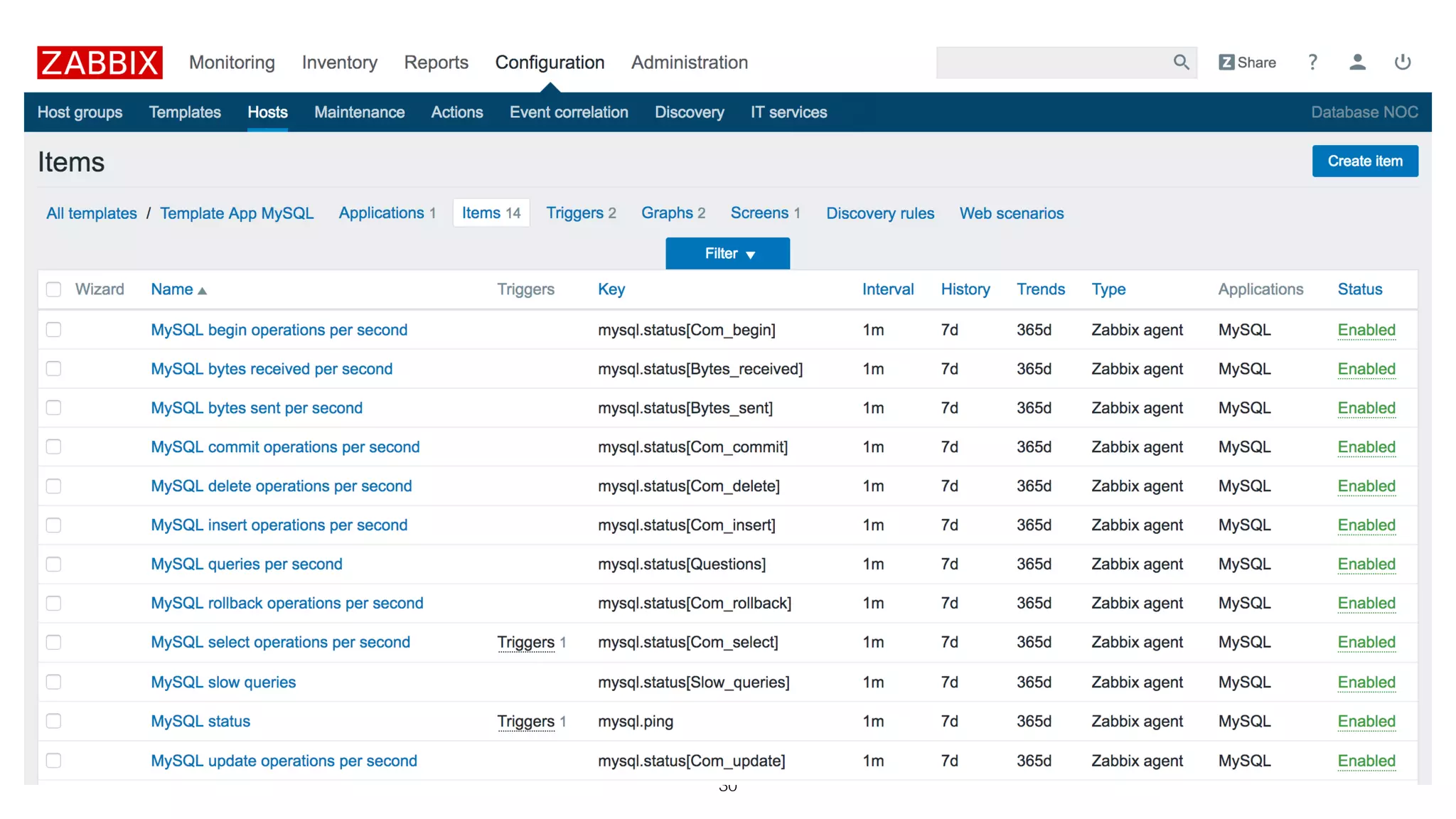

30. 30

31. 31

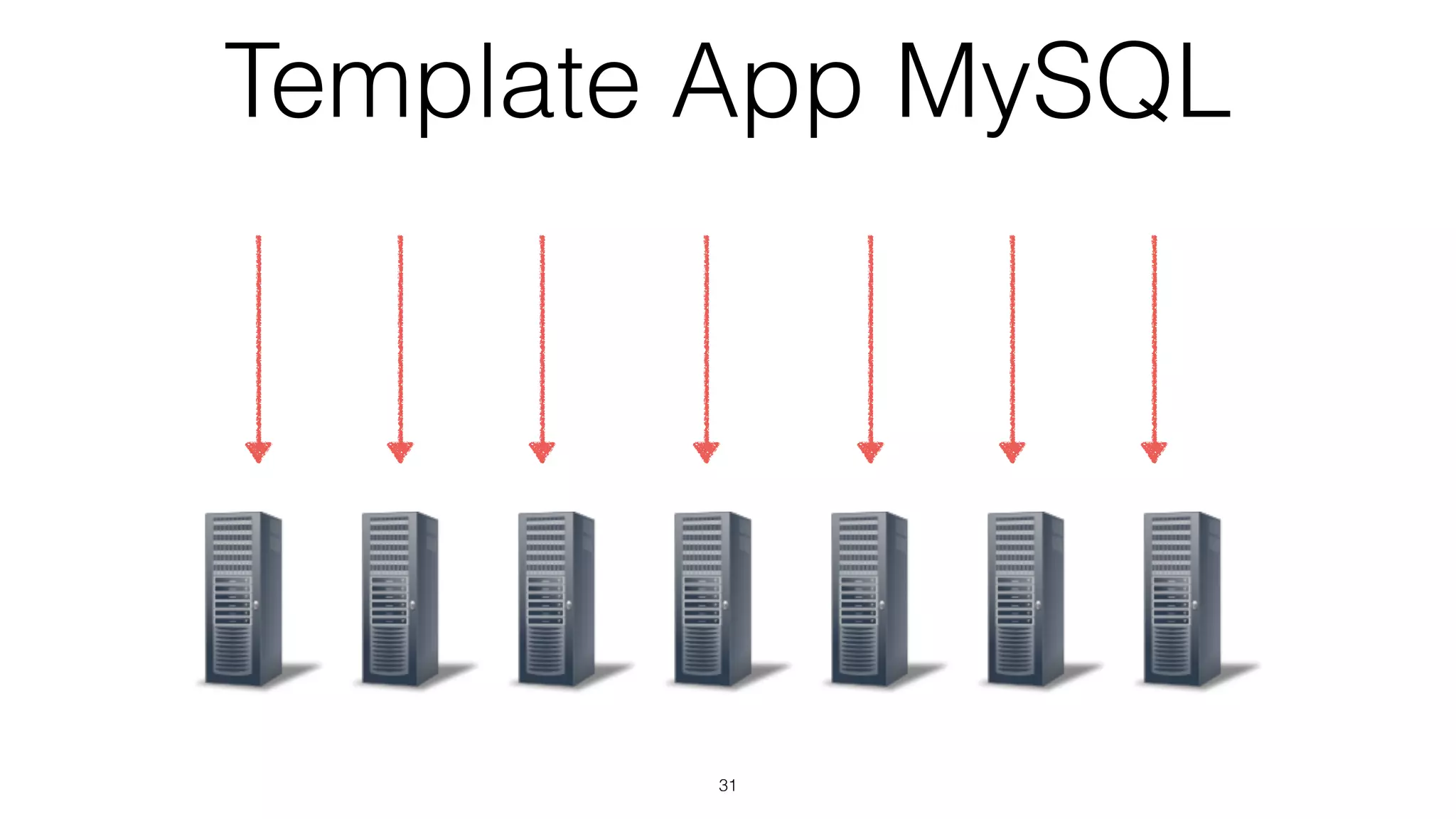

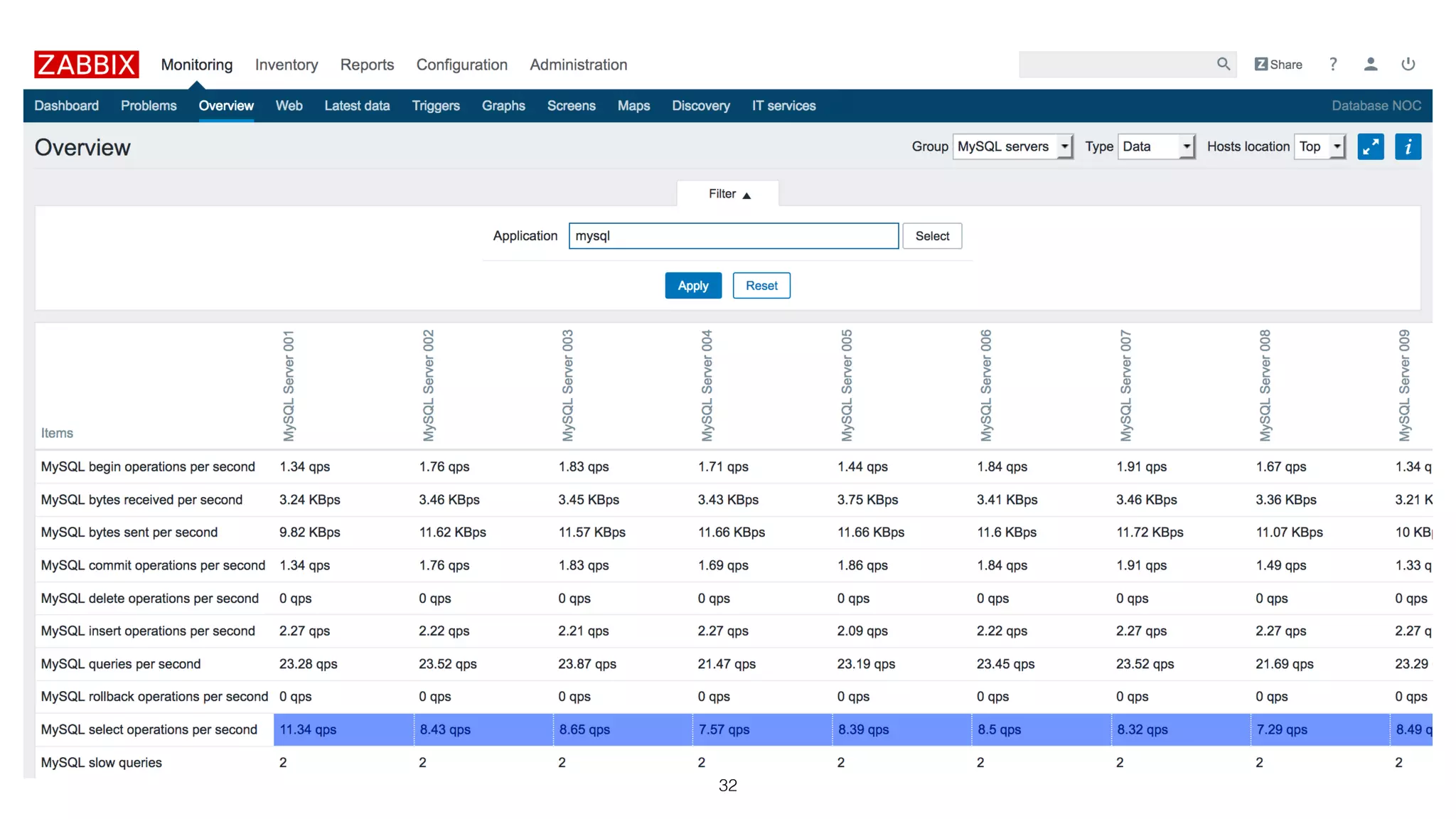

Template App MySQL

32. 32

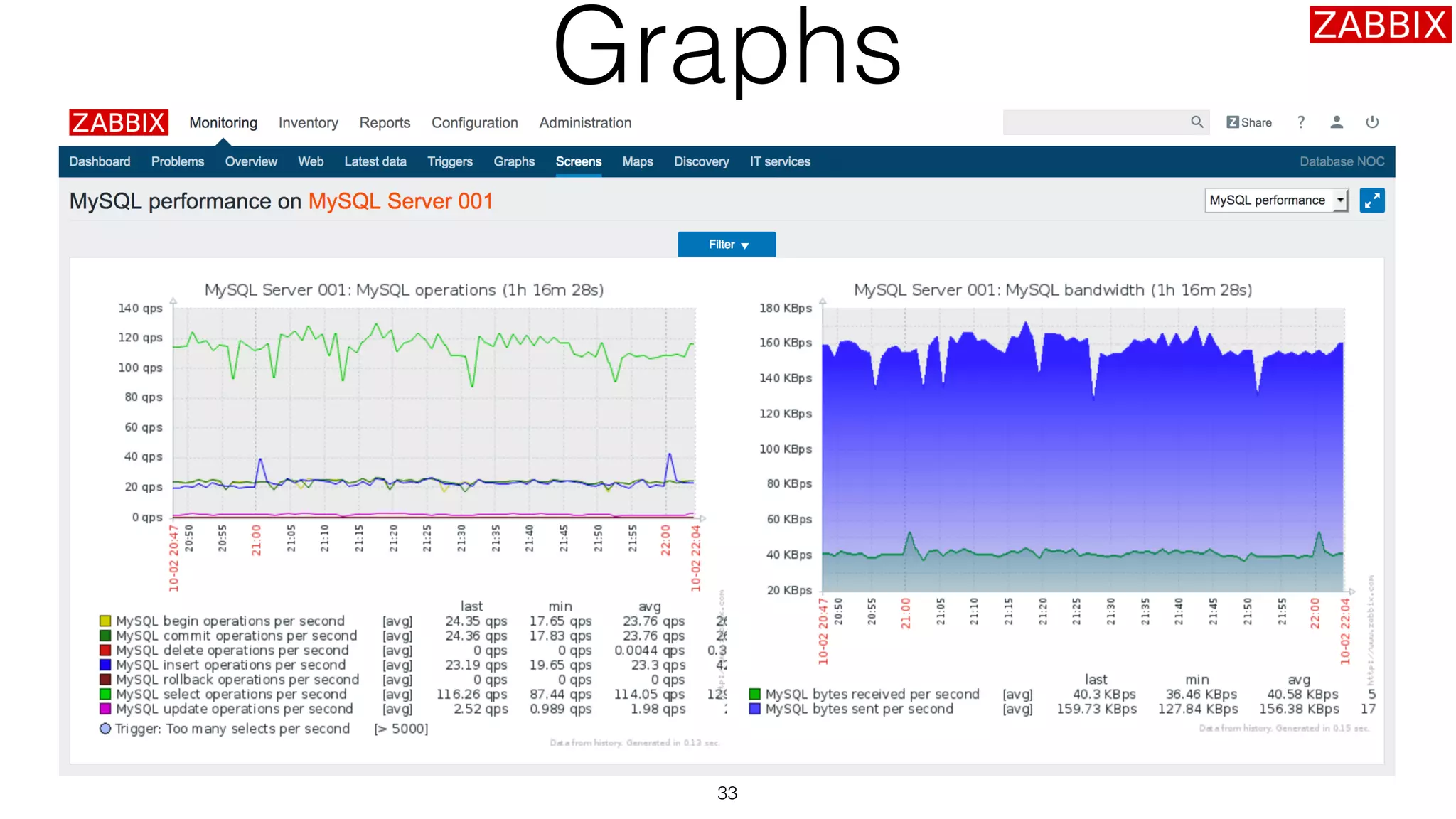

33. Graphs
33

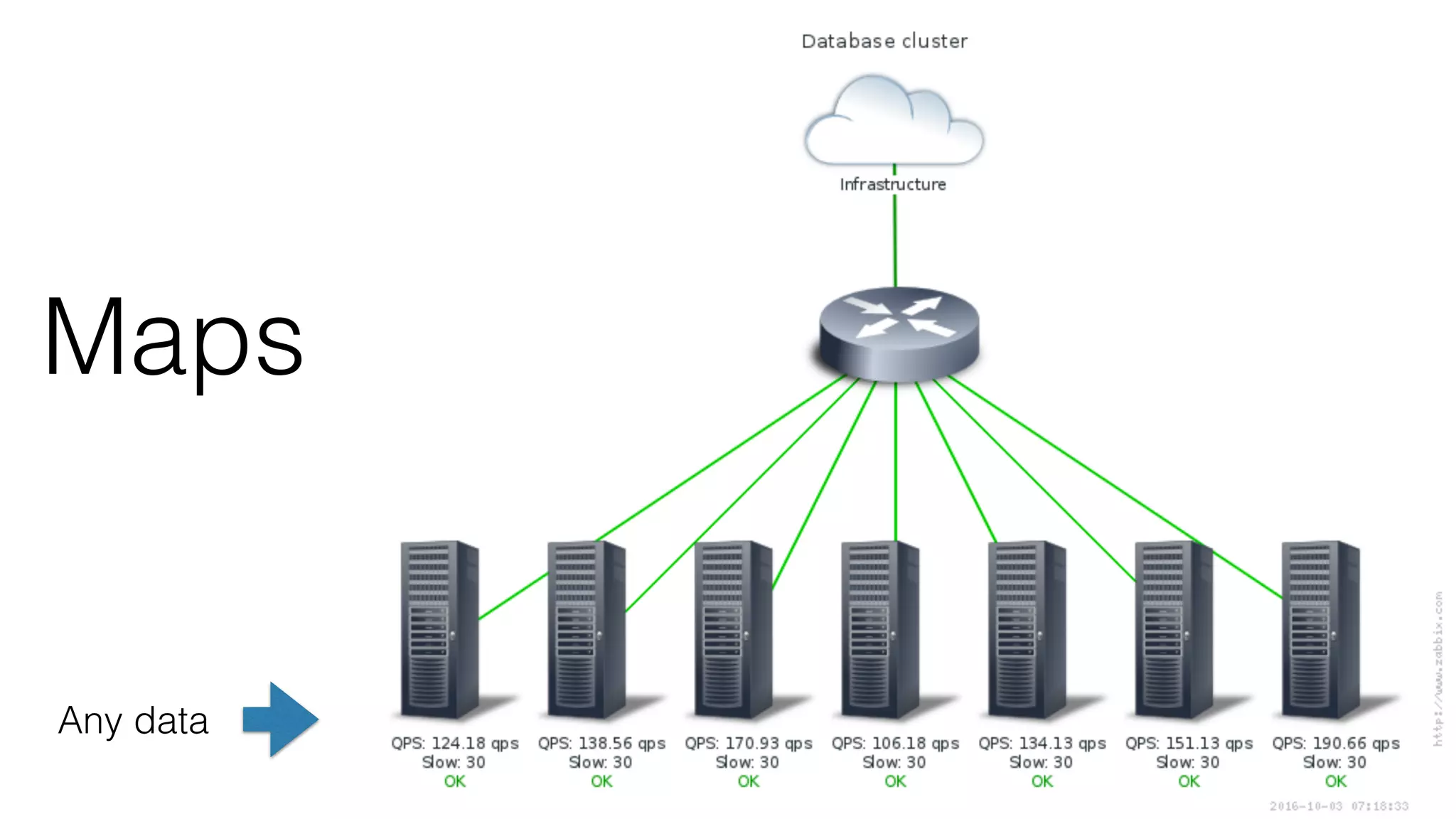

34. Maps
34
Any data

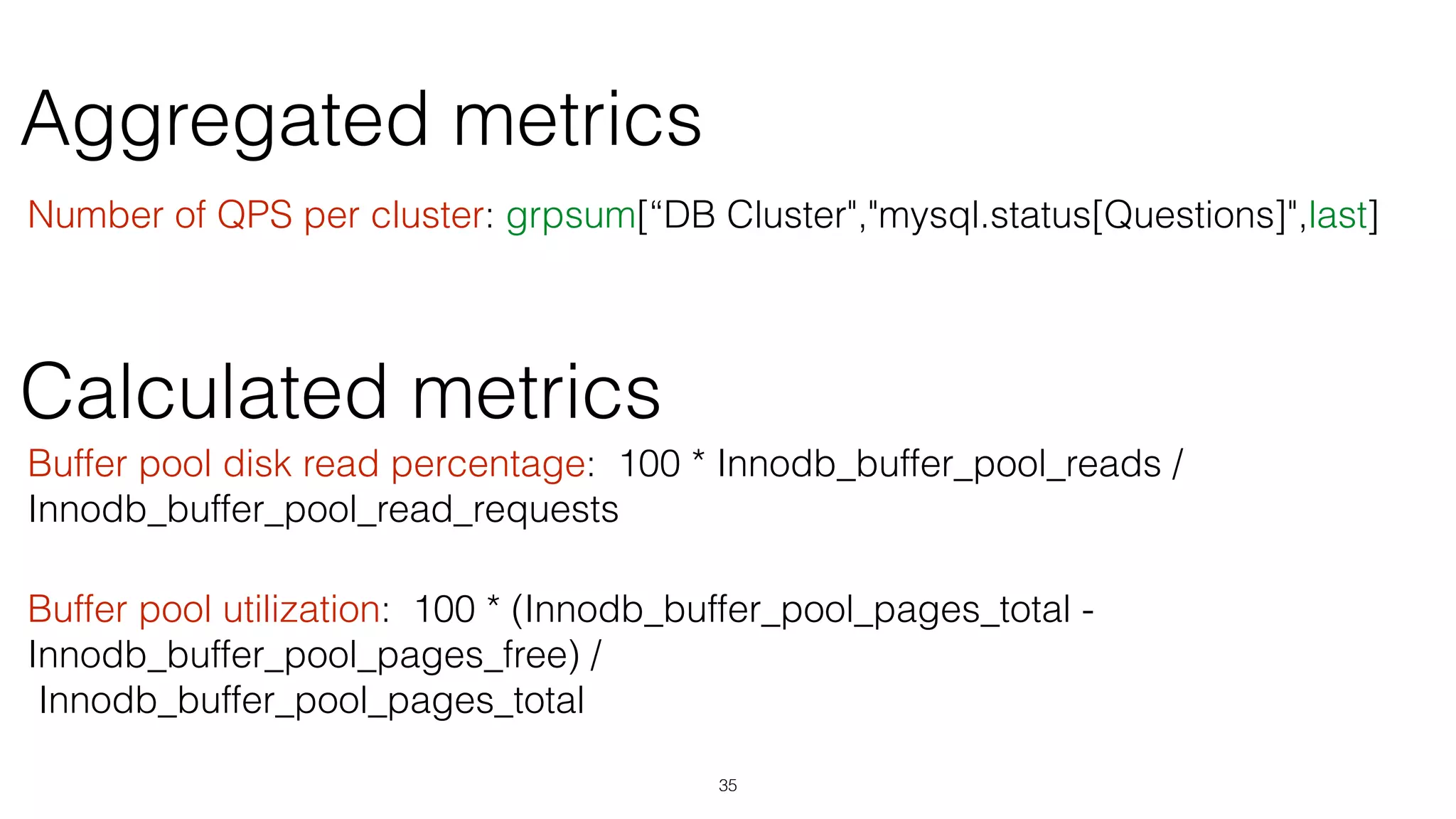

35. 35
Aggregated metrics
Calculated metrics
Buffer pool disk read percentage: 100 * Innodb_buffer_pool_reads /
Innodb_buffer_pool_read_requests
Number of QPS per cluster: grpsum[“DB Cluster","mysql.status[Questions]",last]
Buffer pool utilization: 100 * (Innodb_buffer_pool_pages_total -
Innodb_buffer_pool_pages_free) /
Innodb_buffer_pool_pages_total

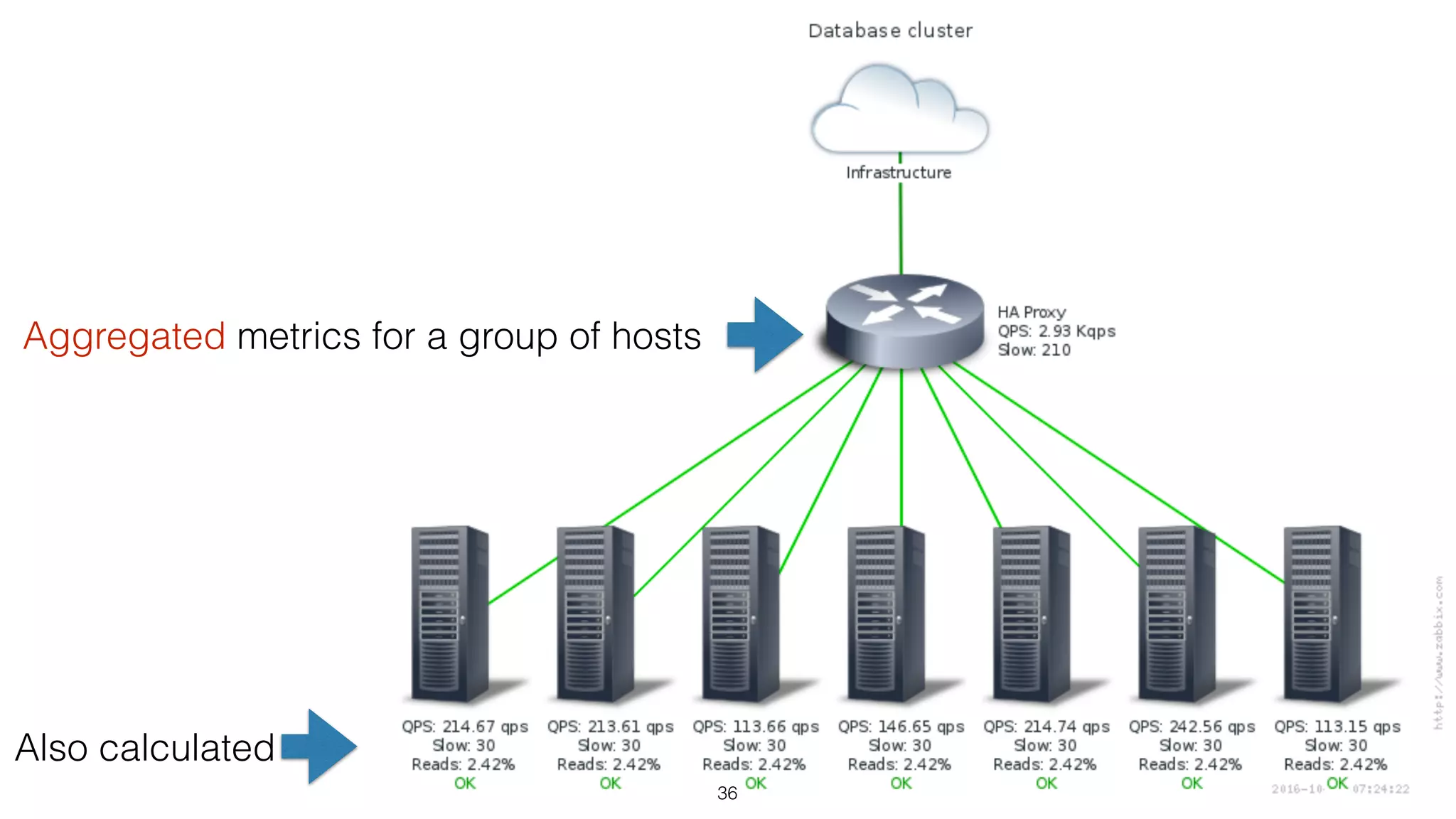

36. 36
Also calculated
Aggregated metrics for a group of hosts

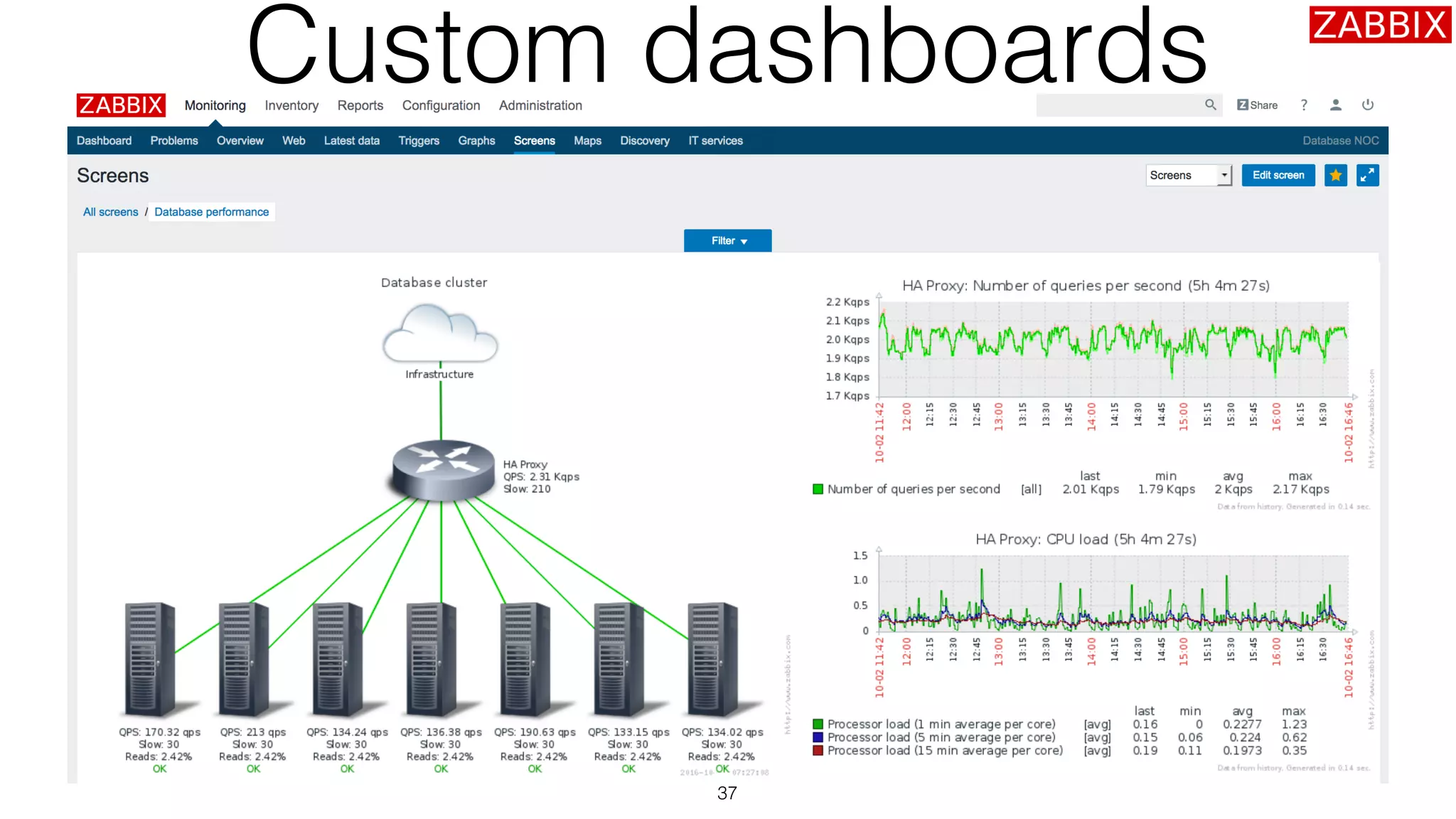

37. Custom dashboards
37

38. How to detect problems in
this data flow?
38

39. Triggers!
39

40. Trigger is
а problem definition
40

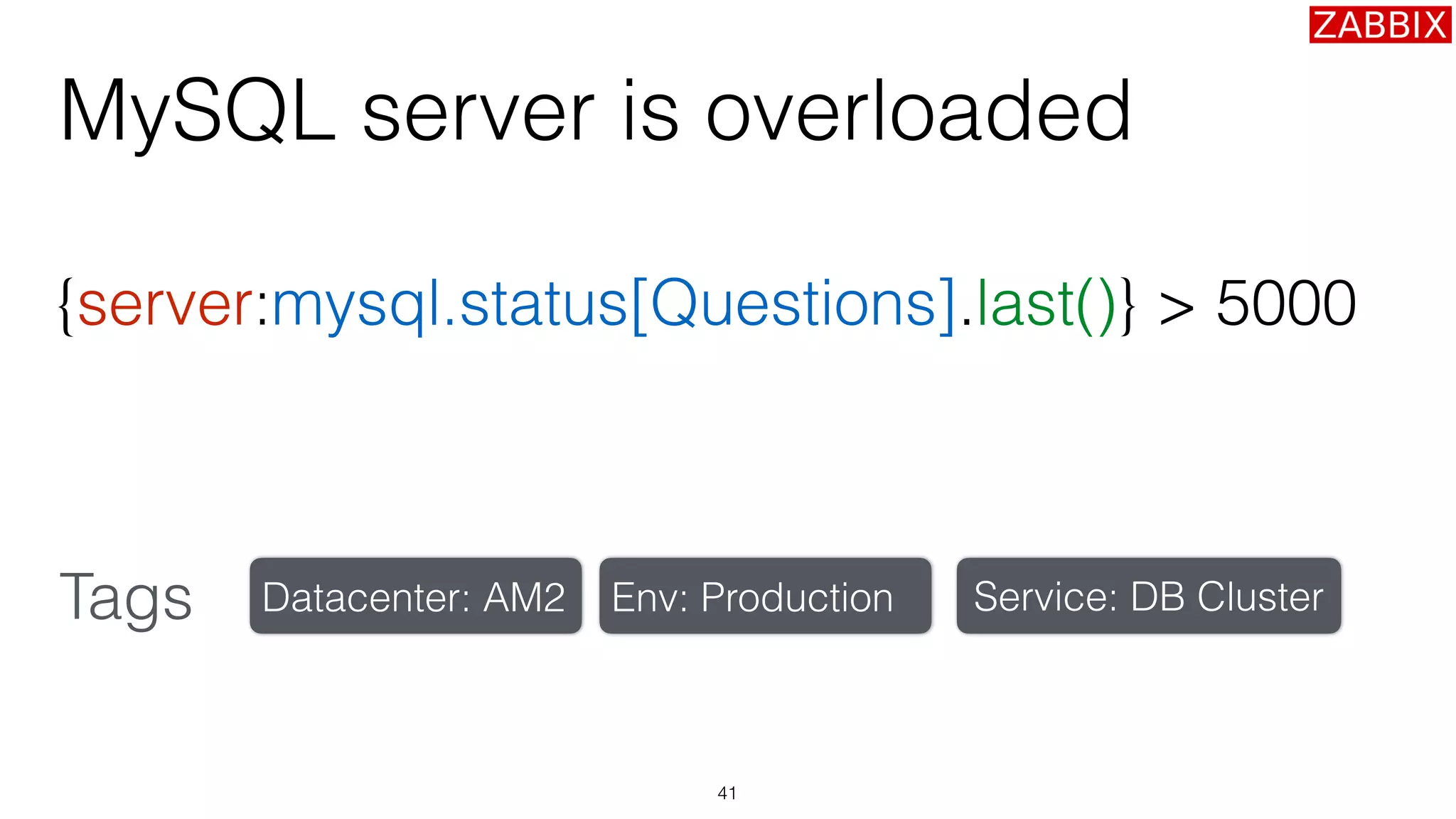

41. {server:mysql.status[Questions].last()} > 5000
41
MySQL server is overloaded
Tags Datacenter: AM2 Env: Production Service: DB Cluster

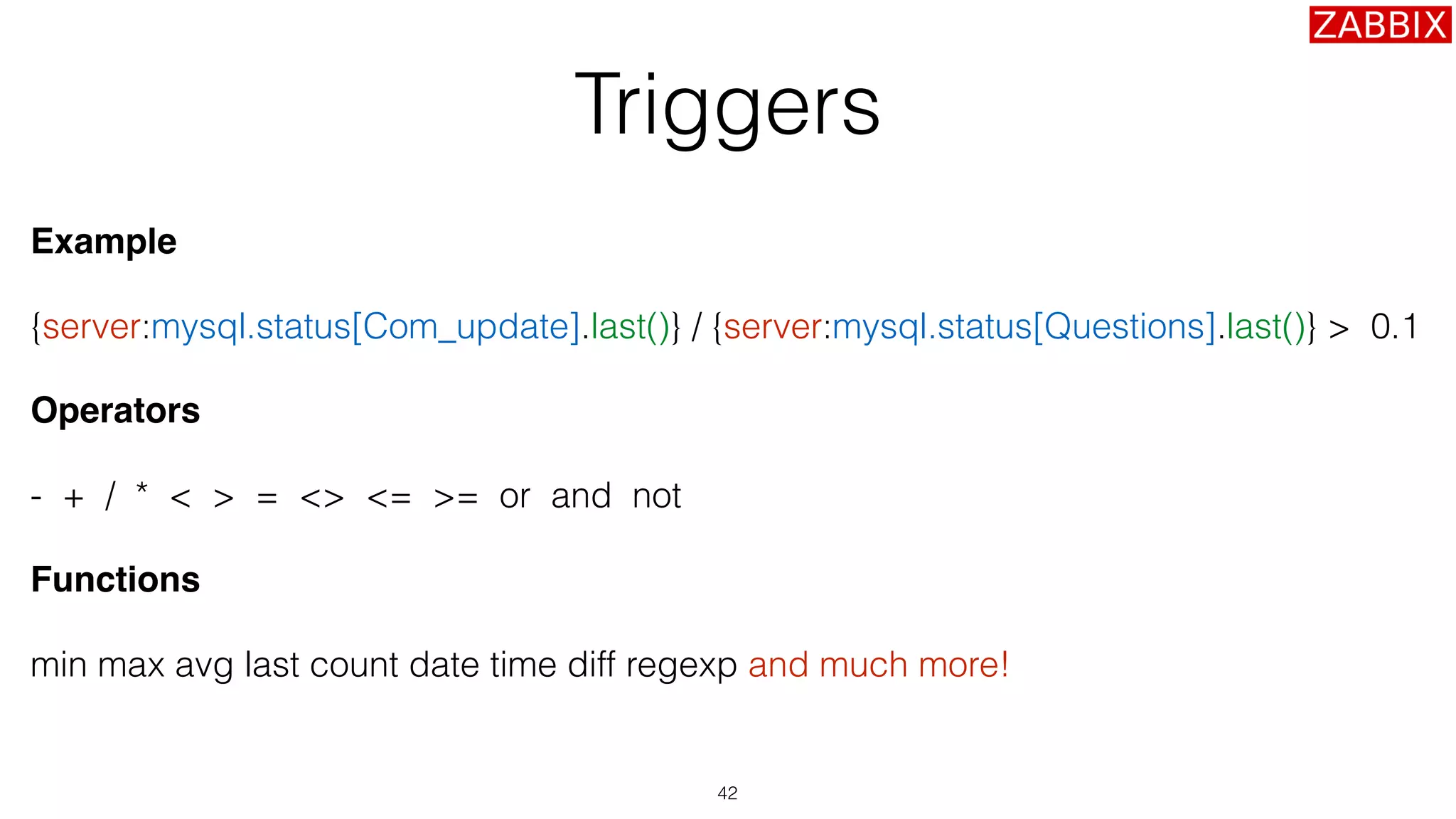

42. Triggers
Example
{server:mysql.status[Com_update].last()} / {server:mysql.status[Questions].last()} > 0.1
Operators
- + / * < > = <> <= >= or and not
Functions
min max avg last count date time diff regexp and much more!
42

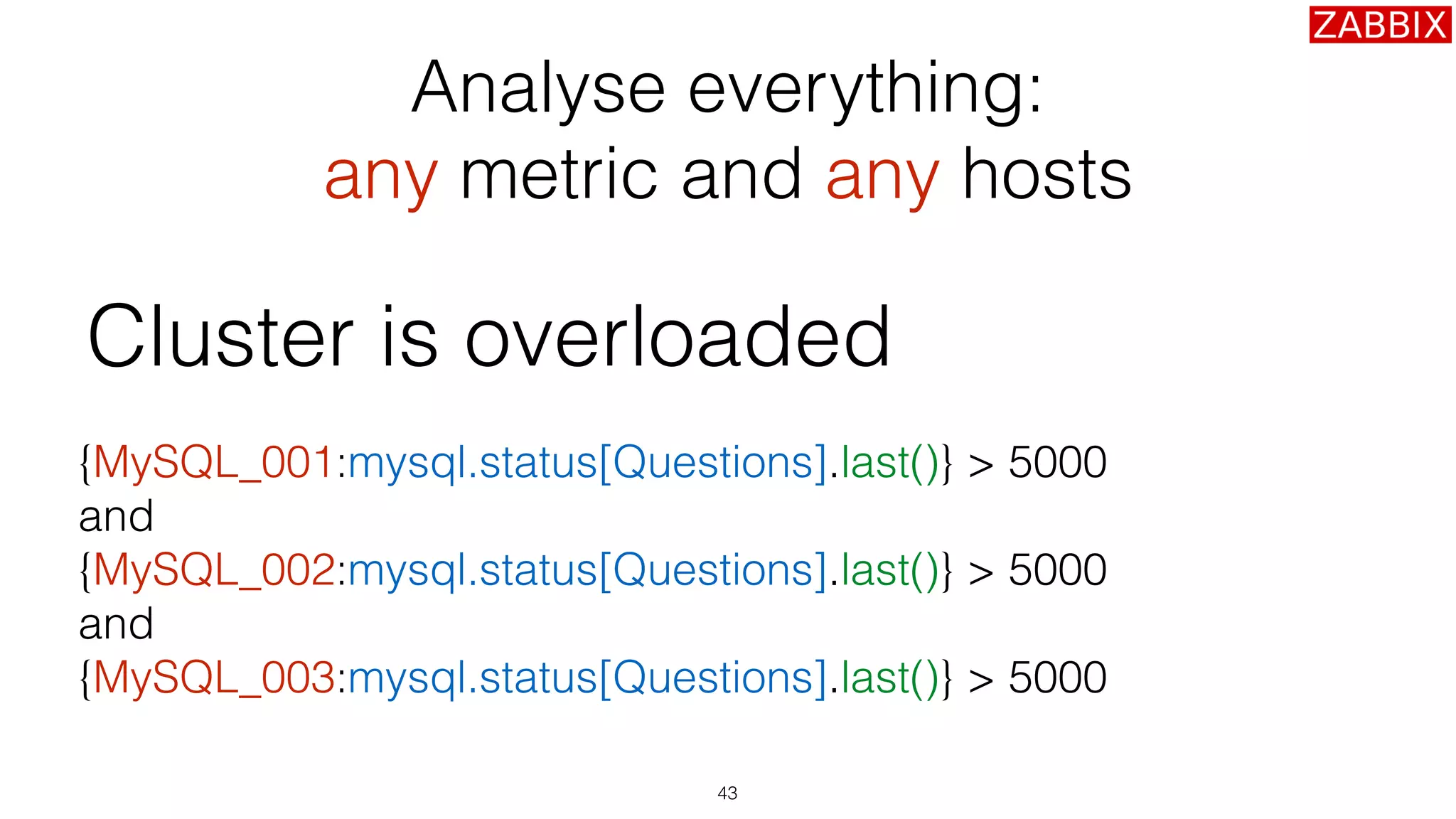

43. {MySQL_001:mysql.status[Questions].last()} > 5000
and
{MySQL_002:mysql.status[Questions].last()} > 5000
and
{MySQL_003:mysql.status[Questions].last()} > 5000
43
Analyse everything:
any metric and any hosts
Cluster is overloaded

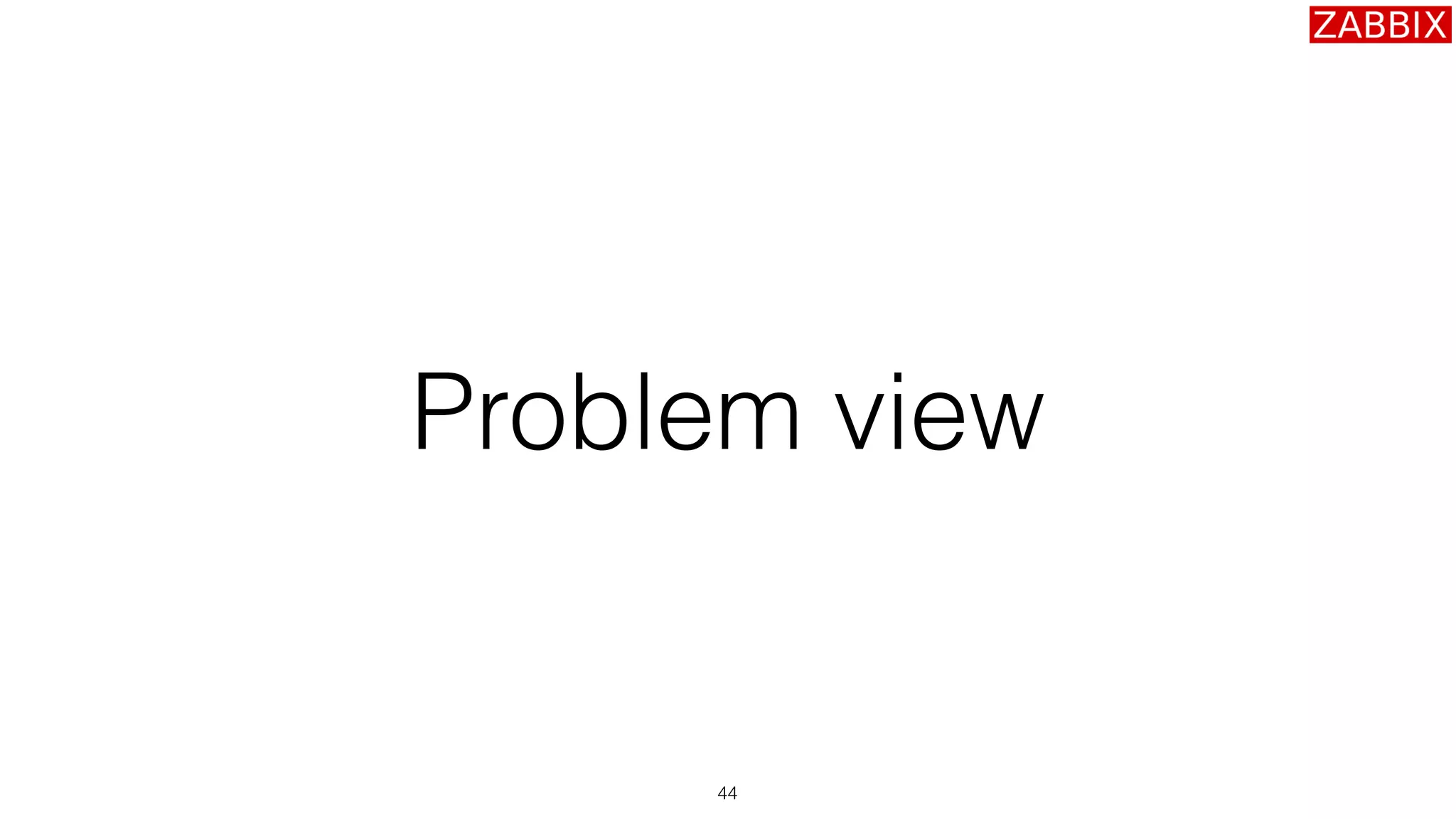

44. Problem view
44

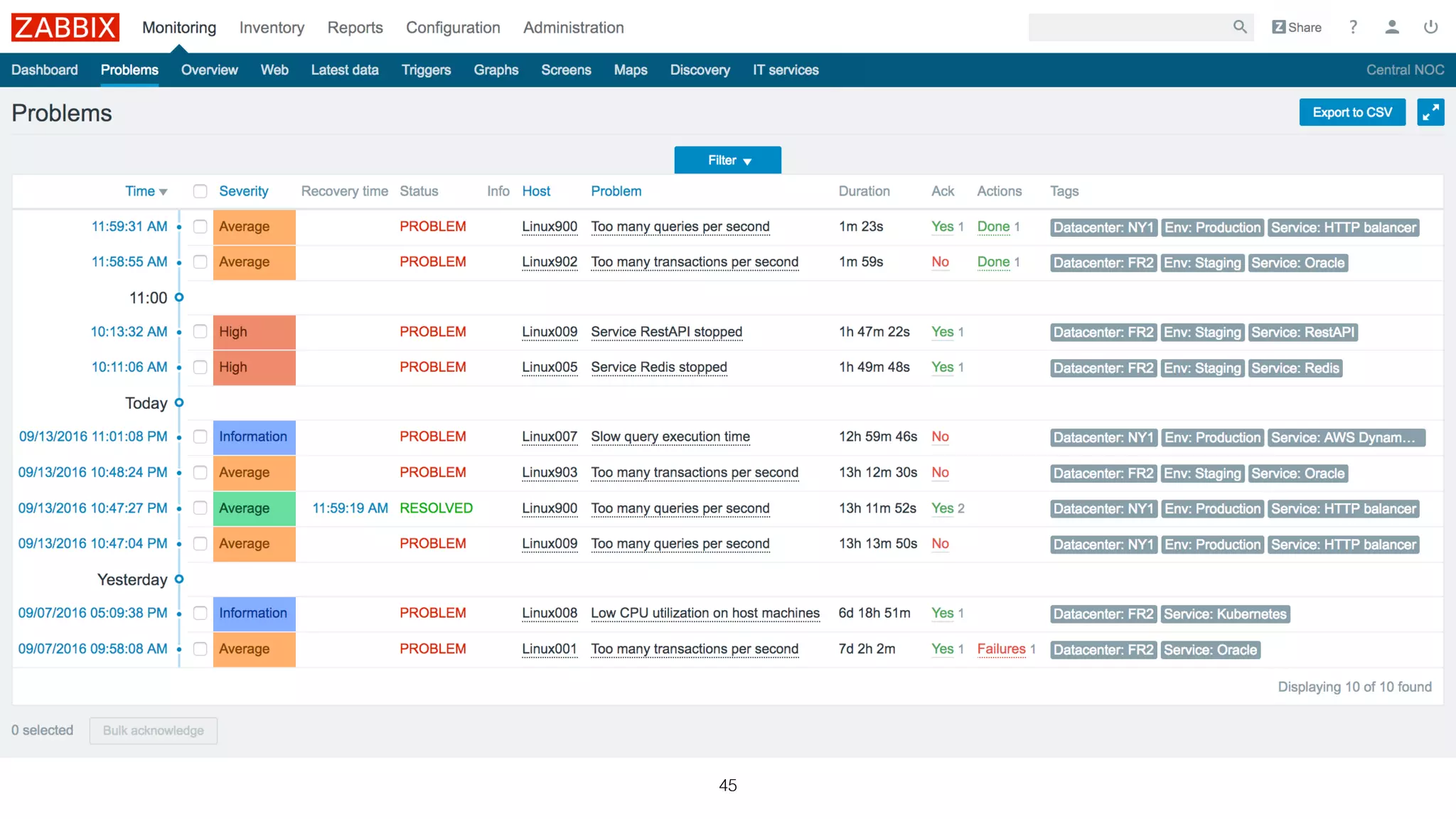

45. 45

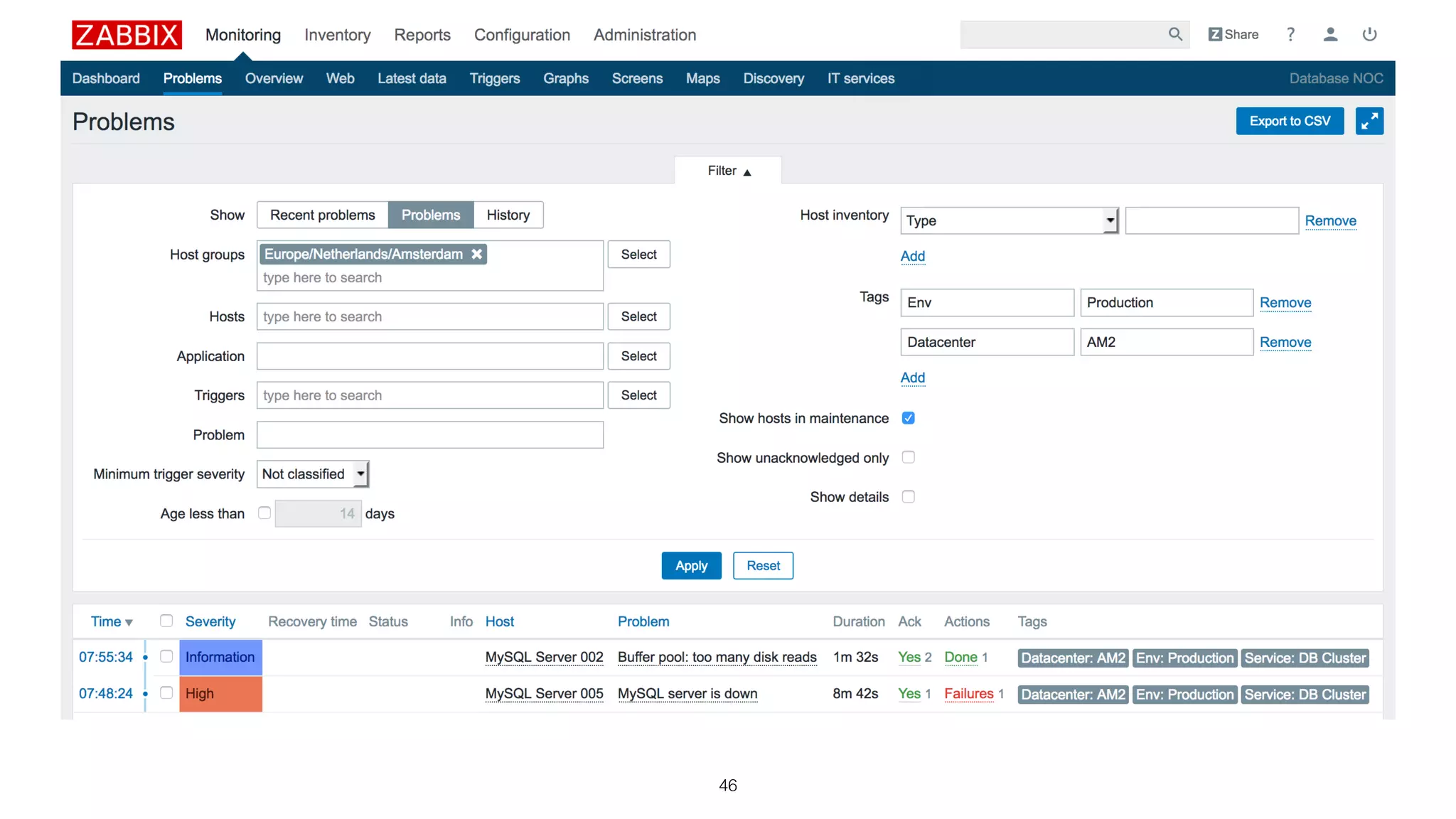

46. 46

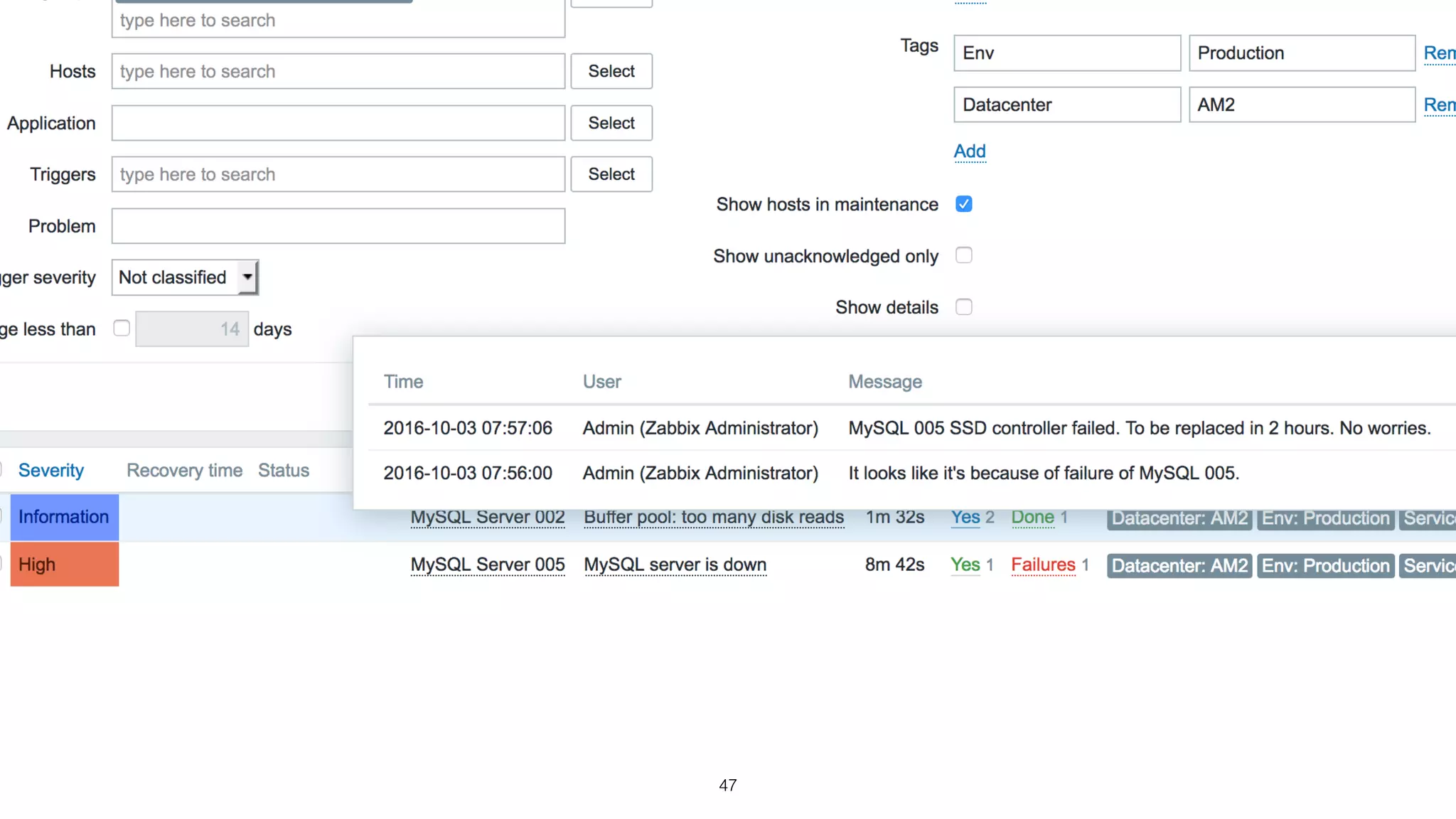

47. 47

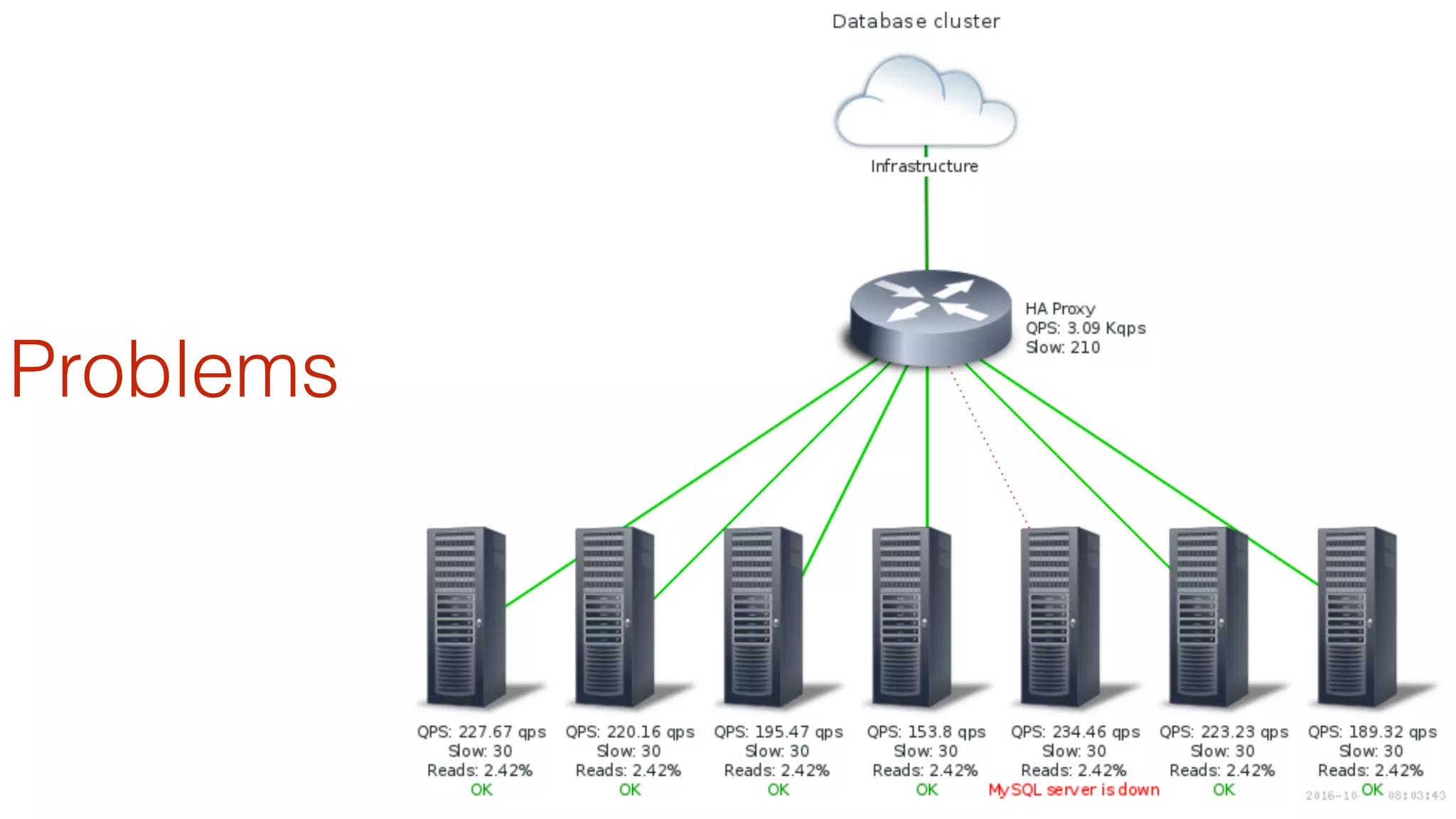

48. Problems
48

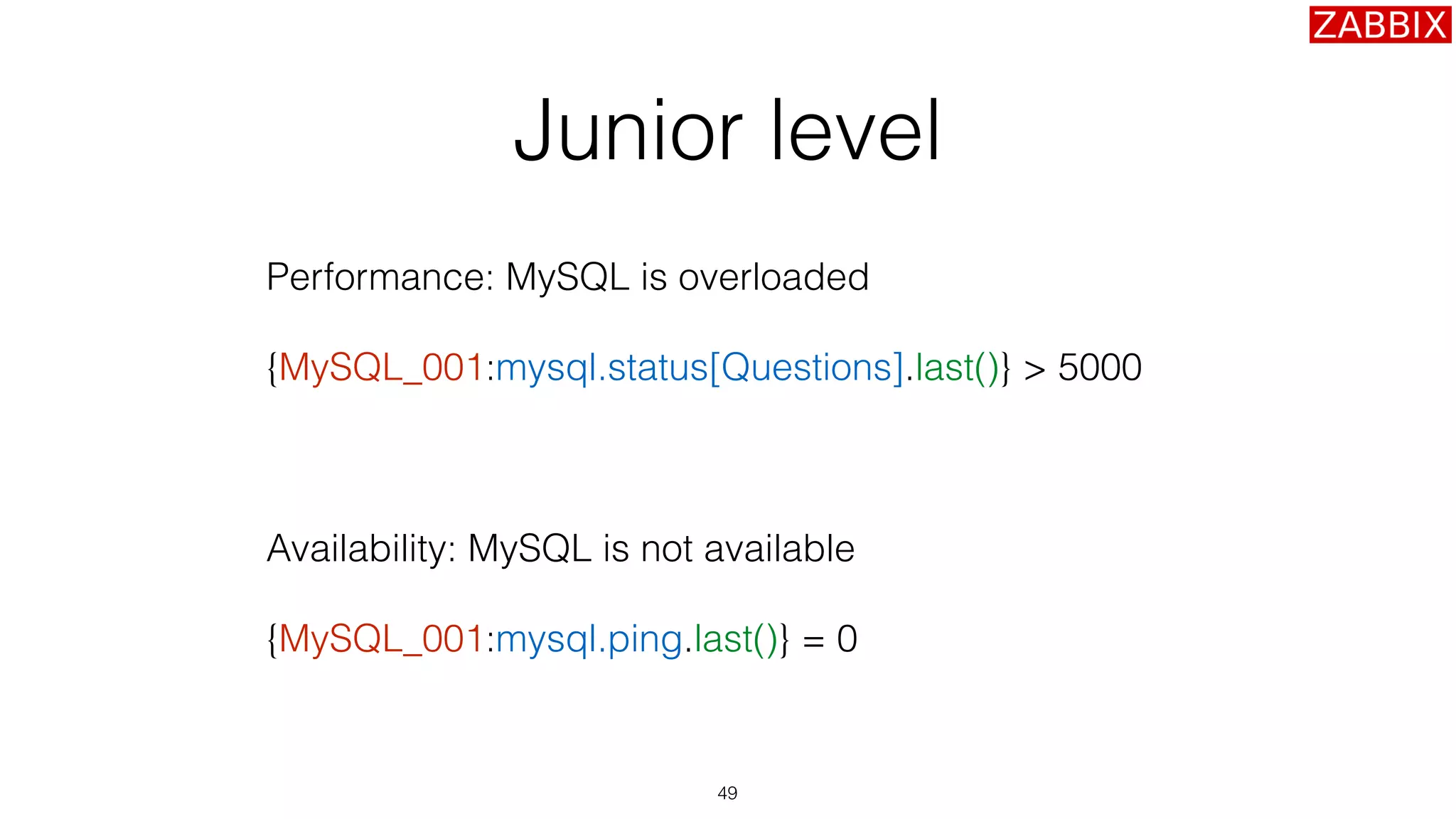

49. Performance: MySQL is overloaded
{MySQL_001:mysql.status[Questions].last()} > 5000
Availability: MySQL is not available
{MySQL_001:mysql.ping.last()} = 0
Junior level
49

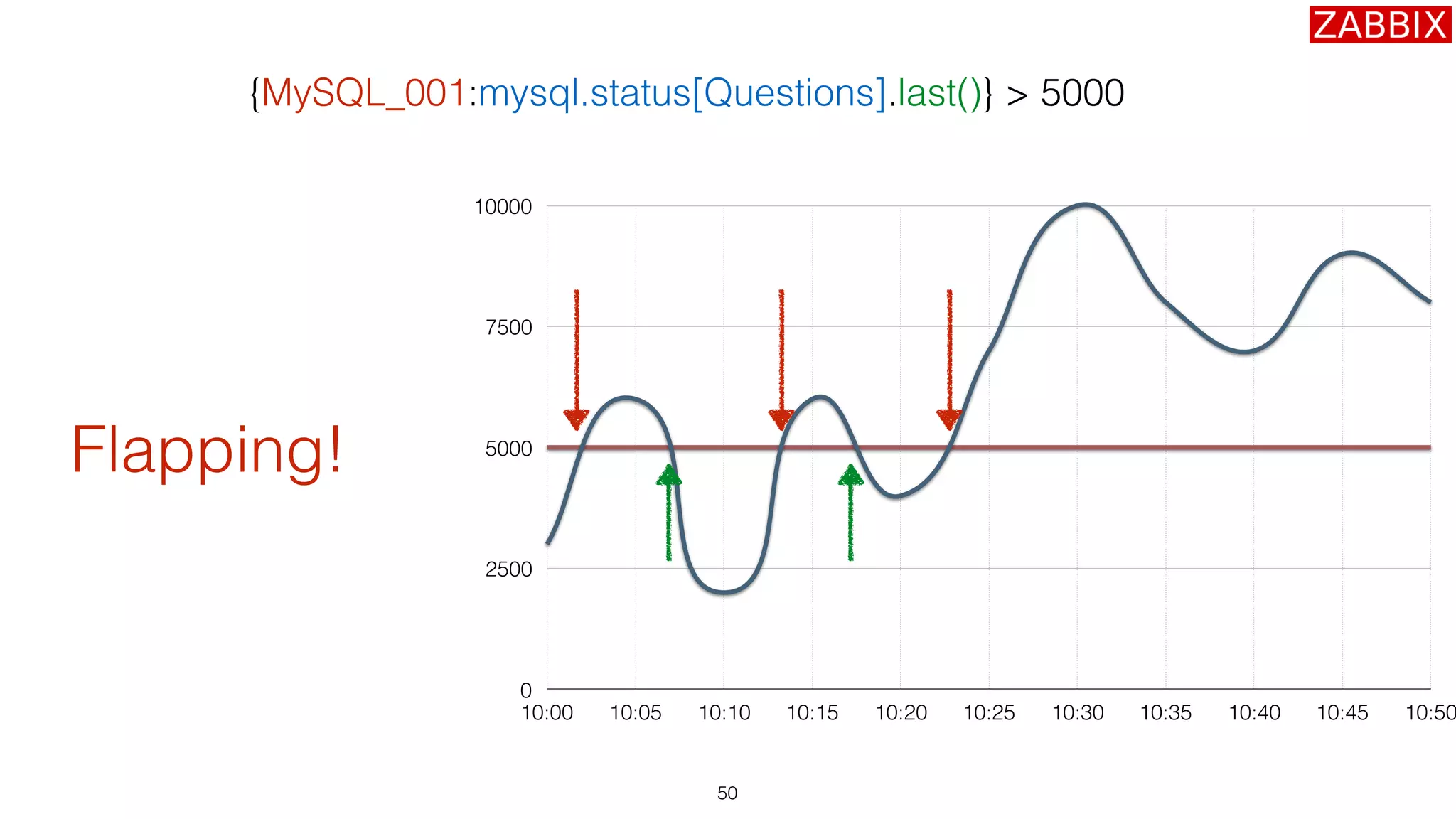

50. Flapping!
50
0
2500
5000
7500
10000
10:00 10:05 10:10 10:15 10:20 10:25 10:30 10:35 10:40 10:45 10:50
{MySQL_001:mysql.status[Questions].last()} > 5000

51. Too sensitive leads to
false positives
51

52. How to get rid of
false positives?
52

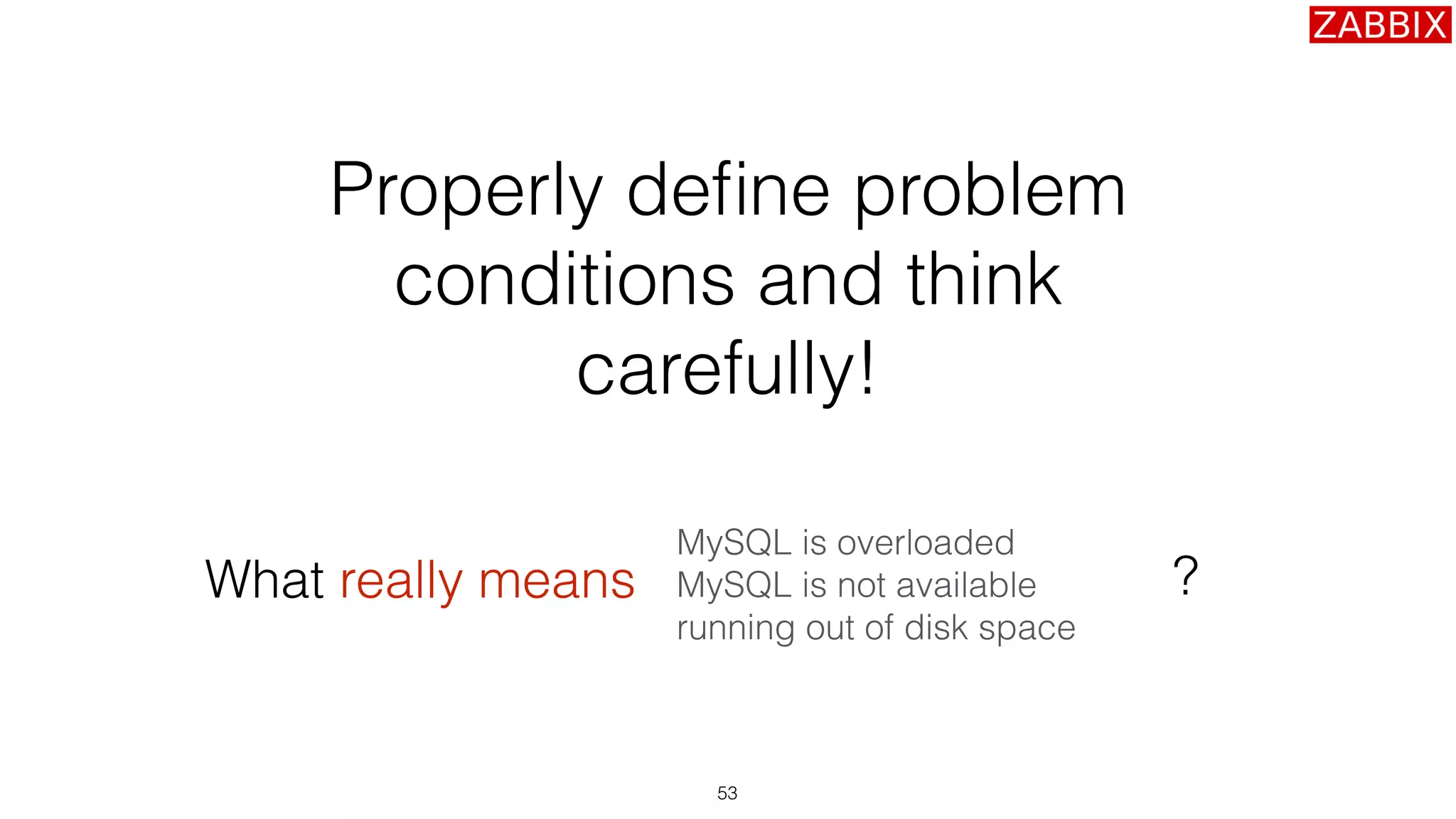

53. Properly define problem
conditions and think
carefully!
MySQL is overloaded
MySQL is not available
running out of disk space
53
What really means ?

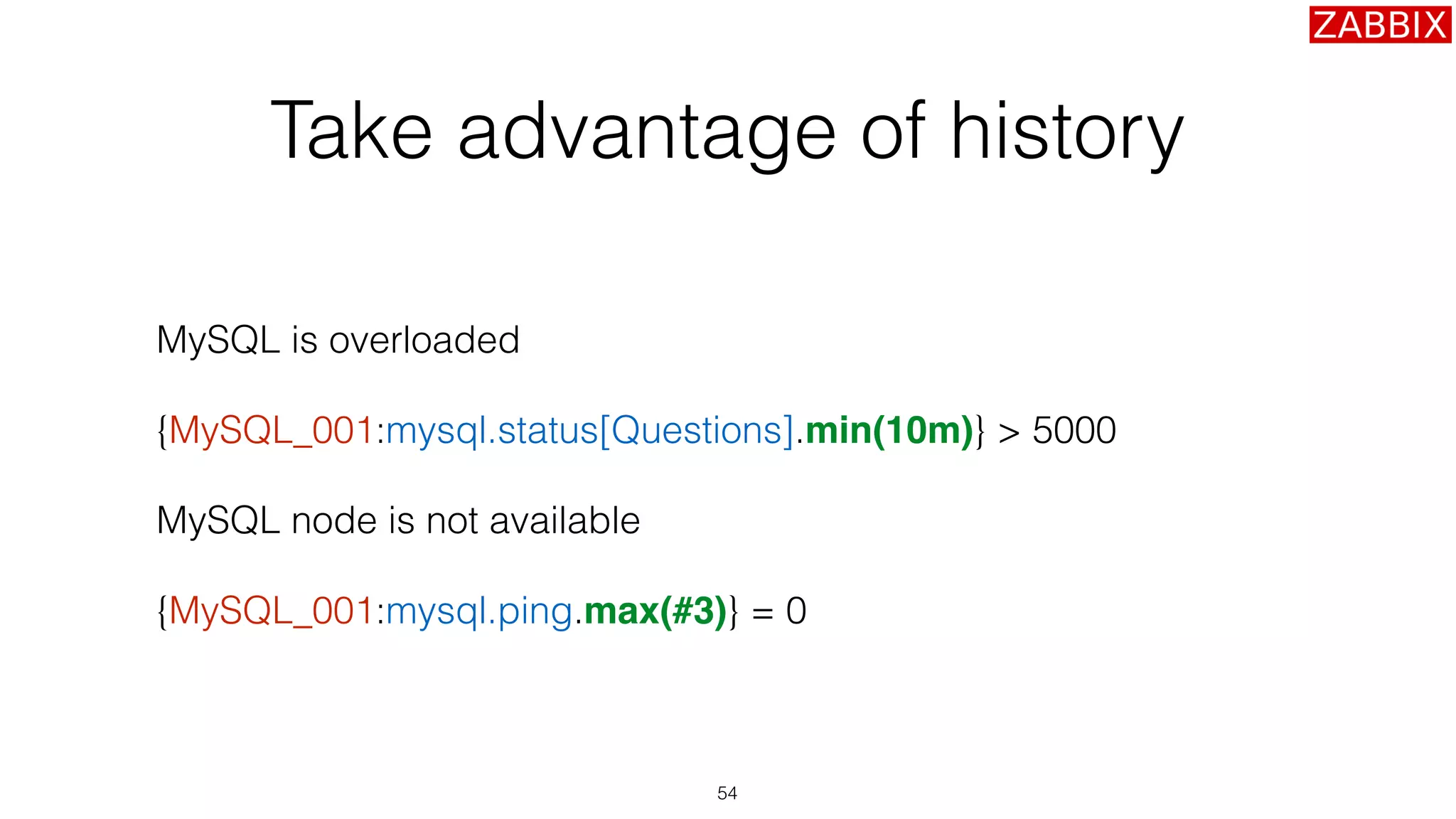

54. Take advantage of history
MySQL is overloaded
{MySQL_001:mysql.status[Questions].min(10m)} > 5000
MySQL node is not available
{MySQL_001:mysql.ping.max(#3)} = 0
54

55. Problem disappeared
!=
problem is resolved
55

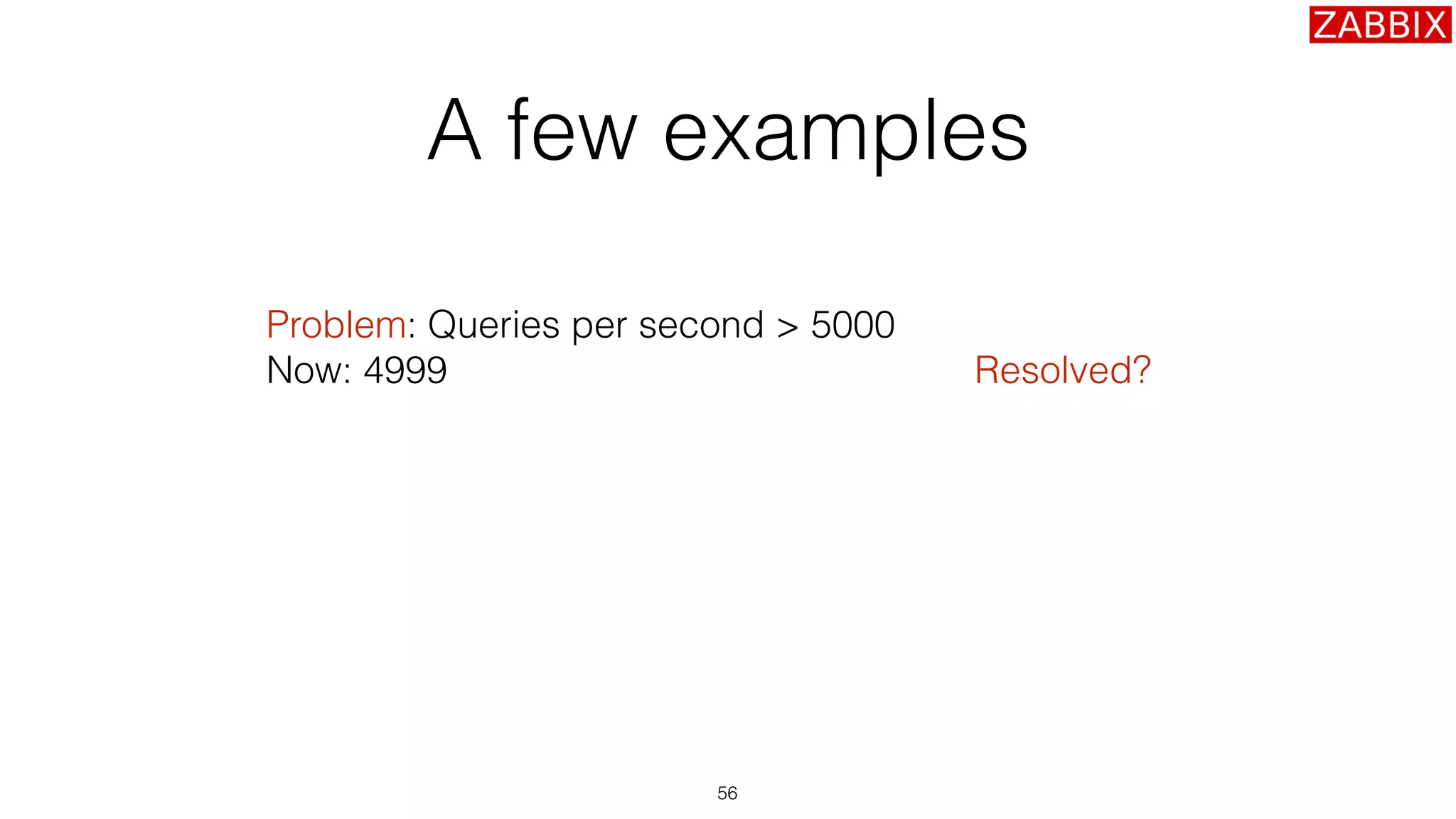

56. A few examples
Problem: Queries per second > 5000
Now: 4999 Resolved?
Problem: Disk space < 10%
Now: 9.95% Resolved?
Problem: MySQL is not available
Now: last check returned Up Resolved?
56

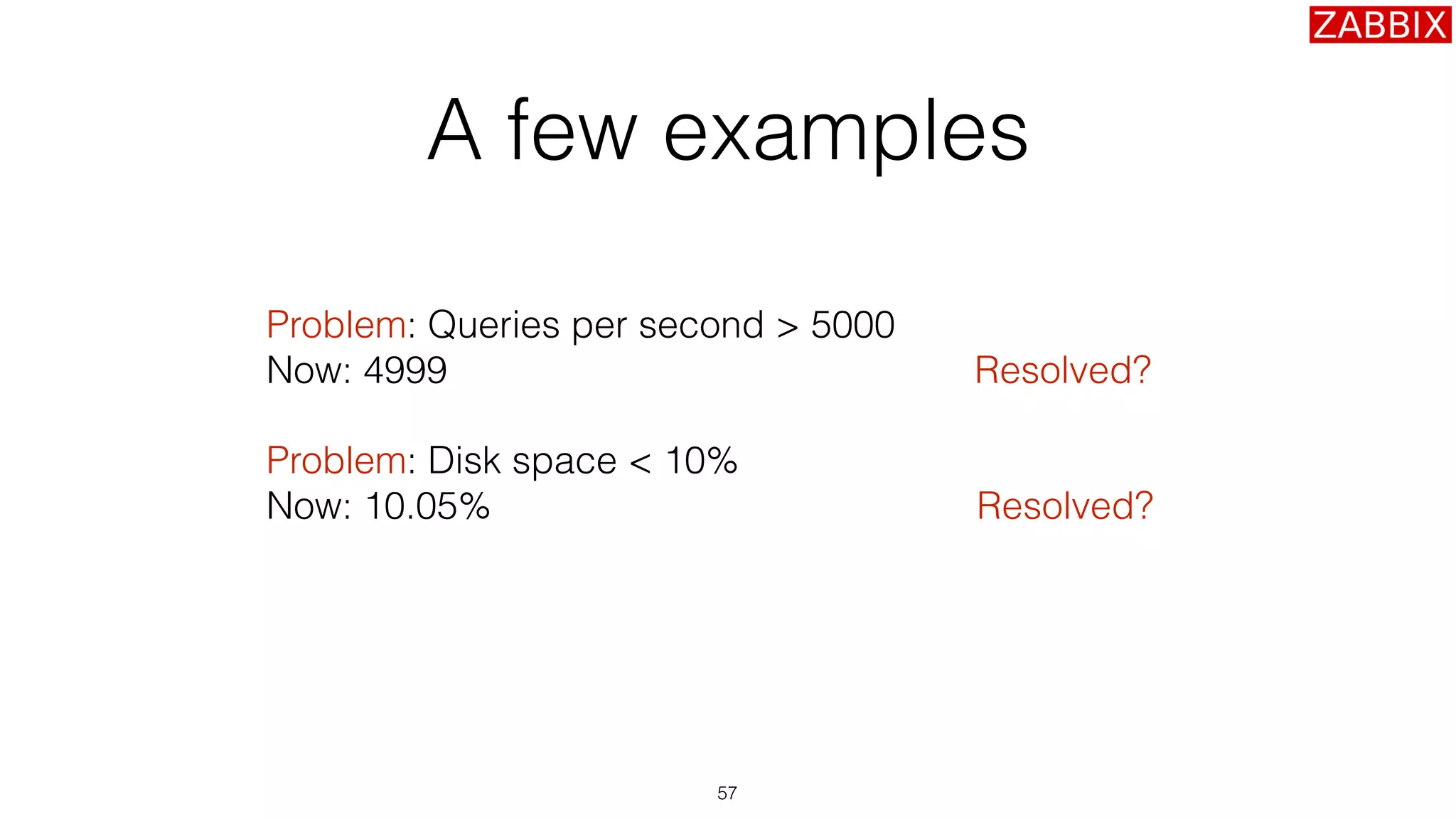

57. A few examples
Problem: Queries per second > 5000
Now: 4999 Resolved?
Problem: Disk space < 10%
Now: 10.05% Resolved?
Problem: MySQL is not available
Now: last check returned Up Resolved?
57

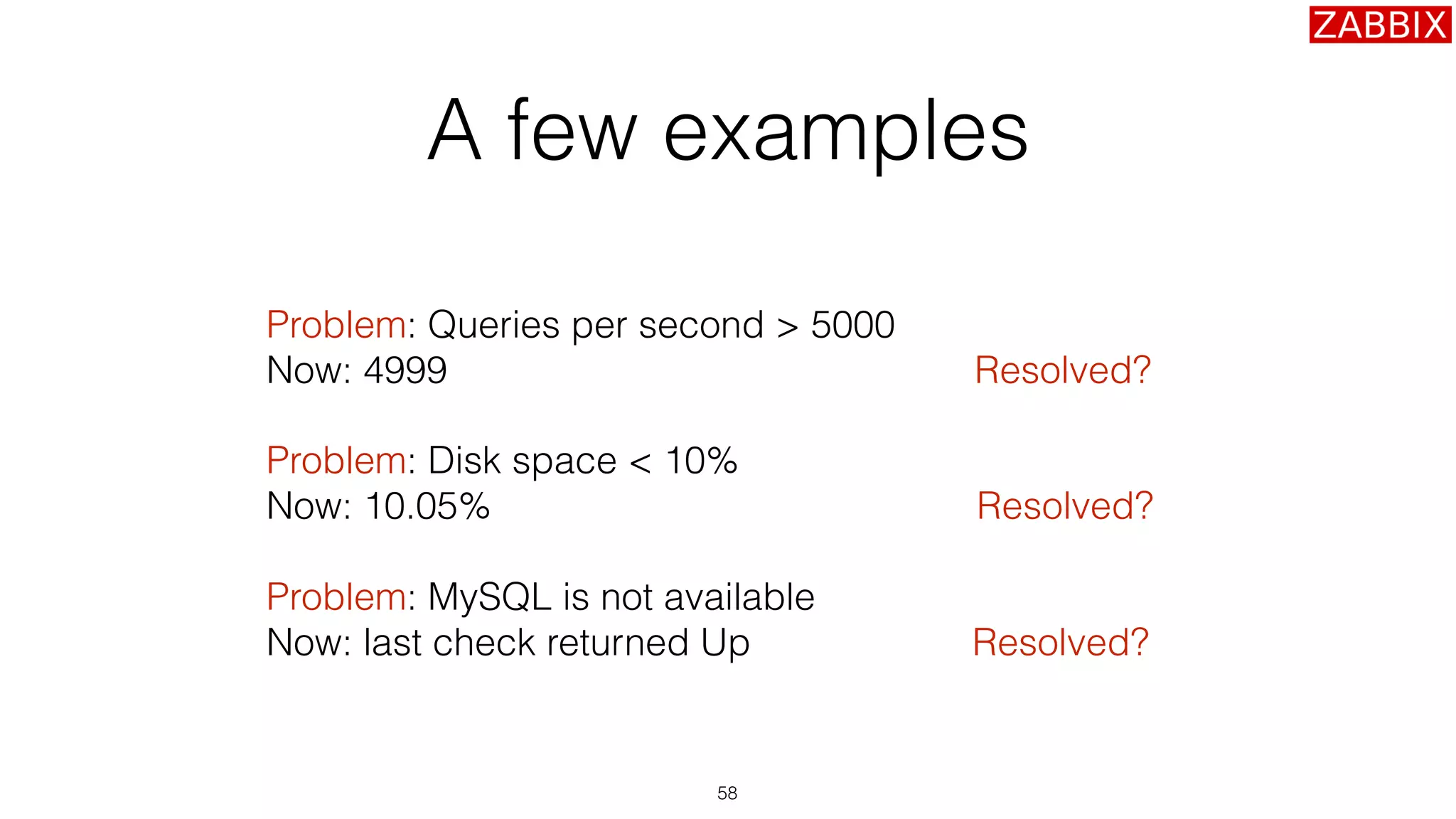

58. A few examples
Problem: Queries per second > 5000
Now: 4999 Resolved?
Problem: Disk space < 10%
Now: 10.05% Resolved?
Problem: MySQL is not available
Now: last check returned Up Resolved?
58

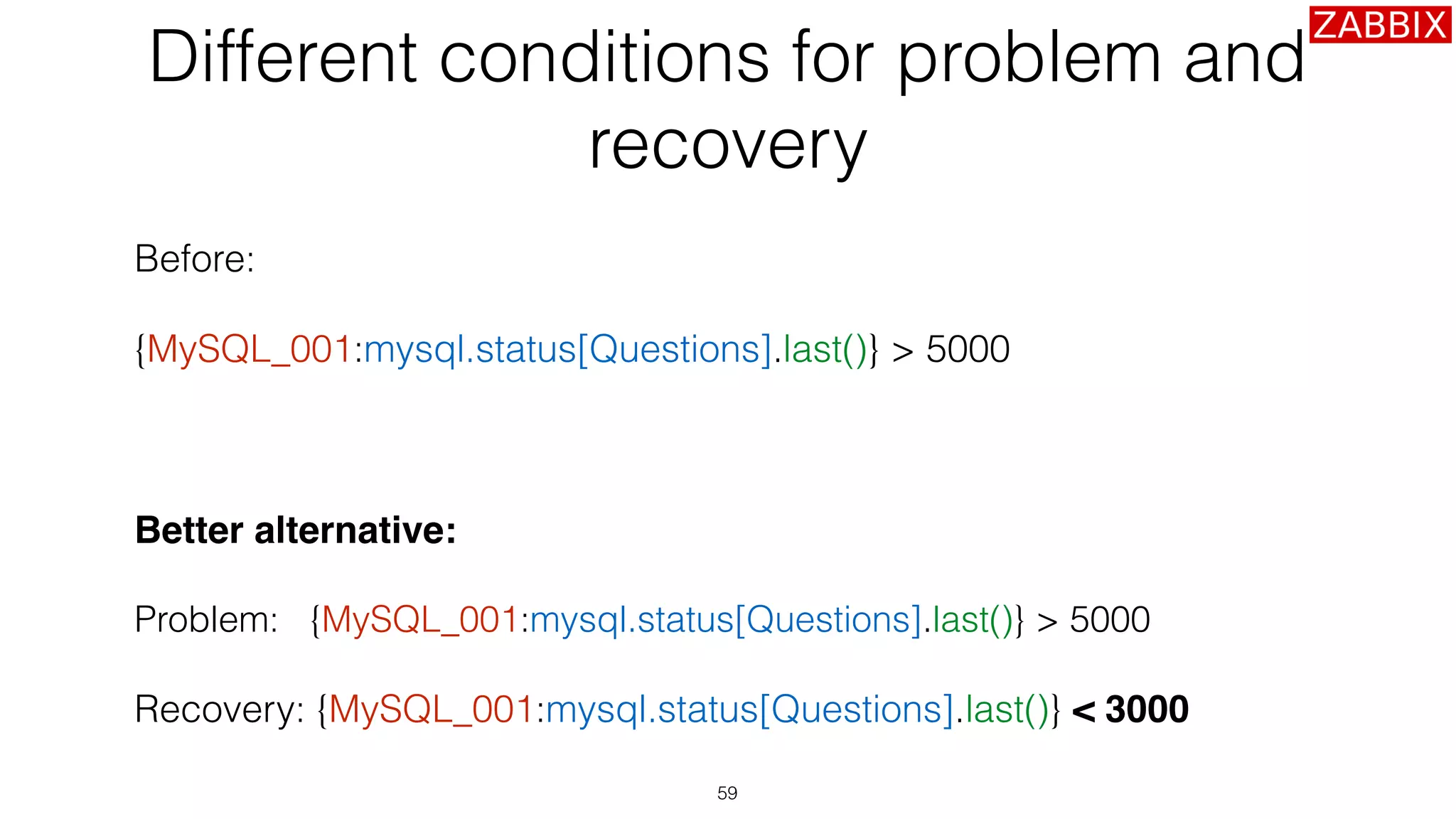

59. Different conditions for problem and
recovery
Before:
{MySQL_001:mysql.status[Questions].last()} > 5000
Better alternative:
Problem: {MySQL_001:mysql.status[Questions].last()} > 5000
Recovery: {MySQL_001:mysql.status[Questions].last()} < 3000
59

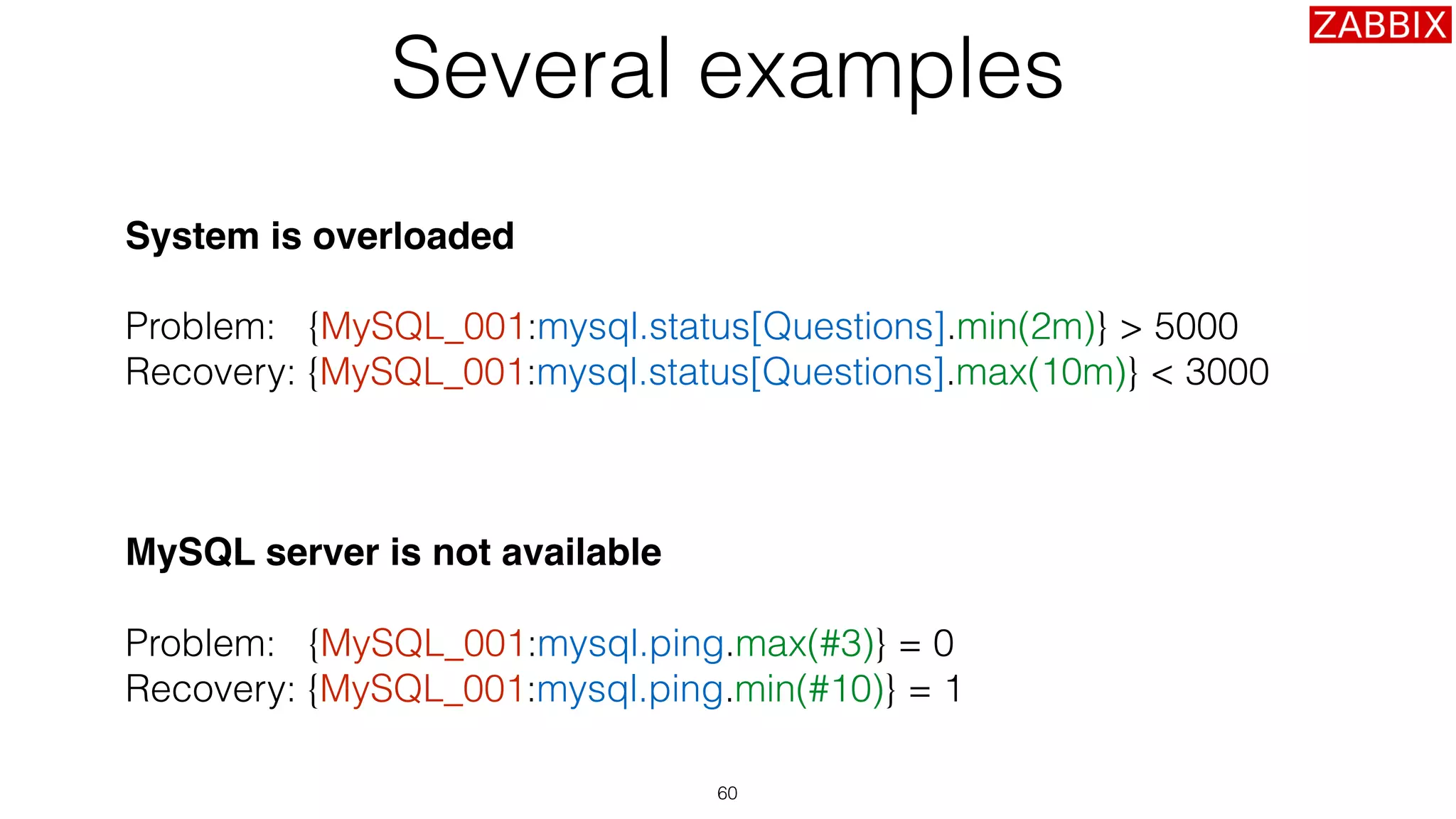

60. Several examples
System is overloaded
Problem: {MySQL_001:mysql.status[Questions].min(2m)} > 5000
Recovery: {MySQL_001:mysql.status[Questions].max(10m)} < 3000
MySQL server is not available
Problem: {MySQL_001:mysql.ping.max(#3)} = 0
Recovery: {MySQL_001:mysql.ping.min(#10)} = 1
60

61. No flapping. No false positives.
Suddenly we trust our monitoring!
61

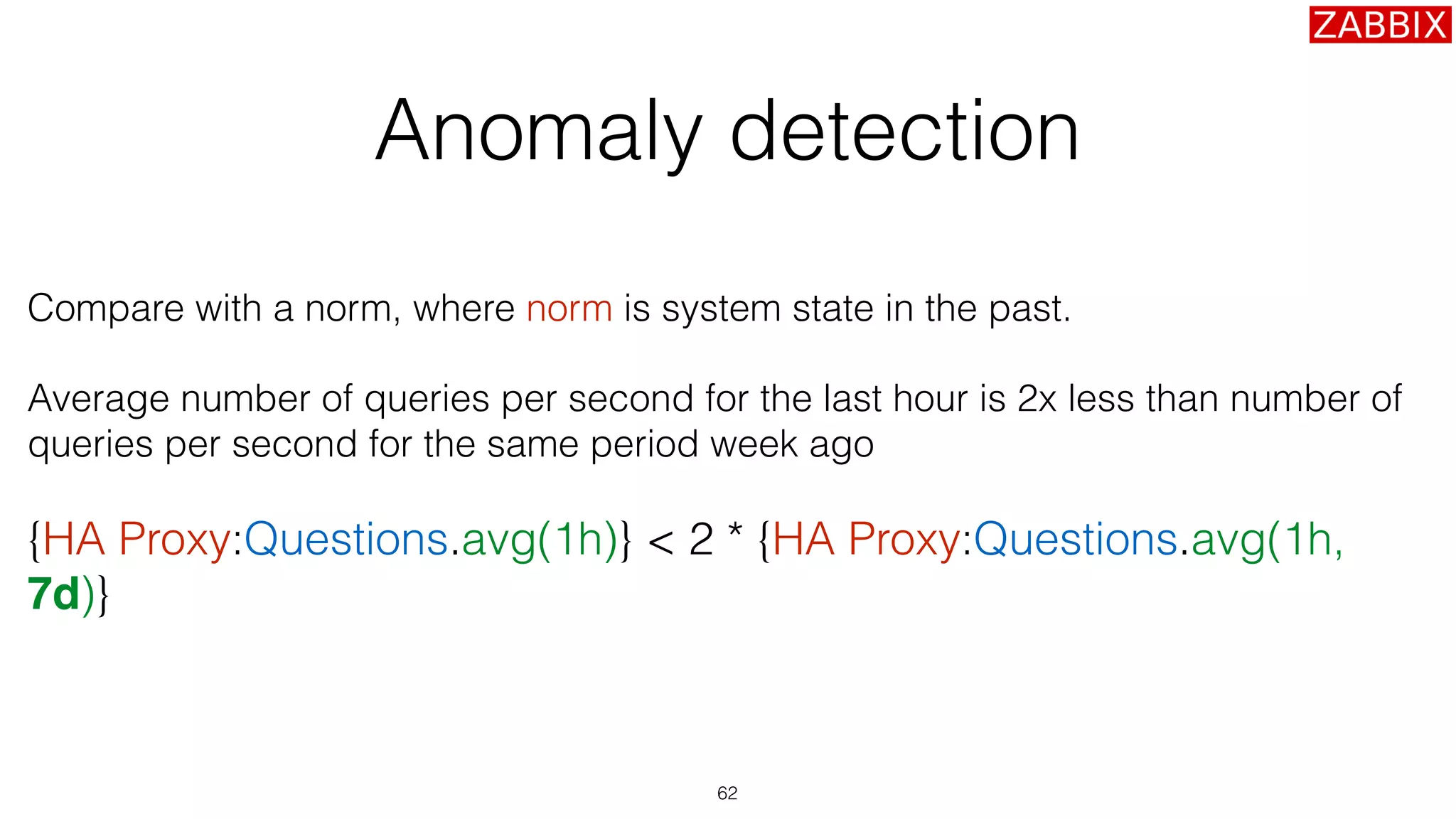

62. Anomaly detection
Compare with a norm, where norm is system state in the past.
Average number of queries per second for the last hour is 2x less than number of
queries per second for the same period week ago
{HA Proxy:Questions.avg(1h)} < 2 * {HA Proxy:Questions.avg(1h,
7d)}
62

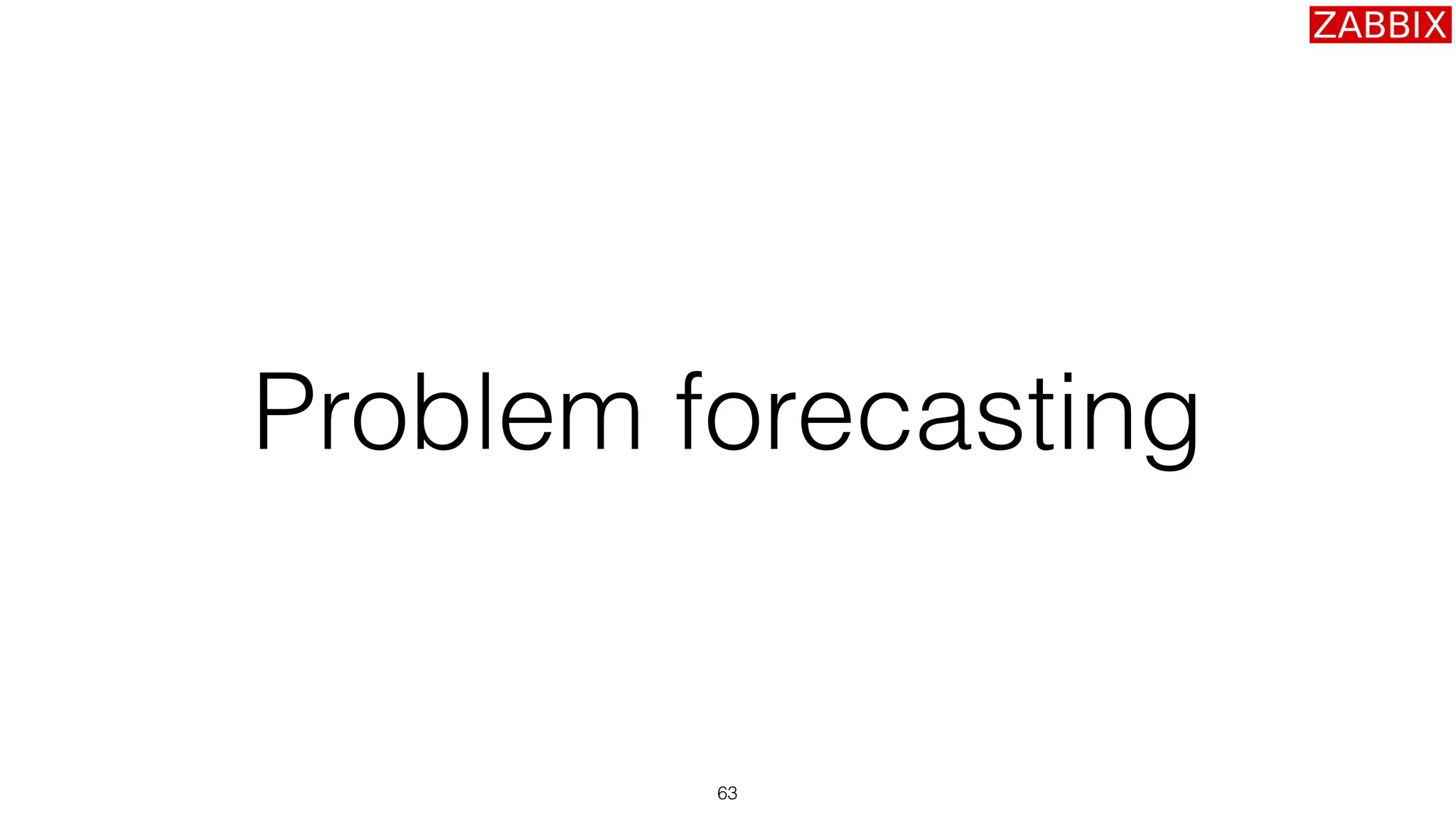

63. Problem forecasting
63

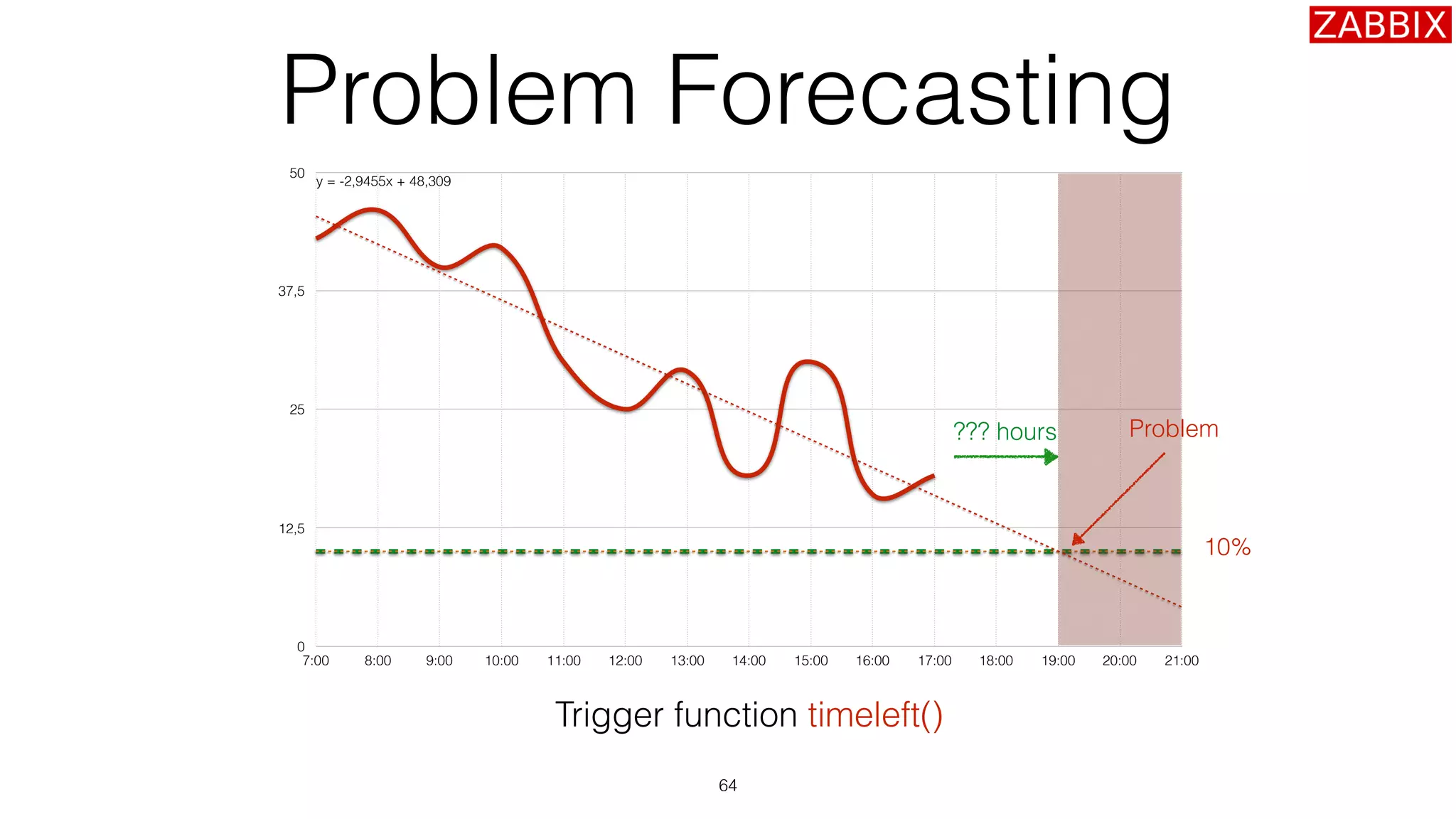

64. Problem Forecasting
64
0
12,5
25
37,5
50
7:00 8:00 9:00 10:00 11:00 12:00 13:00 14:00 15:00 16:00 17:00 18:00 19:00 20:00 21:00
y = -2,9455x + 48,309
Problem
10%
Trigger function timeleft()
??? hours

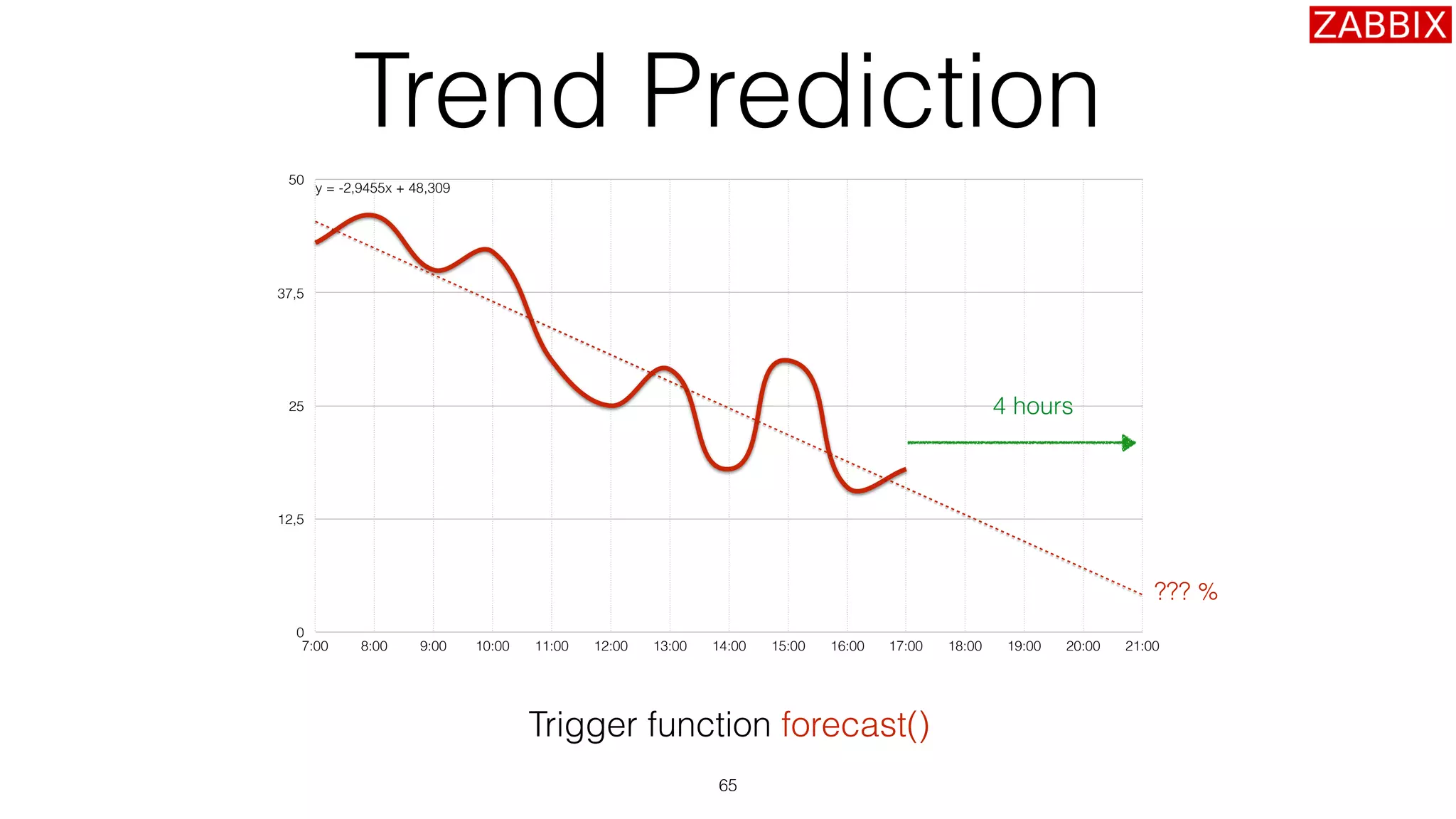

65. Trend Prediction
65
0
12,5
25
37,5
50
7:00 8:00 9:00 10:00 11:00 12:00 13:00 14:00 15:00 16:00 17:00 18:00 19:00 20:00 21:00
y = -2,9455x + 48,309
??? %
4 hours
Trigger function forecast()

66. How Zabbix reacts
on problems?
66

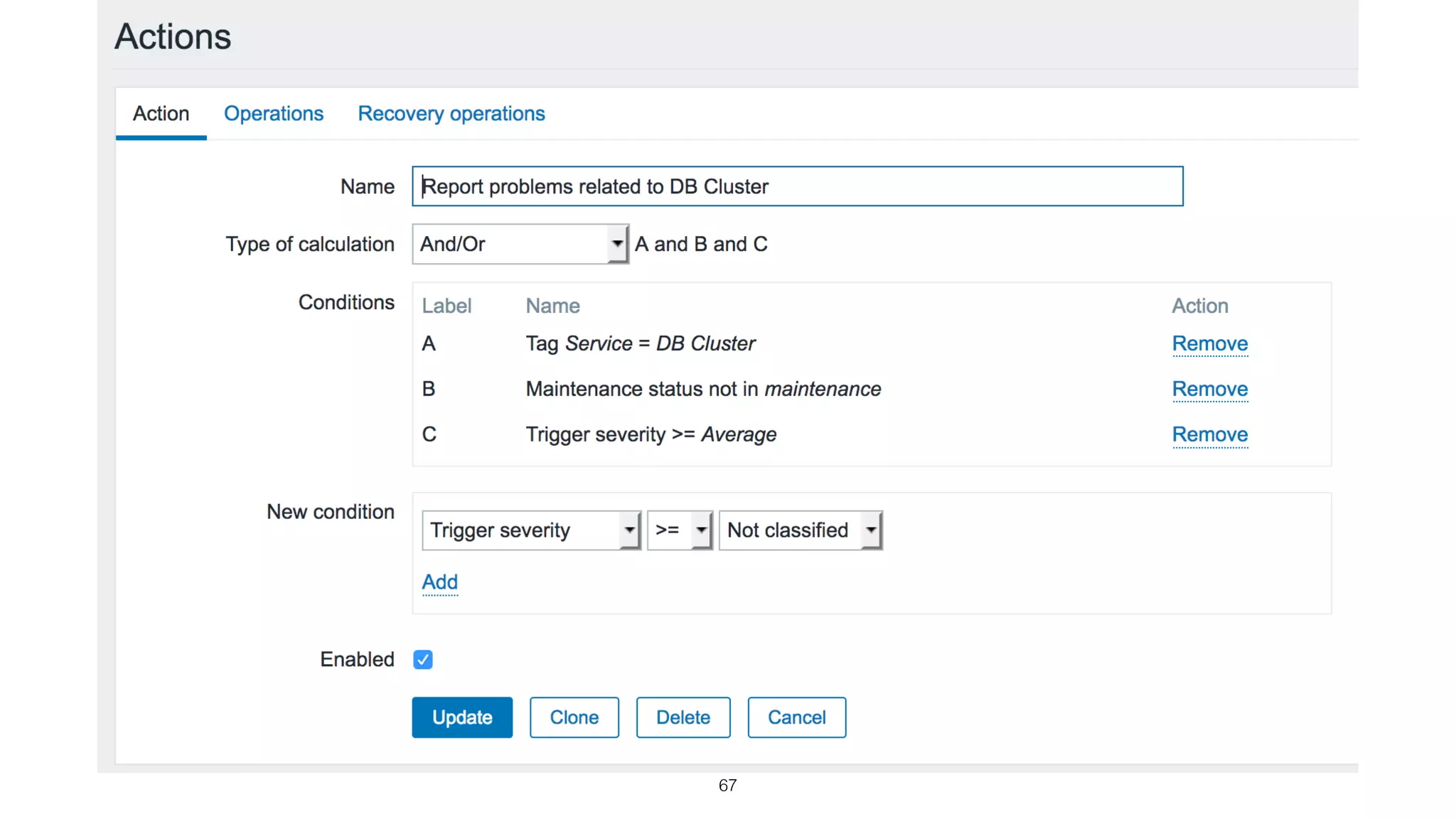

67. 67

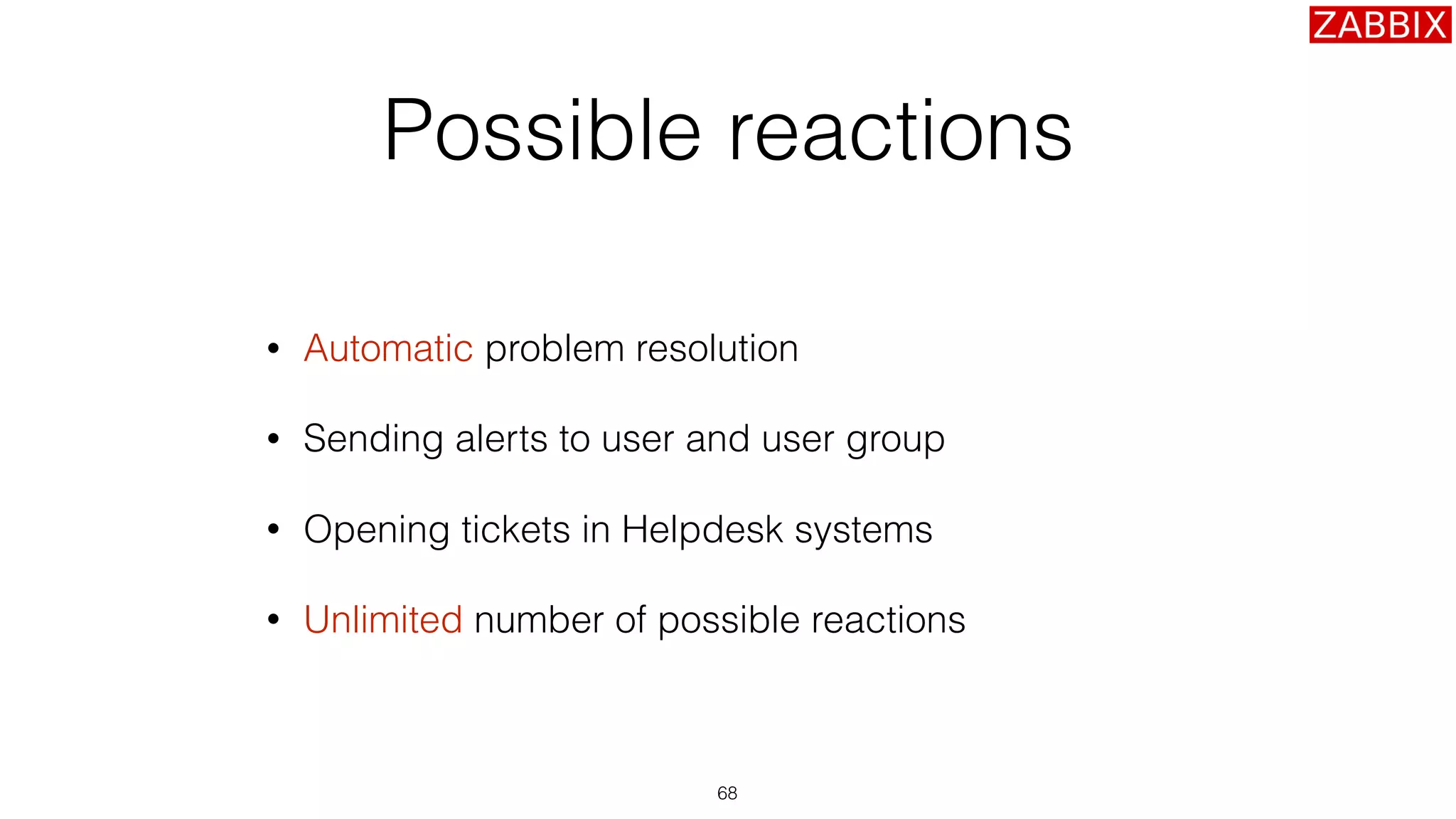

68. Possible reactions
• Automatic problem resolution
• Sending alerts to user and user group
• Opening tickets in Helpdesk systems
• Unlimited number of possible reactions
68

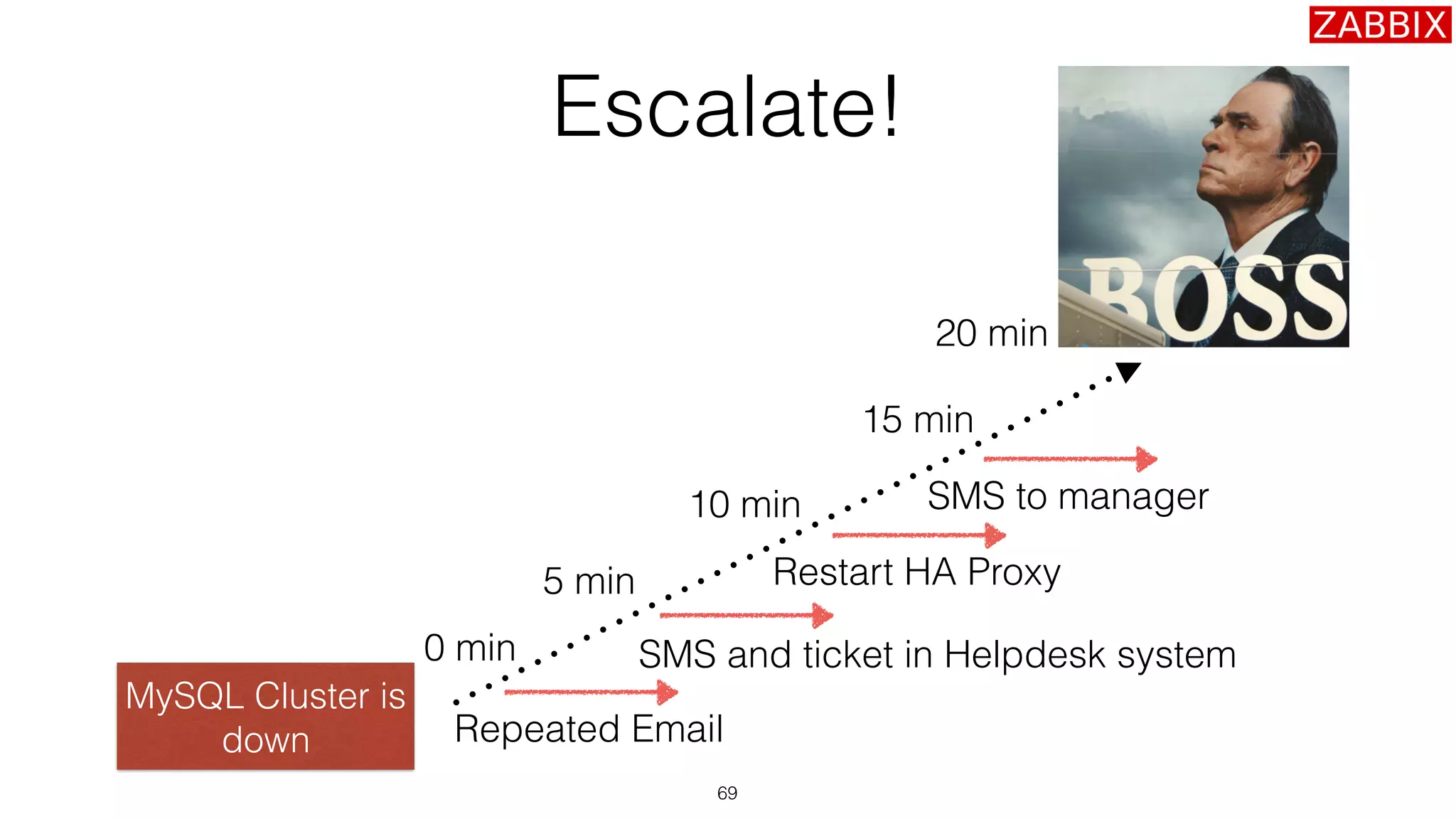

69. Escalate!
69
MySQL Cluster is
down Repeated Email
SMS and ticket in Helpdesk system
Restart HA Proxy
SMS to manager
5 min
10 min
15 min
20 min
0 min

70. Why Zabbix?
70

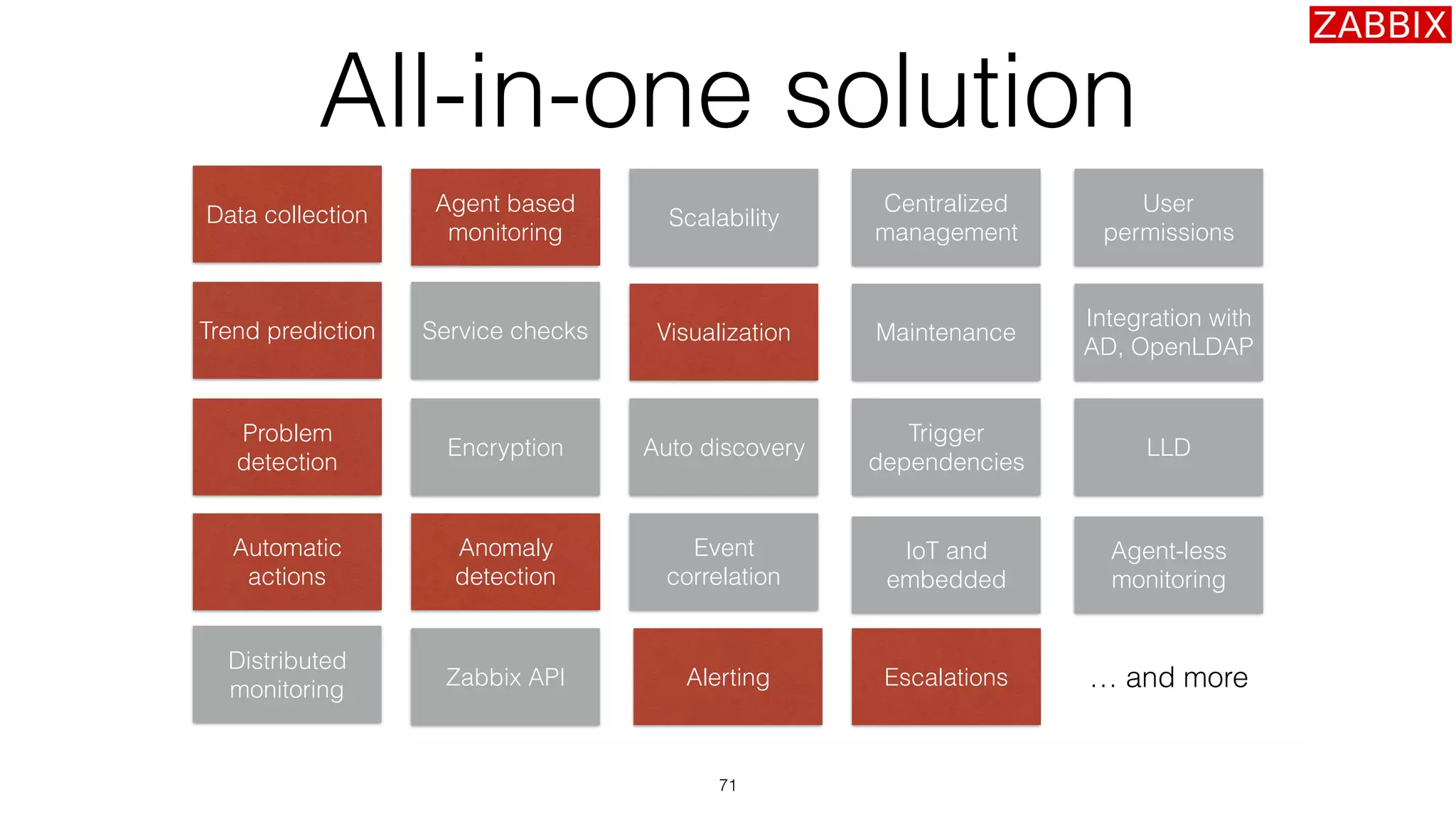

71. 71
All-in-one solution
Trend prediction
Data collection
Problem
detection
Automatic
actions
Agent based
monitoring
Encryption
Anomaly
detection
Maintenance
Event
correlation
Scalability
Visualization
Auto discovery
Trigger
dependencies
Centralized
management
Service checks
IoT and
embedded
Distributed
monitoring
Zabbix API Alerting Escalations
User
permissions
Integration with
AD, OpenLDAP
LLD
Agent-less
monitoring
… and more

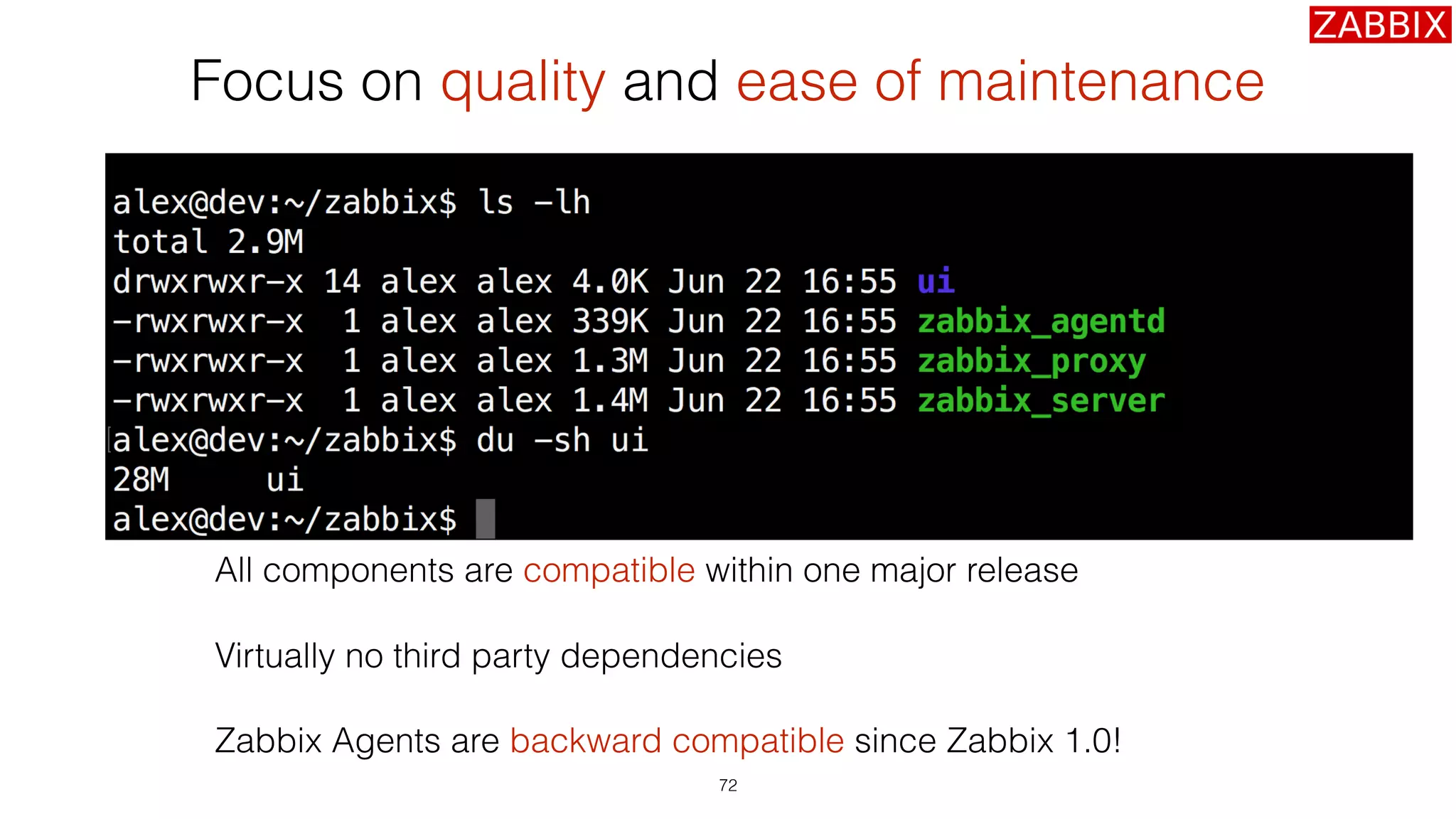

72. Focus on quality and ease of maintenance
72
All components are compatible within one major release
Virtually no third party dependencies
Zabbix Agents are backward compatible since Zabbix 1.0!

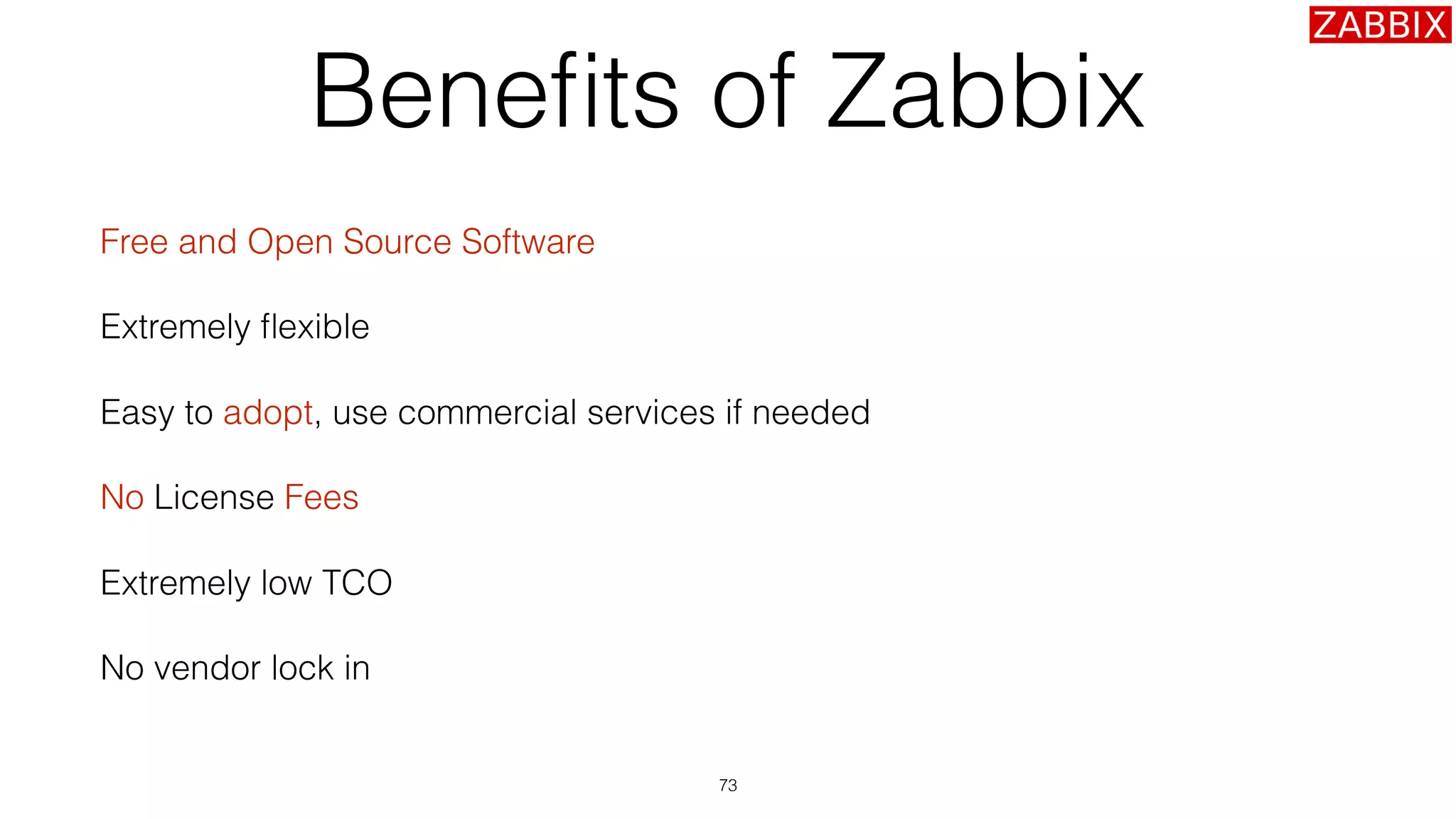

73. Benefits of Zabbix
Free and Open Source Software
Extremely flexible
Easy to adopt, use commercial services if needed
No License Fees
Extremely low TCO
No vendor lock in
73

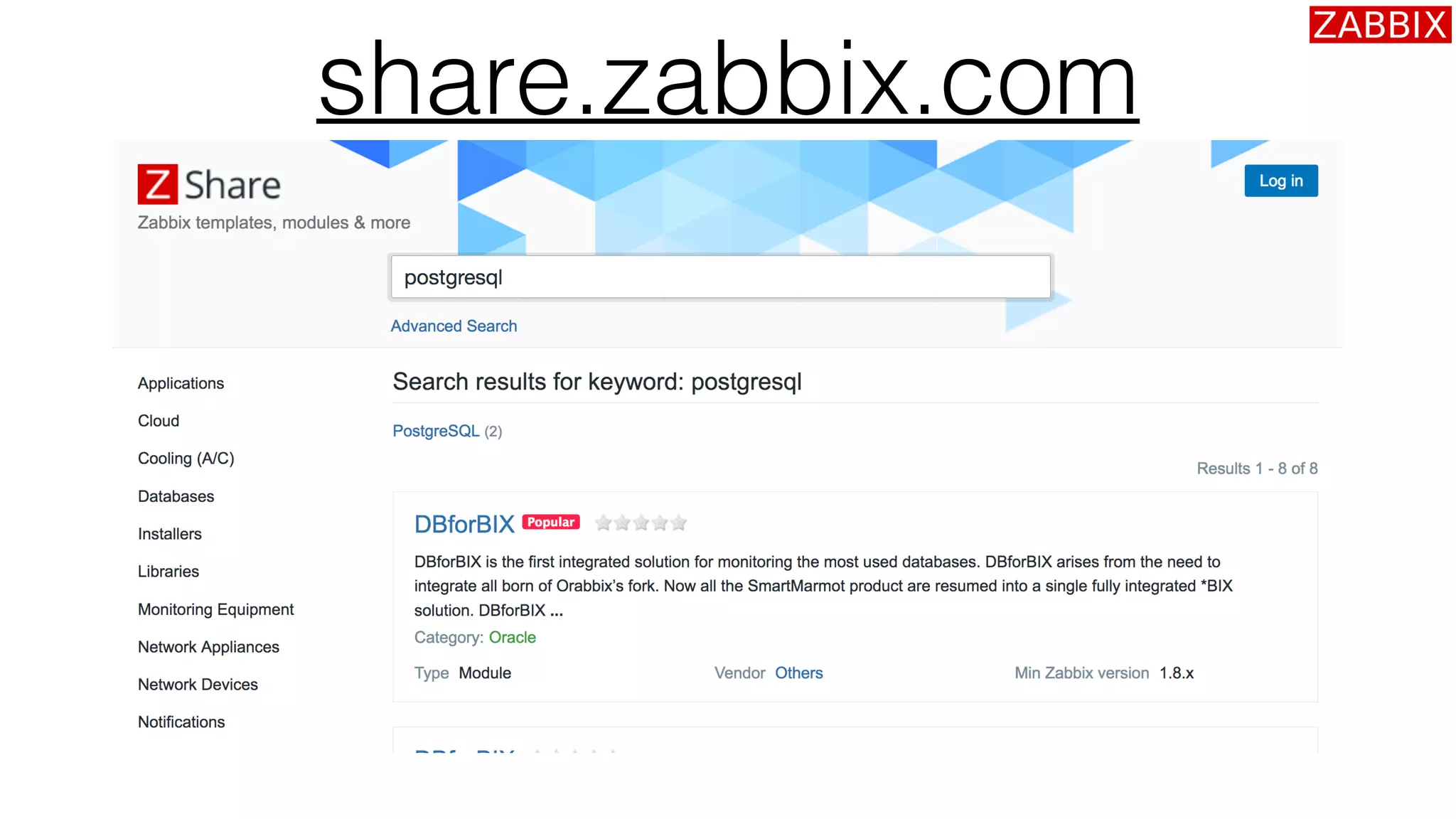

74. share.zabbix.com

75. The Universal Open Source Enterprise Level Monitoring Solution
Thank you!
Twitter: @avladishev
Email: alex@zabbix.com
Learn more at Zabbix booth or www.zabbix.com
