Monitor your Atlassian stack like the NSA
- 1. Monitor your Atlassian stack like the NSA Tom Moors January 16th 2014 Atlassian User Group Belgium aca-it.be - 2014 http://www.flickr.com/photos/zigazou76/7670889680
- 2. @tommoors Who is Tom Moors? ✓ Atlassian Expert @ ACA IT-Solutions ✓ Poor drawer ✓ @tommoors ✓ t.moors@aca-it.be aca-it.be - 2014
- 4. @tommoors Costs money Why monitoring? Needs extra time aca-it.be - 2014
- 5. @tommoors Detect fraud Reduce costs Improve service Why monitoring? Save time Offer insights Opportunities aca-it.be - 2014 …
- 6. “If you can not measure it, you can not improve it.” –Lord Kelvin aca-it.be - 2014

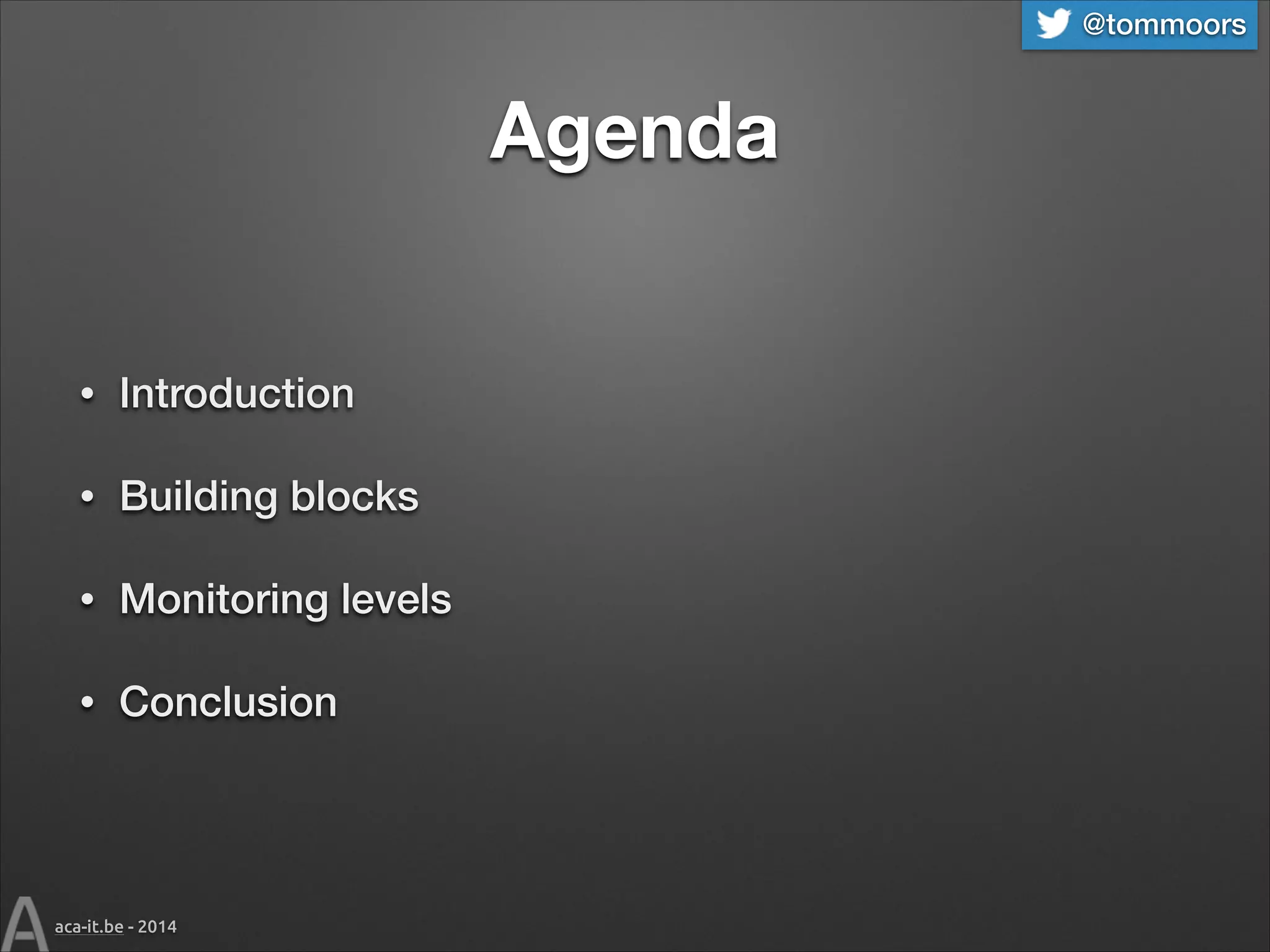

- 8. @tommoors Agenda • Introduction • Building blocks • Monitoring levels • Conclusion aca-it.be - 2014

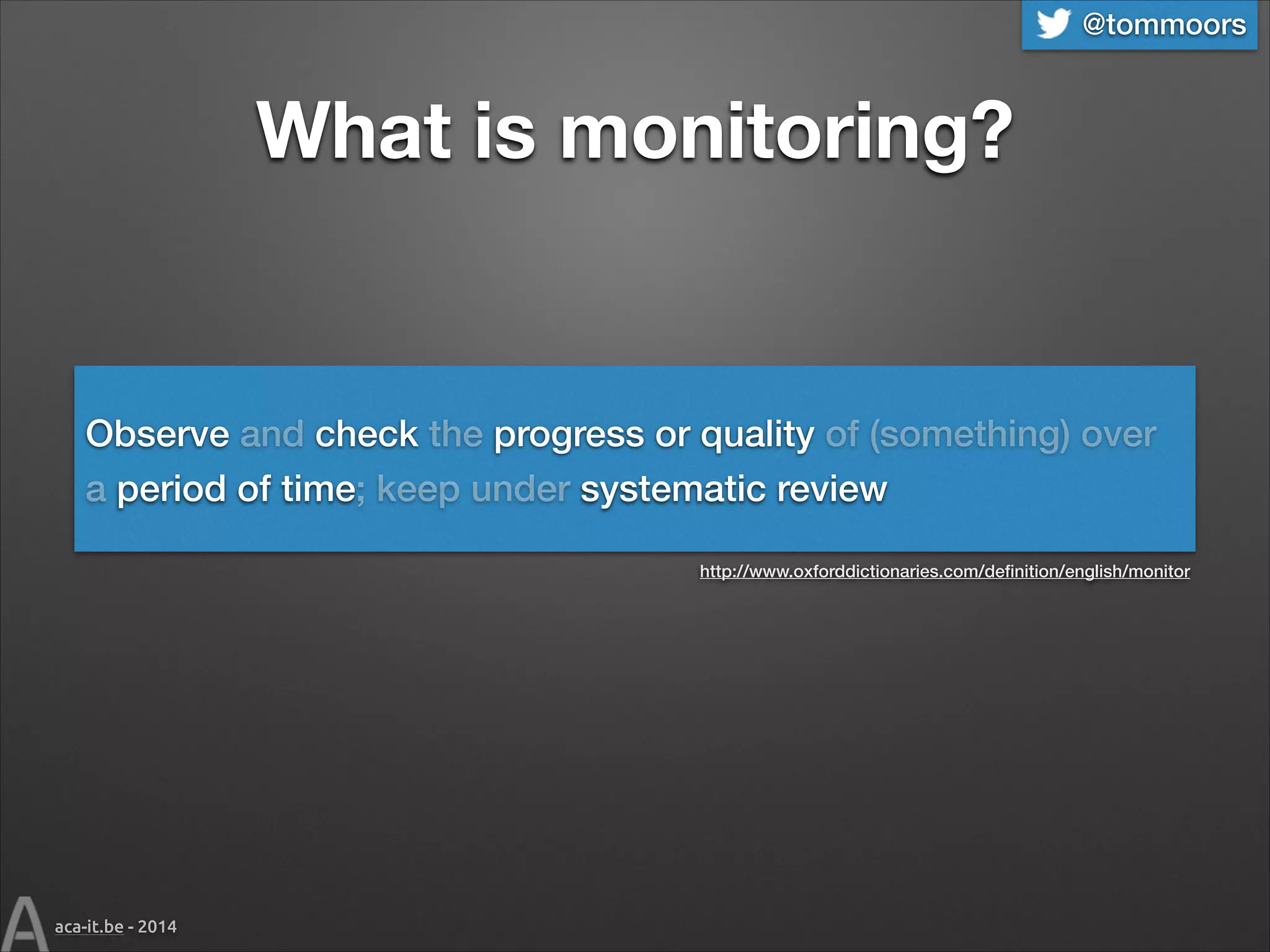

- 9. @tommoors What is monitoring? Observe and check the progress or quality of (something) over a period of time; keep under systematic review http://www.oxforddictionaries.com/definition/english/monitor aca-it.be - 2014

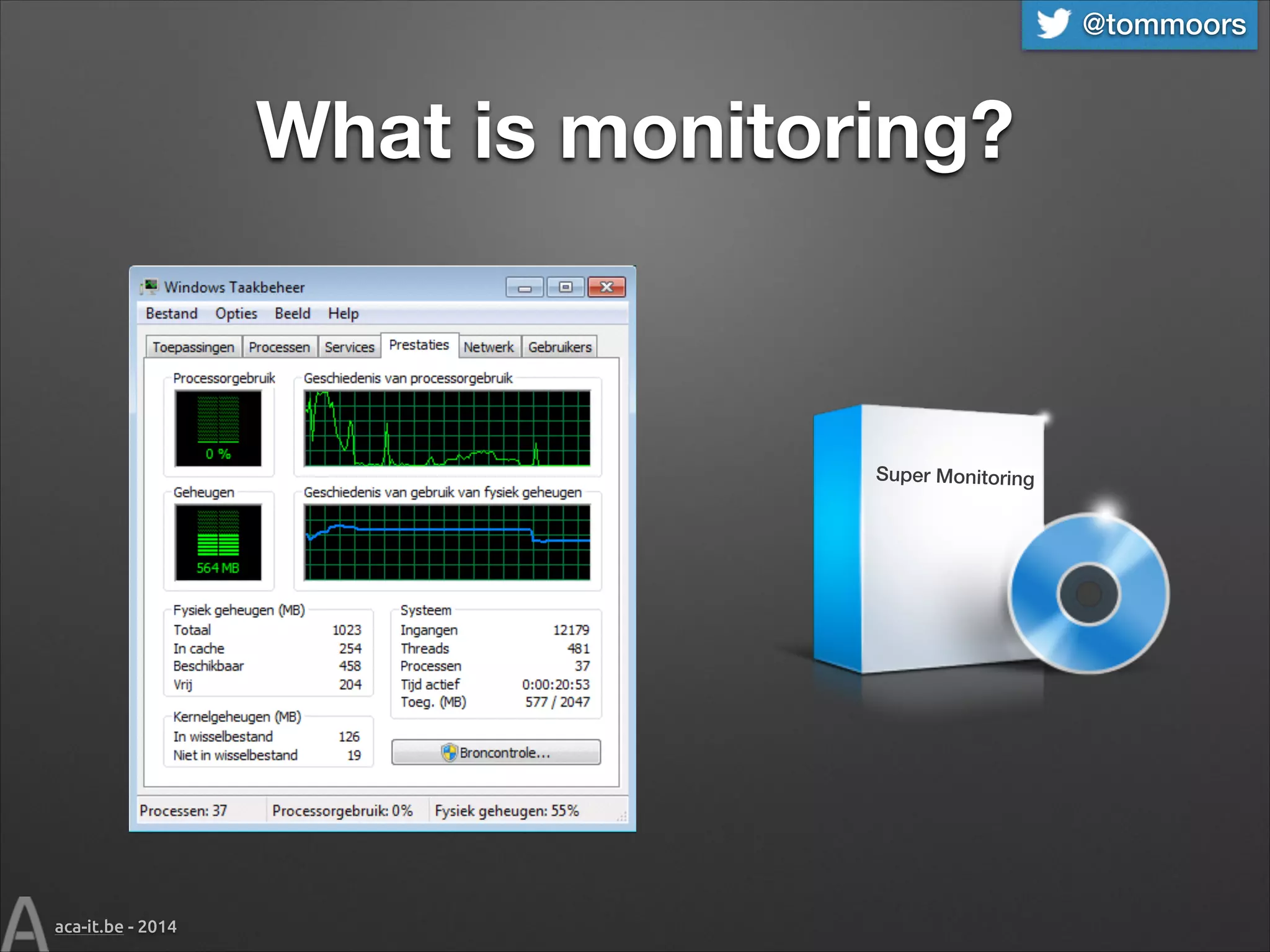

- 10. @tommoors What is monitoring? Super Monitoring aca-it.be - 2014

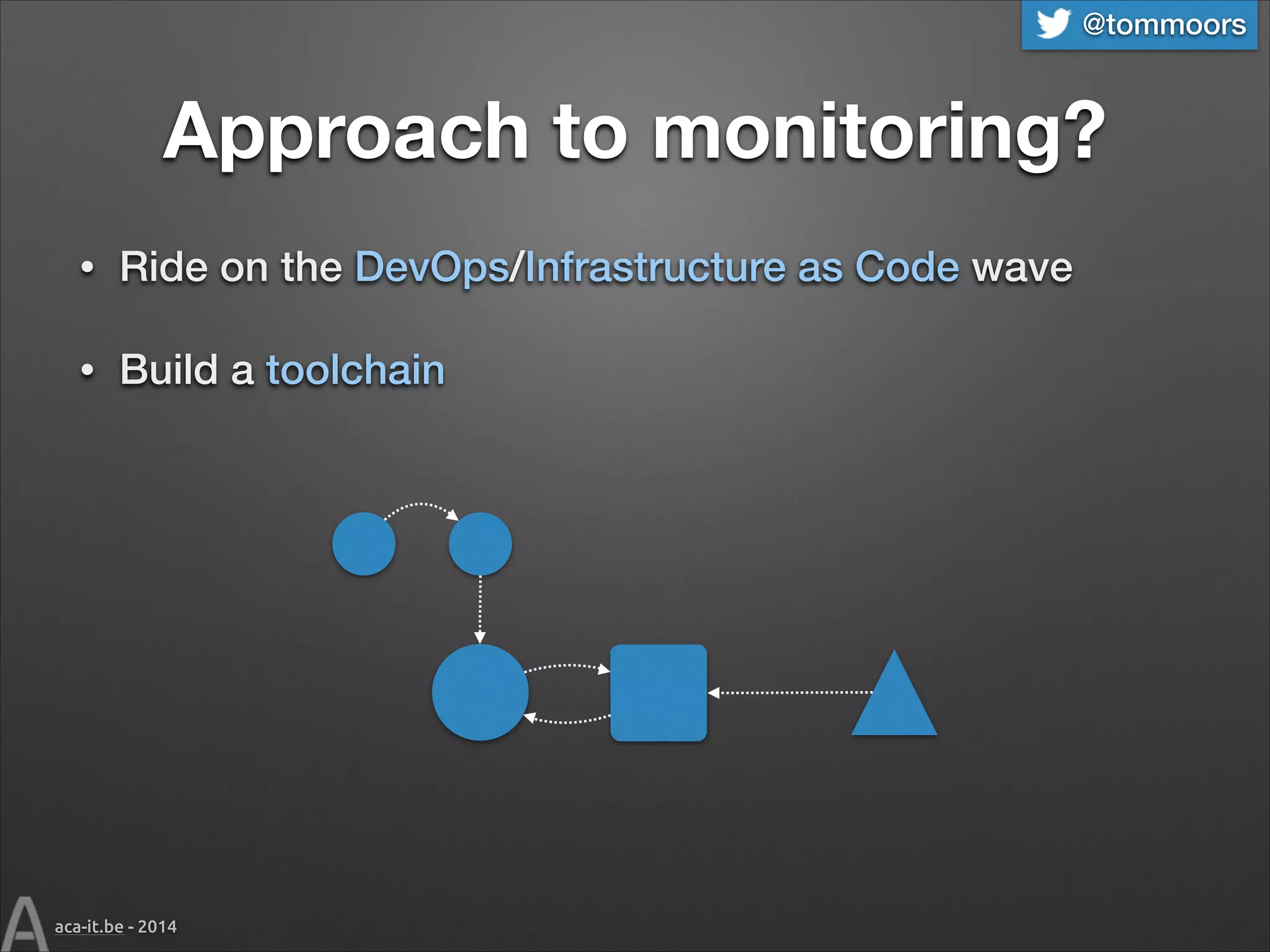

- 11. @tommoors Approach to monitoring? • Ride on the DevOps/Infrastructure as Code wave • Build a toolchain aca-it.be - 2014

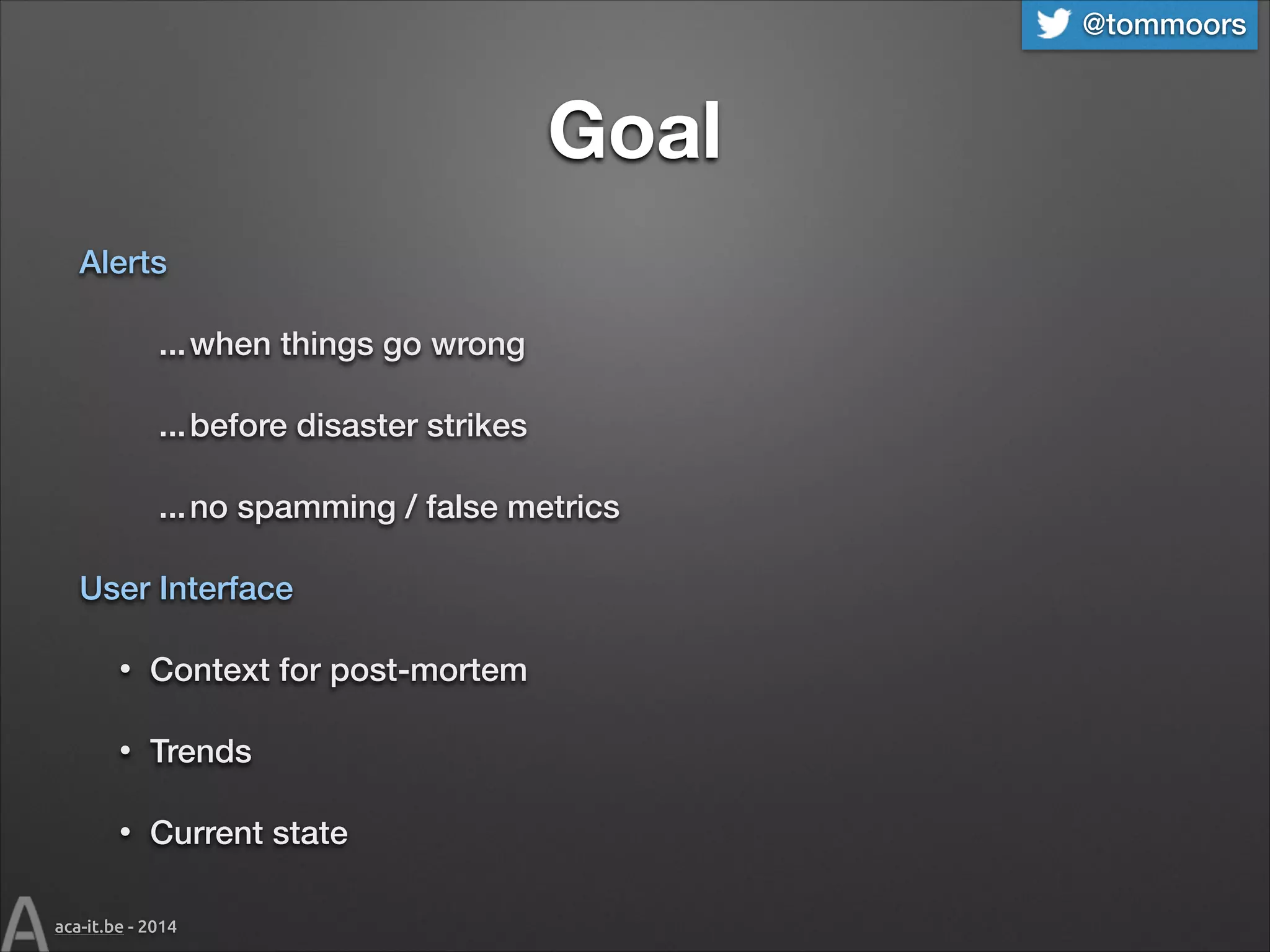

- 12. @tommoors Goal Alerts ... when things go wrong ... before disaster strikes ... no spamming / false metrics User Interface • Context for post-mortem • Trends • Current state aca-it.be - 2014

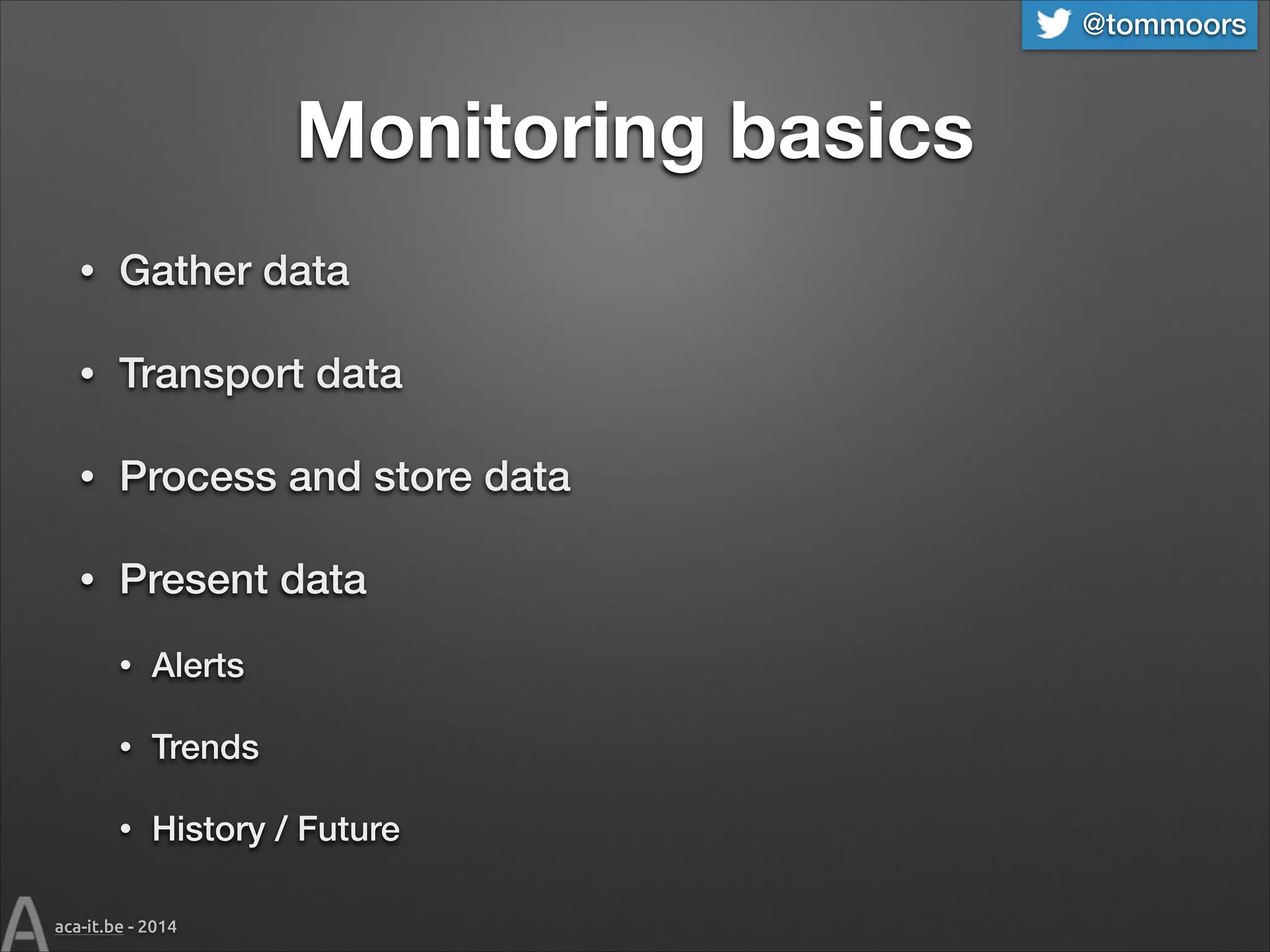

- 13. @tommoors Monitoring basics • Gather data • Transport data • Process and store data • Present data • Alerts • Trends • History / Future aca-it.be - 2014

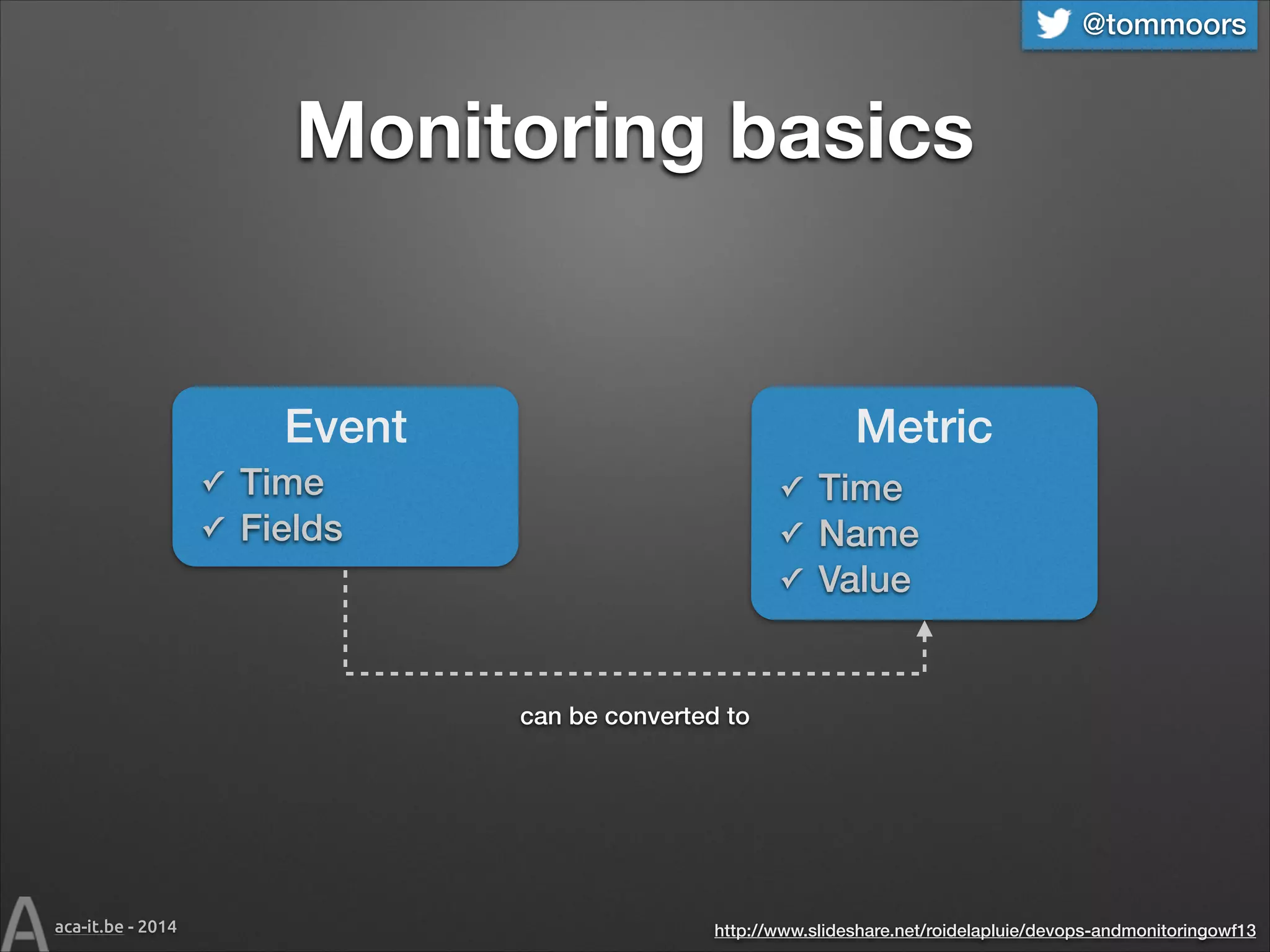

- 14. @tommoors Monitoring basics Metric Event ✓ ✓ Time Fields ✓ ✓ ✓ Time Name Value can be converted to aca-it.be - 2014 http://www.slideshare.net/roidelapluie/devops-andmonitoringowf13

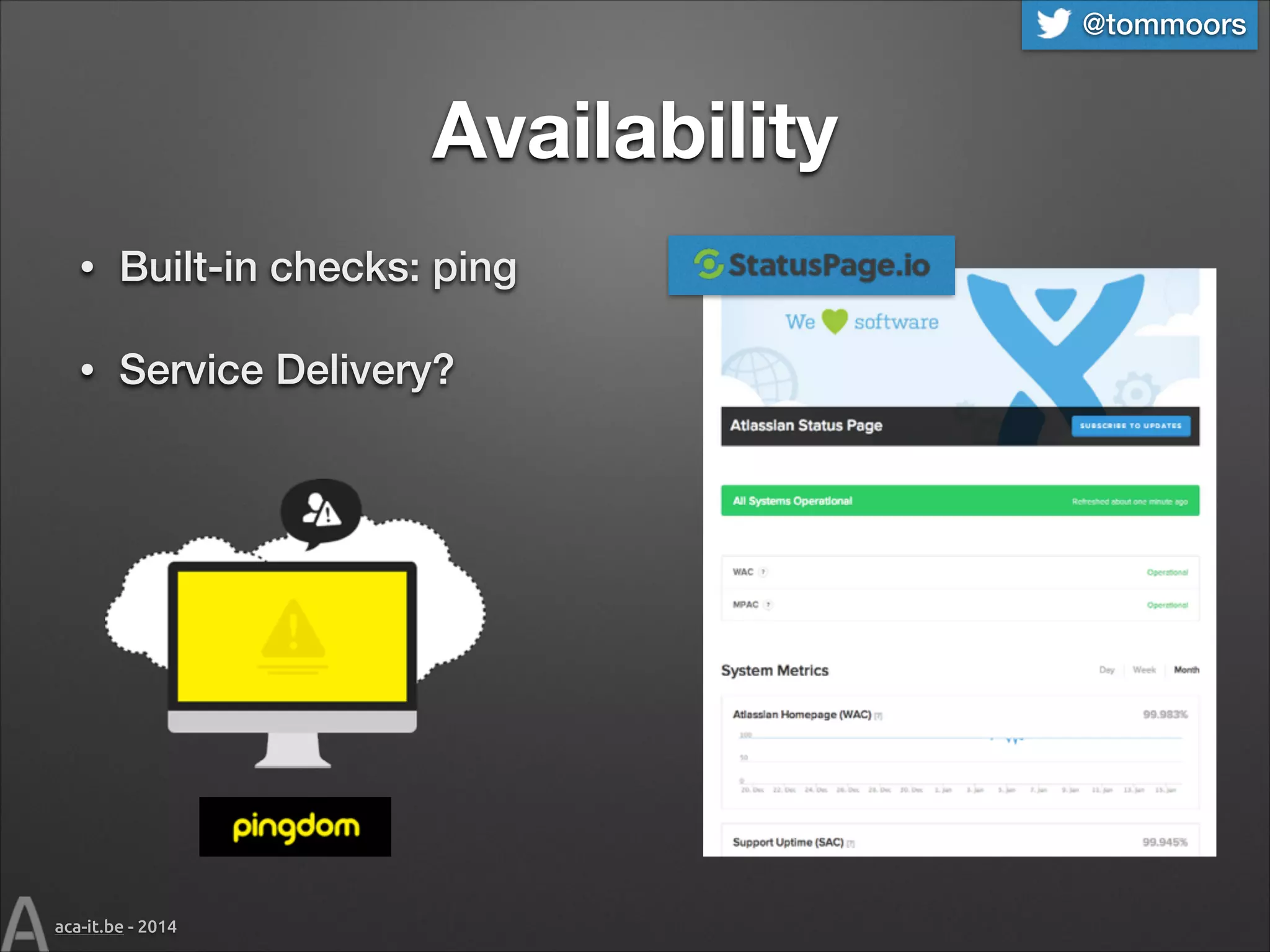

- 16. @tommoors Availability • Built-in checks: ping • Service Delivery? aca-it.be - 2014

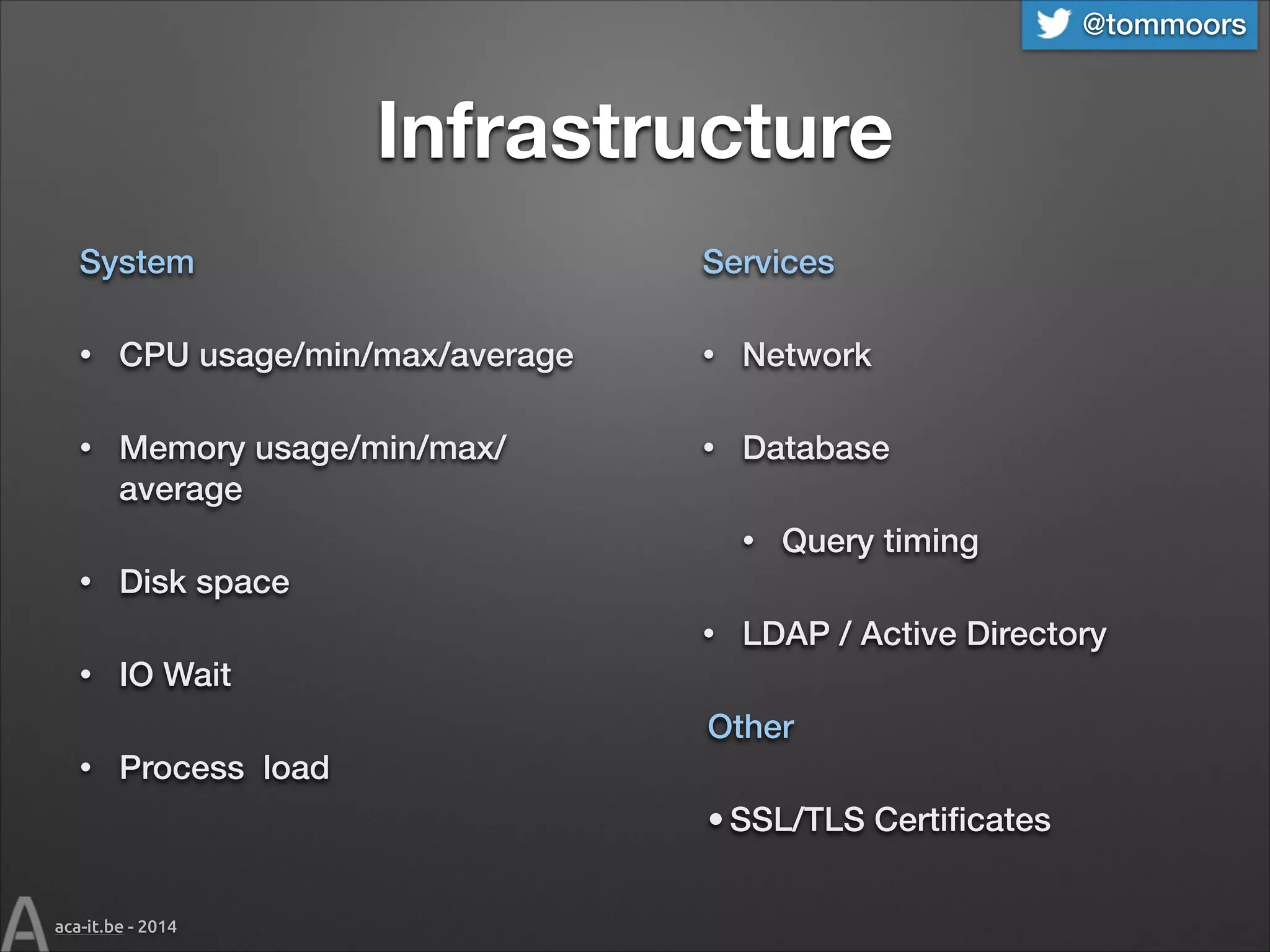

- 18. @tommoors Infrastructure System Services • CPU usage/min/max/average • Network • Memory usage/min/max/ average • Database • • Disk space • • Query timing LDAP / Active Directory IO Wait Other • Process load • SSL/TLS Certificates aca-it.be - 2014

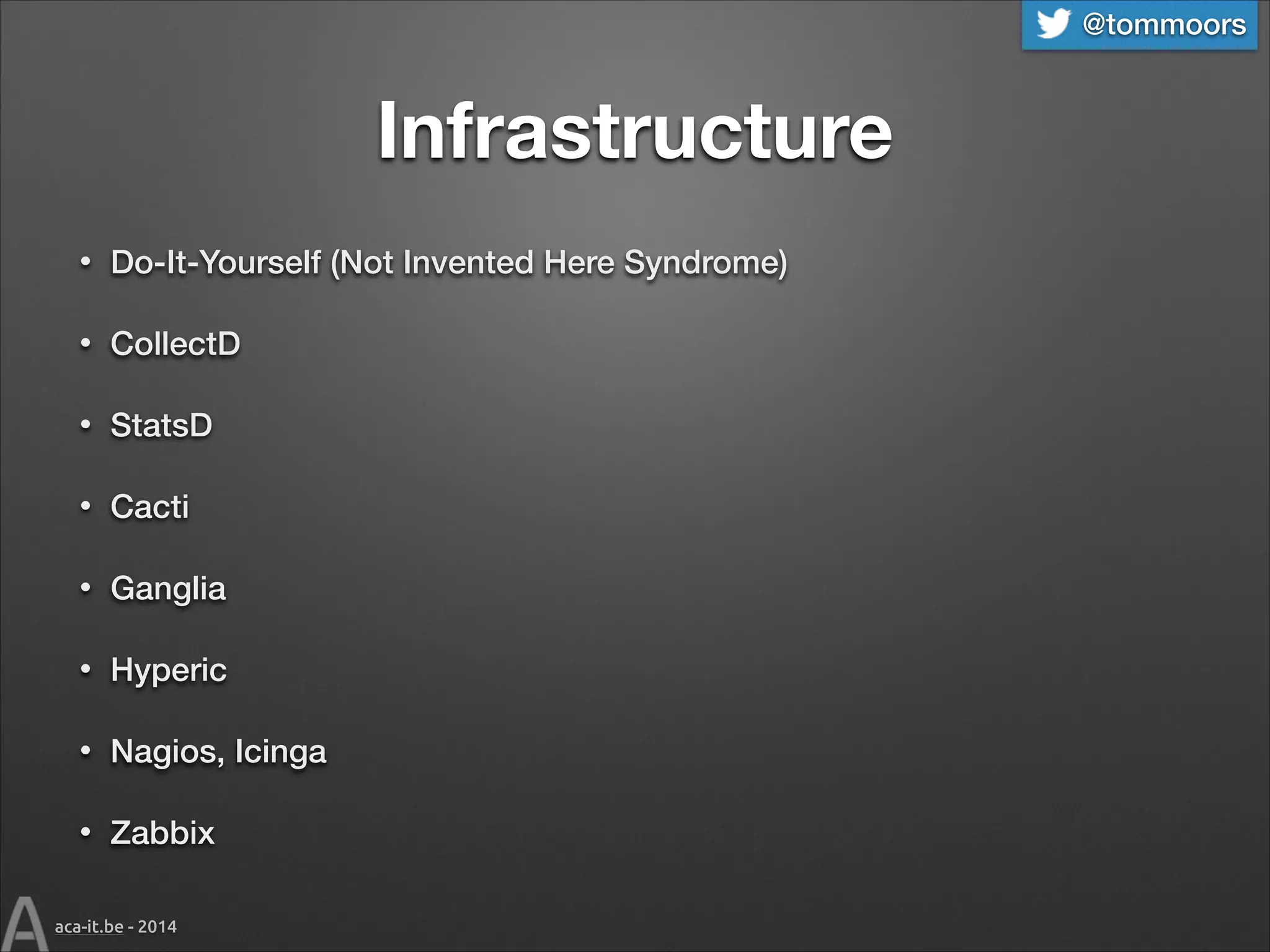

- 19. @tommoors Infrastructure • Do-It-Yourself (Not Invented Here Syndrome) • CollectD • StatsD • Cacti • Ganglia • Hyperic • Nagios, Icinga • Zabbix aca-it.be - 2014

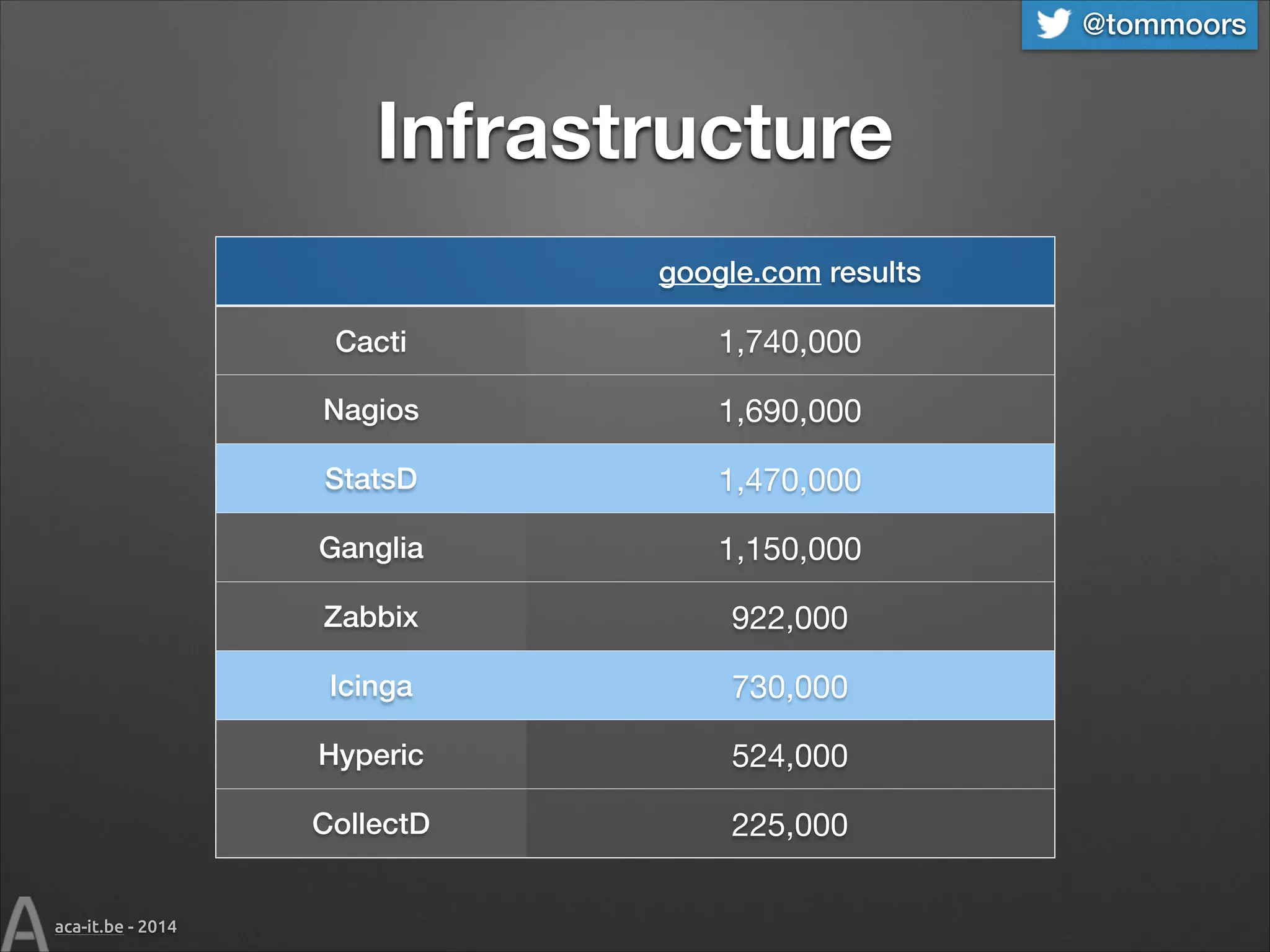

- 20. @tommoors Infrastructure google.com results Cacti Nagios 1,690,000 StatsD 1,470,000 Ganglia 1,150,000 Zabbix 922,000 Icinga 730,000 Hyperic 524,000 CollectD aca-it.be - 2014 1,740,000 225,000

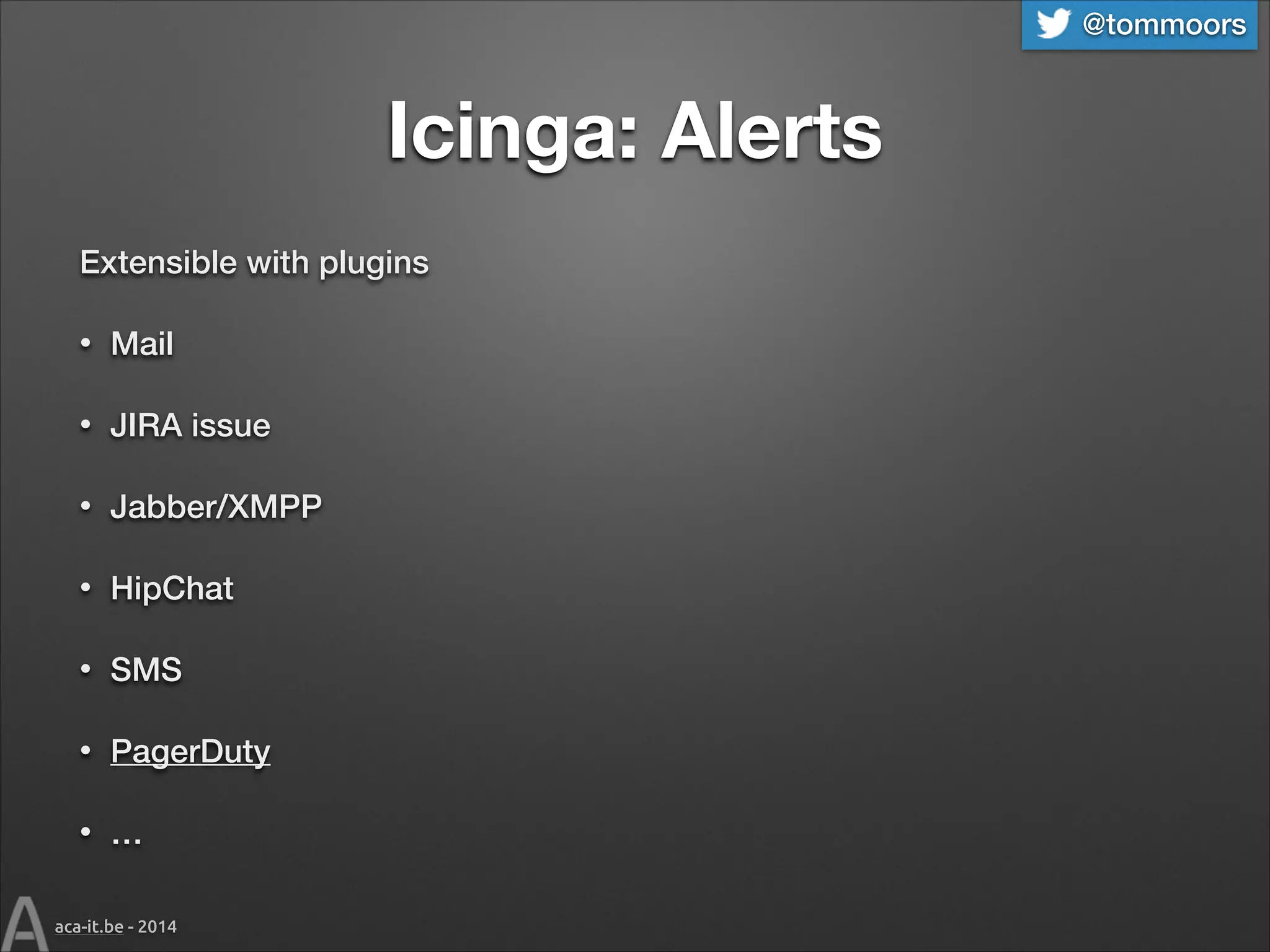

- 23. @tommoors Icinga: Alerts Extensible with plugins • Mail • JIRA issue • Jabber/XMPP • HipChat • SMS • PagerDuty • … aca-it.be - 2014

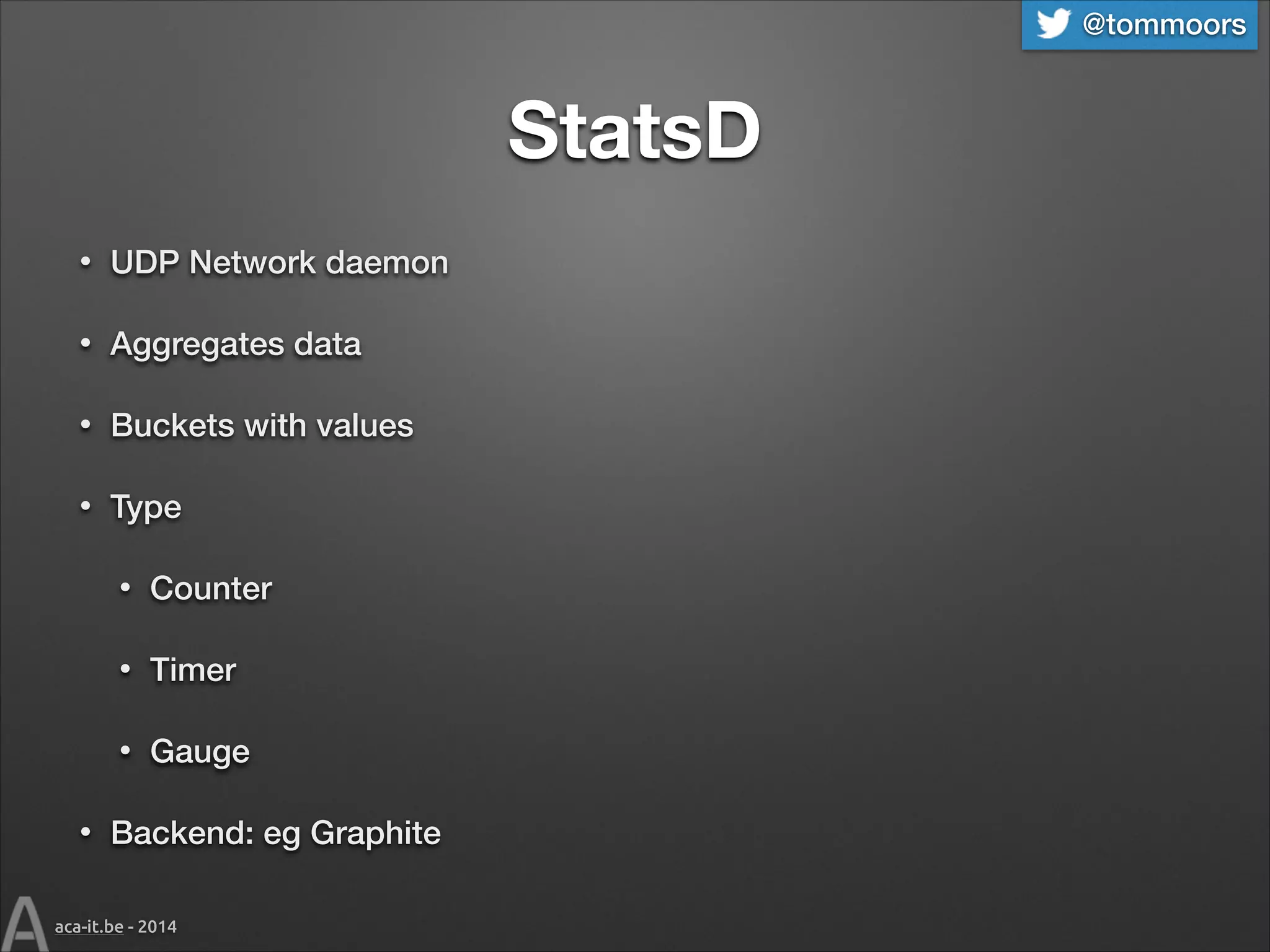

- 24. @tommoors StatsD • UDP Network daemon • Aggregates data • Buckets with values • Type • • Timer • • Counter Gauge Backend: eg Graphite aca-it.be - 2014

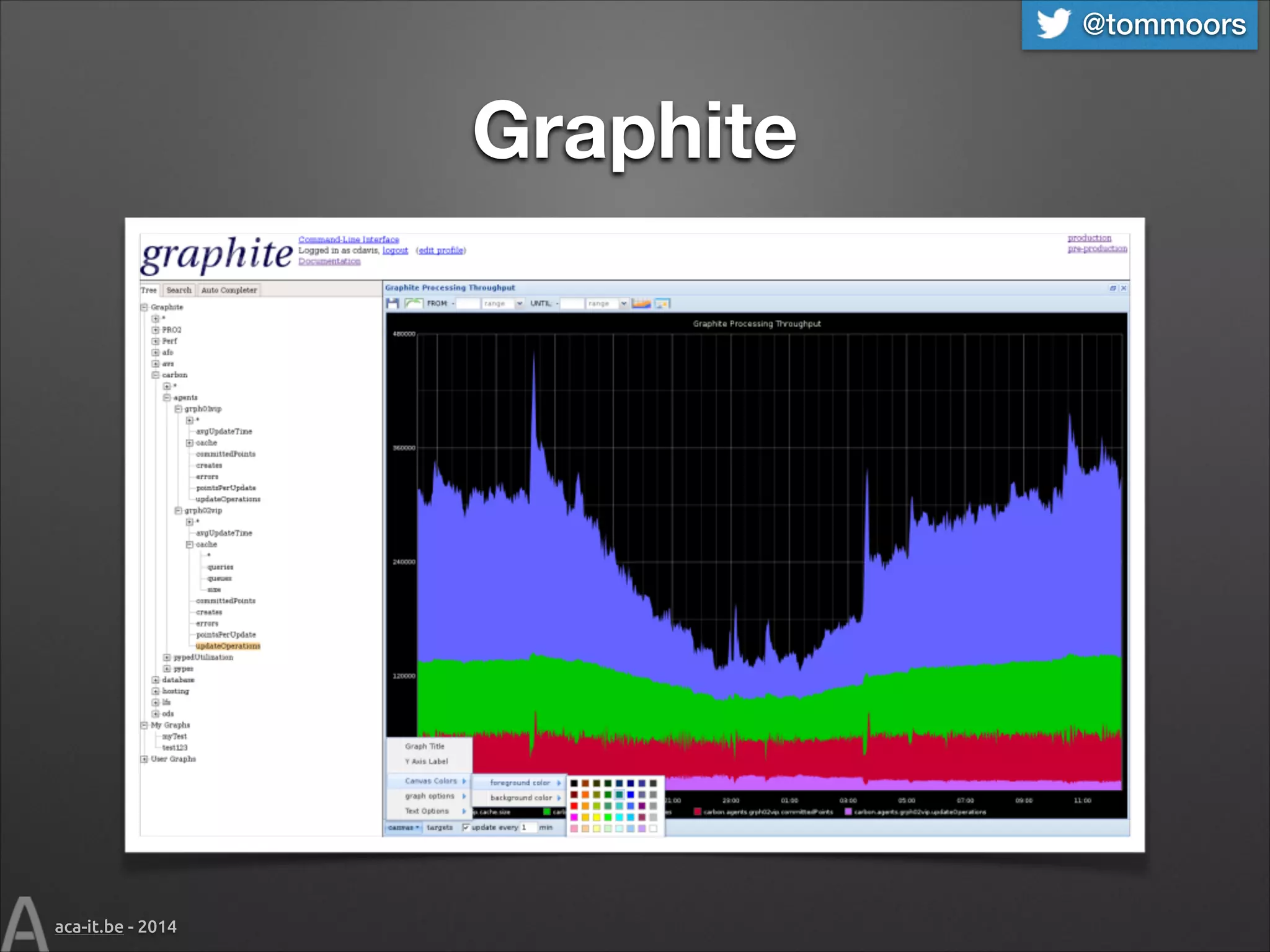

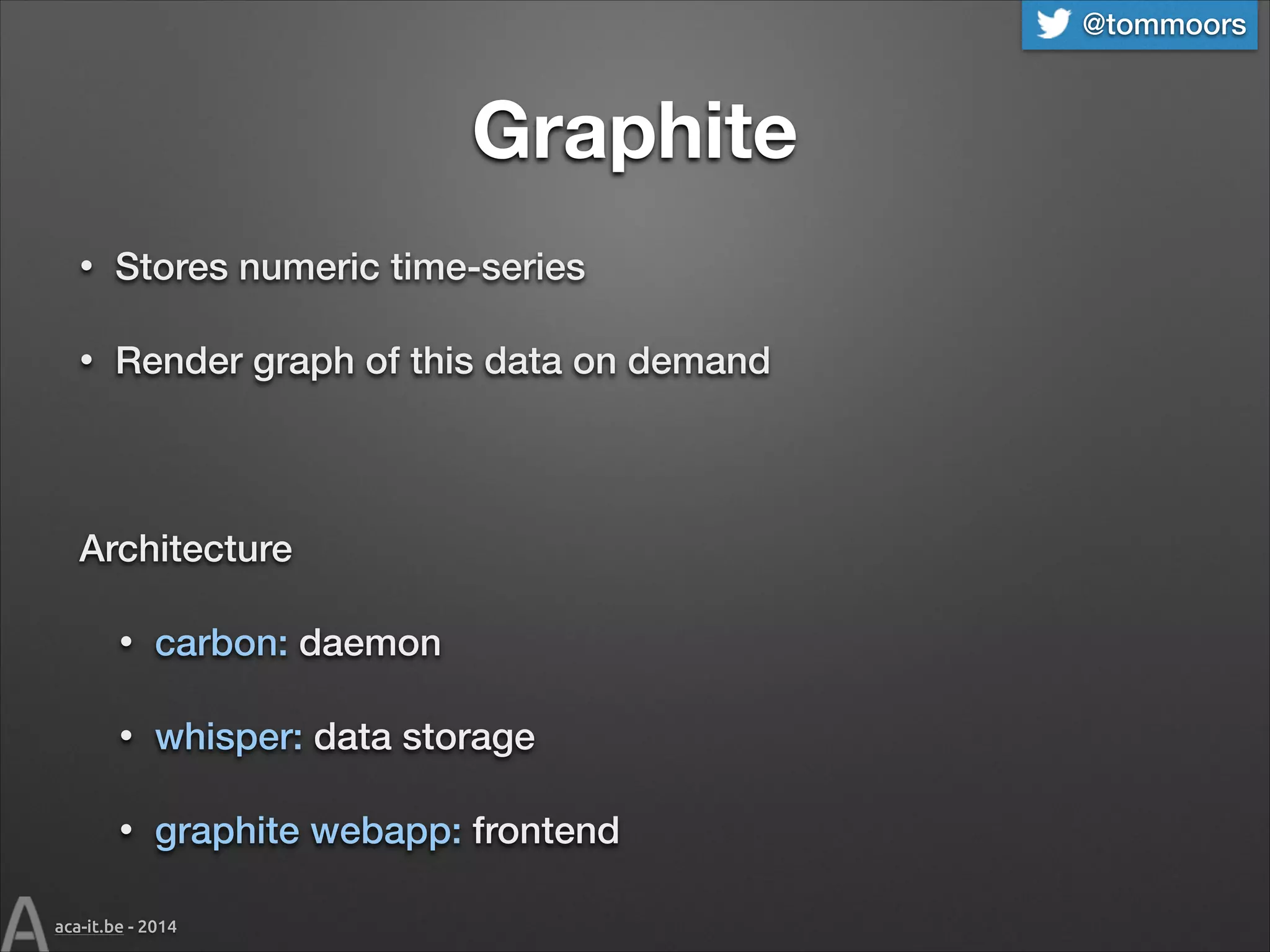

- 25. @tommoors Graphite • Stores numeric time-series • Render graph of this data on demand ! Architecture • carbon: daemon • whisper: data storage • graphite webapp: frontend aca-it.be - 2014

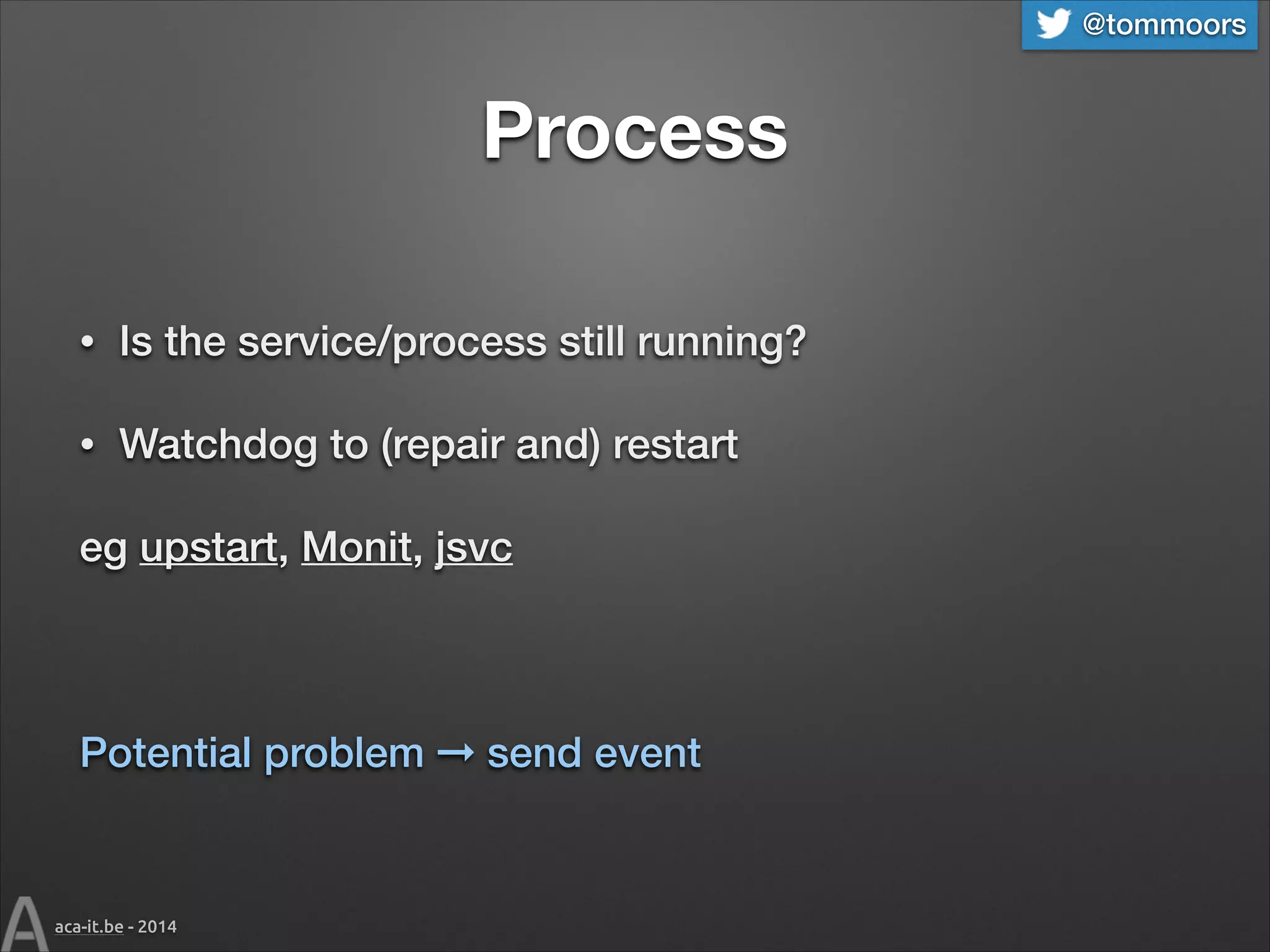

- 28. @tommoors Process • Is the service/process still running? • Watchdog to (repair and) restart eg upstart, Monit, jsvc ! Potential problem ➞ send event aca-it.be - 2014

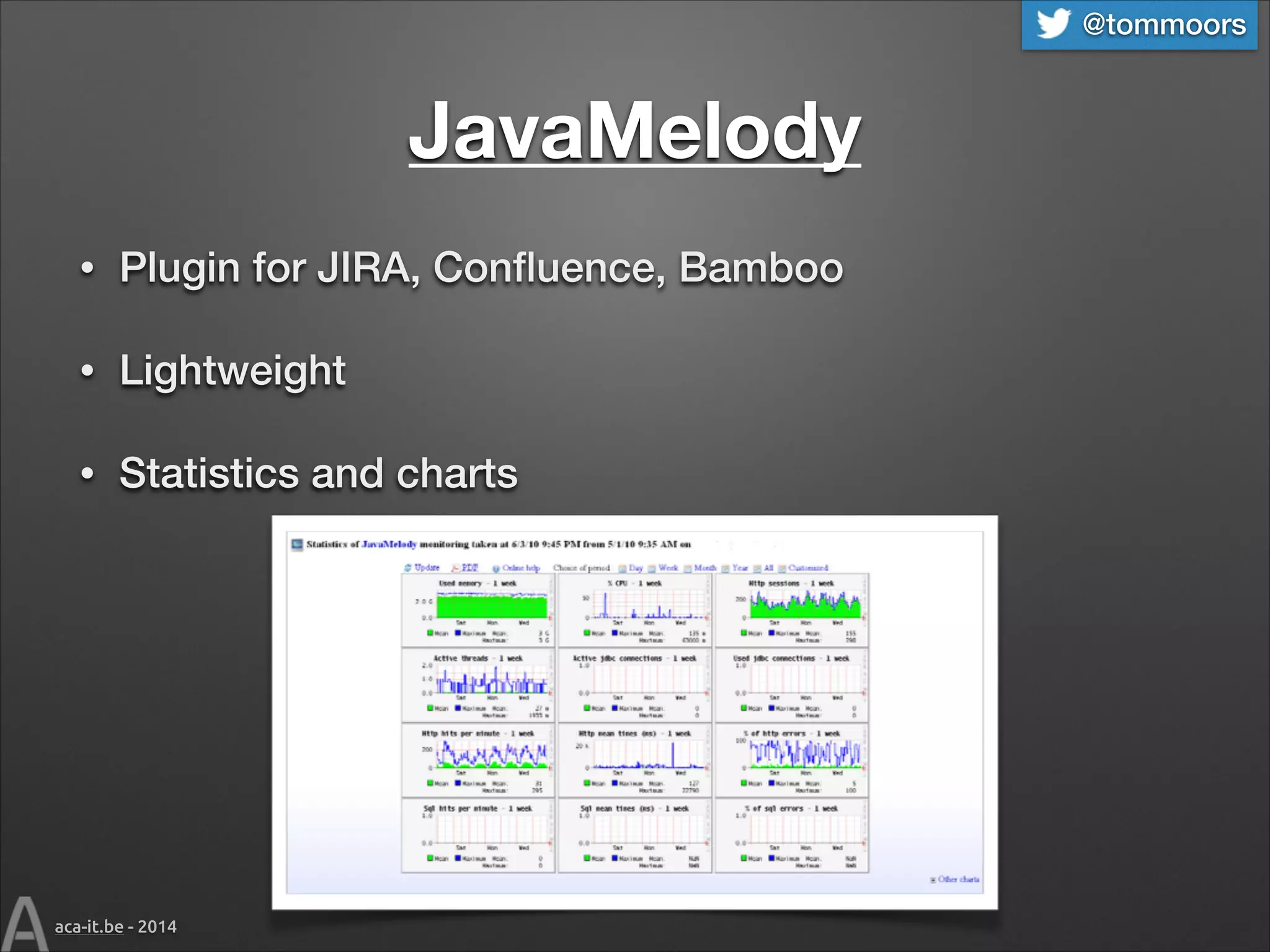

- 30. @tommoors JavaMelody • Plugin for JIRA, Confluence, Bamboo • Lightweight • Statistics and charts aca-it.be - 2014
- 31. @tommoors Java Applications: JMX Java Management eXtensions • MBeans representing device, application, resource • Set of readable (writable) attributes • Set of operations aca-it.be - 2014

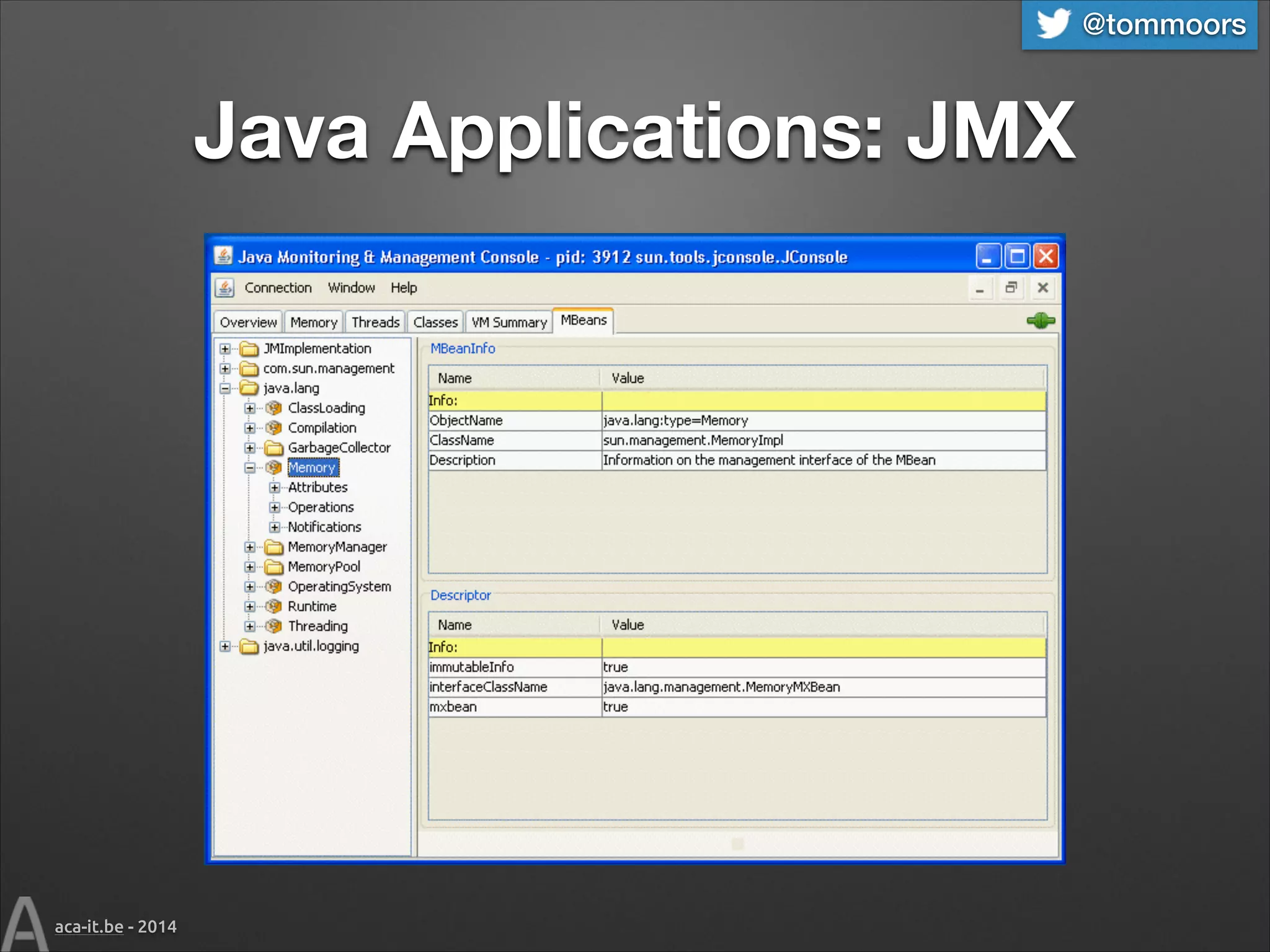

- 32. @tommoors Java Applications: JMX aca-it.be - 2014

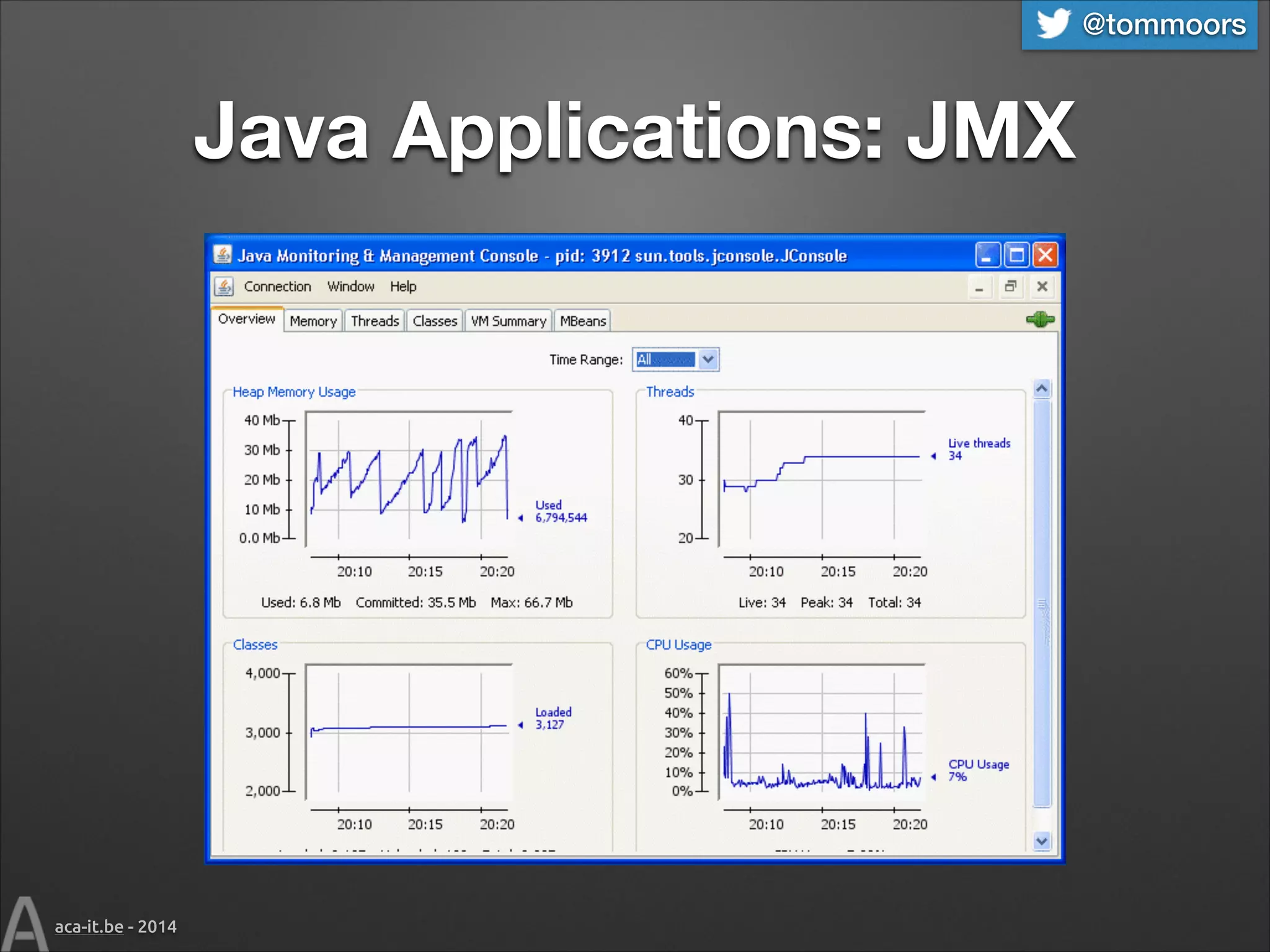

- 33. @tommoors Java Applications: JMX aca-it.be - 2014

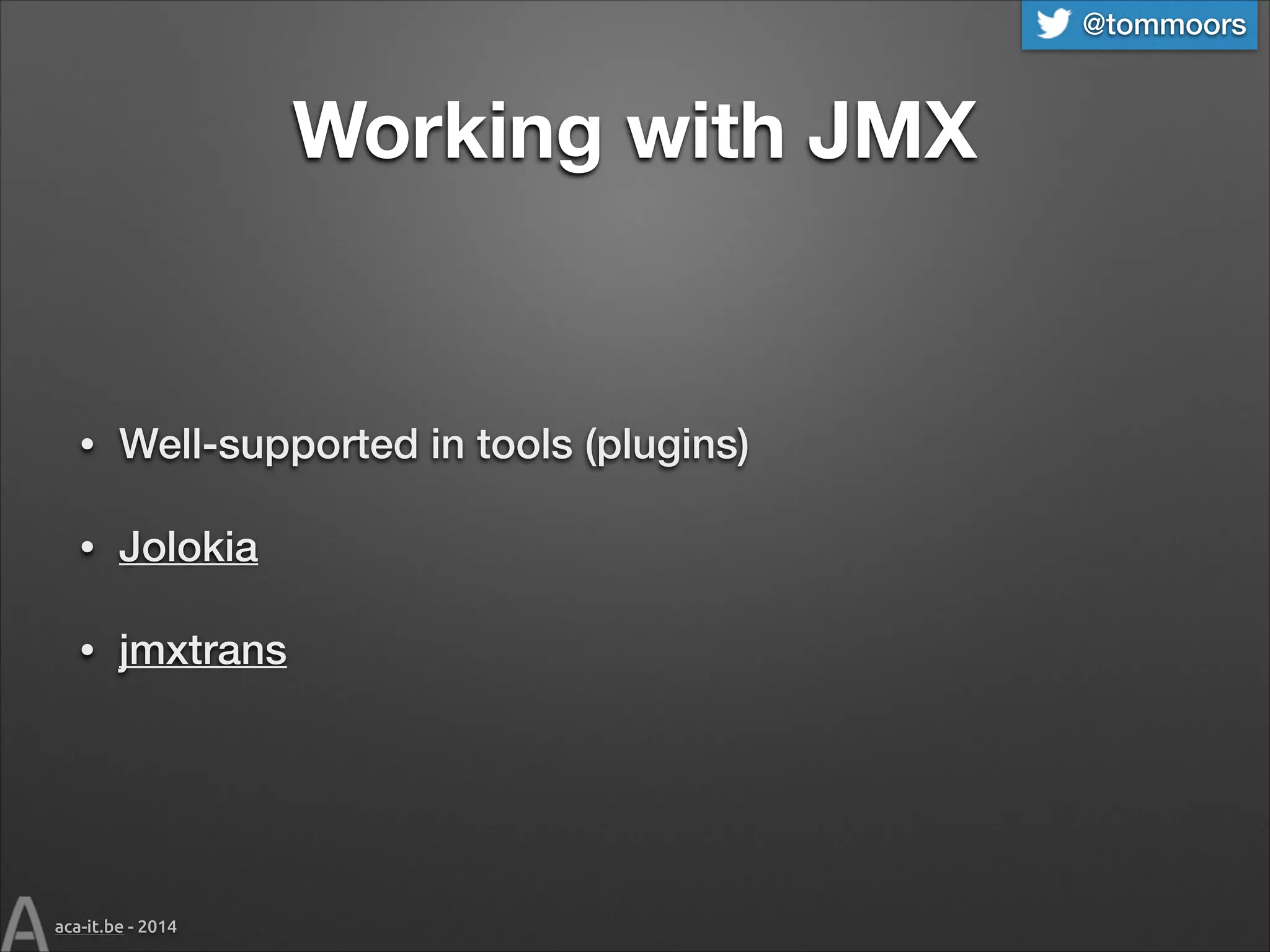

- 34. @tommoors Working with JMX • Well-supported in tools (plugins) • Jolokia • jmxtrans aca-it.be - 2014

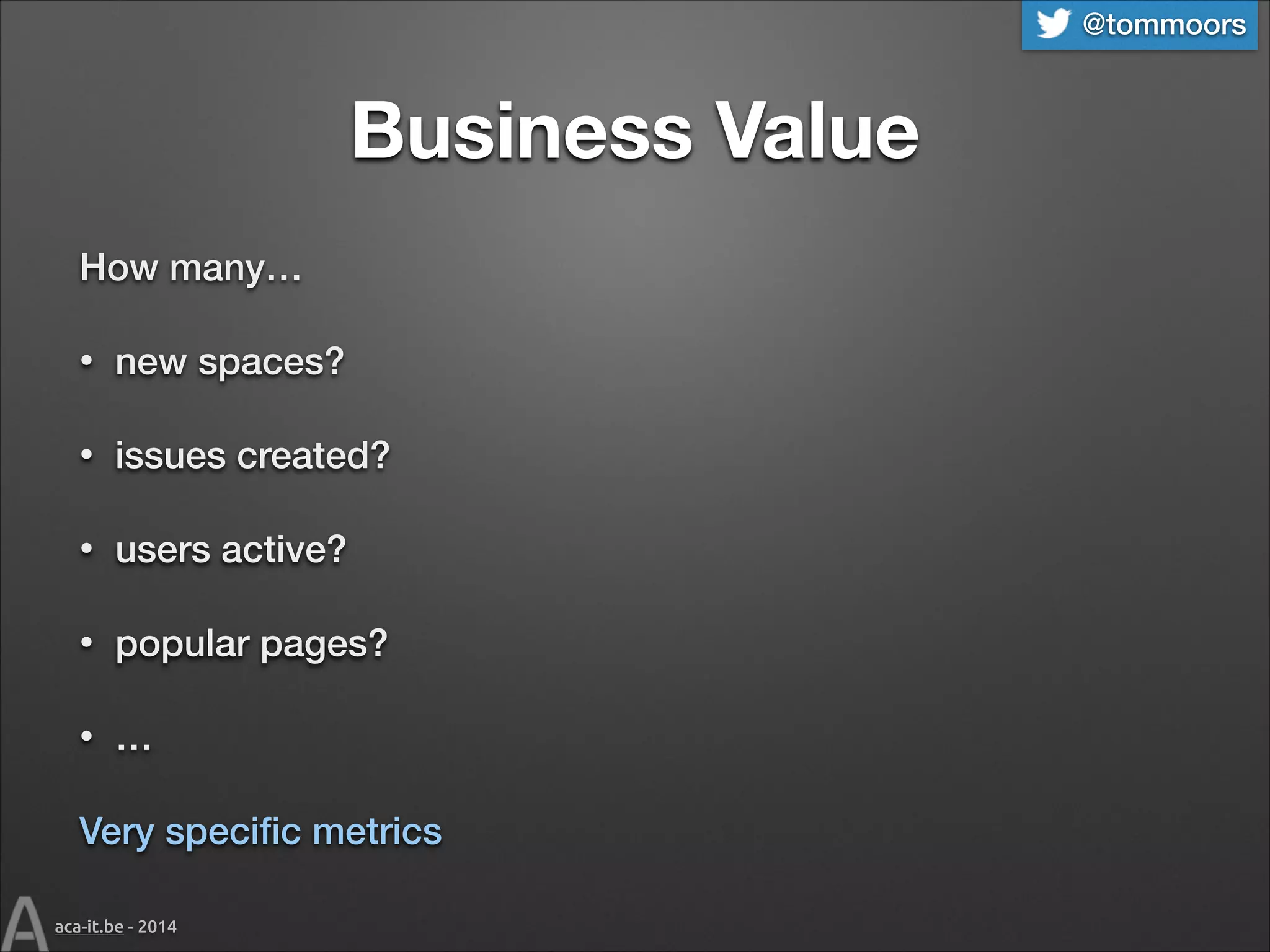

- 37. @tommoors Business Value How many… • new spaces? • issues created? • users active? • popular pages? • … Very specific metrics aca-it.be - 2014

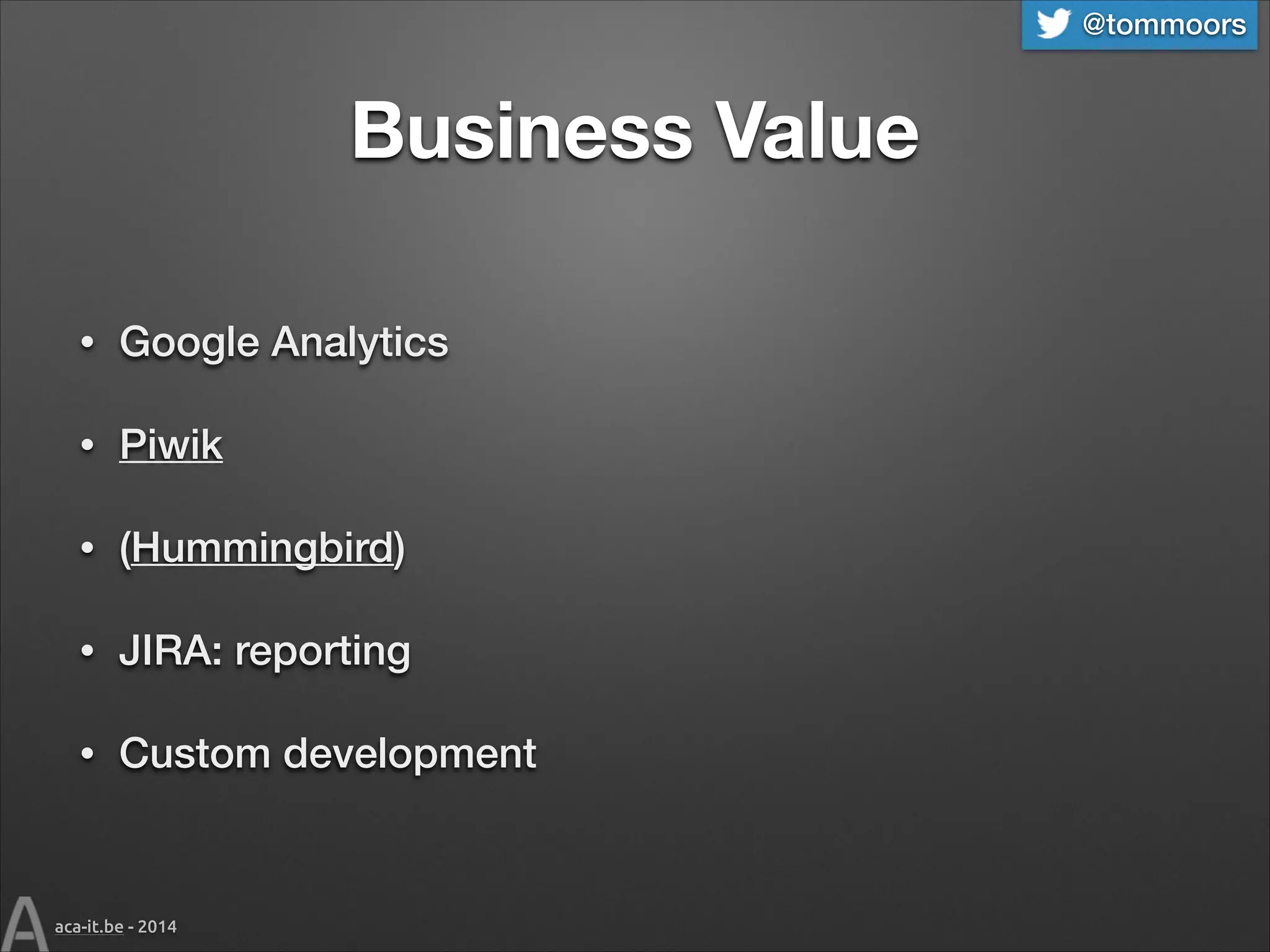

- 38. @tommoors Business Value • Google Analytics • Piwik • (Hummingbird) • JIRA: reporting • Custom development aca-it.be - 2014

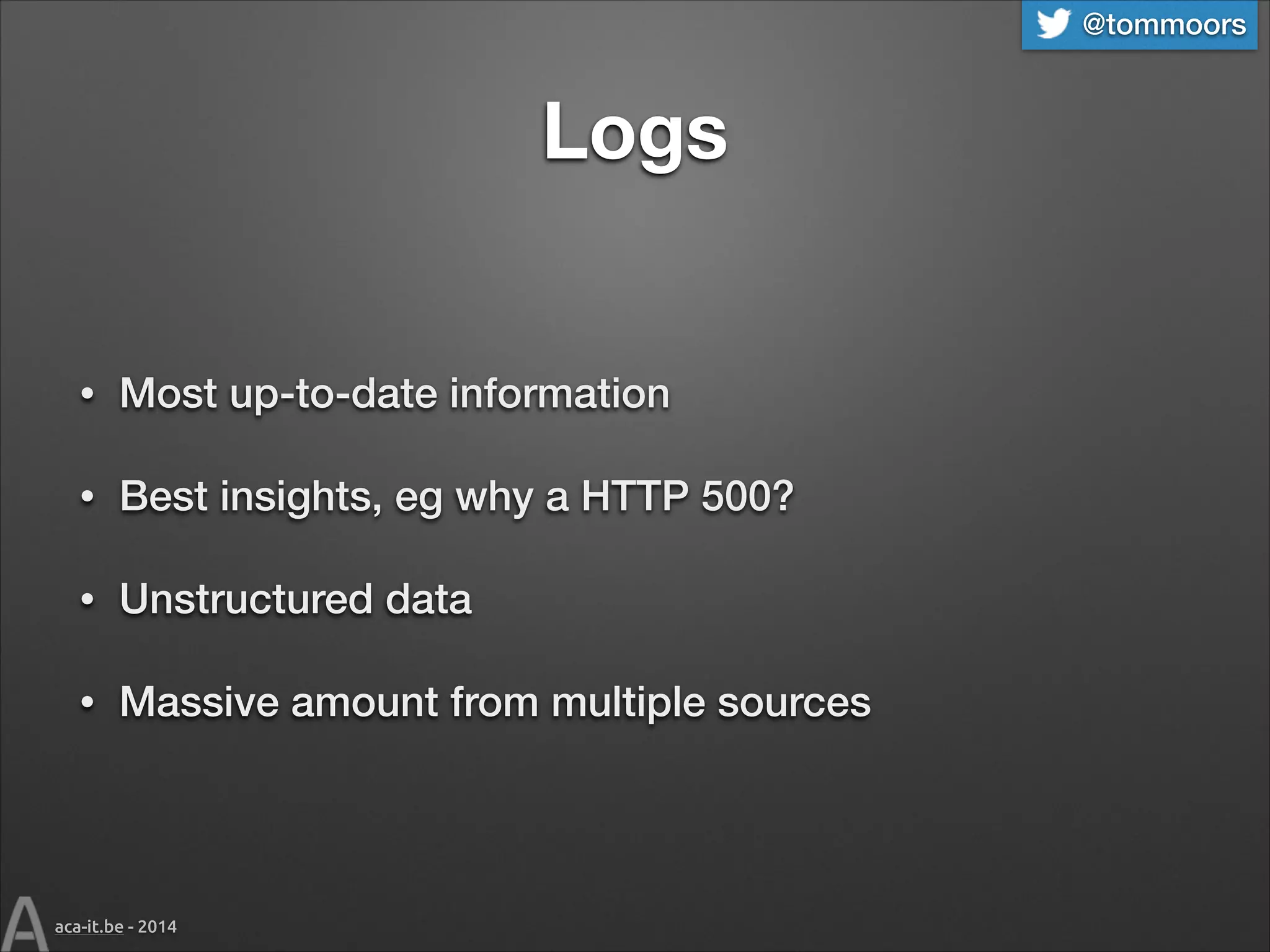

- 40. @tommoors Logs • Most up-to-date information • Best insights, eg why a HTTP 500? • Unstructured data • Massive amount from multiple sources aca-it.be - 2014
- 41. @tommoors Working with Logs Scribe Logstash free and open source commercial aca-it.be - 2014

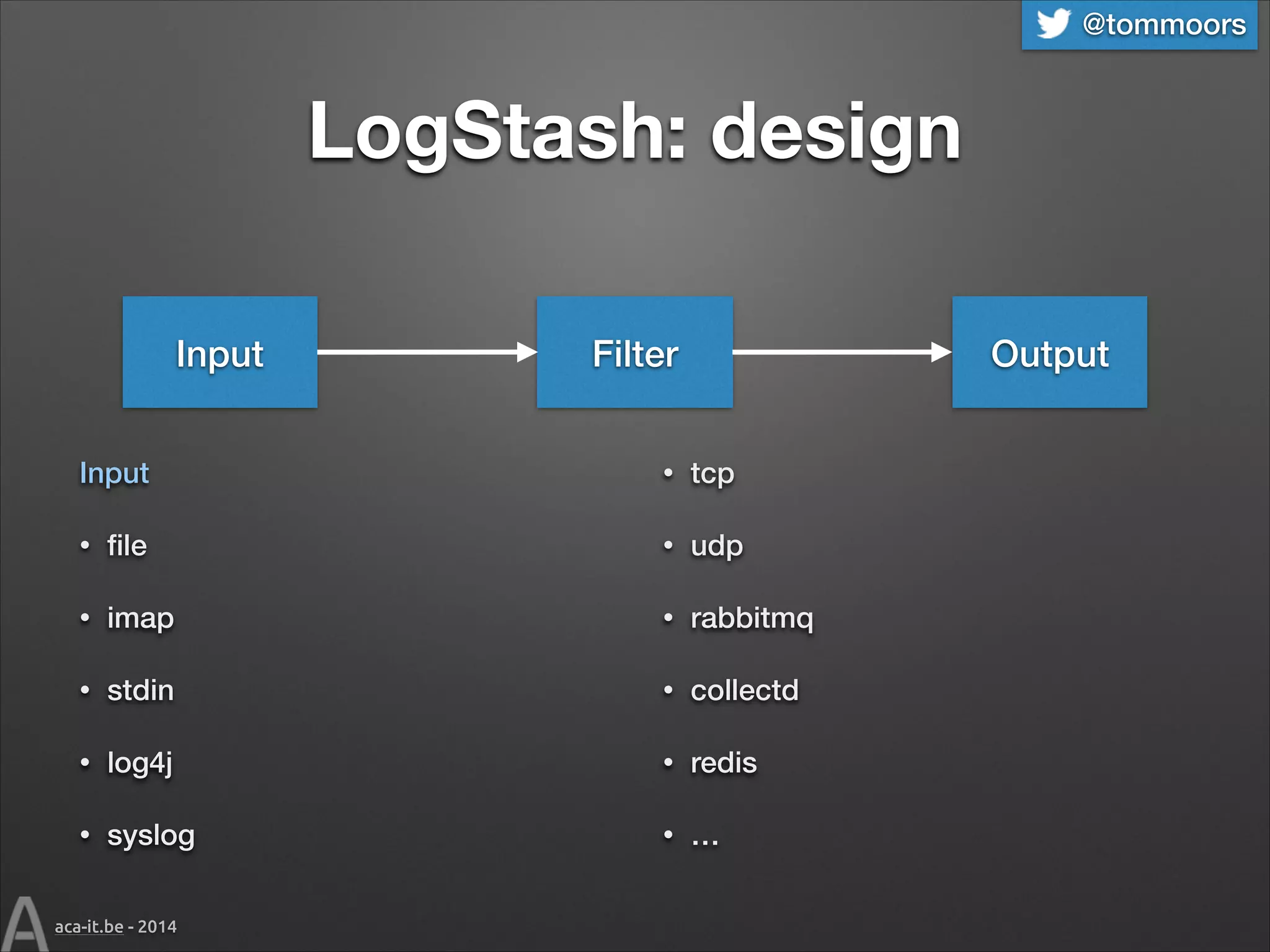

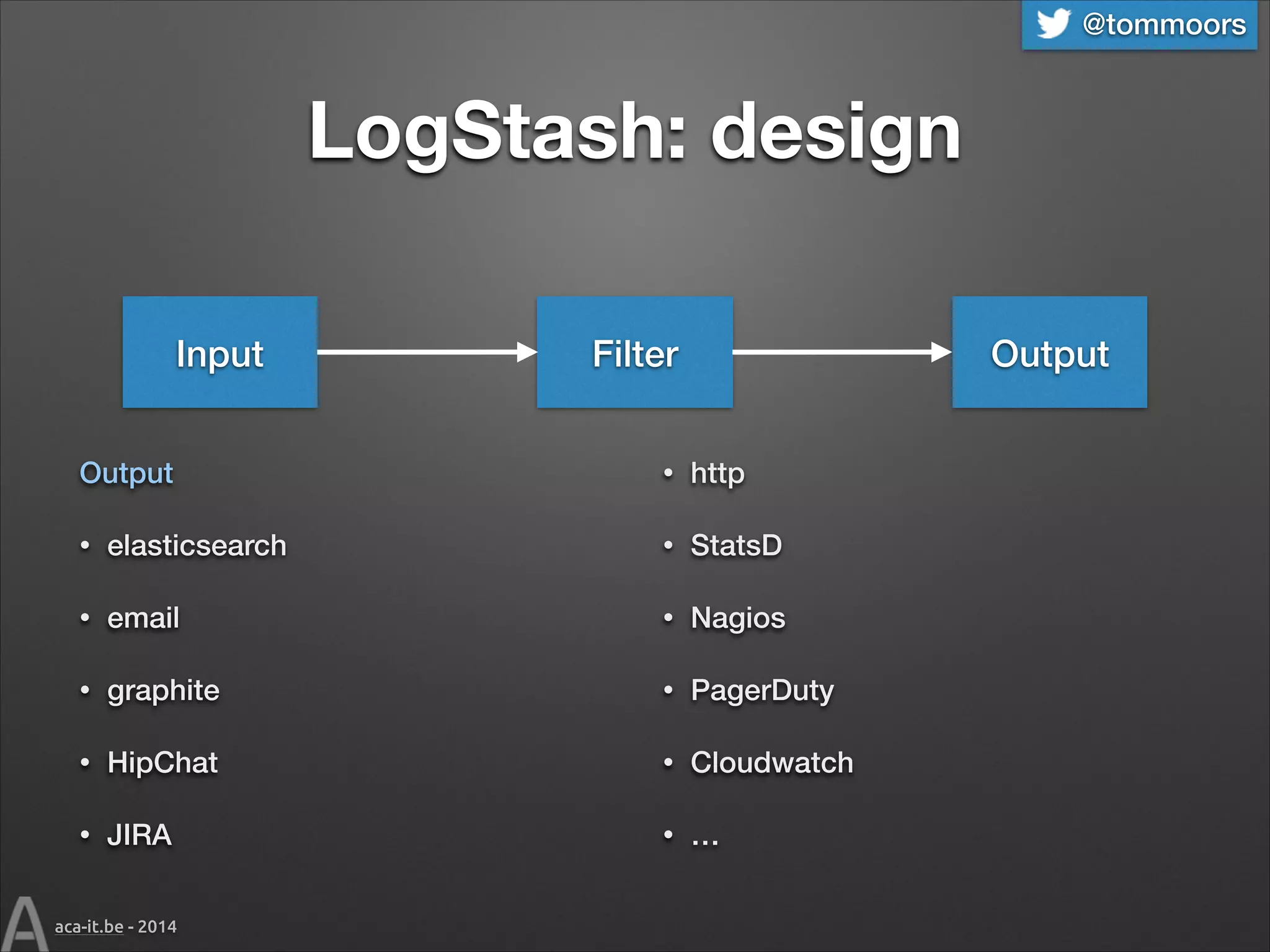

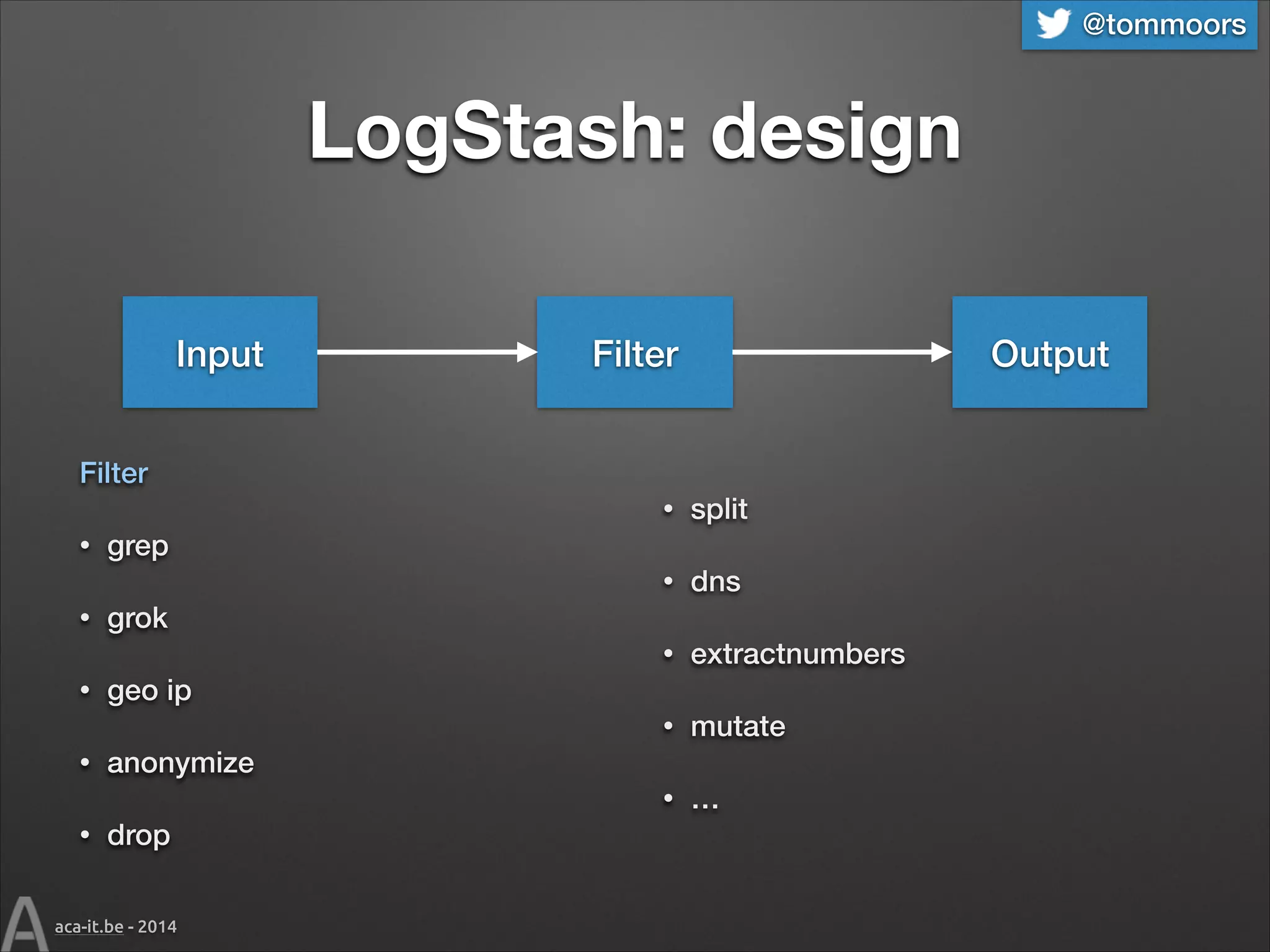

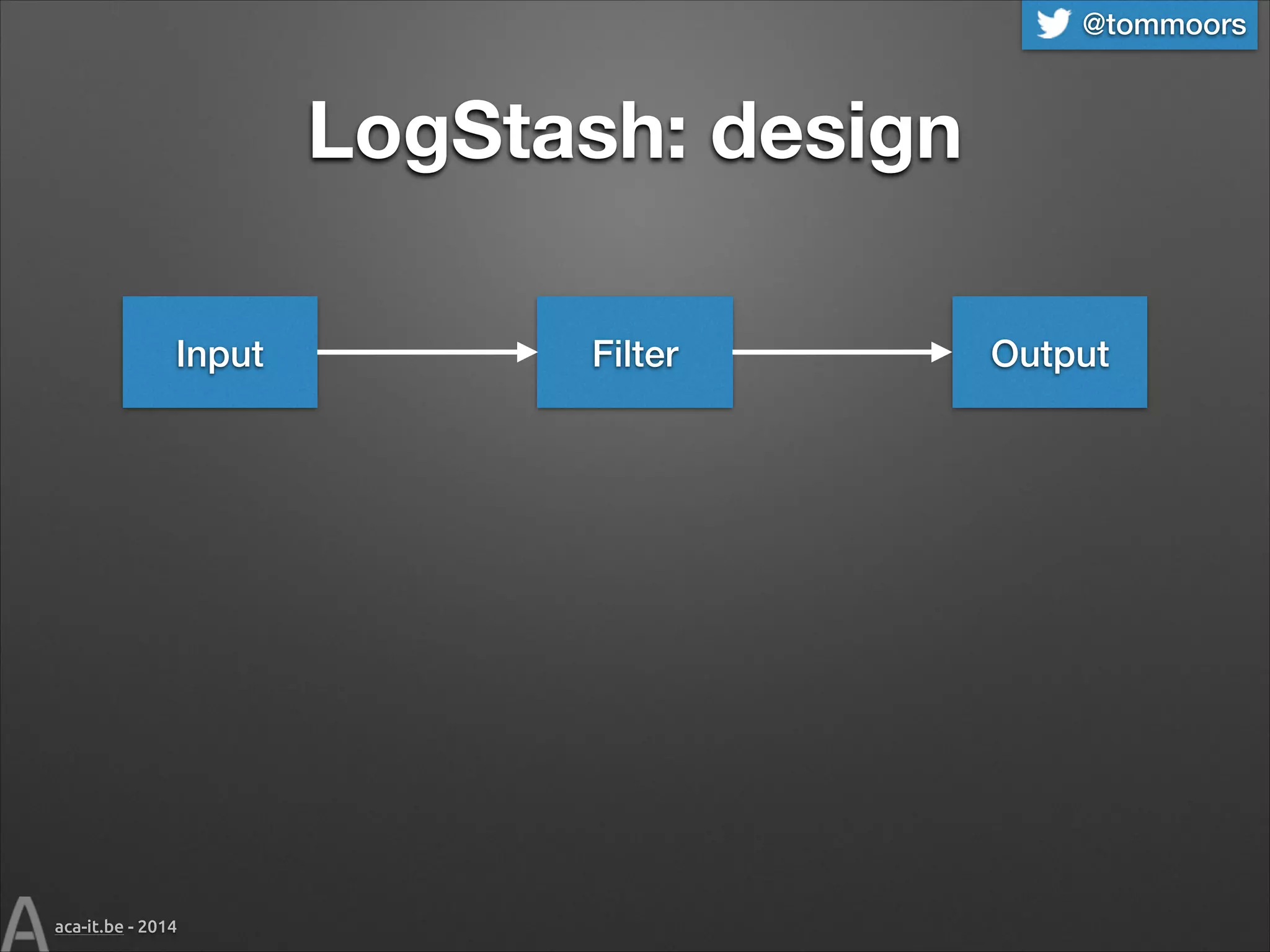

- 43. @tommoors LogStash: design Input aca-it.be - 2014 Filter Output

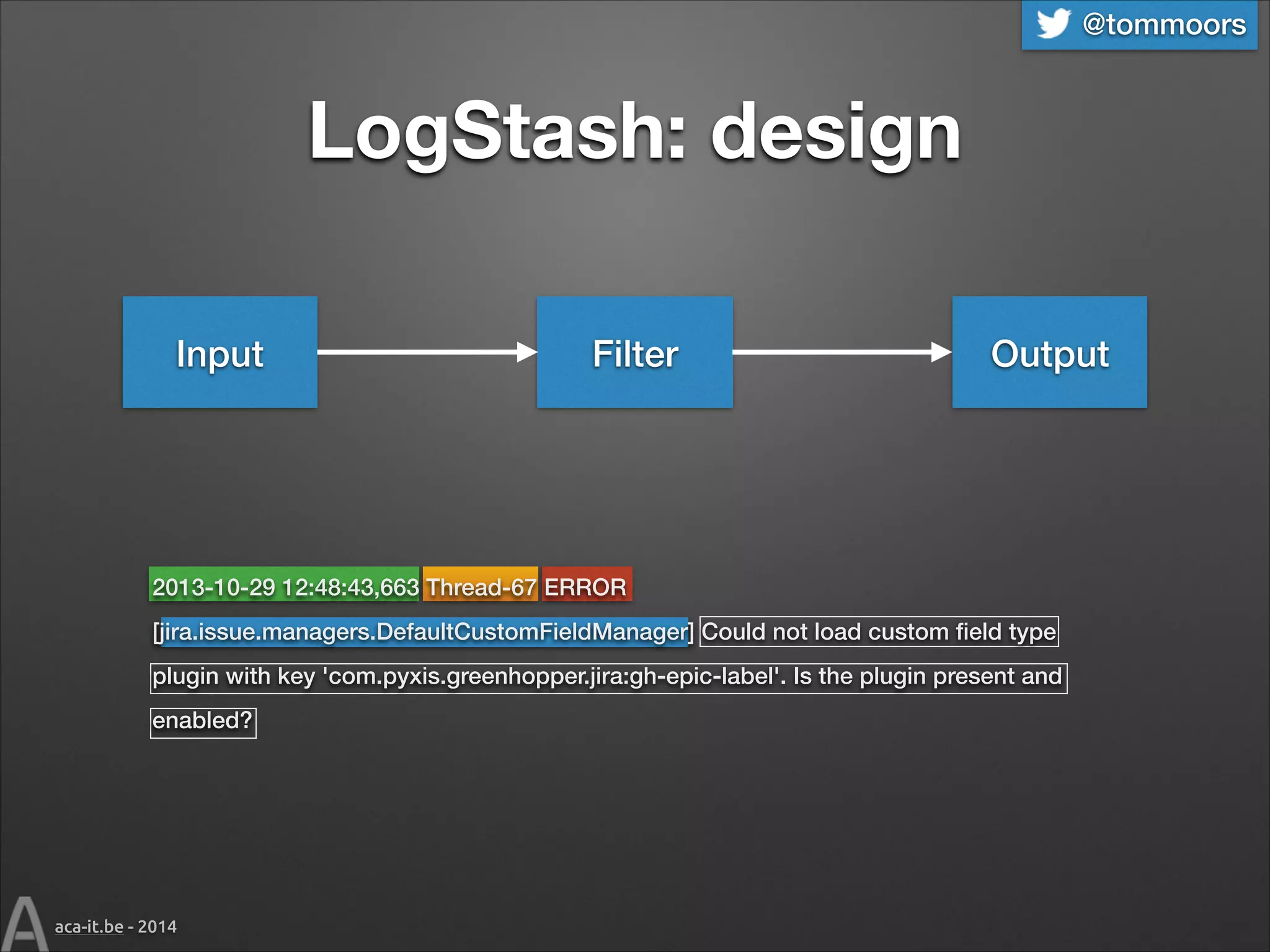

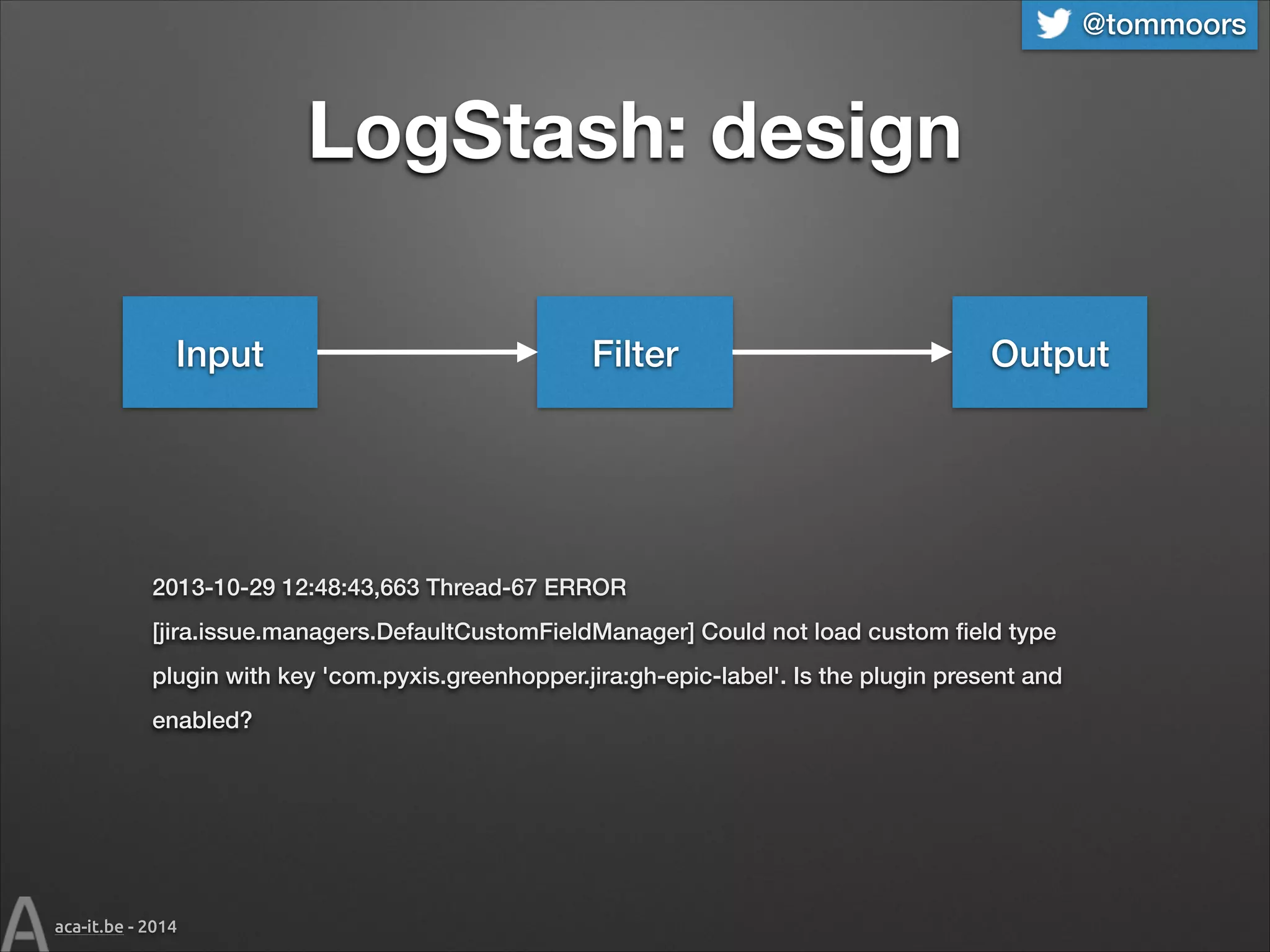

- 44. @tommoors LogStash: design Input Filter Output 2013-10-29 12:48:43,663 Thread-67 ERROR [jira.issue.managers.DefaultCustomFieldManager] Could not load custom field type plugin with key 'com.pyxis.greenhopper.jira:gh-epic-label'. Is the plugin present and enabled? aca-it.be - 2014
- 45. @tommoors LogStash: design Input Filter Output 2013-10-29 12:48:43,663 Thread-67 ERROR [jira.issue.managers.DefaultCustomFieldManager] Could not load custom field type plugin with key 'com.pyxis.greenhopper.jira:gh-epic-label'. Is the plugin present and enabled? aca-it.be - 2014

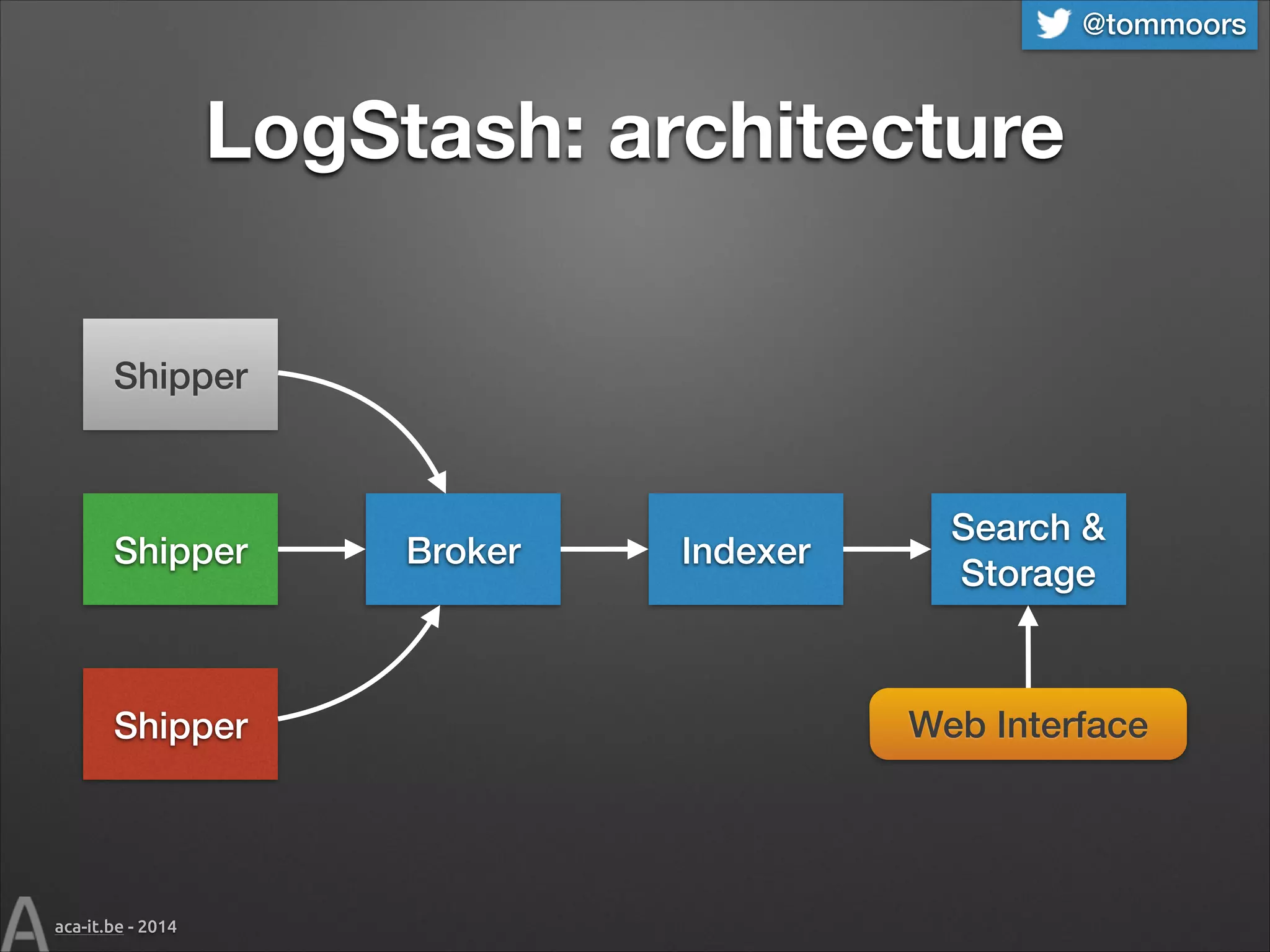

- 49. @tommoors LogStash: architecture Shipper Shipper Shipper aca-it.be - 2014 Broker Indexer Search & Storage Web Interface
- 51. @tommoors One more thing… aca-it.be - 2014

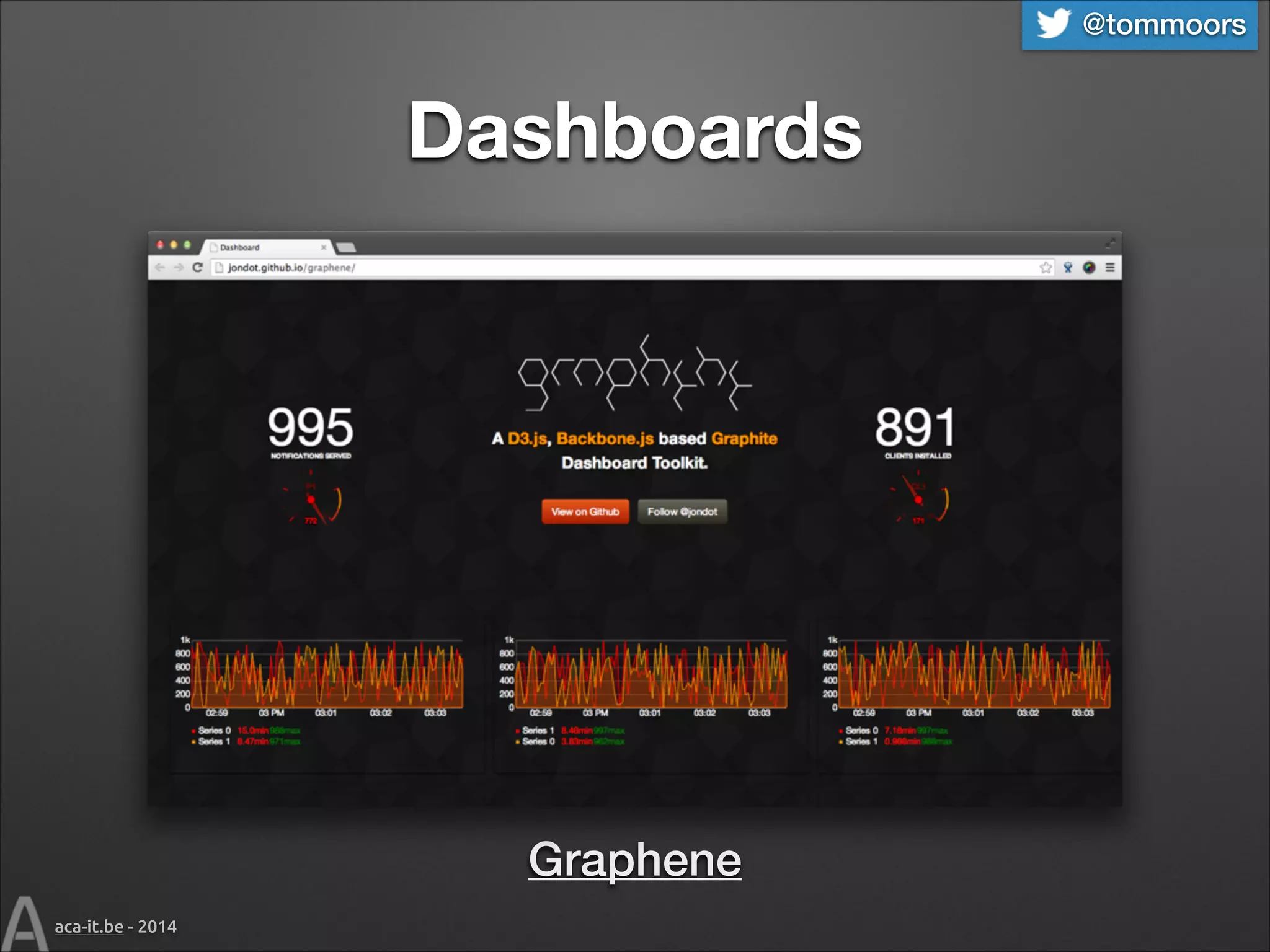

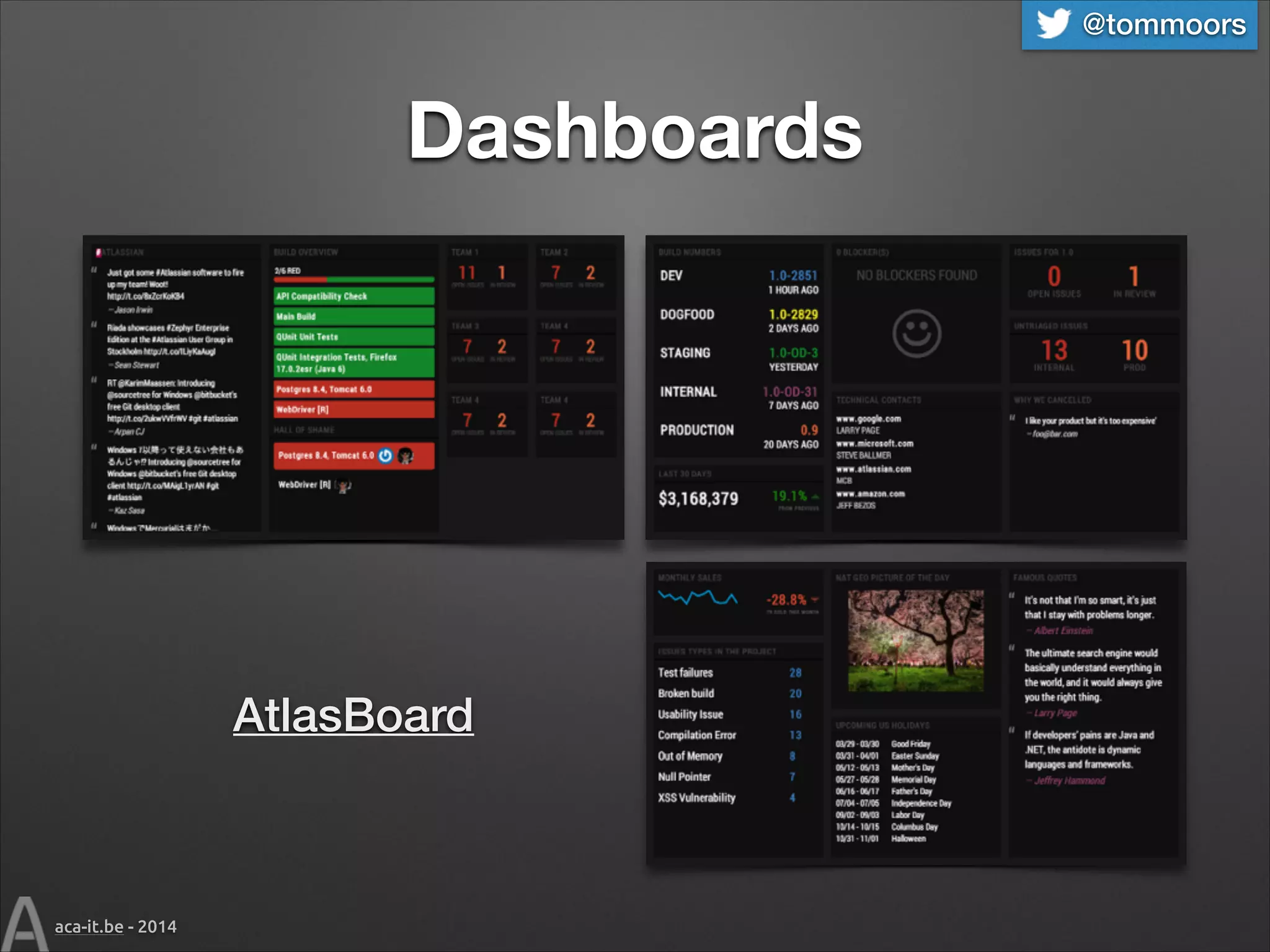

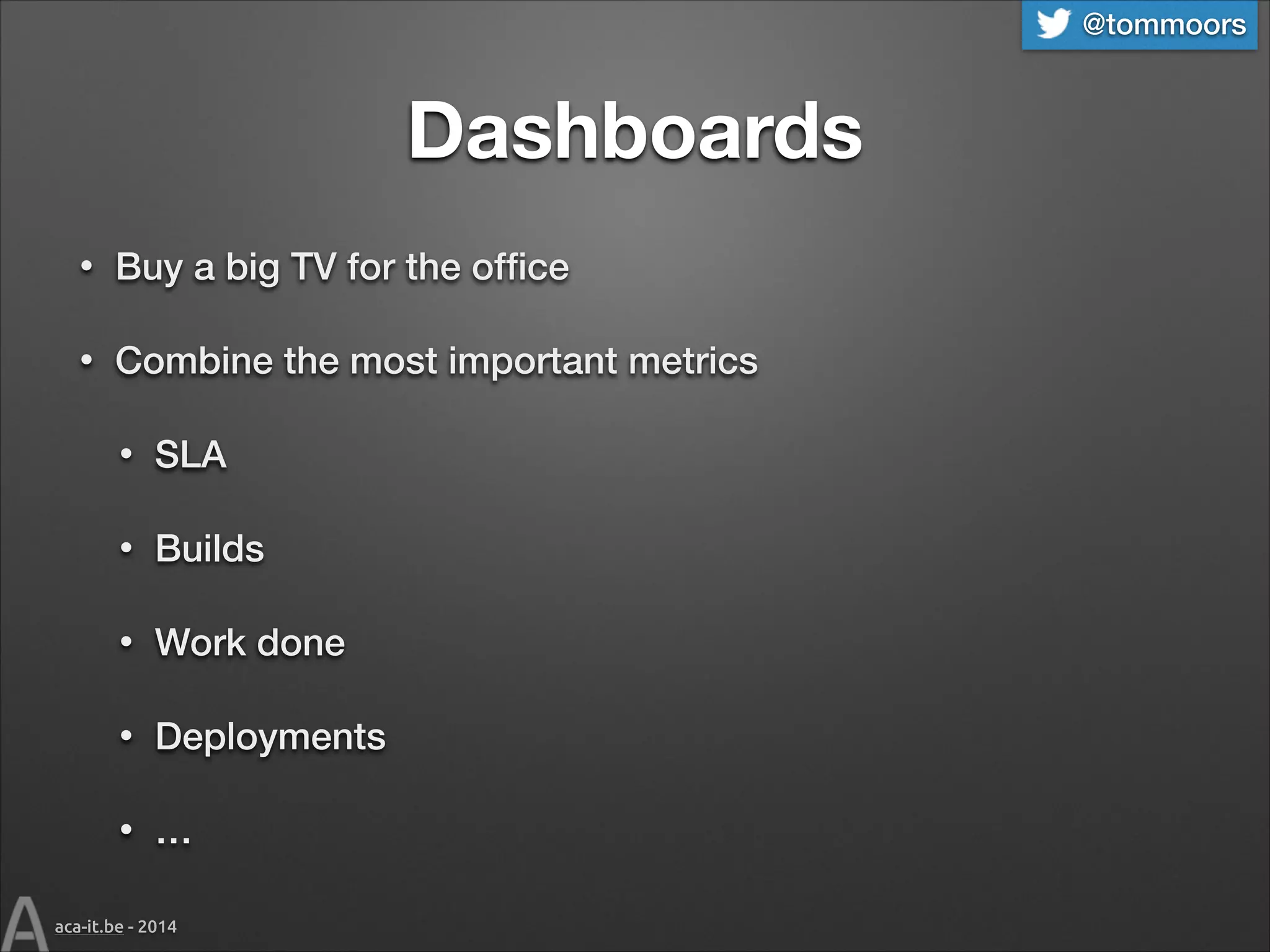

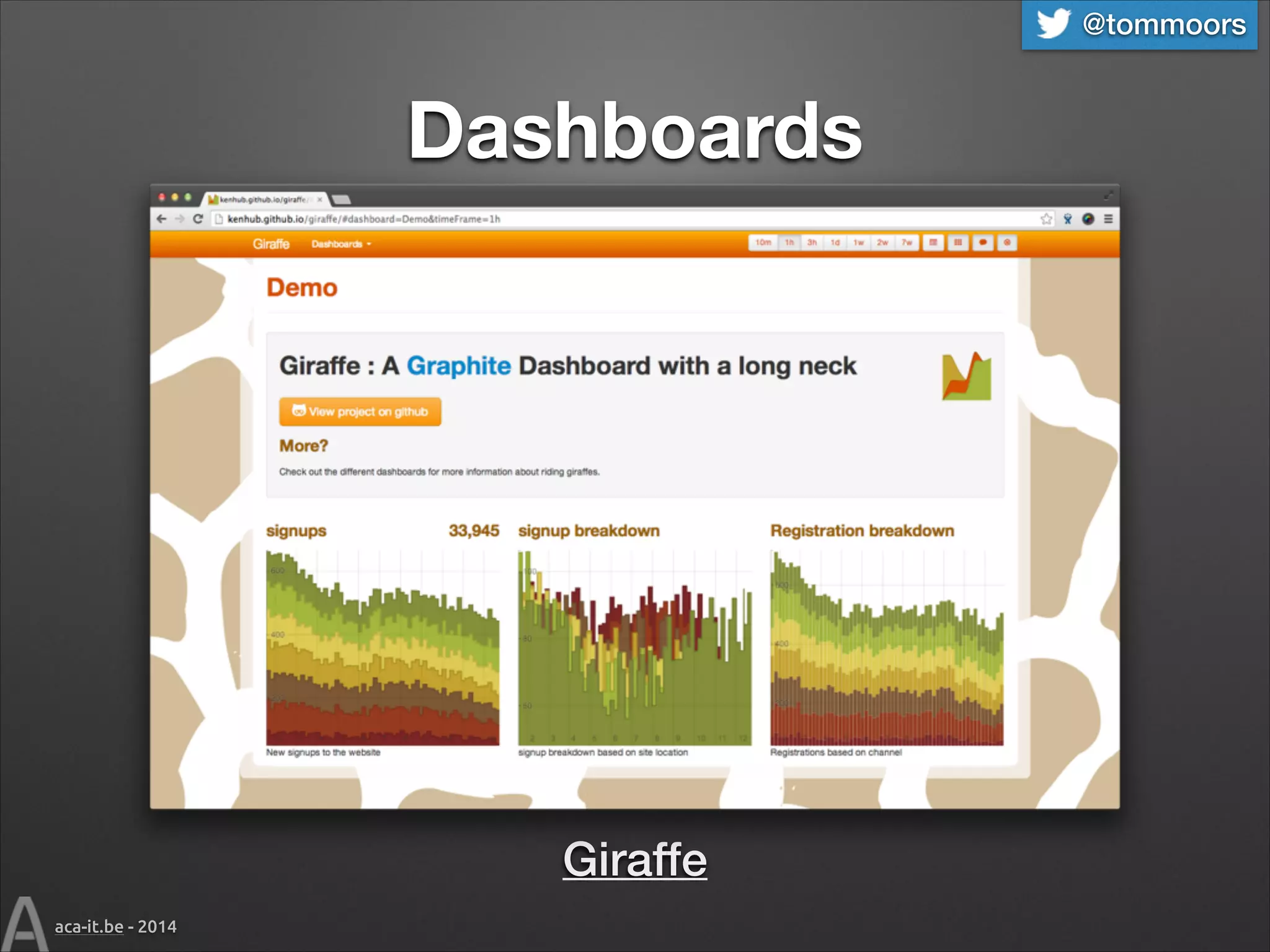

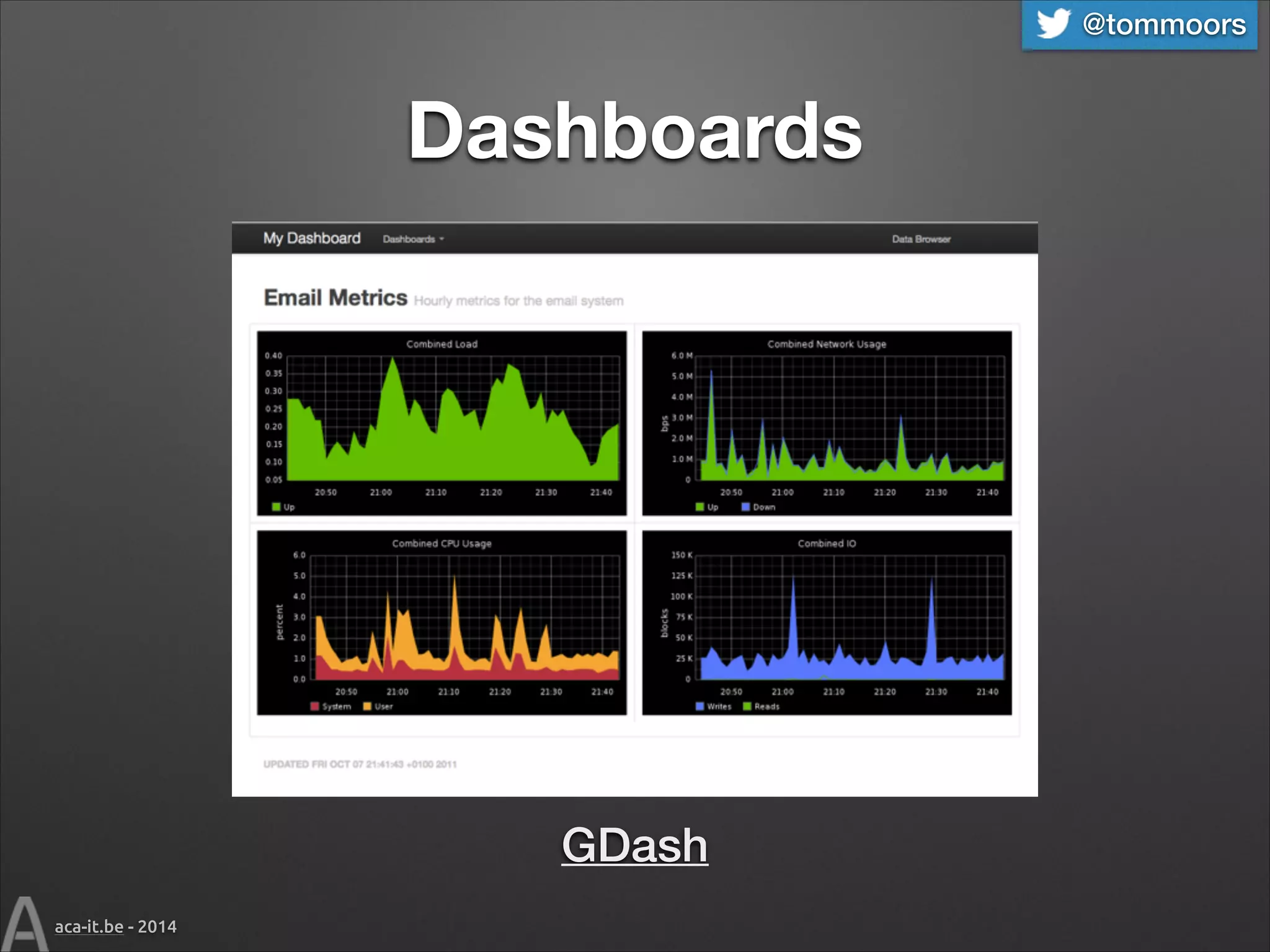

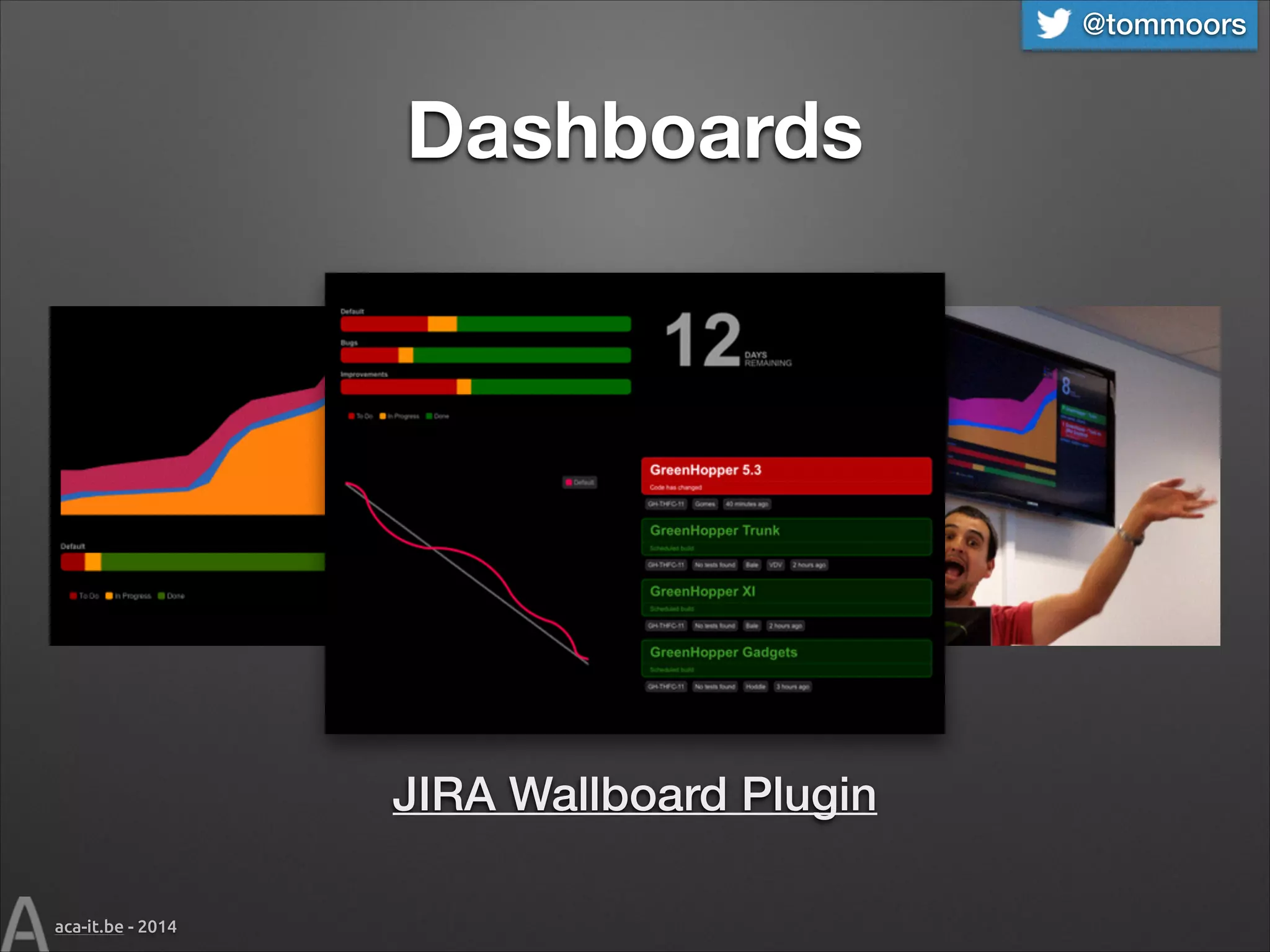

- 52. @tommoors Dashboards • Buy a big TV for the office • Combine the most important metrics • SLA • Builds • Work done • Deployments • … aca-it.be - 2014

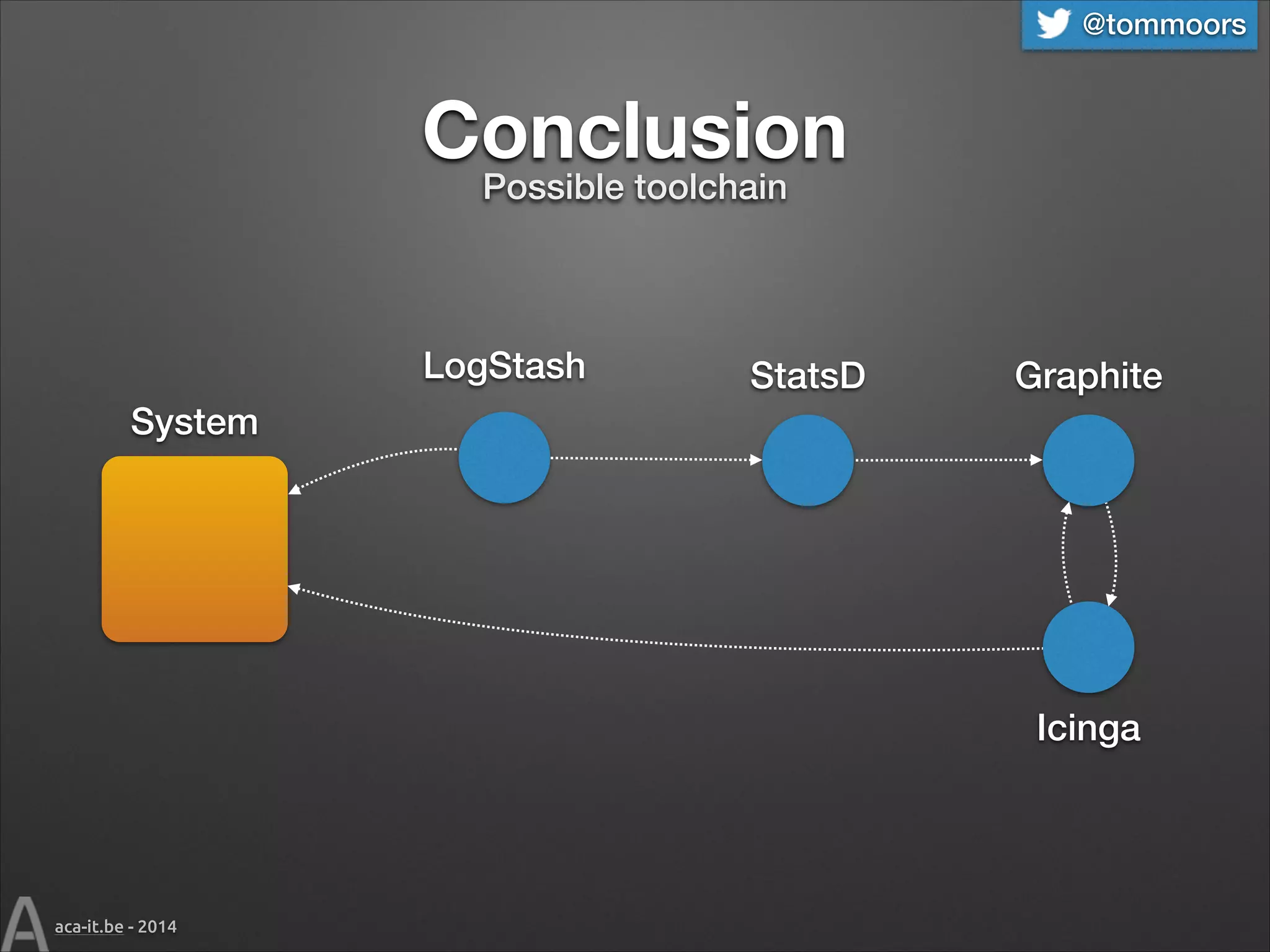

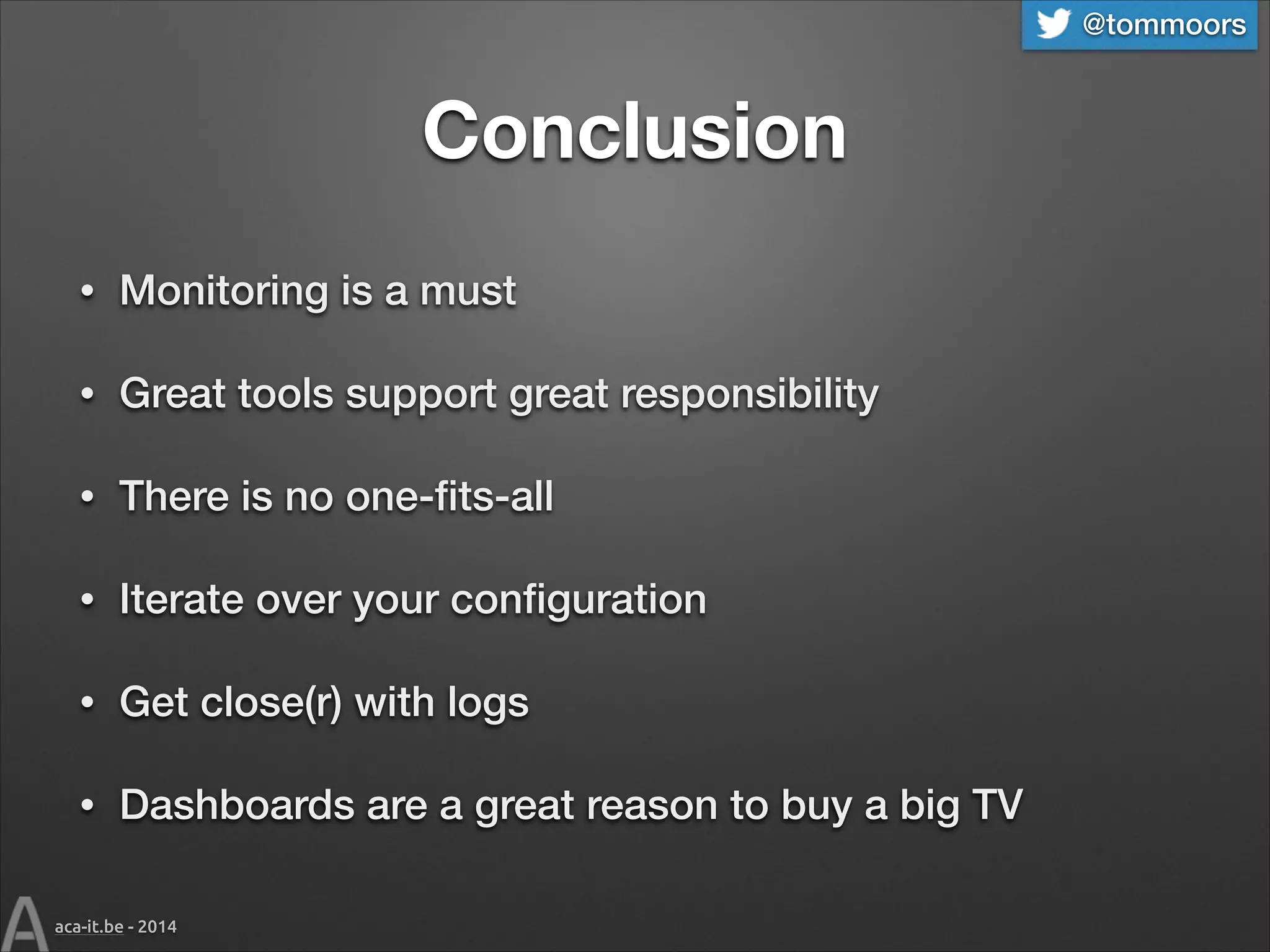

- 59. @tommoors Conclusion • Monitoring is a must • Great tools support great responsibility • There is no one-fits-all • Iterate over your configuration • Get close(r) with logs • Dashboards are a great reason to buy a big TV aca-it.be - 2014
