- Mongo DB is an open-source document database that provides high performance, a rich query language, high availability through clustering, and horizontal scalability through sharding. It stores data in BSON format and supports indexes, backups, and replication. - Mongo DB is best for operational applications using unstructured or semi-structured data that require large scalability and multi-datacenter support. It is not recommended for applications with complex calculations, finance data, or those that scan large data subsets. - The next session will provide a security and replication overview and include demonstrations of installation, document creation, queries, indexes, backups, and replication and sharding if possible.

1. Mongo DB
Note :
• This PPT is made from official documentation (mostly).
• Contains information as per my understanding.
• I might not know the answer to your question right now.

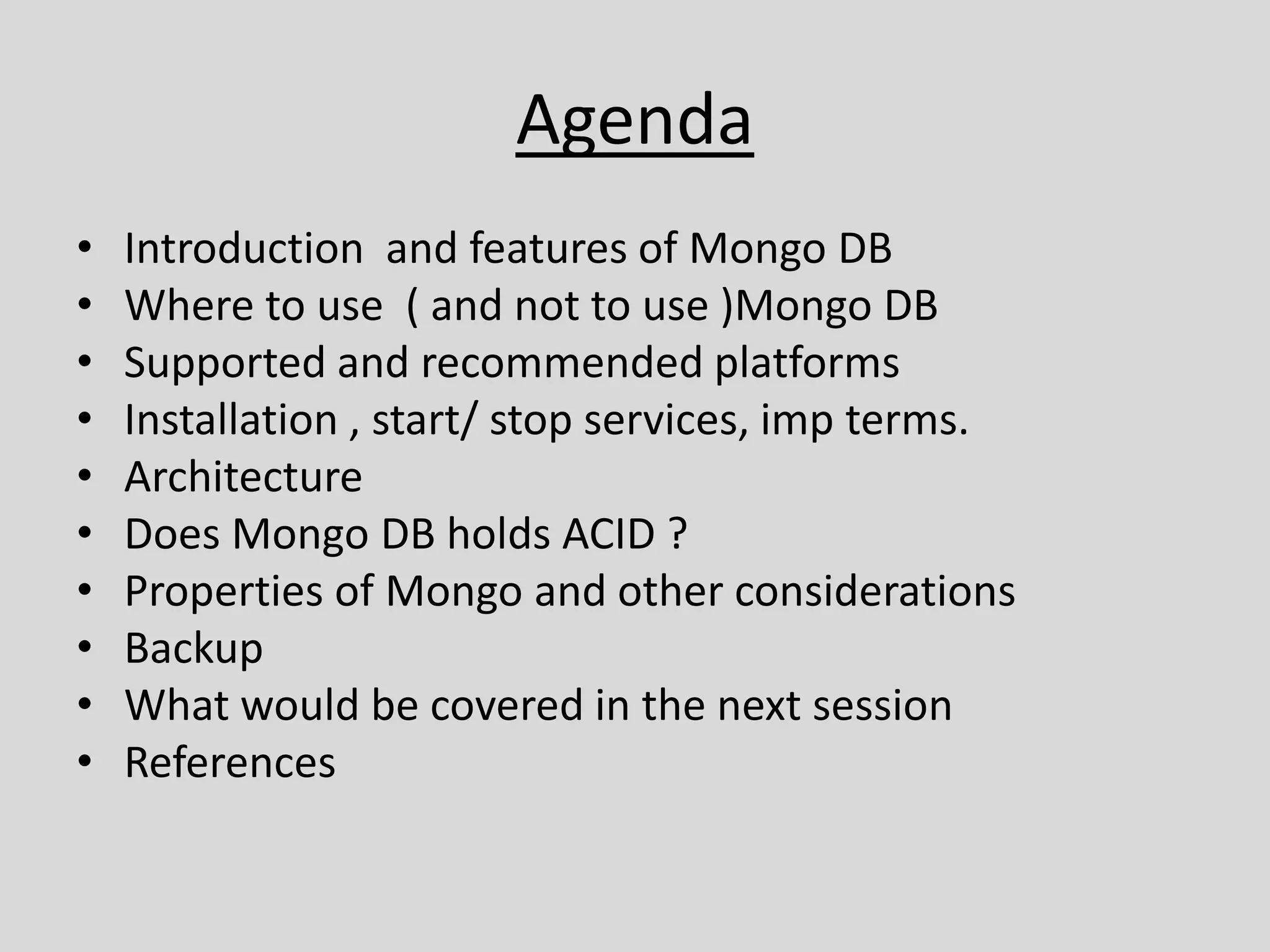

2. Agenda
• Introduction and features of Mongo DB
• Where to use ( and not to use )Mongo DB
• Supported and recommended platforms
• Installation , start/ stop services, imp terms.
• Architecture
• Does Mongo DB holds ACID ?
• Properties of Mongo and other considerations
• Backup
• What would be covered in the next session
• References

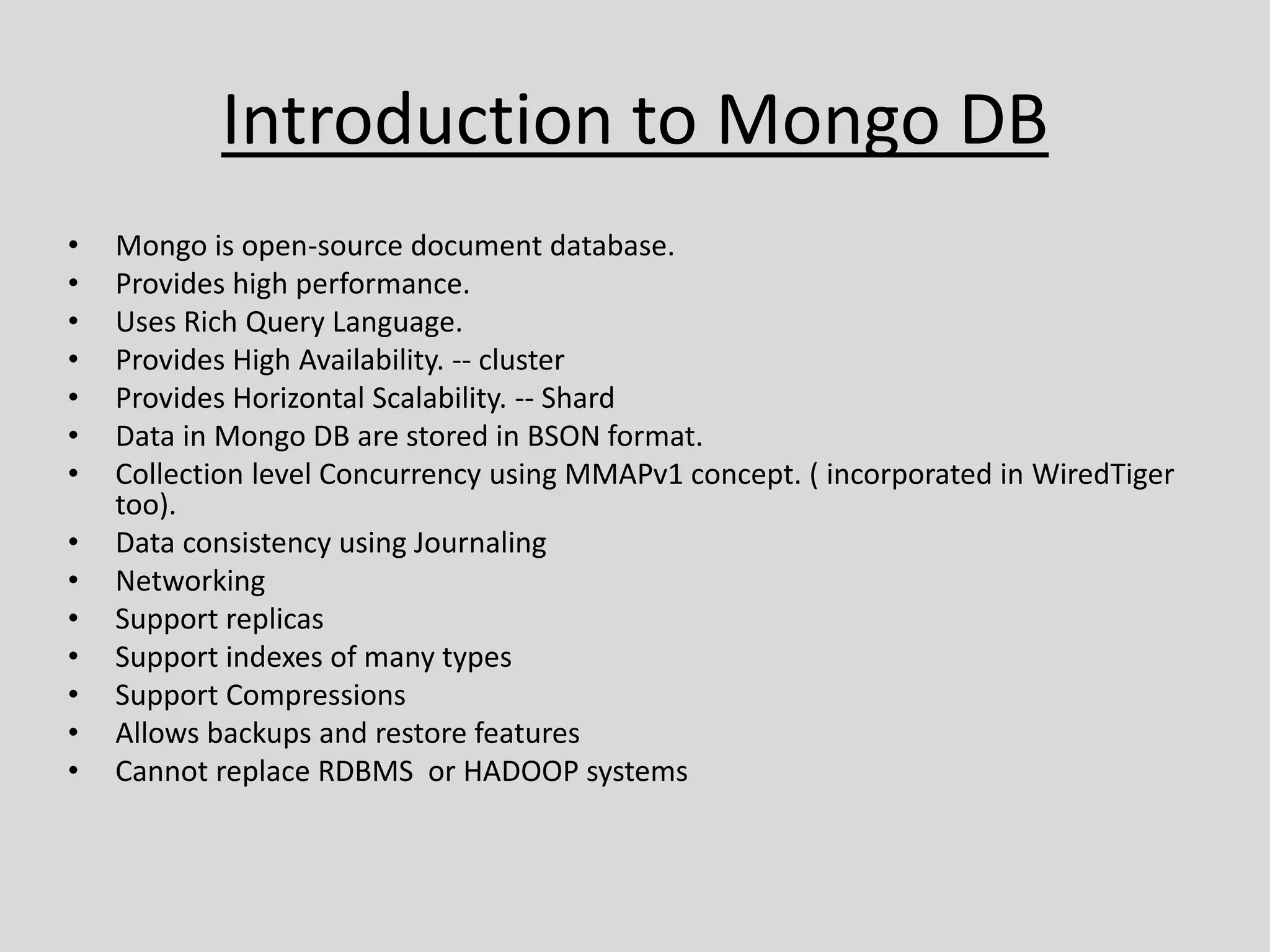

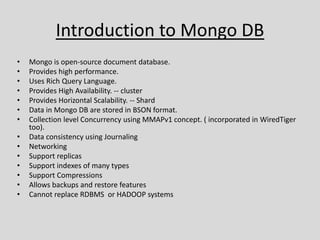

3. Introduction to Mongo DB
• Mongo is open-source document database.
• Provides high performance.
• Uses Rich Query Language.
• Provides High Availability. -- cluster
• Provides Horizontal Scalability. -- Shard
• Data in Mongo DB are stored in BSON format.
• Collection level Concurrency using MMAPv1 concept. ( incorporated in WiredTiger
too).
• Data consistency using Journaling
• Networking
• Support replicas
• Support indexes of many types
• Support Compressions
• Allows backups and restore features
• Cannot replace RDBMS or HADOOP systems

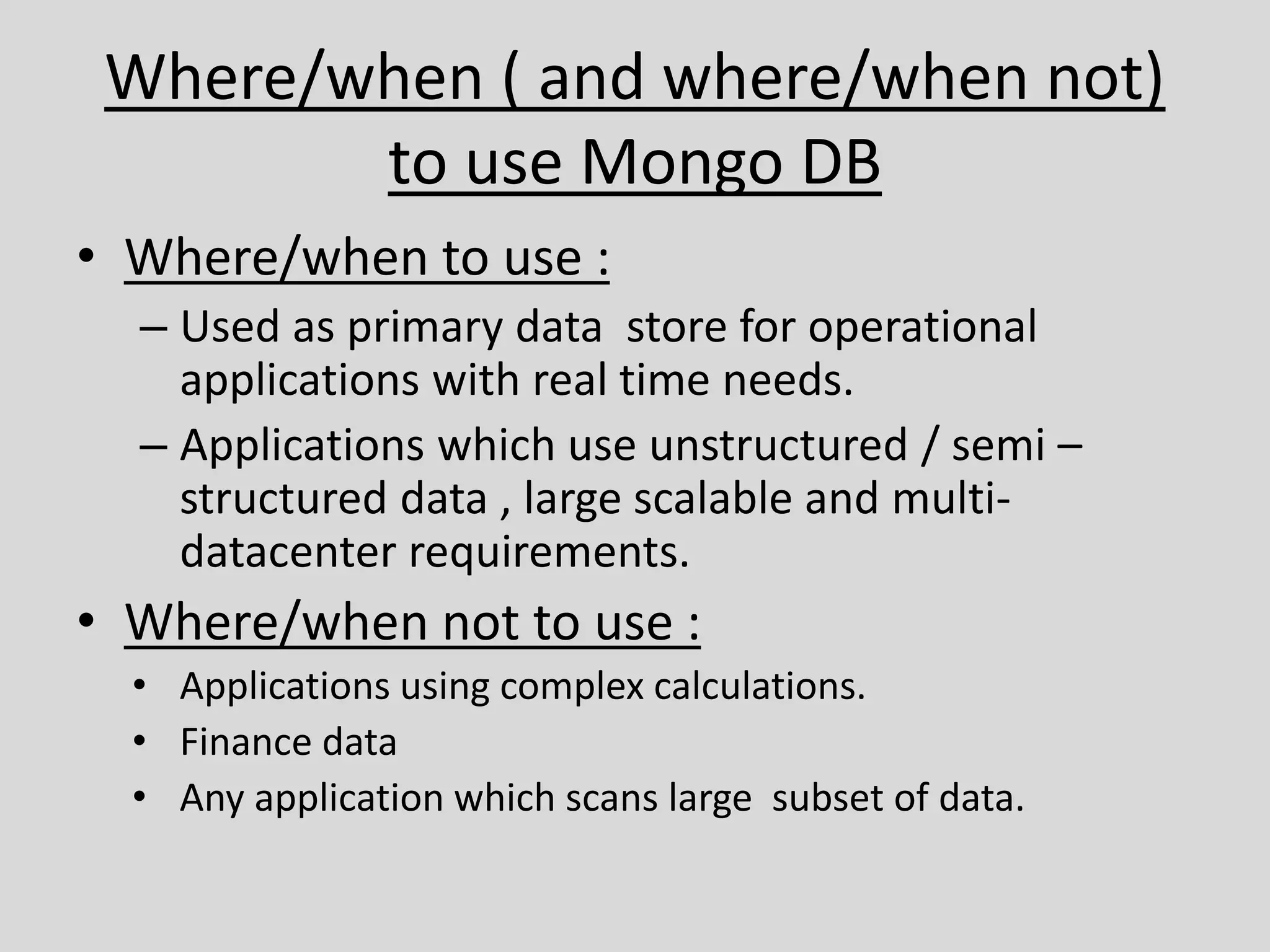

4. Where/when ( and where/when not)
to use Mongo DB
• Where/when to use :
– Used as primary data store for operational
applications with real time needs.
– Applications which use unstructured / semi –
structured data , large scalable and multi-
datacenter requirements.
• Where/when not to use :
• Applications using complex calculations.
• Finance data
• Any application which scans large subset of data.

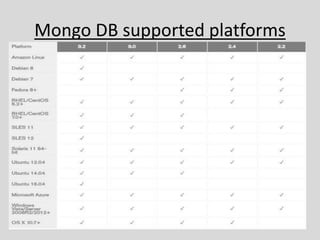

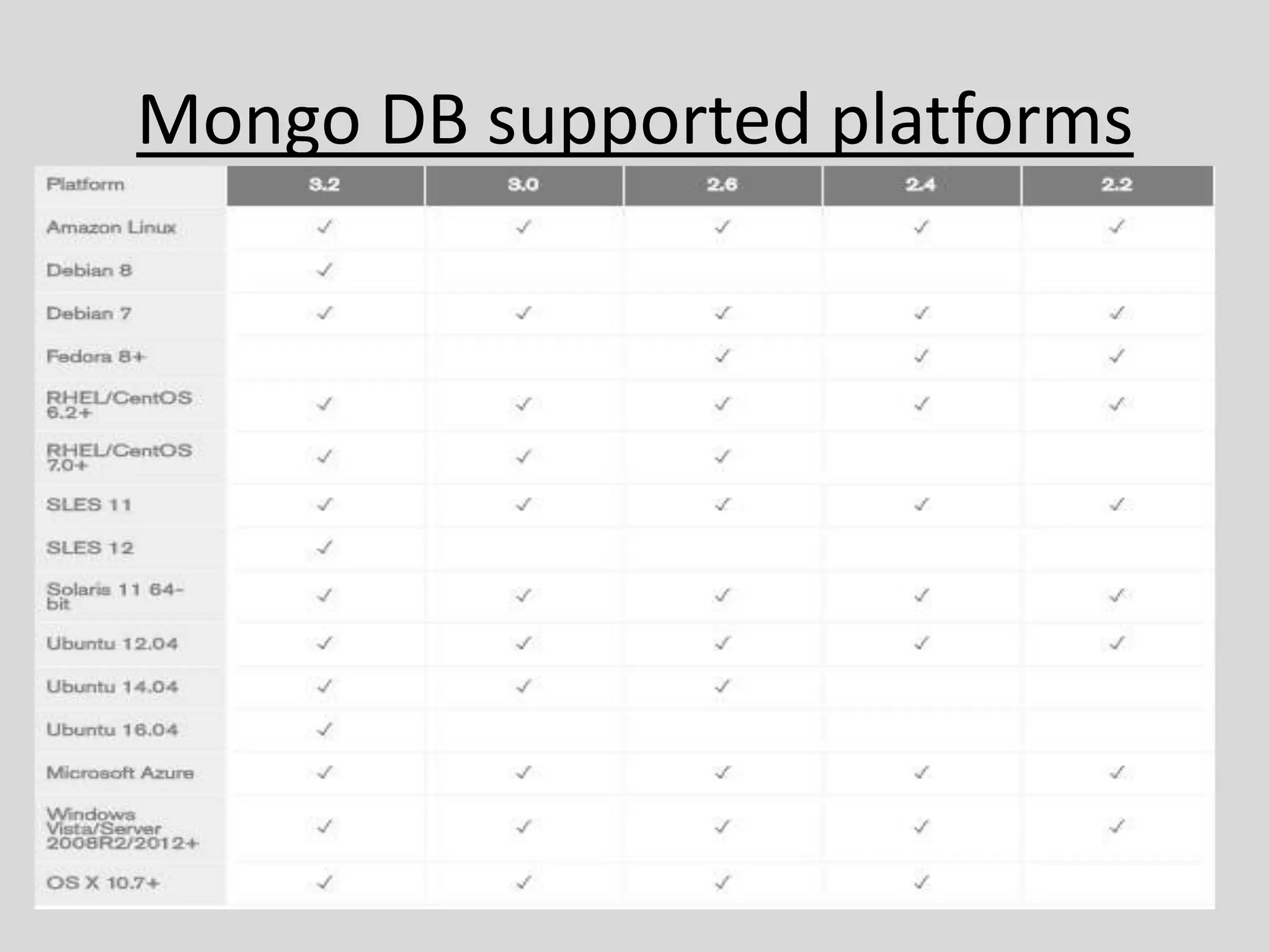

5. Mongo DB supported platforms

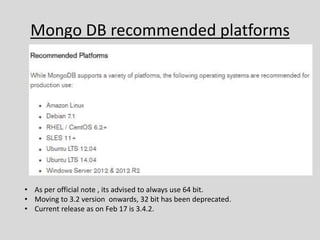

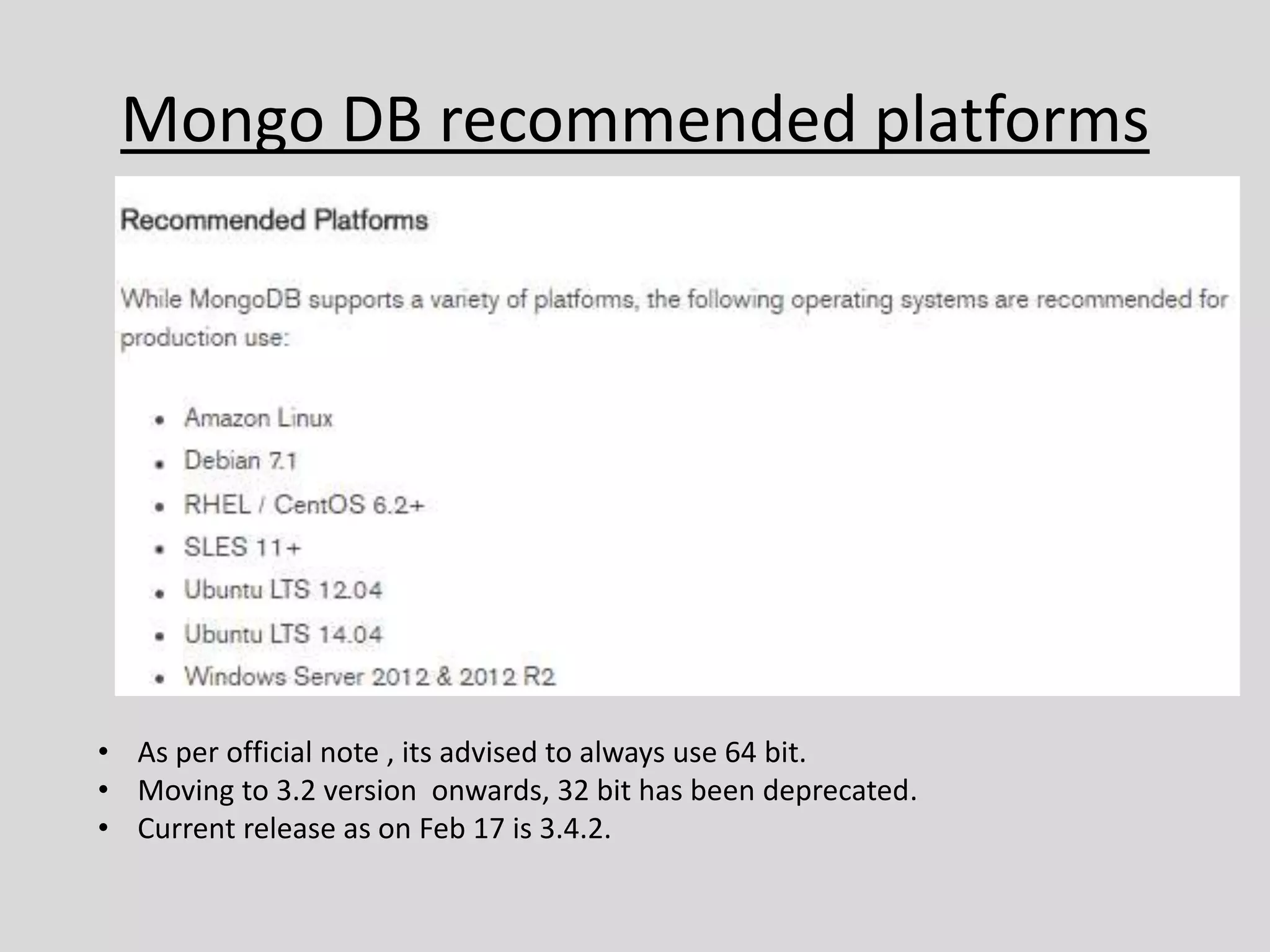

6. Mongo DB recommended platforms
• As per official note , its advised to always use 64 bit.
• Moving to 3.2 version onwards, 32 bit has been deprecated.
• Current release as on Feb 17 is 3.4.2.

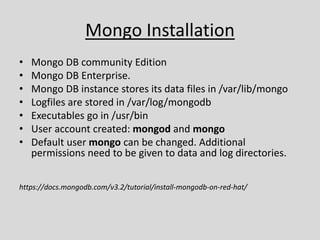

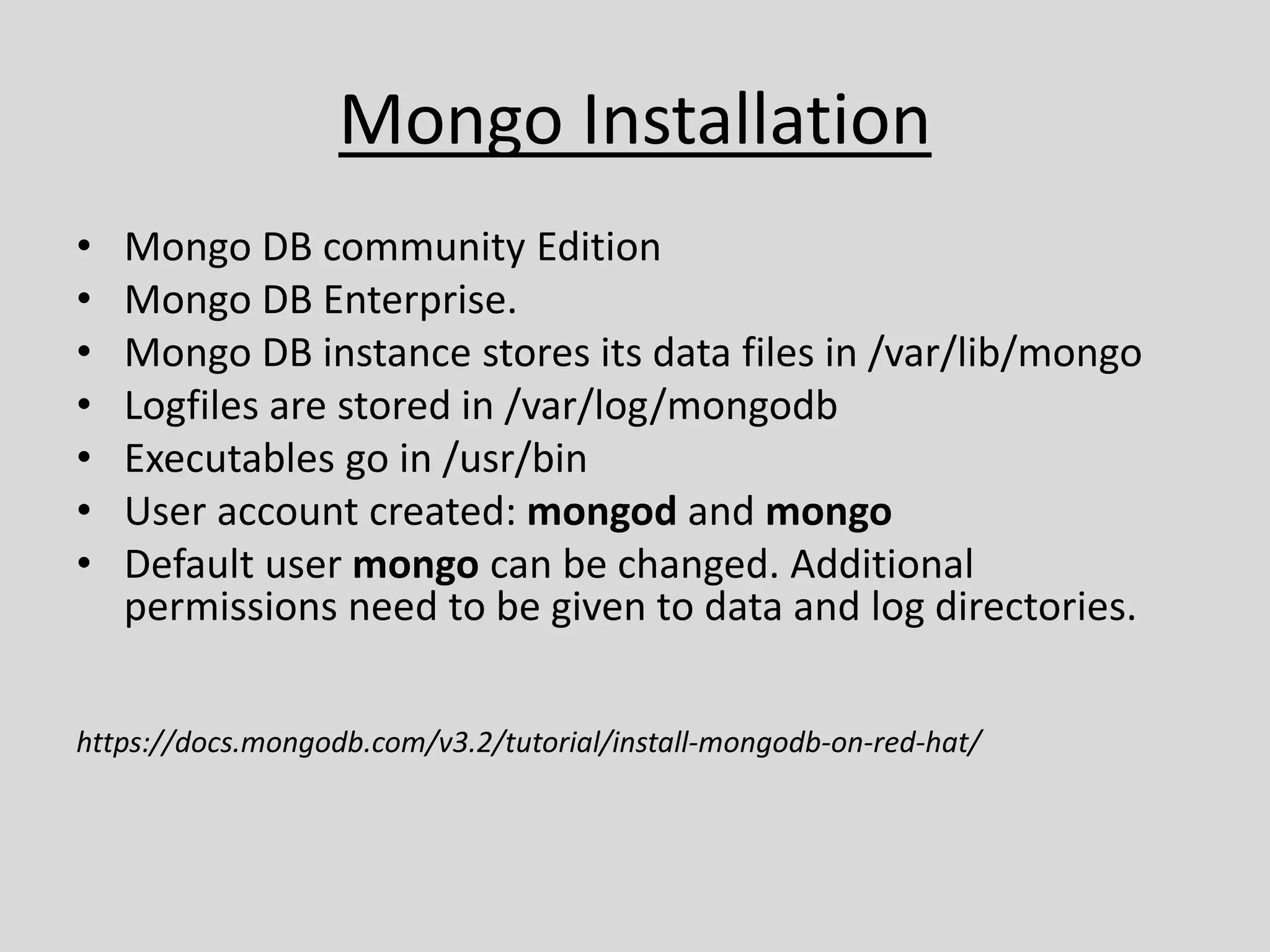

7. Mongo Installation
• Mongo DB community Edition
• Mongo DB Enterprise.
• Mongo DB instance stores its data files in /var/lib/mongo
• Logfiles are stored in /var/log/mongodb
• Executables go in /usr/bin
• User account created: mongod and mongo
• Default user mongo can be changed. Additional
permissions need to be given to data and log directories.
https://docs.mongodb.com/v3.2/tutorial/install-mongodb-on-red-hat/

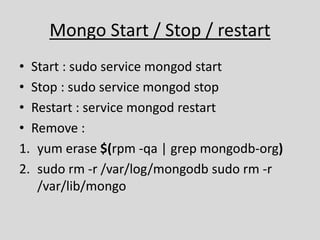

8. Mongo Start / Stop / restart
• Start : sudo service mongod start
• Stop : sudo service mongod stop
• Restart : service mongod restart
• Remove :
1. yum erase $(rpm -qa | grep mongodb-org)
2. sudo rm -r /var/log/mongodb sudo rm -r
/var/lib/mongo

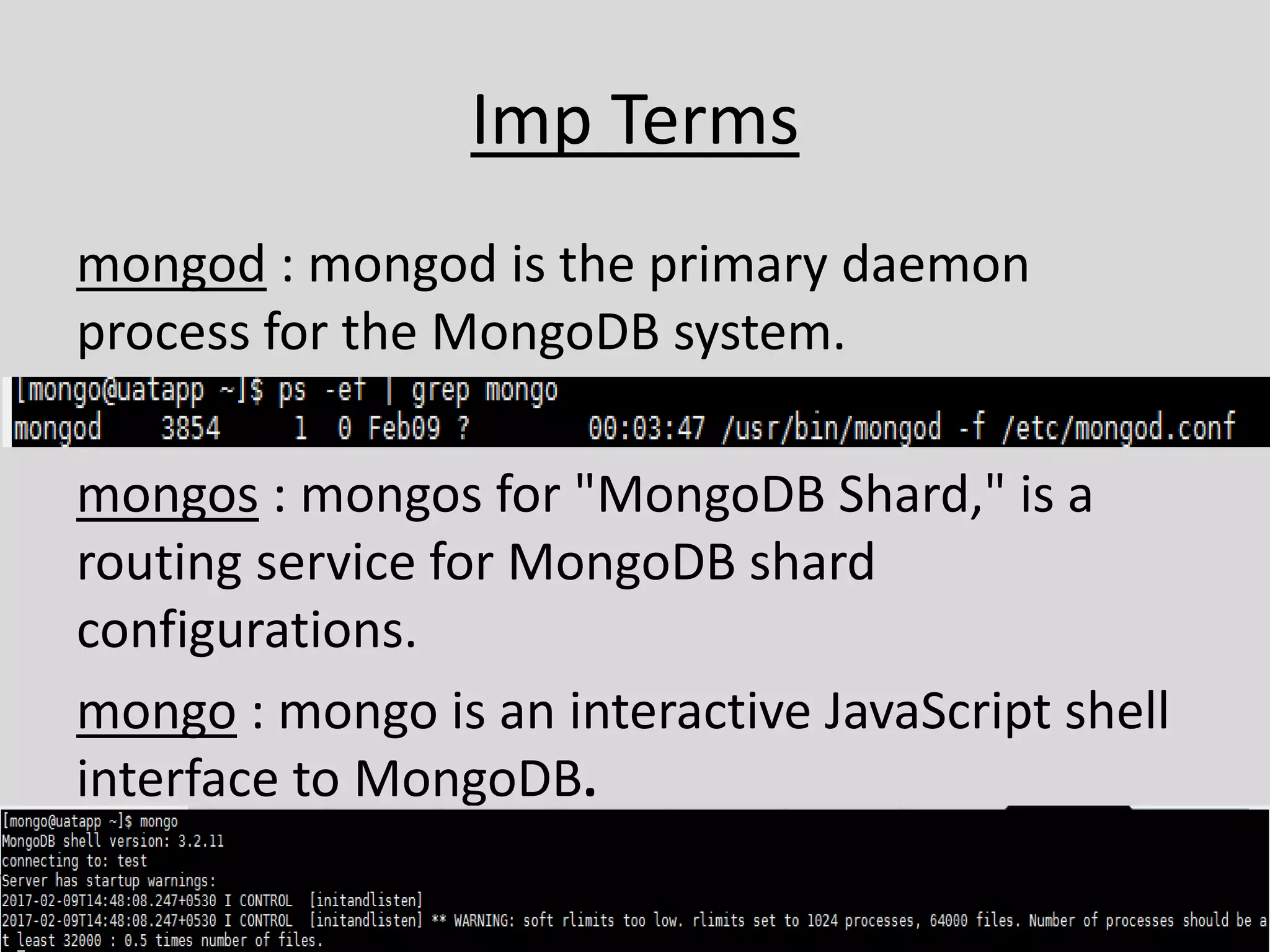

9. Imp Terms
mongod : mongod is the primary daemon
process for the MongoDB system.
mongos : mongos for "MongoDB Shard," is a
routing service for MongoDB shard
configurations.
mongo : mongo is an interactive JavaScript shell
interface to MongoDB.

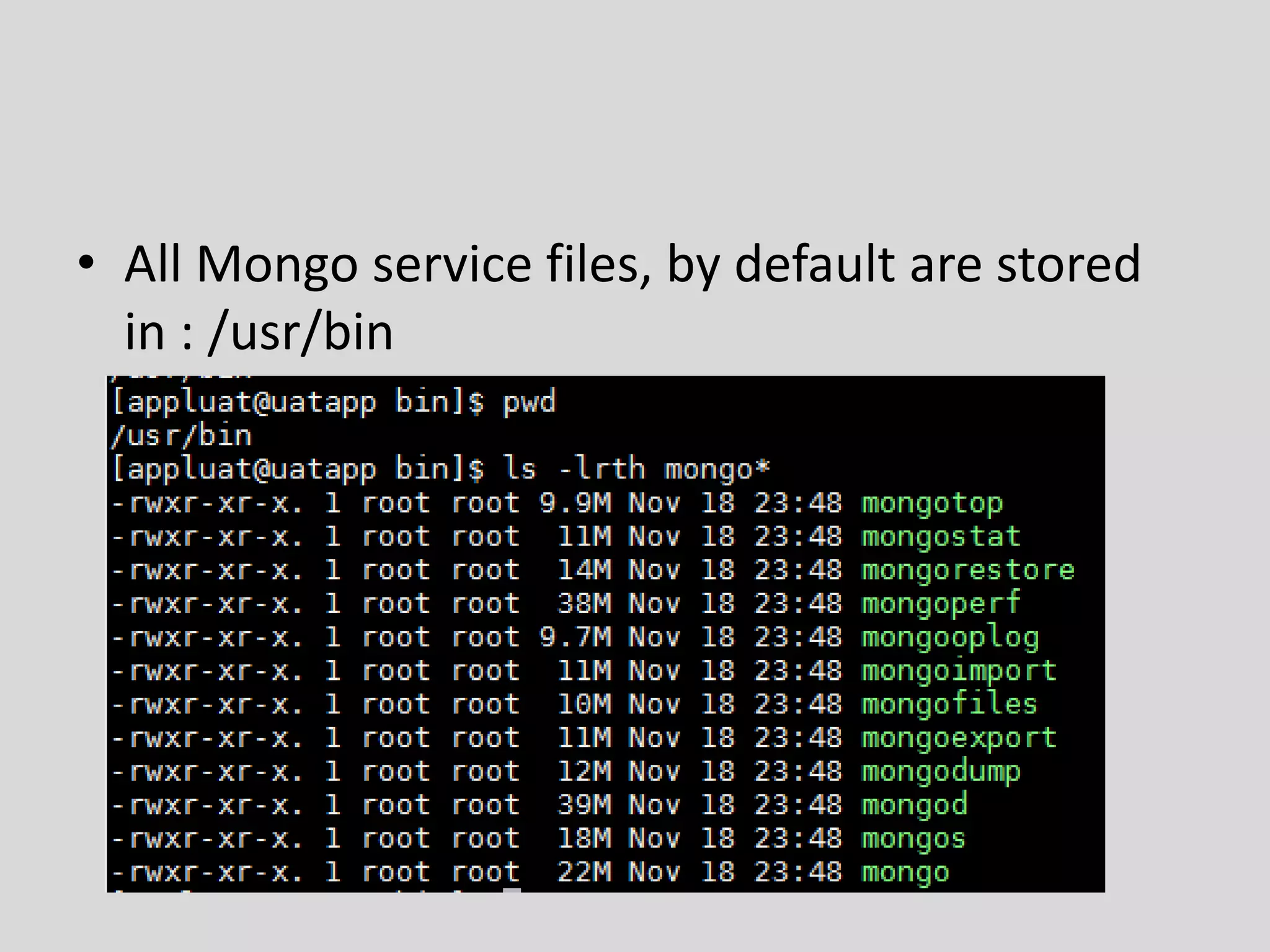

10. • All Mongo service files, by default are stored
in : /usr/bin

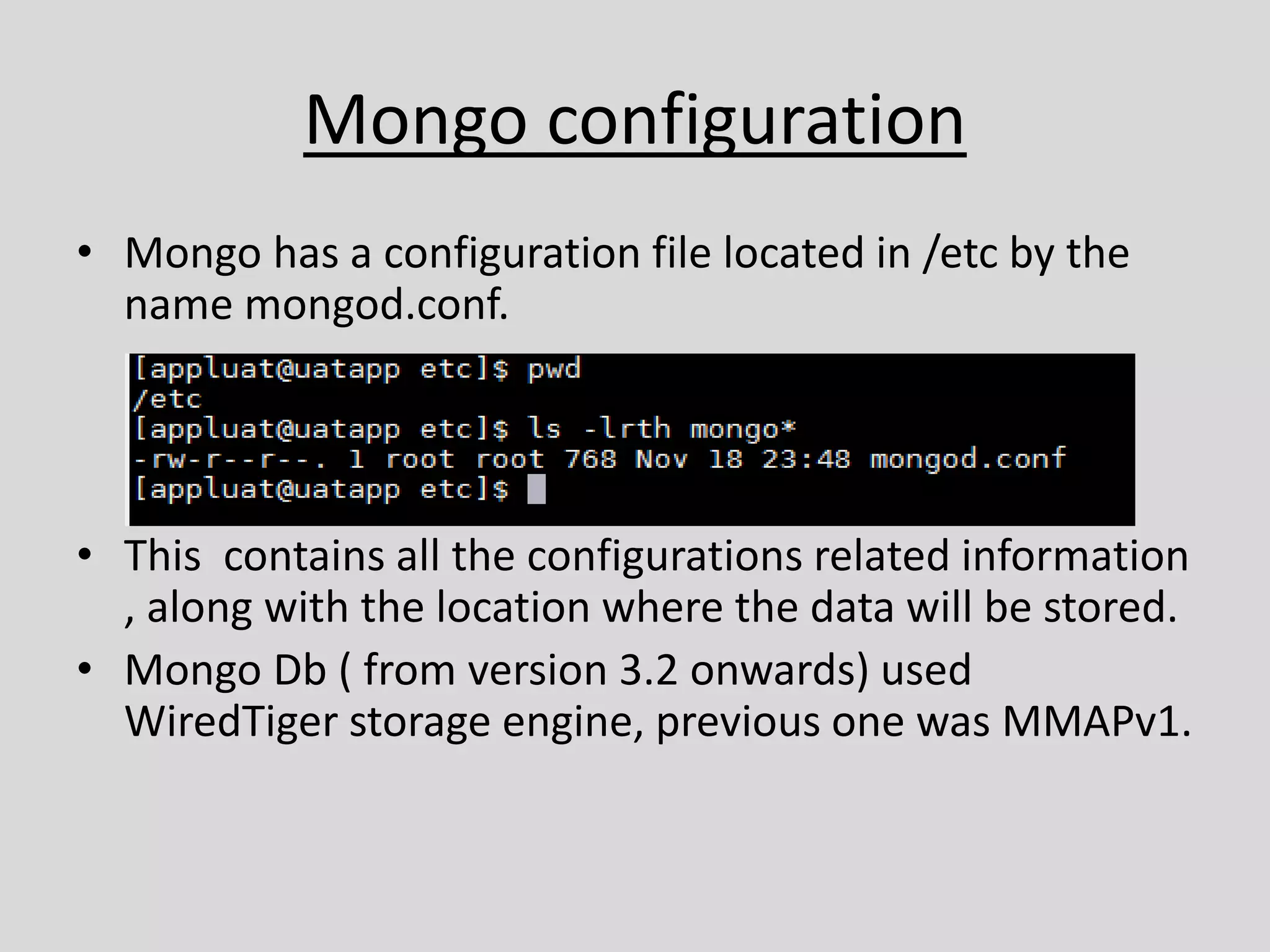

11. Mongo configuration
• Mongo has a configuration file located in /etc by the
name mongod.conf.
• This contains all the configurations related information
, along with the location where the data will be stored.
• Mongo Db ( from version 3.2 onwards) used
WiredTiger storage engine, previous one was MMAPv1.

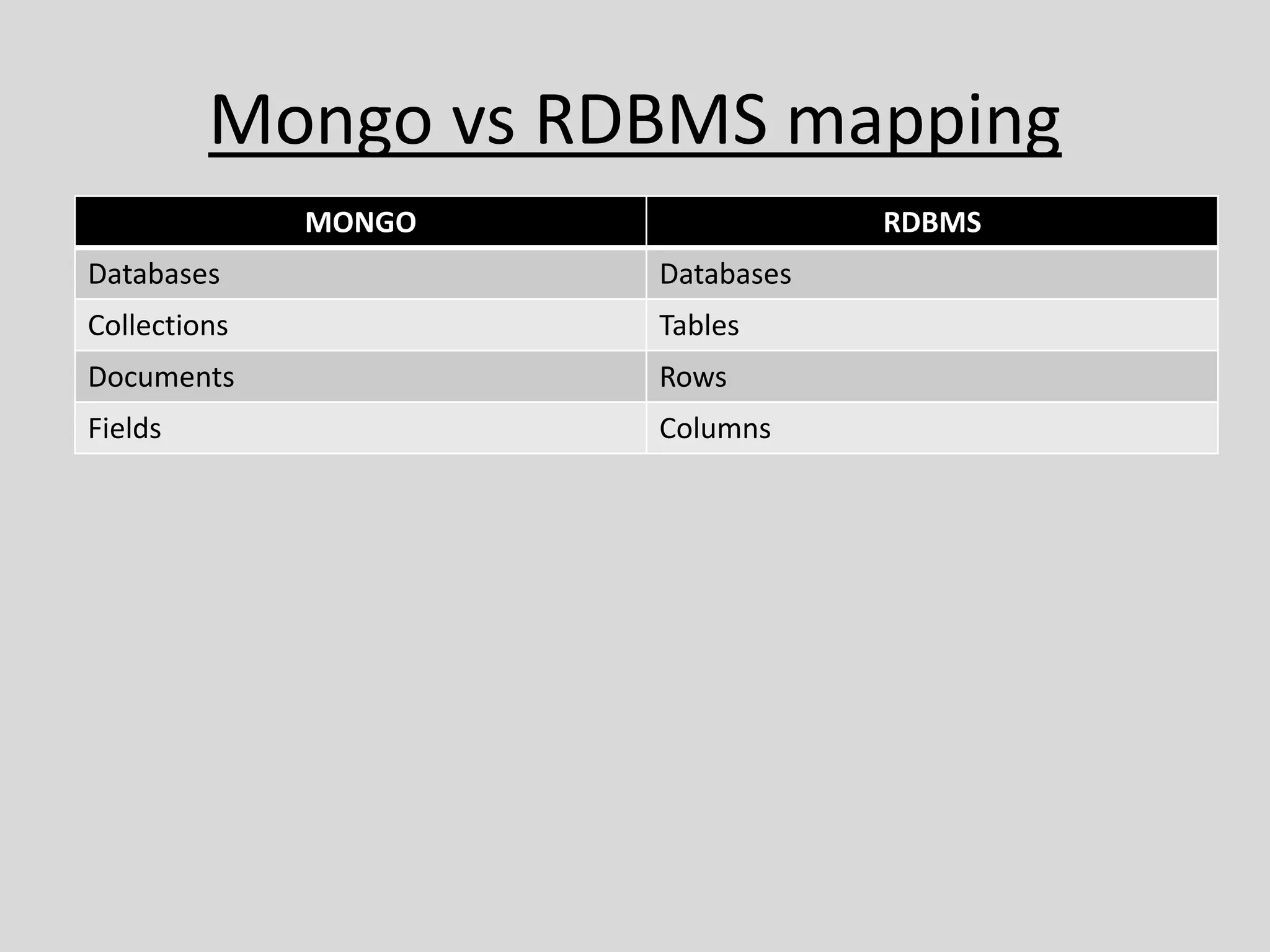

12. Mongo vs RDBMS mapping
MONGO RDBMS
Databases Databases
Collections Tables
Documents Rows
Fields Columns

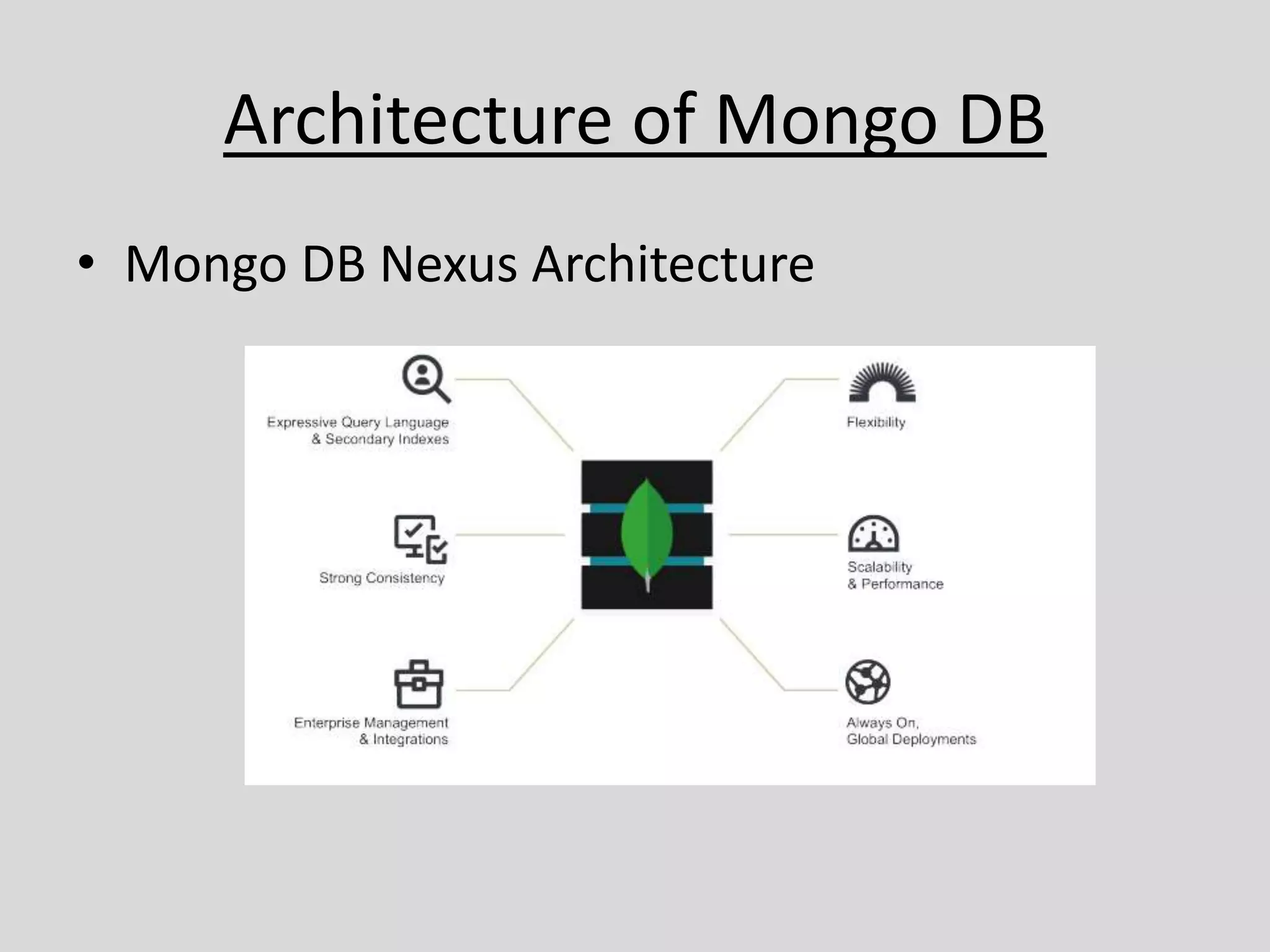

13. Architecture of Mongo DB
• Mongo DB Nexus Architecture

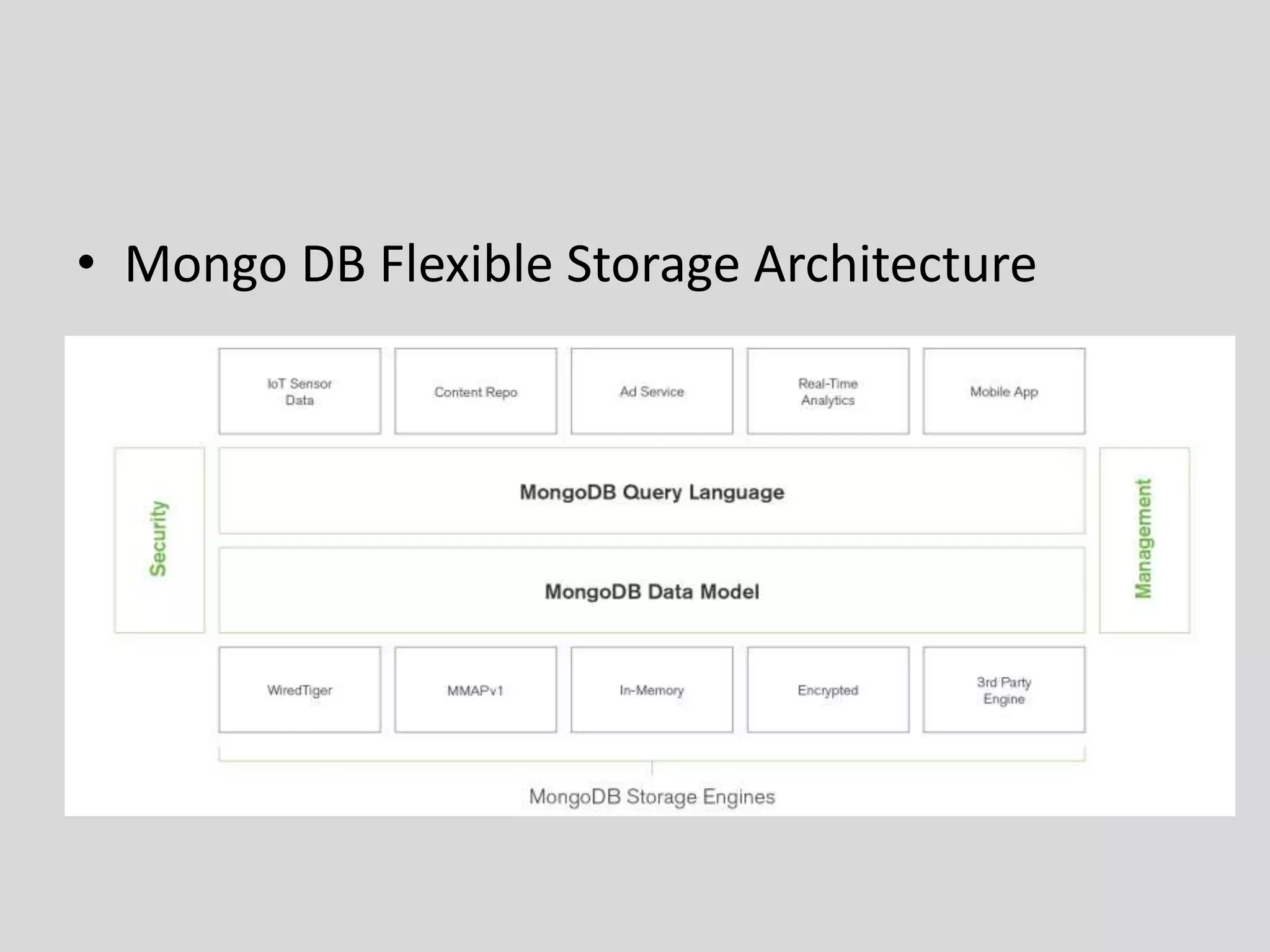

14. • Mongo DB Flexible Storage Architecture

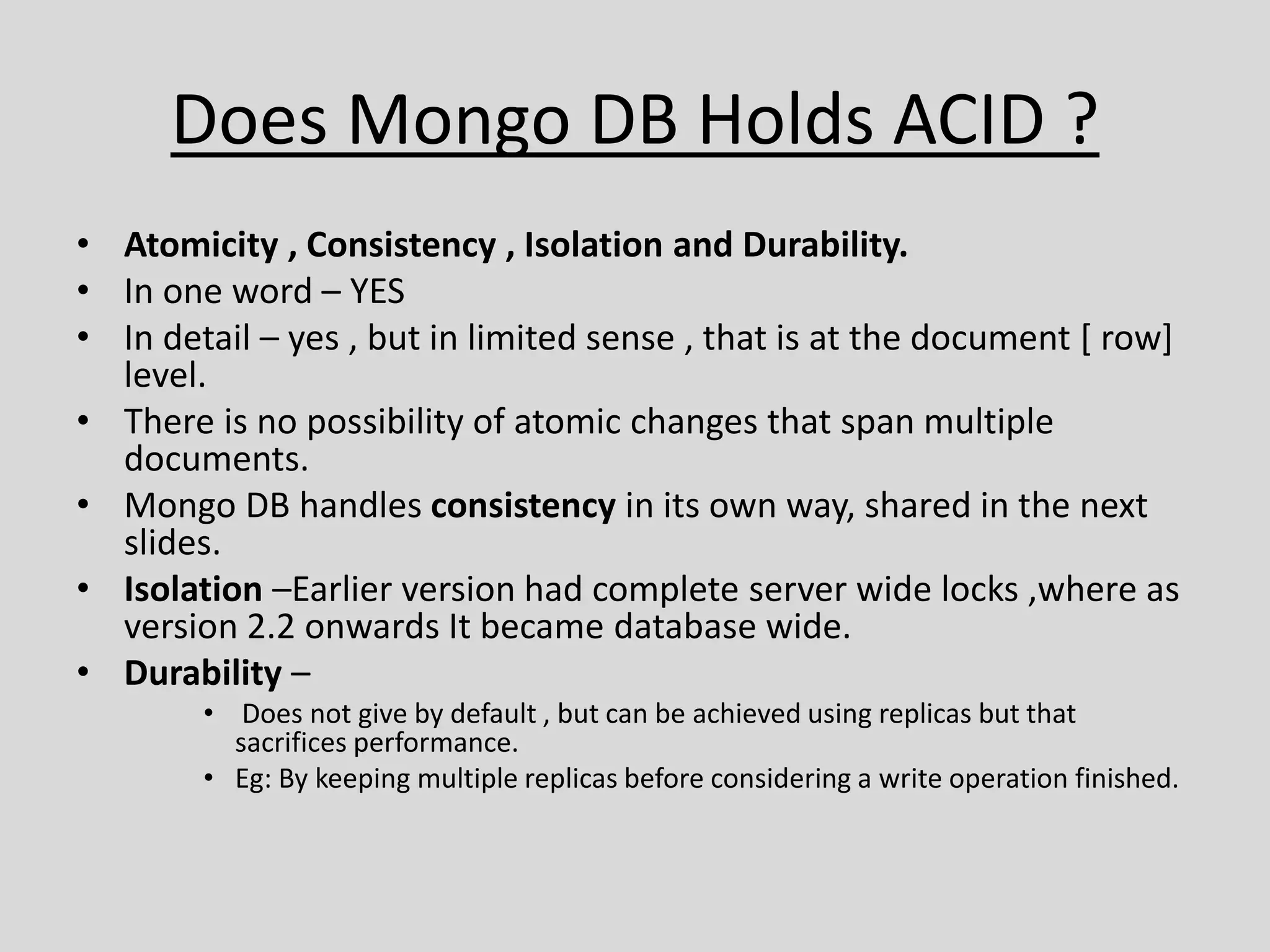

15. Does Mongo DB Holds ACID ?
• Atomicity , Consistency , Isolation and Durability.
• In one word – YES
• In detail – yes , but in limited sense , that is at the document [ row]
level.
• There is no possibility of atomic changes that span multiple
documents.
• Mongo DB handles consistency in its own way, shared in the next
slides.
• Isolation –Earlier version had complete server wide locks ,where as
version 2.2 onwards It became database wide.
• Durability –
• Does not give by default , but can be achieved using replicas but that
sacrifices performance.
• Eg: By keeping multiple replicas before considering a write operation finished.

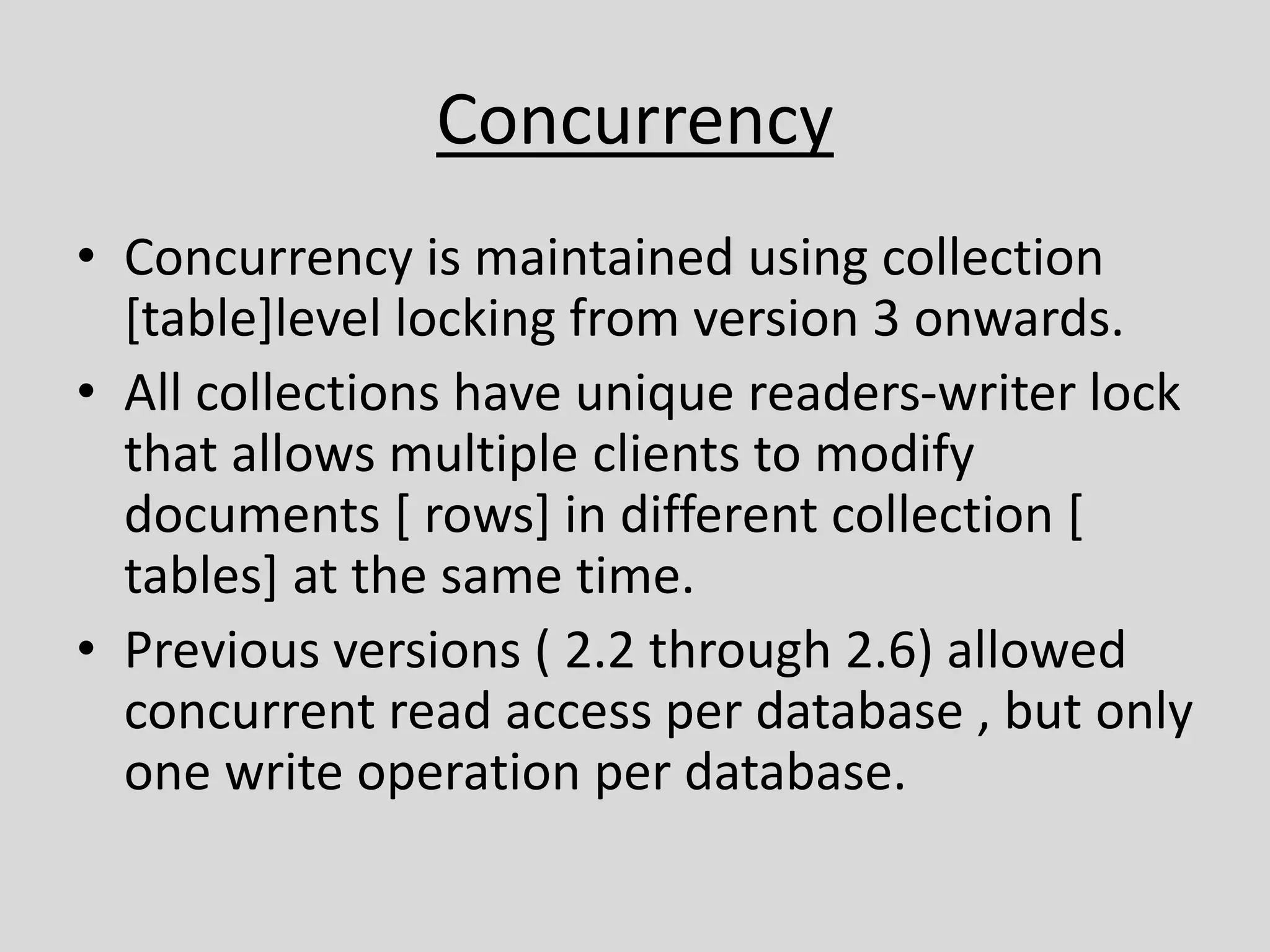

16. Concurrency
• Concurrency is maintained using collection
[table]level locking from version 3 onwards.
• All collections have unique readers-writer lock
that allows multiple clients to modify
documents [ rows] in different collection [
tables] at the same time.
• Previous versions ( 2.2 through 2.6) allowed
concurrent read access per database , but only
one write operation per database.

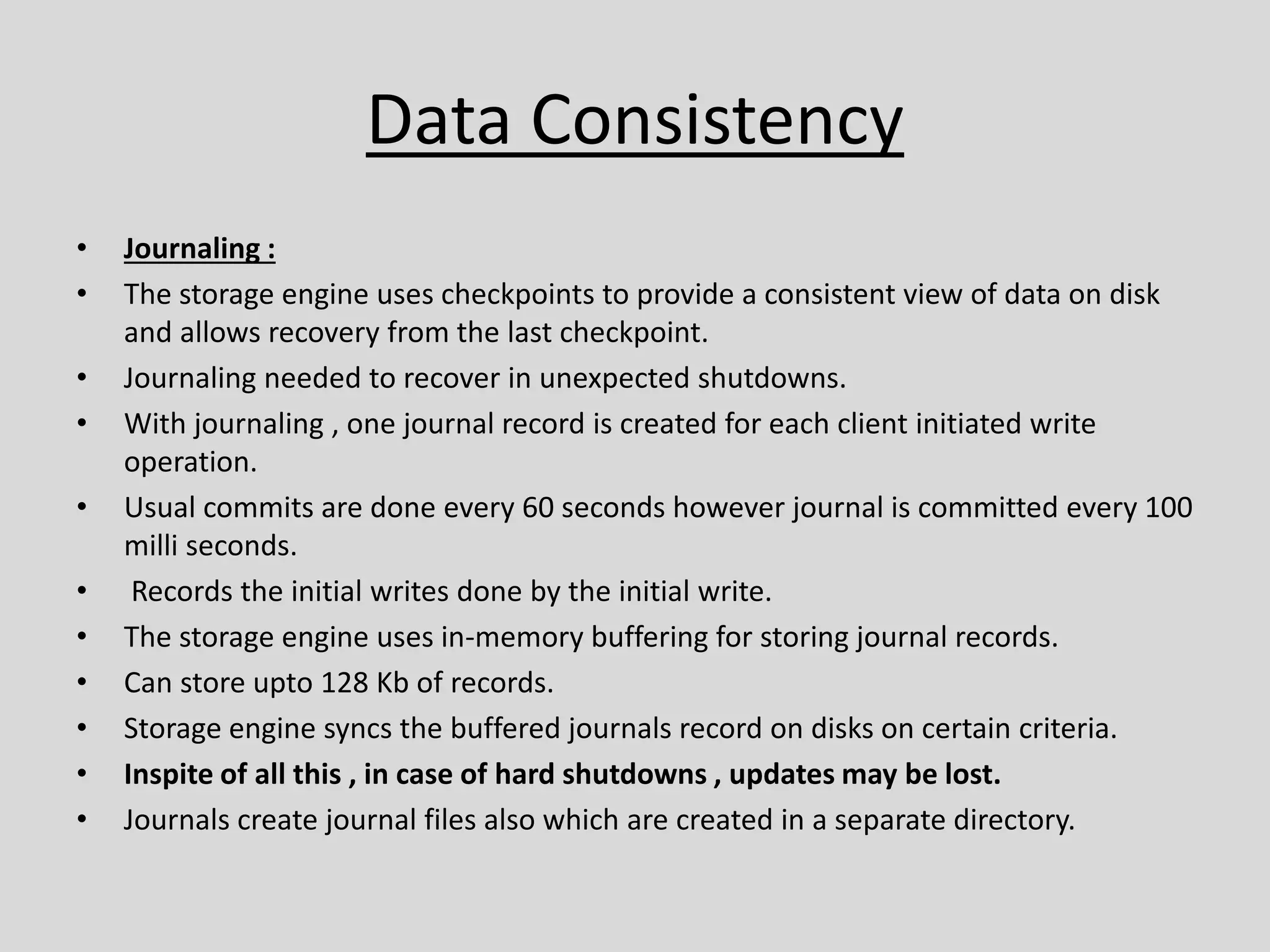

17. Data Consistency
• Journaling :
• The storage engine uses checkpoints to provide a consistent view of data on disk
and allows recovery from the last checkpoint.
• Journaling needed to recover in unexpected shutdowns.
• With journaling , one journal record is created for each client initiated write
operation.
• Usual commits are done every 60 seconds however journal is committed every 100
milli seconds.
• Records the initial writes done by the initial write.
• The storage engine uses in-memory buffering for storing journal records.
• Can store upto 128 Kb of records.
• Storage engine syncs the buffered journals record on disks on certain criteria.
• Inspite of all this , in case of hard shutdowns , updates may be lost.
• Journals create journal files also which are created in a separate directory.

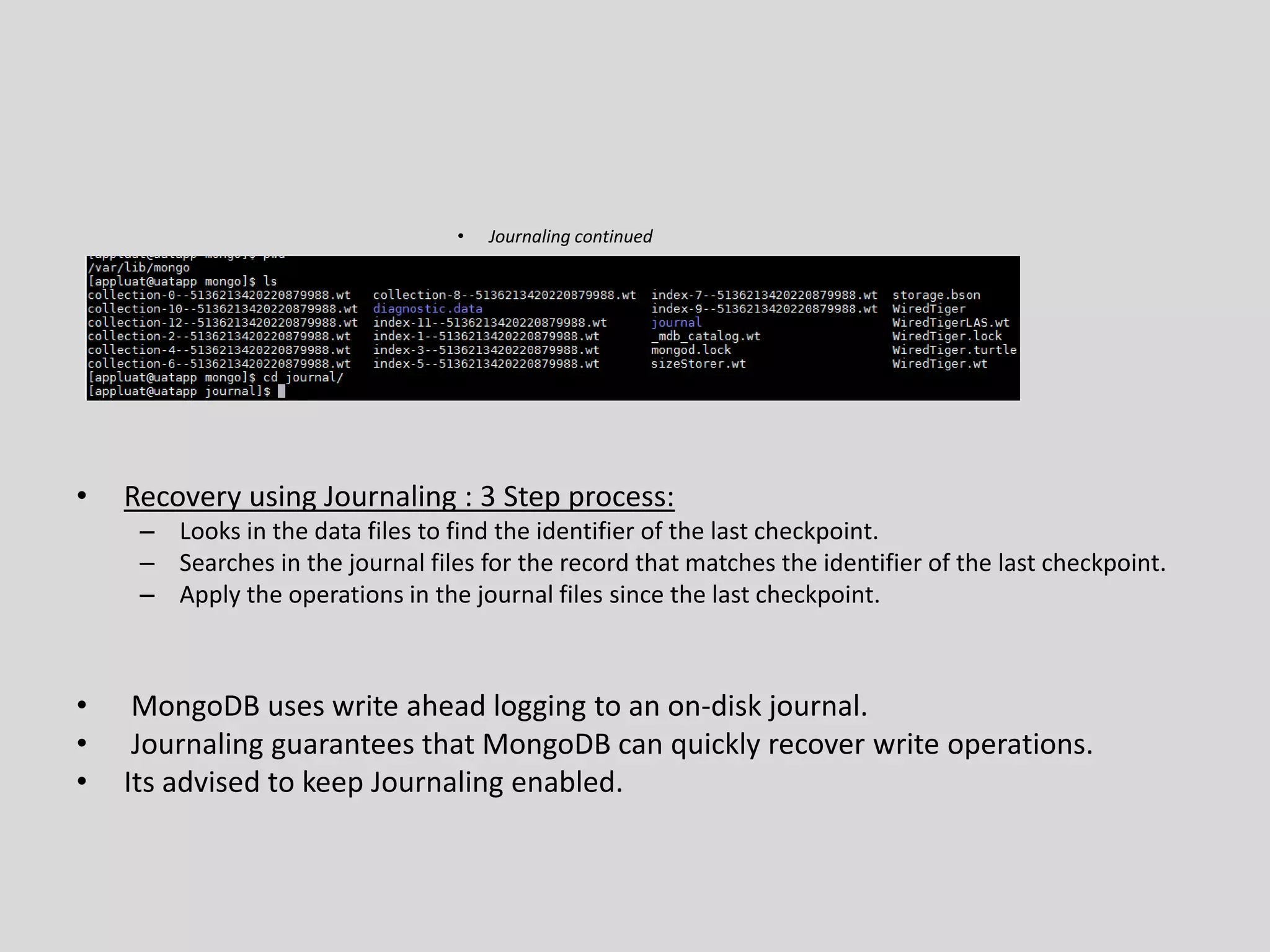

18. • Journaling continued
• Recovery using Journaling : 3 Step process:
– Looks in the data files to find the identifier of the last checkpoint.
– Searches in the journal files for the record that matches the identifier of the last checkpoint.
– Apply the operations in the journal files since the last checkpoint.
• MongoDB uses write ahead logging to an on-disk journal.
• Journaling guarantees that MongoDB can quickly recover write operations.
• Its advised to keep Journaling enabled.

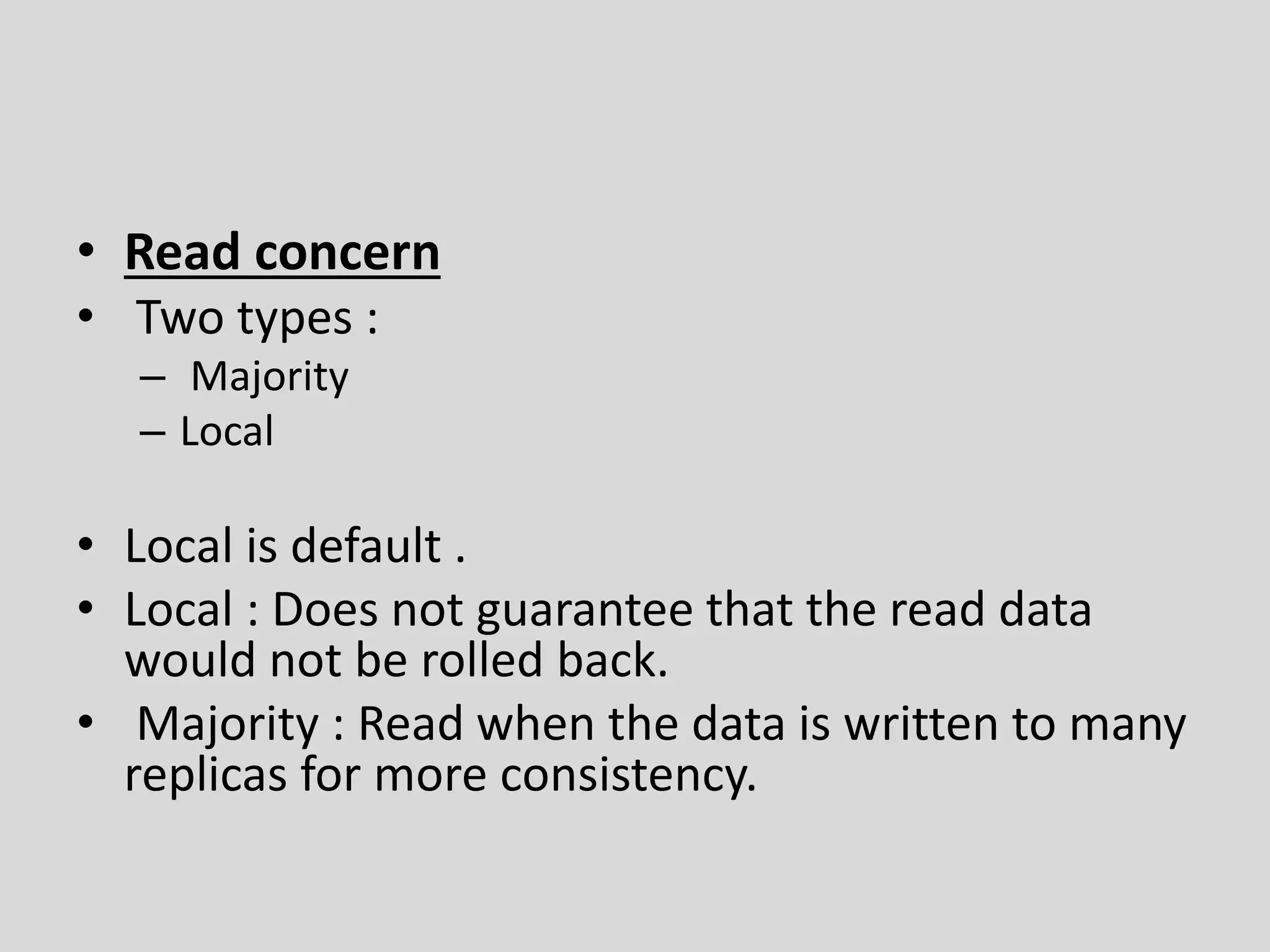

19. • Read concern
• Two types :
– Majority
– Local
• Local is default .
• Local : Does not guarantee that the read data
would not be rolled back.
• Majority : Read when the data is written to many
replicas for more consistency.

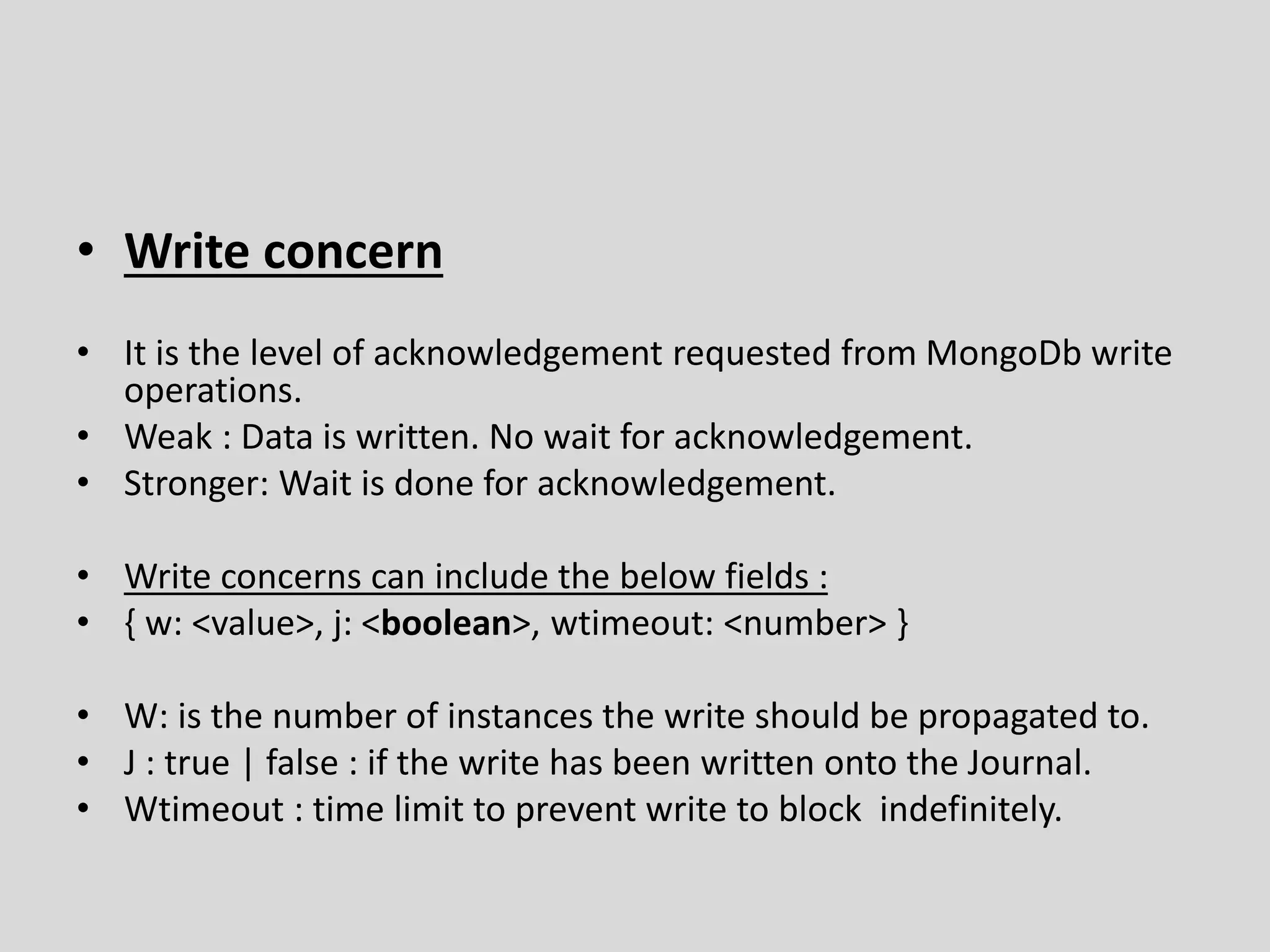

20. • Write concern
• It is the level of acknowledgement requested from MongoDb write
operations.
• Weak : Data is written. No wait for acknowledgement.
• Stronger: Wait is done for acknowledgement.
• Write concerns can include the below fields :
• { w: <value>, j: <boolean>, wtimeout: <number> }
• W: is the number of instances the write should be propagated to.
• J : true | false : if the write has been written onto the Journal.
• Wtimeout : time limit to prevent write to block indefinitely.

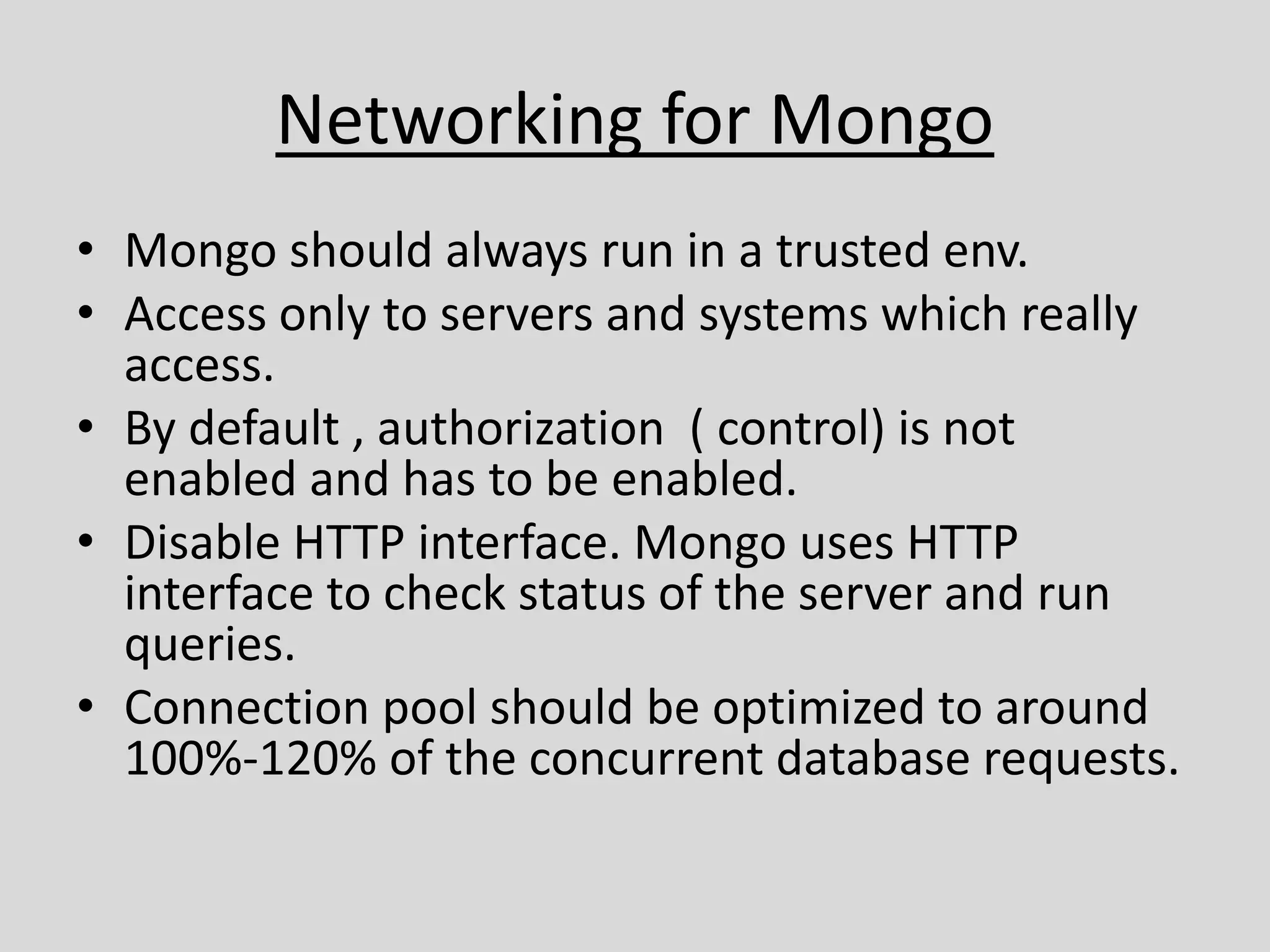

21. Networking for Mongo
• Mongo should always run in a trusted env.
• Access only to servers and systems which really
access.
• By default , authorization ( control) is not
enabled and has to be enabled.
• Disable HTTP interface. Mongo uses HTTP
interface to check status of the server and run
queries.
• Connection pool should be optimized to around
100%-120% of the concurrent database requests.

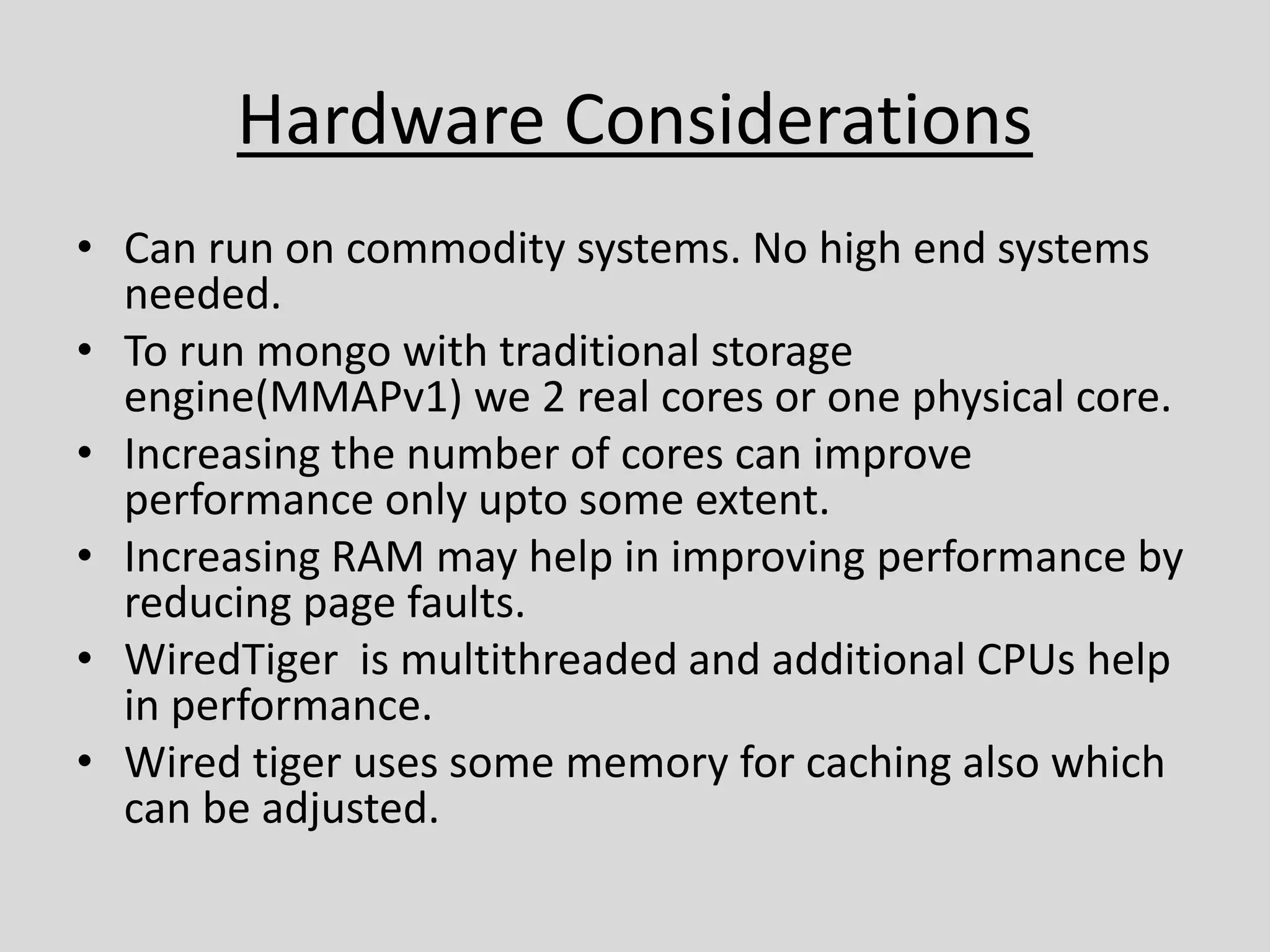

22. Hardware Considerations
• Can run on commodity systems. No high end systems
needed.
• To run mongo with traditional storage
engine(MMAPv1) we 2 real cores or one physical core.
• Increasing the number of cores can improve
performance only upto some extent.
• Increasing RAM may help in improving performance by
reducing page faults.
• WiredTiger is multithreaded and additional CPUs help
in performance.
• Wired tiger uses some memory for caching also which
can be adjusted.

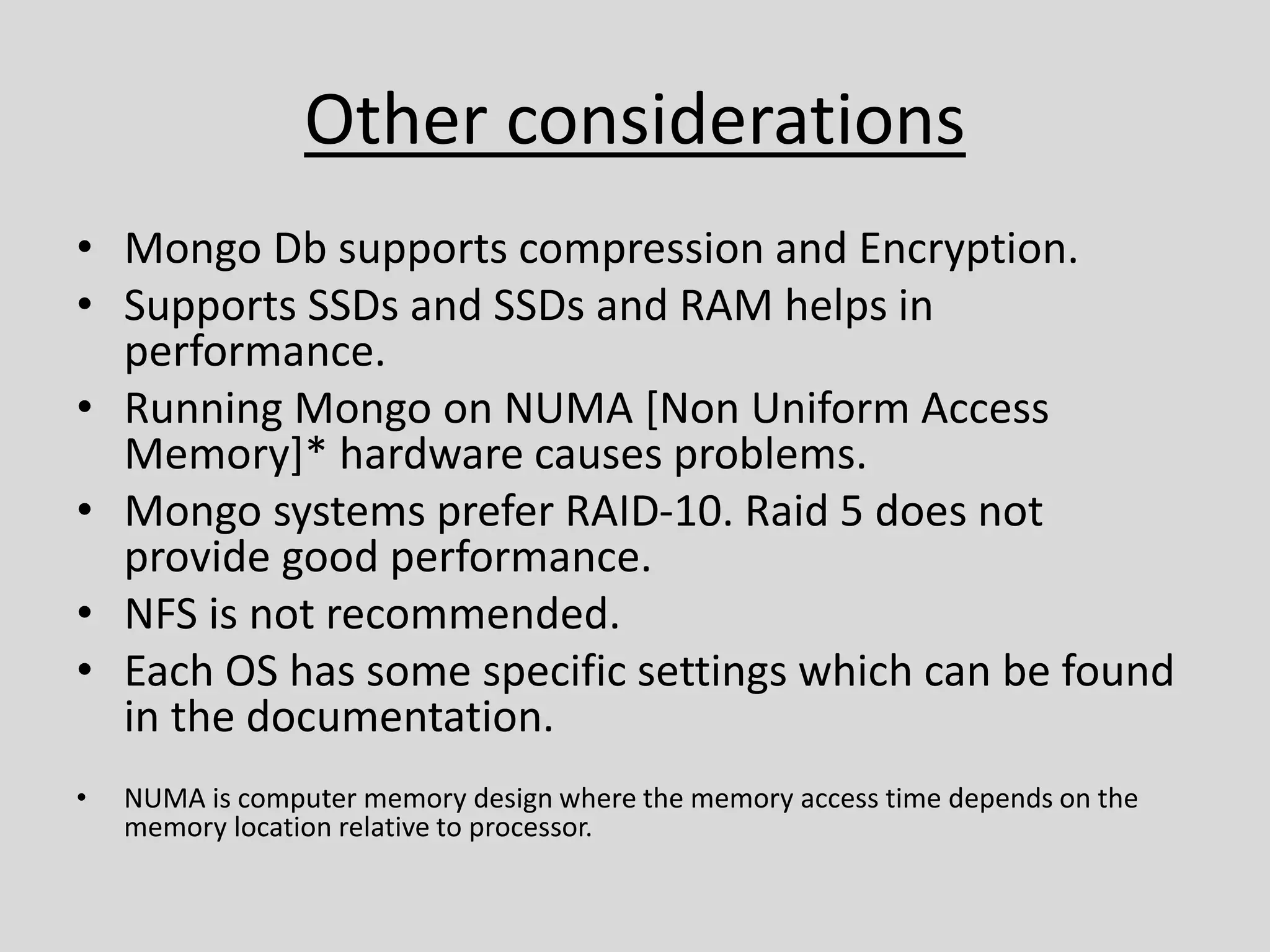

23. Other considerations
• Mongo Db supports compression and Encryption.
• Supports SSDs and SSDs and RAM helps in
performance.
• Running Mongo on NUMA [Non Uniform Access
Memory]* hardware causes problems.
• Mongo systems prefer RAID-10. Raid 5 does not
provide good performance.
• NFS is not recommended.
• Each OS has some specific settings which can be found
in the documentation.
• NUMA is computer memory design where the memory access time depends on the
memory location relative to processor.

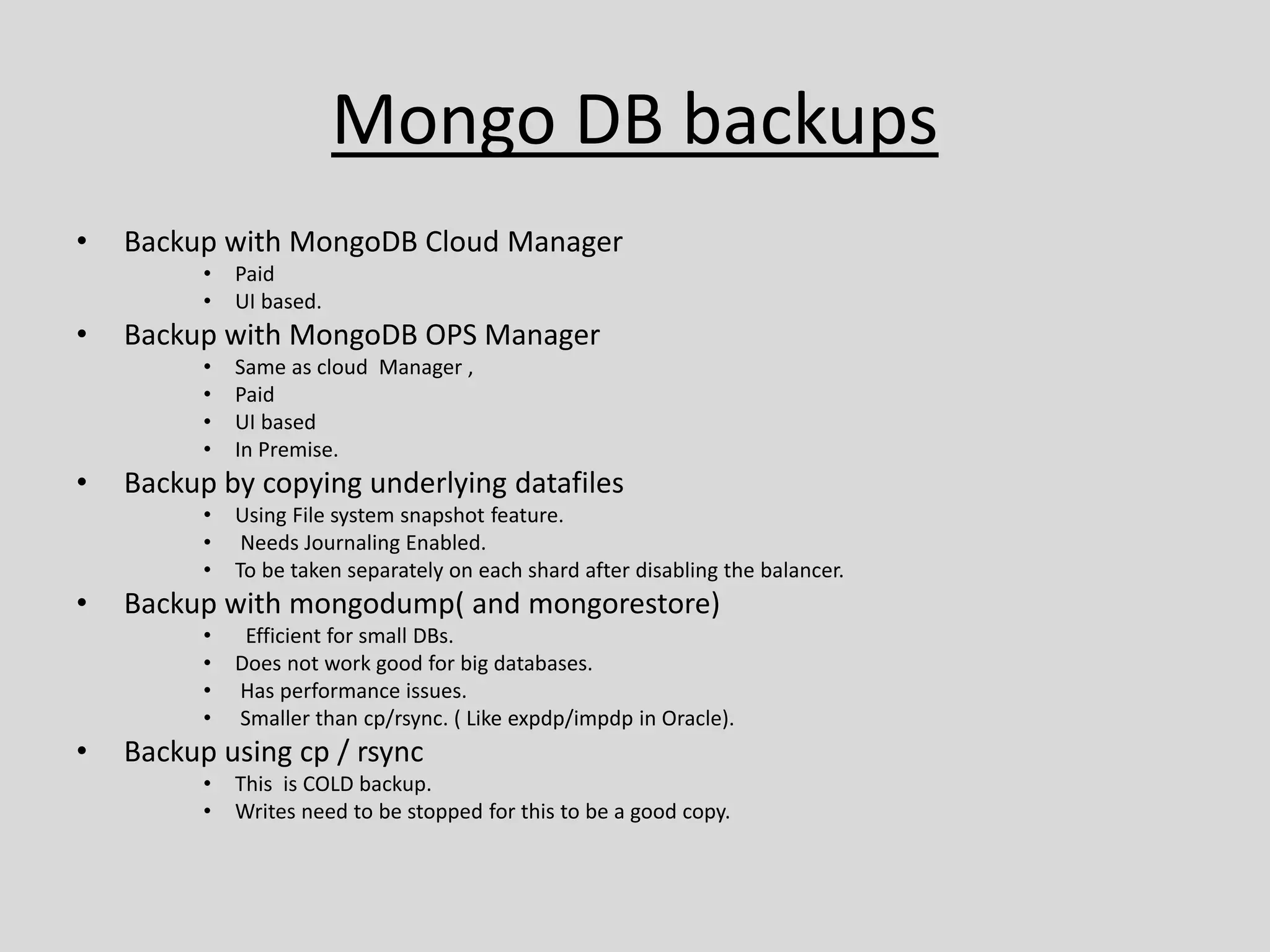

24. Mongo DB backups
• Backup with MongoDB Cloud Manager
• Paid
• UI based.
• Backup with MongoDB OPS Manager
• Same as cloud Manager ,
• Paid
• UI based
• In Premise.
• Backup by copying underlying datafiles
• Using File system snapshot feature.
• Needs Journaling Enabled.
• To be taken separately on each shard after disabling the balancer.
• Backup with mongodump( and mongorestore)
• Efficient for small DBs.
• Does not work good for big databases.
• Has performance issues.
• Smaller than cp/rsync. ( Like expdp/impdp in Oracle).
• Backup using cp / rsync
• This is COLD backup.
• Writes need to be stopped for this to be a good copy.

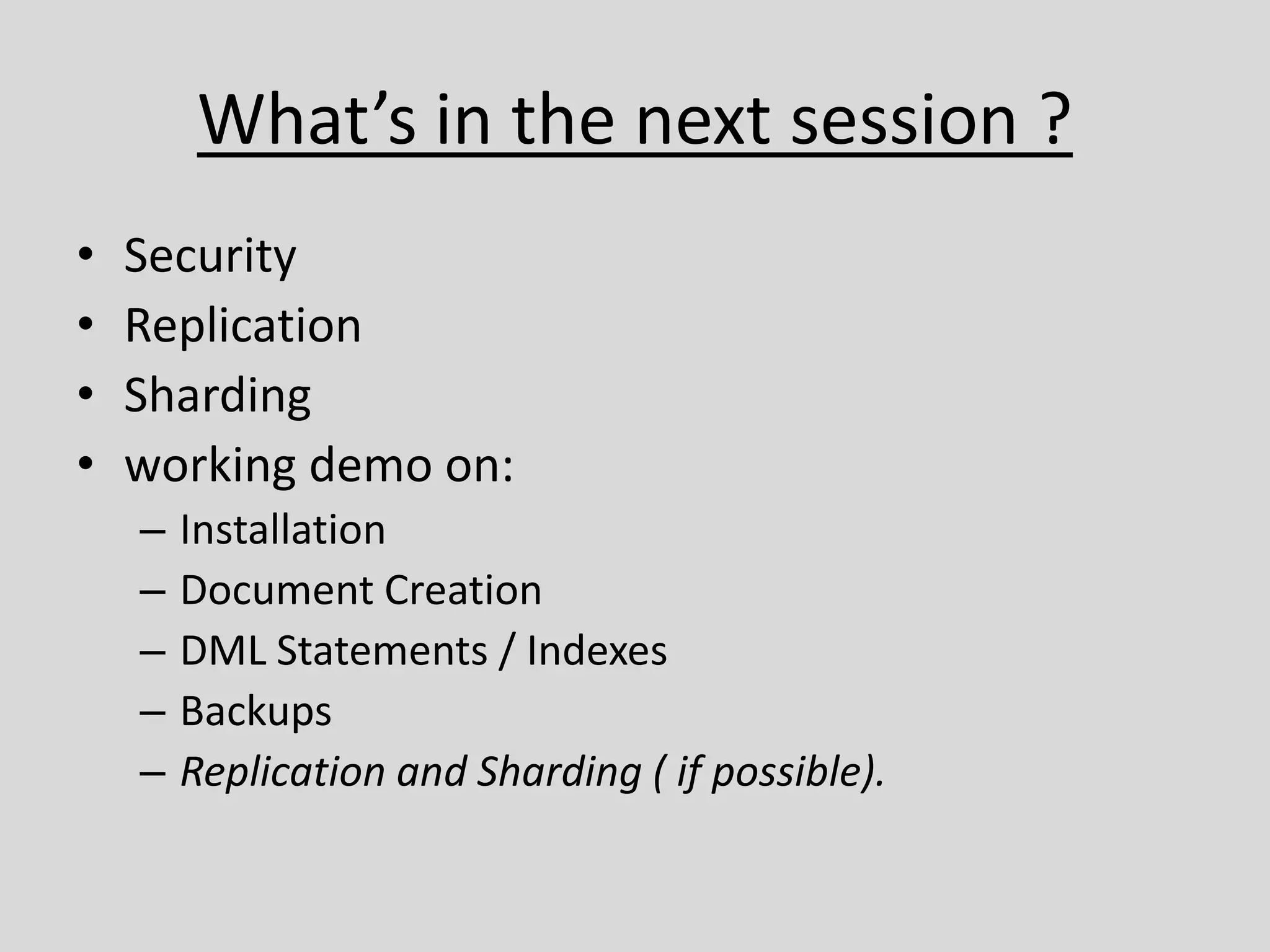

25. What’s in the next session ?
• Security
• Replication
• Sharding
• working demo on:
– Installation
– Document Creation
– DML Statements / Indexes
– Backups
– Replication and Sharding ( if possible).

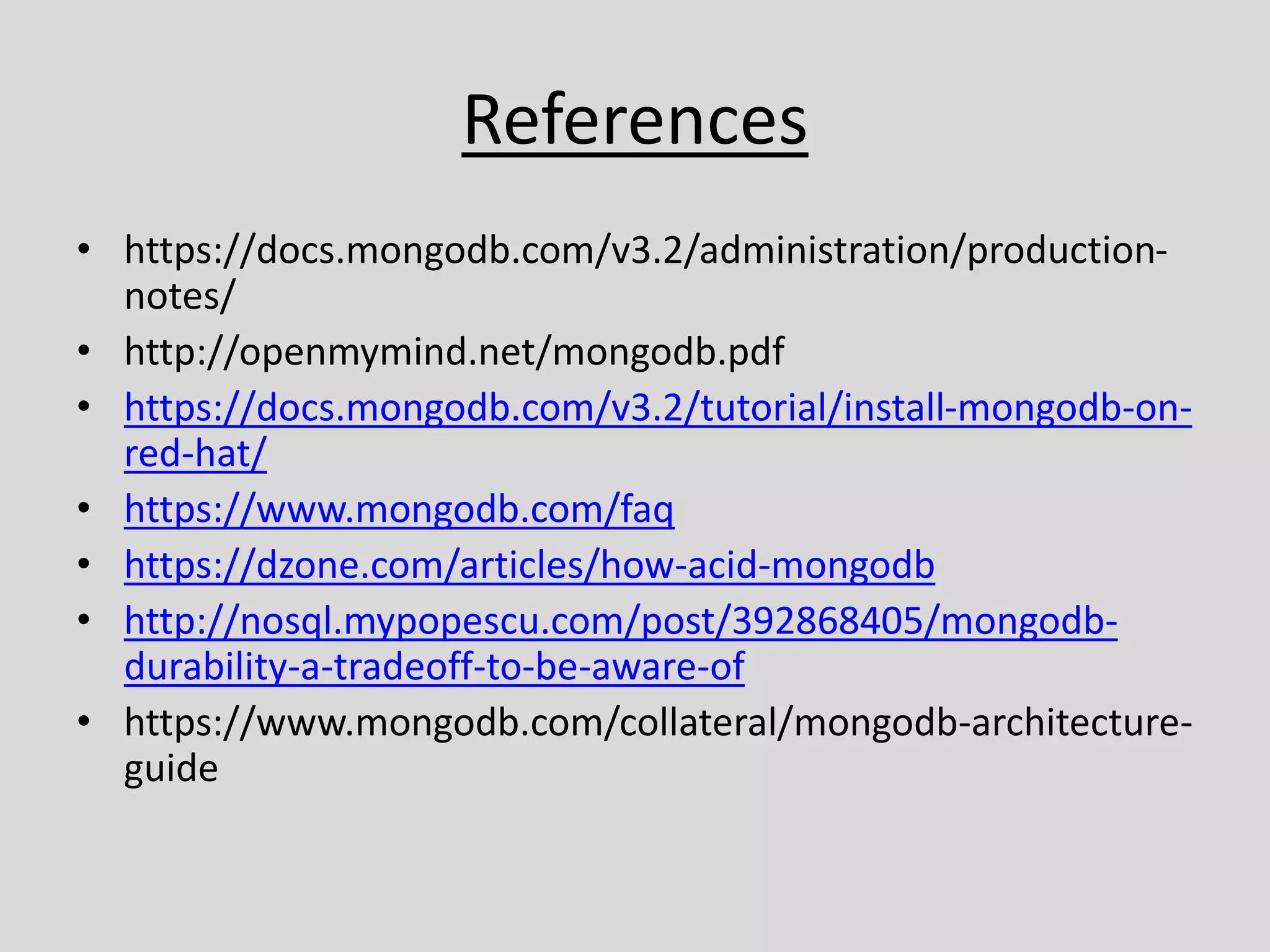

26. References
• https://docs.mongodb.com/v3.2/administration/production-
notes/
• http://openmymind.net/mongodb.pdf
• https://docs.mongodb.com/v3.2/tutorial/install-mongodb-on-
red-hat/
• https://www.mongodb.com/faq
• https://dzone.com/articles/how-acid-mongodb
• http://nosql.mypopescu.com/post/392868405/mongodb-
durability-a-tradeoff-to-be-aware-of
• https://www.mongodb.com/collateral/mongodb-architecture-
guide
