1. Design Pattern
MVC
July 17th, 2014

2. MVC

3. Agenda

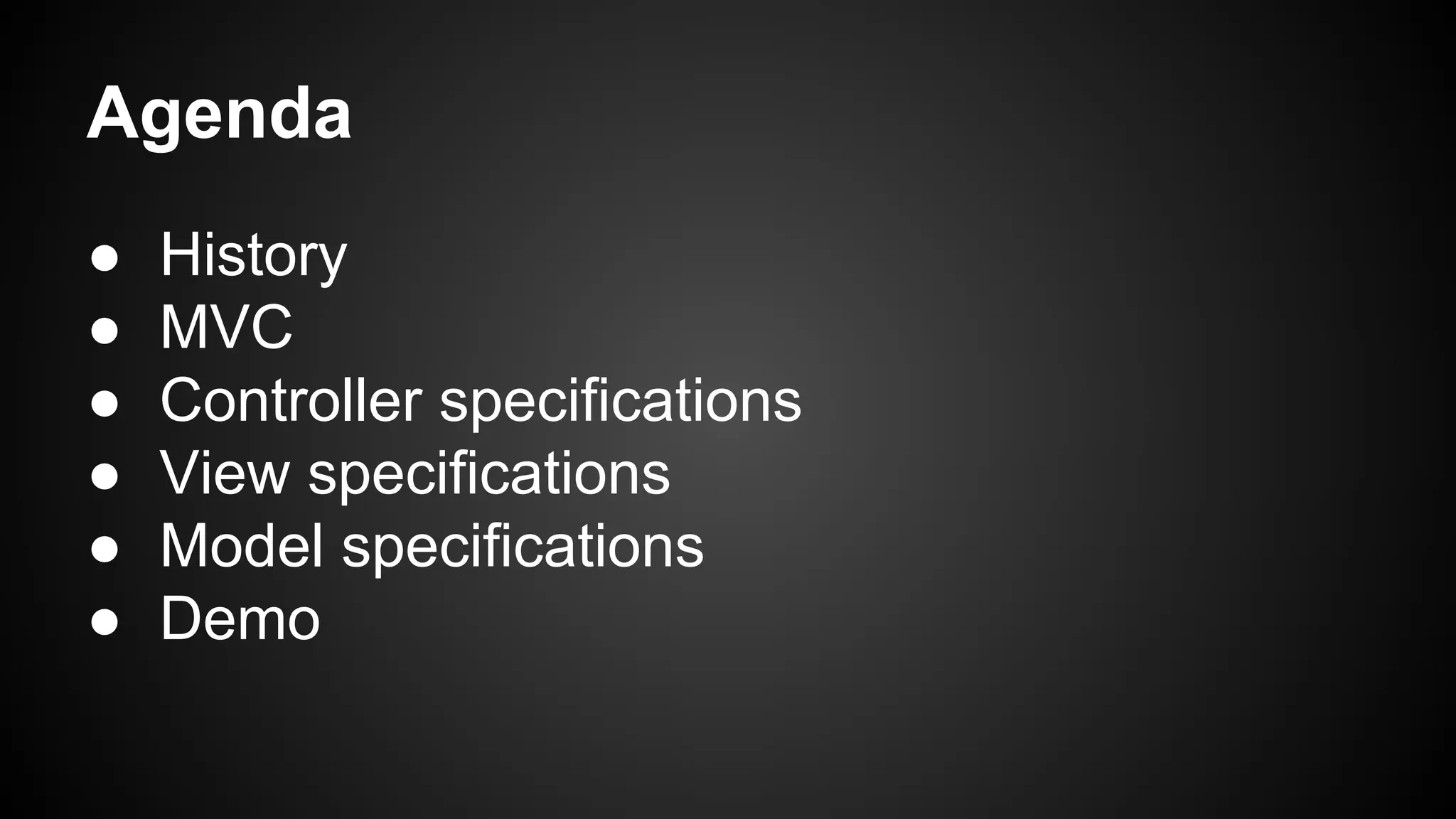

● History
● MVC
● Controller specifications
● View specifications
● Model specifications
● Demo

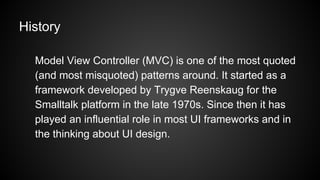

4. History

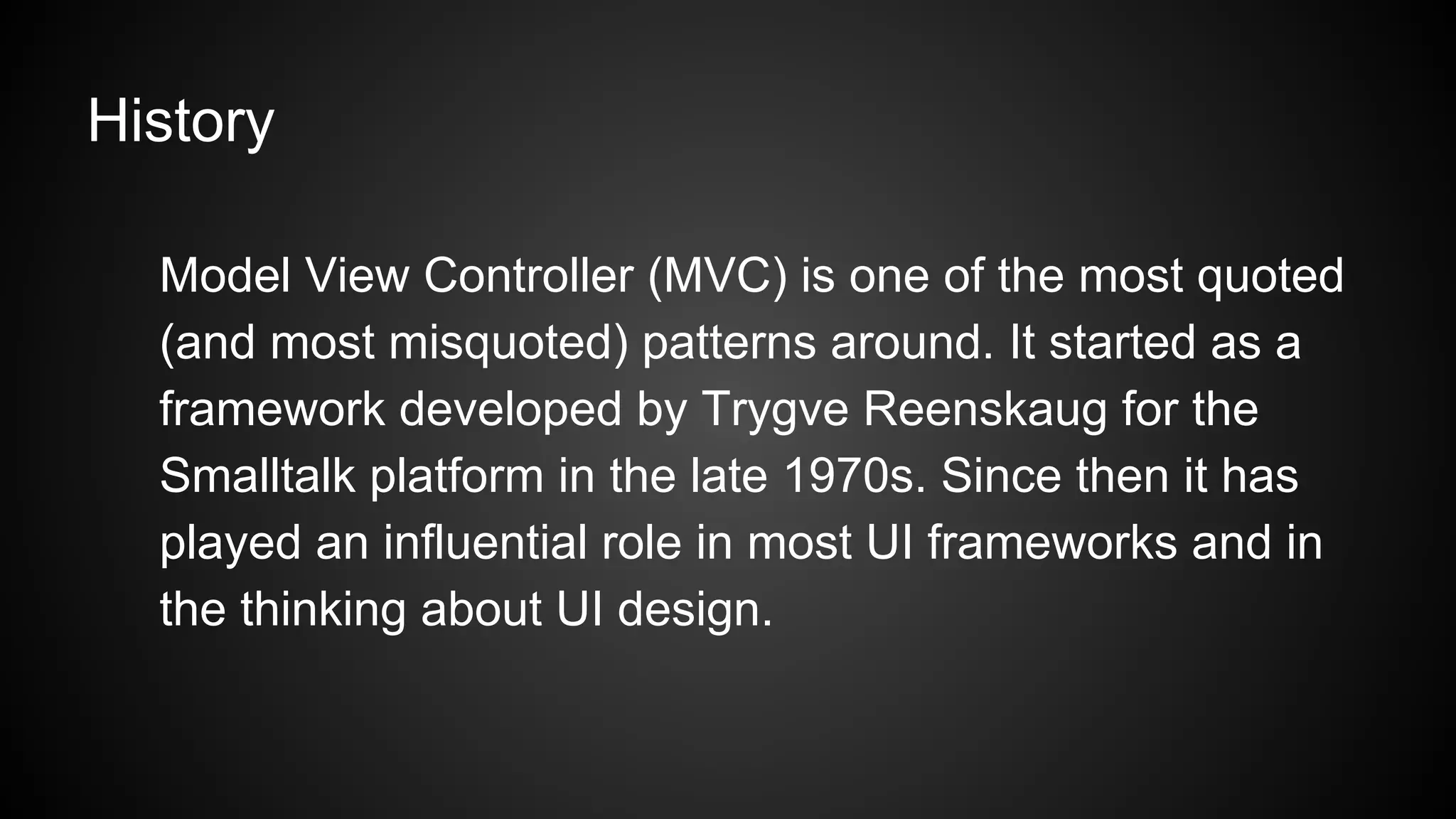

Model View Controller (MVC) is one of the most quoted
(and most misquoted) patterns around. It started as a
framework developed by Trygve Reenskaug for the
Smalltalk platform in the late 1970s. Since then it has
played an influential role in most UI frameworks and in
the thinking about UI design.

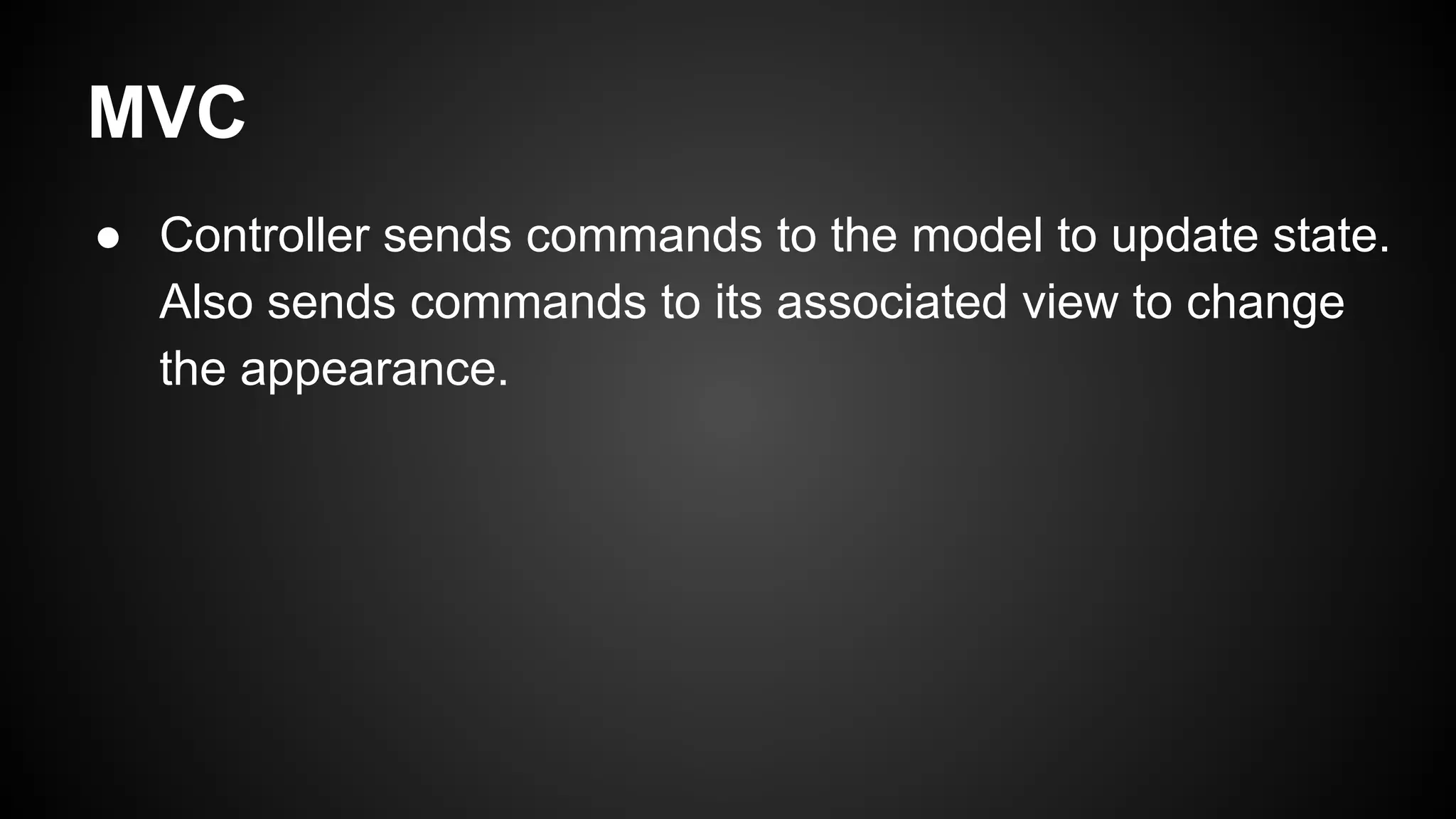

5. MVC
● Controller sends commands to the model to update state.
Also sends commands to its associated view to change
the appearance.

6. MVC
● Controller sends commands to the model to update state.
Also sends commands to its associated view to change
the appearance.

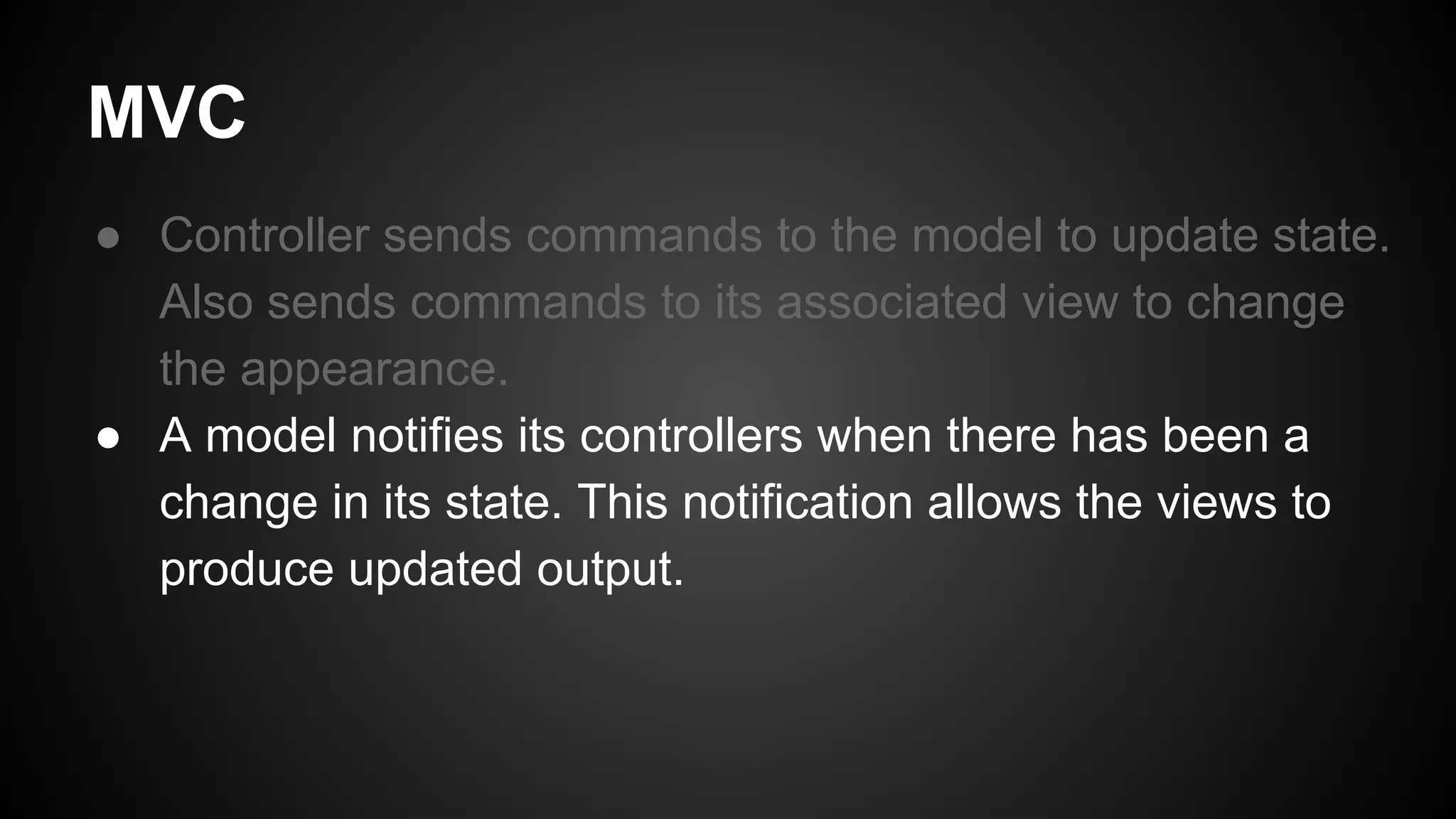

● A model notifies its controllers when there has been a
change in its state. This notification allows the views to
produce updated output.

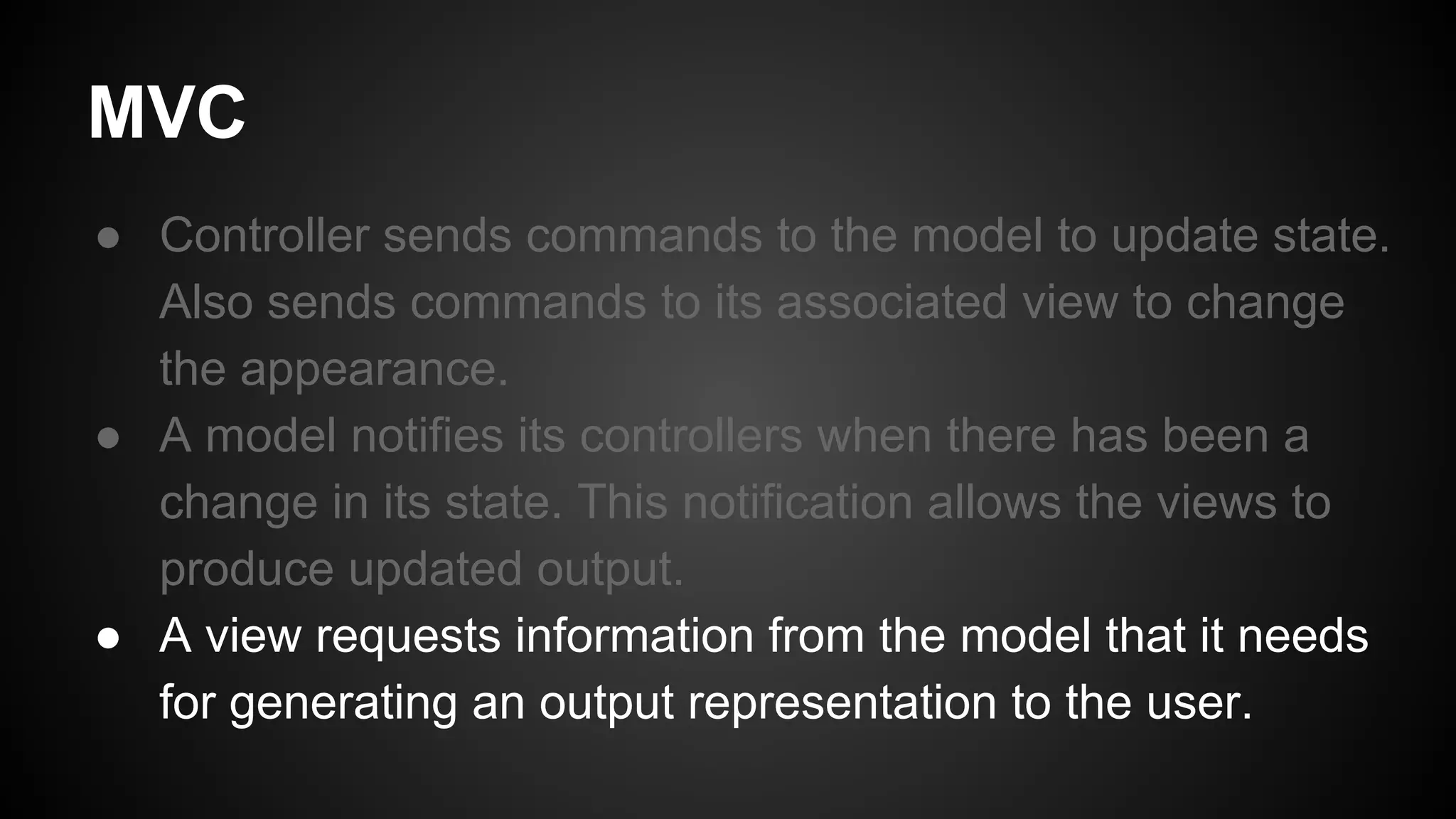

7. MVC
● Controller sends commands to the model to update state.
Also sends commands to its associated view to change
the appearance.
● A model notifies its controllers when there has been a
change in its state. This notification allows the views to
produce updated output.
● A view requests information from the model that it needs
for generating an output representation to the user.

8. MVC

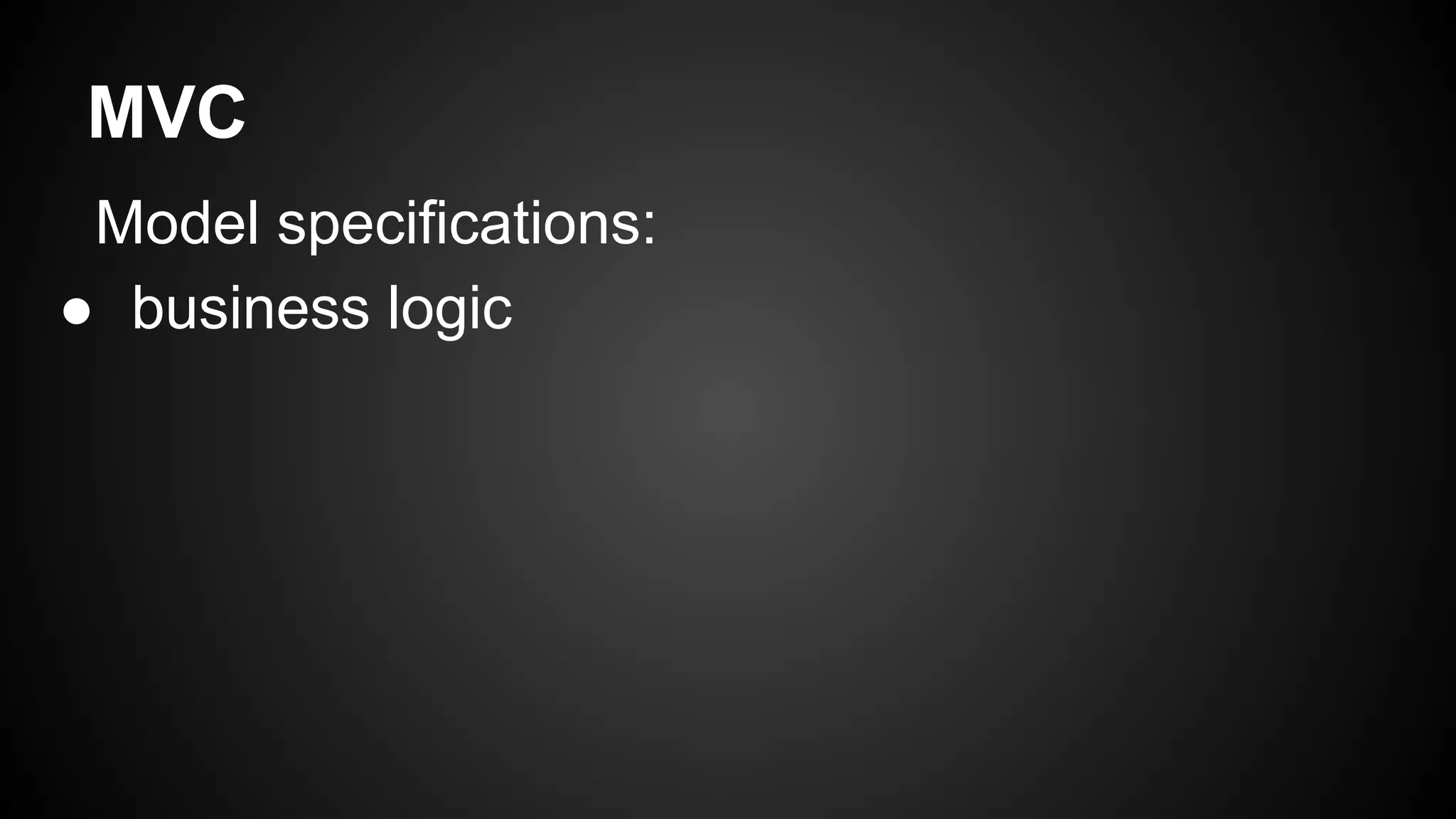

Model specifications:
● business logic

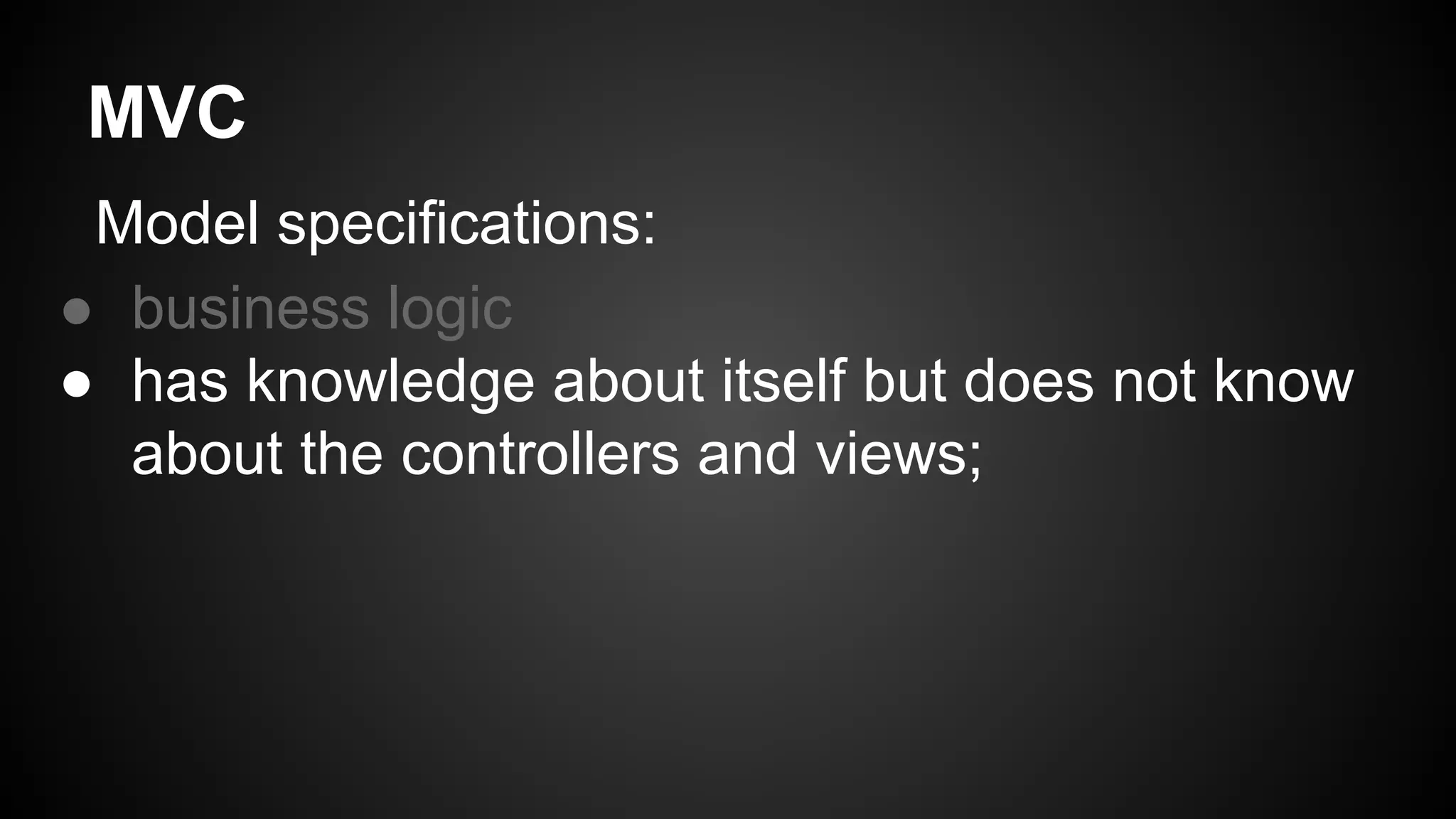

9. MVC
Model specifications:
● business logic
● has knowledge about itself but does not know
about the controllers and views;

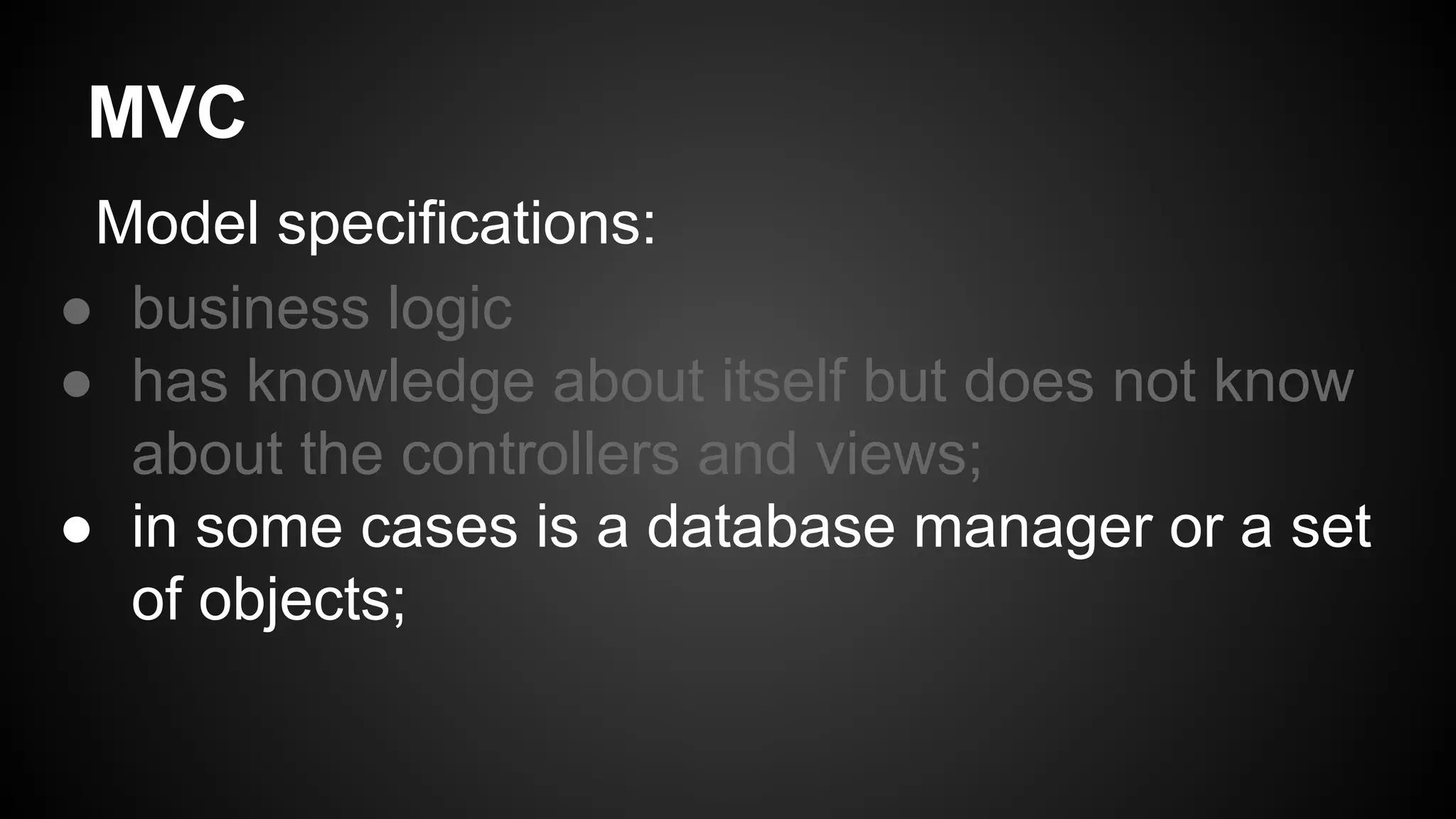

10. MVC
Model specifications:
● business logic
● has knowledge about itself but does not know
about the controllers and views;
● in some cases is a database manager or a set
of objects;

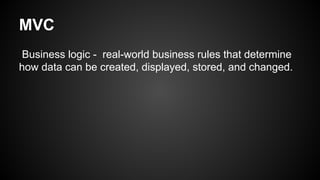

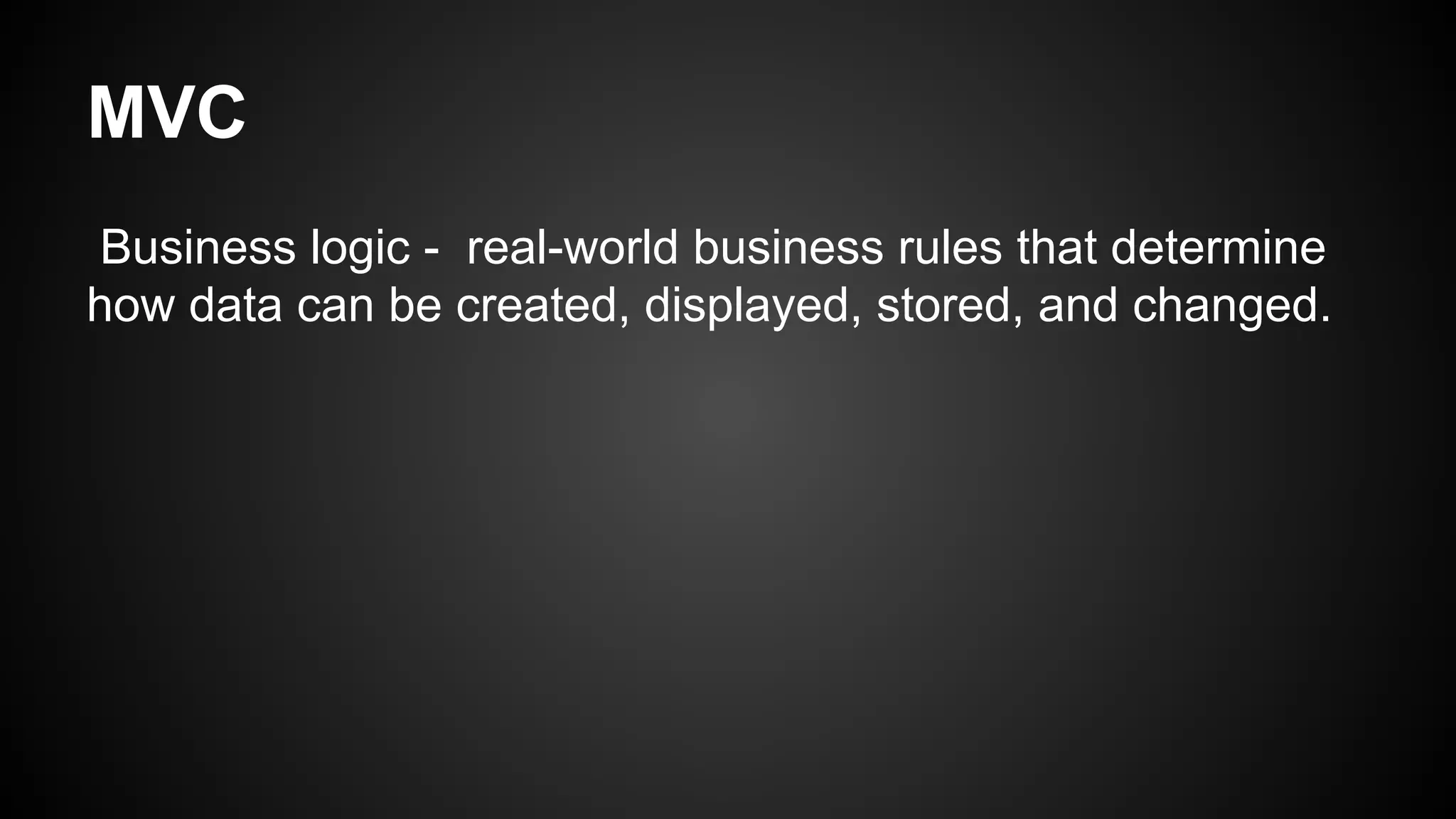

11. MVC
Business logic - real-world business rules that determine
how data can be created, displayed, stored, and changed.

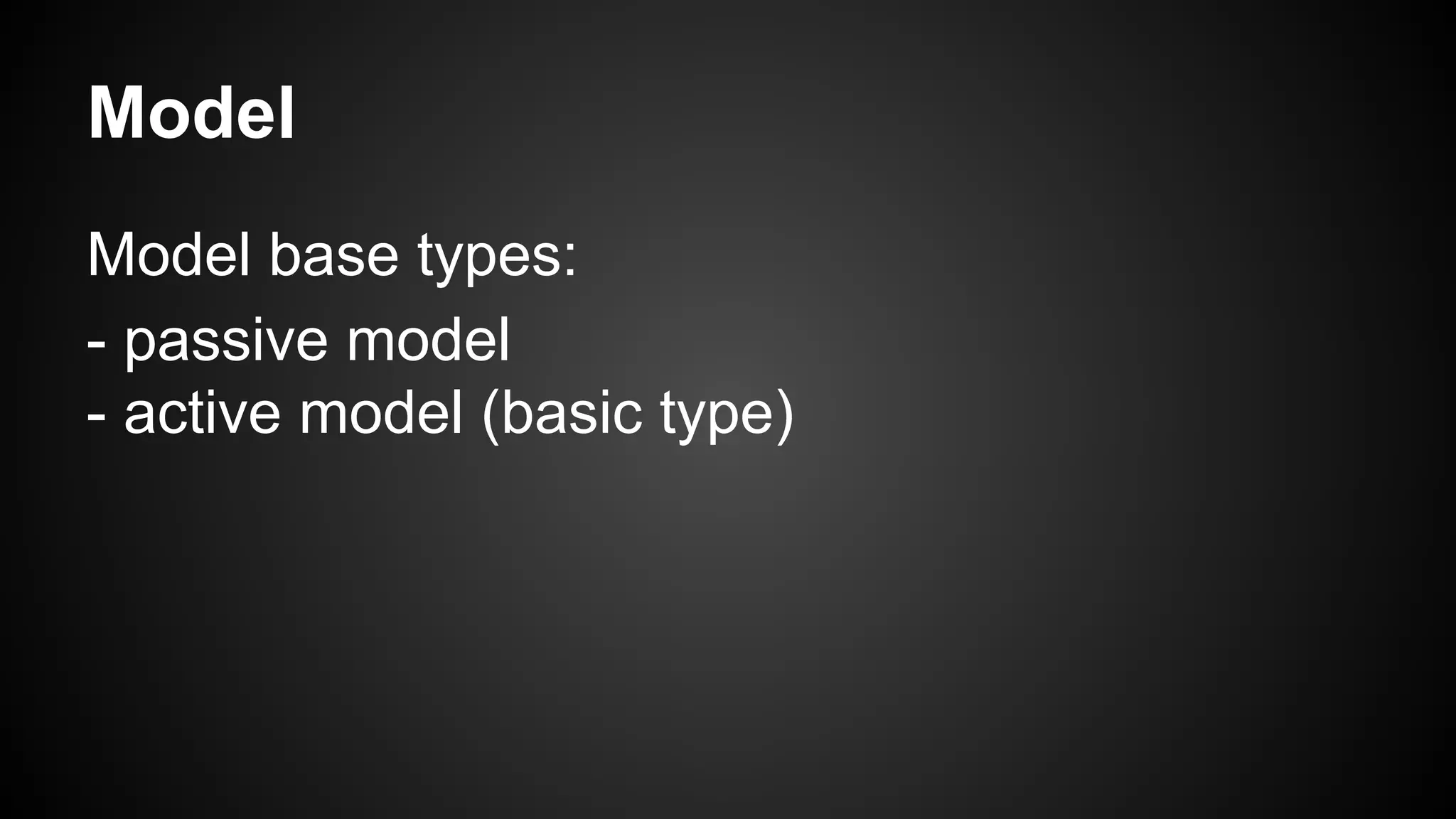

12. Model
Model base types:
- passive model
- active model (basic type)

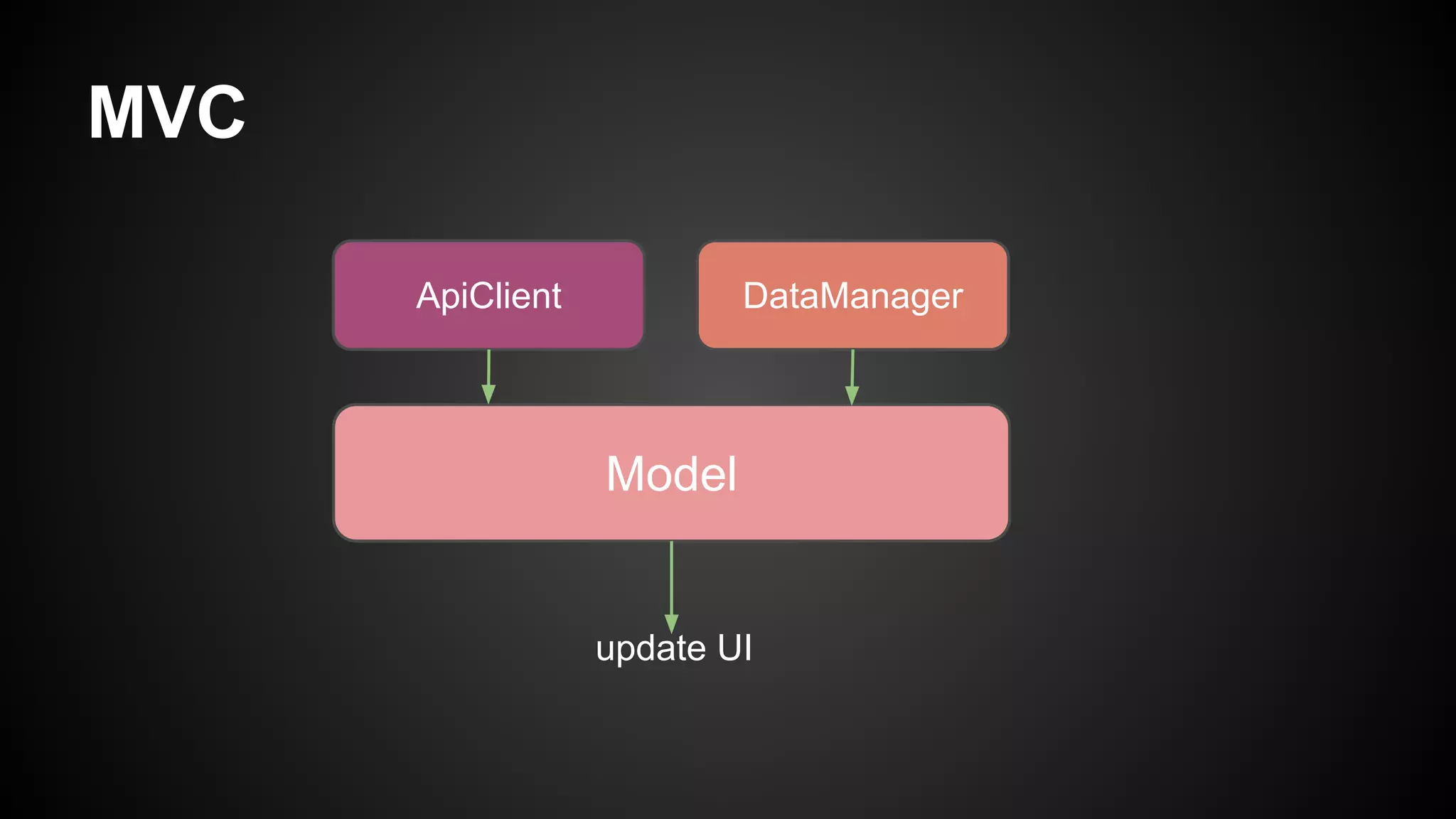

13. MVC
Model
ApiClient DataManager
update UI

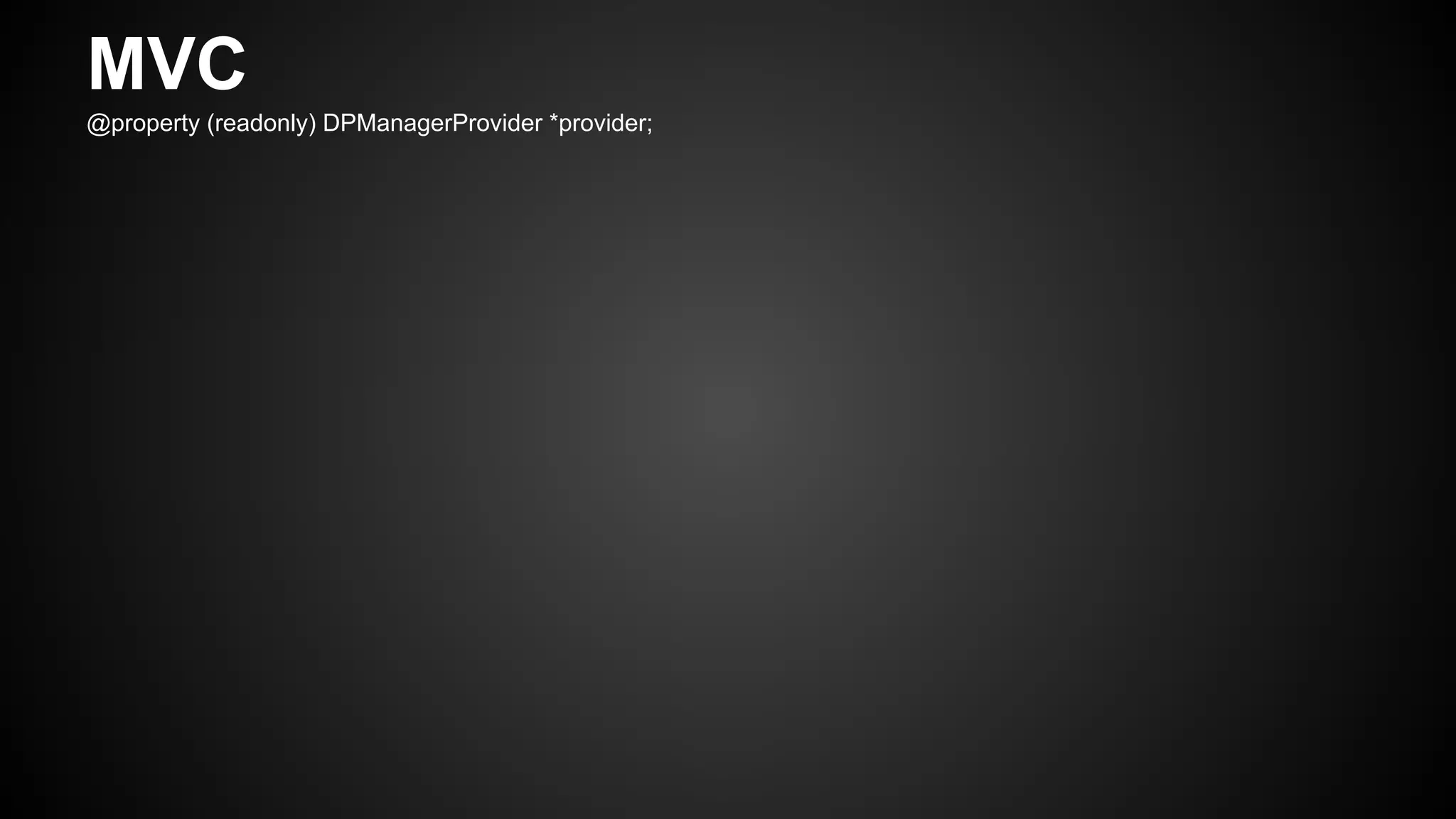

14. MVC
@property (readonly) DPManagerProvider *provider;

15. MVC
@property (readonly) DPManagerProvider *provider;

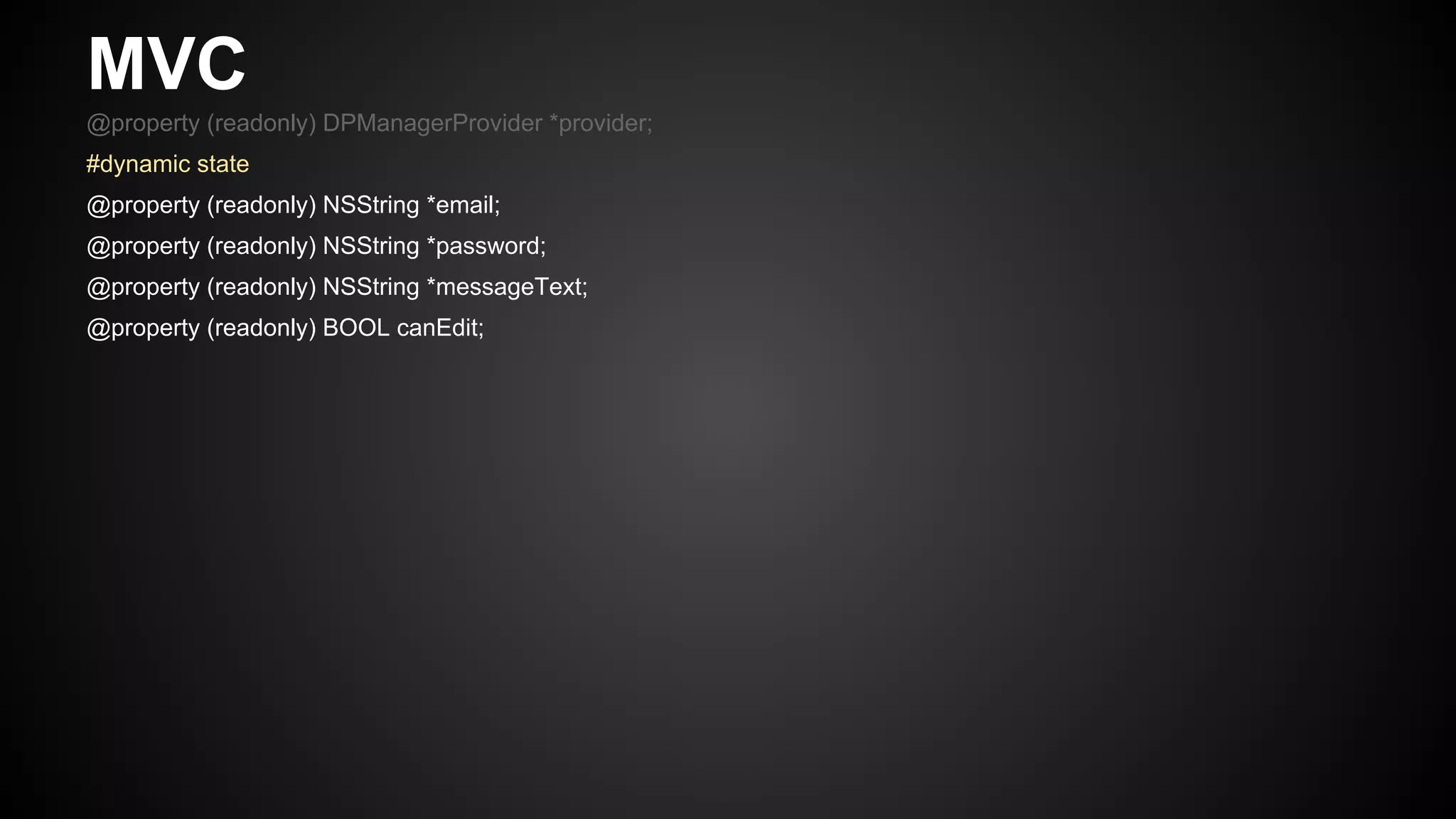

#dynamic state
@property (readonly) NSString *email;
@property (readonly) NSString *password;
@property (readonly) NSString *messageText;
@property (readonly) BOOL canEdit;

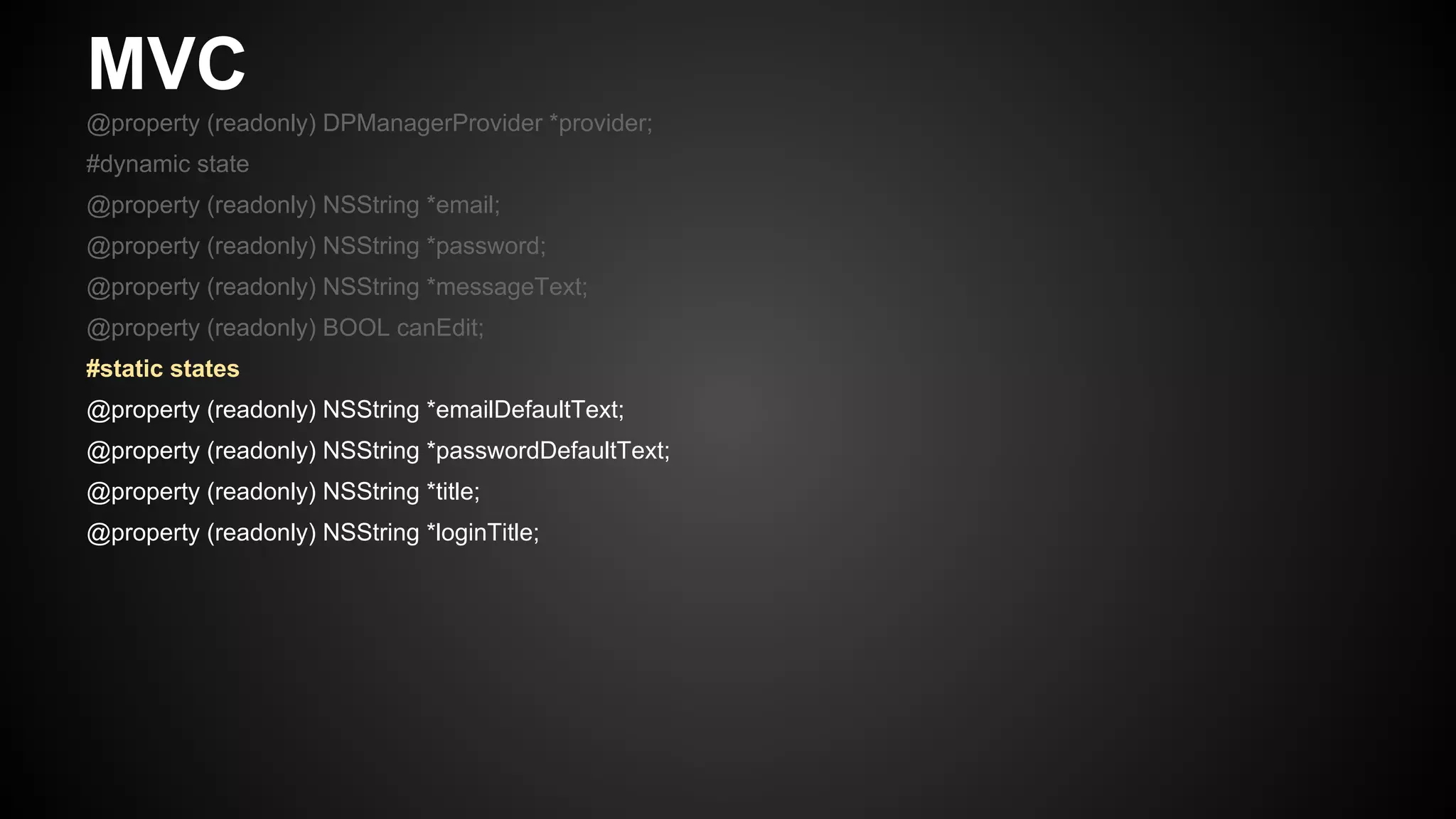

16. MVC
@property (readonly) DPManagerProvider *provider;
#dynamic state
@property (readonly) NSString *email;
@property (readonly) NSString *password;
@property (readonly) NSString *messageText;
@property (readonly) BOOL canEdit;
#static states
@property (readonly) NSString *emailDefaultText;
@property (readonly) NSString *passwordDefaultText;
@property (readonly) NSString *title;
@property (readonly) NSString *loginTitle;

17. MVC
@property (readonly) DPManagerProvider *provider;
#dynamic state
@property (readonly) NSString *email;
@property (readonly) NSString *password;
@property (readonly) NSString *messageText;
@property (readonly) BOOL canEdit;
#static states
@property (readonly) NSString *emailDefaultText;
@property (readonly) NSString *passwordDefaultText;
@property (readonly) NSString *title;
@property (readonly) NSString *loginTitle;

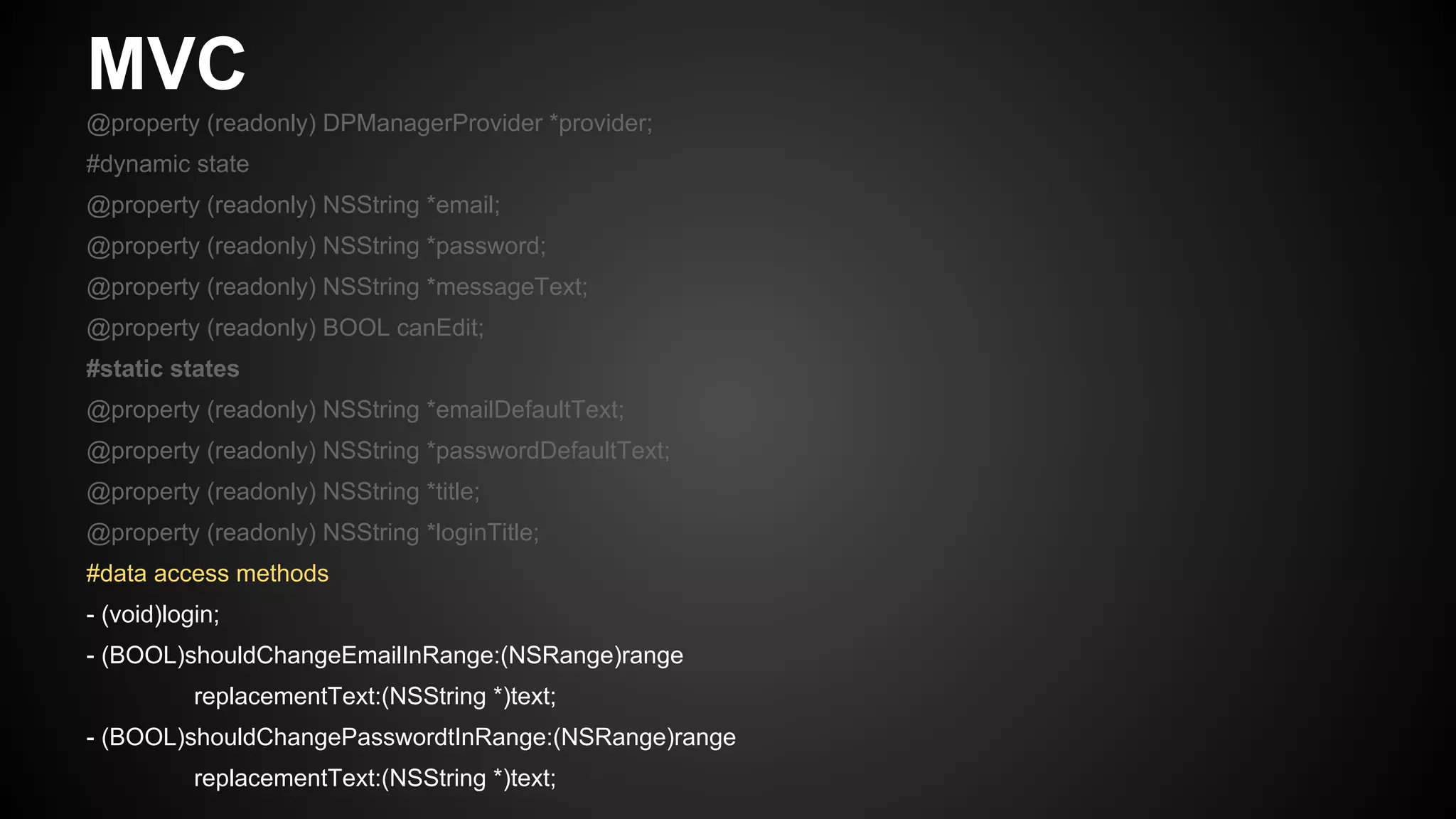

#data access methods
- (void)login;
- (BOOL)shouldChangeEmailInRange:(NSRange)range
replacementText:(NSString *)text;
- (BOOL)shouldChangePasswordtInRange:(NSRange)range
replacementText:(NSString *)text;

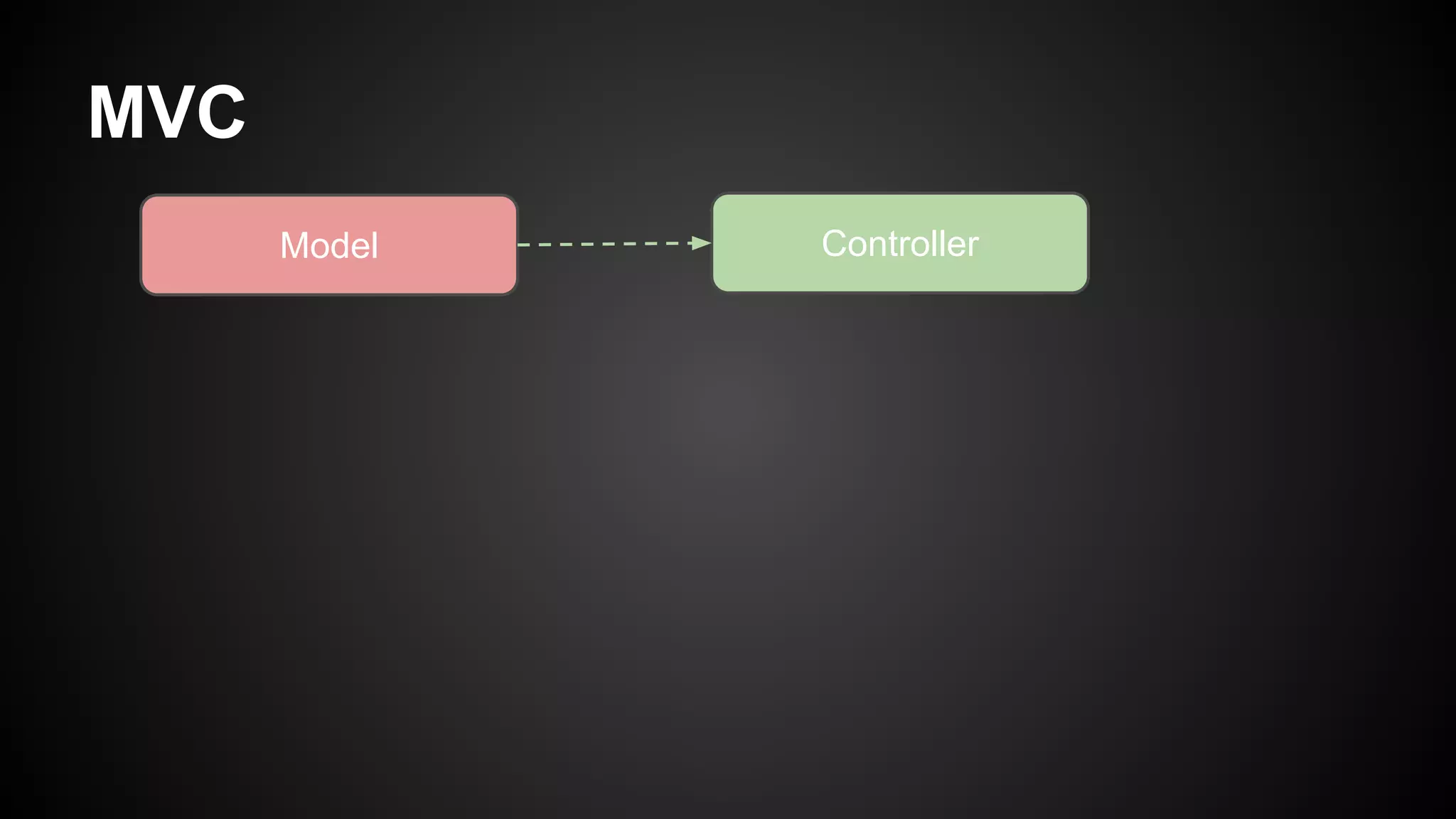

18. MVC
ControllerModel

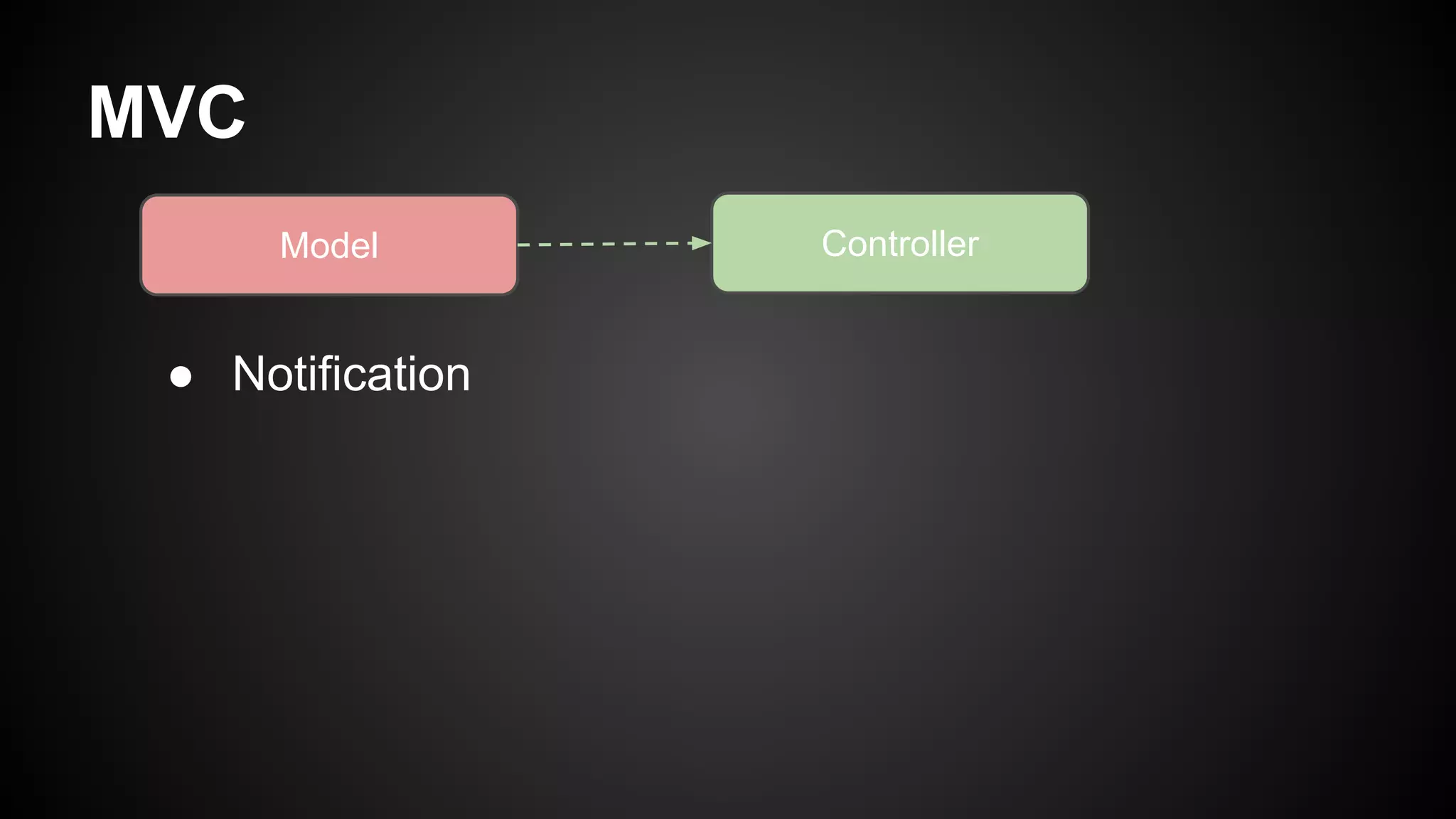

19. MVC
ControllerModel

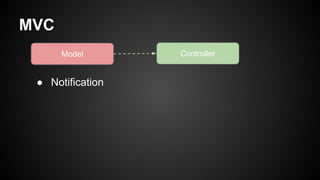

● Notification

20. MVC
ControllerModel
● Notification
● KVO

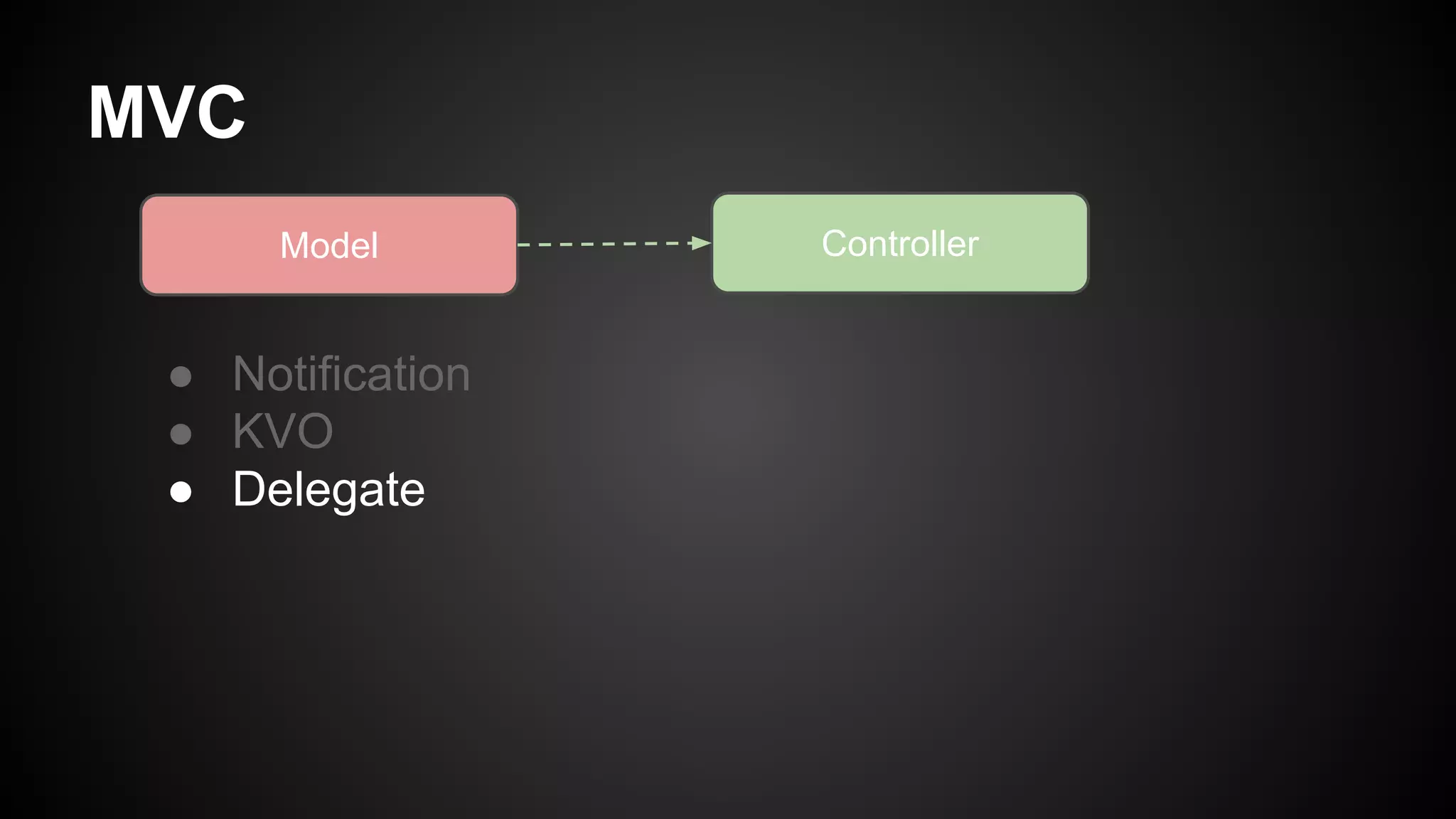

21. MVC
ControllerModel
● Notification
● KVO
● Delegate

22. MVC
ControllerModel
● Notification
● KVO

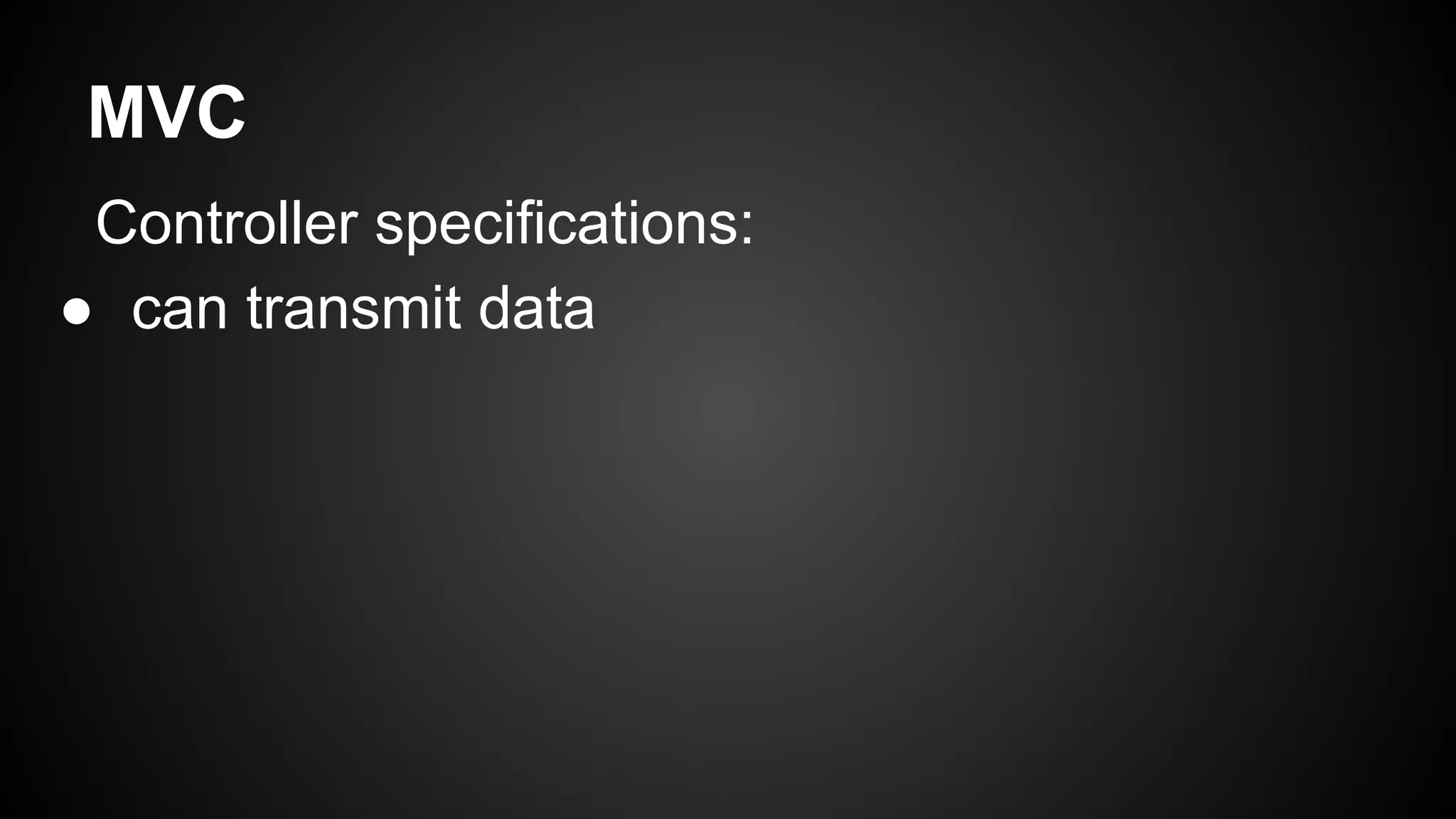

● Delegate
● Binding

23. MVC
Controller specifications:
● can transmit data

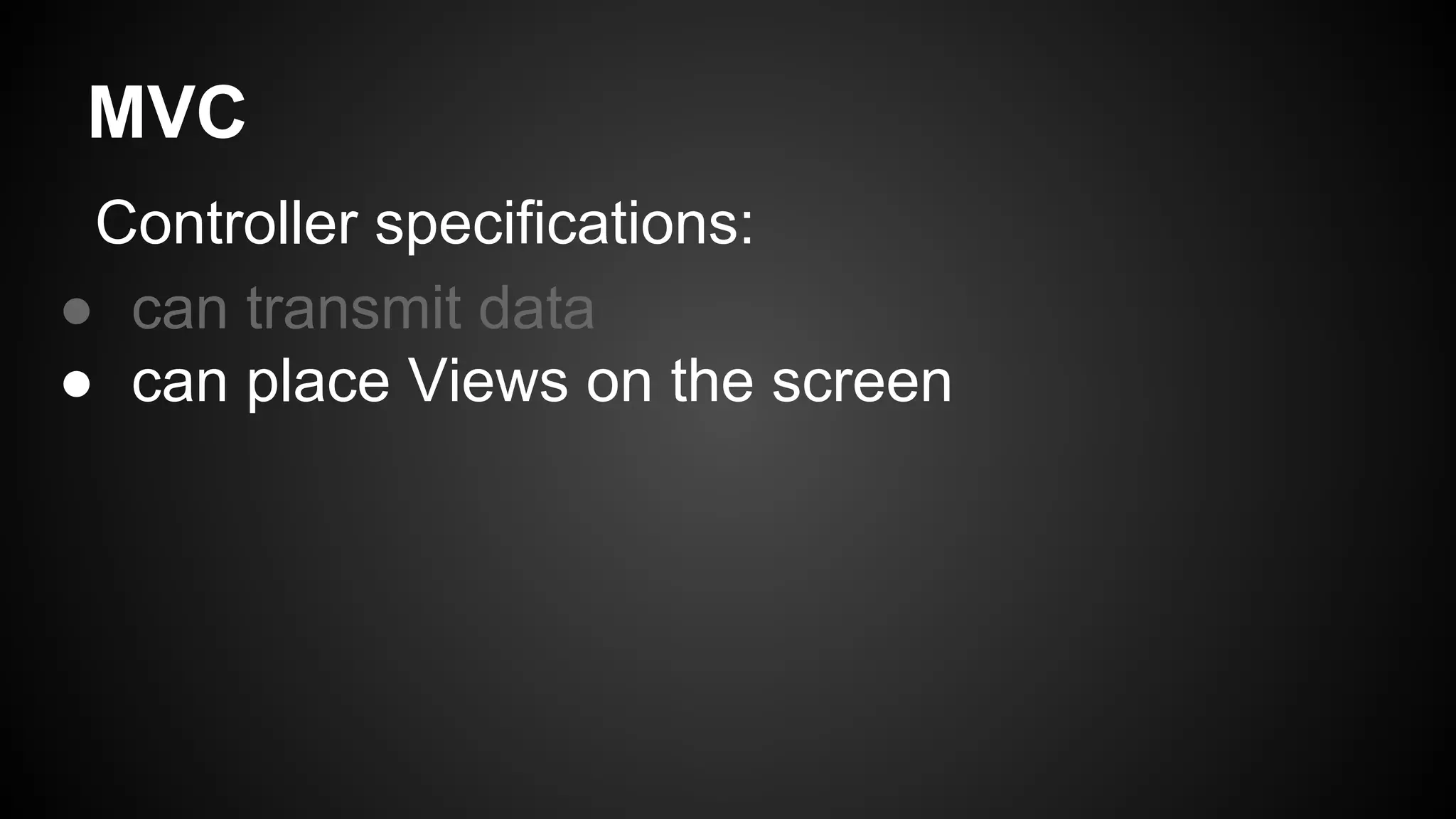

24. MVC
Controller specifications:
● can transmit data
● can place Views on the screen

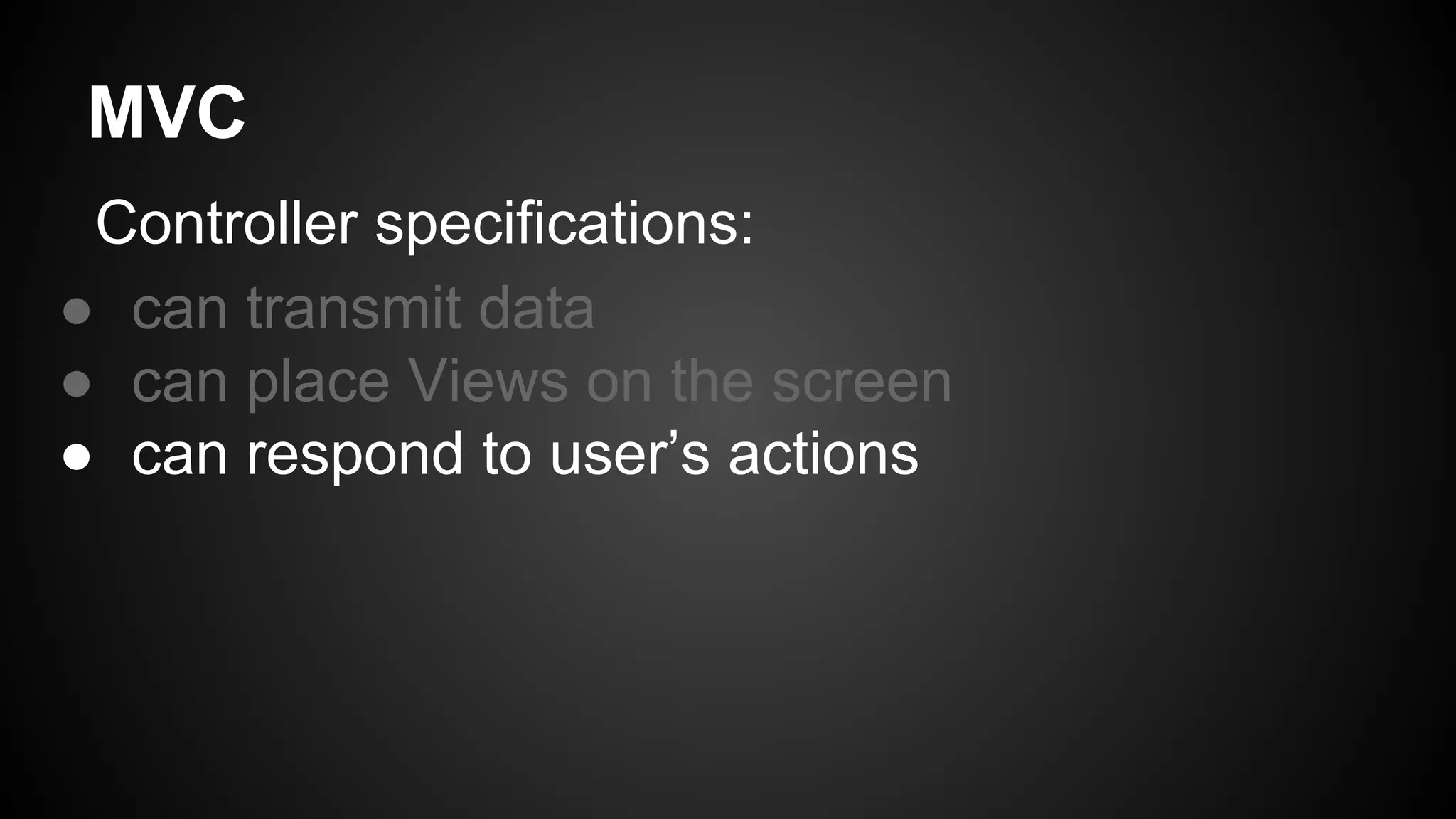

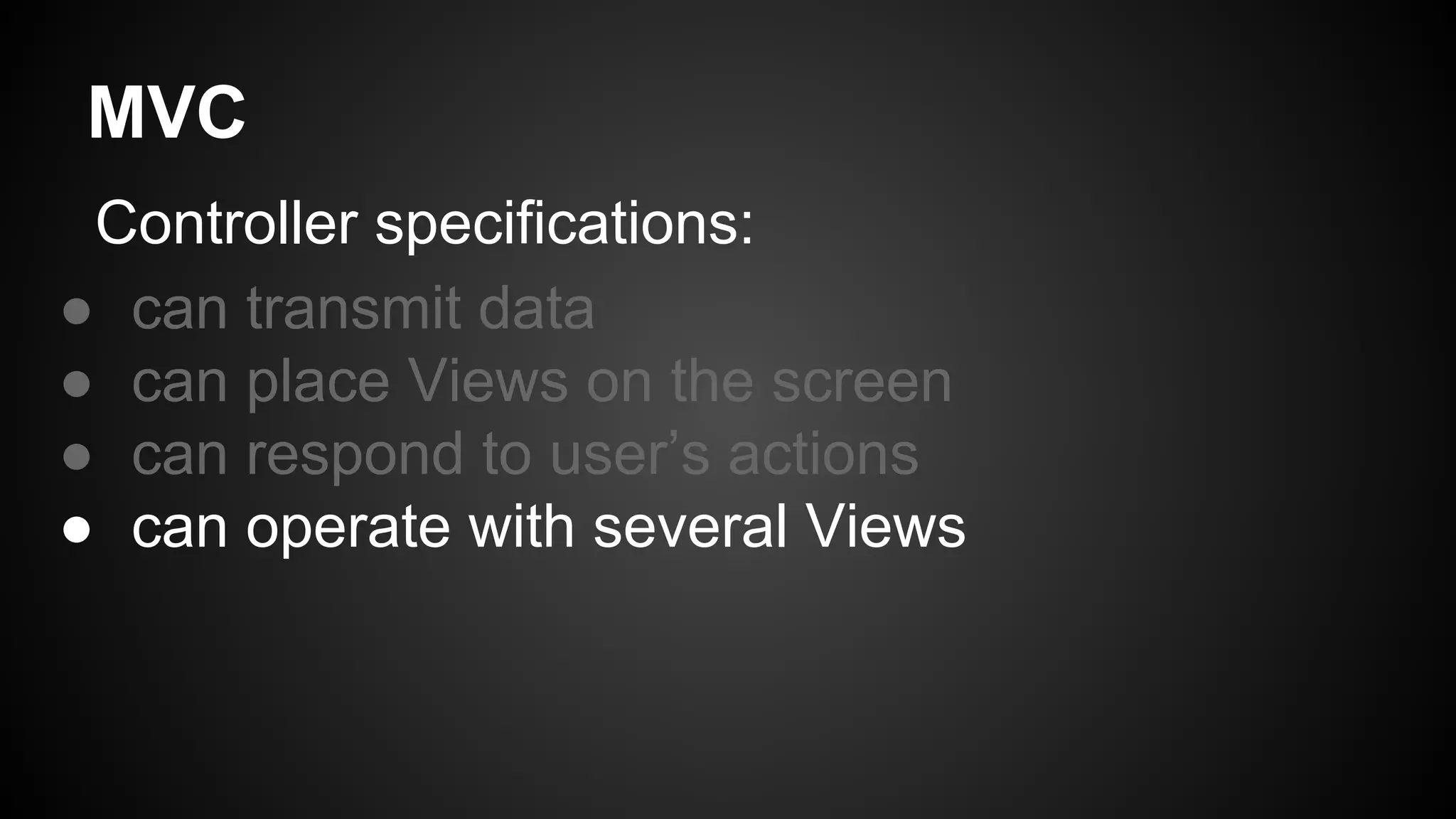

25. MVC
Controller specifications:
● can transmit data
● can place Views on the screen
● can respond to user’s actions

26. MVC
Controller specifications:
● can transmit data
● can place Views on the screen
● can respond to user’s actions
● can operate with several Views

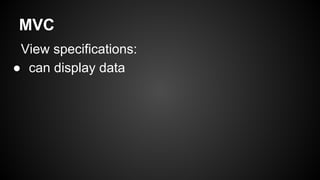

27. MVC
View specifications:
● can display data

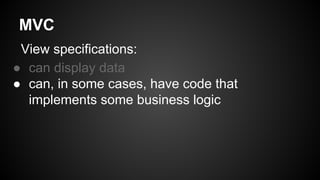

28. MVC
View specifications:
● can display data
● can, in some cases, have code that
implements some business logic

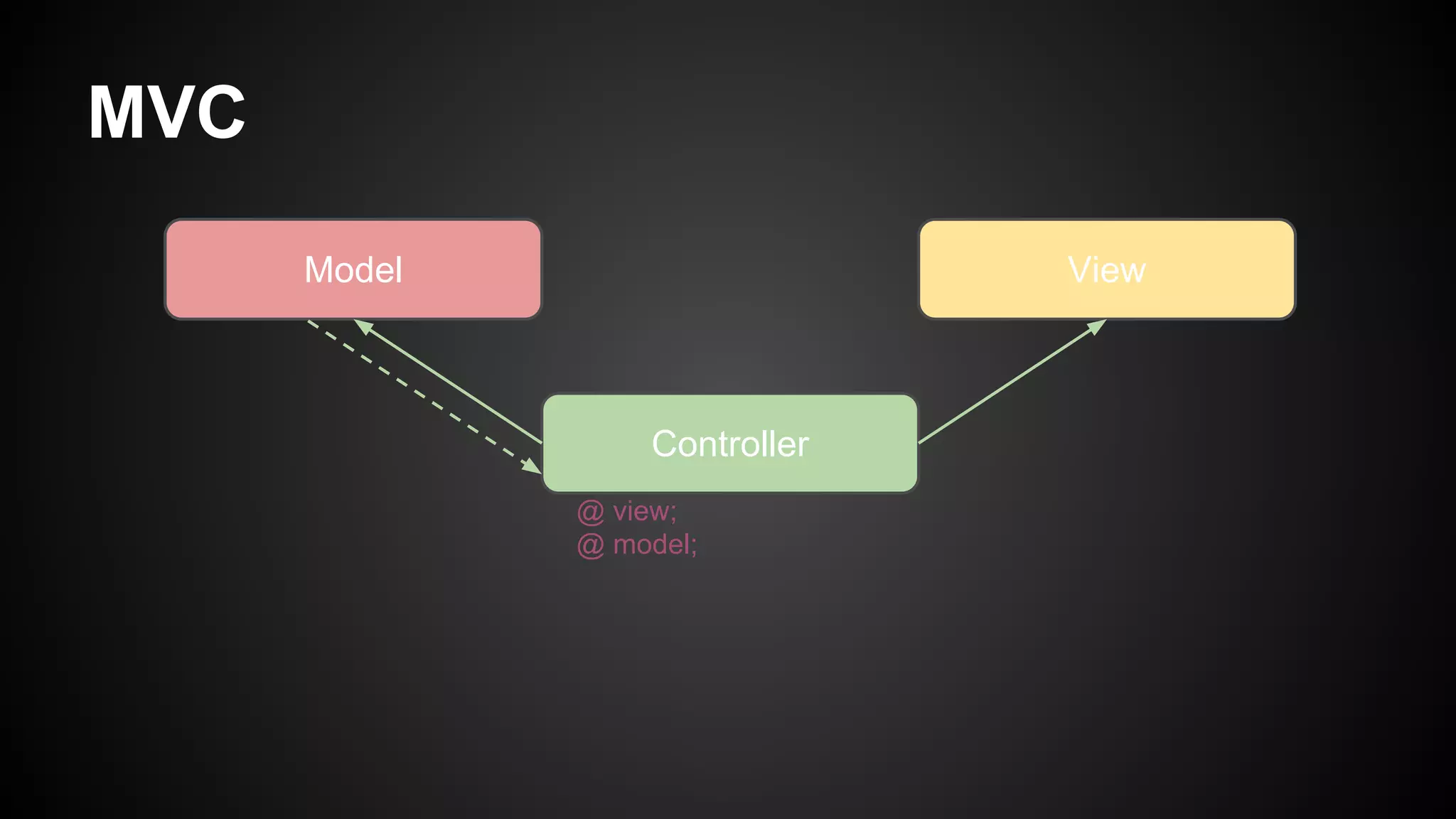

29. MVC
Controller
Model View
@ view;
@ model;

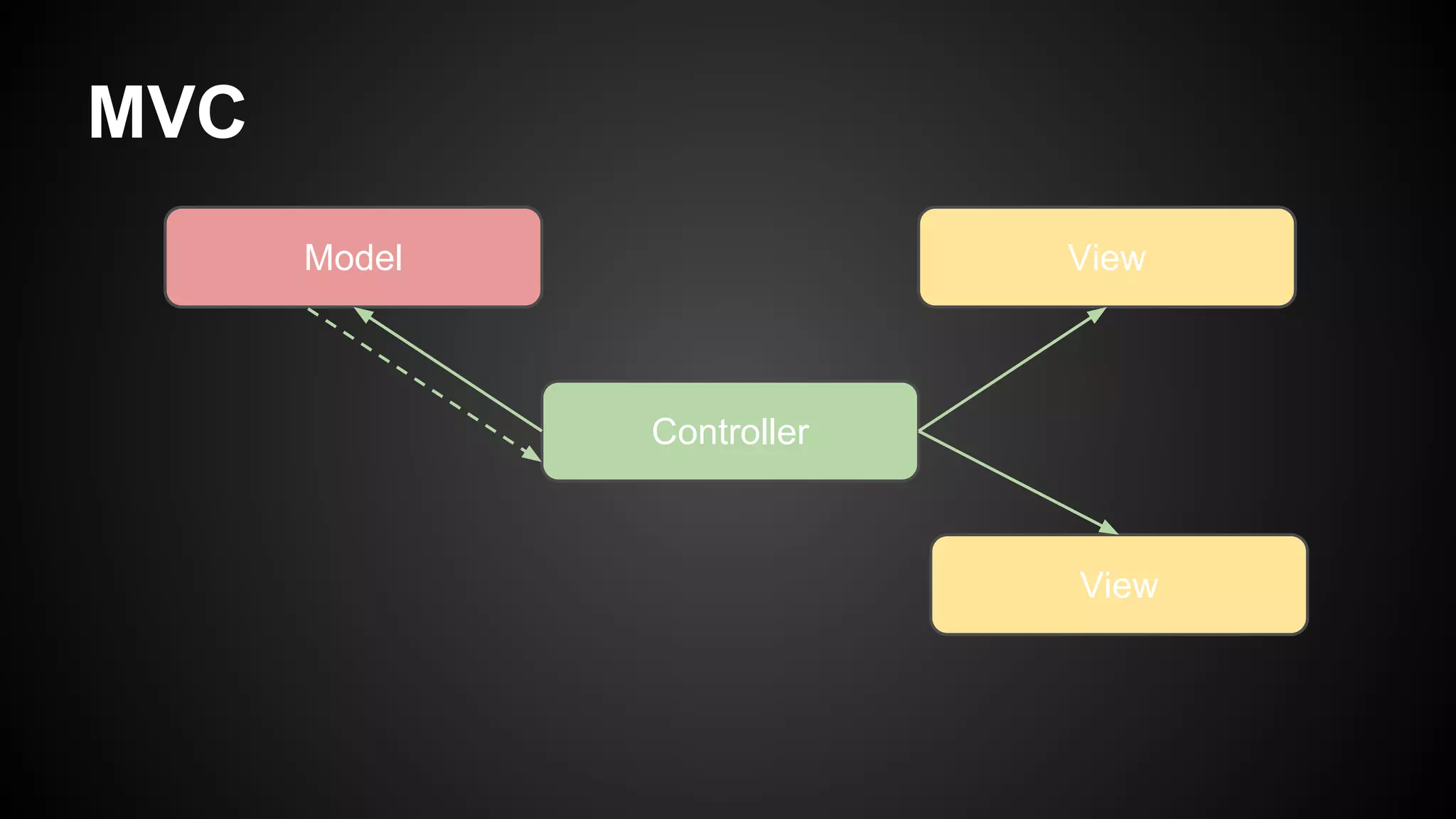

30. MVC
Controller
Model View
View

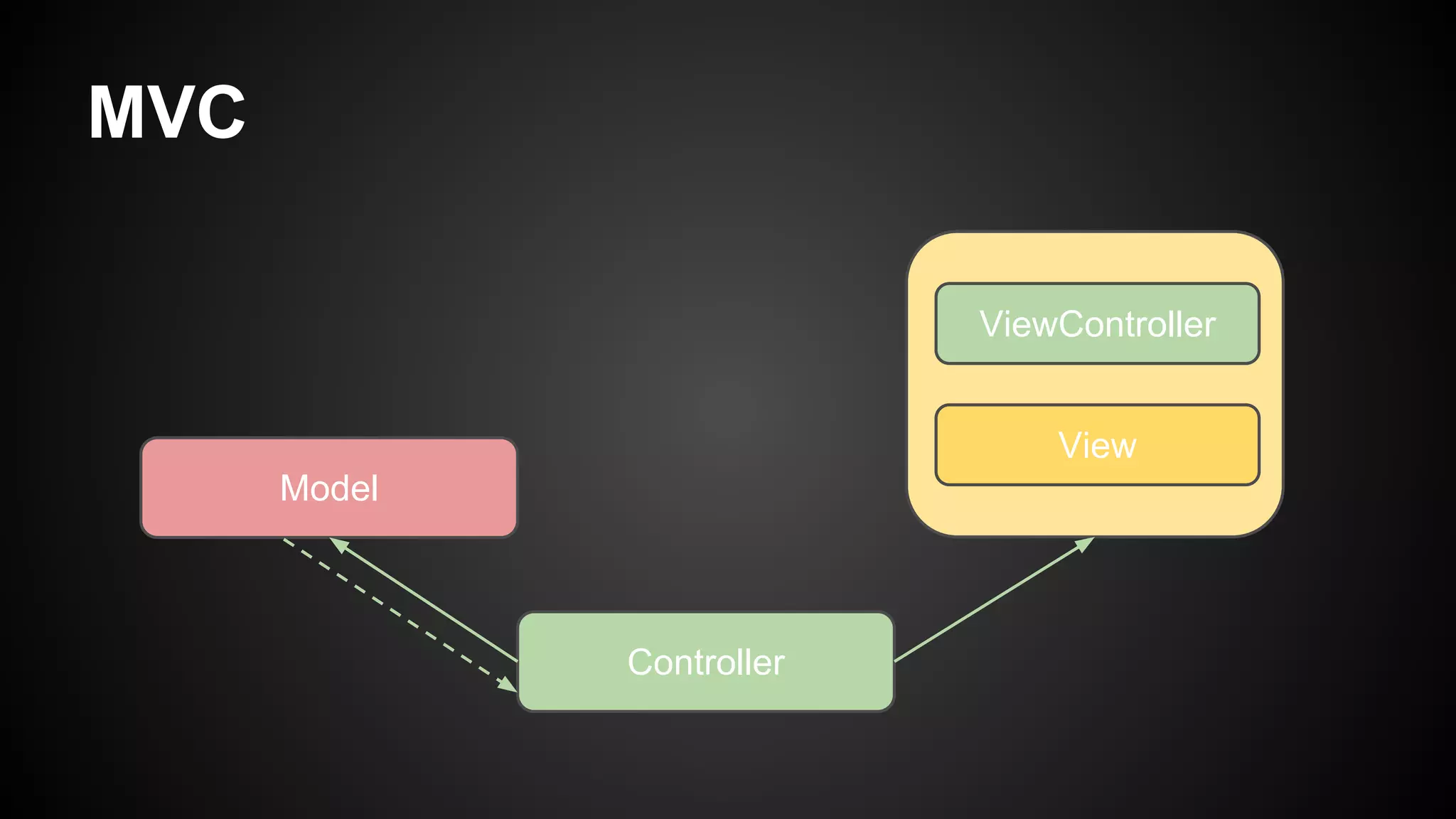

31. MVC
Controller
Model
ViewController
View

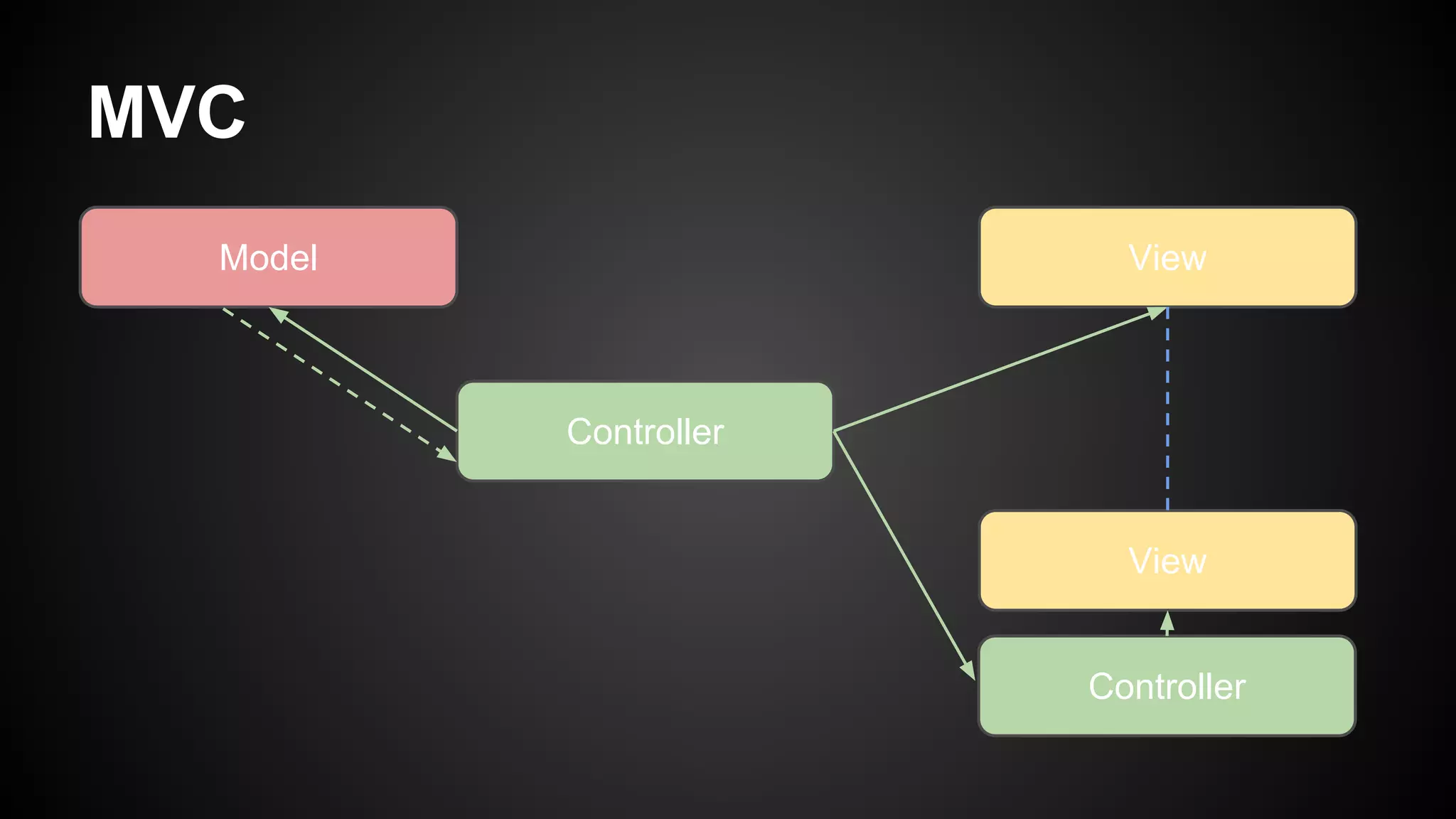

32. MVC
Controller
Model View
View
Controller

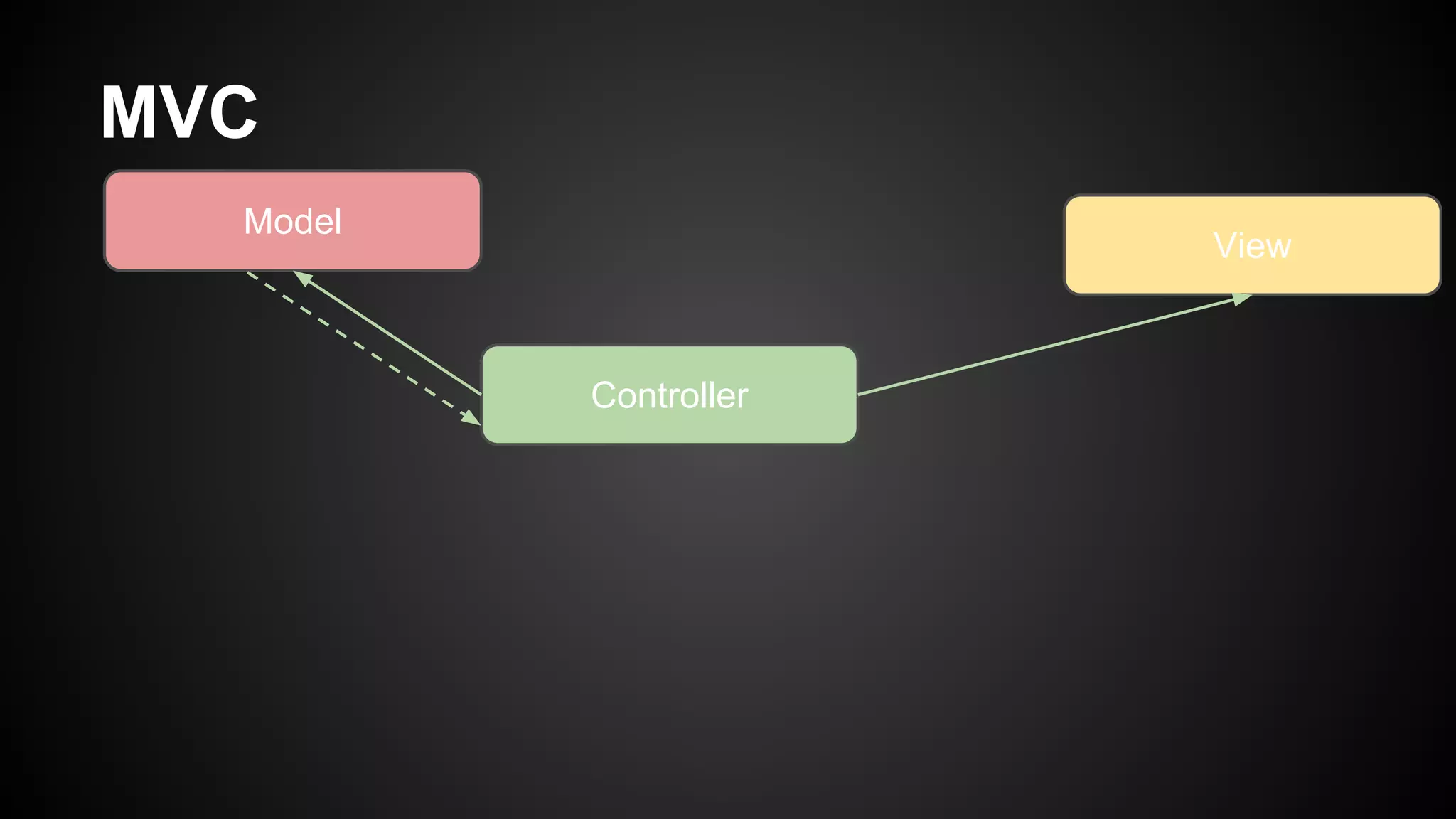

33. MVC
Controller
Model
View

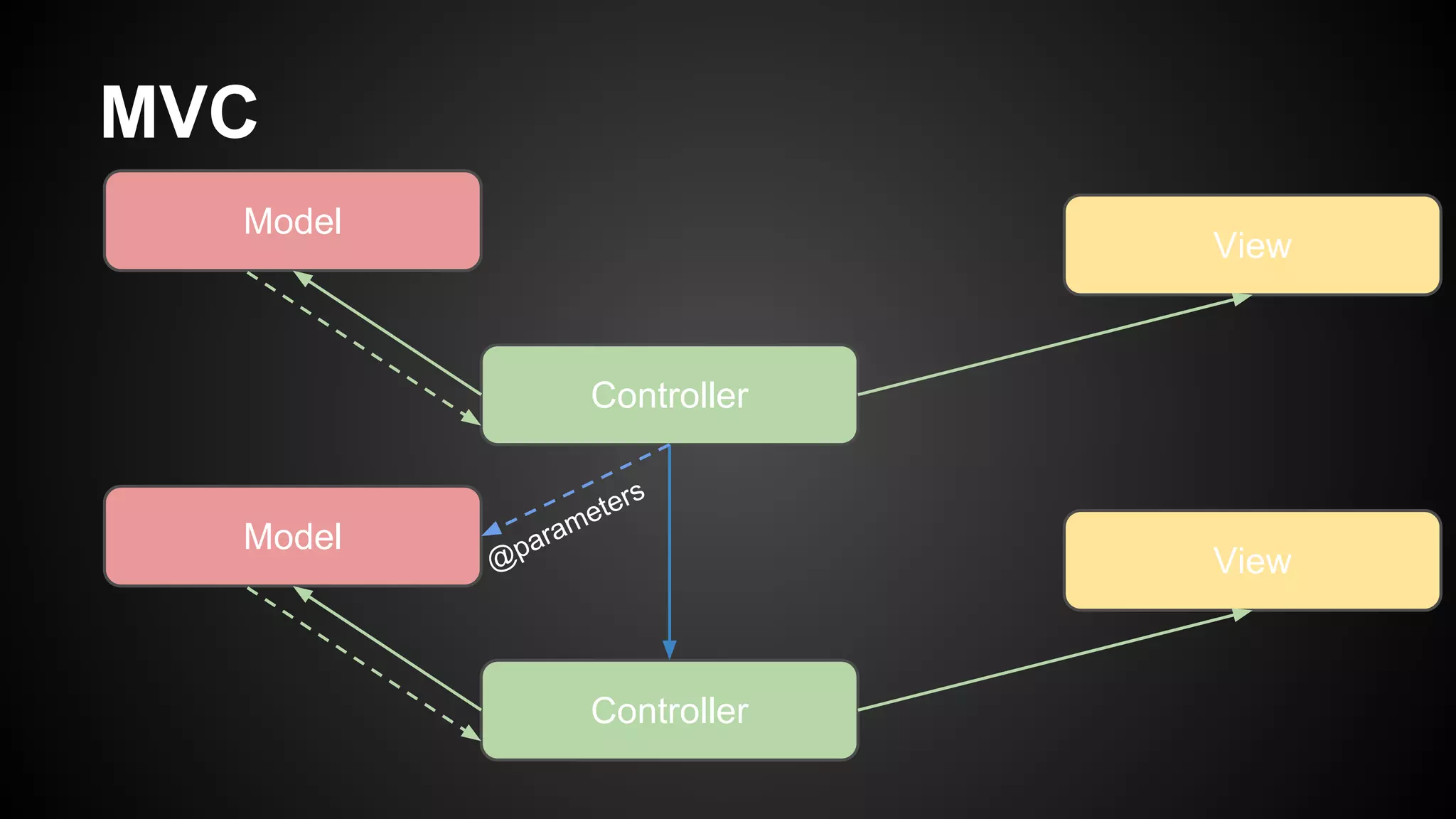

34. MVC
Controller
Model
View
View
Controller
Model
@parameters

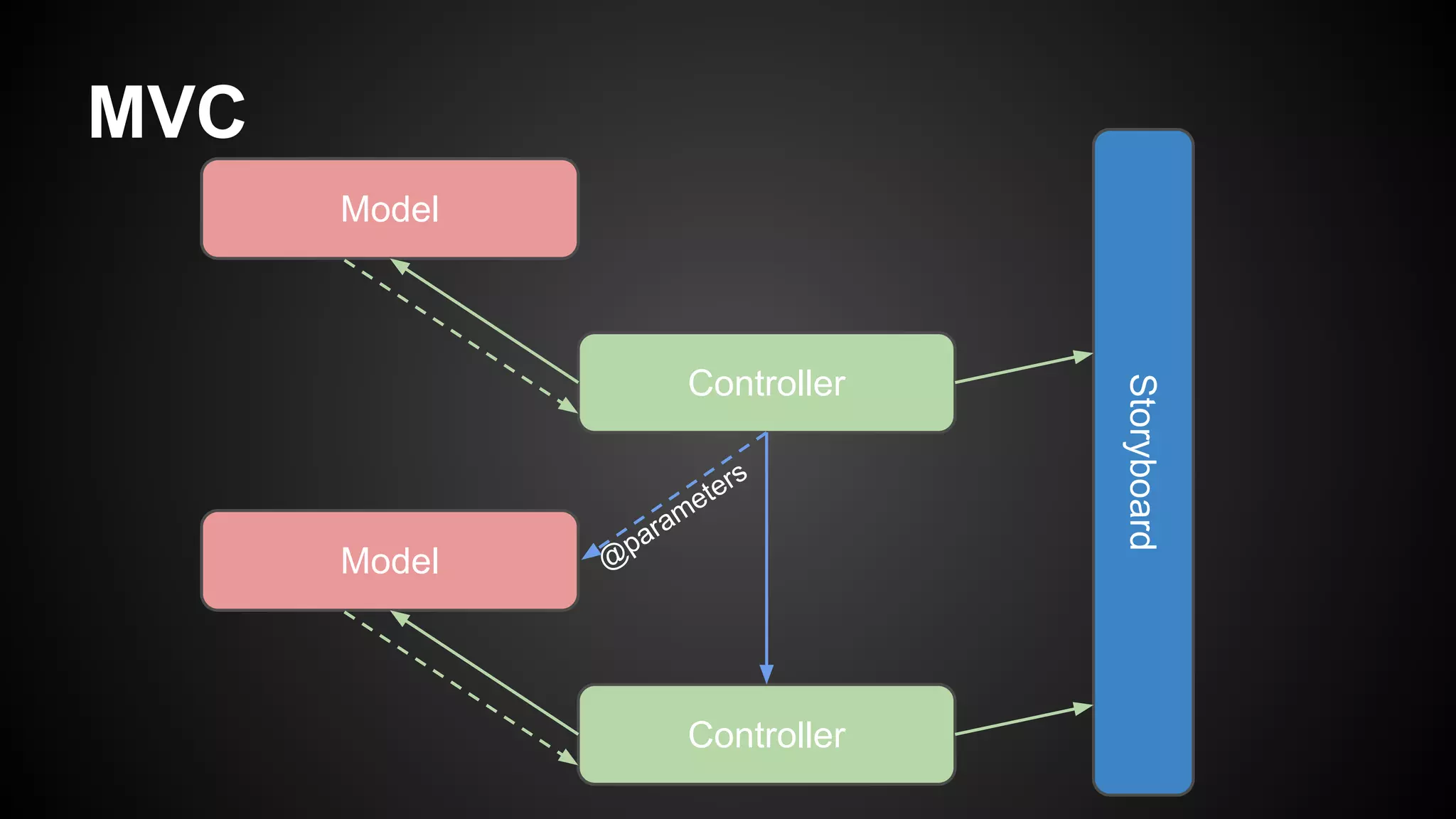

35. MVC
Controller
Model
Storyboard
Controller
Model @
parameters

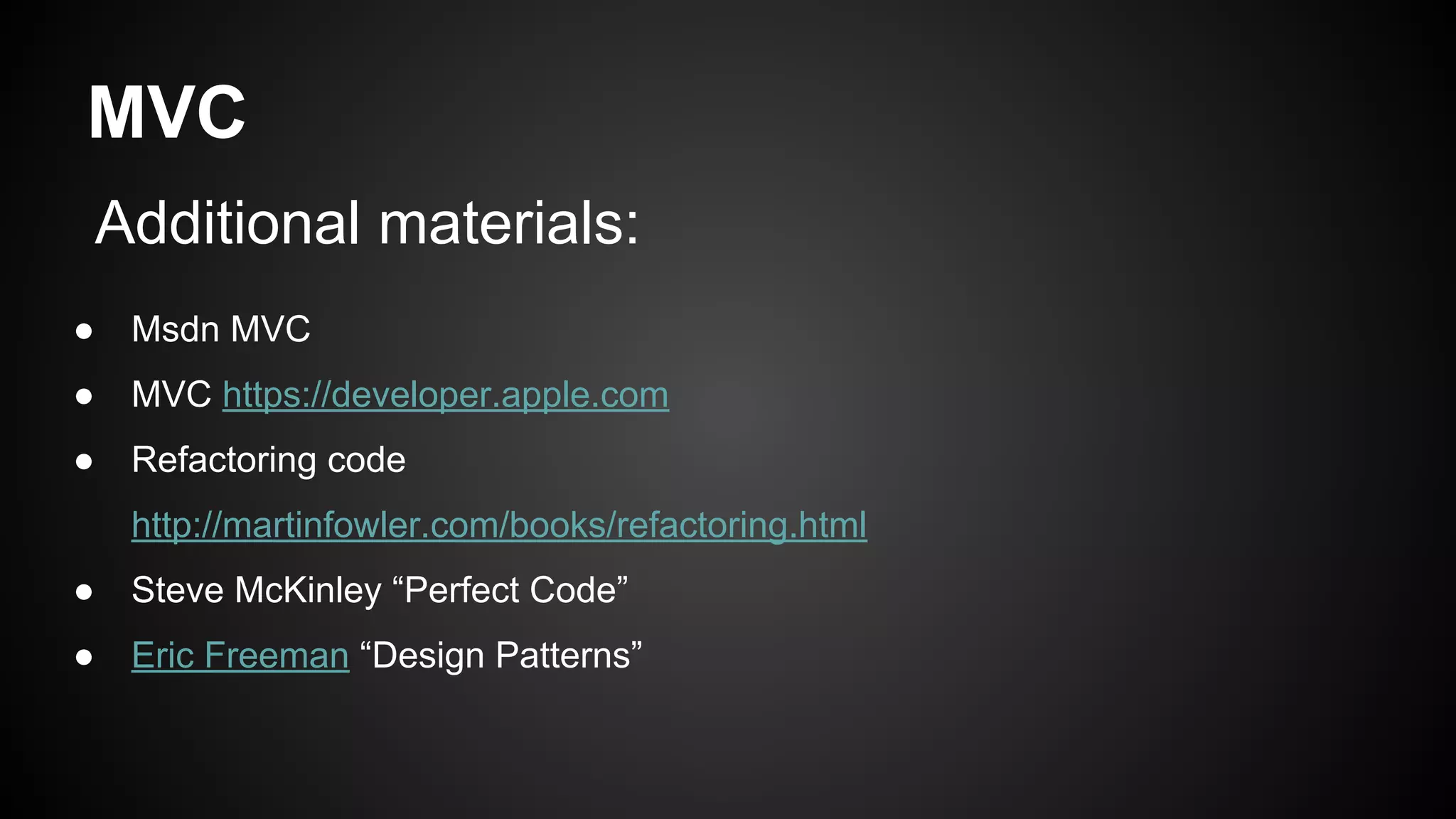

36. MVC
Additional materials:
● Msdn MVC
● MVC https://developer.apple.com
● Refactoring code
http://martinfowler.com/books/refactoring.html
● Steve McKinley “Perfect Code”
● Eric Freeman “Design Patterns”

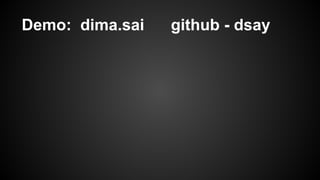

37. Demo: dima.sai github - dsay
