An Chi provides mobile ship loaders and other bulk material handling equipment for cost-effective dry bulk cargo loading. Their mobile ship loaders can load a variety of materials onto vessels up to 50,000 DWT at capacities from 480-1200 tons per hour. The ship loaders are self-propelled and can integrate with feeding conveyors for direct loading from trucks with no special infrastructure required. An Chi focuses on safe, environmentally friendly and competitively priced solutions engineered to international standards.

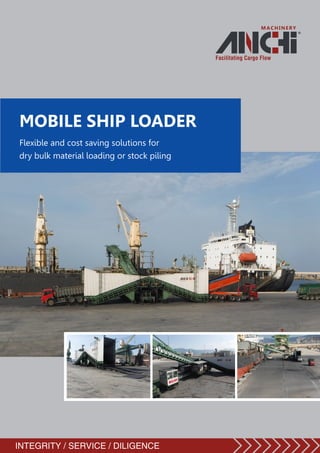

1. MOBILE SHIP LOADER
Flexible and cost saving solutions for
dry bulk material loading or stock piling
INTEGRITY / SERVICE / DILIGENCE

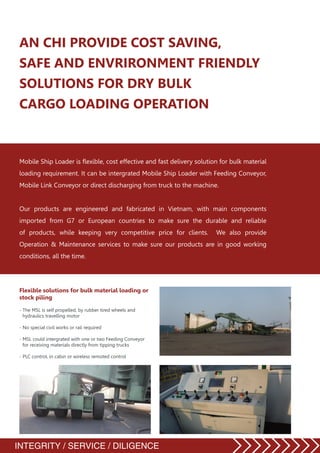

2. AN CHI PROVIDE COST SAVING,
SAFE AND ENVRIRONMENT FRIENDLY
SOLUTIONS FOR DRY BULK
CARGO LOADING OPERATION
Mobile Ship Loader is flexible, cost effective and fast delivery solution for bulk material
loading requirement. It can be intergrated Mobile Ship Loader with Feeding Conveyor,
Mobile Link Conveyor or direct discharging from truck to the machine.
Our products are engineered and fabricated in Vietnam, with main components
imported from G7 or European countries to make sure the durable and reliable
of products, while keeping very competitive price for clients. We also provide
Operation & Maintenance services to make sure our products are in good working
conditions, all the time.
Flexible solutions for bulk material loading or
stock piling
- The MSL is self propelled, by rubber tired wheels and
hydraulics travelling motor
- No special civil works or rail required
- MSL could intergrated with one or two Feeding Conveyor
for receiving materials directly from tipping trucks
- PLC control, in cabin or wireless remoted control
INTEGRITY / SERVICE / DILIGENCE

3. Various type of dry bulk materials and vessel size
- MSL could handle with sand, coking coal, iron slag, copper
concentrate, cement, stone, wood chip, coal, clinker, lime stone
- Our machines are tailor made, could work in the Port
(Loading) or Storage (stock piling)
- MSL we design could work with barge or vessel upto 50,000 dwt.
- Capacity from 480 ton/hour to 1200 ton/hour
Cost saving and environment friendly
- Product price and O&M service pack are always competitive
- Dust extraction or water spray systems to be installed in machine.
Model
BL480/5
SL800/15
MSL480/30
MSL800/30
MSL800/50
FC800
5,000 dwt
15,000 dwt
30,000 dwt
30,000
50,000 dwt
N/A
480 ton/hour
800 ton/hour
480 ton/
800 ton/hour
800 ton/hour
800 ton/hour
Barge Loader, 480 ton/hour for barge max size 5,000 dwt,
included one Feeding Conveyor and slewing boom conveyor
Ship Loader, 800 ton/hour, for ship upto 15,000 dwt. Towing by fork-
lift or a truck.
Mobile Ship Loader, 480 ton/hour, intergrated with one Feeding
Station
Mobile Ship Loader, intergrated with 02 Feeding Station, for 30,000
dwt vessel
Mobile Ship Loader, intergrated with 02 Feeding Station, for 50,000
dwt vessel
Feeding Conveyor, capacity 800 tons/hr
Max ship size CapacityNote
We provide various of handling machines for the loading requirement:
INTEGRITY / SERVICE / DILIGENCE

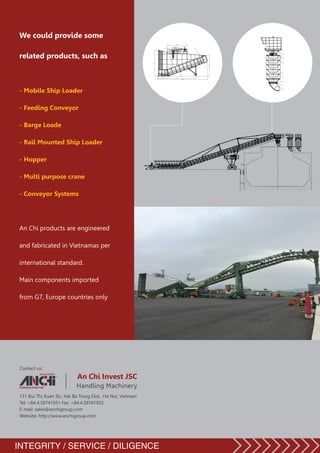

4. Contact us:
An Chi Invest JSC
Handling Machinery
131 Bui Thi Xuan Str., Hai Ba Trung Dist., Ha Noi, Vietnam
Tel: +84.4.39741931 Fax: +84.4.39741932
E-mail: sales@anchigroup.com
Website: http://www.anchigroup.com
We could provide some
related products, such as
- Mobile Ship Loader
- Feeding Conveyor
- Barge Loade
- Rail Mounted Ship Loader
- Hopper
- Multi purpose crane
- Conveyor Systems
An Chi products are engineered
and fabricated in Vietnamas per
international standard.
Main components imported
from G7, Europe countries only
INTEGRITY / SERVICE / DILIGENCE
