Mobile AR Lecture 2 - Technology

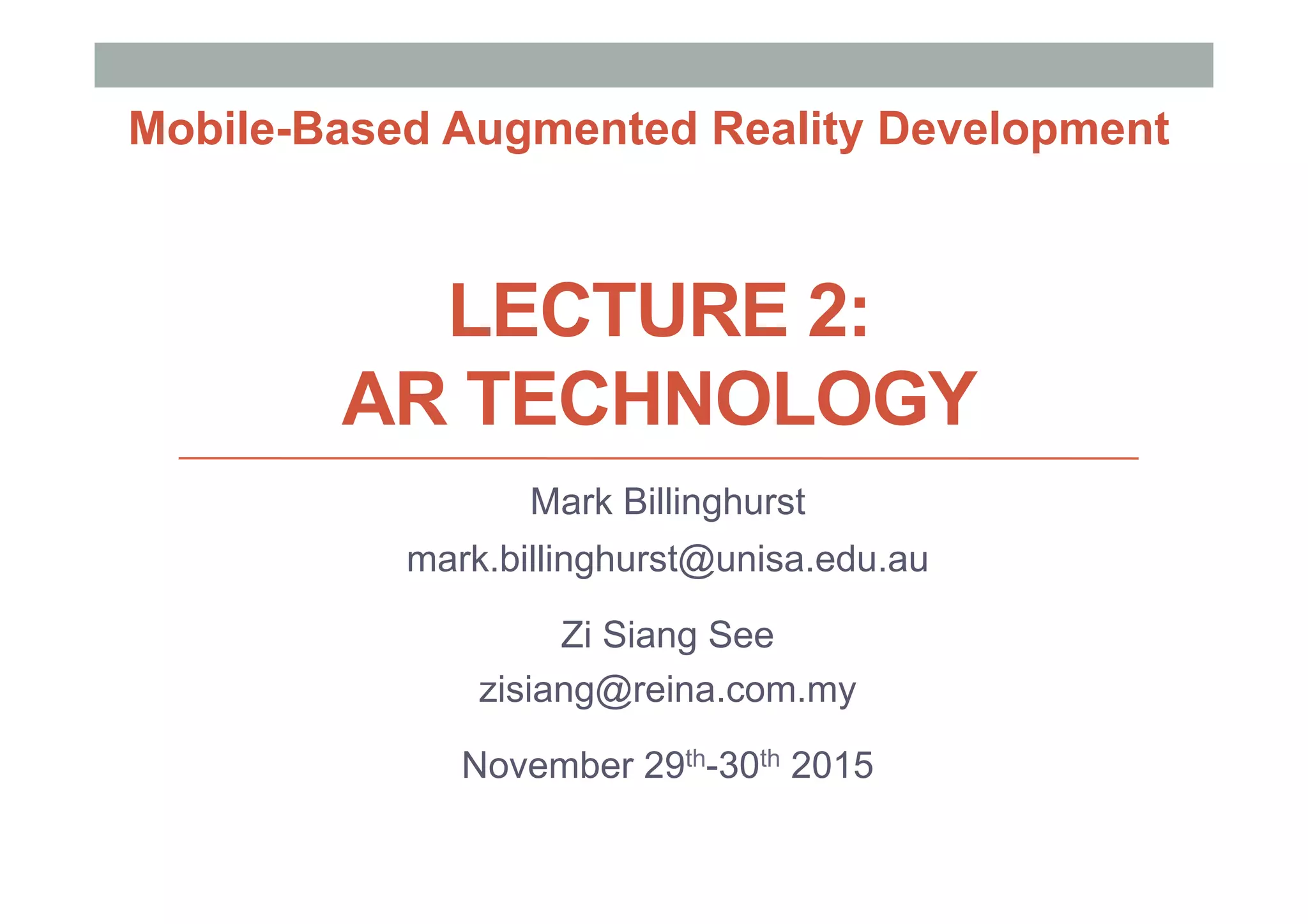

- 1. LECTURE 2: AR TECHNOLOGY Mark Billinghurst mark.billinghurst@unisa.edu.au Zi Siang See zisiang@reina.com.my November 29th-30th 2015 Mobile-Based Augmented Reality Development
- 2. TECHNOLOGY
- 3. Augmented Reality Definition • Defining Characteristics • Combines Real andVirtual Images • Display Technology • Interactive in real-time • Interaction Technology • Registered in 3D • Tracking Technology
- 4. DISPLAY
- 5. Display Technologies ! Types (Bimber/Raskar 2003) ! Head attached • Head mounted display/projector ! Body attached • Handheld display/projector ! Spatial • Spatially aligned projector/monitor
- 7. Types of Head Mounted Displays Occluded See-thru Multiplexed
- 8. Optical see-through HMD Virtual images from monitors Real World Optical Combiners
- 9. Epson Moverio BT-200 ▪ Stereo see-through display ($700) ▪ 960 x 540 pixels, 23 degree FOV, 60Hz, 88g ▪ Android Powered, separate controller ▪ VGA camera, GPS, gyro, accelerometer
- 10. Strengths of optical see-through • Simpler (cheaper) • Direct view of real world • Full resolution, no time delay (for real world) • Safety • Lower distortion • No eye displacement • see directly through display
- 12. Vuzix Wrap 1200DXAR ▪ Stereo video see-through display ($1500) ■ Twin 852 x 480 LCD displays, 35 deg. FOV ■ StereoVGA cameras ■ 3 DOF head tracking
- 13. Strengths of Video See-Through • True occlusion • Block image of real world • Digitized image of real world • Flexibility in composition • Matchable time delays • More registration, calibration strategies • Wide FOV is easier to support • wide FOV camera
- 14. Multiplexed Displays • Above or below line of sight • Strengths • User has unobstructed view of real world • Simple optics/cheap • Weaknesses • Direct information overlay difficult • Display/camera offset from eyeline • Wide FOV difficult
- 15. Google Glass ▪ Monocular see-through multiplexed display ▪ 640 x 360 microprojector, 15 degree FOV ▪ 5 MP camera, gyro, accelerometer
- 16. DisplayTechnology • Curved Mirror • off-axis projection • curved mirrors in front of eye • high distortion, small eye-box • Waveguide • use internal reflection • unobstructed view of world • large eye-box
- 17. See-through thin displays • Waveguide techniques for thin see-through displays • Wider FOV, enable AR applications • Social acceptability Opinvent Ora Lumus DK40
- 18. SpatialAugmented Reality • Project onto irregular surfaces • Geometric Registration • Projector blending, High dynamic range • Book: Bimber “Spatial Augmented Reality”
- 19. Projector-basedAR Examples: Raskar, MIT Media Lab Inami, Tachi Lab, U. Tokyo Projector Real objects with retroreflective covering User (possibly head-tracked)
- 20. HMD vs.HMPD Head Mounted Display Head Mounted Projected Display
- 21. CastAR - http://technicalillusions.com/ • Stereo head worn projectors • Interactive wand • Rollable retro-reflective sheet
- 22. • Designed for shared interaction
- 23. Video MonitorAR Video cameras Monitor Graphics Combiner Video Stereo glasses
- 24. Examples
- 26. TRACKING
- 27. Objects Registered in 3D • Registration • Positioning virtual object wrt real world • Tracking • Continually locating the users viewpoint • Position (x,y,z), Orientation (r,p,y)
- 28. Tracking Technologies " Active • Mechanical, Magnetic, Ultrasonic • GPS, Wifi, cell location " Passive • Inertial sensors (compass, accelerometer, gyro) • Computer Vision • Marker based, Natural feature tracking " Hybrid Tracking • Combined sensors (eg Vision + Inertial)
- 30. Example:Marker tracking • Available for more than 10 years • Several open source solutions exist • ARToolKit, ARTag, ATK+, etc • Fairly simple to implement • Standard computer vision methods • A rectangle provides 4 corner points • Enough for pose estimation!
- 31. Marker Based Tracking: ARToolKit http://artoolkit.sourceforge.net/
- 33. Tracking challenges inARToolKit False positives and inter-marker confusion (image by M. Fiala) Image noise (e.g. poor lens, block coding / compression, neon tube) Unfocused camera, motion blur Dark/unevenly lit scene, vignetting Jittering (Photoshop illustration) Occlusion (image by M. Fiala)
- 34. Markerless Tracking Magnetic Tracker Inertial Tracker Ultrasonic Tracker Optical Tracker Marker-Based Tracking Markerless Tracking Specialized Tracking Edge-Based Tracking Template-Based Tracking Interest Point Tracking • No more Markers! #Markerless Tracking Mechanical Tracker
- 35. Natural Feature Tracking • Use Natural Cues of Real Elements • Edges • Surface Texture • Interest Points • Model or Model-Free • No visual pollution Contours Features Points Surfaces
- 36. TextureTracking
- 37. Edge Based Tracking • RAPiD [Drummond et al. 02] • Initialization, Control Points, Pose Prediction (Global Method)
- 38. Line Based Tracking • Visual Servoing [Comport et al. 2004]
- 39. Model BasedTracking • OpenTL - www.opentl.org • General purpose library for model based visual tracking
- 40. Marker vs.natural feature tracking • Marker tracking • ++ Markers can be an eye-catcher • ++ Tracking is less demanding • -- The environment must be instrumented with markers • -- Markers usually work only when fully in view • Natural feature tracking • -- A database of keypoints must be stored/downloaded • ++ Natural feature targets might catch the attention less • ++ Natural feature targets are potentially everywhere • ++ Natural feature targets work also if partially in view
- 41. Example: Outdoor Hybrid Tracking • Combines • computer vision • natural feature tracking • inertial gyroscope sensors • Both correct for each other • Inertial gyro - provides frame to frame prediction of camera orientation • Computer vision - correct for gyro drift
- 42. Robust OutdoorTracking • Hybrid Tracking • ComputerVision, GPS, inertial • Going Out • Reitmayr & Drummond (Univ. Cambridge) Reitmayr, G., & Drummond, T. W. (2006). Going out: robust model-based tracking for outdoor augmented reality. In Mixed and Augmented Reality, 2006. ISMAR 2006. IEEE/ACM International Symposium on (pp. 109-118). IEEE.
- 43. Handheld Display
- 44. INTERACTION
- 45. • Interface Components • Physical components • Display elements • Visual/audio • Interaction metaphors Physical Elements Display ElementsInteraction MetaphorInput Output AR Interface Elements
- 46. AR Design Space Reality Virtual Reality Augmented Reality Physical Design Virtual Design
- 47. Interface Design Path 1/ Prototype Demonstration 2/ Adoption of Interaction Techniques from other interface metaphors 3/ Development of new interface metaphors appropriate to the medium 4/ Development of formal theoretical models for predicting and modeling user actions Desktop WIMP Virtual Reality Augmented Reality
- 48. Interaction Development • Information Browsing • Camera movement • Limited interaction • 3D AR Interaction • HMD, hand tracking • 3D UI/VR techniques • Specialized input devices
- 49. Tangible User Interfaces (Ishii 97) • Augmented Surfaces • Rekimoto 1998 • Multiple projection surfaces • Tangible prop interaction • i/O Brush (2004) • Ryokai, Marti, Ishii • Sensor enhanced real brush
- 50. Other Examples • Triangles (Gorbert 1998) • Triangular based story telling • ActiveCube (Kitamura 2000-) • Cubes with sensors
- 51. Lessons fromTangible Interfaces • Benefits • Physical objects make us smart (affordances) • Objects aid collaboration • Objects increase understanding (cognitive artifacts) • Limitations • Difficult to change object properties • Limited display capabilities (2D surface) • Separation between object and display
- 52. Orthogonal Nature ofAR Interfaces
- 53. TangibleAR Interaction • AR overcomes limitation of TUIs • enhance display possibilities • merge task/display space • provide public and private views • TUI + AR = Tangible AR • Apply TUI methods to AR interface design
- 54. Tangible AR Design Principles • Tangible AR Interfaces use TUI principles • Physical controllers for moving virtual content • Support for spatial 3D interaction techniques • Support for multi-handed interaction • Match object affordances to task requirements • Support parallel activity with multiple objects • Allow collaboration between multiple users
- 55. VOMAR -TangibleAR Interface • Use of natural physical object to control virtual objects • Physical objects • Catalog book: • Turn over the page • Paddle operation: • Push, shake, incline, hit, scoop Kato, H., Billinghurst, M., Poupyrev, I., Imamoto, K., & Tachibana, K. (2000). Virtual object manipulation on a table-top AR environment. In Augmented Reality, 2000.(ISAR 2000). Proceedings. IEEE and ACM International Symposium on (pp. 111-119). Ieee.
- 56. Interaction Evolution • Browsing Interfaces • simple (conceptually!), unobtrusive • 3D AR Interfaces • expressive, creative, require attention • Tangible Interfaces • Embedded into conventional environments • Tangible AR • Combines TUI input + AR display
- 57. AR APPLICATIONS
- 58. • Web based AR • Flash, HTML 5 based AR • Marketing, education • Outdoor Mobile AR • GPS, compass tracking • Viewing Points of Interest in real world • Eg: Junaio, Layar, Wikitude • Handheld AR • Vision based tracking • Marketing, gaming • Location Based Experiences • HMD, fixed screens • Museums, point of sale, advertising Typical AR Experiences
- 59. CityViewARApplication • Visualize Christchurch before the earthquakes
- 60. User Experience • MultipleViews • MapView,ARView, ListView • Multiple Data Types • 2D images, 3D content, text, panoramas
- 61. Warp Runner • Puzzle solving game • Deform real world terrain
- 62. Demo:colAR • Turn colouring books pages into AR scenes • Markerless tracking, use your own colours.. • Try it yourself: http://www.colARapp.com/
- 63. What Makes a GoodAR Experience? • Compelling • Engaging,‘Magic’ moment • Intuitive, ease of use • Uses existing skills • Anchored in physical world • Seamless combination of real and digital
- 64. Conclusion • AR seamlessly blends real and virtual imagery • Interactive in real time, fixed in space • AR has developed into a mass market technology • Education, engineering, entertainment • The technologies to create AR are available • Display, tracking, interaction
