The Provision Whole Body Imager is an advanced security technology designed to detect concealed threats made from various materials including metal, ceramic, and plastic, effectively and safely. It provides rapid, accurate imaging using millimeter-wave technology, enhancing security at checkpoints, airports, and other high-risk locations while reducing the need for intrusive physical searches. The system is configurable for high throughput, making it suitable for environments such as customs, military bases, and prisons.

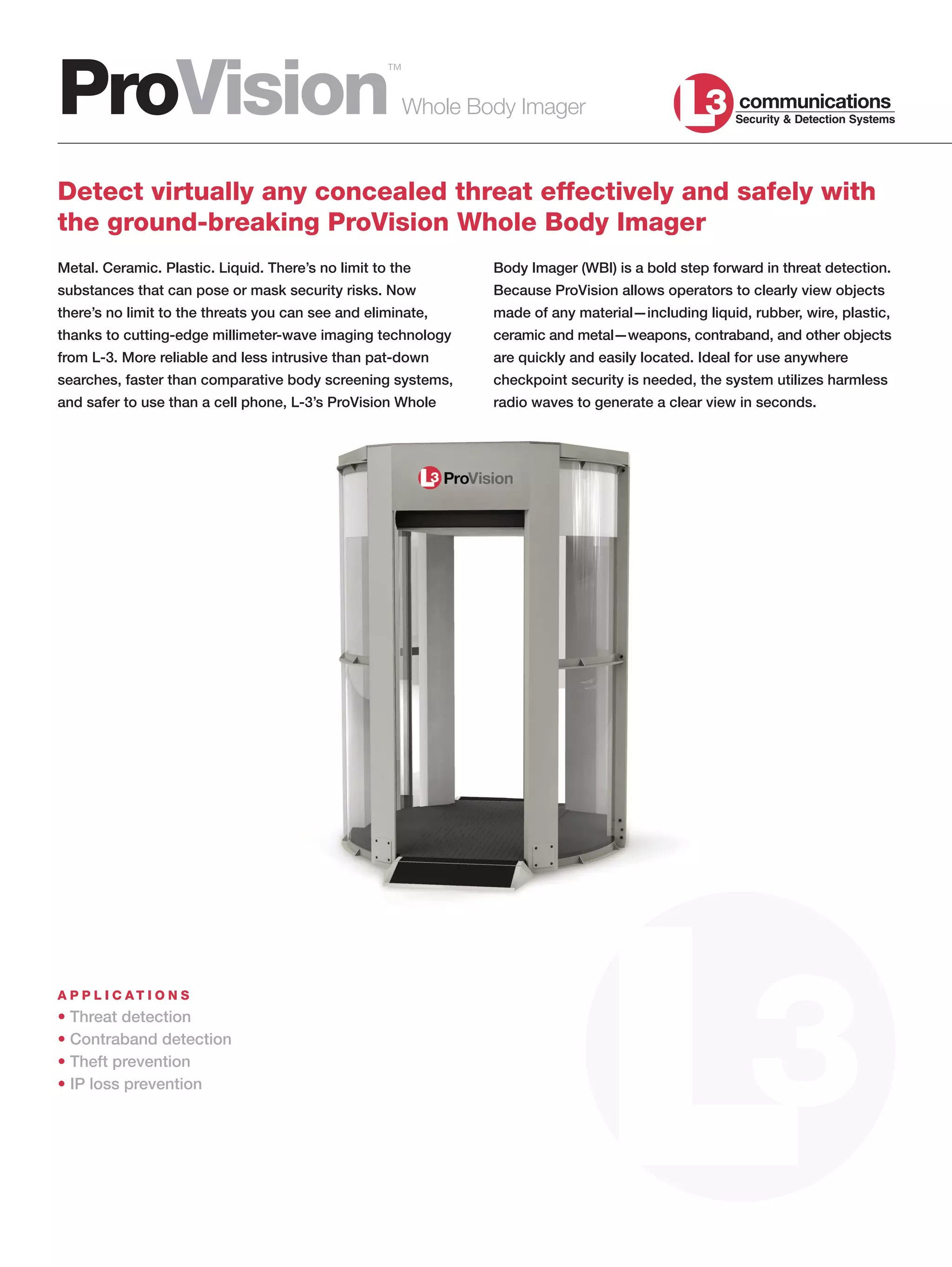

1. ProVision
™
Whole Body Imager
Detect virtually any concealed threat effectively and safely with
the ground-breaking ProVision Whole Body Imager
Metal. Ceramic. Plastic. Liquid. There’s no limit to the Body Imager (WBI) is a bold step forward in threat detection.
substances that can pose or mask security risks. Now Because ProVision allows operators to clearly view objects
there’s no limit to the threats you can see and eliminate, made of any material—including liquid, rubber, wire, plastic,
thanks to cutting-edge millimeter-wave imaging technology ceramic and metal—weapons, contraband, and other objects
from L-3. More reliable and less intrusive than pat-down are quickly and easily located. Ideal for use anywhere
searches, faster than comparative body screening systems, checkpoint security is needed, the system utilizes harmless
and safer to use than a cell phone, L-3’s ProVision Whole radio waves to generate a clear view in seconds.
A P P L I C AT I O N S
• Threat detection
• Contraband detection
• Theft prevention
• IP loss prevention

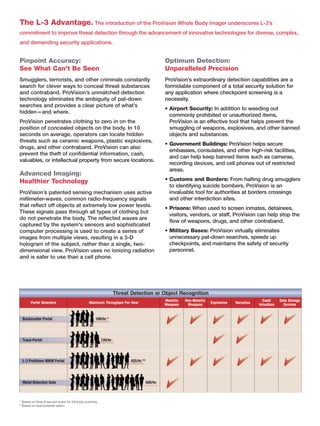

2. The L-3 Advantage. The introduction of the ProVision Whole Body Imager underscores L-3’s
commitment to improve threat detection through the advancement of innovative technologies for diverse, complex,
and demanding security applications.
Pinpoint Accuracy: Optimum Detection:
See What Can’t Be Seen Unparalleled Precision
Smugglers, terrorists, and other criminals constantly ProVision’s extraordinary detection capabilities are a
search for clever ways to conceal threat substances formidable component of a total security solution for
and contraband. ProVision’s unmatched detection any application where checkpoint screening is a
technology eliminates the ambiguity of pat-down necessity.
searches and provides a clear picture of what’s
• Airport Security: In addition to weeding out
hidden—and where.
commonly prohibited or unauthorized items,
ProVision penetrates clothing to zero in on the ProVision is an effective tool that helps prevent the
position of concealed objects on the body. In 10 smuggling of weapons, explosives, and other banned
seconds on average, operators can locate hidden objects and substances.
threats such as ceramic weapons, plastic explosives,
• Government Buildings: ProVision helps secure
drugs, and other contraband. ProVision can also
embassies, consulates, and other high-risk facilities,
prevent the theft of confidential information, cash,
and can help keep banned items such as cameras,
valuables, or intellectual property from secure locations.
recording devices, and cell phones out of restricted
areas.
Advanced Imaging:
Healthier Technology • Customs and Borders: From halting drug smugglers
to identifying suicide bombers, ProVision is an
ProVision’s patented sensing mechanism uses active invaluable tool for authorities at borders crossings
millimeter-waves, common radio-frequency signals and other interdiction sites.
that reflect off objects at extremely low power levels.
• Prisons: When used to screen inmates, detainees,
These signals pass through all types of clothing but
visitors, vendors, or staff, ProVision can help stop the
do not penetrate the body. The reflected waves are
flow of weapons, drugs, and other contraband.
captured by the system's sensors and sophisticated
computer processing is used to create a series of • Military Bases: ProVision virtually eliminates
images from multiple views, resulting in a 3-D unnecessary pat-down searches, speeds up
hologram of the subject, rather than a single, two- checkpoints, and maintains the safety of security
dimensional view. ProVision uses no ionizing radiation personnel.
and is safer to use than a cell phone.
* Based on three 8-second scans for full-body scanning
**Based on dual-screener option

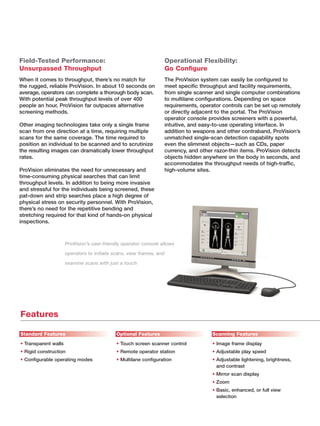

3. Field-Tested Performance: Operational Flexibility:
Unsurpassed Throughput Go Configure
When it comes to throughput, there’s no match for The ProVision system can easily be configured to
the rugged, reliable ProVision. In about 10 seconds on meet specific throughput and facility requirements,
average, operators can complete a thorough body scan. from single scanner and single computer combinations
With potential peak throughput levels of over 400 to multilane configurations. Depending on space
people an hour, ProVision far outpaces alternative requirements, operator controls can be set up remotely
screening methods. or directly adjacent to the portal. The ProVision
operator console provides screeners with a powerful,
Other imaging technologies take only a single frame intuitive, and easy-to-use operating interface. In
scan from one direction at a time, requiring multiple addition to weapons and other contraband, ProVision’s
scans for the same coverage. The time required to unmatched single-scan detection capability spots
position an individual to be scanned and to scrutinize even the slimmest objects—such as CDs, paper
the resulting images can dramatically lower throughput currency, and other razor-thin items. ProVision detects
rates. objects hidden anywhere on the body in seconds, and
accommodates the throughput needs of high-traffic,
ProVision eliminates the need for unnecessary and high-volume sites.
time-consuming physical searches that can limit
throughput levels. In addition to being more invasive
and stressful for the individuals being screened, these
pat-down and strip searches place a high degree of
physical stress on security personnel. With ProVision,
there’s no need for the repetitive bending and
stretching required for that kind of hands-on physical
inspections.
ProVision’s user-friendly operator console allows
operators to initiate scans, view frames, and
examine scans with just a touch
Features
Standard Features Optional Features Scanning Features
• Transparent walls • Touch screen scanner control • Image frame display
• Rigid construction • Remote operator station • Adjustable play speed
• Configurable operating modes • Multilane configuration • Adjustable lightening, brightness,
and contrast
• Mirror scan display
• Zoom
• Basic, enhanced, or full view
selection

4. Physical Specifications Scanner
Color metal structure: Flint Gray Height: 2665.0 mm (104.9")
Inner walls: Clear Lexan 9600™ 3 mm Width: 1947.8 mm (76.7")
Outer walls: Clear Lexan 9600™ 3 mm Depth: 2651.1 mm (104.4")
Weight: 816 kg (1800 lbs)
Safety Power: 100 VAC - 240 VAC / 1900 Watts Peak
• Interior lighting 50 hz - 60 hz
• No ionizing radiation used Temperature: 0° C to 35° C (32° F to 104° F)
Humidity: 5 – 95% non-condensing
Operator Console
Standard Windows®-based PC
