Food Packaging
Migration Models and
Their Reliability in
Safety Validation
Created by:
Ziynet Boz, Ph.D.
Packaging Technology and Research LLC.
Created by:
Migration Overview
 Migration mechanism in food-
packaging systems
 Several affecting factors
 Several packaging technologies,
conditions, food types
 Databases generated with food
simulants for compliance
© INSTITUTE OF FOOD TECHNOLOGISTS | ALL RIGHTS RESERVED2
Migration
Temperature
Concentration
MW
Solubility
Time
Compositions
Partition
Coefficients
Surface/
Volume
Ratio
Contact
type
Mobility
Created by:

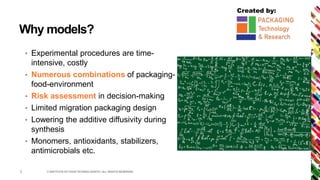

Why models?
• Experimental procedures are time-
intensive, costly
• Numerous combinations of packaging-
food-environment
• Risk assessment in decision-making
• Limited migration packaging design
• Lowering the additive diffusivity during
synthesis
• Monomers, antioxidants, stabilizers,
antimicrobials etc.
© INSTITUTE OF FOOD TECHNOLOGISTS | ALL RIGHTS RESERVED3
Created by:
Regulatory Opinions on Models
 Current state of the models in compliance
• Accepted models for FCMs are oversimplified, deterministic, “worst case”
scenario
• Initial Conditions: uniform distributions, no-migrant in food
• Boundary Conditions: No interface resistance
• No spatial distribution after migration
• Total migration amount is constant (No reaction / generation)
• High solubility of migrant in food (Partition coefficient = 1)
 If result is lower than SML
© INSTITUTE OF FOOD TECHNOLOGISTS | ALL RIGHTS RESERVED4
Created by:

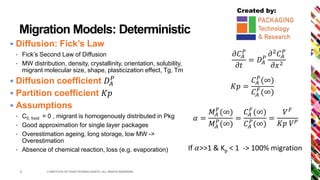

Migration Models: Deterministic
 Diffusion: Fick’s Law
• Fick’s Second Law of Diffusion
• MW distribution, density, crystallinity, orientation, solubility,
migrant molecular size, shape, plasticization effect, Tg, Tm
 Diffusion coefficient 𝐷𝐴
𝑃
 Partition coefficient 𝐾𝑝
 Assumptions
• C0, food = 0 , migrant is homogenously distributed in Pkg
• Good approximation for single layer packages
• Overestimation ageing, long storage, low MW ->
Overestimation
• Absence of chemical reaction, loss (e.g. evaporation)
© INSTITUTE OF FOOD TECHNOLOGISTS | ALL RIGHTS RESERVED5
𝜕𝐶𝐴
𝑃
𝜕𝑡
= 𝐷𝐴
𝑃
𝜕2 𝐶𝐴
𝑃
𝜕𝑥2
𝐾𝑝 =
𝐶𝐴
𝑃
(∞)
𝐶𝐴
𝐹
(∞)
𝛼 =
𝑀𝐴
𝐹
(∞)
𝑀𝐴
𝑃
(∞)
=
𝐶𝐴
𝐹
(∞)
𝐶𝐴
𝑃
(∞)
=
𝑉 𝐹
𝐾𝑝 𝑉 𝑃
If 𝛼>>1 & Kp < 1 -> 100% migration
Created by:

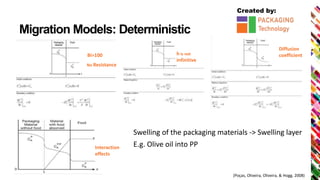

Migration Models: Deterministic
6
Bi>100
No Resistance
h is not
infinitive
Diffusion
coefficient
Interaction
effects
Swelling of the packaging materials -> Swelling layer
E.g. Olive oil into PP
(Poças, Oliveira, Oliveira, & Hogg, 2008)
Created by:
Migration Models: Empirical
 Disregarding underlying mechanism
behind coefficients
• Empirical equations for D: LDPE, HDPE, PP -> f(T, MW)
(Arrhenius-like)
• Partitioning, mass transfer, polymer morphology, shape/polarity
of the migrant are not considered
• Piringer Model to determine D with overestimated diffusion
(50% of the results)
• Underestimate the effect of temperature for high MW migrants
• Limm and Hollifield model for additive diffusion in polyolefins
(Arr. Type)
 Weibull model
© INSTITUTE OF FOOD TECHNOLOGISTS | ALL RIGHTS RESERVED7
Piringer model
Created by:

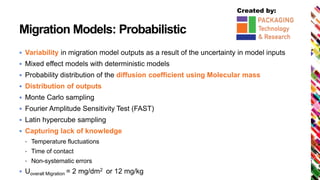

Migration Models: Probabilistic
 Variability in migration model outputs as a result of the uncertainty in model inputs
 Mixed effect models with deterministic models
 Probability distribution of the diffusion coefficient using Molecular mass
 Distribution of outputs
 Monte Carlo sampling
 Fourier Amplitude Sensitivity Test (FAST)
 Latin hypercube sampling
 Capturing lack of knowledge
• Temperature fluctuations
• Time of contact
• Non-systematic errors
 Uoverall Migration = 2 mg/dm2 or 12 mg/kg
Created by:
Migration Models: Plastics
 Majority of the migration studies are
polyolefins
 Low partition coefficients with non-polar
simulants/foods due to Tg
 Lack of data on polymers glassy at their
temperature of use
 PET requires longer testing time
• Recent studies: Virgin layer migration barrier
 Adhesives, urethane polymers, repeated Pkg
use
© INSTITUTE OF FOOD TECHNOLOGISTS | ALL RIGHTS RESERVED9
Hexanal Olive oil migration (Gavriil,
Kanavouras, & Coutelieris, 2018)
Created by:

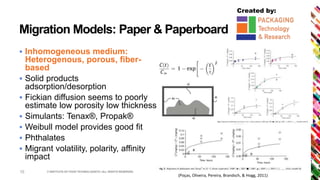

Migration Models: Paper & Paperboard
 Inhomogeneous medium:
Heterogenous, porous, fiber-
based
 Solid products
adsorption/desorption
 Fickian diffusion seems to poorly
estimate low porosity low thickness
 Simulants: Tenax®, Propak®
 Weibull model provides good fit
 Phthalates
 Migrant volatility, polarity, affinity
impact
© INSTITUTE OF FOOD TECHNOLOGISTS | ALL RIGHTS RESERVED10
(Poças, Oliveira, Pereira, Brandsch, & Hogg, 2011)
Created by:
Migration Models: Other materials
 Ceramic and printing inks
 Cadmium and lead migration from
ceramic into acid food simulants was
studied
• Time-temperature influence
• Fickian Diffusion
• 600 h & 130 days
• Ion exchange -> hydrolysis
© INSTITUTE OF FOOD TECHNOLOGISTS | ALL RIGHTS RESERVED11 (Dong, Lu, & Liu, 2015)
Created by:

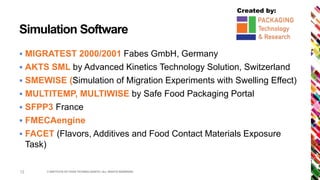

Simulation Software
 MIGRATEST 2000/2001 Fabes GmbH, Germany
 AKTS SML by Advanced Kinetics Technology Solution, Switzerland
 SMEWISE (Simulation of Migration Experiments with Swelling Effect)
 MULTITEMP, MULTIWISE by Safe Food Packaging Portal
 SFPP3 France
 FMECAengine
 FACET (Flavors, Additives and Food Contact Materials Exposure
Task)
© INSTITUTE OF FOOD TECHNOLOGISTS | ALL RIGHTS RESERVED12
Created by:
Decision-making Based on Models
 FDA Model, EU Piringer model -> Overestimation 95%
• E.g. HDPE-food simulant, PET-water, AO-Tenax®, Photoinitiator-paper-Tenax®
 Oversimplification and assumptions: Over- or under-estimated
migration
 Possibility of rejecting potentially safe materials and chemicals
 Trained professionals
 Only for known chemicals IAS
 Target group: Converters and Chemical Industry
 High-throughput models only suitable for multiple migrants
© INSTITUTE OF FOOD TECHNOLOGISTS | ALL RIGHTS RESERVED13
Created by:
Research Gaps
 A more realistic estimation of diffusion coefficients are needed
 Effects of swelling phenomenon
 Environment-package-food systems should be considered
 Data needed beyond regulatory compliance but a food quality perspective
 Actual interactions should be considered E.g. Oxygen effects, Flavor desorption
etc.
 Models of migrants from multilayer materials with numerical methods
 Industrial tools to assess the migration: Practical, Robust
 Non-plastic materials: E.g. paper and paperboard
 Nanomaterial migration assessment
 Emerging modeling methods E.g. Molecular modeling, molecular
thermodynamics, coupled models with human exposure
© INSTITUTE OF FOOD TECHNOLOGISTS | ALL RIGHTS RESERVED14
Created by:

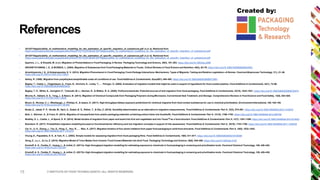

References
 20130719applicability_of_mathematical_modelling_for_the_estimation_of_specific_migration_of_substances.pdf. (n.d.-a). Retrieved from
https://www.plasticseurope.org/application/files/8115/1722/2186/20130719applicability_of_mathematical_modelling_for_the_estimation_of_specific_migration_of_substances.pdf
 20130719applicability_of_mathematical_modelling_for_the_estimation_of_specific_migration_of_substances.pdf. (n.d.-b). Retrieved from
https://www.plasticseurope.org/application/files/8115/1722/2186/20130719applicability_of_mathematical_modelling_for_the_estimation_of_specific_migration_of_substances.pdf
 Aparicio, J. L., & Elizalde, M. (n.d.). Migration of Photoinitiators in Food Packaging: A Review. Packaging Technology and Science, 28(3), 181–203. https://doi.org/10.1002/pts.2099
 ARVANITOYANNIS, I. S., & BOSNEA, L. (2004). Migration of Substances from Food Packaging Materials to Foods. Critical Reviews in Food Science and Nutrition, 44(2), 63–76. https://doi.org/10.1080/10408690490424621
 Arvanitoyannis, I. S., & Kotsanopoulos, K. V. (2014). Migration Phenomenon in Food Packaging. Food–Package Interactions, Mechanisms, Types of Migrants, Testing and Relative Legislation—A Review. Food and Bioprocess Technology, 7(1), 21–36.
https://doi.org/10.1007/s11947-013-1106-8
 Ashby, R. (1988). Migration from polyethylene terephthalate under all conditions of use. Food Additives & Contaminants, 5(sup001), 485–492. https://doi.org/10.1080/02652038809373681
 Begley, T., Castle, L., Feigenbaum, A., Franz, R., Hinrichs, K., Lickly, T., … Piringer, O. (2005). Evaluation of migration models that might be used in support of regulations for food-contact plastics. Food Additives & Contaminants, 22(1), 73–90.
https://doi.org/10.1080/02652030400028035
 Begley, T. H., White, K., Honigfort, P., Twaroski, M. L., Neches, R., & Walker, R. A. (2005). Perfluorochemicals: Potential sources of and migration from food packaging. Food Additives & Contaminants, 22(10), 1023–1031. https://doi.org/10.1080/02652030500183474
 Bhunia, K., Sablani, S. S., Tang, J., & Rasco, B. (2013). Migration of Chemical Compounds from Packaging Polymers during Microwave, Conventional Heat Treatment, and Storage. Comprehensive Reviews in Food Science and Food Safety, 12(5), 523–545.
https://doi.org/10.1111/1541-4337.12028
 Biryol, D., Nicolas, C. I., Wambaugh, J., Phillips, K., & Isaacs, K. (2017). High-throughput dietary exposure predictions for chemical migrants from food contact substances for use in chemical prioritization. Environment International, 108, 185–194.
https://doi.org/10.1016/j.envint.2017.08.004
 Bodai, Z., Jakab, P. P., Novák, M., Nyiri, Z., Szabó, B. S., Rikker, T., & Eke, Z. (2016). Solubility determination as an alternative to migration measurements. Food Additives & Contaminants: Part A, 33(3), 574–581. https://doi.org/10.1080/19440049.2016.1142676
 Bott, J., Störmer, A., & Franz, R. (2014). Migration of nanoparticles from plastic packaging materials containing carbon black into foodstuffs. Food Additives & Contaminants: Part A, 31(10), 1769–1782. https://doi.org/10.1080/19440049.2014.952786
 Bradley, E. L., Castle, L., & Speck, D. R. (2014). Model studies of migration from paper and board into fruit and vegetables and into TenaxTM as a food simulant. Food Additives & Contaminants: Part A, 31(7), 1301–1309. https://doi.org/10.1080/19440049.2014.914633
 Brandsch, R. (2017). Probabilistic migration modelling focused on functional barrier efficiency and low migration concepts in support of risk assessment. Food Additives & Contaminants: Part A, 34(10), 1743–1766. https://doi.org/10.1080/19440049.2017.1339235
 Cai, H., Ji, S., Zhang, J., Tao, G., Peng, C., Hou, R., … Wan, X. (2017). Migration kinetics of four photo-initiators from paper food packaging to solid food simulants. Food Additives & Contaminants: Part A, 34(9), 1632–1642.
https://doi.org/10.1080/19440049.2017.1331470
 Chung, D., Papadakis, S. E., & Yam, K. L. (2002). Simple models for assessing migration from food-packaging films. Food Additives & Contaminants, 19(6), 611–617. https://doi.org/10.1080/02652030210126389
 Dong, Z., Lu, L., & Liu, Z. (2015). Migration Model of Toxic Metals from Ceramic Food Contact Materials into Acid Food. Packaging Technology and Science, 28(6), 545–556. https://doi.org/10.1002/pts.2122
 Ernstoff, A. S., Fantke, P., Huang, L., & Jolliet, O. (2017a). High-throughput migration modelling for estimating exposure to chemicals in food packaging in screening and prioritization tools. Food and Chemical Toxicology, 109, 428–438.
https://doi.org/10.1016/j.fct.2017.09.024
 Ernstoff, A. S., Fantke, P., Huang, L., & Jolliet, O. (2017b). High-throughput migration modelling for estimating exposure to chemicals in food packaging in screening and prioritization tools. Food and Chemical Toxicology, 109, 428–438.
https://doi.org/10.1016/j.fct.2017.09.024
© INSTITUTE OF FOOD TECHNOLOGISTS | ALL RIGHTS RESERVED15
Created by:

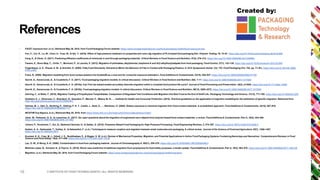

References
 FACET exposure tool. (n.d.). Retrieved May 29, 2019, from Food Packaging Forum website: https://www.foodpackagingforum.org/food-packaging-health/facet-exposure-tool
 Fan, C., Cui, R., Lu, W., Chen, H., Yuan, M., & Qin, Y. (2019). Effect of high pressure treatment on properties and nano–Ag migration of PLA-based food packaging film. Polymer Testing, 76, 73–81. https://doi.org/10.1016/j.polymertesting.2019.03.005
 Fang, X., & Vitrac, O. (2017). Predicting diffusion coefficients of chemicals in and through packaging materials. Critical Reviews in Food Science and Nutrition, 57(2), 275–312. https://doi.org/10.1080/10408398.2013.849654
 Fasano, E., Bono-Blay, F., Cirillo, T., Montuori, P., & Lacorte, S. (2012). Migration of phthalates, alkylphenols, bisphenol A and di(2-ethylhexyl)adipate from food packaging. Food Control, 27(1), 132–138. https://doi.org/10.1016/j.foodcont.2012.03.005
 Feigenbaum, A. E., Riquet, A. M., & Scholler, D. (2000). Fatty Food Simulants: Solvents to Mimic the Behavior of Fats in Contact with Packaging Plastics. In ACS Symposium Series: Vol. 753. Food Packaging (Vol. 753, pp. 71–81). https://doi.org/10.1021/bk-2000-
0753.ch007
 Franz, R. (2005). Migration modelling from food-contact plastics into foodstuffs as a new tool for consumer exposure estimation. Food Additives & Contaminants, 22(10), 920–937. https://doi.org/10.1080/02652030500157700
 Gavriil, G., Kanavouras, A., & Coutelieris, F. A. (2017). Food-packaging migration models: A critical discussion. Critical Reviews in Food Science and Nutrition, 0(0), 1–11. https://doi.org/10.1080/10408398.2017.1317630
 Gavriil, G., Kanavouras, A., & Coutelieris, F. A. (2018a). Can Fick law-based models accurately describe migration within a complete food product life cycle? Journal of Food Processing and Preservation, 42(2), e13520. https://doi.org/10.1111/jfpp.13520
 Gavriil, G., Kanavouras, A., & Coutelieris, F. A. (2018b). Food-packaging migration models: A critical discussion. Critical Reviews in Food Science and Nutrition, 58(13), 2262–2272. https://doi.org/10.1080/10408398.2017.1317630
 Gehring, C., & Welle, F. (2018). Migration Testing of Polyethylene Terephthalate: Comparison of Regulated Test Conditions with Migration into Real Food at the End of Shelf Life. Packaging Technology and Science, 31(12), 771–780. https://doi.org/10.1002/pts.2291
 Hoekstra, E. J., Simoneau, C., Brandsch, R., Dequatre, P., Mercea, P., Milana, M.-R., … Institute for Health and Consumer Protection. (2015). Practical guidelines on the application of migration modelling for the estimation of specific migration. Retrieved from
http://dx.publications.europa.eu/10.2788/04517
 Holmes, M. J., Hart, A., Northing, P., Oldring, P. K. T., Castle, L., Stott, D., … Wardman, O. (2005). Dietary exposure to chemical migrants from food contact materials: A probabilistic approach. Food Additives & Contaminants, 22(10), 907–919.
https://doi.org/10.1080/02652030500307172
 INCDTIM Cluj-Napoca. (n.d.). Retrieved May 29, 2019, from https://www.itim-cj.ro/en/index.php?menu=2&submenu=23gr1
 Jokar, M., Pedersen, G. A., & Loeschner, K. (2017). Six open questions about the migration of engineered nano-objects from polymer-based food-contact materials: a review. Food Additives & Contaminants: Part A, 34(3), 434–450.
https://doi.org/10.1080/19440049.2016.1271462
 Juliano, P., Koutchma, T., Sui, Q., Barbosa-Cánovas, G., & Sadler, G. (2010). Polymeric-Based Food Packaging for High-Pressure Processing. Food Engineering Reviews, 2, 274–297. https://doi.org/10.1007/s12393-010-9026-0
 Kadam, A. A., Karbowiak, T., Voilley, A., & Debeaufort, F. (n.d.). Techniques to measure sorption and migration between small molecules and packaging. A critical review. Journal of the Science of Food and Agriculture, 95(7), 1395–1407.
https://doi.org/10.1002/jsfa.6872
 Kuorwel, K. K., Cran, M. J., Orbell, J. D., Buddhadasa, S., & Bigger, S. W. (n.d.). Review of Mechanical Properties, Migration, and Potential Applications in Active Food Packaging Systems Containing Nanoclays and Nanosilver. Comprehensive Reviews in Food
Science and Food Safety, 14(4), 411–430. https://doi.org/10.1111/1541-4337.12139
 Lau, O.-W., & Wong, S.-K. (2000). Contamination in food from packaging material. Journal of Chromatography A, 882(1), 255–270. https://doi.org/10.1016/S0021-9673(00)00356-3
 Martínez-López, B., Gontard, N., & Peyron, S. (2018). Worst case prediction of additives migration from polystyrene for food safety purposes: a model update. Food Additives & Contaminants: Part A, 35(3), 563–576. https://doi.org/10.1080/19440049.2017.1402129
 Migration. (n.d.). Retrieved May 28, 2019, from Food Packaging Forum website: https://www.foodpackagingforum.org/food-packaging-health/migration
© INSTITUTE OF FOOD TECHNOLOGISTS | ALL RIGHTS RESERVED16
Created by:

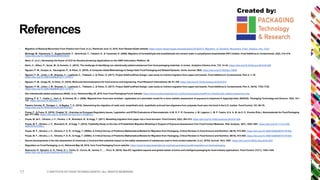

References
 Migration of Residual Monomers From Plastics Into Food. (n.d.). Retrieved June 13, 2018, from ResearchGate website: https://www.researchgate.net/publication/321022473_Migration_of_Residual_Monomers_From_Plastics_Into_Food
 Mutsuga, M., Kawamura, Y., Sugita-Konishi, Y., Hara-Kudo, Y., Takatori, K., & Tanamoto, K. (2006). Migration of formaldehyde and acetaldehyde into mineral water in polyethylene terephthalate (PET) bottles. Food Additives & Contaminants, 23(2), 212–218.
https://doi.org/10.1080/02652030500398361
 Nerín, C. (n.d.). Harnessing the Power of CCS for Routine Screening Applications on the UNIFI Informatics Platform. 36.
 Nerin, C., Alfaro, P., Aznar, M., & Domeño, C. (2013). The challenge of identifying non-intentionally added substances from food packaging materials: A review. Analytica Chimica Acta, 775, 14–24. https://doi.org/10.1016/j.aca.2013.02.028
 Nguyen, P. M., Goujon, A., Sauvegrain, P., & Vitrac, O. (2018). A Computer-Aided Methodology to Design Safe Food Packaging and Related Systems. Aiche Journal, 59(4). https://doi.org/10.1002/aic.14056
 Nguyen, P. M., Julien, J. M., Breysse, C., Lyathaud, C., Thébault, J., & Vitrac, O. (2017). Project SafeFoodPack Design: case study on indirect migration from paper and boards. Food Additives & Contaminants: Part A, 1–18.
https://doi.org/10.1080/19440049.2017.1315777
 Nguyen, P.-M., Guiga, W., & Vitrac, O. (2016). Molecular thermodynamics for food science and engineering. Food Research International, 88, 91–104. https://doi.org/10.1016/j.foodres.2016.03.014
 Nguyen, P.-M., Julien, J. M., Breysse, C., Lyathaud, C., Thébault, J., & Vitrac, O. (2017). Project SafeFoodPack Design: case study on indirect migration from paper and boards. Food Additives & Contaminants: Part A, 34(10), 1703–1720.
https://doi.org/10.1080/19440049.2017.1315777
 Non-intentionally added substances (NIAS). (n.d.). Retrieved May 29, 2019, from Food Packaging Forum website: https://www.foodpackagingforum.org/food-packaging-health/non-intentionally-added-substances-nias
 Oldring, P. K. T., Castle, L., Hart, A., & Holmes, M. J. (2006). Migrants from food cans revisited – application of a stochastic model for a more realistic assessment of exposure to bisphenol A diglycidyl ether (BADGE). Packaging Technology and Science, 19(3), 121–
137. https://doi.org/10.1002/pts.715
 Paseiro-Cerrato, R., DeJager, L., & Begley, T. H. (2019). Determining the migration of nadic acid, terephthalic acid, isophthalic acid and two oligomers from polyester food cans into food in the U.S. market. Food Control, 101, 69–76.
https://doi.org/10.1016/j.foodcont.2019.02.033
 Poças, F., & Franz, R. (2018). Chapter 10 - Overview on European Regulatory Issues, Legislation, and EFSA Evaluations of Nanomaterials. In M. Â. P. R. Cerqueira, J. M. Lagaron, L. M. P. Castro, & A. A. M. de O. S. Vicente (Eds.), Nanomaterials for Food Packaging
(pp. 277–300). https://doi.org/10.1016/B978-0-323-51271-8.00010-3
 Poças, M. de F., Oliveira, J. C., Pereira, J. R., Brandsch, R., & Hogg, T. (2011). Modelling migration from paper into a food simulant. Food Control, 22(2), 303–312. https://doi.org/10.1016/j.foodcont.2010.07.028
 Poças, M. F., Oliveira, J. C., Brandsch, R., & Hogg, T. (2010). Feasibility Study on the Use of Probabilistic Migration Modeling in Support of Exposure Assessment from Food Contact Materials. Risk Analysis, 30(7), 1052–1061. https://doi.org/10.1111/j.1539-
6924.2010.01394.x
 Poças, M. F., Oliveira, J. C., Oliveira, F. A. R., & Hogg, T. (2008a). A Critical Survey of Predictive Mathematical Models for Migration from Packaging. Critical Reviews in Food Science and Nutrition, 48(10), 913–928. https://doi.org/10.1080/10408390701761944
 Poças, M. F., Oliveira, J. C., Oliveira, F. A. R., & Hogg, T. (2008b). A Critical Survey of Predictive Mathematical Models for Migration from Packaging. Critical Reviews in Food Science and Nutrition, 48(10), 913–928. https://doi.org/10.1080/10408390701761944
 Recent developments in the risk assessment of chemicals in food and their potential impact on the safety assessment of substances used in food contact materials. (n.d.). EFSA Journal, 14(1), 4357. https://doi.org/10.2903/j.efsa.2016.4357
 Regulation on Food Packaging. (n.d.). Retrieved May 28, 2019, from Food Packaging Forum website: https://www.foodpackagingforum.org/food-packaging-health/regulation-on-food-packaging
 Restuccia, D., Spizzirri, U. G., Parisi, O. I., Cirillo, G., Curcio, M., Iemma, F., … Picci, N. (2010). New EU regulation aspects and global market of active and intelligent packaging for food industry applications. Food Control, 21(11), 1425–1435.
https://doi.org/10.1016/j.foodcont.2010.04.028
© INSTITUTE OF FOOD TECHNOLOGISTS | ALL RIGHTS RESERVED17
Created by:

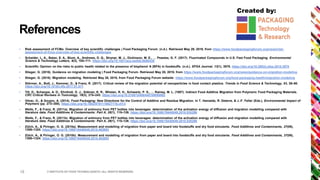

References
 Risk assessment of FCMs: Overview of key scientific challenges | Food Packaging Forum. (n.d.). Retrieved May 29, 2019, from https://www.foodpackagingforum.org/news/risk-
assessment-of-fcms-overview-of-key-scientific-challenges
 Schaider, L. A., Balan, S. A., Blum, A., Andrews, D. Q., Strynar, M. J., Dickinson, M. E., … Peaslee, G. F. (2017). Fluorinated Compounds in U.S. Fast Food Packaging. Environmental
Science & Technology Letters, 4(3), 105–111. https://doi.org/10.1021/acs.estlett.6b00435
 Scientific Opinion on the risks to public health related to the presence of bisphenol A (BPA) in foodstuffs. (n.d.). EFSA Journal, 13(1), 3978. https://doi.org/10.2903/j.efsa.2015.3978
 Stieger, G. (2016). Guidance on migration modeling | Food Packaging Forum. Retrieved May 28, 2019, from https://www.foodpackagingforum.org/news/guidance-on-migration-modeling
 Stieger, G. (2018). Migration modeling. Retrieved May 28, 2019, from Food Packaging Forum website: https://www.foodpackagingforum.org/food-packaging-health/migration-modeling
 Störmer, A., Bott, J., Kemmer, D., & Franz, R. (2017). Critical review of the migration potential of nanoparticles in food contact plastics. Trends in Food Science & Technology, 63, 39–50.
https://doi.org/10.1016/j.tifs.2017.01.011
 Till, D., Schwope, A. D., Ehntholt, D. J., Sidman, K. R., Whelan, R. H., Schwartz, P. S., … Rainey, M. L. (1987). Indirect Food Additive Migration from Polymeric Food Packaging Materials.
CRC Critical Reviews in Toxicology, 18(3), 215–243. https://doi.org/10.3109/10408448709089862
 Vitrac, O., & Goujon, A. (2014). Food Packaging: New Directions for the Control of Additive and Residue Migration. In T. Hamaide, R. Deterre, & J.-F. Feller (Eds.), Environmental Impact of
Polymers (pp. 273–308). https://doi.org/10.1002/9781118827116.ch13
 Welle, F., & Franz, R. (2011a). Migration of antimony from PET bottles into beverages: determination of the activation energy of diffusion and migration modelling compared with
literature data. Food Additives & Contaminants: Part A, 28(1), 115–126. https://doi.org/10.1080/19440049.2010.530296
 Welle, F., & Franz, R. (2011b). Migration of antimony from PET bottles into beverages: determination of the activation energy of diffusion and migration modelling compared with
literature data. Food Additives & Contaminants: Part A, 28(1), 115–126. https://doi.org/10.1080/19440049.2010.530296
 Zülch, A., & Piringer, O. G. (2010a). Measurement and modelling of migration from paper and board into foodstuffs and dry food simulants. Food Additives and Contaminants, 27(09),
1306–1324. https://doi.org/10.1080/19440049.2010.483693
 Zülch, A., & Piringer, O. G. (2010b). Measurement and modelling of migration from paper and board into foodstuffs and dry food simulants. Food Additives and Contaminants, 27(09),
1306–1324. https://doi.org/10.1080/19440049.2010.483693
© INSTITUTE OF FOOD TECHNOLOGISTS | ALL RIGHTS RESERVED18
Created by:
Thank you! Let’s Connect
www.PackagingTechnologyAndResearch.com
Ziynet@PackagingTechnologyAndResearch.com

More Related Content

What's hot

What's hot (20)

Retort pouch
Retort pouchRetort pouch
Retort pouch

Intelligent packaging
Intelligent packagingIntelligent packaging
Intelligent packaging

Modern packaging
Modern packagingModern packaging
Modern packaging

Active packaging
Active packagingActive packaging
Active packaging

Packaging - flavour interaction
Packaging - flavour interactionPackaging - flavour interaction
Packaging - flavour interaction

Packaging migration.pdf
Packaging migration.pdfPackaging migration.pdf
Packaging migration.pdf

Wvtr and otr
Wvtr and otrWvtr and otr
Wvtr and otr

Risk Assessment of Food Packaging Materials_2012
Risk Assessment of Food Packaging Materials_2012Risk Assessment of Food Packaging Materials_2012
Risk Assessment of Food Packaging Materials_2012

Packaging asthetic and graphic design/ labelling
Packaging asthetic and graphic design/ labelling Packaging asthetic and graphic design/ labelling
Packaging asthetic and graphic design/ labelling

Food packaging
Food packagingFood packaging
Food packaging

Intelligent packaging
Intelligent packagingIntelligent packaging
Intelligent packaging

Intelligent packaging
Intelligent packagingIntelligent packaging
Intelligent packaging

Introduction to food packaging sir ppt)
Introduction to food packaging sir ppt)Introduction to food packaging sir ppt)
Introduction to food packaging sir ppt)

Active and Intelligent Packaging in Meat Industry
Active and Intelligent Packaging in Meat IndustryActive and Intelligent Packaging in Meat Industry
Active and Intelligent Packaging in Meat Industry

composite containers
composite containerscomposite containers
composite containers

Biodegradable active packaging
Biodegradable active packagingBiodegradable active packaging
Biodegradable active packaging

Anft 405 food packaging materials ppt
Anft  405 food packaging materials pptAnft  405 food packaging materials ppt
Anft 405 food packaging materials ppt

Active and intelligent packaging
Active and intelligent packagingActive and intelligent packaging
Active and intelligent packaging

Active packaging
Active packagingActive packaging
Active packaging

Metal cans for food
Metal cans for foodMetal cans for food
Metal cans for food


Similar to IFT19- Migration models and their reliability in safety validation

ADEX - convencion envases 2012: hak & partners
ADEX - convencion envases 2012: hak & partnersADEX - convencion envases 2012: hak & partners
ADEX - convencion envases 2012: hak & partnersHernani Larrea

Scenario workshop honduras zamorano irbio 24 may 2011 wv r
Scenario workshop honduras zamorano irbio 24 may 2011 wv rScenario workshop honduras zamorano irbio 24 may 2011 wv r
Scenario workshop honduras zamorano irbio 24 may 2011 wv rMildred_Lagos

Scenario workshop honduras zamorano irbio 24 may 2011 wv r
Scenario workshop honduras zamorano irbio 24 may 2011 wv rScenario workshop honduras zamorano irbio 24 may 2011 wv r
Scenario workshop honduras zamorano irbio 24 may 2011 wv rMildred_Lagos

Bio nanocomposites for food packaging applications
Bio nanocomposites for food packaging applicationsBio nanocomposites for food packaging applications
Bio nanocomposites for food packaging applicationsDr. T Ranjeth Kumar Reddy

Selection of synthetic route for API
Selection of synthetic route for API Selection of synthetic route for API
Selection of synthetic route for API veerabhadraro bobbili

Hartung - Lush Prize Conference 2014
Hartung - Lush Prize Conference 2014Hartung - Lush Prize Conference 2014
Hartung - Lush Prize Conference 2014LushPrize

Grandchallengesinchemicalengineering
GrandchallengesinchemicalengineeringGrandchallengesinchemicalengineering
GrandchallengesinchemicalengineeringKiros Hagos

Misleading packaging studies: open letter from LCA experts
Misleading packaging studies: open letter from LCA expertsMisleading packaging studies: open letter from LCA experts
Misleading packaging studies: open letter from LCA expertsDario Cottafava

The Green Analytical Project - SBSE Meeting
The Green Analytical Project - SBSE MeetingThe Green Analytical Project - SBSE Meeting
The Green Analytical Project - SBSE MeetingBastien Raccary

Life cycle assessment of bags final
Life cycle assessment of bags finalLife cycle assessment of bags final
Life cycle assessment of bags finalTejas Metaliya

Application and scope of atom economy green chemistry
Application and scope of atom economy green chemistryApplication and scope of atom economy green chemistry
Application and scope of atom economy green chemistryAhmadUmair14

dipesh-shah-catalent-pharma-solutions-usa.ppt
dipesh-shah-catalent-pharma-solutions-usa.pptdipesh-shah-catalent-pharma-solutions-usa.ppt
dipesh-shah-catalent-pharma-solutions-usa.pptssusereeda48

An ecological assessment of food waste composting using a hybrid life cycle a...
An ecological assessment of food waste composting using a hybrid life cycle a...An ecological assessment of food waste composting using a hybrid life cycle a...
An ecological assessment of food waste composting using a hybrid life cycle a...Ramy Salemdeeb

Chapter 7 ungc environmental principles
Chapter 7  ungc environmental principlesChapter 7  ungc environmental principles
Chapter 7 ungc environmental principlesBHUOnlineDepartment

Environment, Innovation, and Business Strategies
Environment, Innovation, and Business StrategiesEnvironment, Innovation, and Business Strategies
Environment, Innovation, and Business StrategiesIan Miles

Session 2- Bruno Tisserand
Session 2- Bruno TisserandSession 2- Bruno Tisserand
Session 2- Bruno TisserandOECD Environment


Similar to IFT19- Migration models and their reliability in safety validation (20)

ADEX - convencion envases 2012: hak & partners
ADEX - convencion envases 2012: hak & partnersADEX - convencion envases 2012: hak & partners
ADEX - convencion envases 2012: hak & partners

Scenario workshop honduras zamorano irbio 24 may 2011 wv r
Scenario workshop honduras zamorano irbio 24 may 2011 wv rScenario workshop honduras zamorano irbio 24 may 2011 wv r
Scenario workshop honduras zamorano irbio 24 may 2011 wv r

Scenario workshop honduras zamorano irbio 24 may 2011 wv r
Scenario workshop honduras zamorano irbio 24 may 2011 wv rScenario workshop honduras zamorano irbio 24 may 2011 wv r
Scenario workshop honduras zamorano irbio 24 may 2011 wv r

Bio nanocomposites for food packaging applications
Bio nanocomposites for food packaging applicationsBio nanocomposites for food packaging applications
Bio nanocomposites for food packaging applications

Selection of synthetic route for API
Selection of synthetic route for API Selection of synthetic route for API
Selection of synthetic route for API

Hartung - Lush Prize Conference 2014
Hartung - Lush Prize Conference 2014Hartung - Lush Prize Conference 2014
Hartung - Lush Prize Conference 2014

Published Paper
Published PaperPublished Paper
Published Paper

Grandchallengesinchemicalengineering
GrandchallengesinchemicalengineeringGrandchallengesinchemicalengineering
Grandchallengesinchemicalengineering

Misleading packaging studies: open letter from LCA experts
Misleading packaging studies: open letter from LCA expertsMisleading packaging studies: open letter from LCA experts
Misleading packaging studies: open letter from LCA experts

HCF 2019 Panel 5: Karel De Schamphelaere
HCF 2019 Panel 5: Karel De SchamphelaereHCF 2019 Panel 5: Karel De Schamphelaere
HCF 2019 Panel 5: Karel De Schamphelaere

Blanqueamiento
BlanqueamientoBlanqueamiento
Blanqueamiento

The Green Analytical Project - SBSE Meeting
The Green Analytical Project - SBSE MeetingThe Green Analytical Project - SBSE Meeting
The Green Analytical Project - SBSE Meeting

Life cycle assessment of bags final
Life cycle assessment of bags finalLife cycle assessment of bags final
Life cycle assessment of bags final

Application and scope of atom economy green chemistry
Application and scope of atom economy green chemistryApplication and scope of atom economy green chemistry
Application and scope of atom economy green chemistry

dipesh-shah-catalent-pharma-solutions-usa.ppt
dipesh-shah-catalent-pharma-solutions-usa.pptdipesh-shah-catalent-pharma-solutions-usa.ppt
dipesh-shah-catalent-pharma-solutions-usa.ppt

An ecological assessment of food waste composting using a hybrid life cycle a...
An ecological assessment of food waste composting using a hybrid life cycle a...An ecological assessment of food waste composting using a hybrid life cycle a...
An ecological assessment of food waste composting using a hybrid life cycle a...

Chapter 7 ungc environmental principles
Chapter 7  ungc environmental principlesChapter 7  ungc environmental principles
Chapter 7 ungc environmental principles

Environment, Innovation, and Business Strategies
Environment, Innovation, and Business StrategiesEnvironment, Innovation, and Business Strategies
Environment, Innovation, and Business Strategies

Session 2- Bruno Tisserand
Session 2- Bruno TisserandSession 2- Bruno Tisserand
Session 2- Bruno Tisserand

Kristian Steensen Nielsen
Kristian Steensen NielsenKristian Steensen Nielsen
Kristian Steensen Nielsen


More from Packaging Technology and Research, LLC

January 2024 A PreliminaryStudy-ChemicalsofConcernUsedinPackagingMaterialsinD...
January 2024 A PreliminaryStudy-ChemicalsofConcernUsedinPackagingMaterialsinD...January 2024 A PreliminaryStudy-ChemicalsofConcernUsedinPackagingMaterialsinD...
January 2024 A PreliminaryStudy-ChemicalsofConcernUsedinPackagingMaterialsinD...Packaging Technology and Research, LLC

December 2023 Tackling PFAS for Safer and More Sustainable Food Packaging by ...
December 2023 Tackling PFAS for Safer and More Sustainable Food Packaging by ...December 2023 Tackling PFAS for Safer and More Sustainable Food Packaging by ...
December 2023 Tackling PFAS for Safer and More Sustainable Food Packaging by ...Packaging Technology and Research, LLC

Intelligent packaging - why and where innovation is happening now and future ...
Intelligent packaging - why and where innovation is happening now and future ...Intelligent packaging - why and where innovation is happening now and future ...
Intelligent packaging - why and where innovation is happening now and future ...Packaging Technology and Research, LLC

November 2023- Better Oxygen and Grease Oil Barriers, Longer Life.pptx
November 2023- Better Oxygen and Grease Oil Barriers,  Longer Life.pptxNovember 2023- Better Oxygen and Grease Oil Barriers,  Longer Life.pptx
November 2023- Better Oxygen and Grease Oil Barriers, Longer Life.pptxPackaging Technology and Research, LLC

September 2023- 5 Bioplastics That Meet Today's Food Packaging Needs.pptx
September 2023- 5 Bioplastics That Meet Today's Food Packaging Needs.pptxSeptember 2023- 5 Bioplastics That Meet Today's Food Packaging Needs.pptx
September 2023- 5 Bioplastics That Meet Today's Food Packaging Needs.pptxPackaging Technology and Research, LLC

Sand C. 2023. Industry solutions to phase out PFAS and other chemicals of con...
Sand C. 2023. Industry solutions to phase out PFAS and other chemicals of con...Sand C. 2023. Industry solutions to phase out PFAS and other chemicals of con...
Sand C. 2023. Industry solutions to phase out PFAS and other chemicals of con...Packaging Technology and Research, LLC

February 2023- Packaging and Sustainability- Achieving More Sustainable Confe...
February 2023- Packaging and Sustainability- Achieving More Sustainable Confe...February 2023- Packaging and Sustainability- Achieving More Sustainable Confe...
February 2023- Packaging and Sustainability- Achieving More Sustainable Confe...Packaging Technology and Research, LLC

Understanding PFAS- Regulations, Sources, Chemistry, and Alternatives- Merieu...
Understanding PFAS- Regulations, Sources, Chemistry, and Alternatives- Merieu...Understanding PFAS- Regulations, Sources, Chemistry, and Alternatives- Merieu...
Understanding PFAS- Regulations, Sources, Chemistry, and Alternatives- Merieu...Packaging Technology and Research, LLC

Top 3 Packaging Solutions to Prevent Food Waste - SAND 2022-revised.pdf
Top 3 Packaging Solutions to Prevent Food Waste - SAND 2022-revised.pdfTop 3 Packaging Solutions to Prevent Food Waste - SAND 2022-revised.pdf
Top 3 Packaging Solutions to Prevent Food Waste - SAND 2022-revised.pdfPackaging Technology and Research, LLC


More from Packaging Technology and Research, LLC (20)

April 2024- How To Achieve EPR-Forward Packaging.pptx
April 2024- How To Achieve EPR-Forward Packaging.pptxApril 2024- How To Achieve EPR-Forward Packaging.pptx
April 2024- How To Achieve EPR-Forward Packaging.pptx

March 2024- 3 Hot Topics in Spring 2024.pptx
March 2024- 3 Hot Topics in Spring 2024.pptxMarch 2024- 3 Hot Topics in Spring 2024.pptx
March 2024- 3 Hot Topics in Spring 2024.pptx

February 2024 Packaging for Better Food Security.pptx
February 2024 Packaging for Better Food Security.pptxFebruary 2024 Packaging for Better Food Security.pptx
February 2024 Packaging for Better Food Security.pptx

January 2024 A PreliminaryStudy-ChemicalsofConcernUsedinPackagingMaterialsinD...
January 2024 A PreliminaryStudy-ChemicalsofConcernUsedinPackagingMaterialsinD...January 2024 A PreliminaryStudy-ChemicalsofConcernUsedinPackagingMaterialsinD...
January 2024 A PreliminaryStudy-ChemicalsofConcernUsedinPackagingMaterialsinD...

December 2023 Tackling PFAS for Safer and More Sustainable Food Packaging by ...
December 2023 Tackling PFAS for Safer and More Sustainable Food Packaging by ...December 2023 Tackling PFAS for Safer and More Sustainable Food Packaging by ...
December 2023 Tackling PFAS for Safer and More Sustainable Food Packaging by ...

January 2024-2024 Food Packaging Predictions.pptx
January 2024-2024 Food Packaging Predictions.pptxJanuary 2024-2024 Food Packaging Predictions.pptx
January 2024-2024 Food Packaging Predictions.pptx

Intelligent packaging - why and where innovation is happening now and future ...
Intelligent packaging - why and where innovation is happening now and future ...Intelligent packaging - why and where innovation is happening now and future ...
Intelligent packaging - why and where innovation is happening now and future ...

October 2023 A Bright Future for Bioderived Plastic.pdf
October 2023 A Bright Future for Bioderived Plastic.pdfOctober 2023 A Bright Future for Bioderived Plastic.pdf
October 2023 A Bright Future for Bioderived Plastic.pdf

November 2023- Better Oxygen and Grease Oil Barriers, Longer Life.pptx
November 2023- Better Oxygen and Grease Oil Barriers,  Longer Life.pptxNovember 2023- Better Oxygen and Grease Oil Barriers,  Longer Life.pptx
November 2023- Better Oxygen and Grease Oil Barriers, Longer Life.pptx

September 2023- 5 Bioplastics That Meet Today's Food Packaging Needs.pptx
September 2023- 5 Bioplastics That Meet Today's Food Packaging Needs.pptxSeptember 2023- 5 Bioplastics That Meet Today's Food Packaging Needs.pptx
September 2023- 5 Bioplastics That Meet Today's Food Packaging Needs.pptx

Sand C. 2023. Industry solutions to phase out PFAS and other chemicals of con...
Sand C. 2023. Industry solutions to phase out PFAS and other chemicals of con...Sand C. 2023. Industry solutions to phase out PFAS and other chemicals of con...
Sand C. 2023. Industry solutions to phase out PFAS and other chemicals of con...

Challenges Related to PFAS in Packaging- Food Safety Summit May 2023
Challenges Related to PFAS in Packaging- Food Safety Summit May 2023Challenges Related to PFAS in Packaging- Food Safety Summit May 2023
Challenges Related to PFAS in Packaging- Food Safety Summit May 2023

Future of Food Packaging | More Sustainable Food Packaging
Future of Food Packaging | More Sustainable Food PackagingFuture of Food Packaging | More Sustainable Food Packaging
Future of Food Packaging | More Sustainable Food Packaging

February 2023- Packaging and Sustainability- Achieving More Sustainable Confe...
February 2023- Packaging and Sustainability- Achieving More Sustainable Confe...February 2023- Packaging and Sustainability- Achieving More Sustainable Confe...
February 2023- Packaging and Sustainability- Achieving More Sustainable Confe...

Understanding PFAS- Regulations, Sources, Chemistry, and Alternatives- Merieu...
Understanding PFAS- Regulations, Sources, Chemistry, and Alternatives- Merieu...Understanding PFAS- Regulations, Sources, Chemistry, and Alternatives- Merieu...
Understanding PFAS- Regulations, Sources, Chemistry, and Alternatives- Merieu...

Top 3 Packaging Solutions to Prevent Food Waste - SAND 2022-revised.pdf
Top 3 Packaging Solutions to Prevent Food Waste - SAND 2022-revised.pdfTop 3 Packaging Solutions to Prevent Food Waste - SAND 2022-revised.pdf
Top 3 Packaging Solutions to Prevent Food Waste - SAND 2022-revised.pdf

Progressive Produce Packaging - IFT.org.pdf
Progressive Produce Packaging - IFT.org.pdfProgressive Produce Packaging - IFT.org.pdf
Progressive Produce Packaging - IFT.org.pdf

December 2022- Maricel Maffini on Chemicals of Concern.pptx
December 2022- Maricel Maffini on Chemicals of Concern.pptxDecember 2022- Maricel Maffini on Chemicals of Concern.pptx
December 2022- Maricel Maffini on Chemicals of Concern.pptx

March 2023- 4 Packaging Lessons from Kiwi's Global Supply Chain.pptx
March 2023- 4 Packaging Lessons from Kiwi's Global Supply Chain.pptxMarch 2023- 4 Packaging Lessons from Kiwi's Global Supply Chain.pptx
March 2023- 4 Packaging Lessons from Kiwi's Global Supply Chain.pptx

5 Food Packaging Insights from Australia (002).pdf
5 Food Packaging Insights from Australia (002).pdf5 Food Packaging Insights from Australia (002).pdf
5 Food Packaging Insights from Australia (002).pdf


Recently uploaded

FUTURISTIC FOOD PRODUCTS OFTEN INVOLVE INNOVATIONS THAT
FUTURISTIC FOOD PRODUCTS OFTEN INVOLVE INNOVATIONS THATFUTURISTIC FOOD PRODUCTS OFTEN INVOLVE INNOVATIONS THAT
FUTURISTIC FOOD PRODUCTS OFTEN INVOLVE INNOVATIONS THATBHIKHUKUMAR KUNWARADIYA

NO1 WorldWide kala jadu Love Marriage Black Magic Punjab Powerful Black Magic...
NO1 WorldWide kala jadu Love Marriage Black Magic Punjab Powerful Black Magic...NO1 WorldWide kala jadu Love Marriage Black Magic Punjab Powerful Black Magic...
NO1 WorldWide kala jadu Love Marriage Black Magic Punjab Powerful Black Magic...Amil Baba Dawood bangali

HACCP Check list for practicing HACCP.pdf
HACCP Check list for practicing HACCP.pdfHACCP Check list for practicing HACCP.pdf
HACCP Check list for practicing HACCP.pdfHananZayed4

Insect Meal as an Alternative Protein Source for poultry
Insect Meal as an Alternative Protein Source for poultryInsect Meal as an Alternative Protein Source for poultry
Insect Meal as an Alternative Protein Source for poultryHarshRahan

日本学位记,筑波大学毕业证书1:1制作
日本学位记,筑波大学毕业证书1:1制作日本学位记,筑波大学毕业证书1:1制作
日本学位记,筑波大学毕业证书1:1制作aecnsnzk

nutrient-management-of-corn.pptxSfklavFV
nutrient-management-of-corn.pptxSfklavFVnutrient-management-of-corn.pptxSfklavFV
nutrient-management-of-corn.pptxSfklavFVFarhanaNoor12

Hydroponic nutrient solution for vegetables
Hydroponic nutrient solution for vegetablesHydroponic nutrient solution for vegetables
Hydroponic nutrient solution for vegetablesZareenRijwanaMOULY

Gum-jellie zds.pdf slide presentation gummies
Gum-jellie zds.pdf slide presentation gummiesGum-jellie zds.pdf slide presentation gummies
Gum-jellie zds.pdf slide presentation gummiesSriSiri11

Prediksi Angka BBFS 10 Digit Betting 10 Perak Magnumtogel
Prediksi Angka BBFS 10 Digit Betting  10 Perak MagnumtogelPrediksi Angka BBFS 10 Digit Betting  10 Perak Magnumtogel
Prediksi Angka BBFS 10 Digit Betting 10 Perak Magnumtogeltok dalang

pathology questions for studying and notes
pathology questions for studying and notespathology questions for studying and notes
pathology questions for studying and notesAnaAbuladze7

Dubai's Food and Discount Deals - A culinary experience
Dubai's Food and Discount Deals - A culinary experienceDubai's Food and Discount Deals - A culinary experience
Dubai's Food and Discount Deals - A culinary experiencecouponzguruuae

Future Ready Agriculture- 01-10-2023.pdf
Future Ready Agriculture- 01-10-2023.pdfFuture Ready Agriculture- 01-10-2023.pdf
Future Ready Agriculture- 01-10-2023.pdfSKUASTKashmir

what is the importance of work immersion
what is the importance of work immersionwhat is the importance of work immersion
what is the importance of work immersionIssaMuana

Food vocabulary, countable and uncountable nouns; quantifiers.pptx
Food vocabulary, countable and uncountable nouns; quantifiers.pptxFood vocabulary, countable and uncountable nouns; quantifiers.pptx
Food vocabulary, countable and uncountable nouns; quantifiers.pptxAndreaMarcelaMendezS

How Ang Chong Yi Singapore is serving up sustainable future-ready foods?
How Ang Chong Yi Singapore is serving up sustainable future-ready foods?How Ang Chong Yi Singapore is serving up sustainable future-ready foods?
How Ang Chong Yi Singapore is serving up sustainable future-ready foods?Ang Chong Yi Singapore

Custom Wine Cellars by Green Refrigeration LLC.pdf
Custom Wine Cellars by Green Refrigeration LLC.pdfCustom Wine Cellars by Green Refrigeration LLC.pdf
Custom Wine Cellars by Green Refrigeration LLC.pdfGreen Refrigeration LLC

Abu Dhabi Housewife Call Girls +971509530047 Abu Dhabi Call Girls
Abu Dhabi Housewife Call Girls +971509530047 Abu Dhabi Call GirlsAbu Dhabi Housewife Call Girls +971509530047 Abu Dhabi Call Girls
Abu Dhabi Housewife Call Girls +971509530047 Abu Dhabi Call Girlstiril72860

韩国学位证,全北大学毕业证书1:1制作
韩国学位证,全北大学毕业证书1:1制作韩国学位证,全北大学毕业证书1:1制作
韩国学位证,全北大学毕业证书1:1制作7tz4rjpd

Planning your Restaurant's Path to Profitability
Planning your Restaurant's Path to ProfitabilityPlanning your Restaurant's Path to Profitability
Planning your Restaurant's Path to ProfitabilityAggregage

pitch presentation B2.pptx Sunderland Culture
pitch presentation B2.pptx Sunderland Culturepitch presentation B2.pptx Sunderland Culture
pitch presentation B2.pptx Sunderland CultureChloeMeadows1


Recently uploaded (20)

FUTURISTIC FOOD PRODUCTS OFTEN INVOLVE INNOVATIONS THAT
FUTURISTIC FOOD PRODUCTS OFTEN INVOLVE INNOVATIONS THATFUTURISTIC FOOD PRODUCTS OFTEN INVOLVE INNOVATIONS THAT
FUTURISTIC FOOD PRODUCTS OFTEN INVOLVE INNOVATIONS THAT

NO1 WorldWide kala jadu Love Marriage Black Magic Punjab Powerful Black Magic...
NO1 WorldWide kala jadu Love Marriage Black Magic Punjab Powerful Black Magic...NO1 WorldWide kala jadu Love Marriage Black Magic Punjab Powerful Black Magic...
NO1 WorldWide kala jadu Love Marriage Black Magic Punjab Powerful Black Magic...

HACCP Check list for practicing HACCP.pdf
HACCP Check list for practicing HACCP.pdfHACCP Check list for practicing HACCP.pdf
HACCP Check list for practicing HACCP.pdf

Insect Meal as an Alternative Protein Source for poultry
Insect Meal as an Alternative Protein Source for poultryInsect Meal as an Alternative Protein Source for poultry
Insect Meal as an Alternative Protein Source for poultry

日本学位记,筑波大学毕业证书1:1制作
日本学位记,筑波大学毕业证书1:1制作日本学位记,筑波大学毕业证书1:1制作
日本学位记,筑波大学毕业证书1:1制作

nutrient-management-of-corn.pptxSfklavFV
nutrient-management-of-corn.pptxSfklavFVnutrient-management-of-corn.pptxSfklavFV
nutrient-management-of-corn.pptxSfklavFV

Hydroponic nutrient solution for vegetables
Hydroponic nutrient solution for vegetablesHydroponic nutrient solution for vegetables
Hydroponic nutrient solution for vegetables

Gum-jellie zds.pdf slide presentation gummies
Gum-jellie zds.pdf slide presentation gummiesGum-jellie zds.pdf slide presentation gummies
Gum-jellie zds.pdf slide presentation gummies

Prediksi Angka BBFS 10 Digit Betting 10 Perak Magnumtogel
Prediksi Angka BBFS 10 Digit Betting  10 Perak MagnumtogelPrediksi Angka BBFS 10 Digit Betting  10 Perak Magnumtogel
Prediksi Angka BBFS 10 Digit Betting 10 Perak Magnumtogel

pathology questions for studying and notes
pathology questions for studying and notespathology questions for studying and notes
pathology questions for studying and notes

Dubai's Food and Discount Deals - A culinary experience
Dubai's Food and Discount Deals - A culinary experienceDubai's Food and Discount Deals - A culinary experience
Dubai's Food and Discount Deals - A culinary experience

Future Ready Agriculture- 01-10-2023.pdf
Future Ready Agriculture- 01-10-2023.pdfFuture Ready Agriculture- 01-10-2023.pdf
Future Ready Agriculture- 01-10-2023.pdf

what is the importance of work immersion
what is the importance of work immersionwhat is the importance of work immersion
what is the importance of work immersion

Food vocabulary, countable and uncountable nouns; quantifiers.pptx
Food vocabulary, countable and uncountable nouns; quantifiers.pptxFood vocabulary, countable and uncountable nouns; quantifiers.pptx
Food vocabulary, countable and uncountable nouns; quantifiers.pptx

How Ang Chong Yi Singapore is serving up sustainable future-ready foods?
How Ang Chong Yi Singapore is serving up sustainable future-ready foods?How Ang Chong Yi Singapore is serving up sustainable future-ready foods?
How Ang Chong Yi Singapore is serving up sustainable future-ready foods?

Custom Wine Cellars by Green Refrigeration LLC.pdf
Custom Wine Cellars by Green Refrigeration LLC.pdfCustom Wine Cellars by Green Refrigeration LLC.pdf
Custom Wine Cellars by Green Refrigeration LLC.pdf

Abu Dhabi Housewife Call Girls +971509530047 Abu Dhabi Call Girls
Abu Dhabi Housewife Call Girls +971509530047 Abu Dhabi Call GirlsAbu Dhabi Housewife Call Girls +971509530047 Abu Dhabi Call Girls
Abu Dhabi Housewife Call Girls +971509530047 Abu Dhabi Call Girls

韩国学位证,全北大学毕业证书1:1制作
韩国学位证,全北大学毕业证书1:1制作韩国学位证,全北大学毕业证书1:1制作
韩国学位证,全北大学毕业证书1:1制作

Planning your Restaurant's Path to Profitability
Planning your Restaurant's Path to ProfitabilityPlanning your Restaurant's Path to Profitability
Planning your Restaurant's Path to Profitability

pitch presentation B2.pptx Sunderland Culture
pitch presentation B2.pptx Sunderland Culturepitch presentation B2.pptx Sunderland Culture
pitch presentation B2.pptx Sunderland Culture


IFT19- Migration models and their reliability in safety validation

  • 1. Food Packaging Migration Models and Their Reliability in Safety Validation Created by: Ziynet Boz, Ph.D. Packaging Technology and Research LLC.
  • 2. Created by: Migration Overview  Migration mechanism in food- packaging systems  Several affecting factors  Several packaging technologies, conditions, food types  Databases generated with food simulants for compliance © INSTITUTE OF FOOD TECHNOLOGISTS | ALL RIGHTS RESERVED2 Migration Temperature Concentration MW Solubility Time Compositions Partition Coefficients Surface/ Volume Ratio Contact type Mobility
  • 3. Created by: Why models? • Experimental procedures are time- intensive, costly • Numerous combinations of packaging- food-environment • Risk assessment in decision-making • Limited migration packaging design • Lowering the additive diffusivity during synthesis • Monomers, antioxidants, stabilizers, antimicrobials etc. © INSTITUTE OF FOOD TECHNOLOGISTS | ALL RIGHTS RESERVED3
  • 4. Created by: Regulatory Opinions on Models  Current state of the models in compliance • Accepted models for FCMs are oversimplified, deterministic, “worst case” scenario • Initial Conditions: uniform distributions, no-migrant in food • Boundary Conditions: No interface resistance • No spatial distribution after migration • Total migration amount is constant (No reaction / generation) • High solubility of migrant in food (Partition coefficient = 1)  If result is lower than SML © INSTITUTE OF FOOD TECHNOLOGISTS | ALL RIGHTS RESERVED4
  • 5. Created by: Migration Models: Deterministic  Diffusion: Fick’s Law • Fick’s Second Law of Diffusion • MW distribution, density, crystallinity, orientation, solubility, migrant molecular size, shape, plasticization effect, Tg, Tm  Diffusion coefficient 𝐷𝐴 𝑃  Partition coefficient 𝐾𝑝  Assumptions • C0, food = 0 , migrant is homogenously distributed in Pkg • Good approximation for single layer packages • Overestimation ageing, long storage, low MW -> Overestimation • Absence of chemical reaction, loss (e.g. evaporation) © INSTITUTE OF FOOD TECHNOLOGISTS | ALL RIGHTS RESERVED5 𝜕𝐶𝐴 𝑃 𝜕𝑡 = 𝐷𝐴 𝑃 𝜕2 𝐶𝐴 𝑃 𝜕𝑥2 𝐾𝑝 = 𝐶𝐴 𝑃 (∞) 𝐶𝐴 𝐹 (∞) 𝛼 = 𝑀𝐴 𝐹 (∞) 𝑀𝐴 𝑃 (∞) = 𝐶𝐴 𝐹 (∞) 𝐶𝐴 𝑃 (∞) = 𝑉 𝐹 𝐾𝑝 𝑉 𝑃 If 𝛼>>1 & Kp < 1 -> 100% migration
  • 6. Created by: Migration Models: Deterministic 6 Bi>100 No Resistance h is not infinitive Diffusion coefficient Interaction effects Swelling of the packaging materials -> Swelling layer E.g. Olive oil into PP (Poças, Oliveira, Oliveira, & Hogg, 2008)
  • 7. Created by: Migration Models: Empirical  Disregarding underlying mechanism behind coefficients • Empirical equations for D: LDPE, HDPE, PP -> f(T, MW) (Arrhenius-like) • Partitioning, mass transfer, polymer morphology, shape/polarity of the migrant are not considered • Piringer Model to determine D with overestimated diffusion (50% of the results) • Underestimate the effect of temperature for high MW migrants • Limm and Hollifield model for additive diffusion in polyolefins (Arr. Type)  Weibull model © INSTITUTE OF FOOD TECHNOLOGISTS | ALL RIGHTS RESERVED7 Piringer model
  • 8. Created by: Migration Models: Probabilistic  Variability in migration model outputs as a result of the uncertainty in model inputs  Mixed effect models with deterministic models  Probability distribution of the diffusion coefficient using Molecular mass  Distribution of outputs  Monte Carlo sampling  Fourier Amplitude Sensitivity Test (FAST)  Latin hypercube sampling  Capturing lack of knowledge • Temperature fluctuations • Time of contact • Non-systematic errors  Uoverall Migration = 2 mg/dm2 or 12 mg/kg
  • 9. Created by: Migration Models: Plastics  Majority of the migration studies are polyolefins  Low partition coefficients with non-polar simulants/foods due to Tg  Lack of data on polymers glassy at their temperature of use  PET requires longer testing time • Recent studies: Virgin layer migration barrier  Adhesives, urethane polymers, repeated Pkg use © INSTITUTE OF FOOD TECHNOLOGISTS | ALL RIGHTS RESERVED9 Hexanal Olive oil migration (Gavriil, Kanavouras, & Coutelieris, 2018)
  • 10. Created by: Migration Models: Paper & Paperboard  Inhomogeneous medium: Heterogenous, porous, fiber- based  Solid products adsorption/desorption  Fickian diffusion seems to poorly estimate low porosity low thickness  Simulants: Tenax®, Propak®  Weibull model provides good fit  Phthalates  Migrant volatility, polarity, affinity impact © INSTITUTE OF FOOD TECHNOLOGISTS | ALL RIGHTS RESERVED10 (Poças, Oliveira, Pereira, Brandsch, & Hogg, 2011)
  • 11. Created by: Migration Models: Other materials  Ceramic and printing inks  Cadmium and lead migration from ceramic into acid food simulants was studied • Time-temperature influence • Fickian Diffusion • 600 h & 130 days • Ion exchange -> hydrolysis © INSTITUTE OF FOOD TECHNOLOGISTS | ALL RIGHTS RESERVED11 (Dong, Lu, & Liu, 2015)
  • 12. Created by: Simulation Software  MIGRATEST 2000/2001 Fabes GmbH, Germany  AKTS SML by Advanced Kinetics Technology Solution, Switzerland  SMEWISE (Simulation of Migration Experiments with Swelling Effect)  MULTITEMP, MULTIWISE by Safe Food Packaging Portal  SFPP3 France  FMECAengine  FACET (Flavors, Additives and Food Contact Materials Exposure Task) © INSTITUTE OF FOOD TECHNOLOGISTS | ALL RIGHTS RESERVED12
  • 13. Created by: Decision-making Based on Models  FDA Model, EU Piringer model -> Overestimation 95% • E.g. HDPE-food simulant, PET-water, AO-Tenax®, Photoinitiator-paper-Tenax®  Oversimplification and assumptions: Over- or under-estimated migration  Possibility of rejecting potentially safe materials and chemicals  Trained professionals  Only for known chemicals IAS  Target group: Converters and Chemical Industry  High-throughput models only suitable for multiple migrants © INSTITUTE OF FOOD TECHNOLOGISTS | ALL RIGHTS RESERVED13
  • 14. Created by: Research Gaps  A more realistic estimation of diffusion coefficients are needed  Effects of swelling phenomenon  Environment-package-food systems should be considered  Data needed beyond regulatory compliance but a food quality perspective  Actual interactions should be considered E.g. Oxygen effects, Flavor desorption etc.  Models of migrants from multilayer materials with numerical methods  Industrial tools to assess the migration: Practical, Robust  Non-plastic materials: E.g. paper and paperboard  Nanomaterial migration assessment  Emerging modeling methods E.g. Molecular modeling, molecular thermodynamics, coupled models with human exposure © INSTITUTE OF FOOD TECHNOLOGISTS | ALL RIGHTS RESERVED14
  • 15. Created by: References  20130719applicability_of_mathematical_modelling_for_the_estimation_of_specific_migration_of_substances.pdf. (n.d.-a). Retrieved from https://www.plasticseurope.org/application/files/8115/1722/2186/20130719applicability_of_mathematical_modelling_for_the_estimation_of_specific_migration_of_substances.pdf  20130719applicability_of_mathematical_modelling_for_the_estimation_of_specific_migration_of_substances.pdf. (n.d.-b). Retrieved from https://www.plasticseurope.org/application/files/8115/1722/2186/20130719applicability_of_mathematical_modelling_for_the_estimation_of_specific_migration_of_substances.pdf  Aparicio, J. L., & Elizalde, M. (n.d.). Migration of Photoinitiators in Food Packaging: A Review. Packaging Technology and Science, 28(3), 181–203. https://doi.org/10.1002/pts.2099  ARVANITOYANNIS, I. S., & BOSNEA, L. (2004). Migration of Substances from Food Packaging Materials to Foods. Critical Reviews in Food Science and Nutrition, 44(2), 63–76. https://doi.org/10.1080/10408690490424621  Arvanitoyannis, I. S., & Kotsanopoulos, K. V. (2014). Migration Phenomenon in Food Packaging. Food–Package Interactions, Mechanisms, Types of Migrants, Testing and Relative Legislation—A Review. Food and Bioprocess Technology, 7(1), 21–36. https://doi.org/10.1007/s11947-013-1106-8  Ashby, R. (1988). Migration from polyethylene terephthalate under all conditions of use. Food Additives & Contaminants, 5(sup001), 485–492. https://doi.org/10.1080/02652038809373681  Begley, T., Castle, L., Feigenbaum, A., Franz, R., Hinrichs, K., Lickly, T., … Piringer, O. (2005). Evaluation of migration models that might be used in support of regulations for food-contact plastics. Food Additives & Contaminants, 22(1), 73–90. https://doi.org/10.1080/02652030400028035  Begley, T. H., White, K., Honigfort, P., Twaroski, M. L., Neches, R., & Walker, R. A. (2005). Perfluorochemicals: Potential sources of and migration from food packaging. Food Additives & Contaminants, 22(10), 1023–1031. https://doi.org/10.1080/02652030500183474  Bhunia, K., Sablani, S. S., Tang, J., & Rasco, B. (2013). Migration of Chemical Compounds from Packaging Polymers during Microwave, Conventional Heat Treatment, and Storage. Comprehensive Reviews in Food Science and Food Safety, 12(5), 523–545. https://doi.org/10.1111/1541-4337.12028  Biryol, D., Nicolas, C. I., Wambaugh, J., Phillips, K., & Isaacs, K. (2017). High-throughput dietary exposure predictions for chemical migrants from food contact substances for use in chemical prioritization. Environment International, 108, 185–194. https://doi.org/10.1016/j.envint.2017.08.004  Bodai, Z., Jakab, P. P., Novák, M., Nyiri, Z., Szabó, B. S., Rikker, T., & Eke, Z. (2016). Solubility determination as an alternative to migration measurements. Food Additives & Contaminants: Part A, 33(3), 574–581. https://doi.org/10.1080/19440049.2016.1142676  Bott, J., Störmer, A., & Franz, R. (2014). Migration of nanoparticles from plastic packaging materials containing carbon black into foodstuffs. Food Additives & Contaminants: Part A, 31(10), 1769–1782. https://doi.org/10.1080/19440049.2014.952786  Bradley, E. L., Castle, L., & Speck, D. R. (2014). Model studies of migration from paper and board into fruit and vegetables and into TenaxTM as a food simulant. Food Additives & Contaminants: Part A, 31(7), 1301–1309. https://doi.org/10.1080/19440049.2014.914633  Brandsch, R. (2017). Probabilistic migration modelling focused on functional barrier efficiency and low migration concepts in support of risk assessment. Food Additives & Contaminants: Part A, 34(10), 1743–1766. https://doi.org/10.1080/19440049.2017.1339235  Cai, H., Ji, S., Zhang, J., Tao, G., Peng, C., Hou, R., … Wan, X. (2017). Migration kinetics of four photo-initiators from paper food packaging to solid food simulants. Food Additives & Contaminants: Part A, 34(9), 1632–1642. https://doi.org/10.1080/19440049.2017.1331470  Chung, D., Papadakis, S. E., & Yam, K. L. (2002). Simple models for assessing migration from food-packaging films. Food Additives & Contaminants, 19(6), 611–617. https://doi.org/10.1080/02652030210126389  Dong, Z., Lu, L., & Liu, Z. (2015). Migration Model of Toxic Metals from Ceramic Food Contact Materials into Acid Food. Packaging Technology and Science, 28(6), 545–556. https://doi.org/10.1002/pts.2122  Ernstoff, A. S., Fantke, P., Huang, L., & Jolliet, O. (2017a). High-throughput migration modelling for estimating exposure to chemicals in food packaging in screening and prioritization tools. Food and Chemical Toxicology, 109, 428–438. https://doi.org/10.1016/j.fct.2017.09.024  Ernstoff, A. S., Fantke, P., Huang, L., & Jolliet, O. (2017b). High-throughput migration modelling for estimating exposure to chemicals in food packaging in screening and prioritization tools. Food and Chemical Toxicology, 109, 428–438. https://doi.org/10.1016/j.fct.2017.09.024 © INSTITUTE OF FOOD TECHNOLOGISTS | ALL RIGHTS RESERVED15
  • 16. Created by: References  FACET exposure tool. (n.d.). Retrieved May 29, 2019, from Food Packaging Forum website: https://www.foodpackagingforum.org/food-packaging-health/facet-exposure-tool  Fan, C., Cui, R., Lu, W., Chen, H., Yuan, M., & Qin, Y. (2019). Effect of high pressure treatment on properties and nano–Ag migration of PLA-based food packaging film. Polymer Testing, 76, 73–81. https://doi.org/10.1016/j.polymertesting.2019.03.005  Fang, X., & Vitrac, O. (2017). Predicting diffusion coefficients of chemicals in and through packaging materials. Critical Reviews in Food Science and Nutrition, 57(2), 275–312. https://doi.org/10.1080/10408398.2013.849654  Fasano, E., Bono-Blay, F., Cirillo, T., Montuori, P., & Lacorte, S. (2012). Migration of phthalates, alkylphenols, bisphenol A and di(2-ethylhexyl)adipate from food packaging. Food Control, 27(1), 132–138. https://doi.org/10.1016/j.foodcont.2012.03.005  Feigenbaum, A. E., Riquet, A. M., & Scholler, D. (2000). Fatty Food Simulants: Solvents to Mimic the Behavior of Fats in Contact with Packaging Plastics. In ACS Symposium Series: Vol. 753. Food Packaging (Vol. 753, pp. 71–81). https://doi.org/10.1021/bk-2000- 0753.ch007  Franz, R. (2005). Migration modelling from food-contact plastics into foodstuffs as a new tool for consumer exposure estimation. Food Additives & Contaminants, 22(10), 920–937. https://doi.org/10.1080/02652030500157700  Gavriil, G., Kanavouras, A., & Coutelieris, F. A. (2017). Food-packaging migration models: A critical discussion. Critical Reviews in Food Science and Nutrition, 0(0), 1–11. https://doi.org/10.1080/10408398.2017.1317630  Gavriil, G., Kanavouras, A., & Coutelieris, F. A. (2018a). Can Fick law-based models accurately describe migration within a complete food product life cycle? Journal of Food Processing and Preservation, 42(2), e13520. https://doi.org/10.1111/jfpp.13520  Gavriil, G., Kanavouras, A., & Coutelieris, F. A. (2018b). Food-packaging migration models: A critical discussion. Critical Reviews in Food Science and Nutrition, 58(13), 2262–2272. https://doi.org/10.1080/10408398.2017.1317630  Gehring, C., & Welle, F. (2018). Migration Testing of Polyethylene Terephthalate: Comparison of Regulated Test Conditions with Migration into Real Food at the End of Shelf Life. Packaging Technology and Science, 31(12), 771–780. https://doi.org/10.1002/pts.2291  Hoekstra, E. J., Simoneau, C., Brandsch, R., Dequatre, P., Mercea, P., Milana, M.-R., … Institute for Health and Consumer Protection. (2015). Practical guidelines on the application of migration modelling for the estimation of specific migration. Retrieved from http://dx.publications.europa.eu/10.2788/04517  Holmes, M. J., Hart, A., Northing, P., Oldring, P. K. T., Castle, L., Stott, D., … Wardman, O. (2005). Dietary exposure to chemical migrants from food contact materials: A probabilistic approach. Food Additives & Contaminants, 22(10), 907–919. https://doi.org/10.1080/02652030500307172  INCDTIM Cluj-Napoca. (n.d.). Retrieved May 29, 2019, from https://www.itim-cj.ro/en/index.php?menu=2&submenu=23gr1  Jokar, M., Pedersen, G. A., & Loeschner, K. (2017). Six open questions about the migration of engineered nano-objects from polymer-based food-contact materials: a review. Food Additives & Contaminants: Part A, 34(3), 434–450. https://doi.org/10.1080/19440049.2016.1271462  Juliano, P., Koutchma, T., Sui, Q., Barbosa-Cánovas, G., & Sadler, G. (2010). Polymeric-Based Food Packaging for High-Pressure Processing. Food Engineering Reviews, 2, 274–297. https://doi.org/10.1007/s12393-010-9026-0  Kadam, A. A., Karbowiak, T., Voilley, A., & Debeaufort, F. (n.d.). Techniques to measure sorption and migration between small molecules and packaging. A critical review. Journal of the Science of Food and Agriculture, 95(7), 1395–1407. https://doi.org/10.1002/jsfa.6872  Kuorwel, K. K., Cran, M. J., Orbell, J. D., Buddhadasa, S., & Bigger, S. W. (n.d.). Review of Mechanical Properties, Migration, and Potential Applications in Active Food Packaging Systems Containing Nanoclays and Nanosilver. Comprehensive Reviews in Food Science and Food Safety, 14(4), 411–430. https://doi.org/10.1111/1541-4337.12139  Lau, O.-W., & Wong, S.-K. (2000). Contamination in food from packaging material. Journal of Chromatography A, 882(1), 255–270. https://doi.org/10.1016/S0021-9673(00)00356-3  Martínez-López, B., Gontard, N., & Peyron, S. (2018). Worst case prediction of additives migration from polystyrene for food safety purposes: a model update. Food Additives & Contaminants: Part A, 35(3), 563–576. https://doi.org/10.1080/19440049.2017.1402129  Migration. (n.d.). Retrieved May 28, 2019, from Food Packaging Forum website: https://www.foodpackagingforum.org/food-packaging-health/migration © INSTITUTE OF FOOD TECHNOLOGISTS | ALL RIGHTS RESERVED16
  • 17. Created by: References  Migration of Residual Monomers From Plastics Into Food. (n.d.). Retrieved June 13, 2018, from ResearchGate website: https://www.researchgate.net/publication/321022473_Migration_of_Residual_Monomers_From_Plastics_Into_Food  Mutsuga, M., Kawamura, Y., Sugita-Konishi, Y., Hara-Kudo, Y., Takatori, K., & Tanamoto, K. (2006). Migration of formaldehyde and acetaldehyde into mineral water in polyethylene terephthalate (PET) bottles. Food Additives & Contaminants, 23(2), 212–218. https://doi.org/10.1080/02652030500398361  Nerín, C. (n.d.). Harnessing the Power of CCS for Routine Screening Applications on the UNIFI Informatics Platform. 36.  Nerin, C., Alfaro, P., Aznar, M., & Domeño, C. (2013). The challenge of identifying non-intentionally added substances from food packaging materials: A review. Analytica Chimica Acta, 775, 14–24. https://doi.org/10.1016/j.aca.2013.02.028  Nguyen, P. M., Goujon, A., Sauvegrain, P., & Vitrac, O. (2018). A Computer-Aided Methodology to Design Safe Food Packaging and Related Systems. Aiche Journal, 59(4). https://doi.org/10.1002/aic.14056  Nguyen, P. M., Julien, J. M., Breysse, C., Lyathaud, C., Thébault, J., & Vitrac, O. (2017). Project SafeFoodPack Design: case study on indirect migration from paper and boards. Food Additives & Contaminants: Part A, 1–18. https://doi.org/10.1080/19440049.2017.1315777  Nguyen, P.-M., Guiga, W., & Vitrac, O. (2016). Molecular thermodynamics for food science and engineering. Food Research International, 88, 91–104. https://doi.org/10.1016/j.foodres.2016.03.014  Nguyen, P.-M., Julien, J. M., Breysse, C., Lyathaud, C., Thébault, J., & Vitrac, O. (2017). Project SafeFoodPack Design: case study on indirect migration from paper and boards. Food Additives & Contaminants: Part A, 34(10), 1703–1720. https://doi.org/10.1080/19440049.2017.1315777  Non-intentionally added substances (NIAS). (n.d.). Retrieved May 29, 2019, from Food Packaging Forum website: https://www.foodpackagingforum.org/food-packaging-health/non-intentionally-added-substances-nias  Oldring, P. K. T., Castle, L., Hart, A., & Holmes, M. J. (2006). Migrants from food cans revisited – application of a stochastic model for a more realistic assessment of exposure to bisphenol A diglycidyl ether (BADGE). Packaging Technology and Science, 19(3), 121– 137. https://doi.org/10.1002/pts.715  Paseiro-Cerrato, R., DeJager, L., & Begley, T. H. (2019). Determining the migration of nadic acid, terephthalic acid, isophthalic acid and two oligomers from polyester food cans into food in the U.S. market. Food Control, 101, 69–76. https://doi.org/10.1016/j.foodcont.2019.02.033  Poças, F., & Franz, R. (2018). Chapter 10 - Overview on European Regulatory Issues, Legislation, and EFSA Evaluations of Nanomaterials. In M. Â. P. R. Cerqueira, J. M. Lagaron, L. M. P. Castro, & A. A. M. de O. S. Vicente (Eds.), Nanomaterials for Food Packaging (pp. 277–300). https://doi.org/10.1016/B978-0-323-51271-8.00010-3  Poças, M. de F., Oliveira, J. C., Pereira, J. R., Brandsch, R., & Hogg, T. (2011). Modelling migration from paper into a food simulant. Food Control, 22(2), 303–312. https://doi.org/10.1016/j.foodcont.2010.07.028  Poças, M. F., Oliveira, J. C., Brandsch, R., & Hogg, T. (2010). Feasibility Study on the Use of Probabilistic Migration Modeling in Support of Exposure Assessment from Food Contact Materials. Risk Analysis, 30(7), 1052–1061. https://doi.org/10.1111/j.1539- 6924.2010.01394.x  Poças, M. F., Oliveira, J. C., Oliveira, F. A. R., & Hogg, T. (2008a). A Critical Survey of Predictive Mathematical Models for Migration from Packaging. Critical Reviews in Food Science and Nutrition, 48(10), 913–928. https://doi.org/10.1080/10408390701761944  Poças, M. F., Oliveira, J. C., Oliveira, F. A. R., & Hogg, T. (2008b). A Critical Survey of Predictive Mathematical Models for Migration from Packaging. Critical Reviews in Food Science and Nutrition, 48(10), 913–928. https://doi.org/10.1080/10408390701761944  Recent developments in the risk assessment of chemicals in food and their potential impact on the safety assessment of substances used in food contact materials. (n.d.). EFSA Journal, 14(1), 4357. https://doi.org/10.2903/j.efsa.2016.4357  Regulation on Food Packaging. (n.d.). Retrieved May 28, 2019, from Food Packaging Forum website: https://www.foodpackagingforum.org/food-packaging-health/regulation-on-food-packaging  Restuccia, D., Spizzirri, U. G., Parisi, O. I., Cirillo, G., Curcio, M., Iemma, F., … Picci, N. (2010). New EU regulation aspects and global market of active and intelligent packaging for food industry applications. Food Control, 21(11), 1425–1435. https://doi.org/10.1016/j.foodcont.2010.04.028 © INSTITUTE OF FOOD TECHNOLOGISTS | ALL RIGHTS RESERVED17
  • 18. Created by: References  Risk assessment of FCMs: Overview of key scientific challenges | Food Packaging Forum. (n.d.). Retrieved May 29, 2019, from https://www.foodpackagingforum.org/news/risk- assessment-of-fcms-overview-of-key-scientific-challenges  Schaider, L. A., Balan, S. A., Blum, A., Andrews, D. Q., Strynar, M. J., Dickinson, M. E., … Peaslee, G. F. (2017). Fluorinated Compounds in U.S. Fast Food Packaging. Environmental Science & Technology Letters, 4(3), 105–111. https://doi.org/10.1021/acs.estlett.6b00435  Scientific Opinion on the risks to public health related to the presence of bisphenol A (BPA) in foodstuffs. (n.d.). EFSA Journal, 13(1), 3978. https://doi.org/10.2903/j.efsa.2015.3978  Stieger, G. (2016). Guidance on migration modeling | Food Packaging Forum. Retrieved May 28, 2019, from https://www.foodpackagingforum.org/news/guidance-on-migration-modeling  Stieger, G. (2018). Migration modeling. Retrieved May 28, 2019, from Food Packaging Forum website: https://www.foodpackagingforum.org/food-packaging-health/migration-modeling  Störmer, A., Bott, J., Kemmer, D., & Franz, R. (2017). Critical review of the migration potential of nanoparticles in food contact plastics. Trends in Food Science & Technology, 63, 39–50. https://doi.org/10.1016/j.tifs.2017.01.011  Till, D., Schwope, A. D., Ehntholt, D. J., Sidman, K. R., Whelan, R. H., Schwartz, P. S., … Rainey, M. L. (1987). Indirect Food Additive Migration from Polymeric Food Packaging Materials. CRC Critical Reviews in Toxicology, 18(3), 215–243. https://doi.org/10.3109/10408448709089862  Vitrac, O., & Goujon, A. (2014). Food Packaging: New Directions for the Control of Additive and Residue Migration. In T. Hamaide, R. Deterre, & J.-F. Feller (Eds.), Environmental Impact of Polymers (pp. 273–308). https://doi.org/10.1002/9781118827116.ch13  Welle, F., & Franz, R. (2011a). Migration of antimony from PET bottles into beverages: determination of the activation energy of diffusion and migration modelling compared with literature data. Food Additives & Contaminants: Part A, 28(1), 115–126. https://doi.org/10.1080/19440049.2010.530296  Welle, F., & Franz, R. (2011b). Migration of antimony from PET bottles into beverages: determination of the activation energy of diffusion and migration modelling compared with literature data. Food Additives & Contaminants: Part A, 28(1), 115–126. https://doi.org/10.1080/19440049.2010.530296  Zülch, A., & Piringer, O. G. (2010a). Measurement and modelling of migration from paper and board into foodstuffs and dry food simulants. Food Additives and Contaminants, 27(09), 1306–1324. https://doi.org/10.1080/19440049.2010.483693  Zülch, A., & Piringer, O. G. (2010b). Measurement and modelling of migration from paper and board into foodstuffs and dry food simulants. Food Additives and Contaminants, 27(09), 1306–1324. https://doi.org/10.1080/19440049.2010.483693 © INSTITUTE OF FOOD TECHNOLOGISTS | ALL RIGHTS RESERVED18
  • 19. Created by: Thank you! Let’s Connect www.PackagingTechnologyAndResearch.com Ziynet@PackagingTechnologyAndResearch.com

Editor's Notes

  1. Chemical partitioning from packaging material into the food systems : Migration
  2. Worst case scenario: 100% migration Models can at least partially replace experiments Functional barrier (virgin polymer) effectiveness in laminated or coextruded structures
  3. SML = specific migration limits
  4. Therefore, the majority of the scientific literature on migration modeling is dedicated to the deterministic approach. In many cases, migration is governed by a mass transfer process called diffusion that can be described by FICK’s LAW Two constants partition coefficient and alpha at equilibrium Low Mw no longer homogenously distributed at the interface No transfer at the outer surface if migrant has lower volatility
  5. 2-3 orders of magnitude difference, this is explained by molecular size and shape. The higher, the lower the D Both of these models can be applied accurately to polyolefins
  6. Monte Carlo sampling based on random sampling Model output is the distribution of values
  7. PET, PEN, PS, PA are lower than polyolefins Polyolefins modeling more sensitive and faster results due to high migration rates : E.g. antioxidants modeling in polyolefins
  8. Paper migration is higher / faster To food and to atmosphere The retention behaviour of the substance in the paper matrix depends also on its interaction with fibres surface and, as mentioned before, the cellulose fibres have an overall negative charge due to carboxyl groups from the carbohydrates and the hydroxyl groups of the lignins. Thus, substances rich in electrons, such as naphthalene, tend to be repelled and are not retained by the fibre. As a consequence, these substances are less absorbed by the paper Tau system time parameter, Beta shape parameters Weibull model: Simple and flexible in determining mass transfer ptocessess where diffusion theories cannot explain.
  9. Migratest :Piringer’s model -> Designed to overestimate AKTS: Monolayers (freeware version), Up to 10 layers (licensed version) SMEWISE: Freeware
  10. Several orders of magnitude overestimation Values had a large margin of uncertainty Photoinitiator study has 20% m ore than actual values
