Migrating extensions to eZ Publish 5

A quick look at the Symfony2 Bundle system
Migrating extensions to eZ Publish 5

01/08/2013Presenter: Łukasz Serwatka Slide 2
Extending eZ Publish 5

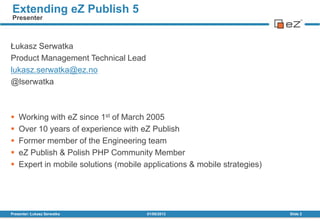

Presenter
Łukasz Serwatka
Product Management Technical Lead
lukasz.serwatka@ez.no
@lserwatka
 Working with eZ since 1st of March 2005
 Over 10 years of experience with eZ Publish
 Former member of the Engineering team
 eZ Publish & Polish PHP Community Member
 Expert in mobile solutions (mobile applications & mobile strategies)

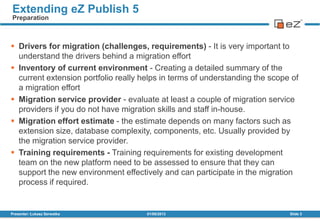

Preparation
 Drivers for migration (challenges, requirements) - It is very important to
understand the drivers behind a migration effort
 Inventory of current environment - Creating a detailed summary of the
current extension portfolio really helps in terms of understanding the scope of
a migration effort
 Migration service provider - evaluate at least a couple of migration service
providers if you do not have migration skills and staff in-house.
 Migration effort estimate - the estimate depends on many factors such as
extension size, database complexity, components, etc. Usually provided by
the migration service provider.
 Training requirements - Training requirements for existing development
team on the new platform need to be assessed to ensure that they can
support the new environment effectively and can participate in the migration
process if required.

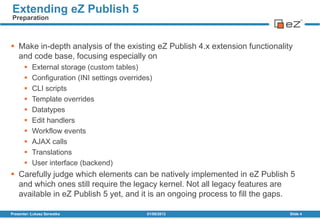

Preparation
 Make in-depth analysis of the existing eZ Publish 4.x extension functionality
and code base, focusing especially on
 External storage (custom tables)
 Configuration (INI settings overrides)
 CLI scripts
 Template overrides
 Datatypes
 Edit handlers
 Workflow events
 AJAX calls
 Translations
 User interface (backend)
 Carefully judge which elements can be natively implemented in eZ Publish 5
and which ones still require the legacy kernel. Not all legacy features are
available in eZ Publish 5 yet, and it is an ongoing process to fill the gaps.

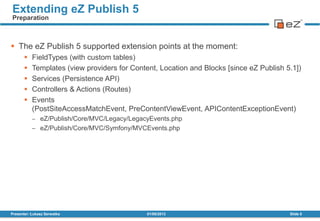

Preparation
 The eZ Publish 5 supported extension points at the moment:
 FieldTypes (with custom tables)
 Templates (view providers for Content, Location and Blocks [since eZ Publish 5.1])
 Services (Persistence API)
 Controllers & Actions (Routes)
 Events
(PostSiteAccessMatchEvent, PreContentViewEvent, APIContentExceptionEvent)
eZ/Publish/Core/MVC/Legacy/LegacyEvents.php
eZ/Publish/Core/MVC/Symfony/MVCEvents.php

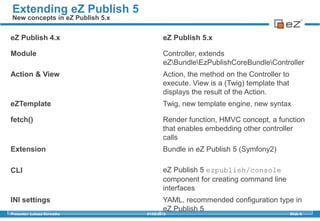

New concepts in eZ Publish 5.x
eZ Publish 4.x eZ Publish 5.x
Module Controller, extends
eZBundleEzPublishCoreBundleController
Action & View Action, the method on the Controller to
execute. View is a (Twig) template that
displays the result of the Action.
eZTemplate Twig, new template engine, new syntax
fetch() Render function, HMVC concept, a function
that enables embedding other controller
calls
Extension Bundle in eZ Publish 5 (Symfony2)
CLI eZ Publish 5 ezpublish/console
component for creating command line
interfaces
INI settings YAML, recommended configuration type in
eZ Publish 5

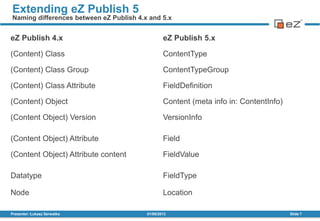

Naming differences between eZ Publish 4.x and 5.x
eZ Publish 4.x eZ Publish 5.x
(Content) Class ContentType
(Content) Class Group ContentTypeGroup
(Content) Class Attribute FieldDefinition
(Content) Object Content (meta info in: ContentInfo)
(Content Object) Version VersionInfo
(Content Object) Attribute Field
(Content Object) Attribute content FieldValue
Datatype FieldType
Node Location

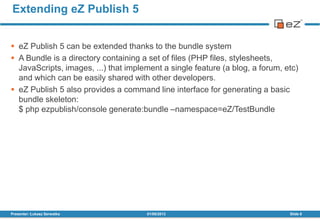

 eZ Publish 5 can be extended thanks to the bundle system
 A Bundle is a directory containing a set of files (PHP files, stylesheets,
JavaScripts, images, ...) that implement a single feature (a blog, a forum, etc)
and which can be easily shared with other developers.
 eZ Publish 5 also provides a command line interface for generating a basic
bundle skeleton:
$ php ezpublish/console generate:bundle –namespace=eZ/TestBundle

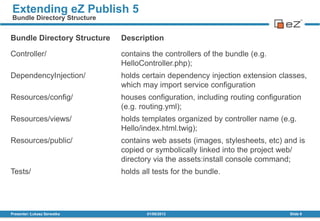

Bundle Directory Structure
Bundle Directory Structure Description
Controller/ contains the controllers of the bundle (e.g.
HelloController.php);
DependencyInjection/ holds certain dependency injection extension classes,
which may import service configuration
Resources/config/ houses configuration, including routing configuration
(e.g. routing.yml);
Resources/views/ holds templates organized by controller name (e.g.
Hello/index.html.twig);
Resources/public/ contains web assets (images, stylesheets, etc) and is
copied or symbolically linked into the project web/
directory via the assets:install console command;
Tests/ holds all tests for the bundle.

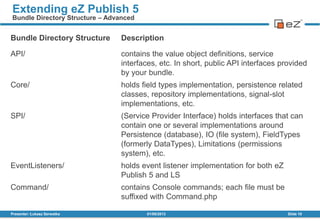

Bundle Directory Structure – Advanced
Bundle Directory Structure Description
API/ contains the value object definitions, service
interfaces, etc. In short, public API interfaces provided
by your bundle.
Core/ holds field types implementation, persistence related
classes, repository implementations, signal-slot
implementations, etc.
SPI/ (Service Provider Interface) holds interfaces that can
contain one or several implementations around
Persistence (database), IO (file system), FieldTypes
(formerly DataTypes), Limitations (permissions
system), etc.
EventListeners/ holds event listener implementation for both eZ
Publish 5 and LS
Command/ contains Console commands; each file must be
suffixed with Command.php

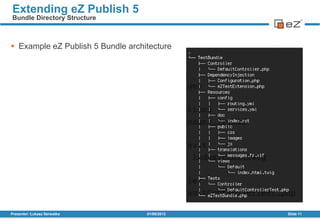

 Example eZ Publish 5 Bundle architecture
Bundle Directory Structure

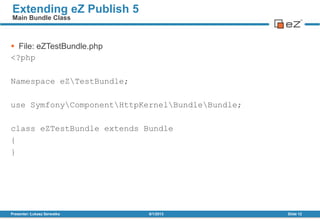

 File: eZTestBundle.php
<?php
Namespace eZTestBundle;
use SymfonyComponentHttpKernelBundleBundle;
class eZTestBundle extends Bundle
{
}
Main Bundle Class

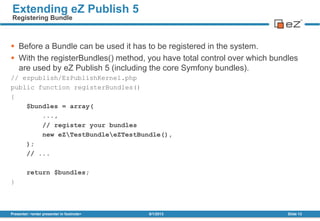

 Before a Bundle can be used it has to be registered in the system.
 With the registerBundles() method, you have total control over which bundles
are used by eZ Publish 5 (including the core Symfony bundles).
// ezpublish/EzPublishKernel.php
public function registerBundles()
{
$bundles = array(
...,
// register your bundles
new eZTestBundleeZTestBundle(),
);
// ...
return $bundles;
}
8/1/2013Presenter: <enter presenter in footnote> Slide 13
Registering Bundle

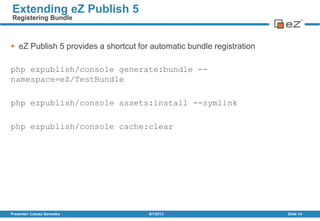

 eZ Publish 5 provides a shortcut for automatic bundle registration
php ezpublish/console generate:bundle --
namespace=eZ/TestBundle
php ezpublish/console assets:install --symlink
php ezpublish/console cache:clear
Registering Bundle

 File: eZTestBundle.php
<?php
Namespace eZTestBundle;
use SymfonyComponentHttpKernelBundleBundle;
class eZTestBundle extends Bundle
{
public function getParent()
{
return ’eZDemoBundle';
}
}
Bundle Override

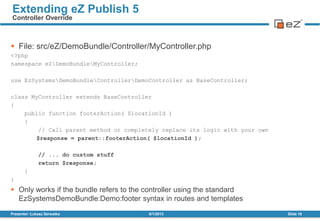

 File: src/eZ/DemoBundle/Controller/MyController.php
<?php
namespace eZDemoBundleMyController;
use EzSystemsDemoBundleControllerDemoController as BaseController;
class MyController extends BaseController
{
public function footerAction( $locationId )
{
// Call parent method or completely replace its logic with your own
$response = parent::footerAction( $locationId );
// ... do custom stuff
return $response;
}
}
 Only works if the bundle refers to the controller using the standard
EzSystemsDemoBundle:Demo:footer syntax in routes and templates
Controller Override

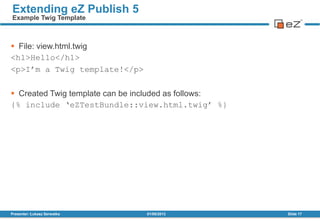

 File: view.html.twig
<h1>Hello</h1>
<p>I‟m a Twig template!</p>
 Created Twig template can be included as follows:
{% include „eZTestBundle::view.html.twig‟ %}
Example Twig Template

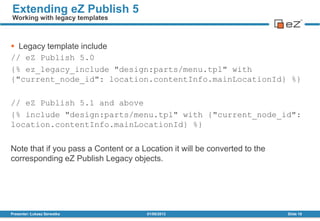

 Legacy template include
// eZ Publish 5.0
{% ez_legacy_include "design:parts/menu.tpl" with
{"current_node_id": location.contentInfo.mainLocationId} %}
// eZ Publish 5.1 and above
{% include "design:parts/menu.tpl" with {"current_node_id":
location.contentInfo.mainLocationId} %}
Note that if you pass a Content or a Location it will be converted to the
corresponding eZ Publish Legacy objects.
Working with legacy templates

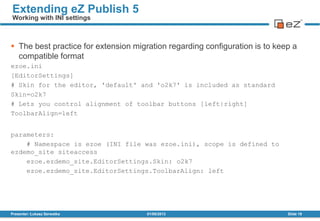

 The best practice for extension migration regarding configuration is to keep a
compatible format
ezoe.ini
[EditorSettings]
# Skin for the editor, 'default' and 'o2k7' is included as standard
Skin=o2k7
# Lets you control alignment of toolbar buttons [left|right]
ToolbarAlign=left
parameters:
# Namespace is ezoe (INI file was ezoe.ini), scope is defined to
ezdemo_site siteaccess
ezoe.ezdemo_site.EditorSettings.Skin: o2k7
ezoe.ezdemo_site.EditorSettings.ToolbarAlign: left
Working with INI settings

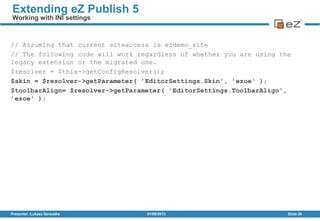

// Assuming that current siteaccess is ezdemo_site
// The following code will work regardless of whether you are using the
legacy extension or the migrated one.
$resolver = $this->getConfigResolver();
$skin = $resolver->getParameter( ’EditorSettings.Skin', ’ezoe' );
$toolbarAlign= $resolver->getParameter( ’EditorSettings.ToolbarAlign',
’ezoe' );
Working with INI settings

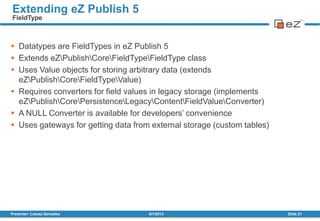

 Datatypes are FieldTypes in eZ Publish 5
 Extends eZPublishCoreFieldTypeFieldType class
 Uses Value objects for storing arbitrary data (extends
eZPublishCoreFieldTypeValue)
 Requires converters for field values in legacy storage (implements
eZPublishCorePersistenceLegacyContentFieldValueConverter)
 A NULL Converter is available for developers’ convenience
 Uses gateways for getting data from external storage (custom tables)
FieldType

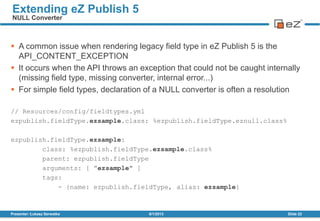

 A common issue when rendering legacy field type in eZ Publish 5 is the
API_CONTENT_EXCEPTION
 It occurs when the API throws an exception that could not be caught internally
(missing field type, missing converter, internal error...)
 For simple field types, declaration of a NULL converter is often a resolution
// Resources/config/fieldtypes.yml
ezpublish.fieldType.ezsample.class: %ezpublish.fieldType.eznull.class%
ezpublish.fieldType.ezsample:
class: %ezpublish.fieldType.ezsample.class%
parent: ezpublish.fieldType
arguments: [ ”ezsample" ]
tags:
- {name: ezpublish.fieldType, alias: ezsample}
NULL Converter

// Resources/config/storage_engines.yml
ezpublish.fieldType.ezsample.converter.class:
%ezpublish.fieldType.eznull.converter.class%
ezpublish.fieldType.ezsample.converter:
class: %ezpublish.fieldType.ezsample.converter.class%
tags:
- {name: ezpublish.storageEngine.legacy.converter, alias:
ezsample, lazy: true, callback: '::create'}
NULL Converter

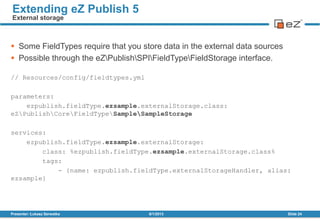

 Some FieldTypes require that you store data in the external data sources
 Possible through the eZPublishSPIFieldTypeFieldStorage interface.
parameters:
ezpublish.fieldType.ezsample.externalStorage.class:
eZPublishCoreFieldTypeSampleSampleStorage
services:
ezpublish.fieldType.ezsample.externalStorage:
class: %ezpublish.fieldType.ezsample.externalStorage.class%
tags:
- {name: ezpublish.fieldType.externalStorageHandler, alias:
ezsample}
External storage

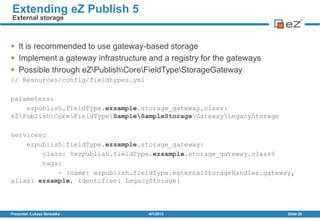

 It is recommended to use gateway-based storage
 Implement a gateway infrastructure and a registry for the gateways
 Possible through eZPublishCoreFieldTypeStorageGateway
parameters:
ezpublish.fieldType.ezsample.storage_gateway.class:
eZPublishCoreFieldTypeSampleSampleStorageGatewayLegacyStorage
services:
ezpublish.fieldType.ezsample.storage_gateway:
class: %ezpublish.fieldType.ezsample.storage_gateway.class%
tags:
- {name: ezpublish.fieldType.externalStorageHandler.gateway,
alias: ezsample, identifier: LegacyStorage}
External storage

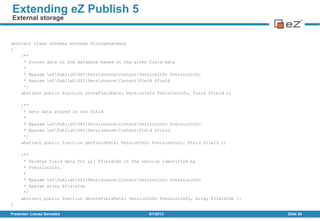

abstract class Gateway extends StorageGateway
{
/**
* Stores data in the database based on the given field data
*
* @param eZPublishSPIPersistenceContentVersionInfo $versionInfo
* @param eZPublishSPIPersistenceContentField $field
*/
abstract public function storeFieldData( VersionInfo $versionInfo, Field $field );
/**
* Gets data stored in the field
*
* @param eZPublishSPIPersistenceContentField $field
*/
abstract public function getFieldData( VersionInfo $versionInfo, Field $field );
/**
* Deletes field data for all $fieldIds in the version identified by
* $versionInfo.
*
* @param array $fieldIds
*/
abstract public function deleteFieldData( VersionInfo $versionInfo, array $fieldIds );
}

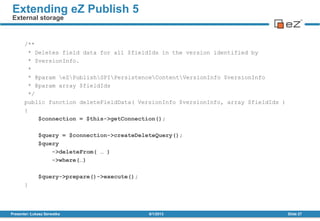

External storage

/**
* Deletes field data for all $fieldIds in the version identified by
* $versionInfo.
*
* @param array $fieldIds
*/
public function deleteFieldData( VersionInfo $versionInfo, array $fieldIds )
{
$connection = $this->getConnection();
$query = $connection->createDeleteQuery();
$query
->deleteFrom( … )
->where(…)
$query->prepare()->execute();
}
External storage

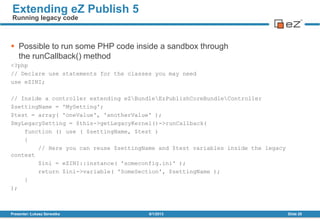

 Possible to run some PHP code inside a sandbox through
the runCallback() method
<?php
// Declare use statements for the classes you may need
use eZINI;
// Inside a controller extending eZBundleEzPublishCoreBundleController
$settingName = 'MySetting';
$test = array( 'oneValue', 'anotherValue' );
$myLegacySetting = $this->getLegacyKernel()->runCallback(
function () use ( $settingName, $test )
{
// Here you can reuse $settingName and $test variables inside the legacy
context
$ini = eZINI::instance( 'someconfig.ini' );
return $ini->variable( 'SomeSection', $settingName );
}
);
Running legacy code

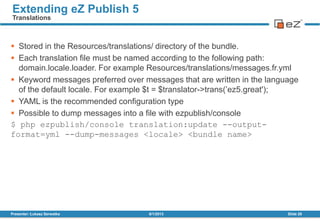

 Stored in the Resources/translations/ directory of the bundle.
 Each translation file must be named according to the following path:
domain.locale.loader. For example Resources/translations/messages.fr.yml
 Keyword messages preferred over messages that are written in the language
of the default locale. For example $t = $translator->trans(’ez5.great');
 YAML is the recommended configuration type
 Possible to dump messages into a file with ezpublish/console
$ php ezpublish/console translation:update --output-
format=yml --dump-messages <locale> <bundle name>
Translations

 Commands should be placed under the Command/ folder inside your Bundle
and file name must be suffixed with Command.php, e.g EzTestCommand.php
Class EzTestCommand extends ContainerAwareCommand
{
protected function configure()
{
}
protected function execute(InputInterface $input, OutputInterface
$output)
{
}
}
Console commands

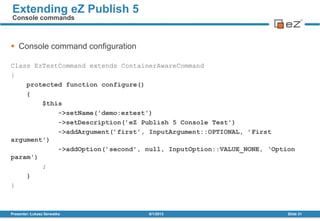

 Console command configuration
{
protected function configure()
{
$this
->setName('demo:eztest')
->setDescription(’eZ Publish 5 Console Test')
->addArgument(’first', InputArgument::OPTIONAL, ’First
argument')
->addOption(’second', null, InputOption::VALUE_NONE, ‘Option
param')
;
}
}
Console commands

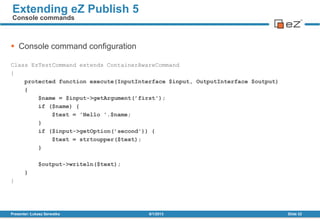

 Console command configuration
{
protected function execute(InputInterface $input, OutputInterface $output)
{
$name = $input->getArgument(’first');
if ($name) {
$text = 'Hello '.$name;
}
if ($input->getOption(’second')) {
$text = strtoupper($text);
}
$output->writeln($text);
}
}
Console commands

 We recommend using composer (http://getcomposer.org) to install bundles
 Provide packages via https://packagist.org website for ease of distribution
 Configuration with composer.json

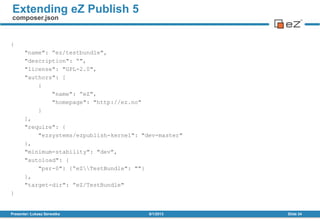

Composer

{
"name": ”ez/testbundle",
"description": “",
"license": "GPL-2.0",
"authors": [
{
"name": ”eZ",
"homepage": "http://ez.no"
}
],
"require": {
"ezsystems/ezpublish-kernel": "dev-master"
},
"minimum-stability": "dev",
"autoload": {
"psr-0": {”eZTestBundle": ""}
},
"target-dir": ”eZ/TestBundle"
}
composer.json

Migrating extensions to eZ Publish 5

More Related Content

What's hot

Similar to Migrating extensions to eZ Publish 5

Recently uploaded

Migrating extensions to eZ Publish 5
