MIF Workshop Raquel Bortoluci Sep 2012

®

Integration Framework

© 2011 IBM Corporation

IBM Software Group | Tivoli software

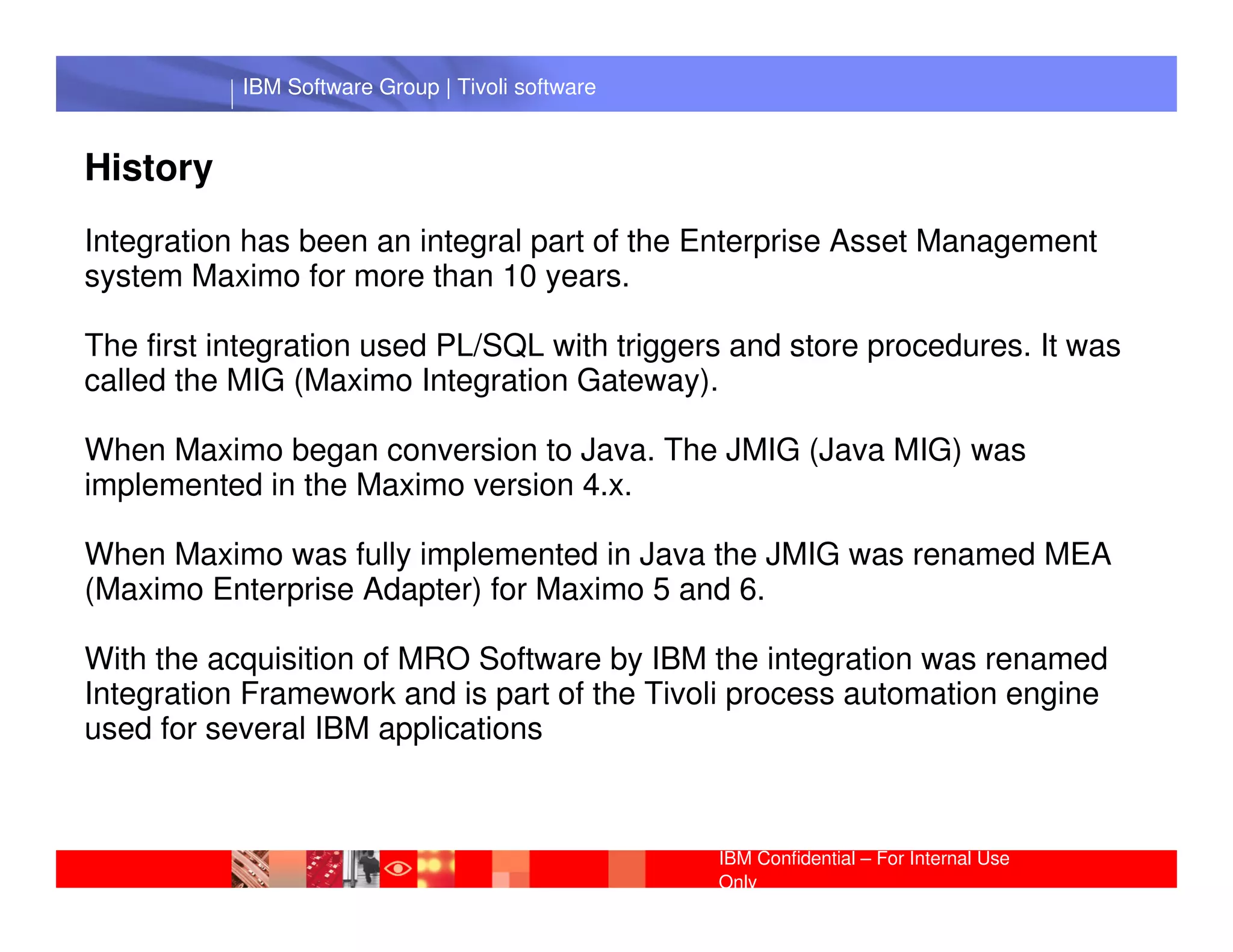

History
Integration has been an integral part of the Enterprise Asset Management
system Maximo for more than 10 years.

The first integration used PL/SQL with triggers and store procedures. It was
called the MIG (Maximo Integration Gateway).

When Maximo began conversion to Java. The JMIG (Java MIG) was
implementedIBM Software Group | Lotus software
in the Maximo version 4.x.

When Maximo was fully implemented in Java the JMIG was renamed MEA
(Maximo Enterprise Adapter) for Maximo 5 and 6.

With the acquisition of MRO Software by IBM the integration was renamed
Integration Framework and is part of the Tivoli process automation engine
used for several IBM applications

IBM Confidential – For Internal Use
Only

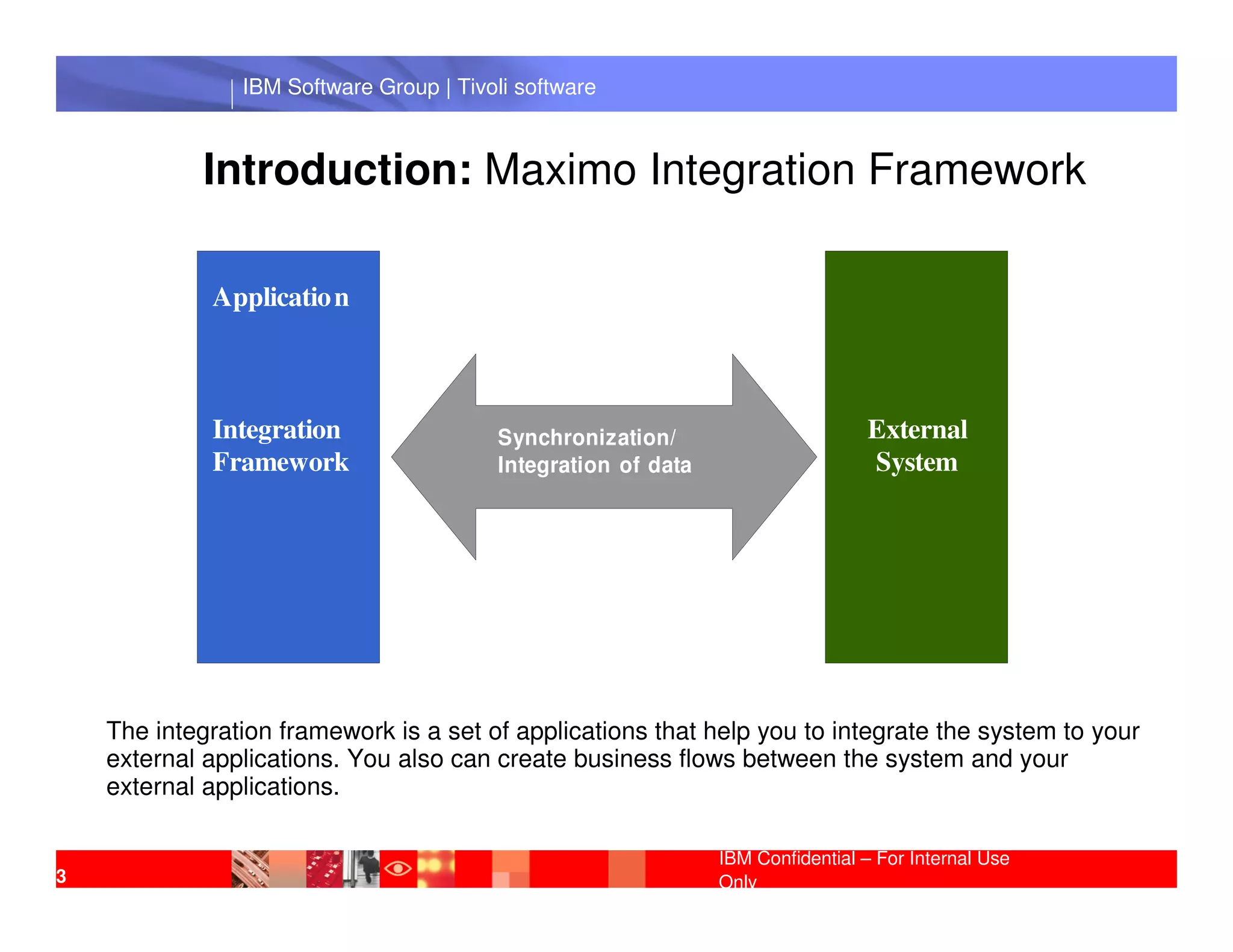

Introduction: Maximo Integration Framework

Applicatio n

Integration Synchronization/ External
Framework Integration of data System
IBM Software Group | Lotus software

The integration framework is a set of applications that help you to integrate the system to your
external applications. You also can create business flows between the system and your
external applications.

3 Only

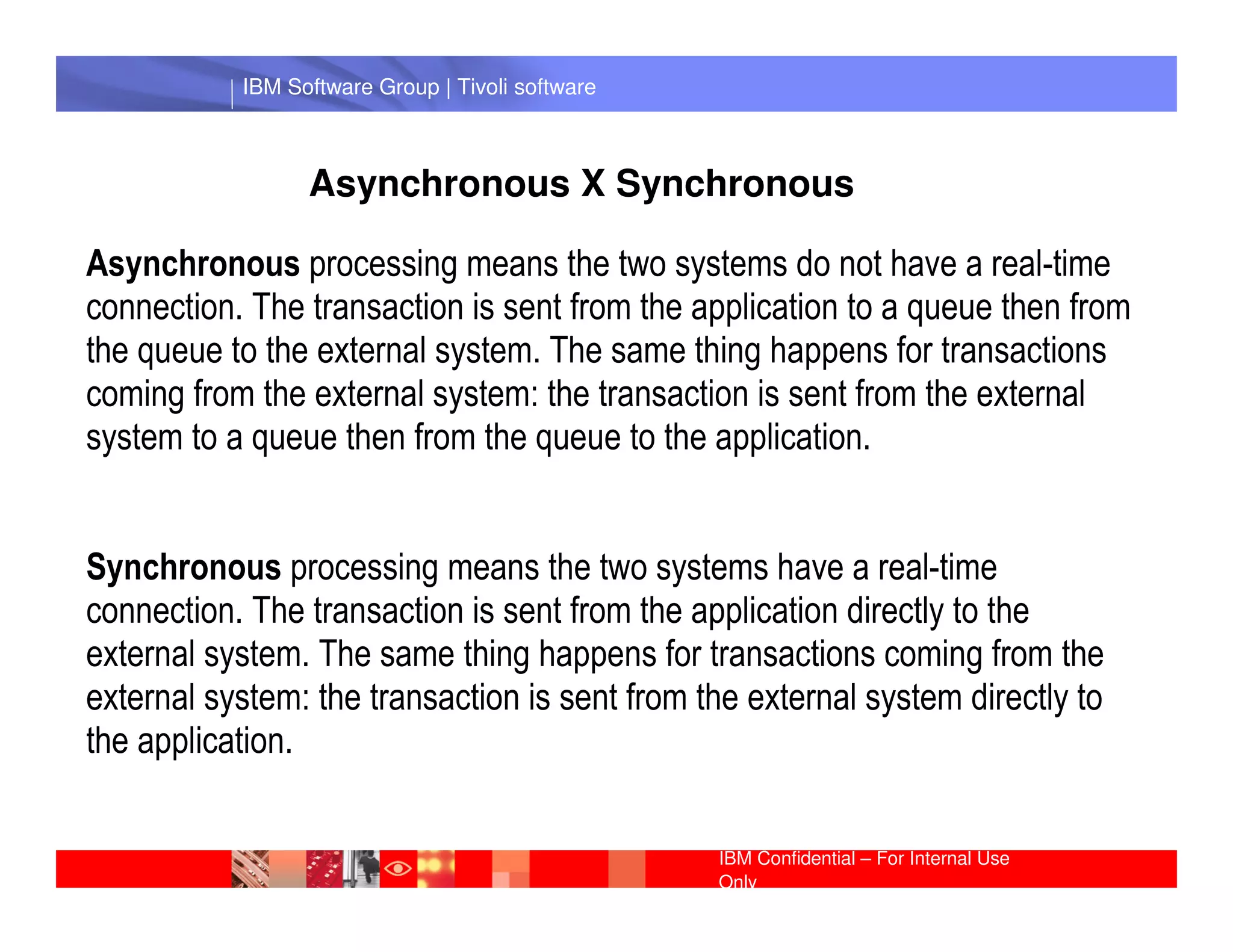

Asynchronous X Synchronous

Asynchronous processing means the two systems do not have a real-time
connection. The transaction is sent from the application to a queue then from
the queue to the external system. The same thing happens for transactions
coming from the external system: the transaction is sent from the external
system to a queue then from the queue to the application.

Synchronous processing means the two systems have a real-time
connection. The transaction is sent from the application directly to the
external system. The same thing happens for transactions coming from the
external system: the transaction is sent from the external system directly to
the application.

Only

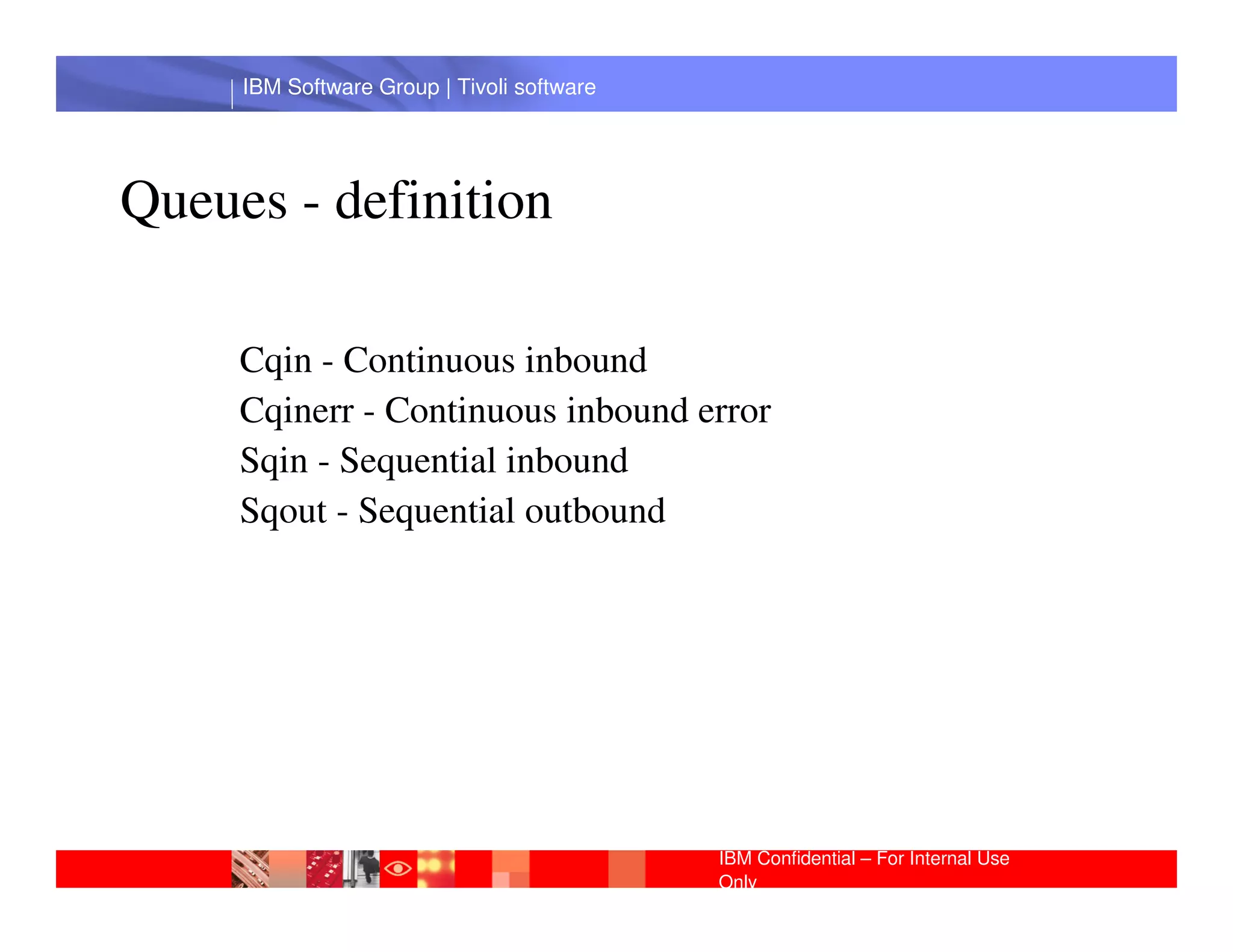

Queues - definition

Cqin - Continuous inbound
Cqinerr - Continuous inbound error
Sqin - Sequential inbound
Sqout - Sequential outbound

Only


Properties: The Integration Framework system
properties start with mxe.int.xxx.

mxe.int.globaldir:
Specifies the global directory to install Service Request Manager.

mxe.int.webappurl
Specifies the URL of the main installation to Service Request
Manager.

Only



Only

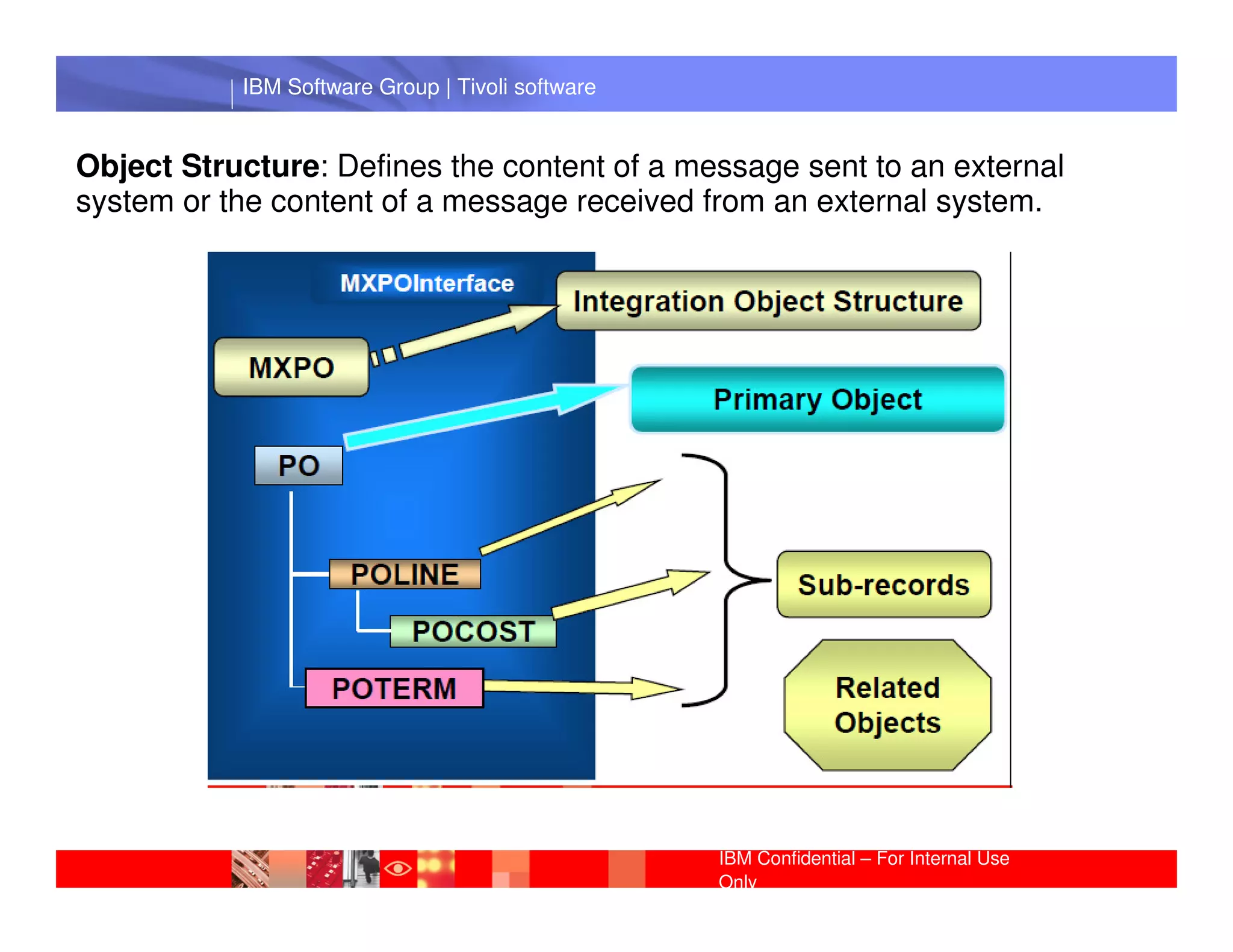

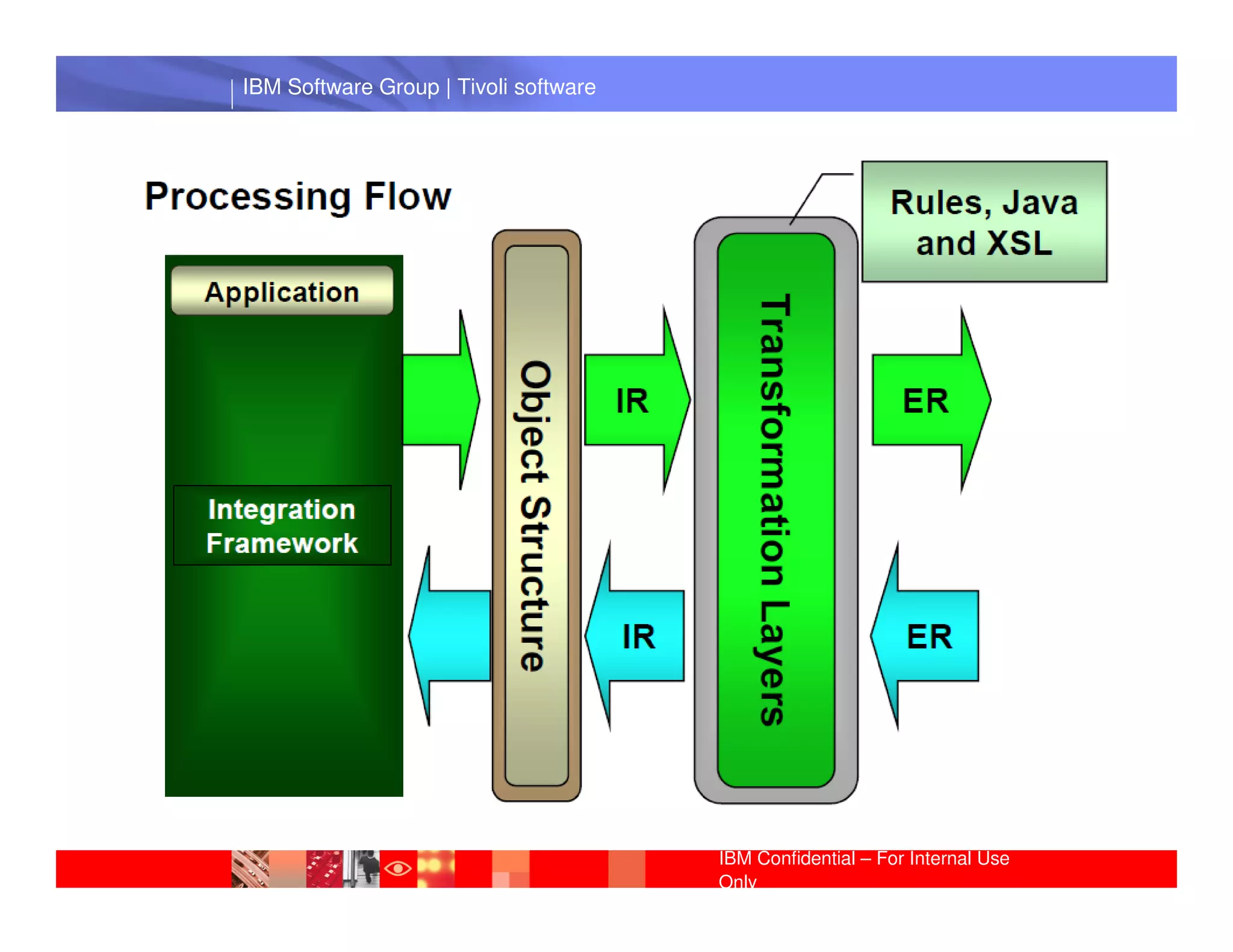

Object Structure: Defines the content of a message sent to an external
system or the content of a message received from an external system.


Only

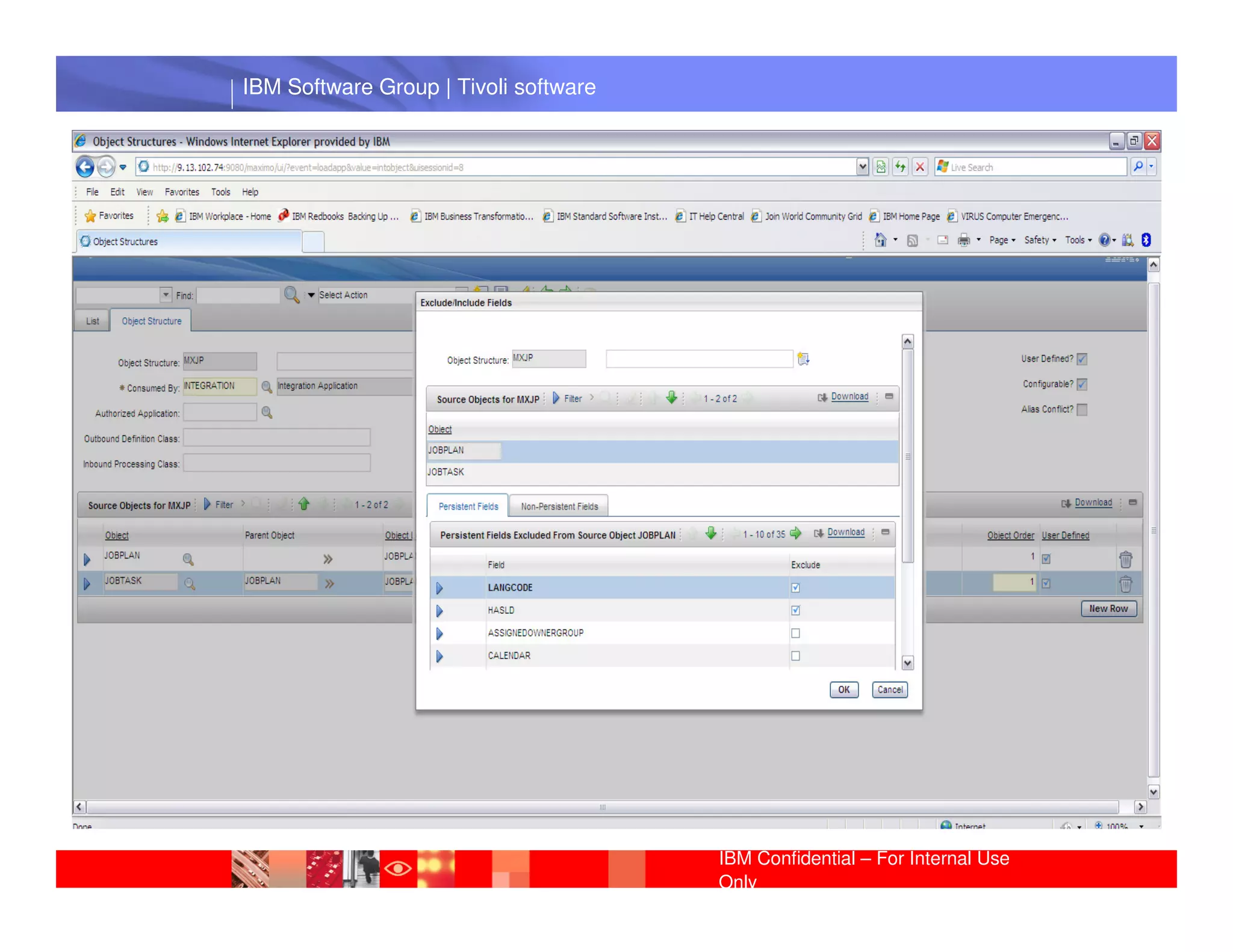

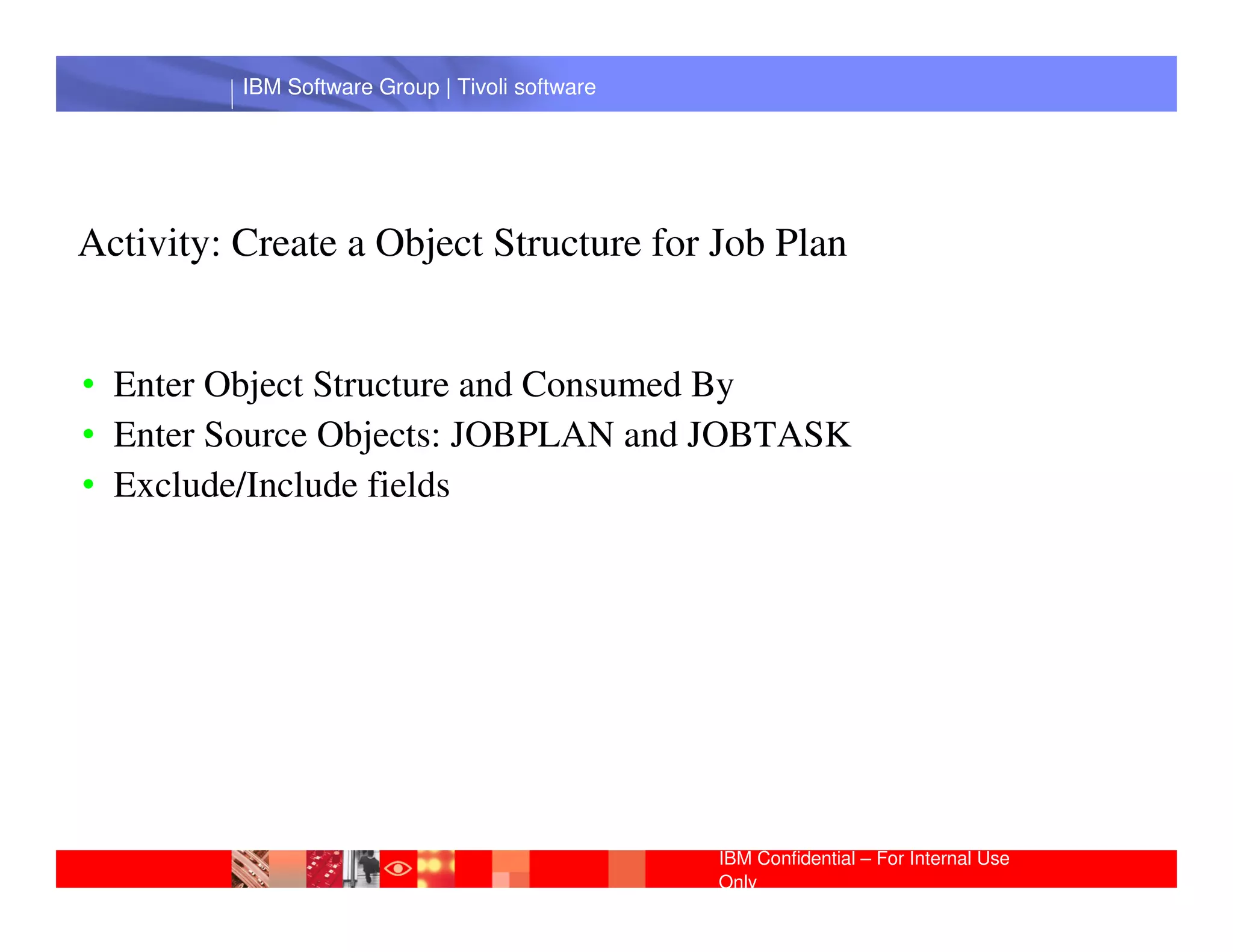

Activity: Create a Object Structure for Job Plan

• Enter Object Structure and Consumed By
• Enter Source Objects: JOBPLAN and JOBTASK
• Exclude/Include fields

Only

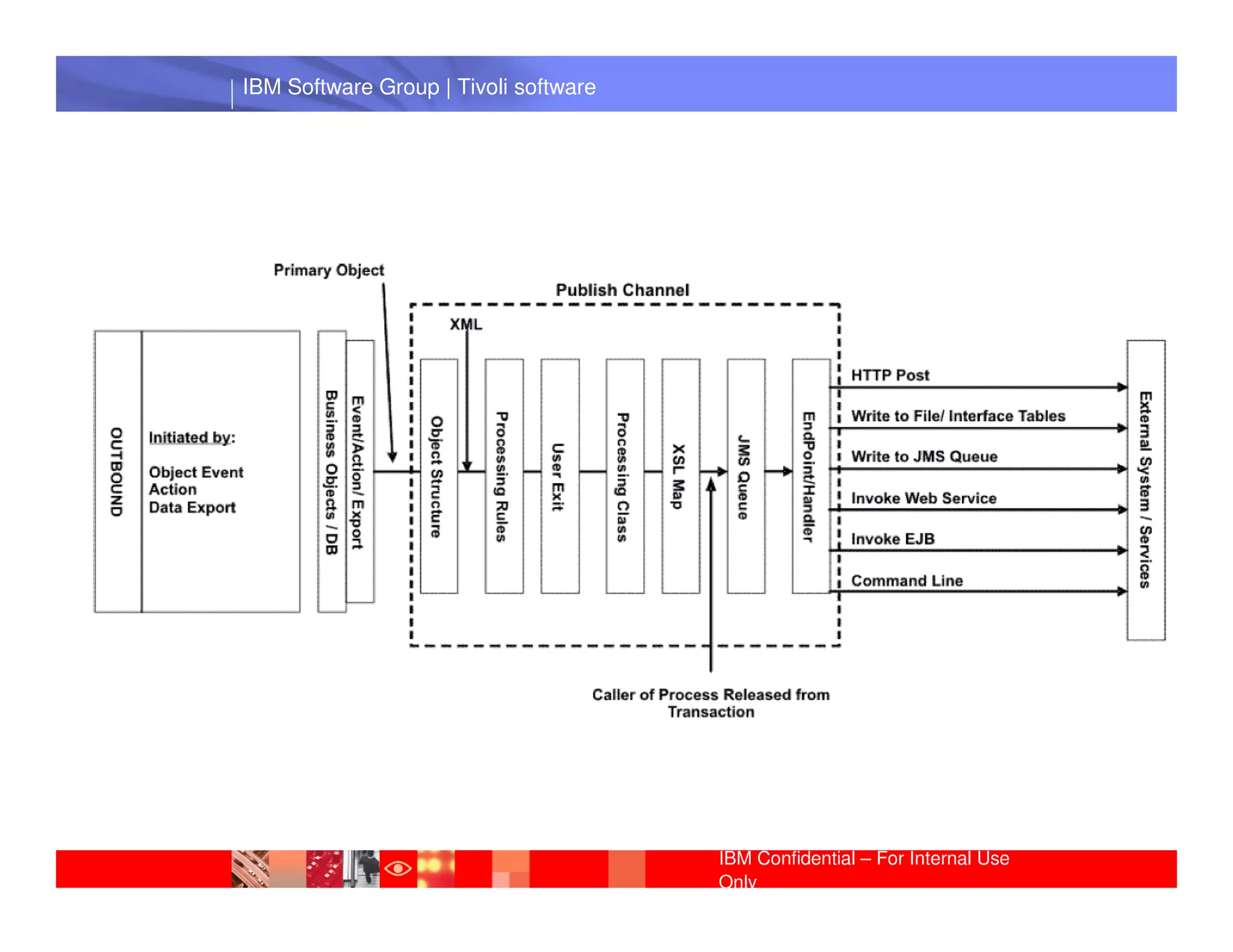

A publish channel is the pipeline for sending data
asynchronously from the system to an external system.

The records can go through a series of transformation layers using
rules (no programming), Java or XSL. The result is an external
record that is sent to the external system in a format the external
system understands.

Only

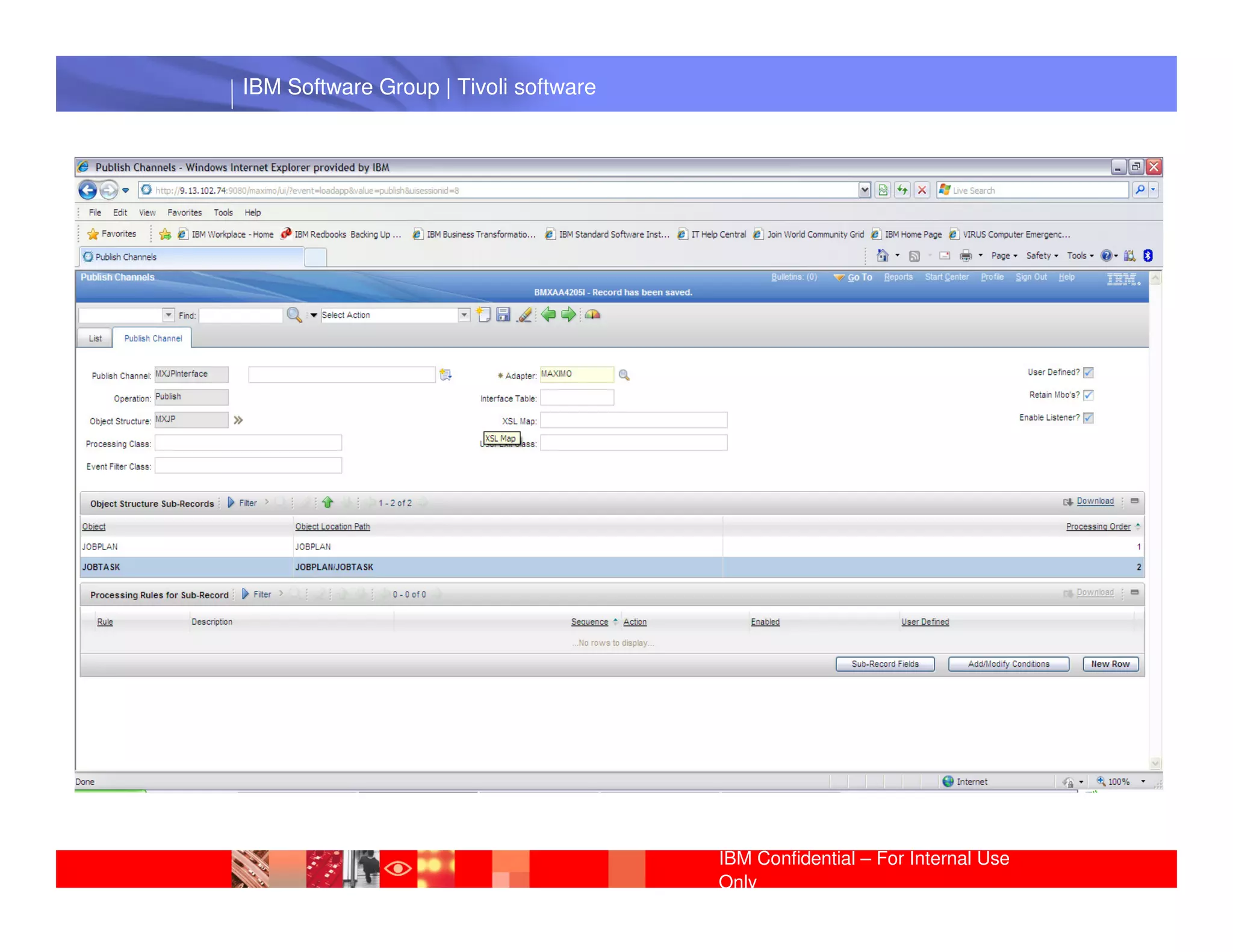

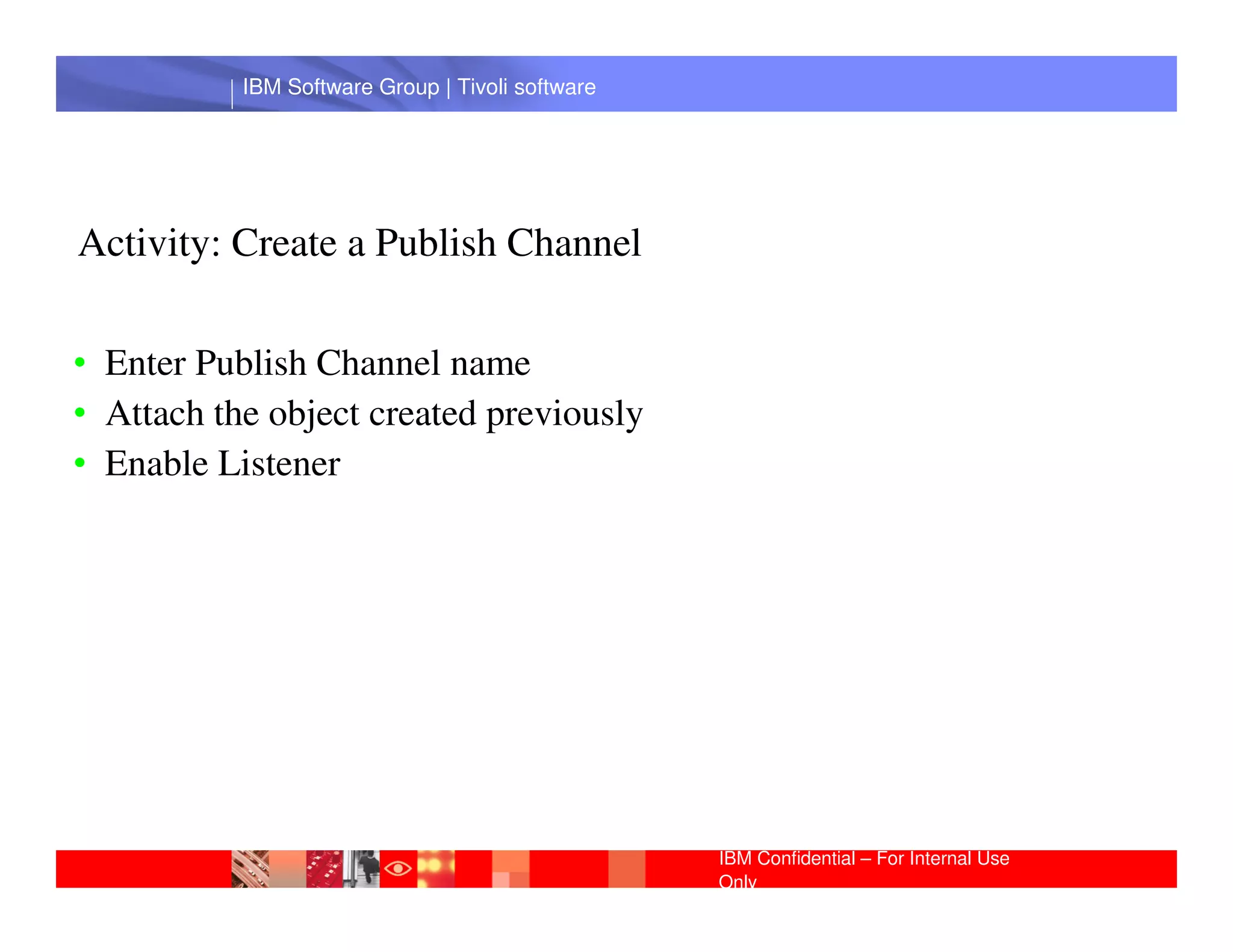

Activity: Create a Publish Channel

• Enter Publish Channel name
• Attach the object created previously
• Enable Listener Software Group | Lotus software
IBM

Only

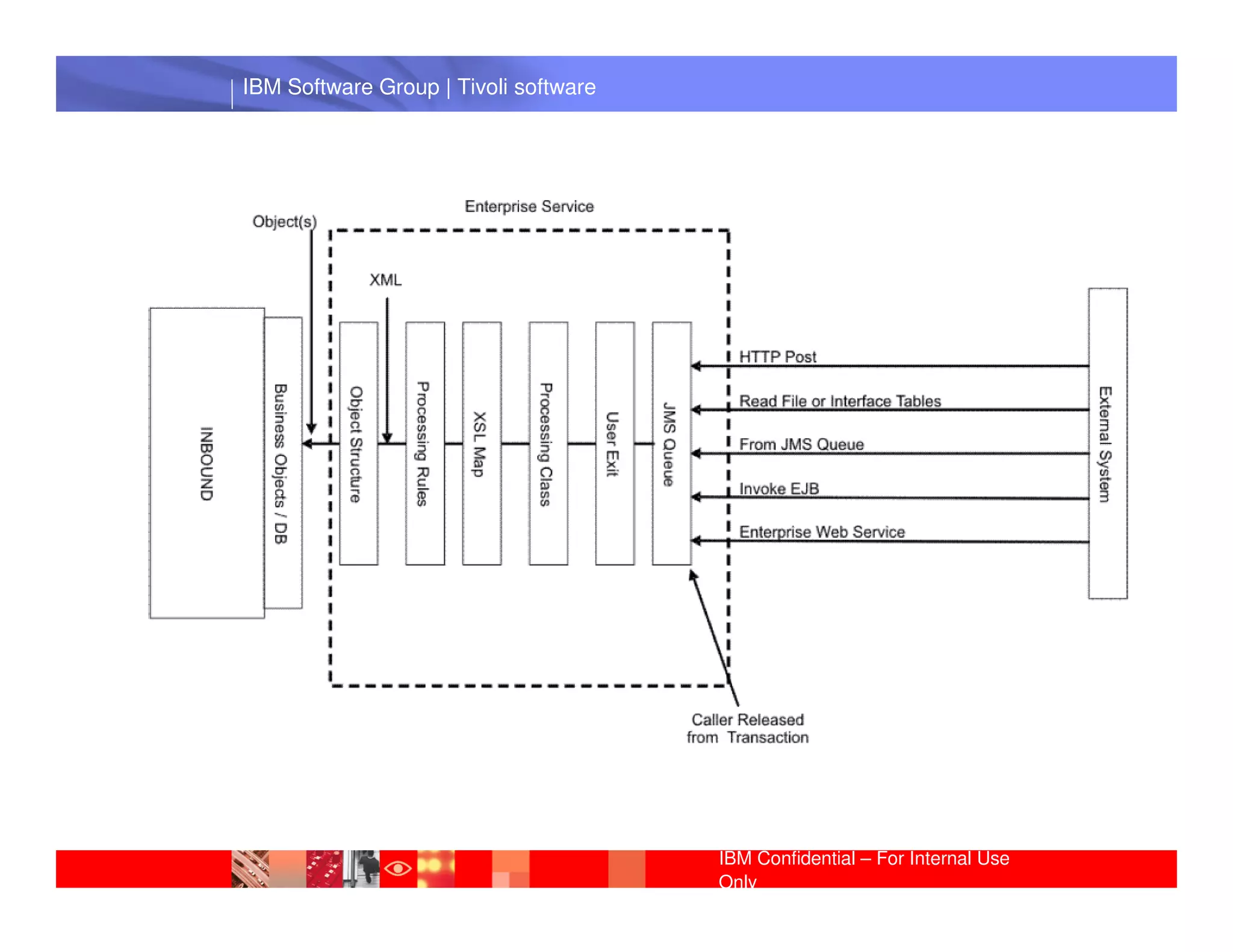

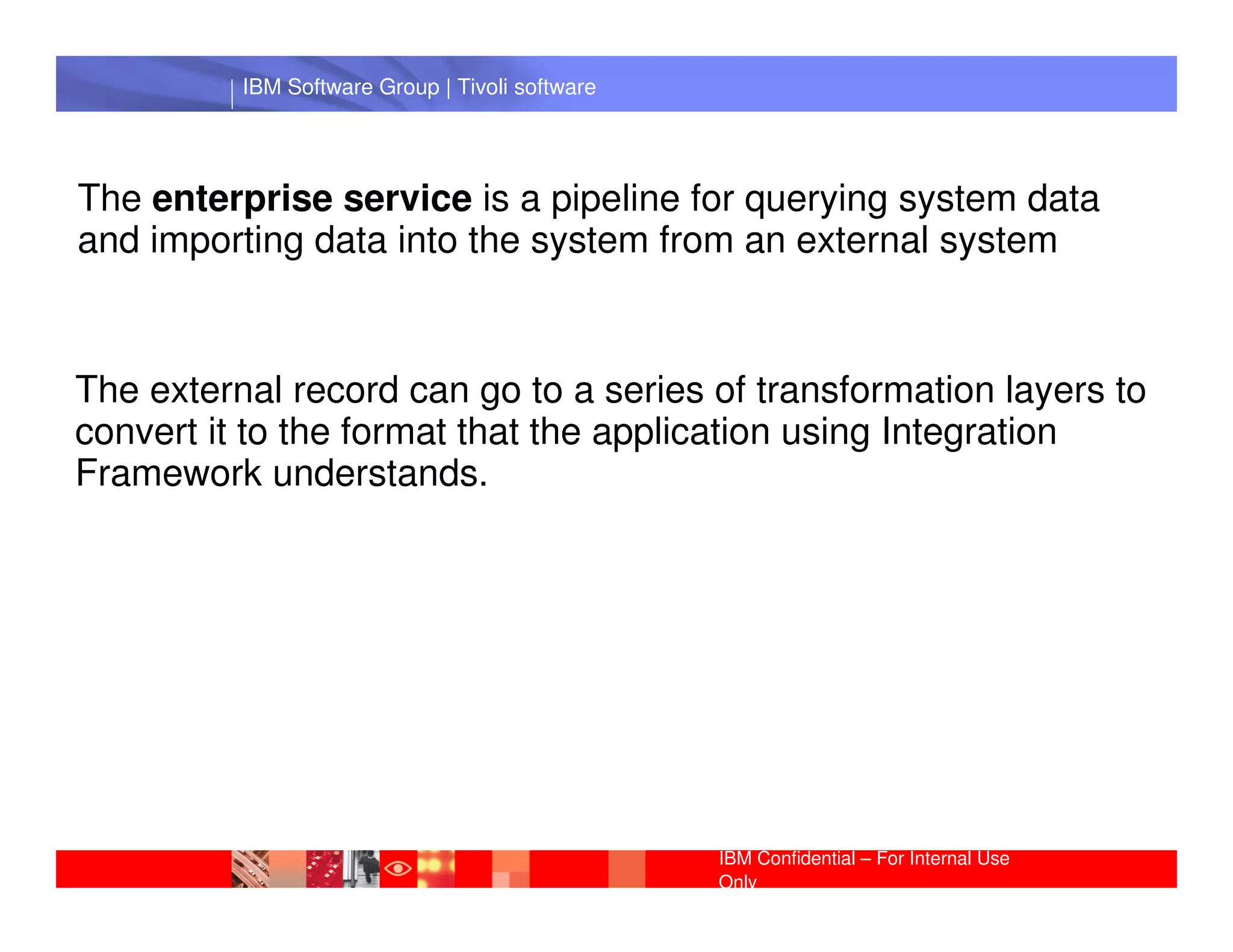

The enterprise service is a pipeline for querying system data
and importing data into the system from an external system

The external record can go to a series of transformation layers to
convert it to the format that the application using Integration
FrameworkIBM Software Group | Lotus software
understands.

Only

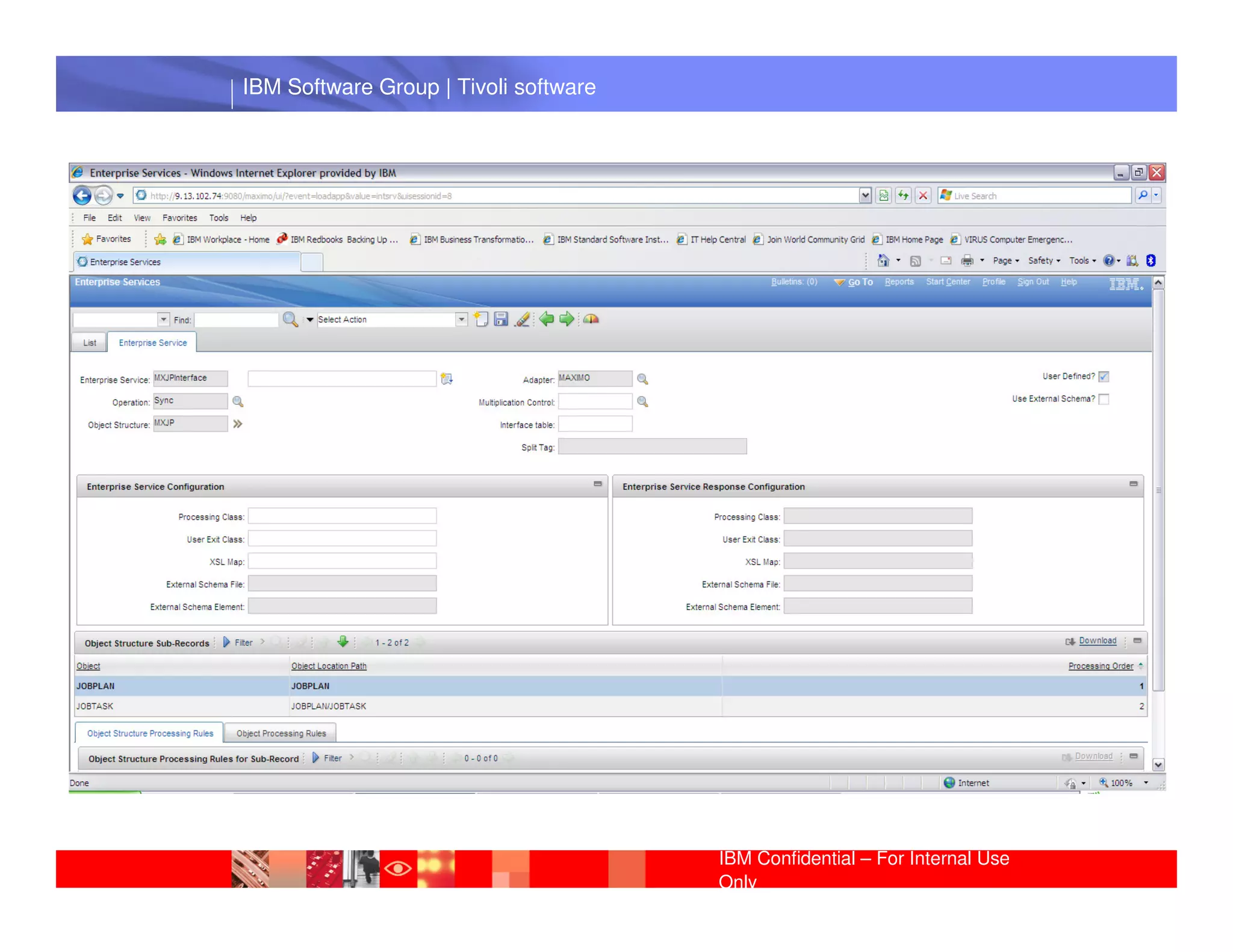

Activity: Create an Enterprise Server

• Enterprise Service name
• Attach theIBM Software Group | Lotus software
object created previously

Only

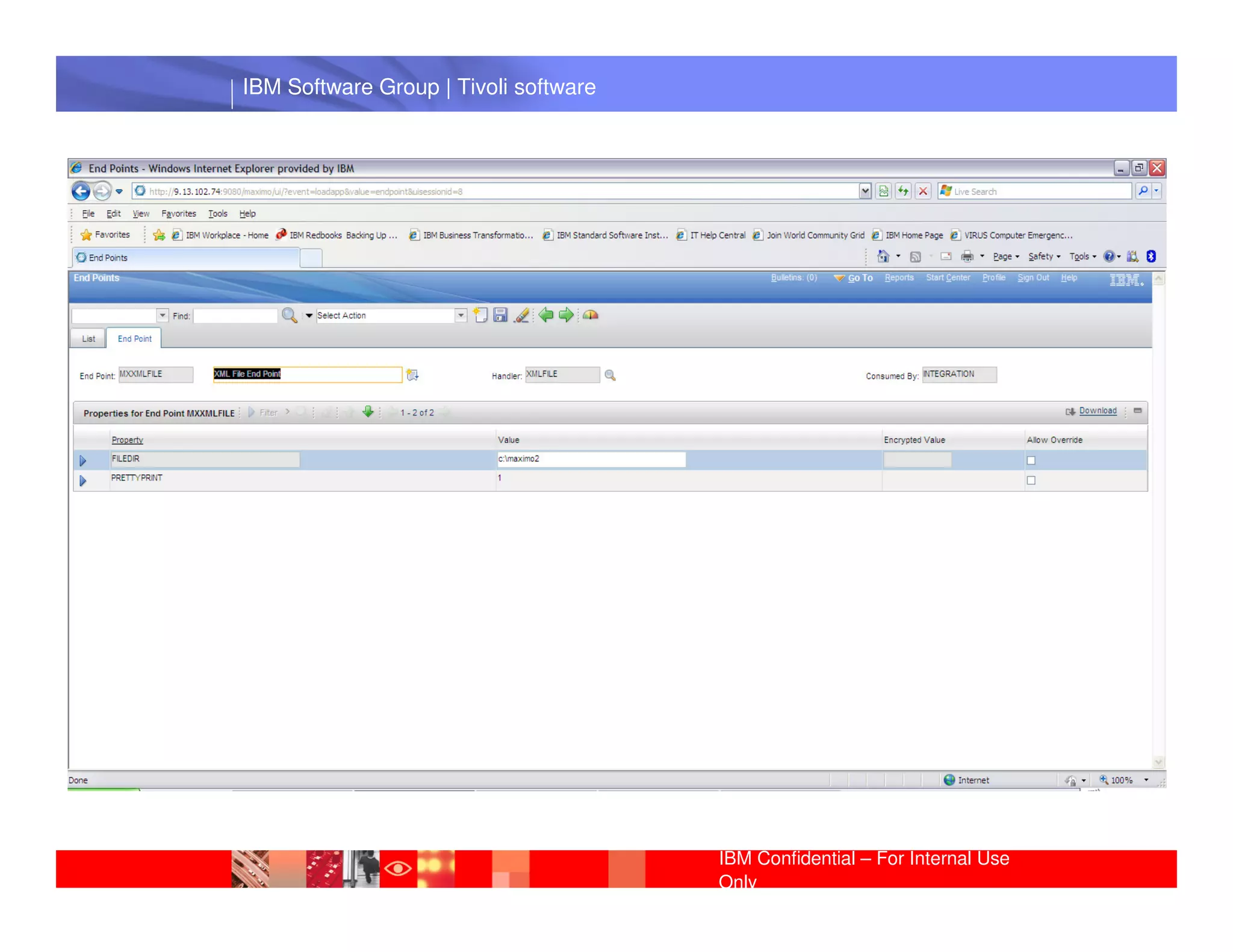

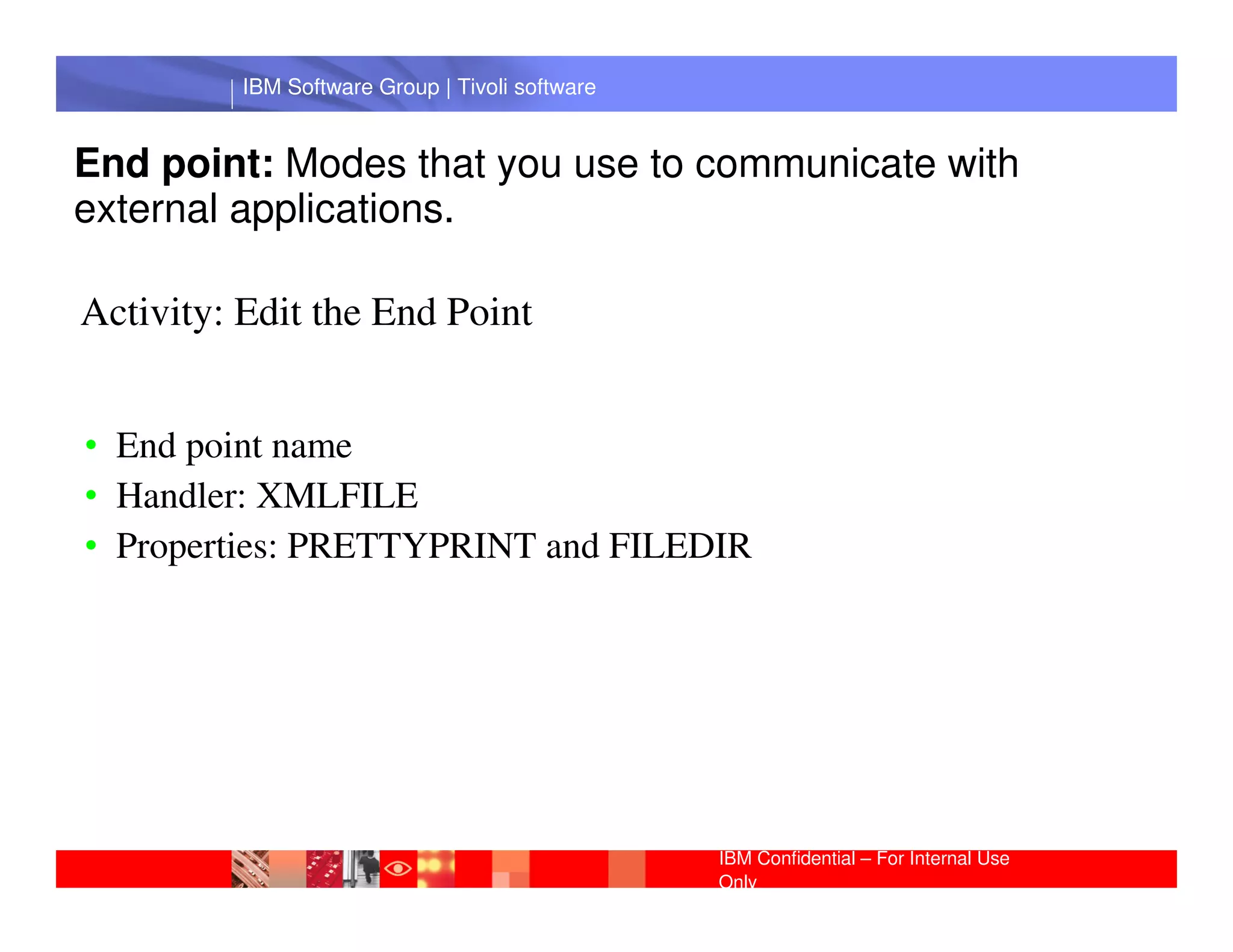

End point: Modes that you use to communicate with
external applications.

Activity: Edit the End Point

• End point name
• Handler: XMLFILE
• Properties: PRETTYPRINT and FILEDIR

Only

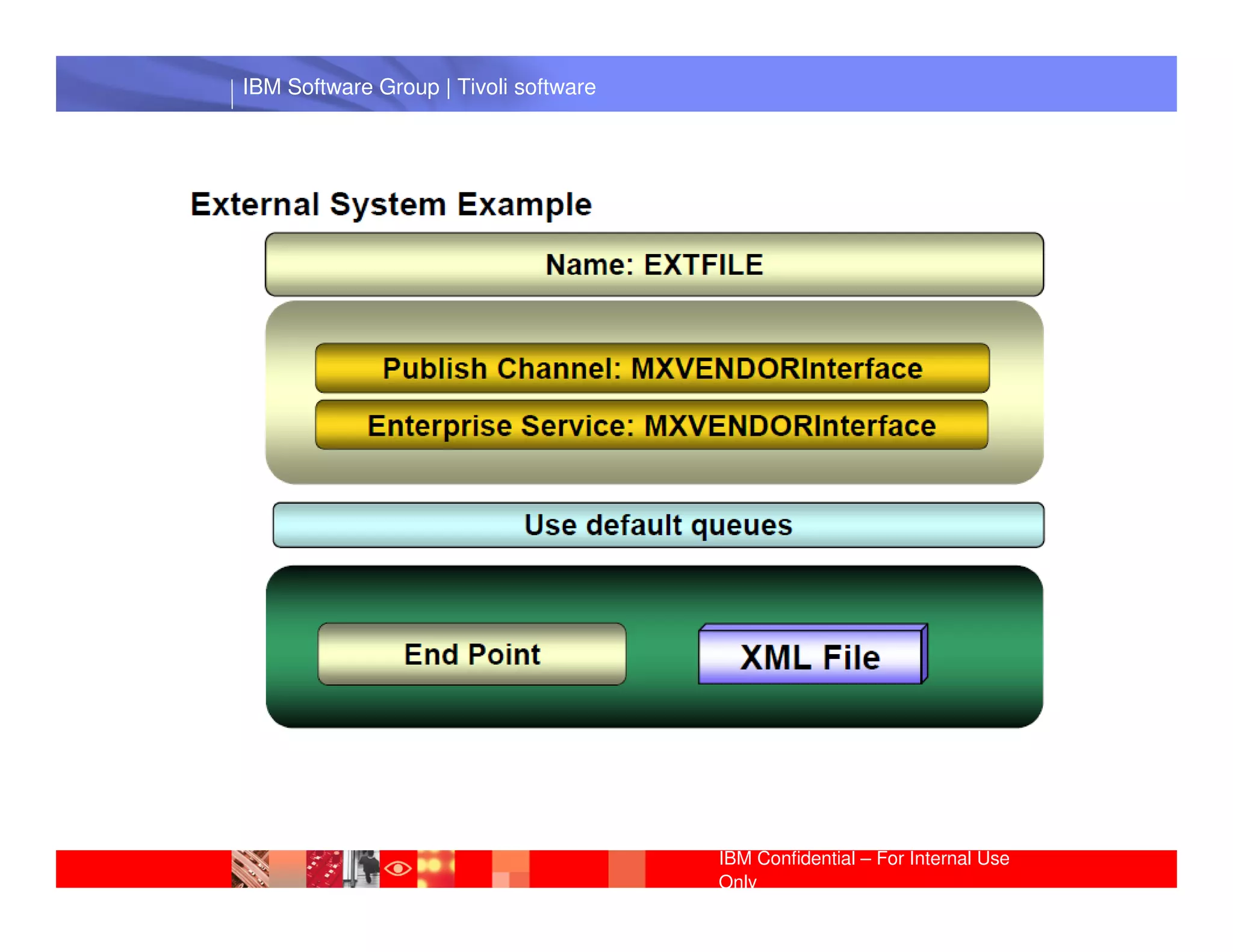

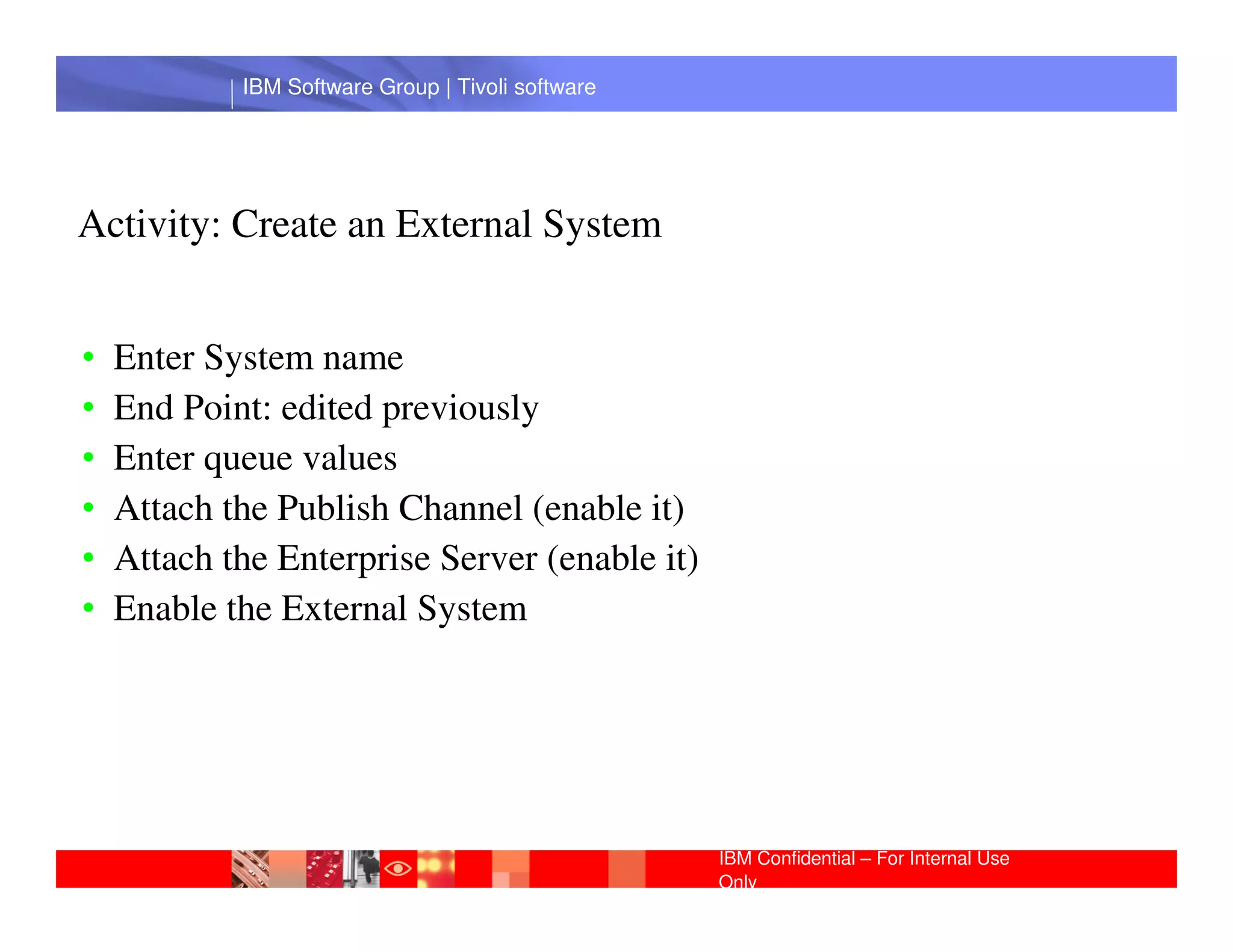

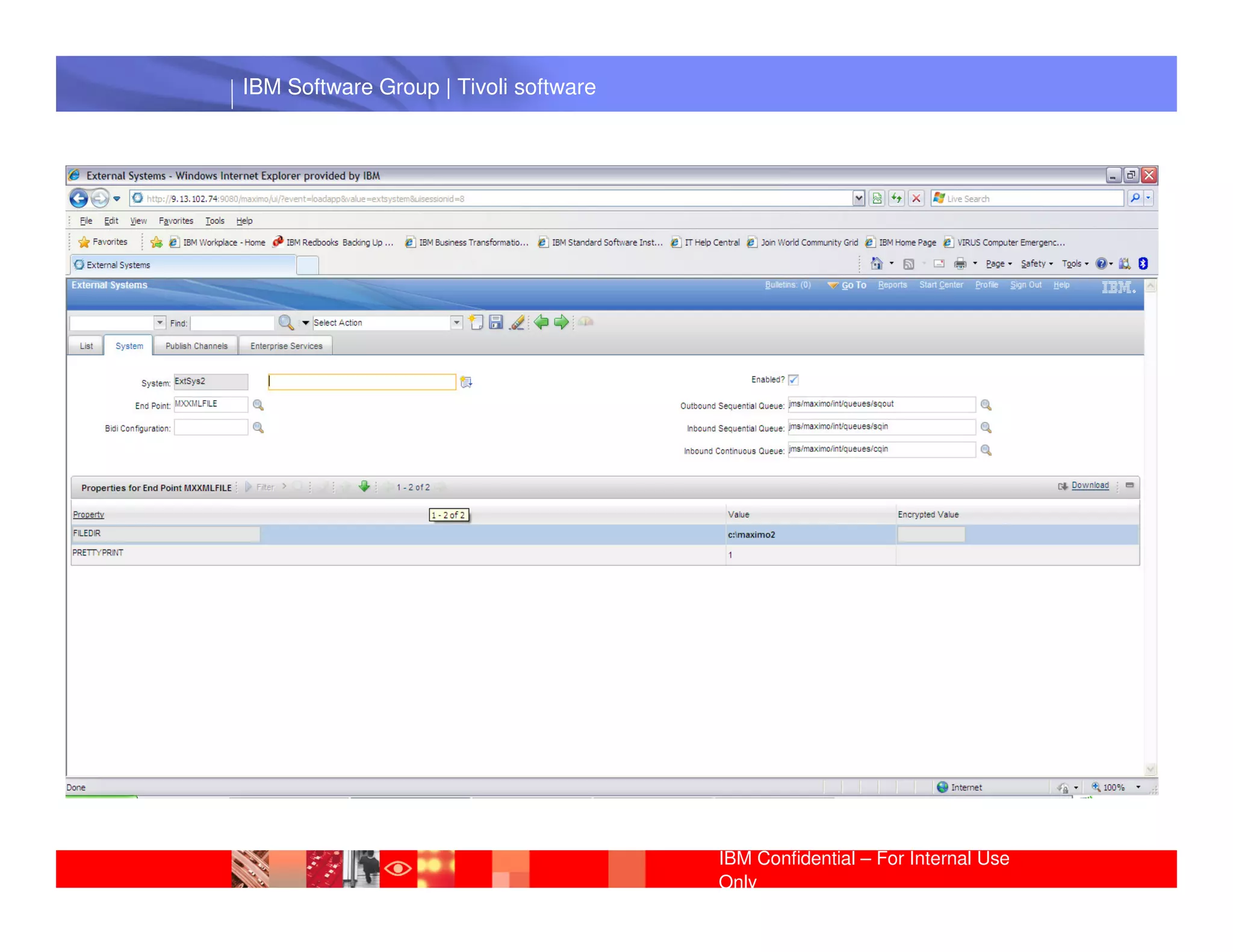

Activity: Create an External System

• Enter System name
• End Point: edited previously
• Enter queue values
• Attach the Publish Channel (enable it)
• Attach the Enterprise Server (enable it)
• Enable the External System

Only

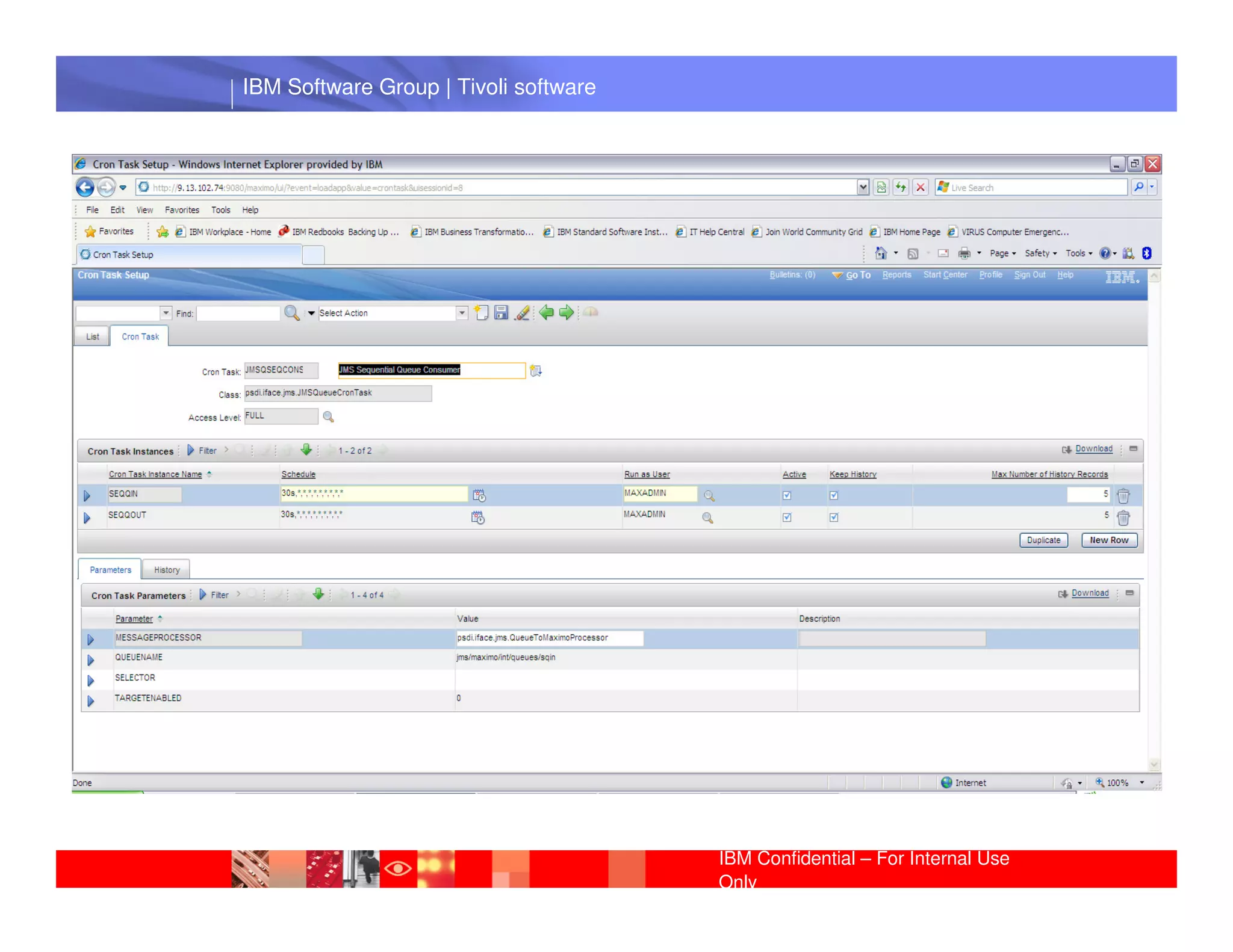

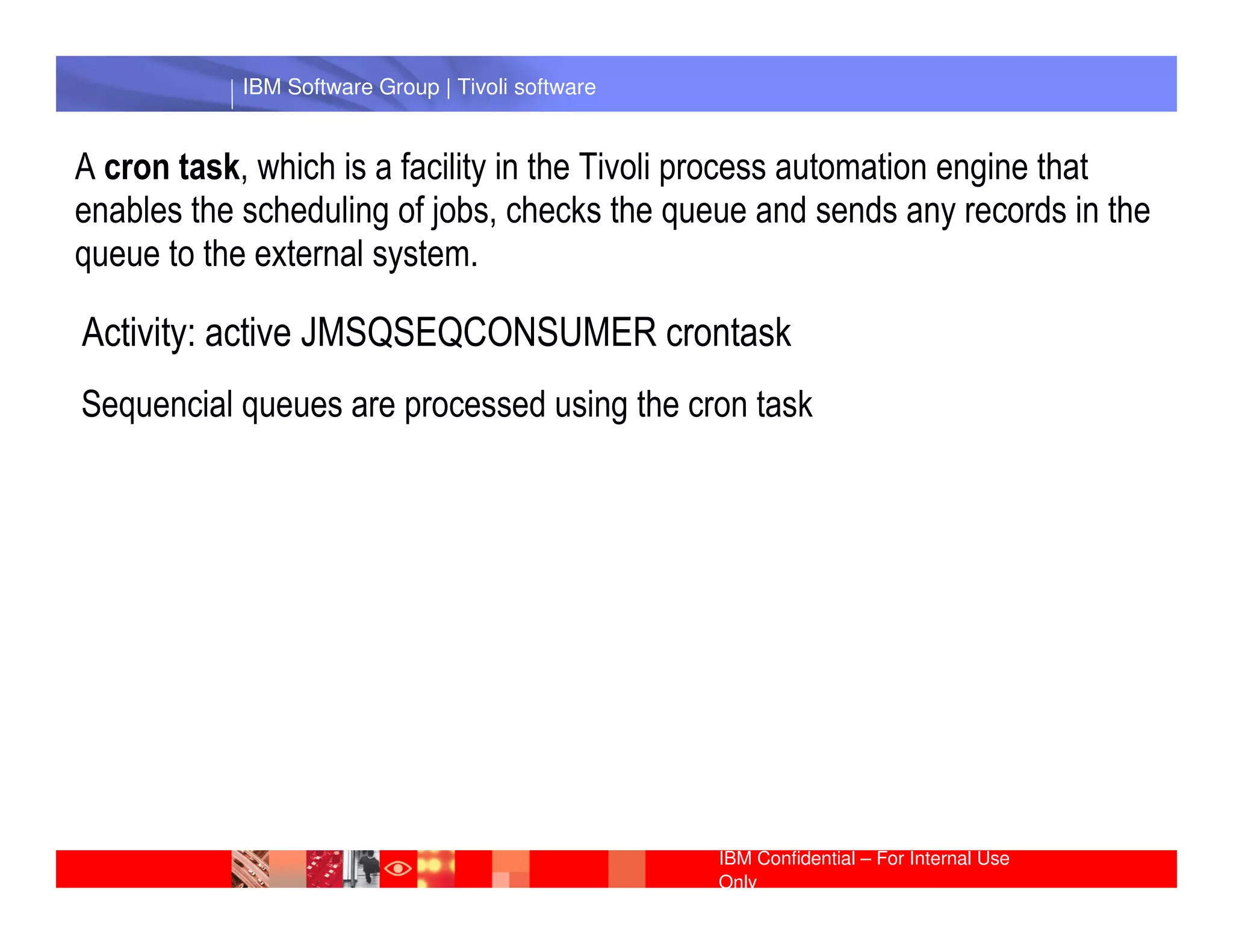

A cron task, which is a facility in the Tivoli process automation engine that
enables the scheduling of jobs, checks the queue and sends any records in the
queue to the external system.

Activity: active JMSQSEQCONSUMER crontask
Sequencial queues are processed using the cron task


Only

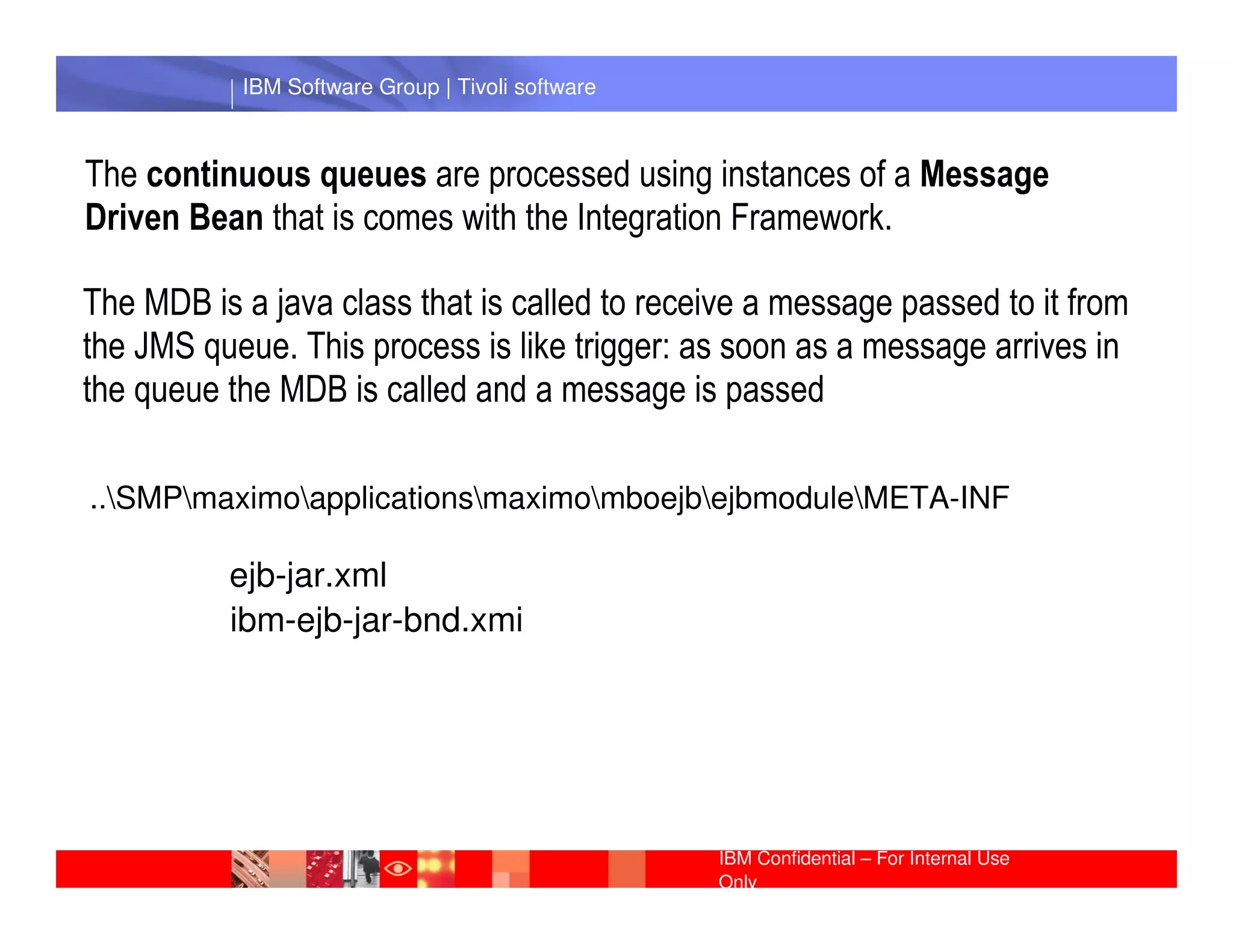

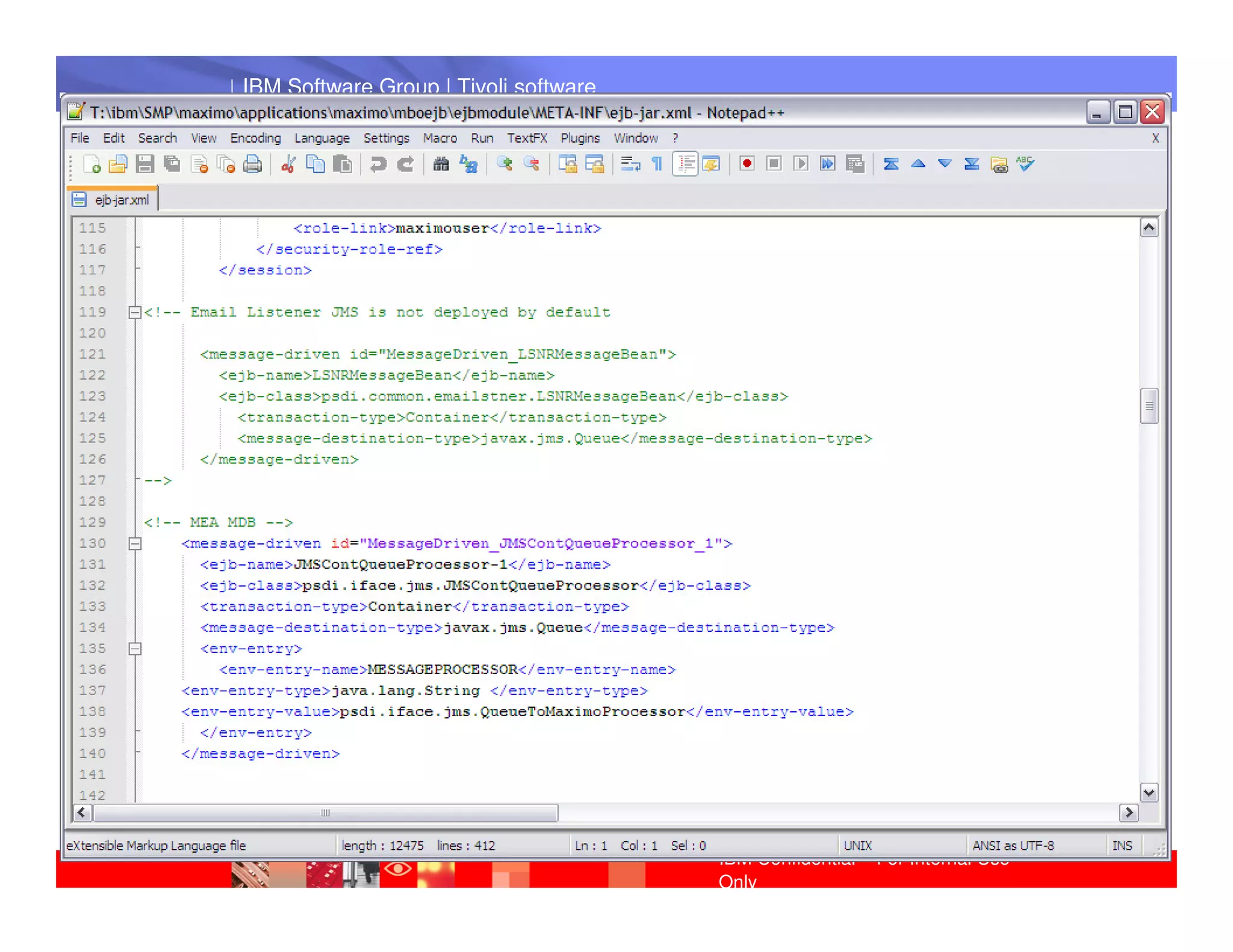

The continuous queues are processed using instances of a Message
Driven Bean that is comes with the Integration Framework.

The MDB is a java class that is called to receive a message passed to it from
the JMS queue. This process is like trigger: as soon as a message arrives in
the queue the MDB is called and a message is passed

..SMPmaximoapplicationsmaximomboejbejbmoduleMETA-INF

ejb-jar.xml
ibm-ejb-jar-bnd.xmi

Only

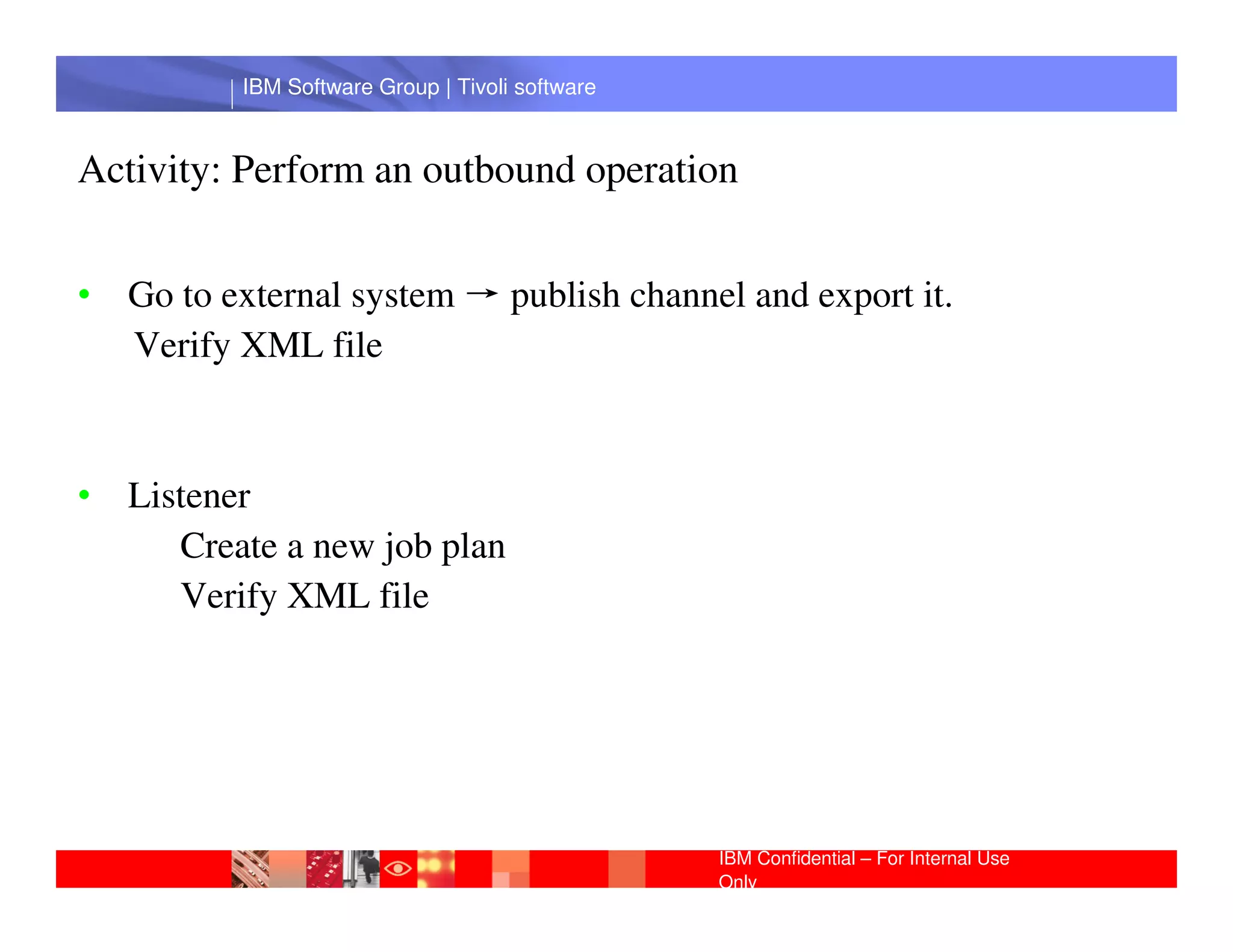

Activity: Perform an outbound operation

• Go to external system → publish channel and export it.
Verify XML file

• Listener IBM Software Group | Lotus software
Create a new job plan
Verify XML file

Only

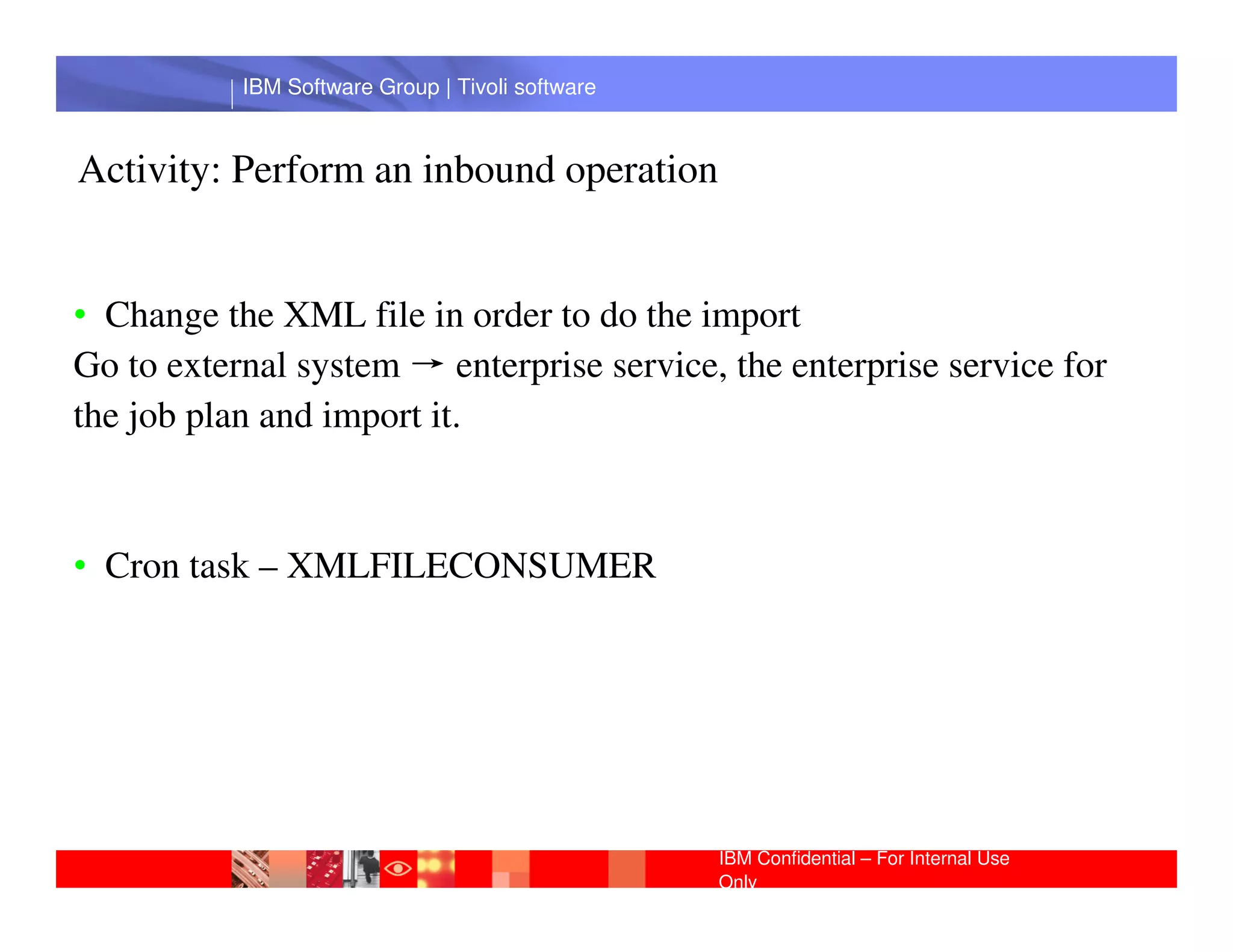

Activity: Perform an inbound operation

• Change the XML file in order to do the import
Go to external system → enterprise service, the enterprise service for
the job plan and import it.
• Cron task – XMLFILECONSUMER

Only

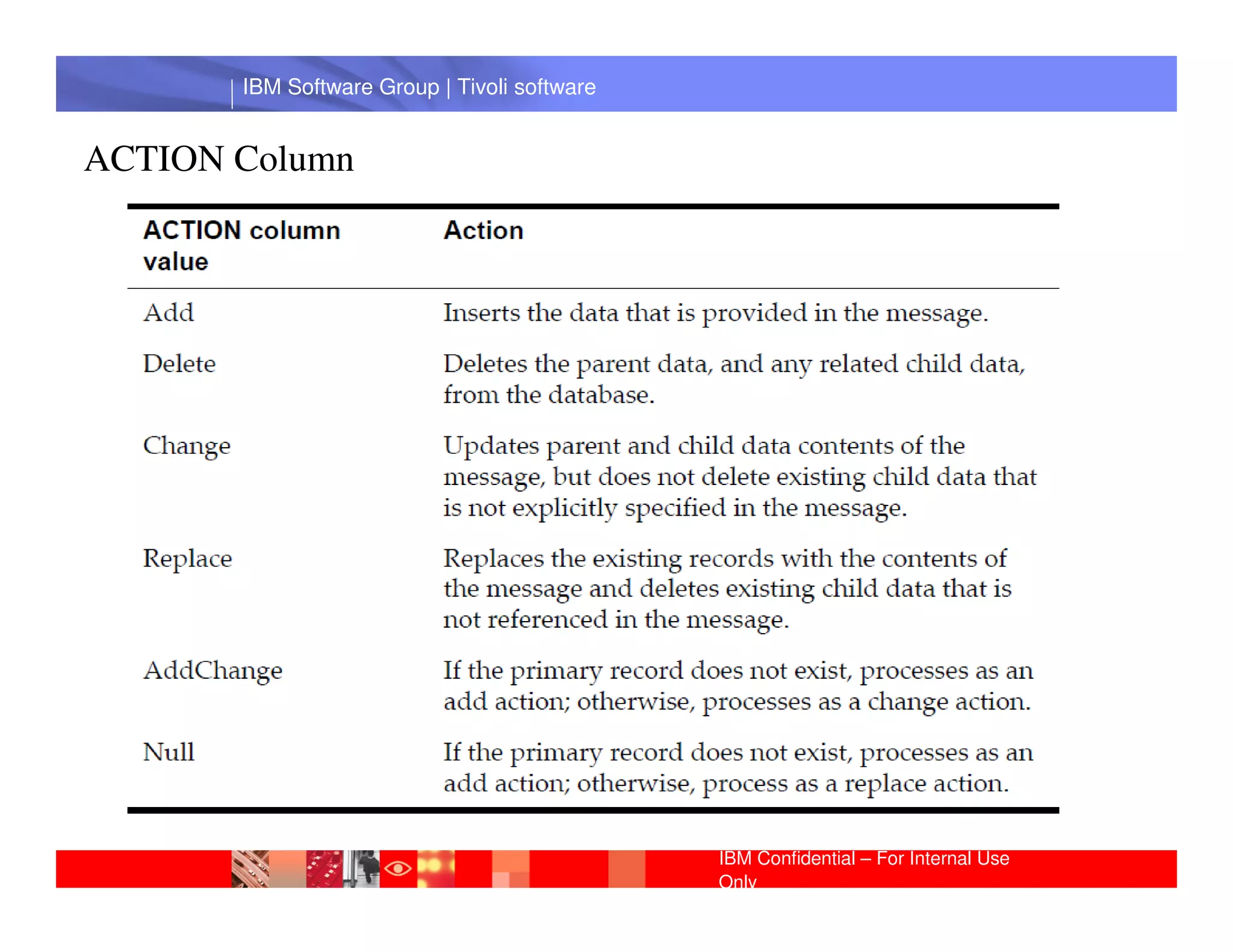

ACTION Column


Only

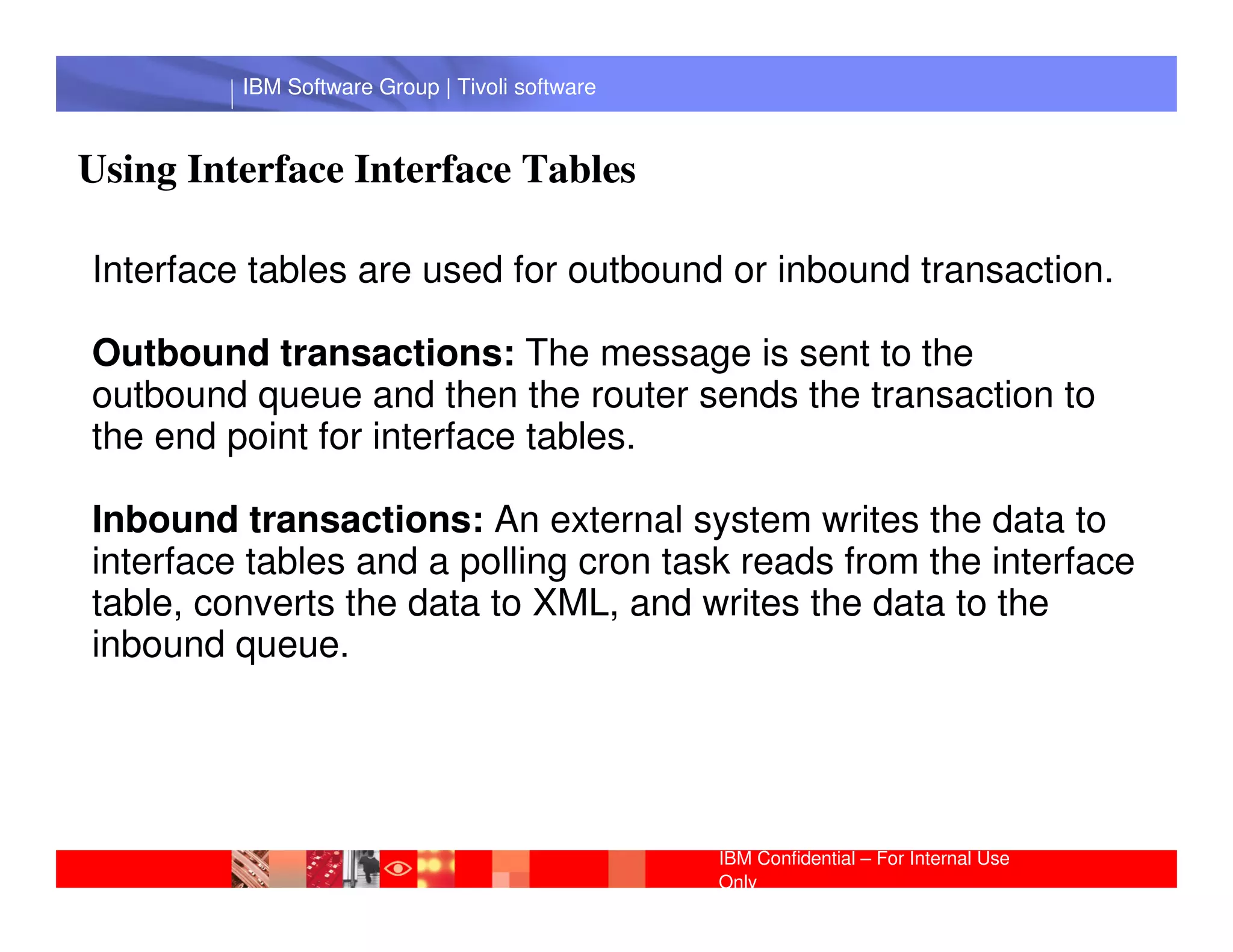

Using Interface Interface Tables

Interface tables are used for outbound or inbound transaction.

Outbound transactions: The message is sent to the
outbound queue and then the router sends the transaction to
the end point for interface tables.
Inbound transactions: An external system writes the data to
interface tables and a polling cron task reads from the interface
table, converts the data to XML, and writes the data to the
inbound queue.

Only

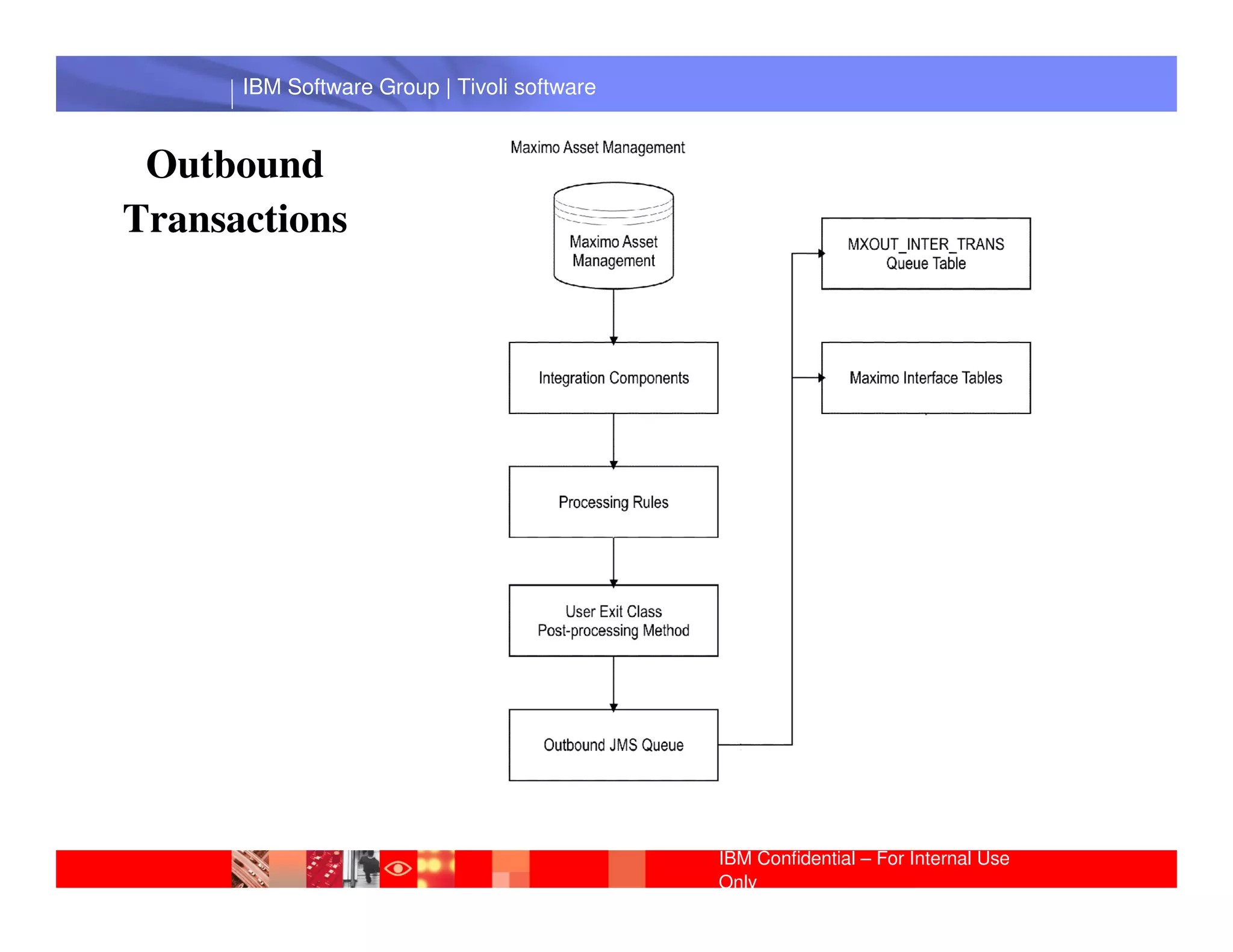

Outbound
Transactions


Only

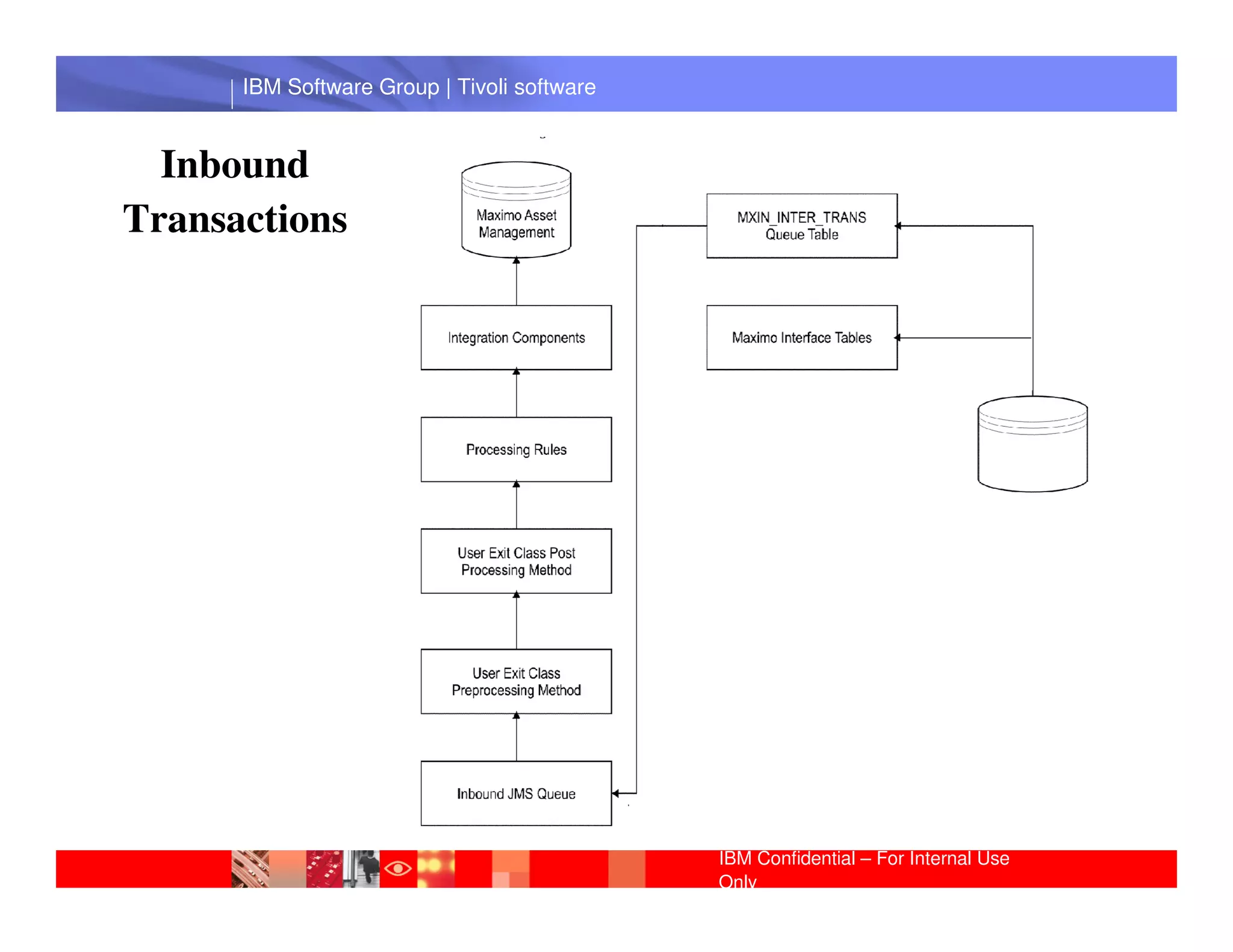

Inbound
Transactions


Only

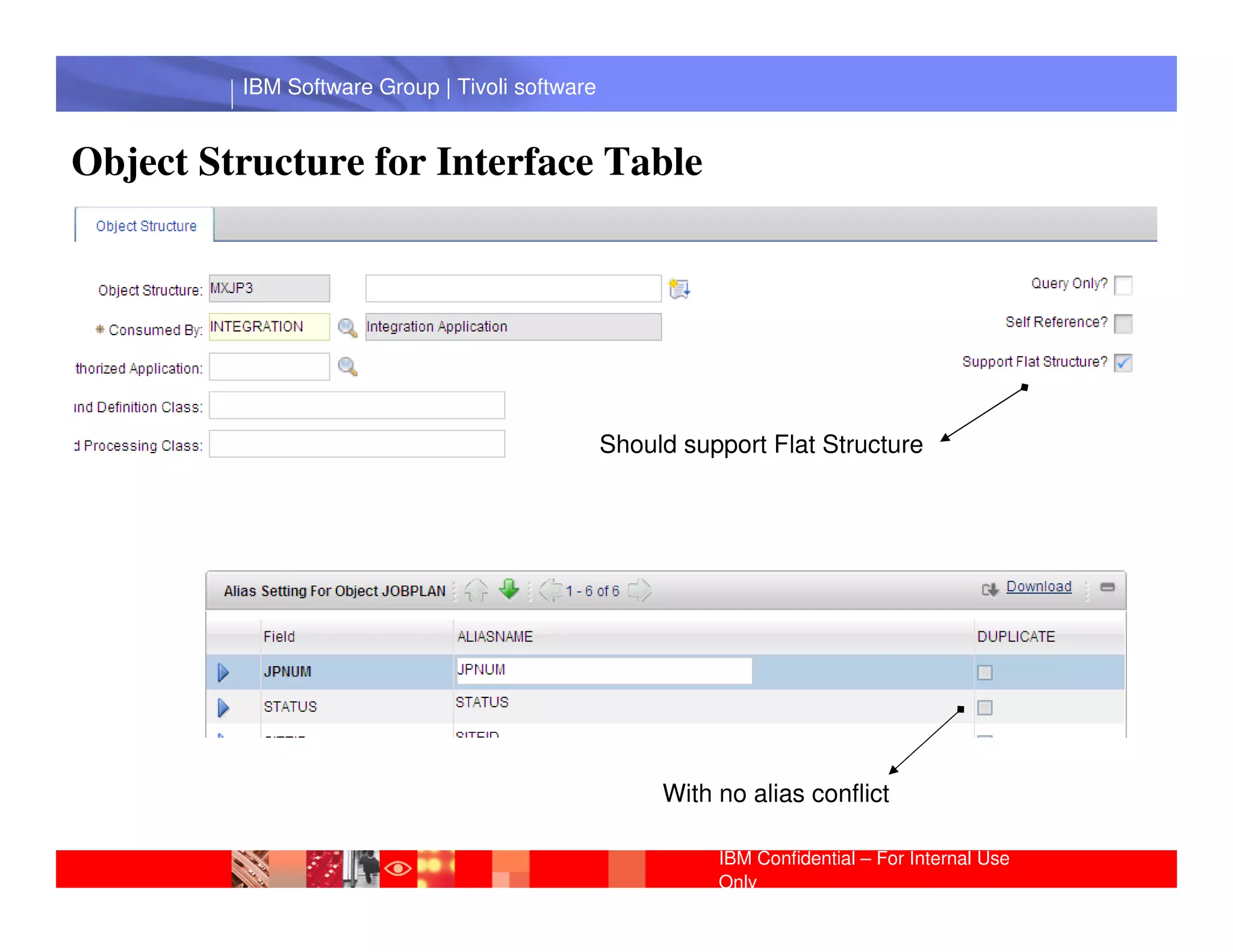

Object Structure for Interface Table

Should support Flat Structure

With no alias conflict

Only


The Interface Table should be set in Publish Channel and in
the Enterprise Service


Only

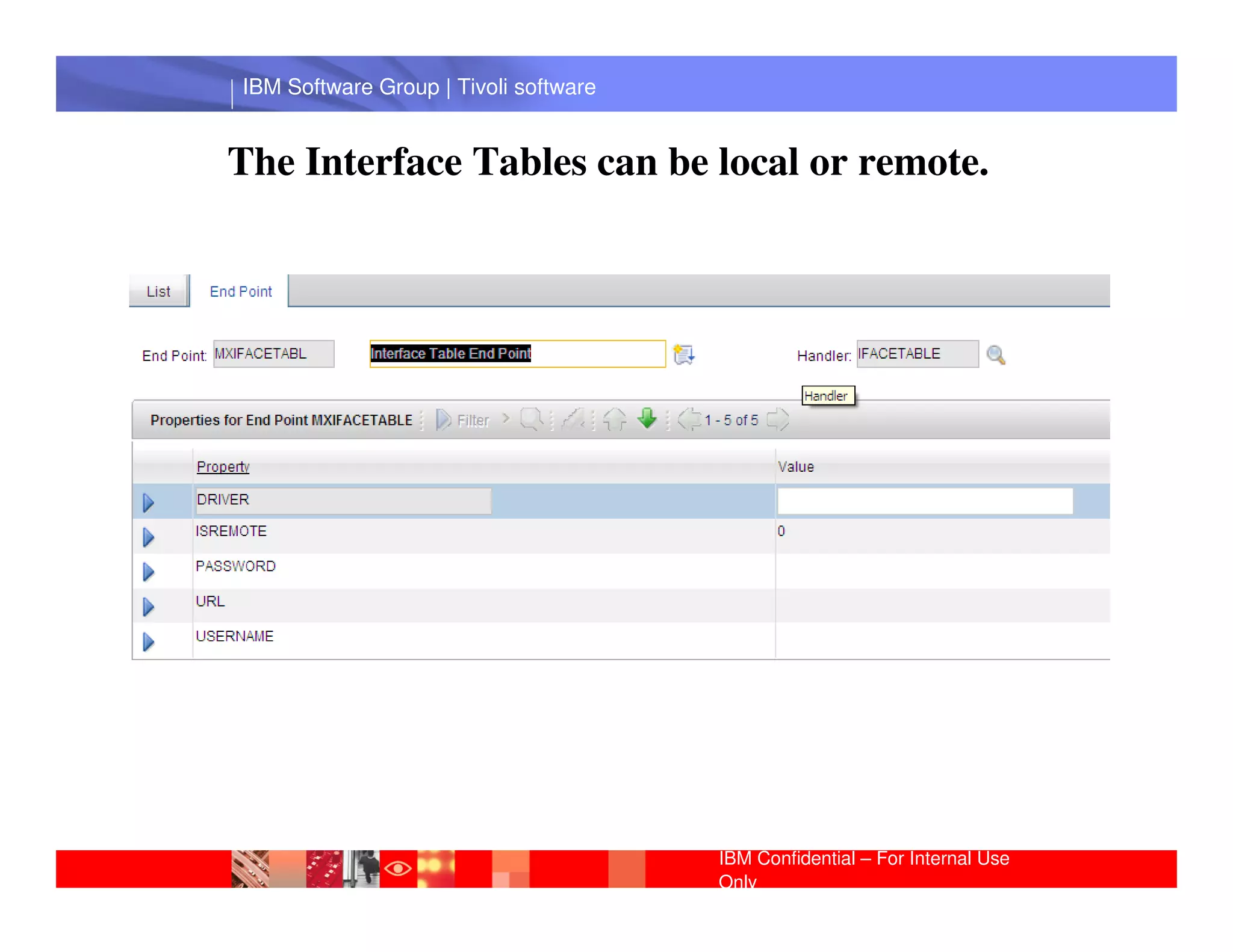

The Interface Tables can be local or remote.


Only

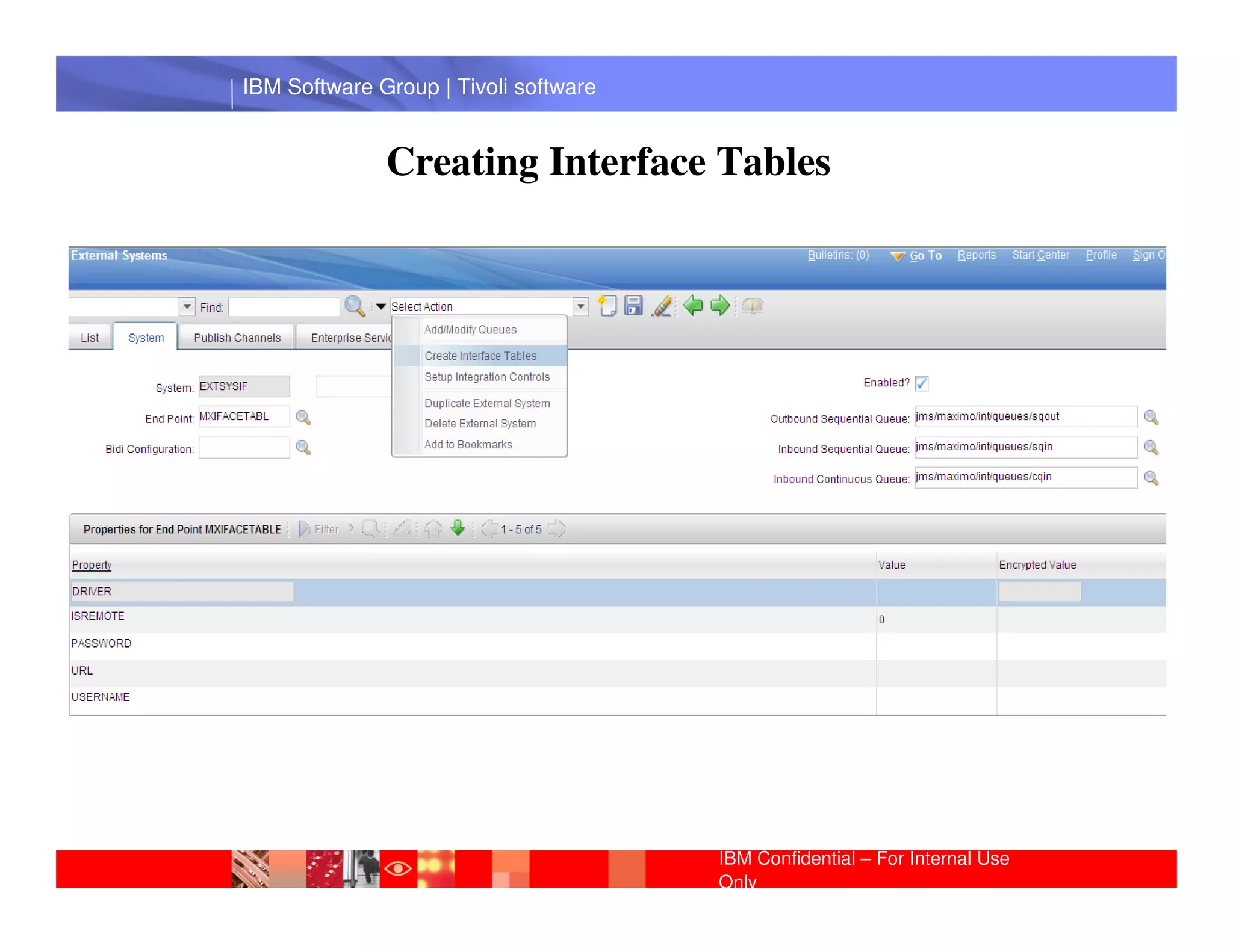

Creating Interface Tables


Only

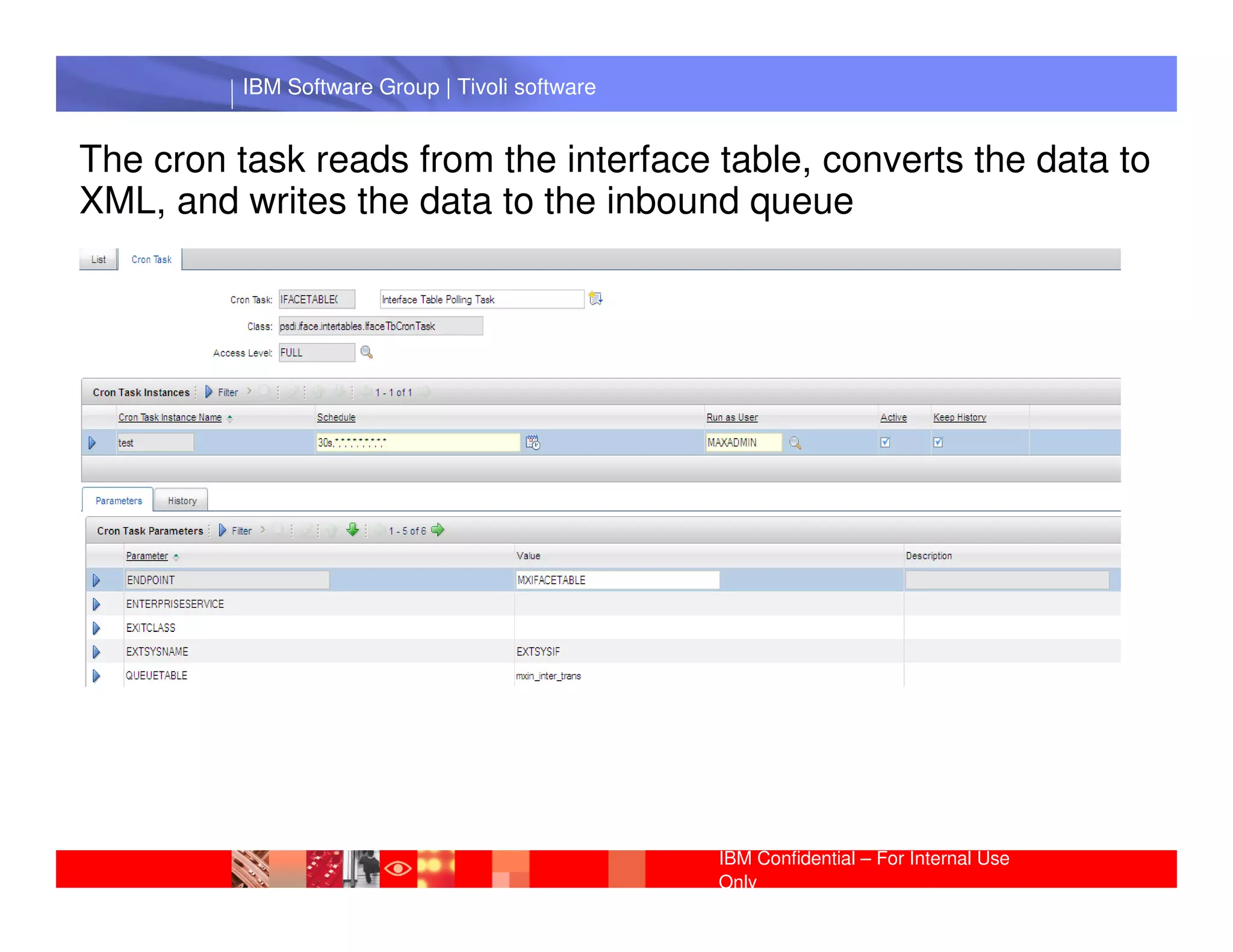

The cron task reads from the interface table, converts the data to
XML, and writes the data to the inbound queue


Only

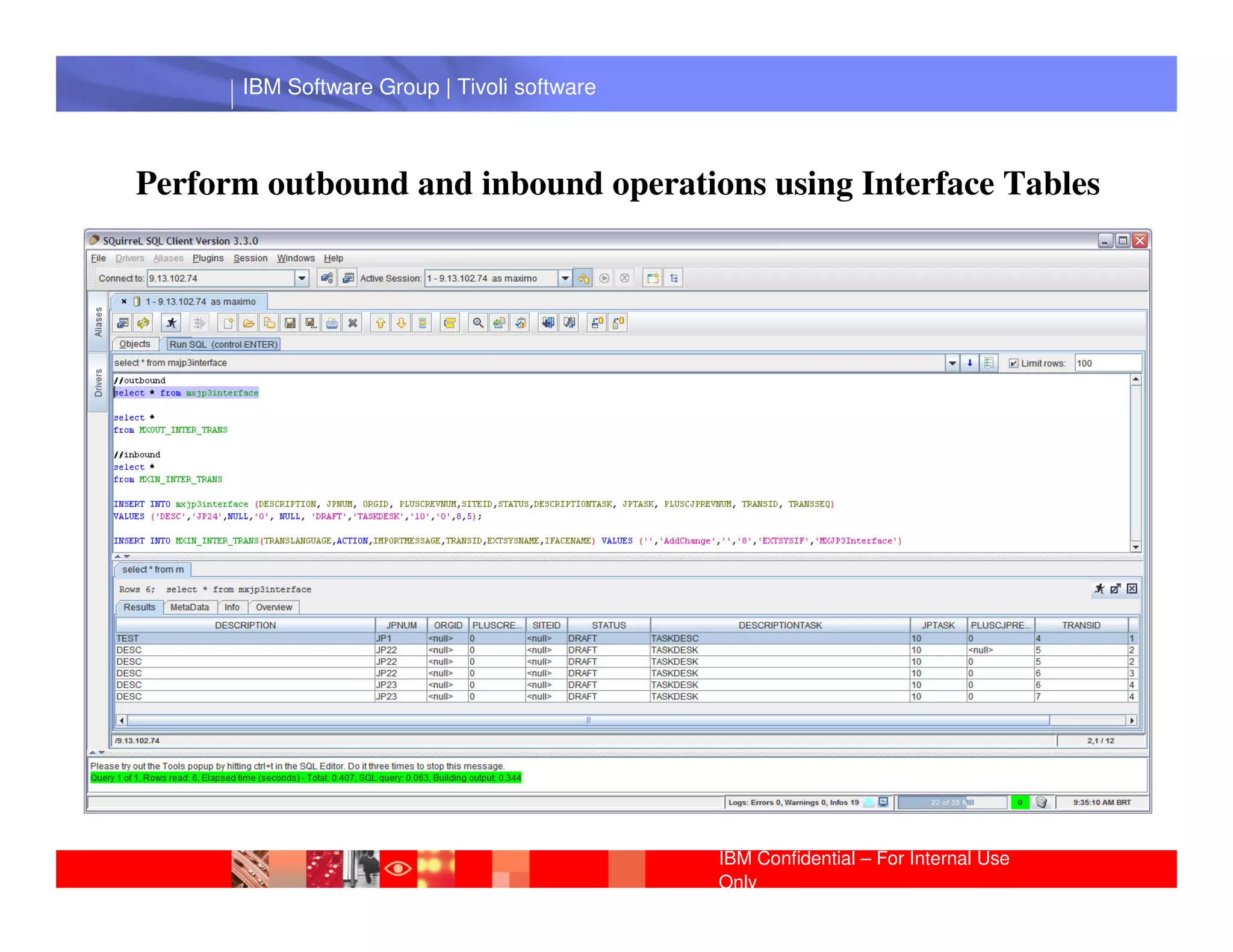

Perform outbound and inbound operations using Interface Tables


Only

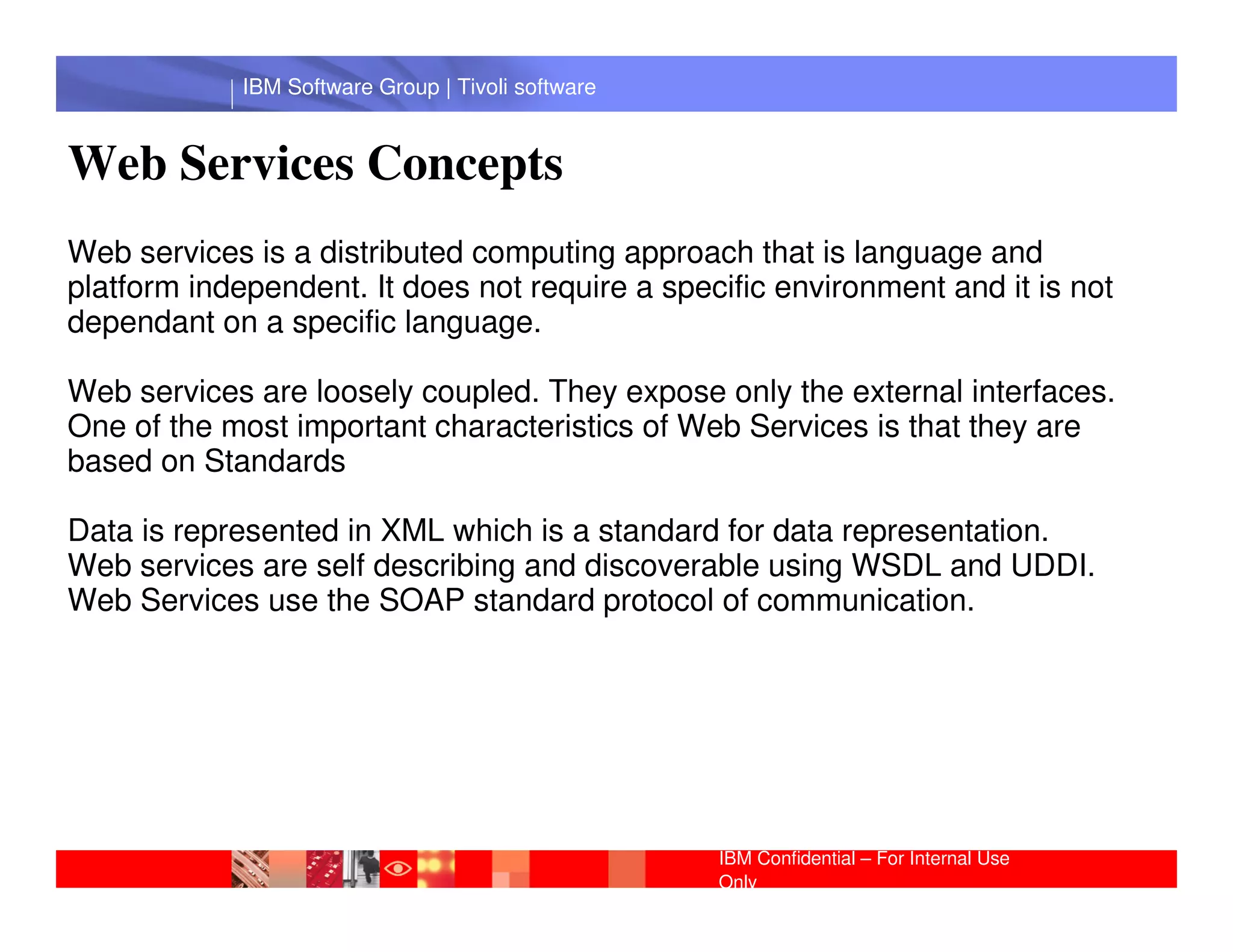

Web Services Concepts
Web services is a distributed computing approach that is language and
platform independent. It does not require a specific environment and it is not
dependant on a specific language.

Web services are loosely coupled. They expose only the external interfaces.
One of the most important characteristics of Web Services is that they are
based on Standards
Data is represented in XML which is a standard for data representation.
Web services are self describing and discoverable using WSDL and UDDI.
Web Services use the SOAP standard protocol of communication.

Only

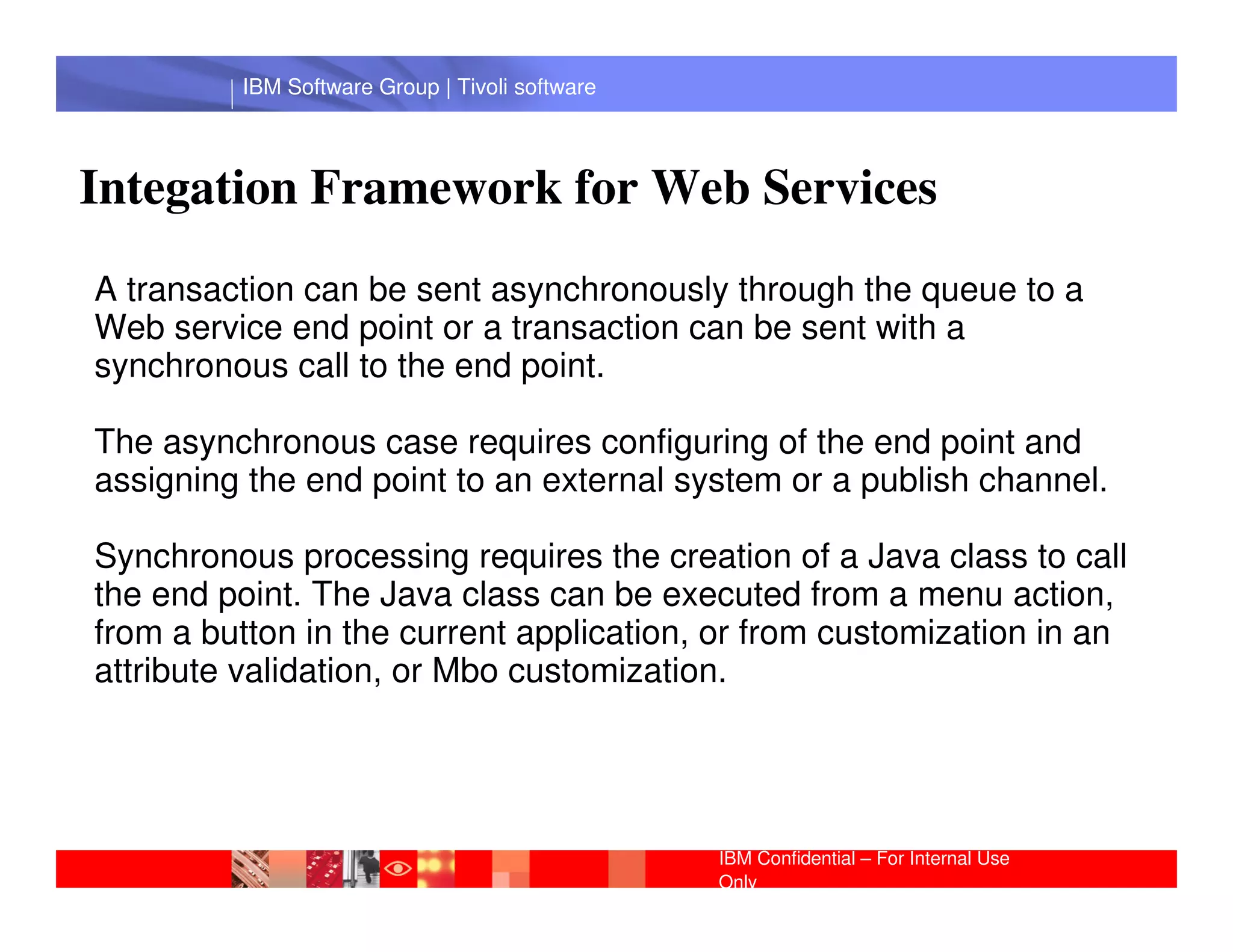

Integation Framework for Web Services
A transaction can be sent asynchronously through the queue to a
Web service end point or a transaction can be sent with a
synchronous call to the end point.

The asynchronous case requires configuring of the end point and
assigning the end point to anGroup |system or a publish channel.
IBM Software external Lotus software
Synchronous processing requires the creation of a Java class to call
the end point. The Java class can be executed from a menu action,
from a button in the current application, or from customization in an
attribute validation, or Mbo customization.

Only

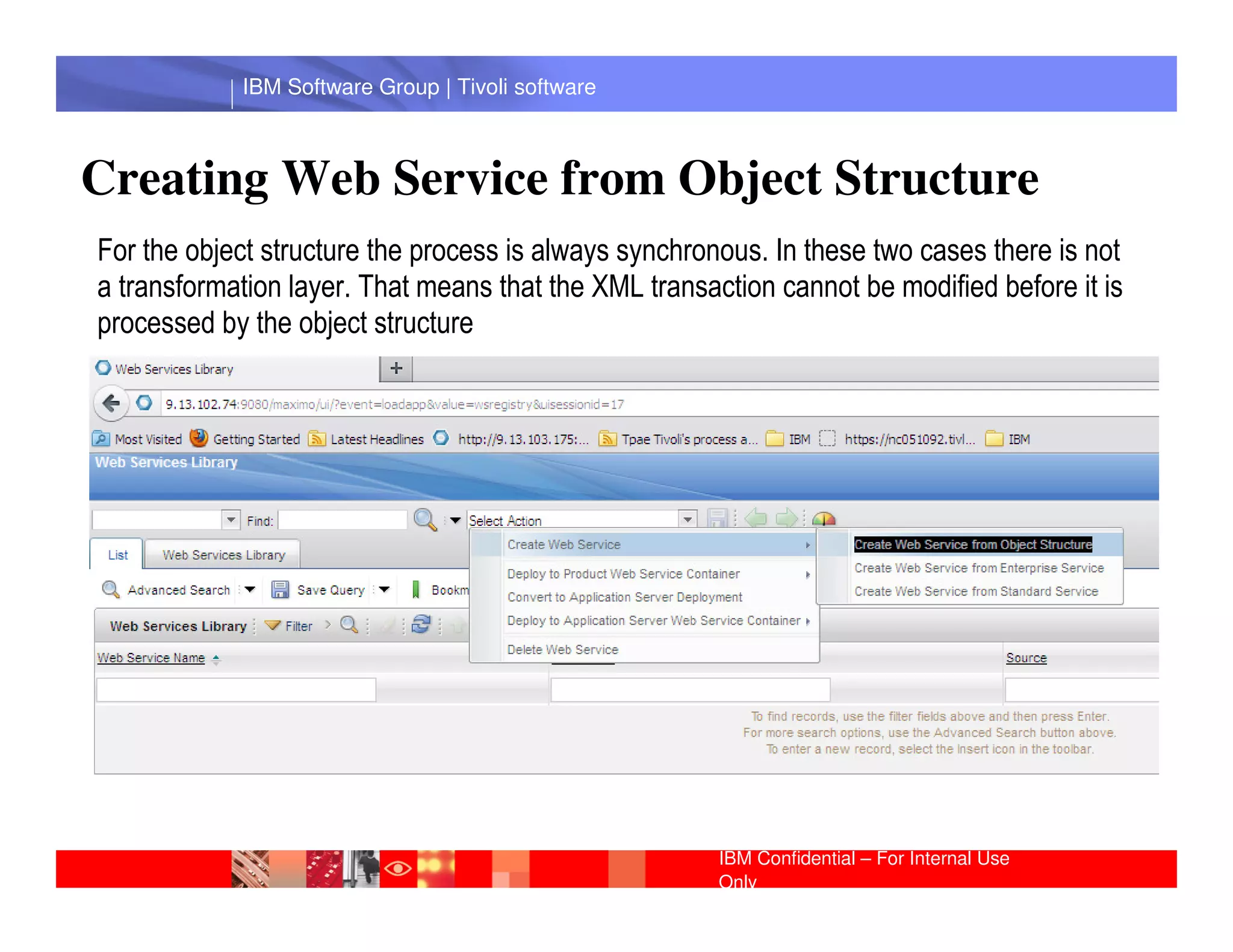

Creating Web Service from Object Structure
For the object structure the process is always synchronous. In these two cases there is not
a transformation layer. That means that the XML transaction cannot be modified before it is
processed by the object structure


Only

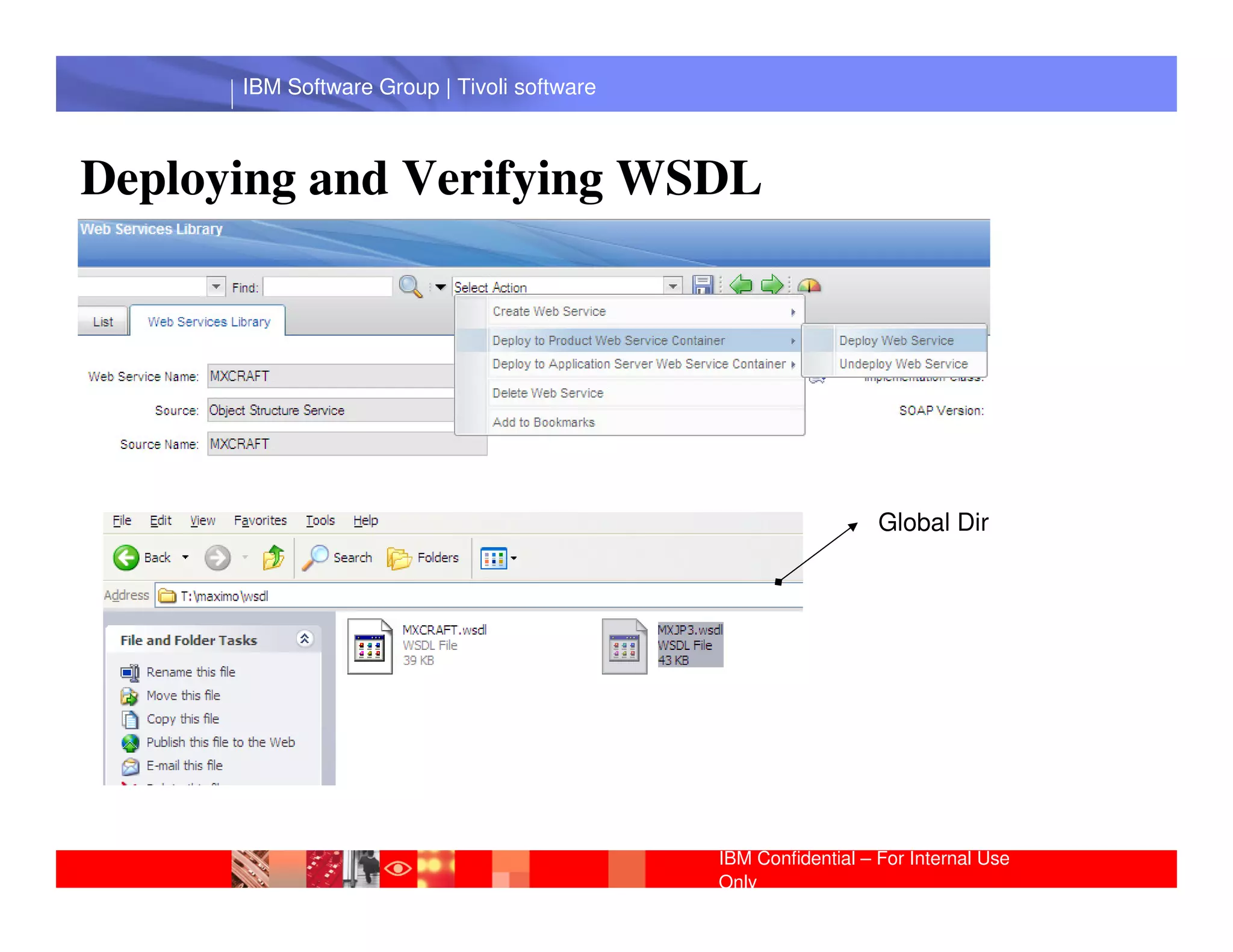

Deploying and Verifying WSDL

Global Dir

Only

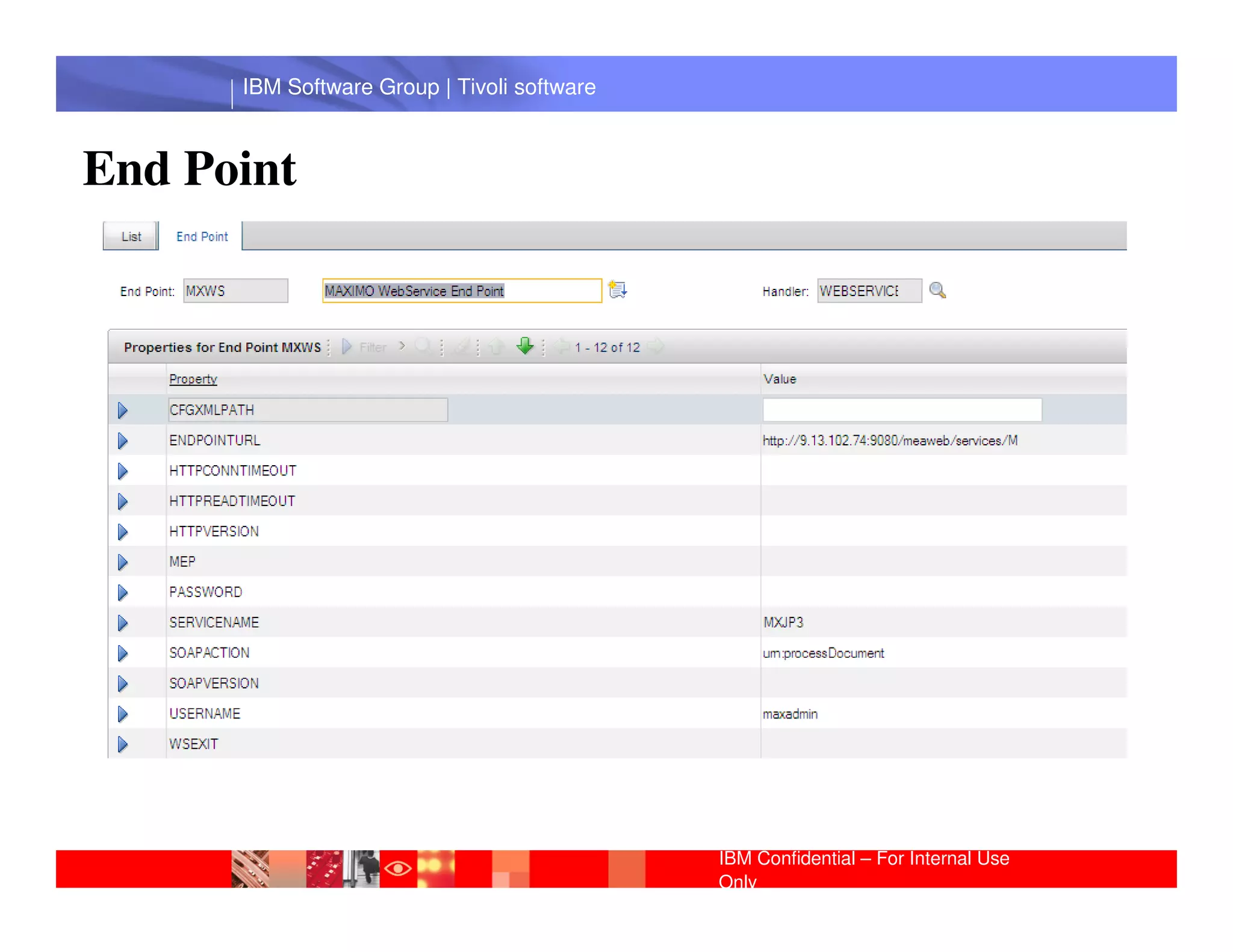

End Point


Only

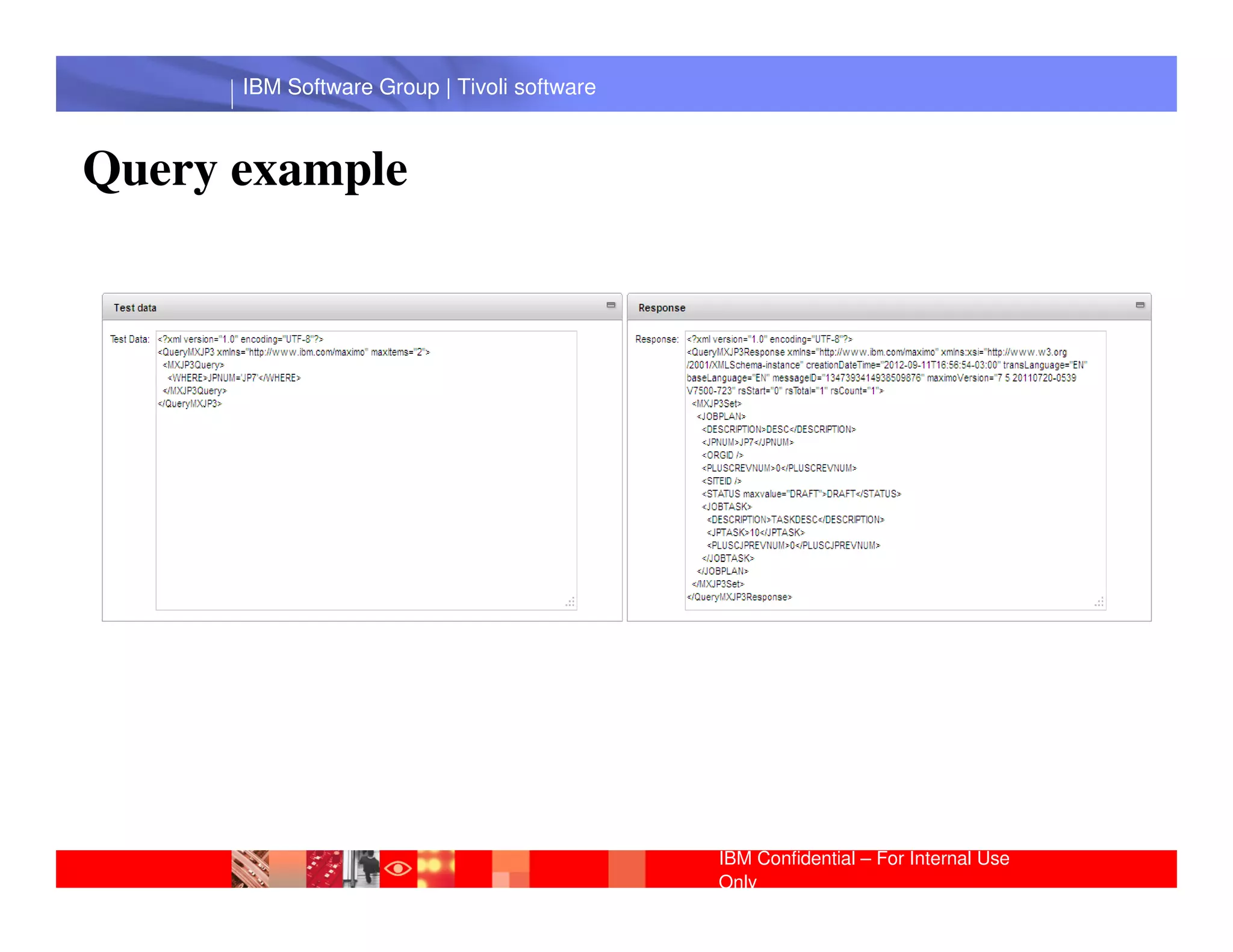

Query example


Only

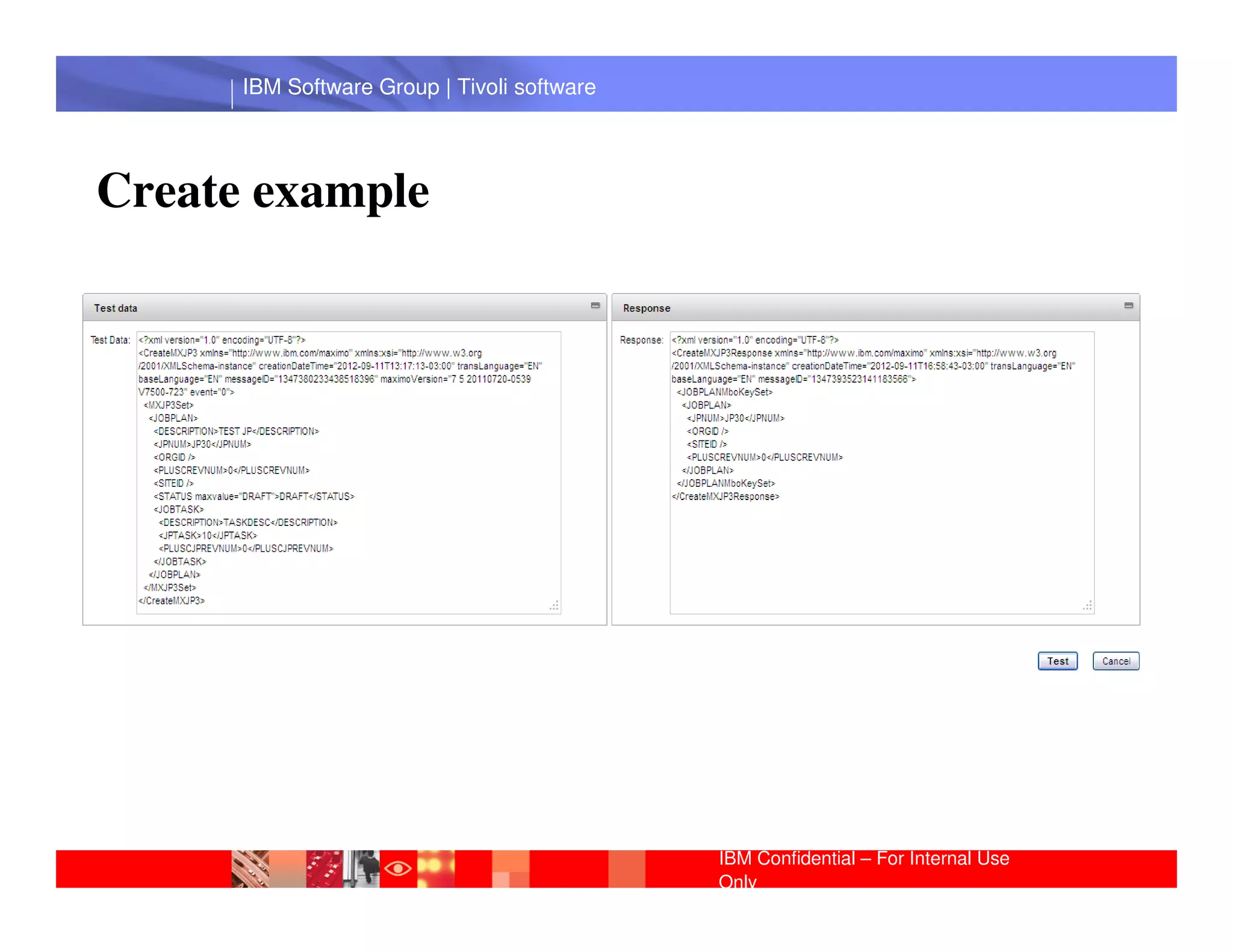

Create example


Only


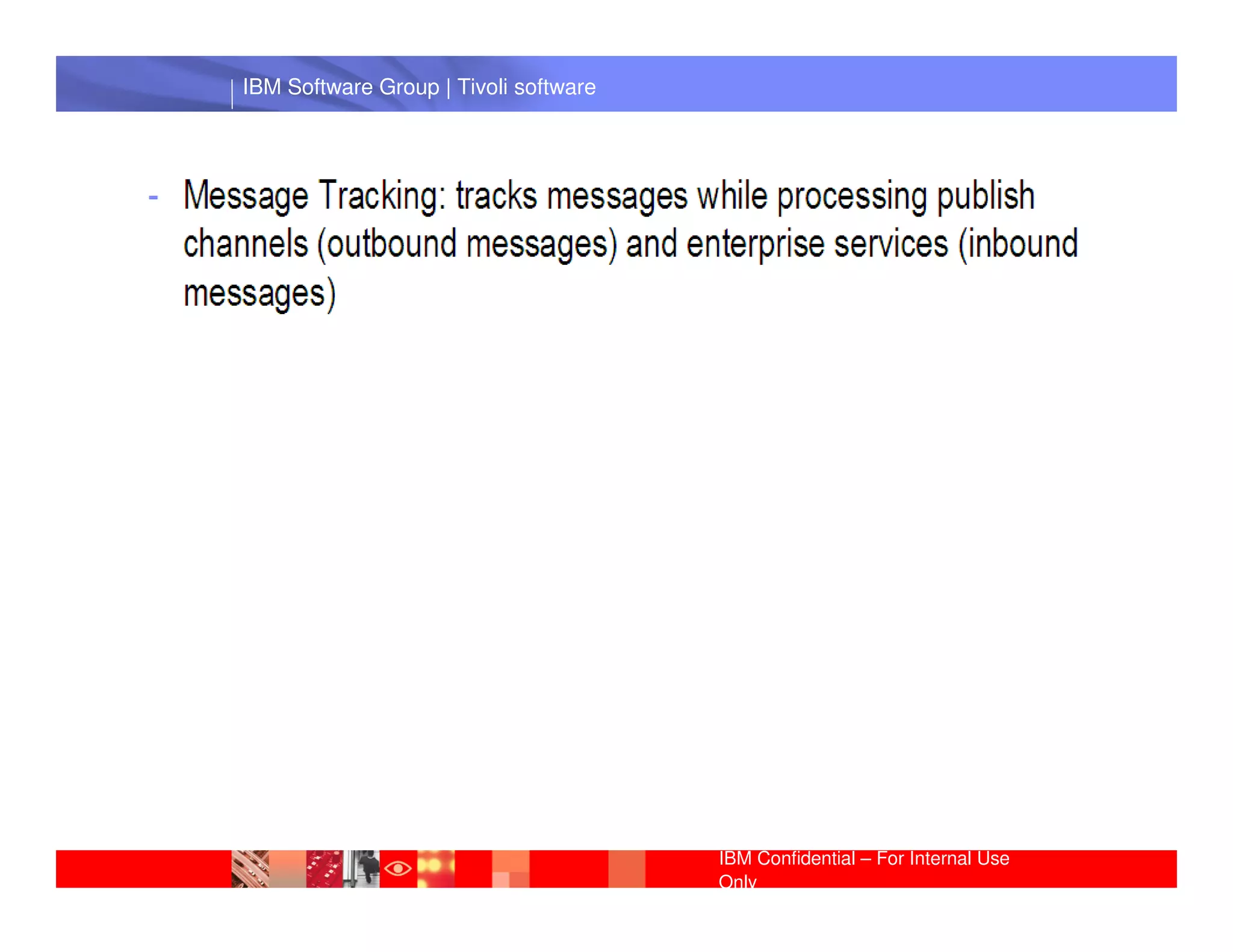

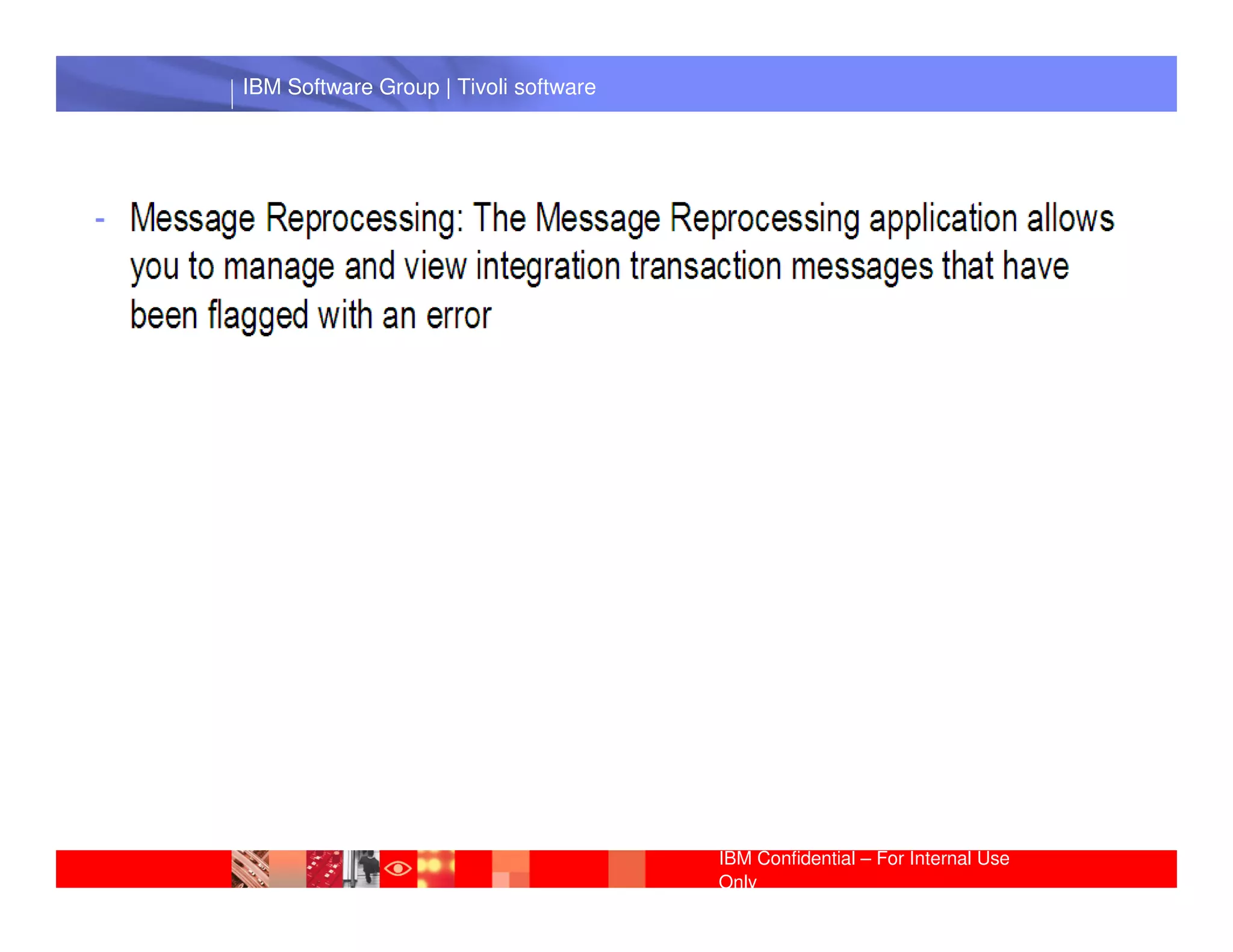

Questions

Only
