Microservices are being deployed by many Java Hipsters. If you're working with a large team that needs different release cycles for product components, microservices can be a blessing. If you're working at your VW Restoration Shop and running its online store with your own software, having five services to manage and deploy can be a real pain. This presentation will show you how to use JHipster to create Angular + Spring Boot apps with a unified front-end. You will leave with the know-how to create your own excellent apps! Bonus: I'll show you how to use Ionic for JHipster to create native applications on mobile. It's pretty darn slick! Related tutorials and screencasts: * Java Microservices with Spring Boot and Spring Cloud: https://developer.okta.com/blog/2019/05/22/java-microservices-spring-boot-spring-cloud * Java Microservices with Spring Cloud Config and JHipster: https://developer.okta.com/blog/2019/05/23/java-microservices-spring-cloud-config * Secure Reactive Microservices with Spring Cloud Gateway: https://developer.okta.com/blog/2019/08/28/reactive-microservices-spring-cloud-gateway

1. Microservices for the Masses with Spring Boot, JHipster, and OAuth
September 2, 2019
Matt Raible | @mraible
Photo by Shannon Tremaine on https://unsplash.com/photos/NRz7SfpnqUM

2. Do you use microservices?

4. Blogger on raibledesigns.com and
developer.okta.com/blog
Web Developer and Java Champion
Father, Husband, Skier, Mountain
Biker, Whitewater Rafter
Open Source Connoisseur
Hi, I’m Matt Raible!
Bus Lover
Okta Developer Advocate

8. developer.okta.com

9. What About You?

10. Agenda
1. Introduction to Microservices
2. Microservices with JHipster
3. Deploying to the Cloud
4. Developing Mobile Apps with JHipster
5. JHipster Roadmap

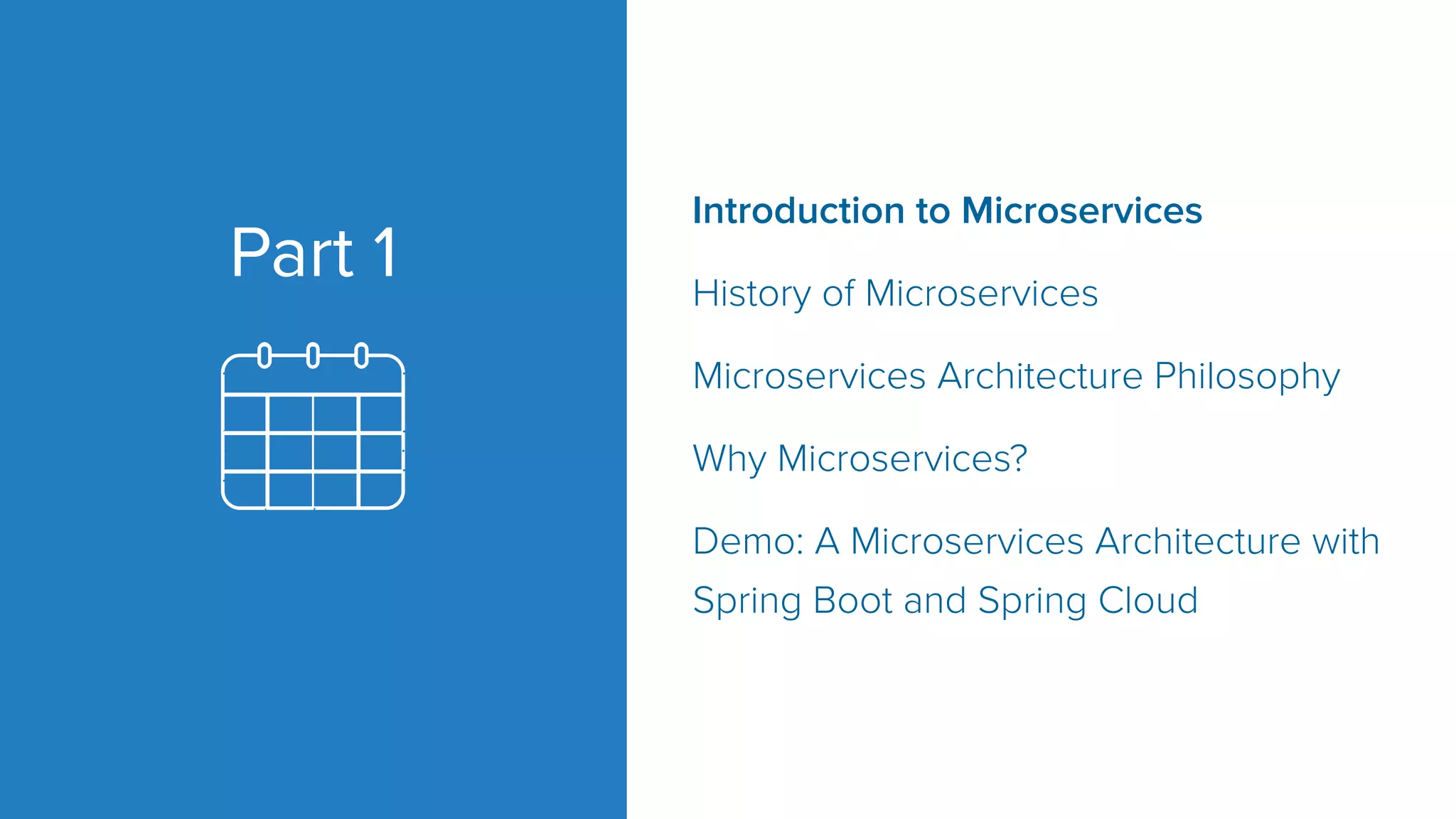

11. Part 1
Introduction to Microservices
History of Microservices
Microservices Architecture Philosophy
Why Microservices?
Demo: A Microservices Architecture with
Spring Boot and Spring Cloud

13. Microservices Visionaries

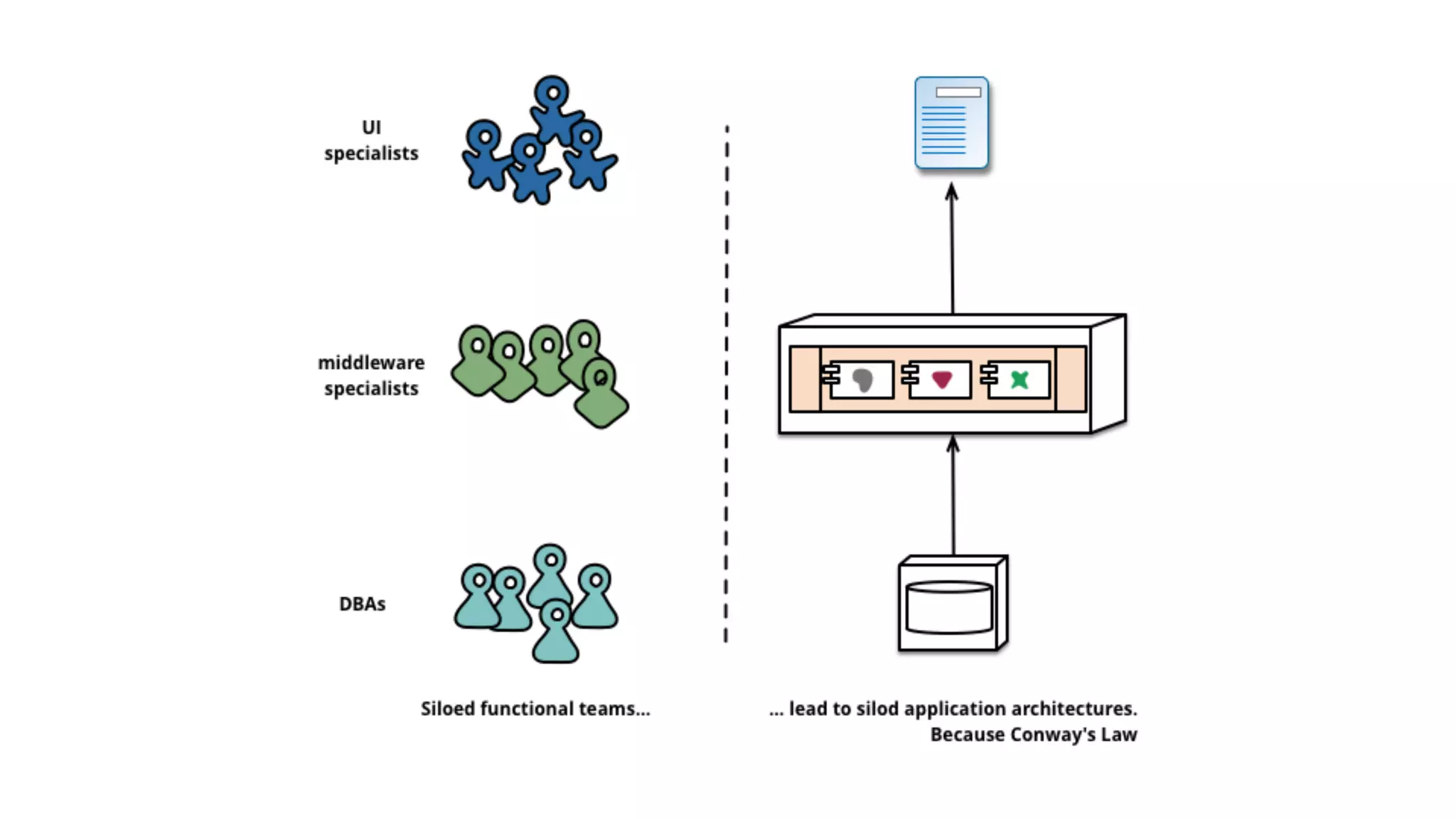

15. “Any organization that designs a system
(defined broadly) will produce a design
whose structure is a copy of the
organization's communication structure.”
Conway’s Law
Melvin Conway 1967

16. “Do one thing and do it well.”

17. “You shouldn't start with a microservices
architecture. Instead begin with a
monolith, keep it modular, and split it
into microservices once the monolith
becomes a problem.”
Martin Fowler March 2014

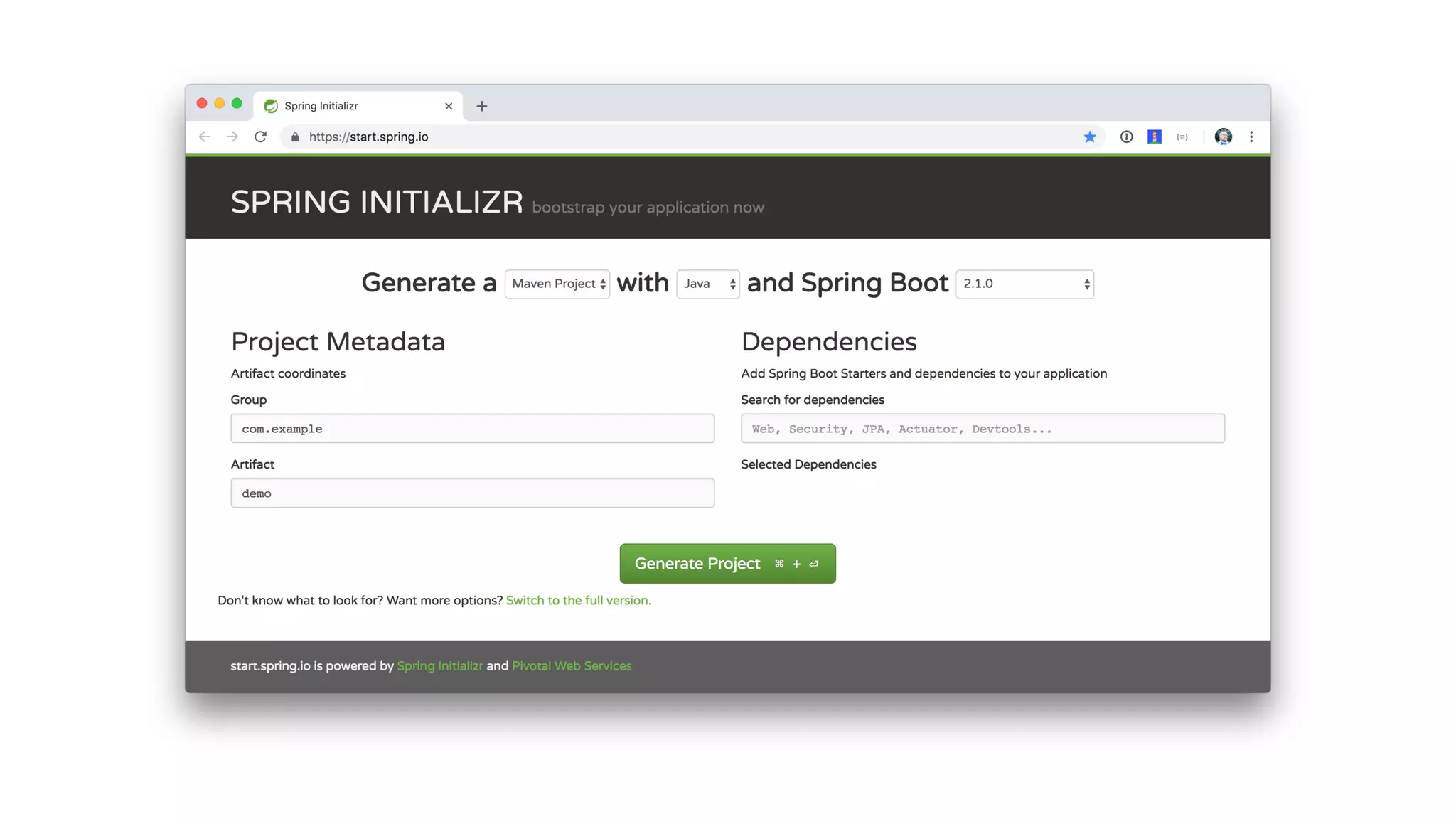

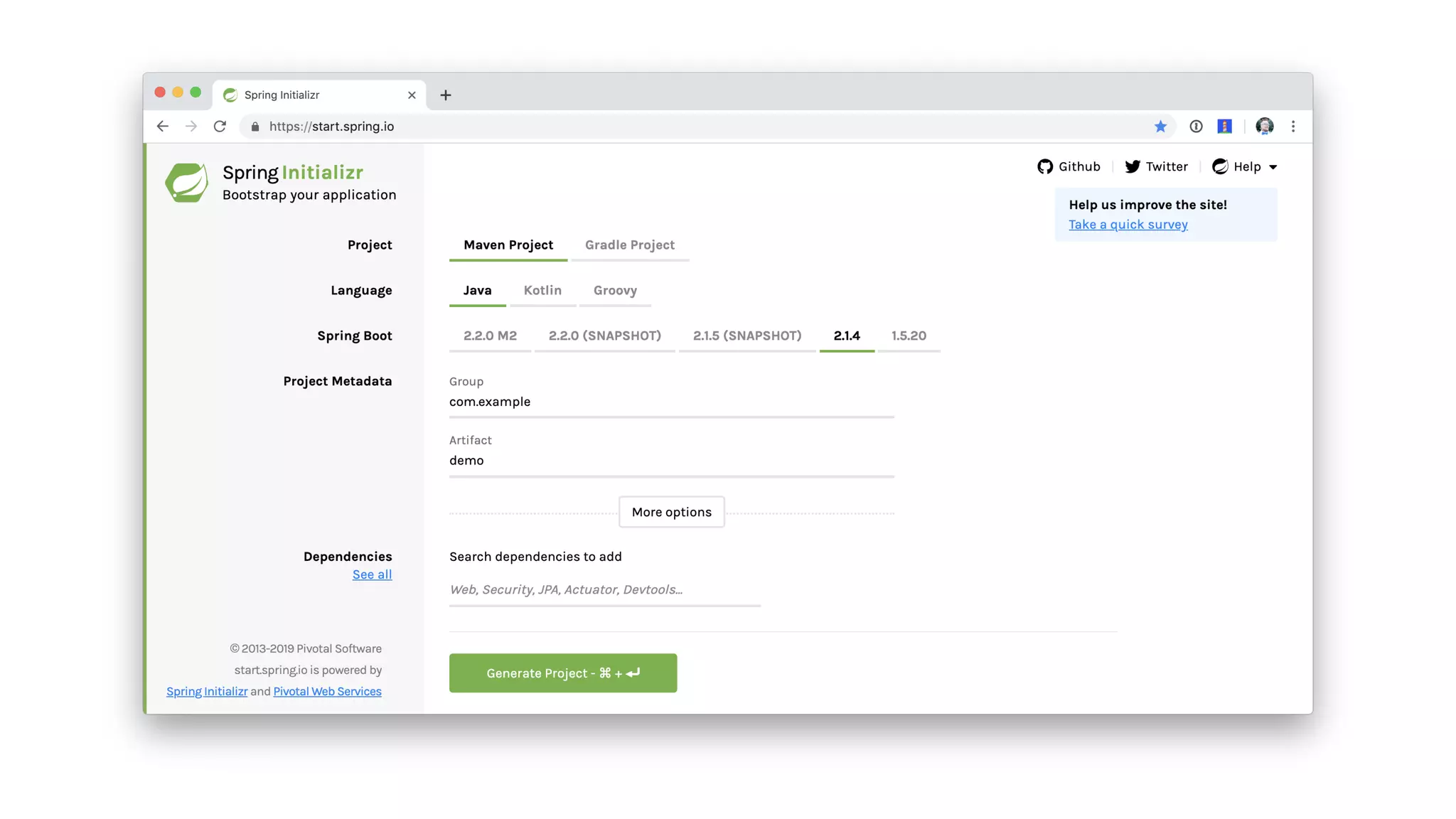

19. start.spring.io

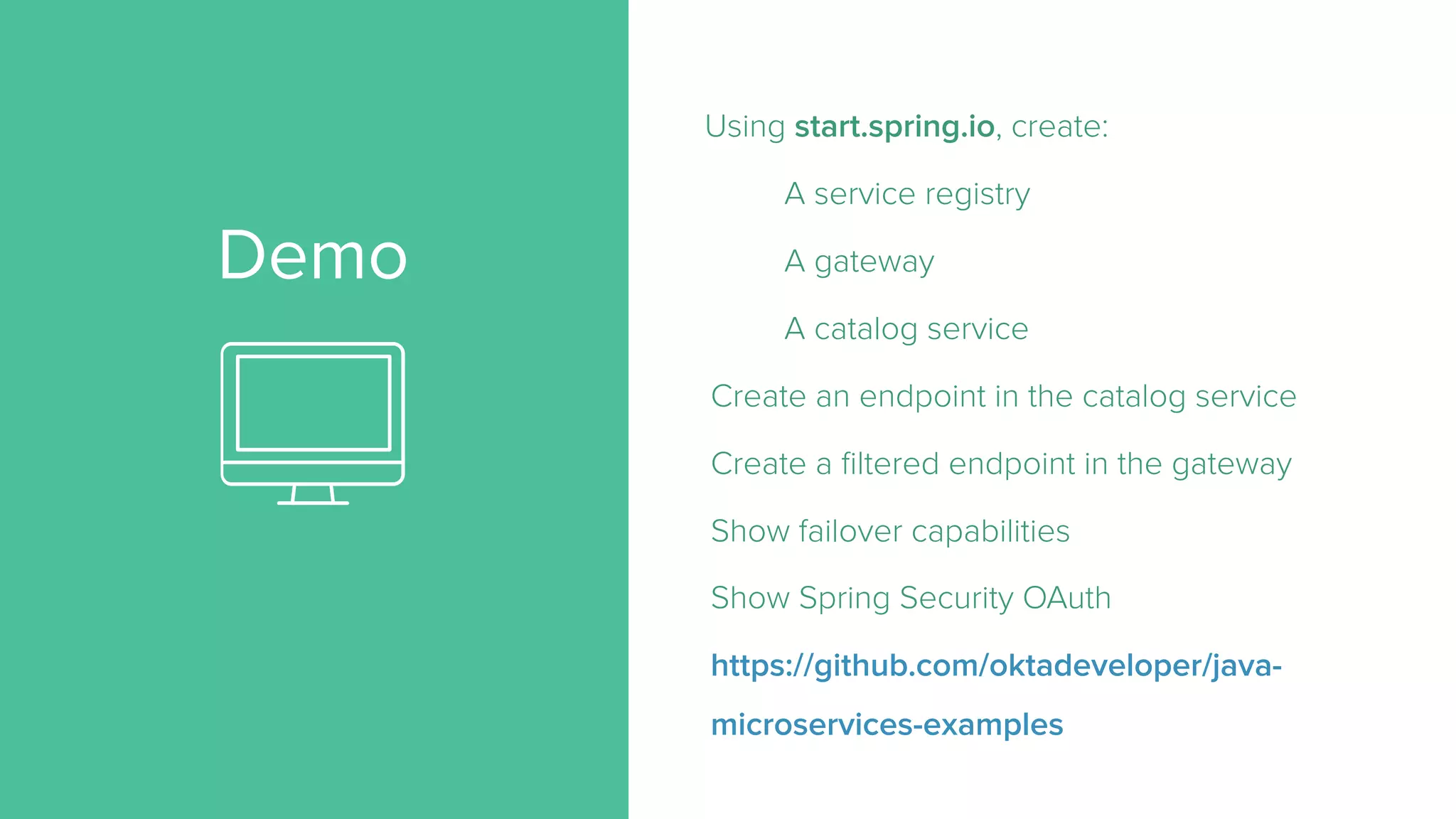

22. Demo
Using start.spring.io, create:
A service registry
A gateway
A catalog service
Create an endpoint in the catalog service
Create a filtered endpoint in the gateway
Show failover capabilities
Show Spring Security OAuth
https://github.com/oktadeveloper/java-
microservices-examples

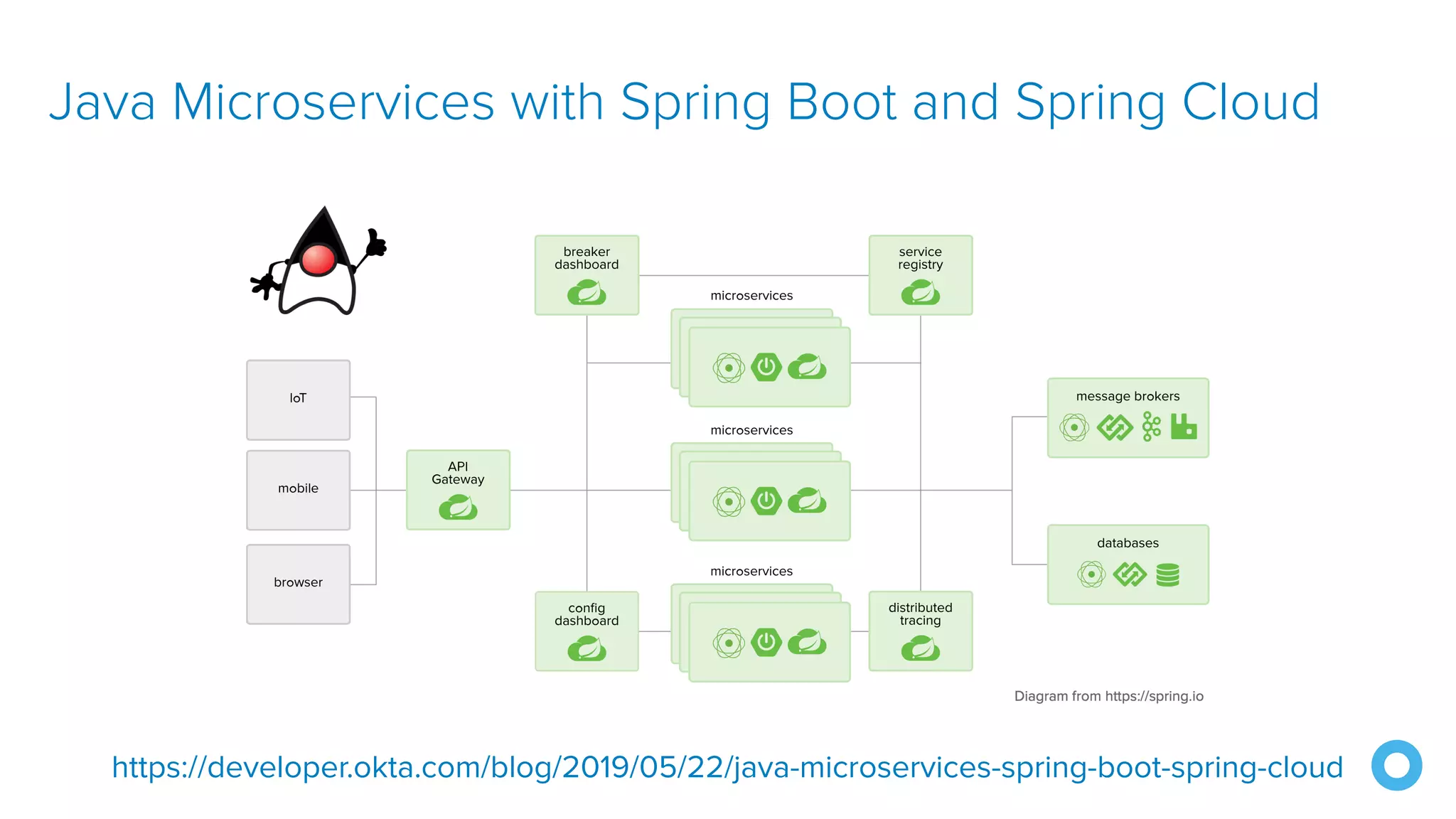

23. Java Microservices with Spring Boot and Spring Cloud
https://developer.okta.com/blog/2019/05/22/java-microservices-spring-boot-spring-cloud

24. Microservices with JHipster
What is JHipster?
Installing and Using JHipster
JHipster’s Microservice Features
Progressive Web Applications Overview
Part 2

25. What is JHipster?
+ =

26. JHipster jhipster.tech
JHipster is a development platform to generate, develop and deploy
Spring Boot + Angular/React Web applications and Spring microservices.
and Vue! ✨

27. JHipster is Inclusive
https://github.com/jhipster/jhipster-artwork

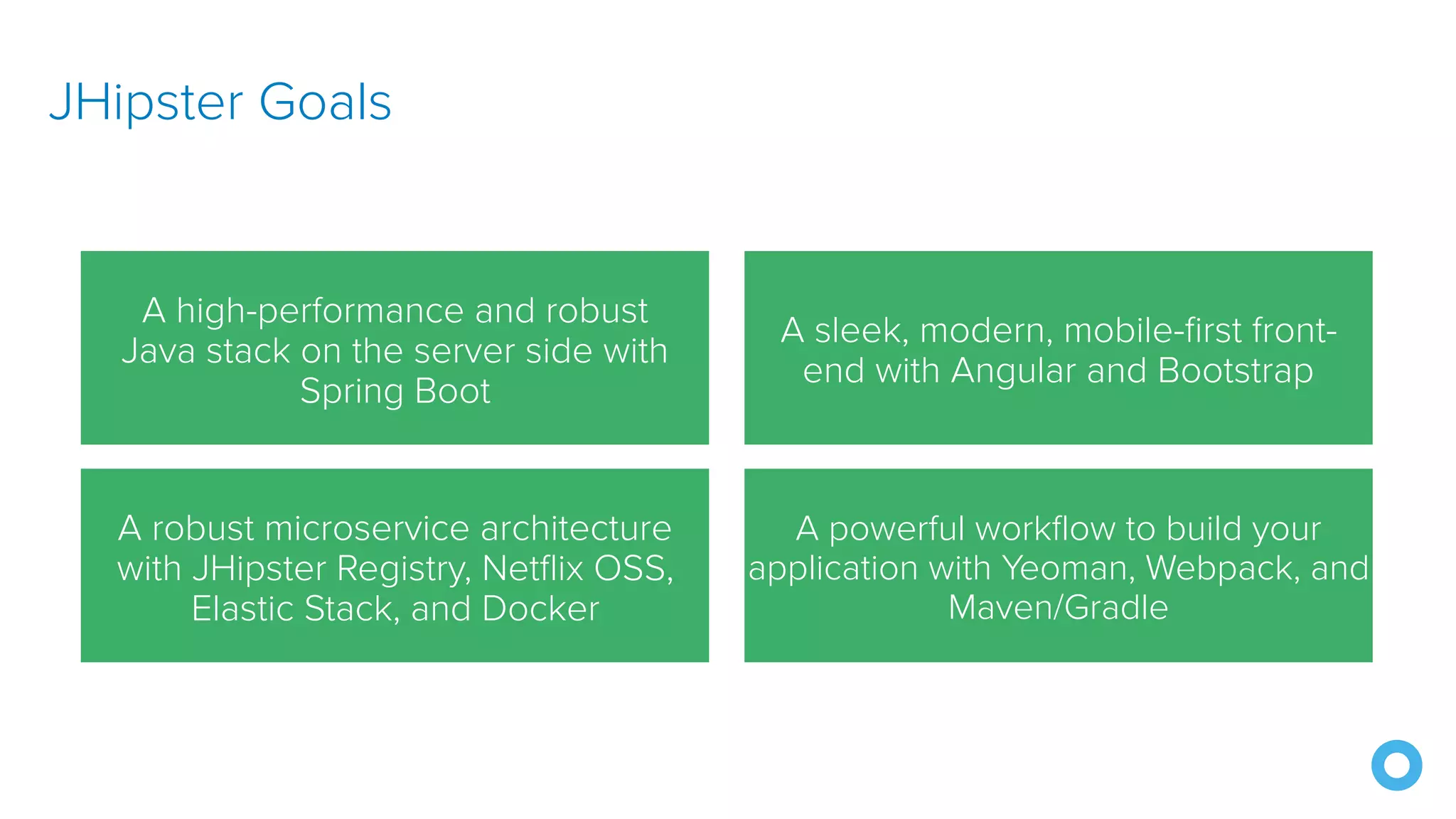

28. A powerful workflow to build your
application with Yeoman, Webpack, and
Maven/Gradle
JHipster Goals
A sleek, modern, mobile-first front-
end with Angular and Bootstrap
A high-performance and robust
Java stack on the server side with
Spring Boot
A robust microservice architecture
with JHipster Registry, Netflix OSS,
Elastic Stack, and Docker

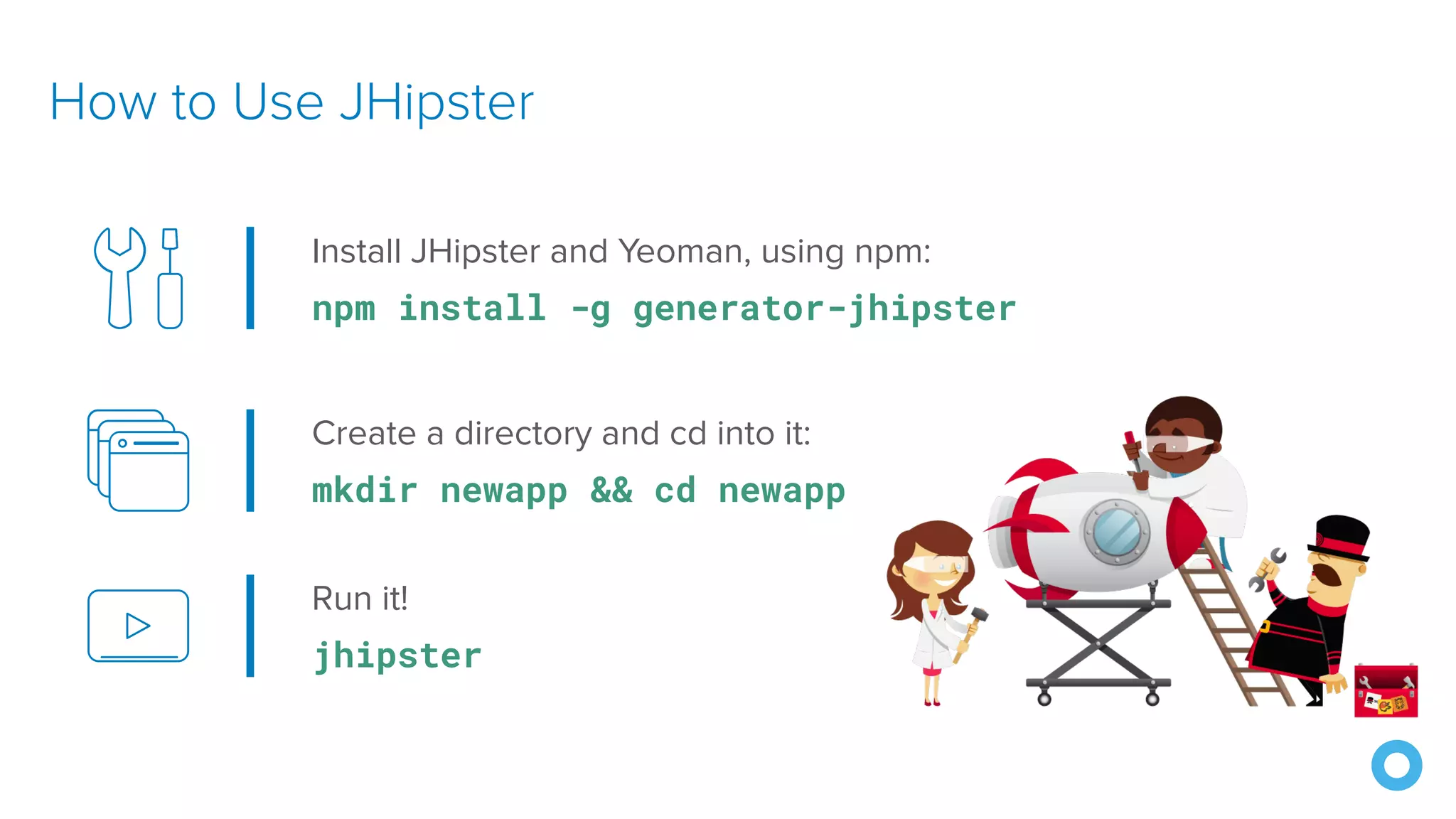

29. How to Use JHipster
Install JHipster and Yeoman, using npm:
npm install -g generator-jhipster
Create a directory and cd into it:
mkdir newapp && cd newapp
Run it!
jhipster

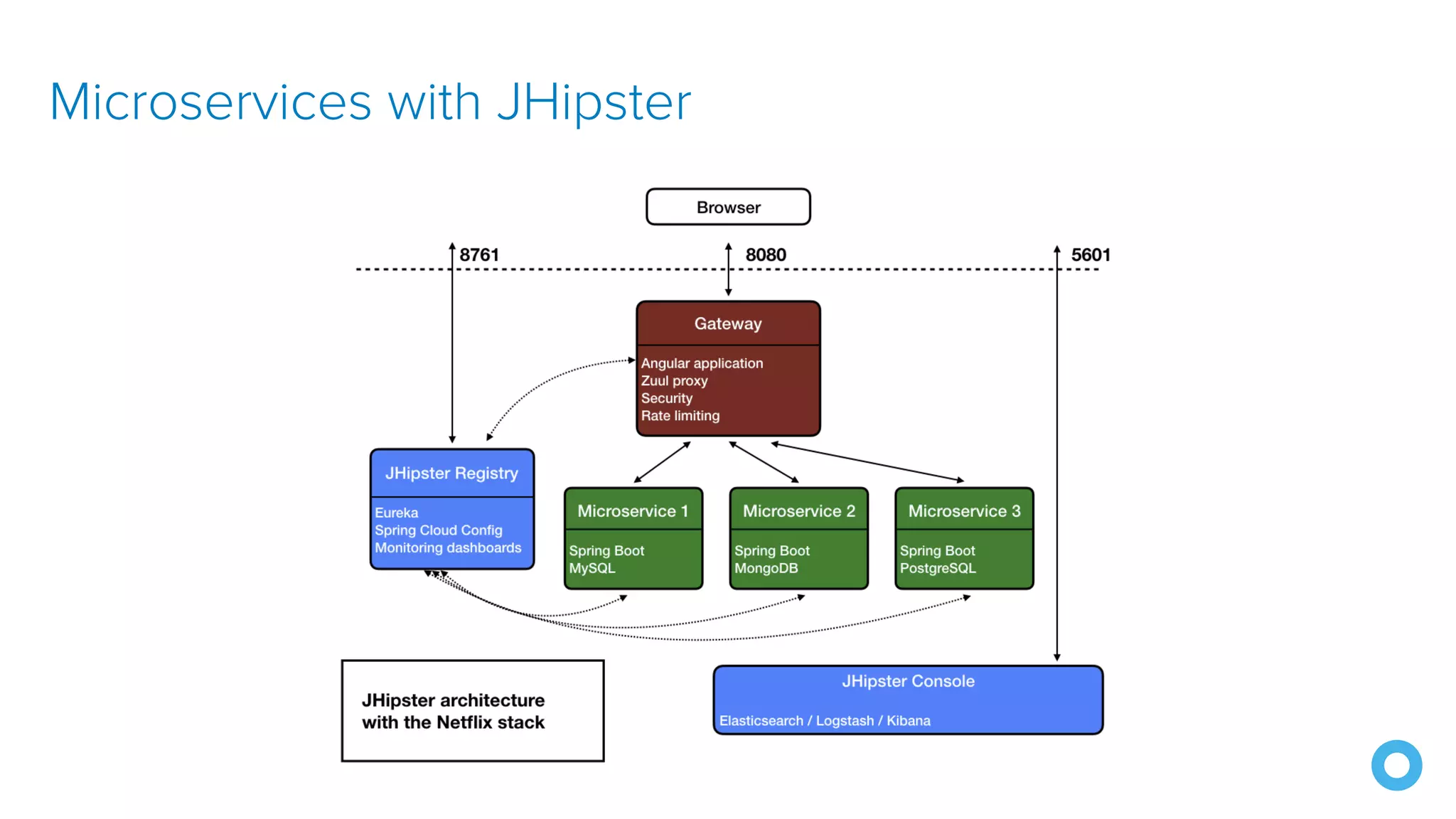

30. Microservices with JHipster

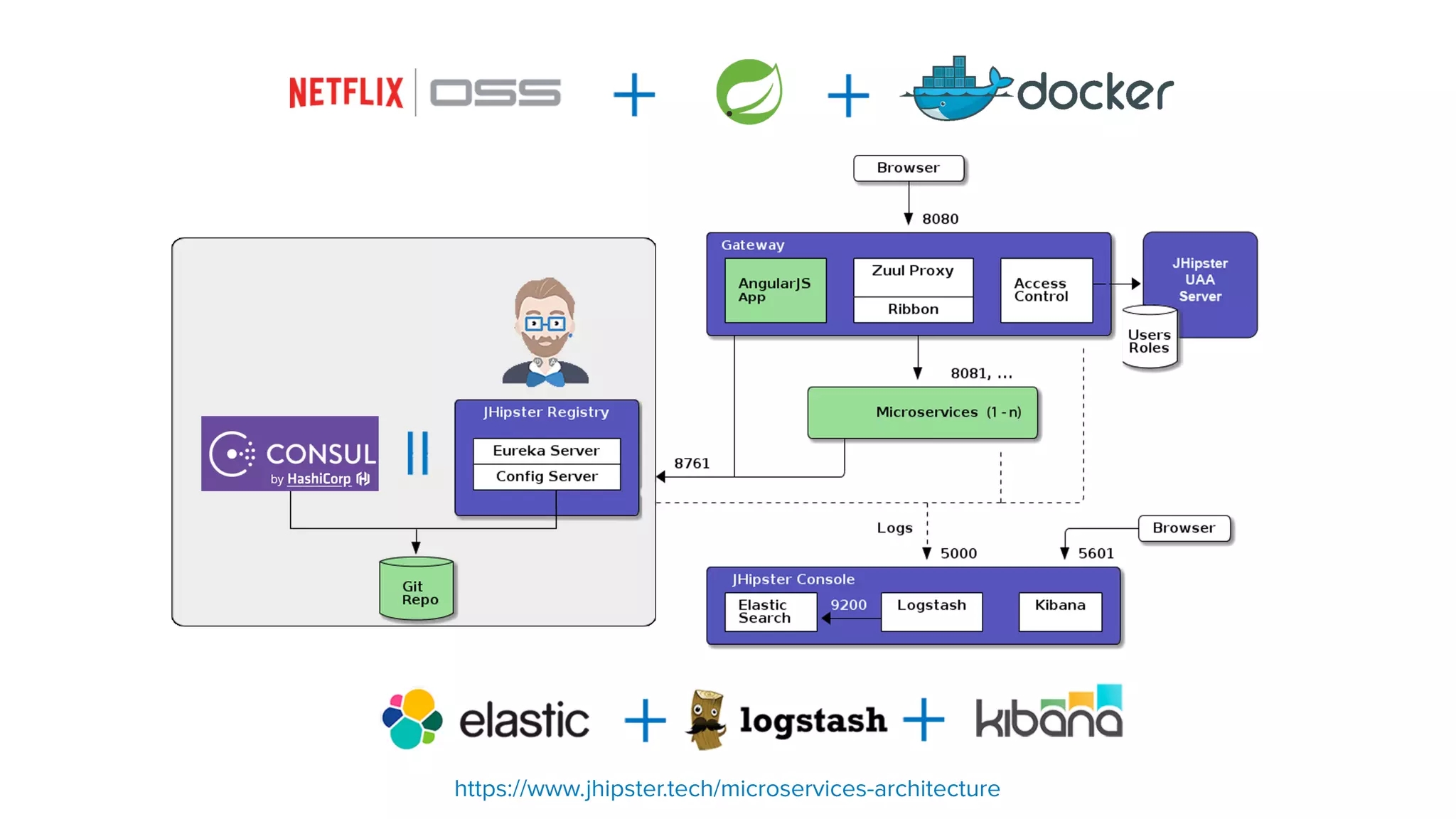

31. https://www.jhipster.tech/microservices-architecture

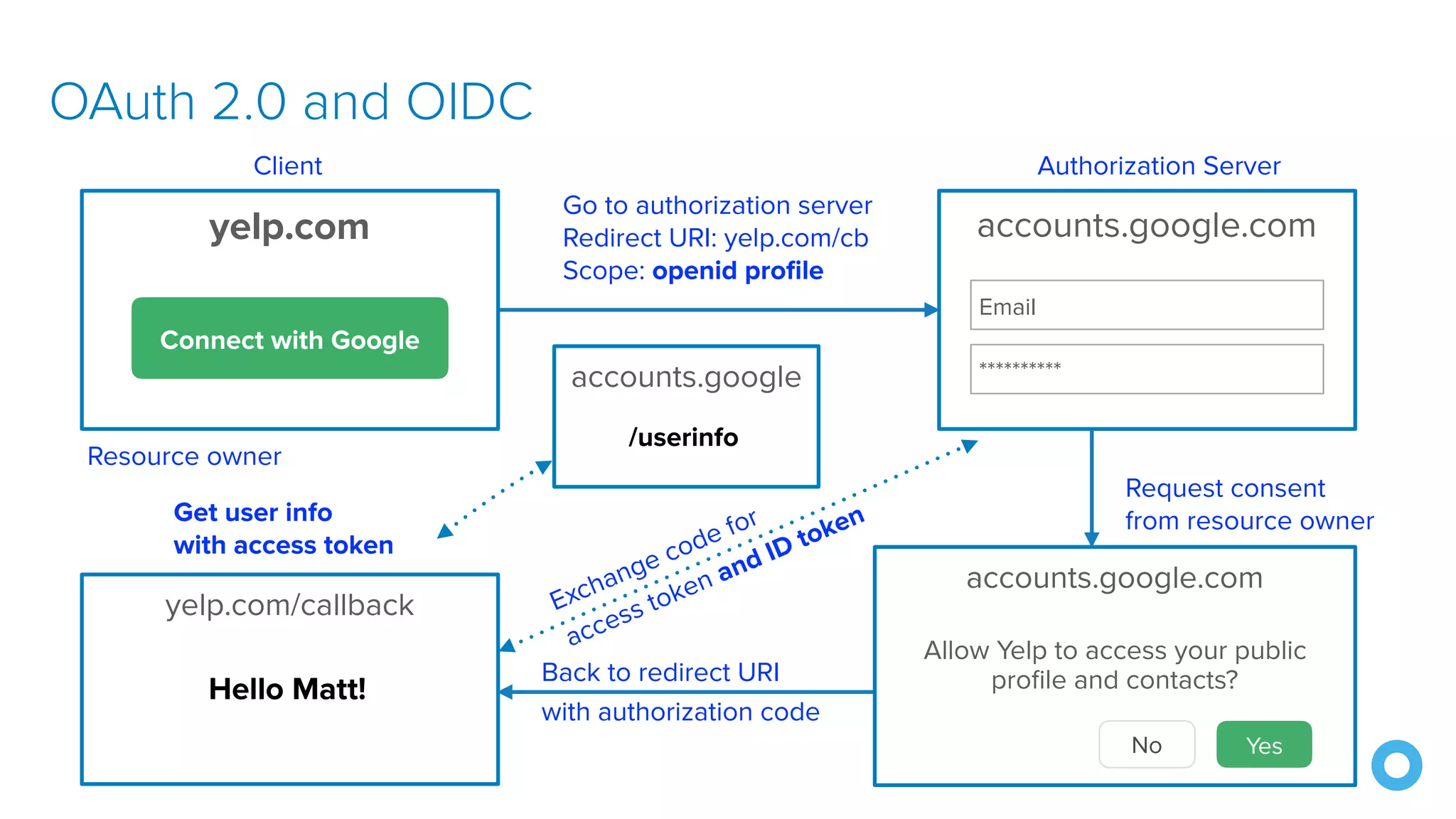

32. yelp.com/callback
Back to redirect URI
with authorization code
Exchange code for
access token and ID token
accounts.google.com
Email
**********
Go to authorization server
Redirect URI: yelp.com/cb
Scope: openid profile
Authorization Server
yelp.com
Connect with Google
Resource owner
Client
accounts.google.com
Allow Yelp to access your public
profile and contacts?
No Yes
Request consent
from resource owner
Hello Matt!
accounts.google
Get user info
with access token
/userinfo
OAuth 2.0 and OIDC

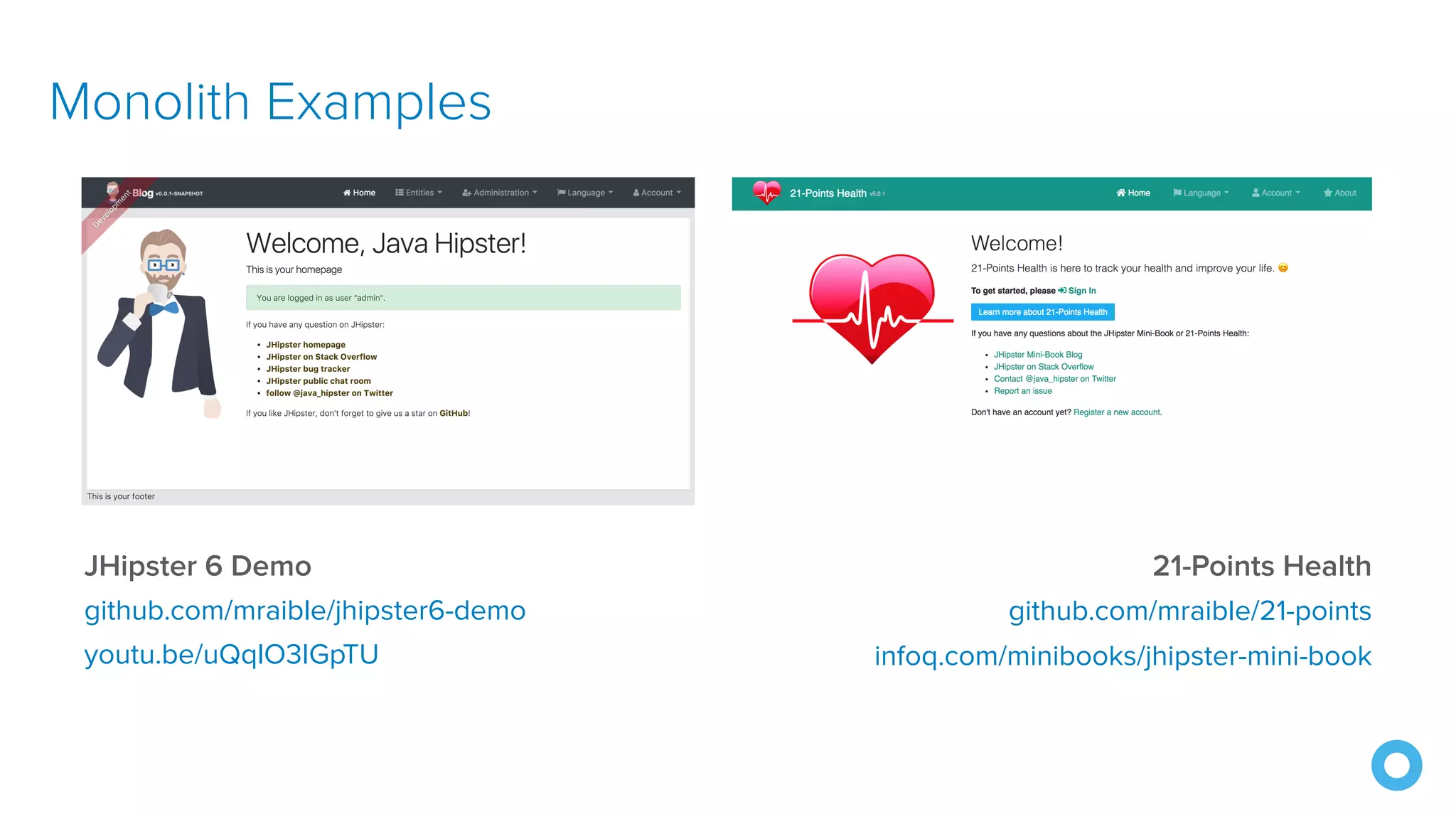

33. Monolith Examples
JHipster 6 Demo
github.com/mraible/jhipster6-demo
youtu.be/uQqlO3IGpTU
21-Points Health
github.com/mraible/21-points
infoq.com/minibooks/jhipster-mini-book

34. Progressive Web Apps
Originate from a secure origin, load while offline, and reference a
web app manifest.

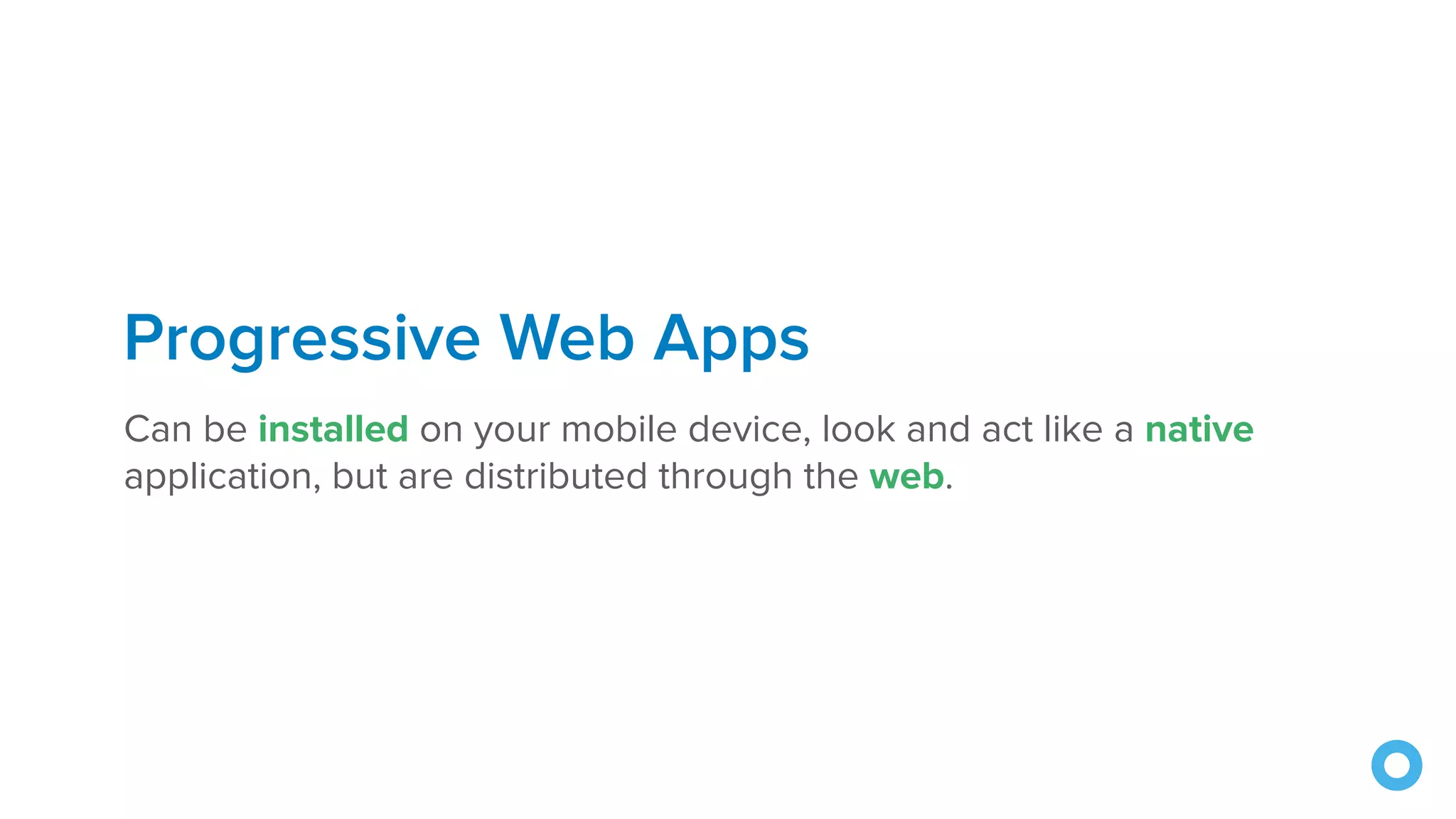

35. Progressive Web Apps
Can be installed on your mobile device, look and act like a native
application, but are distributed through the web.

36. Progressive Web Apps
Are fast!

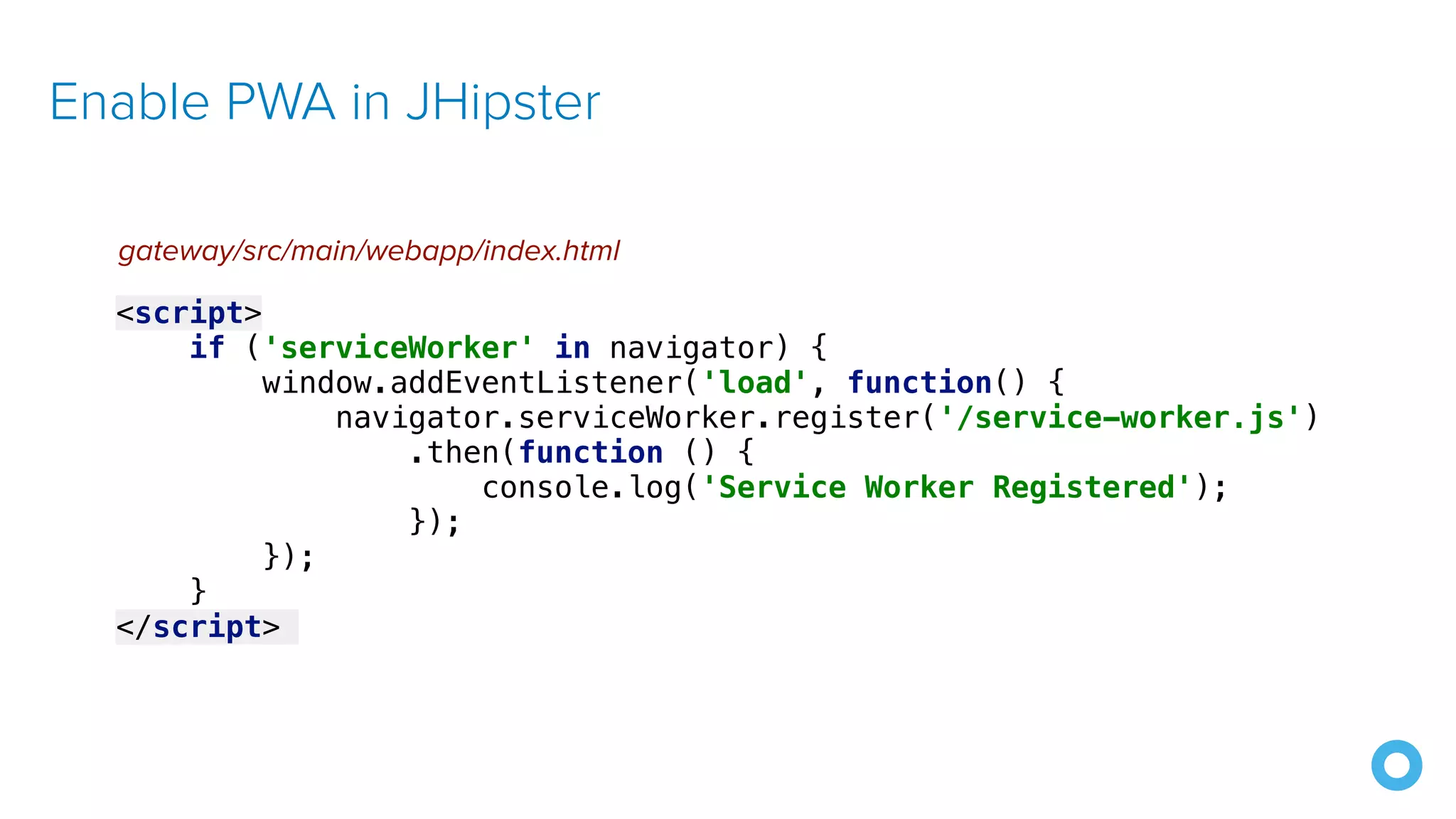

37. Enable PWA in JHipster
<script>
if ('serviceWorker' in navigator) {
window.addEventListener('load', function() {
navigator.serviceWorker.register('/service-worker.js')
.then(function () {
console.log('Service Worker Registered');
});
});
}
</script>
gateway/src/main/webapp/index.html

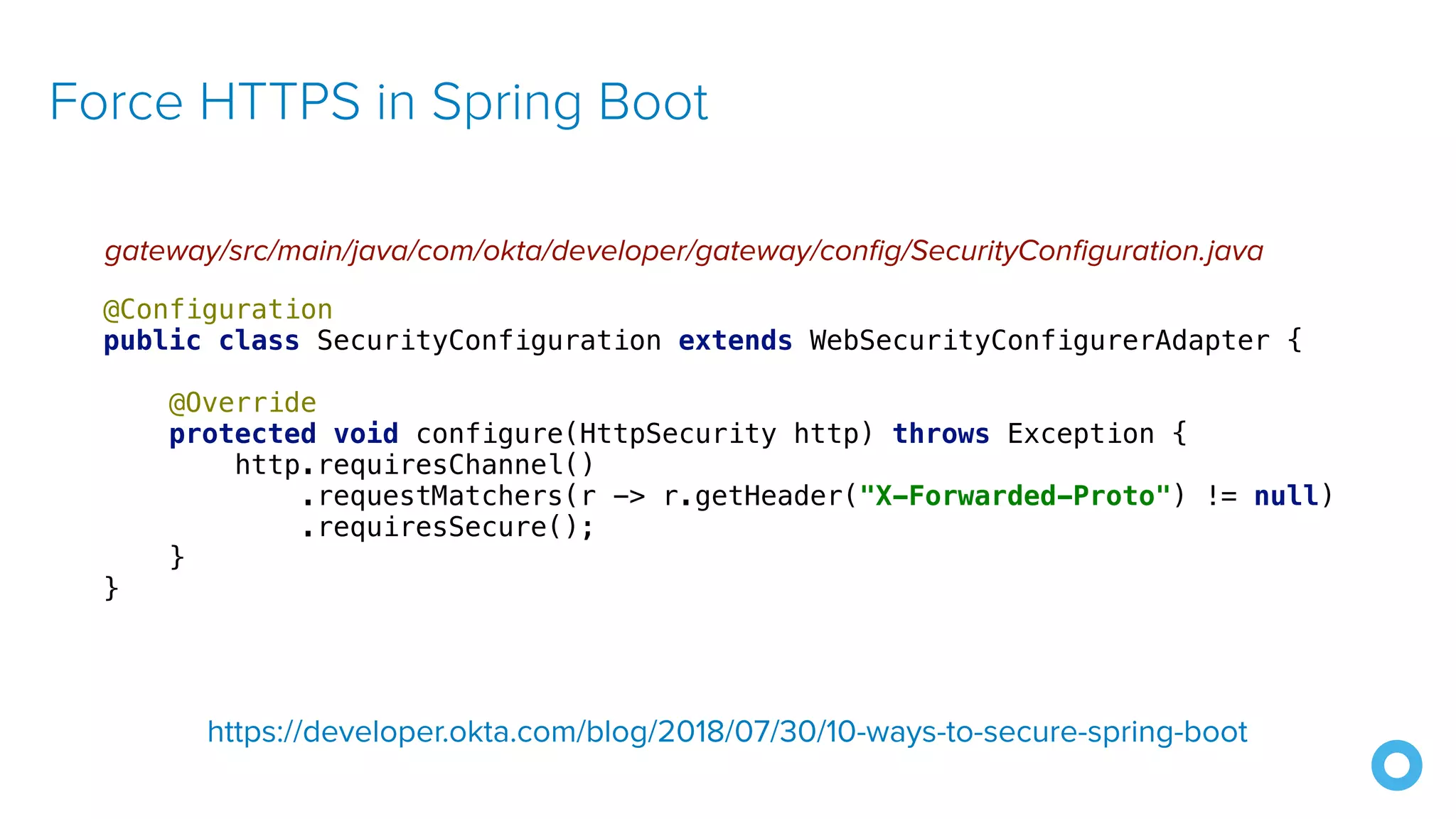

38. Force HTTPS in Spring Boot
gateway/src/main/java/com/okta/developer/gateway/config/SecurityConfiguration.java
@Configuration
public class SecurityConfiguration extends WebSecurityConfigurerAdapter {
@Override
protected void configure(HttpSecurity http) throws Exception {
http.requiresChannel()
.requestMatchers(r -> r.getHeader("X-Forwarded-Proto") != null)
.requiresSecure();
}
}
https://developer.okta.com/blog/2018/07/30/10-ways-to-secure-spring-boot

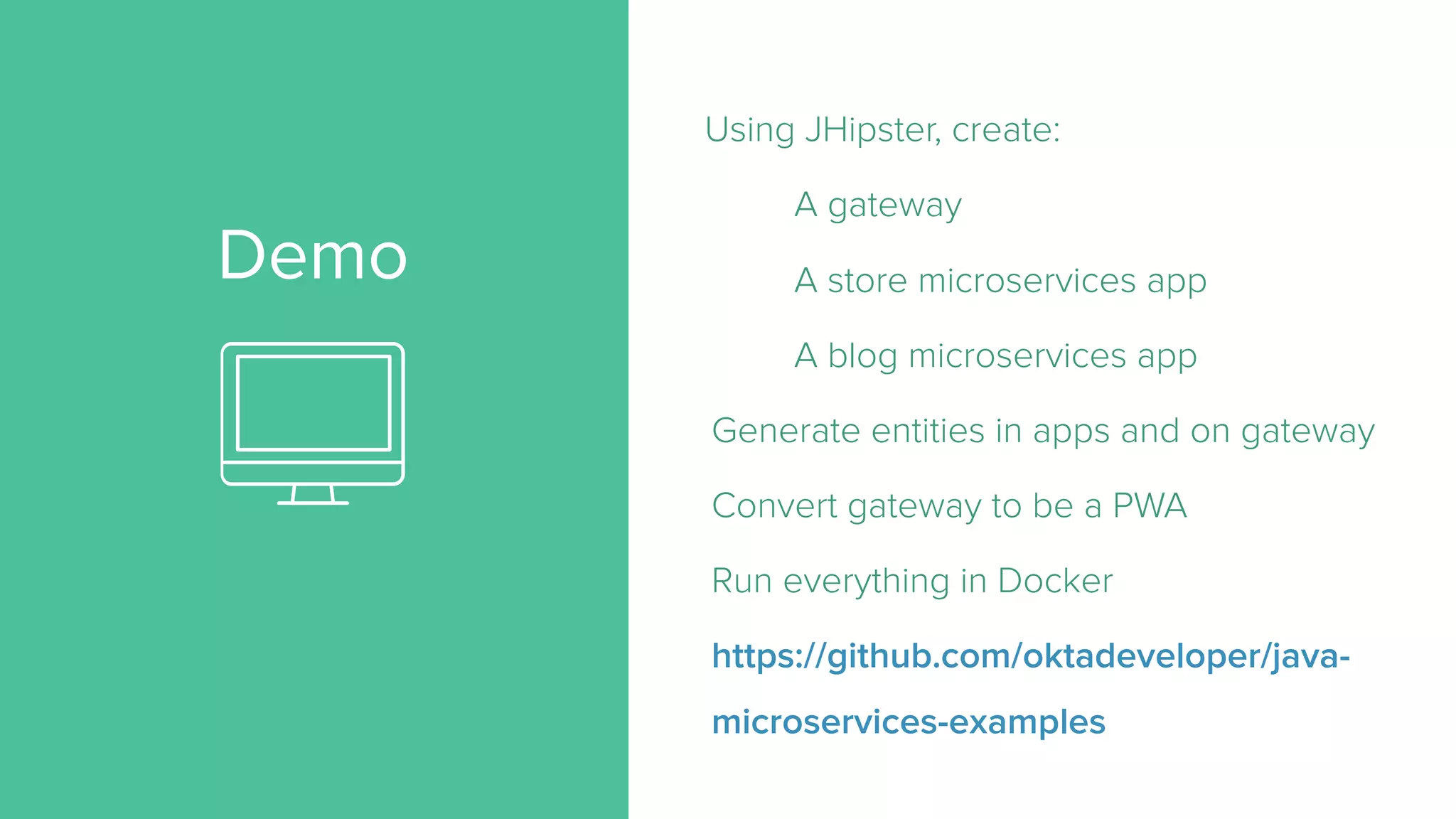

39. Demo
Using JHipster, create:
A gateway
A store microservices app
A blog microservices app
Generate entities in apps and on gateway
Convert gateway to be a PWA
Run everything in Docker
https://github.com/oktadeveloper/java-
microservices-examples

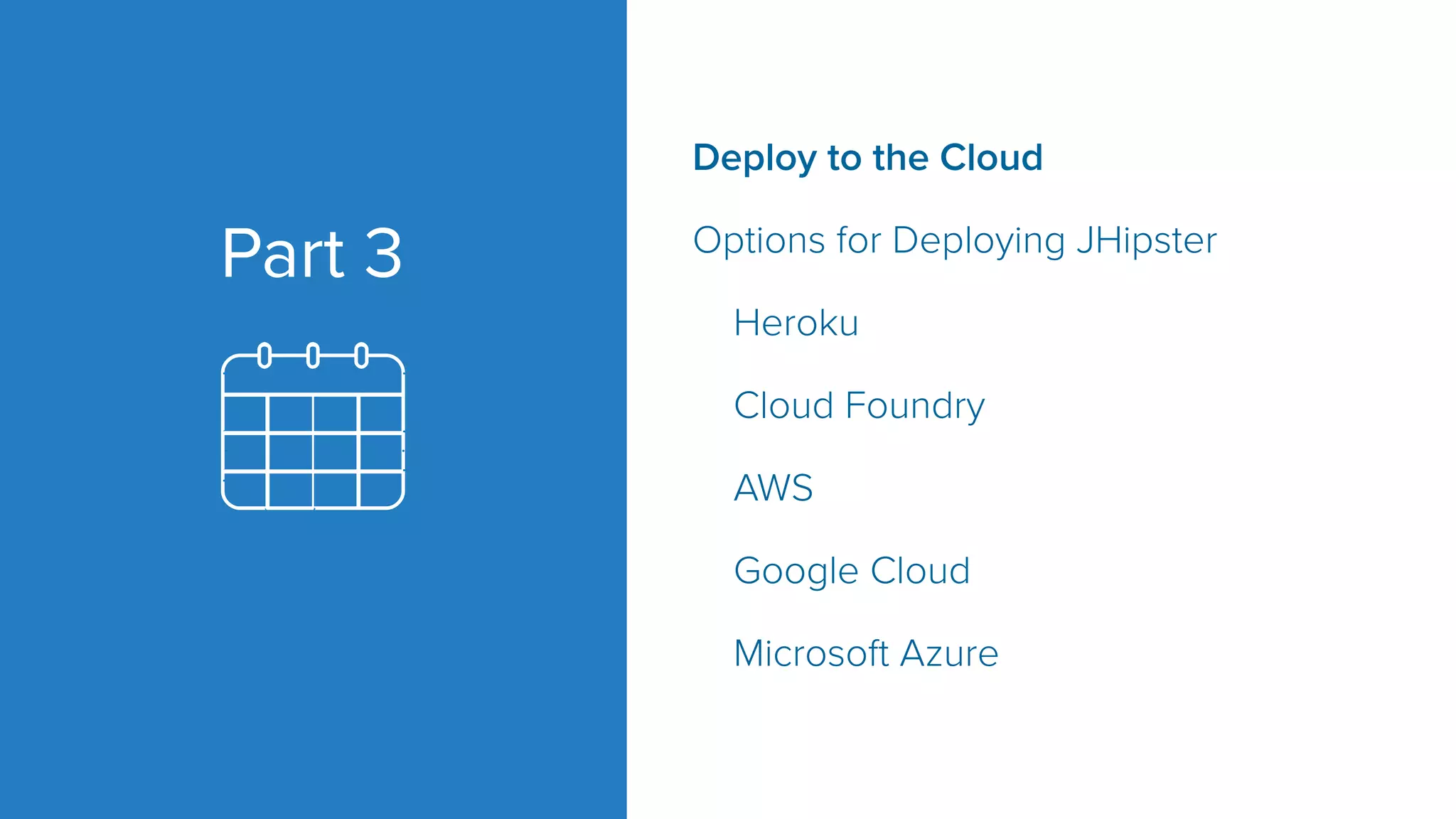

40. Part 3
Deploy to the Cloud
Options for Deploying JHipster
Heroku
Cloud Foundry
AWS
Google Cloud
Microsoft Azure

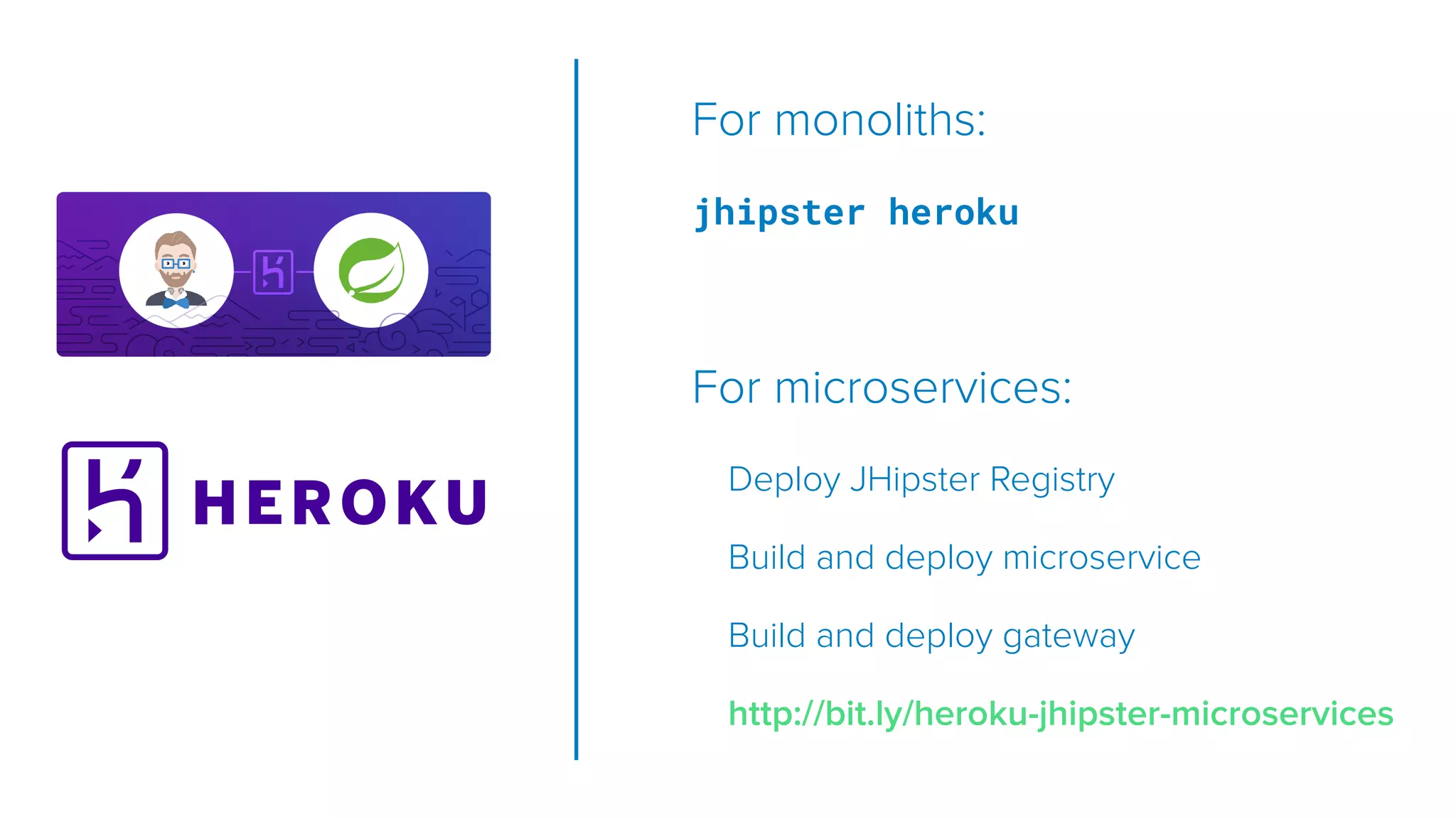

41. For monoliths:
jhipster heroku
For microservices:
Deploy JHipster Registry
Build and deploy microservice
Build and deploy gateway
http://bit.ly/heroku-jhipster-microservices

42. For monoliths:
jhipster cloudfoundry
For microservices:
Deploy JHipster Registry
Build and deploy microservice
Build and deploy gateway
http://www.jhipster.tech/cloudfoundry

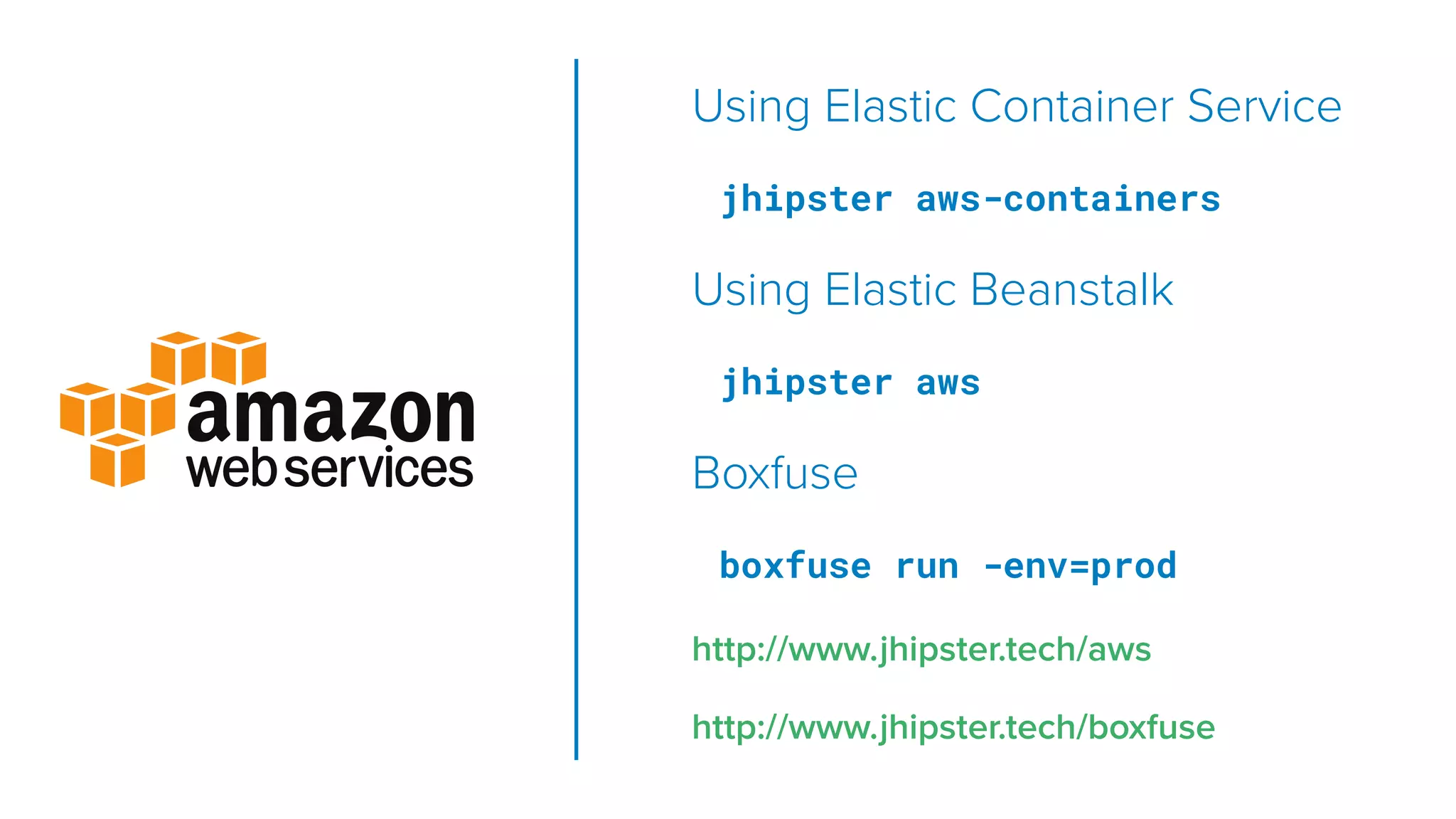

43. Using Elastic Container Service
jhipster aws-containers
Using Elastic Beanstalk
jhipster aws
Boxfuse
boxfuse run -env=prod
http://www.jhipster.tech/aws
http://www.jhipster.tech/boxfuse

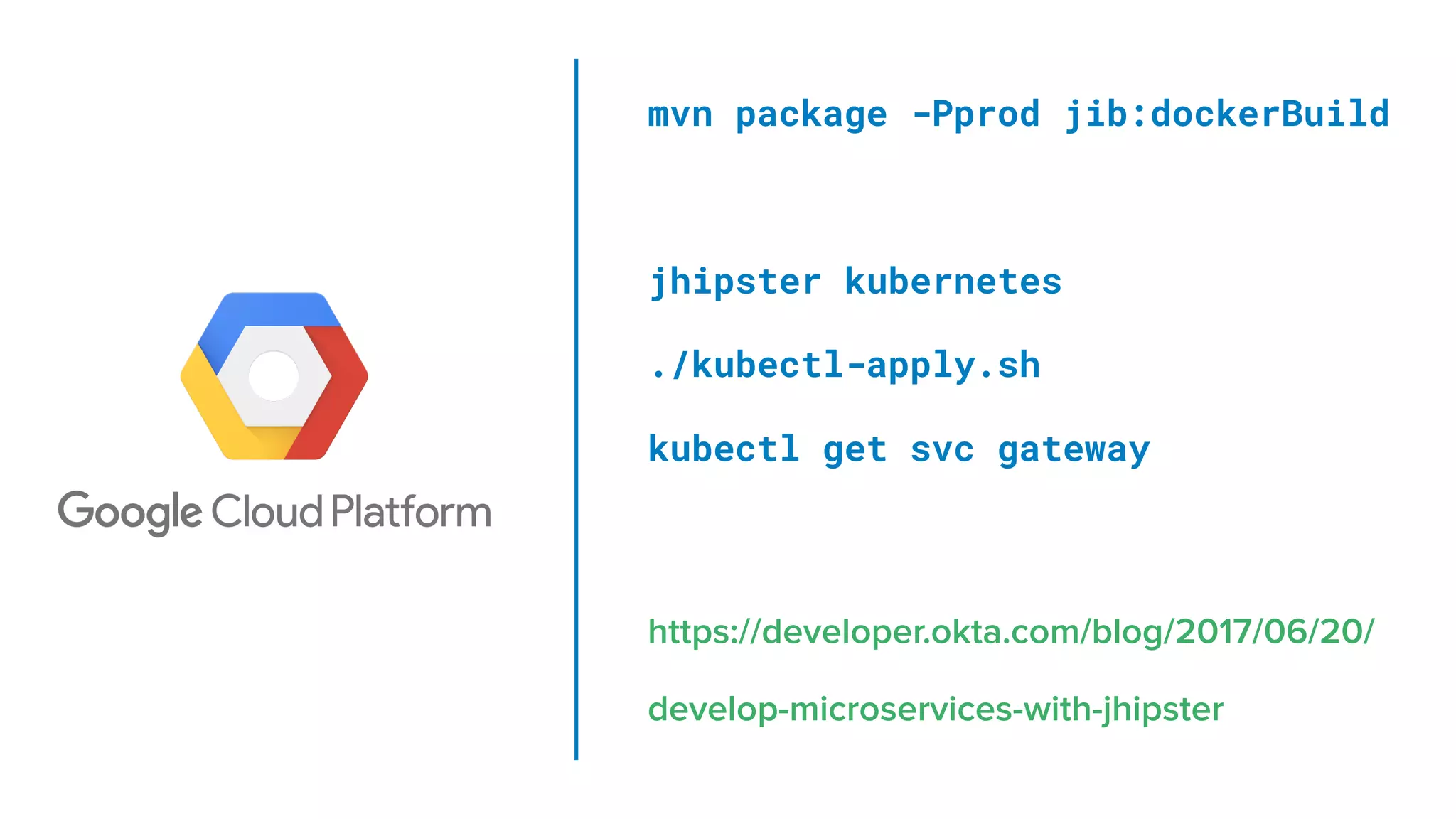

44. mvn package -Pprod jib:dockerBuild
jhipster kubernetes
./kubectl-apply.sh
kubectl get svc gateway
https://developer.okta.com/blog/2017/06/20/
develop-microservices-with-jhipster

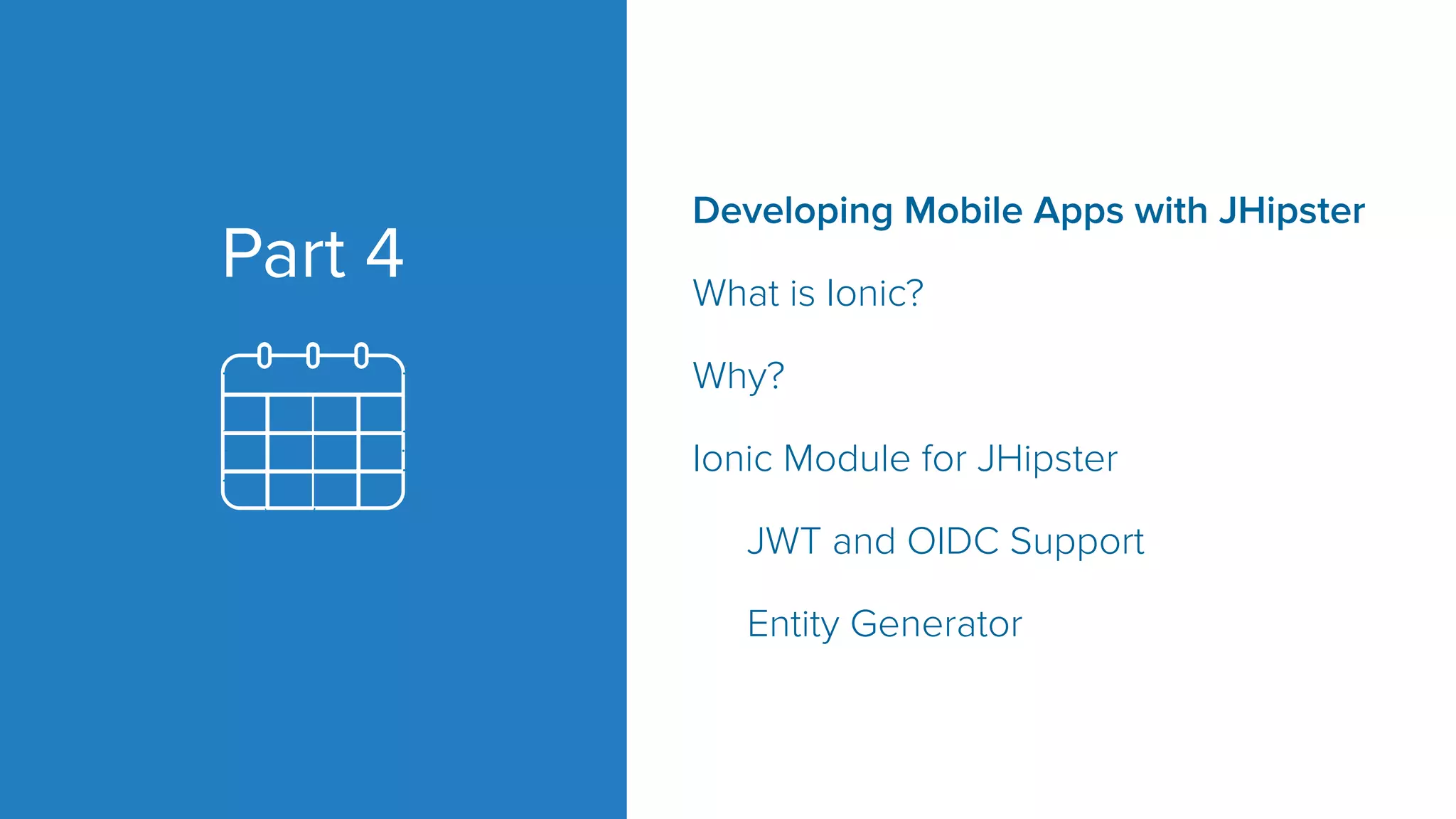

45. Part 4
Developing Mobile Apps with JHipster
What is Ionic?
Why?
Ionic Module for JHipster
JWT and OIDC Support
Entity Generator

46. Ionic
Ionic Framework
Develop Hybrid & PWA
Apps
https://ionicframework.com
Stencil
Vanilla Web
Components
https://stenciljs.com
PWA Toolkit
Lightning fast PWAs
https://github.com/ionic-
team/ionic-pwa-toolkit

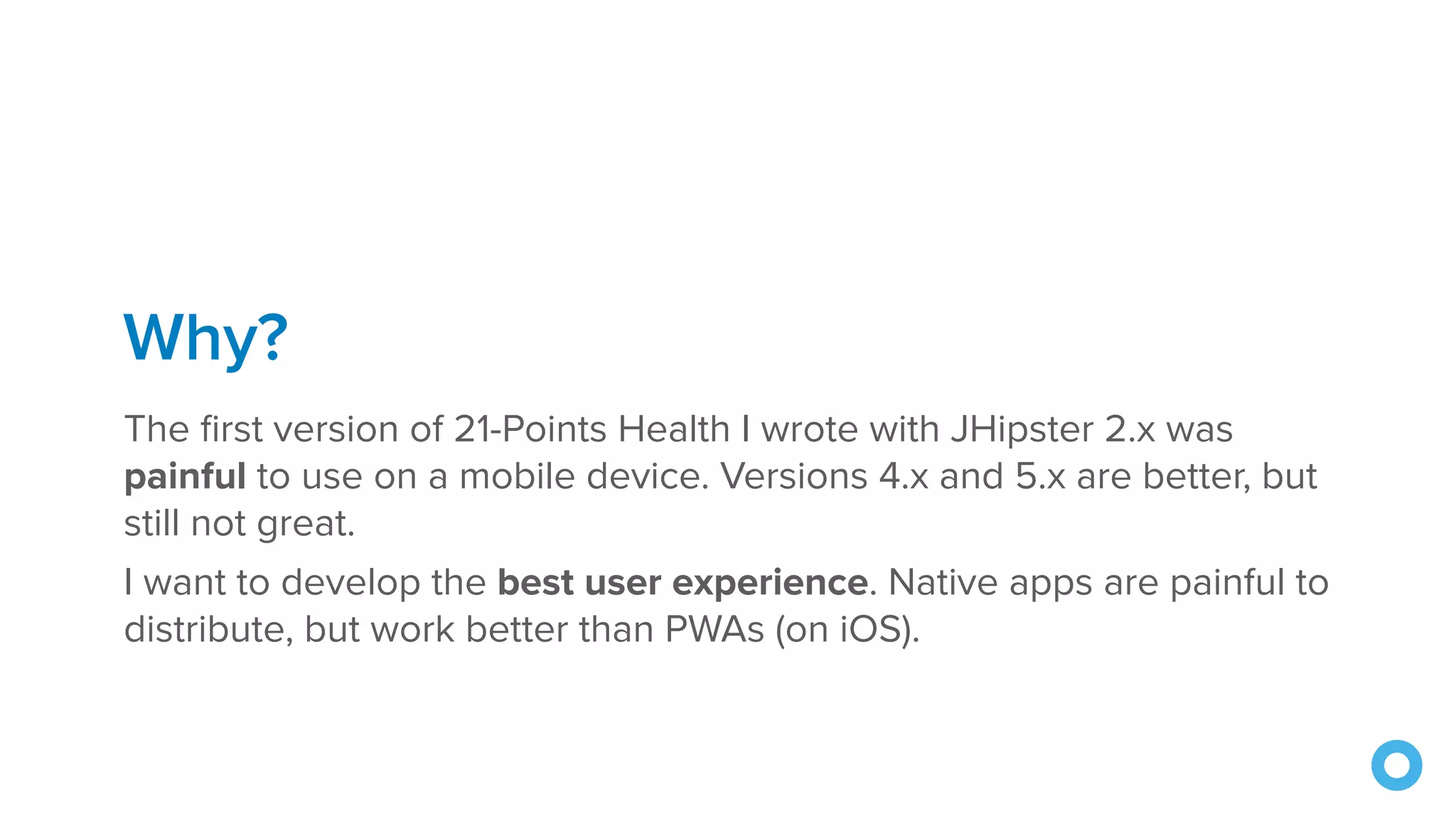

47. Why?
The first version of 21-Points Health I wrote with JHipster 2.x was
painful to use on a mobile device. Versions 4.x and 5.x are better, but
still not great.
I want to develop the best user experience. Native apps are painful to
distribute, but work better than PWAs (on iOS).

48. How is a mobile app for JHipster
different from its Angular UI?

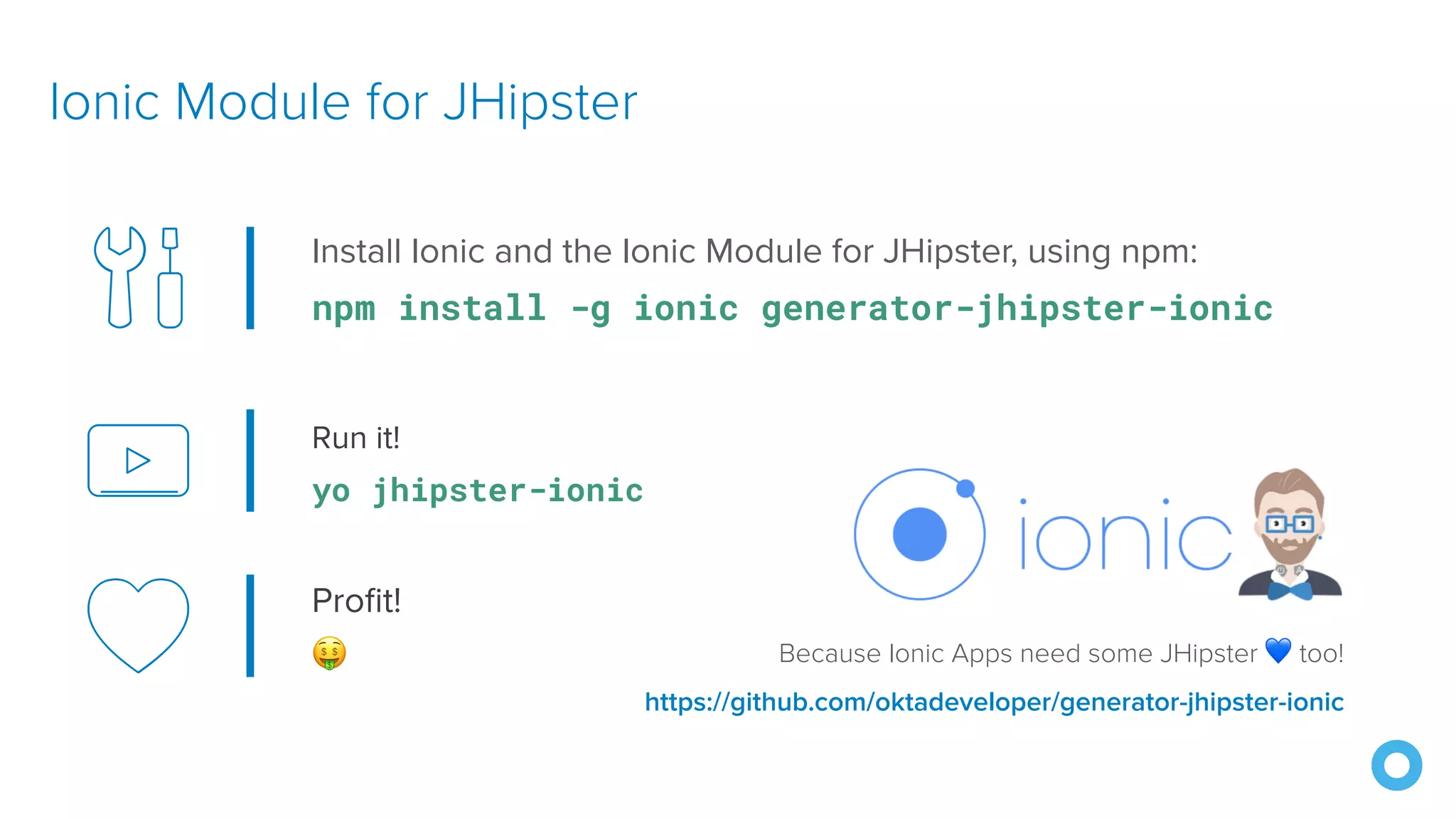

49. Run it!
yo jhipster-ionic
Ionic Module for JHipster
Because Ionic Apps need some JHipster 💙 too!
https://github.com/oktadeveloper/generator-jhipster-ionic
Install Ionic and the Ionic Module for JHipster, using npm:
npm install -g ionic generator-jhipster-ionic
Profit!
🤑

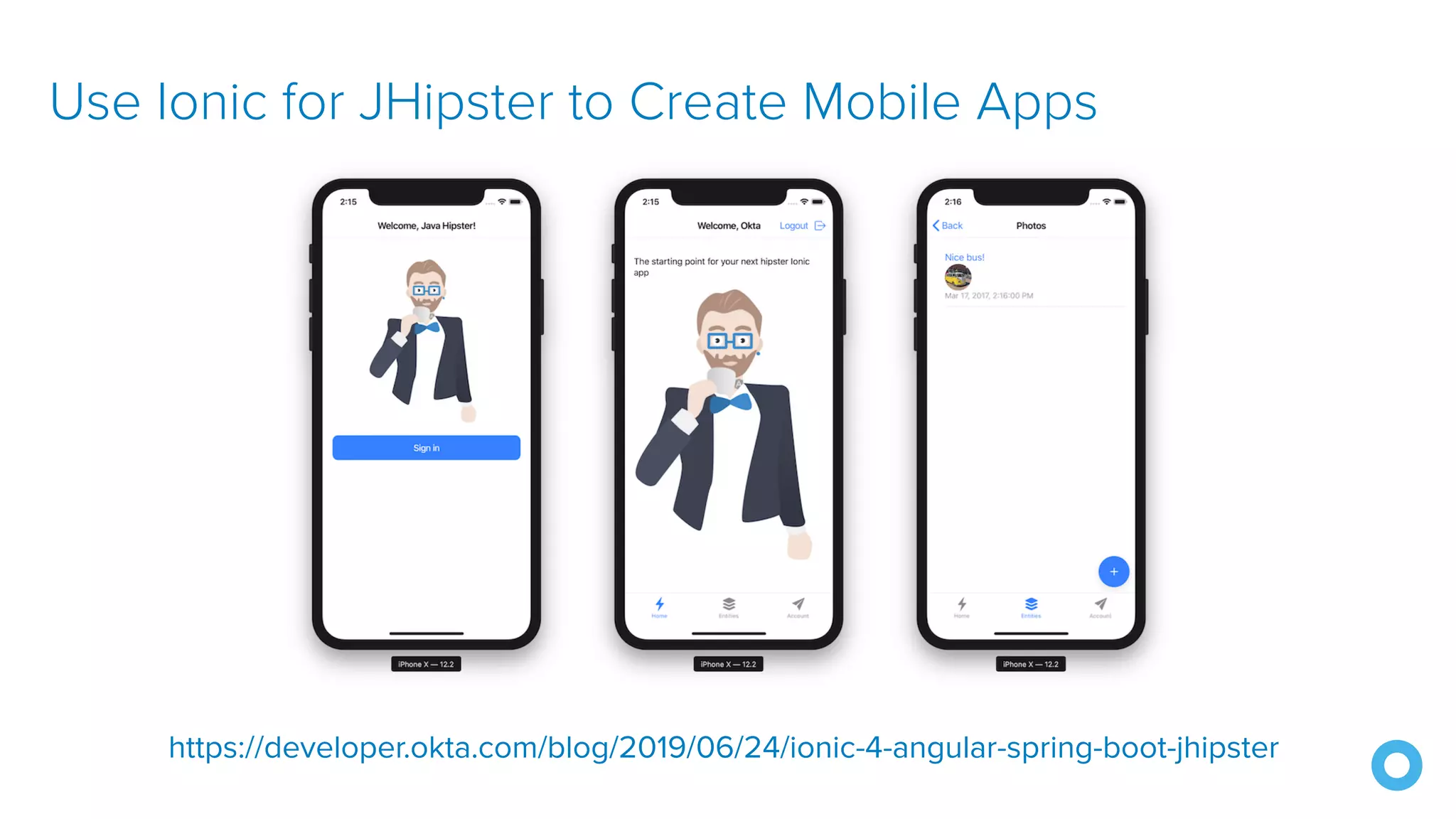

50. Use Ionic for JHipster to Create Mobile Apps
https://developer.okta.com/blog/2019/06/24/ionic-4-angular-spring-boot-jhipster

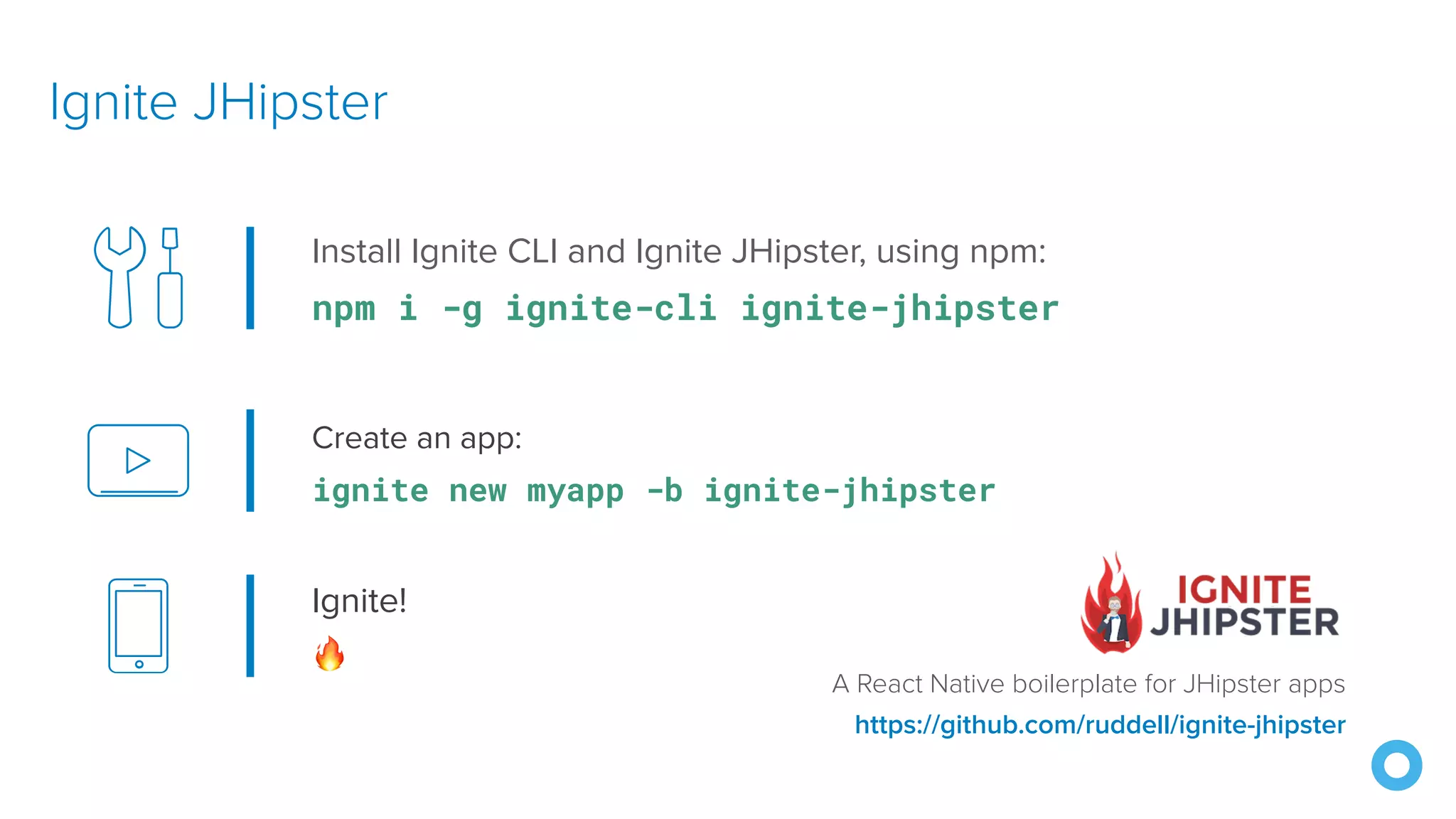

51. Create an app:
ignite new myapp -b ignite-jhipster
Ignite JHipster
https://github.com/ruddell/ignite-jhipster
Install Ignite CLI and Ignite JHipster, using npm:
npm i -g ignite-cli ignite-jhipster
Ignite!
🔥
A React Native boilerplate for JHipster apps

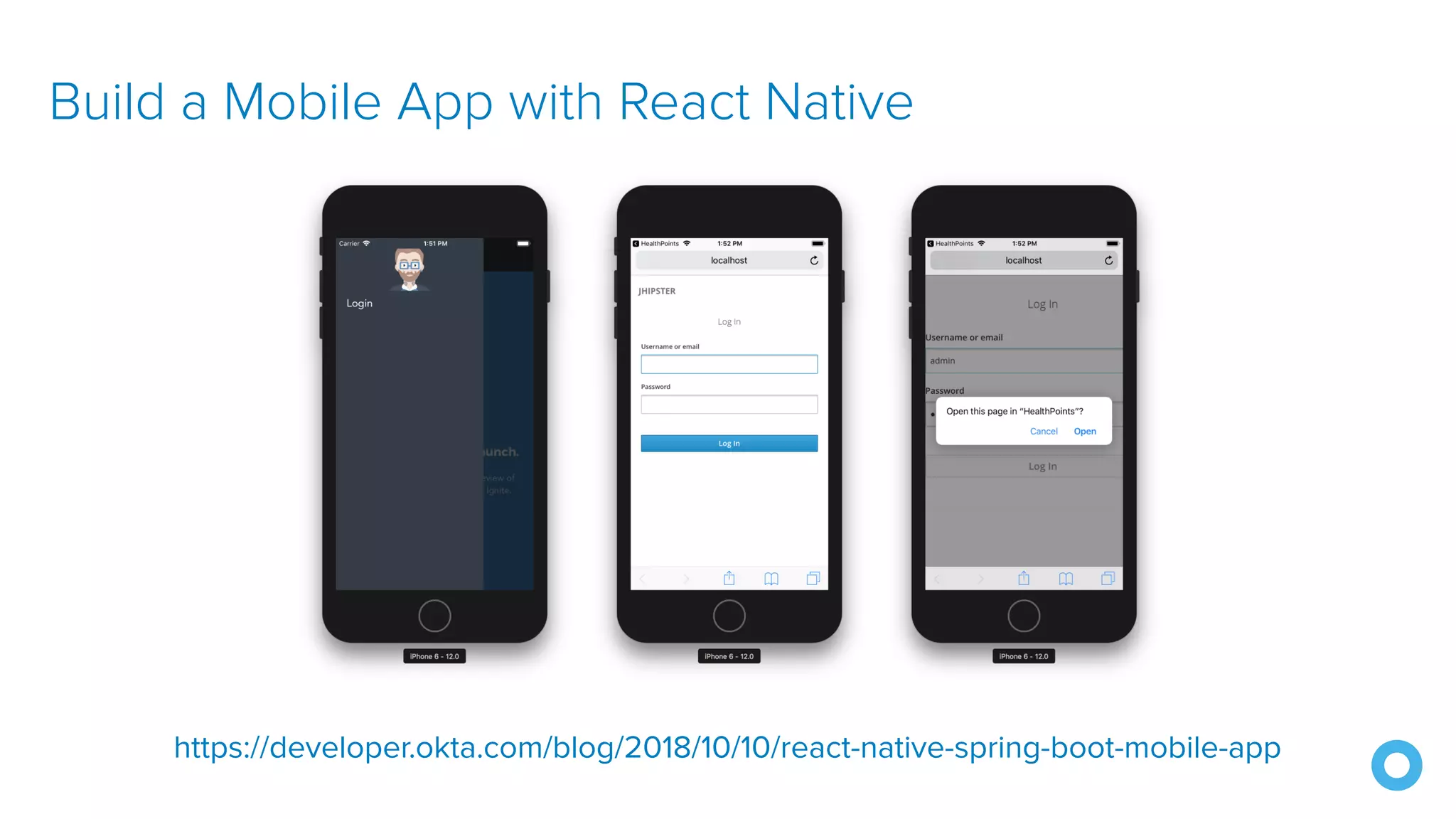

52. Build a Mobile App with React Native
https://developer.okta.com/blog/2018/10/10/react-native-spring-boot-mobile-app

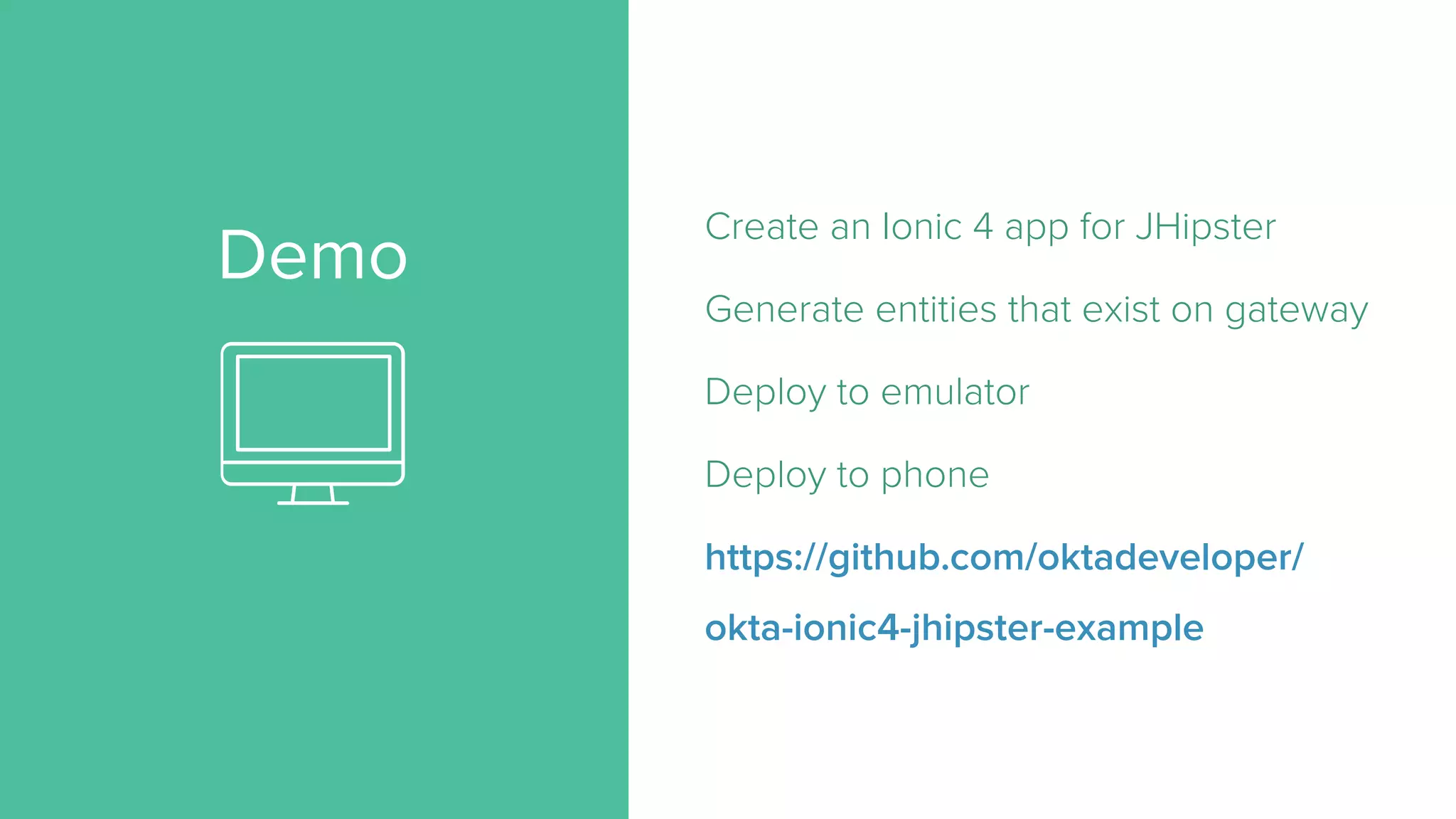

53. Demo
Create an Ionic 4 app for JHipster
Generate entities that exist on gateway
Deploy to emulator
Deploy to phone
https://github.com/oktadeveloper/
okta-ionic4-jhipster-example

54. Part 5 JHipster Roadmap
What You Learned
What’s Next for JHipster

55. What You Learned

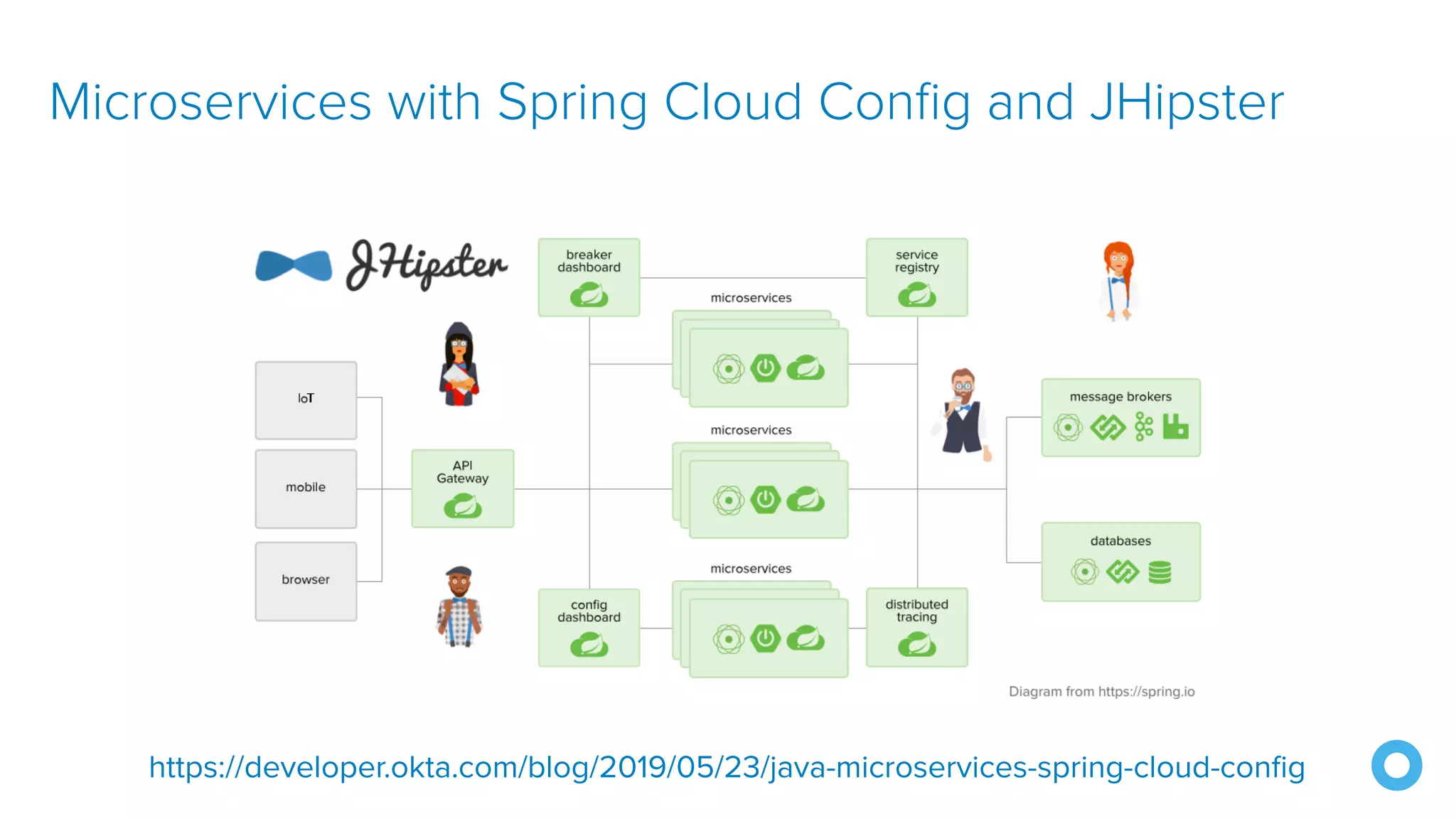

56. Microservices with Spring Cloud Config and JHipster
https://developer.okta.com/blog/2019/05/23/java-microservices-spring-cloud-config

57. JHipster Mobile Apps and Microservices on Pluralsight
pluralsight.com/courses/play-by-play-developing-microservices-mobile-apps-jhipster

58. What’s Next for JHipster?
Full Reactive with WebFlux
and Spring Cloud Gateway
Spring Boot 2.2
GraphQL and Micro Frontends

59. The JHipster Mini-Book
Written with Asciidoctor
Free download from InfoQ:
infoq.com/minibooks/jhipster-mini-book
Quick and to the point, 164 pages
Developed a real world app:
www.21-points.com
Buy for $20 or download for FREE

60. Learn More
stackoverflow.com
Spring Boot
spring.io/guides
JHipster
www.jhipster.tech
Okta APIs
developer.okta.com

61. developer.okta.com/blog
@oktadev

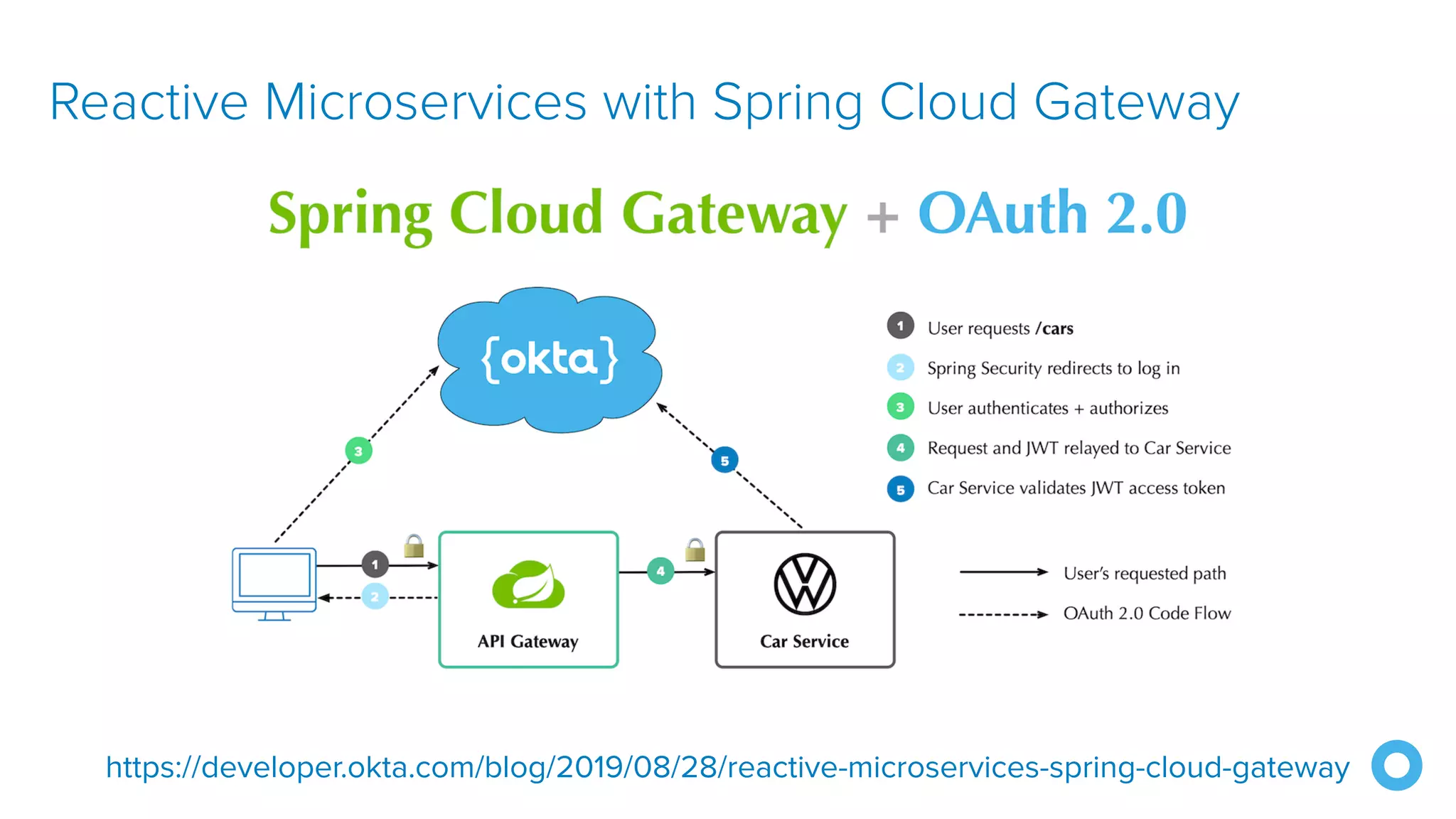

62. Reactive Microservices with Spring Cloud Gateway
https://developer.okta.com/blog/2019/08/28/reactive-microservices-spring-cloud-gateway

63. Action: Try JHipster!
https://developer.okta.com/blog/2019/04/04/java-11-java-12-jhipster-oidc

64. git clone https://github.com/oktadeveloper/okta-spring-webflux-react-
example.git
https://github.com/oktadeveloper/java-microservices-examples
Use the Source, Luke!

65. Thanks!
Keep in Touch
raibledesigns.com
@mraible
Presentations
speakerdeck.com/mraible
Code
github.com/oktadeveloper
developer.okta.com

66. developer.okta.com
