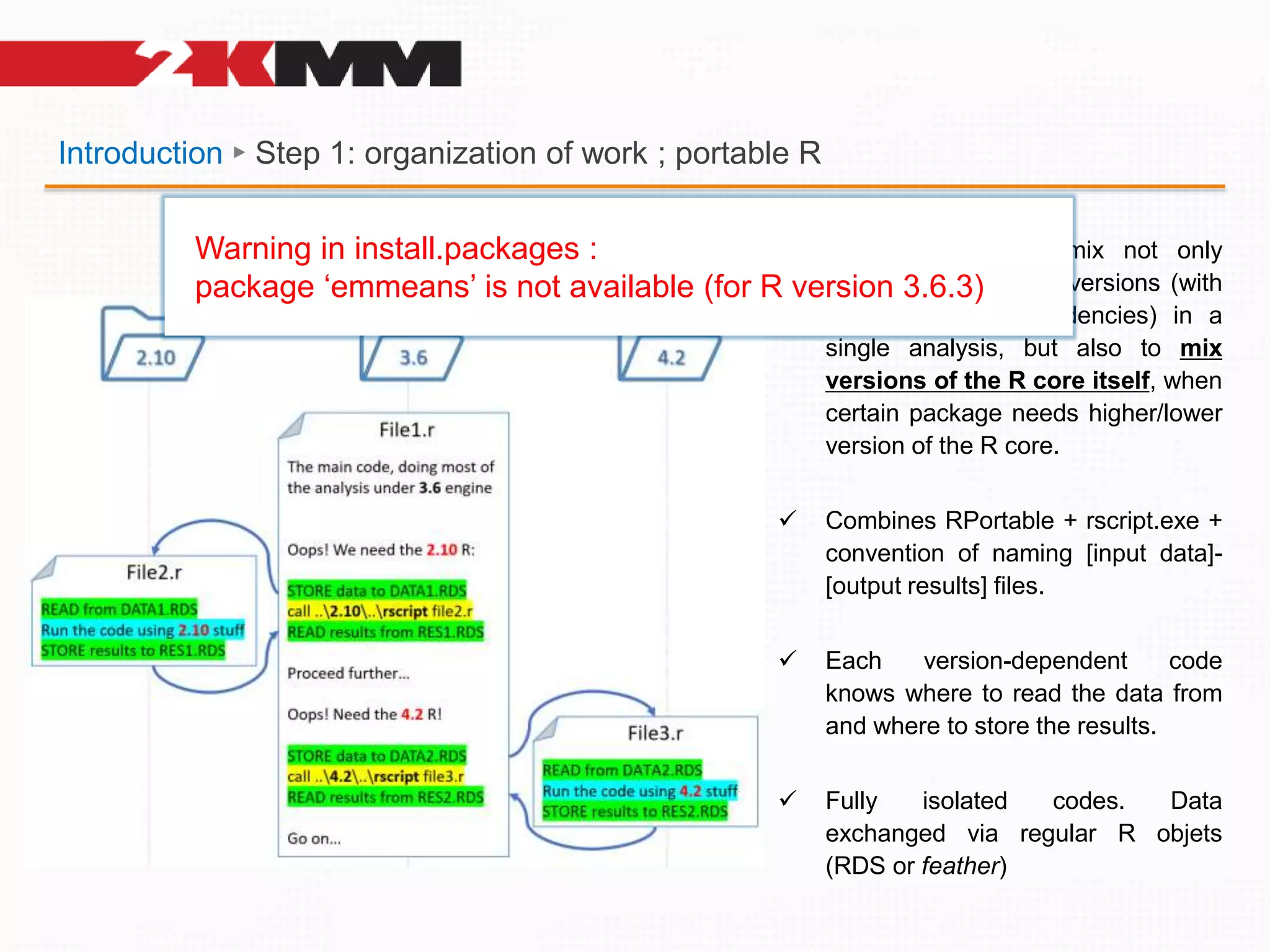

![Introduction ► Step 1: organization of work ; portable R
This allows us to mix not only
packages in different versions (with
all necessary dependencies) in a
single analysis, but also to mix
versions of the R core itself, when
certain package needs higher/lower
version of the R core.
Combines RPortable + rscript.exe +
convention of naming [input data]-
[output results] files.
Each version-dependent code
knows where to read the data from
and where to store the results.
Fully isolated codes. Data
exchanged via regular R objets
(RDS or feather)
Warning in install.packages :
package ‘emmeans’ is not available (for R version 3.6.3)](https://image.slidesharecdn.com/rpharma2022adrianolszewski-230525083716-0a950fd5/75/Meet-a-100-R-based-CRO-The-summary-of-a-5-year-journey-13-2048.jpg)

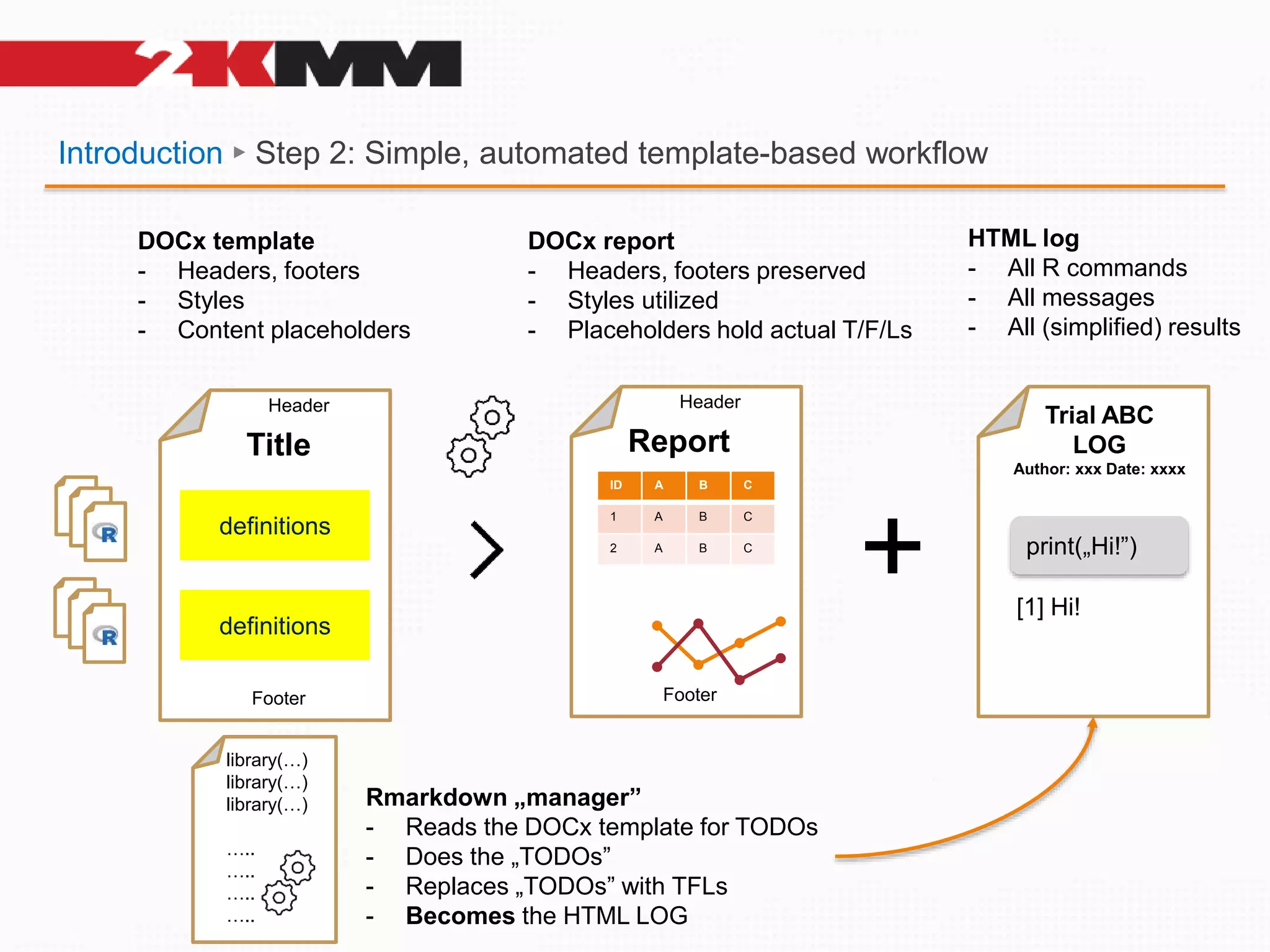

![Introduction ► Step 2: Simple, automated template-based workflow
DOCx template
- Headers, footers
- Styles
- Content placeholders
definitions
definitions
Header
Footer
Title
Header
Footer
Report
ID A B C
1 A B C
2 A B C
DOCx report
- Headers, footers preserved
- Styles utilized
- Placeholders hold actual T/F/Ls
HTML log
- All R commands
- All messages
- All (simplified) results
Trial ABC
LOG
Author: xxx Date: xxxx
print(„Hi!”)
[1] Hi!
library(…)
library(…)
library(…)
…..
…..
…..
…..
Rmarkdown „manager”
- Reads the DOCx template for TODOs
- Does the „TODOs”
- Replaces „TODOs” with TFLs
- Becomes the HTML LOG](https://image.slidesharecdn.com/rpharma2022adrianolszewski-230525083716-0a950fd5/75/Meet-a-100-R-based-CRO-The-summary-of-a-5-year-journey-16-2048.jpg)

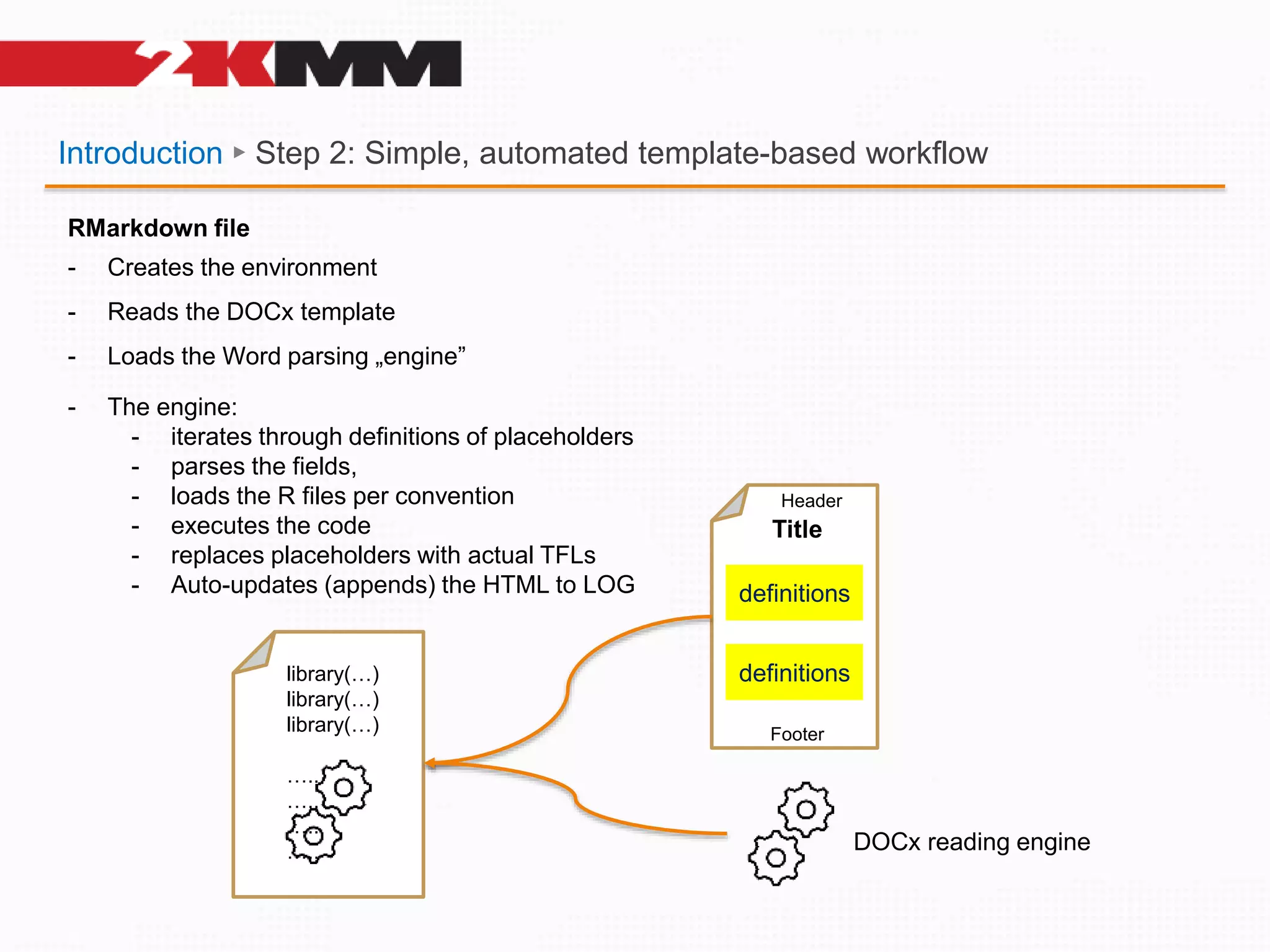

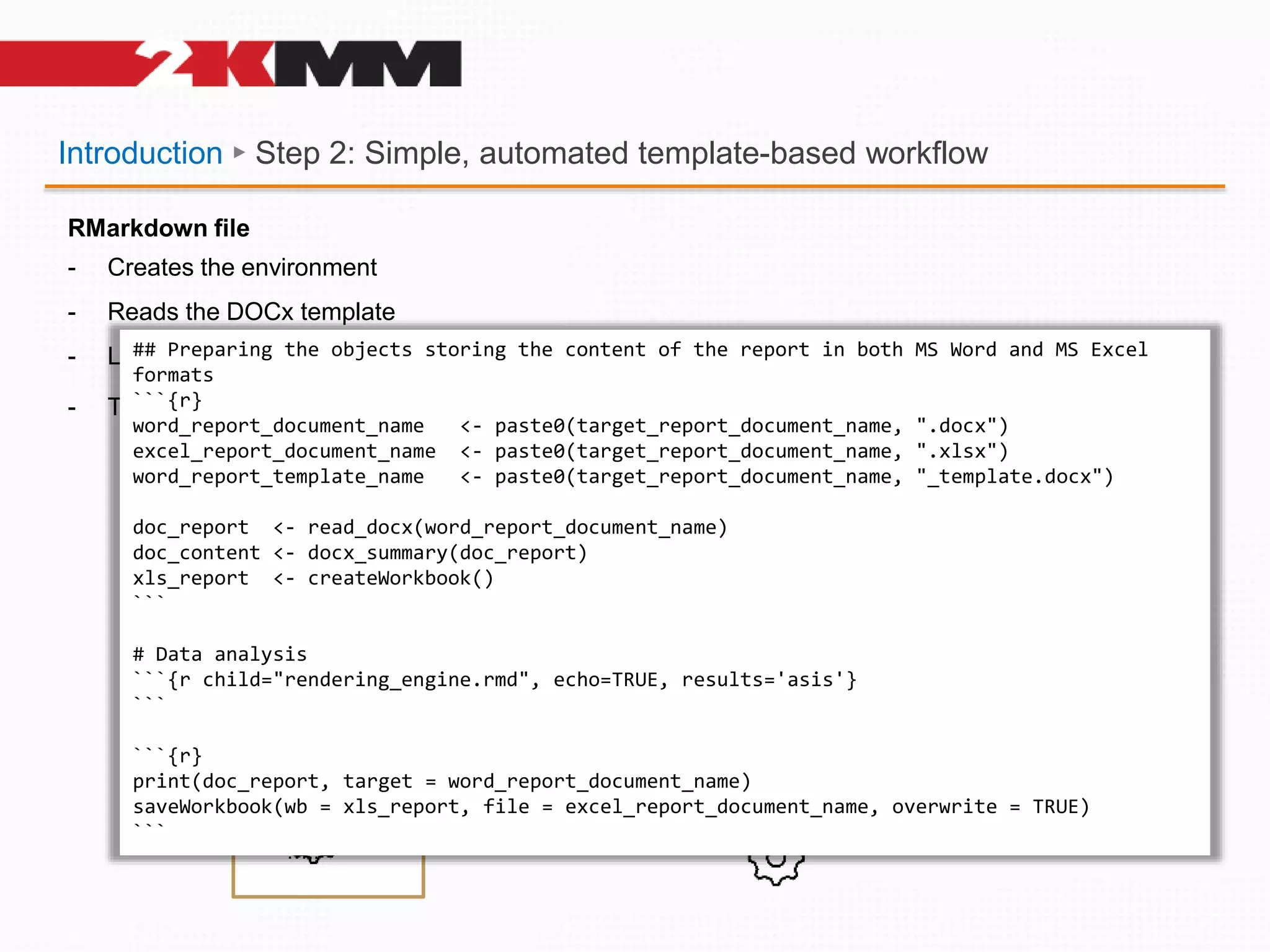

![Introduction ► Step 2: Simple, automated template-based workflow
definitions
definitions
Header
Footer
Title
RMarkdown file
- Creates the environment
- Reads the DOCx template
- Loads the Word parsing „engine”
- The engine:
- iterates through definitions of placeholders
- parses the fields,
- loads the R files per convention
- executes the code
- replaces placeholders with actual TFLs
- Auto-updates (appends) the HTML to LOG
library(…)
library(…)
library(…)
…..
…..
…..
….. DOCx reading engine
## Preparing the objects storing the content of the report in both MS Word and MS Excel
formats
```{r}
word_report_document_name <- paste0(target_report_document_name, ".docx")
excel_report_document_name <- paste0(target_report_document_name, ".xlsx")
word_report_template_name <- paste0(target_report_document_name, "_template.docx")
doc_report <- read_docx(word_report_document_name)
doc_content <- docx_summary(doc_report)
xls_report <- createWorkbook()
```
# Data analysis
```{r child="rendering_engine.rmd", echo=TRUE, results='asis'}
```
```{r}
print(doc_report, target = word_report_document_name)
saveWorkbook(wb = xls_report, file = excel_report_document_name, overwrite = TRUE)
```

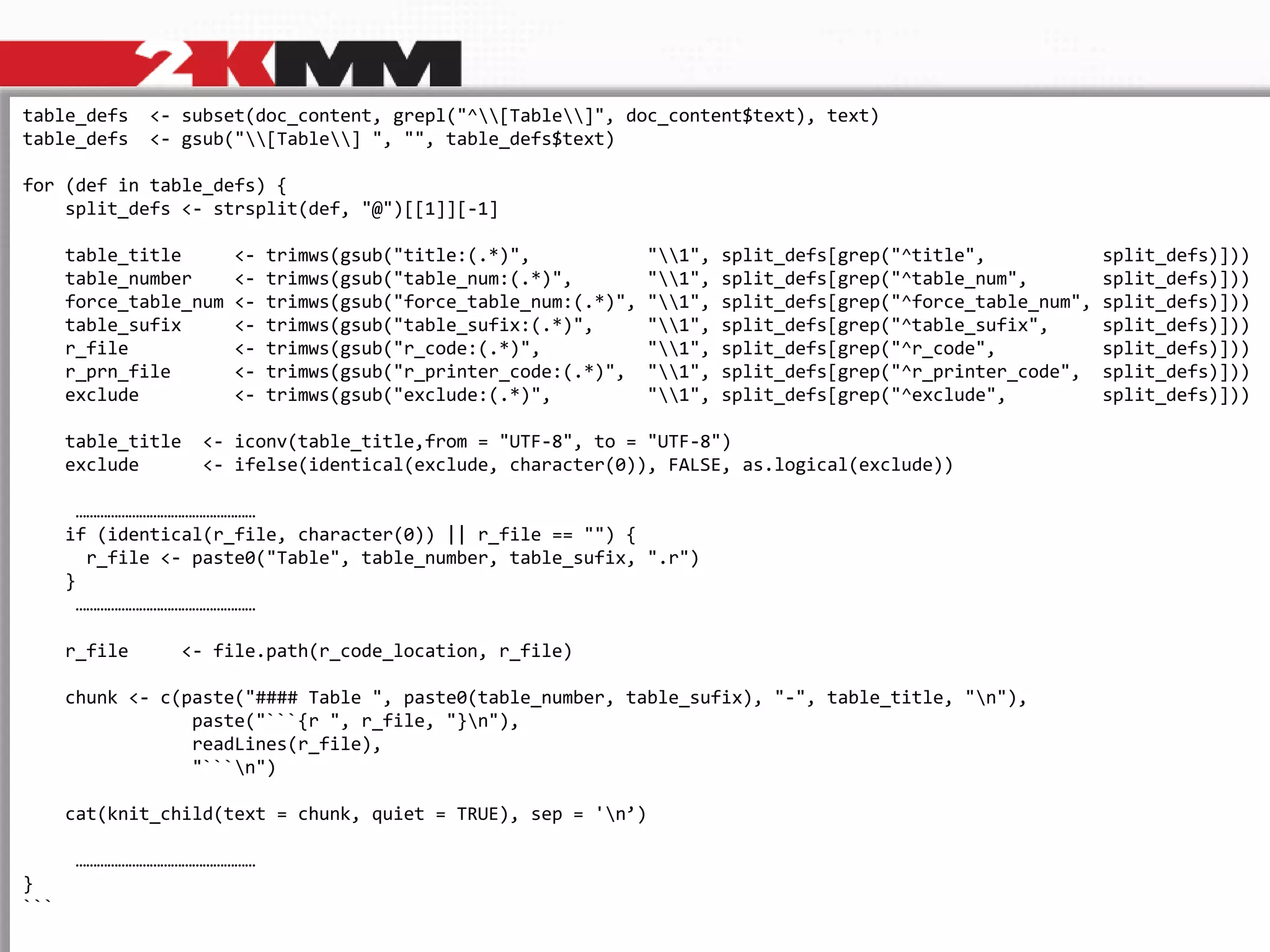

table_defs <- subset(doc_content, grepl("^[Table]", doc_content$text), text)
table_defs <- gsub("[Table] ", "", table_defs$text)
for (def in table_defs) {
split_defs <- strsplit(def, "@")[[1]][-1]
table_title <- trimws(gsub("title:(.*)", "1", split_defs[grep("^title", split_defs)]))
table_number <- trimws(gsub("table_num:(.*)", "1", split_defs[grep("^table_num", split_defs)]))
force_table_num <- trimws(gsub("force_table_num:(.*)", "1", split_defs[grep("^force_table_num", split_defs)]))
table_sufix <- trimws(gsub("table_sufix:(.*)", "1", split_defs[grep("^table_sufix", split_defs)]))
r_file <- trimws(gsub("r_code:(.*)", "1", split_defs[grep("^r_code", split_defs)]))
r_prn_file <- trimws(gsub("r_printer_code:(.*)", "1", split_defs[grep("^r_printer_code", split_defs)]))
exclude <- trimws(gsub("exclude:(.*)", "1", split_defs[grep("^exclude", split_defs)]))
table_title <- iconv(table_title,from = "UTF-8", to = "UTF-8")
exclude <- ifelse(identical(exclude, character(0)), FALSE, as.logical(exclude))
……………………………………………
if (identical(r_file, character(0)) || r_file == "") {
r_file <- paste0("Table", table_number, table_sufix, ".r")
}
……………………………………………
r_file <- file.path(r_code_location, r_file)
chunk <- c(paste("#### Table ", paste0(table_number, table_sufix), "-", table_title, "n"),
paste("```{r ", r_file, "}n"),
readLines(r_file),
"```n")
cat(knit_child(text = chunk, quiet = TRUE), sep = 'n’)
……………………………………………
}
```](https://image.slidesharecdn.com/rpharma2022adrianolszewski-230525083716-0a950fd5/75/Meet-a-100-R-based-CRO-The-summary-of-a-5-year-journey-19-2048.jpg)

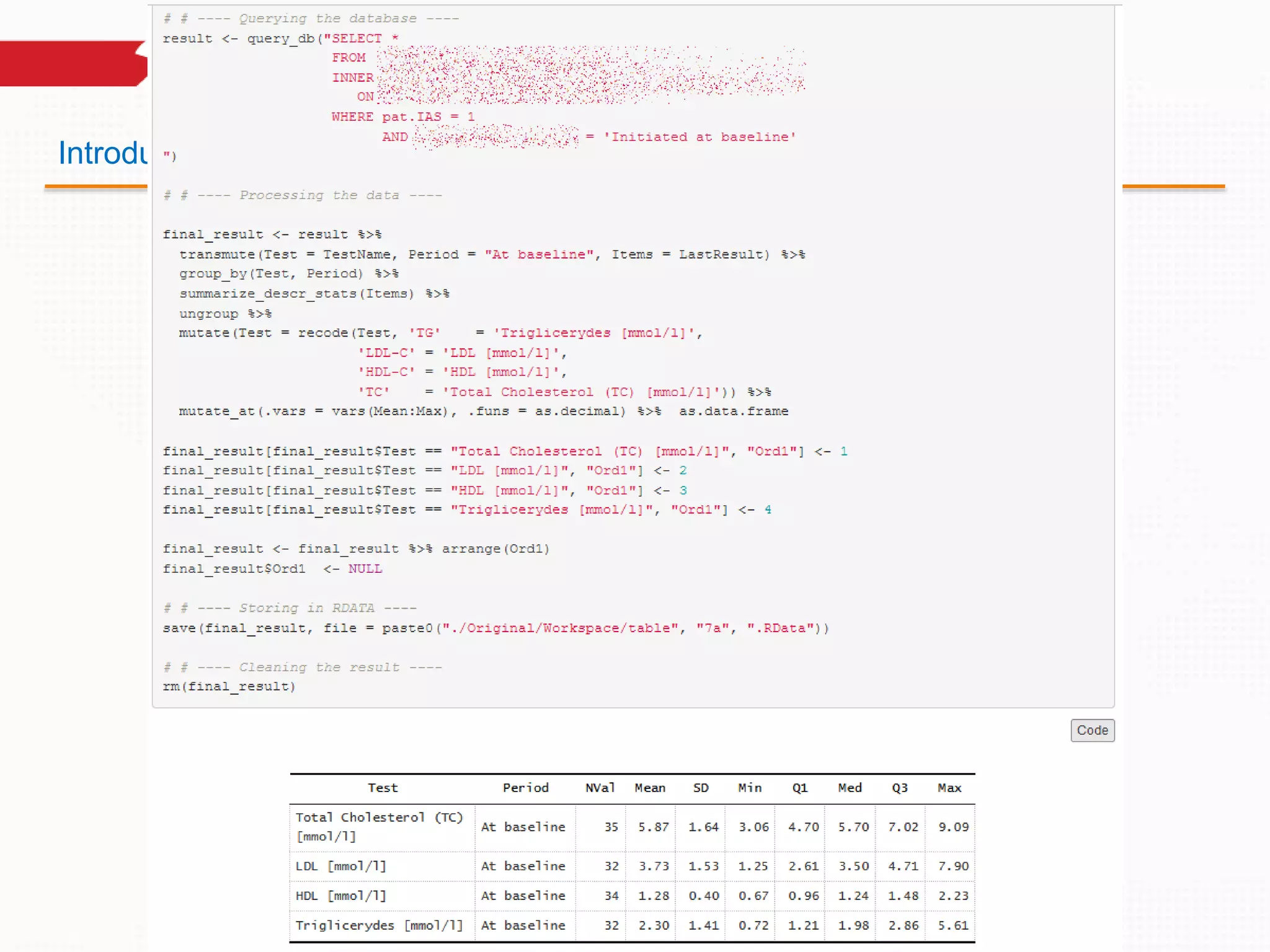

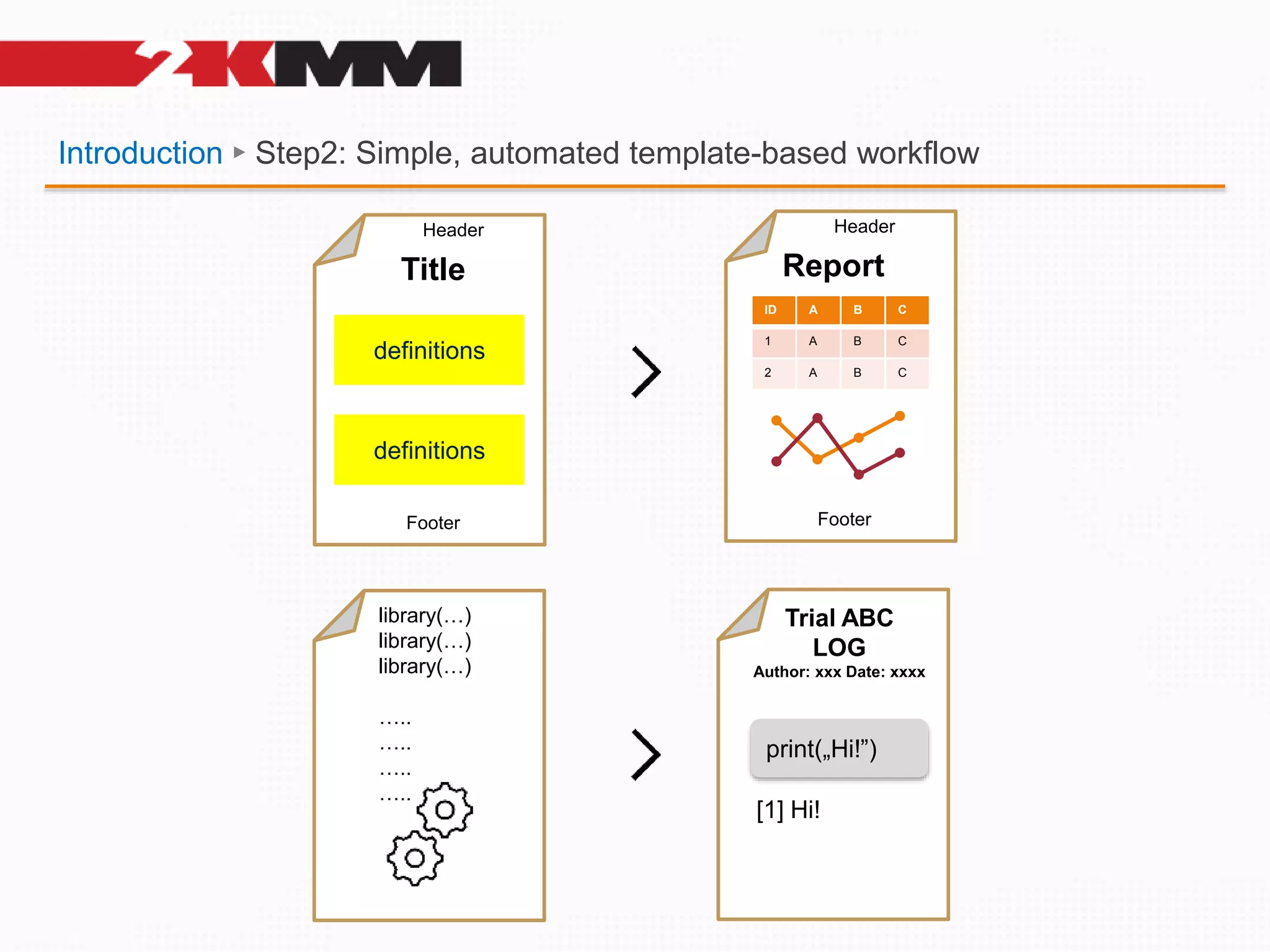

![Introduction ► Step2: Simple, automated template-based workflow
definitions
definitions
Header
Footer
Title
Header
Footer
Report
ID A B C
1 A B C
2 A B C
library(…)
library(…)
library(…)
…..
…..
…..
…..
Trial ABC
LOG
Author: xxx Date: xxxx
print(„Hi!”)
[1] Hi!](https://image.slidesharecdn.com/rpharma2022adrianolszewski-230525083716-0a950fd5/75/Meet-a-100-R-based-CRO-The-summary-of-a-5-year-journey-21-2048.jpg)
![Introduction ► Step2: Simple, automated template-based workflow
definitions
definitions
Header
Footer
Title
Header
Footer
Report
ID A B C
1 A B C
2 A B C
library(…)
library(…)
library(…)
…..
…..
…..
…..
Trial ABC
LOG
Author: xxx Date: xxxx
print(„Hi!”)
[1] Hi!](https://image.slidesharecdn.com/rpharma2022adrianolszewski-230525083716-0a950fd5/75/Meet-a-100-R-based-CRO-The-summary-of-a-5-year-journey-22-2048.jpg)

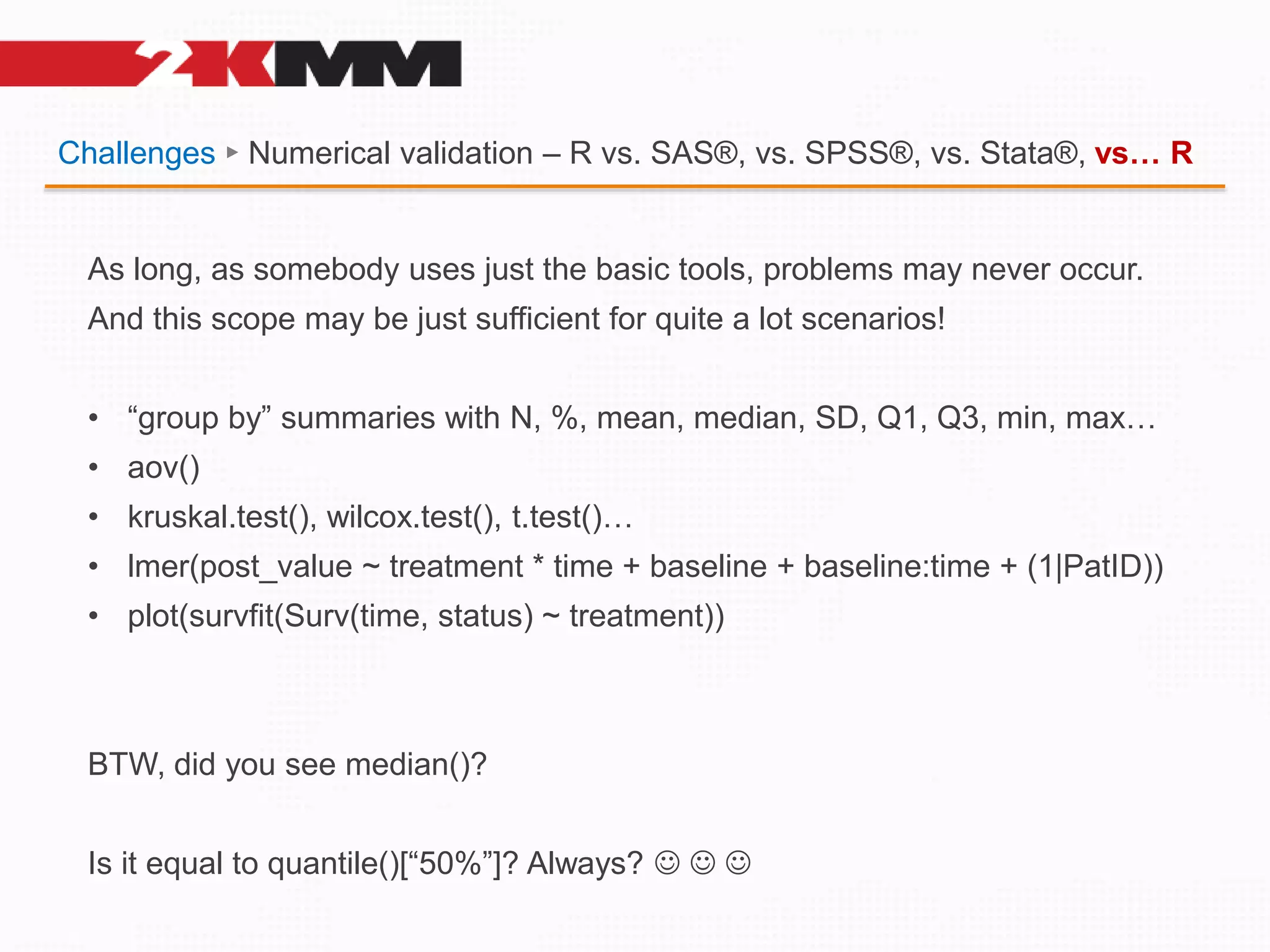

![Challenges ► Numerical validation – R vs. SAS®, vs. SPSS®, vs. Stata®, vs… R
As long, as somebody uses just the basic tools, problems may never occur.
And this scope may be just sufficient for quite a lot scenarios!
• “group by” summaries with N, %, mean, median, SD, Q1, Q3, min, max…
• aov()
• kruskal.test(), wilcox.test(), t.test()…
• lmer(post_value ~ treatment * time + baseline + baseline:time + (1|PatID))
• plot(survfit(Surv(time, status) ~ treatment))
BTW, did you see median()?
Is it equal to quantile()[“50%”]? Always? ](https://image.slidesharecdn.com/rpharma2022adrianolszewski-230525083716-0a950fd5/75/Meet-a-100-R-based-CRO-The-summary-of-a-5-year-journey-32-2048.jpg)
More Related Content
Similar to Meet a 100% R-based CRO. The summary of a 5-year journey
![Coded Agents – with UiPath SDK + LangGraph [Virtual Hands-on Workshop]](https://cdn.slidesharecdn.com/ss_thumbnails/codedagentsdeck-251215155422-5497c599-thumbnail.jpg?width=640&height=640&fit=bounds)
Meet a 100% R-based CRO. The summary of a 5-year journey
- 1. Meet a 100%R-based CRO The summary of a 5-year journey Adrian Olszewski Principal Biostatistician at 2KMM CRO The R/Pharma 2022 Conference, Nov 10th 2022 10min www.2kmm.eu aolszewski@2kmm.pl
- 2. Disclaimer 2 This presentation showsthe biostatistician’s perspective first. Lots of exploratory research, involving tens of statistical tests, complex survival models and non-parametric methods. Here producing TFLs is important but secondary. I need the NUMBERS first to populate them. It’s not to „blame” or „unfairly criticize”. My job is to analysis trial’s data on time and within the budget. If something does not work so I cannot meet the deadline, fixing things exceeds the budget, the situation seems hopeless – there’s no time for sentiments, ideology, and hiding problems. I’m going to be held accountable for the effects of my work, not for my „love for the tool”. „You get what you pay for. It’s a free software. Stop complaining. The fact that something is „for free” does not mean it cannot be improved. The first step is to admit problems exist, diagnoze them and be honest. It needs a sober assessment of the situation to counteract effectively. So why do you „waste your time”? Buy XYZ® and be happy I really want to make things better. I ❤️ R. If i did not, I’d have abandoned it in 2000. Things get better but won’t „fix itself” magically. Relationships can be tough, but that's no reason to give up! Besides, it’s fun!
- 3. Introduction ► Whowe are ⦿ The 2KMM - a small Polish CRO with a global reach. ⦿ 100% R-based: trial design • DM • datasets • analysis & research • TFL • documents • consulting • tutoring • making tools ⦿ 28 projects: RCTs + observational studies (in several therapeutic areas) lots of ad hoc research

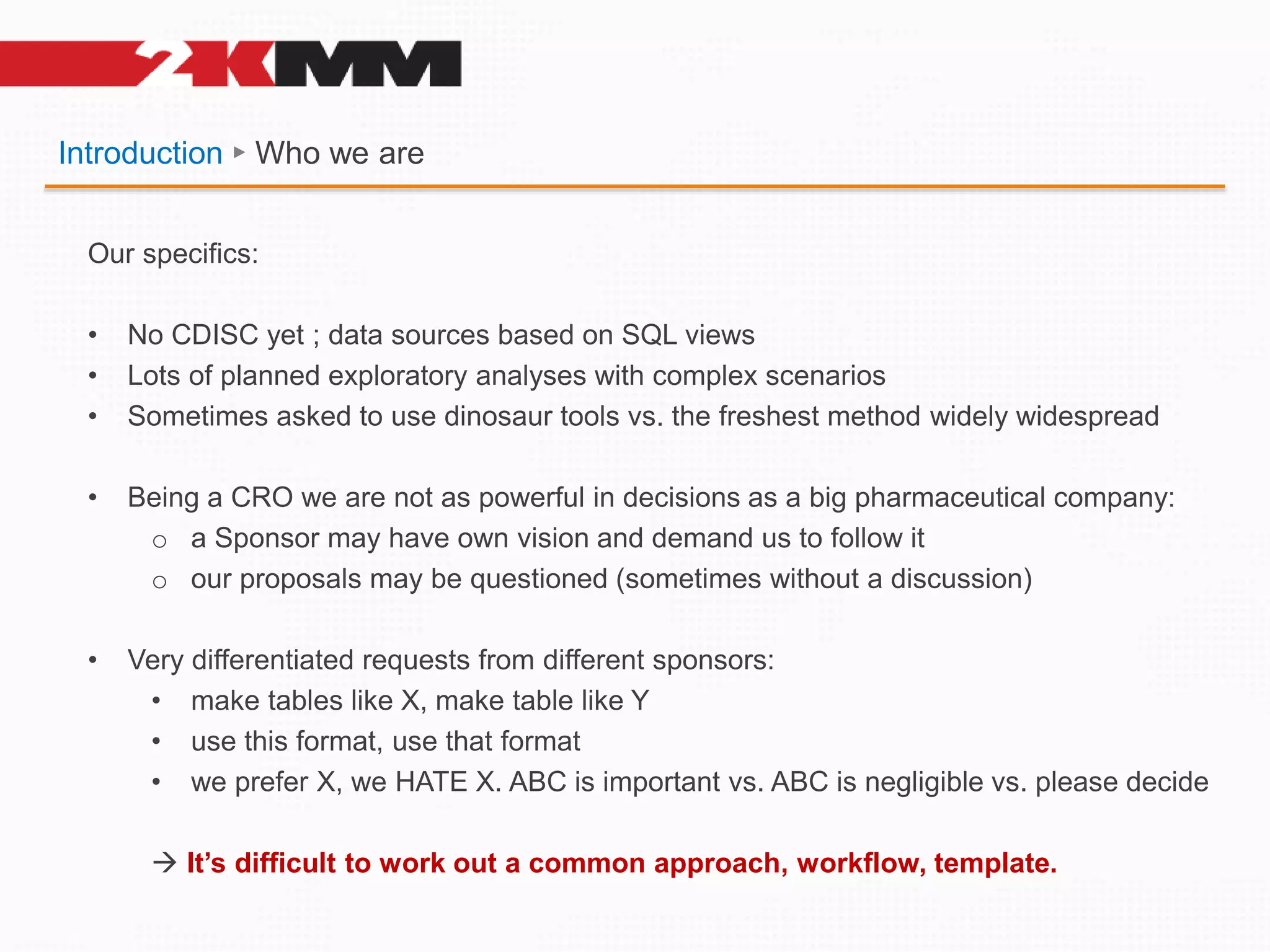

- 4. Introduction ► Whowe are Our specifics: • No CDISC yet ; data sources based on SQL views • Lots of planned exploratory analyses with complex scenarios • Sometimes asked to use dinosaur tools vs. the freshest method widely widespread • Being a CRO we are not as powerful in decisions as a big pharmaceutical company: o a Sponsor may have own vision and demand us to follow it o our proposals may be questioned (sometimes without a discussion) • Very differentiated requests from different sponsors: • make tables like X, make table like Y • use this format, use that format • we prefer X, we HATE X. ABC is important vs. ABC is negligible vs. please decide It’s difficult to work out a common approach, workflow, template.

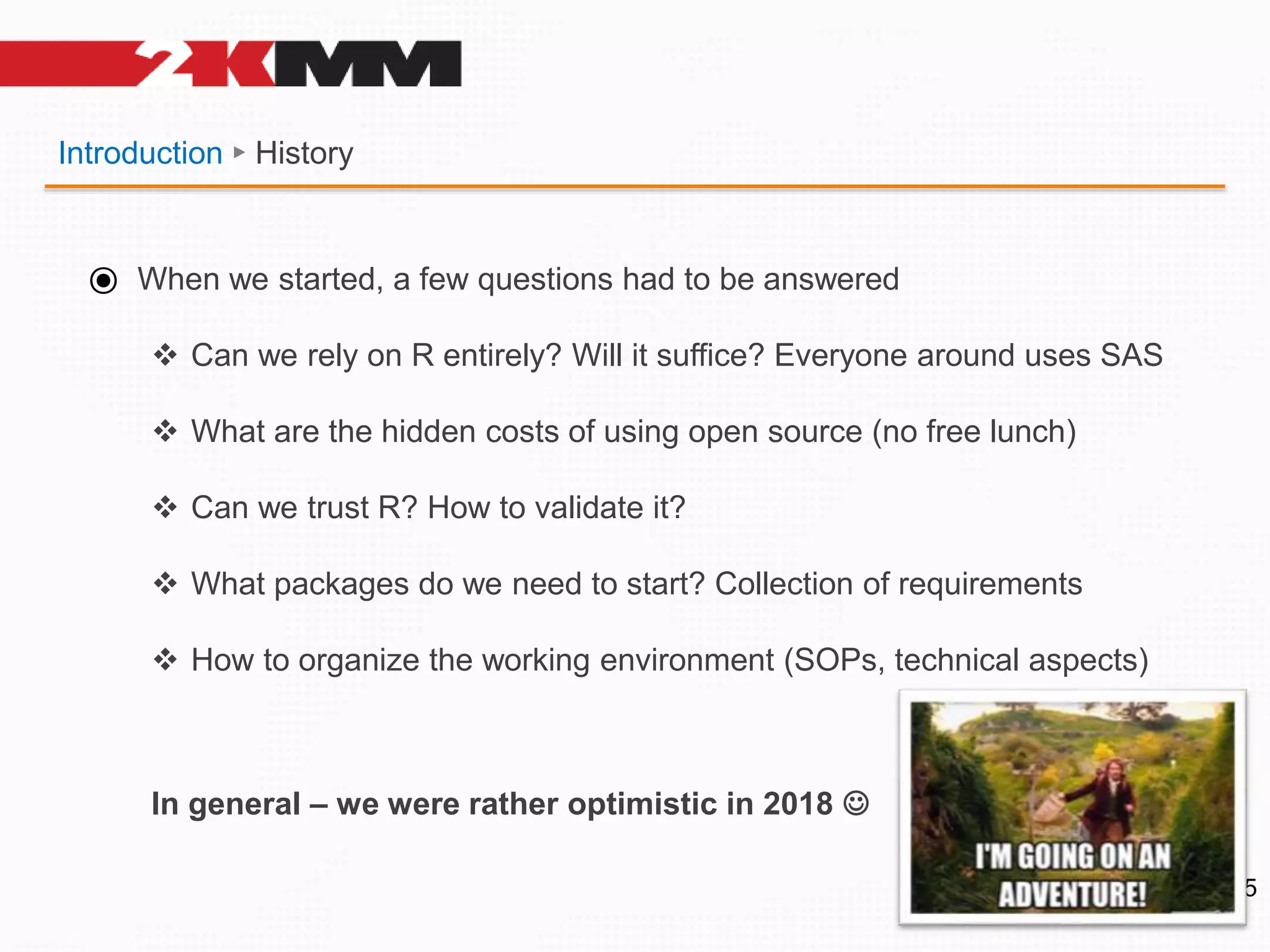

- 5. Introduction ► History 5 ⦿When we started, a few questions had to be answered Can we rely on R entirely? Will it suffice? Everyone around uses SAS What are the hidden costs of using open source (no free lunch) Can we trust R? How to validate it? What packages do we need to start? Collection of requirements How to organize the working environment (SOPs, technical aspects) In general – we were rather optimistic in 2018

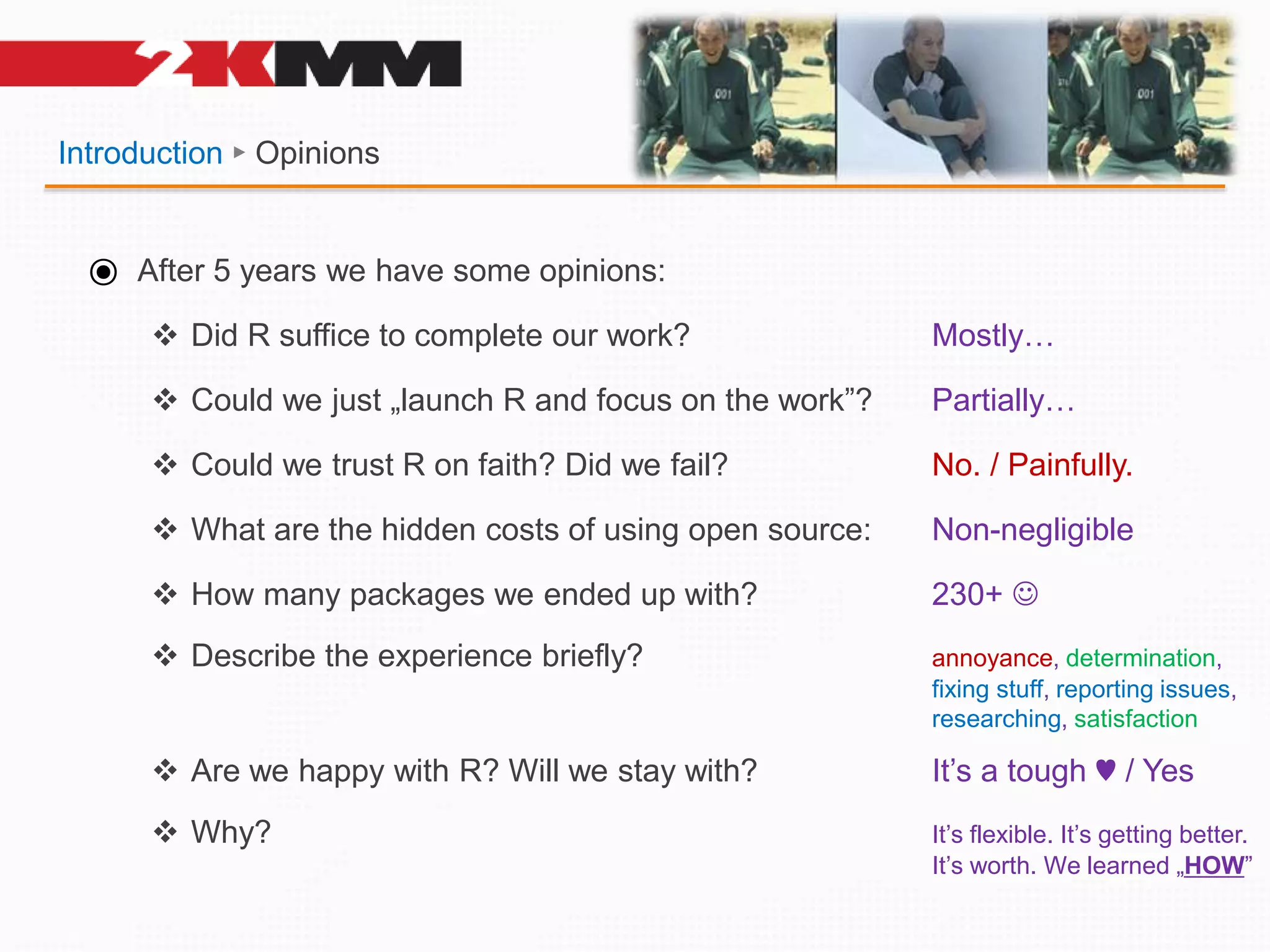

- 6. Introduction ► Opinions ⦿After 5 years we have some opinions: Did R suffice to complete our work? Mostly… Could we just „launch R and focus on the work”? Partially… Could we trust R on faith? Did we fail? No. / Painfully. What are the hidden costs of using open source: Non-negligible How many packages we ended up with? 230+ Describe the experience briefly? annoyance, determination, fixing stuff, reporting issues, researching, satisfaction Are we happy with R? Will we stay with? It’s a tough ♥ / Yes Why? It’s flexible. It’s getting better. It’s worth. We learned „HOW”

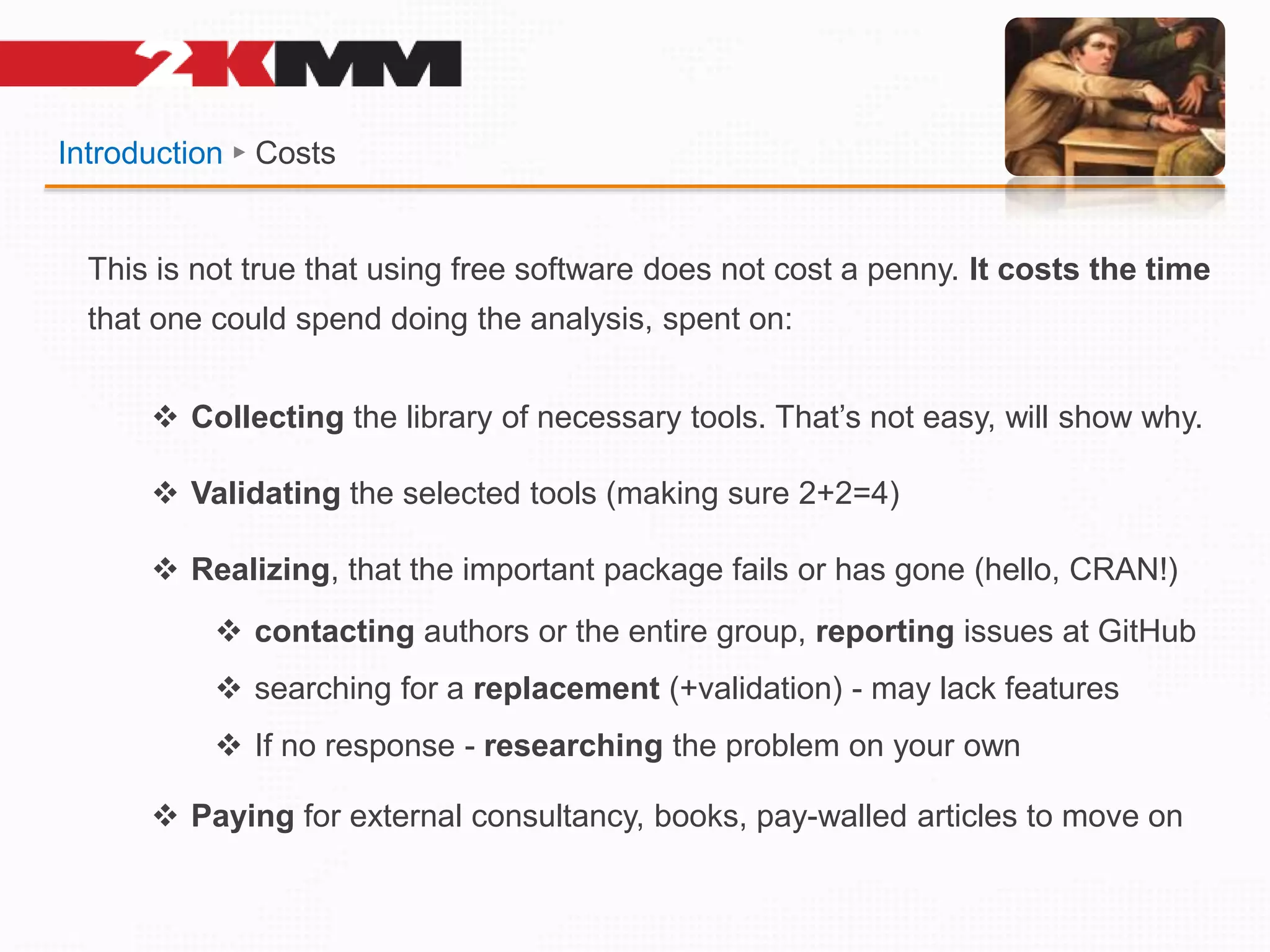

- 7. Introduction ► Costs Thisis not true that using free software does not cost a penny. It costs the time that one could spend doing the analysis, spent on: Collecting the library of necessary tools. That’s not easy, will show why. Validating the selected tools (making sure 2+2=4) Realizing, that the important package fails or has gone (hello, CRAN!) contacting authors or the entire group, reporting issues at GitHub searching for a replacement (+validation) - may lack features If no response - researching the problem on your own Paying for external consultancy, books, pay-walled articles to move on

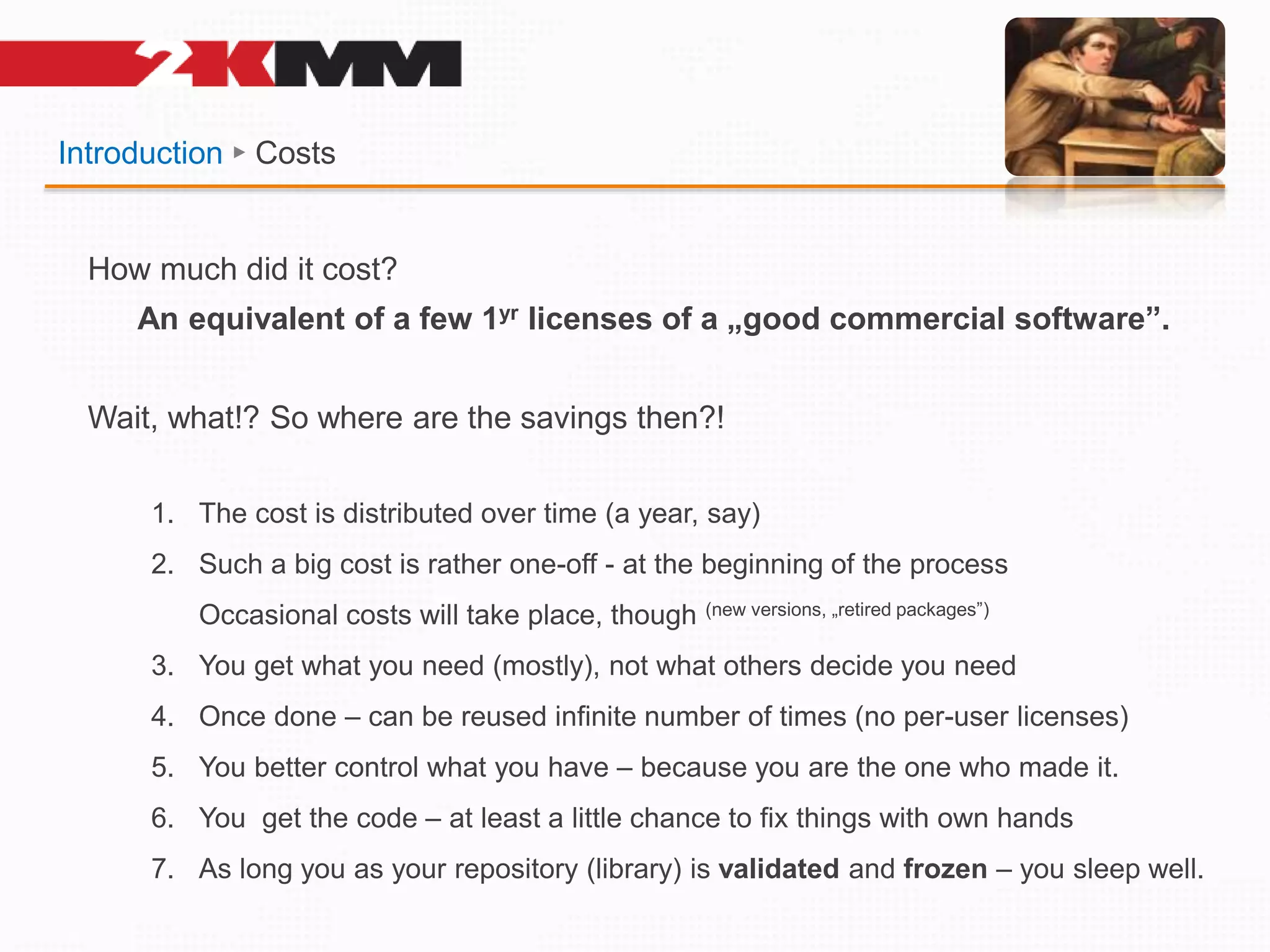

- 8. Introduction ► Costs Howmuch did it cost? An equivalent of a few 1yr licenses of a „good commercial software”. Wait, what!? So where are the savings then?! 1. The cost is distributed over time (a year, say) 2. Such a big cost is rather one-off - at the beginning of the process Occasional costs will take place, though (new versions, „retired packages”) 3. You get what you need (mostly), not what others decide you need 4. Once done – can be reused infinite number of times (no per-user licenses) 5. You better control what you have – because you are the one who made it. 6. You get the code – at least a little chance to fix things with own hands 7. As long you as your repository (library) is validated and frozen – you sleep well.

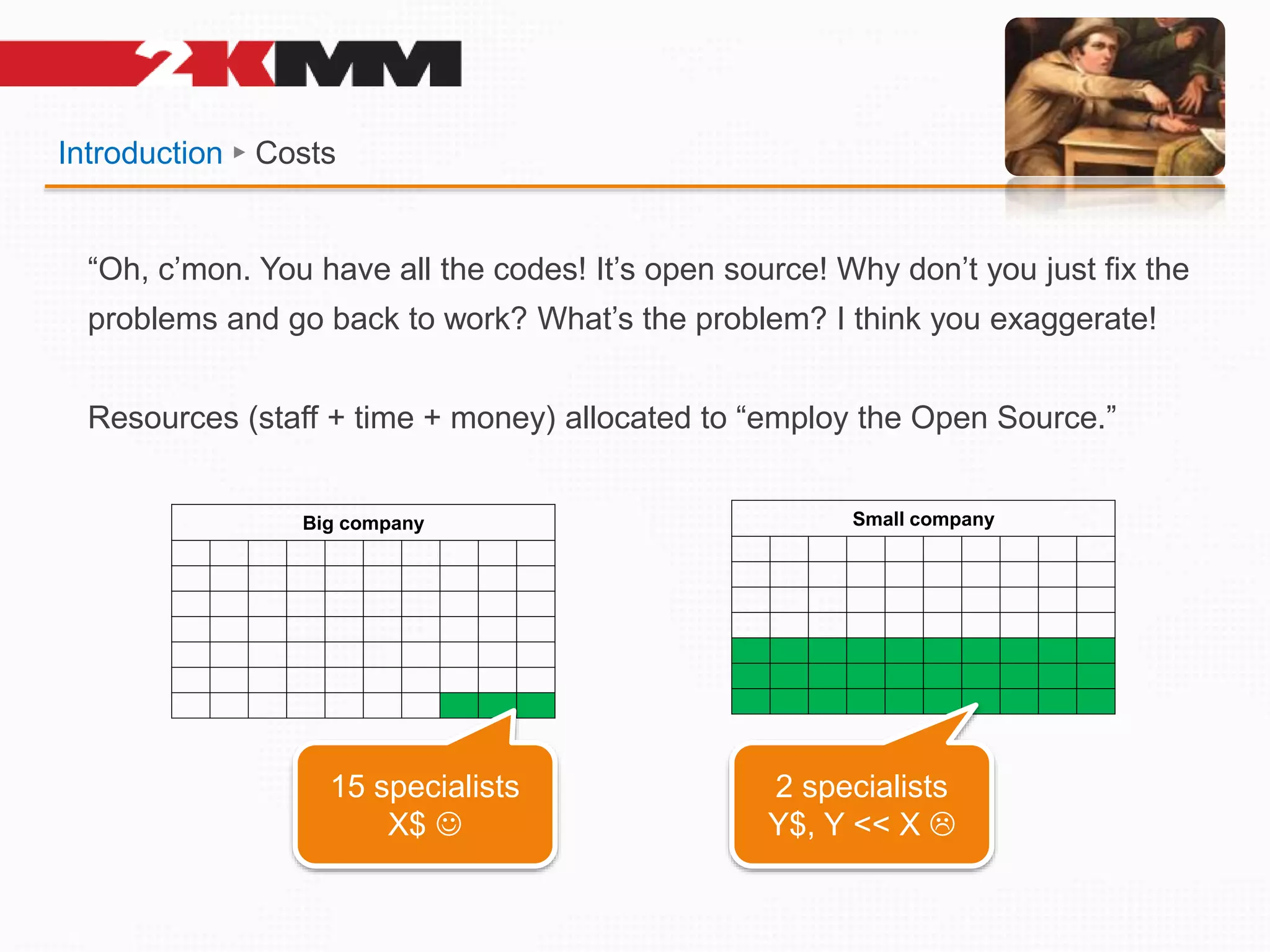

- 9. Introduction ► Costs “Oh,c’mon. You have all the codes! It’s open source! Why don’t you just fix the problems and go back to work? What’s the problem? I think you exaggerate! Resources (staff + time + money) allocated to “employ the Open Source.” Big company Small company 15 specialists X$ 2 specialists Y$, Y << X

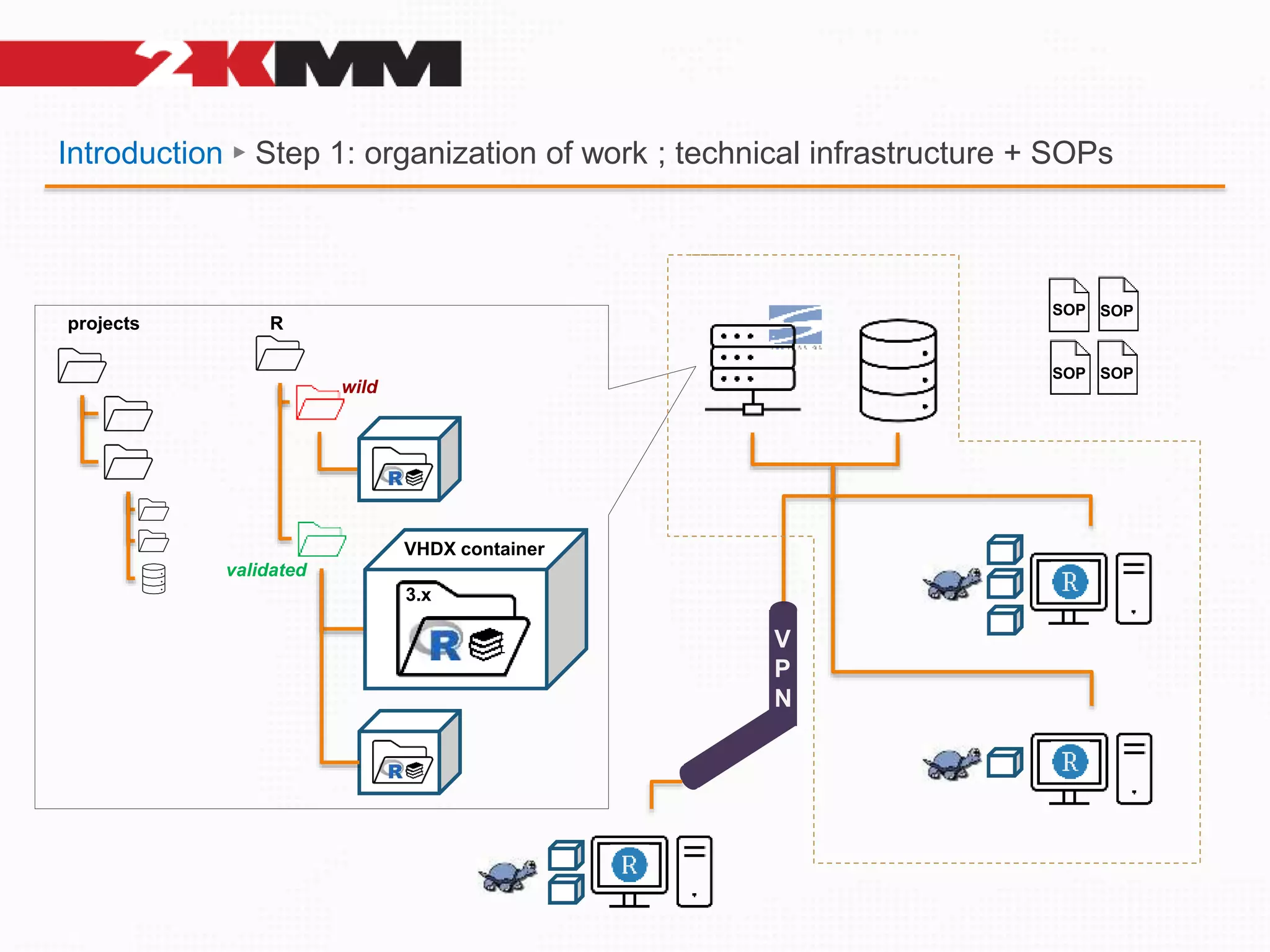

- 10. Introduction ► Step1: organization of work ; technical infrastructure + SOPs projects R 3.x VHDX container V P N wild validated SOP SOP SOP SOP

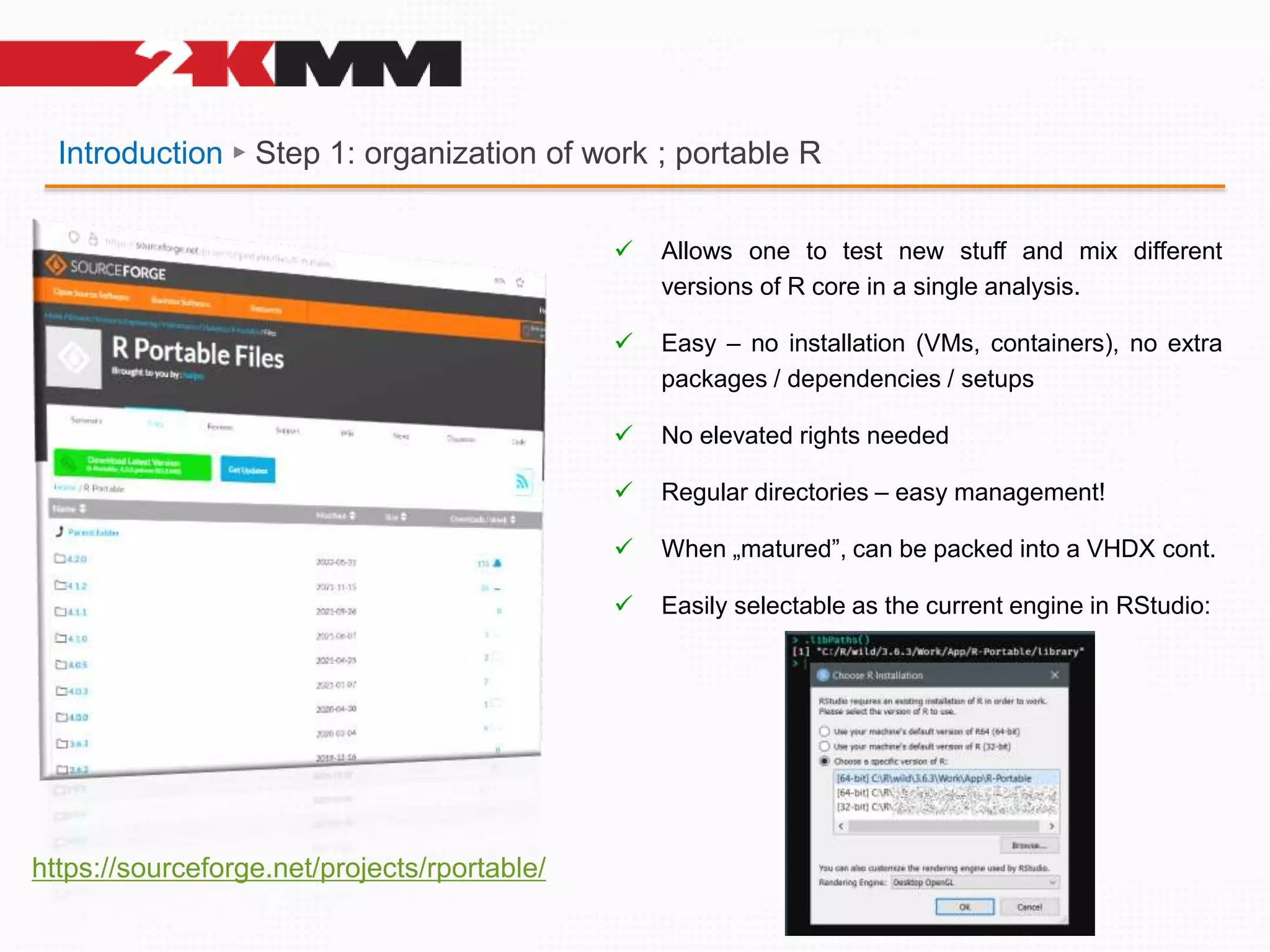

- 11. Introduction ► Step1: organization of work ; portable R https://sourceforge.net/projects/rportable/ Allows one to test new stuff and mix different versions of R core in a single analysis. Easy – no installation (VMs, containers), no extra packages / dependencies / setups No elevated rights needed Regular directories – easy management! When „matured”, can be packed into a VHDX cont. Easily selectable as the current engine in RStudio:

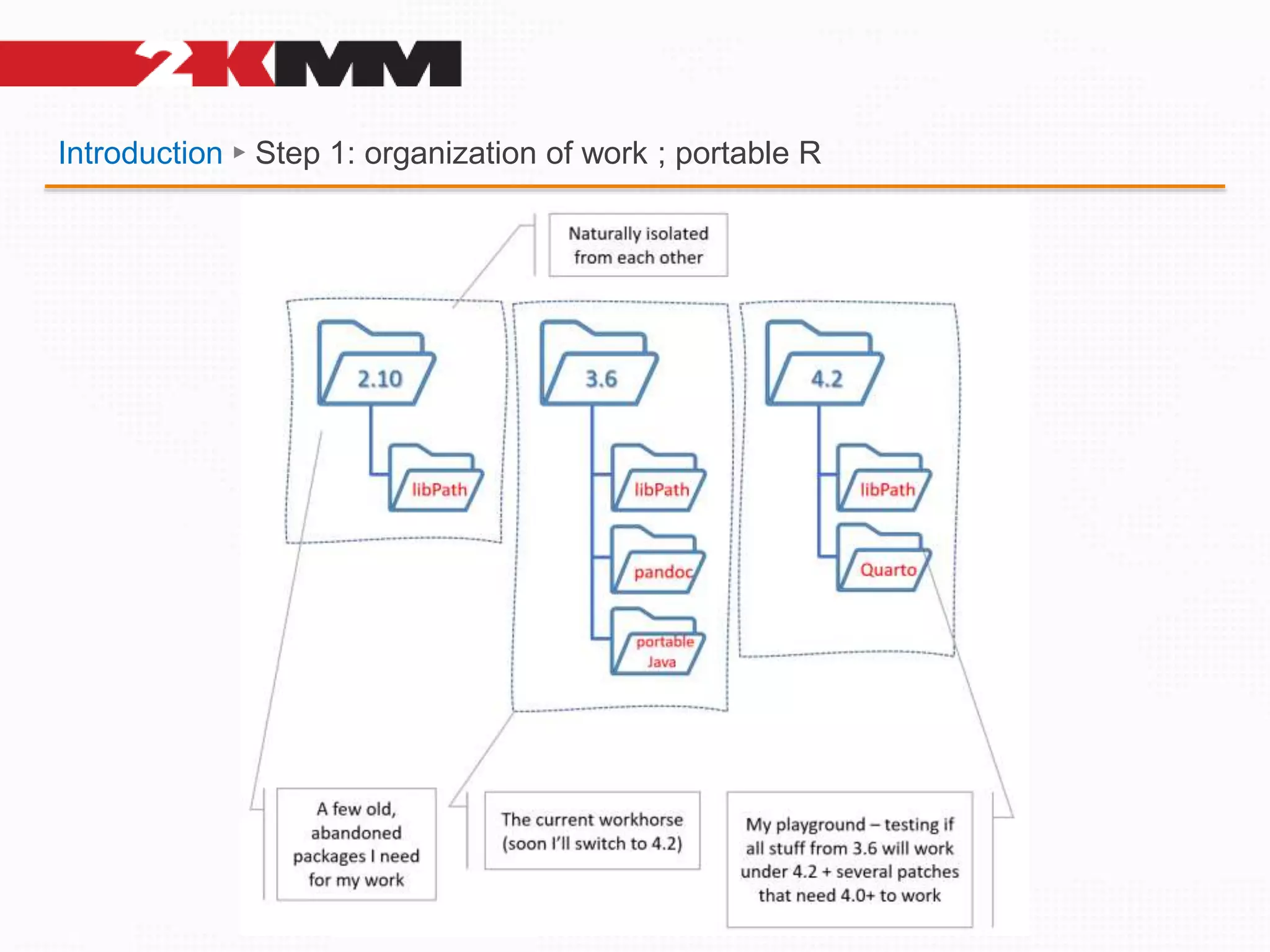

- 12. Introduction ► Step1: organization of work ; portable R
- 13. Introduction ► Step1: organization of work ; portable R This allows us to mix not only packages in different versions (with all necessary dependencies) in a single analysis, but also to mix versions of the R core itself, when certain package needs higher/lower version of the R core. Combines RPortable + rscript.exe + convention of naming [input data]- [output results] files. Each version-dependent code knows where to read the data from and where to store the results. Fully isolated codes. Data exchanged via regular R objets (RDS or feather) Warning in install.packages : package ‘emmeans’ is not available (for R version 3.6.3)

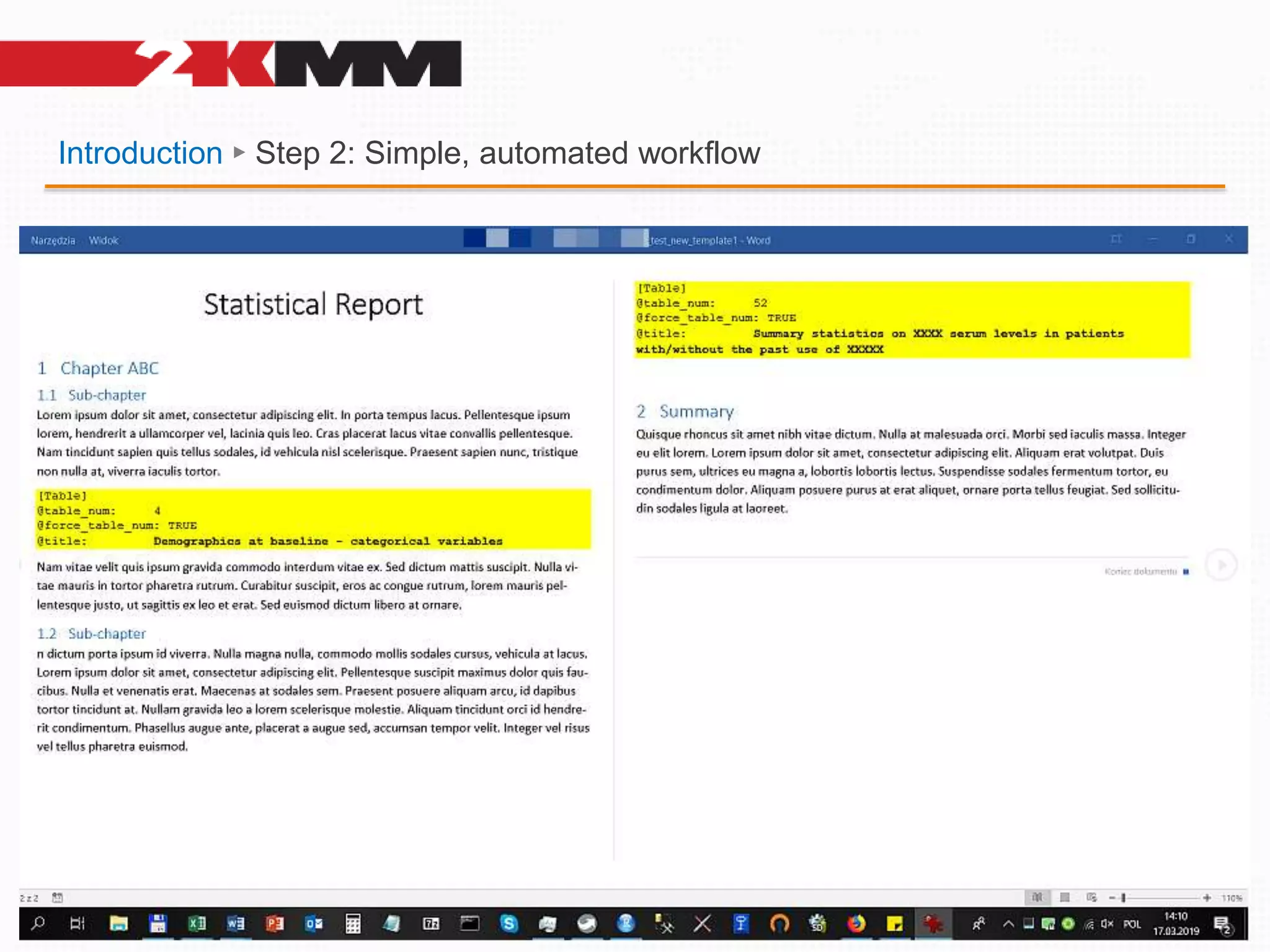

- 14. Introduction ► Step2: Simple, automated workflow

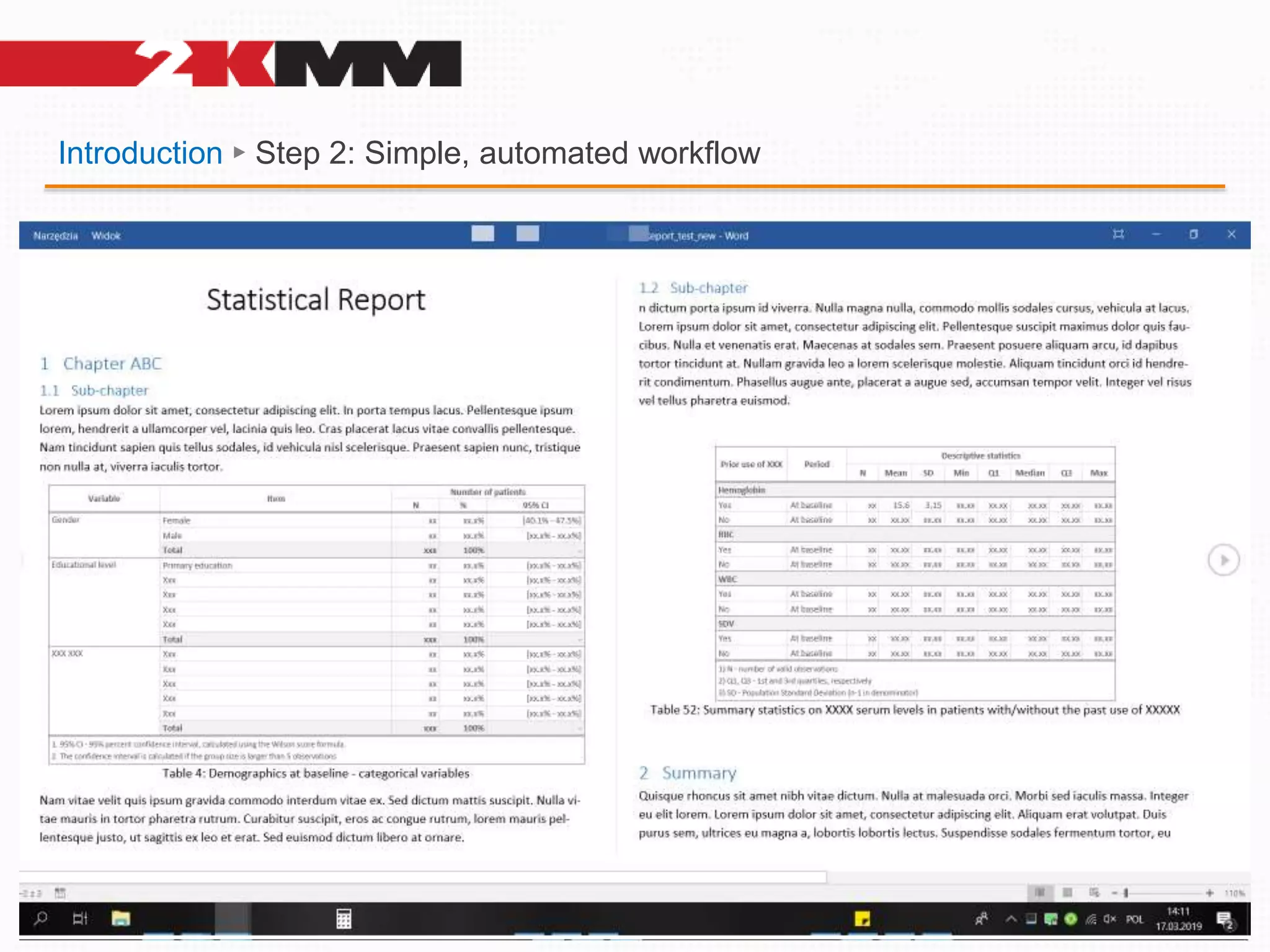

- 15. Introduction ► Step2: Simple, automated workflow
- 16. Introduction ► Step2: Simple, automated template-based workflow DOCx template - Headers, footers - Styles - Content placeholders definitions definitions Header Footer Title Header Footer Report ID A B C 1 A B C 2 A B C DOCx report - Headers, footers preserved - Styles utilized - Placeholders hold actual T/F/Ls HTML log - All R commands - All messages - All (simplified) results Trial ABC LOG Author: xxx Date: xxxx print(„Hi!”) [1] Hi! library(…) library(…) library(…) ….. ….. ….. ….. Rmarkdown „manager” - Reads the DOCx template for TODOs - Does the „TODOs” - Replaces „TODOs” with TFLs - Becomes the HTML LOG
- 17. Introduction ► Step2: Simple, automated template-based workflow definitions definitions Header Footer Title RMarkdown file - Creates the environment - Reads the DOCx template - Loads the Word parsing „engine” - The engine: - iterates through definitions of placeholders - parses the fields, - loads the R files per convention - executes the code - replaces placeholders with actual TFLs - Auto-updates (appends) the HTML to LOG library(…) library(…) library(…) ….. ….. ….. ….. DOCx reading engine
- 18. Introduction ► Step2: Simple, automated template-based workflow definitions definitions Header Footer Title RMarkdown file - Creates the environment - Reads the DOCx template - Loads the Word parsing „engine” - The engine: - iterates through definitions of placeholders - parses the fields, - loads the R files per convention - executes the code - replaces placeholders with actual TFLs - Auto-updates (appends) the HTML to LOG library(…) library(…) library(…) ….. ….. ….. ….. DOCx reading engine ## Preparing the objects storing the content of the report in both MS Word and MS Excel formats ```{r} word_report_document_name <- paste0(target_report_document_name, ".docx") excel_report_document_name <- paste0(target_report_document_name, ".xlsx") word_report_template_name <- paste0(target_report_document_name, "_template.docx") doc_report <- read_docx(word_report_document_name) doc_content <- docx_summary(doc_report) xls_report <- createWorkbook() ``` # Data analysis ```{r child="rendering_engine.rmd", echo=TRUE, results='asis'} ``` ```{r} print(doc_report, target = word_report_document_name) saveWorkbook(wb = xls_report, file = excel_report_document_name, overwrite = TRUE) ```
- 19. Introduction ► Step2: Simple, automated template-based workflow definitions definitions Header Footer Title RMarkdown file - Creates the environment - Reads the DOCx template - Loads the Word parsing „engine” - The engine: - iterates through definitions of placeholders - parses the fields, - loads the R files per convention - executes the code - replaces placeholders with actual TFLs - Auto-updates (appends) the HTML to LOG library(…) library(…) library(…) ….. ….. ….. ….. DOCx reading engine ## Preparing the objects storing the content of the report in both MS Word and MS Excel formats ```{r} word_report_document_name <- paste0(target_report_document_name, ".docx") excel_report_document_name <- paste0(target_report_document_name, ".xlsx") word_report_template_name <- paste0(target_report_document_name, "_template.docx") doc_report <- read_docx(word_report_document_name) doc_content <- docx_summary(doc_report) xls_report <- createWorkbook() ``` # Data analysis ```{r child="rendering_engine.rmd", echo=TRUE, results='asis'} ``` ```{r} print(doc_report, target = word_report_document_name) saveWorkbook(wb = xls_report, file = excel_report_document_name, overwrite = TRUE) ``` table_defs <- subset(doc_content, grepl("^[Table]", doc_content$text), text) table_defs <- gsub("[Table] ", "", table_defs$text) for (def in table_defs) { split_defs <- strsplit(def, "@")[[1]][-1] table_title <- trimws(gsub("title:(.*)", "1", split_defs[grep("^title", split_defs)])) table_number <- trimws(gsub("table_num:(.*)", "1", split_defs[grep("^table_num", split_defs)])) force_table_num <- trimws(gsub("force_table_num:(.*)", "1", split_defs[grep("^force_table_num", split_defs)])) table_sufix <- trimws(gsub("table_sufix:(.*)", "1", split_defs[grep("^table_sufix", split_defs)])) r_file <- trimws(gsub("r_code:(.*)", "1", split_defs[grep("^r_code", split_defs)])) r_prn_file <- trimws(gsub("r_printer_code:(.*)", "1", split_defs[grep("^r_printer_code", split_defs)])) exclude <- trimws(gsub("exclude:(.*)", "1", split_defs[grep("^exclude", split_defs)])) table_title <- iconv(table_title,from = "UTF-8", to = "UTF-8") exclude <- ifelse(identical(exclude, character(0)), FALSE, as.logical(exclude)) …………………………………………… if (identical(r_file, character(0)) || r_file == "") { r_file <- paste0("Table", table_number, table_sufix, ".r") } …………………………………………… r_file <- file.path(r_code_location, r_file) chunk <- c(paste("#### Table ", paste0(table_number, table_sufix), "-", table_title, "n"), paste("```{r ", r_file, "}n"), readLines(r_file), "```n") cat(knit_child(text = chunk, quiet = TRUE), sep = 'n’) …………………………………………… } ```

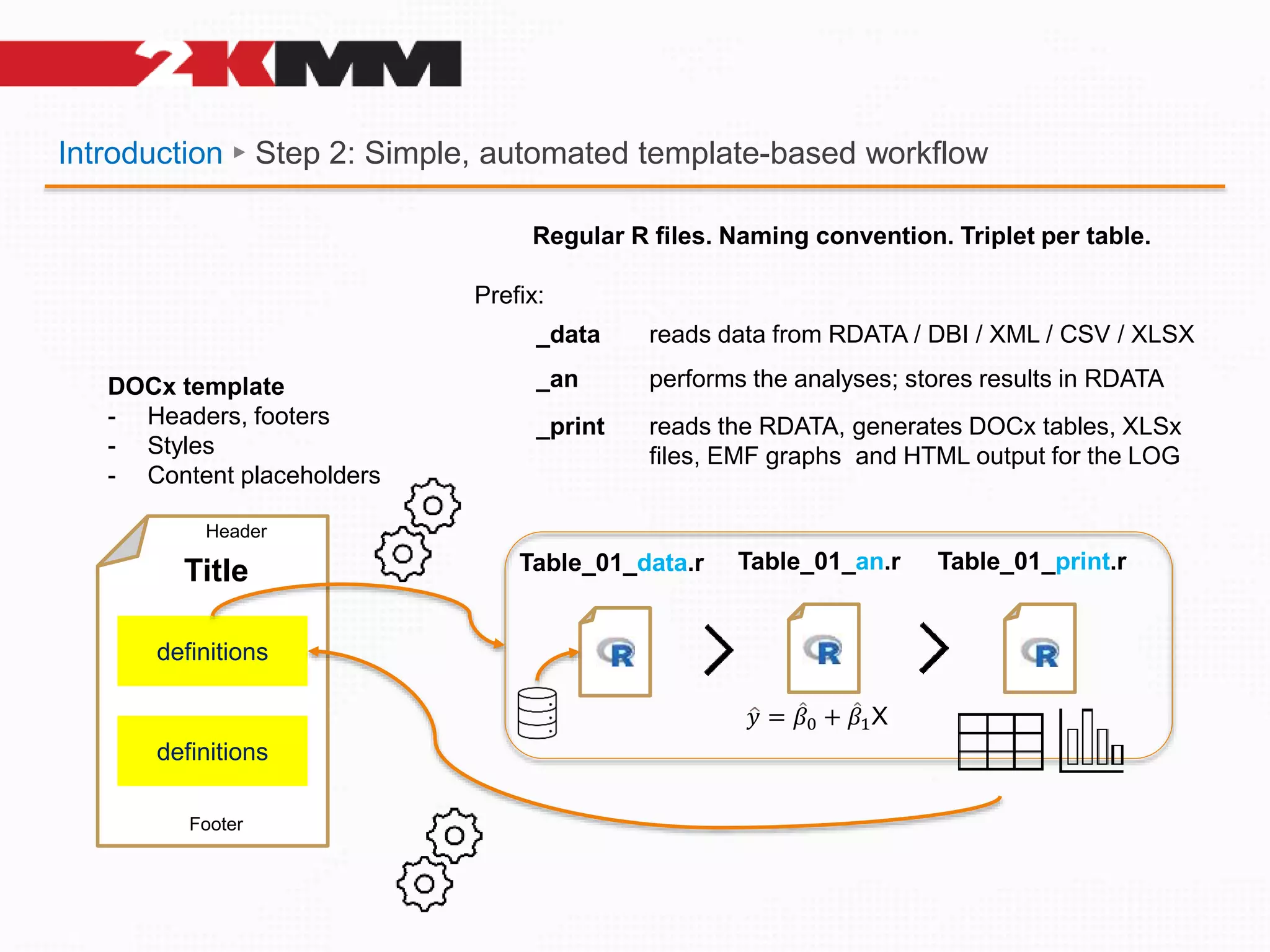

- 20. Introduction ► Step2: Simple, automated template-based workflow DOCx template - Headers, footers - Styles - Content placeholders definitions definitions Header Footer Title Regular R files. Naming convention. Triplet per table. Prefix: _data reads data from RDATA / DBI / XML / CSV / XLSX _an performs the analyses; stores results in RDATA _print reads the RDATA, generates DOCx tables, XLSx files, EMF graphs and HTML output for the LOG Table_01_data.r Table_01_an.r Table_01_print.r 𝑦 = 𝛽0 + 𝛽1X
- 21. Introduction ► Step2:Simple, automated template-based workflow definitions definitions Header Footer Title Header Footer Report ID A B C 1 A B C 2 A B C library(…) library(…) library(…) ….. ….. ….. ….. Trial ABC LOG Author: xxx Date: xxxx print(„Hi!”) [1] Hi!
- 22. Introduction ► Step2:Simple, automated template-based workflow definitions definitions Header Footer Title Header Footer Report ID A B C 1 A B C 2 A B C library(…) library(…) library(…) ….. ….. ….. ….. Trial ABC LOG Author: xxx Date: xxxx print(„Hi!”) [1] Hi!

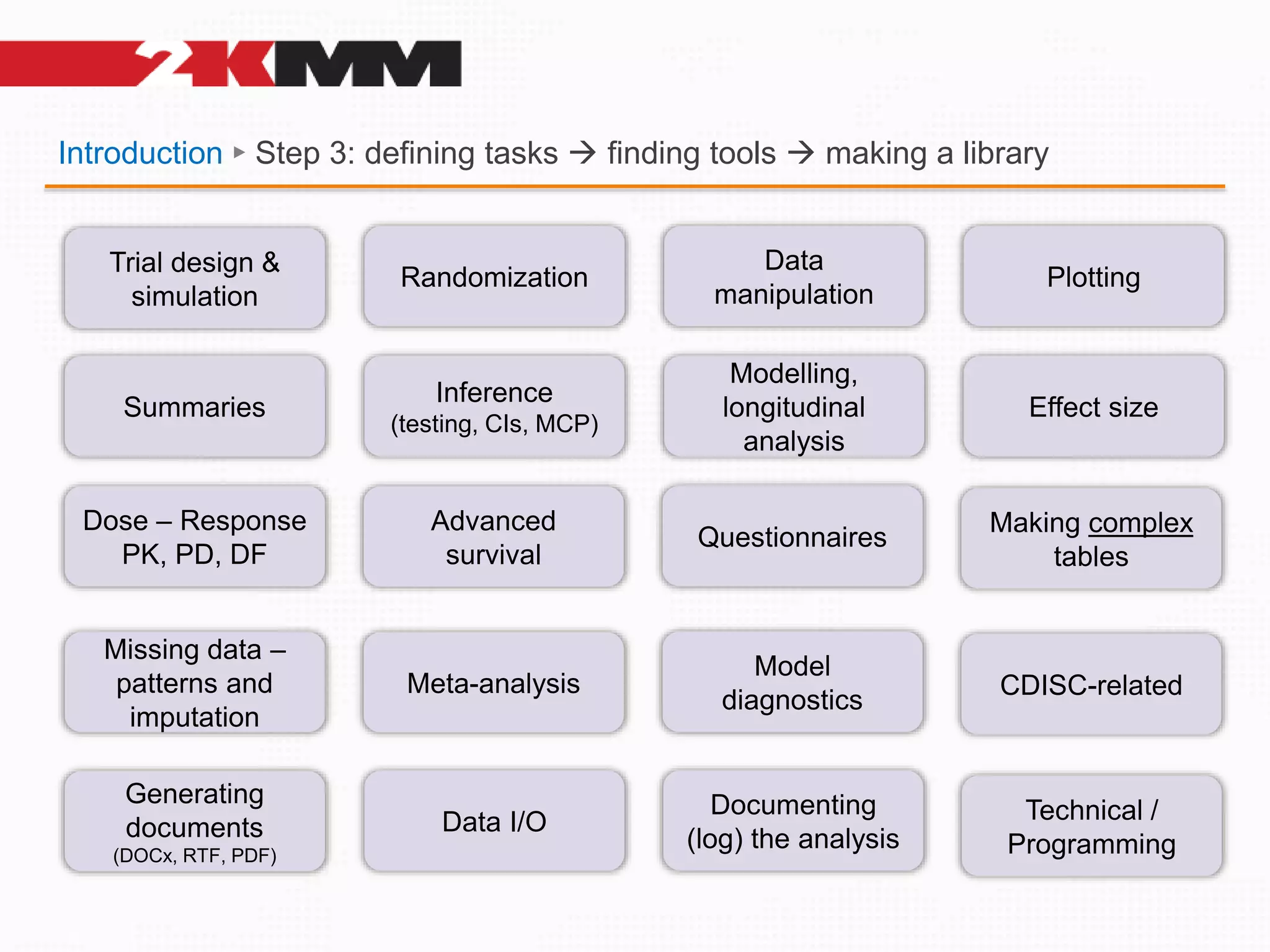

- 23. Introduction ► Step3: defining tasks finding tools making a library Modelling, longitudinal analysis Inference (testing, CIs, MCP) Summaries Effect size Advanced survival Making complex tables Dose – Response PK, PD, DF Questionnaires Generating documents (DOCx, RTF, PDF) Documenting (log) the analysis Data I/O Technical / Programming Trial design & simulation Plotting Randomization Data manipulation Meta-analysis CDISC-related Missing data – patterns and imputation Model diagnostics

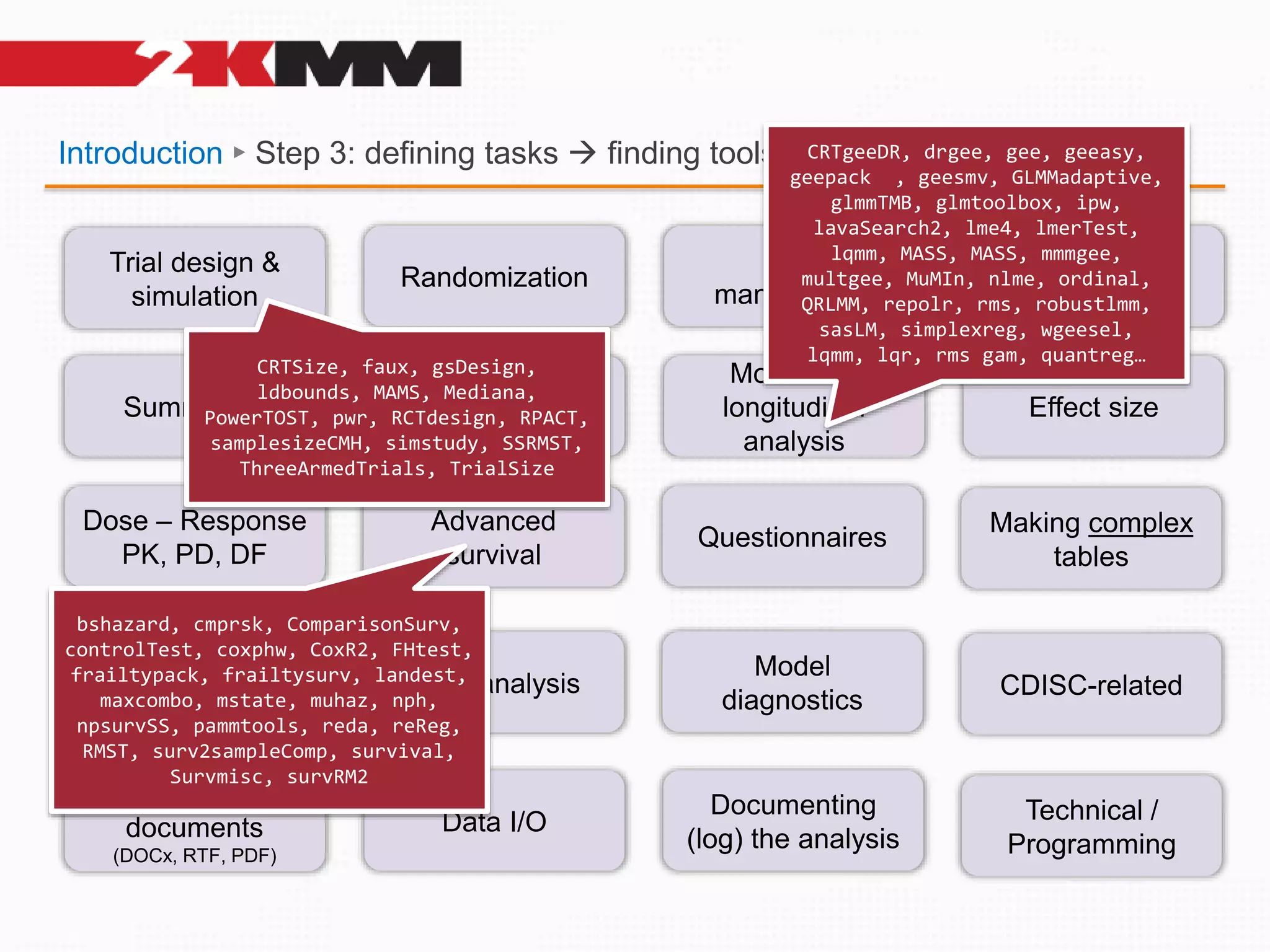

- 24. Introduction ► Step3: defining tasks finding tools making a library Modelling, longitudinal analysis Inference (testing, CIs, MCP) Summaries Effect size Advanced survival Making complex tables Dose – Response PK, PD, DF Questionnaires Generating documents (DOCx, RTF, PDF) Documenting (log) the analysis Data I/O Technical / Programming Trial design & simulation Plotting Randomization Data manipulation CRTSize, faux, gsDesign, ldbounds, MAMS, Mediana, PowerTOST, pwr, RCTdesign, RPACT, samplesizeCMH, simstudy, SSRMST, ThreeArmedTrials, TrialSize CRTgeeDR, drgee, gee, geeasy, geepack , geesmv, GLMMadaptive, glmmTMB, glmtoolbox, ipw, lavaSearch2, lme4, lmerTest, lqmm, MASS, MASS, mmmgee, multgee, MuMIn, nlme, ordinal, QRLMM, repolr, rms, robustlmm, sasLM, simplexreg, wgeesel, lqmm, lqr, rms gam, quantreg… Meta-analysis CDISC-related Missing data – patterns and imputation Model diagnostics bshazard, cmprsk, ComparisonSurv, controlTest, coxphw, CoxR2, FHtest, frailtypack, frailtysurv, landest, maxcombo, mstate, muhaz, nph, npsurvSS, pammtools, reda, reReg, RMST, surv2sampleComp, survival, Survmisc, survRM2

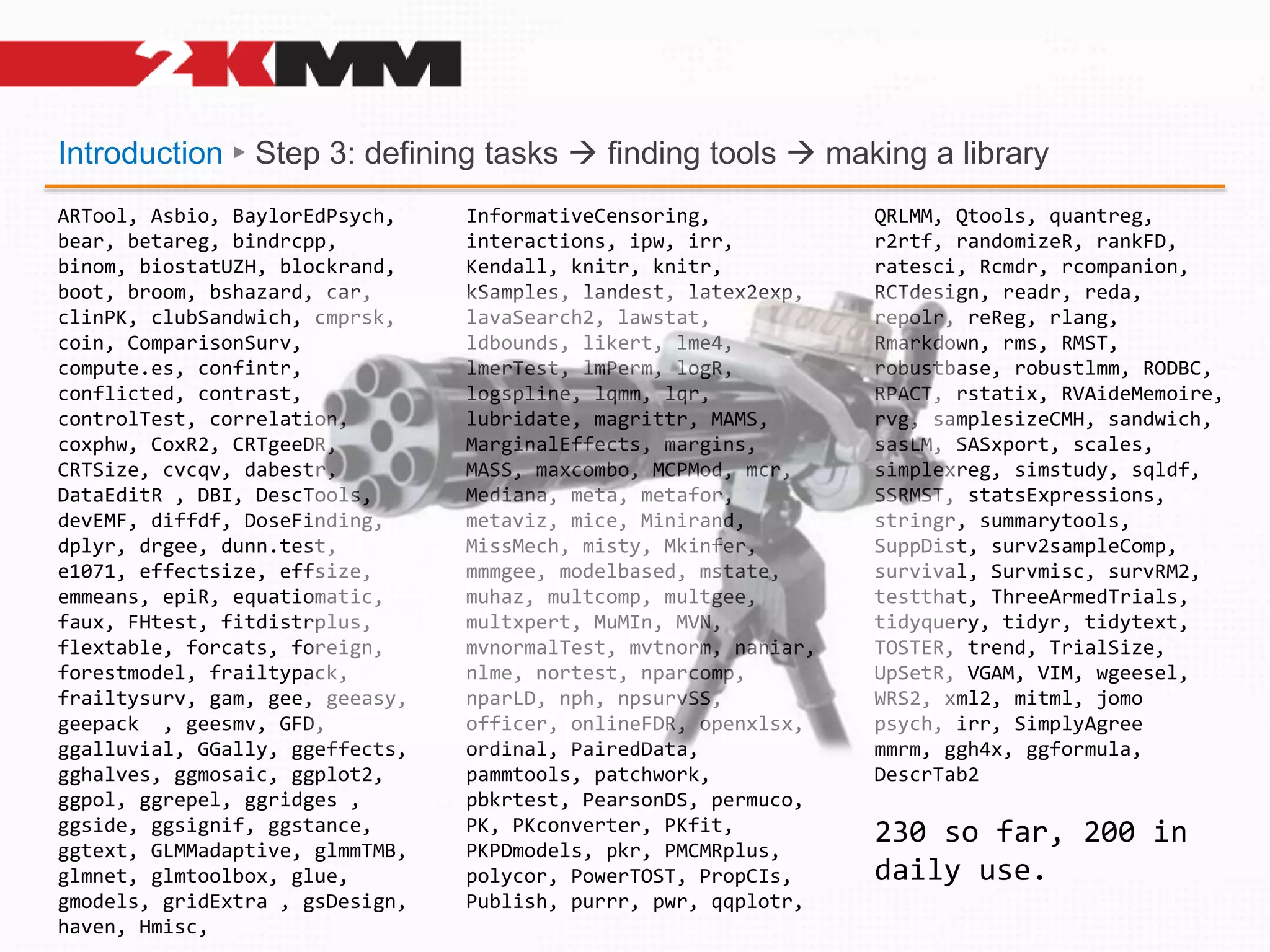

- 25. Introduction ► Step3: defining tasks finding tools making a library ARTool, Asbio, BaylorEdPsych, bear, betareg, bindrcpp, binom, biostatUZH, blockrand, boot, broom, bshazard, car, clinPK, clubSandwich, cmprsk, coin, ComparisonSurv, compute.es, confintr, conflicted, contrast, controlTest, correlation, coxphw, CoxR2, CRTgeeDR, CRTSize, cvcqv, dabestr, DataEditR , DBI, DescTools, devEMF, diffdf, DoseFinding, dplyr, drgee, dunn.test, e1071, effectsize, effsize, emmeans, epiR, equatiomatic, faux, FHtest, fitdistrplus, flextable, forcats, foreign, forestmodel, frailtypack, frailtysurv, gam, gee, geeasy, geepack , geesmv, GFD, ggalluvial, GGally, ggeffects, gghalves, ggmosaic, ggplot2, ggpol, ggrepel, ggridges , ggside, ggsignif, ggstance, ggtext, GLMMadaptive, glmmTMB, glmnet, glmtoolbox, glue, gmodels, gridExtra , gsDesign, haven, Hmisc, InformativeCensoring, interactions, ipw, irr, Kendall, knitr, knitr, kSamples, landest, latex2exp, lavaSearch2, lawstat, ldbounds, likert, lme4, lmerTest, lmPerm, logR, logspline, lqmm, lqr, lubridate, magrittr, MAMS, MarginalEffects, margins, MASS, maxcombo, MCPMod, mcr, Mediana, meta, metafor, metaviz, mice, Minirand, MissMech, misty, Mkinfer, mmmgee, modelbased, mstate, muhaz, multcomp, multgee, multxpert, MuMIn, MVN, mvnormalTest, mvtnorm, naniar, nlme, nortest, nparcomp, nparLD, nph, npsurvSS, officer, onlineFDR, openxlsx, ordinal, PairedData, pammtools, patchwork, pbkrtest, PearsonDS, permuco, PK, PKconverter, PKfit, PKPDmodels, pkr, PMCMRplus, polycor, PowerTOST, PropCIs, Publish, purrr, pwr, qqplotr, QRLMM, Qtools, quantreg, r2rtf, randomizeR, rankFD, ratesci, Rcmdr, rcompanion, RCTdesign, readr, reda, repolr, reReg, rlang, Rmarkdown, rms, RMST, robustbase, robustlmm, RODBC, RPACT, rstatix, RVAideMemoire, rvg, samplesizeCMH, sandwich, sasLM, SASxport, scales, simplexreg, simstudy, sqldf, SSRMST, statsExpressions, stringr, summarytools, SuppDist, surv2sampleComp, survival, Survmisc, survRM2, testthat, ThreeArmedTrials, tidyquery, tidyr, tidytext, TOSTER, trend, TrialSize, UpSetR, VGAM, VIM, wgeesel, WRS2, xml2, mitml, jomo psych, irr, SimplyAgree mmrm, ggh4x, ggformula, DescrTab2 230 so far, 200 in daily use.

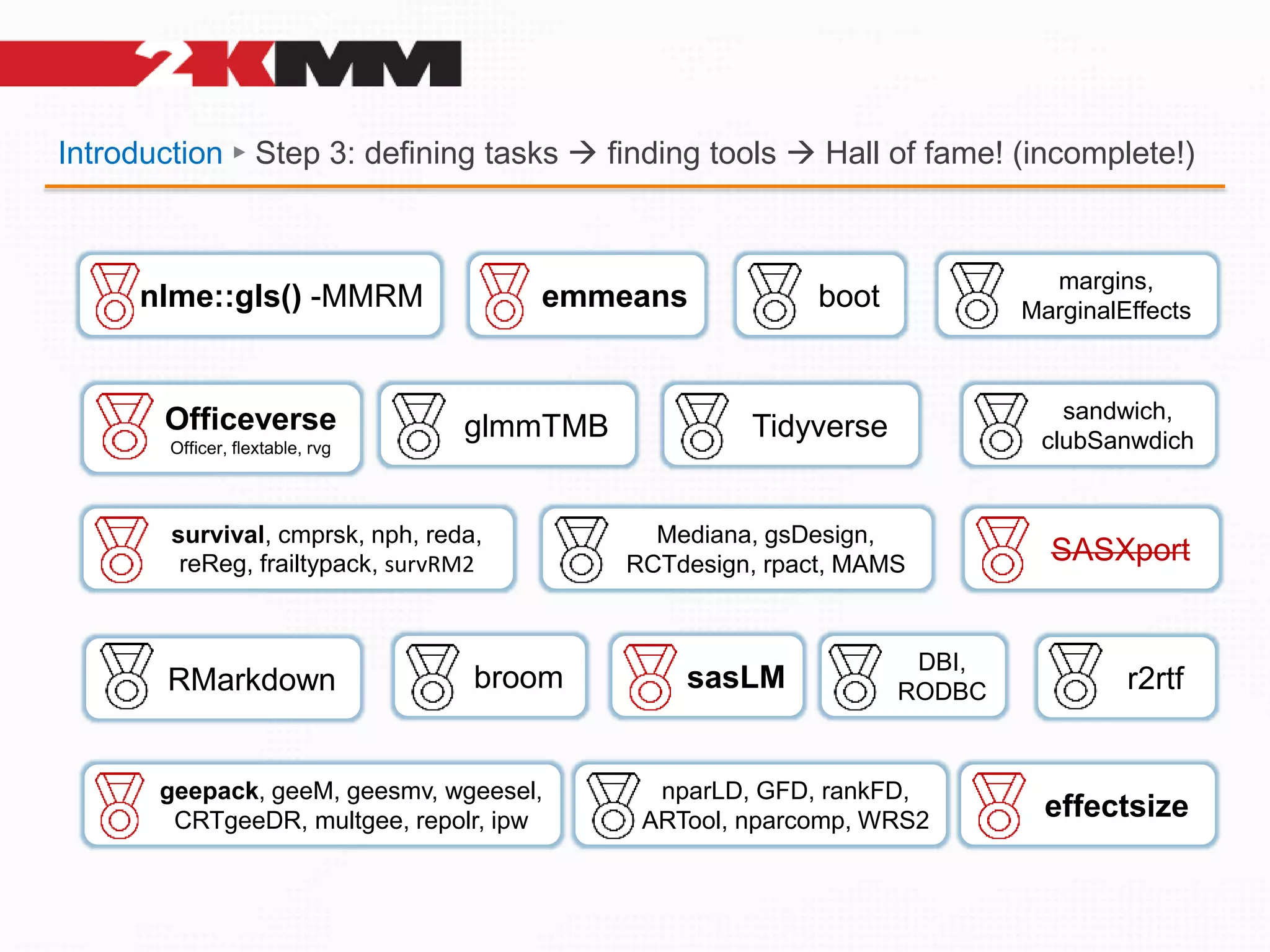

- 26. Introduction ► Step3: defining tasks finding tools Hall of fame! (incomplete!) nlme::gls() -MMRM emmeans geepack, geeM, geesmv, wgeesel, CRTgeeDR, multgee, repolr, ipw Officeverse Officer, flextable, rvg SASXport r2rtf glmmTMB Tidyverse nparLD, GFD, rankFD, ARTool, nparcomp, WRS2 Mediana, gsDesign, RCTdesign, rpact, MAMS survival, cmprsk, nph, reda, reReg, frailtypack, survRM2 RMarkdown broom boot sandwich, clubSanwdich DBI, RODBC effectsize margins, MarginalEffects sasLM

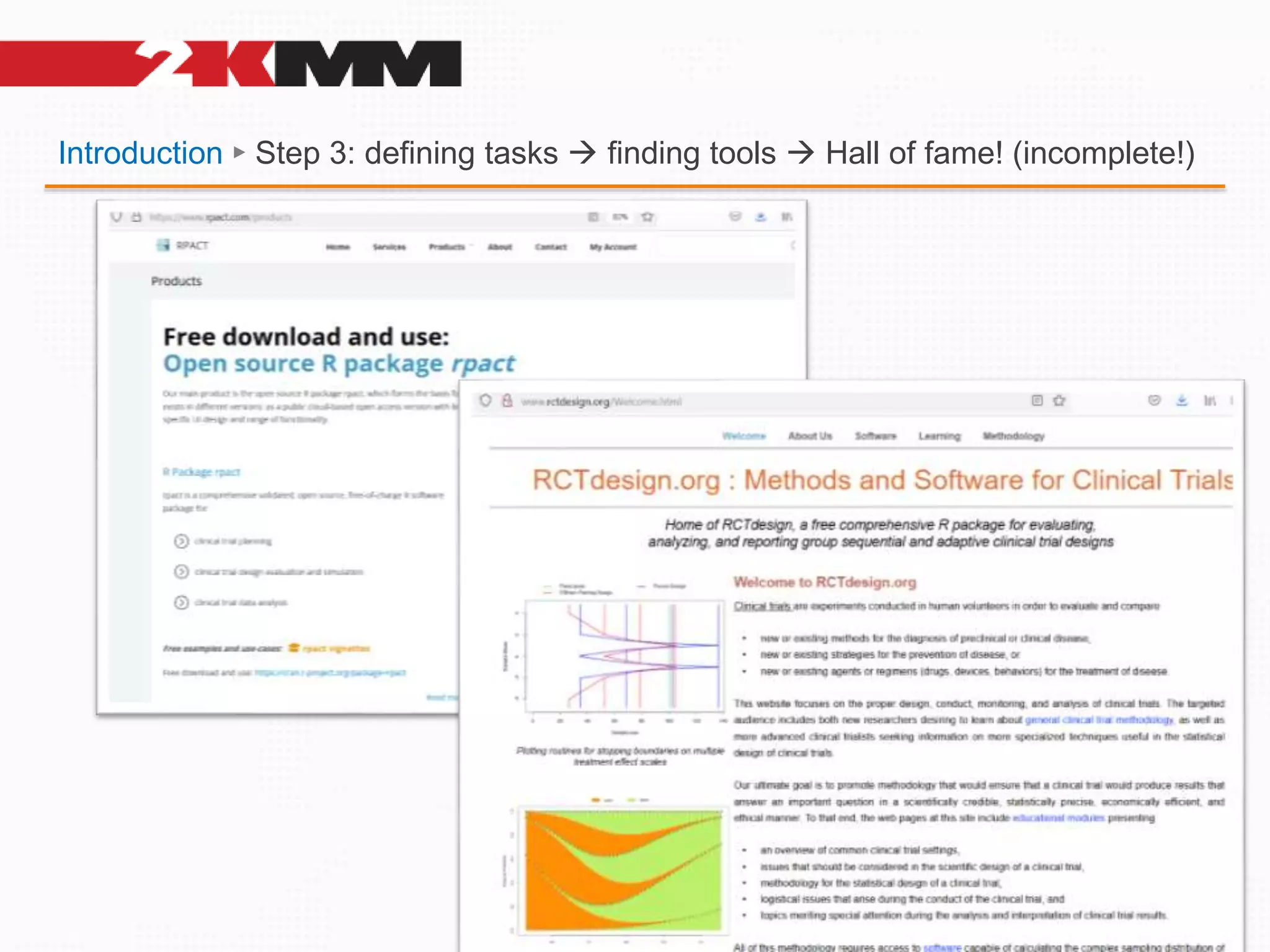

- 27. Introduction ► Step3: defining tasks finding tools Hall of fame! (incomplete!)

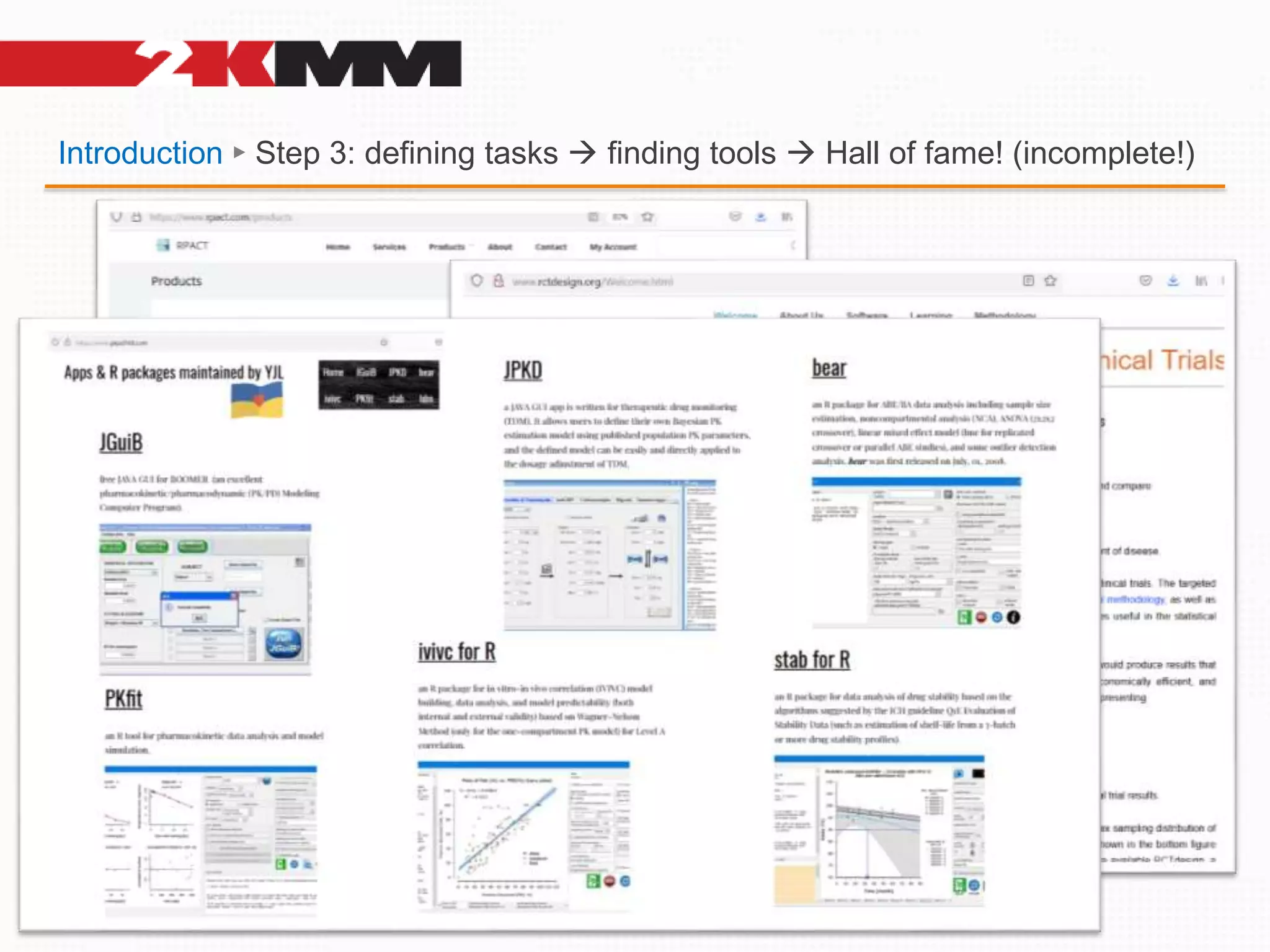

- 28. Introduction ► Step3: defining tasks finding tools Hall of fame! (incomplete!)

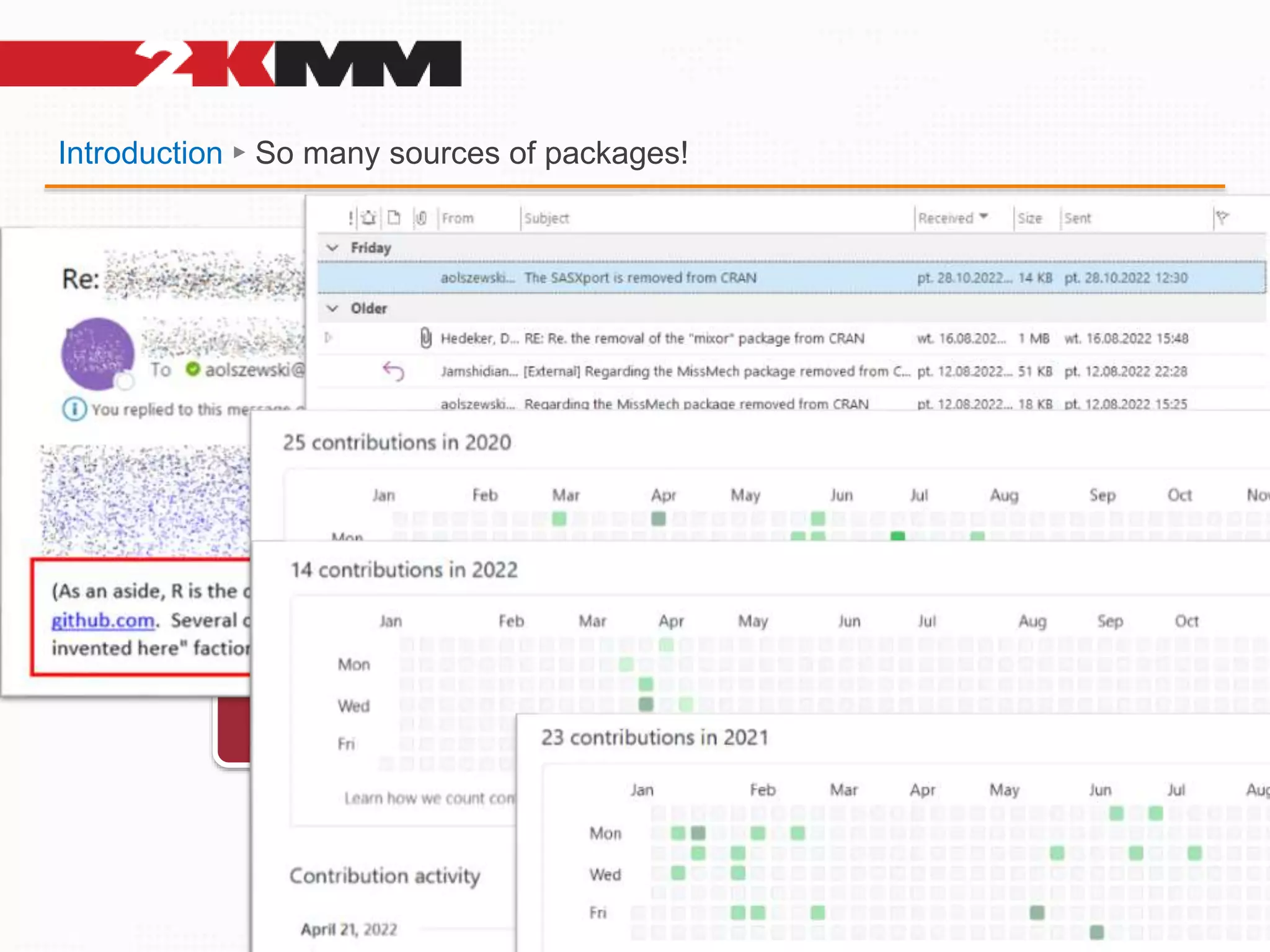

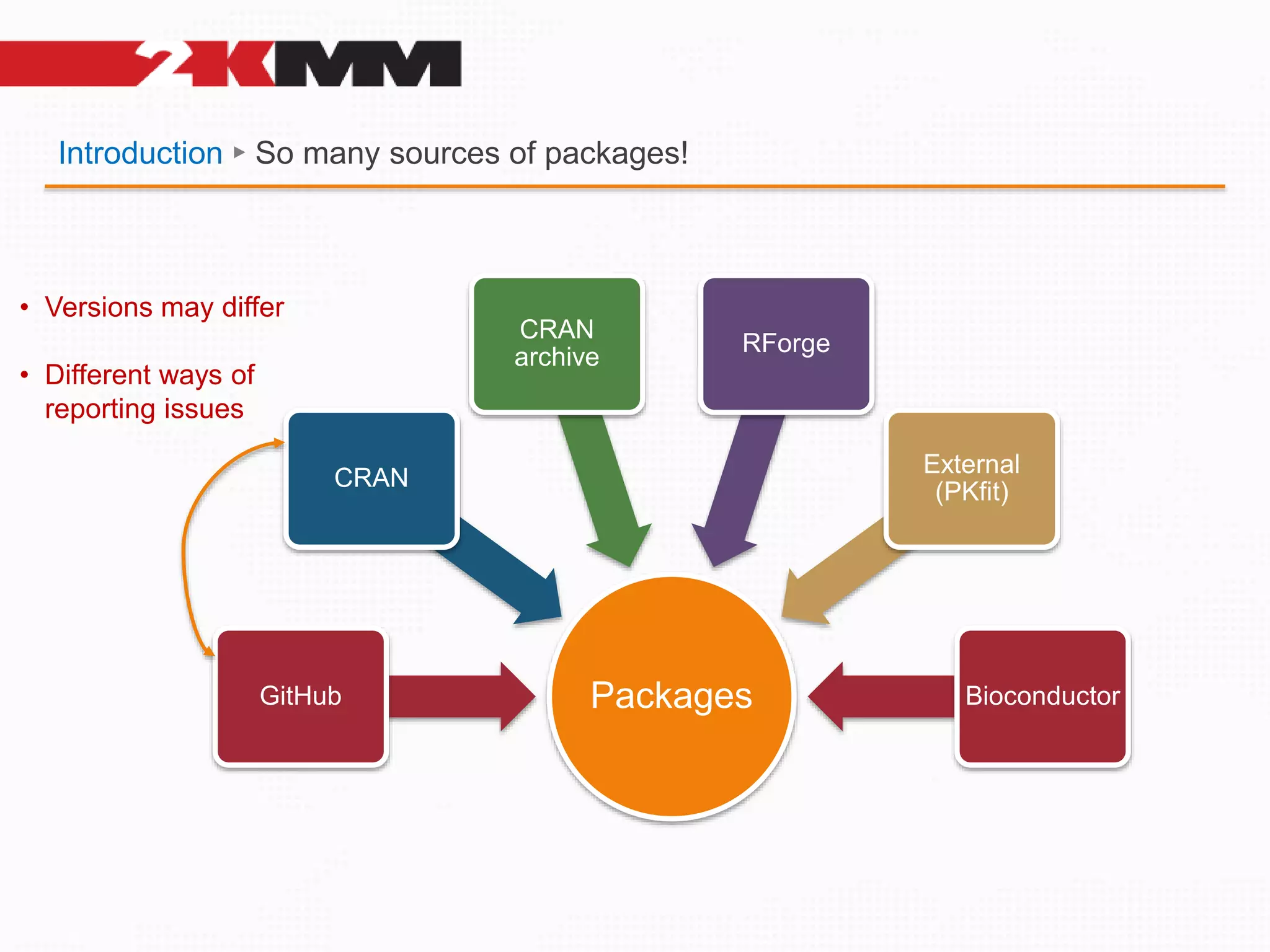

- 29. Introduction ► Somany sources of packages! Packages GitHub CRAN CRAN archive RForge External (PKfit) Bioconductor • Versions may differ • Different ways of reporting issues
- 30. Introduction ► Somany sources of packages! Packages GitHub CRAN CRAN archive RForge External (PKfit) Bioconductor • Versions may differ • Different ways of reporting issues

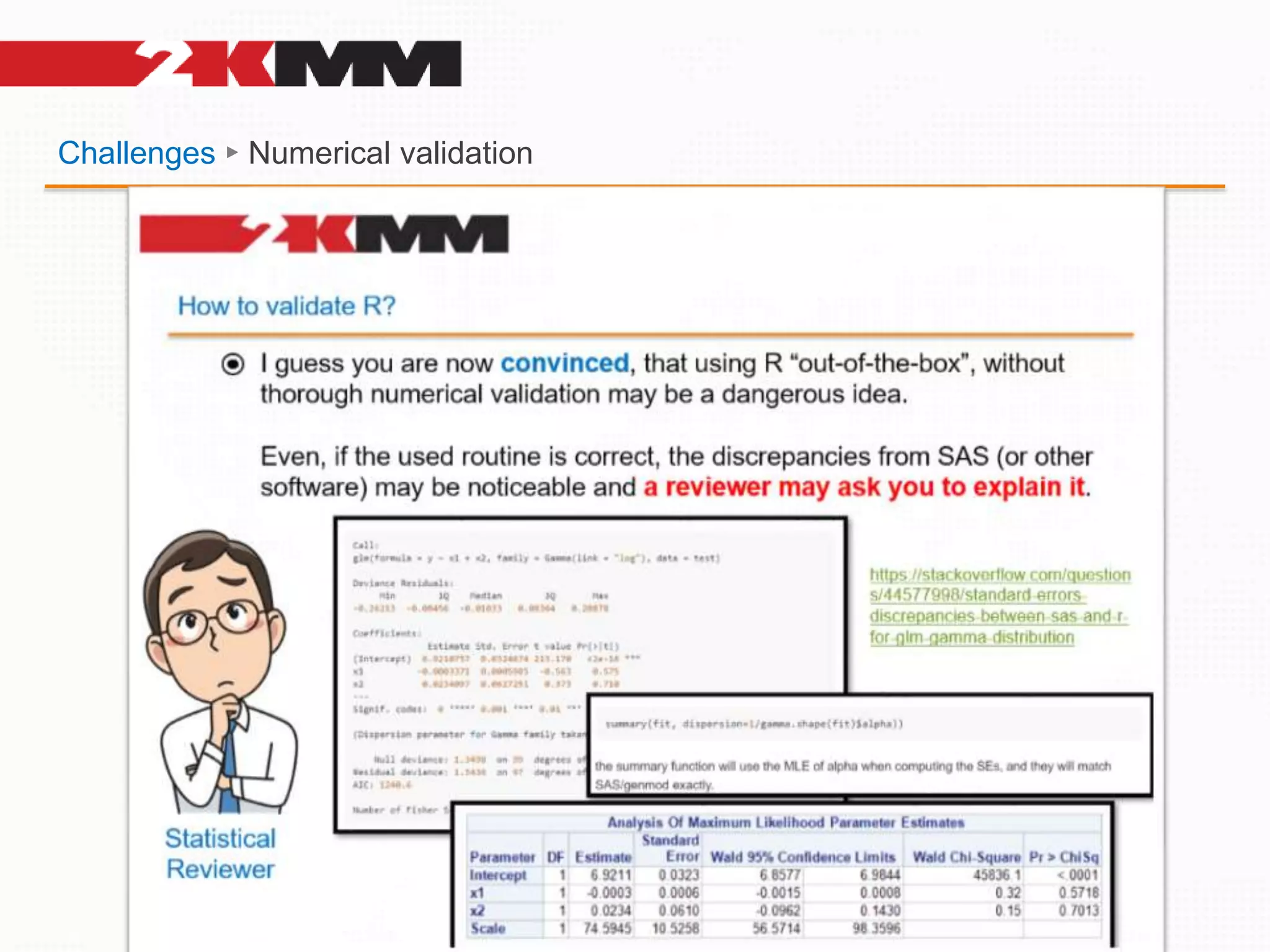

- 31. Challenges ► Numericalvalidation https://www.researchgate.net/publication/345778861_Numerical_validation_as_a_critical _aspect_in_bringing_R_to_the_Clinical_Research
- 32. Challenges ► Numericalvalidation – R vs. SAS®, vs. SPSS®, vs. Stata®, vs… R As long, as somebody uses just the basic tools, problems may never occur. And this scope may be just sufficient for quite a lot scenarios! • “group by” summaries with N, %, mean, median, SD, Q1, Q3, min, max… • aov() • kruskal.test(), wilcox.test(), t.test()… • lmer(post_value ~ treatment * time + baseline + baseline:time + (1|PatID)) • plot(survfit(Surv(time, status) ~ treatment)) BTW, did you see median()? Is it equal to quantile()[“50%”]? Always?
- 33.

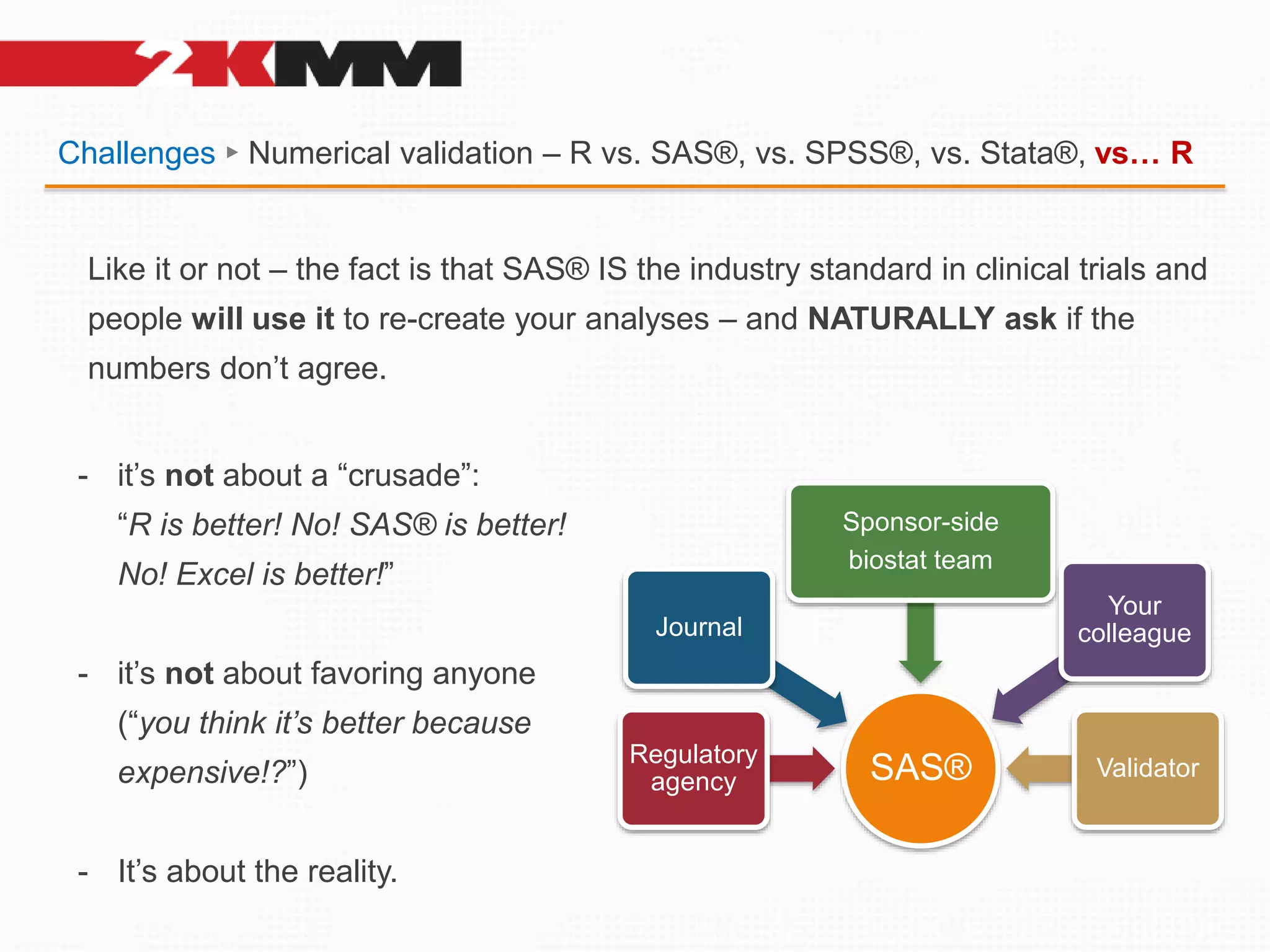

- 34. Challenges ► Numericalvalidation – R vs. SAS®, vs. SPSS®, vs. Stata®, vs… R Like it or not – the fact is that SAS® IS the industry standard in clinical trials and people will use it to re-create your analyses – and NATURALLY ask if the numbers don’t agree. SAS® Regulatory agency Journal Sponsor-side biostat team Your colleague Validator - it’s not about a “crusade”: “R is better! No! SAS® is better! No! Excel is better!” - it’s not about favoring anyone (“you think it’s better because expensive!?”) - It’s about the reality.

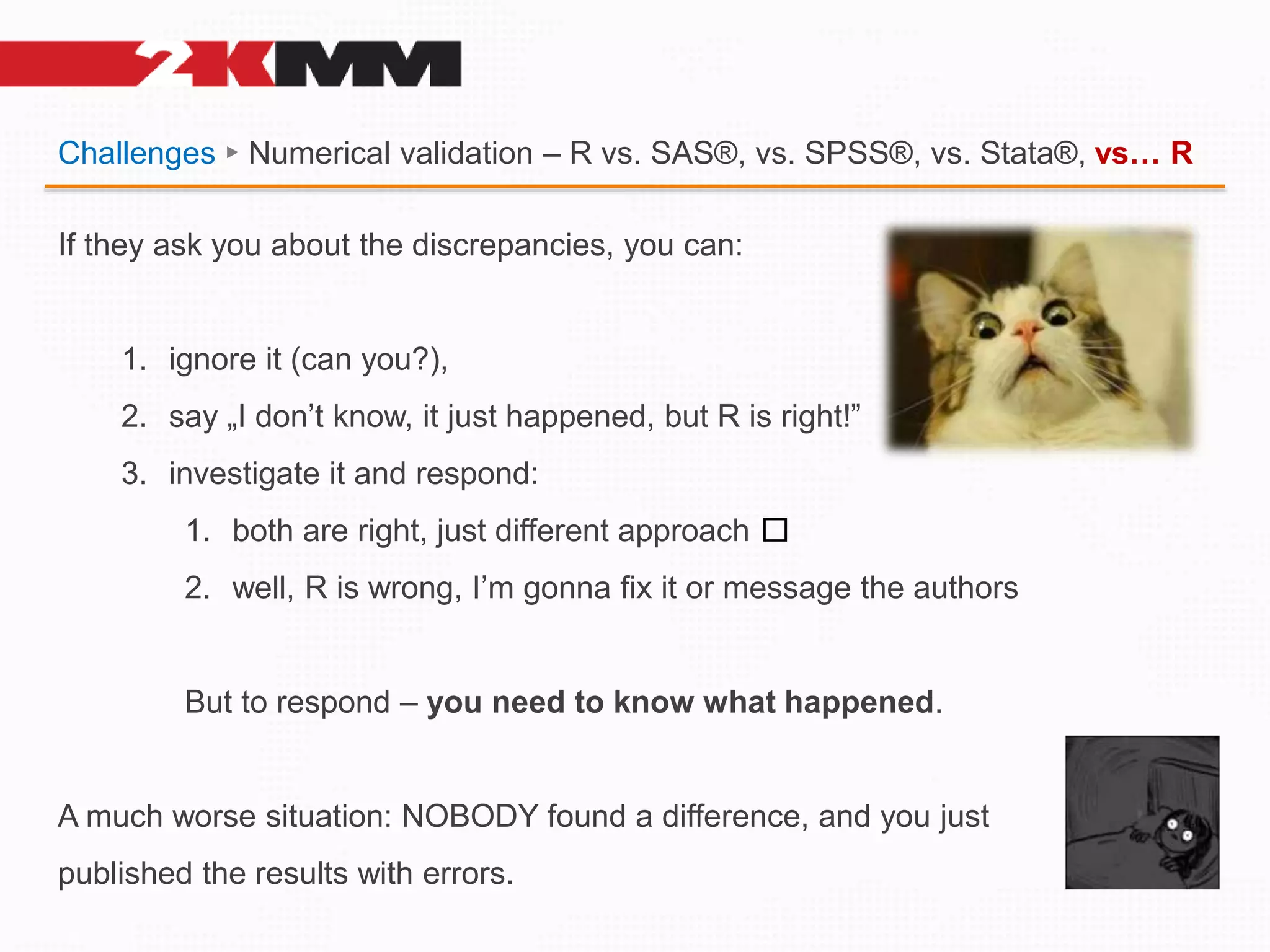

- 35. Challenges ► Numericalvalidation – R vs. SAS®, vs. SPSS®, vs. Stata®, vs… R If they ask you about the discrepancies, you can: 1. ignore it (can you?), 2. say „I don’t know, it just happened, but R is right!” 3. investigate it and respond: 1. both are right, just different approach 🤷 2. well, R is wrong, I’m gonna fix it or message the authors But to respond – you need to know what happened. A much worse situation: NOBODY found a difference, and you just published the results with errors.

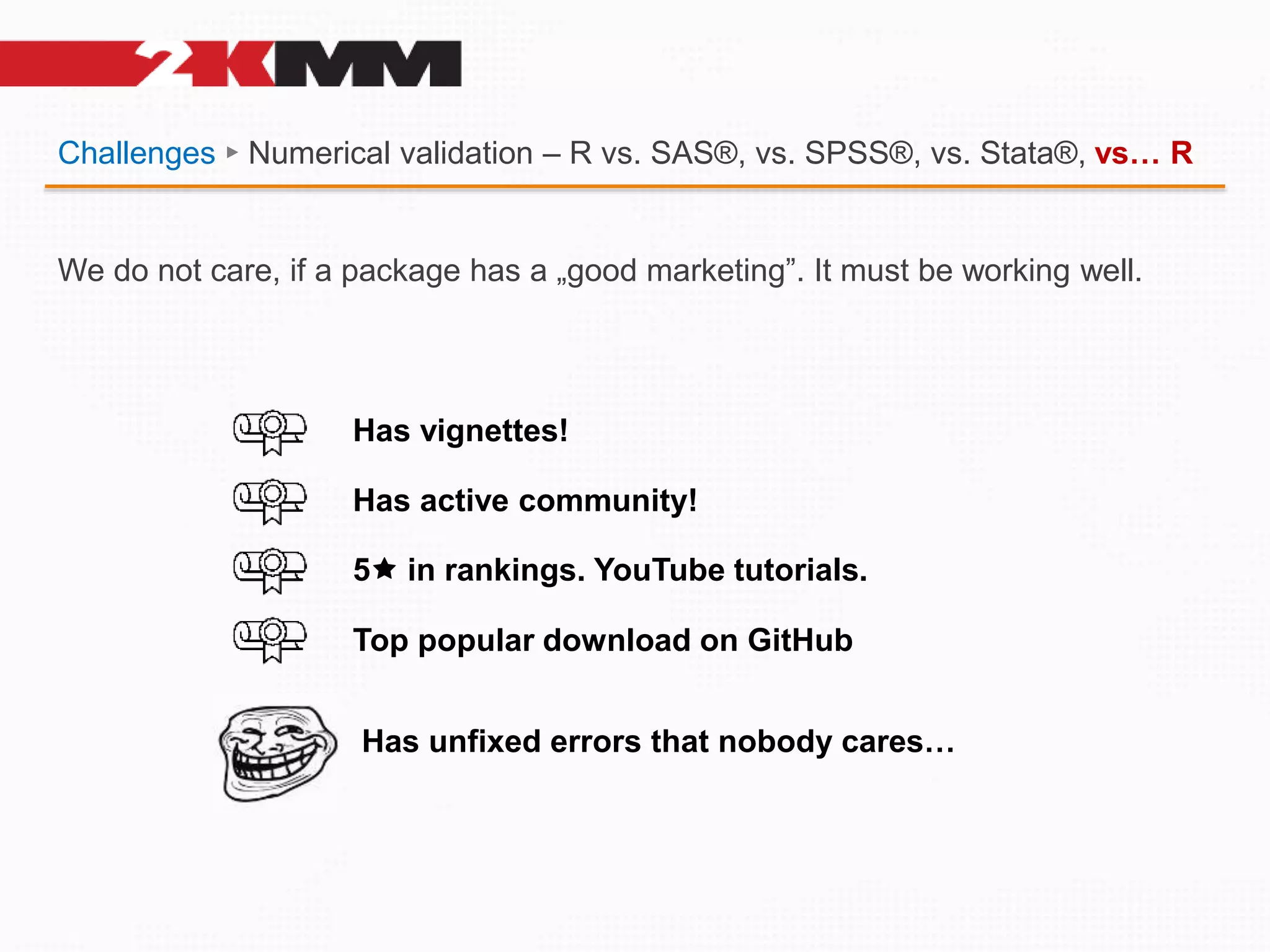

- 36. Challenges ► Numericalvalidation – R vs. SAS®, vs. SPSS®, vs. Stata®, vs… R We do not care, if a package has a „good marketing”. It must be working well. Has vignettes! Has active community! 5 in rankings. YouTube tutorials. Top popular download on GitHub Has unfixed errors that nobody cares…

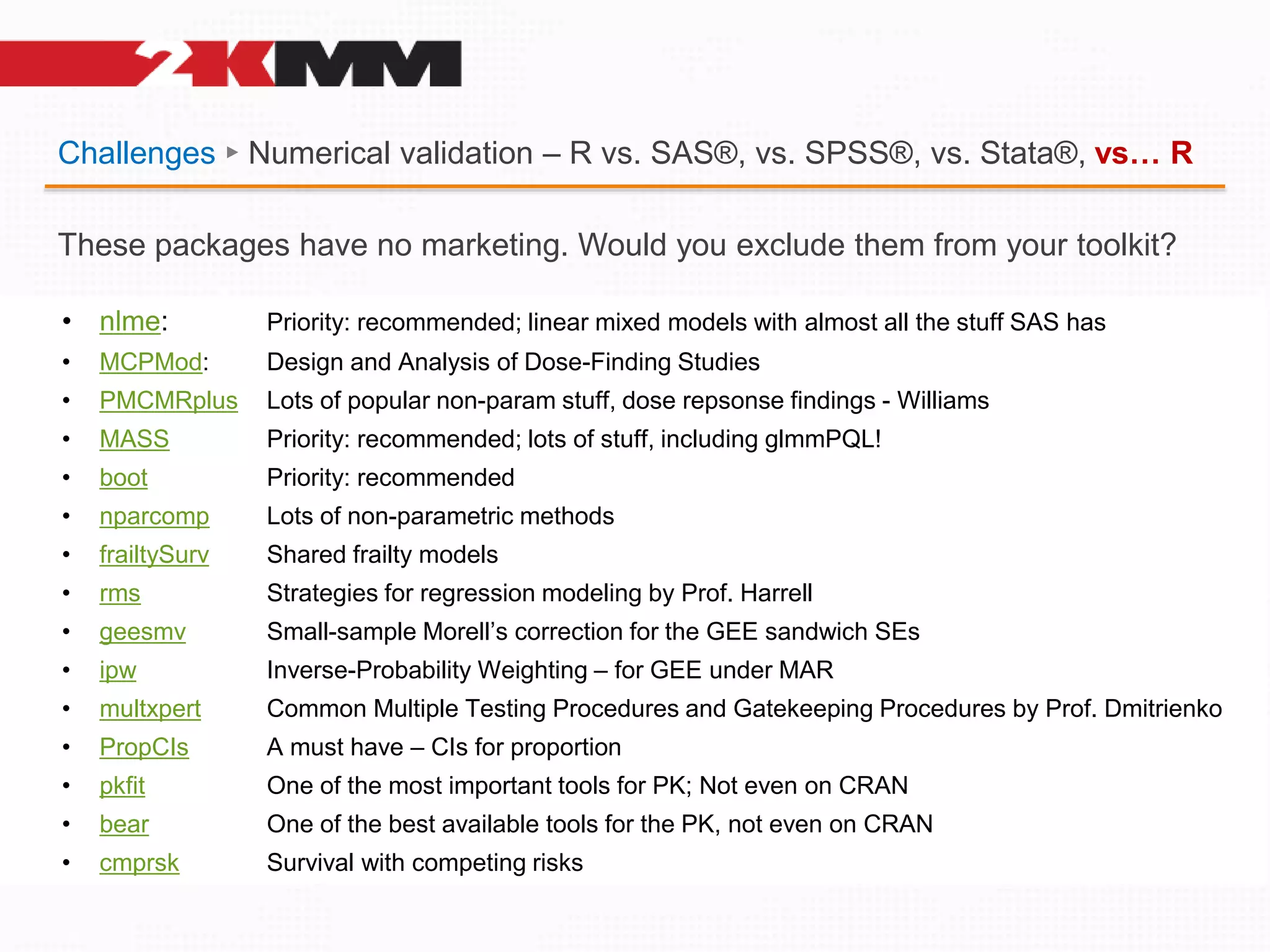

- 37. Challenges ► Numericalvalidation – R vs. SAS®, vs. SPSS®, vs. Stata®, vs… R • nlme: Priority: recommended; linear mixed models with almost all the stuff SAS has • MCPMod: Design and Analysis of Dose-Finding Studies • PMCMRplus Lots of popular non-param stuff, dose repsonse findings - Williams • MASS Priority: recommended; lots of stuff, including glmmPQL! • boot Priority: recommended • nparcomp Lots of non-parametric methods • frailtySurv Shared frailty models • rms Strategies for regression modeling by Prof. Harrell • geesmv Small-sample Morell’s correction for the GEE sandwich SEs • ipw Inverse-Probability Weighting – for GEE under MAR • multxpert Common Multiple Testing Procedures and Gatekeeping Procedures by Prof. Dmitrienko • PropCIs A must have – CIs for proportion • pkfit One of the most important tools for PK; Not even on CRAN • bear One of the best available tools for the PK, not even on CRAN • cmprsk Survival with competing risks These packages have no marketing. Would you exclude them from your toolkit?

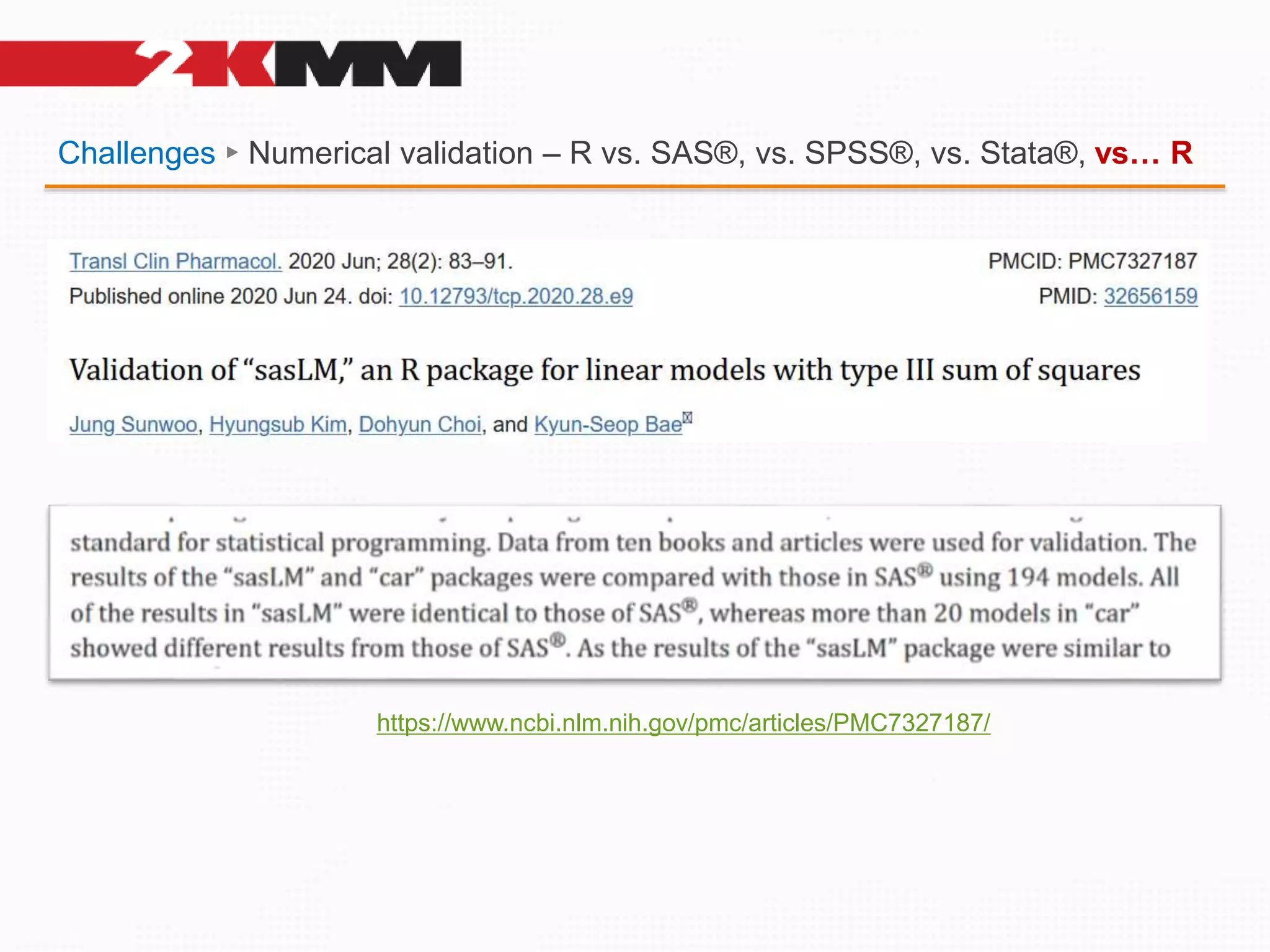

- 38. Challenges ► Numericalvalidation – R vs. SAS®, vs. SPSS®, vs. Stata®, vs… R https://www.ncbi.nlm.nih.gov/pmc/articles/PMC7327187/

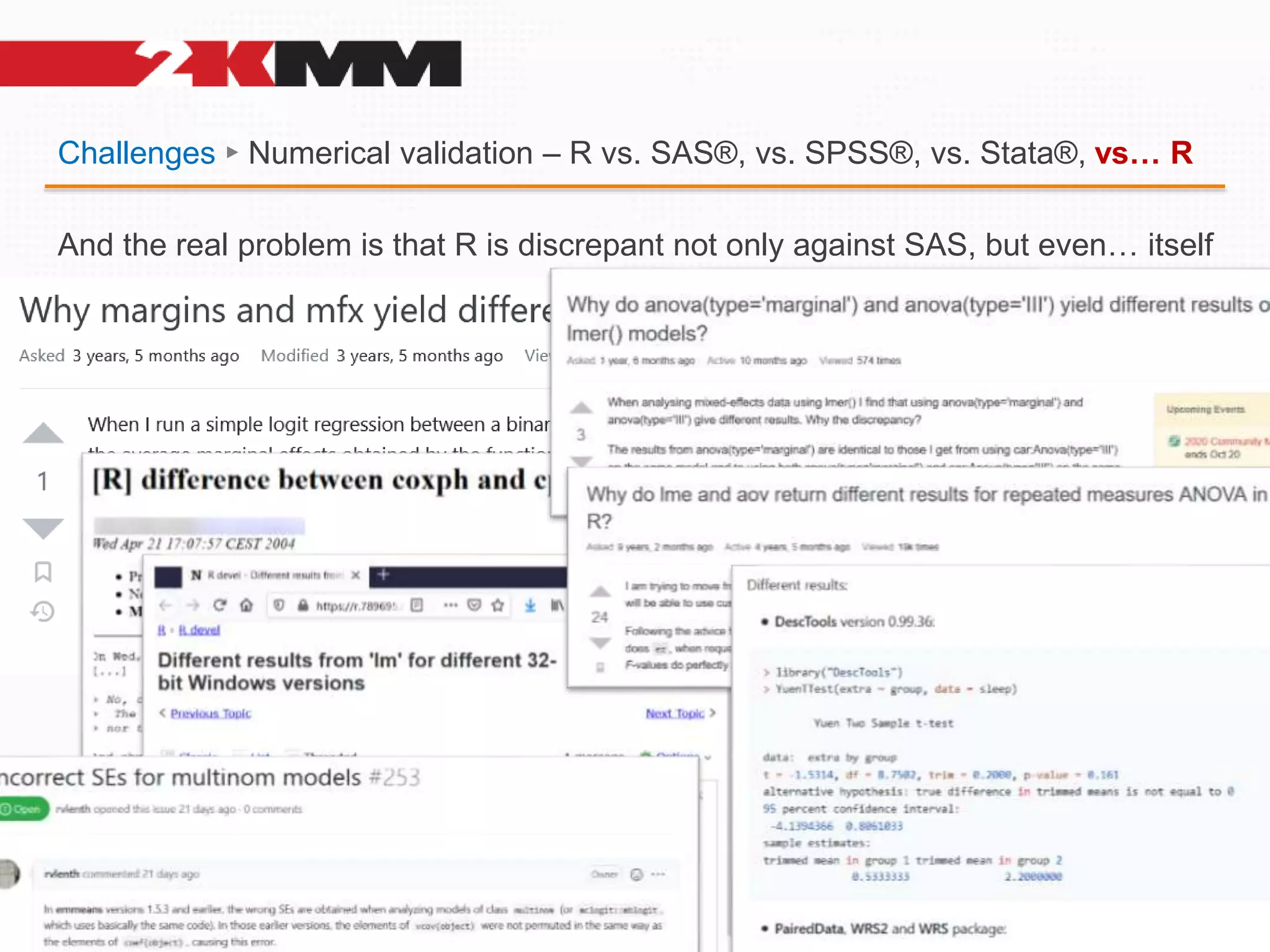

- 39. Challenges ► Numericalvalidation – R vs. SAS®, vs. SPSS®, vs. Stata®, vs… R And the real problem is that R is discrepant not only against SAS, but even… itself

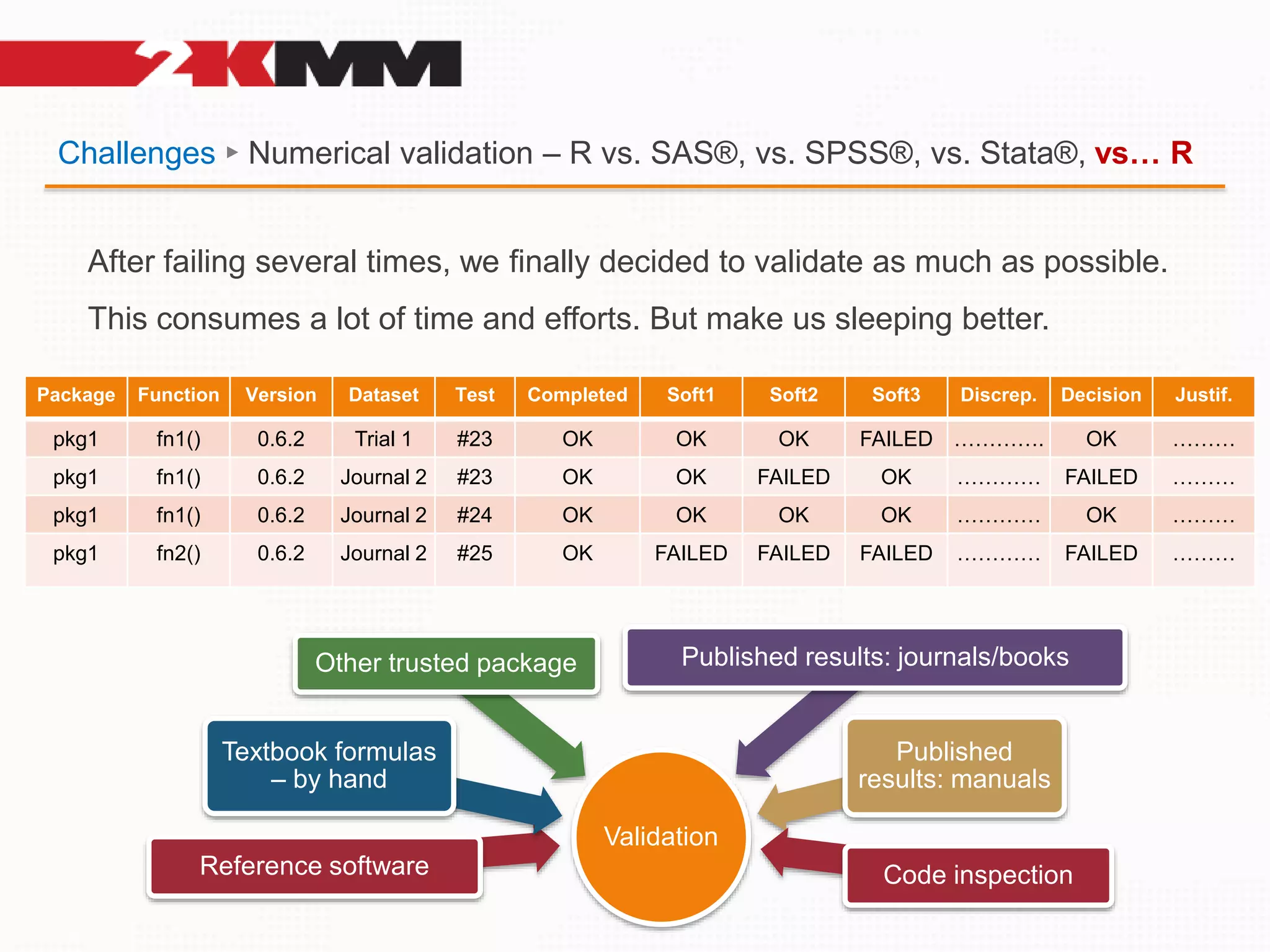

- 40. Challenges ► Numericalvalidation – R vs. SAS®, vs. SPSS®, vs. Stata®, vs… R After failing several times, we finally decided to validate as much as possible. This consumes a lot of time and efforts. But make us sleeping better. Package Function Version Dataset Test Completed Soft1 Soft2 Soft3 Discrep. Decision Justif. pkg1 fn1() 0.6.2 Trial 1 #23 OK OK OK FAILED …………. OK ……… pkg1 fn1() 0.6.2 Journal 2 #23 OK OK FAILED OK ………… FAILED ……… pkg1 fn1() 0.6.2 Journal 2 #24 OK OK OK OK ………… OK ……… pkg1 fn2() 0.6.2 Journal 2 #25 OK FAILED FAILED FAILED ………… FAILED ……… Validation Reference software Textbook formulas – by hand Other trusted package Published results: journals/books Published results: manuals Code inspection
- 41. Challenges ► Oceanof possibilities. But be careful! It’s deep! Open Source gives you the ocean of possibilities (for doing THE SAME)! OK! Diversity is overall good, but without overdoing! Let’s imagine I want procedure ABC. R has 10 functions in 5 packages to do ABC in 8 ways. My day has only 24 hours and I have my work, and the lifer after hours.
- 42. Challenges ► Documentation Documentationquality varies a lot. From dedicated web-books with numerous examples ( https://ardata-fr.github.io/flextable-book/ ) to just raw manual with no formula and references to a paid article or rare book. SAS, NCSS, SPSS, Stata – have awesome tutorials, manuals – almost courses in statistics NCSS gives even the input data and results! Just a basic manual You can do PhD with it!

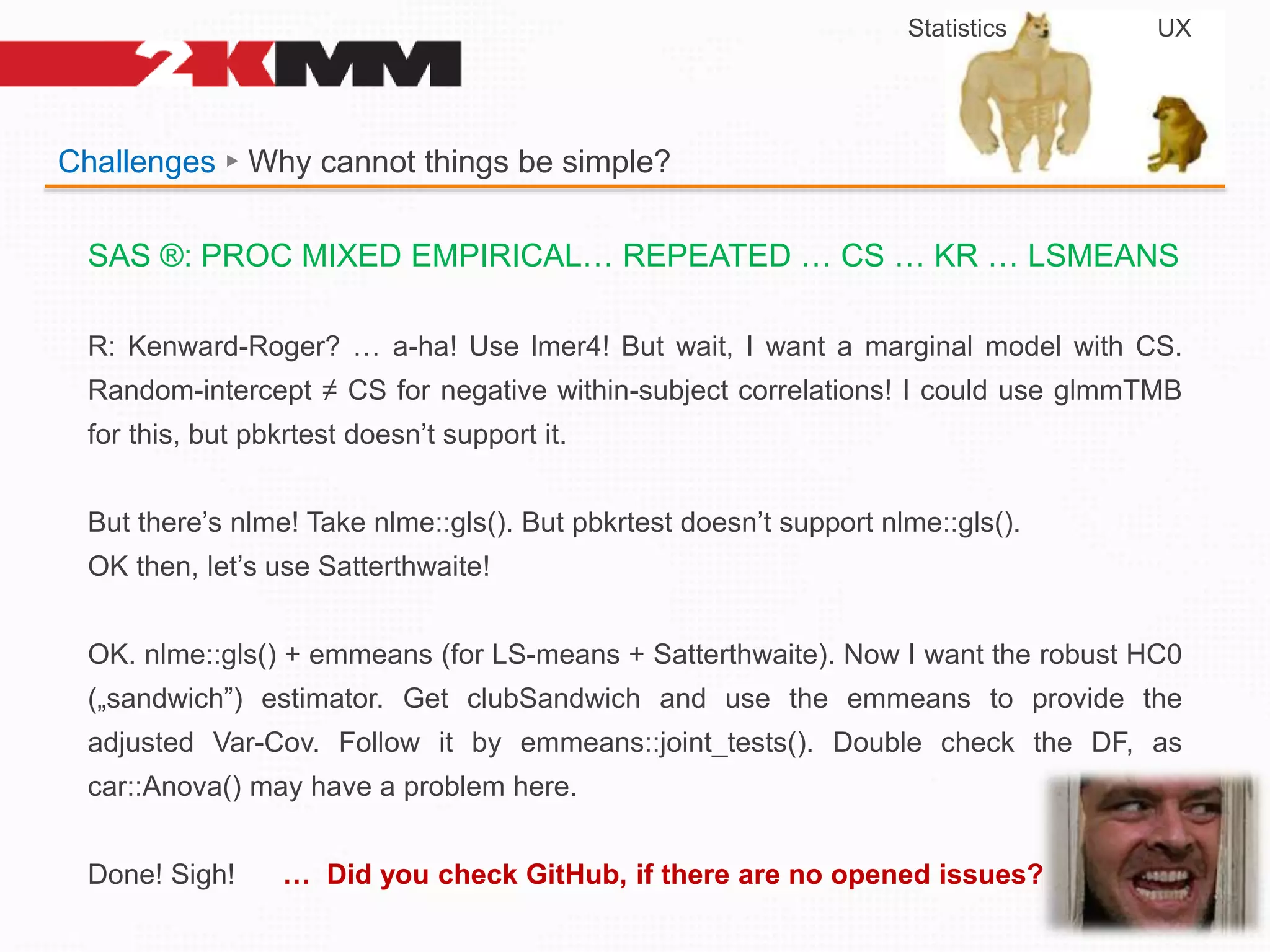

- 43. Challenges ► Whycannot things be simple? SAS ®: PROC MIXED EMPIRICAL… REPEATED … CS … KR … LSMEANS R: Kenward-Roger? … a-ha! Use lmer4! But wait, I want a marginal model with CS. Random-intercept ≠ CS for negative within-subject correlations! I could use glmmTMB for this, but pbkrtest doesn’t support it. But there’s nlme! Take nlme::gls(). But pbkrtest doesn’t support nlme::gls(). OK then, let’s use Satterthwaite! OK. nlme::gls() + emmeans (for LS-means + Satterthwaite). Now I want the robust HC0 („sandwich”) estimator. Get clubSandwich and use the emmeans to provide the adjusted Var-Cov. Follow it by emmeans::joint_tests(). Double check the DF, as car::Anova() may have a problem here. Done! Sigh! … Did you check GitHub, if there are no opened issues? Statistics UX
- 44. Challenges ► Packagesremoved from CRAN BaylorEdPsych , cvcqv, MissMech, PKPDmodels, SASxport, mixor, coxinterval, quantreg (restored), brunnermunzel (restored), MomTrunc (restored), tlrmvnmvt (restored), normtest, flow, nlmixr

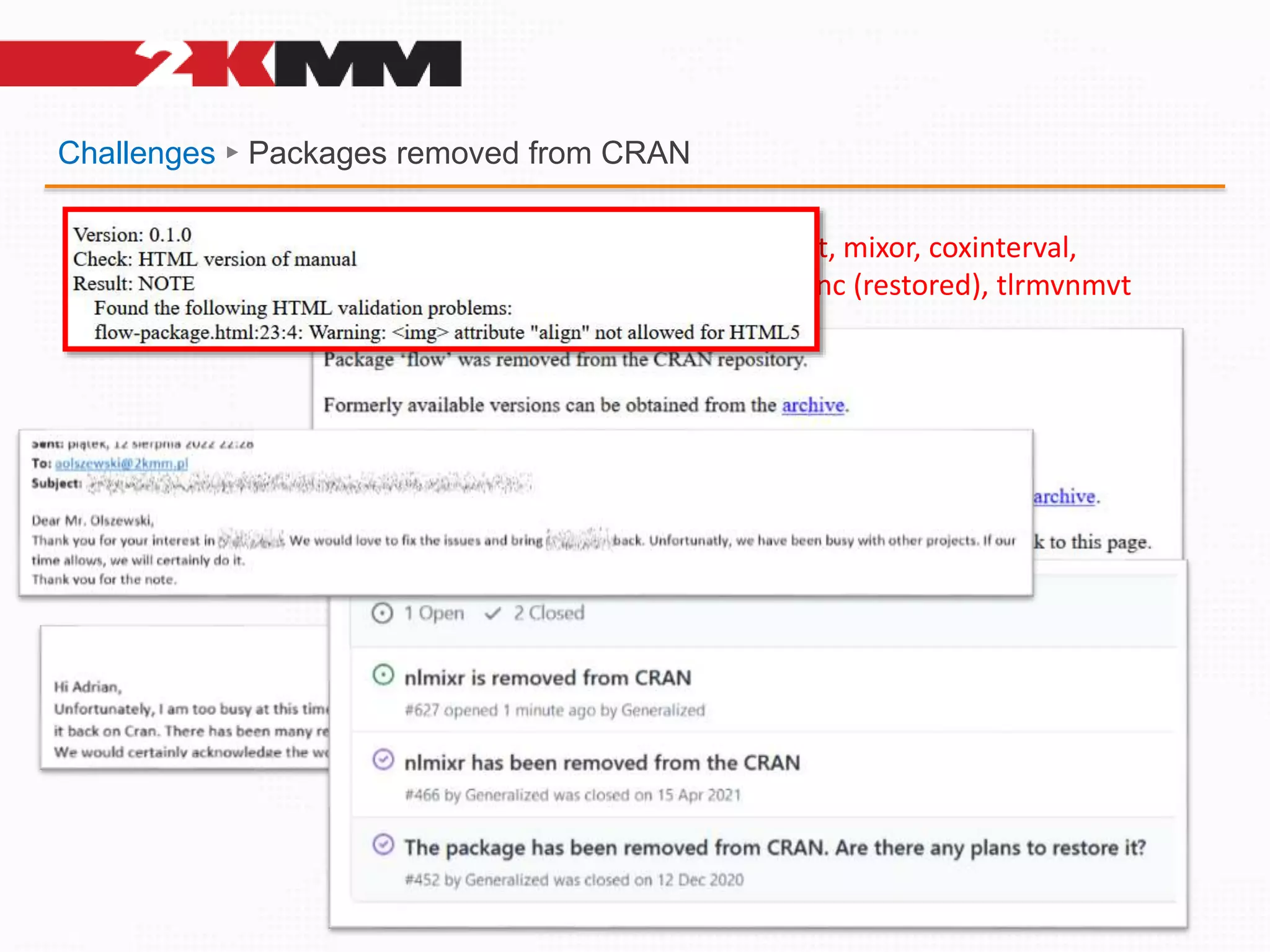

- 45. Challenges ► Packagesremoved from CRAN BaylorEdPsych , cvcqv, MissMech, PKPDmodels, SASxport, mixor, coxinterval, quantreg (restored), brunnermunzel (restored), MomTrunc (restored), tlrmvnmvt (restored), normtest, flow, nlmixr

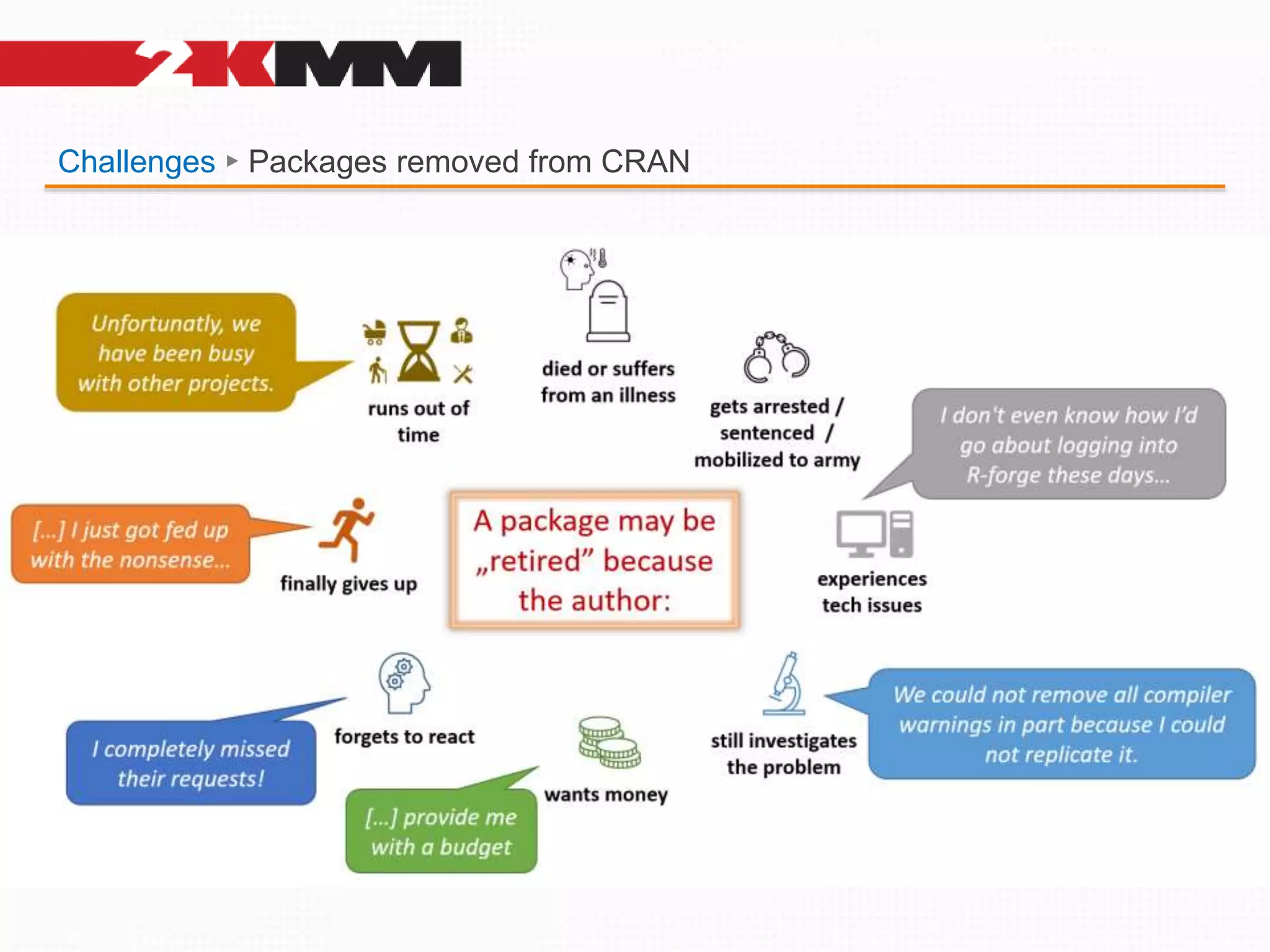

- 46. Challenges ► Packagesremoved from CRAN
- 47. Challenges ► Let’scombine it together! START! Package removed from CRAN Search for a replacement Email the author… Create new issue. Learn the new package What does this thing do?! Something is wrong! It works! FIXED? What now!? Another package is needed It works! Sorry, I’m busy. No, it doesn’t Partially managed…

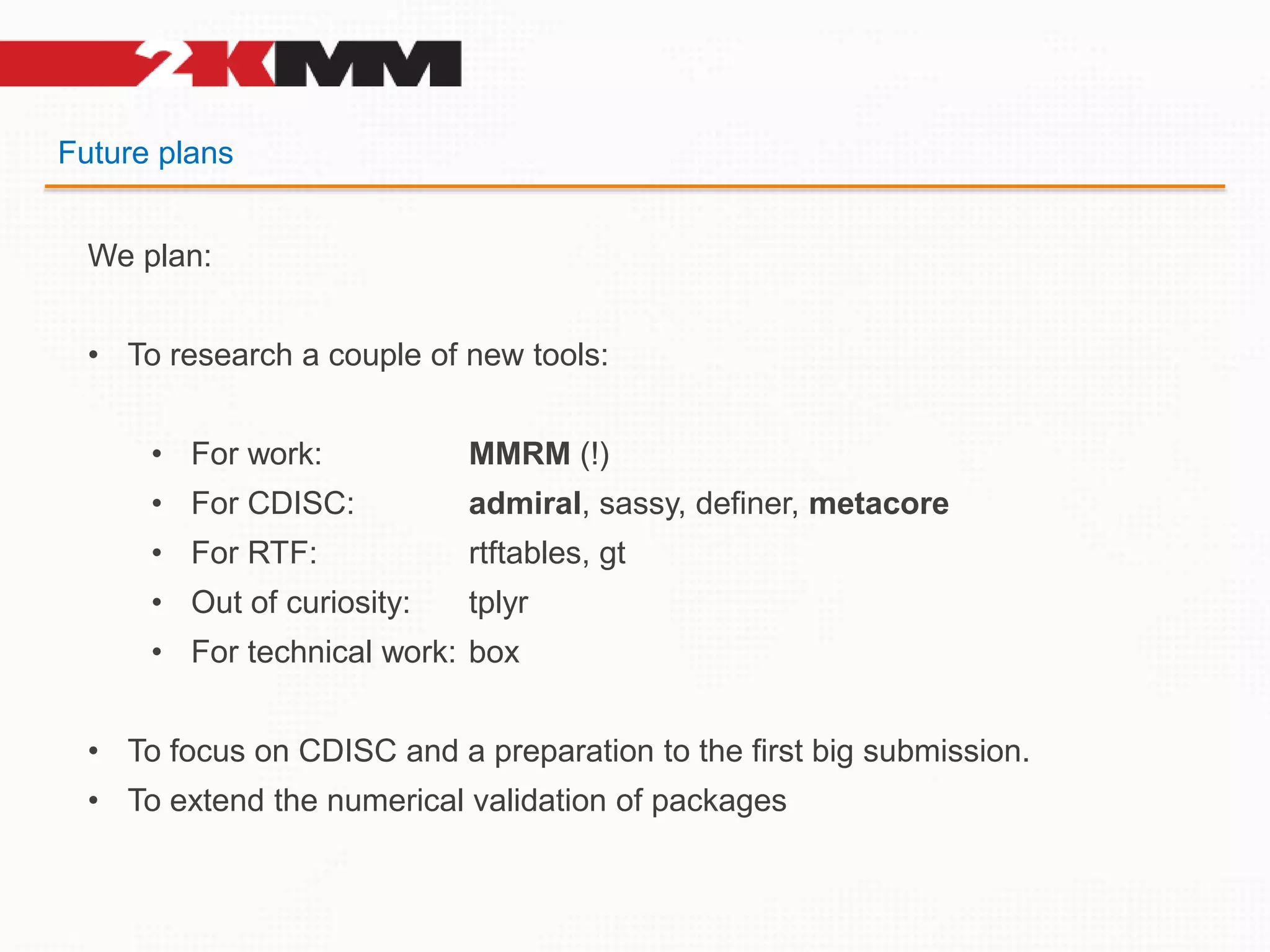

- 48. Future plans We plan: •To research a couple of new tools: • For work: MMRM (!) • For CDISC: admiral, sassy, definer, metacore • For RTF: rtftables, gt • Out of curiosity: tplyr • For technical work: box • To focus on CDISC and a preparation to the first big submission. • To extend the numerical validation of packages

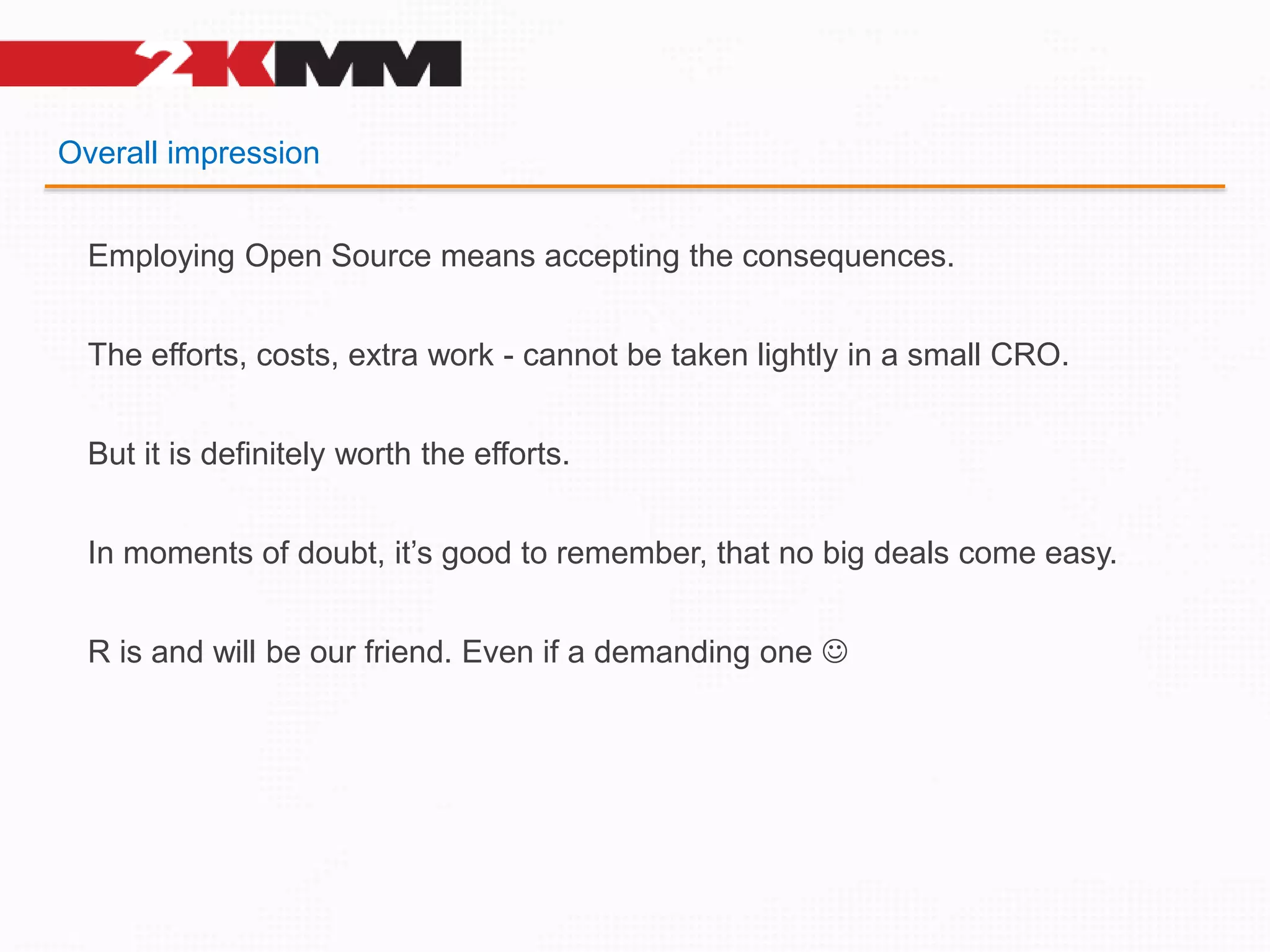

- 49. Overall impression Employing OpenSource means accepting the consequences. The efforts, costs, extra work - cannot be taken lightly in a small CRO. But it is definitely worth the efforts. In moments of doubt, it’s good to remember, that no big deals come easy. R is and will be our friend. Even if a demanding one
- 50. 50 THANK YOU This isjust the beginning…
