The document discusses scaling a graph database for a media recommendation application. It describes using Neo4j to build a comprehensive entertainment graph to power recommendations. It also discusses various techniques for optimizing batch writes, transaction handling, and running custom algorithms at scale including using AWS spot instances and caching strategies.

1. Graph at Scale
10/22/14
Brad Nussbaum
CTO | MediaHound
brad@mediahound.com | @bradnussbaum
www.mediahound.com

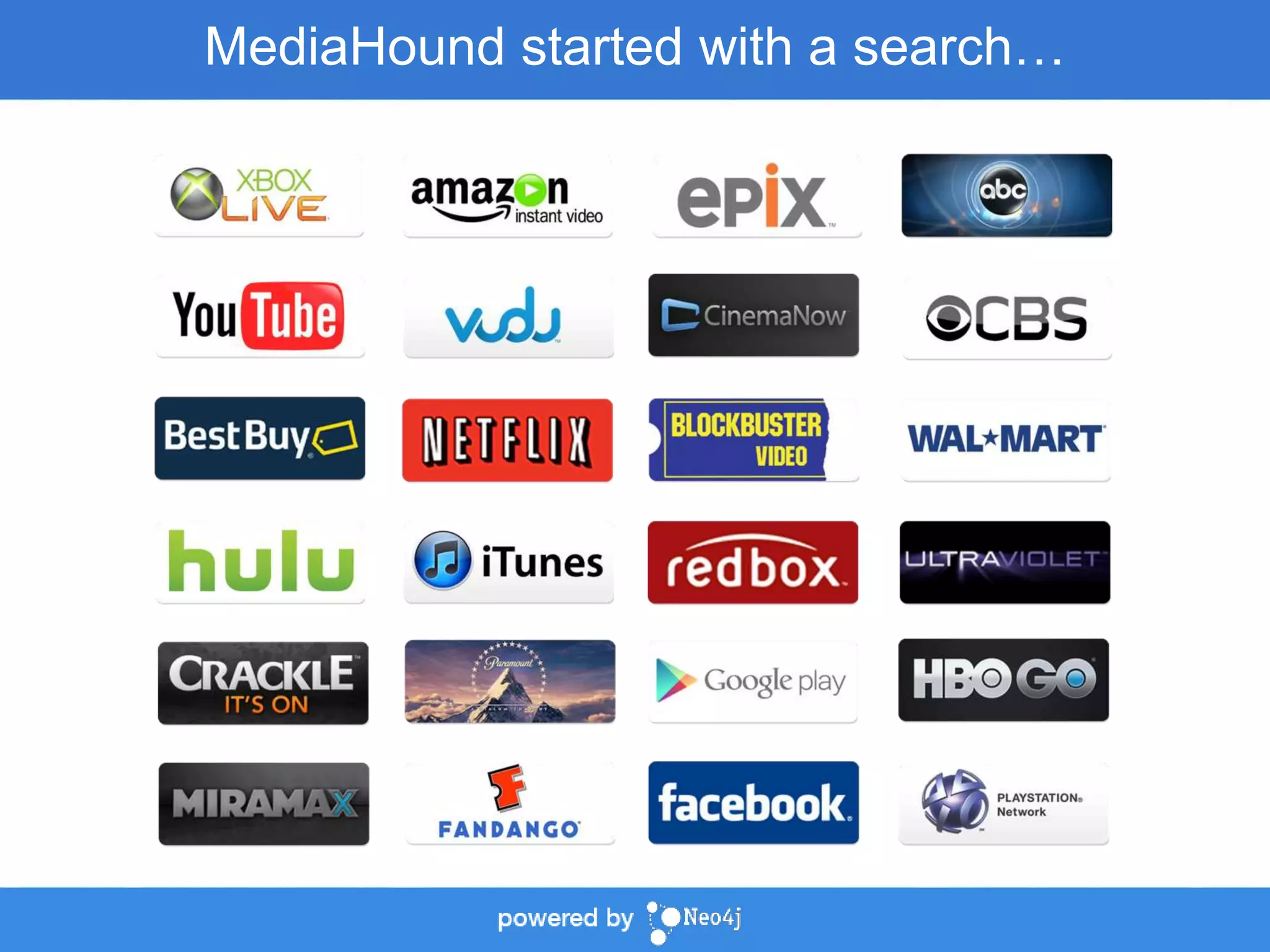

2. MediaHound started with a search…

3. But Entertainment is more than just Film & TV

4. Entertainment Preferences Are Scattered
Music Movies Television Books

5. All Content
one platform that connects:
All Sources All Devices
All Brands All Artists All Users

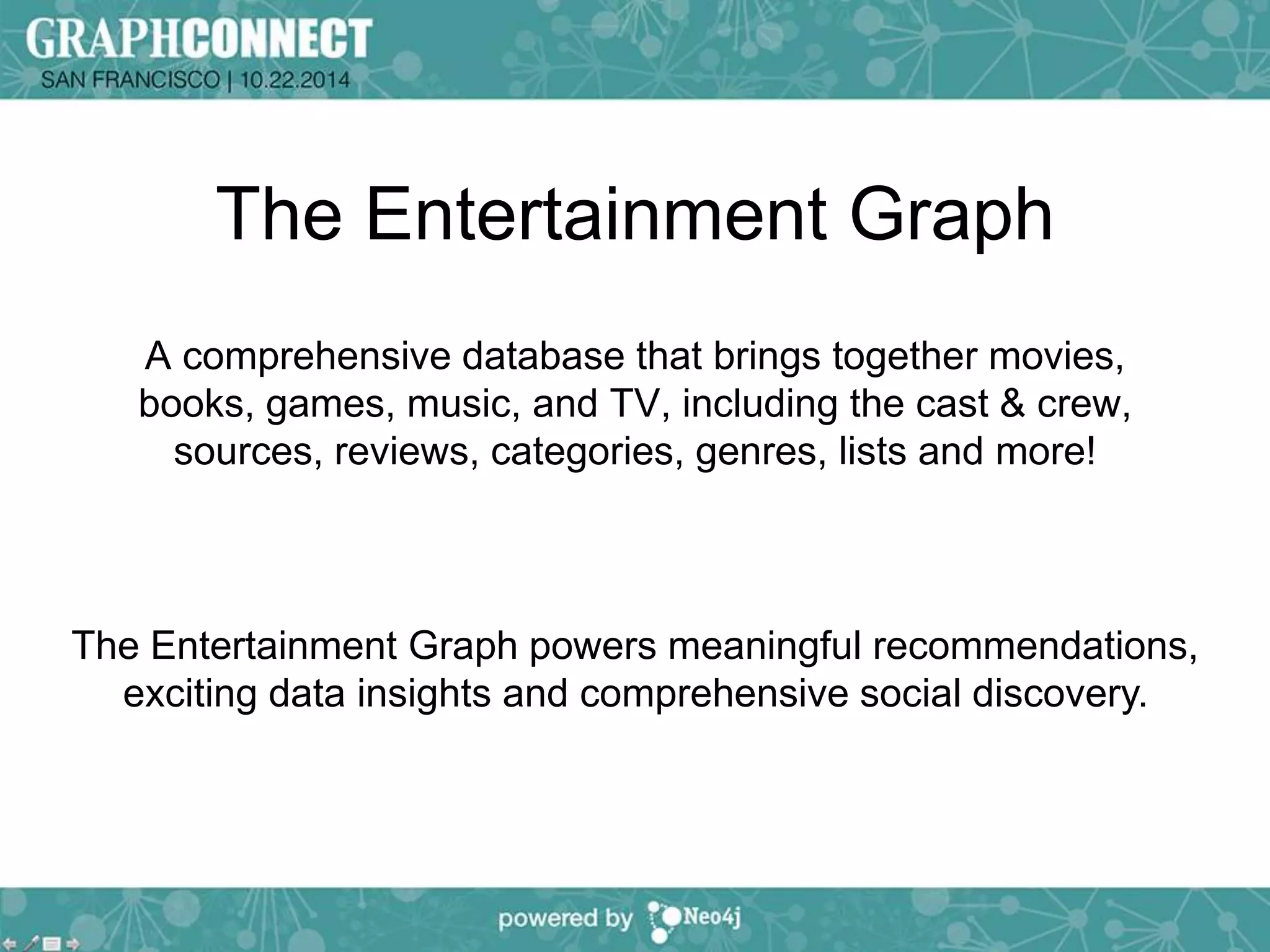

6. The Entertainment Graph
A comprehensive database that brings together movies,
books, games, music, and TV, including the cast & crew,
sources, reviews, categories, genres, lists and more!
The Entertainment Graph powers meaningful recommendations,
exciting data insights and comprehensive social discovery.

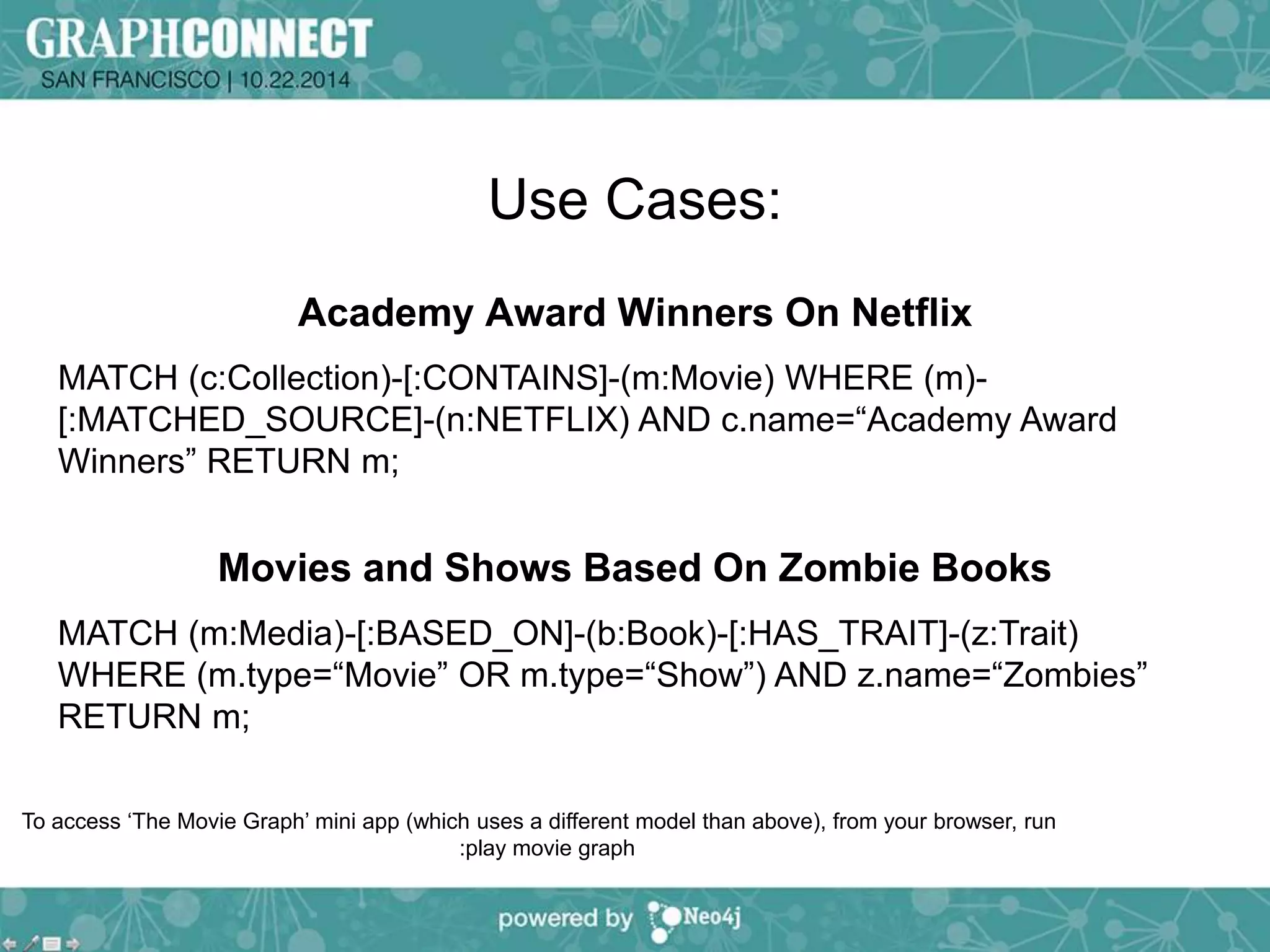

7. Use Cases:
Academy Award Winners On Netflix
MATCH (c:Collection)-[:CONTAINS]-(m:Movie) WHERE (m)-
[:MATCHED_SOURCE]-(n:NETFLIX) AND c.name=“Academy Award
Winners” RETURN m;
Movies and Shows Based On Zombie Books
MATCH (m:Media)-[:BASED_ON]-(b:Book)-[:HAS_TRAIT]-(z:Trait)
WHERE (m.type=“Movie” OR m.type=“Show”) AND z.name=“Zombies”
RETURN m;
To access ‘The Movie Graph’ mini app (which uses a different model than above), from your browser, run
:play movie graph

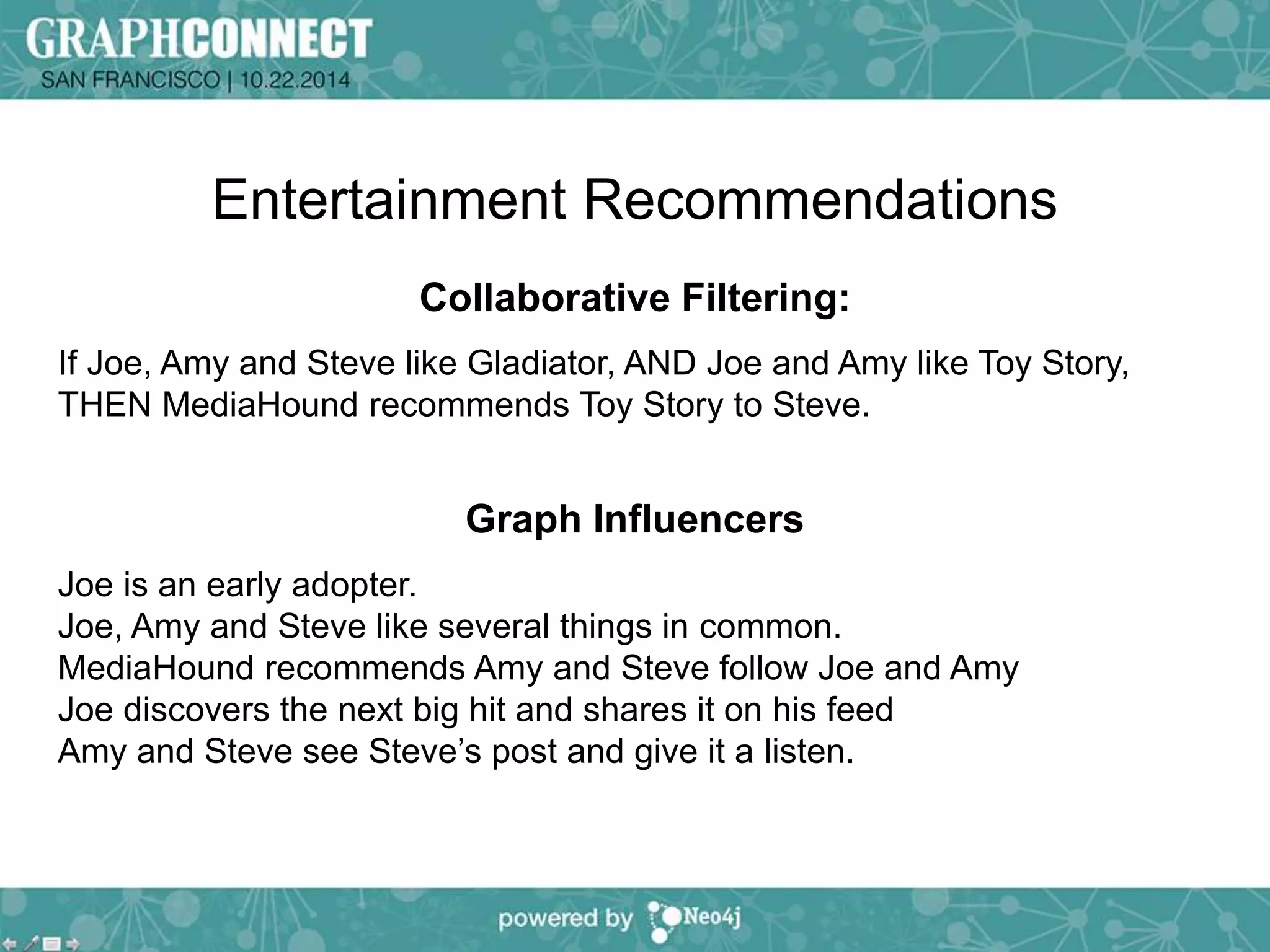

8. Entertainment Recommendations
Collaborative Filtering:
If Joe, Amy and Steve like Gladiator, AND Joe and Amy like Toy Story,
THEN MediaHound recommends Toy Story to Steve.
Graph Influencers
Joe is an early adopter.
Joe, Amy and Steve like several things in common.
MediaHound recommends Amy and Steve follow Joe and Amy
Joe discovers the next big hit and shares it on his feed
Amy and Steve see Steve’s post and give it a listen.

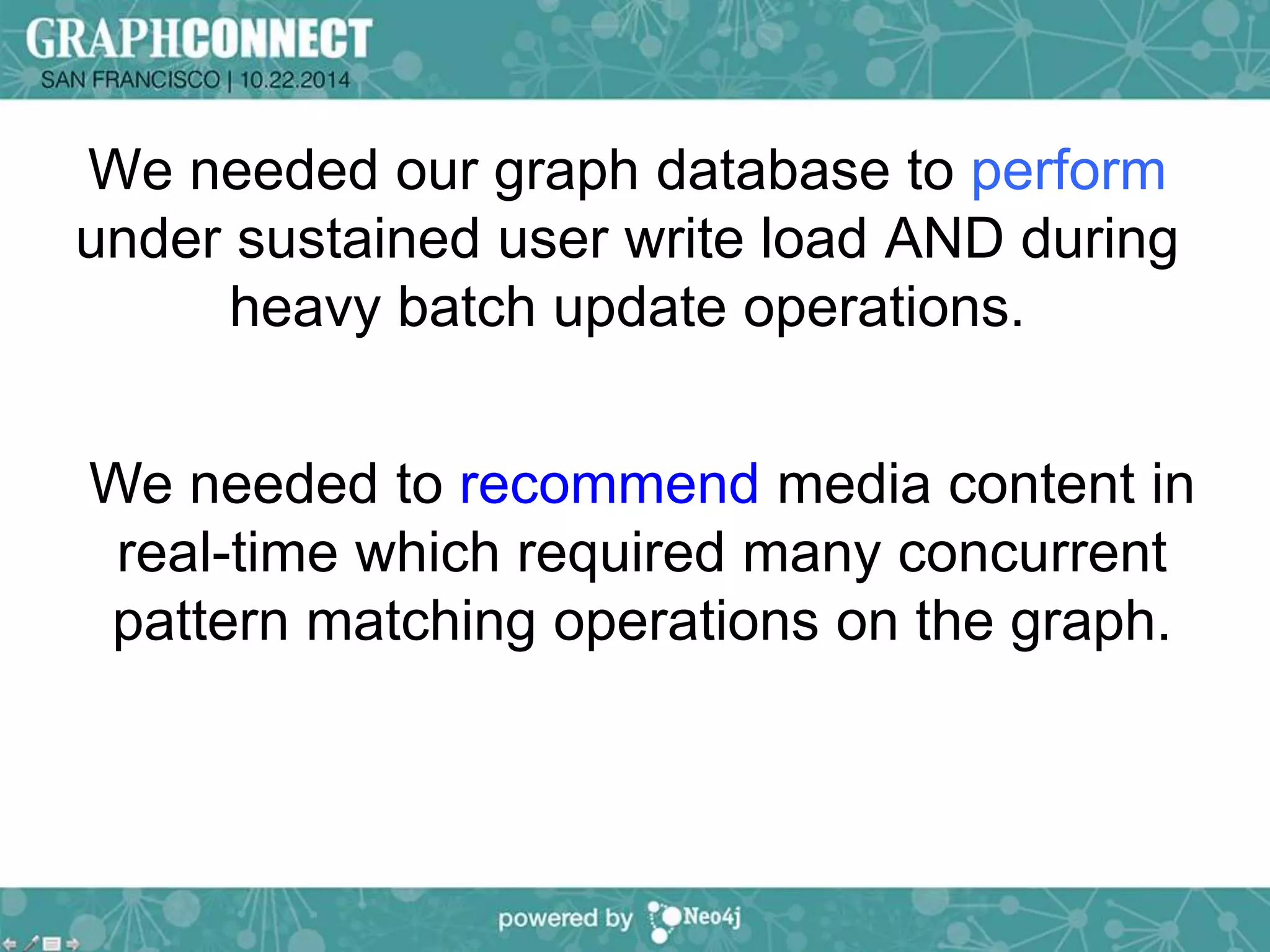

9. We needed our graph database to perform
under sustained user write load AND during
heavy batch update operations.
We needed to recommend media content in
real-time which required many concurrent
pattern matching operations on the graph.

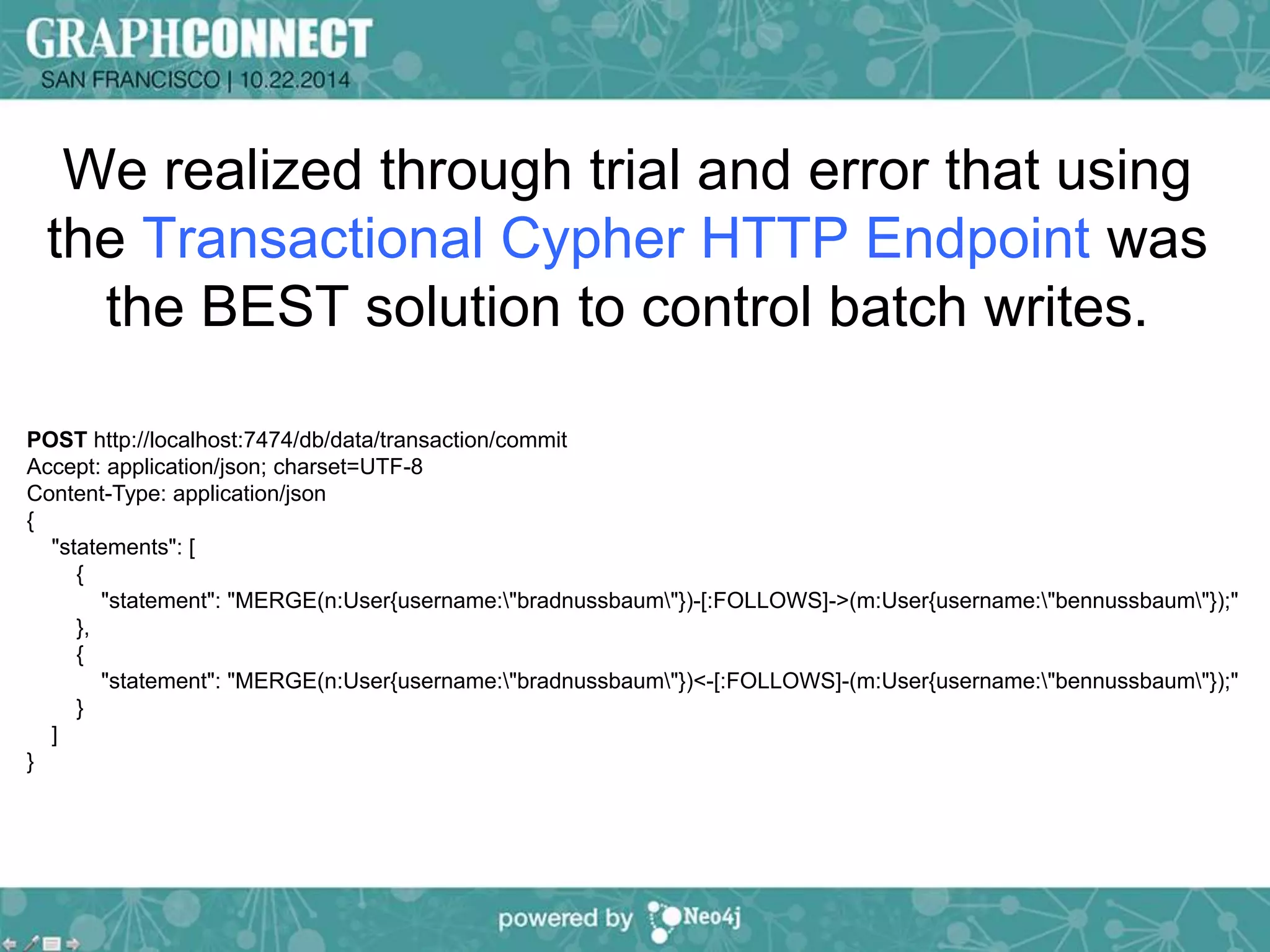

10. We realized through trial and error that using
the Transactional Cypher HTTP Endpoint was
the BEST solution to control batch writes.
POST http://localhost:7474/db/data/transaction/commit
Accept: application/json; charset=UTF-8
Content-Type: application/json
{
"statements": [
{
"statement": "MERGE(n:User{username:"bradnussbaum"})-[:FOLLOWS]->(m:User{username:"bennussbaum"});"
},
{
"statement": "MERGE(n:User{username:"bradnussbaum"})<-[:FOLLOWS]-(m:User{username:"bennussbaum"});"
}
]
}

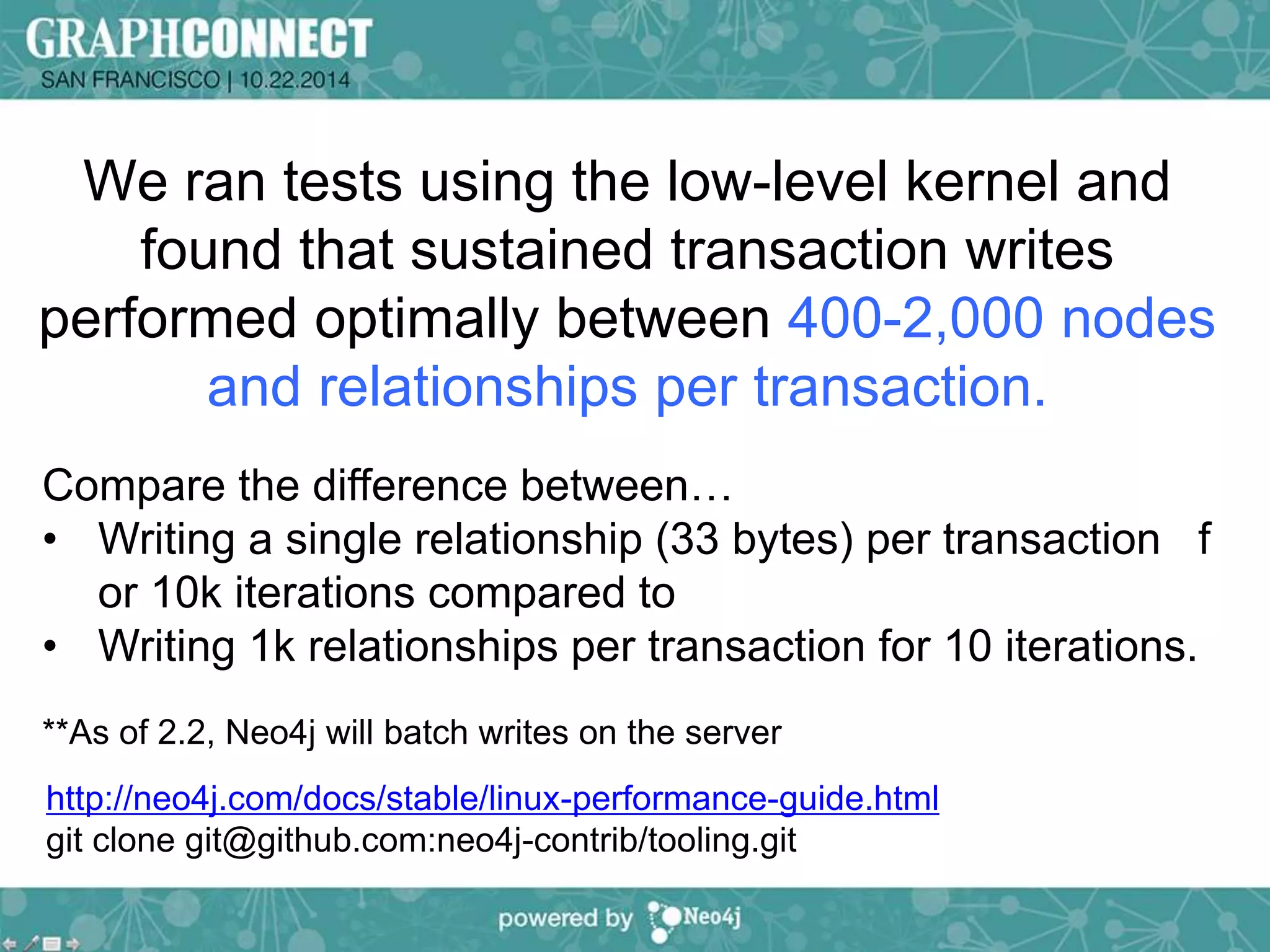

11. We ran tests using the low-level kernel and
found that sustained transaction writes
performed optimally between 400-2,000 nodes
and relationships per transaction.
Compare the difference between…
• Writing a single relationship (33 bytes) per transaction f
or 10k iterations compared to
• Writing 1k relationships per transaction for 10 iterations.
**As of 2.2, Neo4j will batch writes on the server
http://neo4j.com/docs/stable/linux-performance-guide.html
git clone git@github.com:neo4j-contrib/tooling.git

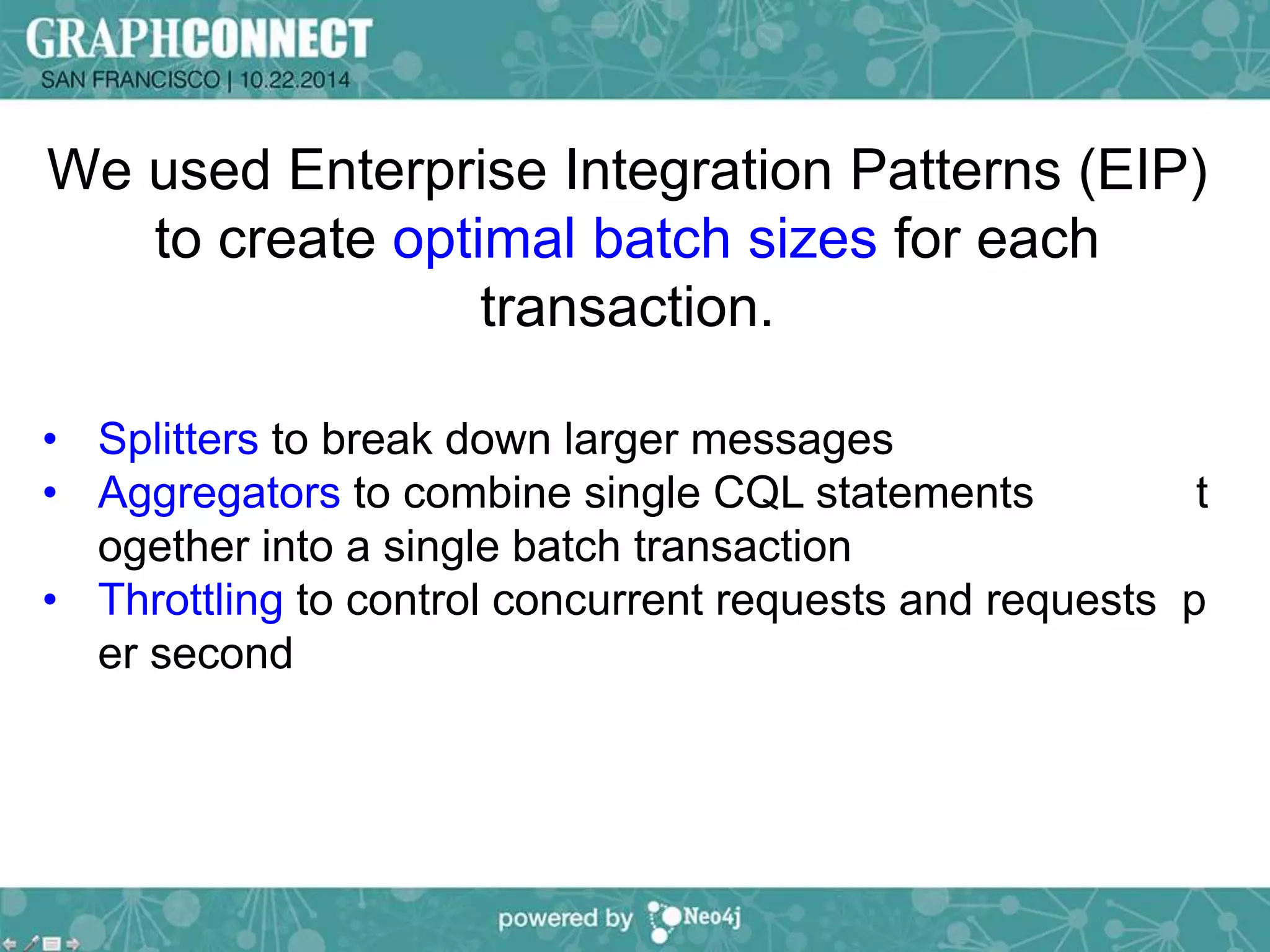

12. We used Enterprise Integration Patterns (EIP)
to create optimal batch sizes for each
transaction.
• Splitters to break down larger messages
• Aggregators to combine single CQL statements t
ogether into a single batch transaction
• Throttling to control concurrent requests and requests p
er second

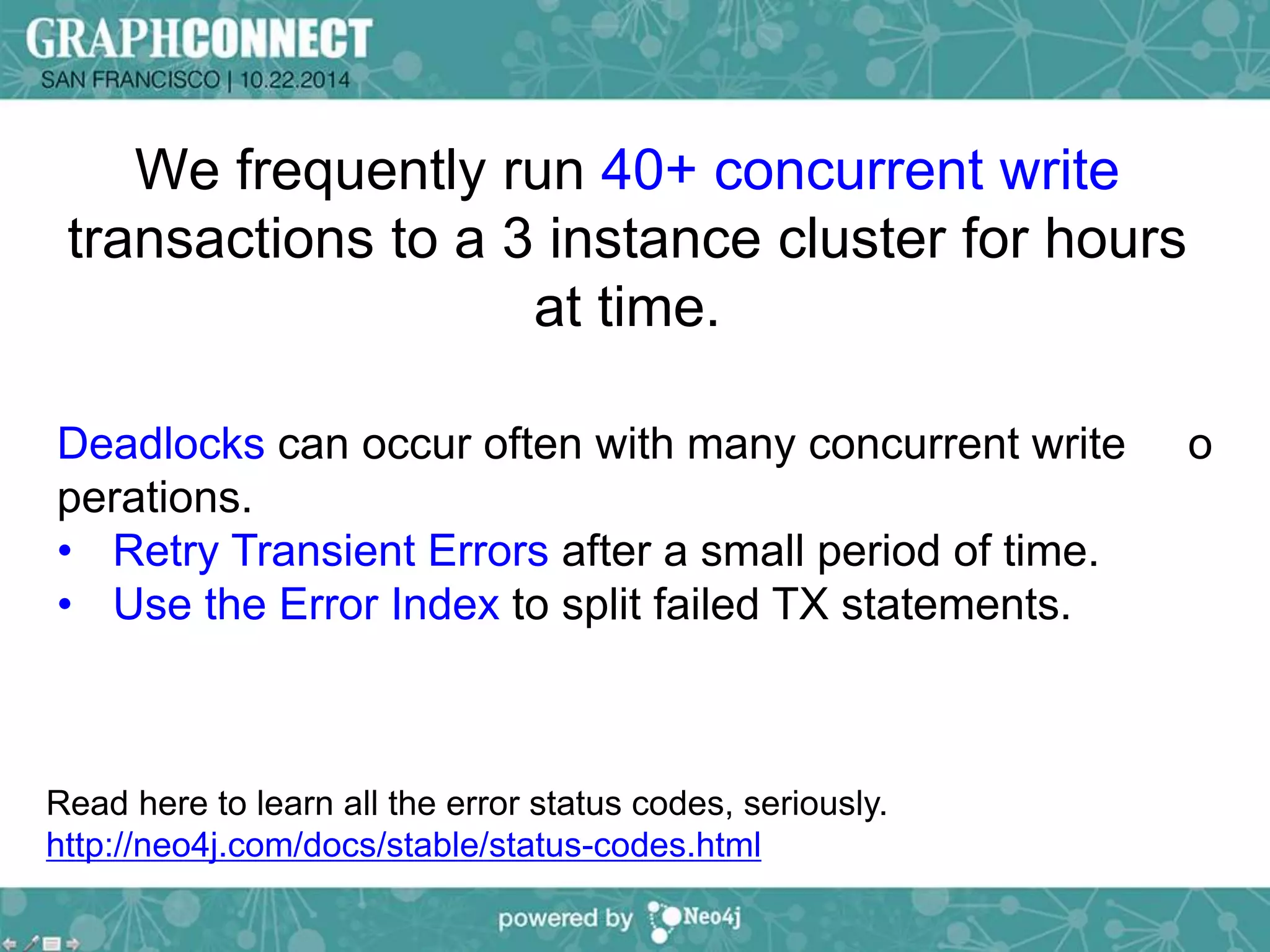

13. We frequently run 40+ concurrent write
transactions to a 3 instance cluster for hours
at time.
Deadlocks can occur often with many concurrent write o
perations.
• Retry Transient Errors after a small period of time.
• Use the Error Index to split failed TX statements.
Read here to learn all the error status codes, seriously.
http://neo4j.com/docs/stable/status-codes.html

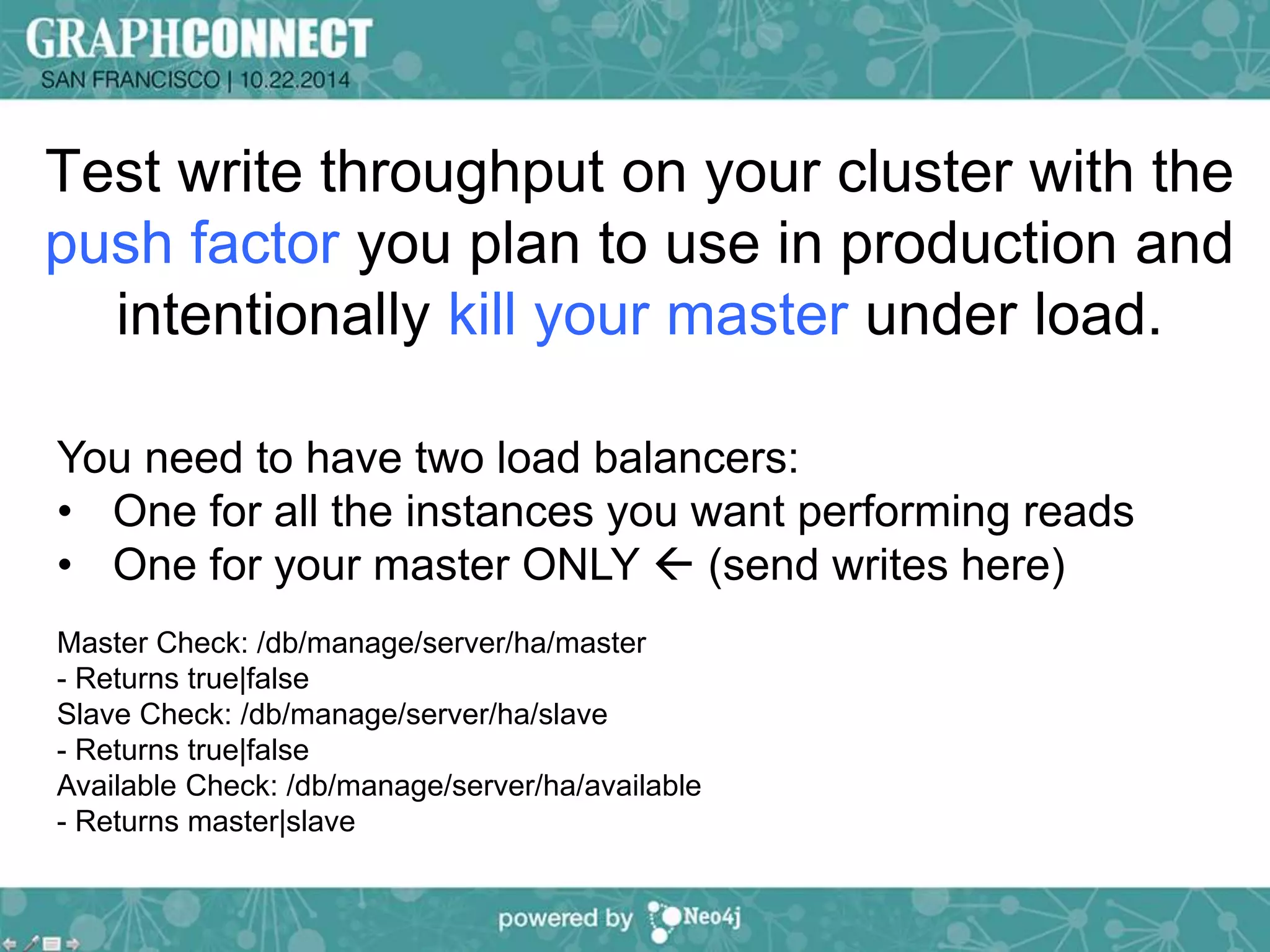

14. Test write throughput on your cluster with the
push factor you plan to use in production and
intentionally kill your master under load.
You need to have two load balancers:
• One for all the instances you want performing reads
• One for your master ONLY  (send writes here)
Master Check: /db/manage/server/ha/master
- Returns true|false
Slave Check: /db/manage/server/ha/slave
- Returns true|false
Available Check: /db/manage/server/ha/available
- Returns master|slave

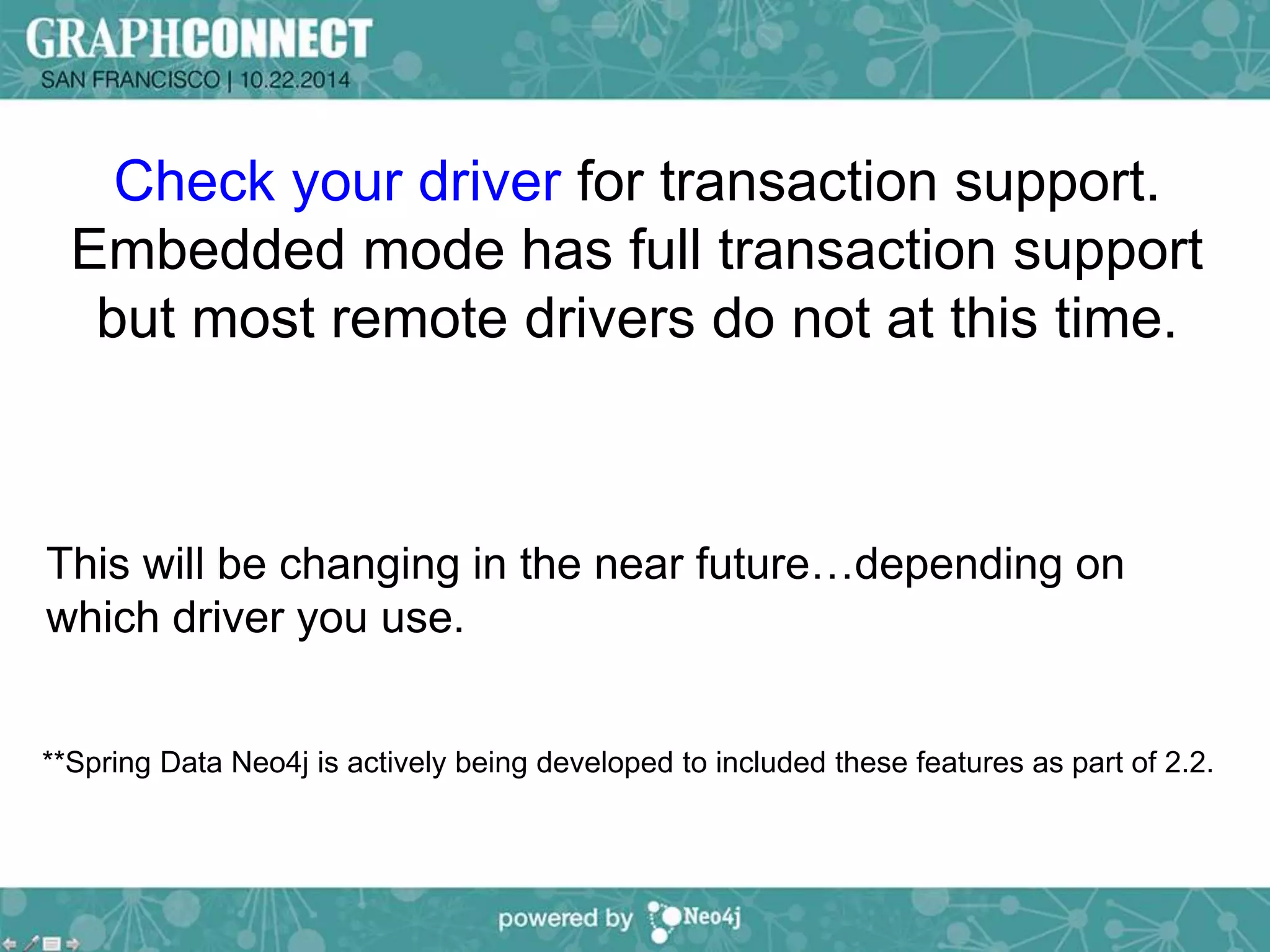

15. Check your driver for transaction support.
Embedded mode has full transaction support
but most remote drivers do not at this time.
This will be changing in the near future…depending on
which driver you use.
**Spring Data Neo4j is actively being developed to included these features as part of 2.2.

16. Graph at Scale
10/22/14
Ben Nussbaum
Director of Engineering | MediaHound
ben@mediahound.com | @bennussbaum
www.mediahound.com

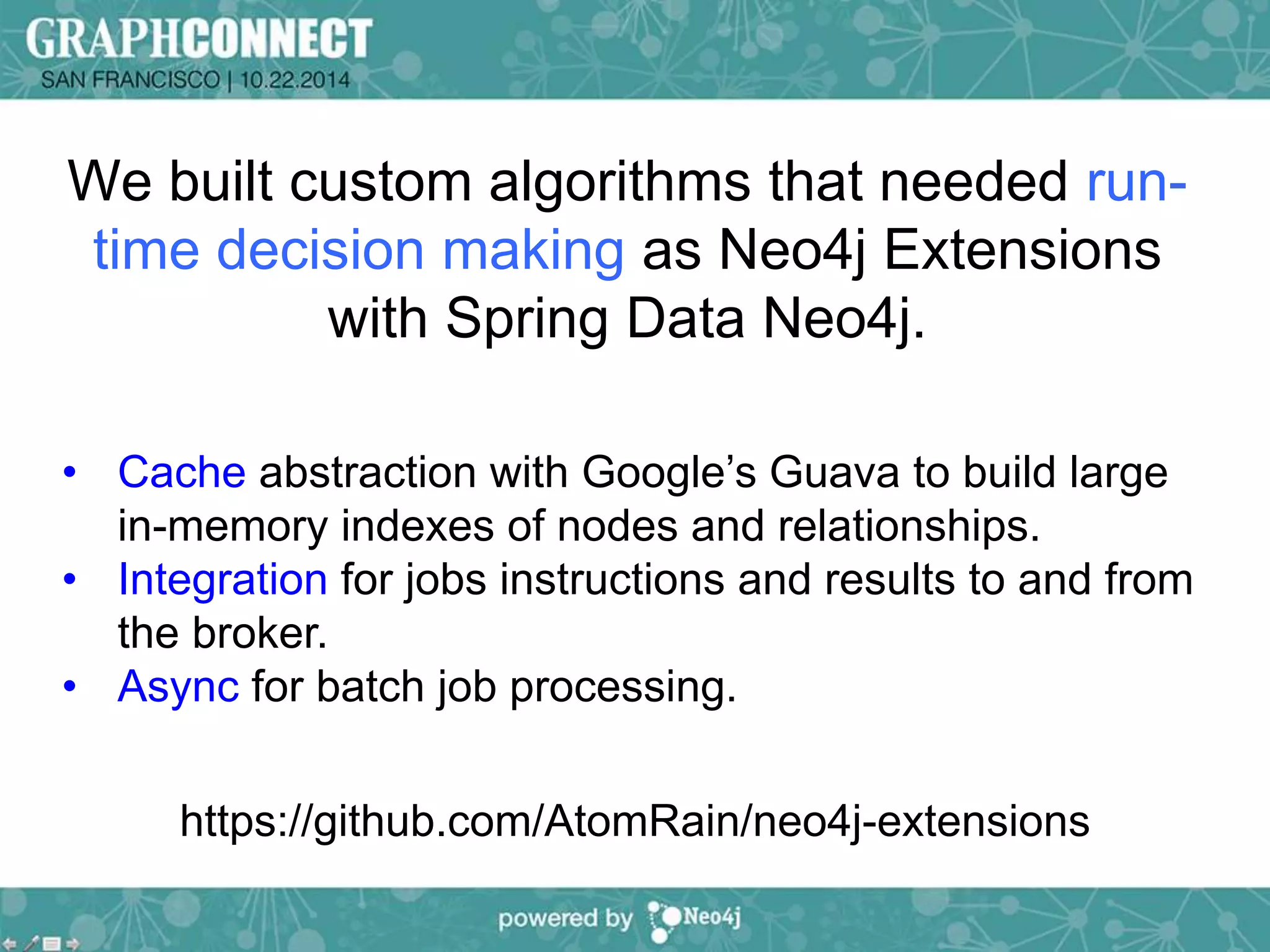

17. We built custom algorithms that needed run-time
decision making as Neo4j Extensions
with Spring Data Neo4j.
• Cache abstraction with Google’s Guava to build large
in-memory indexes of nodes and relationships.
• Integration for jobs instructions and results to and from
the broker.
• Async for batch job processing.
https://github.com/AtomRain/neo4j-extensions

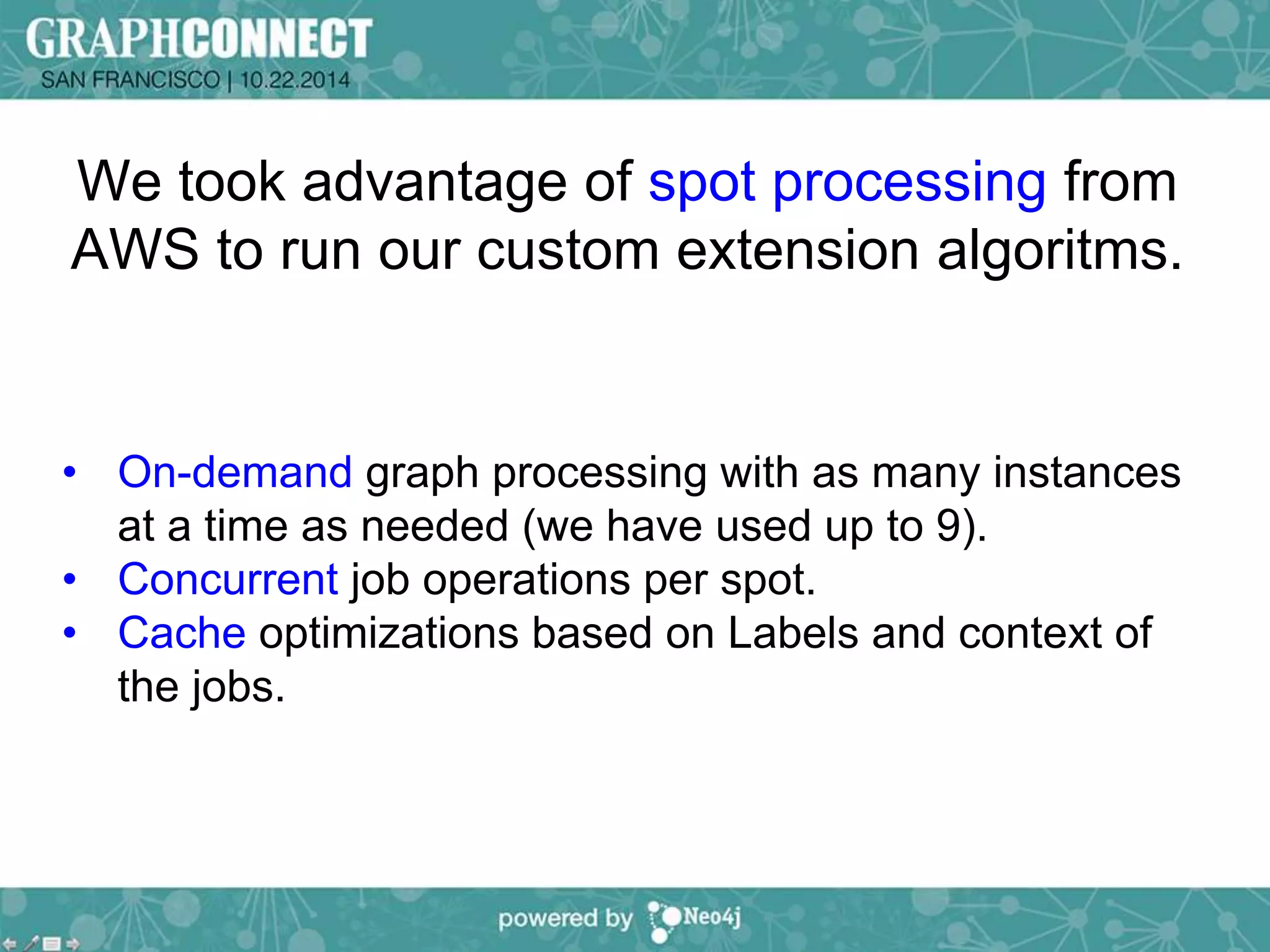

18. We took advantage of spot processing from
AWS to run our custom extension algoritms.
• On-demand graph processing with as many instances
at a time as needed (we have used up to 9).
• Concurrent job operations per spot.
• Cache optimizations based on Labels and context of
the jobs.

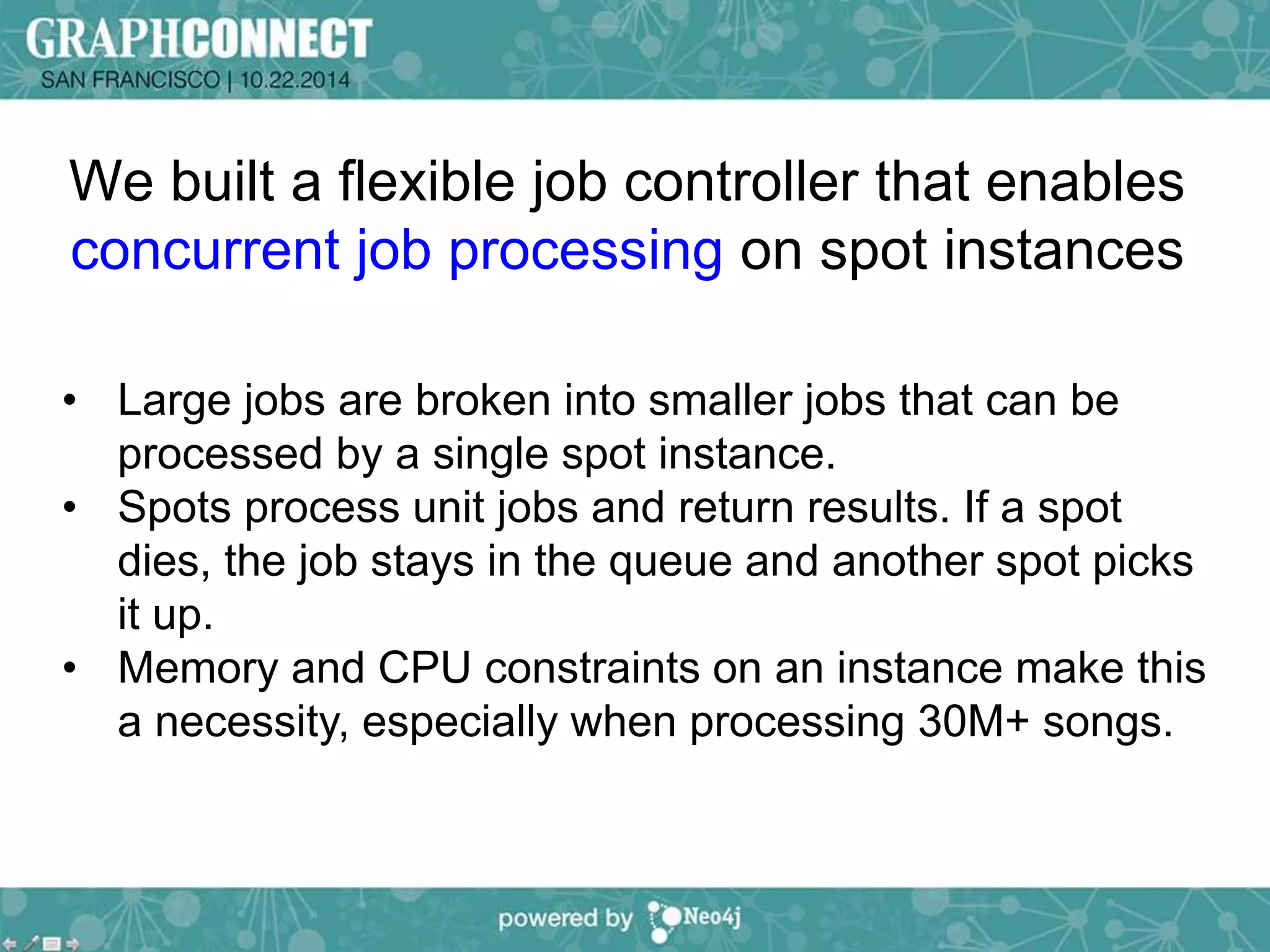

19. We built a flexible job controller that enables
concurrent job processing on spot instances
• Large jobs are broken into smaller jobs that can be
processed by a single spot instance.
• Spots process unit jobs and return results. If a spot
dies, the job stays in the queue and another spot picks
it up.
• Memory and CPU constraints on an instance make this
a necessity, especially when processing 30M+ songs.

20. Spot instances run Neo4j in SINGLE mode
and stay up to date using a Topic.
Neo4j HA
Spot 1
SINGLE
Job
Result
MQ
Spot 2
SINGLE
Job
Process
MQ
ESB
SDN SDN
TX
Topic
1
2
3
4
5
1. ESB sends Jobs to MQ
2. Spots consume job instructions,
process and send results b
ack to MQ
3. ESB posts jobs results to HA
4. On successful post, send u
pdates to Topic
5. Spots consume from Topic to s
tay u to date

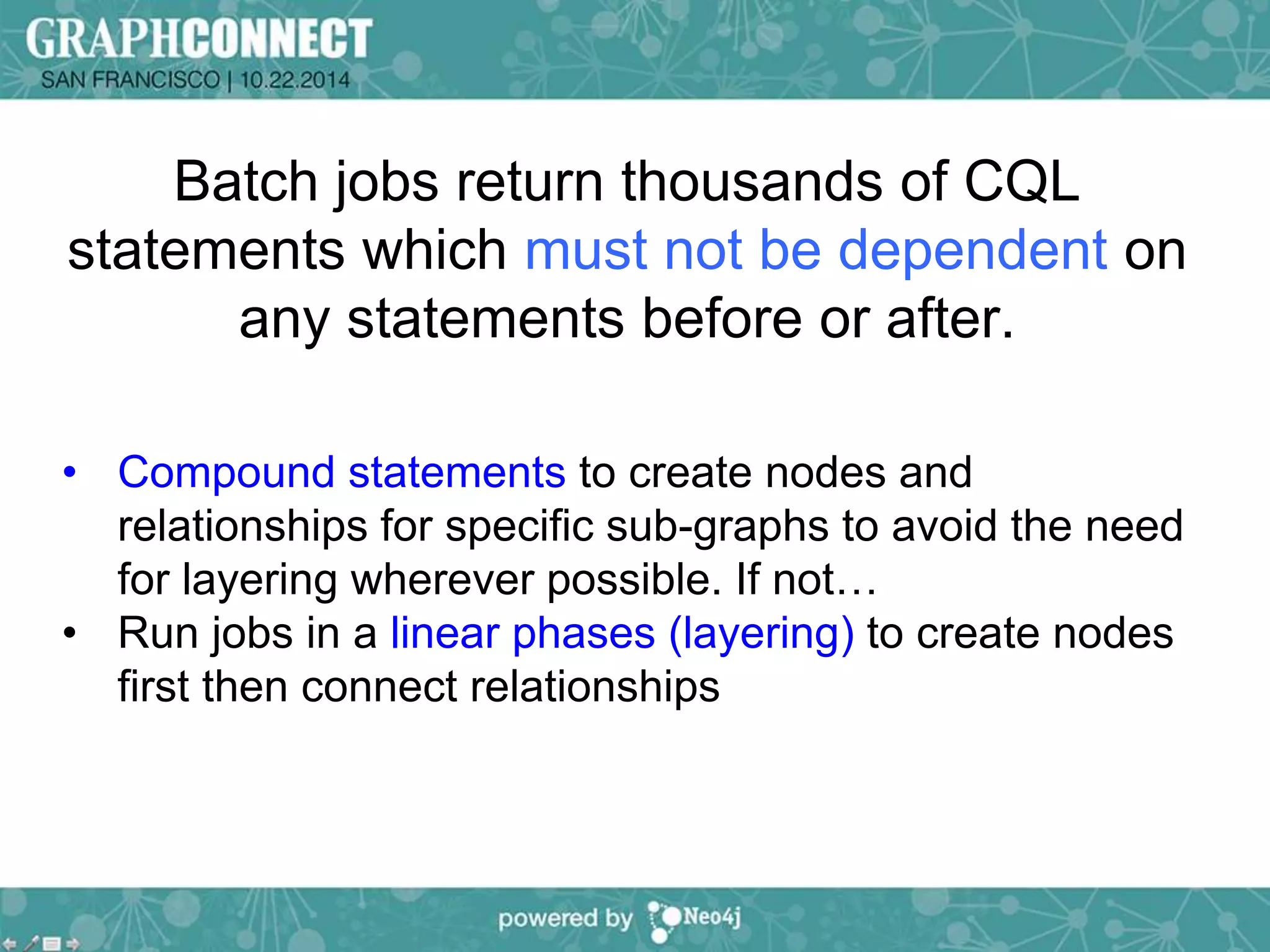

21. Batch jobs return thousands of CQL
statements which must not be dependent on
any statements before or after.
• Compound statements to create nodes and
relationships for specific sub-graphs to avoid the need
for layering wherever possible. If not…
• Run jobs in a linear phases (layering) to create nodes
first then connect relationships

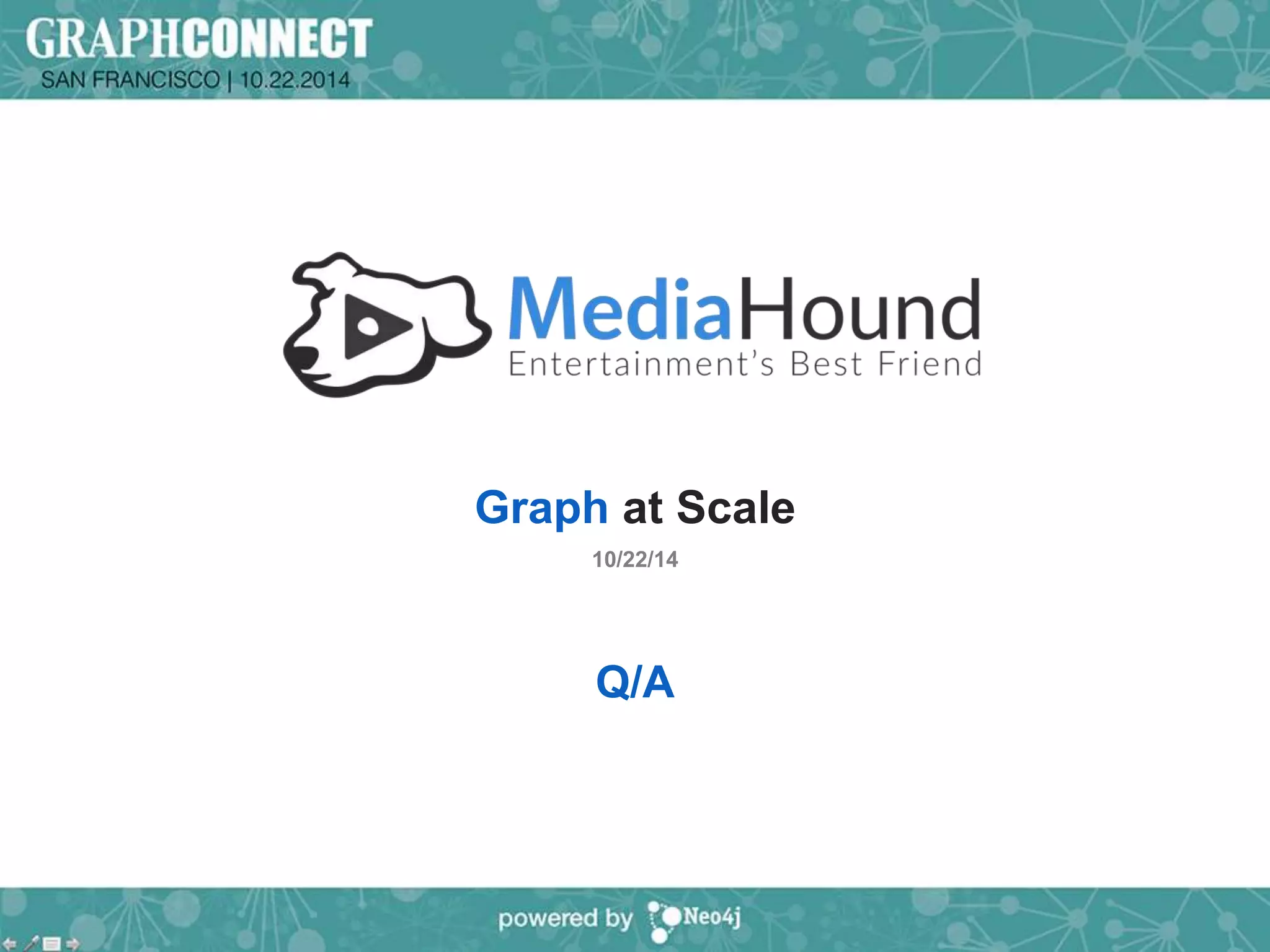

22. Graph at Scale
10/22/14
Q/A
