![(Michael)-[:HELPS]->(People)-[:WORK_WITH]->(Neo4j)
• Coding
• Writing
• Speaking
• Helping
• Connecting
• Organizing](https://image.slidesharecdn.com/cxsyybarw2k2xmxlzz06-signature-1cedeb6a3d303e6737d0367c0debf8290c1f55972166275cd907f745cfebacc3-poli-150729171800-lva1-app6891/85/Graphs-fun-vjug2-2-320.jpg)
![MATCH (boss)-[:MANAGES*0..3]->(mgr),
(mgr)-[:MANAGES*1..3]->(report)
WHERE boss.name = “John Doe”
RETURN mgr.name AS Subordinate,
count(report) AS Total
Express Complex Queries Easily with Cypher
Find all direct reports and how
many people they manage,
each up to 3 levels down
Cypher Query
SQL Query](https://image.slidesharecdn.com/cxsyybarw2k2xmxlzz06-signature-1cedeb6a3d303e6737d0367c0debf8290c1f55972166275cd907f745cfebacc3-poli-150729171800-lva1-app6891/85/Graphs-fun-vjug2-30-320.jpg)
![Cypher: Powerful and Expressive Query Language
MATCH (:Person { name:“Dan”} ) -[:LOVES]-> (:Person { name:“Ann”} )
LOVES
Dan Ann
LABEL PROPERTY
NODE NODE
LABEL PROPERTY](https://image.slidesharecdn.com/cxsyybarw2k2xmxlzz06-signature-1cedeb6a3d303e6737d0367c0debf8290c1f55972166275cd907f745cfebacc3-poli-150729171800-lva1-app6891/85/Graphs-fun-vjug2-35-320.jpg)
![Basic Pattern: Tom Hanks Movies?
MATCH (:Person {name:”Tom Hanks"} ) -[:ACTED_IN]-> (:Movie {title:”Forrest Gump"} )
ACTED_IN
Tom Hanks
Forrest
Gump
LABEL PROPERTY
NODE NODE
Forrest
Gump
LABEL PROPERTY](https://image.slidesharecdn.com/cxsyybarw2k2xmxlzz06-signature-1cedeb6a3d303e6737d0367c0debf8290c1f55972166275cd907f745cfebacc3-poli-150729171800-lva1-app6891/85/Graphs-fun-vjug2-38-320.jpg)
![Basic Query: Tom Hanks‘ Movies?
MATCH
(actor:Person)-[:ACTED_IN]->(m:Movie)
WHERE actor.name = "Tom Hanks"
RETURN *](https://image.slidesharecdn.com/cxsyybarw2k2xmxlzz06-signature-1cedeb6a3d303e6737d0367c0debf8290c1f55972166275cd907f745cfebacc3-poli-150729171800-lva1-app6891/85/Graphs-fun-vjug2-39-320.jpg)
![Query Comparison: Colleagues of Tom Hanks?
SELECT *
FROM Person as actor
JOIN ActorMovie AS am1 ON (actor.id = am1.actor_id)
JOIN ActorMovie AS am2 ON (am1.movie_id = am2.movie_id)
JOIN Person AS coll ON (coll.id = am2.actor_id)
WHERE actor.name = "Tom Hanks“
MATCH
(actor:Person)-[:ACTED_IN]->()<-[:ACTED_IN]-(coll:Person)
WHERE actor.name = "Tom Hanks"
RETURN *](https://image.slidesharecdn.com/cxsyybarw2k2xmxlzz06-signature-1cedeb6a3d303e6737d0367c0debf8290c1f55972166275cd907f745cfebacc3-poli-150729171800-lva1-app6891/85/Graphs-fun-vjug2-41-320.jpg)
![Most prolific actors and their filmography?
MATCH (p:Person)-[:ACTED_IN]->(m:Movie)
RETURN p.name, count(*), collect(m.title) as movies
ORDER BY count(*) desc, p.name asc
LIMIT 10;](https://image.slidesharecdn.com/cxsyybarw2k2xmxlzz06-signature-1cedeb6a3d303e6737d0367c0debf8290c1f55972166275cd907f745cfebacc3-poli-150729171800-lva1-app6891/85/Graphs-fun-vjug2-43-320.jpg)
![Event: Watch a Repository
MATCH (w:WatchEvent)
WITH w LIMIT 1
MATCH p = (w)-[:EVENT_TIME]->(:Minute)<-[:CHILD*]-(:Year),
(w)-[:EVENT_ACTOR]->(u:User)-->(r:Repository)
<-[:WATCHED_REPOSITORY]-(w)
RETURN *;
https://twitter.com/ikwattro/status/618431227100532737](https://image.slidesharecdn.com/cxsyybarw2k2xmxlzz06-signature-1cedeb6a3d303e6737d0367c0debf8290c1f55972166275cd907f745cfebacc3-poli-150729171800-lva1-app6891/85/Graphs-fun-vjug2-55-320.jpg)
Uploaded byNeo4j
Graphs fun vjug2
This document summarizes Michael Hunger's presentation on how graphs make databases fun again. Some key points: - Traditional relational databases have issues modeling connected data and performing complex queries over relationships. Graph databases like Neo4j can more naturally represent connected data as nodes and relationships. - Neo4j was originally created to solve issues modeling connected data for a digital asset management system. It uses a graph data model and allows complex relationship queries through its Cypher query language. - The document demonstrates importing meetup data into Neo4j and running queries to find connections between users, groups, and topics. It also shows examples of querying actor relationships and movie data. - Tools are presented
More Related Content
Graphs fun vjug2
- 1. How Graphs makeDatabases Fun again Value in Relationships Michael Hunger (@mesirii) vJUG July 2015
- 2. (Michael)-[:HELPS]->(People)-[:WORK_WITH]->(Neo4j) • Coding • Writing •Speaking • Helping • Connecting • Organizing

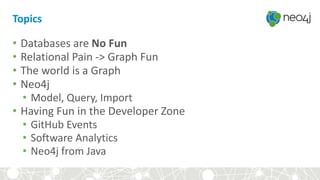

- 3. Topics • Databases areNo Fun • Relational Pain -> Graph Fun • The world is a Graph • Neo4j • Model, Query, Import • Having Fun in the Developer Zone • GitHub Events • Software Analytics • Neo4j from Java
- 4. Databases are NoFun We have all been there

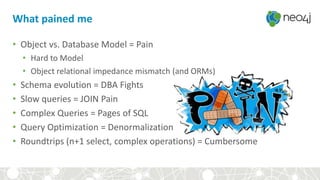

- 5. What pained me •Object vs. Database Model = Pain • Hard to Model • Object relational impedance mismatch (and ORMs) • Schema evolution = DBA Fights • Slow queries = JOIN Pain • Complex Queries = Pages of SQL • Query Optimization = Denormalization • Roundtrips (n+1 select, complex operations) = Cumbersome
- 6. What saved me?– Meeting Emil Geek Cruise in 2008
- 7. Neo4j: A Storyof Pain With a Happy Ending
- 8. History of Neo4j- Problem • Digital Asset Management System in 2000 • SaaS many users in many countries • Two hard use-cases • Multi language keyword search • Including synonyms / word hierarchies • Access Management to Assets for SaaS Scale • Groups, Hierarchies, Permissions, Realtime

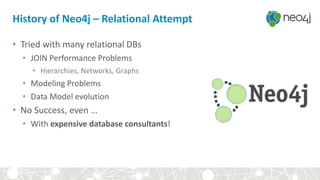

- 9. History of Neo4j– Relational Attempt • Tried with many relational DBs • JOIN Performance Problems • Hierarchies, Networks, Graphs • Modeling Problems • Data Model evolution • No Success, even … • With expensive database consultants!

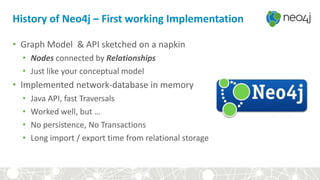

- 10. History of Neo4j– First working Implementation • Graph Model & API sketched on a napkin • Nodes connected by Relationships • Just like your conceptual model • Implemented network-database in memory • Java API, fast Traversals • Worked well, but … • No persistence, No Transactions • Long import / export time from relational storage

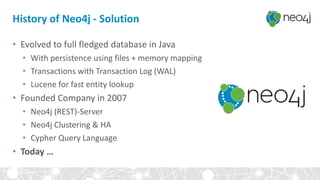

- 11. History of Neo4j- Solution • Evolved to full fledged database in Java • With persistence using files + memory mapping • Transactions with Transaction Log (WAL) • Lucene for fast entity lookup • Founded Company in 2007 • Neo4j (REST)-Server • Neo4j Clustering & HA • Cypher Query Language • Today …

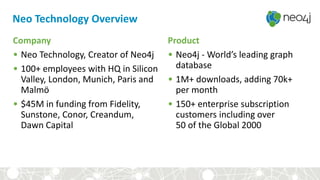

- 12. Neo Technology Overview Product •Neo4j - World’s leading graph database • 1M+ downloads, adding 70k+ per month • 150+ enterprise subscription customers including over 50 of the Global 2000 Company • Neo Technology, Creator of Neo4j • 100+ employees with HQ in Silicon Valley, London, Munich, Paris and Malmö • $45M in funding from Fidelity, Sunstone, Conor, Creandum, Dawn Capital
- 13. What, Who, Where,How? Financial Services Communications Health & Life Sciences HR & Recruiting Media & Publishing Social Web Industry & Logistics Entertainment Consumer Retail Information ServicesBusiness Services http://neo4j.com/use-cases http://neo4j.com/customers
- 14. Why should Icare? Because Relationships Matter

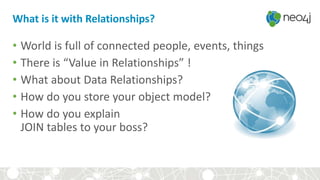

- 15. What is itwith Relationships? • World is full of connected people, events, things • There is “Value in Relationships” ! • What about Data Relationships? • How do you store your object model? • How do you explain JOIN tables to your boss?
- 16. Neo4j – allowsyou to connect the dots • Was built to efficiently • store, • query and • manage highly connected data • Transactional, ACID • Real-time OLTP • Open source • Highly scalable already on few machines

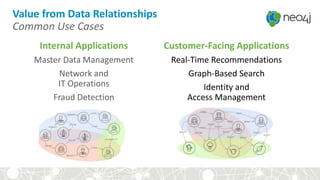

- 17. Value from DataRelationships Common Use Cases Internal Applications Master Data Management Network and IT Operations Fraud Detection Customer-Facing Applications Real-Time Recommendations Graph-Based Search Identity and Access Management

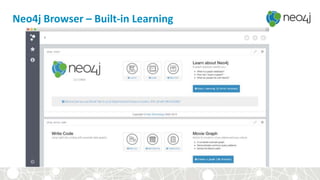

- 18. Neo4j Browser –Built-in Learning

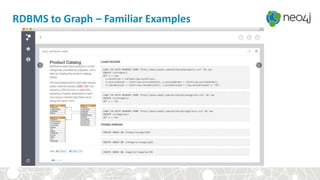

- 19. RDBMS to Graph– Familiar Examples

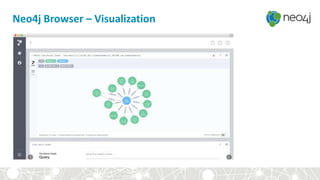

- 20. Neo4j Browser –Visualization
- 21.

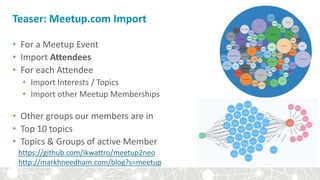

- 22. Teaser: Meetup.com Import •For a Meetup Event • Import Attendees • For each Attendee • Import Interests / Topics • Import other Meetup Memberships • Other groups our members are in • Top 10 topics • Topics & Groups of active Member https://github.com/ikwattro/meetup2neo http://markhneedham.com/blog?s=meetup
- 23. From RDBMS toNeo4j Relational Pains = Graph Pleasure

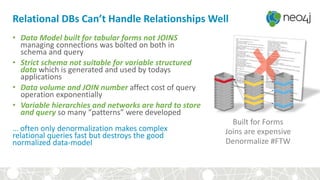

- 24. Relational DBs Can’tHandle Relationships Well • Data Model built for tabular forms not JOINS managing connections was bolted on both in schema and query • Strict schema not suitable for variable structured data which is generated and used by todays applications • Data volume and JOIN number affect cost of query operation exponentially • Variable hierarchies and networks are hard to store and query so many “patterns” were developed … often only denormalization makes complex relational queries fast but destroys the good normalized data-model Built for Forms Joins are expensive Denormalize #FTW

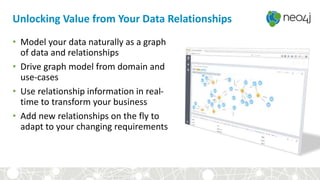

- 25. Unlocking Value fromYour Data Relationships • Model your data naturally as a graph of data and relationships • Drive graph model from domain and use-cases • Use relationship information in real- time to transform your business • Add new relationships on the fly to adapt to your changing requirements

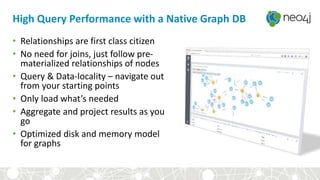

- 26. High Query Performancewith a Native Graph DB • Relationships are first class citizen • No need for joins, just follow pre- materialized relationships of nodes • Query & Data-locality – navigate out from your starting points • Only load what’s needed • Aggregate and project results as you go • Optimized disk and memory model for graphs

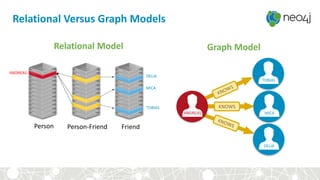

- 27. Relational Versus GraphModels Relational Model Graph Model KNOWS ANDREAS TOBIAS MICA DELIA Person FriendPerson-Friend ANDREAS DELIA TOBIAS MICA

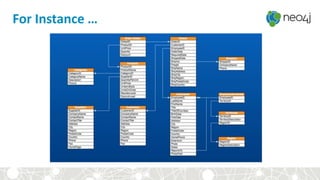

- 28.

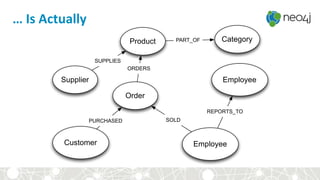

- 29. … Is Actually Order Product CustomerEmployee SOLD ORDERS Category Employee REPORTS_TO PART_OF PURCHASED Supplier SUPPLIES

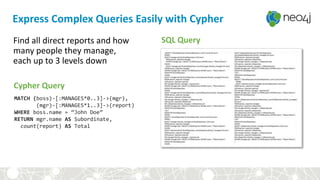

- 30. MATCH (boss)-[:MANAGES*0..3]->(mgr), (mgr)-[:MANAGES*1..3]->(report) WHERE boss.name= “John Doe” RETURN mgr.name AS Subordinate, count(report) AS Total Express Complex Queries Easily with Cypher Find all direct reports and how many people they manage, each up to 3 levels down Cypher Query SQL Query

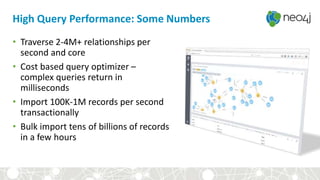

- 31. High Query Performance:Some Numbers • Traverse 2-4M+ relationships per second and core • Cost based query optimizer – complex queries return in milliseconds • Import 100K-1M records per second transactionally • Bulk import tens of billions of records in a few hours
- 32. Working with aGraph Model, Import, Query

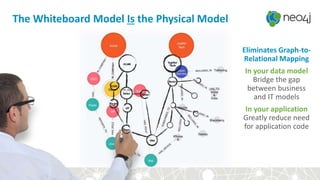

- 33. The Whiteboard ModelIs the Physical Model Eliminates Graph-to- Relational Mapping In your data model Bridge the gap between business and IT models In your application Greatly reduce need for application code
- 34. CAR name: “Dan” born: May29, 1970 twitter: “@dan” name: “Ann” born: Dec 5, 1975 since: Jan 10, 2011 brand: “Volvo” model: “V70” Property Graph Model Components Nodes • The objects in the graph • Can have name-value properties • Can be labeled Relationships • Relate nodes by type and direction • Can have name-value properties LOVES LOVES LIVES WITH PERSON PERSON

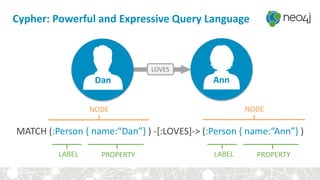

- 35. Cypher: Powerful andExpressive Query Language MATCH (:Person { name:“Dan”} ) -[:LOVES]-> (:Person { name:“Ann”} ) LOVES Dan Ann LABEL PROPERTY NODE NODE LABEL PROPERTY

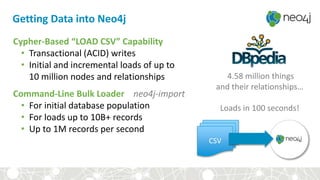

- 36. Getting Data intoNeo4j Cypher-Based “LOAD CSV” Capability • Transactional (ACID) writes • Initial and incremental loads of up to 10 million nodes and relationships Command-Line Bulk Loader neo4j-import • For initial database population • For loads up to 10B+ records • Up to 1M records per second 4.58 million things and their relationships… Loads in 100 seconds! CSV
- 37.

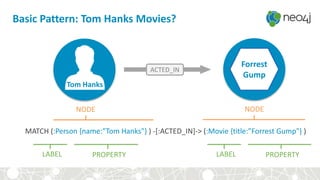

- 38. Basic Pattern: TomHanks Movies? MATCH (:Person {name:”Tom Hanks"} ) -[:ACTED_IN]-> (:Movie {title:”Forrest Gump"} ) ACTED_IN Tom Hanks Forrest Gump LABEL PROPERTY NODE NODE Forrest Gump LABEL PROPERTY

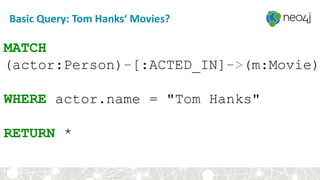

- 39. Basic Query: TomHanks‘ Movies? MATCH (actor:Person)-[:ACTED_IN]->(m:Movie) WHERE actor.name = "Tom Hanks" RETURN *

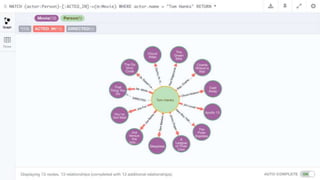

- 40. Basic Query: TomHanks‘ Movies?

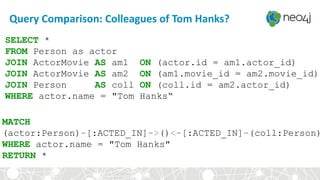

- 41. Query Comparison: Colleaguesof Tom Hanks? SELECT * FROM Person as actor JOIN ActorMovie AS am1 ON (actor.id = am1.actor_id) JOIN ActorMovie AS am2 ON (am1.movie_id = am2.movie_id) JOIN Person AS coll ON (coll.id = am2.actor_id) WHERE actor.name = "Tom Hanks“ MATCH (actor:Person)-[:ACTED_IN]->()<-[:ACTED_IN]-(coll:Person) WHERE actor.name = "Tom Hanks" RETURN *

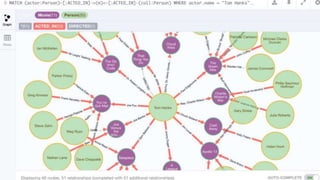

- 42. Basic Query Comparison:Colleagues of Tom Hanks?

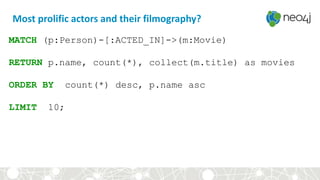

- 43. Most prolific actorsand their filmography? MATCH (p:Person)-[:ACTED_IN]->(m:Movie) RETURN p.name, count(*), collect(m.title) as movies ORDER BY count(*) desc, p.name asc LIMIT 10;

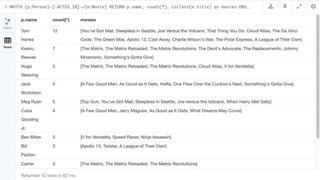

- 44. Most prolific actorsand their filmography?

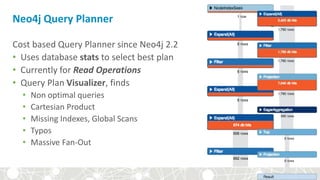

- 45. Neo4j Query Planner Costbased Query Planner since Neo4j 2.2 • Uses database stats to select best plan • Currently for Read Operations • Query Plan Visualizer, finds • Non optimal queries • Cartesian Product • Missing Indexes, Global Scans • Typos • Massive Fan-Out

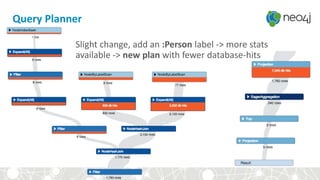

- 46. Query Planner Slight change,add an :Person label -> more stats available -> new plan with fewer database-hits
- 47.

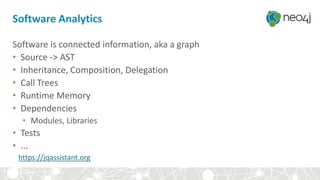

- 48. Software Analytics Software isconnected information, aka a graph • Source -> AST • Inheritance, Composition, Delegation • Call Trees • Runtime Memory • Dependencies • Modules, Libraries • Tests • ... https://jqassistant.org

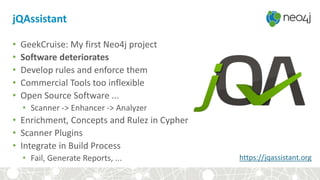

- 49. jQAssistant • GeekCruise: Myfirst Neo4j project • Software deteriorates • Develop rules and enforce them • Commercial Tools too inflexible • Open Source Software ... • Scanner -> Enhancer -> Analyzer • Enrichment, Concepts and Rulez in Cypher • Scanner Plugins • Integrate in Build Process • Fail, Generate Reports, ... https://jqassistant.org
- 51.
- 52.

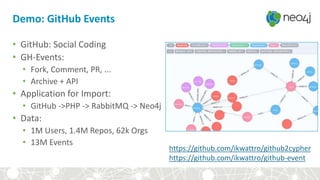

- 53. Demo: GitHub Events •GitHub: Social Coding • GH-Events: • Fork, Comment, PR, ... • Archive + API • Application for Import: • GitHub ->PHP -> RabbitMQ -> Neo4j • Data: • 1M Users, 1.4M Repos, 62k Orgs • 13M Events https://github.com/ikwattro/github2cypher https://github.com/ikwattro/github-event

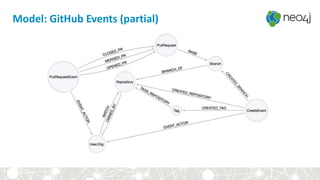

- 54. Model: GitHub Events(partial)

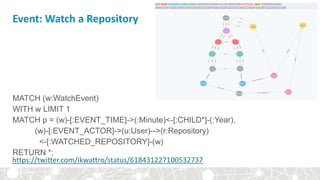

- 55. Event: Watch aRepository MATCH (w:WatchEvent) WITH w LIMIT 1 MATCH p = (w)-[:EVENT_TIME]->(:Minute)<-[:CHILD*]-(:Year), (w)-[:EVENT_ACTOR]->(u:User)-->(r:Repository) <-[:WATCHED_REPOSITORY]-(w) RETURN *; https://twitter.com/ikwattro/status/618431227100532737

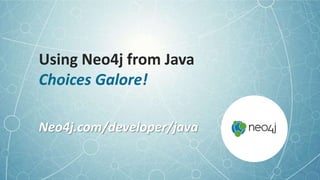

- 56. Using Neo4j fromJava Choices Galore! Neo4j.com/developer/java
- 57. Neo4j: OSS, Madein Java • Java 7 / 8, Scala • High Performance IO, Memory Mapping, • Collections, Caches, Cursors, • Remoting, • Paxos, Raft, ... • Libraries • Jetty, Lucene, Netty, Parboiled, ... https://github.com/neo4j/neo4j

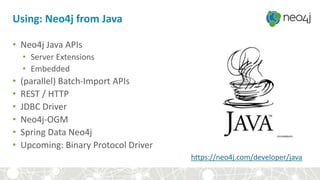

- 58. Using: Neo4j fromJava • Neo4j Java APIs • Server Extensions • Embedded • (parallel) Batch-Import APIs • REST / HTTP • JDBC Driver • Neo4j-OGM • Spring Data Neo4j • Upcoming: Binary Protocol Driver https://neo4j.com/developer/java
- 59. Get up tospeed with Neo4j Quickly and Easily

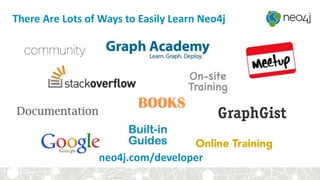

- 60. There Are Lotsof Ways to Easily Learn Neo4j neo4j.com/developer
- 61. Thank You! Ask Questions,or Tweet @neo4j | http://neo4j.com @mesirii | Michael Hunger
