MEC Edge Computing for Utilities - by EDF & Saguna
The document discusses the deployment of Multi-Access Edge Computing (MEC) solutions for hydroelectric operations, focusing on low latency and high bandwidth needs for reliable communication in remote locations. It outlines the setup involving various types of connectivity (4G, 5G, Wi-Fi, LoRa) and the importance of local application operation to enhance actuator responsiveness. Additionally, it highlights the use of video analytics and automation in optimizing operations and ensuring safety measures at the hydro power sites.
More Related Content
Similar to MEC Edge Computing for Utilities - by EDF & Saguna
MEC Edge Computing for Utilities - by EDF & Saguna
- 1. MEC for Utilities UseCase: Hydro Electric Operation
- 2. Remote locations Alwayson Complex systems Old & new

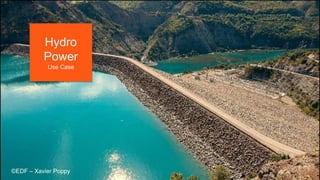

- 3. 3 Hydro Power Use Case ©EDF –Xavier Poppy

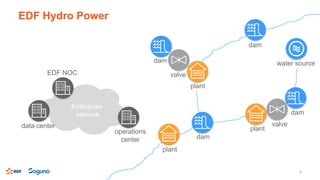

- 4. EDF Hydro Power 4 watersource dam valve plant plant plant valve dam dam dam operations center EDF NOC data center Enterprise network

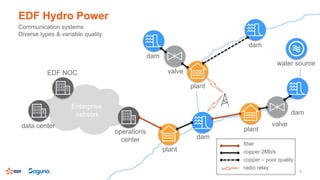

- 5. EDF Hydro Power 5 watersource dam valve plant plant plant valve dam dam dam operations center EDF NOC data center Enterprise network fiber copper 2Mb/s copper – poor quality radio relay Communication systems Diverse types & variable quality
- 6. 6 ©EDF – FranckOddoux Needs Low latency – actuator reactivity (about 20 ms) High bandwidth – video analytics from multiple camera feeds Reliability – ensure high availability Multi-access – Support 4G, 5G, fixed, Wi-Fi, LoRA etc.

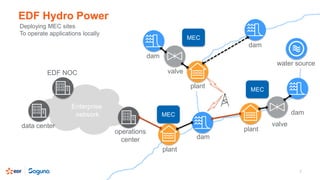

- 7. EDF Hydro Power 7 watersource dam valve plant plant plant valve dam dam dam operations center EDF NOC data center Enterprise network Deploying MEC sites To operate applications locally MEC MEC MEC

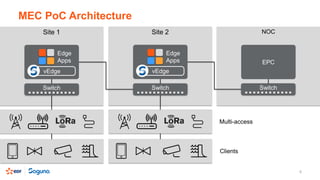

- 8. Site 1 NOC MECPoC Architecture 8 vEdge Edge Apps EPC Switch Site 2 vEdge Edge Apps Switch Switch Multi-access Clients
- 9. 9 vEdge Edge Apps OMA ECM Resource virtualization. Edgecloud services Edge cloud management, automation & orchestration Enterprise / Operator management portal Saguna Edge Cloud Any Access 4G/5G, WiFi, LoRa Zero Touch Cloud automation Hybrid Cloud VM, K8S, Metal High Availability Easy to Use Fast deployment
- 10. Actuator reactivity 10 vEdge Gateway Slow backhaulprevents response to the actuator (e.g. sluice gate) within the 2 seconds window. Edge Computing : - LoRa Server – extended multi-access support - Sluice Gate Application – low-latency communication, data is synchronized between the edge and centralized application LoRa Server Sluice Gate

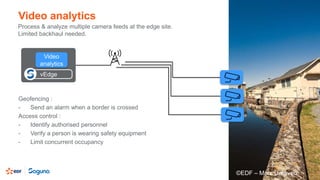

- 11. Video analytics Geofencing : -Send an alarm when a border is crossed Access control : - Identify authorised personnel - Verify a person is wearing safety equipment - Limit concurrent occupancy 11©EDF – Marc Caraveo vEdge Video analytics Process & analyze multiple camera feeds at the edge site. Limited backhaul needed.

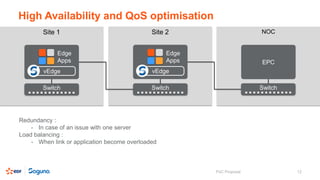

- 12. High Availability andQoS optimisation Redundancy : - In case of an issue with one server Load balancing : - When link or application become overloaded 12PoC Proposal Site 1 NOC vEdge Edge Apps EPC Switch Site 2 vEdge Edge Apps Switch Switch
