MCTS Guide to Configuring Microsoft Windows Server 2008 Active Directory Account Management
1. MCTS Guide to Configuring
Microsoft Windows Server 2008
Active Directory
Chapter 5: Account Management

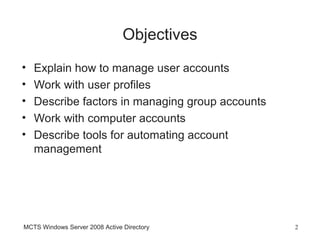

2. Objectives
• Explain how to manage user accounts
• Work with user profiles
• Describe factors in managing group accounts
• Work with computer accounts
• Describe tools for automating account
management
MCTS Windows Server 2008 Active Directory 2

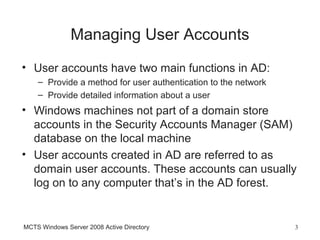

3. Managing User Accounts
• User accounts have two main functions in AD:
– Provide a method for user authentication to the network
– Provide detailed information about a user
• Windows machines not part of a domain store
accounts in the Security Accounts Manager (SAM)
database on the local machine
• User accounts created in AD are referred to as
domain user accounts. These accounts can usually
log on to any computer that’s in the AD forest.
MCTS Windows Server 2008 Active Directory 3

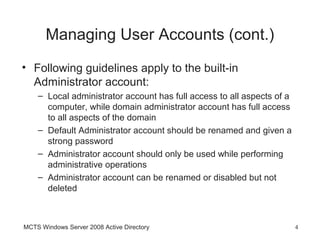

4. Managing User Accounts (cont.)
• Following guidelines apply to the built-in
Administrator account:
– Local administrator account has full access to all aspects of a
computer, while domain administrator account has full access
to all aspects of the domain
– Default Administrator account should be renamed and given a
strong password
– Administrator account should only be used while performing
administrative operations
– Administrator account can be renamed or disabled but not
deleted
MCTS Windows Server 2008 Active Directory 4

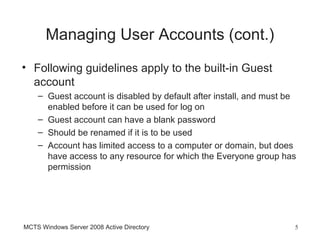

5. Managing User Accounts (cont.)
• Following guidelines apply to the built-in Guest
account
– Guest account is disabled by default after install, and must be
enabled before it can be used for log on
– Guest account can have a blank password
– Should be renamed if it is to be used
– Account has limited access to a computer or domain, but does
have access to any resource for which the Everyone group has
permission
MCTS Windows Server 2008 Active Directory 5

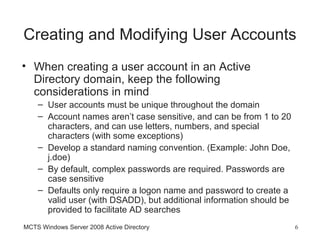

6. Creating and Modifying User Accounts
• When creating a user account in an Active
Directory domain, keep the following
considerations in mind
– User accounts must be unique throughout the domain
– Account names aren’t case sensitive, and can be from 1 to 20
characters, and can use letters, numbers, and special
characters (with some exceptions)
– Develop a standard naming convention. (Example: John Doe,
j.doe)
– By default, complex passwords are required. Passwords are
case sensitive
– Defaults only require a logon name and password to create a
valid user (with DSADD), but additional information should be
provided to facilitate AD searches
MCTS Windows Server 2008 Active Directory 6

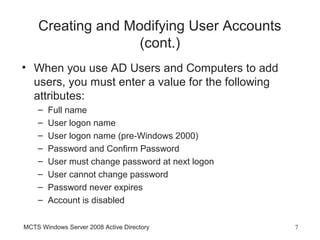

7. Creating and Modifying User Accounts
(cont.)
• When you use AD Users and Computers to add
users, you must enter a value for the following
attributes:
– Full name
– User logon name
– User logon name (pre-Windows 2000)
– Password and Confirm Password
– User must change password at next logon
– User cannot change password
– Password never expires
– Account is disabled
MCTS Windows Server 2008 Active Directory 7

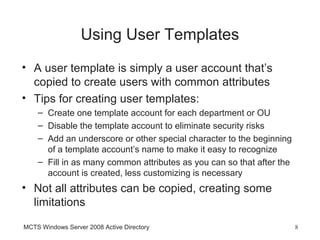

8. Using User Templates
• A user template is simply a user account that’s
copied to create users with common attributes
• Tips for creating user templates:
– Create one template account for each department or OU
– Disable the template account to eliminate security risks
– Add an underscore or other special character to the beginning
of a template account’s name to make it easy to recognize
– Fill in as many common attributes as you can so that after the
account is created, less customizing is necessary
• Not all attributes can be copied, creating some
limitations
MCTS Windows Server 2008 Active Directory 8

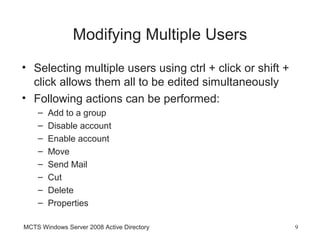

9. Modifying Multiple Users
• Selecting multiple users using ctrl + click or shift +
click allows them all to be edited simultaneously
• Following actions can be performed:
– Add to a group
– Disable account
– Enable account
– Move
– Send Mail
– Cut
– Delete
– Properties
MCTS Windows Server 2008 Active Directory 9

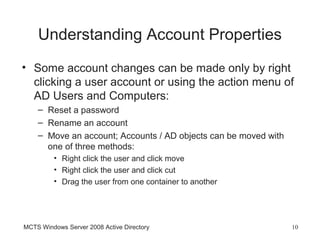

10. Understanding Account Properties
• Some account changes can be made only by right
clicking a user account or using the action menu of
AD Users and Computers:
– Reset a password
– Rename an account
– Move an account; Accounts / AD objects can be moved with
one of three methods:
• Right click the user and click move
• Right click the user and click cut
• Drag the user from one container to another
MCTS Windows Server 2008 Active Directory 10

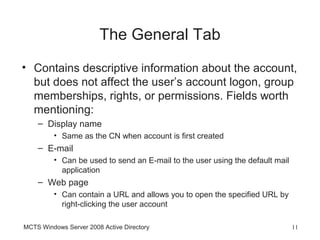

11. The General Tab
• Contains descriptive information about the account,
but does not affect the user’s account logon, group
memberships, rights, or permissions. Fields worth
mentioning:
– Display name
• Same as the CN when account is first created
– E-mail
• Can be used to send an E-mail to the user using the default mail
application
– Web page
• Can contain a URL and allows you to open the specified URL by
right-clicking the user account
MCTS Windows Server 2008 Active Directory 11

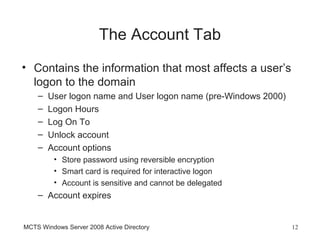

12. The Account Tab
• Contains the information that most affects a user’s
logon to the domain
– User logon name and User logon name (pre-Windows 2000)
– Logon Hours
– Log On To
– Unlock account
– Account options
• Store password using reversible encryption
• Smart card is required for interactive logon
• Account is sensitive and cannot be delegated
– Account expires
MCTS Windows Server 2008 Active Directory 12

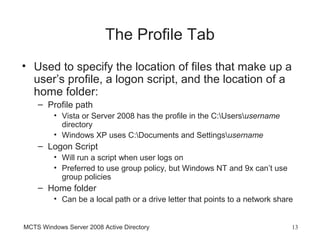

13. The Profile Tab
• Used to specify the location of files that make up a
user’s profile, a logon script, and the location of a
home folder:
– Profile path
• Vista or Server 2008 has the profile in the C:Usersusername
directory
• Windows XP uses C:Documents and Settingsusername
– Logon Script
• Will run a script when user logs on
• Preferred to use group policy, but Windows NT and 9x can’t use
group policies
– Home folder
• Can be a local path or a drive letter that points to a network share
MCTS Windows Server 2008 Active Directory 13

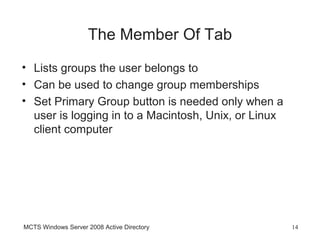

14. The Member Of Tab
• Lists groups the user belongs to
• Can be used to change group memberships
• Set Primary Group button is needed only when a
user is logging in to a Macintosh, Unix, or Linux
client computer
MCTS Windows Server 2008 Active Directory 14

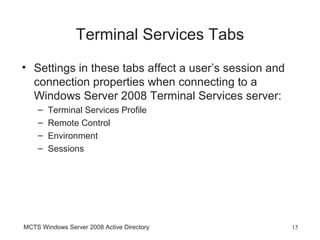

15. Terminal Services Tabs
• Settings in these tabs affect a user’s session and
connection properties when connecting to a
Windows Server 2008 Terminal Services server:
– Terminal Services Profile
– Remote Control
– Environment
– Sessions
MCTS Windows Server 2008 Active Directory 15

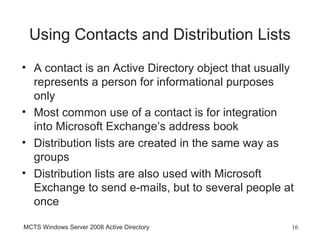

16. Using Contacts and Distribution Lists
• A contact is an Active Directory object that usually
represents a person for informational purposes
only
• Most common use of a contact is for integration
into Microsoft Exchange’s address book
• Distribution lists are created in the same way as
groups
• Distribution lists are also used with Microsoft
Exchange to send e-mails, but to several people at
once
MCTS Windows Server 2008 Active Directory 16

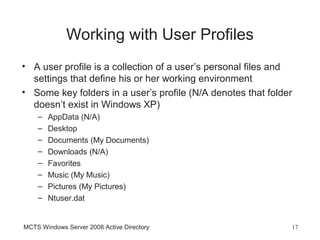

17. Working with User Profiles
• A user profile is a collection of a user’s personal files and
settings that define his or her working environment
• Some key folders in a user’s profile (N/A denotes that folder
doesn’t exist in Windows XP)
– AppData (N/A)
– Desktop
– Documents (My Documents)
– Downloads (N/A)
– Favorites
– Music (My Music)
– Pictures (My Pictures)
– Ntuser.dat
MCTS Windows Server 2008 Active Directory 17

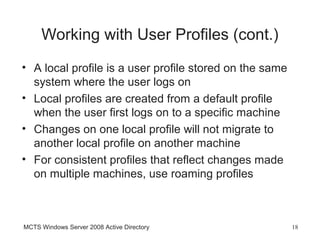

18. Working with User Profiles (cont.)
• A local profile is a user profile stored on the same
system where the user logs on
• Local profiles are created from a default profile
when the user first logs on to a specific machine
• Changes on one local profile will not migrate to
another local profile on another machine
• For consistent profiles that reflect changes made
on multiple machines, use roaming profiles
MCTS Windows Server 2008 Active Directory 18

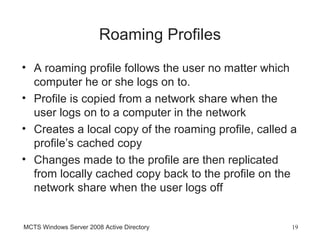

19. Roaming Profiles
• A roaming profile follows the user no matter which
computer he or she logs on to.
• Profile is copied from a network share when the
user logs on to a computer in the network
• Creates a local copy of the roaming profile, called a
profile’s cached copy
• Changes made to the profile are then replicated
from locally cached copy back to the profile on the
network share when the user logs off
MCTS Windows Server 2008 Active Directory 19

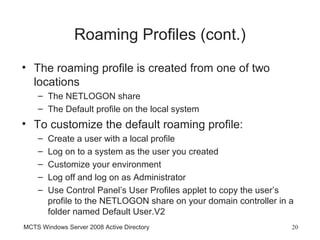

20. Roaming Profiles (cont.)
• The roaming profile is created from one of two
locations
– The NETLOGON share
– The Default profile on the local system
• To customize the default roaming profile:
– Create a user with a local profile
– Log on to a system as the user you created
– Customize your environment
– Log off and log on as Administrator
– Use Control Panel’s User Profiles applet to copy the user’s
profile to the NETLOGON share on your domain controller in a
folder named Default User.V2
MCTS Windows Server 2008 Active Directory 20

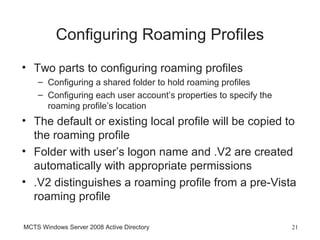

21. Configuring Roaming Profiles
• Two parts to configuring roaming profiles
– Configuring a shared folder to hold roaming profiles
– Configuring each user account’s properties to specify the
roaming profile’s location
• The default or existing local profile will be copied to
the roaming profile
• Folder with user’s logon name and .V2 are created
automatically with appropriate permissions
• .V2 distinguishes a roaming profile from a pre-Vista
roaming profile
MCTS Windows Server 2008 Active Directory 21

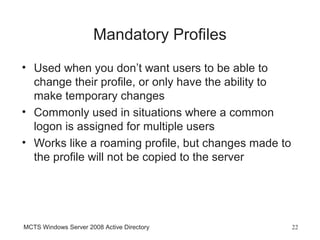

22. Mandatory Profiles
• Used when you don’t want users to be able to
change their profile, or only have the ability to
make temporary changes
• Commonly used in situations where a common
logon is assigned for multiple users
• Works like a roaming profile, but changes made to
the profile will not be copied to the server
MCTS Windows Server 2008 Active Directory 22

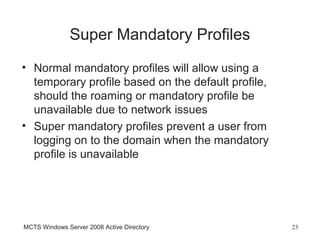

23. Super Mandatory Profiles
• Normal mandatory profiles will allow using a
temporary profile based on the default profile,
should the roaming or mandatory profile be
unavailable due to network issues
• Super mandatory profiles prevent a user from
logging on to the domain when the mandatory
profile is unavailable
MCTS Windows Server 2008 Active Directory 23
24. Managing Profiles
• Profiles can be managed in the User Profiles dialog
box with these three buttons:
– Change Type
– Delete
– Copy To
• Many aspects of a user’s profile can be managed
by using group policies
MCTS Windows Server 2008 Active Directory 24

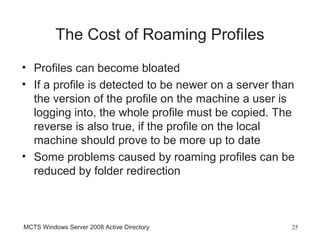

25. The Cost of Roaming Profiles
• Profiles can become bloated
• If a profile is detected to be newer on a server than
the version of the profile on the machine a user is
logging into, the whole profile must be copied. The
reverse is also true, if the profile on the local
machine should prove to be more up to date
• Some problems caused by roaming profiles can be
reduced by folder redirection
MCTS Windows Server 2008 Active Directory 25

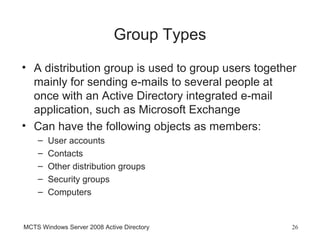

26. Group Types
• A distribution group is used to group users together
mainly for sending e-mails to several people at
once with an Active Directory integrated e-mail
application, such as Microsoft Exchange
• Can have the following objects as members:
– User accounts
– Contacts
– Other distribution groups
– Security groups
– Computers
MCTS Windows Server 2008 Active Directory 26

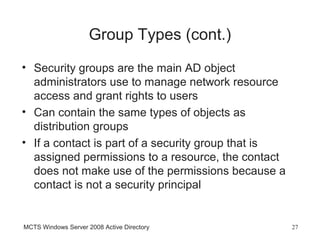

27. Group Types (cont.)
• Security groups are the main AD object
administrators use to manage network resource
access and grant rights to users
• Can contain the same types of objects as
distribution groups
• If a contact is part of a security group that is
assigned permissions to a resource, the contact
does not make use of the permissions because a
contact is not a security principal
MCTS Windows Server 2008 Active Directory 27

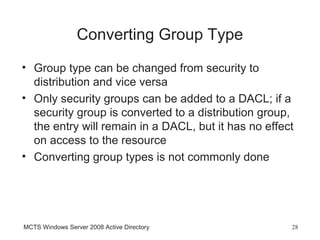

28. Converting Group Type
• Group type can be changed from security to
distribution and vice versa
• Only security groups can be added to a DACL; if a
security group is converted to a distribution group,
the entry will remain in a DACL, but it has no effect
on access to the resource
• Converting group types is not commonly done
MCTS Windows Server 2008 Active Directory 28

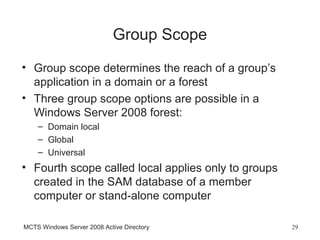

29. Group Scope
• Group scope determines the reach of a group’s
application in a domain or a forest
• Three group scope options are possible in a
Windows Server 2008 forest:
– Domain local
– Global
– Universal
• Fourth scope called local applies only to groups
created in the SAM database of a member
computer or stand-alone computer
MCTS Windows Server 2008 Active Directory 29
31. Domain Local Groups
• A domain local group is the main security principal
recommended for assigning rights and permissions
to domain resources
• Global and Universal groups can be used for same
purpose, but Microsoft best practices recommend
using these groups to aggregate users with similar
access or rights requirements
MCTS Windows Server 2008 Active Directory 31

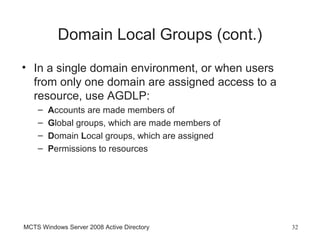

32. Domain Local Groups (cont.)
• In a single domain environment, or when users
from only one domain are assigned access to a
resource, use AGDLP:
– Accounts are made members of
– Global groups, which are made members of
– Domain Local groups, which are assigned
– Permissions to resources
MCTS Windows Server 2008 Active Directory 32

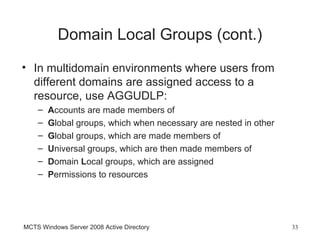

33. Domain Local Groups (cont.)
• In multidomain environments where users from
different domains are assigned access to a
resource, use AGGUDLP:
– Accounts are made members of
– Global groups, which when necessary are nested in other
– Global groups, which are made members of
– Universal groups, which are then made members of
– Domain Local groups, which are assigned
– Permissions to resources
MCTS Windows Server 2008 Active Directory 33

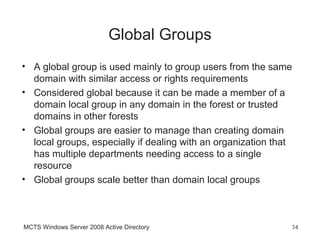

34. Global Groups
• A global group is used mainly to group users from the same
domain with similar access or rights requirements
• Considered global because it can be made a member of a
domain local group in any domain in the forest or trusted
domains in other forests
• Global groups are easier to manage than creating domain
local groups, especially if dealing with an organization that
has multiple departments needing access to a single
resource
• Global groups scale better than domain local groups
MCTS Windows Server 2008 Active Directory 34

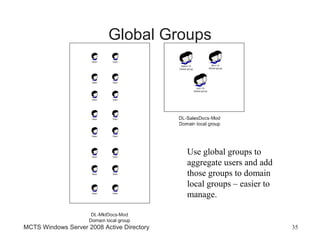

35. Global Groups
Use global groups to
aggregate users and add
those groups to domain
local groups – easier to
manage.
MCTS Windows Server 2008 Active Directory 35

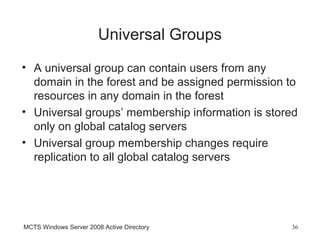

36. Universal Groups
• A universal group can contain users from any
domain in the forest and be assigned permission to
resources in any domain in the forest
• Universal groups’ membership information is stored
only on global catalog servers
• Universal group membership changes require
replication to all global catalog servers
MCTS Windows Server 2008 Active Directory 36

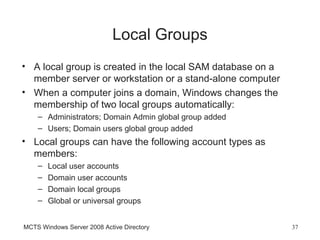

37. Local Groups
• A local group is created in the local SAM database on a
member server or workstation or a stand-alone computer
• When a computer joins a domain, Windows changes the
membership of two local groups automatically:
– Administrators; Domain Admin global group added
– Users; Domain users global group added
• Local groups can have the following account types as
members:
– Local user accounts
– Domain user accounts
– Domain local groups
– Global or universal groups
MCTS Windows Server 2008 Active Directory 37

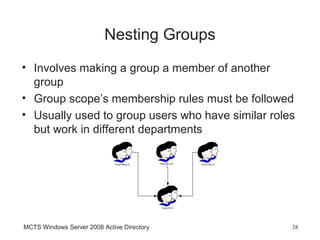

38. Nesting Groups
• Involves making a group a member of another
group
• Group scope’s membership rules must be followed
• Usually used to group users who have similar roles
but work in different departments
MCTS Windows Server 2008 Active Directory 38
39. Converting Group Scope
• Group scope can be converted, with some
restrictions:
– Universal to domain local, provided it’s not a member of
another universal group
– Universal to global, provided no universal group is a member
– Global to universal, provided it’s not a member of another
global group
– Domain local to universal, provided no domain local group is a
member
MCTS Windows Server 2008 Active Directory 39

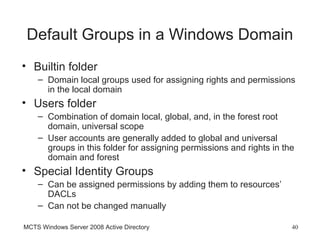

40. Default Groups in a Windows Domain
• Builtin folder
– Domain local groups used for assigning rights and permissions
in the local domain
• Users folder
– Combination of domain local, global, and, in the forest root
domain, universal scope
– User accounts are generally added to global and universal
groups in this folder for assigning permissions and rights in the
domain and forest
• Special Identity Groups
– Can be assigned permissions by adding them to resources’
DACLs
– Can not be changed manually
MCTS Windows Server 2008 Active Directory 40

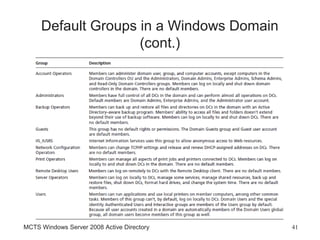

41. Default Groups in a Windows Domain
(cont.)
MCTS Windows Server 2008 Active Directory 41

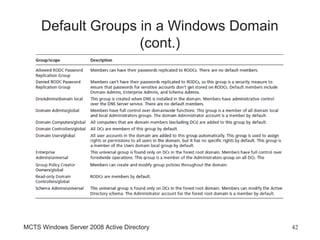

42. Default Groups in a Windows Domain
(cont.)
MCTS Windows Server 2008 Active Directory 42
43. Default Groups in a Windows Domain
(cont.)
MCTS Windows Server 2008 Active Directory 43

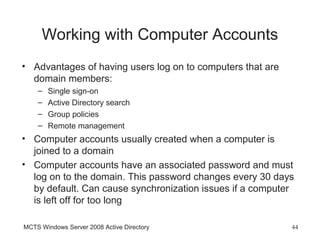

44. Working with Computer Accounts
• Advantages of having users log on to computers that are
domain members:
– Single sign-on
– Active Directory search
– Group policies
– Remote management
• Computer accounts usually created when a computer is
joined to a domain
• Computer accounts have an associated password and must
log on to the domain. This password changes every 30 days
by default. Can cause synchronization issues if a computer
is left off for too long
MCTS Windows Server 2008 Active Directory 44

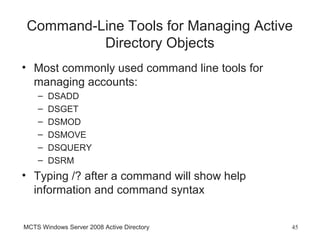

45. Command-Line Tools for Managing Active
Directory Objects
• Most commonly used command line tools for
managing accounts:
– DSADD
– DSGET
– DSMOD
– DSMOVE
– DSQUERY
– DSRM
• Typing /? after a command will show help
information and command syntax
MCTS Windows Server 2008 Active Directory 45

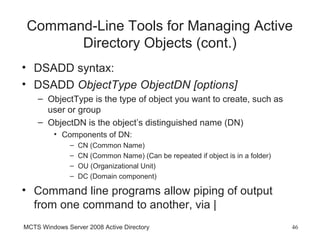

46. Command-Line Tools for Managing Active
Directory Objects (cont.)
• DSADD syntax:
• DSADD ObjectType ObjectDN [options]
– ObjectType is the type of object you want to create, such as
user or group
– ObjectDN is the object’s distinguished name (DN)
• Components of DN:
– CN (Common Name)
– CN (Common Name) (Can be repeated if object is in a folder)
– OU (Organizational Unit)
– DC (Domain component)
• Command line programs allow piping of output
from one command to another, via |
MCTS Windows Server 2008 Active Directory 46

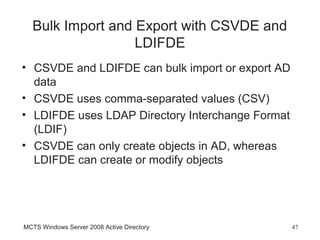

47. Bulk Import and Export with CSVDE and
LDIFDE
• CSVDE and LDIFDE can bulk import or export AD
data
• CSVDE uses comma-separated values (CSV)
• LDIFDE uses LDAP Directory Interchange Format
(LDIF)
• CSVDE can only create objects in AD, whereas
LDIFDE can create or modify objects
MCTS Windows Server 2008 Active Directory 47

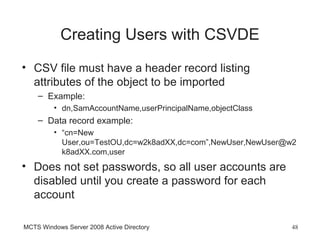

48. Creating Users with CSVDE
• CSV file must have a header record listing
attributes of the object to be imported
– Example:
• dn,SamAccountName,userPrincipalName,objectClass
– Data record example:
• “cn=New
User,ou=TestOU,dc=w2k8adXX,dc=com”,NewUser,NewUser@w2
k8adXX.com,user
• Does not set passwords, so all user accounts are
disabled until you create a password for each
account
MCTS Windows Server 2008 Active Directory 48

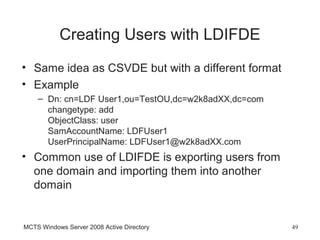

49. Creating Users with LDIFDE
• Same idea as CSVDE but with a different format
• Example
– Dn: cn=LDF User1,ou=TestOU,dc=w2k8adXX,dc=com
changetype: add
ObjectClass: user
SamAccountName: LDFUser1
UserPrincipalName: LDFUser1@w2k8adXX.com
• Common use of LDIFDE is exporting users from
one domain and importing them into another
domain
MCTS Windows Server 2008 Active Directory 49

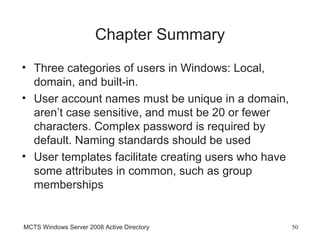

50. Chapter Summary
• Three categories of users in Windows: Local,
domain, and built-in.
• User account names must be unique in a domain,
aren’t case sensitive, and must be 20 or fewer
characters. Complex password is required by
default. Naming standards should be used
• User templates facilitate creating users who have
some attributes in common, such as group
memberships
MCTS Windows Server 2008 Active Directory 50

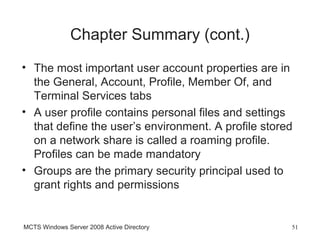

51. Chapter Summary (cont.)
• The most important user account properties are in
the General, Account, Profile, Member Of, and
Terminal Services tabs
• A user profile contains personal files and settings
that define the user’s environment. A profile stored
on a network share is called a roaming profile.
Profiles can be made mandatory
• Groups are the primary security principal used to
grant rights and permissions
MCTS Windows Server 2008 Active Directory 51
52. Chapter Summary (cont.)
• Three group scopes in Active Directory: domain
local, global, and universal. The recommended use
of groups can be summarized with the acronyms
AGDLP and AGGUDLP
• Computers that are domain members have
computer accounts in Active Directory
• Computer accounts are created automatically when
a computer joins a domain or manually by an
administrator
• Account management can be automated by
command line tools such as DSADD
MCTS Windows Server 2008 Active Directory 52
