Solutions to the problem of gathering and processing data in large-scale wireless sensor networks in the industrial IoT. The rapid growth of wireless SCADA networks based on technologies like LoRa and 6LoWPAN has given birth to the problem of gathering and processing data from thousands of sensors and replicating this data to the cloud and to devices based on ARMv7+. This report addresses ways and methods of solving this problem, including solutions for low-speed gateways and devices in industrial IoT networks.

1. Vasiliy Soshnikov, Sr. Software Engineer, Mail.Ru Group

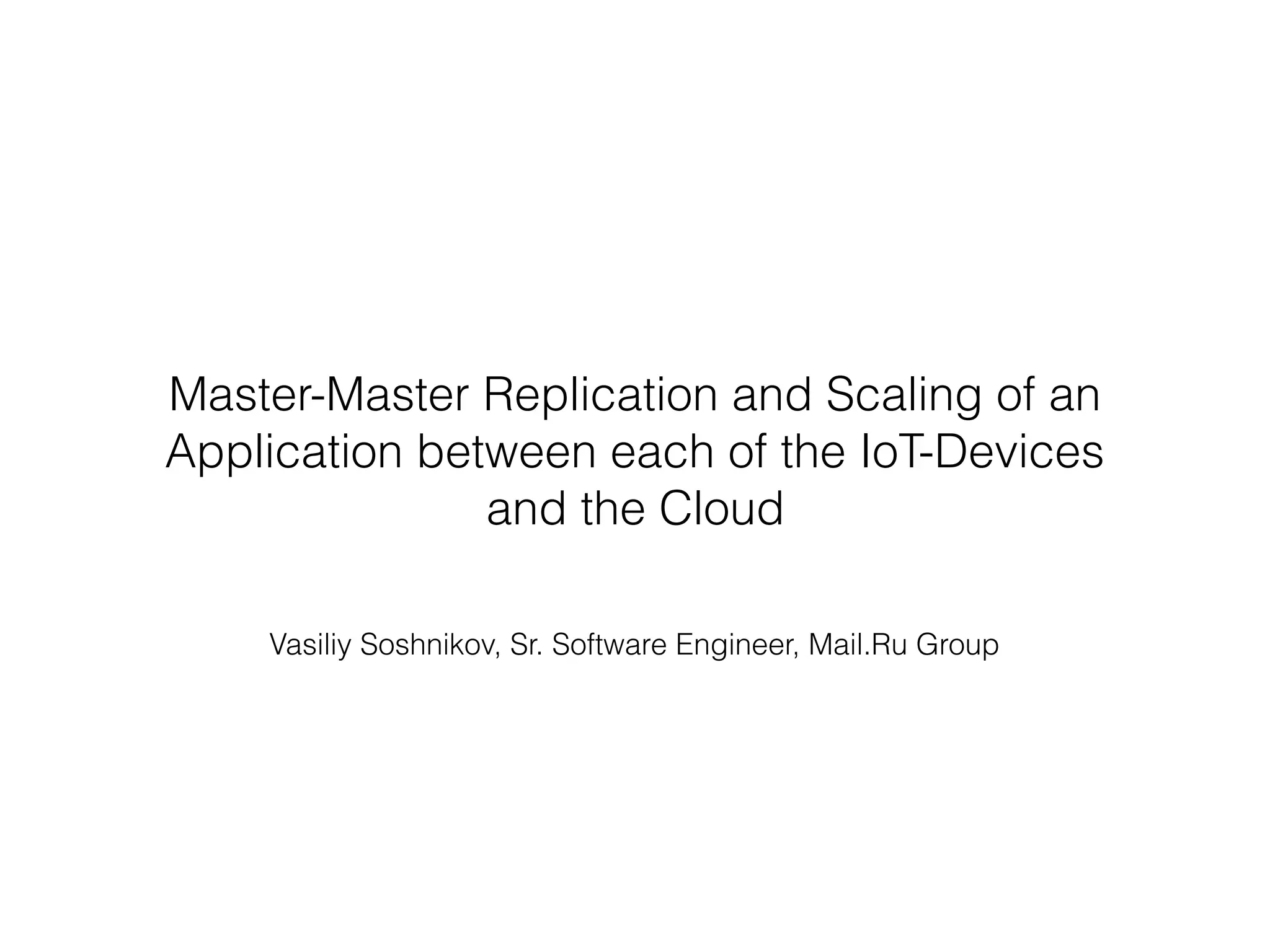

Master-Master Replication and Scaling of an
Application between each of the IoT-Devices
and the Cloud

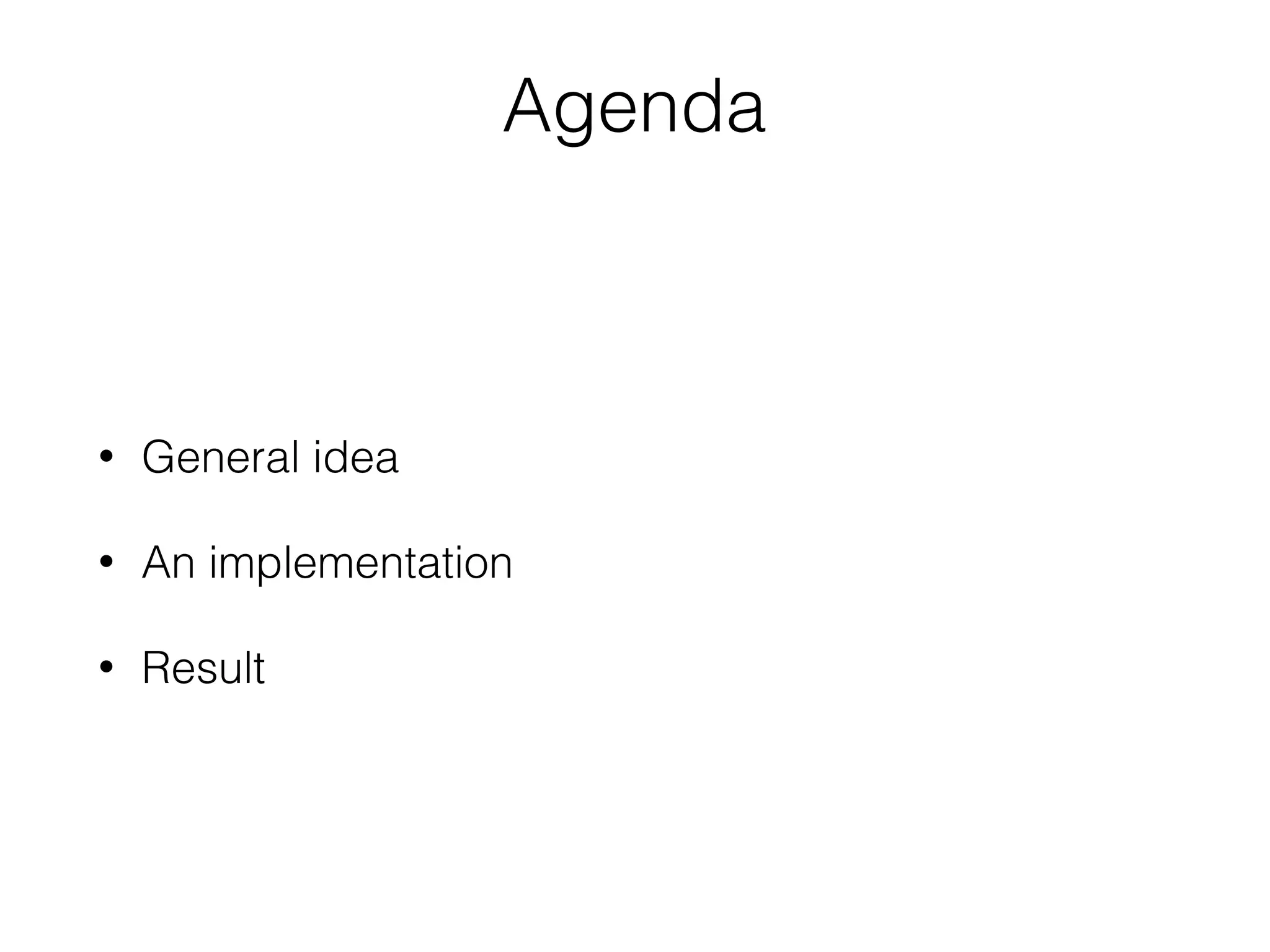

2. Agenda
• General idea
• An implementation
• Result

3. General idea

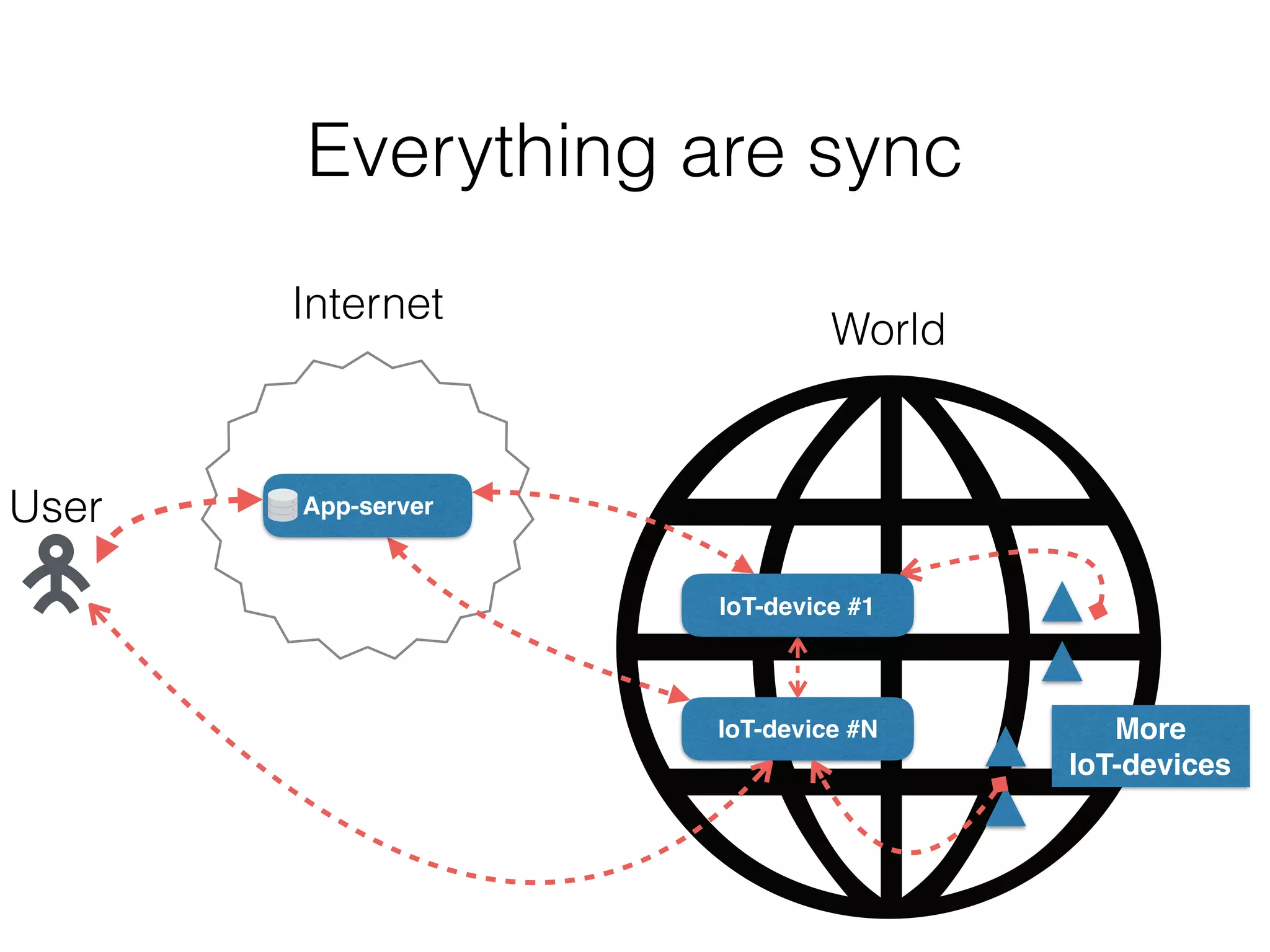

4. Everything are sync
App-server
IoT-device #1
IoT-device #N
Internet
World
More
IoT-devices
User

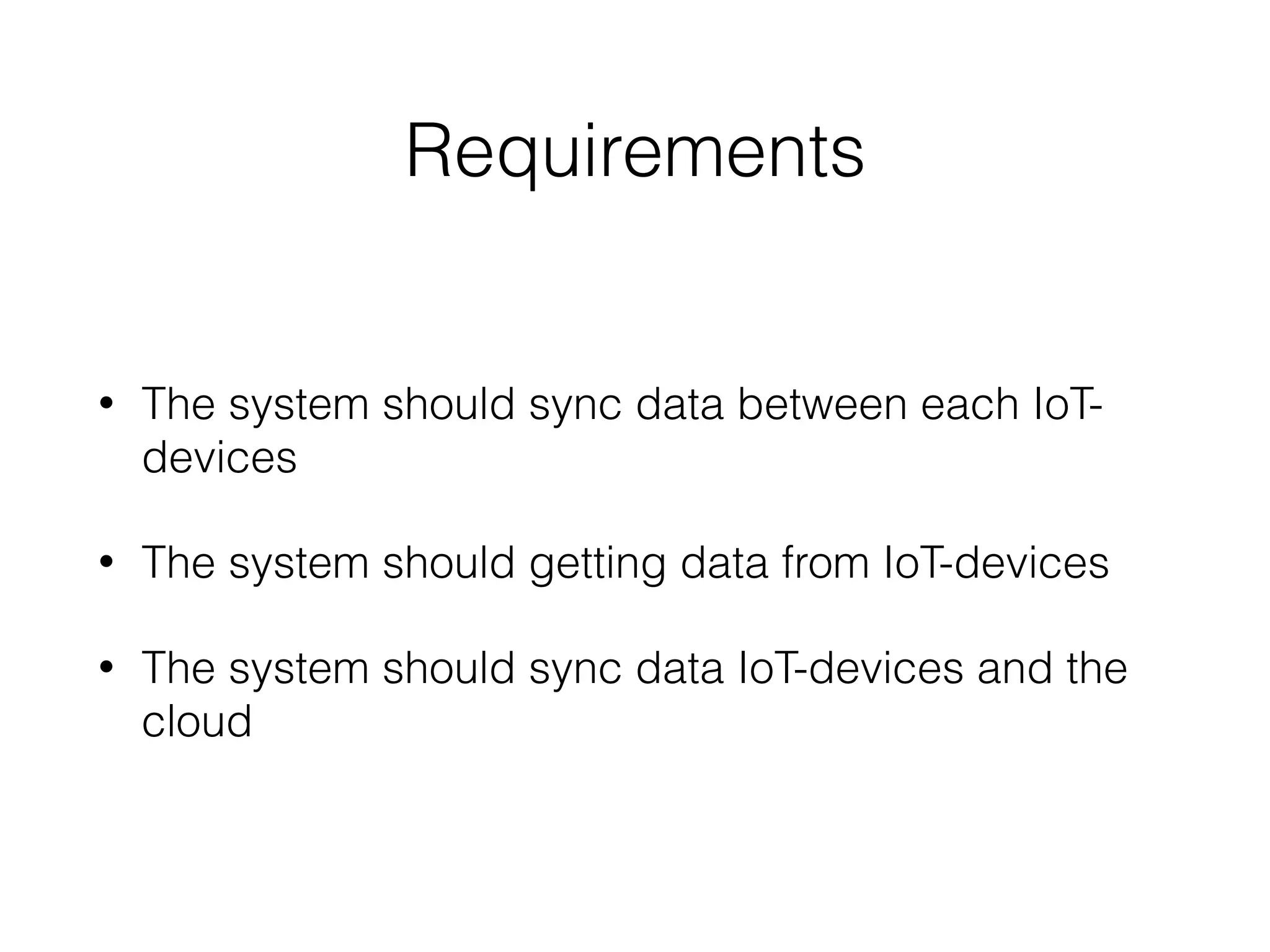

5. Requirements
• The system should sync data between each IoT-
devices
• The system should getting data from IoT-devices
• The system should sync data IoT-devices and the
cloud

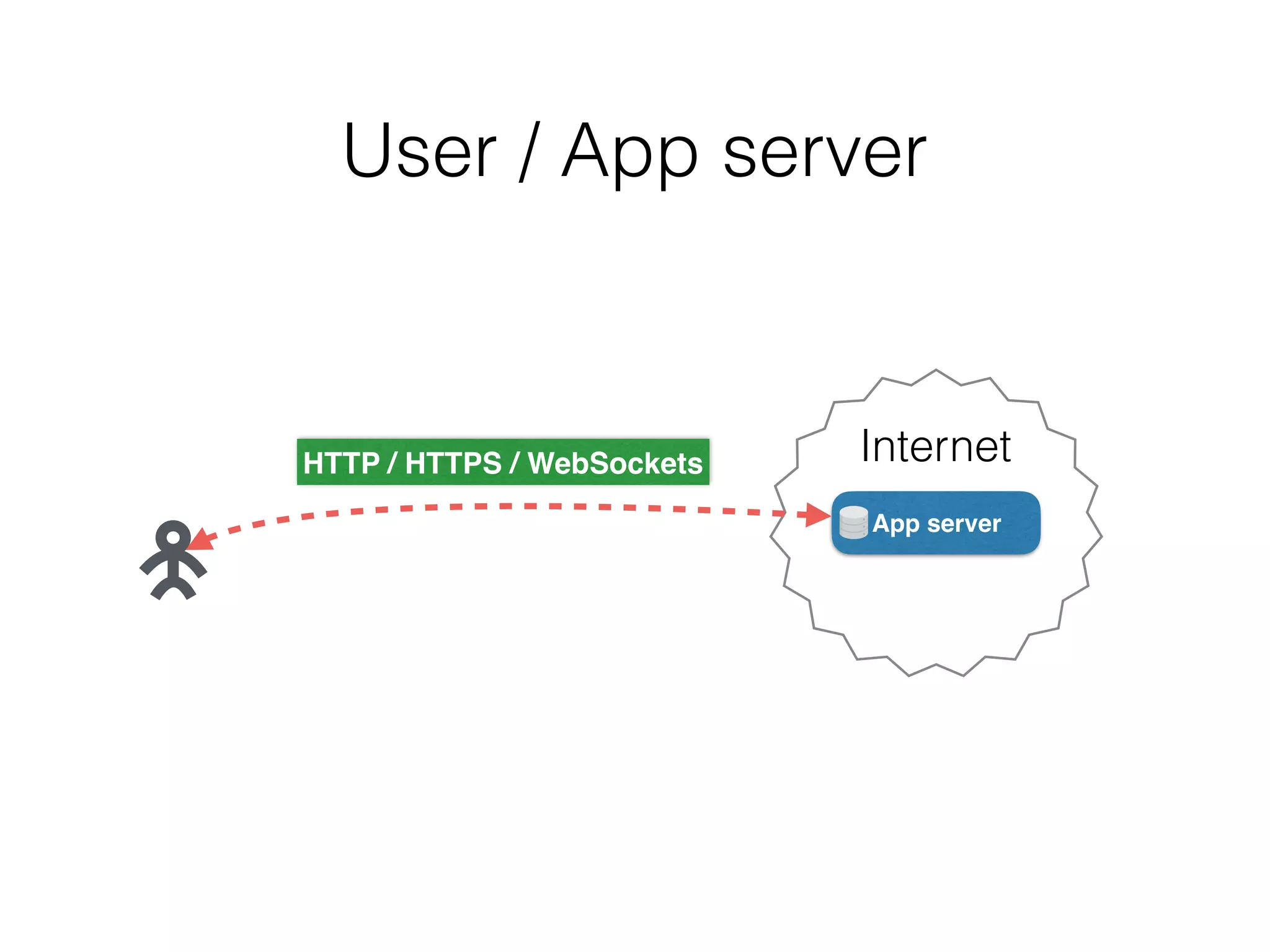

6. User / App server
App server
HTTP / HTTPS / WebSockets Internet

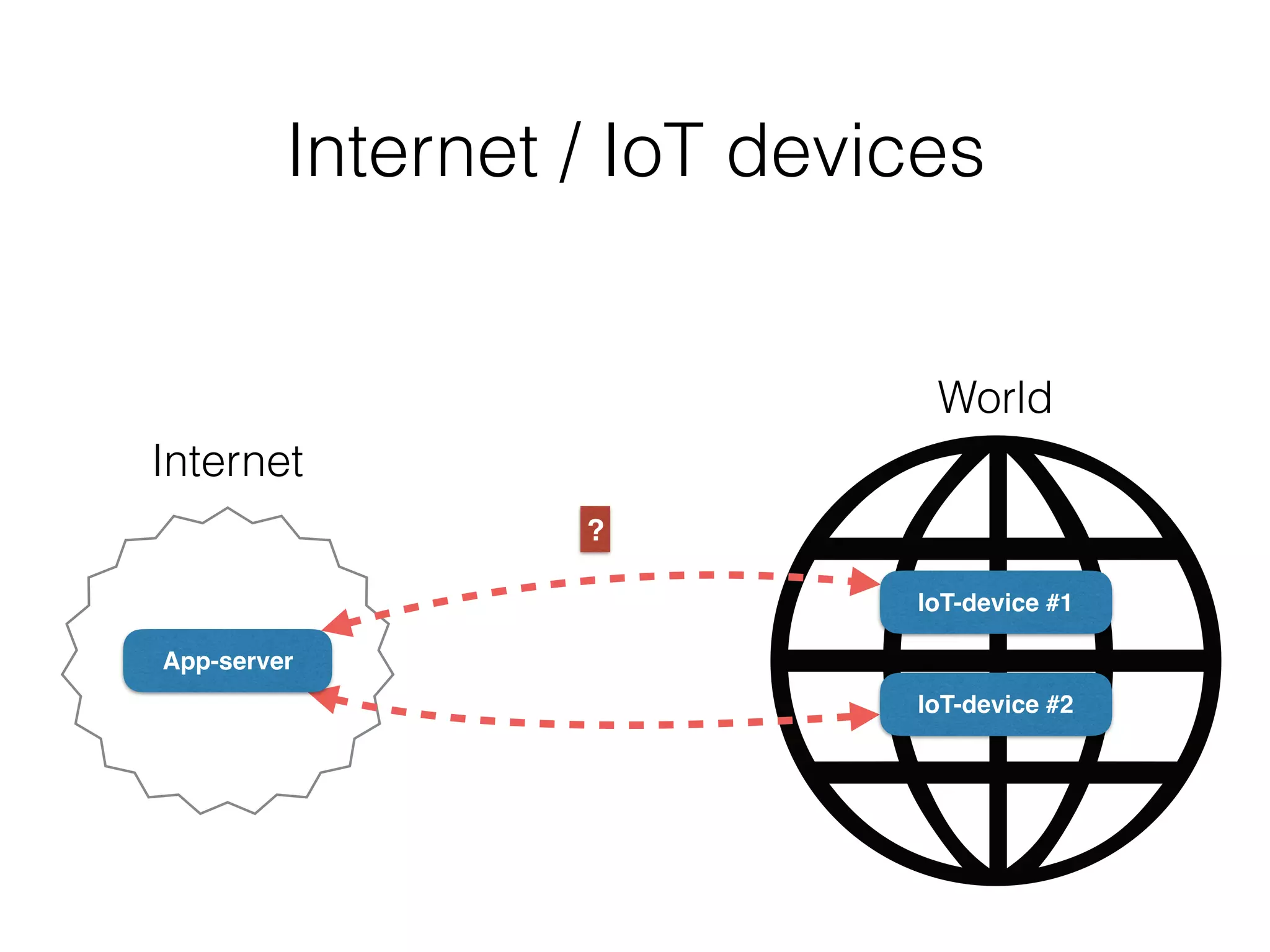

7. Internet / IoT devices
App-server
IoT-device #1
IoT-device #2
Internet
World
?

8. Internet / IoT devices
App-server
IoT-device #1
IoT-device #2
Internet
World

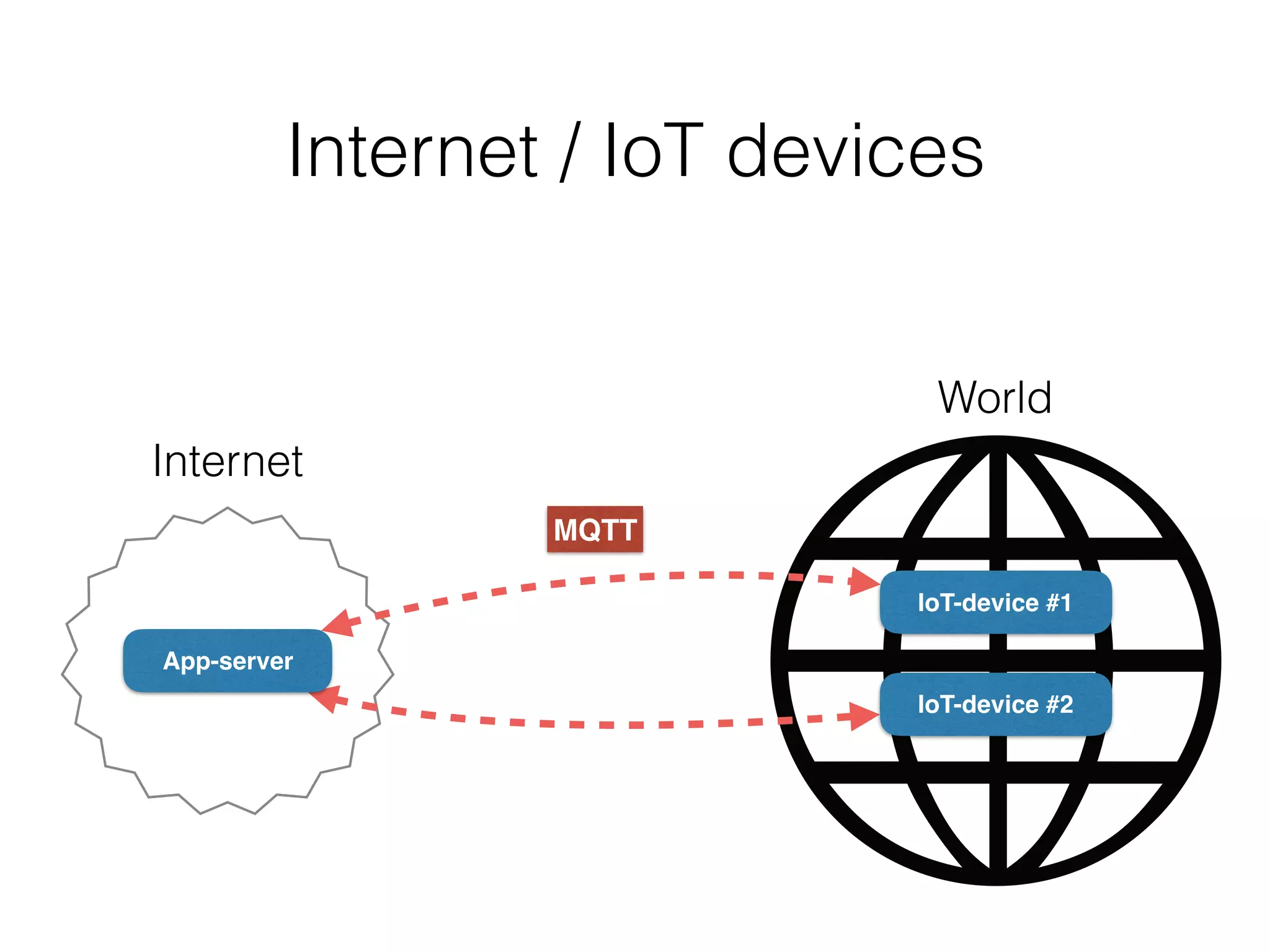

MQTT

9. Internet / IoT devices
App-server
IoT-device #1
IoT-device #2
Internet
World
Even HTTP(S)

10. Internet / IoT devices
App-server
IoT-device #1
IoT-device #2
Internet
World

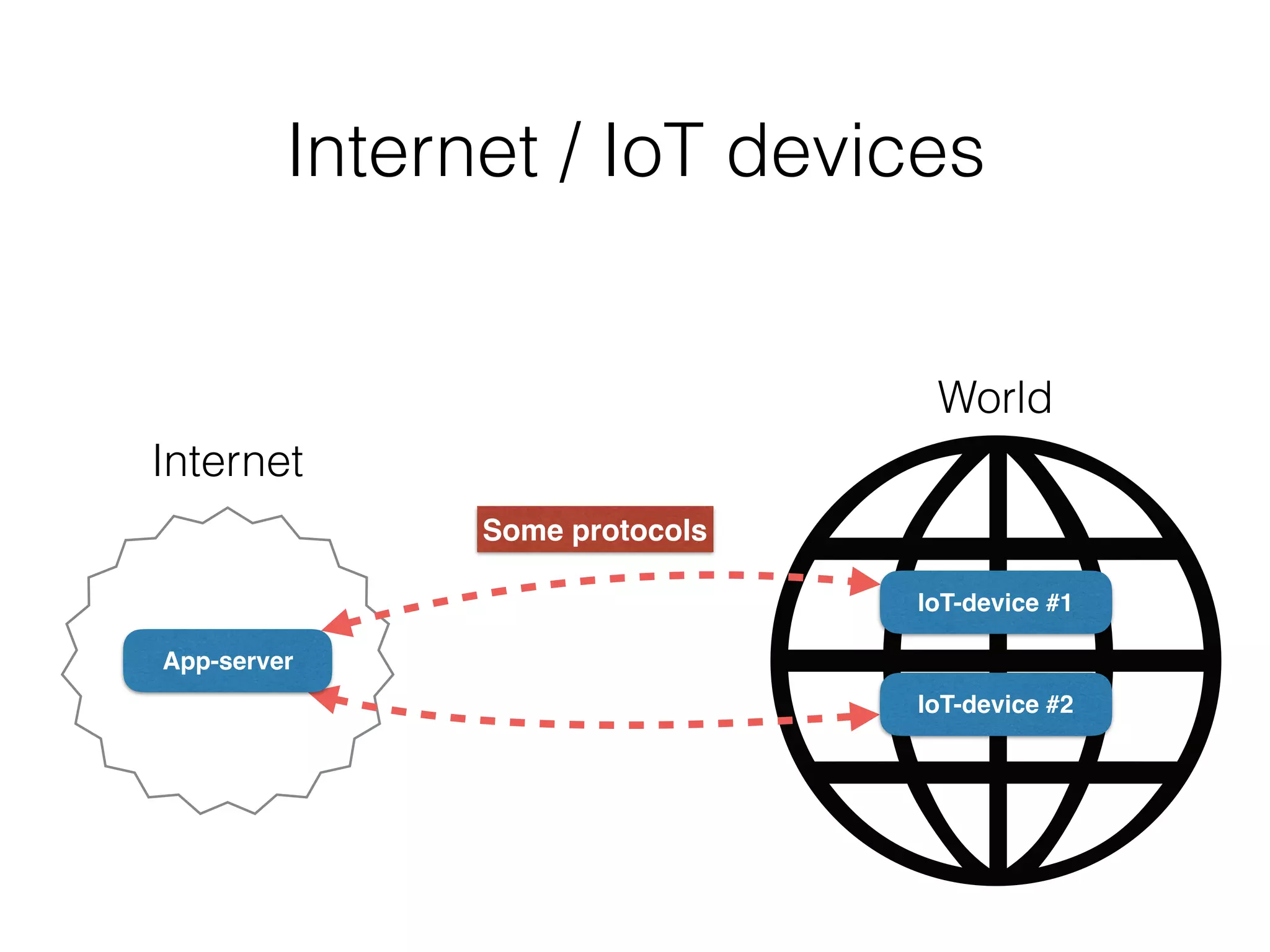

Some protocols

11. Internet / IoT devices
App-server
IoT-device #1
IoT-device #2
Internet
World

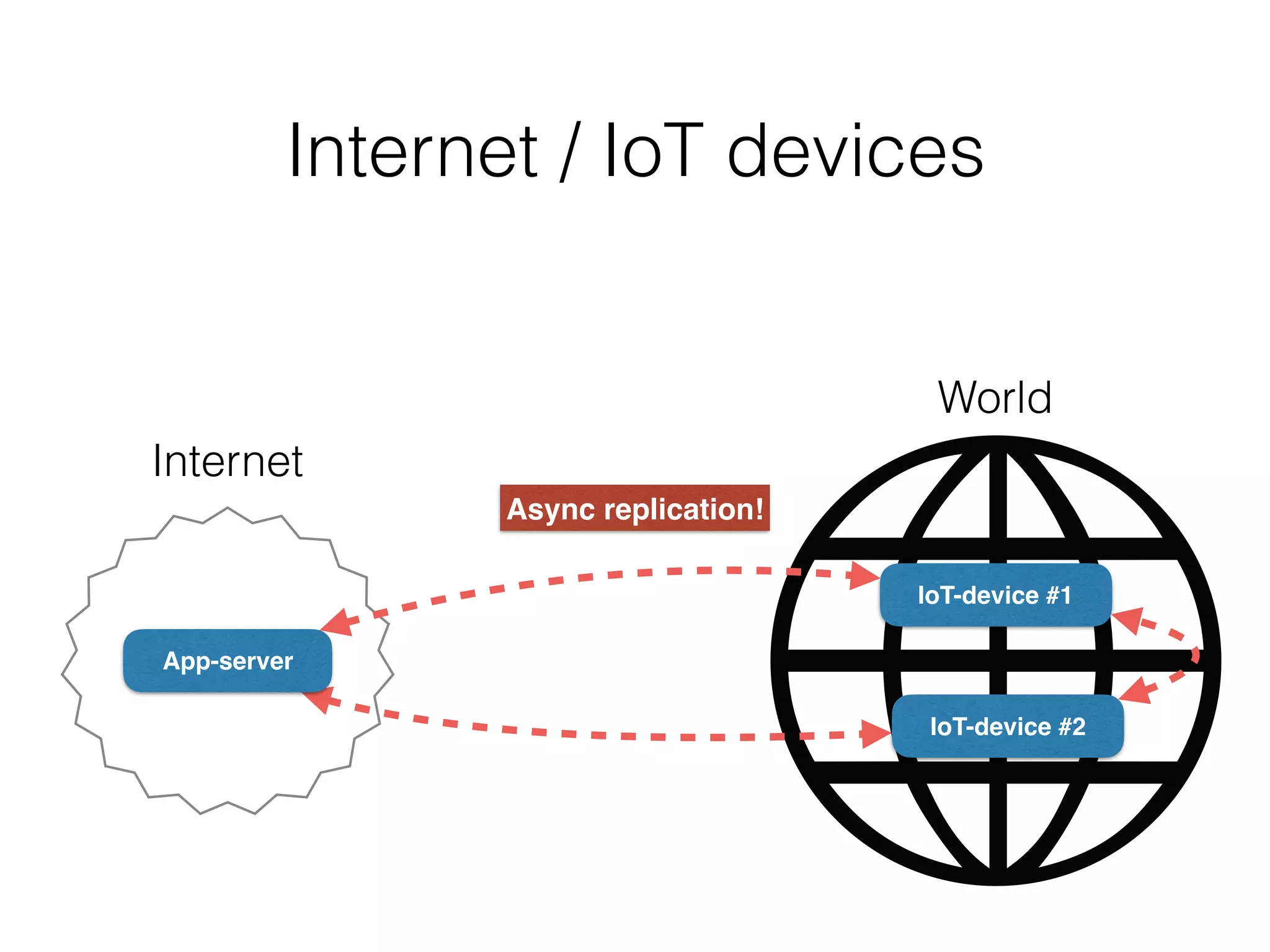

Async replication!

12. Async replication
• Replication - everywhere we have the same
dataset!
• Most of databases include Replication

13. Few words about databases

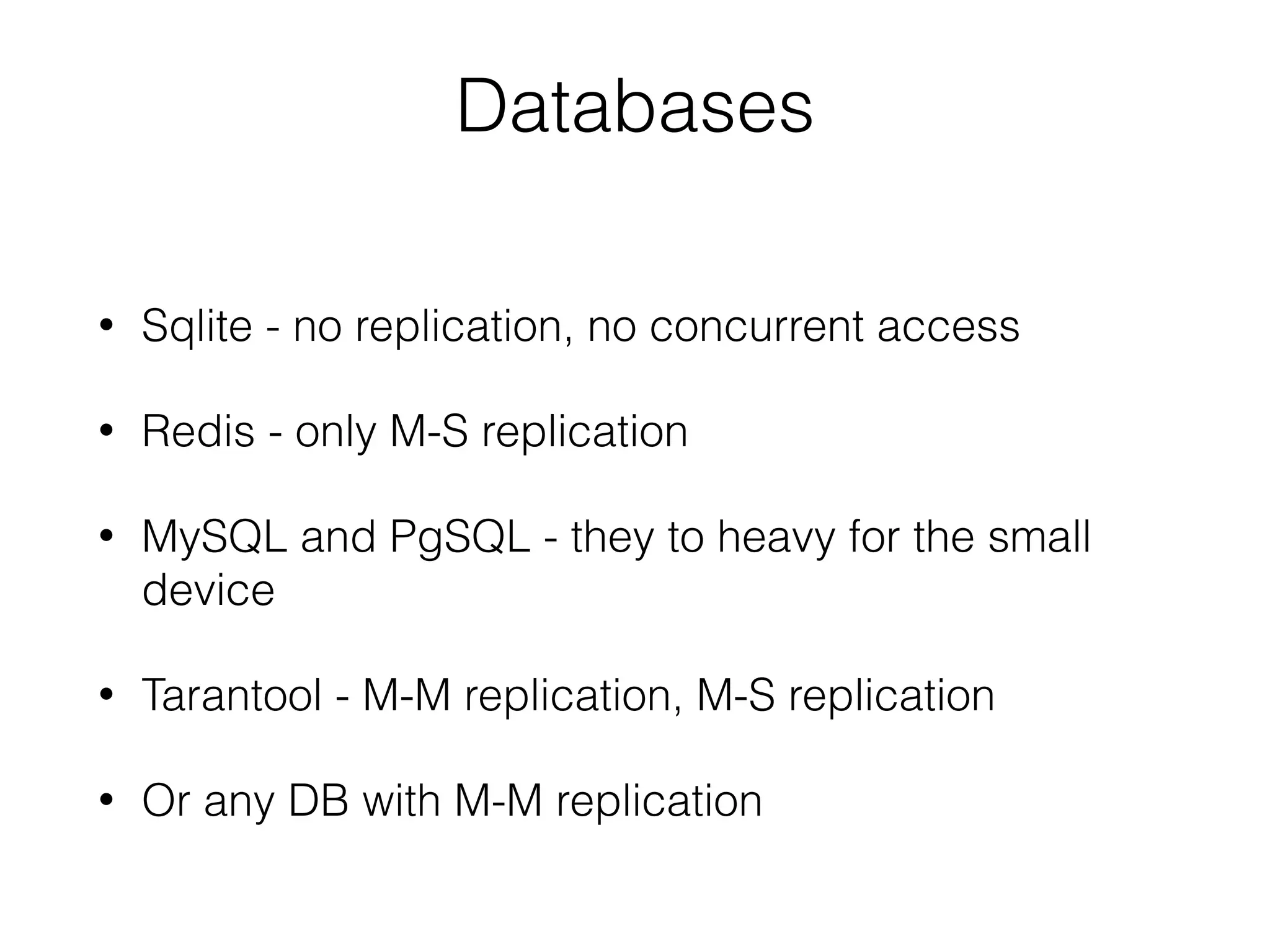

14. Databases
• Sqlite - no replication, no concurrent access
• Redis - only M-S replication
• MySQL and PgSQL - they to heavy for the small
device
• Tarantool - M-M replication, M-S replication
• Or any DB with M-M replication

15. An implementation

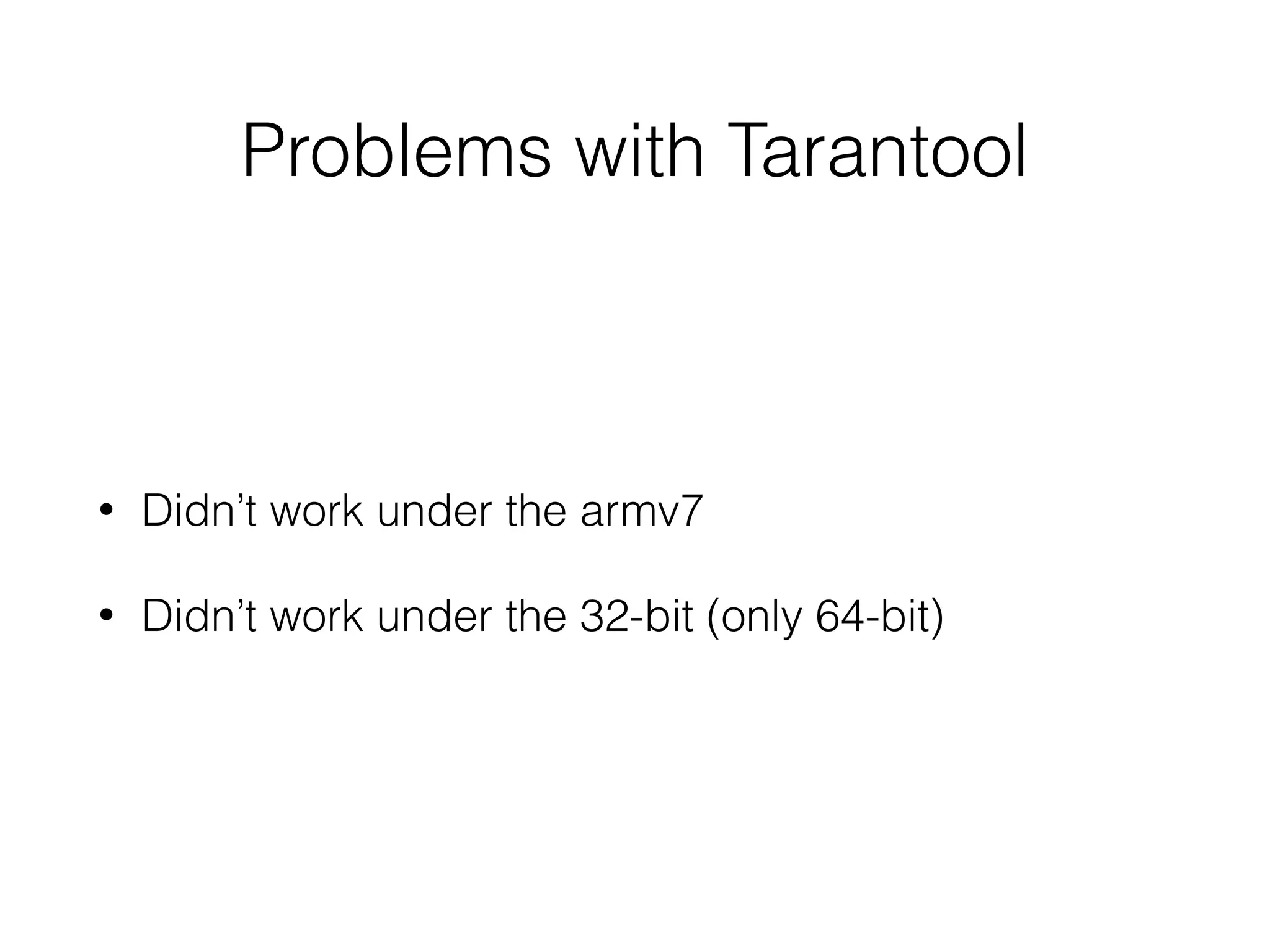

16. Problems with Tarantool

17. Problems with Tarantool
• Didn’t work under the armv7
• Didn’t work under the 32-bit (only 64-bit)

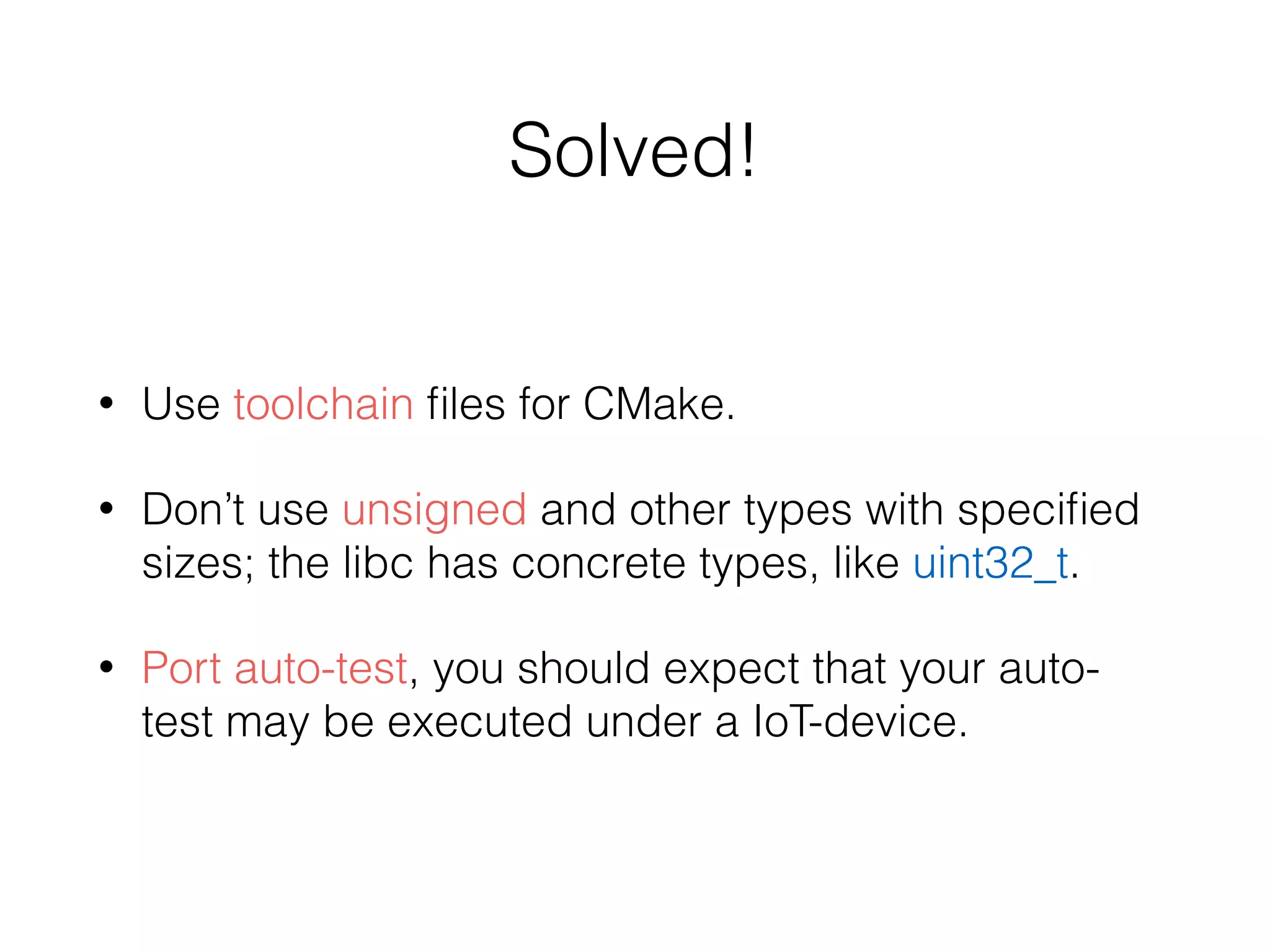

18. Solved!
• Use toolchain files for CMake.
• Don’t use unsigned and other types with specified
sizes; the libc has concrete types, like uint32_t.
• Port auto-test, you should expect that your auto-
test may be executed under a IoT-device.

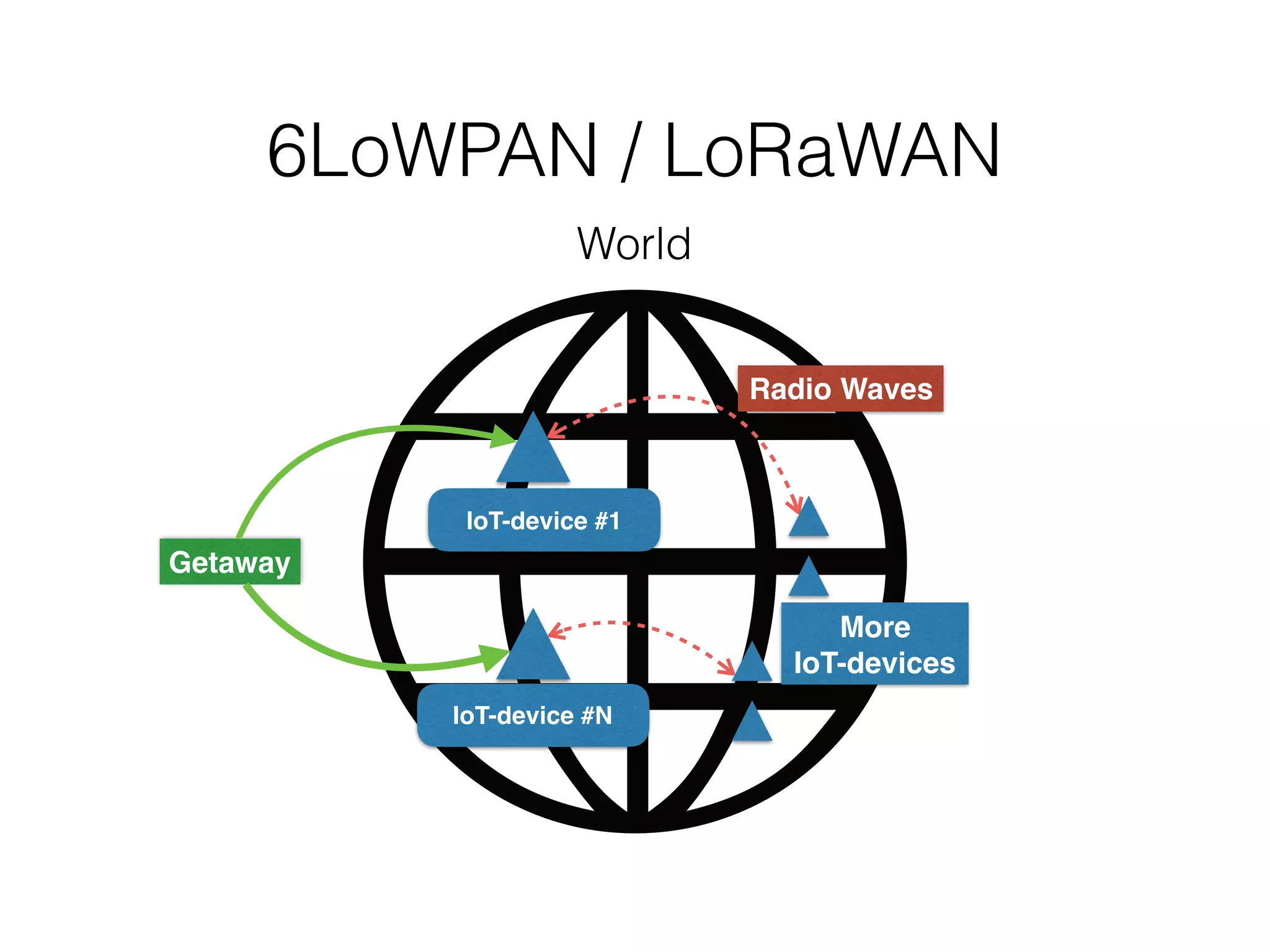

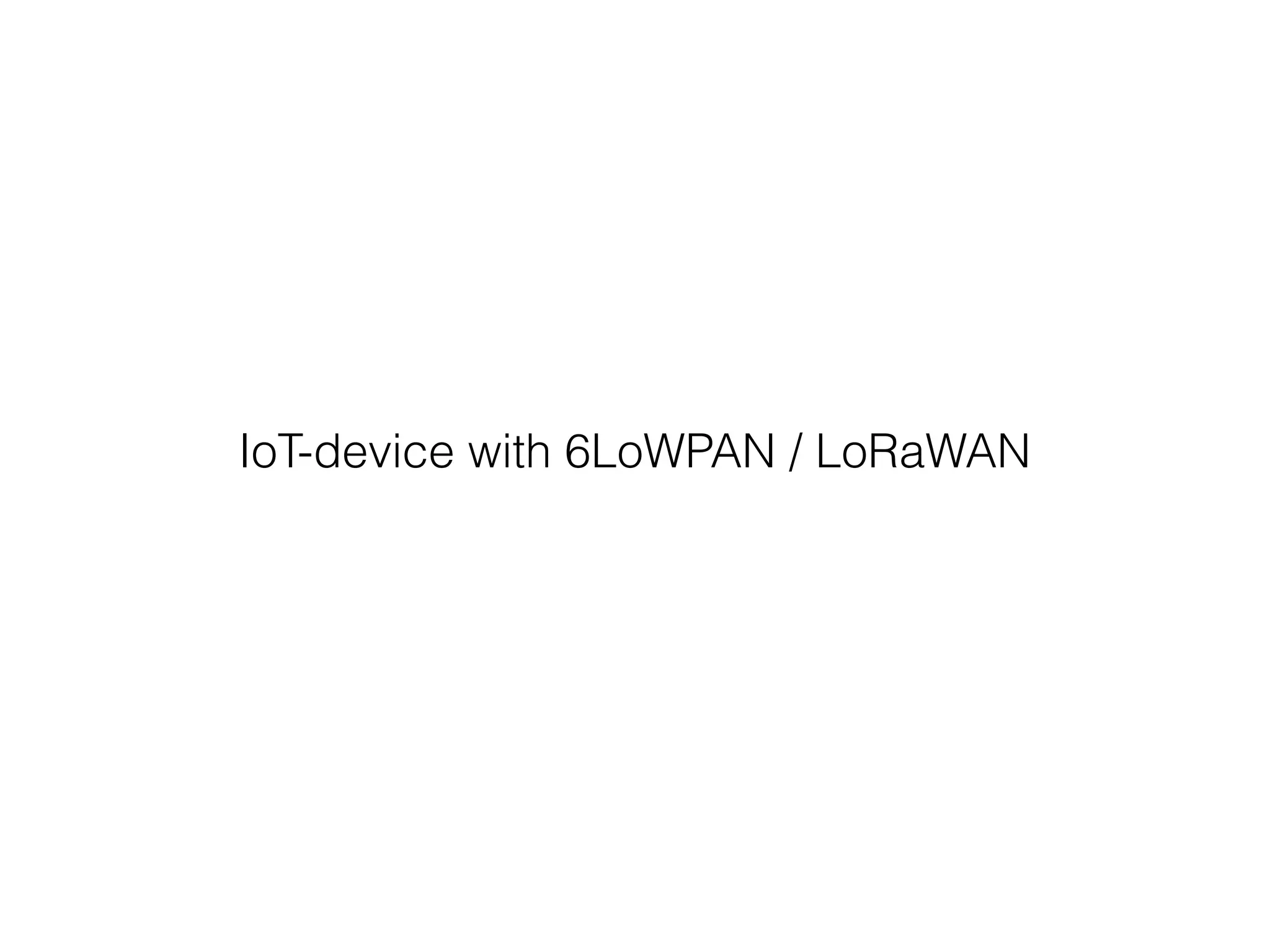

19. IoT-device with 6LoWPAN / LoRaWAN

20. 6LoWPAN / LoRaWAN
IoT-device #1
IoT-device #N
World
More
IoT-devices
Getaway
Radio Waves

21. Gateway
• MIPS-based
• WAN-antenna on board
• 6lbr-gateway software installed
• 6lbr-gateway converts the radio-waves into the
IPv6-package and back.

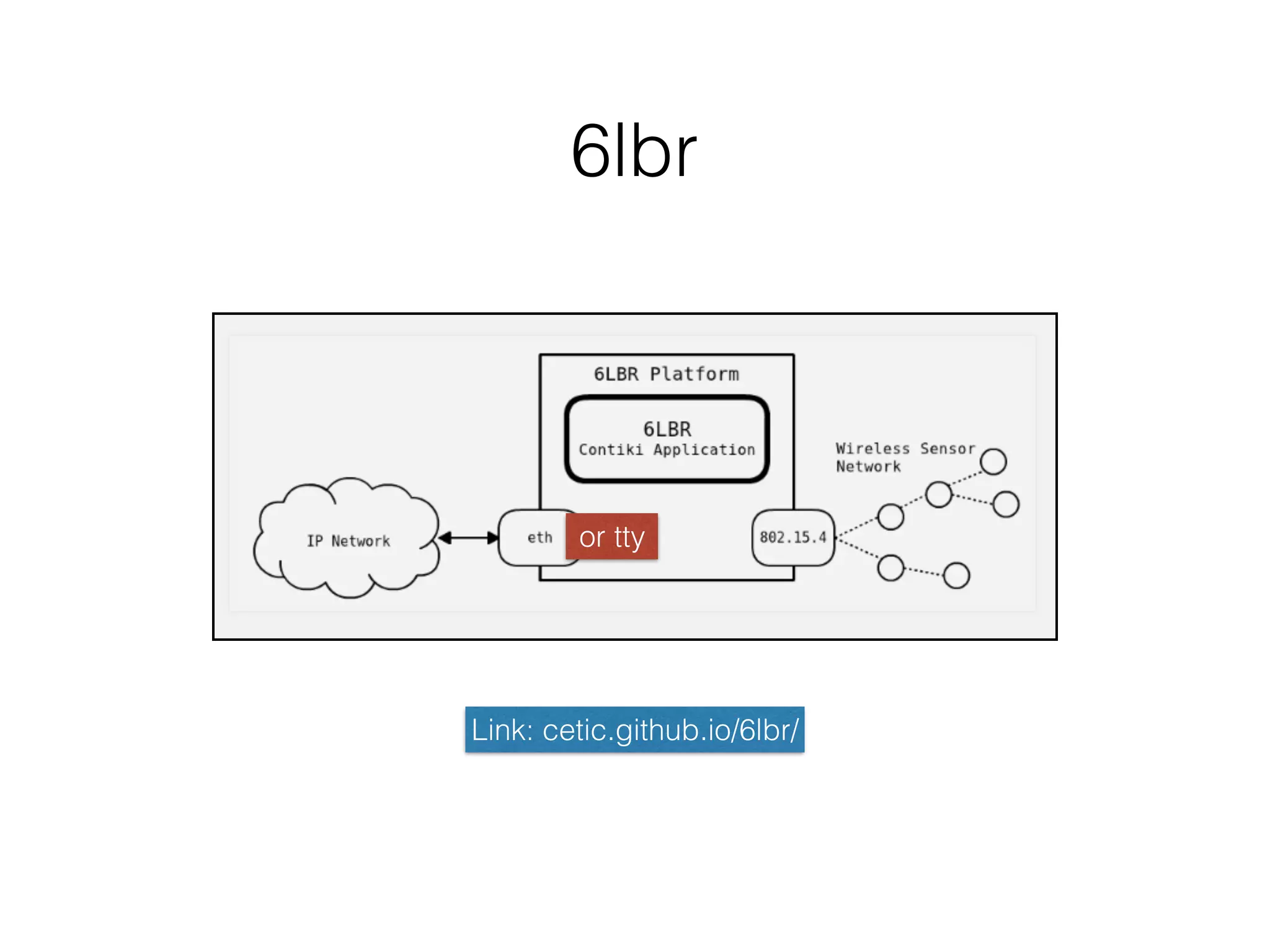

22. 6lbr
Link: cetic.github.io/6lbr/
or tty

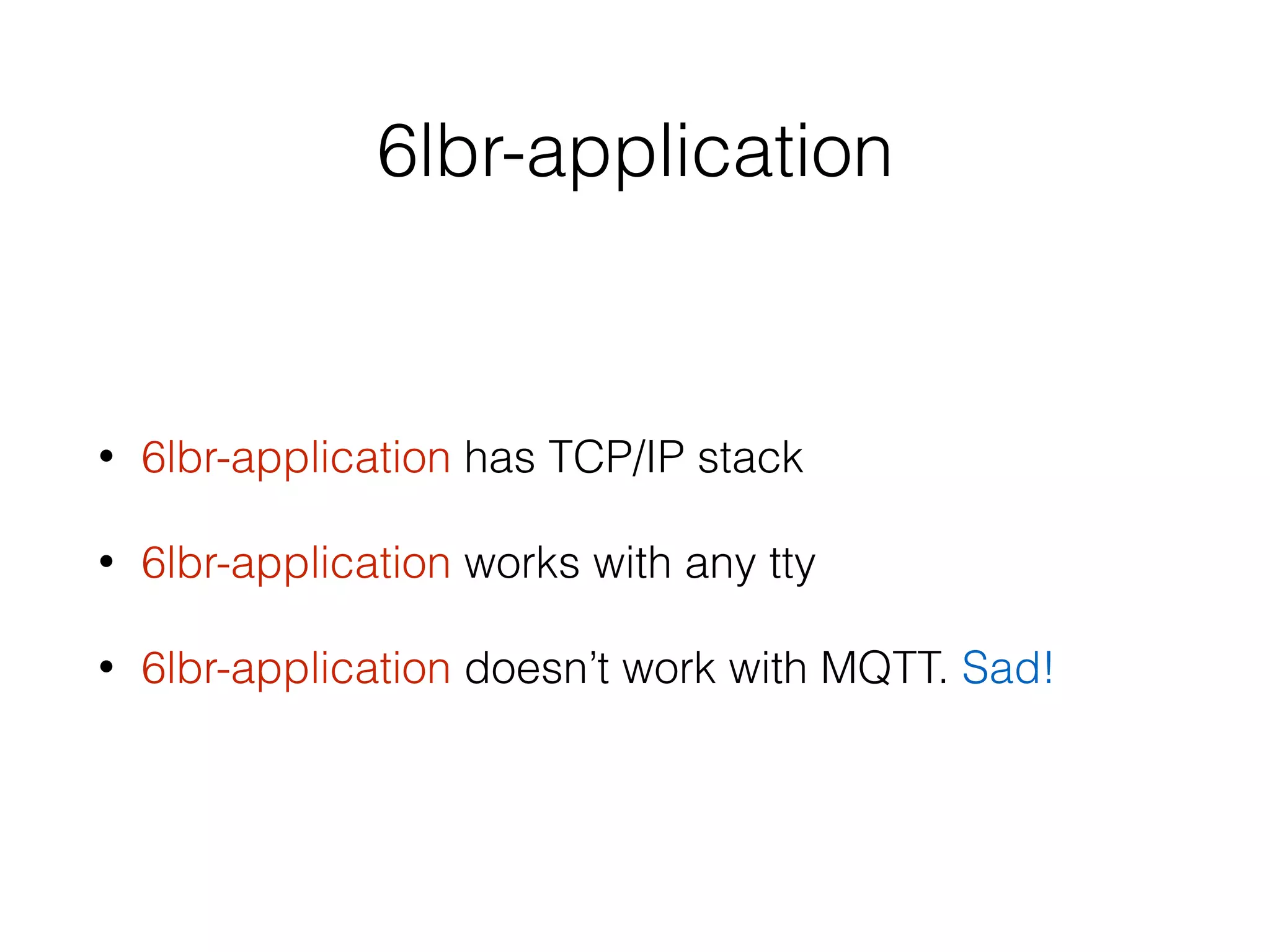

23. 6lbr-application
• 6lbr-application has TCP/IP stack
• 6lbr-application works with any tty
• 6lbr-application doesn’t work with MQTT. Sad!

24. Few words about 6lbr-application

25. 6lbr-application
• It has complex thread model
• It has complex memory model

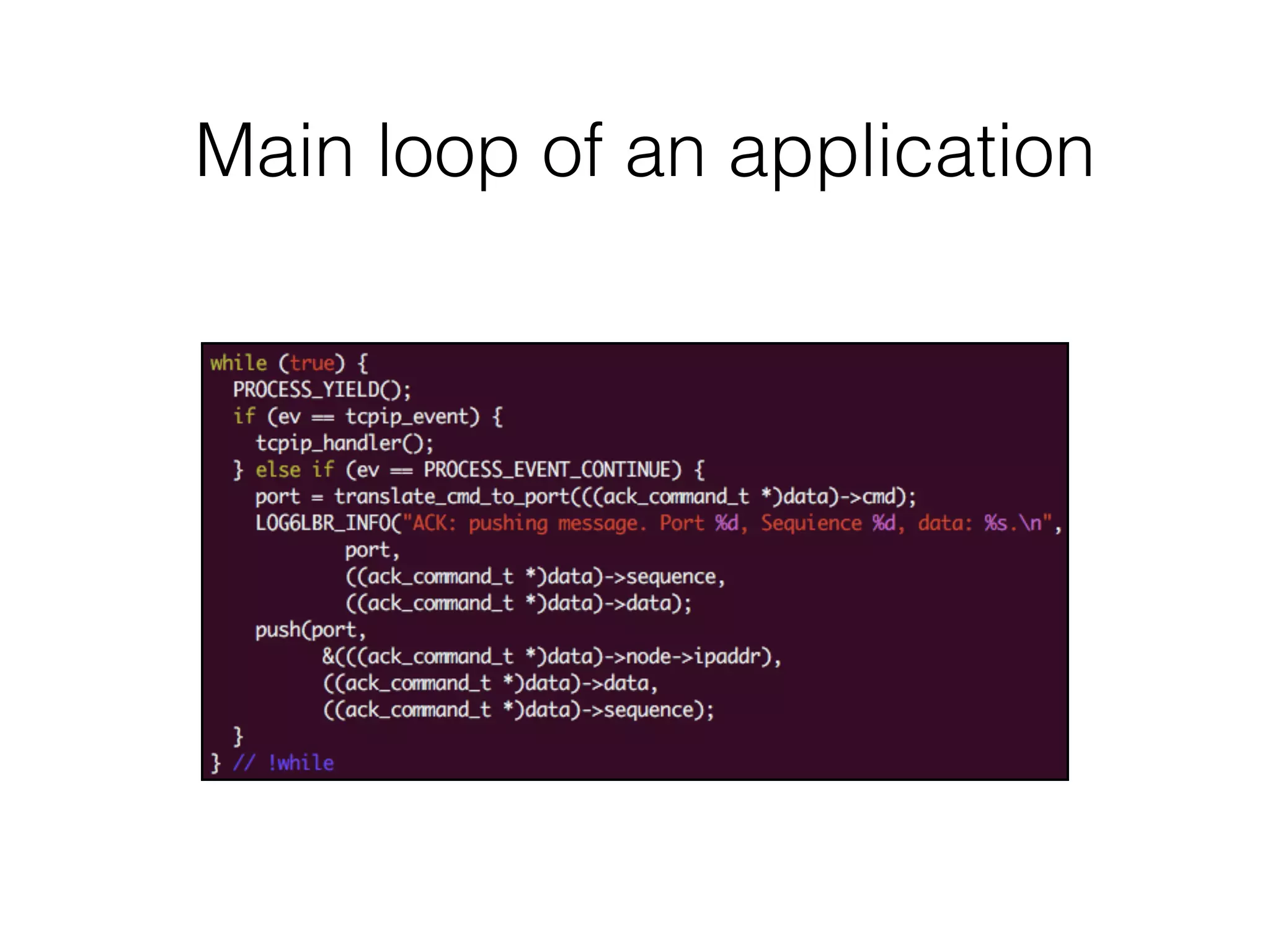

26. Main loop of an application

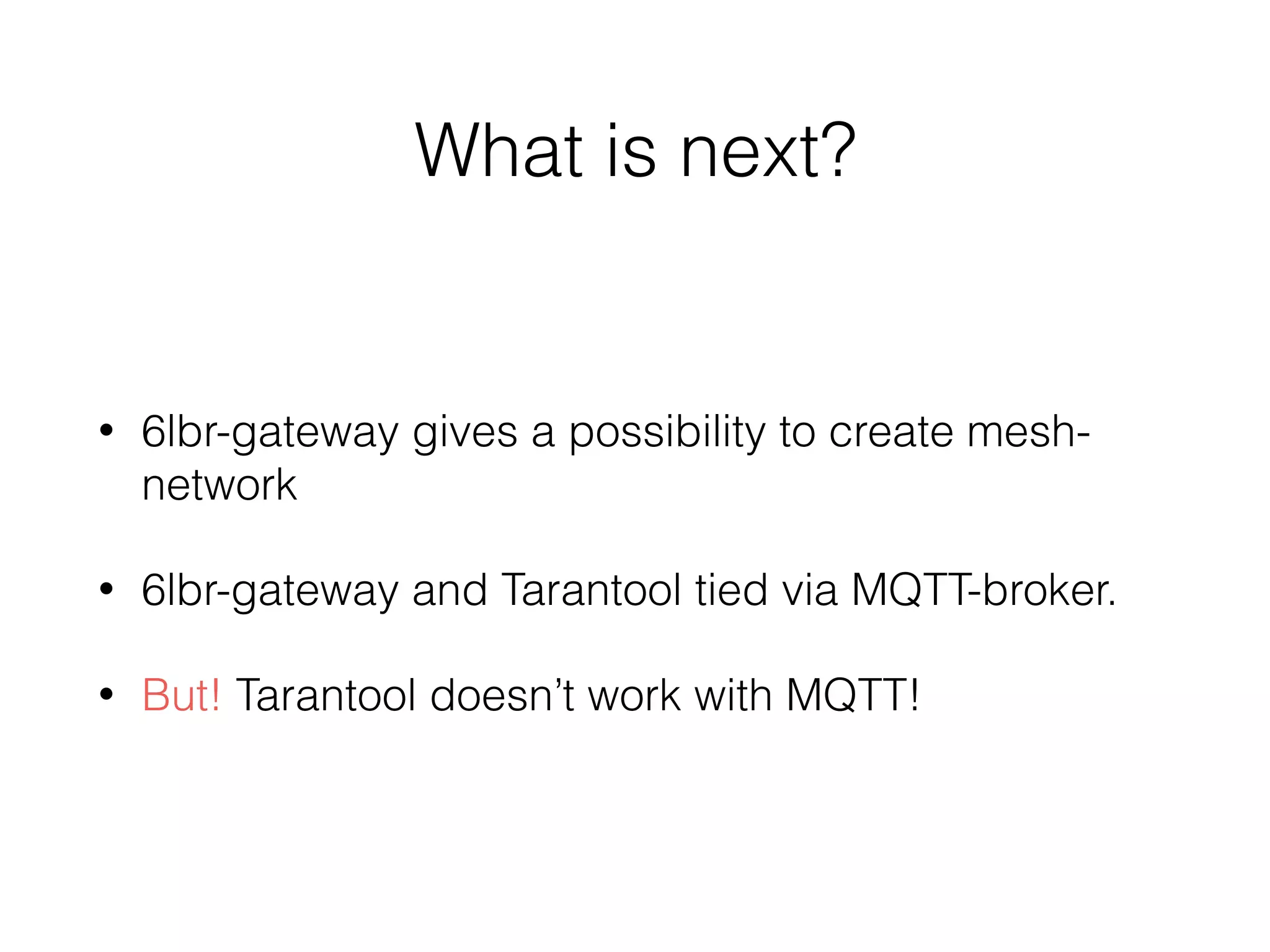

27. What is next?
• 6lbr-gateway gives a possibility to create mesh-
network
• 6lbr-gateway and Tarantool tied via MQTT-broker.
• But! Tarantool doesn’t work with MQTT!

28. Tarantool / MQTT

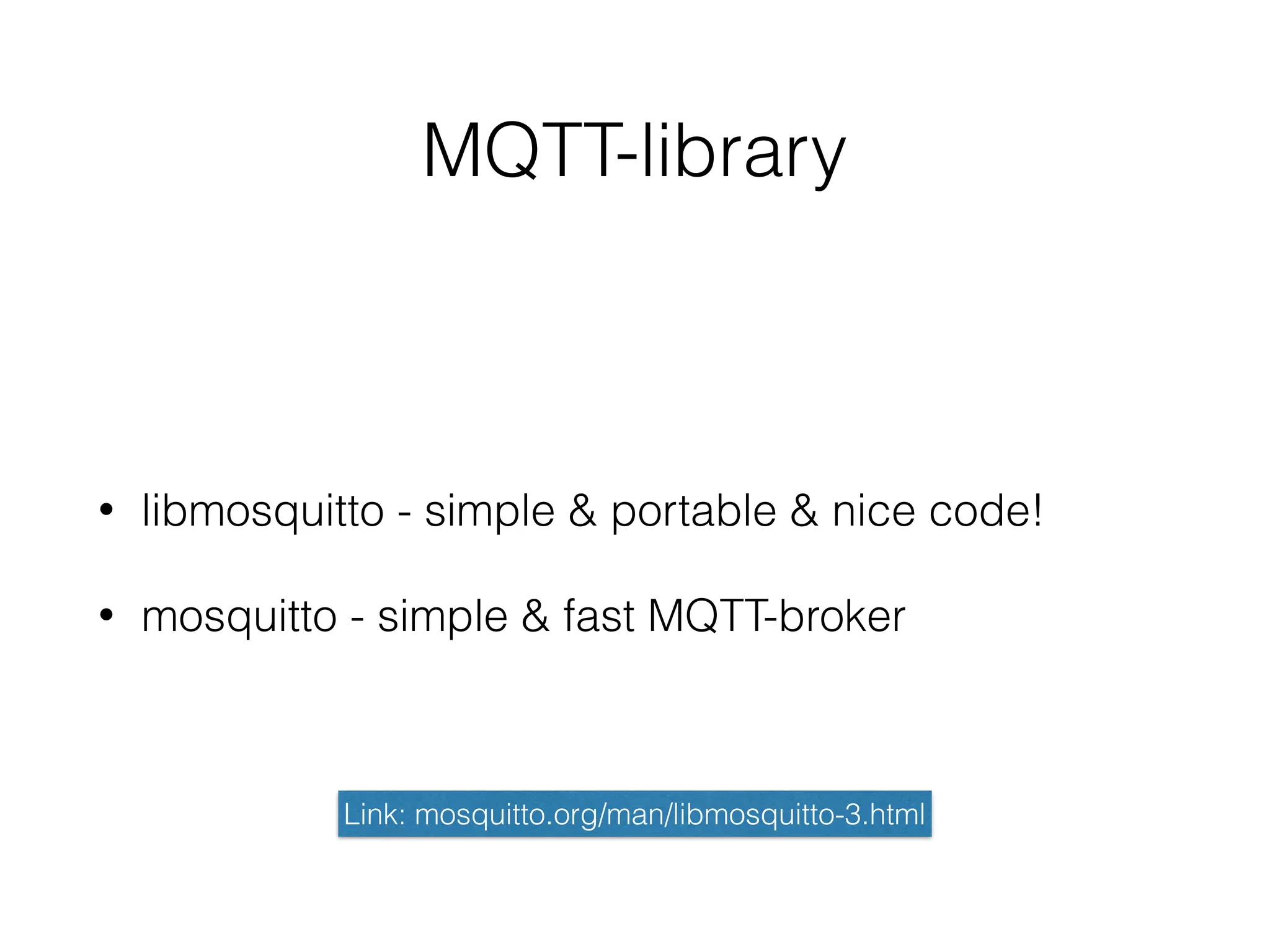

29. MQTT-library
• libmosquitto - simple & portable & nice code!
• mosquitto - simple & fast MQTT-broker
Link: mosquitto.org/man/libmosquitto-3.html

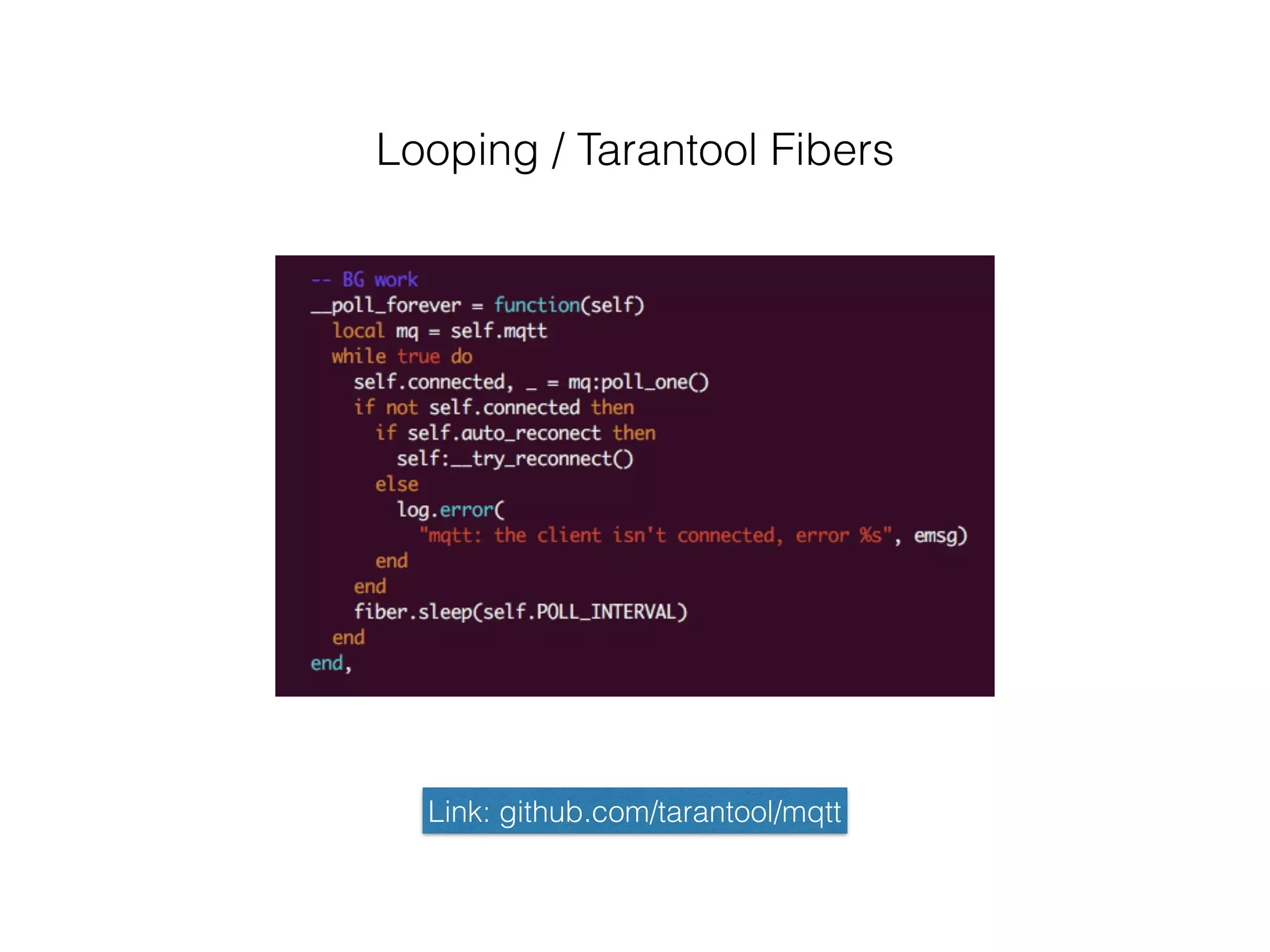

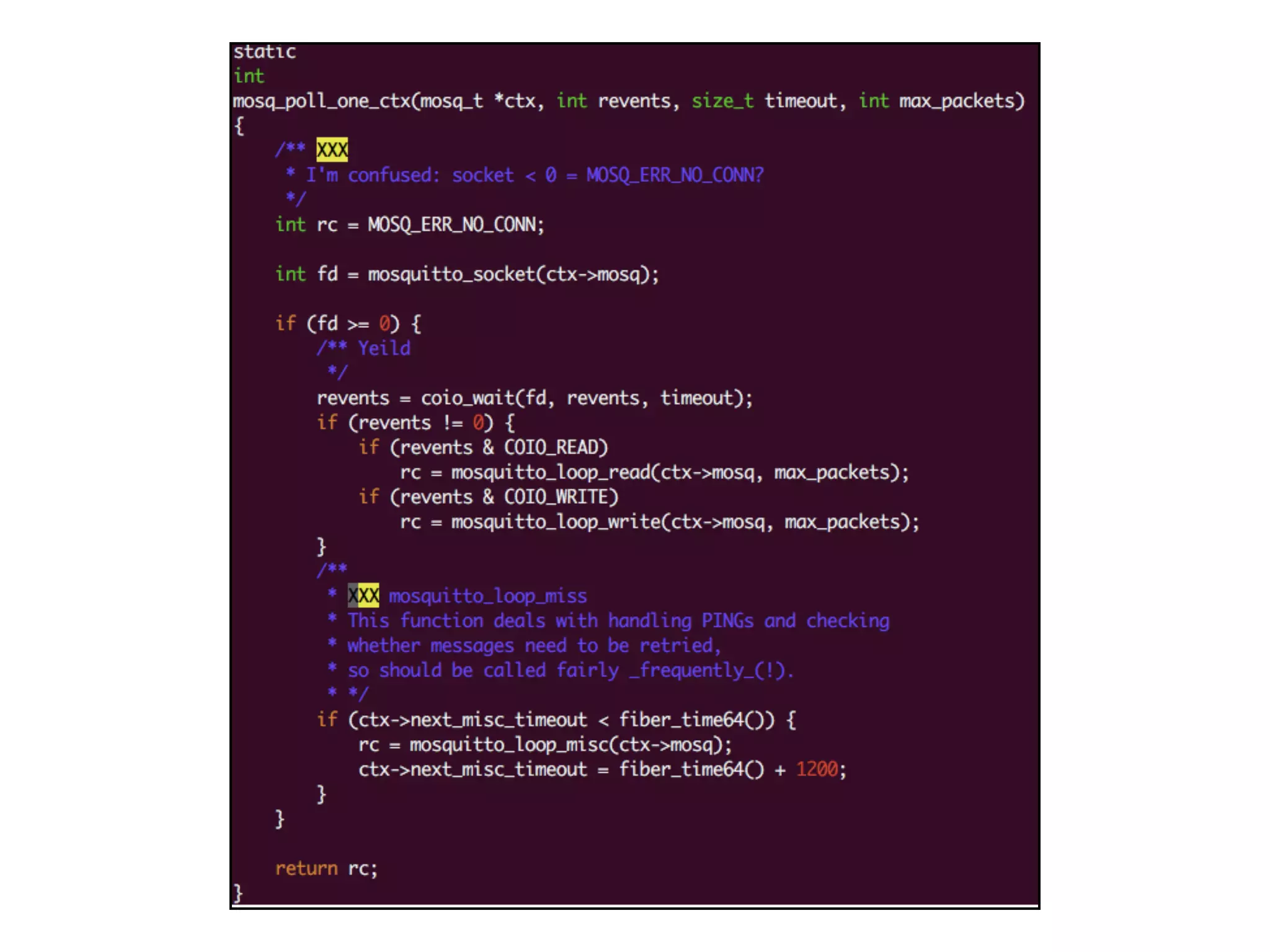

31. Looping / Tarantool Fibers
Link: github.com/tarantool/mqtt

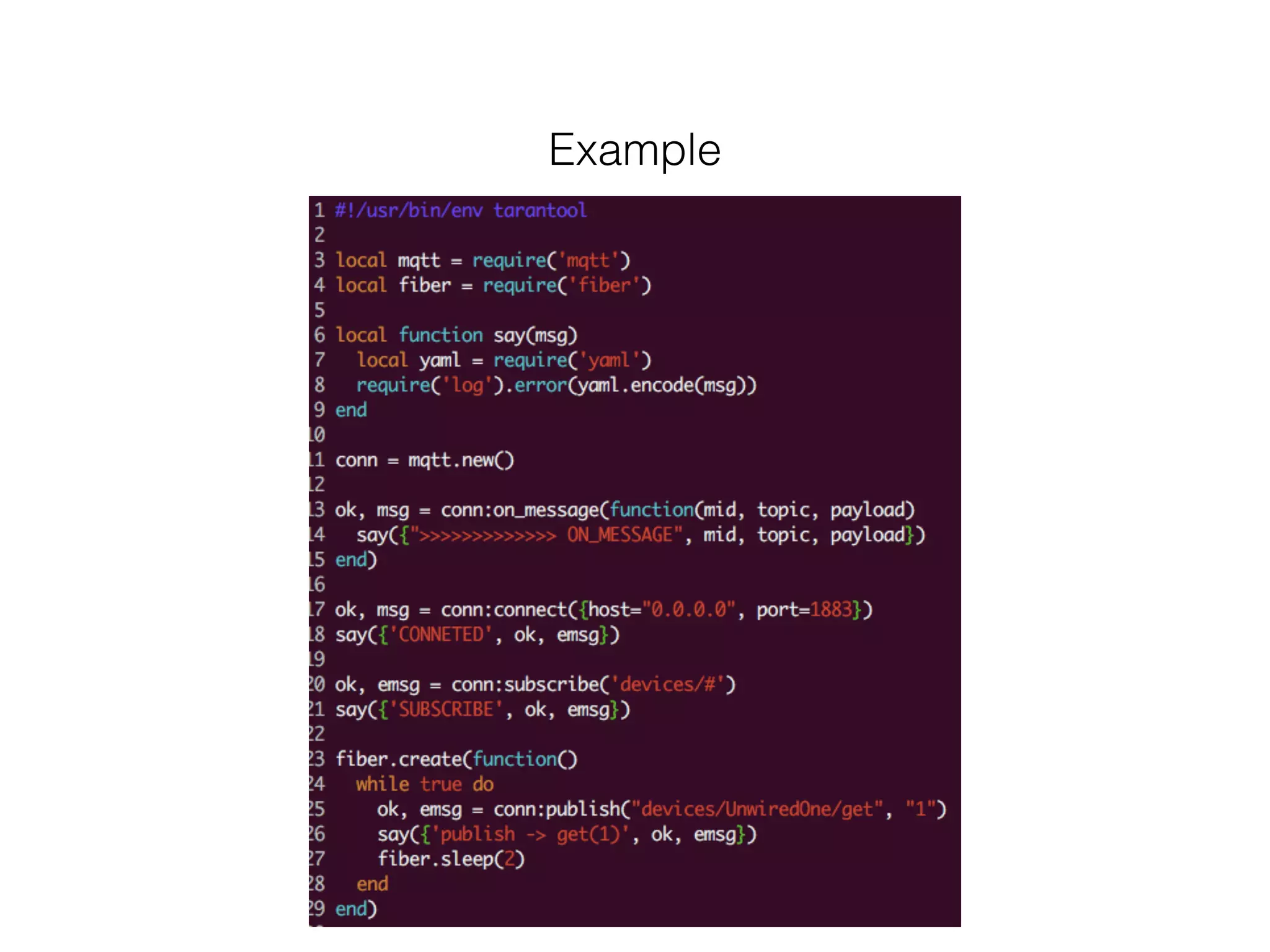

32. Example

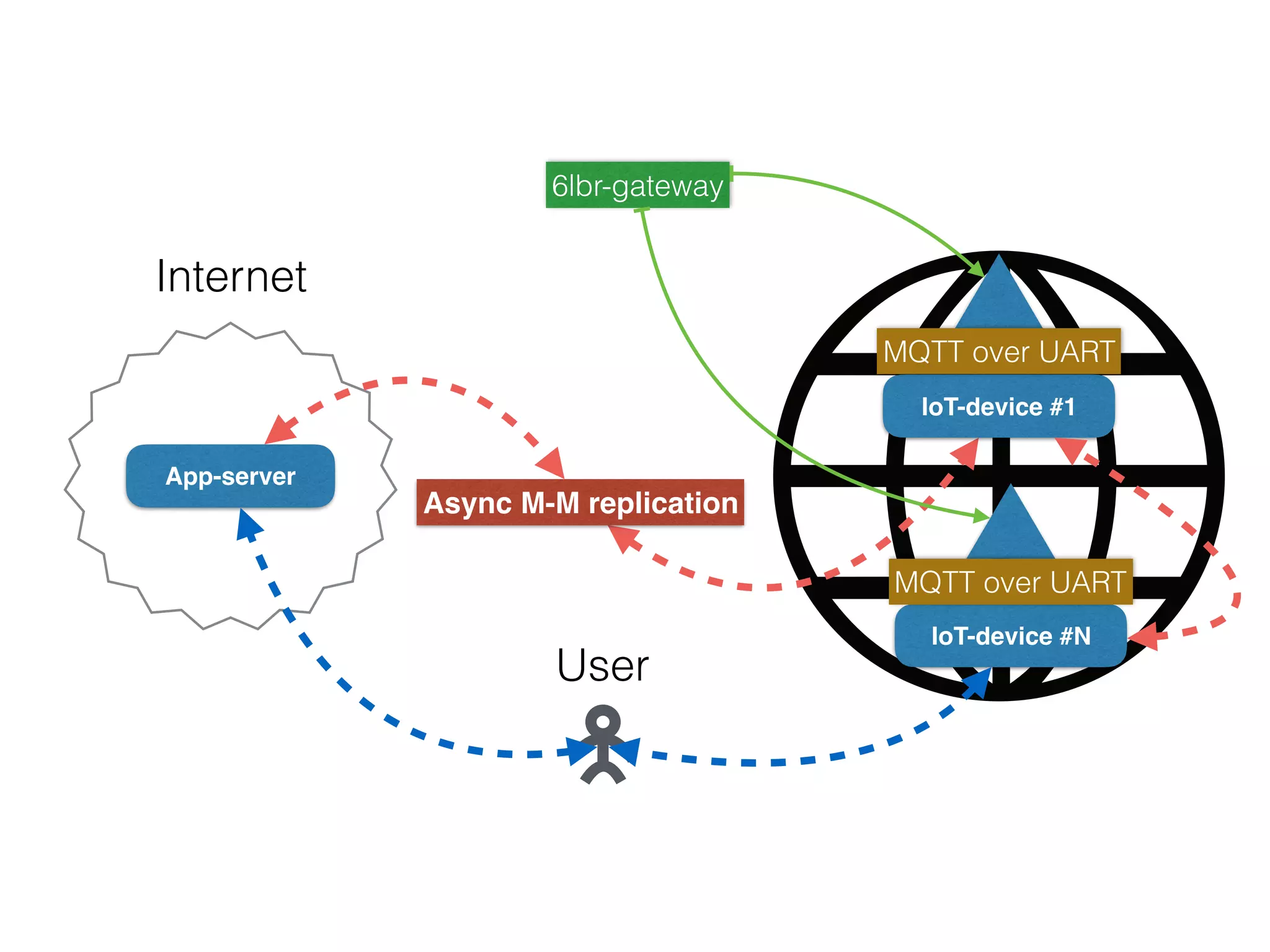

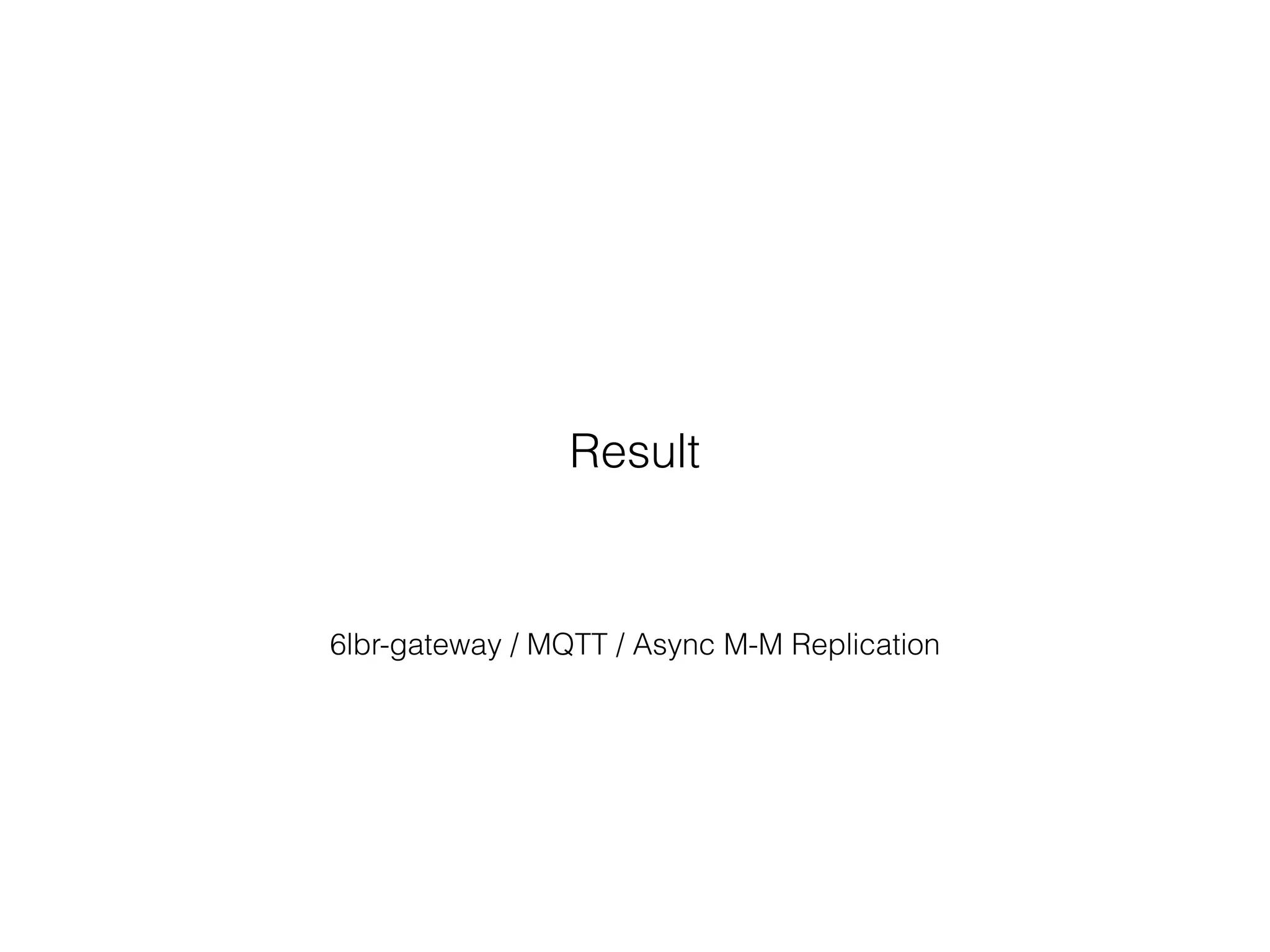

33. 6lbr-gateway / MQTT / Async M-M Replication
Result

34. App-server
IoT-device #1
IoT-device #N
Internet
Async M-M replication
6lbr-gateway
MQTT over UART
MQTT over UART
User

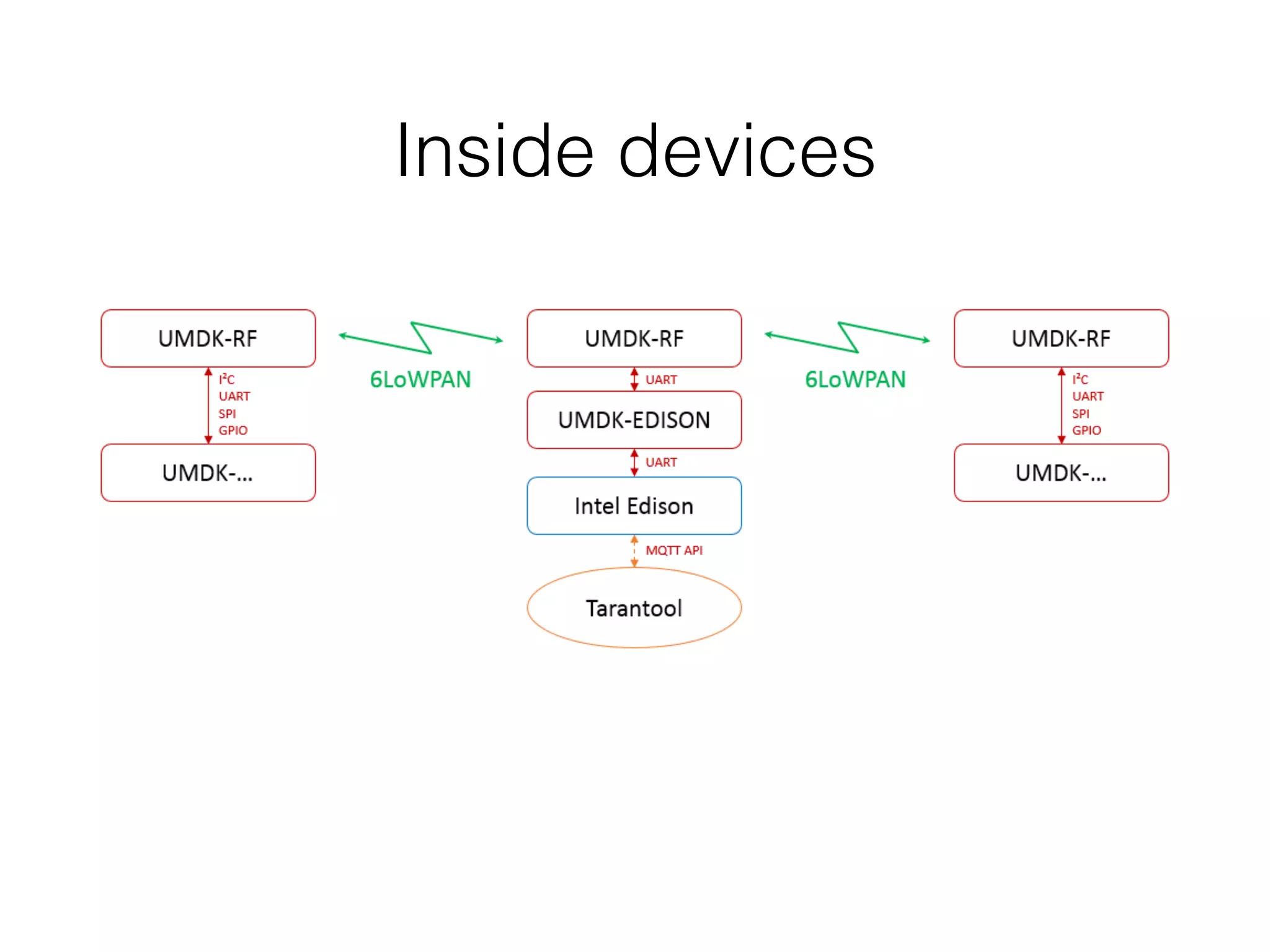

35. Inside devices

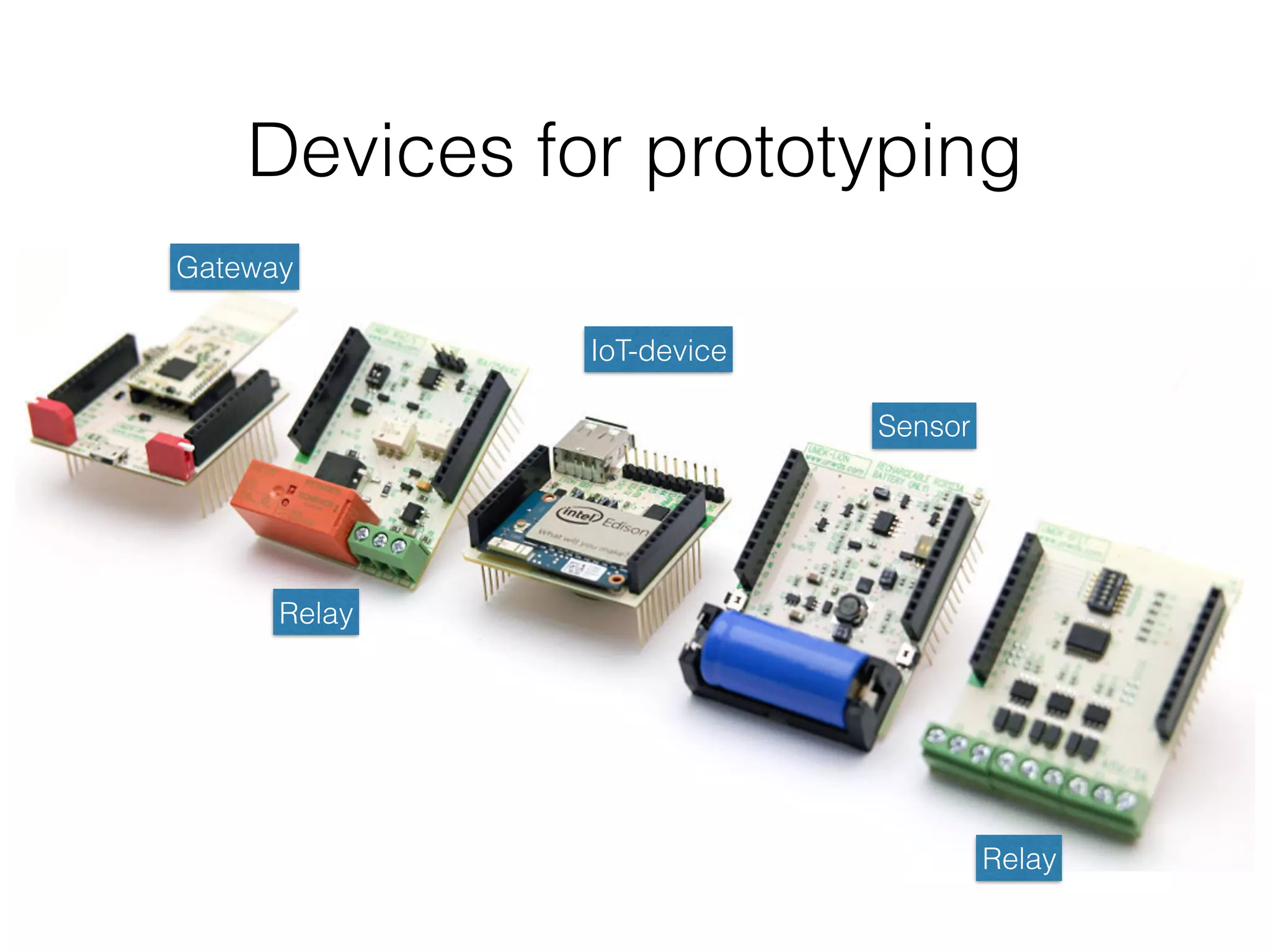

36. Devices for prototyping
TODO the photo of GETAWAY
Gateway
Relay
Sensor
Relay
IoT-device

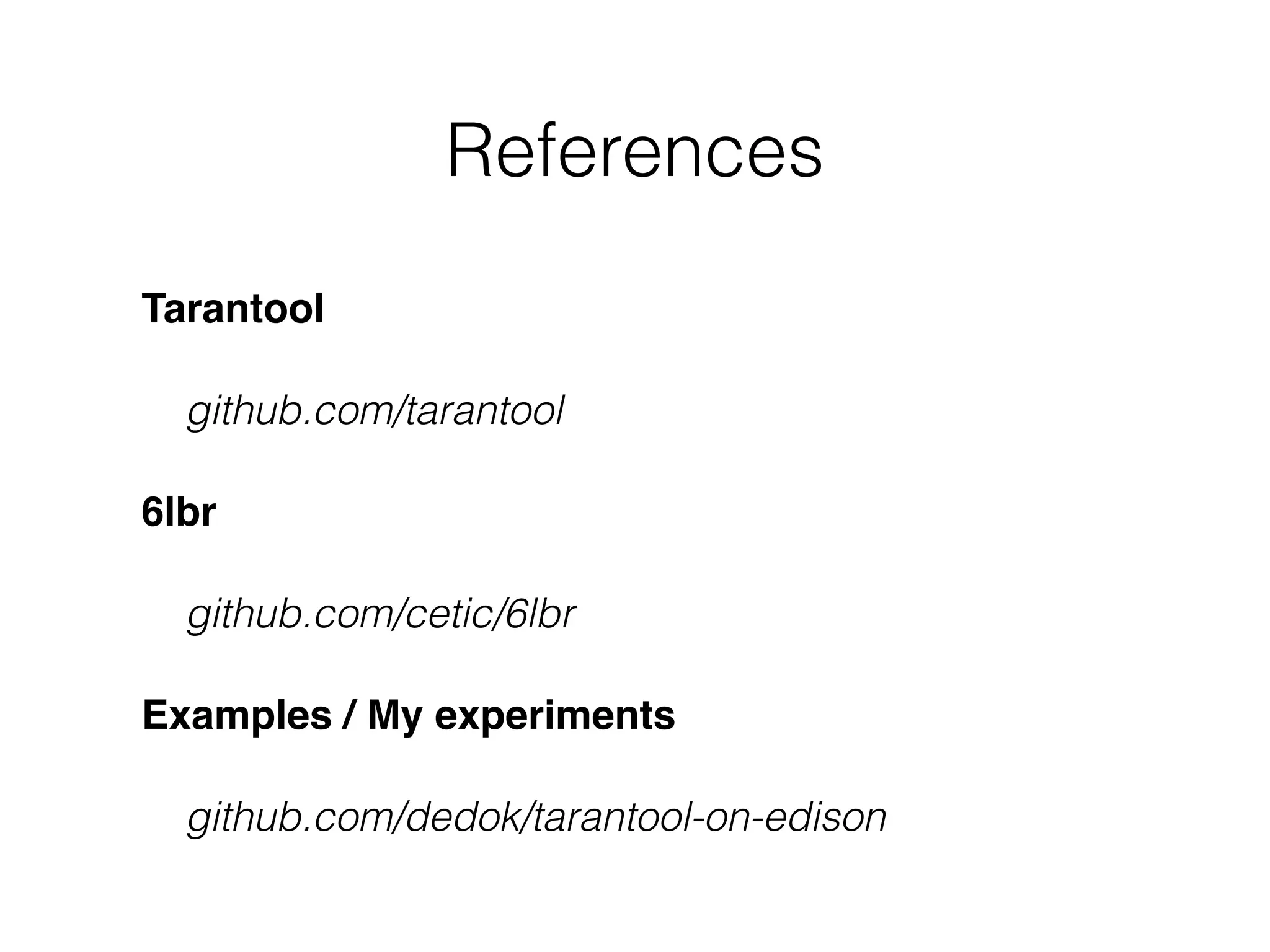

37. References
Tarantool
github.com/tarantool
6lbr
github.com/cetic/6lbr
Examples / My experiments
github.com/dedok/tarantool-on-edison
