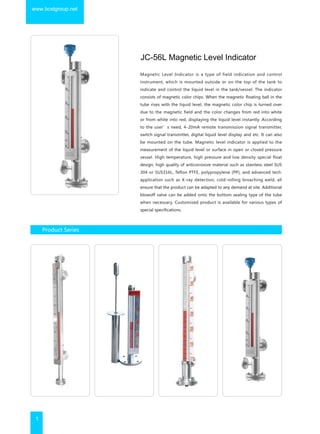

1. JC-56L Magnetic Level Indicator
1
www.bcstgroup.net

2. www.bcstgroup.net
2

3. www.bcstgroup.net
3
JC-56L
Measuring range For Example :L=2000mm
Output
A. Basic type
B. Anti-Corrosive type
C.Jacket type for low temperature
D.High tempt & Pressure type
C. Explosive-proof type
Type
Mount
F:Top mounted
G: Side Mounted
Type & Mount
H.Without Output
I.Alarm Switch
L.4-20ma output
M.Alarm switch+4 to 20 Ma
N.4-20ma +hart
T.Alarm switch +4-20ma +Hart
Body Material
4.304 SS
6.316SS
L.316L
P.PVC/UPVC
F4.304+F4
PE.304SS+PE
Density
A.0.45-0.51
B.0.51-0.65
C.0.65 -0.75
D.0.75 -0.9
E.0.9 TO 1.0
F.1.0 -1.2
Working Temperature
(g/cm3)
0 Normal temperature
1 0-200 °C
2 0-350 °C
Process Pressure (Mpa)
1.Normal Pressure (1.0Mpa)
2.1.6Mpa
3.2.5Mpa
4. 4 Mpa
5. 6 Mpa
Flange Size & Standard
For example : 2“ ，ANSI
DN50 ，DIN
Measuring Range
Example:1100mm

4. www.bcstgroup.net
JC-56L One
JC-56L Two JC-56L Three
JC-56L Four
JC-56L Five
JC-56L Six
JC-56L-A-G-H-4-A-2-0-2"ANSI-500mm
A. Basic type
G.Side Mounted
H.Without Output
4.Body material:304 SS
A.Density 0.45-0.51 g/cm3
2.Pressure :1.6Mpa
0.Normal temperature
Flange:2",ANSI
Range: 500mm

5. www.bcstgroup.net
5

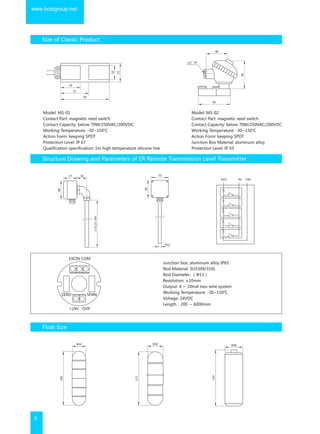

6. www.bcstgroup.net
6

7. www.bcstgroup.net
7

8. Ente Certificazione Macchine
Via Cà Bella, 243 - 40053 Valsamoggia Loc. Castello di Serravalle (Bo) Italy
 +39.0516705141  +39.0516705156  info@entecerma.it  www.entecerma.it
Certificate–Cертификат–證明書–Certificat–증명서–‫شهادة‬
SIL
Functional Safety Verification
No. 3B171228.JJSQD31
Test Report no. JC171217002MR
Certificate’s Holder: Jiangsu Jiechuang Science And
Technology Co., Ltd.
No.288, Tongtai road, Jinhu industrial park, Huai’an,
Jiangsu, China.
Product: Magnetic Level Gauge/Transmitter
Model(s): JC-56L, JC-56UB, JC-56W, JC-UFZ, JC-SL710,
JC-SL709.
Standard: IEC 61508:2010 Parts 1-7
Verification Mark:
Notes: Systematic Integrity: SIL2 Capable;
Random Integrity: Type A Element;
Hardware Fault Tolerance: HFT=0;
PFDAVG and Architecture Constraints must be verified for each application;
*Specific Requirements: The instructions of the associated Installation and Operating Manual shall be
considered.
Remark: This SIL Verification of Compliance has been issued on a voluntary basis. ECM confirms that a Test
Report is existent for the above listed product(s) and found to meet the requirements of above standards
for application in safety related system up to Safety Level of SIL 2.
The unit must be properly designed into a Safety Instrument Function as per the requirements in the Safety
Manual. The Verification Mark shown above can be affixed on the product. It is NOT permitted to alter the
Verification Mark in any way. In addition the Verification’s Holder is NOT allowed to transfer the Verification
to third parties. This certificate can be checked for validity at www.entecerma.it
Date of issue 28 December 2017
Chief Manager
Marco Morina
Expiry date 27 December 2022
Deputy Manager
Amanda Payne
