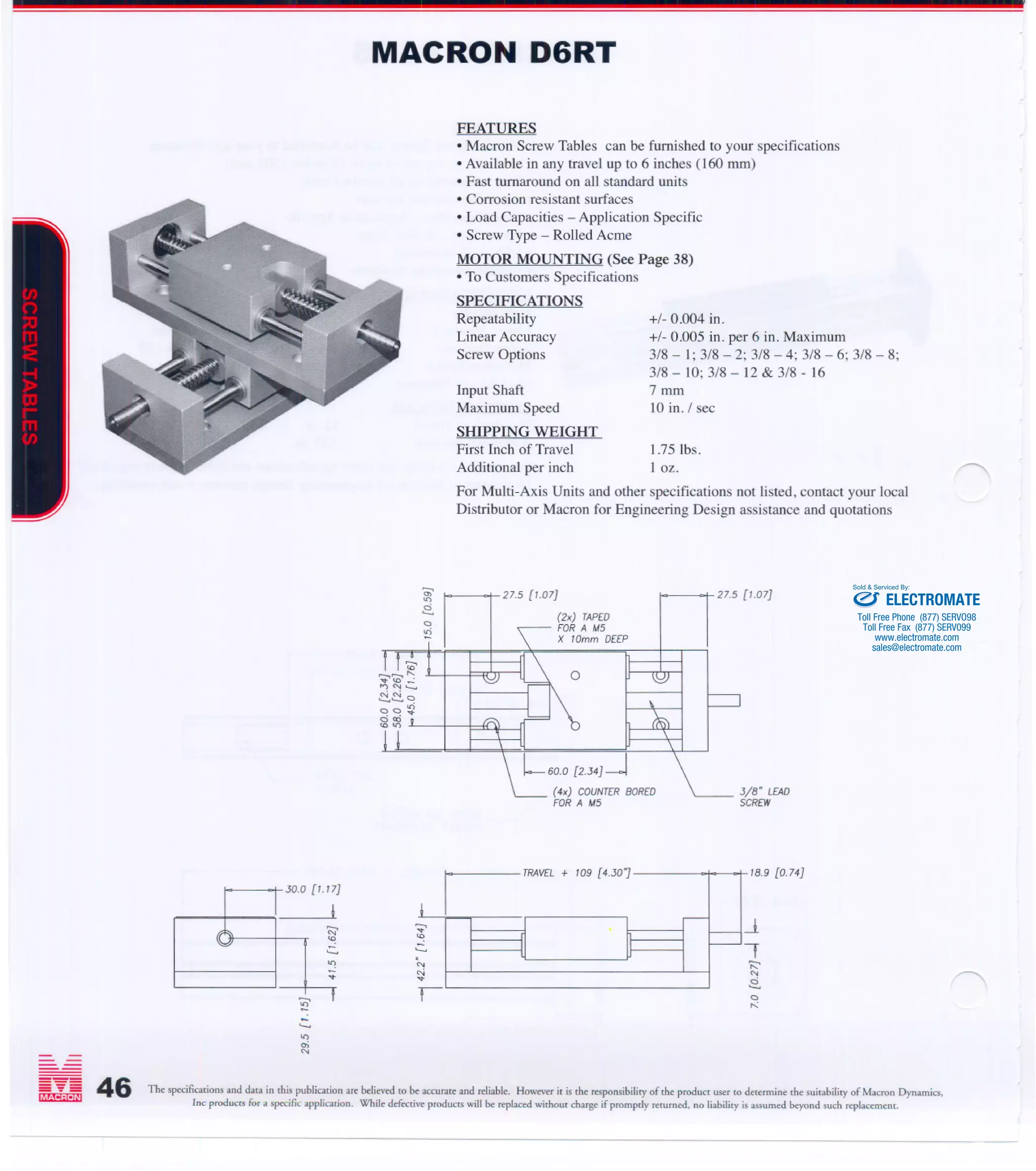

MACRON D6RT
o
FEATURES
.Macron Screw Tables can be furnished to your specifications
.Available in any travel up to 6 inches (60 rnm)
.Fast turnaround on all standard units
.Corrosion resistant surfaces
·Load Capacities - Application Specific
.Screw Type - Rolled Acme
MOTOR MOUNTING (See Page 38)
.To Customers Specifications
SPECIFICATIONS
Repeatability
Linear Accuracy
Screw Options
Input Shaft
Maximum Speed
+/- 0.004 in.
+/- 0.005 in. per 6 in. Maximum
3/8 - 1; 3/8 - 2; 3/8 - 4; 3/8 - 6; 3/8 - 8;
3/8 - 10; 3/8 - 12 & 3/8 - 16
7 rnm
10 in. / sec
SHIPPING WEIGHT
First Inch of Travel 1.75 Ibs.
Additional per inch I oz.
For Multi-Axis Units and other specifications not listed, contact your local
Distributor or Macron for Engineering Design assistance and quotations
27.5 [1.07J
(2x) TAPED
FOR A !A5
X 10mm DEEP
o
L6~ [~.J4J-J
(4x) COUNTER BORED
FORA !A5
'J
,TRAVEL + 109 [4.J07
I
-.......
'"
oi'"
46
27.5 [1.07J
J/B" LEAD
SCREW
lB.9 [0.74J
The specifications and data in this publication are believed to be accurate and reliable. However it is the responsibility of the produCt user to determine the suitability of Macron Dynamics.
