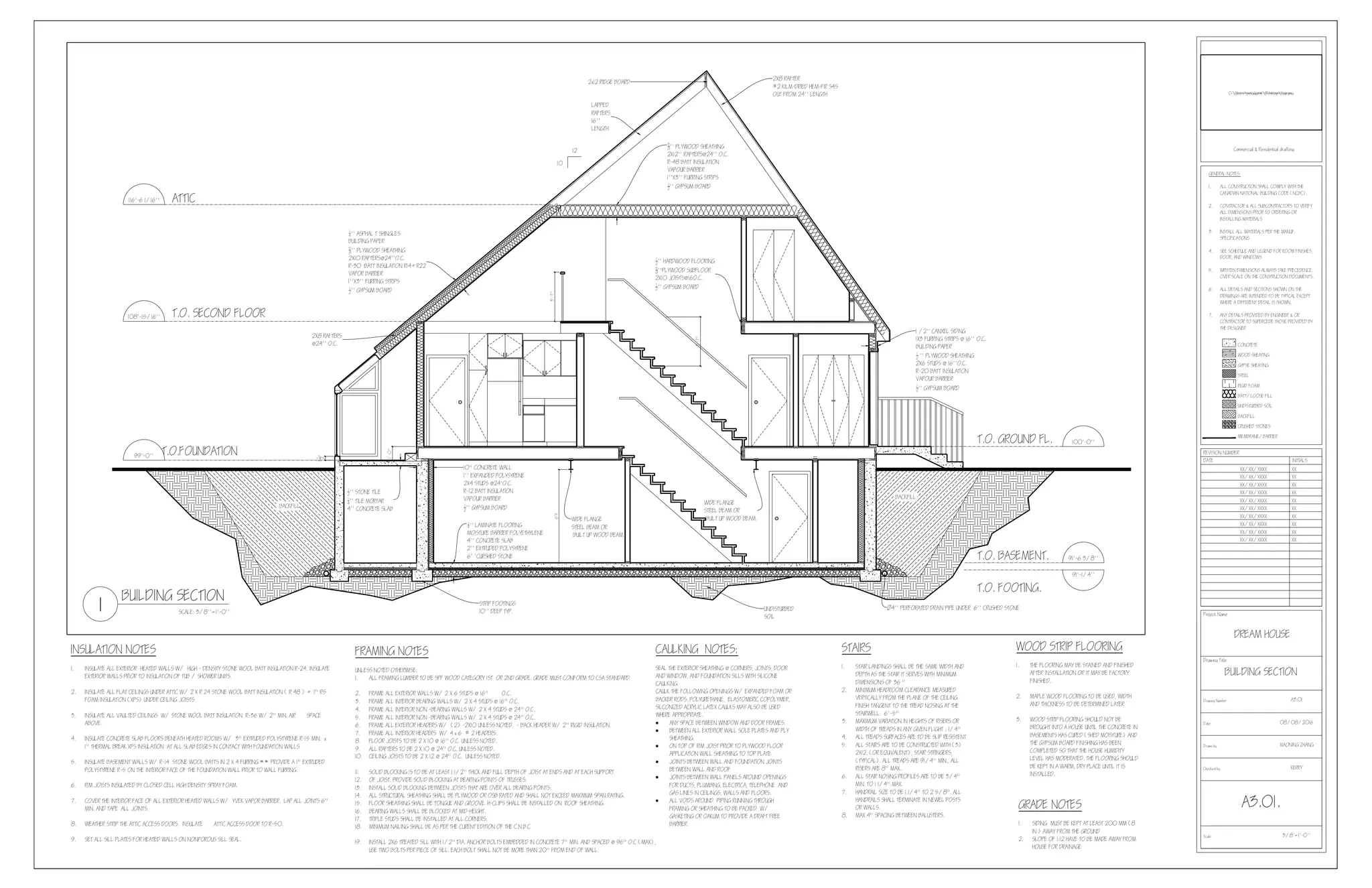

The document is a building section that details the materials and construction of the various elements of the structure from footing to roof. It shows a concrete foundation wall and slab, wood framed walls with batt insulation and vapor barrier, an asphalt shingle roof with plywood sheathing and rafters, and wood floors above a concrete slab on grade with a drainage system. Dimensions are provided for floor heights and overall building height.

1. 3'-7"
UNDISTURBED
SOIL
6'11
1'-0"
2X8 RAFTERS
@24'' O.C.
1
4'' ASPHAL T SHINGLES
BUILDING PAPER
5
8'' PLYWOOD SHEATHING
2X10 RAFTERS@24''O.C.
R-30 BATT INSULATION R14+R22
VAPOR BARRIER
1''X3'' FURRING STRIPS
1
2'' GYPSUM BOARD
1
4'' LAMINATE FLOORING
MOISTURE BARRIER POLYETHYLENE
4'' CONCRETE SLAB
2'' EXTRUDED POLYSYRENE
6' 'CURSHED STONE
12
STRIP FOOTINGS
10'' DEEP TYP.
10" CONCRETE WALL
1'' EXPANDED POLYSYRENE
2X4 STUDS @24'O.C.
R-12 BATT INSULATION
VAPOUR BARRIER
1
2'' GYPSUM BOARD
LAPPED
RAFTERS
16''
LENGTH
5
8'' PLYWOOD SHEATHING
2X12'' RAFTERS@24'' O.C.
R-48 BATT INSULATION
VAPOUR BARRIER
1''X3'' FURRING STRIPS
1
2'' GYPSUM BOARD
1 /2`` CANXEL SIDING
1X3 FURRING STRIPS @ 16'' O.C.
BUILDING PAPER
1
2 '' PLYWOOD SHEATHING
2X6 STUDS @ 16''O.C.
R-20 BATT INSULATION
VAPOUR BARRIER
1
2'' GYPSUM BOARD
108'-15/16''
T.O.FOUNDATION
BACKFILL
Ø4'' PERFORATED DRAIN PIPE UNDER 6'' CRUSHED STONE
BACKFILL
10
2x12 RIDGE BOARD
1
2'' HARDWOOD FLOORING
5
8''PLYWOOD SUBFLOOR
2X10 JOISTS@16O.C.
1
2'' GYPSUM BOARD
2X8 RAFTER
#2 KILM-DRIED HEM-FIR S4S
OUT FROM 24'' LENGTH
3'-7"
1
2'' STONE TILE
1
4'' TILE MORTAR
4'' CONCRETE SLAB
WIDE FLANGE
STEEL BEAM OR
BUILT UP WOOD BEAM.
WIDE FLANGE
STEEL BEAM OR
BUILT UP WOOD BEAM.
116'-6 1/16''
99'-0''
ATTIC
T.O. SECOND FLOOR
91'-6 3/8''
91'-1/4''
100'-0''
T.O. BASEMENT.
T.O. FOOTING.
T.O. GROUND FL.
3
1
2
"
Project Name
Drawing Title
Drawing Number
Date
Drawn by
Checked by
Scale
Commercial & Residential drafting
REVISION NUMBER
DATE INITIALS
GENERAL NOTES:
1. ALL CONSTRUCTION SHALL COMPLY WITH THE
CANADIAN NATIONAL BUILDING CODE (NCBC).
2. CONTRACTOR & ALL SUBCONTRACTORS TO VERIFY
ALL DIMENSIONS PRIOR TO ORDERING OR
INSTALLING MATERIALS
3. INSTALL ALL MATERIALS PER THE MANUF.
SPECIFICATIONS
4. SEE SCHEDULE AND LEGEND FOR ROOM FINISHES,
DOOR, AND WINDOWS
5. WRITTEN DIMENSIONS ALWAYS TAKE PRECEDENCE
OVER SCALE ON THE CONSTRUCTION DOCUMENTS.
6. ALL DETAILS AND SECTIONS SHOWN ON THE
DRAWINGS ARE INTENDED TO BE TYPICAL EXCEPT
WHERE A DIFFERENT DETAIL IS SHOWN,
7. ANY DETAILS PROVIDED BY ENGINEER & OR
CONTRACTOR TO SUPERCEDE THOSE PROVIDED BY
THE DESIGNER
CONCRETE
WOOD SHEATING
GYPSE SHEATING
STEEL
UNDISTURBED SOIL
BACKFILL
CRUSHED STONES
MEMBRANE/BARRIER
RIGID FOAM
BATT/LOOSE FILL
XX/XX/XXXX XX
XX/XX/XXXX XX
XX/XX/XXXX XX
XX/XX/XXXX XX
XX/XX/XXXX XX
XX/XX/XXXX XX
XX/XX/XXXX XX
XX/XX/XXXX XX
XX/XX/XXXX XX
A3.01.
3/8'=1'-0''
KERRY
XIAONING ZHANG
08/08/2016
A3.01
BUILDING SECTION
DREAM HOUSE
XX/XX/XXXX XX
C:UsersnovaguestDesktoptitle block examplelogo.png
WOOD STRIP FLOORING
1. THE FLOORING MAY BE STAINED AND FINISHED
AFTER INSTALLATION OR IT MAY BE FACTORY
FINISHED.
2. MAPLE WOOD FLOORING TO BE USED, WIDTH
AND THICKNESS TO BE DETERMINED LATER
3. WOOD STRIP FLOORING SHOULD NOT BE
BROUGHT INTO A HOUSE UNTIL THE CONCRETE IN
BASEMENTS HAS CURED (SHED MOISTURE) AND
THE GYPSUM BOARD FINISHING HAS BEEN
COMPLETED SO THAT THE HOUSE HUMIDITY
LEVEL HAS MODERATED. THE FLOORING SHOULD
BE KEPT IN A WARM, DRY PLACE UNTIL IT IS
INSTALLED.
STAIRS
1. STAIR LANDINGS SHALL BE THE SAME WIDTH AND
DEPTH AS THE STAIR IT SERVES WITH MINIMUM
DIMENSIONS OF 36 "
2. MINIMUM HEADROOM CLEARANCE MEASURED
VERTICALLY FROM THE PLANE OF THE CEILING
FINISH TANGENT TO THE TREAD NOSING AT THE
STAIRWELL: 6'-5"
3. MAXIMUM VARIATION IN HEIGHTS OF RISERS OR
WIDTH OF TREADS IN ANY GIVEN FLIGHT ; 1/4"
4. ALL TREADS SURFACES ARE TO BE SLIP RESISTENT
5. ALL STAIRS ARE TO BE CONSTRUCTED WITH (3)
2X12, (OR EQUIVALENT), STAIR STRINGERS,
(TYPICAL). ALL TREADS ARE 91/4" MIN., ALL
RISERS ARE 8" MAX.
6. ALL STAIR NOSING PROFILES ARE TO BE 3/4"
MIN. TO 1 1/4" MAX.
7. HANDRAIL SIZE TO BE 1 1/4" TO 2 5/8". ALL
HANDRAILS SHALL TERMINATE IN NEWEL POSTS
OR WALLS.
8. MAX 4" SPACING BETWEEN BALUSTERS.
INSULATION NOTES
1. INSULATE ALL EXTERIOR HEATED WALLS W/ HIGH - DENSITY STONE WOOL BATT INSULATION R-24. INSULATE
EXTERIOR WALLS PRIOR TO INSULATION OF TUB / SHOWER UNITS.
2. INSULATE ALL FLAT CEILINGS UNDER ATTIC W/ 2 X R 24 STONE WOOL BATT INSULATION ( R 48 ) + 1" R5
FOAM INSULATION (XPS) UNDER CEILING JOISTS
3. INSULATE ALL VAULTED CEILINGS W/ STONE WOOL BATT INSULATION R-36 W/ 2" MIN. AIR SPACE
ABOVE.
4. INSULATE CONCRETE SLAB FLOORS BENEATH HEATED ROOMS W/ 3" EXTRUDED POLYSTYRENE R-15 MIN. x
1" THERMAL BREAK XPS INSULATION AT ALL SLAB EDGES IN CONTACT WITH FOUNDATION WALLS
5. INSULATE BASEMENT WALLS W/ R-14 STONE WOOL BATTS IN 2 X 4 FURRING ** PROVIDE A 1" EXTRUDED
POLYSTYRENE R-5 ON THE INTERIOR FACE OF THE FOUNDATION WALL PRIOR TO WALL FURRING.
6. RIM JOISTS INSULATED BY CLOSED CELL HIGH DENSITY SPRAY FOAM.
7. COVER THE INTERIOR FACE OF ALL EXTERIOR HEATED WALLS W/ YVEK VAPOR BARRIER. LAP ALL JOINTS 6"
MIN. AND TAPE ALL JOINTS.
8. WEATHER STRIP THE ATTIC ACCESS DOORS. INSULATE ATTIC ACCESS DOOR TO R-50.
9. SET ALL SILL PLATES FOR HEATED WALLS ON NONPOROUS SILL SEAL.
CAULKING NOTES:
SEAL THE EXTERIOR SHEATHING @ CORNERS, JOINTS, DOOR
AND WINDOW, AND FOUNDATION SILLS WITH SILICONE
CAULKING.
CAULK THE FOLLOWING OPENINGS W/ EXPANDED FOAM OR
BACKER RODS. POLYURETHANE, ELASTOMERIC COPOLYMER,
SILCONIZED ACRYLIC LATEX CAULKS MAY ALSO BE USED
WHERE APPROPRIATE.
· ANY SPACE BETWEEN WINDOW AND DOOR FRAMES.
· BETWEEN ALL EXTERIOR WALL SOLE PLATES AND PLY
SHEATHING.
· ON TOP OF RIM JOIST PRIOR TO PLYWOOD FLOOR
APPLICATION WALL SHEATHING TO TOP PLATE.
· JOINTS BETWEEN WALL AND FOUNDATION JOINTS
BETWEEN WALL AND ROOF
· JOINTS BETWEEN WALL PANELS AROUND OPENINGS
FOR DUCTS, PLUMBING, ELECTRICA, TELEPHONE AND
GAS LINES IN CEILINGS, WALLS AND FLOORS.
· ALL VOIDS AROUND PIPING RUNNING THROUGH
FRAMING OR SHEATHING TO BE PACKED W/
GASKETING OR OAKUM TO PROVIDE A DRAFT FREE
BARRIER.
FRAMING NOTES
UNLESS NOTED OTHERWISE:
1. ALL FRAMING LUMBER TO BE SPF WOOD CATEGORY 1ST OR 2ND GRADE. GRADE MUST CONFORM TO CSA STANDARD
2. FRAME ALL EXTERIOR WALLS W/ 2 X 6 STUDS @ 16" O.C.
3. FRAME ALL INTERIOR BEARING WALLS W/ 2 X 4 STUDS @ 16" O.C.
4. FRAME ALL INTERIOR NON -BEARING WALLS W/ 2 X 4 STUDS @ 24" O.C.
5. FRAME ALL INTERIOR NON -BEARING WALLS W/ 2 X 4 STUDS @ 24" O.C.
6. FRAME ALL EXTERIOR HEADERS W/ (2) -2X10 UNLESS NOTED. - BACK HEADER W/ 2" RIGID INSULATION.
7. FRAME ALL INTERIOR HEADERS W/ 4 x 6 # 2 HEADERS.
8. FLOOR JOISTS TO BE 2 X 10 @ 16" O.C. UNLESS NOTED.
9. ALL RAFTERS TO BE 2 X 10 @ 24" O.C. UNLESS NOTED.
10. CEILING JOISTS TO BE 2 X 12 @ 24" O.C. UNLESS NOTED.
11. SOLID BLOCKING IS TO BE AT LEAST 1 1/2" THICK AND FULL DEPTH OF JOIST AT ENDS AND AT EACH SUPPORT
12. OF JOIST. PROVIDE SOLID BLOCKING AT BEARING POINTS OF TRUSSES.
13. INSTALL SOLID BLOCKING BETWEEN JOISTS THAT ARE OVER ALL BEARING POINTS.
14. ALL STRUCTURAL SHEATHING SHALL BE PLYWOOD OR OSB RATED AND SHALL NOT EXCEED MAXIMUM SPAN RATING.
15. FLOOR SHEATHING SHALL BE TONGUE AND GROOVE. H-CLIPS SHALL BE INSTALLED ON ROOF SHEATHING.
16. BEARING WALLS SHALL BE BLOCKED AT MID-HEIGHT.
17. TRIPLE STUDS SHALL BE INSTALLED AT ALL CORNERS.
18. MINIMUM NAILING SHALL BE AS PER THE CURENT EDITION OF THE C.N.B.C
19. INSTALL 2X6 TREATED SILL WITH 1/2" DIA. ANCHOR BOLTS EMBEDDED IN CONCRETE 7" MIN. AND SPACED @ 96" O.C (MAX),
USE TWO BOLTS PER PIECE OF SILL. EACH BOLT SHALL NOT BE MORE THAN 20" FROM END OF WALL.
GRADE NOTES
1. SIDING MUST BE KEPT AT LEAST 200 MM (8
IN.) AWAY FROM THE GROUND
2. SLOPE OF 1:12 HAVE TO BE MADE AWAY FROM
HOUSE FOR DRAINAGE
BUILDING SECTION
SCALE: 3/8''=1'-0''1
