The document outlines the course content for an LTE and 5G networking course. It covers 9 sections on topics related to wireless technologies, modulation and multiple access schemes, an introduction to LTE including architecture and protocols. It also covers NAS, RRC, PDCP, RLC, and MAC protocols. Section 9 discusses CS procedures and section 10 provides an overview of 5G NR including standards, architecture, protocols and frequency bands. The final section discusses practical protocol testing tools and methods.

1. TECHNOPARK BUISNESS SOLUTIONS PVT LTD.
SECTION-1: Introduction about wireless technologies
• GSM Architecture
• UMTS Architecture
• Frame architectures of GSM &UMTS
• Protocol stack architecture of UMTS
• UMTS Channels
• Revolution from 2G to 4G
SECTION-2: Modulation & Multiple Access Schemes
• Different Modulation schemes: BPSK, QPSK, QAM, 16-QAM, 64-QAM & 256 QAM
• Different Multiple Access Schemes: TDMA, FDMA, WCDMA, OFDMA & SCFDMA ¬FDD & TDD.
SECTION-3: Introduction to LTE
• Comparison of LTE with different Technologies
• LTE High level architecture with different interfaces
• LTE interfaces with corresponding protocols
• LTE Protocol Stack Architecture (control plane/user plane)
• LTE Channel
• Understanding of Data and Signalling Communication
• LTE Frame Architecture
• LTE Bearer, PLMN, IMSI
• Geographical Areas
• Network Identities
• LTE Resource Grid
• OFDMA, SCFDMA
• CFI and DCI formats
• Cell Acquisition Procedure
LTE and 5G Course Content

2. TECHNOPARK BUISNESS SOLUTIONS PVT LTD.
SECTION-4: NAS (Non-Access Stratum)
• EMM States ¬ECM/ESM States
• LTE Registration/Attach Procedure ¬Tracking Area Update Procedure
• Service Request Procedure
• S1 Release Procedure
• Detach Procedure
• NAS Security Activation.
SECTION-5: RRC (Radio Resource Control)
• UE –RRC States
• RRC connection Establishment.
• System Information Acquisition
• Initial Security Activation
• RRC Connection Reconfiguration
• RRC Connection Reestablishment
• RRC Connection Release
• Handovers (X2,S1 )
• Radio resource configuration X2 interface
• S1 interface
SECTION-6: PDCP (Packet Data Convergence Protocol)
• PDCP Architecture
• PDCP Procedures
• Header Compression & Decompression States
• PDCP Security Functions ¬PDCP PDU Formats
LTE and 5G Course Content

3. TECHNOPARK BUISNESS SOLUTIONS PVT LTD.

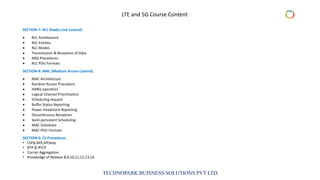

SECTION-7: RLC (Radio Link Control)
• RLC Architecture
• RLC Entities
• RLC Modes
• Transmission & Reception of Data
• ARQ Procedures
• RLC PDU Formats
SECTION-8: MAC (Medium Access Control)
• MAC Architecture
• Random Access Procedure
• HARQ operation
• Logical Channel Prioritization
• Scheduling request
• Buffer Status Reporting
• Power Headroom Reporting
• Discontinuous Reception
• Semi-persistent Scheduling
• MAC Scheduler
• MAC PDU Formats
SECTION-9: CS Procedures
• CSFB,IMS,SIP,Voip
• RTP & RTCP
• Carrier Aggregation
• Knowledge of Release 8,9,10,11,12,13,14
LTE and 5G Course Content

4. TECHNOPARK BUISNESS SOLUTIONS PVT LTD.

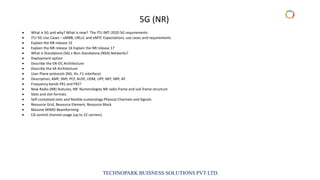

• What is 5G and why? What is new? The ITU IMT-2020 5G requirements
• ITU 5G Use Cases – eMBB, URLLC and eMTC Expectations, use cases and requirements
• Explain the NR release 15
• Explain the NR release 16 Explain the NR release 17
• What is Standalone (SA) v Non-Standalone (NSA) Networks?
• Deployment option
• Describe the EN-DC Architecture
• Describe the SA Architecture
• User Plane protocols (NG, Xn, F1-interface)
• Description, AMF, SMF, PCF, AUSF, UDM, UPF, NEF, NRF, AF.
• Frequency bands FR1 and FR2?
• New Radio (NR) features, NR Numerologies NR radio frame and sub frame structure
• Slots and slot formats
• Self-contained slots and flexible numerology Physical Channels and Signals
• Resource Grid, Resource Element, Resource Block
• Massive MIMO Beamforming
• CA control channel usage (up to 32 carriers)
5G (NR)

5. TECHNOPARK BUISNESS SOLUTIONS PVT LTD.
Protocol testing Course content (Practical)
1. Introduction of all tools.
- How exactly testing do & Types of testing?
- Practical use cases of Different tool.
- QXDM, QCAT, Wireshark & ADB , ELT, ARM logger tool intro.
- How we can help to developer to debug Issue.
2. Logs capturing process.
- QXDM, QCAT & Wireshark Tools installation.
- QCN Backup, NV value important.
- Qflash tool, how we do device Flashing Qualcomm & Mediatek Chipset.
3. Call Flow With QXDM.
- DMC creation in QXDM.
- Call Flow (QCI9, 5 &1).
4. Jobs opportunity in protocol testing.
- Job roles in organization
- Test case plan of different team.
- Issue discussion, How testing team report issue, new test case writing.
5. Resume making tips.
- Resume writing skills, Material sharing & important website for study.

6. TECHNOPARK BUISNESS SOLUTIONS PVT LTD.

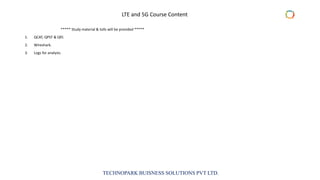

***** Study material & tolls will be provided *****
1. QCAT, QPST & Qfil.
2. Wireshark.
3. Logs for analysis.
LTE and 5G Course Content
