Lisp Metaprogramming
          The programmable programming language




Friday, February 19, 2010
I’d rather play COD




Friday, February 19, 2010
“So, Ruby was a Lisp originally, in theory.
                            Let's call it MatzLisp from now on. ;-)”




                                                                  -Matz
Friday, February 19, 2010

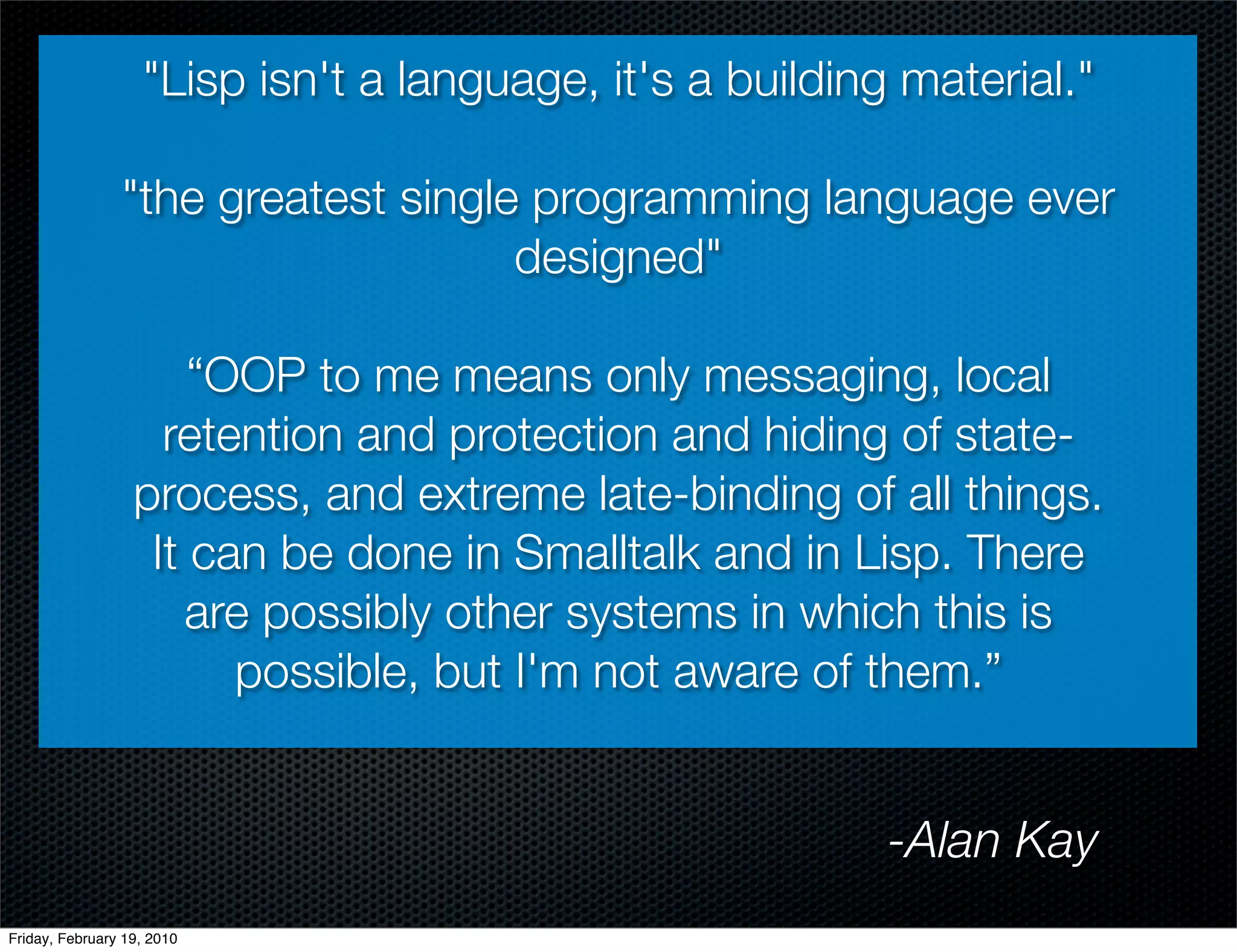

"Lisp isn't a language, it's a building material."

                "the greatest single programming language ever
                                    designed"

                      “OOP to me means only messaging, local
                    retention and protection and hiding of state-
                  process, and extreme late-binding of all things.
                   It can be done in Smalltalk and in Lisp. There
                      are possibly other systems in which this is
                        possible, but I'm not aware of them.”


                                                          -Alan Kay
Friday, February 19, 2010
Friday, February 19, 2010

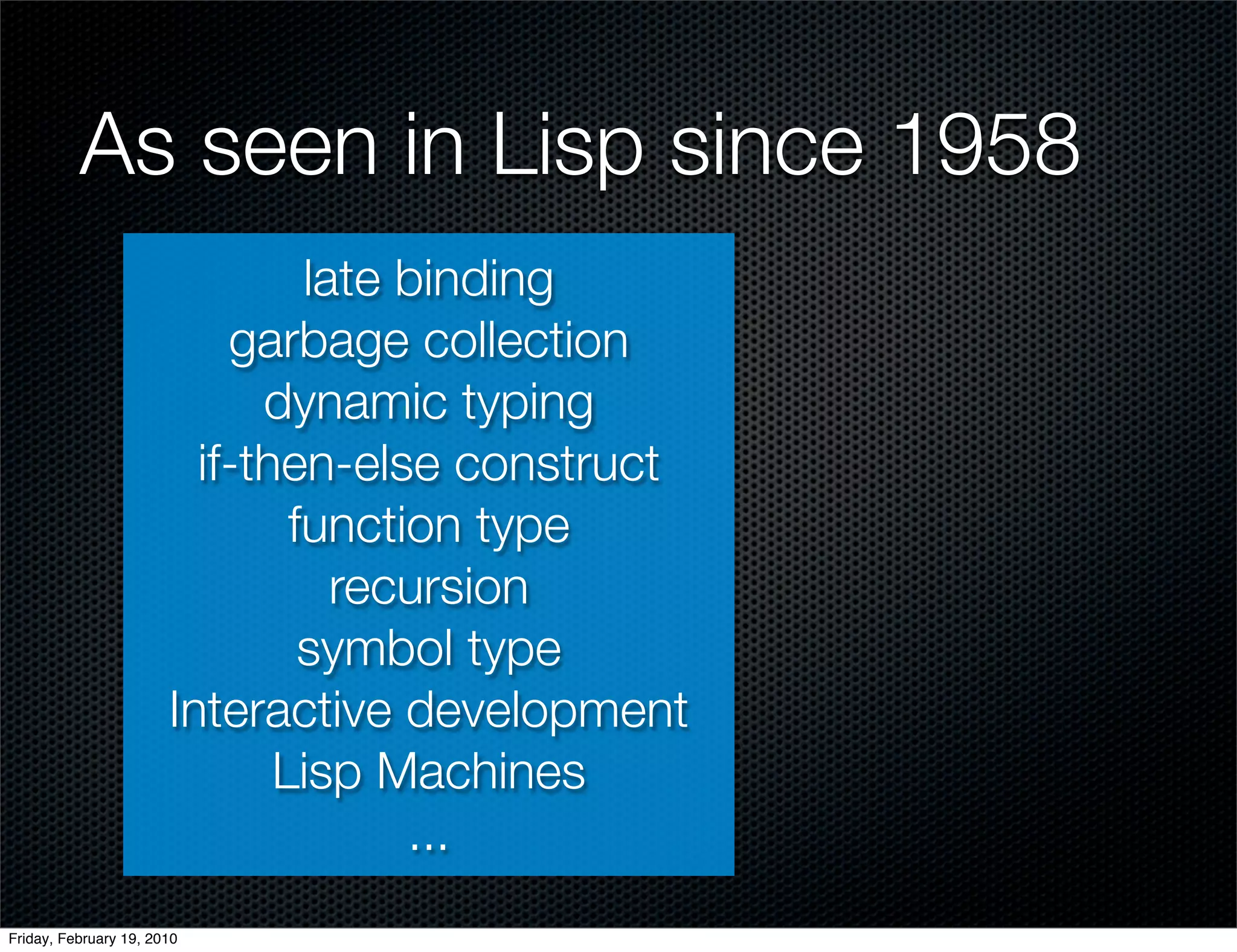

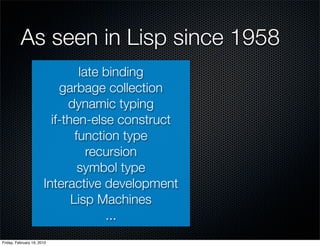

As seen in Lisp since 1958
                                late binding
                           garbage collection
                             dynamic typing
                         if-then-else construct
                               function type
                                  recursion
                                symbol type
                       Interactive development
                              Lisp Machines
                                     ...
Friday, February 19, 2010

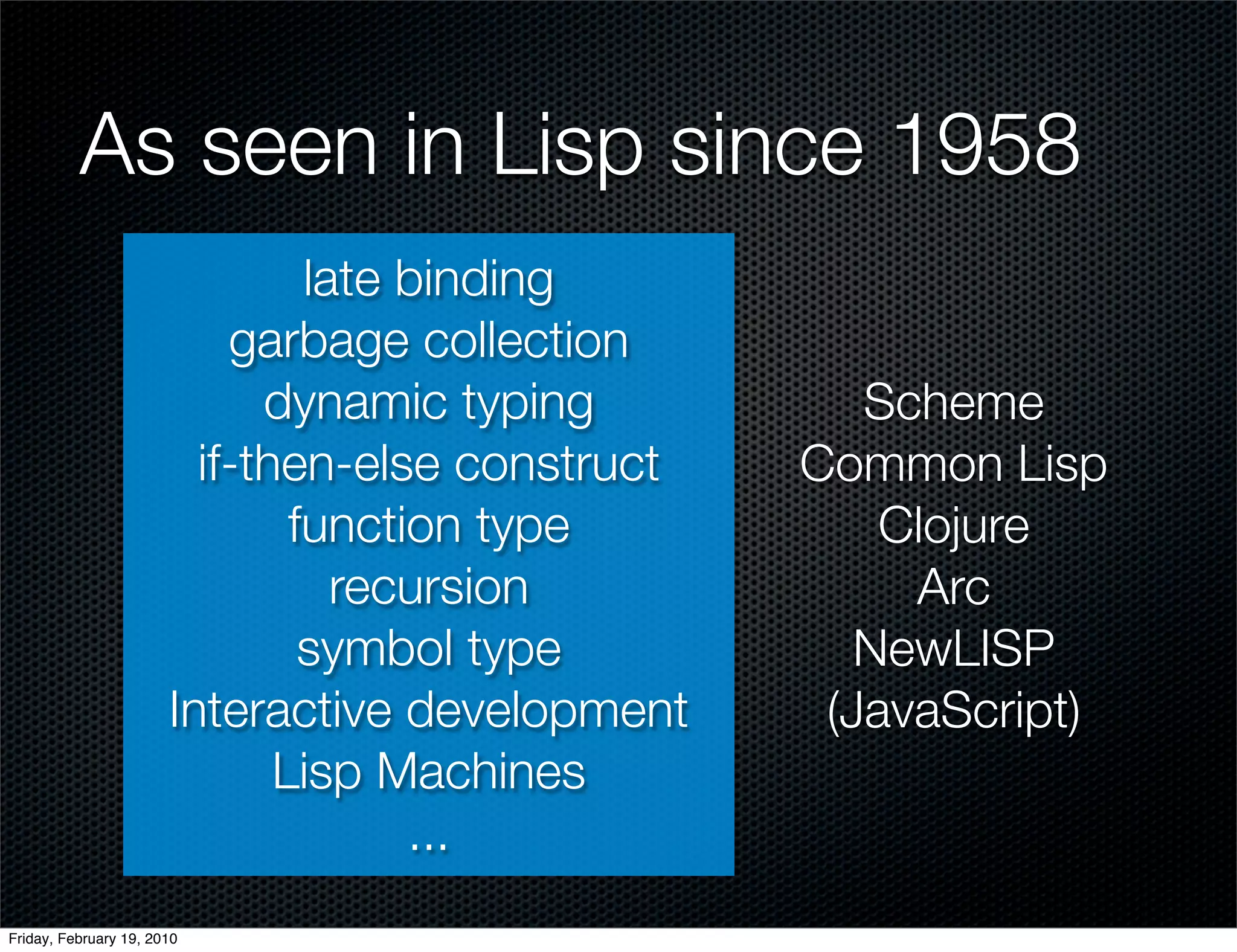

As seen in Lisp since 1958
                                late binding
                           garbage collection
                             dynamic typing          Scheme
                         if-then-else construct   Common Lisp
                               function type          Clojure
                                  recursion            Arc
                                symbol type          NewLISP
                       Interactive development     (JavaScript)
                              Lisp Machines
                                     ...
Friday, February 19, 2010

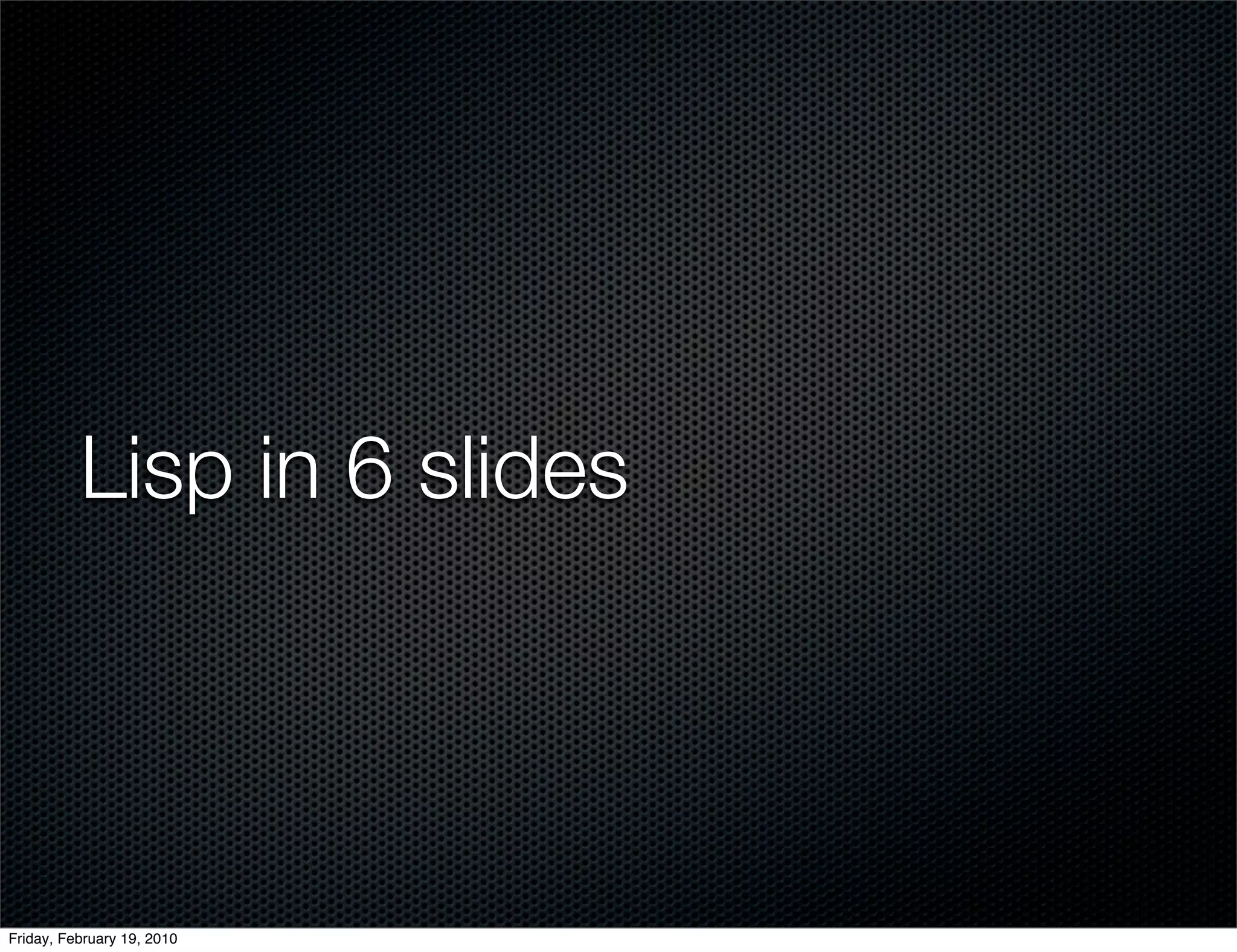

Lisp in 6 slides




Friday, February 19, 2010

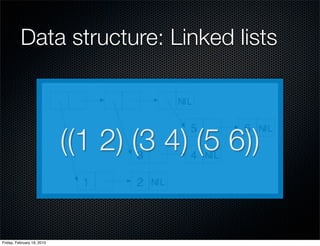

Data structure: Linked lists




Friday, February 19, 2010

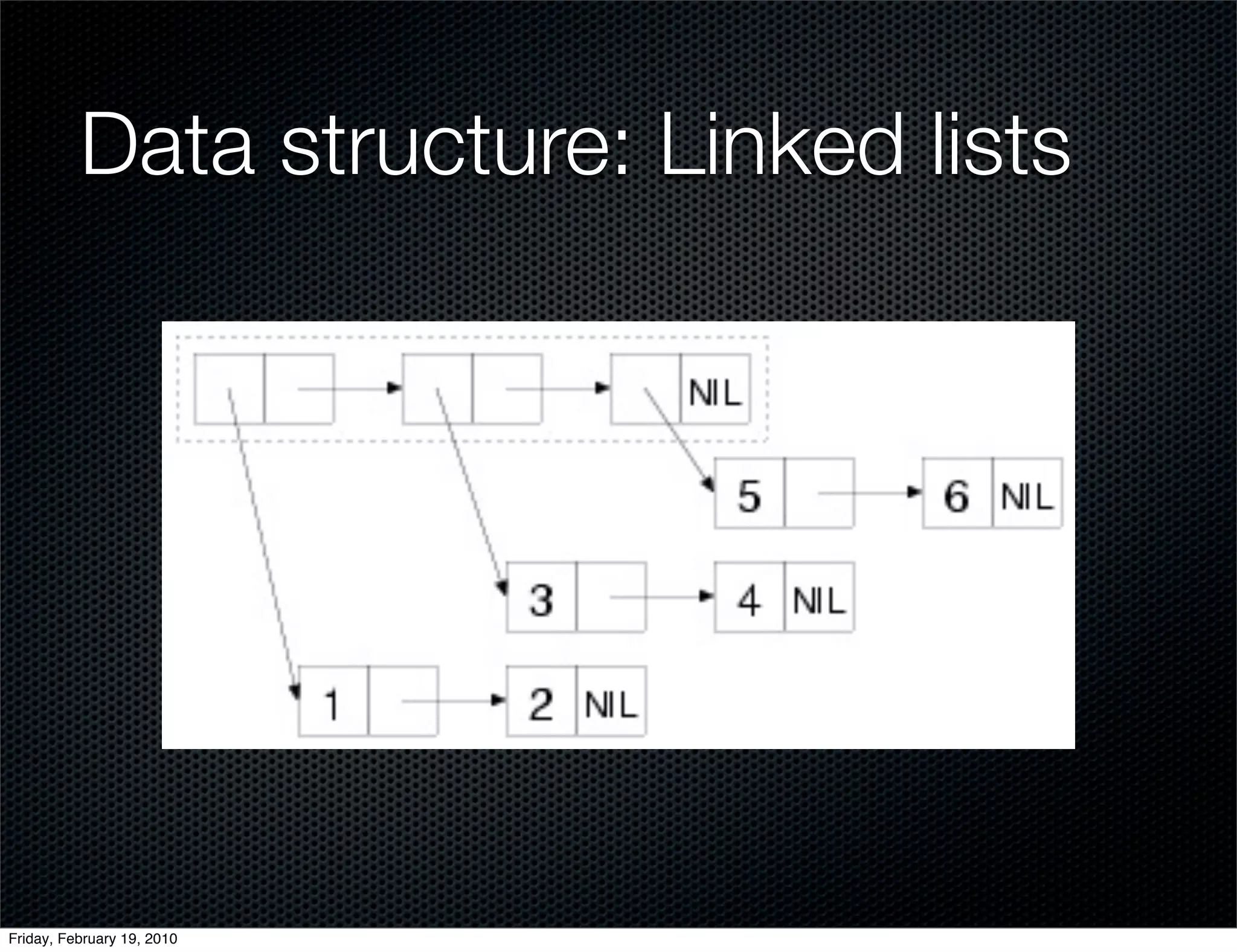

Data structure: Linked lists



                            ((1 2) (3 4) (5 6))


Friday, February 19, 2010

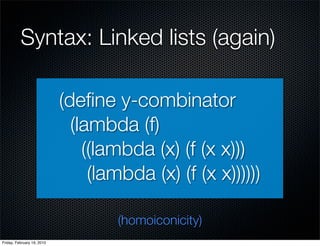

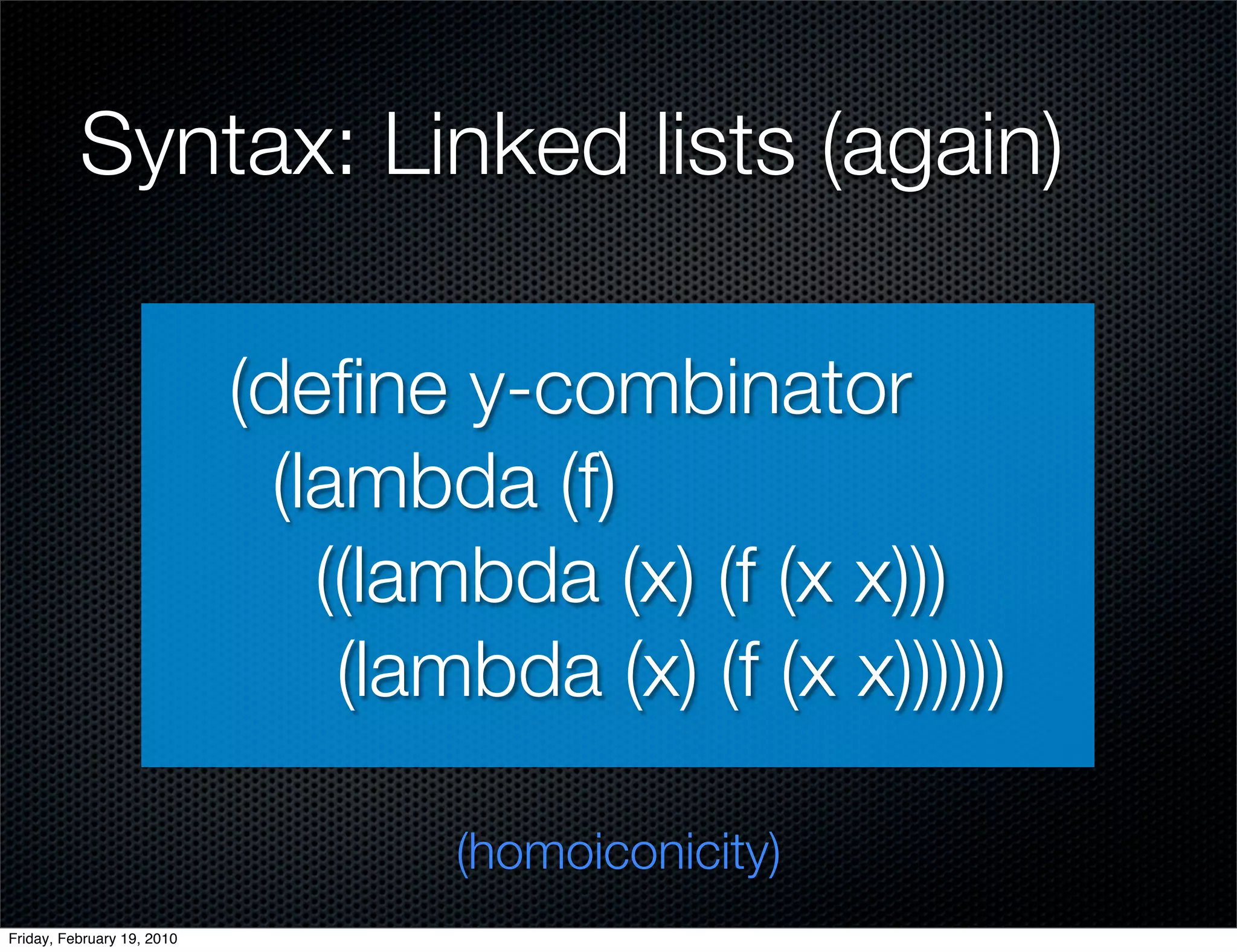

Syntax: Linked lists (again)

                            (define y-combinator
                              (lambda (f)
                                ((lambda (x) (f (x x)))
                                 (lambda (x) (f (x x))))))

                                    (homoiconicity)
Friday, February 19, 2010

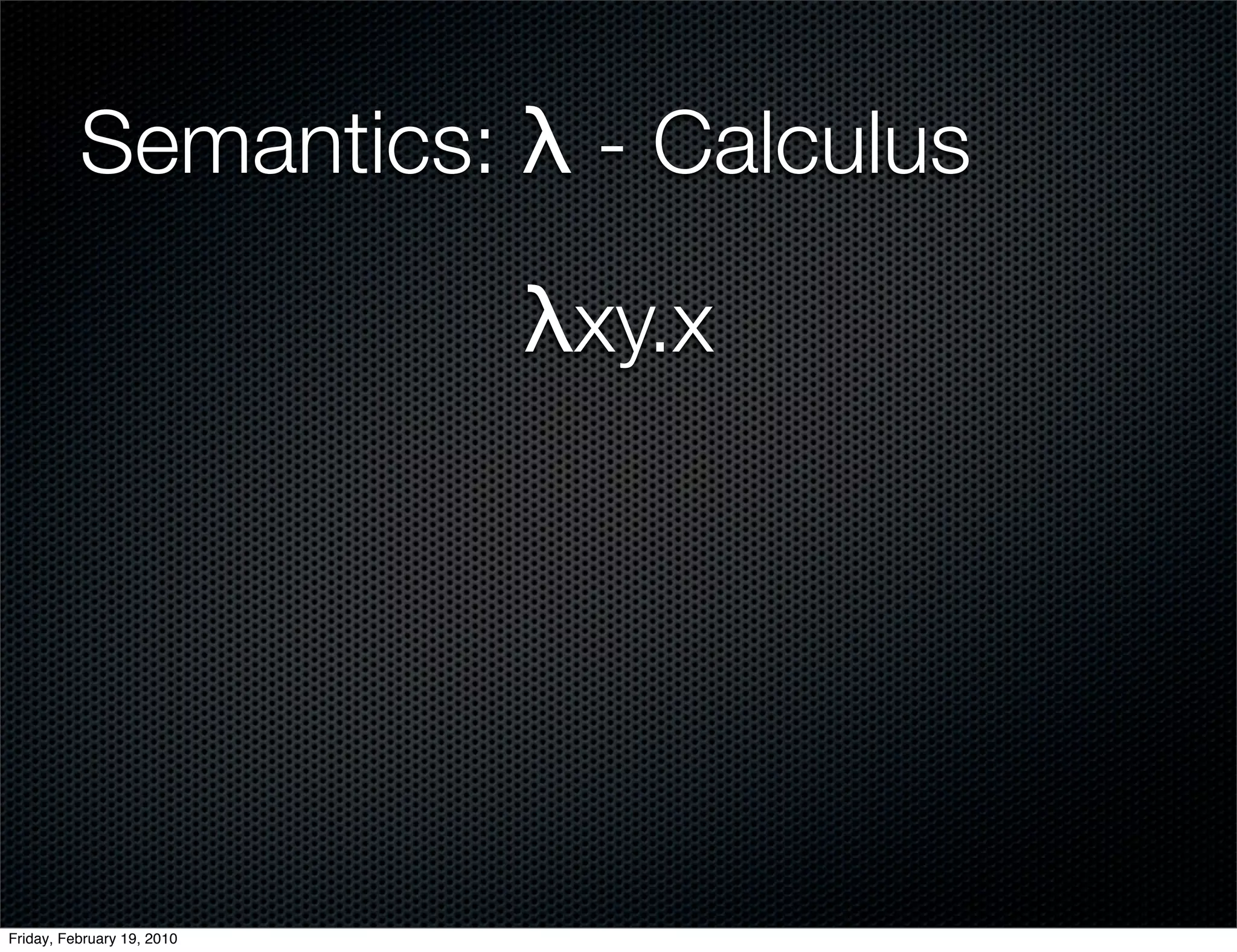

Semantics: λ - Calculus

                            λxy.x




Friday, February 19, 2010

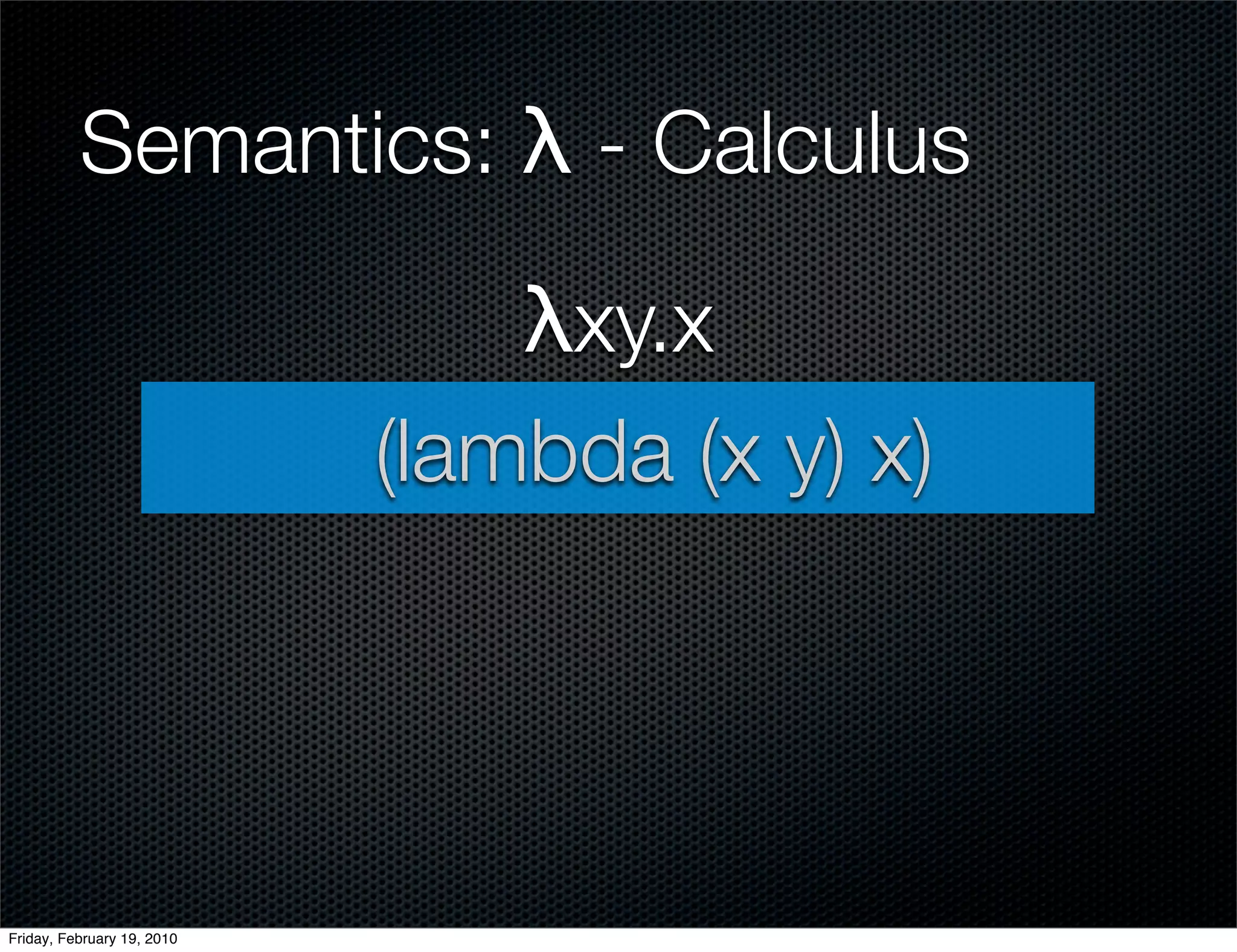

Semantics: λ - Calculus

                                λxy.x
                            (lambda (x y) x)




Friday, February 19, 2010
Semantics: λ - Calculus

                                 λxy.x
                             (lambda (x y) x)

                            (λxy.x 2 4) -β> 2


Friday, February 19, 2010

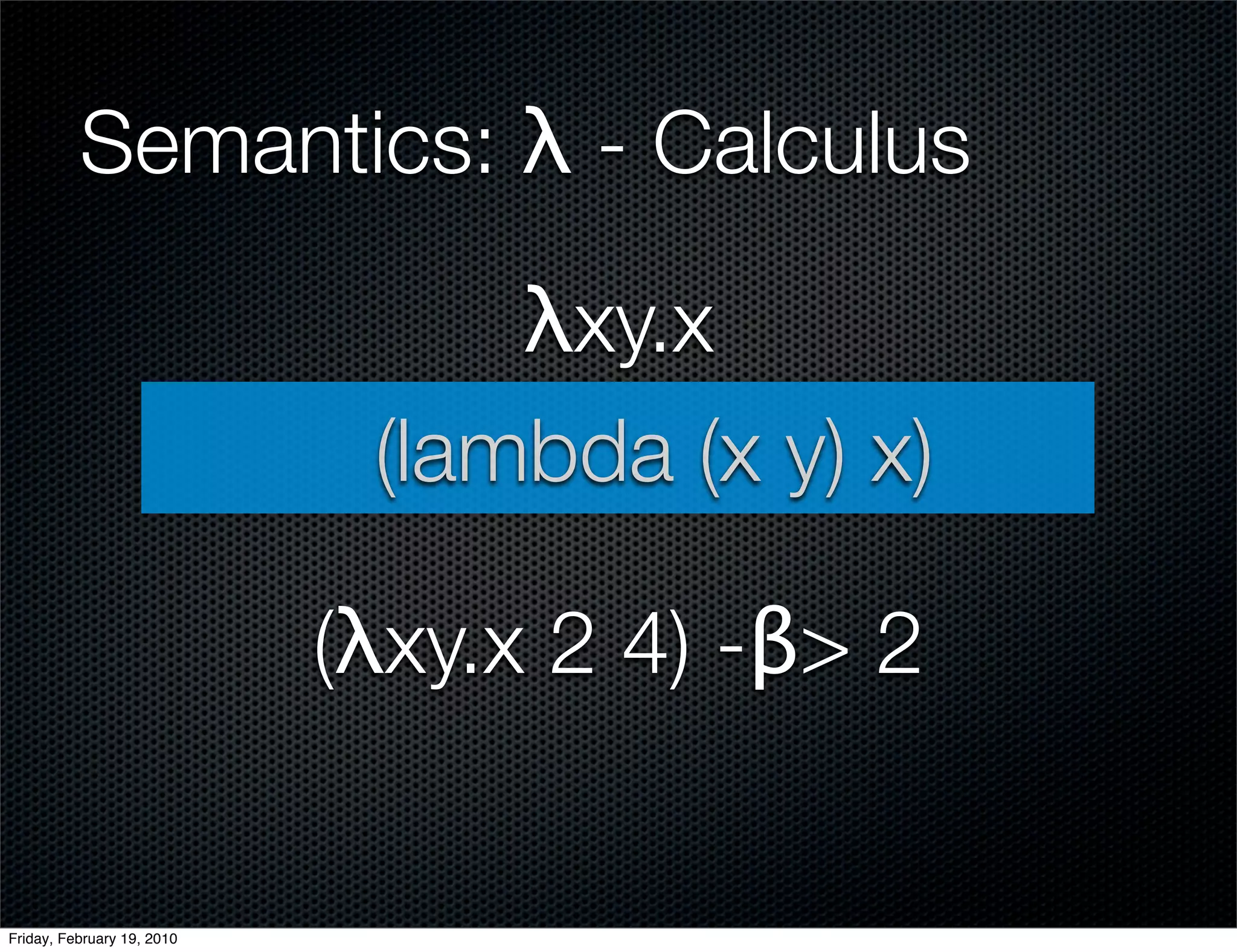

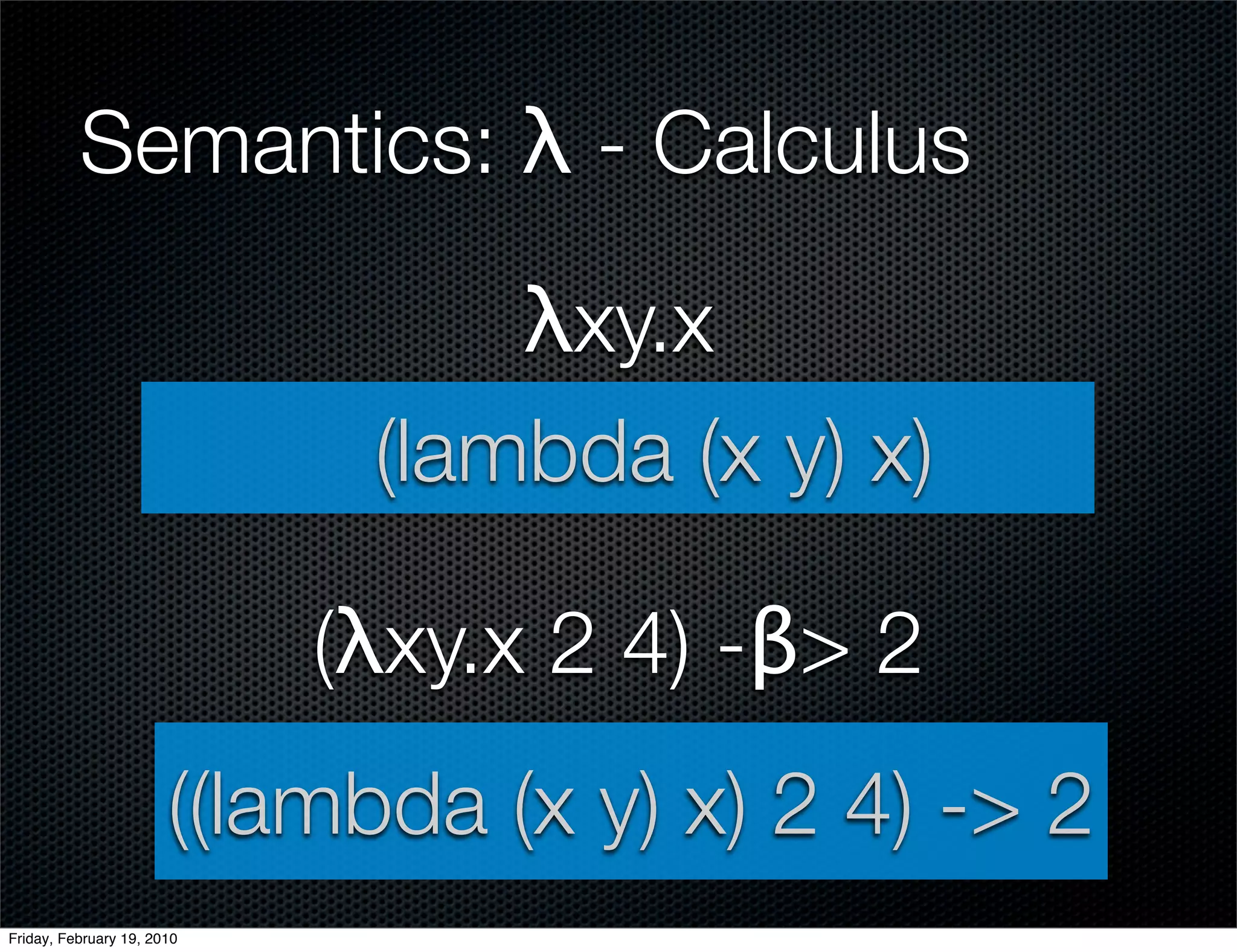

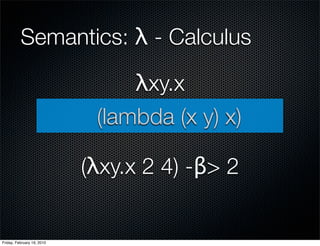

Semantics: λ - Calculus

                                 λxy.x
                             (lambda (x y) x)

                            (λxy.x 2 4) -β> 2
                       ((lambda (x y) x) 2 4) -> 2
Friday, February 19, 2010

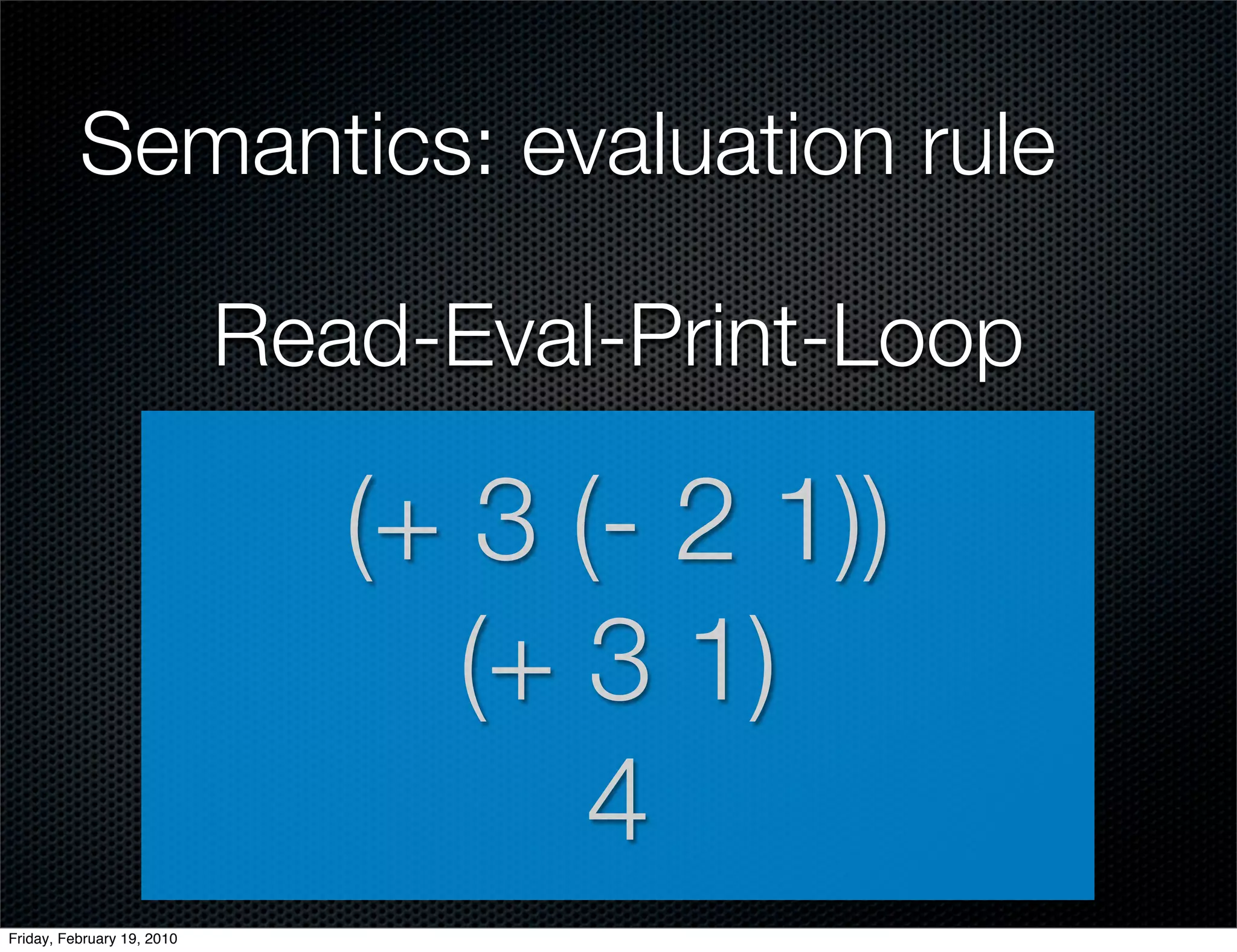

Semantics: evaluation rule

                            Read-Eval-Print-Loop

                               (+ 3 (- 2 1))
                                  (+ 3 1)
                                     4
Friday, February 19, 2010

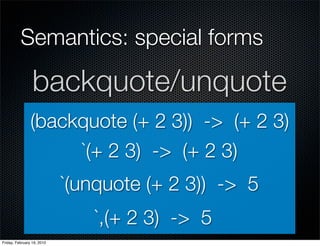

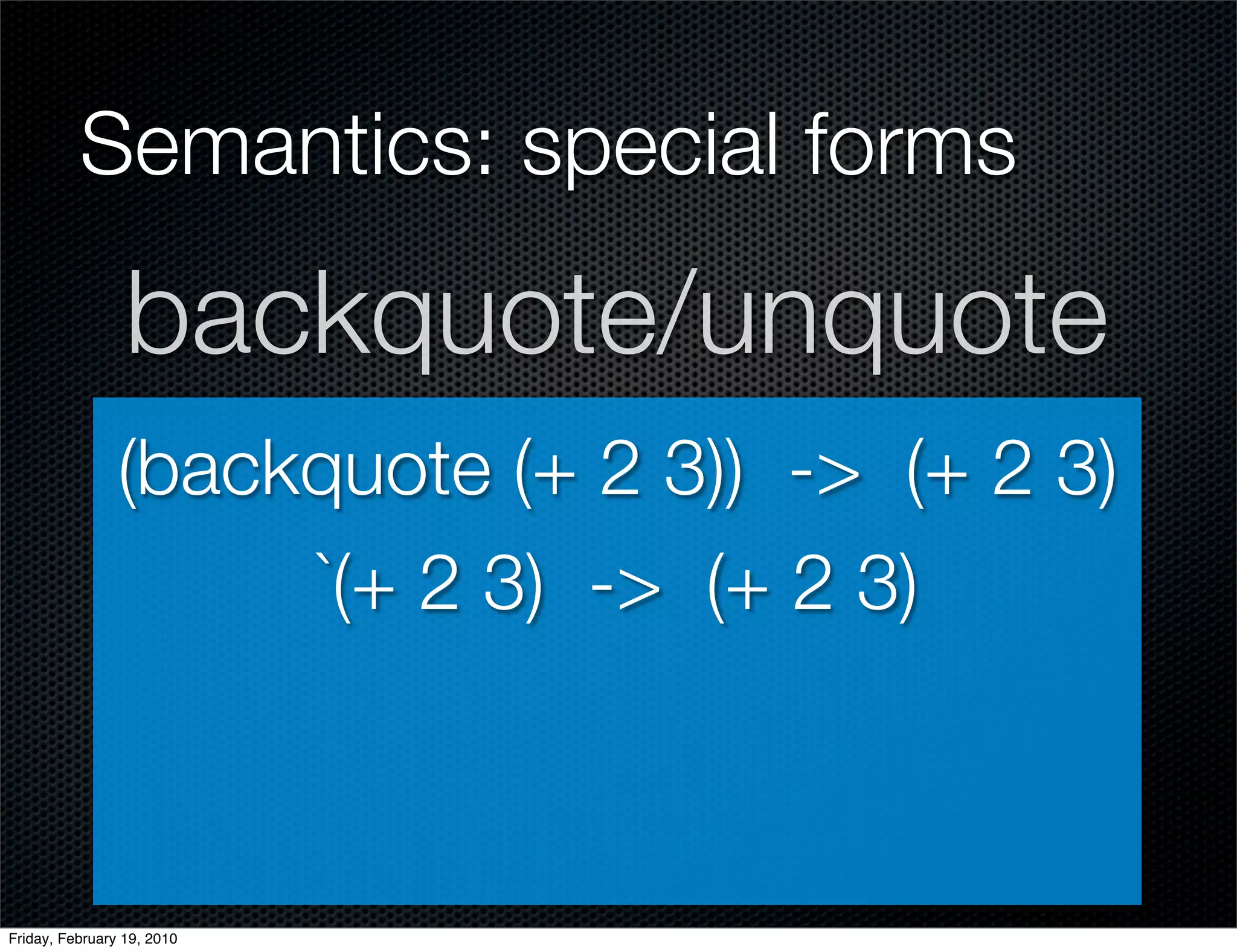

Semantics: special forms

                 backquote/unquote
                (backquote (+ 2 3)) -> (+ 2 3)
                     `(+ 2 3) -> (+ 2 3)



Friday, February 19, 2010
Semantics: special forms

                 backquote/unquote
                (backquote (+ 2 3)) -> (+ 2 3)
                     `(+ 2 3) -> (+ 2 3)
                            `(unquote (+ 2 3)) -> 5
                               `,(+ 2 3) -> 5
Friday, February 19, 2010
(Common) Lisp Macros




Friday, February 19, 2010

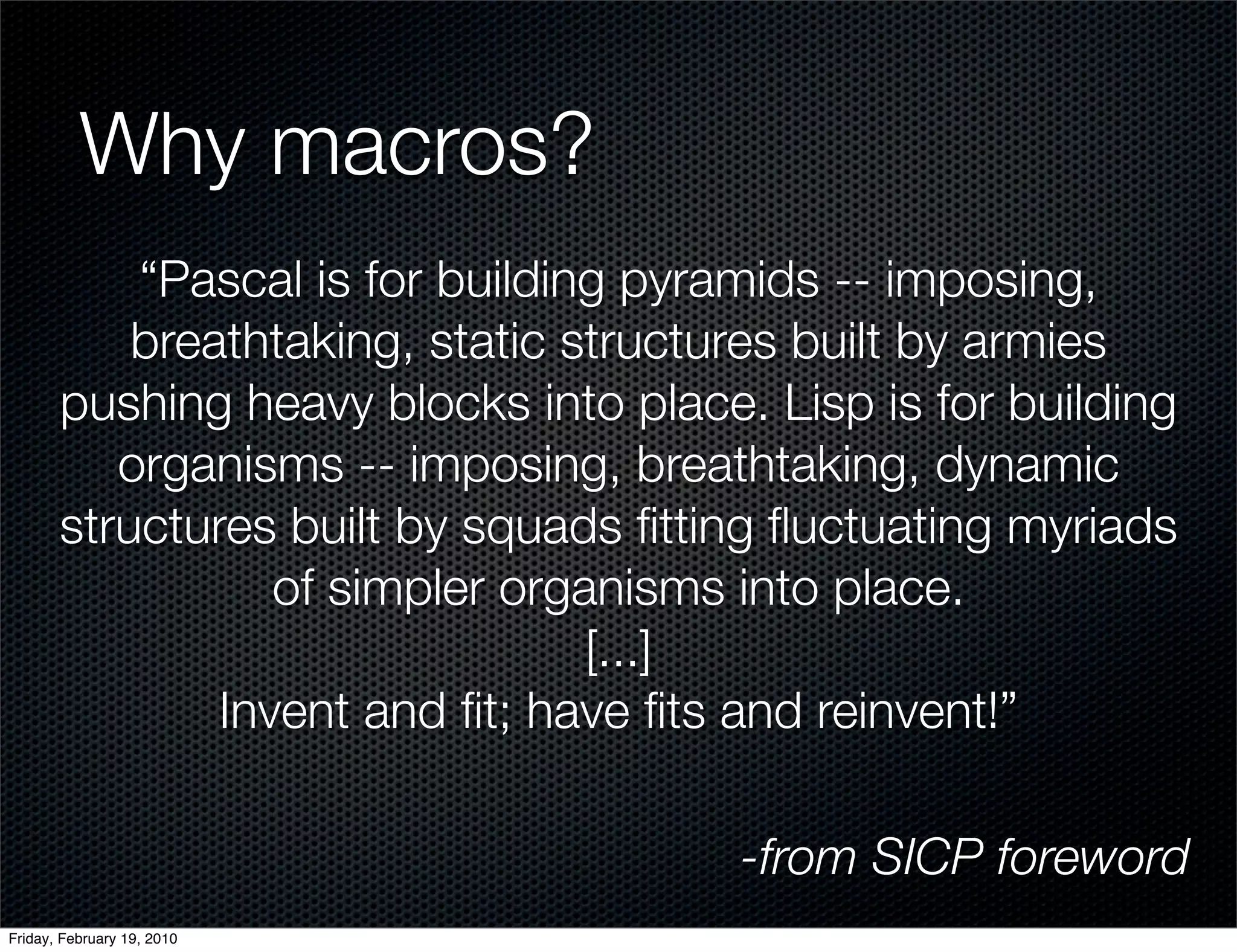

Why macros?
           “Pascal is for building pyramids -- imposing,
           breathtaking, static structures built by armies
       pushing heavy blocks into place. Lisp is for building
          organisms -- imposing, breathtaking, dynamic
       structures built by squads fitting fluctuating myriads
                  of simpler organisms into place.
                                 [...]
               Invent and fit; have fits and reinvent!”

                                       -from SICP foreword
Friday, February 19, 2010

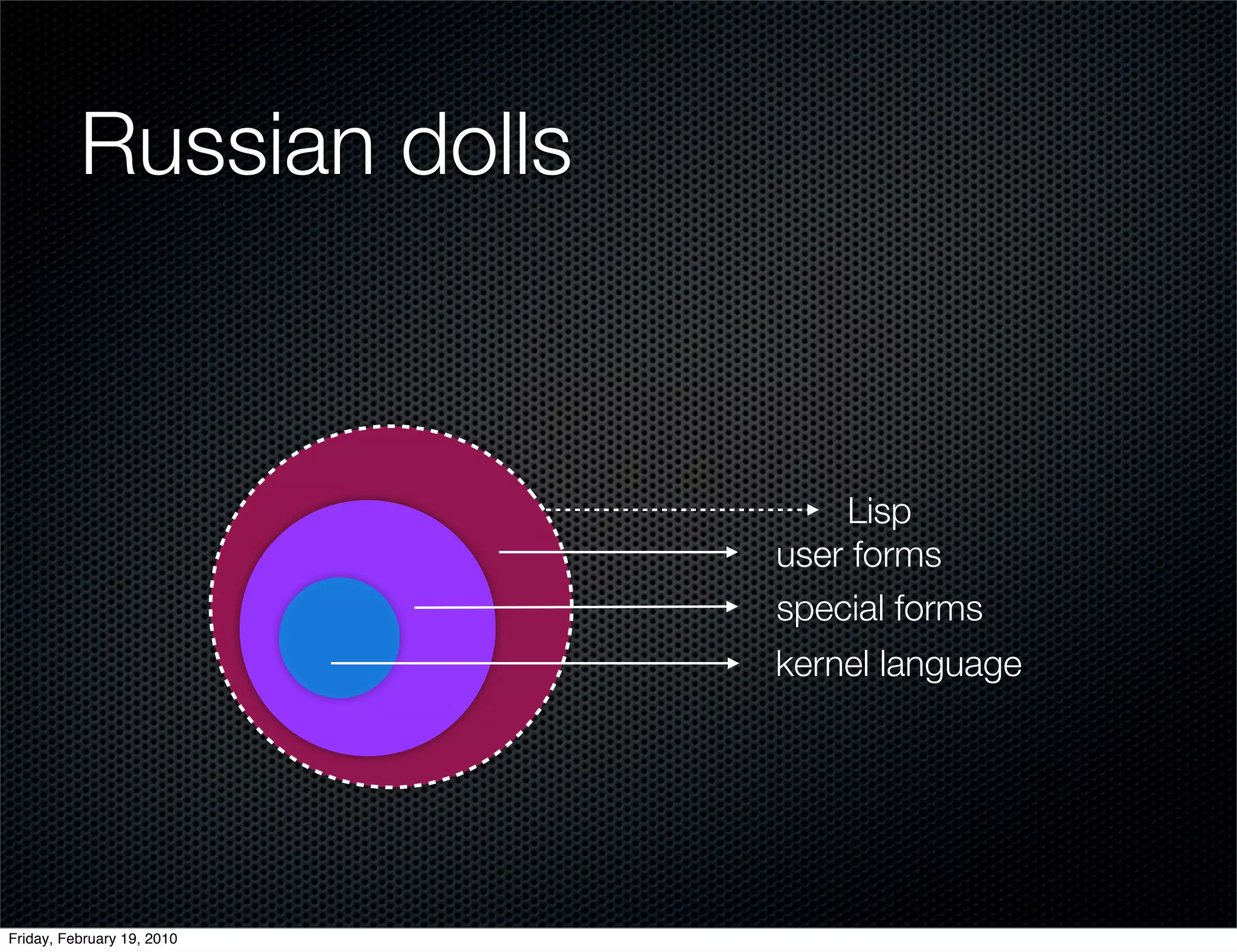

Russian dolls



                                Lisp
                            user forms
                            special forms
                            kernel language




Friday, February 19, 2010

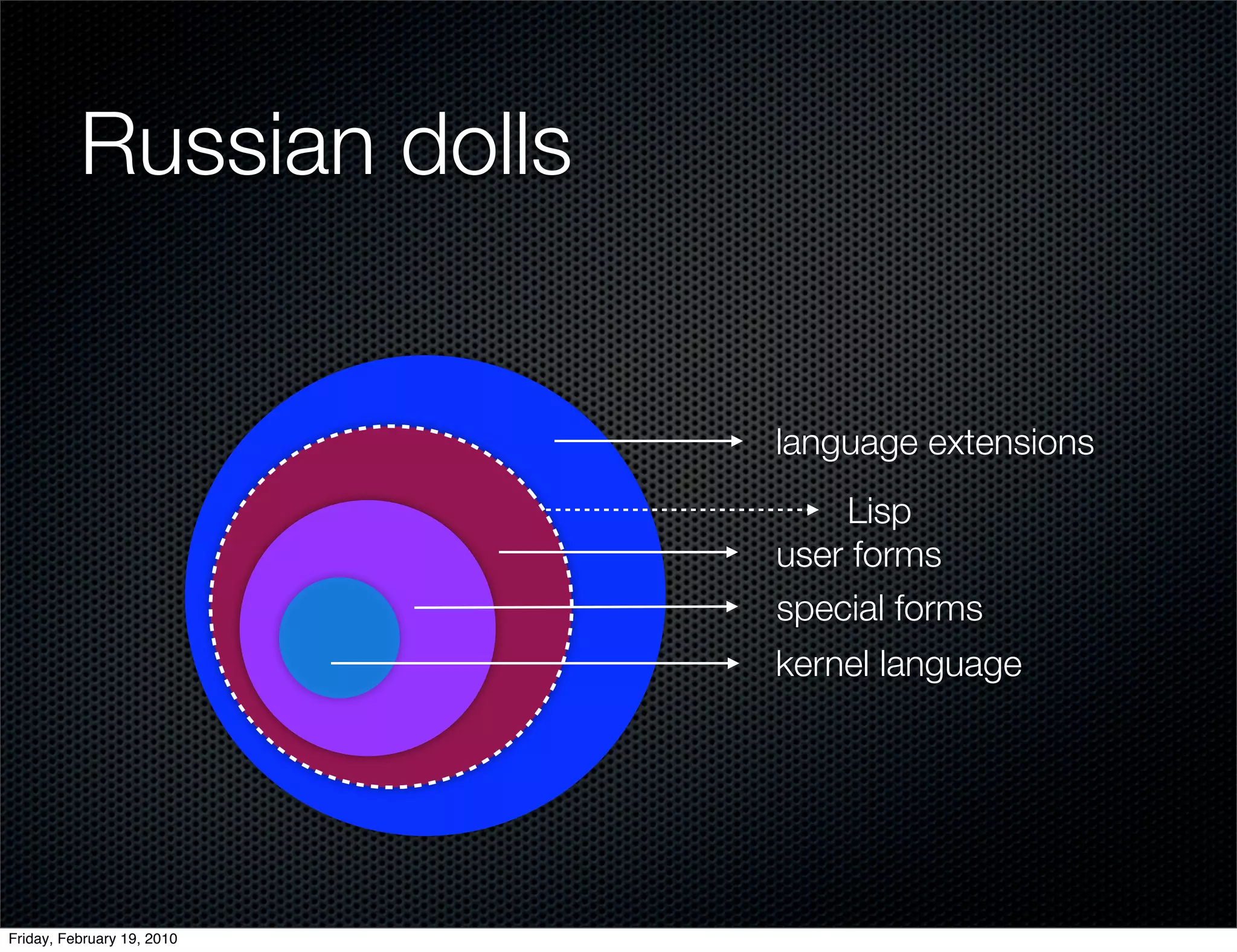

Russian dolls


                            language extensions
                                Lisp
                            user forms
                            special forms
                            kernel language




Friday, February 19, 2010

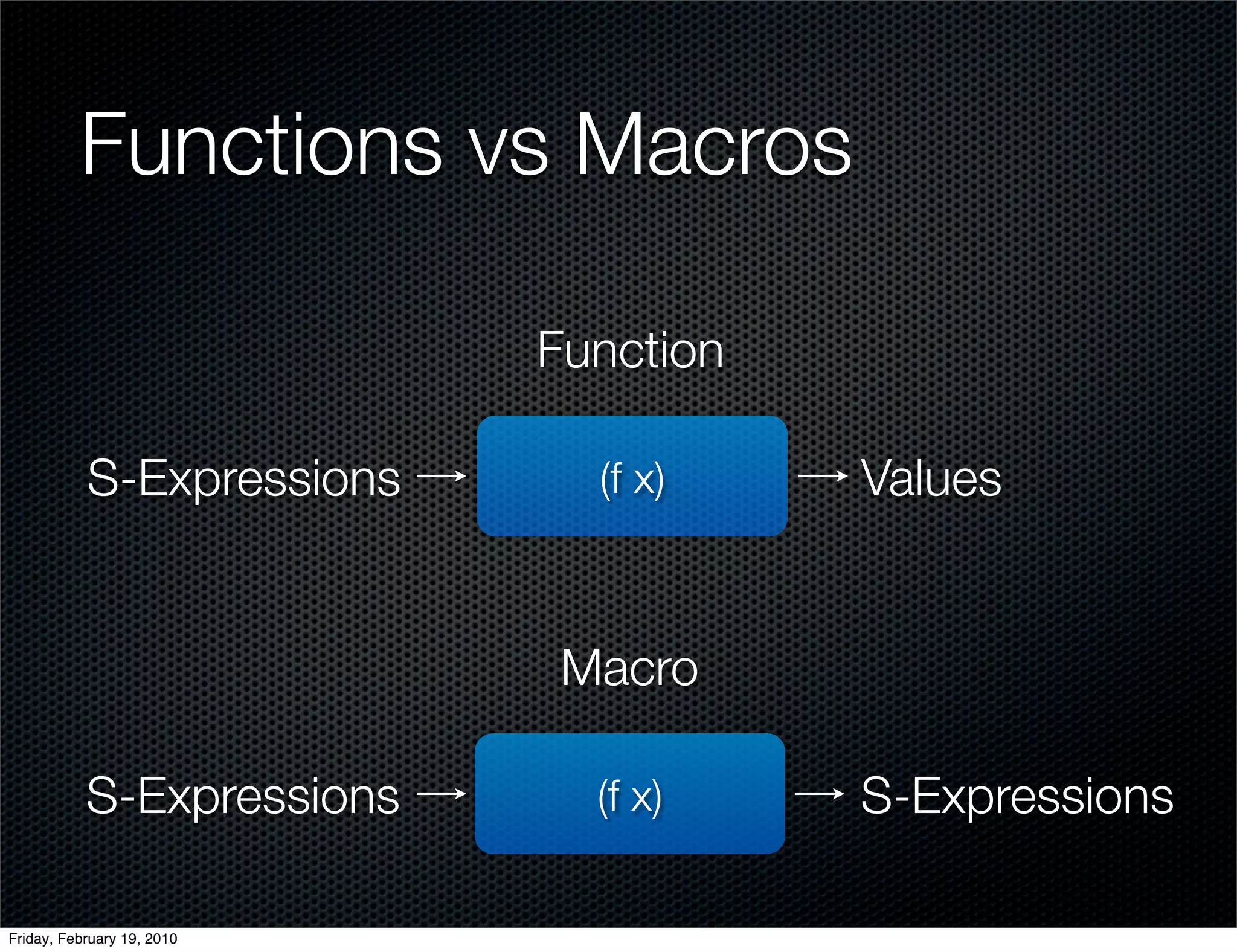

Functions vs Macros

                            Function

           S-Expressions      (f x)    Values


                             Macro

           S-Expressions      (f x)    S-Expressions

Friday, February 19, 2010

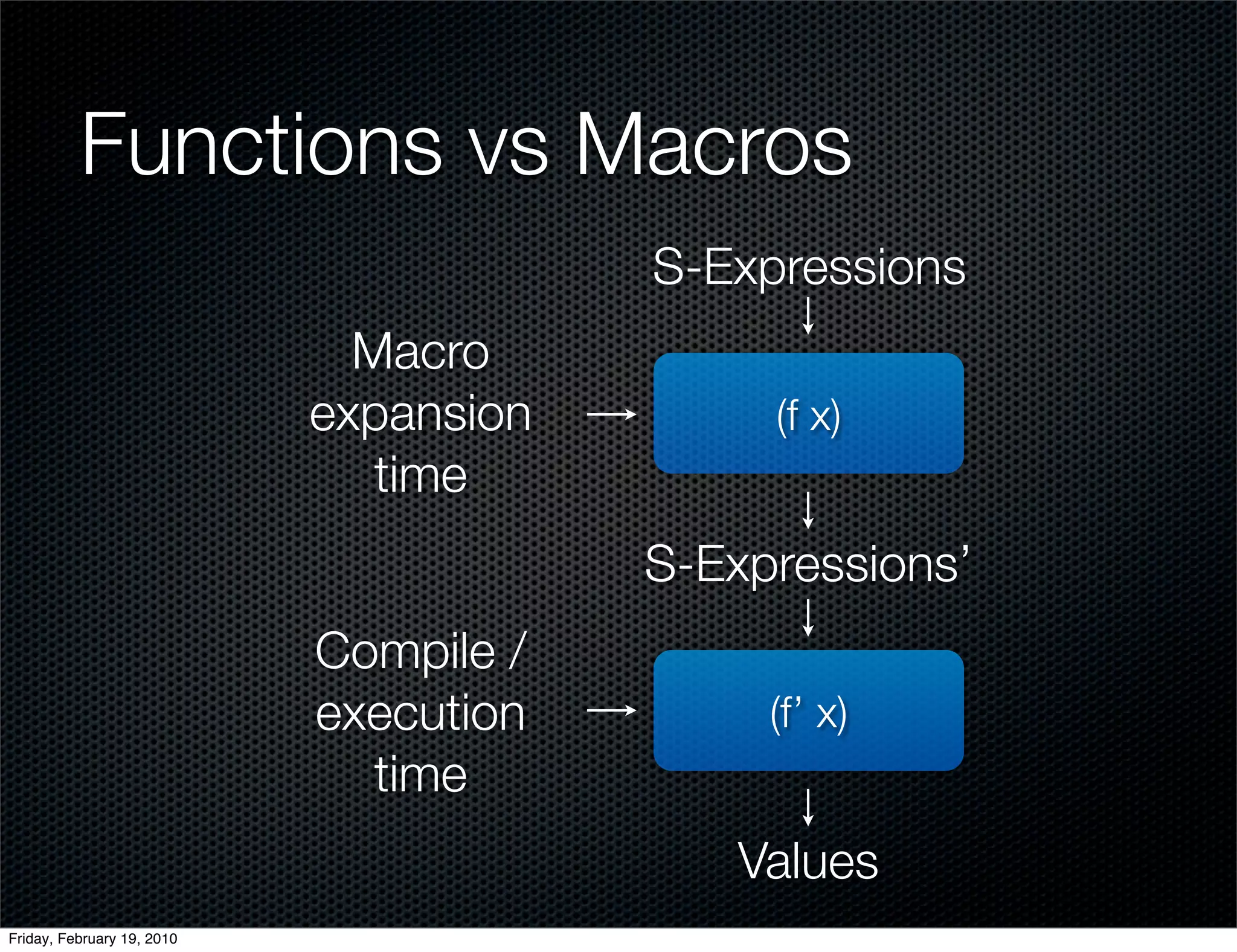

Functions vs Macros
                                        S-Expressions
                              Macro
                            expansion        (f x)
                               time
                                        S-Expressions’
                            Compile /
                            execution        (f’ x)
                              time
                                           Values
Friday, February 19, 2010

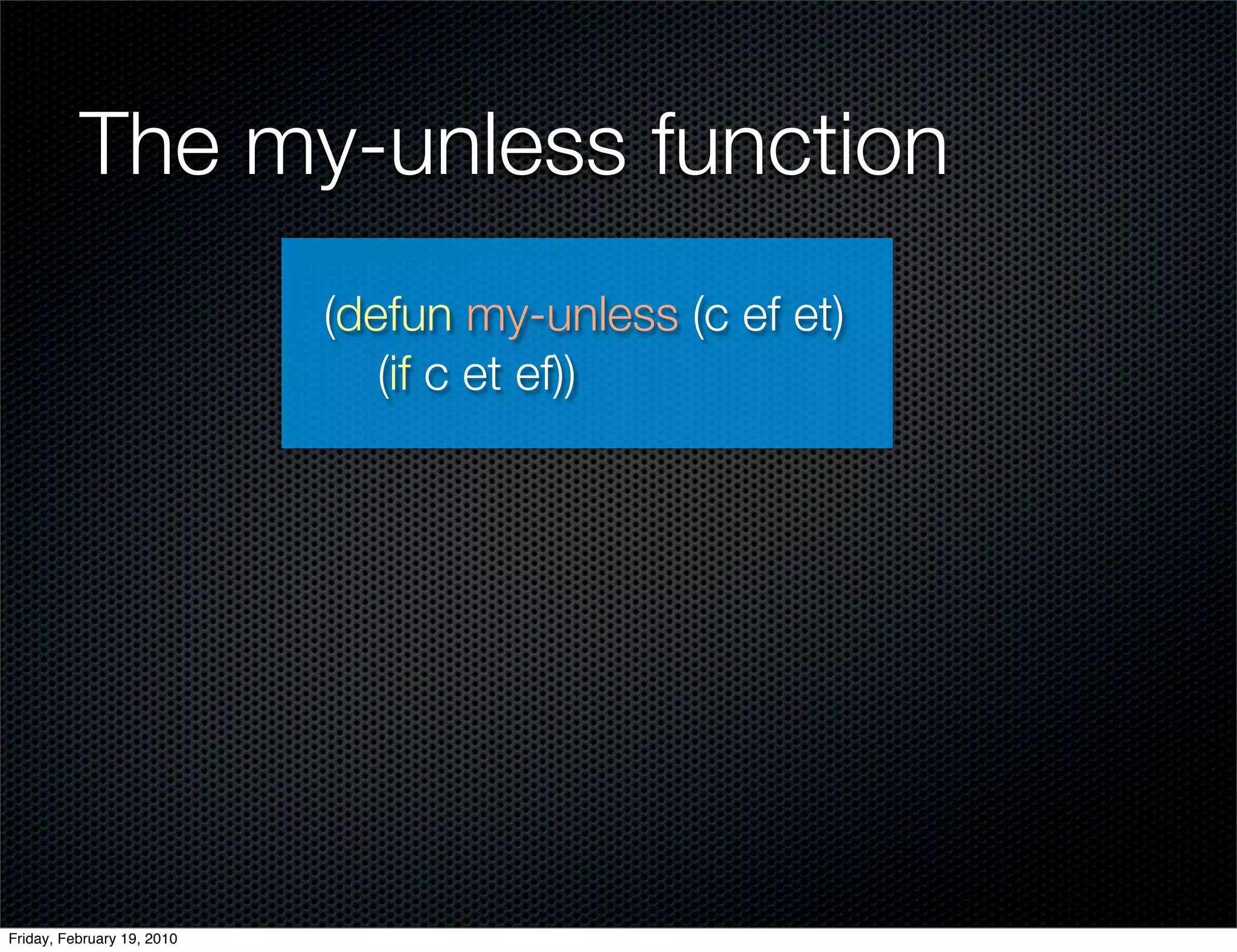

The my-unless function
                            (defun my-unless (c ef et)
                               (if c et ef))




Friday, February 19, 2010

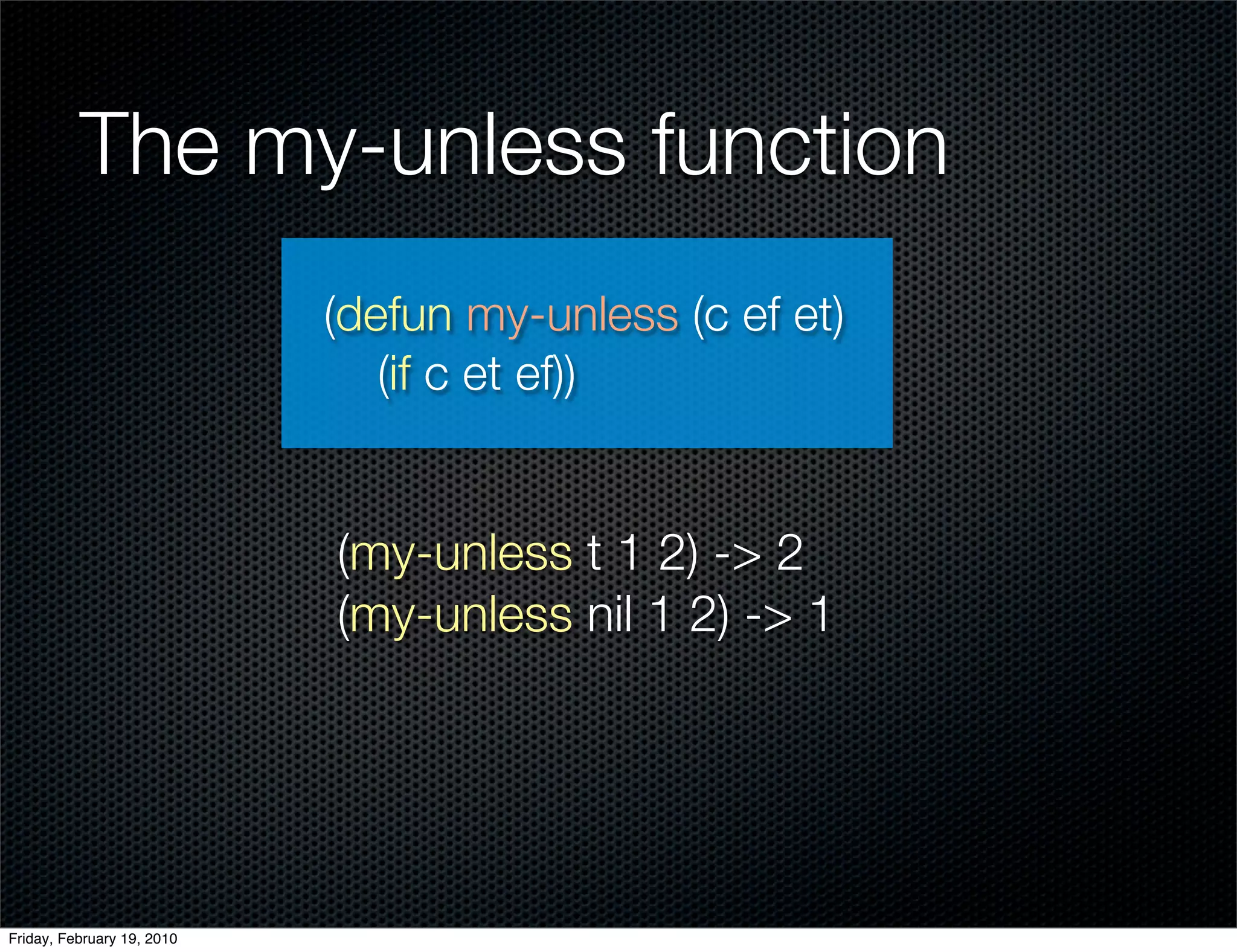

The my-unless function
                            (defun my-unless (c ef et)
                               (if c et ef))


                            (my-unless t 1 2) -> 2
                            (my-unless nil 1 2) -> 1




Friday, February 19, 2010

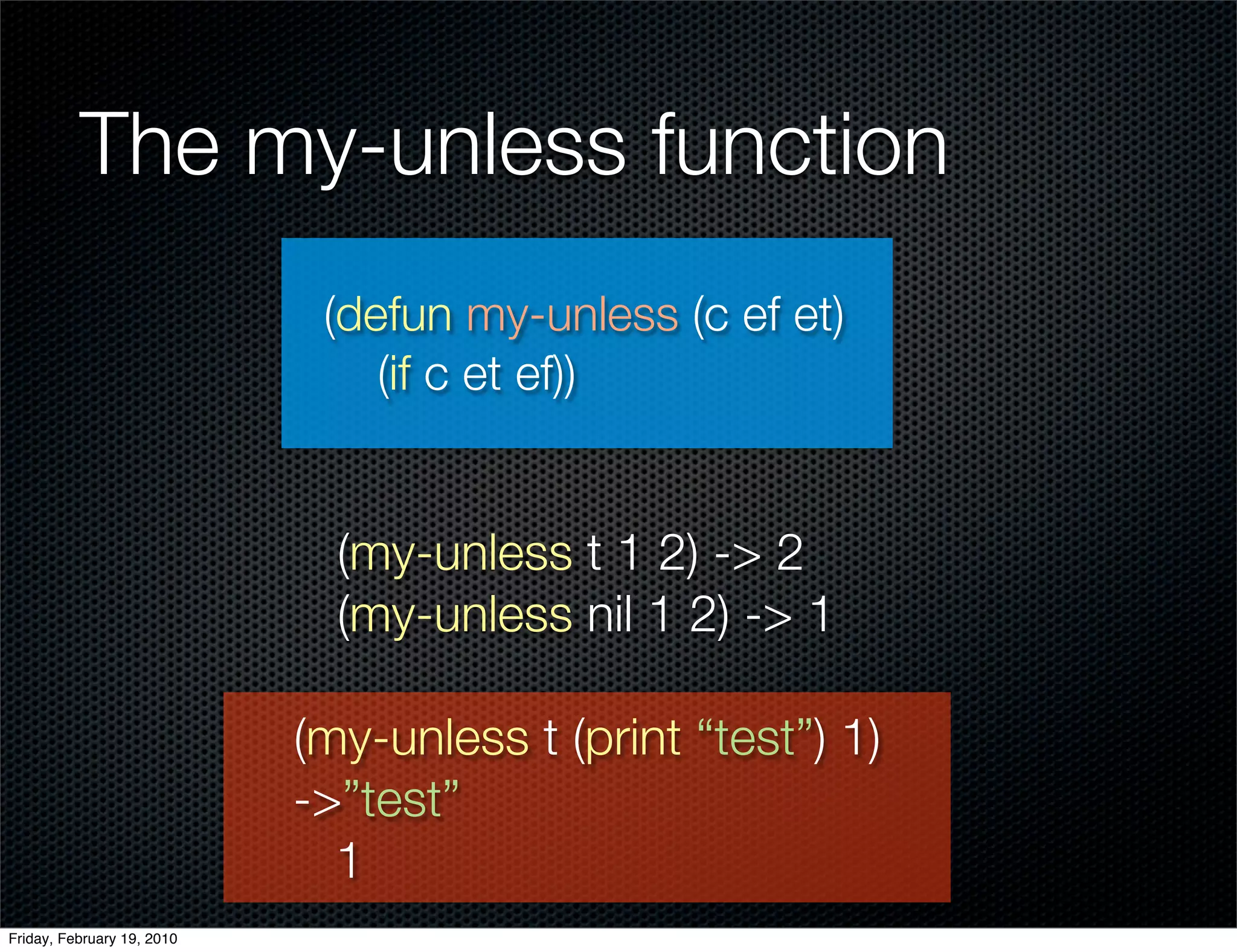

The my-unless function
                             (defun my-unless (c ef et)
                                (if c et ef))


                              (my-unless t 1 2) -> 2
                              (my-unless nil 1 2) -> 1

                            (my-unless t (print “test”) 1)
                            ->”test”
                              1
Friday, February 19, 2010

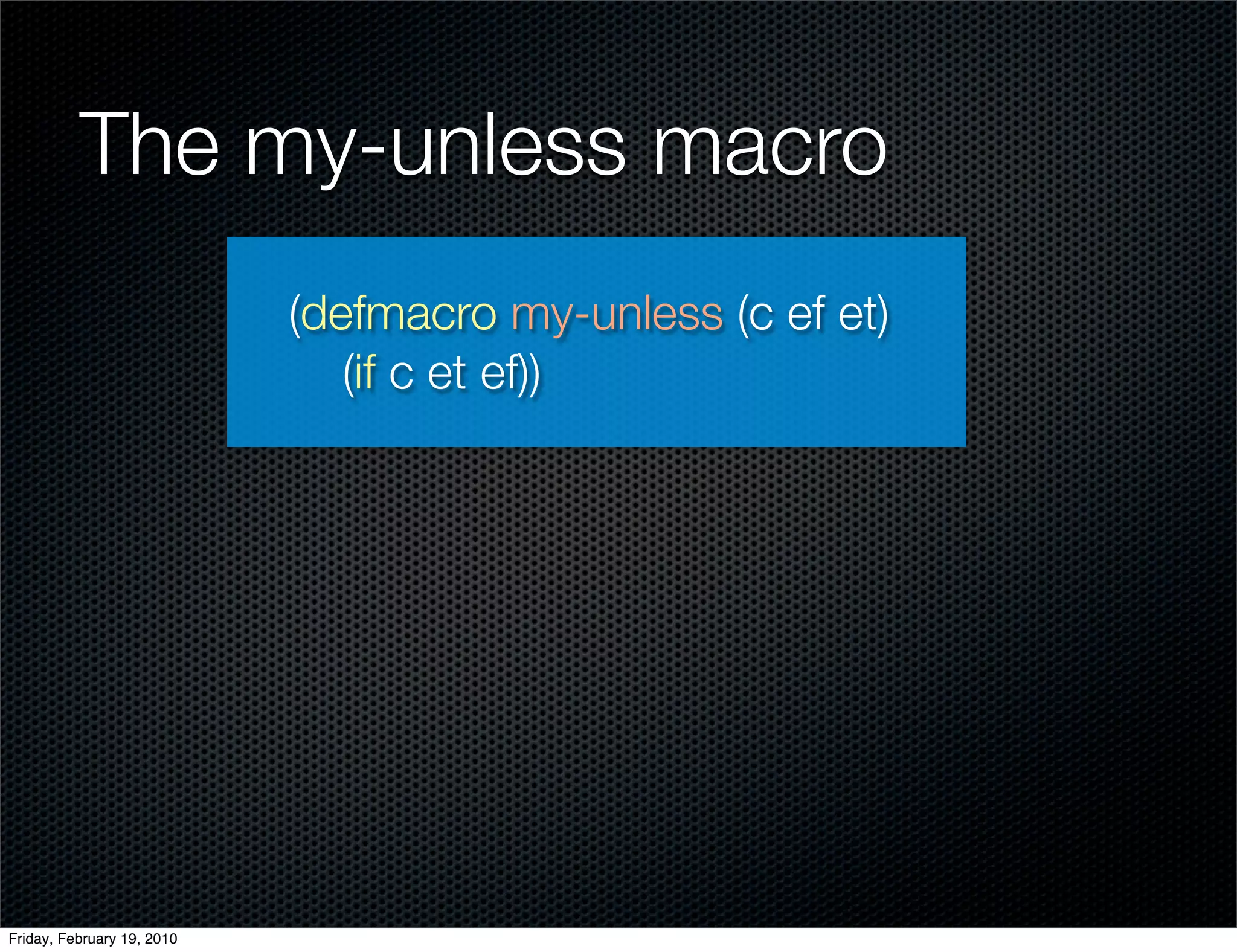

The my-unless macro
                            (defmacro my-unless (c ef et)
                               (if c et ef))




Friday, February 19, 2010

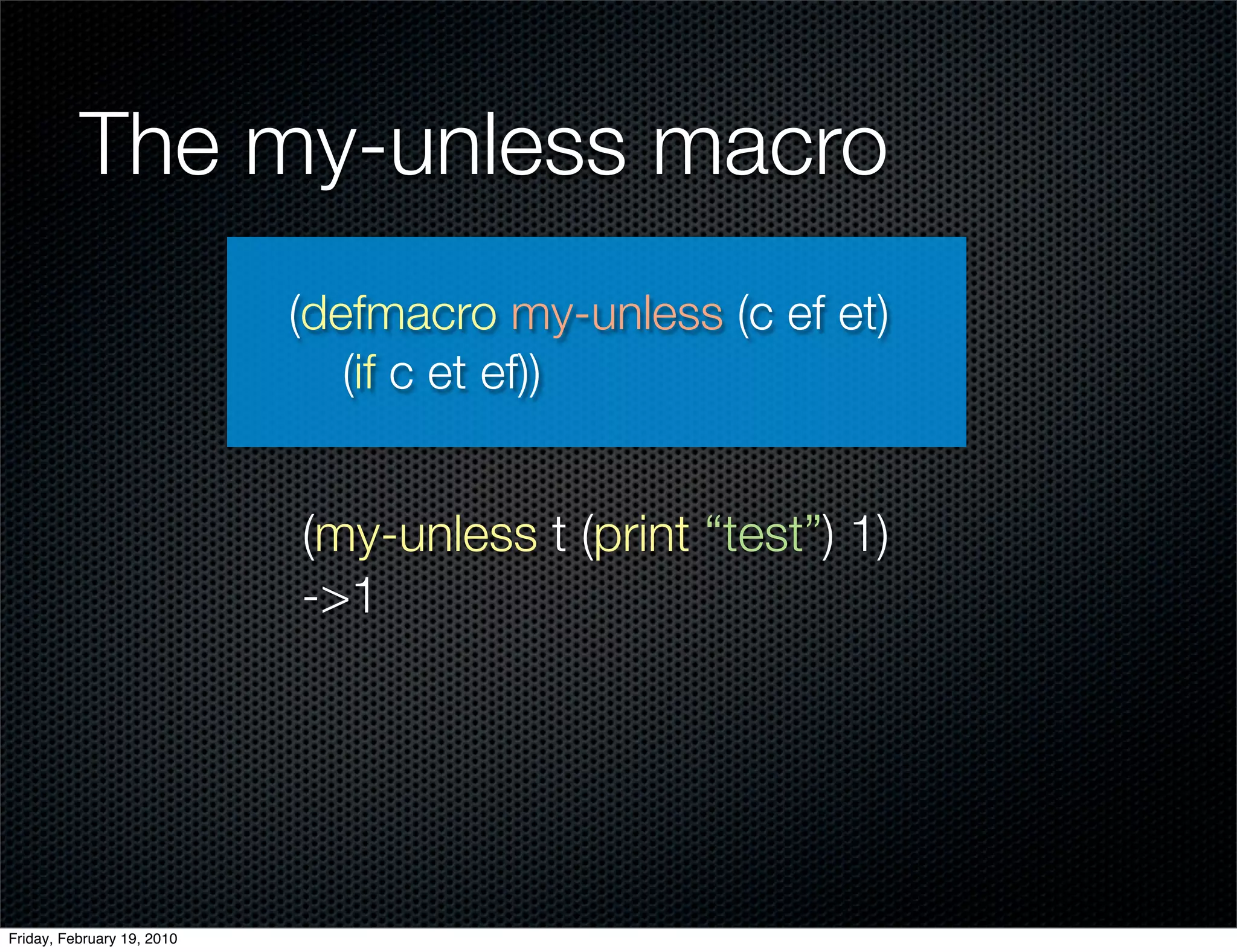

The my-unless macro
                            (defmacro my-unless (c ef et)
                               (if c et ef))


                            (my-unless t (print “test”) 1)
                            ->1




Friday, February 19, 2010

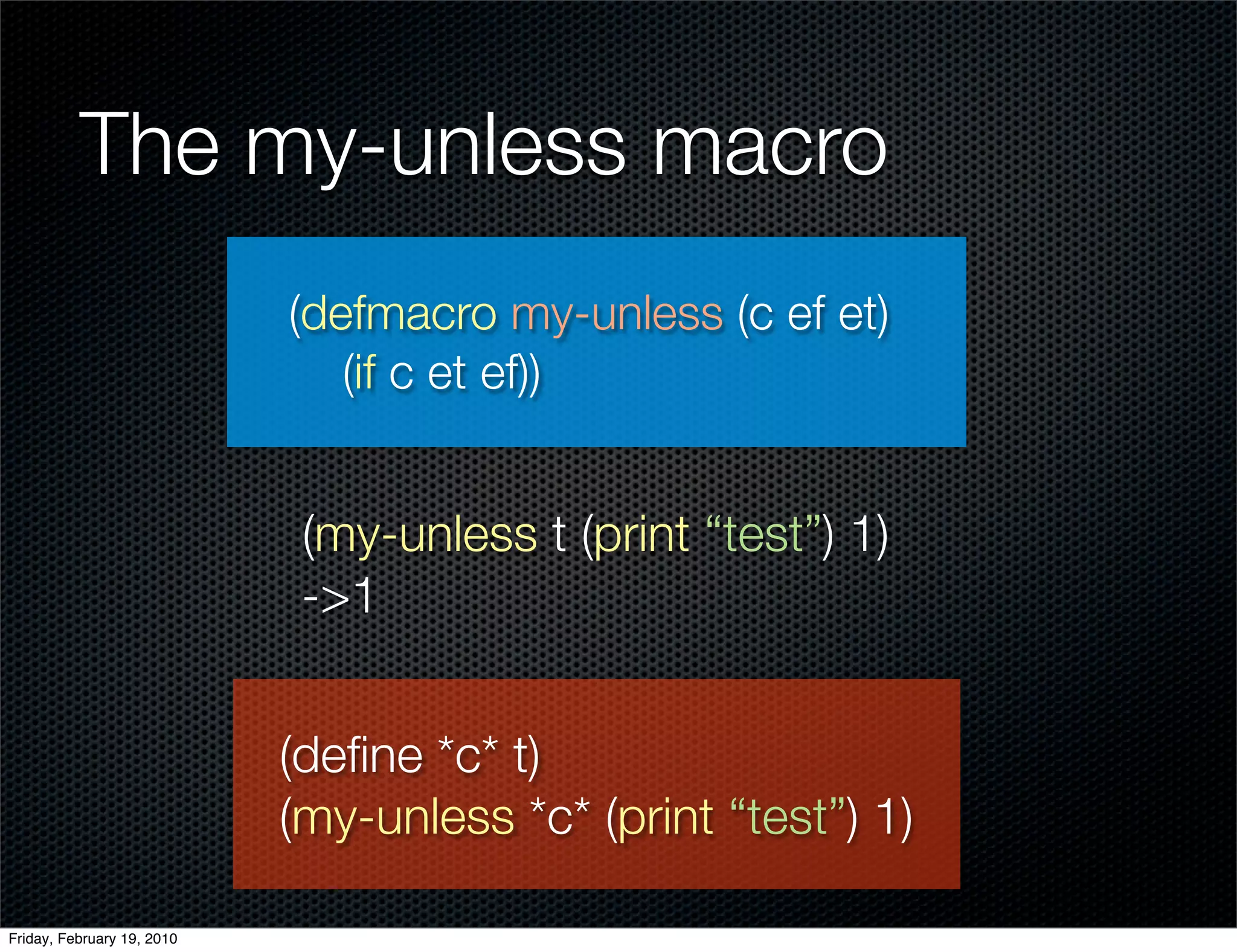

The my-unless macro
                            (defmacro my-unless (c ef et)
                               (if c et ef))


                             (my-unless t (print “test”) 1)
                             ->1


                            (define *c* t)
                            (my-unless *c* (print “test”) 1)

Friday, February 19, 2010
The my-unless macro
                            (defmacro my-unless (c ef et)
                               `(if ,c ,et ,ef))


                            (define *c* t)
                            (my-unless *c* (print “test”) 1)




Friday, February 19, 2010

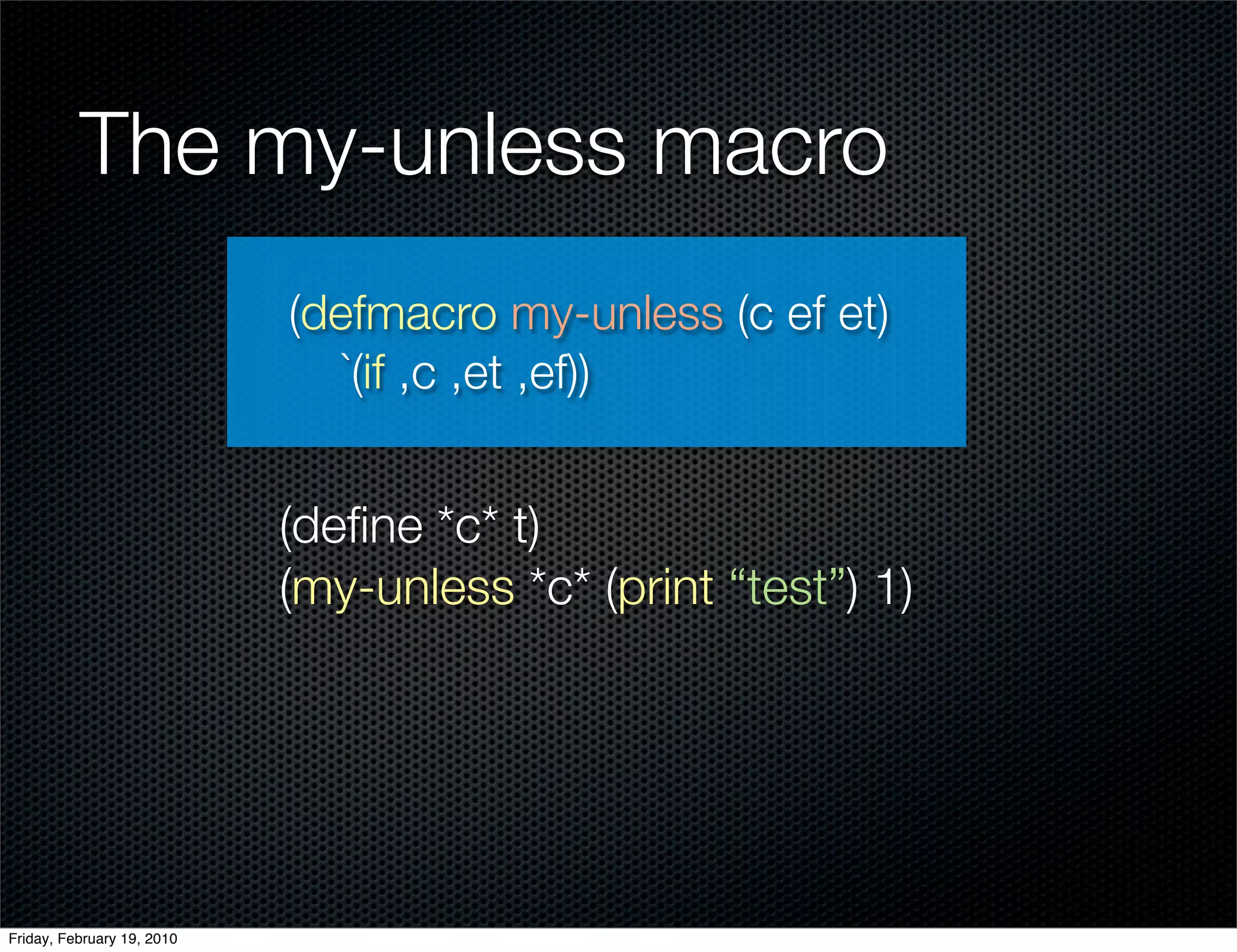

The my-unless macro
                            (defmacro my-unless (c ef et)
                               `(if ,c ,et ,ef))


                            (define *c* t)
                            (my-unless *c* (print “test”) 1)


                            (define *c* t)
                            (if *c* 1 (print “test”))
Friday, February 19, 2010

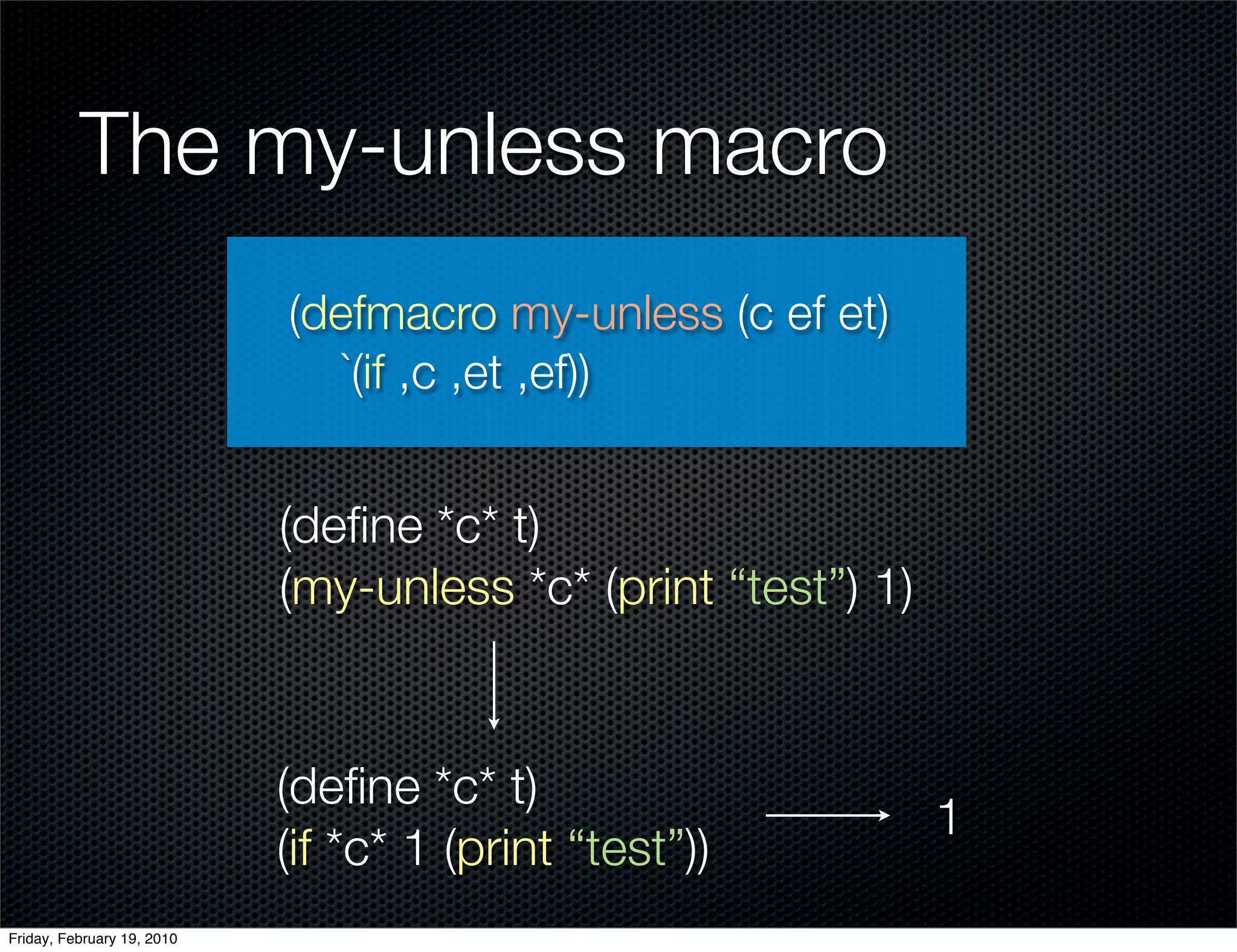

The my-unless macro
                            (defmacro my-unless (c ef et)
                               `(if ,c ,et ,ef))


                            (define *c* t)
                            (my-unless *c* (print “test”) 1)


                            (define *c* t)
                                                               1
                            (if *c* 1 (print “test”))
Friday, February 19, 2010

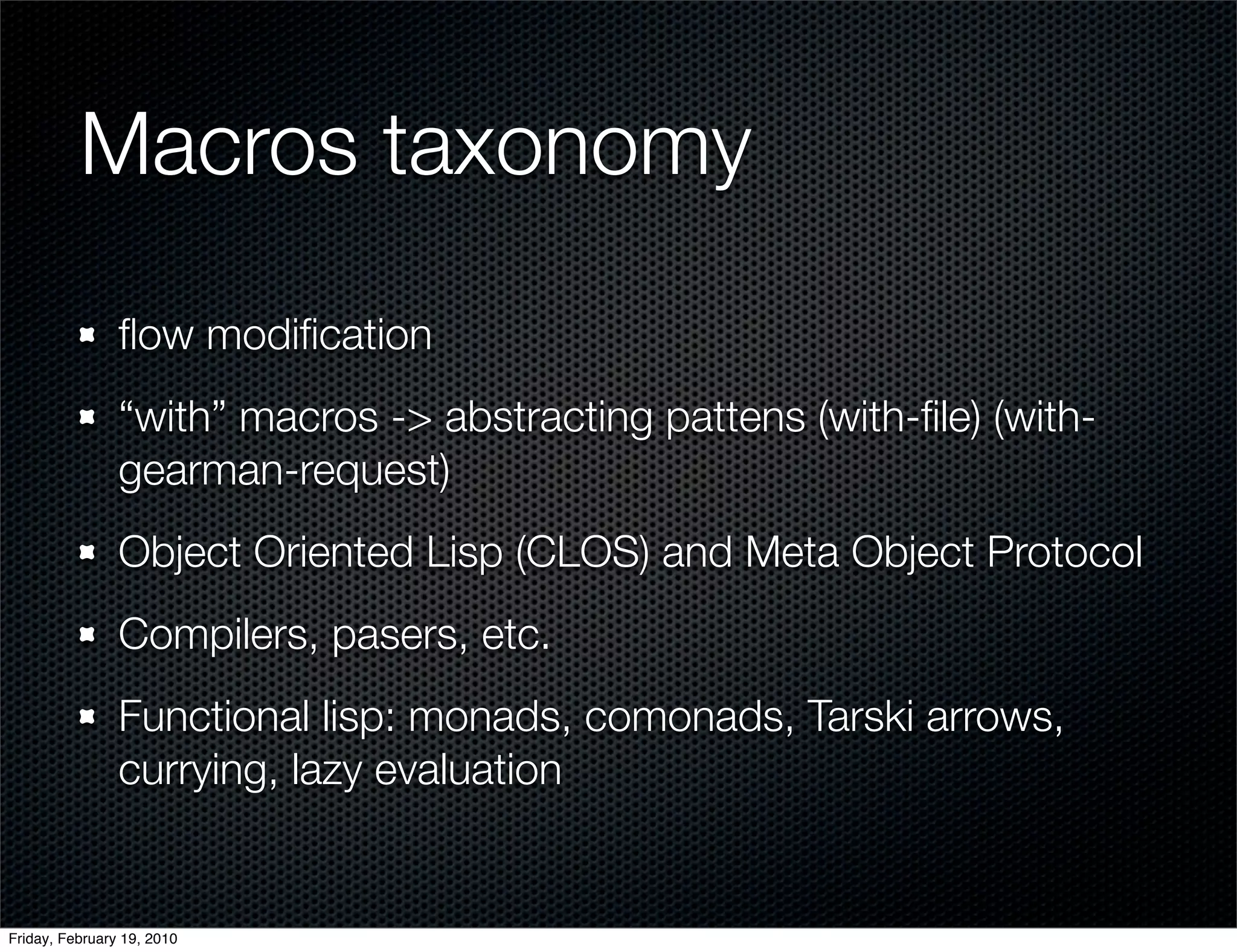

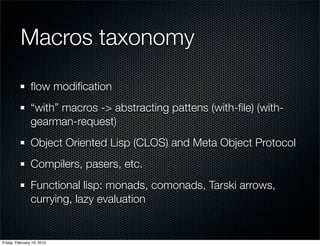

Macros taxonomy

                flow modification
                “with” macros -> abstracting pattens (with-file) (with-
                gearman-request)
                Object Oriented Lisp (CLOS) and Meta Object Protocol
                Compilers, pasers, etc.
                Functional lisp: monads, comonads, Tarski arrows,
                currying, lazy evaluation


Friday, February 19, 2010

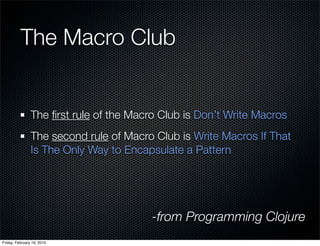

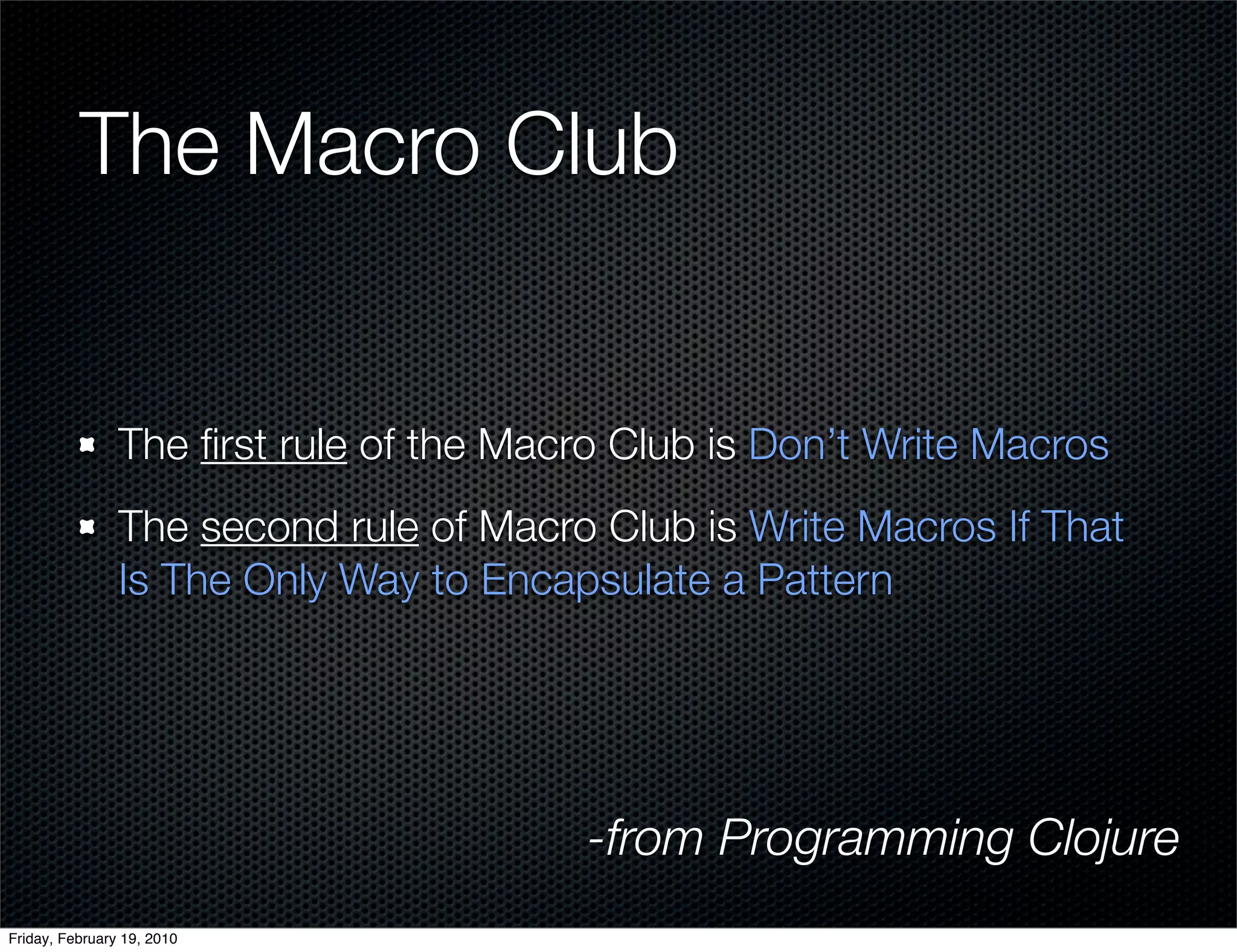

The Macro Club


                The first rule of the Macro Club is Don’t Write Macros
                The second rule of Macro Club is Write Macros If That
                Is The Only Way to Encapsulate a Pattern




                                         -from Programming Clojure
Friday, February 19, 2010

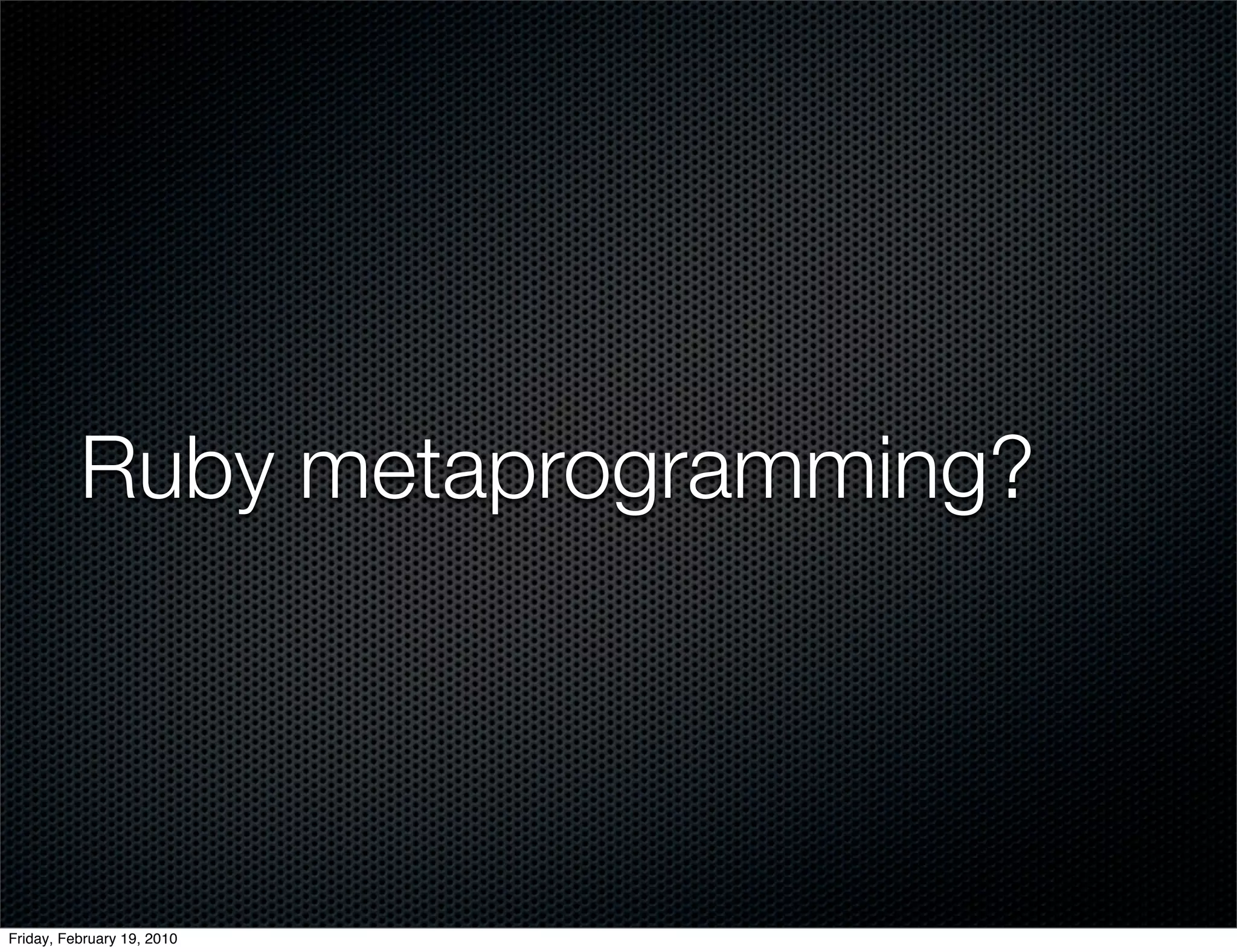

Ruby metaprogramming?




Friday, February 19, 2010

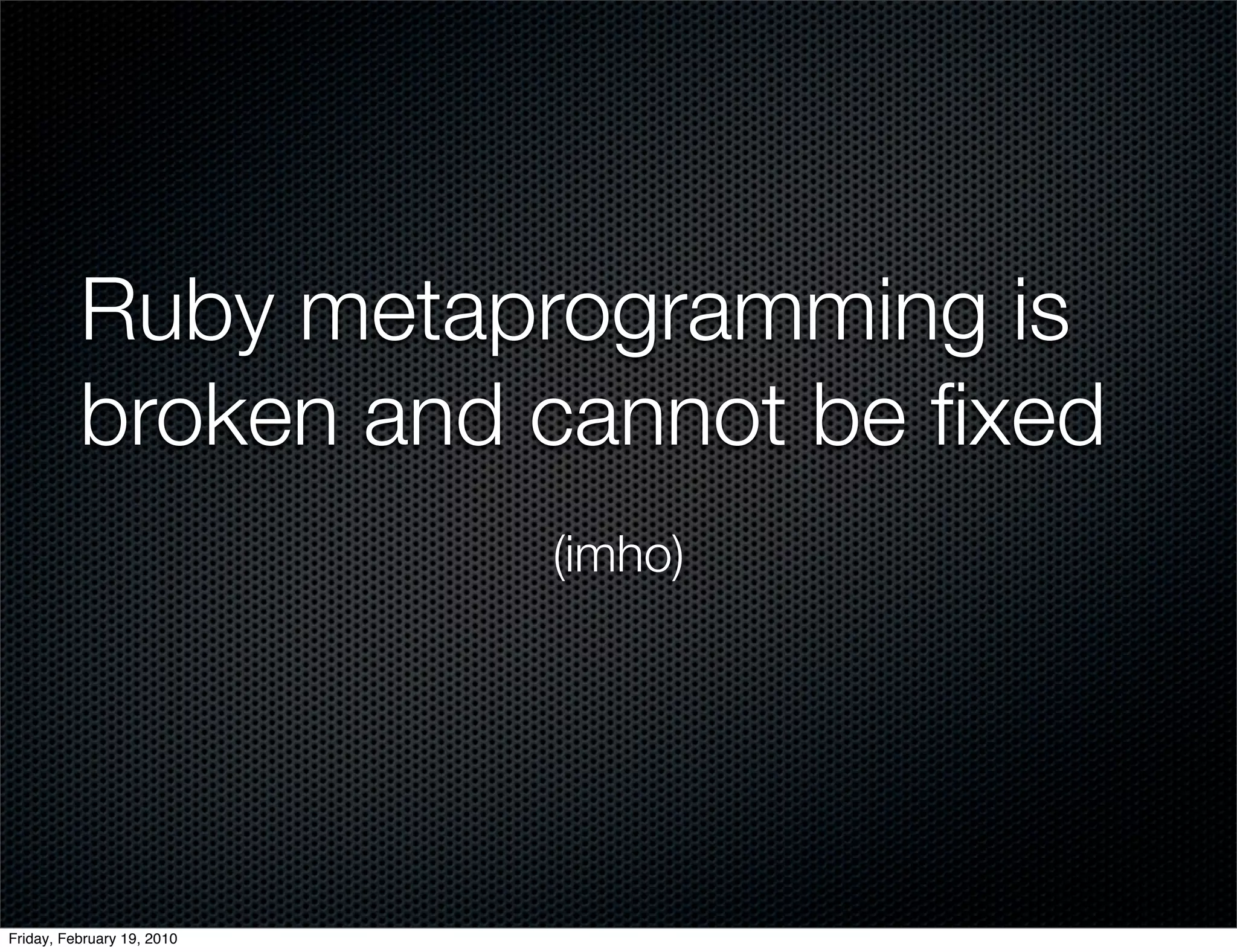

Ruby metaprogramming is
          broken and cannot be fixed
                            (imho)




Friday, February 19, 2010

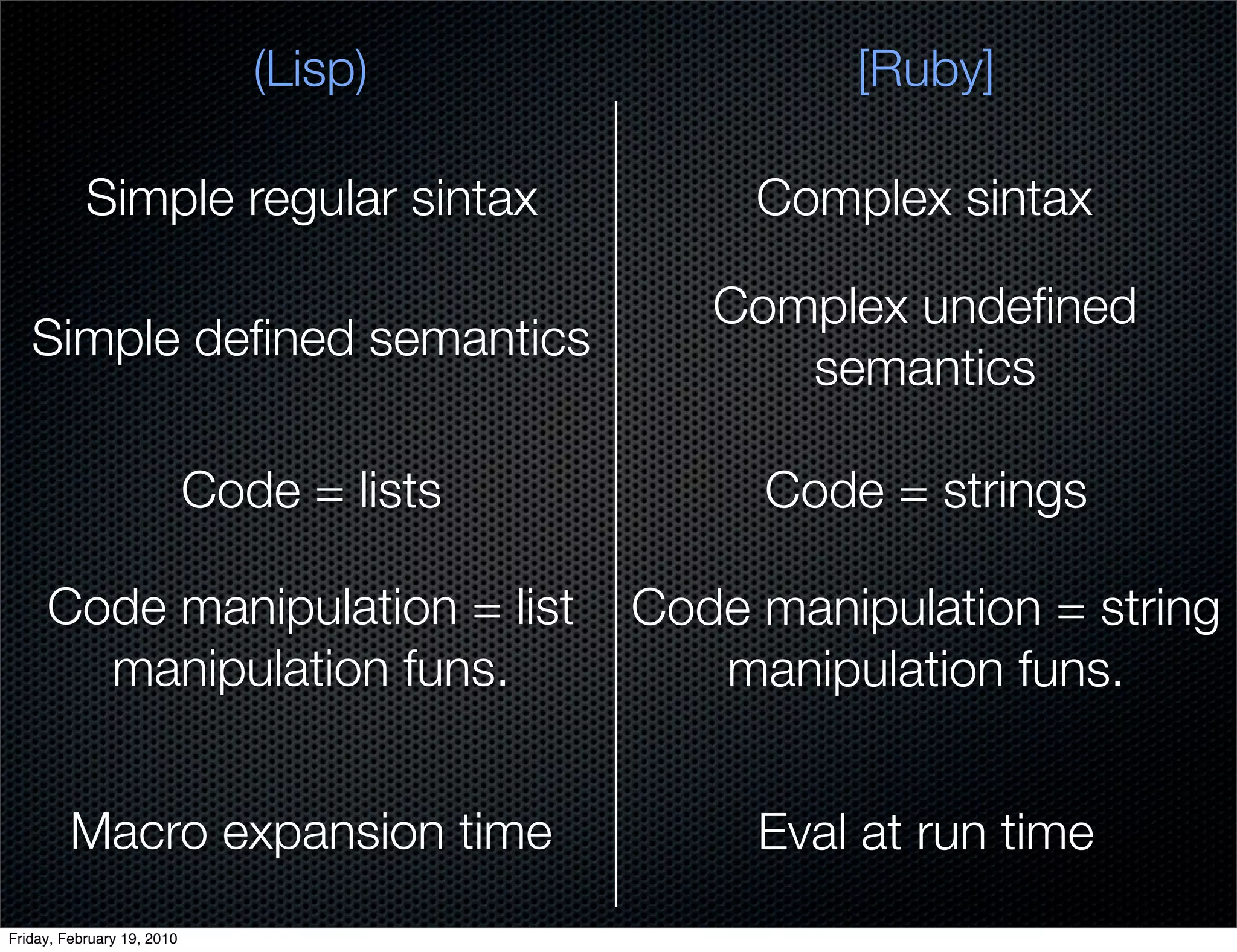

(Lisp)               [Ruby]

           Simple regular sintax                Complex sintax

                                              Complex undefined
   Simple defined semantics
                                                 semantics

                            Code = lists        Code = strings

     Code manipulation = list              Code manipulation = string
       manipulation funs.                     manipulation funs.


         Macro expansion time                   Eval at run time
Friday, February 19, 2010

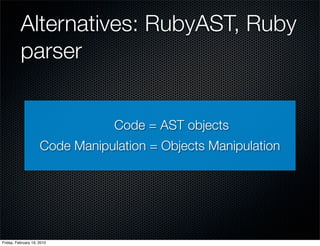

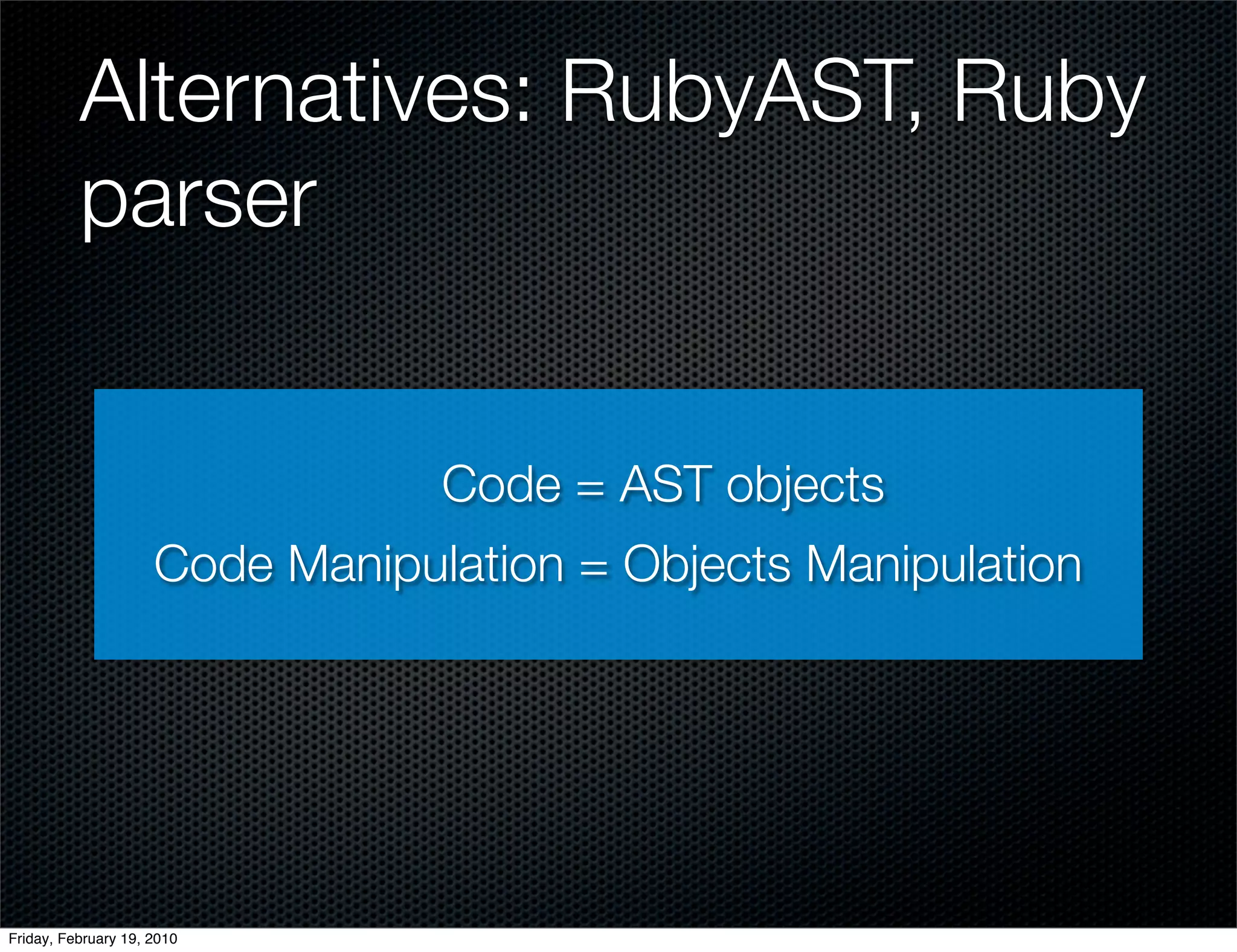

Alternatives: RubyAST, Ruby
          parser


                                 Code = AST objects
                     Code Manipulation = Objects Manipulation




Friday, February 19, 2010
No magic please




Friday, February 19, 2010
References




Friday, February 19, 2010
The Seasoned
                            On Lisp,
                                              Schemer,
                            Paul Graham
                                              Friedman




                                              Programming
                            SICP,
                                              Clojure,
                            Abelson et alt.
                                              Stuart Halloway

Friday, February 19, 2010
λ

Friday, February 19, 2010
