Linux and Xenomai Platform
Sree Nikhilendra Prasad DJ
FT 2014 Batch, Reg. No.: 14ETCS037010
M. Tech. in Real Time Embedded Systems
Module Leader: Ms. Jishmi J. Choondal and Mr. Deepak V.
Module Name: Real Time Operating Systems and System
Programming
Module Code : CSN502

2. ©M. S. Ramaiah University of Applied Sciences
2
Faculty of Engineering & Technology
Marking
Head Maximum Score
Technical Content 5
Grasp and Explanation 5
Quality of Slides and
Delivery
5
Q & A 5
Total 20

3. ©M. S. Ramaiah University of Applied Sciences
3
Faculty of Engineering & Technology

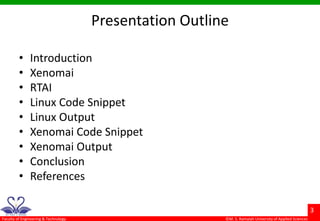

Presentation Outline
• Introduction
• Xenomai
• RTAI
• Linux Code Snippet
• Linux Output
• Xenomai Code Snippet
• Xenomai Output
• Conclusion
• References

4. ©M. S. Ramaiah University of Applied Sciences
4
Faculty of Engineering & Technology
Introduction
• A real time system is the one in which the
correctness of the computation is depended upon
the logical but also upon the span of the
computation carried out.
• A system can be said to be deterministic if the
computation are logically correct and produced on
time without the any interrupts.
