1. The document discusses integrating the Line Messaging API with a Spring Boot application to enable communication between a Line chatbot and a server. When a user sends a message to the Line chatbot, the Line server sends a request JSON to the webhook URL of the server. The server then replies to Line and can send messages back to the user. 2. It provides code examples of adding the Line Messaging API dependency to a Spring Boot pom.xml file and creating a controller to handle requests from Line. The controller processes asynchronous requests from Line and replies with a welcome message. 3. The Line Messaging API supports different message types like text, images, video and location data. The document focuses on handling

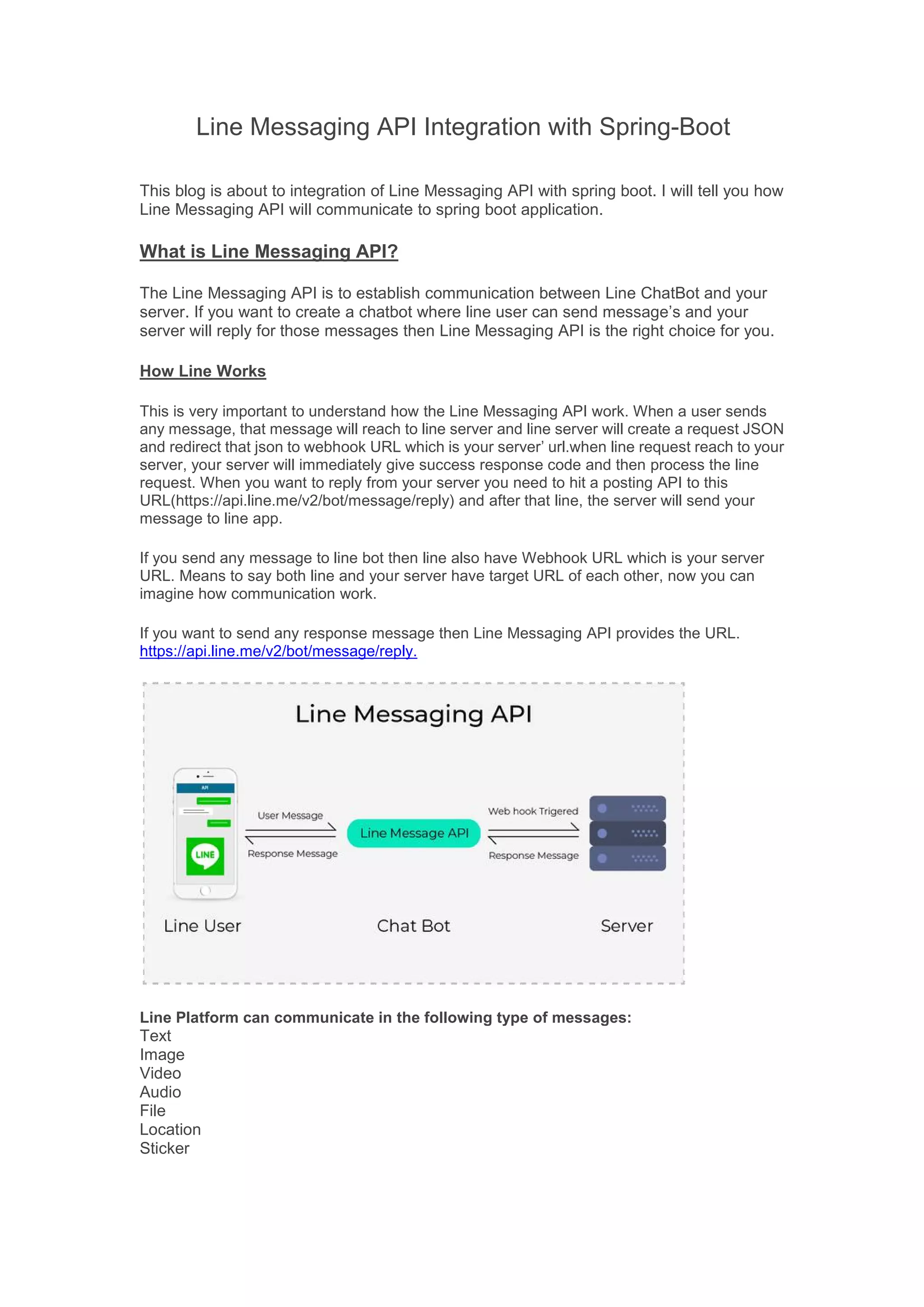

1. Line Messaging API Integration with Spring-Boot
This blog is about to integration of Line Messaging API with spring boot. I will tell you how
Line Messaging API will communicate to spring boot application.
What is Line Messaging API?
The Line Messaging API is to establish communication between Line ChatBot and your
server. If you want to create a chatbot where line user can send message’s and your
server will reply for those messages then Line Messaging API is the right choice for you.
How Line Works
This is very important to understand how the Line Messaging API work. When a user sends
any message, that message will reach to line server and line server will create a request JSON
and redirect that json to webhook URL which is your server’ url.when line request reach to your
server, your server will immediately give success response code and then process the line
request. When you want to reply from your server you need to hit a posting API to this
URL(https://api.line.me/v2/bot/message/reply) and after that line, the server will send your
message to line app.
If you send any message to line bot then line also have Webhook URL which is your server
URL. Means to say both line and your server have target URL of each other, now you can
imagine how communication work.
If you want to send any response message then Line Messaging API provides the URL.
https://api.line.me/v2/bot/message/reply.
Line Platform can communicate in the following type of messages:
Text
Video
Audio
File
Location
Sticker

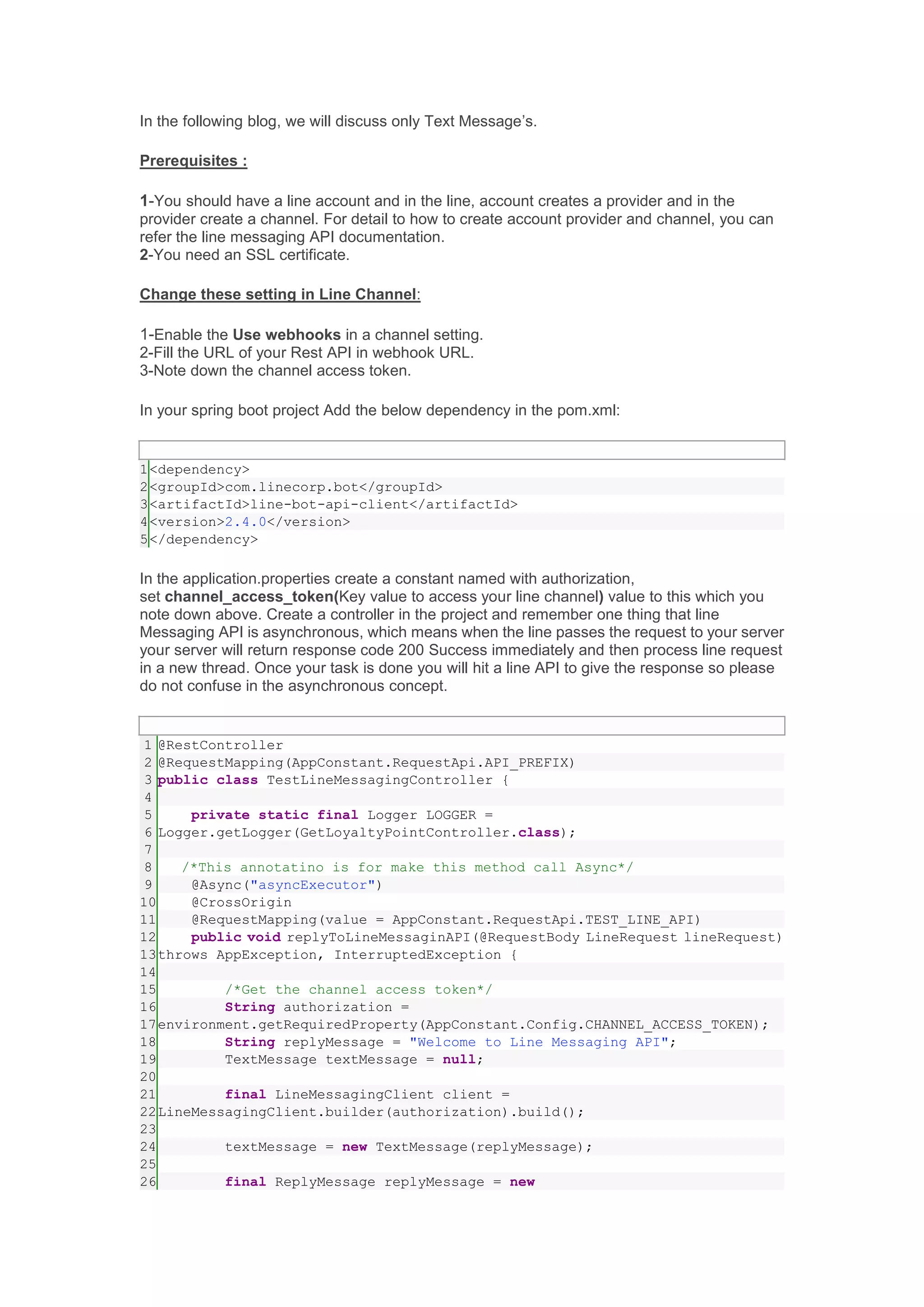

2. In the following blog, we will discuss only Text Message’s.
Prerequisites :
1-You should have a line account and in the line, account creates a provider and in the
provider create a channel. For detail to how to create account provider and channel, you can
refer the line messaging API documentation.
2-You need an SSL certificate.
Change these setting in Line Channel:
1-Enable the Use webhooks in a channel setting.
2-Fill the URL of your Rest API in webhook URL.
3-Note down the channel access token.
In your spring boot project Add the below dependency in the pom.xml:
1
2
3
4
5
<dependency>
<groupId>com.linecorp.bot</groupId>
<artifactId>line-bot-api-client</artifactId>
<version>2.4.0</version>
</dependency>
In the application.properties create a constant named with authorization,
set channel_access_token(Key value to access your line channel) value to this which you
note down above. Create a controller in the project and remember one thing that line
Messaging API is asynchronous, which means when the line passes the request to your server
your server will return response code 200 Success immediately and then process line request
in a new thread. Once your task is done you will hit a line API to give the response so please
do not confuse in the asynchronous concept.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
@RestController
@RequestMapping(AppConstant.RequestApi.API_PREFIX)
public class TestLineMessagingController {
private static final Logger LOGGER =
Logger.getLogger(GetLoyaltyPointController.class);
/*This annotatino is for make this method call Async*/
@Async("asyncExecutor")
@CrossOrigin
@RequestMapping(value = AppConstant.RequestApi.TEST_LINE_API)
public void replyToLineMessaginAPI(@RequestBody LineRequest lineRequest)
throws AppException, InterruptedException {
/*Get the channel access token*/
String authorization =
environment.getRequiredProperty(AppConstant.Config.CHANNEL_ACCESS_TOKEN);
String replyMessage = "Welcome to Line Messaging API";
TextMessage textMessage = null;
final LineMessagingClient client =
LineMessagingClient.builder(authorization).build();
textMessage = new TextMessage(replyMessage);
final ReplyMessage replyMessage = new

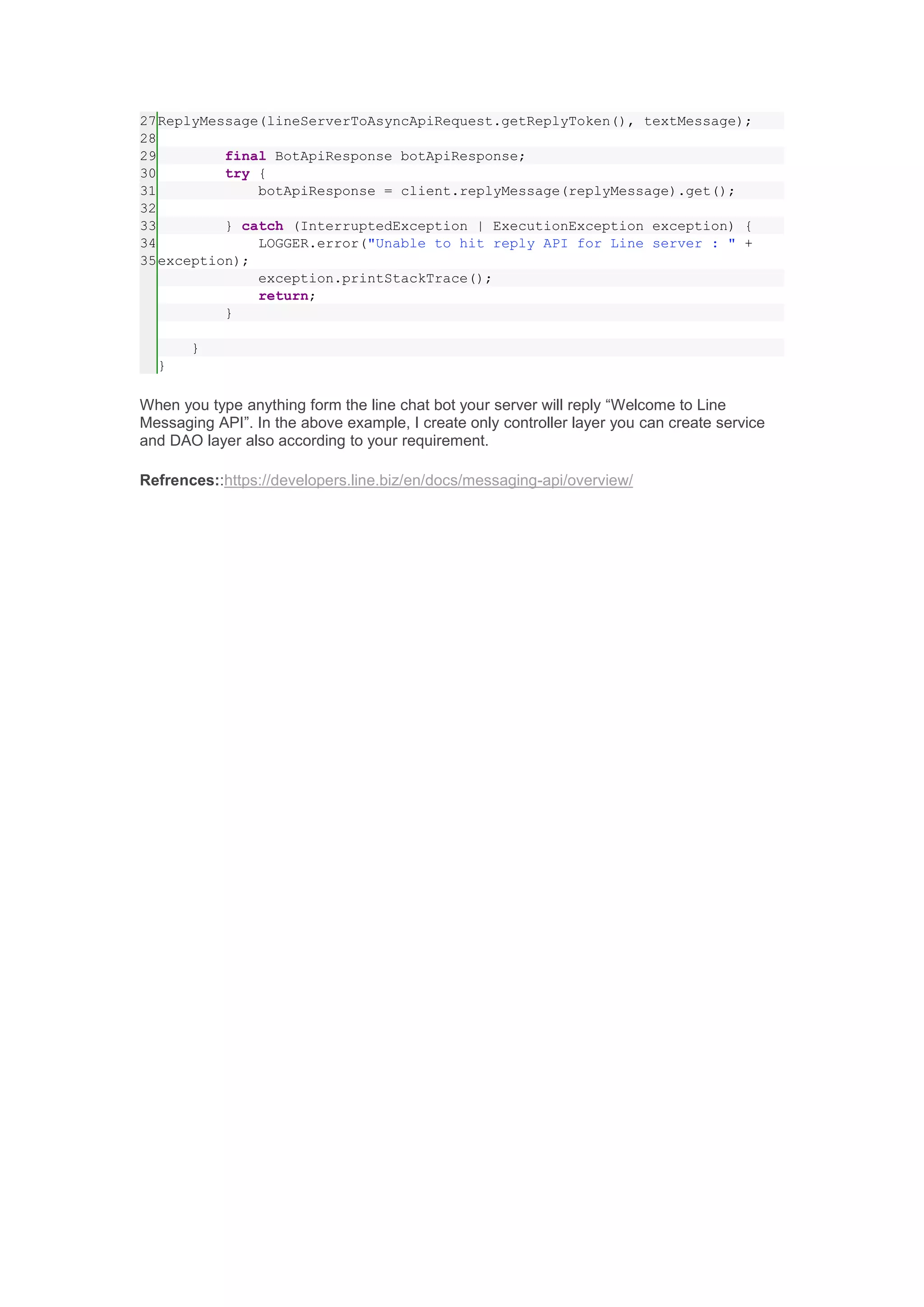

3. 27
28
29
30
31
32
33
34
35
ReplyMessage(lineServerToAsyncApiRequest.getReplyToken(), textMessage);
final BotApiResponse botApiResponse;
try {
botApiResponse = client.replyMessage(replyMessage).get();
} catch (InterruptedException | ExecutionException exception) {
LOGGER.error("Unable to hit reply API for Line server : " +
exception);
exception.printStackTrace();
return;
}
}
}
When you type anything form the line chat bot your server will reply “Welcome to Line
Messaging API”. In the above example, I create only controller layer you can create service
and DAO layer also according to your requirement.
Refrences::https://developers.line.biz/en/docs/messaging-api/overview/
