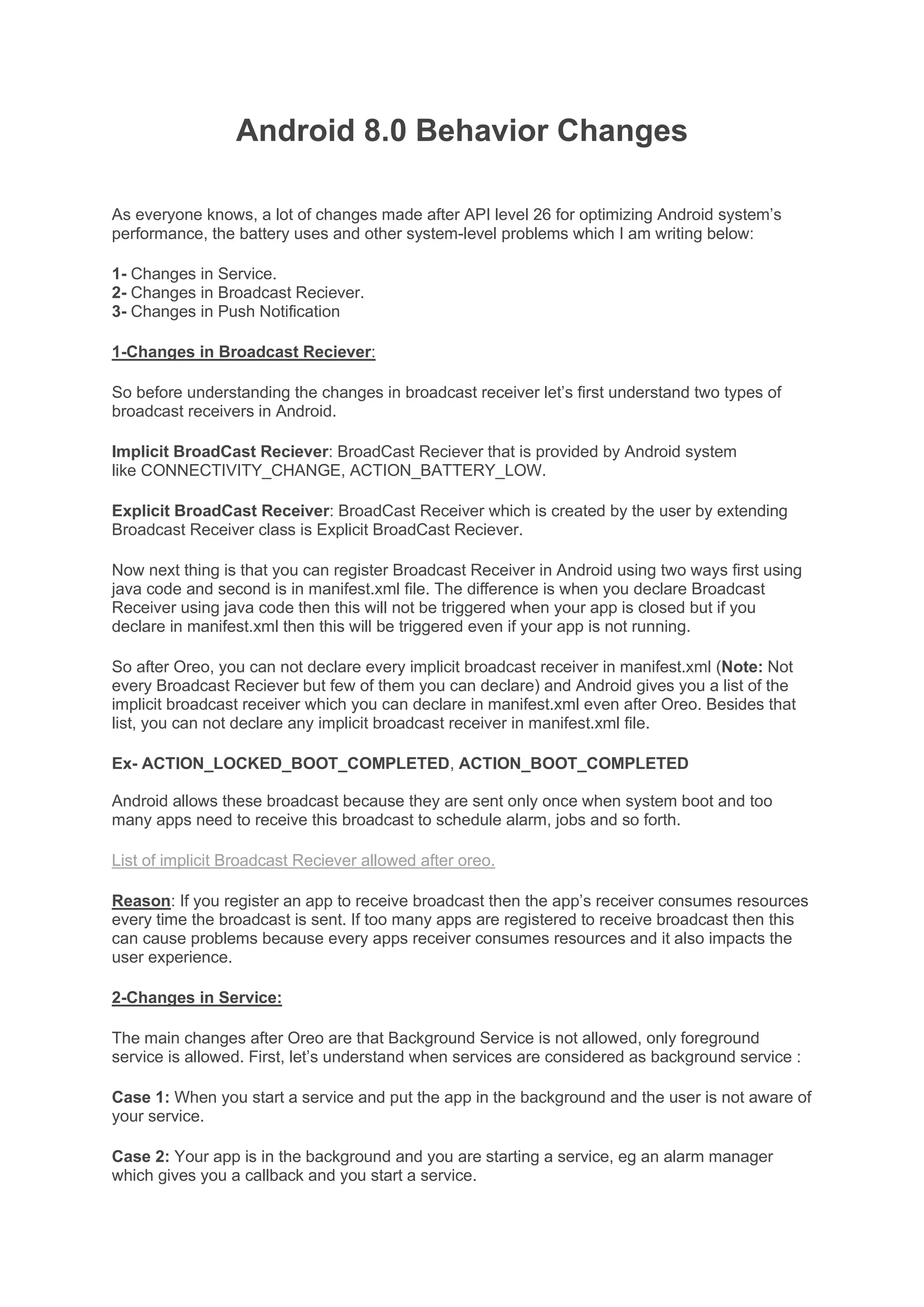

1. Android 8.0 Behavior Changes
As everyone knows, a lot of changes made after API level 26 for optimizing Android system’s
performance, the battery uses and other system-level problems which I am writing below:
1- Changes in Service.
2- Changes in Broadcast Reciever.
3- Changes in Push Notification
1-Changes in Broadcast Reciever:
So before understanding the changes in broadcast receiver let’s first understand two types of
broadcast receivers in Android.
Implicit BroadCast Reciever: BroadCast Reciever that is provided by Android system
like CONNECTIVITY_CHANGE, ACTION_BATTERY_LOW.
Explicit BroadCast Receiver: BroadCast Receiver which is created by the user by extending
Broadcast Receiver class is Explicit BroadCast Reciever.
Now next thing is that you can register Broadcast Receiver in Android using two ways first using
java code and second is in manifest.xml file. The difference is when you declare Broadcast
Receiver using java code then this will not be triggered when your app is closed but if you
declare in manifest.xml then this will be triggered even if your app is not running.
So after Oreo, you can not declare every implicit broadcast receiver in manifest.xml (Note: Not
every Broadcast Reciever but few of them you can declare) and Android gives you a list of the
implicit broadcast receiver which you can declare in manifest.xml even after Oreo. Besides that
list, you can not declare any implicit broadcast receiver in manifest.xml file.
Ex- ACTION_LOCKED_BOOT_COMPLETED, ACTION_BOOT_COMPLETED
Android allows these broadcast because they are sent only once when system boot and too
many apps need to receive this broadcast to schedule alarm, jobs and so forth.
List of implicit Broadcast Reciever allowed after oreo.
Reason: If you register an app to receive broadcast then the app’s receiver consumes resources
every time the broadcast is sent. If too many apps are registered to receive broadcast then this
can cause problems because every apps receiver consumes resources and it also impacts the
user experience.
2-Changes in Service:
The main changes after Oreo are that Background Service is not allowed, only foreground
service is allowed. First, let’s understand when services are considered as background service :
Case 1: When you start a service and put the app in the background and the user is not aware of
your service.
Case 2: Your app is in the background and you are starting a service, eg an alarm manager
which gives you a callback and you start a service.
2. In the above-mentioned cases, these services will be considered as background services. So if
you run a background service then Android will kill your service after a certain amount of time,
but remember if you are using your app means your app is in foreground then service will not be
killed.
Reason: After Oreo background service is not allowed because the developer’s start their
services and the work done by the service gets completed, but the service still keeps
running. This leads to degradation in device performance and drains the battery. As I have
mentioned above, there is no more background service after Oreo so you might think about the
alternatives for it. Below I have stated the alternatives:
(a)-Foreground Service: Foreground service is if the user is aware that the service is running
like displaying a notification attached to service for example in Ganna music application you will
always see a notification while a song is playing.
(b)-Job Service: Another alternative for the background service is to use Job service which is
similar to service but the difference is that it is not in your hands to start it. You will just create
your JobService object and give this to Job Scheduler and Job scheduler will start this service
when it will see that the resources are free. You can not force JobShedular to start your Job
Service immediately, but you can just request the Job Scheduler to start in some specific time
which is shown in the example below. JobShedular is similar to ThreadShedular and JobService
is similar to Thread. You can also define different event for starting your job service. For
example, the service will start when the device is connected to the internet or it is charging. You
can also call Job Service as a combination of BroadCast Reciever and Service.
Events that you can attach with your Job Service.
1
2
3
4
5
6
7
8
9
10
11
12
13
//ExampleJobService code
public class PracticeJobService extends JobService
{
@Override
public boolean onStartJob(JobParameters params)
{
//Start here your thread and do your task
return true;
}
@Override
public boolean onStopJob(JobParameters params) {
3. 14
15
16
17
Log.d(TAG, "Your Job Stoped");
return true;
}
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
//MainActivity Code put this method in on create of your activiy.
public void scheduleJob()
{
ComponentName componentObject = new ComponentName(this, PracticeJobService .class);
JobInfo jobInfoObject = new JobInfo.Builder(101, componentObject )
.setRequiredNetworkType(JobInfo.NETWORK_TYPE_UNMETERED)//run when you connected to wifi
.setPersisted(false)//also alive if you rebot you phone
.setRequiresCharging(true) //Run when charging connect
.setPeriodic(10 * 60 * 1000) //Request JobShedular to start with in this time it just a request
JobShedular can also ignore this.
.build();
JobScheduler schedulerObject = (JobScheduler) getSystemService(JOB_SCHEDULER_SERVICE);
int resultCodeValue = schedulerObject .schedule(jobInfoObject);
if (resultCodeValue == JobScheduler.RESULT_SUCCESS) {
Log.d(TAG, "Your Job scheduled");
} else {
Log.d(TAG, "Job scheduling failed");
}
}
public void cancelJob() {
JobScheduler jobSchedulerObject = (JobScheduler) getSystemService(JOB_SCHEDULER_SERVICE);
jobSchedulerObject.cancel(101);
4. 26 Log.d(TAG, "Your Job cancelled");
}
And now this will run even if your app is in the background.
Let’s understand some important things related to Service with the following points:
(I)- You start a Service with start service () method when your app is running means app is in
foreground then Service will not be killed in any case.
(II)- When you are starting your Service with startService() method then in onStartCommand
method of Service class, call startForground() method and give a notification object and now a
notification will show as long your Service will be running. As I have told you above after Oreo for
displaying a notification please create a channel for notification. I will suggest you create the
channel in the Application file of the project. The use of this notification channel is explained
below.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
@Override
public int onStartCommand(Intent intent, int flags, int startId)
{
//Get some value pass by intent
String data= intent.getStringExtra("intentExtraInput");
//Intent object
Intent intentOject = new Intent(this, MainActivity.class);
//Pending Intent object
PendingIntent pendingIntentObject = PendingIntent.getActivity(this,
0, intentOject , 0);
//Notification Object
Notification myNotificationObject = new NotificationCompat.Builder(this, CHANNEL_ID)
.setContentTitle("My Foregorund Service")
.setContentText(data)
.setSmallIcon(R.drawable.ic_android_icon)
.setContentIntent(pendingIntentObject)
.build();
//Start foreground method
5. 19
20
21
22
startForeground(1, myNotificationObject);
//its for what happen with your when application is killed
return START_NOT_STICKY;
}
Now, this is your foreground Service but If you will not call startForeground() method from
onStartCommand() method and put your app in the background then after some Android will kill
your Service.
(III)-You can use not StartService() method when your app is in the background after Oreo if you
call this then Android will through IllegalStateException.
(IV)-If you are starting a Service when your app is in the background then use
startForegroundService() method, and one more thing after calling startService() Method Android
will give you 5 seconds to call startForeground() method from onStartCommand().If within 5
seconds you call this method then Android will continue your Service otherwise after 5 seconds it
will be killed.
Note: Always use ContextCompat class and it will handle conditions related to Android version.
ContextCompat.startForegroundService(this, serviceIntent);
1
2
3
4
5
6
7
8
9
10
11
public static void startForegroundService(@NonNull Context context, @NonNull Intent intent)
{
if (VERSION.SDK_INT < 26)
{
context.startService(intent);
}
else
{
context.startForegroundService(intent);
}
}
3-Changes in Notification:
6. After Oreo, you can divide your app’s notifications into channels. You can set different behavior
on different channels. All notifications that are posted to the same channel have the same
behavior. For example, I can create a channel for the most urgent notifications. By using the
channel, every notification will have a different sound, vibration or a notification light. You can
create more channels like this and can customize according to your requirements. So after Oreo,
you have more control over your notifications.
We have one more chance after Oreo which are notification dots. Now after Oreo if your
notifications appear then you will see dots or badges on app launcher icons. So for now if
you want to know for a particular application if you have gotten a new notification then you can
check the dots displayed along with the application’s icon. I will suggest you create notification
channel in Application class of project like given in the code below-
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
public class MyApplication extends Application {
public static final String NOTIFICATION_CHANNEL_ID = "exampleServiceChannel";
@Override
public void onCreate() {
super.onCreate();
createChannelForPushNotification();
}
private void createChannelForPushNotification() {
if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.O) {
NotificationChannel channelObject = new NotificationChannel(
NOTIFICATION_CHANNEL_ID,
"Example Service Channel",
NotificationManager.IMPORTANCE_DEFAULT
);
//set the light for notification
channelObject.setLightColor(Color.RED);
//set the light with enable or not
channelObject.enableLights(true);
7. 22
23
24
25
26
27
28
29
30
//Set vibration enable or not
channelObject.enableVibration(true);
NotificationManager manager = getSystemService(NotificationManager.class);
manager.createNotificationChannel(channelObject);
}
}
}
Now your notification channel is created with channel id “exampleServiceChannel” , you will use
this channel id when you create you notification builder object like below:
1
2
3
4
5
6
Notification notificationObjet = new NotificationCompat.Builder(this, CHANNEL_ID)
.setContentTitle("My Push Notificaion")
.setContentText(input)
.setSmallIcon(R.drawable.ic_android_icon)
.setContentIntent(pendingIntentObject)
.build();
Conclusion: I have tried to cover each and every point related to changes in Push Notification,
Service and BroadCast Reciever after Oreo. I hope the concepts are easy to grasp and in case
of any mistakes please feel free to comment below.
