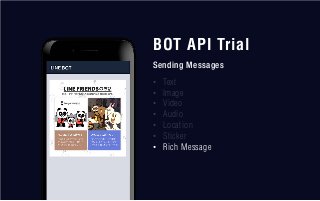

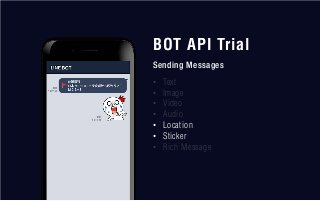

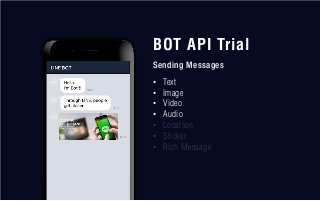

BOT API Trial
Sending Messages
• Text
• Image
• Video
• Audio
• Location
• Sticker
• Rich Message
BOT API Trial
Sending Messages
• Text
• Image
• Video
• Audio
• Location
• Sticker
• Rich Message
BOT API Trial
Sending Messages
• Text
• Image
• Video
• Audio
• Location
• Sticker
• Rich Message

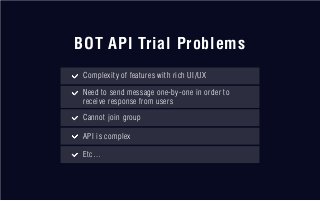

BOT API Trial Problems
Complexity of features with rich UI/UX
Need to send message one-by-one in order to
receive response from users
Cannot join group
Etc…
API is complex

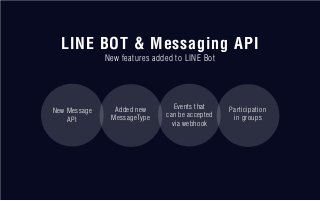

LINE BOT & Messaging API
New Message
API
Added new
MessageType
Events that
can be accepted
via webhook
Participation
in groups
New features added to LINE Bot
New Messaging API

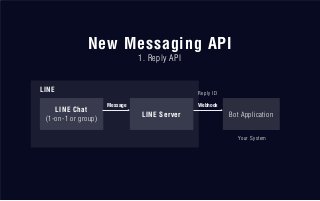

New Messaging API
LINE Chat
(1-on-1 or group)
1. Reply API
LINE Server Bot Application
LINE
Message
Your System
Webhook
Reply ID

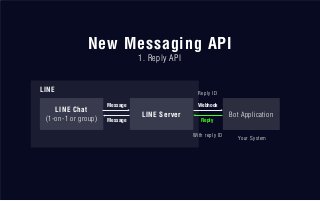

New Messaging API
LINE Chat
(1-on-1 or group)
1. Reply API
LINE Server Bot Application
LINE
Message
Your System
Webhook
Reply ID
Message Reply
With reply ID

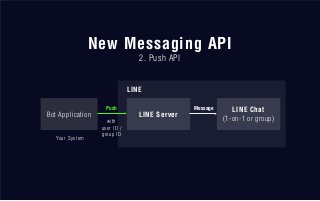

New Messaging API
LINE Server
2. Push API
LINE Chat
(1-on-1 or group)
Bot Application
LINE
Message
Your System
Push
with
user ID /
group ID
BOT API Trial Message API
curl -X POST ¥
-H 'Content-Type: application/json' ¥
-H 'X-Line-ChannelID: <Channel ID>' ¥
-H 'X-Line-ChannelSecret: <Channel Secret>' ¥
-H 'X-Line-Trusted-User-With-ACL: <Channel MID>' ¥
-d '{
"to":["userId1"],
"toChannel":1383378250,
"eventType":"138311608800106203",
"content":{
"contentType":1,
"toType":1,
"text":"Hello, Jose!"
}
}’ https://trialbot-api.line.me/v1/events

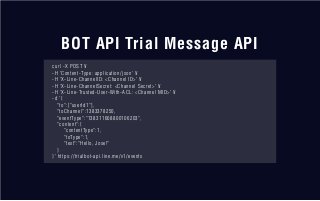

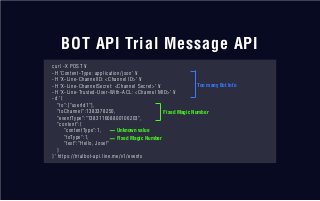

BOT API Trial Message API
curl -X POST ¥
-H 'Content-Type: application/json' ¥
-H 'X-Line-ChannelID: <Channel ID>' ¥
-H 'X-Line-ChannelSecret: <Channel Secret>' ¥
-H 'X-Line-Trusted-User-With-ACL: <Channel MID>' ¥
-d '{
"to":["userId1"],
"toChannel":1383378250,
"eventType":"138311608800106203",
"content":{
"contentType":1,
"toType":1,
"text":"Hello, Jose!"
}
}’ https://trialbot-api.line.me/v1/events
Too many Bot Info
Fixed Magic Number
Unknown value
Fixed Magic Number

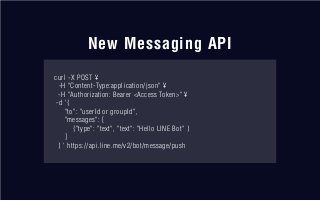

New Messaging API
curl -X POST ¥
-H "Content-Type:application/json" ¥
-H "Authorization: Bearer <Access Token>" ¥
-d '{
"to": "userId or groupId",
"messages": [
{"type": "text", "text": "Hello LINE Bot" }
]
} ' https://api.line.me/v2/bot/message/push
New Messaging Type

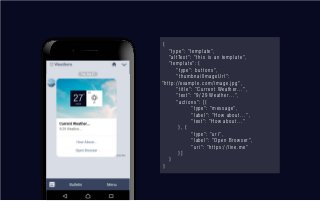

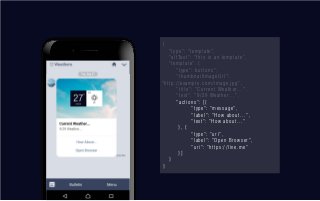

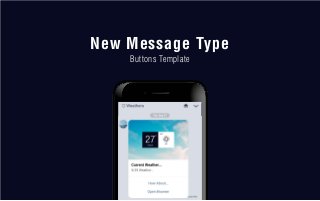

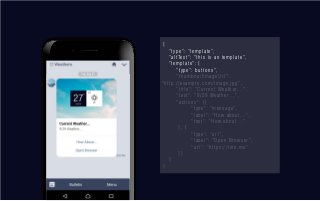

New Message Type
Buttons Template
{
"type": "template",
"altText": "this is an template",
"template": {
"type": buttons",
"thumbnailImageUrl":
"http://example.com/image.jpg",
"title": "Current Weather…",
"text": "9/29 Weather…",
"actions": [{
"type": "message",
"label": ”How about…",
"text": "How about…"
}, {
"type": "uri",
"label": ”Open Browser",
"uri": "https://line.me"
}]
}
}
{
"type": "template",
"altText": "this is an template",
"template": {
"type": buttons",
"thumbnailImageUrl":
"http://example.com/image.jpg",
"title": "Current Weather…",
”text": "9/29 Weather…",
"actions": [{
"type": "message",
"label": ”How about…",
"text": "How about…"
}, {
"type": "uri",
"label": ”Open Browser",
"uri": "https://line.me"
}]
}
}
{
"type": "template",
"altText": "this is an template",
"template": {
"type": buttons",
"thumbnailImageUrl":
"http://example.com/image.jpg",
"title": "Current Weather…",
"text": "9/29 Weather…",
"actions": [{
"type": "message",
"label": ”How about…",
"text": "How about…"
}, {
"type": "uri",
"label": ”Open Browser",
"uri": "https://line.me"
}]
}
}
{
"type": "template",
"altText": "this is an template",
"template": {
"type": buttons",
"thumbnailImageUrl":
"http://example.com/image.jpg",
"title": "Current Weather…",
”text": "9/29 Weather…",
"actions": [{
"type": "message",
"label": ”How about…",
"text": "How about…"
}, {
"type": "uri",
"label": ”Open Browser",
"uri": "https://line.me"
}]
}
}

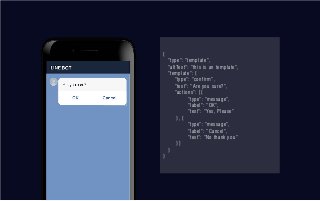

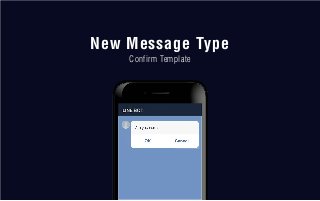

New Message Type
Confirm Template
{
"type": "template",
"altText": "this is an template",
"template": {
"type": “confirm”,
"text": "Are you sure?",
"actions": [{
"type": "message",
"label": "OK",
"text": "Yes, Please"
}, {
"type": "message",
"label": ”Cancel",
"text": "No thank you"
}]
}
}

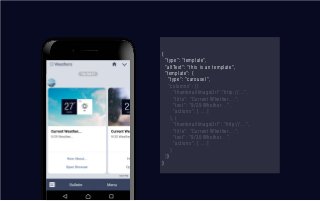

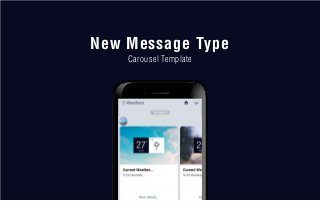

New Message Type

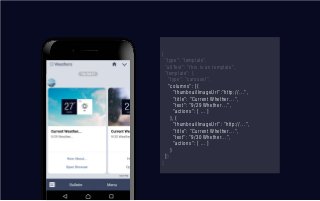

Carousel Template
{
"type": "template",
"altText": "this is an template",
"template": {
"type": "carousel",
"columns": [{
"thumbnailImageUrl”:"http://…",
"title": "Current Whether…",
”text": "9/29 Whether…",
"actions": [ ... ]
}, {
"thumbnailImageUrl”: "http://…",
"title": "Current Whether…",
"text": "9/30 Whether…",
"actions": [ ... ]
}
]}
}
{
"type": "template",
"altText": "this is an template",
"template": {
"type": "carousel",
"columns": [{
"thumbnailImageUrl”:"http://…",
"title": "Current Whether…",
”text": "9/29 Whether…",
"actions": [ ... ]
}, {
"thumbnailImageUrl”: "http://…",
"title": "Current Whether…",
"text": "9/30 Whether…",
"actions": [ ... ]
}
]}
}
{
"type": "template",
"altText": "this is an template",
"template": {
"type": "carousel",
"columns": [{
"thumbnailImageUrl”:"http://…",
"title": "Current Whether…",
”text": "9/29 Whether…",
"actions": [ ... ]
}, {
"thumbnailImageUrl”: "http://…",
"title": "Current Whether…",
"text": "9/30 Whether…",
"actions": [ ... ]
}
]}
}
{
"type": "template",
"altText": "this is an template",
"template": {
"type": "carousel",
"columns": [{
"thumbnailImageUrl”:"http://…",
"title": "Current Whether…",
”text": "9/29 Whether…",
"actions": [ ... ]
}, {
"thumbnailImageUrl”: "http://…",
"title": "Current Whether…",
"text": "9/30 Whether…",
"actions": [ ... ]
}
]}
}
Now’s the Time to Begin Coding!!

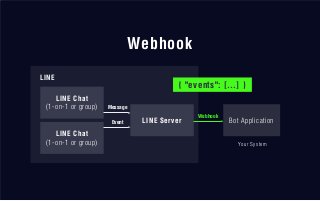

Webhook
LINE Chat
(1-on-1 or group)
LINE Server Bot Application
LINE
Message
Your System
Webhook
LINE Chat
(1-on-1 or group)
Event
{ "events": […] }

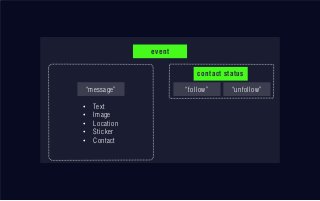

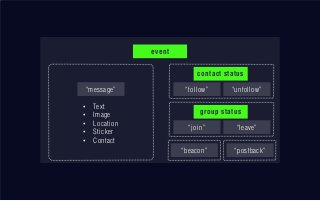

event
contact status
“follow” “unfollow”“message”
• Text
• Image
• Location
• Sticker
• Contact
event
contact status
“follow” “unfollow”
group status
“join” “leave”
“beacon” “postback”
“message”
• Text
• Image
• Location
• Sticker
• Contact

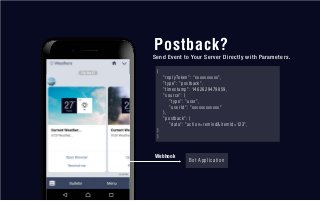

Postback?
Send Event to Your Server Directly with Parameters.
{
"replyToken": “xxxxxxxxxx",
"type": "postback",
"timestamp": 1462629479859,
"source": {
"type": "user",
"userId": "xxxxxxxxxxxx"
},
"postback": {
"data": "action=remind&itemId=123",
}
}
Bot Application
Webhook
Let’s Implement Bot Server!!

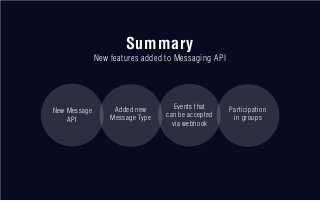

Summary
New Message
API
Added new
Message Type
Events that
can be accepted
via webhook
Participation
in groups
New features added to Messaging API
B 3 line bot live coding

More Related Content

What's hot

RESTful API Automation with JavaScript
RESTful API Automation with JavaScriptRESTful API Automation with JavaScript
RESTful API Automation with JavaScript
Jonathan LeBlanc

The never-ending REST API design debate
The never-ending REST API design debateThe never-ending REST API design debate
The never-ending REST API design debate
Restlet

Design Beautiful REST + JSON APIs
Design Beautiful REST + JSON APIsDesign Beautiful REST + JSON APIs
Design Beautiful REST + JSON APIs
Stormpath

REST API Design for JAX-RS And Jersey
REST API Design for JAX-RS And JerseyREST API Design for JAX-RS And Jersey
REST API Design for JAX-RS And Jersey
Stormpath

Webservices Overview : XML RPC, SOAP and REST
Webservices Overview : XML RPC, SOAP and RESTWebservices Overview : XML RPC, SOAP and REST
Webservices Overview : XML RPC, SOAP and REST
Pradeep Kumar

Austin Day of Rest - Introduction
Austin Day of Rest - IntroductionAustin Day of Rest - Introduction
Austin Day of Rest - Introduction
HandsOnWP.com

Rest and the hypermedia constraint
Rest and the hypermedia constraintRest and the hypermedia constraint
Rest and the hypermedia constraint
Inviqa

40+ tips to use Postman more efficiently
40+ tips to use Postman more efficiently40+ tips to use Postman more efficiently
40+ tips to use Postman more efficiently
postmanclient

Mohanraj - Securing Your Web Api With OAuth
Mohanraj - Securing Your Web Api With OAuthMohanraj - Securing Your Web Api With OAuth
Mohanraj - Securing Your Web Api With OAuthfossmy

Rest & RESTful WebServices
Rest & RESTful WebServicesRest & RESTful WebServices
Rest & RESTful WebServices
Prateek Tandon

Understanding REST APIs in 5 Simple Steps
Understanding REST APIs in 5 Simple StepsUnderstanding REST APIs in 5 Simple Steps
Understanding REST APIs in 5 Simple Steps
Tessa Mero

Rest presentation
Rest  presentationRest  presentation
Rest presentationsrividhyau

Scalable Reliable Secure REST
Scalable Reliable Secure RESTScalable Reliable Secure REST
Scalable Reliable Secure RESTguestb2ed5f

Understanding and testing restful web services
Understanding and testing restful web servicesUnderstanding and testing restful web services
Understanding and testing restful web services
mwinteringham

Understanding REST
Understanding RESTUnderstanding REST
Understanding REST
Nitin Pande

The Internet as Web Services: introduction to ReST
The Internet as Web Services: introduction to ReSTThe Internet as Web Services: introduction to ReST
The Internet as Web Services: introduction to ReST
Bruno Kessler Foundation

RESTful services
RESTful servicesRESTful services
RESTful servicesgouthamrv

MongoDB.local Sydney: MongoDB Atlas for Your Enterprise
MongoDB.local Sydney: MongoDB Atlas for Your EnterpriseMongoDB.local Sydney: MongoDB Atlas for Your Enterprise
MongoDB.local Sydney: MongoDB Atlas for Your Enterprise
MongoDB

JavaScript Security: Mastering Cross Domain Communications in complex JS appl...
JavaScript Security: Mastering Cross Domain Communications in complex JS appl...JavaScript Security: Mastering Cross Domain Communications in complex JS appl...
JavaScript Security: Mastering Cross Domain Communications in complex JS appl...
Thomas Witt


What's hot (19)

RESTful API Automation with JavaScript
RESTful API Automation with JavaScriptRESTful API Automation with JavaScript
RESTful API Automation with JavaScript

The never-ending REST API design debate
The never-ending REST API design debateThe never-ending REST API design debate
The never-ending REST API design debate

Design Beautiful REST + JSON APIs
Design Beautiful REST + JSON APIsDesign Beautiful REST + JSON APIs
Design Beautiful REST + JSON APIs

REST API Design for JAX-RS And Jersey
REST API Design for JAX-RS And JerseyREST API Design for JAX-RS And Jersey
REST API Design for JAX-RS And Jersey

Webservices Overview : XML RPC, SOAP and REST
Webservices Overview : XML RPC, SOAP and RESTWebservices Overview : XML RPC, SOAP and REST
Webservices Overview : XML RPC, SOAP and REST

Austin Day of Rest - Introduction
Austin Day of Rest - IntroductionAustin Day of Rest - Introduction
Austin Day of Rest - Introduction

Rest and the hypermedia constraint
Rest and the hypermedia constraintRest and the hypermedia constraint
Rest and the hypermedia constraint

40+ tips to use Postman more efficiently
40+ tips to use Postman more efficiently40+ tips to use Postman more efficiently
40+ tips to use Postman more efficiently

Mohanraj - Securing Your Web Api With OAuth
Mohanraj - Securing Your Web Api With OAuthMohanraj - Securing Your Web Api With OAuth
Mohanraj - Securing Your Web Api With OAuth

Rest & RESTful WebServices
Rest & RESTful WebServicesRest & RESTful WebServices
Rest & RESTful WebServices

Understanding REST APIs in 5 Simple Steps
Understanding REST APIs in 5 Simple StepsUnderstanding REST APIs in 5 Simple Steps
Understanding REST APIs in 5 Simple Steps

Rest presentation
Rest  presentationRest  presentation
Rest presentation

Scalable Reliable Secure REST
Scalable Reliable Secure RESTScalable Reliable Secure REST
Scalable Reliable Secure REST

Understanding and testing restful web services
Understanding and testing restful web servicesUnderstanding and testing restful web services
Understanding and testing restful web services

Understanding REST
Understanding RESTUnderstanding REST
Understanding REST

The Internet as Web Services: introduction to ReST
The Internet as Web Services: introduction to ReSTThe Internet as Web Services: introduction to ReST
The Internet as Web Services: introduction to ReST

RESTful services
RESTful servicesRESTful services
RESTful services

MongoDB.local Sydney: MongoDB Atlas for Your Enterprise
MongoDB.local Sydney: MongoDB Atlas for Your EnterpriseMongoDB.local Sydney: MongoDB Atlas for Your Enterprise
MongoDB.local Sydney: MongoDB Atlas for Your Enterprise

JavaScript Security: Mastering Cross Domain Communications in complex JS appl...
JavaScript Security: Mastering Cross Domain Communications in complex JS appl...JavaScript Security: Mastering Cross Domain Communications in complex JS appl...
JavaScript Security: Mastering Cross Domain Communications in complex JS appl...


Viewers also liked

B 7 a true agile team - global line news
B 7 a true agile team - global line newsB 7 a true agile team - global line news
B 7 a true agile team - global line news
LINE Corporation

A 1 opening & introduction
A 1 opening & introductionA 1 opening & introduction
A 1 opening & introduction
LINE Corporation

B 2 line game cloud - our personal ec2
B 2 line game cloud - our personal ec2B 2 line game cloud - our personal ec2
B 2 line game cloud - our personal ec2
LINE Corporation

A 2 new world by the line bot
A 2 new world by the line botA 2 new world by the line bot
A 2 new world by the line bot
LINE Corporation

A 3 difficult challenges that line has overcome
A 3 difficult challenges that line has overcomeA 3 difficult challenges that line has overcome
A 3 difficult challenges that line has overcome
LINE Corporation

A 6 group app platform
A 6 group app platformA 6 group app platform
A 6 group app platform
LINE Corporation

B 5 stellite -apply chromium open-source to line game
B 5 stellite -apply chromium open-source to line gameB 5 stellite -apply chromium open-source to line game
B 5 stellite -apply chromium open-source to line game
LINE Corporation

A 10 working environment and culture for line engineers
A 10 working environment and culture for line engineersA 10 working environment and culture for line engineers
A 10 working environment and culture for line engineersLINE Corporation

B 6 new stream processing platform with apache flink
B 6 new stream processing platform with apache flinkB 6 new stream processing platform with apache flink
B 6 new stream processing platform with apache flink
LINE Corporation

A 7 architecture sustaining line live
A 7 architecture sustaining line liveA 7 architecture sustaining line live
A 7 architecture sustaining line live
LINE Corporation

A 4 line login - line platform
A 4 line login - line platformA 4 line login - line platform
A 4 line login - line platform
LINE Corporation

A 5 security x line platform
A 5 security x line platformA 5 security x line platform
A 5 security x line platform
LINE Corporation

A 8 line group call
A 8 line group callA 8 line group call
A 8 line group call
LINE Corporation

A 9 line shop powered by armeria
A 9 line shop powered by armeriaA 9 line shop powered by armeria
A 9 line shop powered by armeria
LINE Corporation

B 1 rinna and rinna
B 1 rinna and rinnaB 1 rinna and rinna
B 1 rinna and rinna
LINE Corporation

ディープラーニングで株価予測をやってみた
ディープラーニングで株価予測をやってみたディープラーニングで株価予測をやってみた
ディープラーニングで株価予測をやってみた
卓也 安東

リアルタイム画風変換とその未来
リアルタイム画風変換とその未来リアルタイム画風変換とその未来
リアルタイム画風変換とその未来
LINE Corporation

S8 line engineer culture
S8 line engineer cultureS8 line engineer culture
S8 line engineer culture
LINE Corporation

S4 line business platform
S4 line business platformS4 line business platform
S4 line business platform
LINE Corporation


Viewers also liked (20)

B 7 a true agile team - global line news
B 7 a true agile team - global line newsB 7 a true agile team - global line news
B 7 a true agile team - global line news

A 1 opening & introduction
A 1 opening & introductionA 1 opening & introduction
A 1 opening & introduction

B 2 line game cloud - our personal ec2
B 2 line game cloud - our personal ec2B 2 line game cloud - our personal ec2
B 2 line game cloud - our personal ec2

A 2 new world by the line bot
A 2 new world by the line botA 2 new world by the line bot
A 2 new world by the line bot

A 3 difficult challenges that line has overcome
A 3 difficult challenges that line has overcomeA 3 difficult challenges that line has overcome
A 3 difficult challenges that line has overcome

A 6 group app platform
A 6 group app platformA 6 group app platform
A 6 group app platform

B 5 stellite -apply chromium open-source to line game
B 5 stellite -apply chromium open-source to line gameB 5 stellite -apply chromium open-source to line game
B 5 stellite -apply chromium open-source to line game

A 10 working environment and culture for line engineers
A 10 working environment and culture for line engineersA 10 working environment and culture for line engineers
A 10 working environment and culture for line engineers

B 6 new stream processing platform with apache flink
B 6 new stream processing platform with apache flinkB 6 new stream processing platform with apache flink
B 6 new stream processing platform with apache flink

B 4 gravty
B 4 gravtyB 4 gravty
B 4 gravty

A 7 architecture sustaining line live
A 7 architecture sustaining line liveA 7 architecture sustaining line live
A 7 architecture sustaining line live

A 4 line login - line platform
A 4 line login - line platformA 4 line login - line platform
A 4 line login - line platform

A 5 security x line platform
A 5 security x line platformA 5 security x line platform
A 5 security x line platform

A 8 line group call
A 8 line group callA 8 line group call
A 8 line group call

A 9 line shop powered by armeria
A 9 line shop powered by armeriaA 9 line shop powered by armeria
A 9 line shop powered by armeria

B 1 rinna and rinna
B 1 rinna and rinnaB 1 rinna and rinna
B 1 rinna and rinna

ディープラーニングで株価予測をやってみた
ディープラーニングで株価予測をやってみたディープラーニングで株価予測をやってみた
ディープラーニングで株価予測をやってみた

リアルタイム画風変換とその未来
リアルタイム画風変換とその未来リアルタイム画風変換とその未来
リアルタイム画風変換とその未来

S8 line engineer culture
S8 line engineer cultureS8 line engineer culture
S8 line engineer culture

S4 line business platform
S4 line business platformS4 line business platform
S4 line business platform


Similar to B 3 line bot live coding

An Introduction to Working With the Activity Stream
An Introduction to Working With the Activity StreamAn Introduction to Working With the Activity Stream
An Introduction to Working With the Activity Stream
Mikkel Flindt Heisterberg

Mikkel Heisterberg - An introduction to developing for the Activity Stream
Mikkel Heisterberg - An introduction to developing for the Activity StreamMikkel Heisterberg - An introduction to developing for the Activity Stream
Mikkel Heisterberg - An introduction to developing for the Activity Stream
LetsConnect

Identifying Users Across Platforms with a Universal ID Webinar Slides
Identifying Users Across Platforms with a Universal ID Webinar SlidesIdentifying Users Across Platforms with a Universal ID Webinar Slides
Identifying Users Across Platforms with a Universal ID Webinar Slides
Looker

Goodle Developer Days Munich 2008 - Open Social Update
Goodle Developer Days Munich 2008 - Open Social UpdateGoodle Developer Days Munich 2008 - Open Social Update
Goodle Developer Days Munich 2008 - Open Social Update
Patrick Chanezon

My Journey into the Terrifying World of Hypermedia
My Journey into the Terrifying World of HypermediaMy Journey into the Terrifying World of Hypermedia
My Journey into the Terrifying World of Hypermedia
Nordic APIs

Buiding application for social networks
Buiding application for social networksBuiding application for social networks
Buiding application for social networks
Đỗ Duy Trung

Extensible RESTful Applications with Apache TinkerPop
Extensible RESTful Applications with Apache TinkerPopExtensible RESTful Applications with Apache TinkerPop
Extensible RESTful Applications with Apache TinkerPop
Varun Ganesh

Technology for Teachers
Technology for TeachersTechnology for Teachers
Technology for Teachers
edfactor

Open Social Presentation - GSP West 2008
Open Social Presentation - GSP West 2008Open Social Presentation - GSP West 2008
Open Social Presentation - GSP West 2008
Patrick Chanezon

The Browser, the User and the Library (How to to be in between)
The Browser, the User and the Library (How to to be in between)The Browser, the User and the Library (How to to be in between)
The Browser, the User and the Library (How to to be in between)
Guus van den Brekel

Microsoft Graph: Connect to essential data every app needs
Microsoft Graph: Connect to essential data every app needsMicrosoft Graph: Connect to essential data every app needs
Microsoft Graph: Connect to essential data every app needs
Microsoft Tech Community

Microsoft Graph: Connect to essential data every app needs
Microsoft Graph: Connect to essential data every app needsMicrosoft Graph: Connect to essential data every app needs
Microsoft Graph: Connect to essential data every app needs
Microsoft Tech Community

Barcamphanoi Opensocial Application Development
Barcamphanoi Opensocial Application DevelopmentBarcamphanoi Opensocial Application Development
Barcamphanoi Opensocial Application Development
Hoat Le

Goodle Developer Days London 2008 - Open Social Update
Goodle Developer Days London 2008 - Open Social UpdateGoodle Developer Days London 2008 - Open Social Update
Goodle Developer Days London 2008 - Open Social Update
Patrick Chanezon

WikiLoop: Big tech's Open Knowledge contributions
WikiLoop: Big tech's Open Knowledge contributionsWikiLoop: Big tech's Open Knowledge contributions
WikiLoop: Big tech's Open Knowledge contributions
All Things Open

The Future of the Web - Cold Front conference 2016
The Future of the Web - Cold Front conference 2016The Future of the Web - Cold Front conference 2016
The Future of the Web - Cold Front conference 2016
Robert Nyman

SFScon17 - Patrick Puecher: "Exploring data with Elasticsearch and Kibana"
SFScon17 - Patrick Puecher: "Exploring data with Elasticsearch and Kibana"SFScon17 - Patrick Puecher: "Exploring data with Elasticsearch and Kibana"
SFScon17 - Patrick Puecher: "Exploring data with Elasticsearch and Kibana"
South Tyrol Free Software Conference

APIs for modern web apps
APIs for modern web appsAPIs for modern web apps
APIs for modern web apps
Chris Mills

.NET Fest 2018. Антон Молдован. One year of using F# in production at SBTech
.NET Fest 2018. Антон Молдован. One year of using F# in production at SBTech.NET Fest 2018. Антон Молдован. One year of using F# in production at SBTech
.NET Fest 2018. Антон Молдован. One year of using F# in production at SBTech
NETFest

The liferay case: lessons learned evolving from RPC to Hypermedia REST APIs
The liferay case: lessons learned evolving from RPC to Hypermedia REST APIsThe liferay case: lessons learned evolving from RPC to Hypermedia REST APIs
The liferay case: lessons learned evolving from RPC to Hypermedia REST APIs
Jorge Ferrer


Similar to B 3 line bot live coding (20)

An Introduction to Working With the Activity Stream
An Introduction to Working With the Activity StreamAn Introduction to Working With the Activity Stream
An Introduction to Working With the Activity Stream

Mikkel Heisterberg - An introduction to developing for the Activity Stream
Mikkel Heisterberg - An introduction to developing for the Activity StreamMikkel Heisterberg - An introduction to developing for the Activity Stream
Mikkel Heisterberg - An introduction to developing for the Activity Stream

Identifying Users Across Platforms with a Universal ID Webinar Slides
Identifying Users Across Platforms with a Universal ID Webinar SlidesIdentifying Users Across Platforms with a Universal ID Webinar Slides
Identifying Users Across Platforms with a Universal ID Webinar Slides

Goodle Developer Days Munich 2008 - Open Social Update
Goodle Developer Days Munich 2008 - Open Social UpdateGoodle Developer Days Munich 2008 - Open Social Update
Goodle Developer Days Munich 2008 - Open Social Update

My Journey into the Terrifying World of Hypermedia
My Journey into the Terrifying World of HypermediaMy Journey into the Terrifying World of Hypermedia
My Journey into the Terrifying World of Hypermedia

Buiding application for social networks
Buiding application for social networksBuiding application for social networks
Buiding application for social networks

Extensible RESTful Applications with Apache TinkerPop
Extensible RESTful Applications with Apache TinkerPopExtensible RESTful Applications with Apache TinkerPop
Extensible RESTful Applications with Apache TinkerPop

Technology for Teachers
Technology for TeachersTechnology for Teachers
Technology for Teachers

Open Social Presentation - GSP West 2008
Open Social Presentation - GSP West 2008Open Social Presentation - GSP West 2008
Open Social Presentation - GSP West 2008

The Browser, the User and the Library (How to to be in between)
The Browser, the User and the Library (How to to be in between)The Browser, the User and the Library (How to to be in between)
The Browser, the User and the Library (How to to be in between)

Microsoft Graph: Connect to essential data every app needs
Microsoft Graph: Connect to essential data every app needsMicrosoft Graph: Connect to essential data every app needs
Microsoft Graph: Connect to essential data every app needs

Microsoft Graph: Connect to essential data every app needs
Microsoft Graph: Connect to essential data every app needsMicrosoft Graph: Connect to essential data every app needs
Microsoft Graph: Connect to essential data every app needs

Barcamphanoi Opensocial Application Development
Barcamphanoi Opensocial Application DevelopmentBarcamphanoi Opensocial Application Development
Barcamphanoi Opensocial Application Development

Goodle Developer Days London 2008 - Open Social Update
Goodle Developer Days London 2008 - Open Social UpdateGoodle Developer Days London 2008 - Open Social Update
Goodle Developer Days London 2008 - Open Social Update

WikiLoop: Big tech's Open Knowledge contributions
WikiLoop: Big tech's Open Knowledge contributionsWikiLoop: Big tech's Open Knowledge contributions
WikiLoop: Big tech's Open Knowledge contributions

The Future of the Web - Cold Front conference 2016
The Future of the Web - Cold Front conference 2016The Future of the Web - Cold Front conference 2016
The Future of the Web - Cold Front conference 2016

SFScon17 - Patrick Puecher: "Exploring data with Elasticsearch and Kibana"
SFScon17 - Patrick Puecher: "Exploring data with Elasticsearch and Kibana"SFScon17 - Patrick Puecher: "Exploring data with Elasticsearch and Kibana"
SFScon17 - Patrick Puecher: "Exploring data with Elasticsearch and Kibana"

APIs for modern web apps
APIs for modern web appsAPIs for modern web apps
APIs for modern web apps

.NET Fest 2018. Антон Молдован. One year of using F# in production at SBTech
.NET Fest 2018. Антон Молдован. One year of using F# in production at SBTech.NET Fest 2018. Антон Молдован. One year of using F# in production at SBTech
.NET Fest 2018. Антон Молдован. One year of using F# in production at SBTech

The liferay case: lessons learned evolving from RPC to Hypermedia REST APIs
The liferay case: lessons learned evolving from RPC to Hypermedia REST APIsThe liferay case: lessons learned evolving from RPC to Hypermedia REST APIs
The liferay case: lessons learned evolving from RPC to Hypermedia REST APIs


More from LINE Corporation

JJUG CCC 2018 Fall 懇親会LT
JJUG CCC 2018 Fall 懇親会LTJJUG CCC 2018 Fall 懇親会LT
JJUG CCC 2018 Fall 懇親会LT
LINE Corporation

Reduce dependency on Rx with Kotlin Coroutines
Reduce dependency on Rx with Kotlin CoroutinesReduce dependency on Rx with Kotlin Coroutines
Reduce dependency on Rx with Kotlin Coroutines
LINE Corporation

Kotlin/NativeでAndroidのNativeメソッドを実装してみた
Kotlin/NativeでAndroidのNativeメソッドを実装してみたKotlin/NativeでAndroidのNativeメソッドを実装してみた
Kotlin/NativeでAndroidのNativeメソッドを実装してみた
LINE Corporation

Use Kotlin scripts and Clova SDK to build your Clova extension
Use Kotlin scripts and Clova SDK to build your Clova extensionUse Kotlin scripts and Clova SDK to build your Clova extension
Use Kotlin scripts and Clova SDK to build your Clova extension
LINE Corporation

The Magic of LINE 購物 Testing
The Magic of LINE 購物 TestingThe Magic of LINE 購物 Testing
The Magic of LINE 購物 Testing
LINE Corporation

GA Test Automation
GA Test AutomationGA Test Automation
GA Test Automation
LINE Corporation

UI Automation Test with JUnit5
UI Automation Test with JUnit5UI Automation Test with JUnit5
UI Automation Test with JUnit5
LINE Corporation

Feature Detection for UI Testing
Feature Detection for UI TestingFeature Detection for UI Testing
Feature Detection for UI Testing
LINE Corporation

LINE 新星計劃介紹與新創團隊分享
LINE 新星計劃介紹與新創團隊分享LINE 新星計劃介紹與新創團隊分享
LINE 新星計劃介紹與新創團隊分享
LINE Corporation

​LINE 技術合作夥伴與應用分享
​LINE 技術合作夥伴與應用分享​LINE 技術合作夥伴與應用分享
​LINE 技術合作夥伴與應用分享
LINE Corporation

LINE 開發者社群經營與技術推廣
LINE 開發者社群經營與技術推廣LINE 開發者社群經營與技術推廣
LINE 開發者社群經營與技術推廣
LINE Corporation

日本開發者大會短講分享
日本開發者大會短講分享日本開發者大會短講分享
日本開發者大會短講分享
LINE Corporation

LINE Chatbot - 活動報名報到設計分享
LINE Chatbot - 活動報名報到設計分享LINE Chatbot - 活動報名報到設計分享
LINE Chatbot - 活動報名報到設計分享
LINE Corporation

在 LINE 私有雲中使用 Managed Kubernetes
在 LINE 私有雲中使用 Managed Kubernetes在 LINE 私有雲中使用 Managed Kubernetes
在 LINE 私有雲中使用 Managed Kubernetes
LINE Corporation

LINE TODAY高效率的敏捷測試開發技巧
LINE TODAY高效率的敏捷測試開發技巧LINE TODAY高效率的敏捷測試開發技巧
LINE TODAY高效率的敏捷測試開發技巧
LINE Corporation

LINE 區塊鏈平台及代幣經濟 - LINK Chain及LINK介紹
LINE 區塊鏈平台及代幣經濟 - LINK Chain及LINK介紹LINE 區塊鏈平台及代幣經濟 - LINK Chain及LINK介紹
LINE 區塊鏈平台及代幣經濟 - LINK Chain及LINK介紹
LINE Corporation

LINE Things - LINE IoT平台新技術分享
LINE Things - LINE IoT平台新技術分享LINE Things - LINE IoT平台新技術分享
LINE Things - LINE IoT平台新技術分享
LINE Corporation

LINE Pay - 一卡通支付新體驗
LINE Pay - 一卡通支付新體驗LINE Pay - 一卡通支付新體驗
LINE Pay - 一卡通支付新體驗
LINE Corporation

LINE Platform API Update - 打造一個更好的Chatbot服務
LINE Platform API Update - 打造一個更好的Chatbot服務LINE Platform API Update - 打造一個更好的Chatbot服務
LINE Platform API Update - 打造一個更好的Chatbot服務
LINE Corporation

Keynote - ​LINE 的技術策略佈局與跨國產品開發
Keynote - ​LINE 的技術策略佈局與跨國產品開發Keynote - ​LINE 的技術策略佈局與跨國產品開發
Keynote - ​LINE 的技術策略佈局與跨國產品開發
LINE Corporation


More from LINE Corporation (20)

JJUG CCC 2018 Fall 懇親会LT
JJUG CCC 2018 Fall 懇親会LTJJUG CCC 2018 Fall 懇親会LT
JJUG CCC 2018 Fall 懇親会LT

Reduce dependency on Rx with Kotlin Coroutines
Reduce dependency on Rx with Kotlin CoroutinesReduce dependency on Rx with Kotlin Coroutines
Reduce dependency on Rx with Kotlin Coroutines

Kotlin/NativeでAndroidのNativeメソッドを実装してみた
Kotlin/NativeでAndroidのNativeメソッドを実装してみたKotlin/NativeでAndroidのNativeメソッドを実装してみた
Kotlin/NativeでAndroidのNativeメソッドを実装してみた

Use Kotlin scripts and Clova SDK to build your Clova extension
Use Kotlin scripts and Clova SDK to build your Clova extensionUse Kotlin scripts and Clova SDK to build your Clova extension
Use Kotlin scripts and Clova SDK to build your Clova extension

The Magic of LINE 購物 Testing
The Magic of LINE 購物 TestingThe Magic of LINE 購物 Testing
The Magic of LINE 購物 Testing

GA Test Automation
GA Test AutomationGA Test Automation
GA Test Automation

UI Automation Test with JUnit5
UI Automation Test with JUnit5UI Automation Test with JUnit5
UI Automation Test with JUnit5

Feature Detection for UI Testing
Feature Detection for UI TestingFeature Detection for UI Testing
Feature Detection for UI Testing

LINE 新星計劃介紹與新創團隊分享
LINE 新星計劃介紹與新創團隊分享LINE 新星計劃介紹與新創團隊分享
LINE 新星計劃介紹與新創團隊分享

​LINE 技術合作夥伴與應用分享
​LINE 技術合作夥伴與應用分享​LINE 技術合作夥伴與應用分享
​LINE 技術合作夥伴與應用分享

LINE 開發者社群經營與技術推廣
LINE 開發者社群經營與技術推廣LINE 開發者社群經營與技術推廣
LINE 開發者社群經營與技術推廣

日本開發者大會短講分享
日本開發者大會短講分享日本開發者大會短講分享
日本開發者大會短講分享

LINE Chatbot - 活動報名報到設計分享
LINE Chatbot - 活動報名報到設計分享LINE Chatbot - 活動報名報到設計分享
LINE Chatbot - 活動報名報到設計分享

在 LINE 私有雲中使用 Managed Kubernetes
在 LINE 私有雲中使用 Managed Kubernetes在 LINE 私有雲中使用 Managed Kubernetes
在 LINE 私有雲中使用 Managed Kubernetes

LINE TODAY高效率的敏捷測試開發技巧
LINE TODAY高效率的敏捷測試開發技巧LINE TODAY高效率的敏捷測試開發技巧
LINE TODAY高效率的敏捷測試開發技巧

LINE 區塊鏈平台及代幣經濟 - LINK Chain及LINK介紹
LINE 區塊鏈平台及代幣經濟 - LINK Chain及LINK介紹LINE 區塊鏈平台及代幣經濟 - LINK Chain及LINK介紹
LINE 區塊鏈平台及代幣經濟 - LINK Chain及LINK介紹

LINE Things - LINE IoT平台新技術分享
LINE Things - LINE IoT平台新技術分享LINE Things - LINE IoT平台新技術分享
LINE Things - LINE IoT平台新技術分享

LINE Pay - 一卡通支付新體驗
LINE Pay - 一卡通支付新體驗LINE Pay - 一卡通支付新體驗
LINE Pay - 一卡通支付新體驗

LINE Platform API Update - 打造一個更好的Chatbot服務
LINE Platform API Update - 打造一個更好的Chatbot服務LINE Platform API Update - 打造一個更好的Chatbot服務
LINE Platform API Update - 打造一個更好的Chatbot服務

Keynote - ​LINE 的技術策略佈局與跨國產品開發
Keynote - ​LINE 的技術策略佈局與跨國產品開發Keynote - ​LINE 的技術策略佈局與跨國產品開發
Keynote - ​LINE 的技術策略佈局與跨國產品開發


Recently uploaded

By Design, not by Accident - Agile Venture Bolzano 2024
By Design, not by Accident - Agile Venture Bolzano 2024By Design, not by Accident - Agile Venture Bolzano 2024
By Design, not by Accident - Agile Venture Bolzano 2024
Pierluigi Pugliese

A tale of scale & speed: How the US Navy is enabling software delivery from l...
A tale of scale & speed: How the US Navy is enabling software delivery from l...A tale of scale & speed: How the US Navy is enabling software delivery from l...
A tale of scale & speed: How the US Navy is enabling software delivery from l...
sonjaschweigert1

Accelerate your Kubernetes clusters with Varnish Caching
Accelerate your Kubernetes clusters with Varnish CachingAccelerate your Kubernetes clusters with Varnish Caching
Accelerate your Kubernetes clusters with Varnish Caching
Thijs Feryn

Free Complete Python - A step towards Data Science
Free Complete Python - A step towards Data ScienceFree Complete Python - A step towards Data Science
Free Complete Python - A step towards Data Science
RinaMondal9

Enhancing Performance with Globus and the Science DMZ
Enhancing Performance with Globus and the Science DMZEnhancing Performance with Globus and the Science DMZ
Enhancing Performance with Globus and the Science DMZ
Globus

Elevating Tactical DDD Patterns Through Object Calisthenics
Elevating Tactical DDD Patterns Through Object CalisthenicsElevating Tactical DDD Patterns Through Object Calisthenics
Elevating Tactical DDD Patterns Through Object Calisthenics
Dorra BARTAGUIZ

PHP Frameworks: I want to break free (IPC Berlin 2024)
PHP Frameworks: I want to break free (IPC Berlin 2024)PHP Frameworks: I want to break free (IPC Berlin 2024)
PHP Frameworks: I want to break free (IPC Berlin 2024)
Ralf Eggert

UiPath Test Automation using UiPath Test Suite series, part 4
UiPath Test Automation using UiPath Test Suite series, part 4UiPath Test Automation using UiPath Test Suite series, part 4
UiPath Test Automation using UiPath Test Suite series, part 4
DianaGray10

Essentials of Automations: The Art of Triggers and Actions in FME
Essentials of Automations: The Art of Triggers and Actions in FMEEssentials of Automations: The Art of Triggers and Actions in FME
Essentials of Automations: The Art of Triggers and Actions in FME
Safe Software

UiPath Community Day Dubai: AI at Work..
UiPath Community Day Dubai: AI at Work..UiPath Community Day Dubai: AI at Work..
UiPath Community Day Dubai: AI at Work..
UiPathCommunity

PCI PIN Basics Webinar from the Controlcase Team
PCI PIN Basics Webinar from the Controlcase TeamPCI PIN Basics Webinar from the Controlcase Team
PCI PIN Basics Webinar from the Controlcase Team
ControlCase

The Metaverse and AI: how can decision-makers harness the Metaverse for their...
The Metaverse and AI: how can decision-makers harness the Metaverse for their...The Metaverse and AI: how can decision-makers harness the Metaverse for their...
The Metaverse and AI: how can decision-makers harness the Metaverse for their...
Jen Stirrup

Removing Uninteresting Bytes in Software Fuzzing
Removing Uninteresting Bytes in Software FuzzingRemoving Uninteresting Bytes in Software Fuzzing
Removing Uninteresting Bytes in Software Fuzzing
Aftab Hussain

FIDO Alliance Osaka Seminar: Passkeys and the Road Ahead.pdf
FIDO Alliance Osaka Seminar: Passkeys and the Road Ahead.pdfFIDO Alliance Osaka Seminar: Passkeys and the Road Ahead.pdf
FIDO Alliance Osaka Seminar: Passkeys and the Road Ahead.pdf
FIDO Alliance

Observability Concepts EVERY Developer Should Know -- DeveloperWeek Europe.pdf
Observability Concepts EVERY Developer Should Know -- DeveloperWeek Europe.pdfObservability Concepts EVERY Developer Should Know -- DeveloperWeek Europe.pdf
Observability Concepts EVERY Developer Should Know -- DeveloperWeek Europe.pdf
Paige Cruz

Leading Change strategies and insights for effective change management pdf 1.pdf
Leading Change strategies and insights for effective change management pdf 1.pdfLeading Change strategies and insights for effective change management pdf 1.pdf
Leading Change strategies and insights for effective change management pdf 1.pdf
OnBoard

The Art of the Pitch: WordPress Relationships and Sales
The Art of the Pitch: WordPress Relationships and SalesThe Art of the Pitch: WordPress Relationships and Sales
The Art of the Pitch: WordPress Relationships and Sales
Laura Byrne

The Future of Platform Engineering
The Future of Platform EngineeringThe Future of Platform Engineering
The Future of Platform Engineering
Jemma Hussein Allen

Alt. GDG Cloud Southlake #33: Boule & Rebala: Effective AppSec in SDLC using ...
Alt. GDG Cloud Southlake #33: Boule & Rebala: Effective AppSec in SDLC using ...Alt. GDG Cloud Southlake #33: Boule & Rebala: Effective AppSec in SDLC using ...
Alt. GDG Cloud Southlake #33: Boule & Rebala: Effective AppSec in SDLC using ...
James Anderson

zkStudyClub - Reef: Fast Succinct Non-Interactive Zero-Knowledge Regex Proofs
zkStudyClub - Reef: Fast Succinct Non-Interactive Zero-Knowledge Regex ProofszkStudyClub - Reef: Fast Succinct Non-Interactive Zero-Knowledge Regex Proofs
zkStudyClub - Reef: Fast Succinct Non-Interactive Zero-Knowledge Regex Proofs
Alex Pruden


Recently uploaded (20)

By Design, not by Accident - Agile Venture Bolzano 2024
By Design, not by Accident - Agile Venture Bolzano 2024By Design, not by Accident - Agile Venture Bolzano 2024
By Design, not by Accident - Agile Venture Bolzano 2024

A tale of scale & speed: How the US Navy is enabling software delivery from l...
A tale of scale & speed: How the US Navy is enabling software delivery from l...A tale of scale & speed: How the US Navy is enabling software delivery from l...
A tale of scale & speed: How the US Navy is enabling software delivery from l...

Accelerate your Kubernetes clusters with Varnish Caching
Accelerate your Kubernetes clusters with Varnish CachingAccelerate your Kubernetes clusters with Varnish Caching
Accelerate your Kubernetes clusters with Varnish Caching

Free Complete Python - A step towards Data Science
Free Complete Python - A step towards Data ScienceFree Complete Python - A step towards Data Science
Free Complete Python - A step towards Data Science

Enhancing Performance with Globus and the Science DMZ
Enhancing Performance with Globus and the Science DMZEnhancing Performance with Globus and the Science DMZ
Enhancing Performance with Globus and the Science DMZ

Elevating Tactical DDD Patterns Through Object Calisthenics
Elevating Tactical DDD Patterns Through Object CalisthenicsElevating Tactical DDD Patterns Through Object Calisthenics
Elevating Tactical DDD Patterns Through Object Calisthenics

PHP Frameworks: I want to break free (IPC Berlin 2024)
PHP Frameworks: I want to break free (IPC Berlin 2024)PHP Frameworks: I want to break free (IPC Berlin 2024)
PHP Frameworks: I want to break free (IPC Berlin 2024)

UiPath Test Automation using UiPath Test Suite series, part 4
UiPath Test Automation using UiPath Test Suite series, part 4UiPath Test Automation using UiPath Test Suite series, part 4
UiPath Test Automation using UiPath Test Suite series, part 4

Essentials of Automations: The Art of Triggers and Actions in FME
Essentials of Automations: The Art of Triggers and Actions in FMEEssentials of Automations: The Art of Triggers and Actions in FME
Essentials of Automations: The Art of Triggers and Actions in FME

UiPath Community Day Dubai: AI at Work..
UiPath Community Day Dubai: AI at Work..UiPath Community Day Dubai: AI at Work..
UiPath Community Day Dubai: AI at Work..

PCI PIN Basics Webinar from the Controlcase Team
PCI PIN Basics Webinar from the Controlcase TeamPCI PIN Basics Webinar from the Controlcase Team
PCI PIN Basics Webinar from the Controlcase Team

The Metaverse and AI: how can decision-makers harness the Metaverse for their...
The Metaverse and AI: how can decision-makers harness the Metaverse for their...The Metaverse and AI: how can decision-makers harness the Metaverse for their...
The Metaverse and AI: how can decision-makers harness the Metaverse for their...

Removing Uninteresting Bytes in Software Fuzzing
Removing Uninteresting Bytes in Software FuzzingRemoving Uninteresting Bytes in Software Fuzzing
Removing Uninteresting Bytes in Software Fuzzing

FIDO Alliance Osaka Seminar: Passkeys and the Road Ahead.pdf
FIDO Alliance Osaka Seminar: Passkeys and the Road Ahead.pdfFIDO Alliance Osaka Seminar: Passkeys and the Road Ahead.pdf
FIDO Alliance Osaka Seminar: Passkeys and the Road Ahead.pdf

Observability Concepts EVERY Developer Should Know -- DeveloperWeek Europe.pdf
Observability Concepts EVERY Developer Should Know -- DeveloperWeek Europe.pdfObservability Concepts EVERY Developer Should Know -- DeveloperWeek Europe.pdf
Observability Concepts EVERY Developer Should Know -- DeveloperWeek Europe.pdf

Leading Change strategies and insights for effective change management pdf 1.pdf
Leading Change strategies and insights for effective change management pdf 1.pdfLeading Change strategies and insights for effective change management pdf 1.pdf
Leading Change strategies and insights for effective change management pdf 1.pdf

The Art of the Pitch: WordPress Relationships and Sales
The Art of the Pitch: WordPress Relationships and SalesThe Art of the Pitch: WordPress Relationships and Sales
The Art of the Pitch: WordPress Relationships and Sales

The Future of Platform Engineering
The Future of Platform EngineeringThe Future of Platform Engineering
The Future of Platform Engineering

Alt. GDG Cloud Southlake #33: Boule & Rebala: Effective AppSec in SDLC using ...
Alt. GDG Cloud Southlake #33: Boule & Rebala: Effective AppSec in SDLC using ...Alt. GDG Cloud Southlake #33: Boule & Rebala: Effective AppSec in SDLC using ...
Alt. GDG Cloud Southlake #33: Boule & Rebala: Effective AppSec in SDLC using ...

zkStudyClub - Reef: Fast Succinct Non-Interactive Zero-Knowledge Regex Proofs
zkStudyClub - Reef: Fast Succinct Non-Interactive Zero-Knowledge Regex ProofszkStudyClub - Reef: Fast Succinct Non-Interactive Zero-Knowledge Regex Proofs
zkStudyClub - Reef: Fast Succinct Non-Interactive Zero-Knowledge Regex Proofs


B 3 line bot live coding

  • 1.

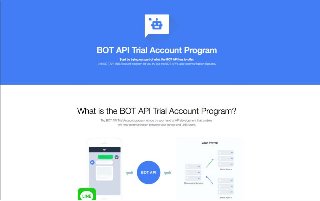

  • 2.
  • 3. BOT API Trial Sending Messages • Text • Image • Video • Audio • Location • Sticker • Rich Message
  • 4. BOT API Trial Sending Messages • Text • Image • Video • Audio • Location • Sticker • Rich Message
  • 5. BOT API Trial Sending Messages • Text • Image • Video • Audio • Location • Sticker • Rich Message
  • 6. BOT API Trial Problems Complexity of features with rich UI/UX Need to send message one-by-one in order to receive response from users Cannot join group Etc… API is complex
  • 7.
  • 8. LINE BOT & Messaging API New Message API Added new MessageType Events that can be accepted via webhook Participation in groups New features added to LINE Bot
  • 10. New Messaging API LINE Chat (1-on-1 or group) 1. Reply API LINE Server Bot Application LINE Message Your System Webhook Reply ID
  • 11. New Messaging API LINE Chat (1-on-1 or group) 1. Reply API LINE Server Bot Application LINE Message Your System Webhook Reply ID Message Reply With reply ID
  • 12. New Messaging API LINE Server 2. Push API LINE Chat (1-on-1 or group) Bot Application LINE Message Your System Push with user ID / group ID
  • 13. BOT API Trial Message API curl -X POST ¥ -H 'Content-Type: application/json' ¥ -H 'X-Line-ChannelID: <Channel ID>' ¥ -H 'X-Line-ChannelSecret: <Channel Secret>' ¥ -H 'X-Line-Trusted-User-With-ACL: <Channel MID>' ¥ -d '{ "to":["userId1"], "toChannel":1383378250, "eventType":"138311608800106203", "content":{ "contentType":1, "toType":1, "text":"Hello, Jose!" } }’ https://trialbot-api.line.me/v1/events
  • 14. BOT API Trial Message API curl -X POST ¥ -H 'Content-Type: application/json' ¥ -H 'X-Line-ChannelID: <Channel ID>' ¥ -H 'X-Line-ChannelSecret: <Channel Secret>' ¥ -H 'X-Line-Trusted-User-With-ACL: <Channel MID>' ¥ -d '{ "to":["userId1"], "toChannel":1383378250, "eventType":"138311608800106203", "content":{ "contentType":1, "toType":1, "text":"Hello, Jose!" } }’ https://trialbot-api.line.me/v1/events Too many Bot Info Fixed Magic Number Unknown value Fixed Magic Number
  • 15. New Messaging API curl -X POST ¥ -H "Content-Type:application/json" ¥ -H "Authorization: Bearer <Access Token>" ¥ -d '{ "to": "userId or groupId", "messages": [ {"type": "text", "text": "Hello LINE Bot" } ] } ' https://api.line.me/v2/bot/message/push
  • 18. { "type": "template", "altText": "this is an template", "template": { "type": buttons", "thumbnailImageUrl": "http://example.com/image.jpg", "title": "Current Weather…", "text": "9/29 Weather…", "actions": [{ "type": "message", "label": ”How about…", "text": "How about…" }, { "type": "uri", "label": ”Open Browser", "uri": "https://line.me" }] } }
  • 19. { "type": "template", "altText": "this is an template", "template": { "type": buttons", "thumbnailImageUrl": "http://example.com/image.jpg", "title": "Current Weather…", ”text": "9/29 Weather…", "actions": [{ "type": "message", "label": ”How about…", "text": "How about…" }, { "type": "uri", "label": ”Open Browser", "uri": "https://line.me" }] } }
  • 20. { "type": "template", "altText": "this is an template", "template": { "type": buttons", "thumbnailImageUrl": "http://example.com/image.jpg", "title": "Current Weather…", "text": "9/29 Weather…", "actions": [{ "type": "message", "label": ”How about…", "text": "How about…" }, { "type": "uri", "label": ”Open Browser", "uri": "https://line.me" }] } }
  • 21. { "type": "template", "altText": "this is an template", "template": { "type": buttons", "thumbnailImageUrl": "http://example.com/image.jpg", "title": "Current Weather…", ”text": "9/29 Weather…", "actions": [{ "type": "message", "label": ”How about…", "text": "How about…" }, { "type": "uri", "label": ”Open Browser", "uri": "https://line.me" }] } }
  • 23. { "type": "template", "altText": "this is an template", "template": { "type": “confirm”, "text": "Are you sure?", "actions": [{ "type": "message", "label": "OK", "text": "Yes, Please" }, { "type": "message", "label": ”Cancel", "text": "No thank you" }] } }
  • 25. { "type": "template", "altText": "this is an template", "template": { "type": "carousel", "columns": [{ "thumbnailImageUrl”:"http://…", "title": "Current Whether…", ”text": "9/29 Whether…", "actions": [ ... ] }, { "thumbnailImageUrl”: "http://…", "title": "Current Whether…", "text": "9/30 Whether…", "actions": [ ... ] } ]} }
  • 26. { "type": "template", "altText": "this is an template", "template": { "type": "carousel", "columns": [{ "thumbnailImageUrl”:"http://…", "title": "Current Whether…", ”text": "9/29 Whether…", "actions": [ ... ] }, { "thumbnailImageUrl”: "http://…", "title": "Current Whether…", "text": "9/30 Whether…", "actions": [ ... ] } ]} }
  • 27. { "type": "template", "altText": "this is an template", "template": { "type": "carousel", "columns": [{ "thumbnailImageUrl”:"http://…", "title": "Current Whether…", ”text": "9/29 Whether…", "actions": [ ... ] }, { "thumbnailImageUrl”: "http://…", "title": "Current Whether…", "text": "9/30 Whether…", "actions": [ ... ] } ]} }
  • 28. { "type": "template", "altText": "this is an template", "template": { "type": "carousel", "columns": [{ "thumbnailImageUrl”:"http://…", "title": "Current Whether…", ”text": "9/29 Whether…", "actions": [ ... ] }, { "thumbnailImageUrl”: "http://…", "title": "Current Whether…", "text": "9/30 Whether…", "actions": [ ... ] } ]} }
  • 29. Now’s the Time to Begin Coding!!
  • 30.
  • 31. Webhook LINE Chat (1-on-1 or group) LINE Server Bot Application LINE Message Your System Webhook LINE Chat (1-on-1 or group) Event { "events": […] }
  • 32. event contact status “follow” “unfollow”“message” • Text • Image • Location • Sticker • Contact
  • 33. event contact status “follow” “unfollow” group status “join” “leave” “beacon” “postback” “message” • Text • Image • Location • Sticker • Contact
  • 34. Postback? Send Event to Your Server Directly with Parameters. { "replyToken": “xxxxxxxxxx", "type": "postback", "timestamp": 1462629479859, "source": { "type": "user", "userId": "xxxxxxxxxxxx" }, "postback": { "data": "action=remind&itemId=123", } } Bot Application Webhook
  • 36.
  • 37.
  • 38. Summary New Message API Added new Message Type Events that can be accepted via webhook Participation in groups New features added to Messaging API
