The document describes a library database project that was created to allow data manipulation of a library database using a SQL Server database accessed through a Windows Forms graphic user interface. The project goals were to allow this data manipulation functionality. The document then provides examples of the classes used including the Business Access Layer class and the Data Access Layer class, which access and retrieve data from the database.

1. (Library Project) by Marcelo Salvador
Introduction: The project was created in order to create a library database accessing a
SQL Server database and allowing data manipulation.
Audience:
 Business Executives
 Information Workers
 IT Managers
Project Goals:
The goal of this project was to allow data manipulation of a library database by
utilizing Windows Forms as a graphic user interface. Afterwards, the project was
migrated to ASP.NET.
Below I enclose examples of the classes utilizing N-Tier Architecture.
The Class described below is the Business Access Layer
using System;
using System.Collections.Generic;
using System.Text;
using System.Data.SqlClient;
using System.Data;
using Ms.Library.Entities;
using Marcelo_Library;
/*******************************************************************
* Description: This class is utilized to gather all the data from
* the desired library database from methods of the
* LibraryDataAccess.cs
* *****************************************************************
* Author: Marcelo D. Salvador*
* Create Date: 11/24/2008 *
* Modified Date: 11/28/2007 *
* Modification: 12/13/2008 *
*******************************************************************/
namespace Marcelo_Library

2. {

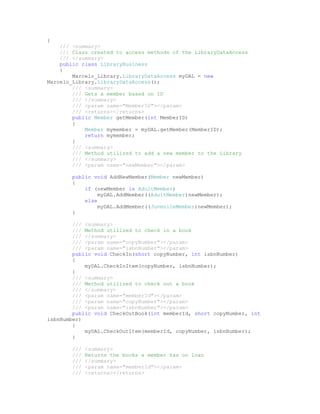

/// <summary>
/// Class created to access methods of the LibraryDataAccess
/// </summary>
public class LibraryBusiness
{
Marcelo_Library.LibraryDataAccess myDAL = new
Marcelo_Library.LibraryDataAccess();
/// <summary>
/// Gets a member based on ID
/// </summary>
/// <param name="MemberID"></param>
/// <returns></returns>
public Member getMember(int MemberID)
{
Member mymember = myDAL.getMember(MemberID);
return mymember;
}
/// <summary>
/// Method utilized to add a new member to the Library
/// </summary>
/// <param name="newMember"></param>
public void AddNewMember(Member newMember)
{
if (newMember is AdultMember)
myDAL.AddMember((AdultMember)newMember);
else
myDAL.AddMember((JuvenileMember)newMember);
}
/// <summary>
/// Method utilized to check in a book
/// </summary>
/// <param name="copyNumber"></param>
/// <param name="isbnNumber"></param>
public void CheckIn(short copyNumber, int isbnNumber)
{
myDAL.CheckInItem(copyNumber, isbnNumber);
}
/// <summary>
/// Method utilized to check out a book
/// </summary>
/// <param name="memberId"></param>
/// <param name="copyNumber"></param>
/// <param name="isbnNumber"></param>
public void CheckOutBook(int memberId, short copyNumber, int
isbnNumber)
{
myDAL.CheckOutItem(memberId, copyNumber, isbnNumber);
}
/// <summary>
/// Returns the books a member has on loan
/// </summary>
/// <param name="memberId"></param>
/// <returns></returns>

3. public DataSet GetBooks(short memberId)
{
// create the library data access
// call the GetItems method
// return the dataset
LibraryDataAccess dataAccess = new LibraryDataAccess();
DataSet books = dataAccess.GetItems(memberId);
return books;
}
/// <summary>
/// Method utilizid to get book information
/// </summary>
/// <param name="isbnNumber"></param>
/// <param name="copyNumber"></param>
/// <returns></returns>
public Item GetBook(int isbnNumber, short copyNumber)
{
Item myItem = myDAL.GetItem(isbnNumber, copyNumber);
return myItem;
}
/// <summary>
/// Method utilized to renew membership
/// </summary>
/// <param name="memberNumber"></param>
public void RenewMembership(int memberNumber)
{
myDAL.RenewMembership(memberNumber);
}
/// <summary>
/// Method utilized to convert a juvenile to an adult
/// </summary>
/// <param name="memberNumber"></param>
public void KidtoMan(int memberNumber)
{
myDAL.adolescentToAdult(memberNumber);
}
/// <summary>
/// Method utilized to insert a new book to the database
/// </summary>
/// <param name="title"></param>
/// <param name="author"></param>
/// <param name="synopsis"></param>
/// <param name="isbn"></param>
/// <param name="translation"></param>
/// <param name="cover"></param>
/// <param name="loanable"></param>
public void InsertNewBook(string title, string author, string
synopsis, int isbn, string translation, string cover, char loanable)
{
myDAL.AddNewBook(title, author, synopsis, isbn,
translation, cover, loanable);
}

4. }
}

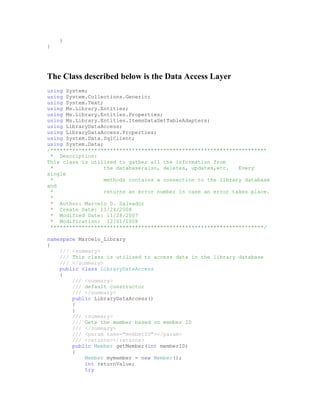

The Class described below is the Data Access Layer
using System;
using System.Collections.Generic;
using System.Text;
using Ms.Library.Entities;
using Ms.Library.Entities.Properties;
using Ms.Library.Entities.ItemsDataSetTableAdapters;
using LibraryDataAccess;
using LibraryDataAccess.Properties;
using System.Data.SqlClient;
using System.Data;
/*********************************************************************
* Description:
This class is utilized to gather all the information from
* the database;also, deletes, updates,etc. Every
single
* methods contains a connection to the library database
and
* returns an error number in case an error takes place.
*
* Author: Marcelo D. Salvador
* Create Date: 11/24/2008
* Modified Date: 11/28/2007
* Modification: 12/01/2008
********************************************************************/
namespace Marcelo_Library
{
/// <summary>
/// This class is utilized to access data in the library database
/// </summary>
public class LibraryDataAccess
{
/// <summary>
/// default constructor
/// </summary>
public LibraryDataAccess()
{
}
/// <summary>
/// Gets the member based on member ID
/// </summary>
/// <param name="memberID"></param>
/// <returns></returns>
public Member getMember(int memberID)
{
Member mymember = new Member();
int returnValue;
try

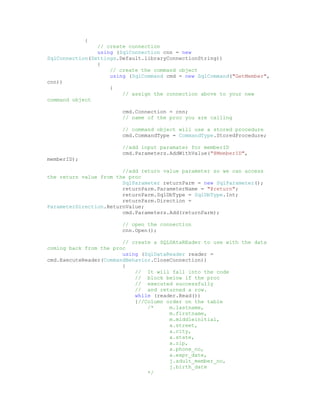

5. {
// create connection
using (SqlConnection cnn = new
SqlConnection(Settings.Default.libraryConnectionString))
{
// create the command object
using (SqlCommand cmd = new SqlCommand("GetMember",
cnn))
{
// assign the connection above to your new
command object
cmd.Connection = cnn;
// name of the proc you are calling
// command object will use a stored procedure
cmd.CommandType = CommandType.StoredProcedure;
//add input paramater for memberID
cmd.Parameters.AddWithValue("@MemberID",
memberID);
//add return value parameter so we can access
the return value from the proc
SqlParameter returnParm = new SqlParameter();
returnParm.ParameterName = "@return";
returnParm.SqlDbType = SqlDbType.Int;
returnParm.Direction =
ParameterDirection.ReturnValue;
cmd.Parameters.Add(returnParm);
// open the connection
cnn.Open();
// create a SQLDAtaREader to use with the data
coming back from the proc
using (SqlDataReader reader =
cmd.ExecuteReader(CommandBehavior.CloseConnection))
{
// It will fall into the code
// block below if the proc
// executed successfully
// and returned a row.
while (reader.Read())
{//Column order on the table
/* m.lastname,
m.firstname,
m.middleinitial,
a.street,
a.city,
a.state,
a.zip,
a.phone_no,
a.expr_date,
j.adult_member_no,
j.birth_date
*/

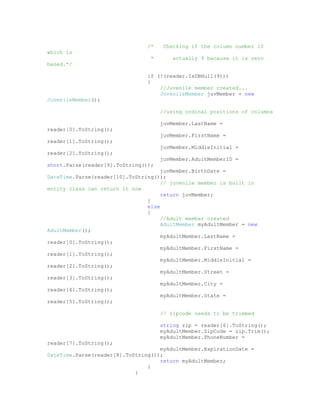

6. /* Checking if the column number 10
which is
* actually 9 because it is zero
based.*/
if (!(reader.IsDBNull(9)))
{
//Juvenile member created...
JuvenileMember juvMember = new
JuvenileMember();
//using ordinal positions of columns
juvMember.LastName =
reader[0].ToString();
juvMember.FirstName =
reader[1].ToString();
juvMember.MiddleInitial =
reader[2].ToString();
juvMember.AdultMemberID =
short.Parse(reader[9].ToString());
juvMember.BirthDate =
DateTime.Parse(reader[10].ToString());
// juvenile member is built in
entity class can return it now
return juvMember;
}
else
{
//Adult member created
AdultMember myAdultMember = new
AdultMember();
myAdultMember.LastName =
reader[0].ToString();
myAdultMember.FirstName =
reader[1].ToString();
myAdultMember.MiddleInitial =
reader[2].ToString();
myAdultMember.Street =
reader[3].ToString();
myAdultMember.City =
reader[4].ToString();
myAdultMember.State =
reader[5].ToString();
// zipcode needs to be trimmed
string zip = reader[6].ToString();
myAdultMember.ZipCode = zip.Trim();
myAdultMember.PhoneNumber =
reader[7].ToString();
myAdultMember.ExpirationDate =
DateTime.Parse(reader[8].ToString());
return myAdultMember;
}
}

7. }
// Checking SQL stored procedures return values
and through exceptions based on them
returnValue =
int.Parse(cmd.Parameters["@return"].Value.ToString());
/*return 0 -- 'Return values successful from
the query*/
/*Return -1 -- 'MemberID is null'*/
/*Return -2 -- 'MemberID is < 1 OR MemberID >
32767*/
/*Return -3 -- 'No Member found or if length
is greater than 5*/
if (returnValue != 0)
{
switch (returnValue)
{
case -1:
throw new LibraryException("isbn is
null", LibraryException.ErrorCode.IsbnIsNull);
case -2:
throw new LibraryException("copy_no
is null", LibraryException.ErrorCode.OutOfRangeMemberValue);
case -3:
throw new
LibraryException("member_no is null",
LibraryException.ErrorCode.NoSuchMember);
}
}
}
}
}
catch (InvalidCastException e)
{
string.Format("Invalid Cast", e.ToString());
}
catch (SqlException sql)
{
throw new LibraryException(sql.Message,
LibraryException.ErrorCode.GenericException);
}
return mymember;
}
/// <summary>
///
/// </summary>
/// <param name="memberNumber"></param>
/// <returns></returns>
public ItemsDataSet GetItems(short memberNumber)
{
ItemsDataSet itemsDS = new ItemsDataSet();
ItemsTableAdapter itemsTableAdapter = new
ItemsTableAdapter();

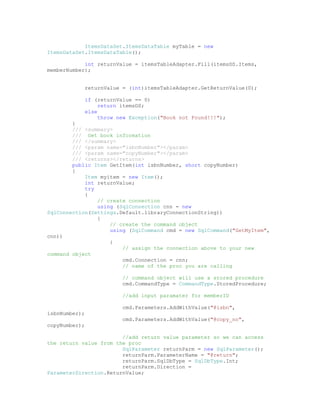

8. ItemsDataSet.ItemsDataTable myTable = new
ItemsDataSet.ItemsDataTable();
int returnValue = itemsTableAdapter.Fill(itemsDS.Items,
memberNumber);
returnValue = (int)itemsTableAdapter.GetReturnValue(0);
if (returnValue == 0)
return itemsDS;
else
throw new Exception("Book not Found!!!");
}
/// <summary>
/// Get book information
/// </summary>
/// <param name="isbnNumber"></param>
/// <param name="copyNumber"></param>
/// <returns></returns>
public Item GetItem(int isbnNumber, short copyNumber)
{
Item myitem = new Item();
int returnValue;
try
{
// create connection
using (SqlConnection cnn = new
SqlConnection(Settings.Default.libraryConnectionString))
{
// create the command object
using (SqlCommand cmd = new SqlCommand("GetMyItem",
cnn))
{
// assign the connection above to your new
command object
cmd.Connection = cnn;
// name of the proc you are calling
// command object will use a stored procedure
cmd.CommandType = CommandType.StoredProcedure;
//add input paramater for memberID
cmd.Parameters.AddWithValue("@isbn",
isbnNumber);
cmd.Parameters.AddWithValue("@copy_no",
copyNumber);
//add return value parameter so we can access
the return value from the proc
SqlParameter returnParm = new SqlParameter();
returnParm.ParameterName = "@return";
returnParm.SqlDbType = SqlDbType.Int;
returnParm.Direction =
ParameterDirection.ReturnValue;

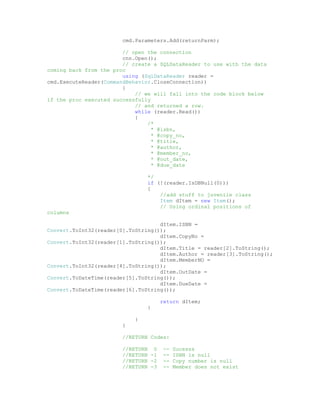

9. cmd.Parameters.Add(returnParm);
// open the connection
cnn.Open();
// create a SQLDataReader to use with the data
coming back from the proc
using (SqlDataReader reader =
cmd.ExecuteReader(CommandBehavior.CloseConnection))
{
// we will fall into the code block below
if the proc executed successfully
// and returned a row.
while (reader.Read())
{
/*
* @isbn,
* @copy_no,
* @title,
* @author,
* @member_no,
* @out_date,
* @due_date
*/
if (!(reader.IsDBNull(0)))
{
//add stuff to juvenile class
Item dItem = new Item();
// Using ordinal positions of
columns
dItem.ISBN =
Convert.ToInt32(reader[0].ToString());
dItem.CopyNo =
Convert.ToInt32(reader[1].ToString());
dItem.Title = reader[2].ToString();
dItem.Author = reader[3].ToString();
dItem.MemberNO =
Convert.ToInt32(reader[4].ToString());
dItem.OutDate =
Convert.ToDateTime(reader[5].ToString());
dItem.DueDate =
Convert.ToDateTime(reader[6].ToString());
return dItem;
}
}
}
//RETURN Codes:
//RETURN 0 -- Sucesss
//RETURN -1 -- ISBN is null
//RETURN -2 -- Copy number is null
//RETURN -3 -- Member does not exist

10. returnValue =
int.Parse(cmd.Parameters["@return"].Value.ToString());
if (returnValue != 0)
{
switch (returnValue)
{
case -1:
throw new LibraryException("isbn is
null", LibraryException.ErrorCode.IsbnIsNull);
case -2:
throw new LibraryException("copy_no
is null", LibraryException.ErrorCode.OutOfRangeMemberValue);
case -3:
throw new
LibraryException("member_no is null",
LibraryException.ErrorCode.NoSuchMember);
}
}
}
}
}
catch (InvalidCastException e)
{
string.Format("Invalid Cast", e.ToString());
}
catch (SqlException ex)
{
throw new LibraryException(ex.Message,
LibraryException.ErrorCode.GenericException);
}
return myitem;
}
/// <summary>
/// Add item to loan table
/// </summary>
/// <param name="memberID"></param>
/// <param name="copyNumber"></param>
/// <param name="isbnNumber"></param>
public void CheckOutItem(int memberID, short copyNumber, int
isbnNumber)
{
try
{
//Open Library connection
//using (SqlConnection cnn = new
SqlConnection(connectionString))
using (SqlConnection cnn = new
SqlConnection(Settings.Default.libraryConnectionString))
{
//create the command within a using block

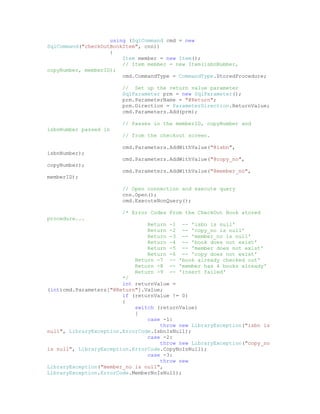

11. using (SqlCommand cmd = new
SqlCommand("checkOutBookItem", cnn))
{
Item member = new Item();
// Item member = new Item(isbnNumber,
copyNumber, memberID);
cmd.CommandType = CommandType.StoredProcedure;
// Set up the return value parameter
SqlParameter prm = new SqlParameter();
prm.ParameterName = "@Return";
prm.Direction = ParameterDirection.ReturnValue;
cmd.Parameters.Add(prm);
// Passes in the memberID, copyNumber and
isbnNumber passed in
// from the checkout screen.
cmd.Parameters.AddWithValue("@isbn",
isbnNumber);
cmd.Parameters.AddWithValue("@copy_no",
copyNumber);
cmd.Parameters.AddWithValue("@member_no",
memberID);
// Open connection and execute query
cnn.Open();
cmd.ExecuteNonQuery();
/* Error Codes From the CheckOut Book stored
procedure...
Return -1 -- 'isbn is null'
Return -2 -- 'copy_no is null'
Return -3 -- 'member_no is null'
Return -4 -- 'book does not exist'
Return -5 -- 'member does not exist'
Return -6 -- 'copy does not exist'
Return -7 -- 'book already checked out'
Return -8 -- 'member has 4 books already'
Return -9 -- 'insert failed'
*/
int returnValue =
(int)cmd.Parameters["@Return"].Value;
if (returnValue != 0)
{
switch (returnValue)
{
case -1:
throw new LibraryException("isbn is
null", LibraryException.ErrorCode.IsbnIsNull);
case -2:
throw new LibraryException("copy_no
is null", LibraryException.ErrorCode.CopyNoIsNull);
case -3:
throw new
LibraryException("member_no is null",
LibraryException.ErrorCode.MemberNoIsNull);

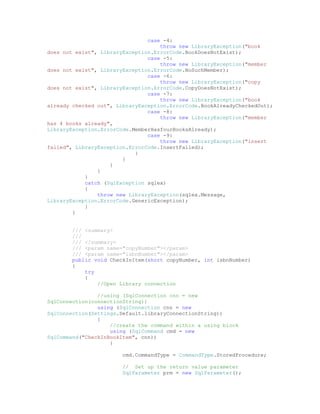

12. case -4:
throw new LibraryException("book
does not exist", LibraryException.ErrorCode.BookDoesNotExist);
case -5:
throw new LibraryException("member
does not exist", LibraryException.ErrorCode.NoSuchMember);
case -6:
throw new LibraryException("copy
does not exist", LibraryException.ErrorCode.CopyDoesNotExist);
case -7:
throw new LibraryException("book
already checked out", LibraryException.ErrorCode.BookAlreadyCheckedOut);
case -8:
throw new LibraryException("member
has 4 books already",
LibraryException.ErrorCode.MemberHasfourBooksAlready);
case -9:
throw new LibraryException("insert
failed", LibraryException.ErrorCode.InsertFailed);
}
}
}
}
}
catch (SqlException sqlex)
{
throw new LibraryException(sqlex.Message,
LibraryException.ErrorCode.GenericException);
}
}
/// <summary>
///
/// </summary>
/// <param name="copyNumber"></param>
/// <param name="isbnNumber"></param>
public void CheckInItem(short copyNumber, int isbnNumber)
{
try
{
//Open Library connection
//using (SqlConnection cnn = new
SqlConnection(connectionString))
using (SqlConnection cnn = new
SqlConnection(Settings.Default.libraryConnectionString))
{
//create the command within a using block
using (SqlCommand cmd = new
SqlCommand("CheckInBookItem", cnn))
{
cmd.CommandType = CommandType.StoredProcedure;
// Set up the return value parameter
SqlParameter prm = new SqlParameter();

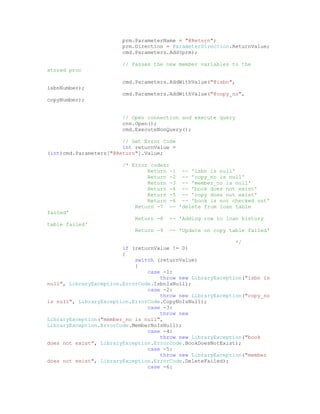

13. prm.ParameterName = "@Return";
prm.Direction = ParameterDirection.ReturnValue;
cmd.Parameters.Add(prm);
// Passes the new member variables to the
stored proc
cmd.Parameters.AddWithValue("@isbn",
isbnNumber);
cmd.Parameters.AddWithValue("@copy_no",
copyNumber);
// Open connection and execute query
cnn.Open();
cmd.ExecuteNonQuery();
// Get Error Code
int returnValue =
(int)cmd.Parameters["@Return"].Value;
/* Error codes:
Return -1 -- 'isbn is null'
Return -2 -- 'copy_no is null'
Return -3 -- 'member_no is null'
Return -4 -- 'book does not exist'
Return -5 -- 'copy does not exist'
Return -6 -- 'book is not checked out'
Return -7 -- 'delete from loan table
failed'
Return -8 -- 'Adding row to loan history
table failed'
Return -9 -- 'Update on copy table failed'
*/
if (returnValue != 0)
{
switch (returnValue)
{
case -1:
throw new LibraryException("isbn is
null", LibraryException.ErrorCode.IsbnIsNull);
case -2:
throw new LibraryException("copy_no
is null", LibraryException.ErrorCode.CopyNoIsNull);
case -3:
throw new
LibraryException("member_no is null",
LibraryException.ErrorCode.MemberNoIsNull);
case -4:
throw new LibraryException("book
does not exist", LibraryException.ErrorCode.BookDoesNotExist);
case -5:
throw new LibraryException("member
does not exist", LibraryException.ErrorCode.DeleteFailed);
case -6:

14. throw new LibraryException("copy
does not exist", LibraryException.ErrorCode.InsertFailed);
case -7:
throw new LibraryException("book
already checked out", LibraryException.ErrorCode.BookAlreadyCheckedOut);
case -8:
throw new LibraryException("member
has 4 books already",
LibraryException.ErrorCode.MemberHasfourBooksAlready);
case -9:
throw new LibraryException("insert
failed", LibraryException.ErrorCode.UpdateFailed);
}
}
}
}
}
catch (SqlException ex)
{
throw new LibraryException(ex.Message,
LibraryException.ErrorCode.GenericException);
}
}
/// <summary>
///
/// </summary>
/// <param name="member"></param>
public void AddMember(AdultMember member)
{
try
{
//Open Library connection
//using (SqlConnection cnn = new
SqlConnection(connectionString))
using (SqlConnection cnn = new
SqlConnection(Settings.Default.libraryConnectionString))
{
//create the command within a using block
using (SqlCommand cmd = new SqlCommand("AddAdult",
cnn))
{
cmd.CommandType = CommandType.StoredProcedure;
// Set up the return value parameter
SqlParameter prm = new SqlParameter();
prm.ParameterName = "@Return";
prm.Direction = ParameterDirection.ReturnValue;
cmd.Parameters.Add(prm);
// Passes the new member variables to the
stored proc
cmd.Parameters.AddWithValue("@lastName",
member.LastName);

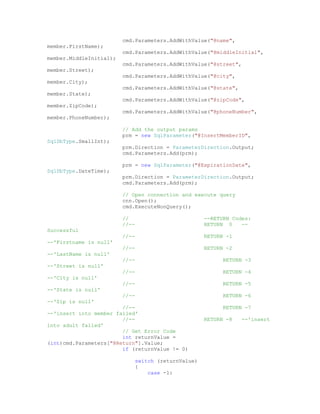

15. cmd.Parameters.AddWithValue("@name",
member.FirstName);
cmd.Parameters.AddWithValue("@middleInitial",
member.MiddleInitial);
cmd.Parameters.AddWithValue("@street",
member.Street);
cmd.Parameters.AddWithValue("@city",
member.City);
cmd.Parameters.AddWithValue("@state",
member.State);
cmd.Parameters.AddWithValue("@zipCode",
member.ZipCode);
cmd.Parameters.AddWithValue("@phoneNumber",
member.PhoneNumber);
// Add the output params
prm = new SqlParameter("@InsertMemberID",
SqlDbType.SmallInt);
prm.Direction = ParameterDirection.Output;
cmd.Parameters.Add(prm);
prm = new SqlParameter("@ExpirationDate",
SqlDbType.DateTime);
prm.Direction = ParameterDirection.Output;
cmd.Parameters.Add(prm);
// Open connection and execute query
cnn.Open();
cmd.ExecuteNonQuery();
// --RETURN Codes:
//-- RETURN 0 --
Successful
//-- RETURN -1
--'Firstname is null'
//-- RETURN -2
--'LastName is null'
//-- RETURN -3
--'Street is null'
//-- RETURN -4
--'City is null'
//-- RETURN -5
--'State is null'
//-- RETURN -6
--'Zip is null'
//-- RETURN -7
--'insert into member failed'
//-- RETURN -8 --'insert
into adult failed'
// Get Error Code
int returnValue =
(int)cmd.Parameters["@Return"].Value;
if (returnValue != 0)
switch (returnValue)
{
case -1:

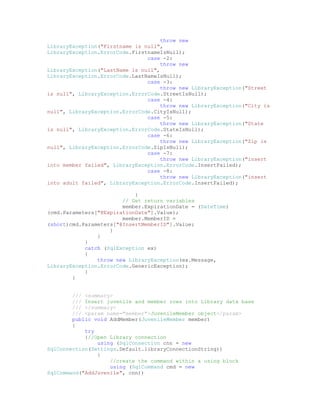

16. throw new
LibraryException("Firstname is null",
LibraryException.ErrorCode.FirstnameIsNull);
case -2:
throw new
LibraryException("LastName is null",
LibraryException.ErrorCode.LastNameIsNull);
case -3:
throw new LibraryException("Street
is null", LibraryException.ErrorCode.StreetIsNull);
case -4:
throw new LibraryException("City is
null", LibraryException.ErrorCode.CityIsNull);
case -5:
throw new LibraryException("State
is null", LibraryException.ErrorCode.StateIsNull);
case -6:
throw new LibraryException("Zip is
null", LibraryException.ErrorCode.ZipIsNull);
case -7:
throw new LibraryException("insert
into member failed", LibraryException.ErrorCode.InsertFailed);
case -8:
throw new LibraryException("insert
into adult failed", LibraryException.ErrorCode.InsertFailed);
}
// Get return variables
member.ExpirationDate = (DateTime)
(cmd.Parameters["@ExpirationDate"].Value);
member.MemberID =
(short)cmd.Parameters["@InsertMemberID"].Value;
}
}
}
catch (SqlException ex)
{
throw new LibraryException(ex.Message,
LibraryException.ErrorCode.GenericException);
}
}
/// <summary>
/// Insert juvenile and member rows into Library data base
/// </summary>
/// <param name="member">JuvenileMember object</param>
public void AddMember(JuvenileMember member)
{
try
{//Open Library connection
using (SqlConnection cnn = new
SqlConnection(Settings.Default.libraryConnectionString))
{
//create the command within a using block
using (SqlCommand cmd = new
SqlCommand("AddJuvenile", cnn))

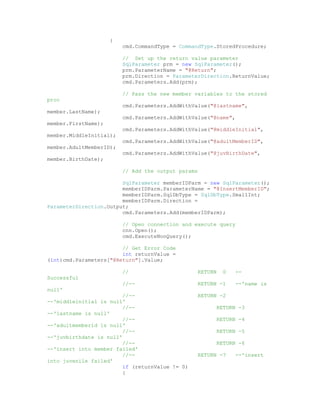

17. {
cmd.CommandType = CommandType.StoredProcedure;
// Set up the return value parameter
SqlParameter prm = new SqlParameter();
prm.ParameterName = "@Return";
prm.Direction = ParameterDirection.ReturnValue;
cmd.Parameters.Add(prm);
// Pass the new member variables to the stored
proc
cmd.Parameters.AddWithValue("@lastname",
member.LastName);
cmd.Parameters.AddWithValue("@name",
member.FirstName);
cmd.Parameters.AddWithValue("@middleInitial",
member.MiddleInitial);
cmd.Parameters.AddWithValue("@adultMemberID",
member.AdultMemberID);
cmd.Parameters.AddWithValue("@juvBirthDate",
member.BirthDate);
// Add the output params
SqlParameter memberIDParm = new SqlParameter();
memberIDParm.ParameterName = "@InsertMemberID";
memberIDParm.SqlDbType = SqlDbType.SmallInt;
memberIDParm.Direction =
ParameterDirection.Output;
cmd.Parameters.Add(memberIDParm);
// Open connection and execute query
cnn.Open();
cmd.ExecuteNonQuery();
// Get Error Code
int returnValue =
(int)cmd.Parameters["@Return"].Value;
// RETURN 0 --
Successful
//-- RETURN -1 --'name is
null'
//-- RETURN -2
--'middleinitial is null'
//-- RETURN -3
--'lastname is null'
//-- RETURN -4
--'adultmemberid is null'
//-- RETURN -5
--'juvbirthdate is null'
//-- RETURN -6
--'insert into member failed'
//-- RETURN -7 --'insert
into juvenile failed'
if (returnValue != 0)
{

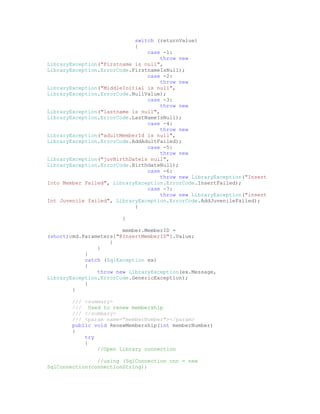

18. switch (returnValue)
{
case -1:
throw new
LibraryException("Firstname is null",
LibraryException.ErrorCode.FirstnameIsNull);
case -2:
throw new
LibraryException("MiddleInitial is null",
LibraryException.ErrorCode.NullValue);
case -3:
throw new
LibraryException("lastname is null",
LibraryException.ErrorCode.LastNameIsNull);
case -4:
throw new
LibraryException("adultMemberId is null",
LibraryException.ErrorCode.AddAdultFailed);
case -5:
throw new
LibraryException("juvBirthDateis null",
LibraryException.ErrorCode.BirthdateNull);
case -6:
throw new LibraryException("Insert
Into Member Failed", LibraryException.ErrorCode.InsertFailed);
case -7:
throw new LibraryException("insert
Int Juvenile failed", LibraryException.ErrorCode.AddJuvenileFailed);
}
}
member.MemberID =
(short)cmd.Parameters["@InsertMemberID"].Value;
}
}
}
catch (SqlException ex)
{
throw new LibraryException(ex.Message,
LibraryException.ErrorCode.GenericException);
}
}
/// <summary>
/// Used to renew membership
/// </summary>
/// <param name="memberNumber"></param>
public void RenewMembership(int memberNumber)
{
try
{
//Open Library connection
//using (SqlConnection cnn = new
SqlConnection(connectionString))

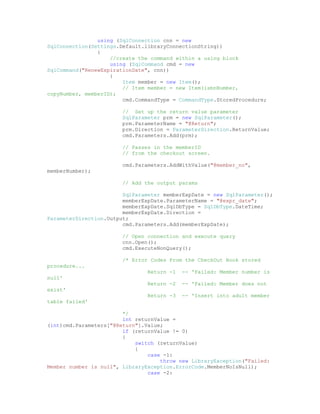

19. using (SqlConnection cnn = new
SqlConnection(Settings.Default.libraryConnectionString))
{
//create the command within a using block
using (SqlCommand cmd = new
SqlCommand("RenewExpirationDate", cnn))
{
Item member = new Item();
// Item member = new Item(isbnNumber,
copyNumber, memberID);
cmd.CommandType = CommandType.StoredProcedure;
// Set up the return value parameter
SqlParameter prm = new SqlParameter();
prm.ParameterName = "@Return";
prm.Direction = ParameterDirection.ReturnValue;
cmd.Parameters.Add(prm);
// Passes in the memberID
// from the checkout screen.
cmd.Parameters.AddWithValue("@member_no",
memberNumber);
// Add the output params
SqlParameter memberExpDate = new SqlParameter();
memberExpDate.ParameterName = "@expr_date";
memberExpDate.SqlDbType = SqlDbType.DateTime;
memberExpDate.Direction =
ParameterDirection.Output;
cmd.Parameters.Add(memberExpDate);
// Open connection and execute query
cnn.Open();
cmd.ExecuteNonQuery();
/* Error Codes From the CheckOut Book stored
procedure...
Return -1 -- 'Failed: Member number is
null'
Return -2 -- 'Failed: Member does not
exist'
Return -3 -- 'Insert into adult member
table failed'
*/
int returnValue =
(int)cmd.Parameters["@Return"].Value;
if (returnValue != 0)
{
switch (returnValue)
{
case -1:
throw new LibraryException("Failed:
Member number is null", LibraryException.ErrorCode.MemberNoIsNull);
case -2:

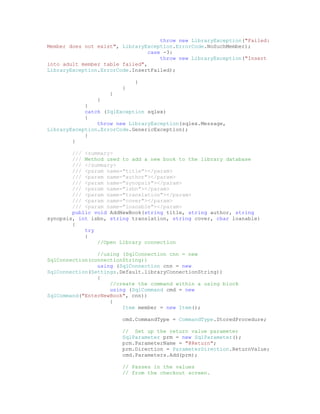

20. throw new LibraryException("Failed:
Member does not exist", LibraryException.ErrorCode.NoSuchMember);
case -3:
throw new LibraryException("Insert
into adult member table failed",
LibraryException.ErrorCode.InsertFailed);
}
}
}
}
}
catch (SqlException sqlex)
{
throw new LibraryException(sqlex.Message,
LibraryException.ErrorCode.GenericException);
}
}
/// <summary>
/// Method used to add a new book to the library database
/// </summary>
/// <param name="title"></param>
/// <param name="author"></param>
/// <param name="synopsis"></param>
/// <param name="isbn"></param>
/// <param name="translation"></param>
/// <param name="cover"></param>
/// <param name="loanable"></param>
public void AddNewBook(string title, string author, string
synopsis, int isbn, string translation, string cover, char loanable)
{
try
{
//Open Library connection
//using (SqlConnection cnn = new
SqlConnection(connectionString))
using (SqlConnection cnn = new
SqlConnection(Settings.Default.libraryConnectionString))
{
//create the command within a using block
using (SqlCommand cmd = new
SqlCommand("EnterNewBook", cnn))
{
Item member = new Item();
cmd.CommandType = CommandType.StoredProcedure;
// Set up the return value parameter
SqlParameter prm = new SqlParameter();
prm.ParameterName = "@Return";
prm.Direction = ParameterDirection.ReturnValue;
cmd.Parameters.Add(prm);
// Passes in the values
// from the checkout screen.

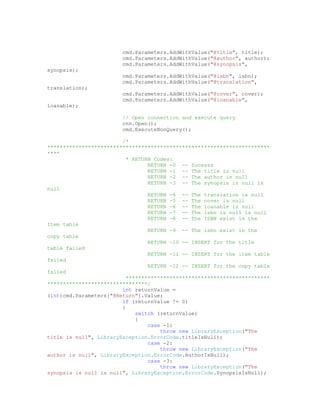

21. cmd.Parameters.AddWithValue("@title", title);
cmd.Parameters.AddWithValue("@author", author);
cmd.Parameters.AddWithValue("@synopsis",
synopsis);
cmd.Parameters.AddWithValue("@isbn", isbn);
cmd.Parameters.AddWithValue("@translation",
translation);
cmd.Parameters.AddWithValue("@cover", cover);
cmd.Parameters.AddWithValue("@loanable",
loanable);
// Open connection and execute query
cnn.Open();
cmd.ExecuteNonQuery();
/*
***********************************************************************
****
* RETURN Codes:
RETURN -0 -- Sucesss
RETURN -1 -- The title is null
RETURN -2 -- The author is null
RETURN -3 -- The synopsis is null is
null
RETURN -4 -- The translation is null
RETURN -5 -- The cover is null
RETURN -6 -- The loanable is null
RETURN -7 -- The isbn is null is null
RETURN -8 -- The ISBN exist in the
Item table
RETURN -9 -- The isbn exist in the
copy table
RETURN -10 -- INSERT for the title
table failed
RETURN -11 -- INSERT for the item table
failed
RETURN -12 -- INSERT for the copy table
failed
**********************************************
********************************/
int returnValue =
(int)cmd.Parameters["@Return"].Value;
if (returnValue != 0)
{
switch (returnValue)
{
case -1:
throw new LibraryException("The
title is null", LibraryException.ErrorCode.titleIsNull);
case -2:
throw new LibraryException("The
author is null", LibraryException.ErrorCode.AuthorIsNull);
case -3:
throw new LibraryException("The
synopsis is null is null", LibraryException.ErrorCode.SynopsisIsNull);

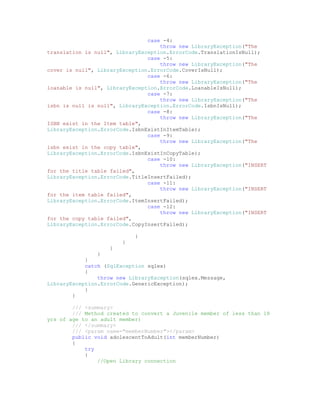

22. case -4:
throw new LibraryException("The
translation is null", LibraryException.ErrorCode.TranslationIsNull);
case -5:
throw new LibraryException("The
cover is null", LibraryException.ErrorCode.CoverIsNull);
case -6:
throw new LibraryException("The
loanable is null", LibraryException.ErrorCode.LoanableIsNull);
case -7:
throw new LibraryException("The
isbn is null is null", LibraryException.ErrorCode.IsbnIsNull);
case -8:
throw new LibraryException("The
ISBN exist in the Item table",
LibraryException.ErrorCode.IsbnExistInItemTable);
case -9:
throw new LibraryException("The
isbn exist in the copy table",
LibraryException.ErrorCode.IsbnExistInCopyTable);
case -10:
throw new LibraryException("INSERT
for the title table failed",
LibraryException.ErrorCode.TitleInsertFailed);
case -11:
throw new LibraryException("INSERT
for the item table failed",
LibraryException.ErrorCode.ItemInsertFailed);
case -12:
throw new LibraryException("INSERT
for the copy table failed",
LibraryException.ErrorCode.CopyInsertFailed);
}
}
}
}
}
catch (SqlException sqlex)
{
throw new LibraryException(sqlex.Message,
LibraryException.ErrorCode.GenericException);
}
}
/// <summary>
/// Method created to convert a Juvenile member of less than 18
yrs of age to an adult member)
/// </summary>
/// <param name="memberNumber"></param>
public void adolescentToAdult(int memberNumber)
{
try
{
//Open Library connection

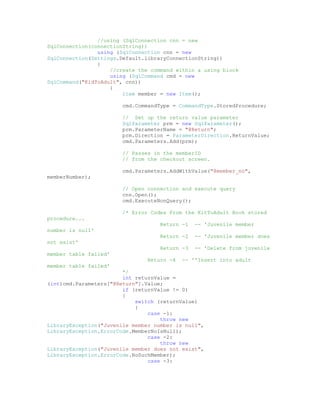

23. //using (SqlConnection cnn = new
SqlConnection(connectionString))
using (SqlConnection cnn = new
SqlConnection(Settings.Default.libraryConnectionString))
{
//create the command within a using block
using (SqlCommand cmd = new
SqlCommand("KidToAdult", cnn))
{
Item member = new Item();
cmd.CommandType = CommandType.StoredProcedure;
// Set up the return value parameter
SqlParameter prm = new SqlParameter();
prm.ParameterName = "@Return";
prm.Direction = ParameterDirection.ReturnValue;
cmd.Parameters.Add(prm);
// Passes in the memberID
// from the checkout screen.
cmd.Parameters.AddWithValue("@member_no",
memberNumber);
// Open connection and execute query
cnn.Open();
cmd.ExecuteNonQuery();
/* Error Codes From the KitToAdult Book stored
procedure...
Return -1 -- 'Juvenile member
number is null'
Return -2 -- 'Juvenile member does
not exist'
Return -3 -- 'Delete from juvenile
member table failed'
Return -4 -- ''Insert into adult
member table failed'
*/
int returnValue =
(int)cmd.Parameters["@Return"].Value;
if (returnValue != 0)
{
switch (returnValue)
{
case -1:
throw new
LibraryException("Juvenile member number is null",
LibraryException.ErrorCode.MemberNoIsNull);
case -2:
throw new
LibraryException("Juvenile member does not exist",
LibraryException.ErrorCode.NoSuchMember);
case -3:

24. throw new LibraryException("Delete
from juvenile member table failed",
LibraryException.ErrorCode.DeleteFailed);
case -4:
throw new LibraryException("Insert
into adult member table failed",
LibraryException.ErrorCode.InsertFailed);
}
}
}
}
}
catch (SqlException sqlex)
{
throw new LibraryException(sqlex.Message,
LibraryException.ErrorCode.GenericException);
}
}
}
}
Exception Class Created To Handle Errors
using System;
using System.Collections.Generic;
using System.Runtime.Serialization;
using System.Security.Permissions;
using System.Text;
/*
* Description: The exception that is thrown when a non-fatal
application
* error occurs in the Library application.
* For a list of all members of this type, see LibraryException
Members.
* LibraryException*/
/*
* Author: Marcelo D. Salvador
* Create Date: 11/24/2008
* Modified Date: 11/28/2007
* Modification: 12/01/2008
********************************************************************/
namespace Ms.Library.Entities
{
[Serializable]
public class LibraryException : System.Exception, ISerializable
{
protected ErrorCode errorCodeMessage;

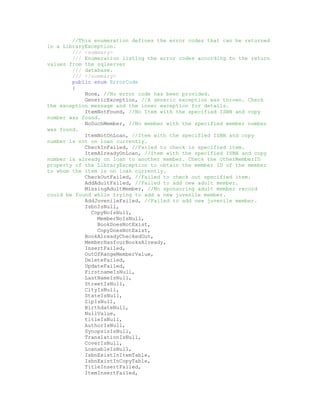

25. //This enumeration defines the error codes that can be returned
in a LibraryException.
/// <summary>
/// Enumeration listing the error codes according to the return
values from the sqlserver
/// database.
/// </summary>
public enum ErrorCode
{
None, //No error code has been provided.
GenericException, //A generic exception was thrown. Check
the exception message and the inner exception for details.
ItemNotFound, //No Item with the specified ISBN and copy
number was found.
NoSuchMember, //No member with the specified member number
was found.
ItemNotOnLoan, //Item with the specified ISBN and copy
number is not on loan currently.
CheckInFailed, //Failed to check in specified item.
ItemAlreadyOnLoan, //Item with the specified ISBN and copy
number is already on loan to another member. Check the OtherMemberID
property of the LibraryException to obtain the member ID of the member
to whom the item is on loan currently.
CheckOutFailed, //Failed to check out specified item.
AddAdultFailed, //Failed to add new adult member.
MissingAdultMember, //No sponsoring adult member record
could be found while trying to add a new juvenile member.
AddJuvenileFailed, //Failed to add new juvenile member.
IsbnIsNull,
CopyNoIsNull,
MemberNoIsNull,
BookDoesNotExist,
CopyDoesNotExist,
BookAlreadyCheckedOut,
MemberHasfourBooksAlready,
InsertFailed,
OutOfRangeMemberValue,
DeleteFailed,
UpdateFailed,
FirstnameIsNull,
LastNameIsNull,
StreetIsNull,
CityIsNull,
StateIsNull,
ZipIsNull,
BirthdateNull,
NullValue,
titleIsNull,
AuthorIsNull,
SynopsisIsNull,
TranslationIsNull,
CoverIsNull,
LoanableIsNull,
IsbnExistInItemTable,
IsbnExistInCopyTable,
TitleInsertFailed,
ItemInsertFailed,

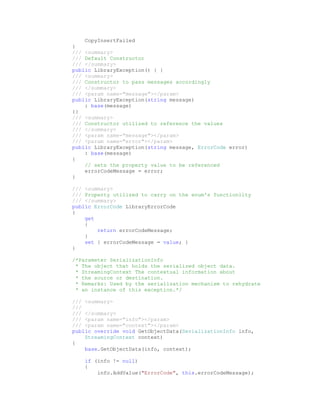

26. CopyInsertFailed
}
/// <summary>
/// Default Constructor
/// </summary>
public LibraryException() { }
/// <summary>
/// Constructor to pass messages accordingly
/// </summary>
/// <param name="message"></param>
public LibraryException(string message)
: base(message)
{}
/// <summary>
/// Constructor utilized to reference the values
/// </summary>
/// <param name="message"></param>
/// <param name="error"></param>
public LibraryException(string message, ErrorCode error)
: base(message)
{
// sets the property value to be referenced
errorCodeMessage = error;
}
/// <summary>
/// Property utilized to carry on the enum's functionlity
/// </summary>
public ErrorCode LibraryErrorCode
{
get
{
return errorCodeMessage;
}
set { errorCodeMessage = value; }
}
/*Parameter SerializationInfo
* The object that holds the serialized object data.
* StreamingContext The contextual information about
* the source or destination.
* Remarks: Used by the serialization mechanism to rehydrate
* an instance of this exception.*/
/// <summary>
///
/// </summary>
/// <param name="info"></param>
/// <param name="context"></param>
public override void GetObjectData(SerializationInfo info,
StreamingContext context)
{
base.GetObjectData(info, context);
if (info != null)
{
info.AddValue("ErrorCode", this.errorCodeMessage);

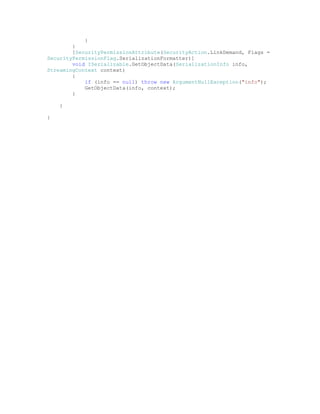

27. }
}
[SecurityPermissionAttribute(SecurityAction.LinkDemand, Flags =
SecurityPermissionFlag.SerializationFormatter)]
void ISerializable.GetObjectData(SerializationInfo info,
StreamingContext context)
{
if (info == null) throw new ArgumentNullException("info");
GetObjectData(info, context);
}
}
}
