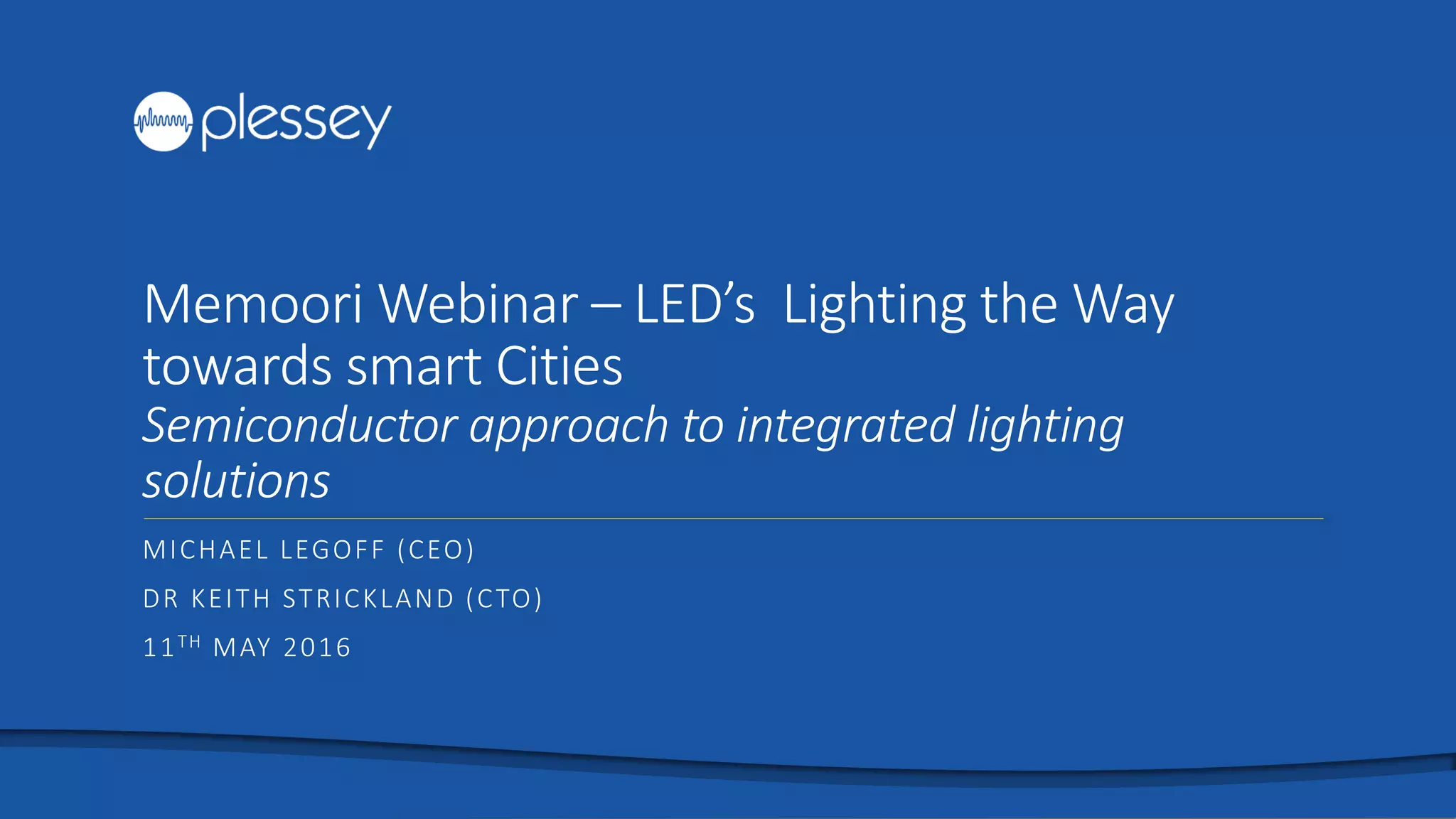

- 1. Memoori Webinar –LED’s Lighting the Way towards smart Cities Semiconductor approach to integrated lighting solutions MICHAEL LEGOFF (CEO) DR KEITH STRICKLAND (CTO) 11TH MAY 2016

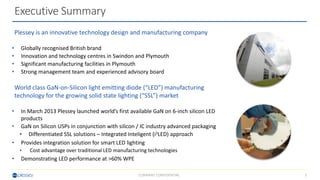

- 2. 2COMPANY CONFIDENTIAL Plessey isan innovative technology design and manufacturing company • Globally recognised British brand • Innovation and technology centres in Swindon and Plymouth • Significant manufacturing facilities in Plymouth • Strong management team and experienced advisory board World class GaN-on-Silicon light emitting diode (“LED”) manufacturing technology for the growing solid state lighting (“SSL”) market • In March 2013 Plessey launched world’s first available GaN on 6-inch silicon LED products • GaN on Silicon USPs in conjunction with silicon / IC industry advanced packaging • Differentiated SSL solutions – Integrated Inteligent (i2LED) approach • Provides integration solution for smart LED lighting • Cost advantage over traditional LED manufacturing technologies • Demonstrating LED performance at >60% WPE Executive Summary

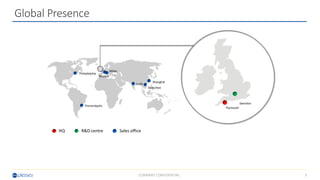

- 3. 3COMPANY CONFIDENTIAL Global Presence HQR&D centre Sales office Plymouth Swindon Philadelphia Florianópolis Shenzhen Delhi Shanghai Munich Milan

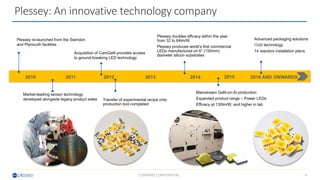

- 4. 4COMPANY CONFIDENTIAL 2016 ANDONWARDS Acquisition of CamGaN provides access to ground-breaking LED technology Market-leading sensor technology developed alongside legacy product sales Plessey doubles efficacy within the year, from 32 to 64lm/W Plessey produces world’s first commercial LEDs manufactured on 6” (150mm) diameter silicon substrates Transfer of experimental recipe onto production tool completed Plessey re-launched from the Swindon and Plymouth facilities Mainstream GaN-on-Si production Expanded product range – Power LEDs Efficacy at 130lm/W, and higher in lab 2013201220112010 2014 Advanced packaging solutions i2LED technology 14 reactors installation plans Plessey: An innovative technology company 2015
- 5. 5COMPANY CONFIDENTIAL Si HEAT GaN onSilicon – Inherent Unique Selling Points • Better Thermal Performance that provides 3 degrees of leverage • Lower LED operating temp Higher reliability • Simpler heat sink Lower system cost • Higher drive current cost down through more lumens per die area • Improved Hot-Cold factor • Focussed light emitting surface (smaller etendue) • Surface emitter V.S. volume emitter: How “spread out” the light is • Simpler and lower cost optical system • Better lm/W maintenance when scaling up die size • Better uniformity • Better process control for target wavelength • Higher wavelength binning yield Lower cost for LEDs with tight binning requests • Sharper wavelength peak for big die • Better colour control for a high power LED Si 149 W/m·K Sapphire 27 W/m·K LIGHT Si Light absorption → Efficiency loss~20% efficiency drop ~2% efficiency drop Our GaN-on-Si Typical GaN-on-Sapphire Wavelength Std Dev Consistent PL wavelength standard deviation of < 3nm, typical 2.5nm. Wafer bow is within a tight range of 0 um 10um Si Si Si mirror Simple mesa Vertical Thin Film

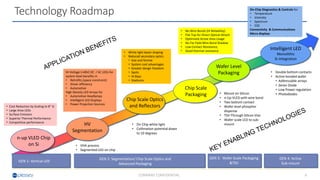

- 6. 6COMPANY CONFIDENTIAL n-up VLEDChip on Si Chip Scale Packaging Wafer Level Packaging GEN 1: Vertical LED GEN 2: Segmentation/ Chip Scale Optics and Advanced Packaging GEN 3: Wafer Scale Packaging &TSV Intelligent LED Monolithic Si-Integration GEN 4: Active Sub-mount • Double bottom contacts • Active bonded wafer • Addressable arrays • Zener Diode • Low Power regulation • Photodiodes• Mount on Silicon • n-Up VLED with wire bond • Two bottom contact • Wafer level phosphor dispense • TSV-Through Silicon Vias • Wafer scale LED to sub- mountHV Segmentation • VHA process • Segmented LED on chip On-Chip Diagnostics & Controls for • Temperature • Intensity • Spectrum • ESD Connectivity & Communications Micro displays Hi-Voltage (>48V) DC / AC LEDs for system level benefits in • Retrofits (space constraint) • Driver efficiency • Automotive High Density LED Arrays for • Automotive Headlamps • Intelligent LED Displays • Power Projection Sources • Cost Reduction by Scaling to 8” Si • Large Area LEDs • Surface Emission • Superior Thermal Performance • Competitive performance • No Wire Bonds (Hi Reliability) • Flat Top for Direct Optical Attach • Optimized Active Area Usage • No Far Field Wire Bond Shadow • Low Contact Resistance, • Good thermal resistance Technology Roadmap Chip Scale Optics and Reflectors • White light beam shaping • Reduced secondary optics • Size and format • System cost advantages • Greater design freedom • Spots • Hi Bays • Stadiums • On Chip white light • Collimation potential down to 10 degrees
