DSI* Dipole
Shear Sonic
Imager
May 1999
2 BTC

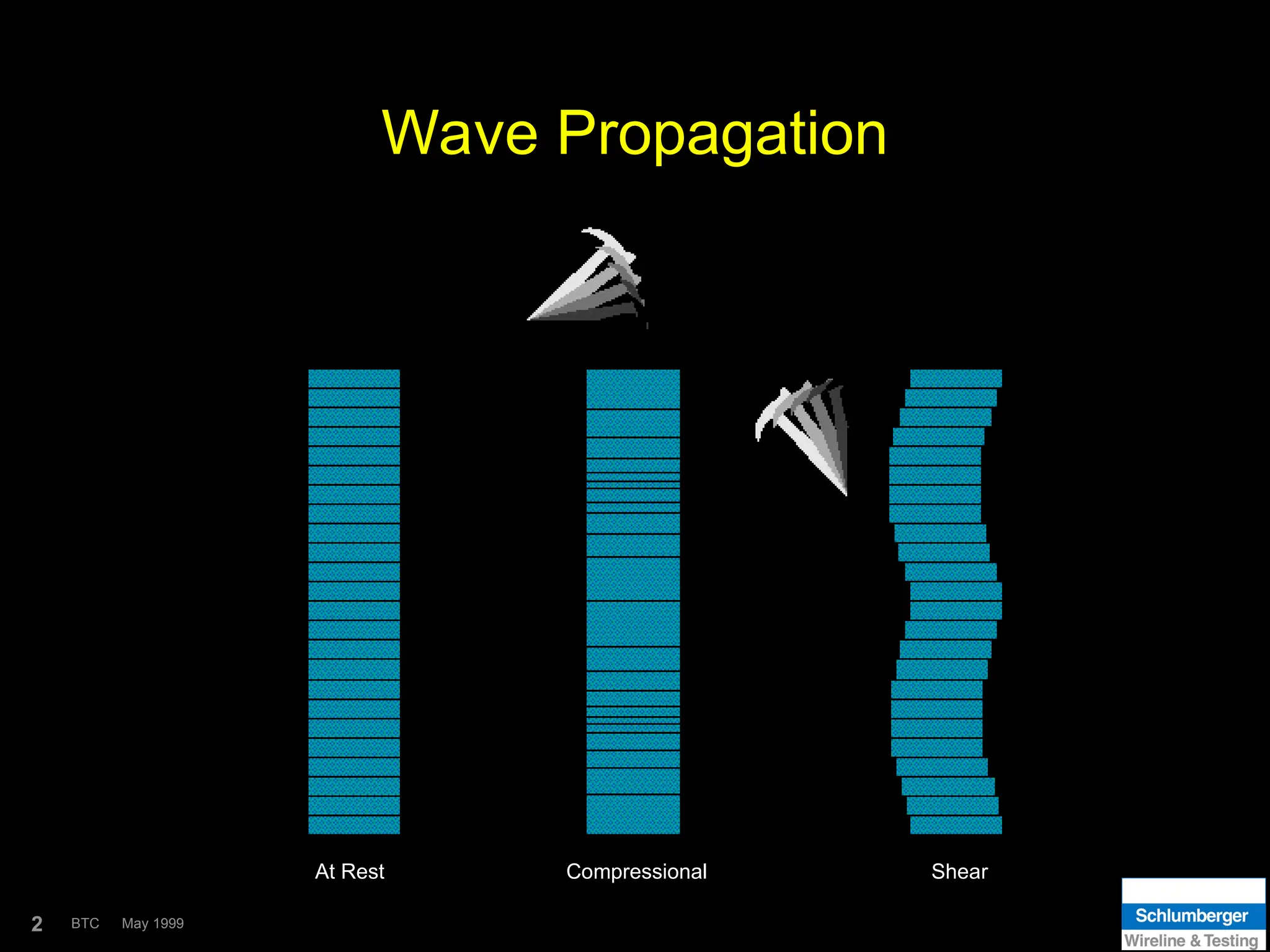

Wave Propagation
At Rest Compressional Shear
May 1999
3 BTC
Hard Formation
— Monopole
Wellbore
Head waves
Fluid wave
Omnidirectional source
Formation
Compressional
wave
Shear
wave
Compressional
wave
Shear
wave
Stoneley
wave
May 1999
4 BTC
Fast
Formation —
Monopole
Compressional: 76 sec/ft
Shear: 139 sec/ft
Fluid: 200 sec/ft
Borehole diameter: 10 in.
Time: 1 msec
Source: 12-kHz monopole
Compressional
body wave
Compressional
head waves
Shear head wave
Shear body wave
4.0
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0.0
0.0 0.5 1.0
May 1999
5 BTC
Soft Formation
— Monopole
Wellbore
Head wave
Fluid wave
Omnidirectional source
Formation
Compressional
wave
Shear
wave
Compressional
wave
Stoneley
wave
May 1999
6 BTC
DSI Transducer
Mud Mud
Borehole
Propagation
Displacement
Flexural Wave
Transmitter
May 1999
7 BTC
Slow
Formation—
Monopole
Compressional: 157 sec/ft
Shear: 300 sec/ft
Fluid: 200 sec/ft
Borehole diameter: 12 in.
Time: 2 msec
Source: 12-kHz monopole
Compressional
body wave
Compressional
head wave
Compressional
head wave
Fluid head wave
4.0
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0.0
0.0 0.5 1.0
Fluid modes
Shear head
wave absent
May 1999
8 BTC
Soft Formation
— Dipole
Wellbore
Head wave
Flexural wave
Directional source
Formation
Compressional
wave
Shear
wave
Compressional
wave
Flexural
wave
Shear
wave
May 1999
9 BTC
Slow
Formation—
Dipole
Compressional: 157 sec/ft
Shear: 300 sec/ft
Fluid: 200 sec/ft
Borehole diameter: 12 in.
Time: 2 msec
Source: 12-kHz monopole
4.0
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0.0
0.0 0.5 1.0
Shear body wave
Compressional
body wave
Flexural mode
May 1999
10 BTC

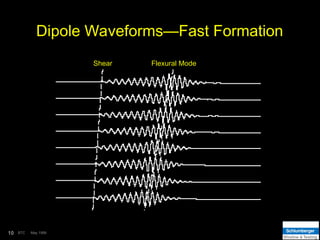

Dipole Waveforms—Fast Formation
Shear Flexural Mode
May 1999
11 BTC

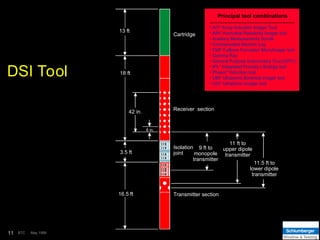

DSI Tool
Cartridge
Receiver section
Isolation
joint
9 ft to
monopole
transmitter
11 ft to
upper dipole
transmitter
11.5 ft to
lower dipole
transmitter
Transmitter section
16.5 ft
3.5 ft
18 ft
13 ft
42 in.
6 in.
Principal tool combinations
• AIT* Array Induction Imager Tool
• ARI* Azimuthal Resistivity Imager tool
• Auxiliary Measurements Sonde
• Compensated Neutron Log
• FMI* Fullbore Formation MicroImager tool
• Gamma Ray
• General Purpose Inclinometry Tool (GPIT)
• IPL* Integrated Porosity Lithology tool
• Phasor* Induction tool
• UBI* Ultrasonic Borehole Imager tool
• USI* UltraSonic Imager tool
May 1999
12 BTC
Tool Operating Modes
• Upper and lower dipole modes
• Crossed dipole mode
• Stoneley mode
• P and S mode
• First motion mode
May 1999
13 BTC
STC Computation
Varying moveout
Varying time
May 1999
14 BTC
STC Contour Plot
ST Plane
(Semblance Contour Plot)
Depth Z
Arrival time
Slowness
STC Dot Log
Comp Shear
Z
Slowness
Depth
May 1999
15 BTC

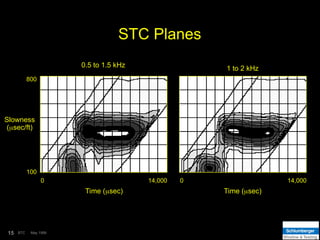

STC Planes
0.5 to 1.5 kHz 1 to 2 kHz
800
100
0 14,000 0 14,000
Slowness
(sec/ft)
Time (sec) Time (sec)
May 1999
16 BTC
Log Quality
Indicators
Poisson's Ratio
.25 .50
Gamma Ray
Caliper
6 16
0 100
Delta-T Comp.
100 200
Delta-T Shear
0 1. 1. 0
100 500
Dtc Coherence Dts
10200
10250
10300
10350
Slowness Time Plane
Projection
May 1999
17 BTC
Slowness
Bias
Bias After
Filtering
Bias Before
Filtering
Flexural Mode Slowness
Formation Shear Slowness
STC
Filter
Response Filtered
Amplitude
Spectrum
Unfiltered
Amplitude
Spectrum
Noise
Amplitude
Spectrum
Frequency (kHz)
Frequency (kHz)
320
300
1
0.5
0
0 2 4 6 8 10
0 2 4 6 8 10
A
m
p
l
i
t
u
d
e
.
S
l
o
w
n
e
s
s
(
µ
s
/
f
t
)
May 1999
18 BTC
Borehole Compensation
Receiver
Array
Pseudo
Transmitter
Array
Formation
Interval
Measured
May 1999
19 BTC
Borehole Compensation
Receiver
subarrays
Pseudo
transmitter
subarrays
Formation
interval
measured
Common
receiver
position
VP/VS - STC
0 106 psi 4
VP/VS - MPS
0 106 psi 4
RHOB
1.7 (G/C3) psi 2.7
NPHI
60 (PU) 0
SGR
0 (GAPI) 120
1:300 Ft
CALI
12 (IN) 20
DTCO-BHC-STC
500 (US/F) 100
DTCO-BHC-MSP
500 (US/F) 100
DTSM-UDP-CRC-STC
500 (US/F) 100
DTSM-UDP-CRC-MSP
500 (US/F) 100
x700
x650
x600
May 1999
20 BTC
Applications
• Mechanical property analysis
— sanding analysis
— fracture height
— wellbore stability
• Formation evaluation
— gas detection
— fractures
— permeability
• Geophysical interpretation
— synthetic seismograms
— VSP
— AVO
May 1999
21 BTC
Dynamic Elastic Properties
v Poisson’s Ratio
G Shear Modulus
E Young’s Modulus
Kb Bulk Modulus
Cb Bulk Compressibility
(with porosity)
Lateral strain 1/2 (DTS / DTC) 2
– 1
Longitudinal strain (DTS / DTC) 2
– 1
Applied stress
pb
Shear strain
DTS 2
Applied uniaxial stress
Normal strain
2G (1 + v)
Hydrostatic pressure
Volumetric strain
1 4
DTC2 3DTS2
[ ]x a
Volumetric deformation
Hydrostatic pressure
1
Kb
pb
Note: coefficient a = 1.34 x 1010
if pb in g/cm3
and DT in µs/ft.
May 1999
22 BTC
IMPACT
Log
0 p.u. 100
Combined Model
Min. Safe Mud
Weight/Shear
Max. Safe Mud
Weight/Shear
Max. Safe Mud
Weight/Tensile
Mud Weight
Poisson's Ratio
Young's Modulus
Shear Modulus
0 106 psi 10
0 106 psi 5
0 5
Hole Profile
Depth
–25 in. 25
1000
ft
May 1999
23 BTC
Sanding Model Diagram
Pe, Far Field
Pressure
Pp, Pore
Pressure
Far Field
Stresses
Flow
 r = Pw (1—)
y
x
Pw


r
May 1999
24 BTC
vp/vs
versus tc
3.5
3.0
2.5
2.0
1.5
Anthydrite
50 100 150
²tc
May 1999
25 BTC
vp/vs
versus tc
3.0
2.5
2.0
1.5 50 100 150
²tc
vp/vs
Unconsolidated
sediments
Shales
40
35
30
90
80
70
Sxo
60
50
40
Gas
ø
W
e
t
s
a
n
d
s
t
o
n
e
s
Dry
gas
Wet
Dry (or gas sandstones
20
10
Limestone
Anhydrite
Dolomite
Salt
Quartz
May 1999
26 BTC
Fracture
Evaluation
STONELEY WF1
0 (US) 20000
0 (GAPI) 150 0 0.15
Gamma Ray Stoneley Ref. Coef.
2 (IN) 7
Hole Diameter
600
700
800
May 1999
27 BTC
Stoneley
Energy
Gamma Ray Resistivity Density-Neutron
Stoneley
Energy
Differential
Energy
6300
6400
7100
May 1999
28 BTC
Poisson’s Ratio—
0 0.1 0.2 0.3 0.4 0.5
Poisson’s Ratio

=
Vp / Vs 2
- 2
2 Vp / Vs 2
- 2
May 1999
29 BTC
Poisson’s Ratios
Podio et al. (1968) Green River Shale 0.22–0.30
Hamilton (1975) Shallow Marine
Sediments 0.45–0.50
Gregory (1976) Consolidated Sediments
Brine Saturated 0.20–0.30
Gas Saturated 0.20–0.14
Domenico (1976) Synthetic Sandstone
Brine Saturated 0.41
Gas Saturated 0.10
Domenico (1977) Ottawa Sandstone
Brine Saturated 0.40
Gas Saturated 0.10
Poisson’s
Ratios
Sediment
Reference
May 1999
30 BTC
AVO Response
HYDROCARBONS
POROSITY
MATRIX
SHALE
SPECIAL MINERAL
OFFSET ANGLE (DEG)
0 2 4 6 8 1 1 1 1 1 2 2 2 2 2 3 3 3 3 3
0 2 4 6 8 0 2 4 6 8 0 2 4 6 8
GRADIENT INTERCEPT PRODUCT NOR POLARITY
2400
2500
2600
2700
4.8
4.5
4.3
4.0
3.8
3.5
3.3
3.0
2.8
2,5
2.3
2.0
1.8
1.5
1.3
1.0
0.8
0.5
0.3
1 1 2
1 5 0 5 0
May 1999
31 BTC
Synthetic
Seismograms
1.600
1.700
1.800
1.900
2.000
2.100
2.200
2.300
2.400
2.500
2.600
2.700
2.800
2.900
3.000
3.100
8000
9000
10000
11000
Compressional Shear
May 1999
32 BTC
DSI Dipole Shear Sonic Imager
• Monopole compressional and
dipole shear measurements
provide sonic data in hard and
soft formations
• Applications
— Mechanical property analysis
— Formation evaluation
— Geophysical applications

Lecture_DSI................................

  • 1.
  • 2.
