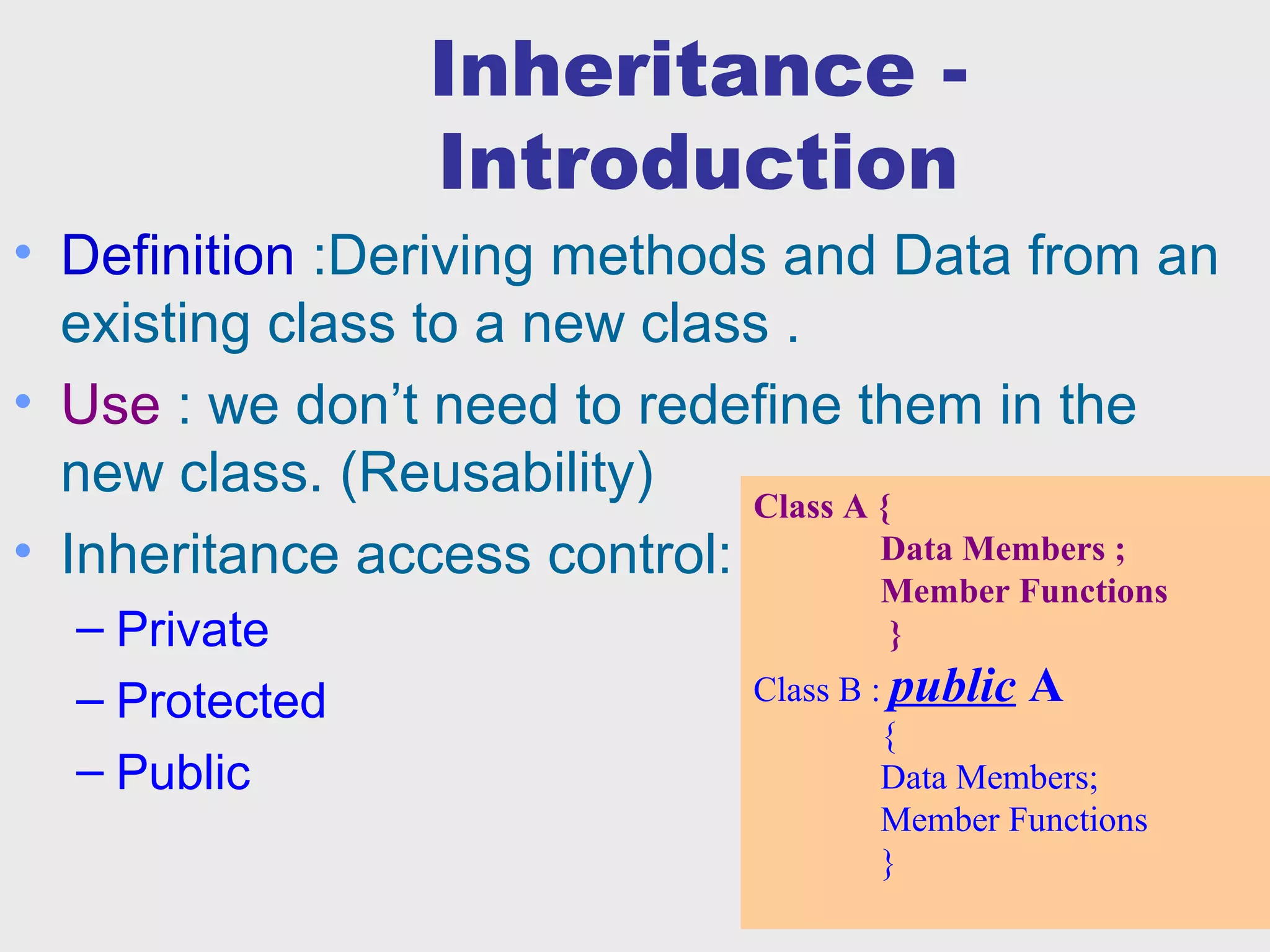

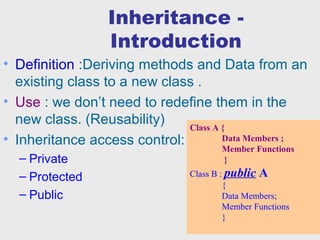

2. Inheritance -
Introduction
• Definition :Deriving methods and Data from an
existing class to a new class .
• Use : we don’t need to redefine them in the
new class. (Reusability) Class A {
• Inheritance access control: Data Members ;
Member Functions
– Private }
– Protected Class B : public A
{
– Public Data Members;
Member Functions
}

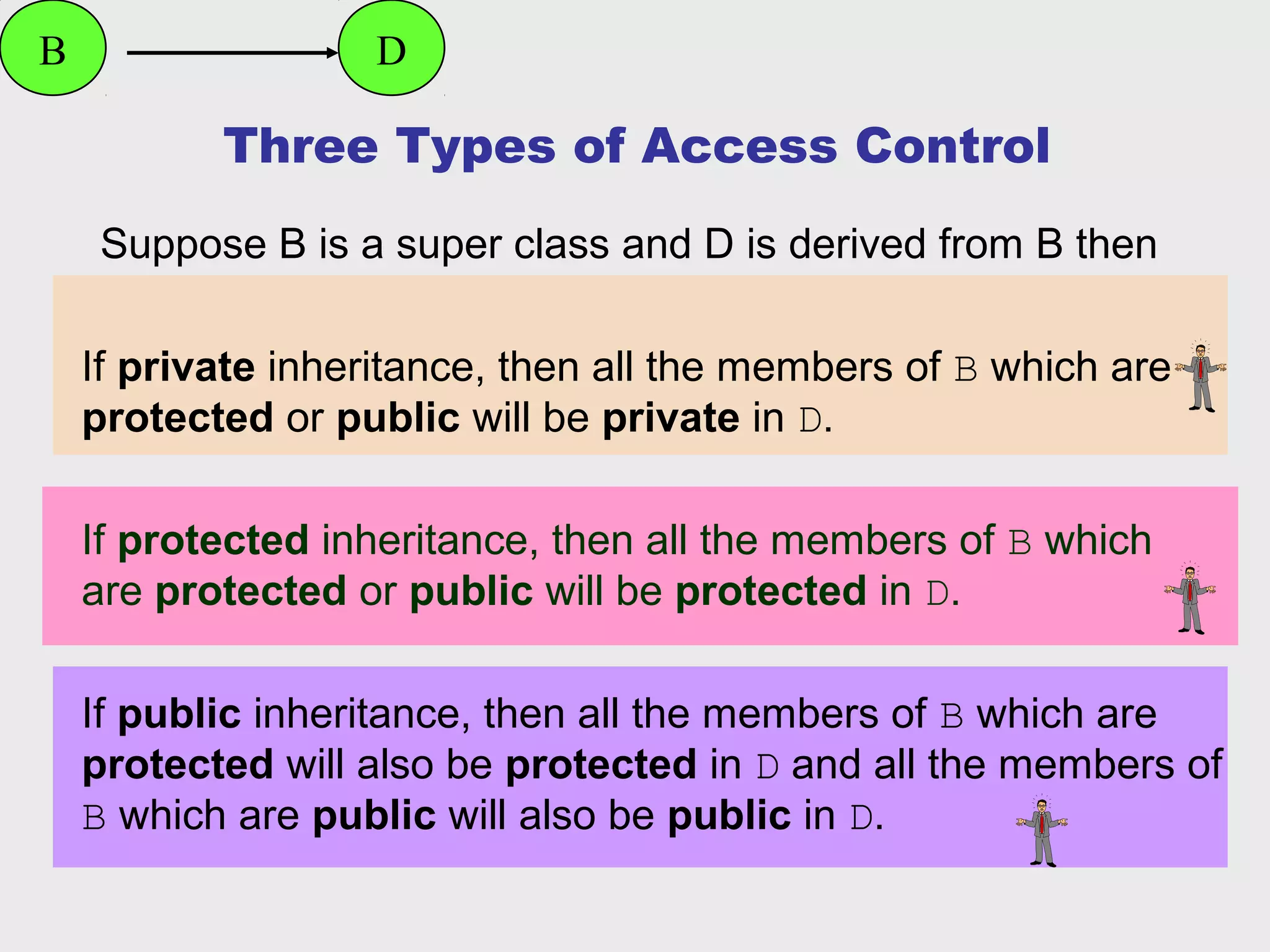

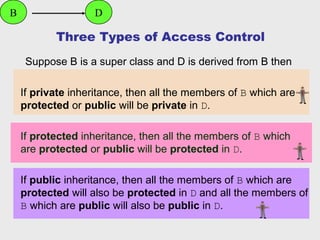

3. B D
Three Types of Access Control
Suppose B is a super class and D is derived from B then
If private inheritance, then all the members of B which are
protected or public will be private in D.
If protected inheritance, then all the members of B which
are protected or public will be protected in D.
If public inheritance, then all the members of B which are
protected will also be protected in D and all the members of
B which are public will also be public in D.

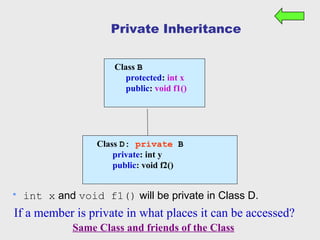

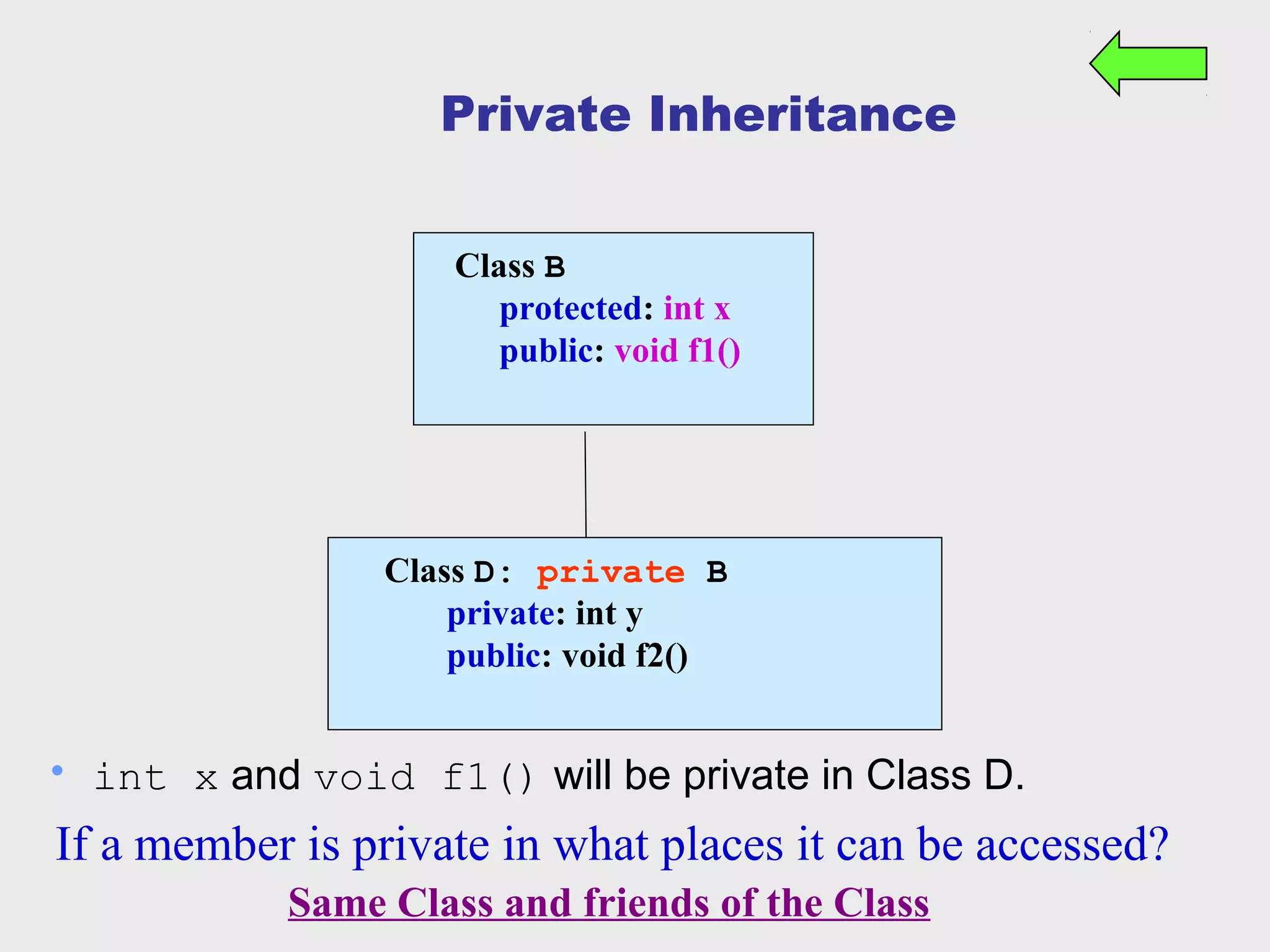

4. Private Inheritance
Class B
protected: int x
public: void f1()
Class D: private B
private: int y
public: void f2()
• int x and void f1() will be private in Class D.
If a member is private in what places it can be accessed?
Same Class and friends of the Class

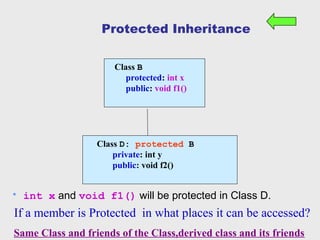

5. Protected Inheritance
Class B
protected: int x
public: void f1()
Class D: protected B
private: int y
public: void f2()
• int x and void f1() will be protected in Class D.
If a member is Protected in what places it can be accessed?
Same Class and friends of the Class,derived class and its friends

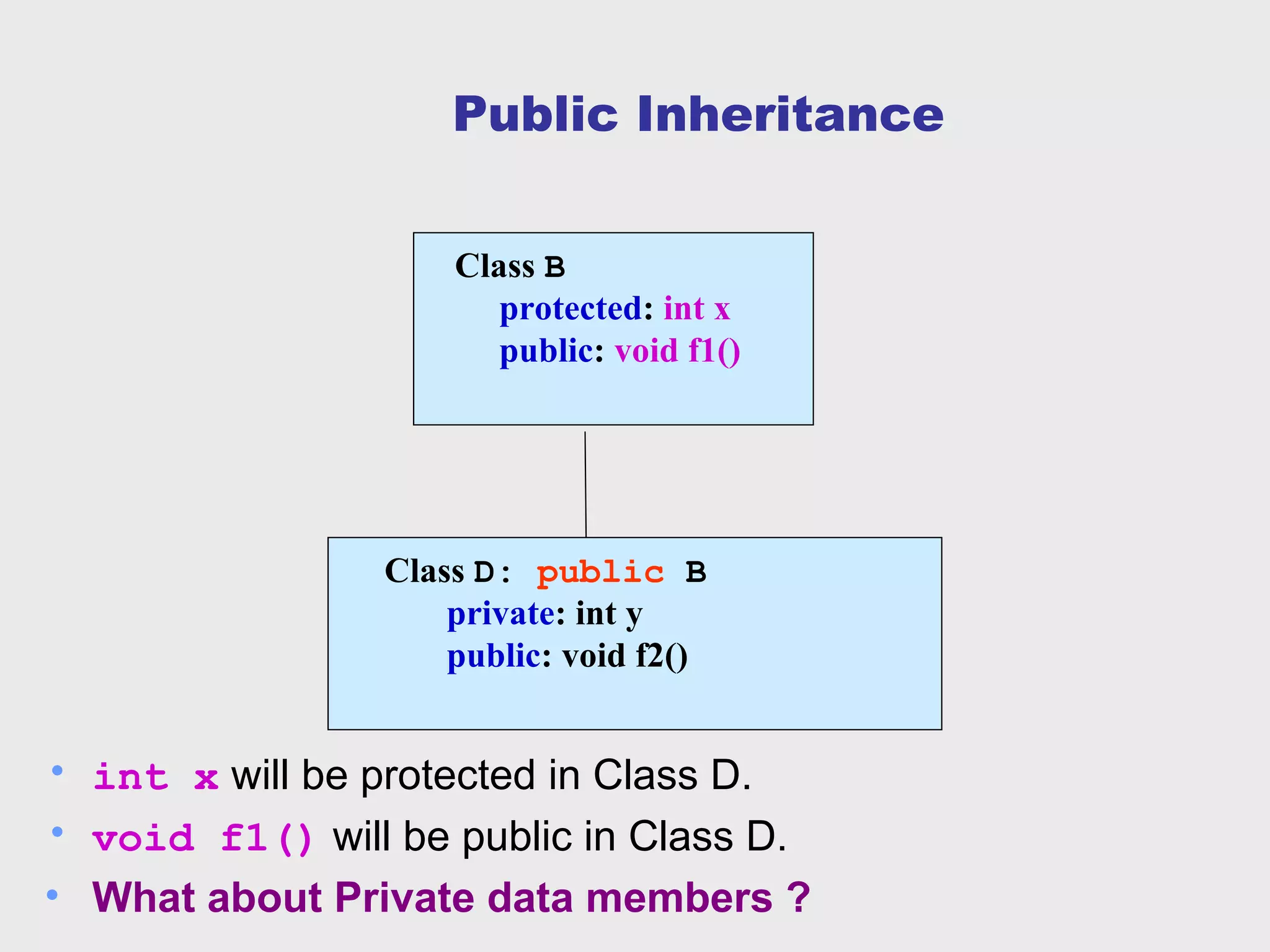

6. Public Inheritance
Class B
protected: int x
public: void f1()
Class D: public B
private: int y
public: void f2()
• int x will be protected in Class D.
• void f1() will be public in Class D.
• What about Private data members ?

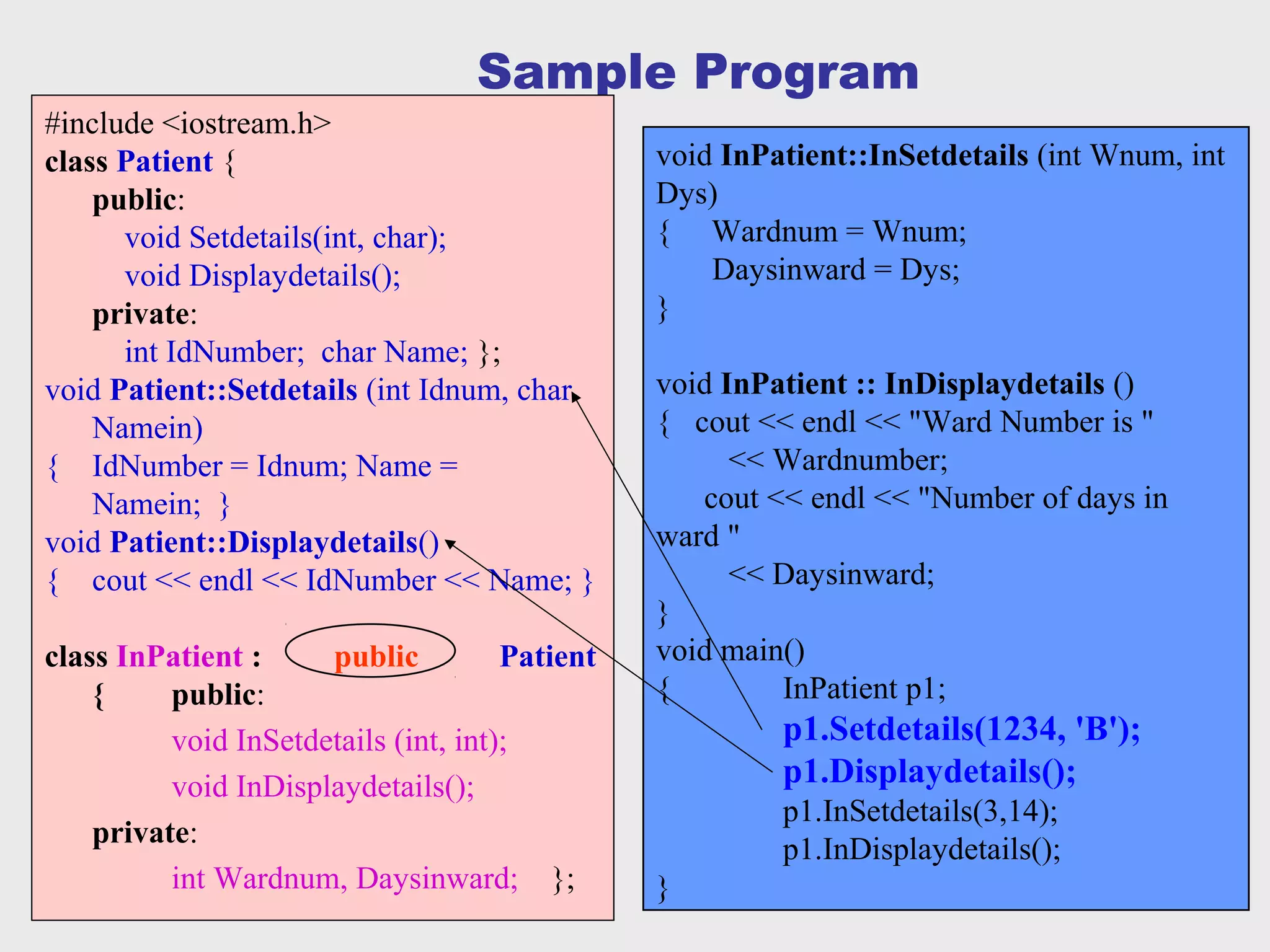

7. Sample Program
#include <iostream.h>
class Patient { void InPatient::InSetdetails (int Wnum, int
public: Dys)
void Setdetails(int, char); { Wardnum = Wnum;
void Displaydetails(); Daysinward = Dys;
private: }
int IdNumber; char Name; };
void Patient::Setdetails (int Idnum, char void InPatient :: InDisplaydetails ()
Namein) { cout << endl << "Ward Number is "
{ IdNumber = Idnum; Name = << Wardnumber;
Namein; } cout << endl << "Number of days in
void Patient::Displaydetails() ward "
{ cout << endl << IdNumber << Name; } << Daysinward;
}
class InPatient : public Patient void main()
{ public: { InPatient p1;
void InSetdetails (int, int); p1.Setdetails(1234, 'B');
void InDisplaydetails(); p1.Displaydetails();
p1.InSetdetails(3,14);
private:
p1.InDisplaydetails();
int Wardnum, Daysinward; }; }

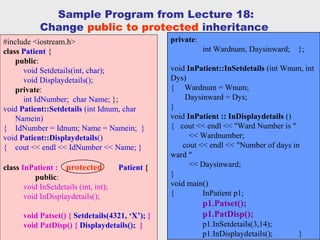

8. Sample Program from Lecture 18:
Change public to protected inheritance
#include <iostream.h> private:
class Patient { int Wardnum, Daysinward; };
public:
void Setdetails(int, char); void InPatient::InSetdetails (int Wnum, int
void Displaydetails(); Dys)
private: { Wardnum = Wnum;
int IdNumber; char Name; }; Daysinward = Dys;
void Patient::Setdetails (int Idnum, char }
Namein) void InPatient :: InDisplaydetails ()
{ IdNumber = Idnum; Name = Namein; } { cout << endl << "Ward Number is "
void Patient::Displaydetails() << Wardnumber;
{ cout << endl << IdNumber << Name; } cout << endl << "Number of days in
ward "
class InPatient : protected Patient { << Daysinward;
public: }
void InSetdetails (int, int); void main()
void InDisplaydetails(); { InPatient p1;
p1.Patset();
void Patset() { Setdetails(4321, ‘X’); } p1.PatDisp();
void PatDisp() { Displaydetails(); } p1.InSetdetails(3,14);
p1.InDisplaydetails(); }
9. Sample Program from Lecture 18:
Change public to private inheritance
#include <iostream.h> void InPatient::InSetdetails (int Wnum, int Dys)
class Patient { { Wardnum = Wnum;
public: Daysinward = Dys;
void Setdetails(int, char); }
void Displaydetails();
private: void InPatient :: InDisplaydetails ()
int IdNumber; char Name; }; { cout << endl << "Ward Number is "
void Patient::Setdetails (int Idnum, char << Wardnumber;
Namein) cout << endl << "Number of days in ward "
{ IdNumber = Idnum; Name = Namein; } << Daysinward;
void Patient::Displaydetails() }
{ cout << endl << IdNumber << Name; } void main()
{ InPatient p1;
class InPatient : private Patient { p1.Patset();
public: p1.InSetdetails(3,14);
void InSetdetails (int, int); p1.InDisplaydetails();
void InDisplaydetails(); }
void Patset() { Setdetails(4321, ‘X’); }
private:
We can access Setdetails() inside
int Wardnum, Daysinward; }; Inpatient though it is private to
Inpatient but public to Patient.

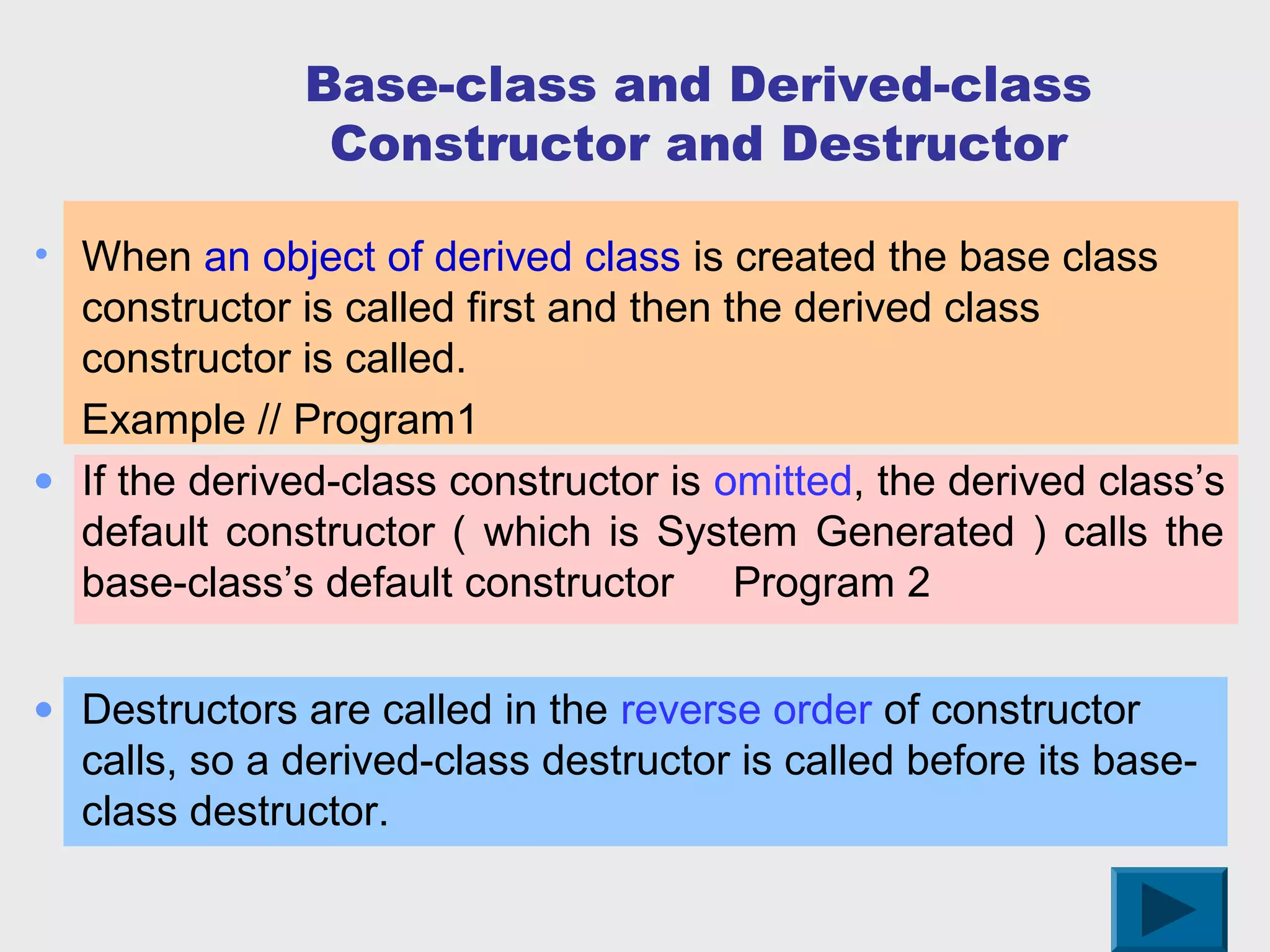

10. Base-class and Derived-class
Constructor and Destructor
• When an object of derived class is created the base class
constructor is called first and then the derived class
constructor is called.
Example // Program1
• If the derived-class constructor is omitted, the derived class’s
default constructor ( which is System Generated ) calls the
base-class’s default constructor Program 2
• Destructors are called in the reverse order of constructor
calls, so a derived-class destructor is called before its base-
class destructor.

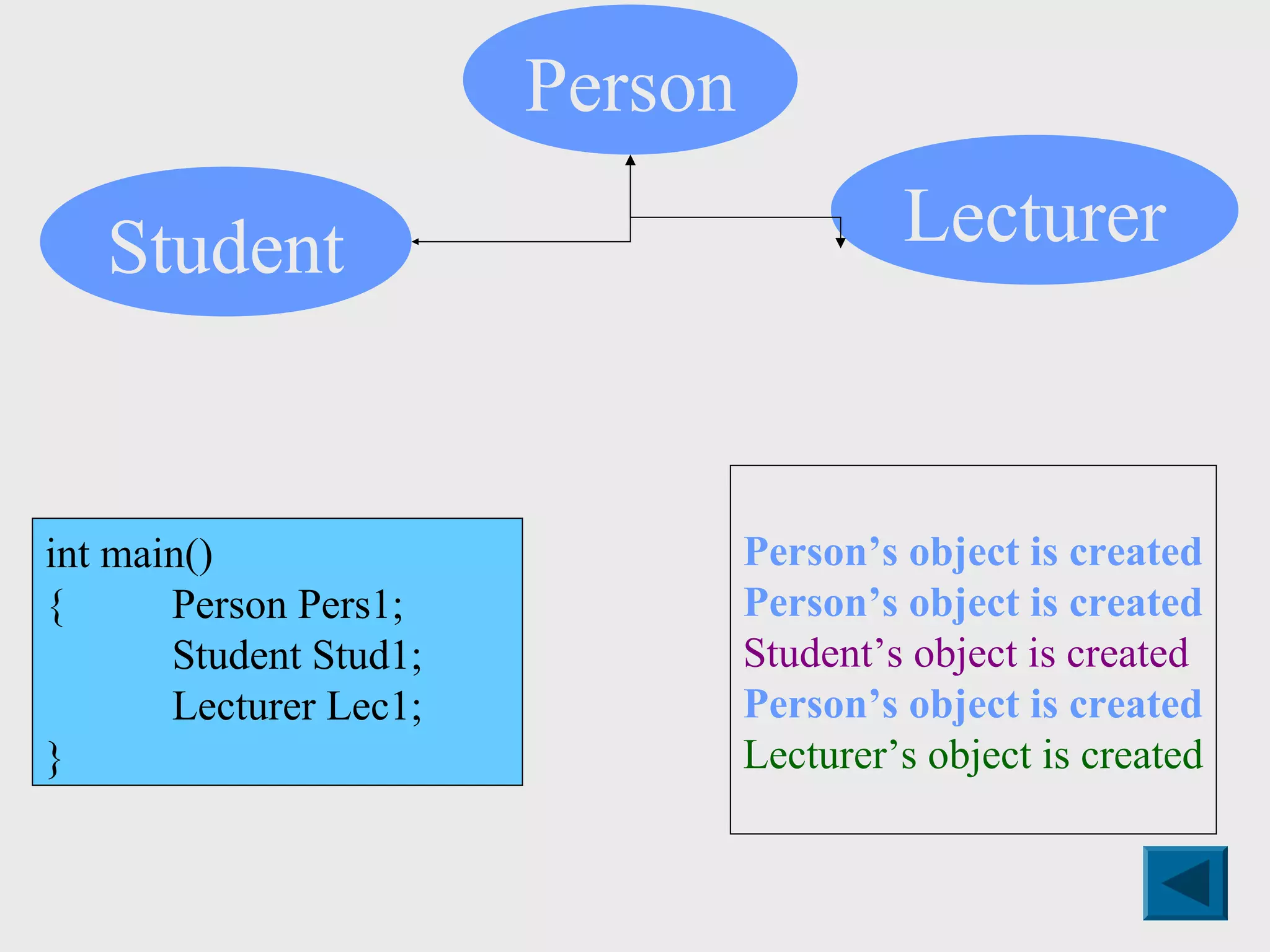

11. Person
Student Lecturer
int main() Person’s object is created
{ Person Pers1; Person’s object is created
Student Stud1; Student’s object is created
Lecturer Lec1; Person’s object is created
} Lecturer’s object is created

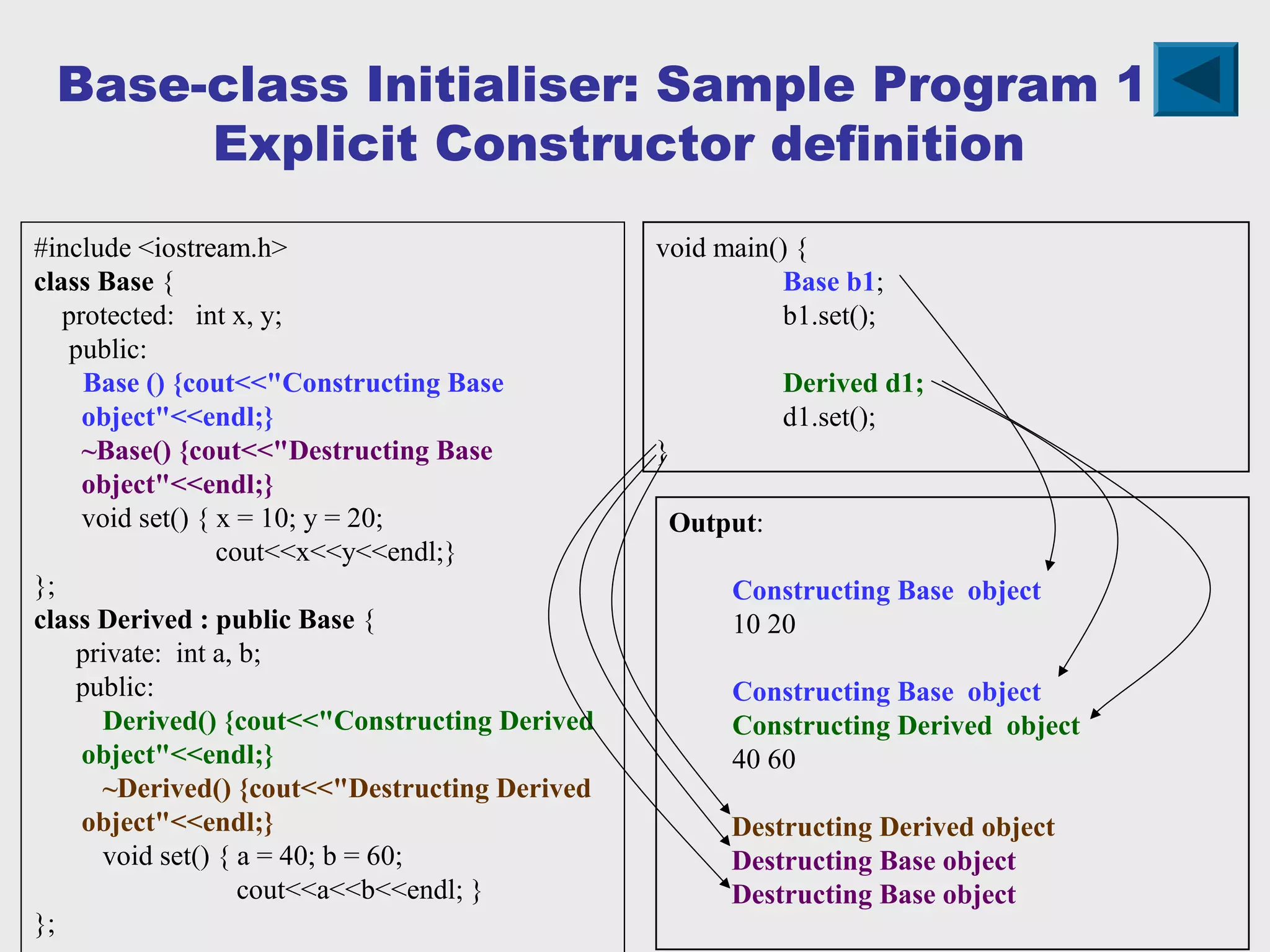

12. Base-class Initialiser: Sample Program 1 -
Explicit Constructor definition
#include <iostream.h> void main() {
class Base { Base b1;
protected: int x, y; b1.set();
public:
Base () {cout<<"Constructing Base Derived d1;
object"<<endl;} d1.set();
~Base() {cout<<"Destructing Base }
object"<<endl;}
void set() { x = 10; y = 20; Output:
cout<<x<<y<<endl;}
}; Constructing Base object
class Derived : public Base { 10 20
private: int a, b;
public: Constructing Base object
Derived() {cout<<"Constructing Derived Constructing Derived object
object"<<endl;} 40 60
~Derived() {cout<<"Destructing Derived
object"<<endl;} Destructing Derived object
void set() { a = 40; b = 60; Destructing Base object
cout<<a<<b<<endl; } Destructing Base object
};

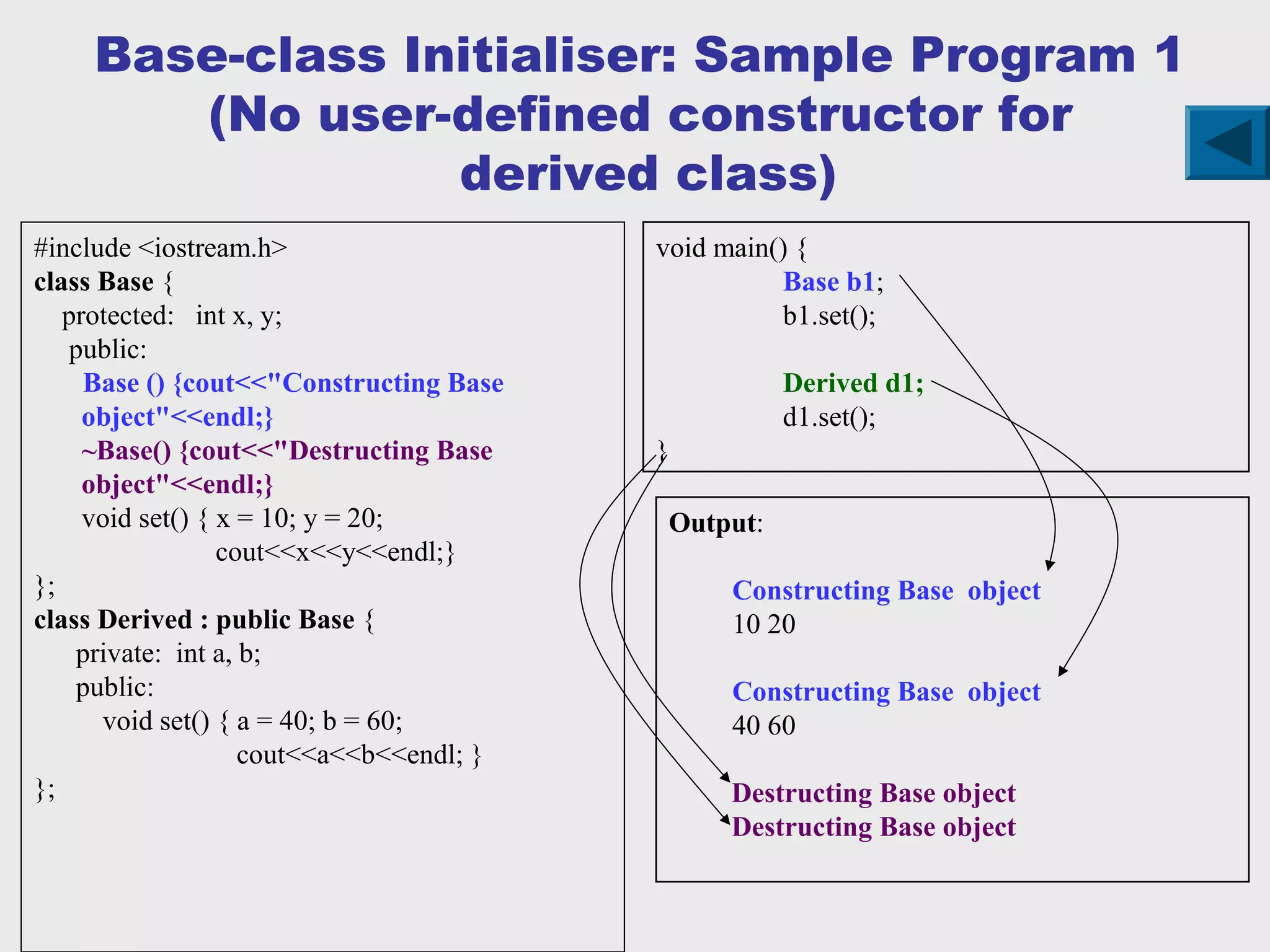

13. Base-class Initialiser: Sample Program 1
(No user-defined constructor for
derived class)
#include <iostream.h> void main() {
class Base { Base b1;
protected: int x, y; b1.set();
public:
Base () {cout<<"Constructing Base Derived d1;
object"<<endl;} d1.set();
~Base() {cout<<"Destructing Base }
object"<<endl;}
void set() { x = 10; y = 20; Output:
cout<<x<<y<<endl;}
}; Constructing Base object
class Derived : public Base { 10 20
private: int a, b;
public: Constructing Base object
void set() { a = 40; b = 60; 40 60
cout<<a<<b<<endl; }
}; Destructing Base object
Destructing Base object

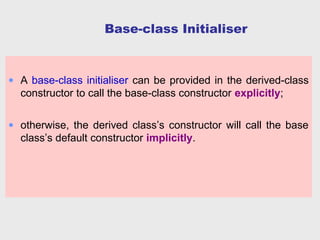

14. Base-class Initialiser
• A base-class initialiser can be provided in the derived-class
constructor to call the base-class constructor explicitly;
• otherwise, the derived class’s constructor will call the base
class’s default constructor implicitly.

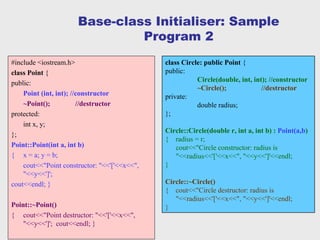

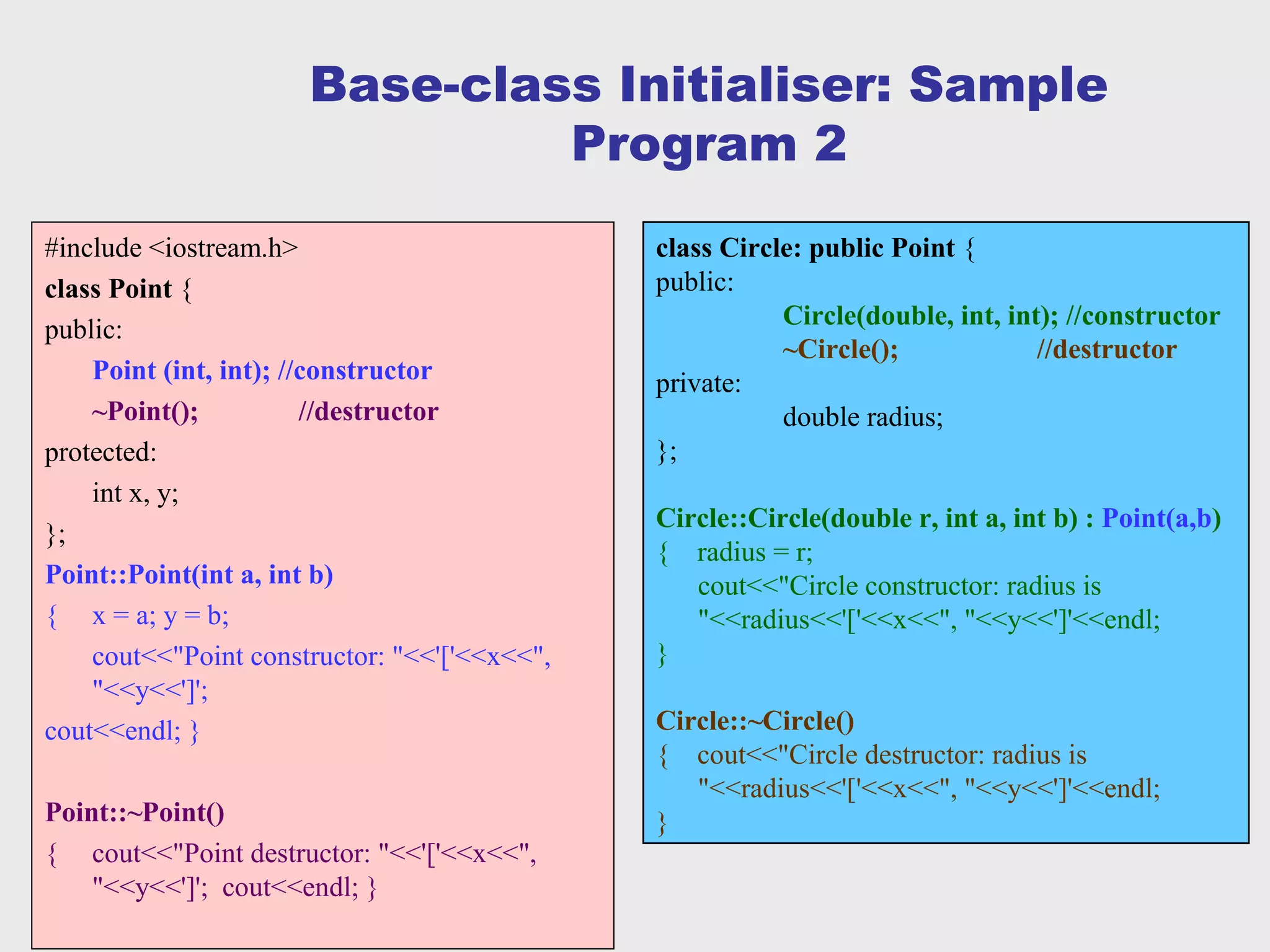

15. Base-class Initialiser: Sample
Program 2
#include <iostream.h> class Circle: public Point {
class Point { public:
public: Circle(double, int, int); //constructor
~Circle(); //destructor
Point (int, int); //constructor private:
~Point(); //destructor double radius;
protected: };
int x, y;
Circle::Circle(double r, int a, int b) : Point(a,b)
};
{ radius = r;
Point::Point(int a, int b) cout<<"Circle constructor: radius is
{ x = a; y = b; "<<radius<<'['<<x<<", "<<y<<']'<<endl;
cout<<"Point constructor: "<<'['<<x<<", }
"<<y<<']';
cout<<endl; } Circle::~Circle()
{ cout<<"Circle destructor: radius is
"<<radius<<'['<<x<<", "<<y<<']'<<endl;
Point::~Point() }
{ cout<<"Point destructor: "<<'['<<x<<",
"<<y<<']'; cout<<endl; }

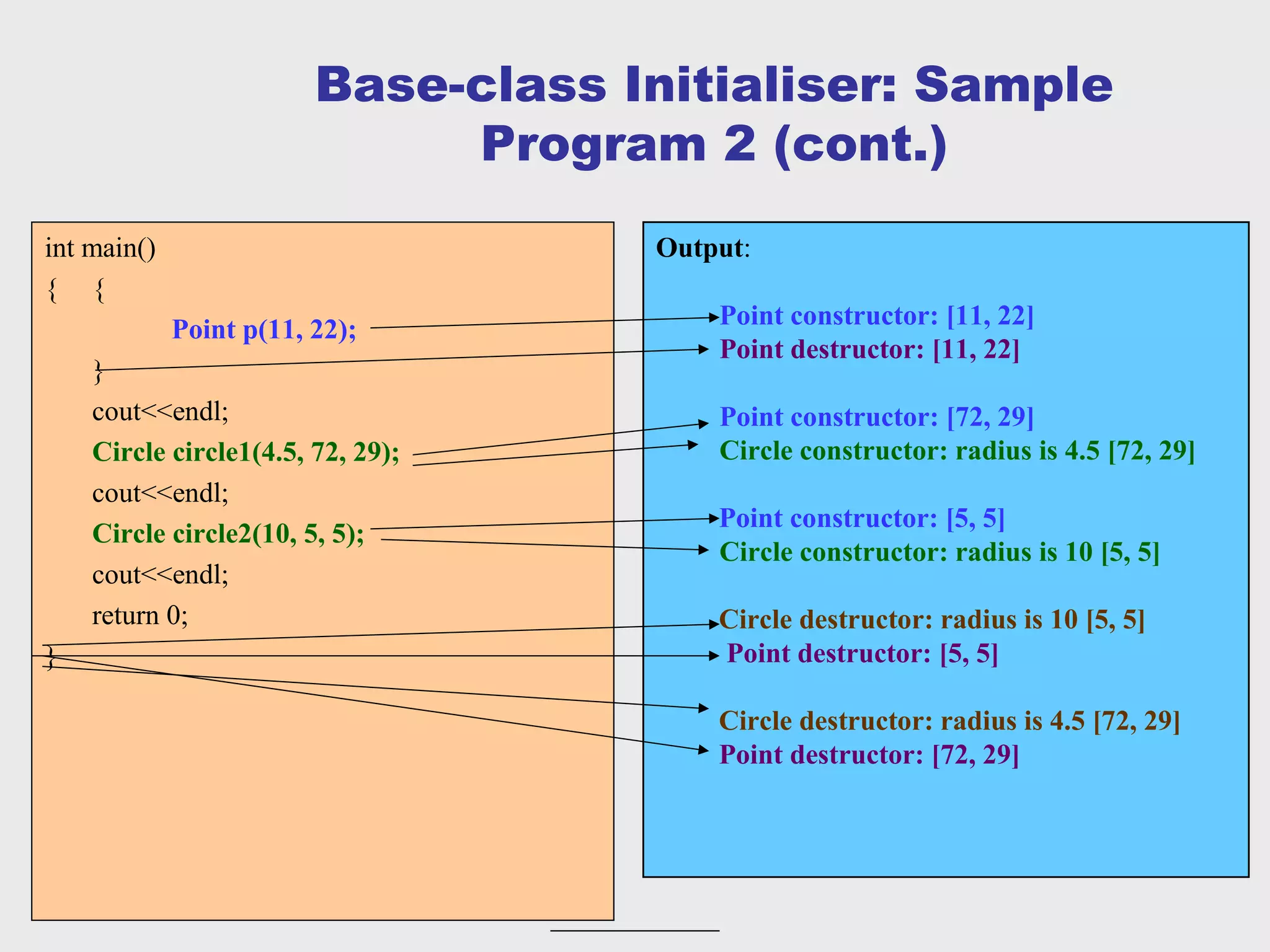

16. Base-class Initialiser: Sample
Program 2 (cont.)
int main() Output:
{ {
Point p(11, 22); Point constructor: [11, 22]
Point destructor: [11, 22]
}
cout<<endl; Point constructor: [72, 29]
Circle circle1(4.5, 72, 29); Circle constructor: radius is 4.5 [72, 29]
cout<<endl;
Point constructor: [5, 5]
Circle circle2(10, 5, 5);
Circle constructor: radius is 10 [5, 5]
cout<<endl;
return 0; Circle destructor: radius is 10 [5, 5]
} Point destructor: [5, 5]
Circle destructor: radius is 4.5 [72, 29]
Point destructor: [72, 29]
