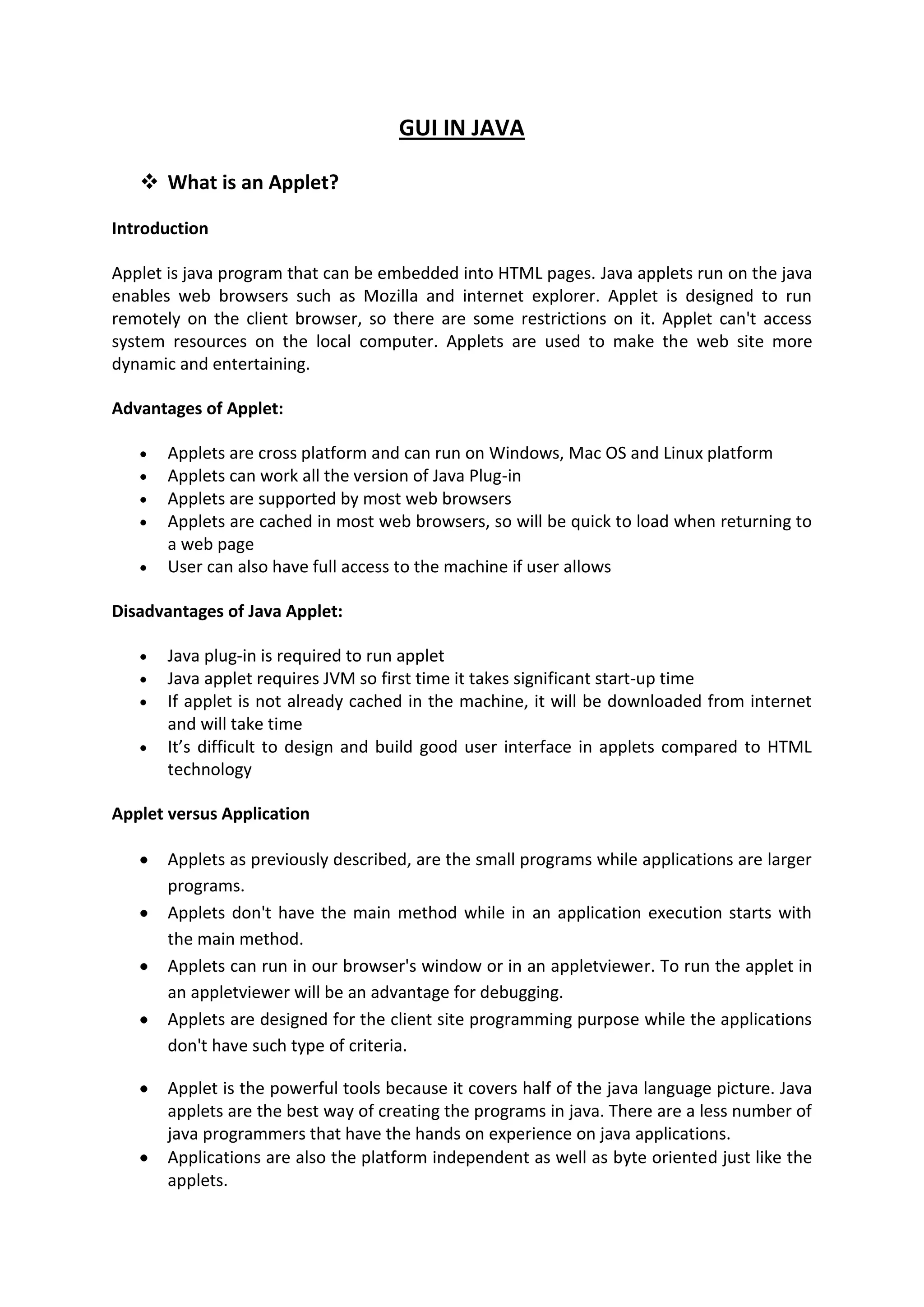

GUI IN JAVA

    What is an Applet?

Introduction

Applet is java program that can be embedded into HTML pages. Java applets run on the java
enables web browsers such as Mozilla and internet explorer. Applet is designed to run
remotely on the client browser, so there are some restrictions on it. Applet can't access
system resources on the local computer. Applets are used to make the web site more
dynamic and entertaining.

Advantages of Applet:

       Applets are cross platform and can run on Windows, Mac OS and Linux platform
       Applets can work all the version of Java Plug-in
       Applets are supported by most web browsers
       Applets are cached in most web browsers, so will be quick to load when returning to
       a web page
       User can also have full access to the machine if user allows

Disadvantages of Java Applet:

       Java plug-in is required to run applet
       Java applet requires JVM so first time it takes significant start-up time
       If applet is not already cached in the machine, it will be downloaded from internet
       and will take time
       It’s difficult to design and build good user interface in applets compared to HTML
       technology

Applet versus Application

       Applets as previously described, are the small programs while applications are larger
       programs.
       Applets don't have the main method while in an application execution starts with
       the main method.
       Applets can run in our browser's window or in an appletviewer. To run the applet in
       an appletviewer will be an advantage for debugging.
       Applets are designed for the client site programming purpose while the applications
       don't have such type of criteria.

       Applet is the powerful tools because it covers half of the java language picture. Java
       applets are the best way of creating the programs in java. There are a less number of
       java programmers that have the hands on experience on java applications.
       Applications are also the platform independent as well as byte oriented just like the
       applets.
Applets are designed just for handling the client site problems. While the java
           applications are designed to work with the client as well as server.
           Applications are designed to exist in a secure area. While the applets are typically
           used.

Applications and applets have much of the similarity such as both have most of the same
features and share the same resources. Applets are created by extending the
java.applet.Applet class while the java applications start execution from the main method.
Applications are not too small to embed into a html page so that the user can view the
application in your browser. On the other hand applet has the accessibility criteria of the
resources. The key feature is that while they have so many differences but both can perform
the same purpose.

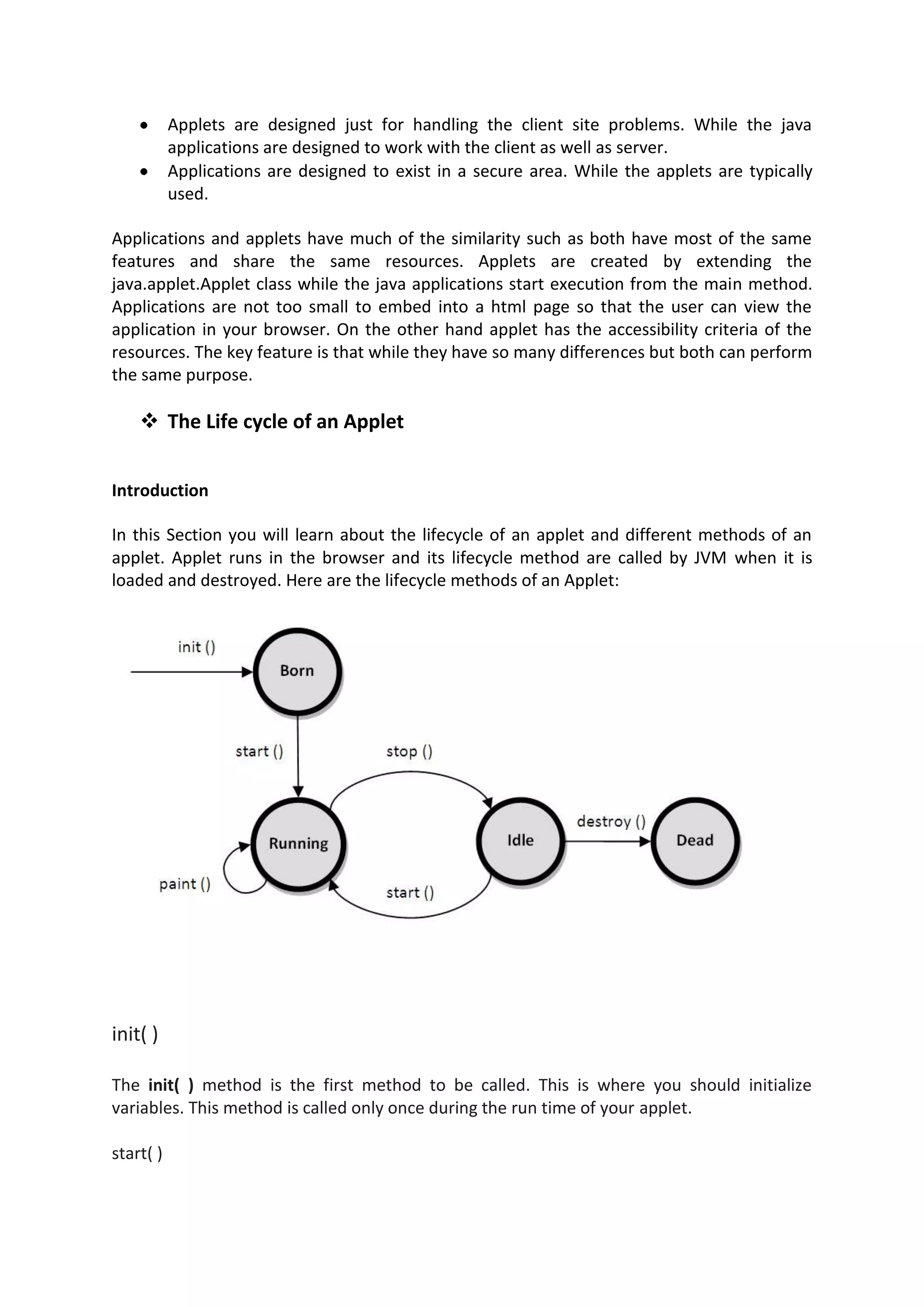

     The Life cycle of an Applet


Introduction

In this Section you will learn about the lifecycle of an applet and different methods of an
applet. Applet runs in the browser and its lifecycle method are called by JVM when it is
loaded and destroyed. Here are the lifecycle methods of an Applet:




init( )

The init( ) method is the first method to be called. This is where you should initialize
variables. This method is called only once during the run time of your applet.

start( )
The start( ) method is called after init( ). It is also called to restart an applet after it has been
stopped. Whereas init( ) is called once—the first time an applet is loaded—start( ) is called
each time an applet’s HTML document is displayed onscreen. So, if a user leaves a web page
and comes back, the applet resumes execution at start( ).

paint( )

The paint( ) method is called each time your applet’s output must be redrawn. This situation
can occur for several reasons. For example, the window in which the applet is running may
be overwritten by another window and then uncovered. Or the applet window may be
minimized and then restored. paint( ) is also called when the applet begins execution.
Whatever the cause, whenever the applet must redraw its output, paint( ) is called. The
paint( ) method has one parameter of type Graphics. This parameter will contain the
graphics context, which describes the graphics environment in which the applet is running.
This context is used whenever output to the applet is required.

stop( )

The stop( ) method is called when a web browser leaves the HTML document containing the
applet—when it goes to another page, for example. When stop( ) is called, the applet is
probably running. You should use stop( ) to suspend threads that don’t need to run when
the applet is not visible. You can restart them when start( ) is called if the user returns to the
page.

destroy( )

The destroy( ) method is called when the environment determines that your applet needs
to be removed completely from memory. At this point, you should free up any resources the
applet may be using. The stop( ) method is always called before destroy( ).
