1. Principles of Radiological
Interpretation
Dr. Moses Acan
Department of Radiology

2. VIEWING

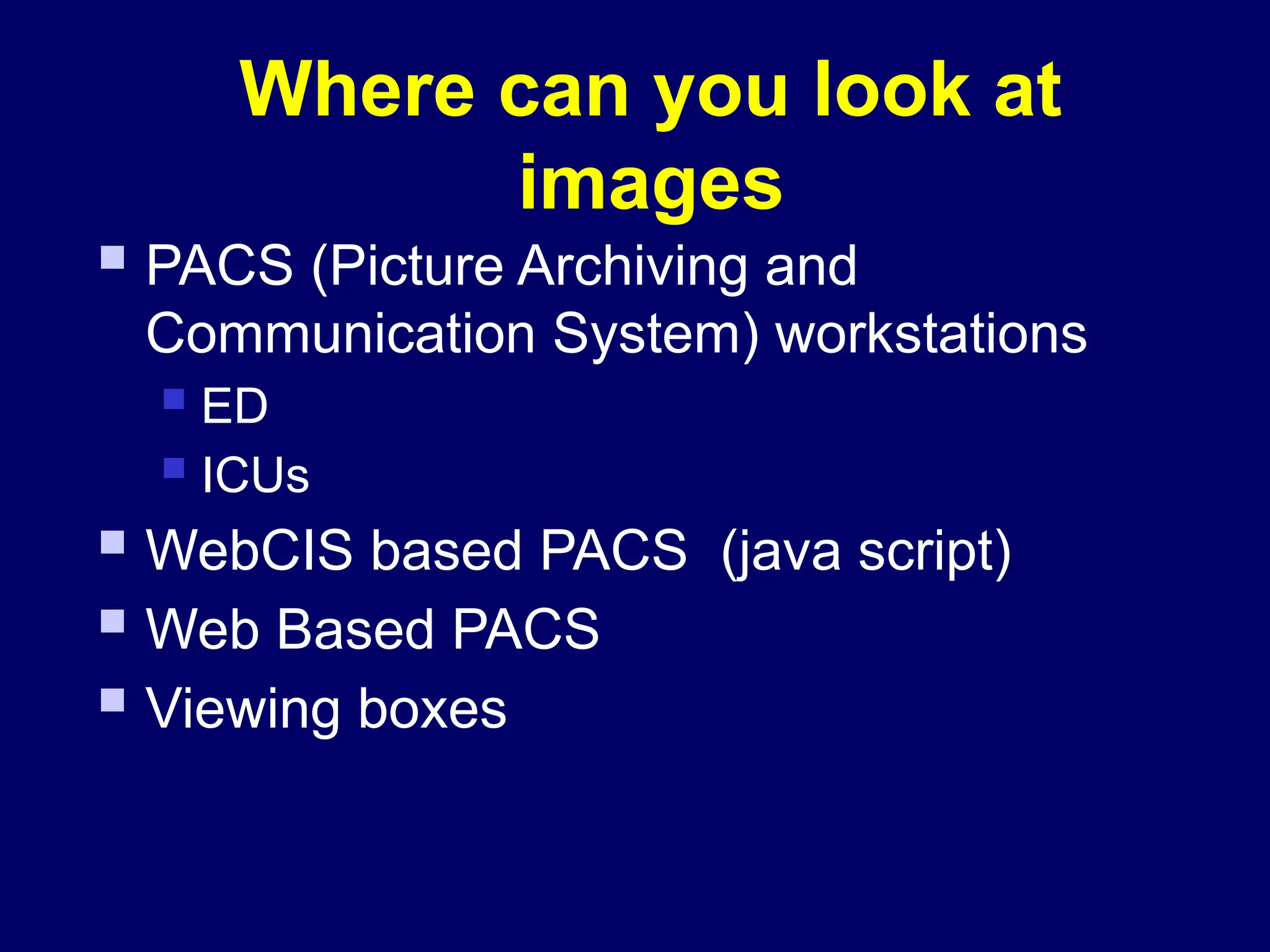

3. Where can you look at
images
 PACS (Picture Archiving and
Communication System) workstations
 ED
 ICUs
 WebCIS based PACS (java script)
 Web Based PACS
 Viewing boxes

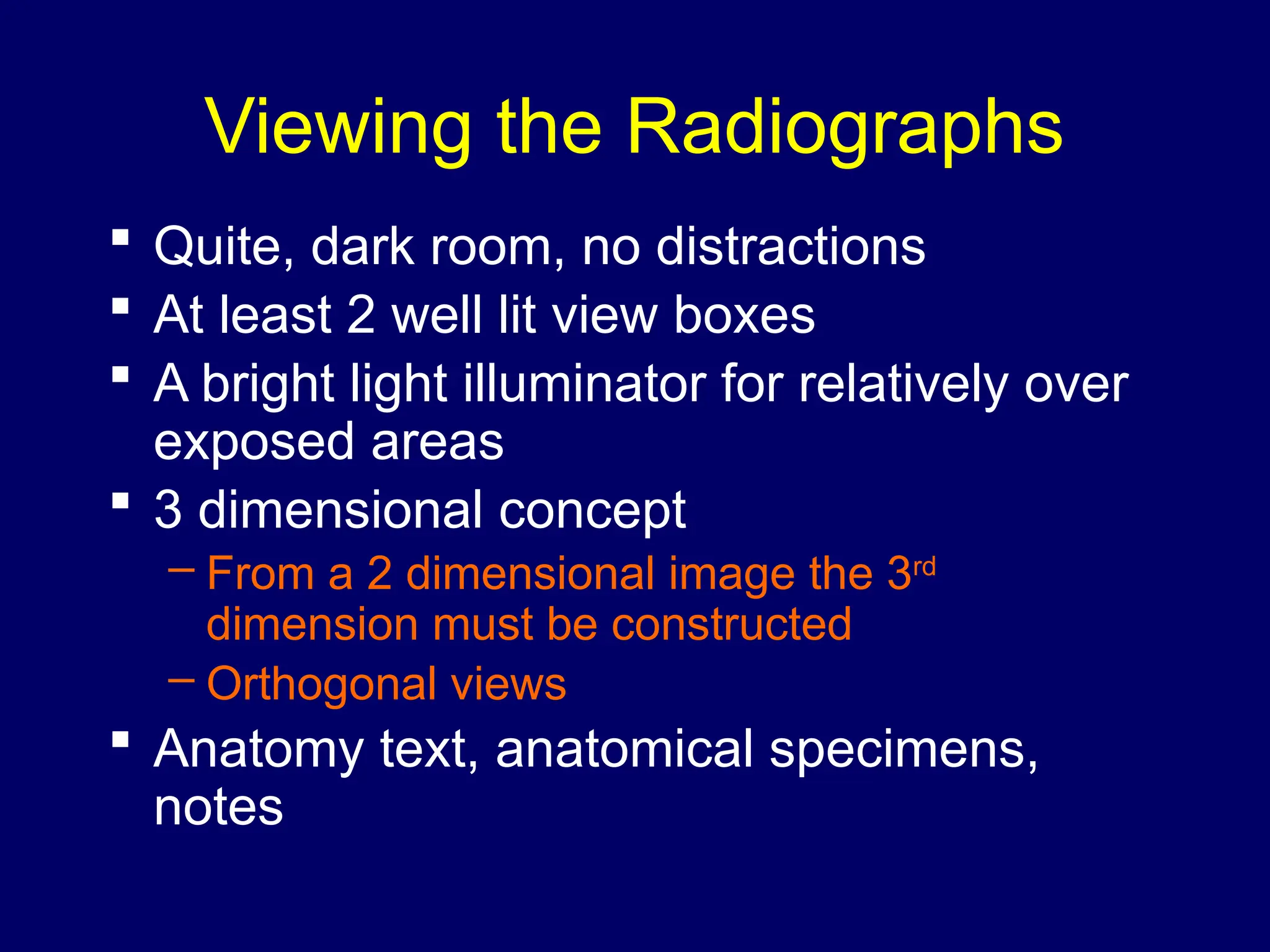

4. Viewing the Radiographs
 Quite, dark room, no distractions
 At least 2 well lit view boxes
 A bright light illuminator for relatively over
exposed areas
 3 dimensional concept
– From a 2 dimensional image the 3rd
dimension must be constructed
– Orthogonal views
 Anatomy text, anatomical specimens,
notes

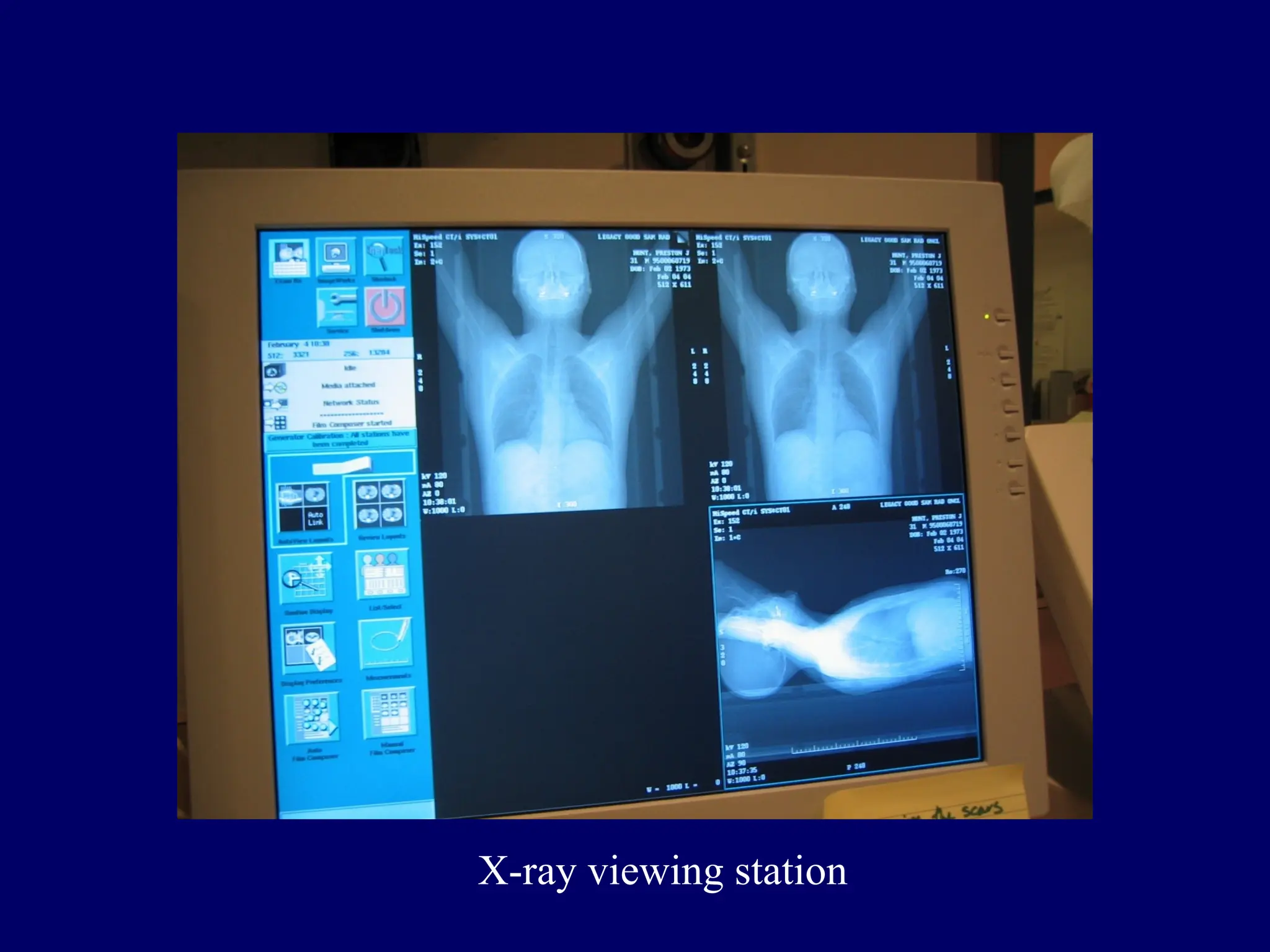

5. X-ray viewing station

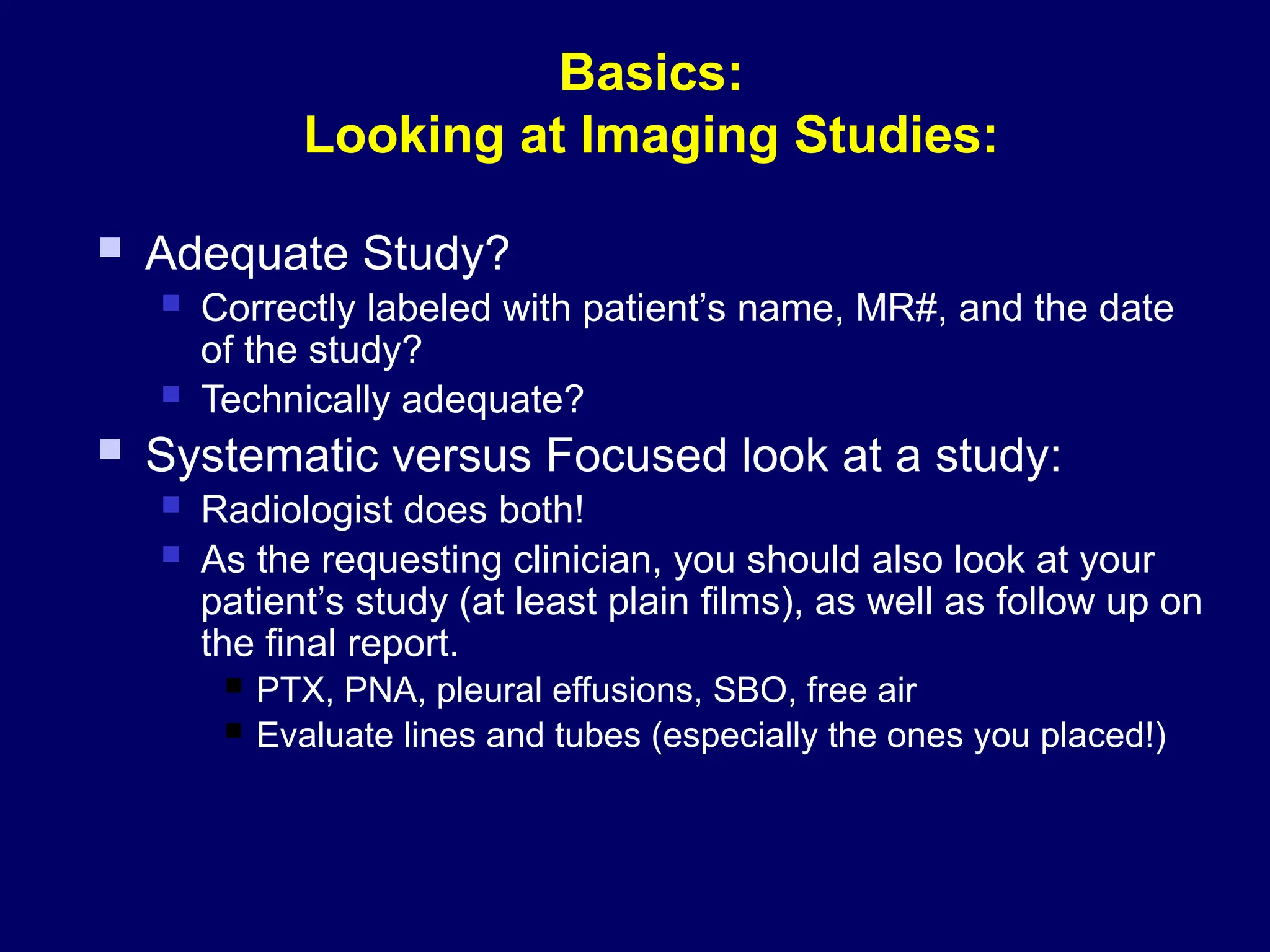

6. Basics:
Looking at Imaging Studies:
 Adequate Study?
 Correctly labeled with patient’s name, MR#, and the date
of the study?
 Technically adequate?
 Systematic versus Focused look at a study:
 Radiologist does both!
 As the requesting clinician, you should also look at your
patient’s study (at least plain films), as well as follow up on
the final report.
 PTX, PNA, pleural effusions, SBO, free air
 Evaluate lines and tubes (especially the ones you placed!)

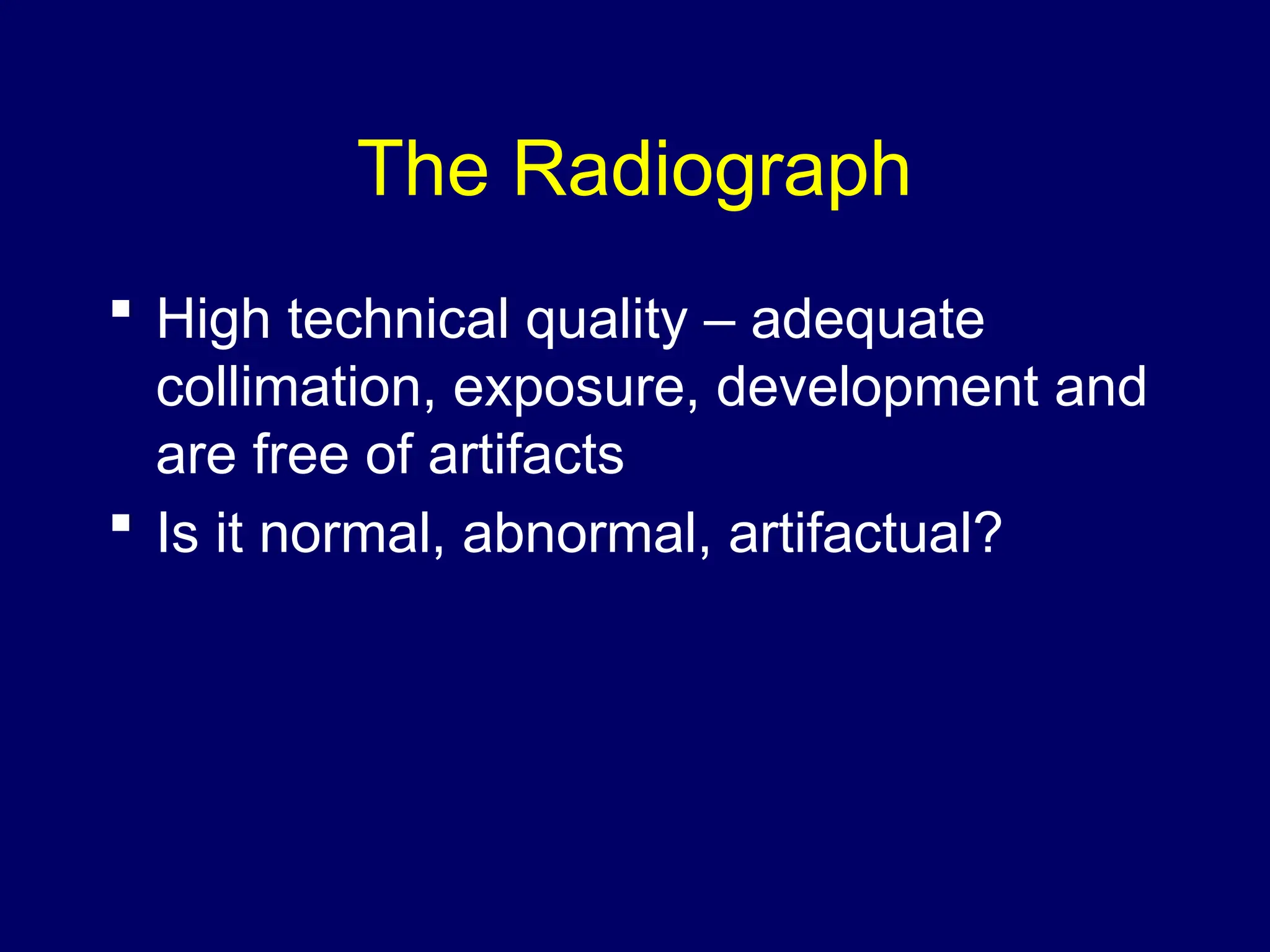

7. The Radiograph
 High technical quality – adequate
collimation, exposure, development and
are free of artifacts
 Is it normal, abnormal, artifactual?

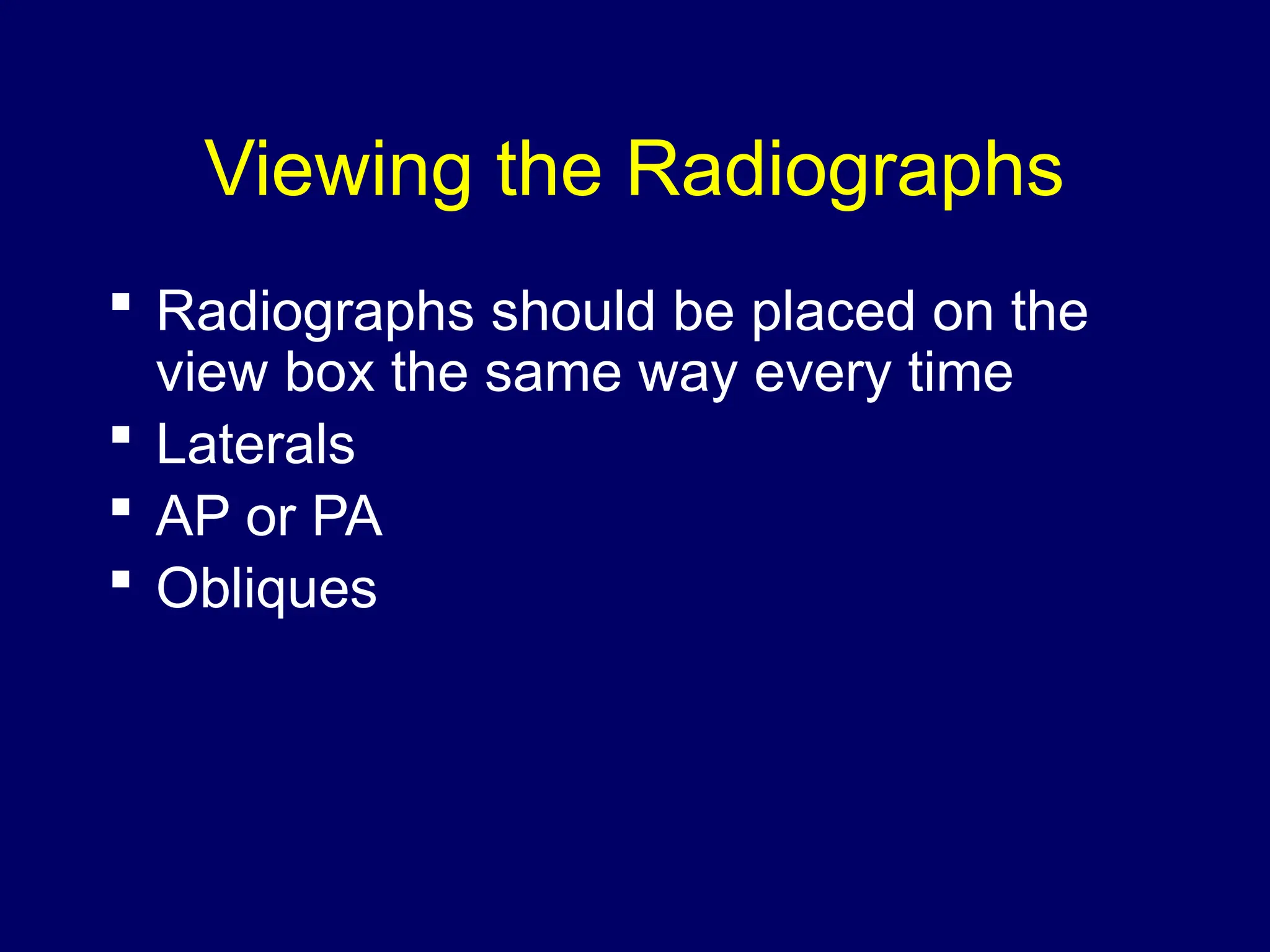

8. Viewing the Radiographs
 Radiographs should be placed on the
view box the same way every time
 Laterals
 AP or PA
 Obliques

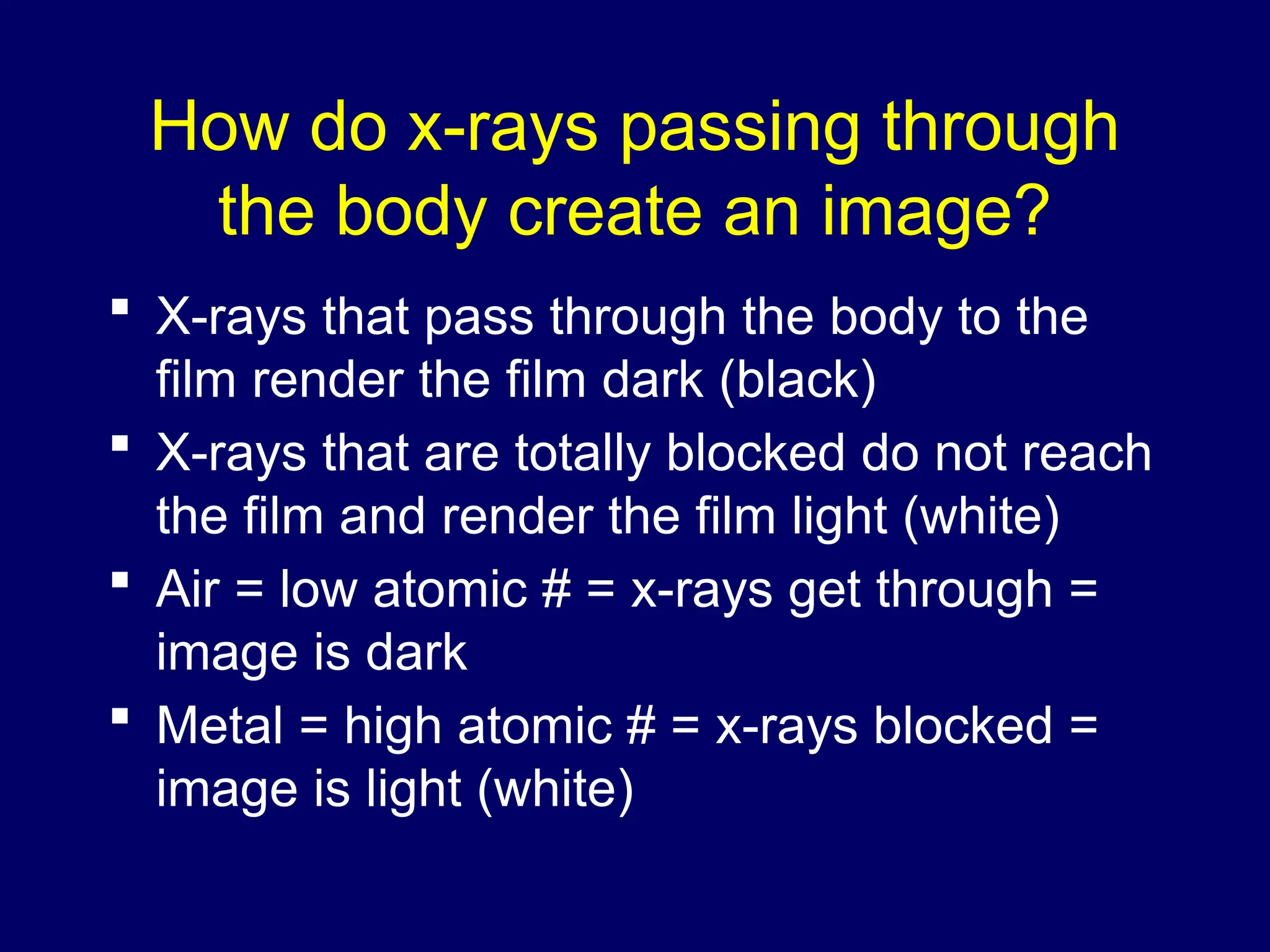

9. How do x-rays passing through
the body create an image?
 X-rays that pass through the body to the
film render the film dark (black)
 X-rays that are totally blocked do not reach
the film and render the film light (white)
 Air = low atomic # = x-rays get through =
image is dark
 Metal = high atomic # = x-rays blocked =
image is light (white)

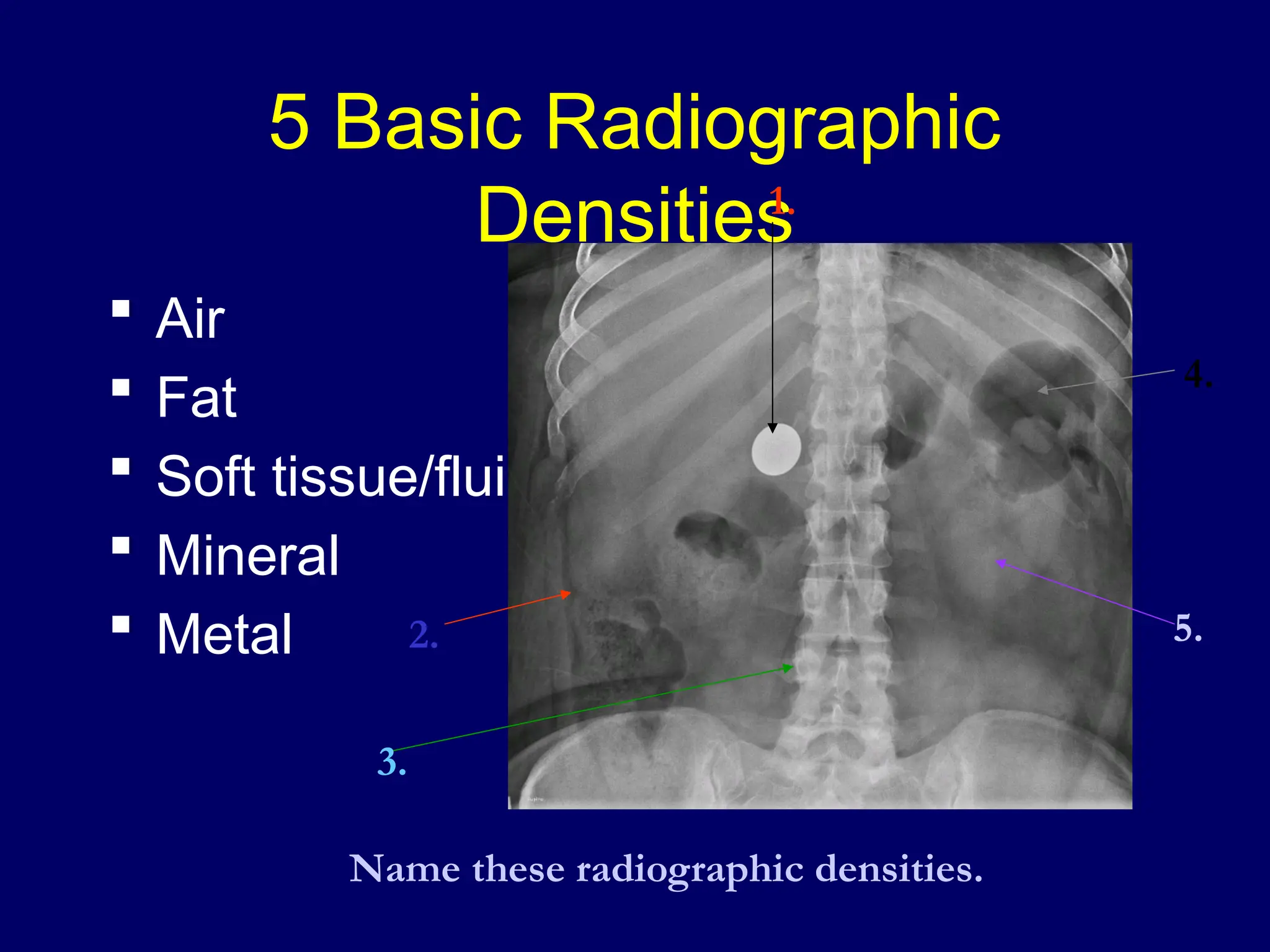

10. 5 Basic Radiographic
Densities
 Air
 Fat
 Soft tissue/fluid
 Mineral
 Metal
1.
2.
3.
4.
5.
Name these radiographic densities.

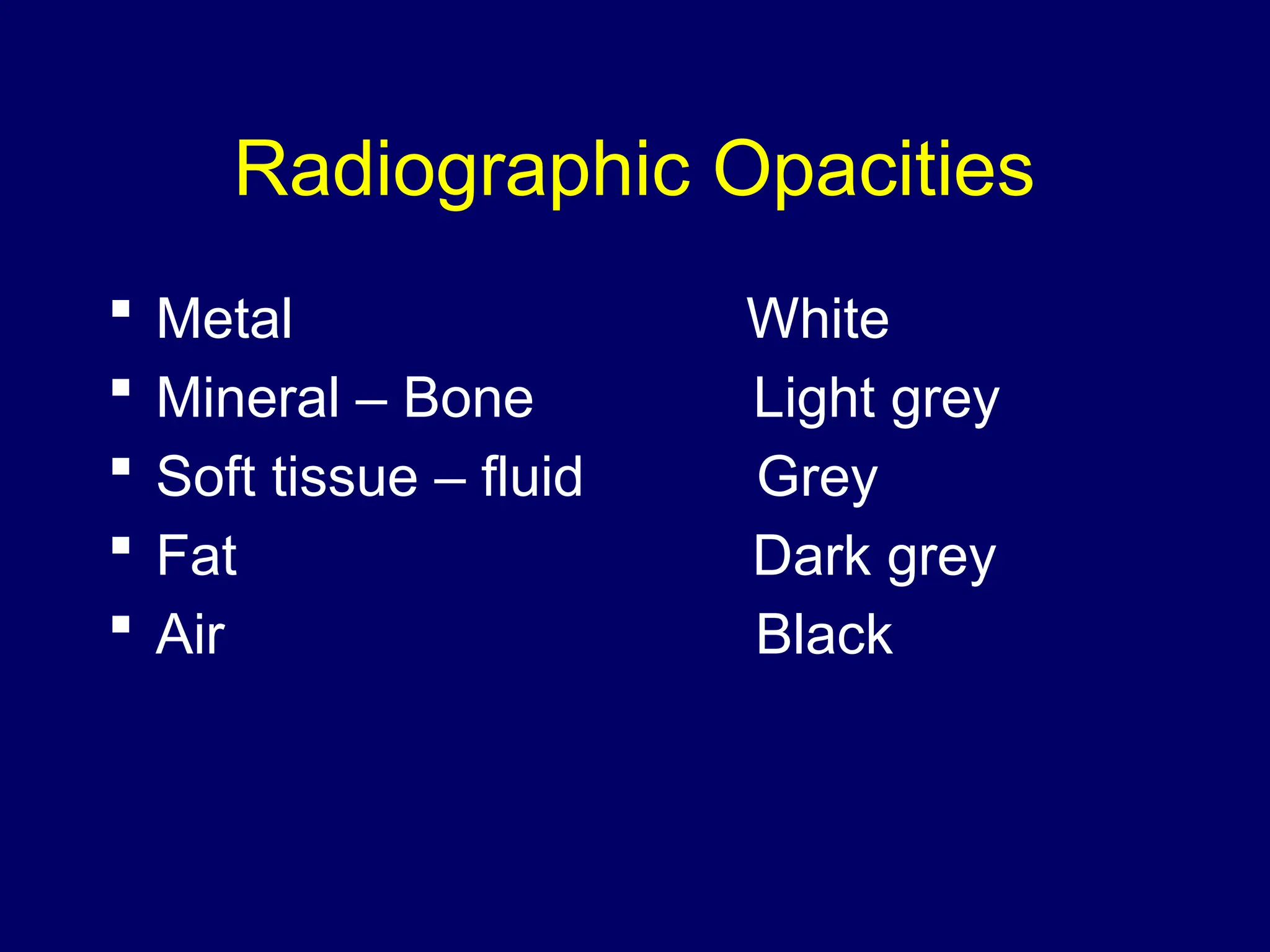

11. Radiographic Opacities
 Metal White
 Mineral – Bone Light grey
 Soft tissue – fluid Grey
 Fat Dark grey
 Air Black

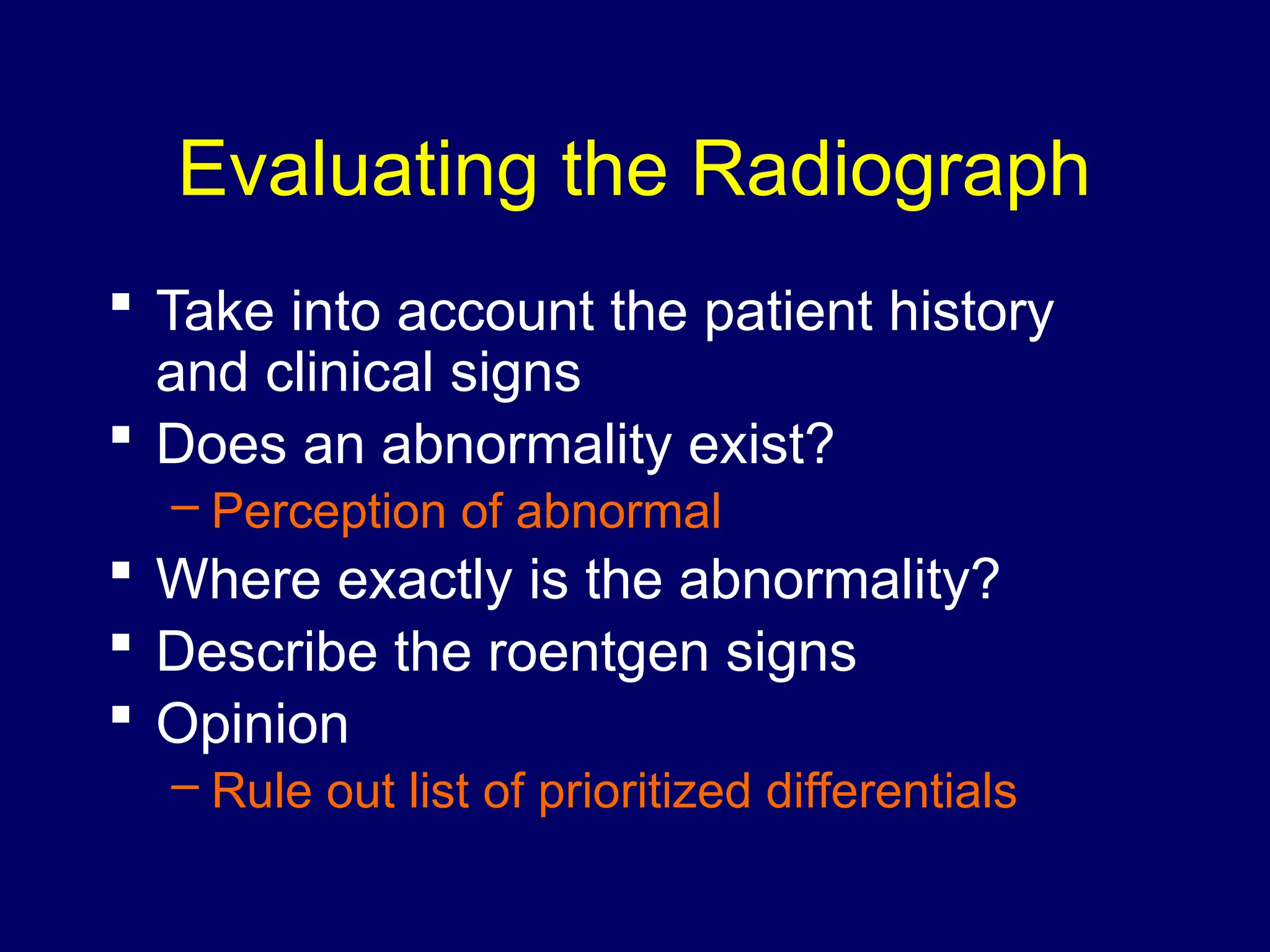

12. Evaluating the Radiograph
 Take into account the patient history
and clinical signs
 Does an abnormality exist?
– Perception of abnormal
 Where exactly is the abnormality?
 Describe the roentgen signs
 Opinion
– Rule out list of prioritized differentials

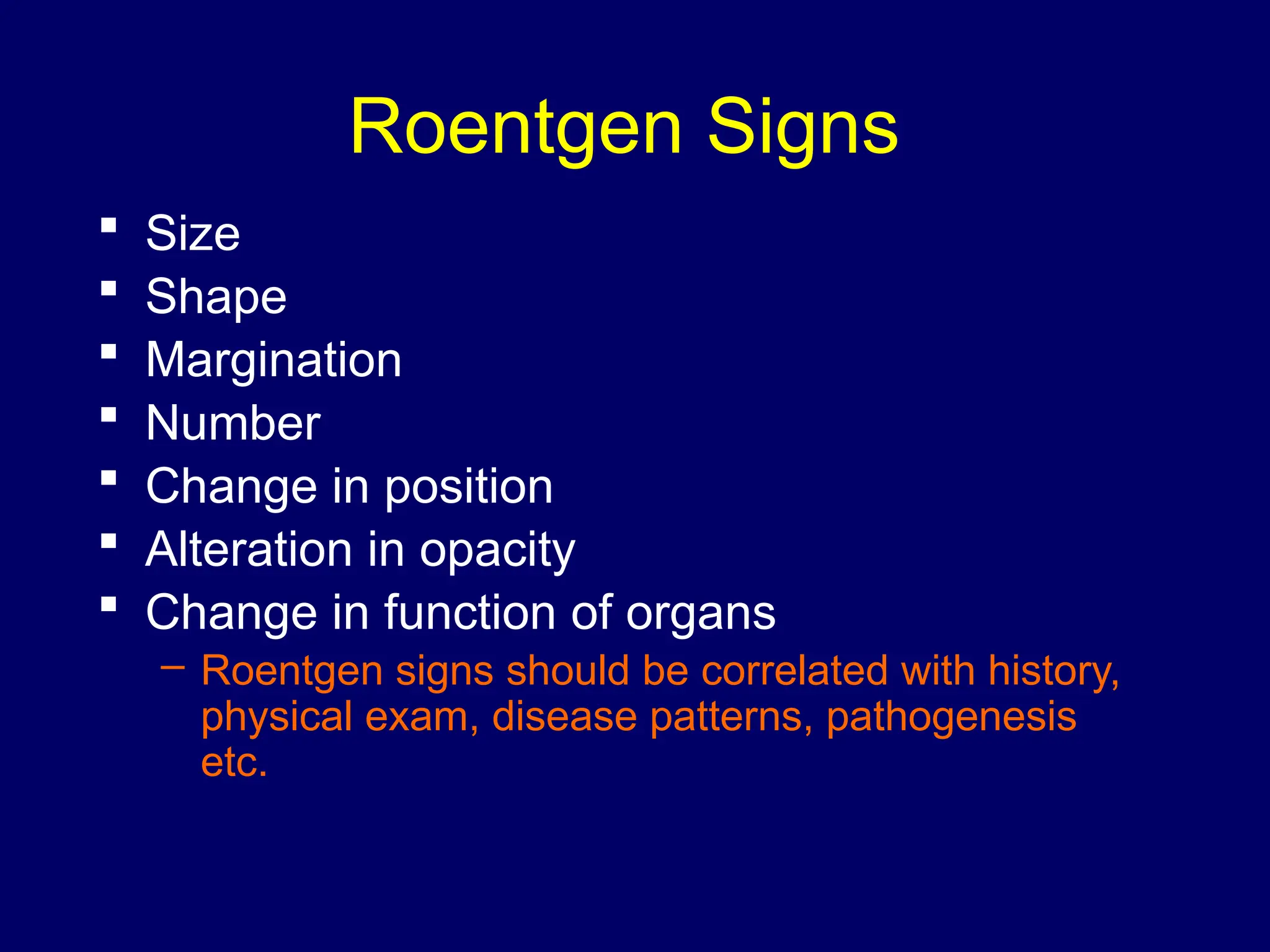

13. Roentgen Signs
 Size
 Shape
 Margination
 Number
 Change in position
 Alteration in opacity
 Change in function of organs
– Roentgen signs should be correlated with history,
physical exam, disease patterns, pathogenesis
etc.

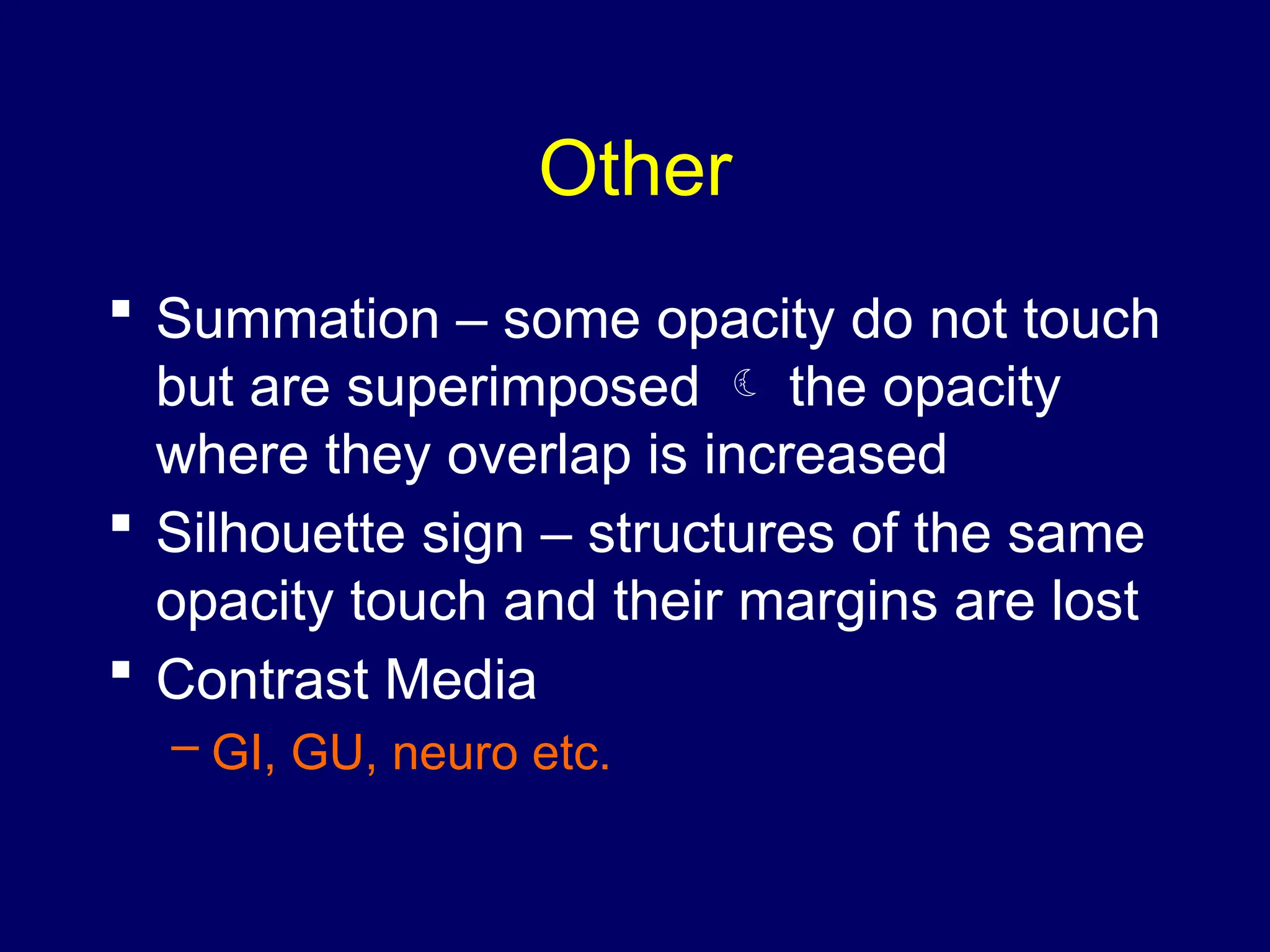

14. Other
 Summation – some opacity do not touch
but are superimposed  the opacity
where they overlap is increased
 Silhouette sign – structures of the same
opacity touch and their margins are lost
 Contrast Media
– GI, GU, neuro etc.

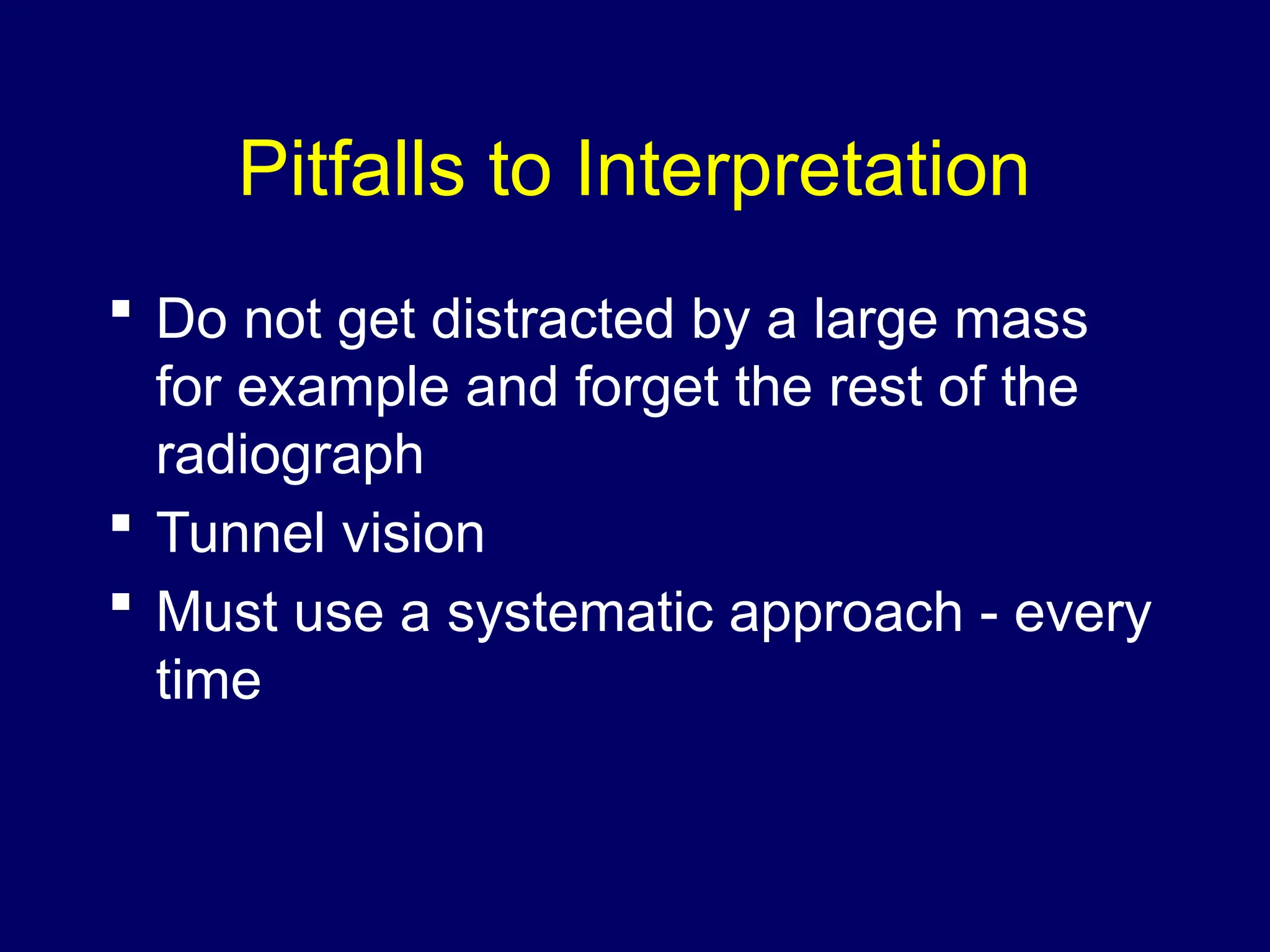

15. Pitfalls to Interpretation
 Do not get distracted by a large mass
for example and forget the rest of the
radiograph
 Tunnel vision
 Must use a systematic approach - every
time

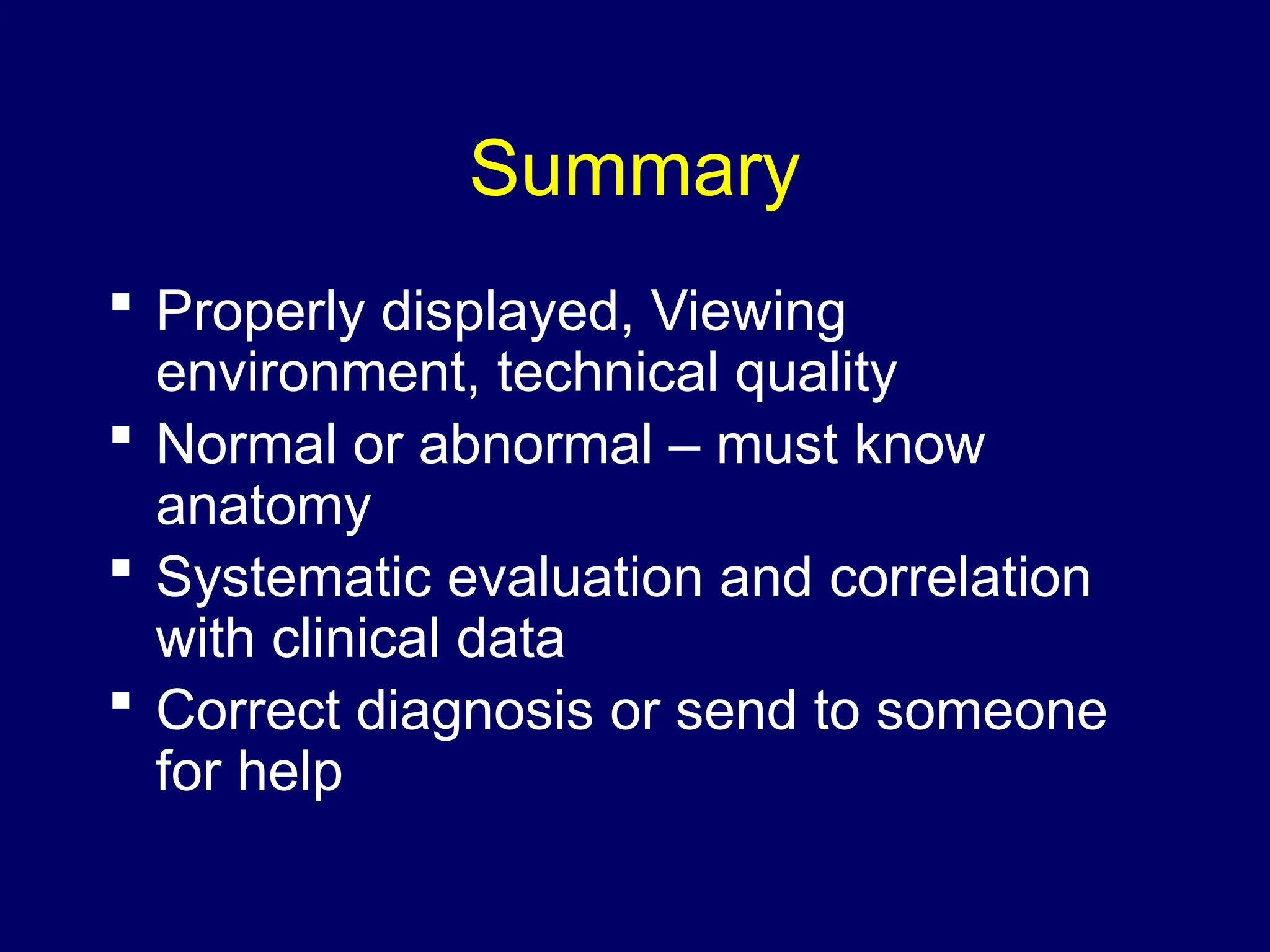

16. Summary
 Properly displayed, Viewing
environment, technical quality
 Normal or abnormal – must know
anatomy
 Systematic evaluation and correlation
with clinical data
 Correct diagnosis or send to someone
for help

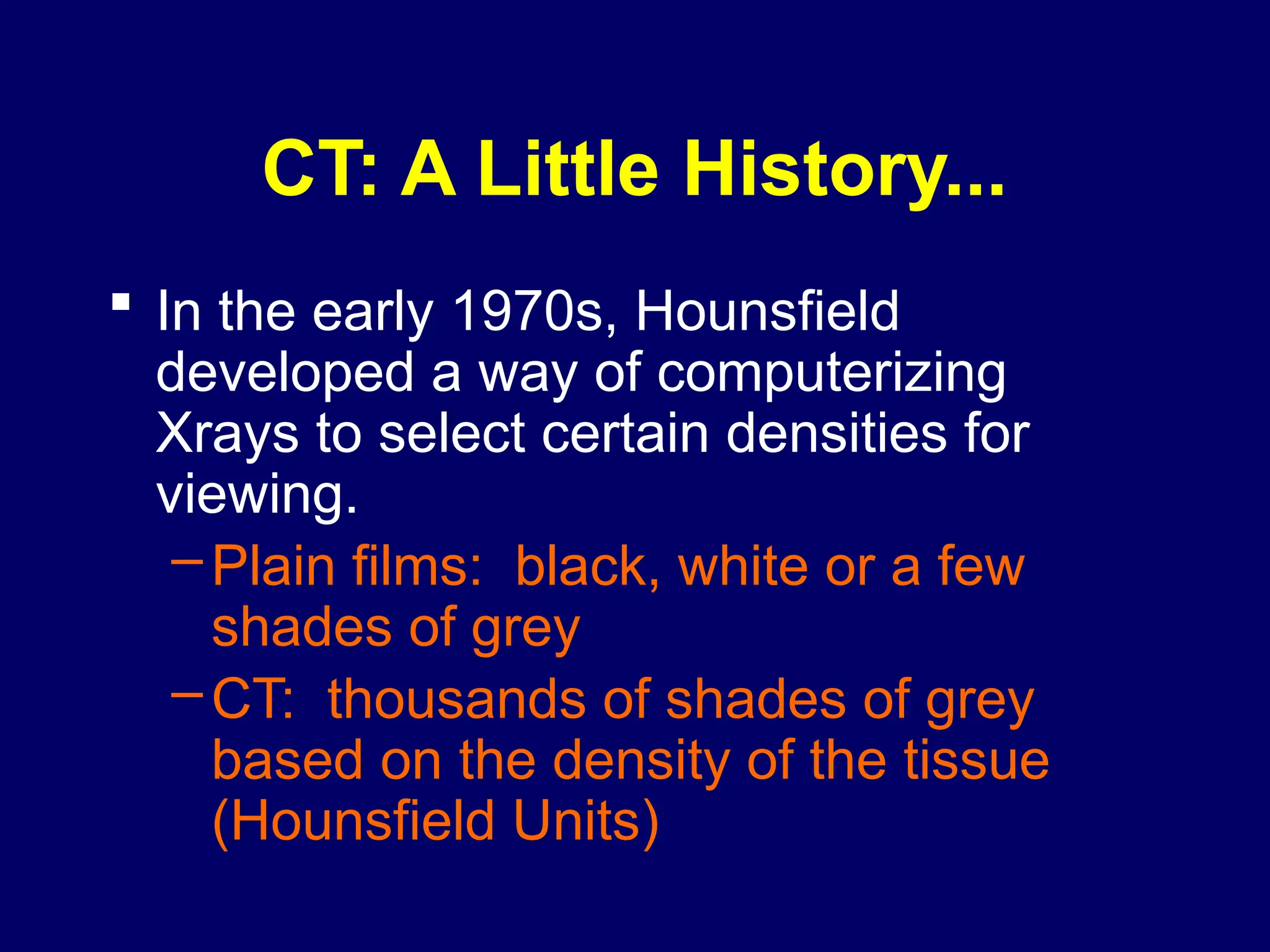

17. CT: A Little History...
 In the early 1970s, Hounsfield
developed a way of computerizing
Xrays to select certain densities for
viewing.
–Plain films: black, white or a few
shades of grey
–CT: thousands of shades of grey
based on the density of the tissue
(Hounsfield Units)

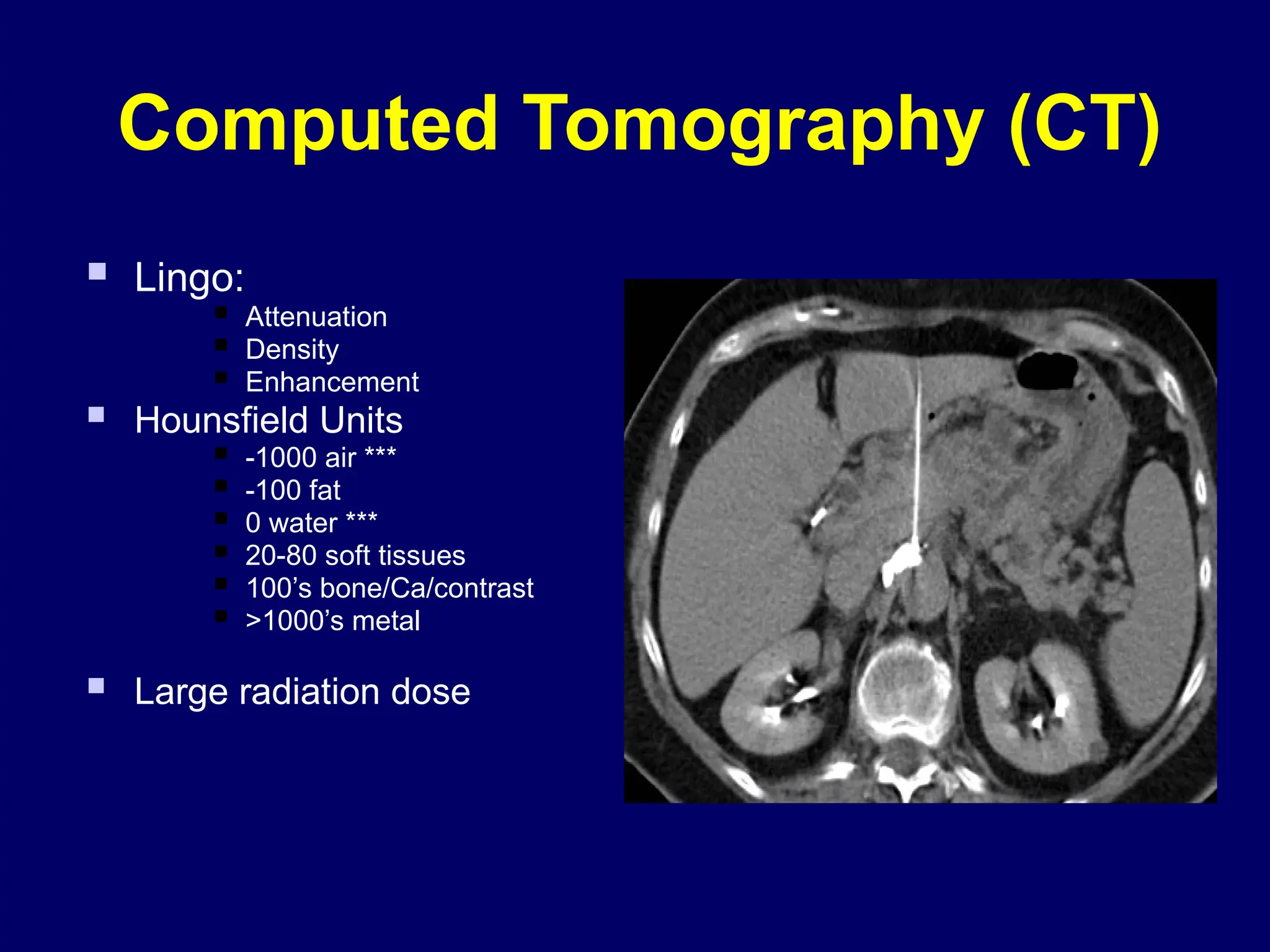

18. Computed Tomography (CT)
 Lingo:
 Attenuation
 Density
 Enhancement
 Hounsfield Units
 -1000 air ***
 -100 fat
 0 water ***
 20-80 soft tissues
 100’s bone/Ca/contrast
 >1000’s metal
 Large radiation dose

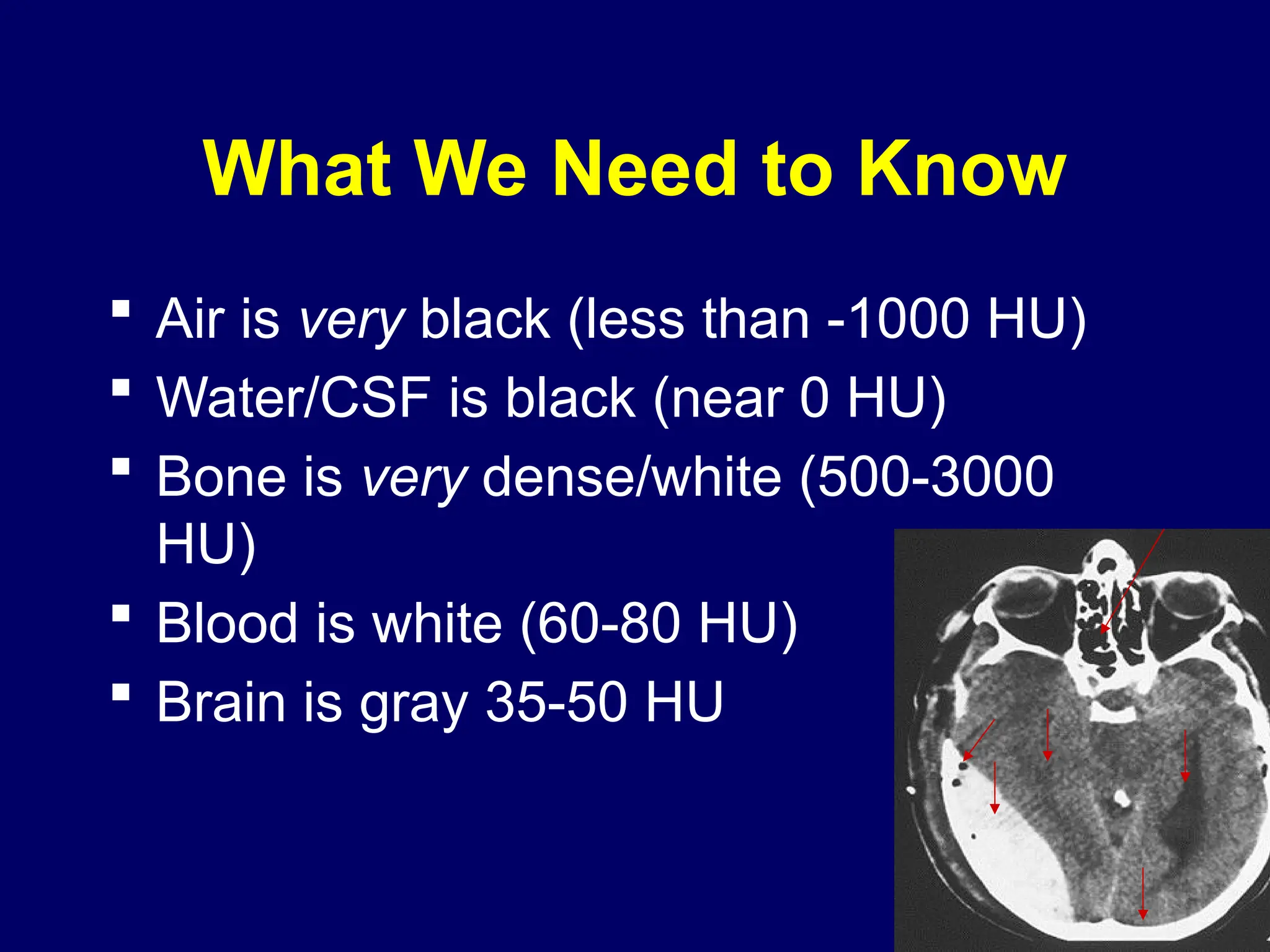

19. What We Need to Know
 Air is very black (less than -1000 HU)
 Water/CSF is black (near 0 HU)
 Bone is very dense/white (500-3000
HU)
 Blood is white (60-80 HU)
 Brain is gray 35-50 HU

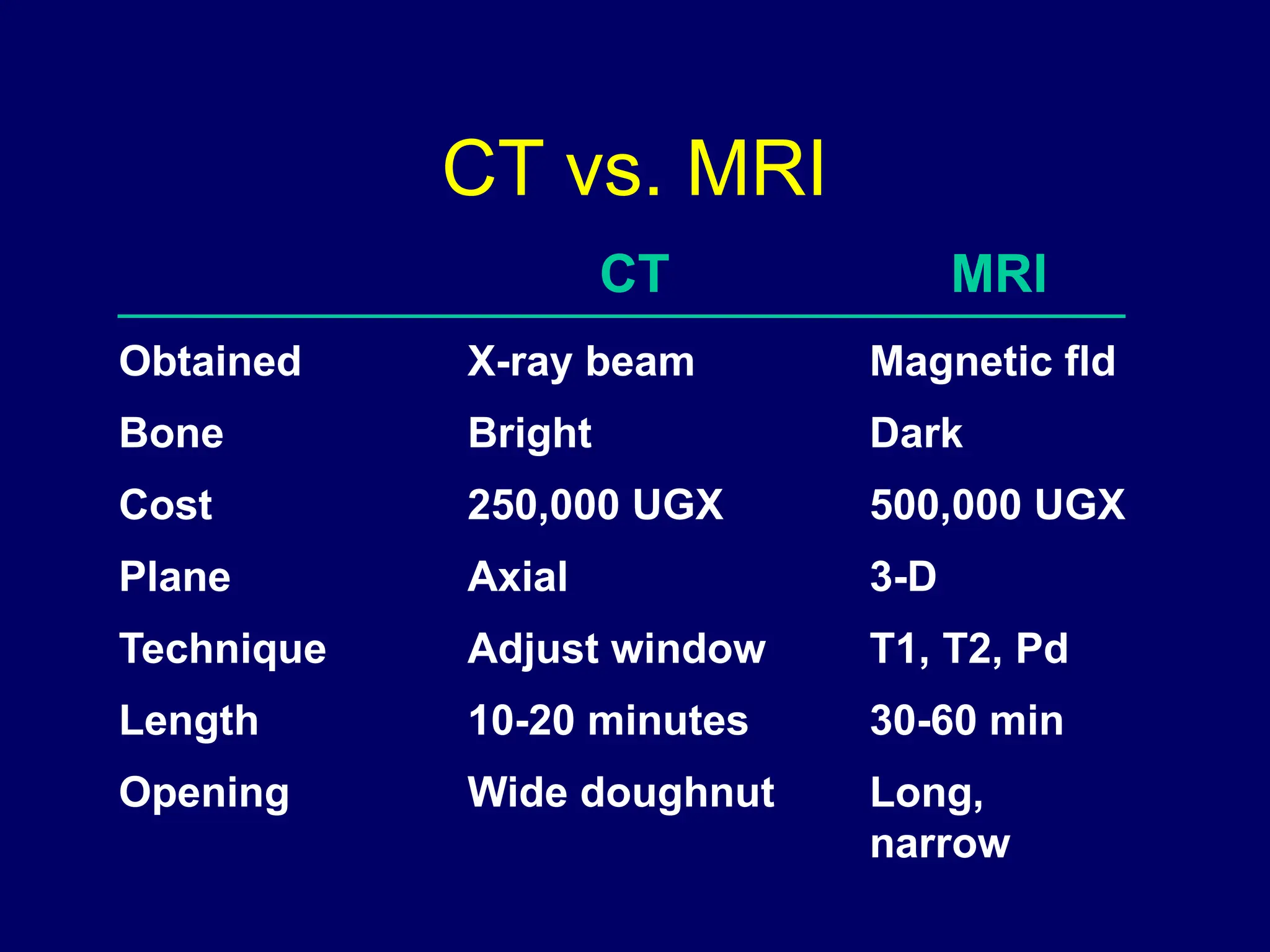

20. CT vs. MRI
Wide doughnut
Opening
10-20 minutes
Length
Adjust window
Technique
Axial
Plane
250,000 UGX
Cost
Bright
Bone
Long,
narrow
30-60 min
T1, T2, Pd
3-D
500,000 UGX
Dark
Magnetic fld
X-ray beam
Obtained
MRI
CT

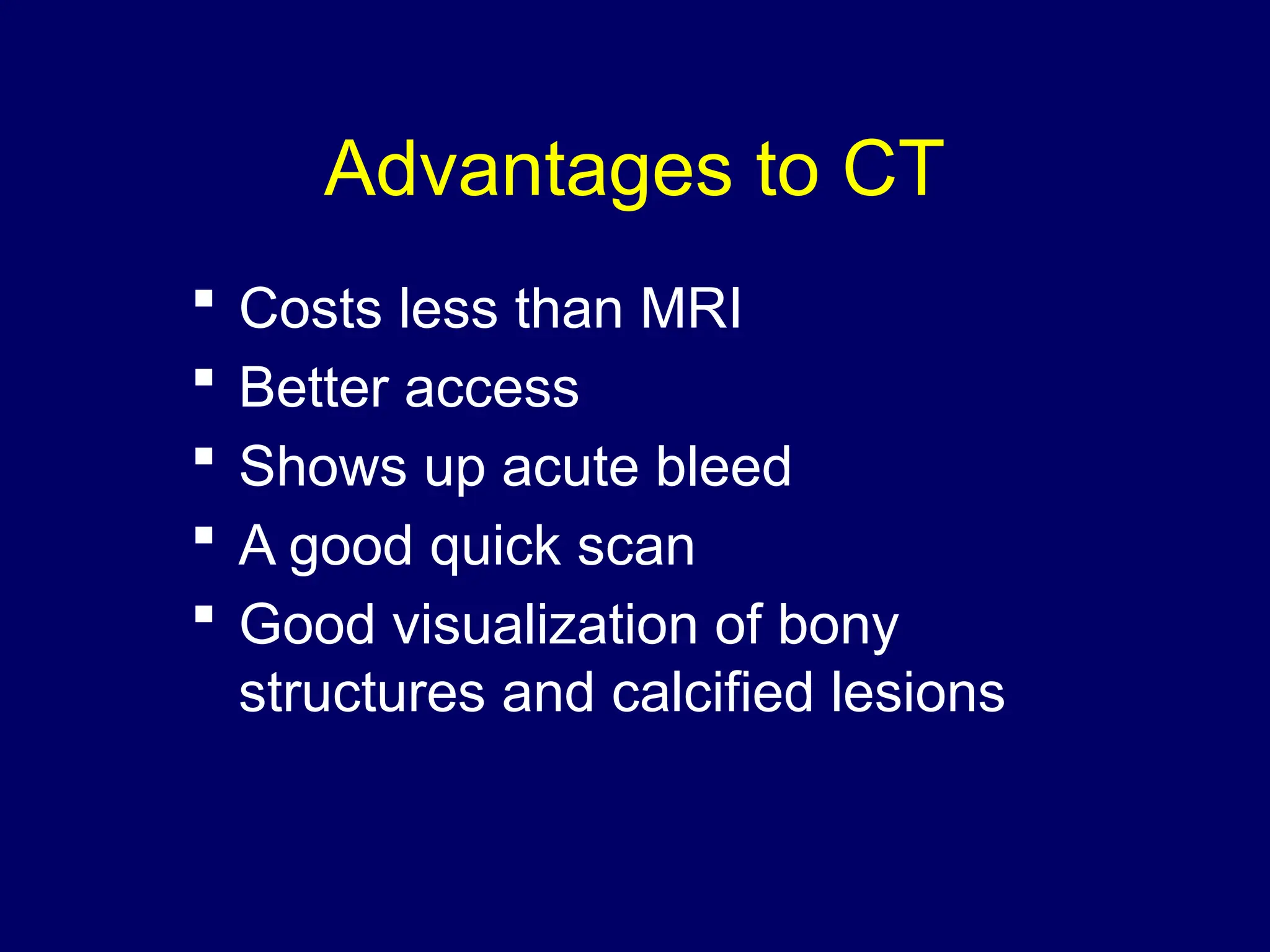

21. Advantages to CT
 Costs less than MRI
 Better access
 Shows up acute bleed
 A good quick scan
 Good visualization of bony
structures and calcified lesions

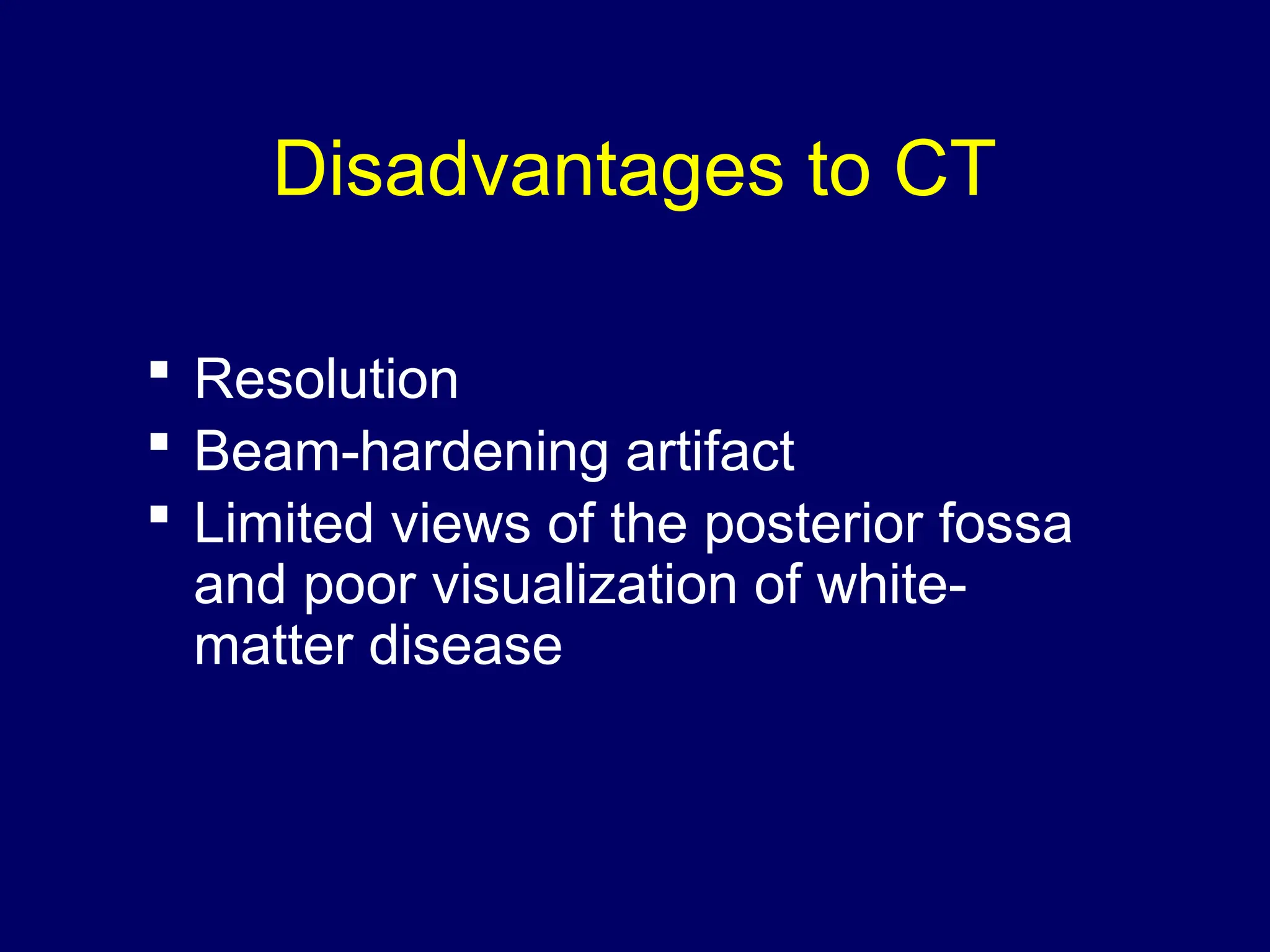

22. Disadvantages to CT
 Resolution
 Beam-hardening artifact
 Limited views of the posterior fossa
and poor visualization of white-
matter disease

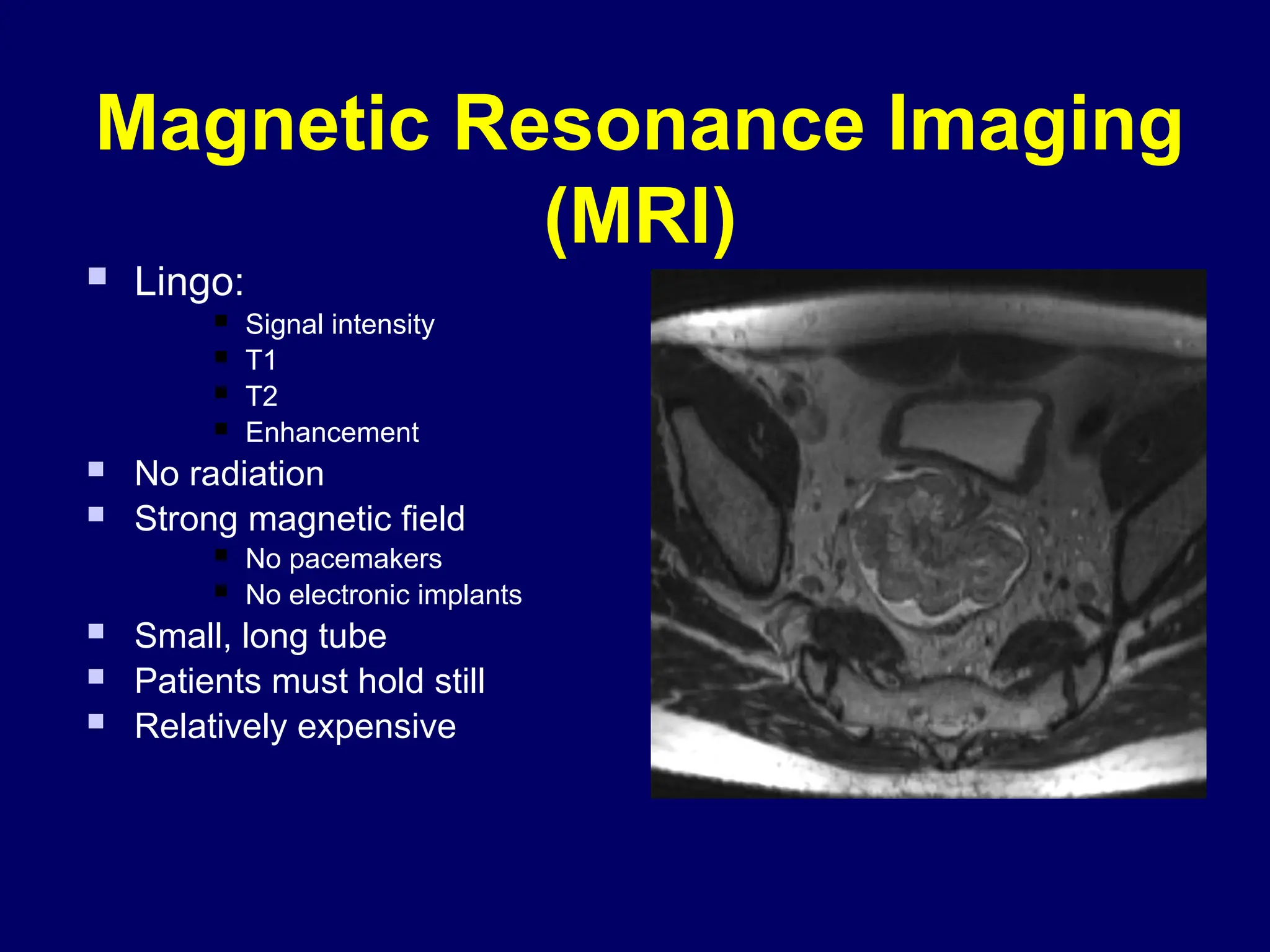

23. Magnetic Resonance Imaging
(MRI)
 Lingo:
 Signal intensity
 T1
 T2
 Enhancement
 No radiation
 Strong magnetic field
 No pacemakers
 No electronic implants
 Small, long tube
 Patients must hold still
 Relatively expensive

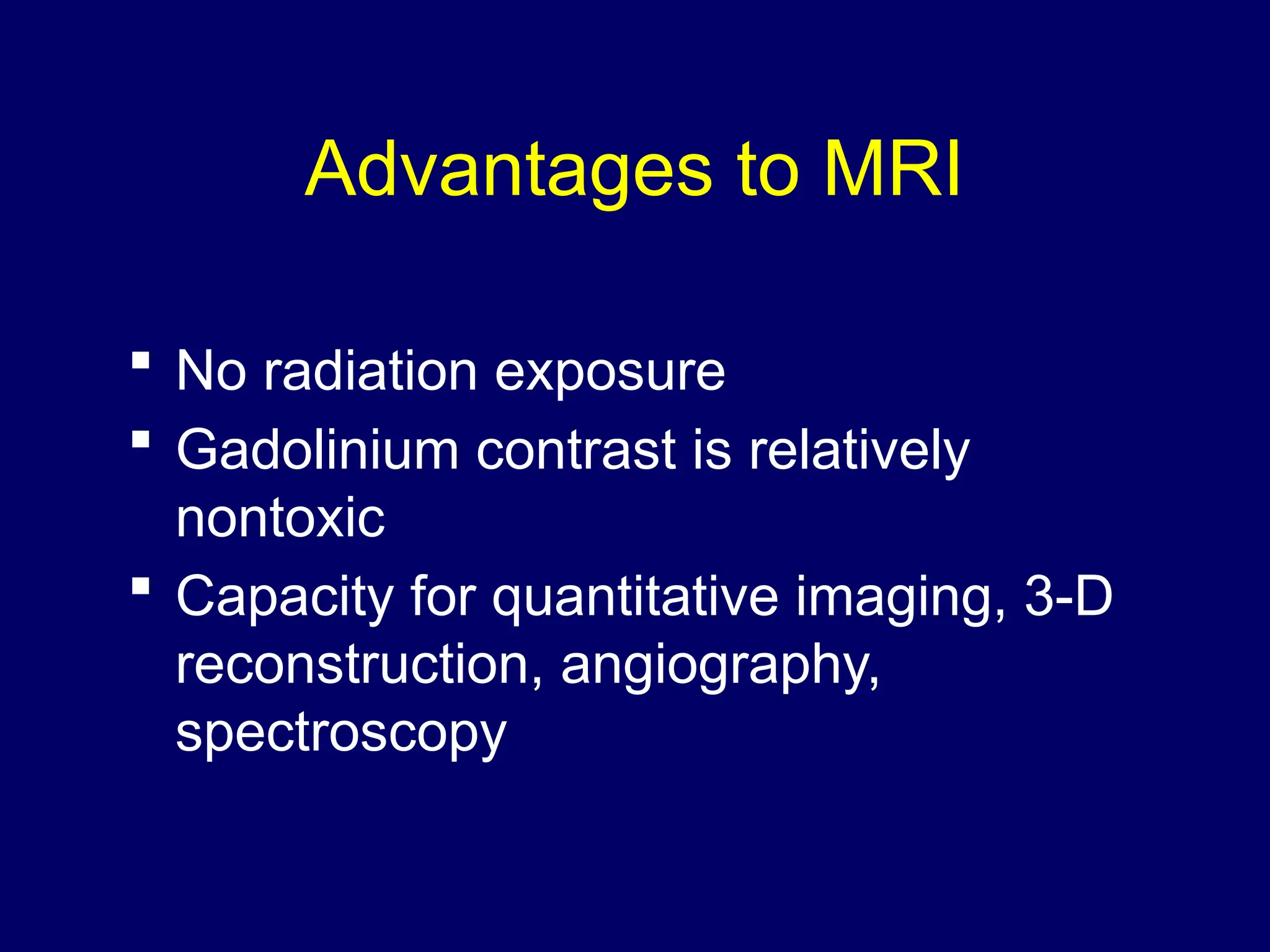

24. Advantages to MRI
 No radiation exposure
 Gadolinium contrast is relatively
nontoxic
 Capacity for quantitative imaging, 3-D
reconstruction, angiography,
spectroscopy

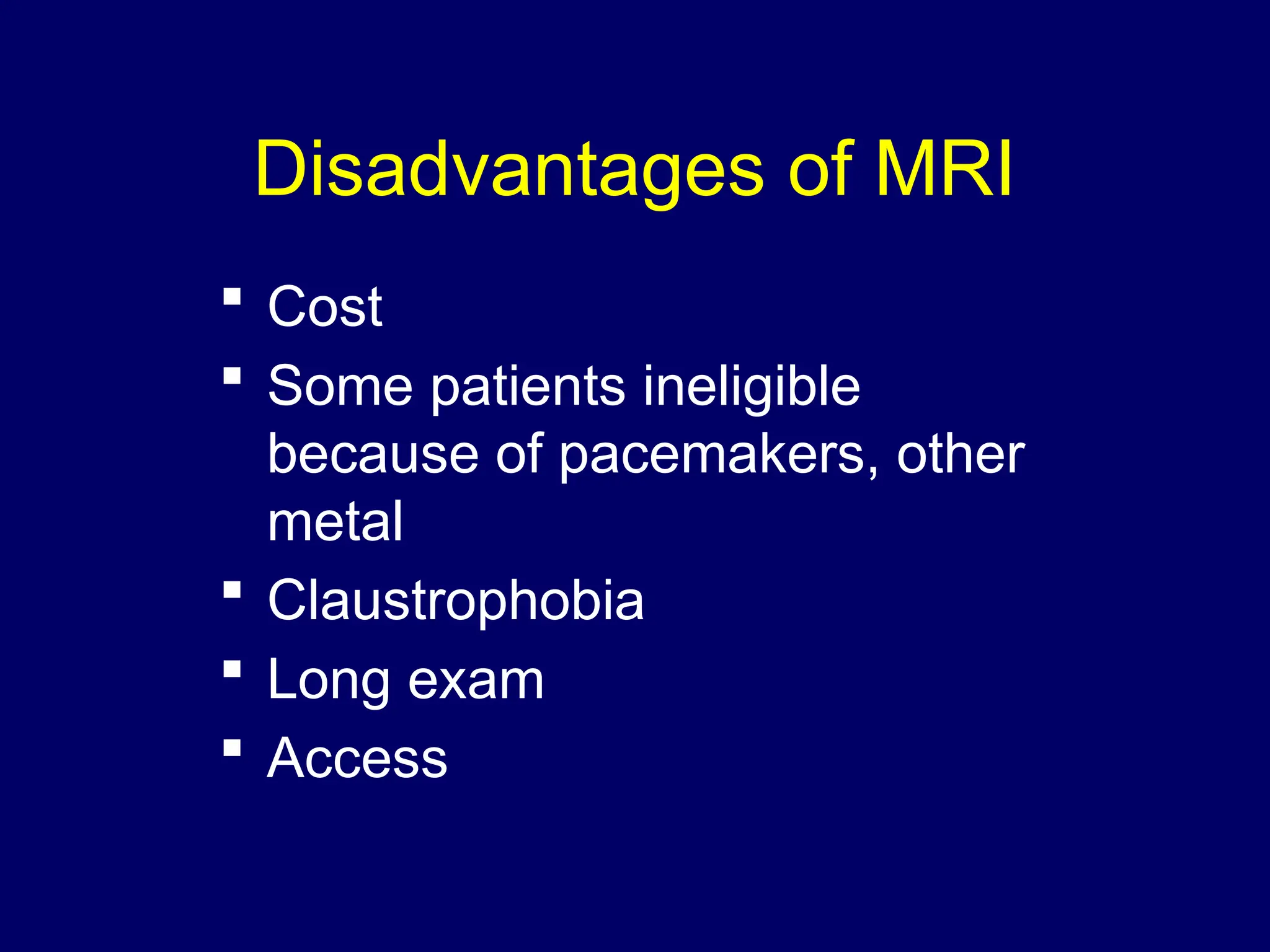

25. Disadvantages of MRI
 Cost
 Some patients ineligible
because of pacemakers, other
metal
 Claustrophobia
 Long exam
 Access

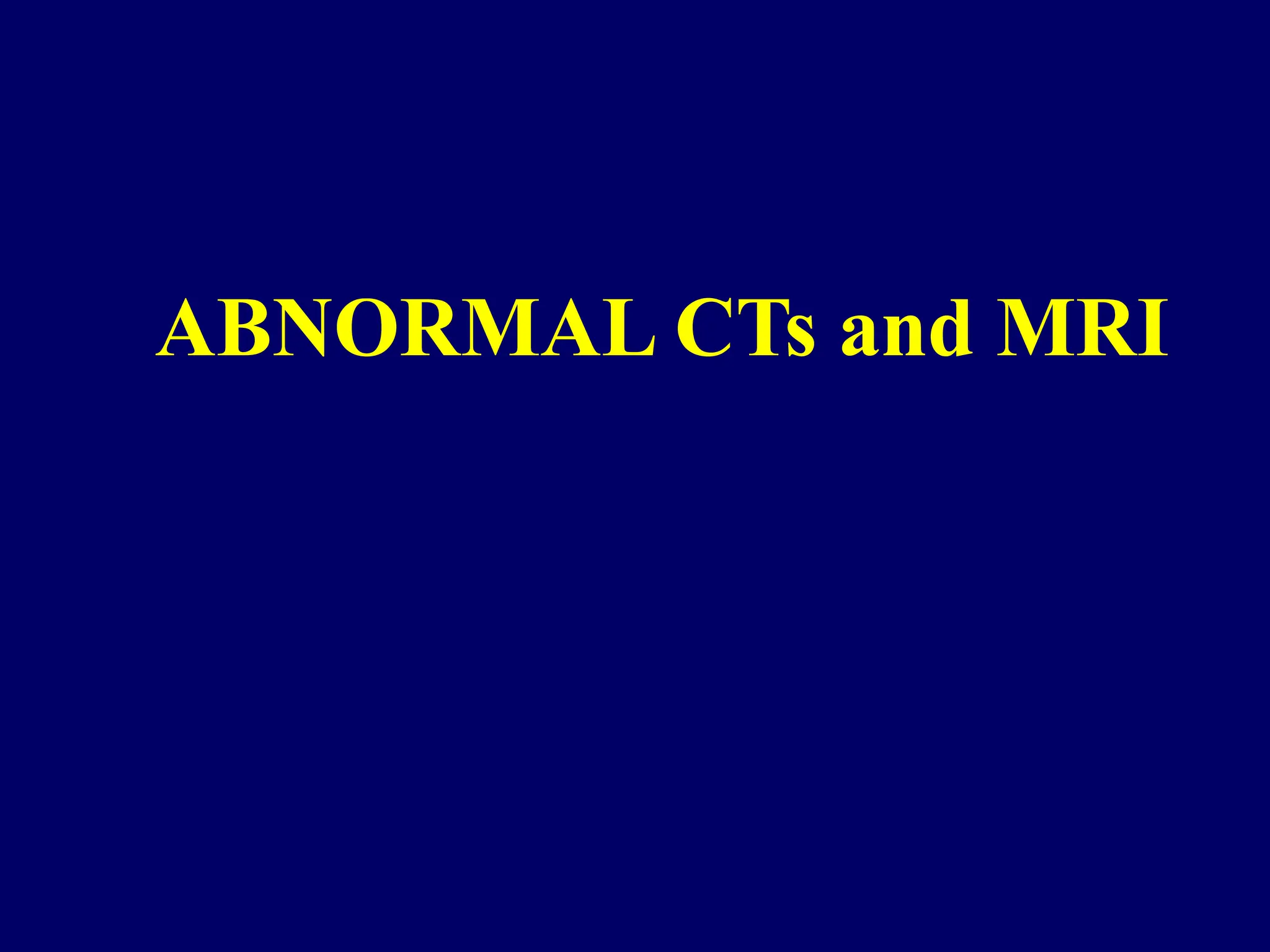

26. ABNORMAL CTs and MRI

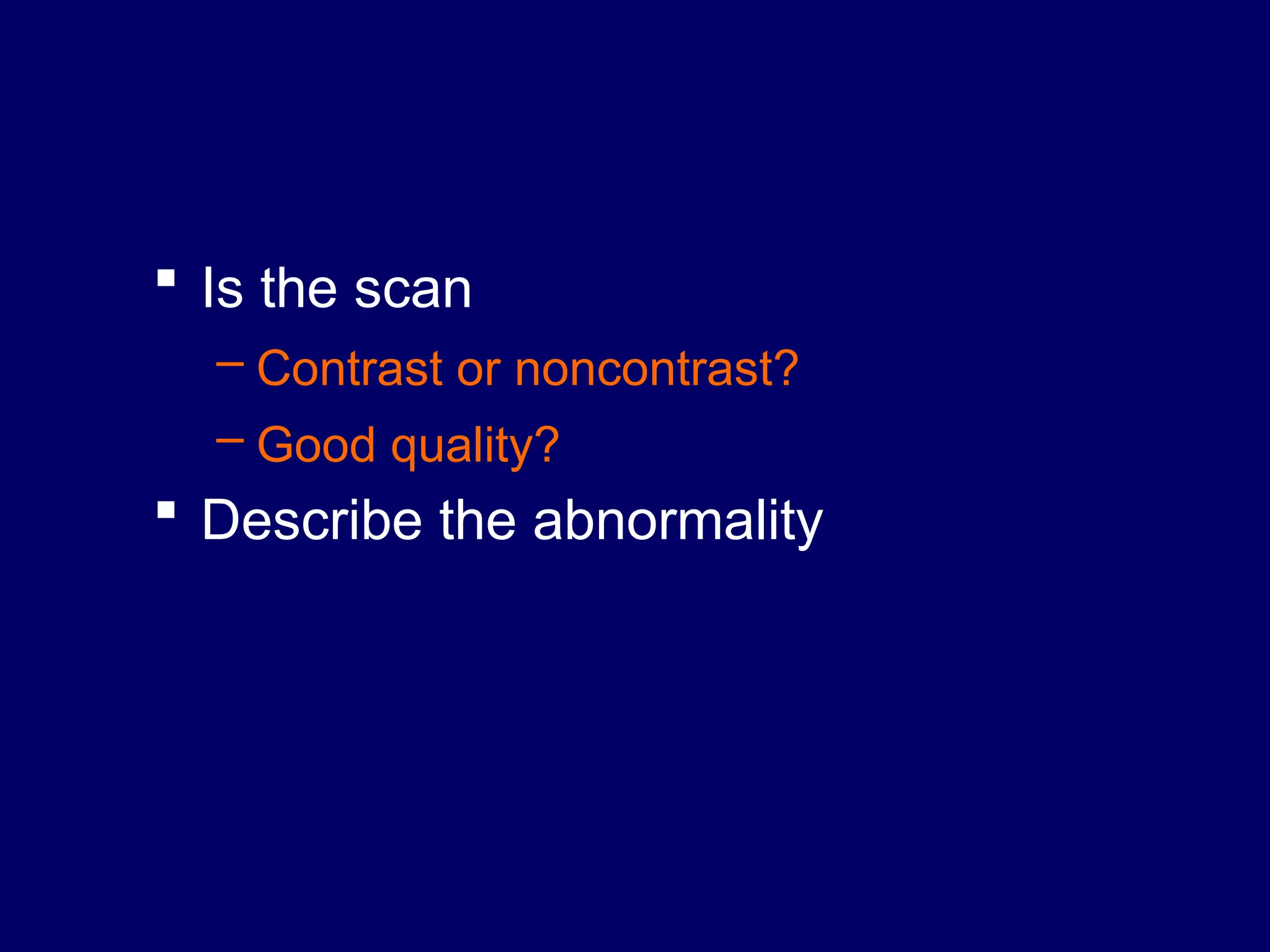

27.  Is the scan
– Contrast or noncontrast?
– Good quality?
 Describe the abnormality

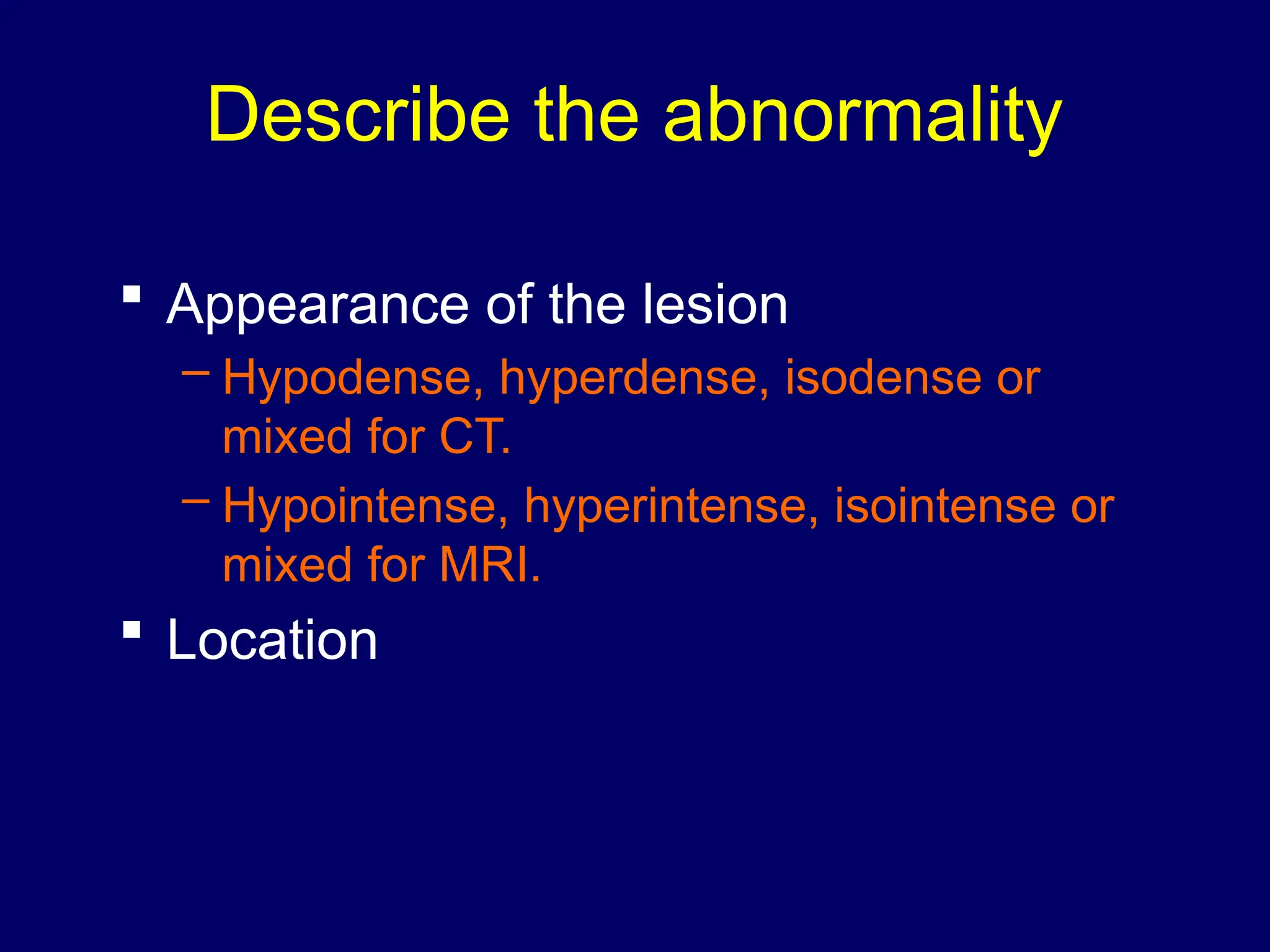

28. Describe the abnormality
 Appearance of the lesion
– Hypodense, hyperdense, isodense or
mixed for CT.
– Hypointense, hyperintense, isointense or
mixed for MRI.
 Location

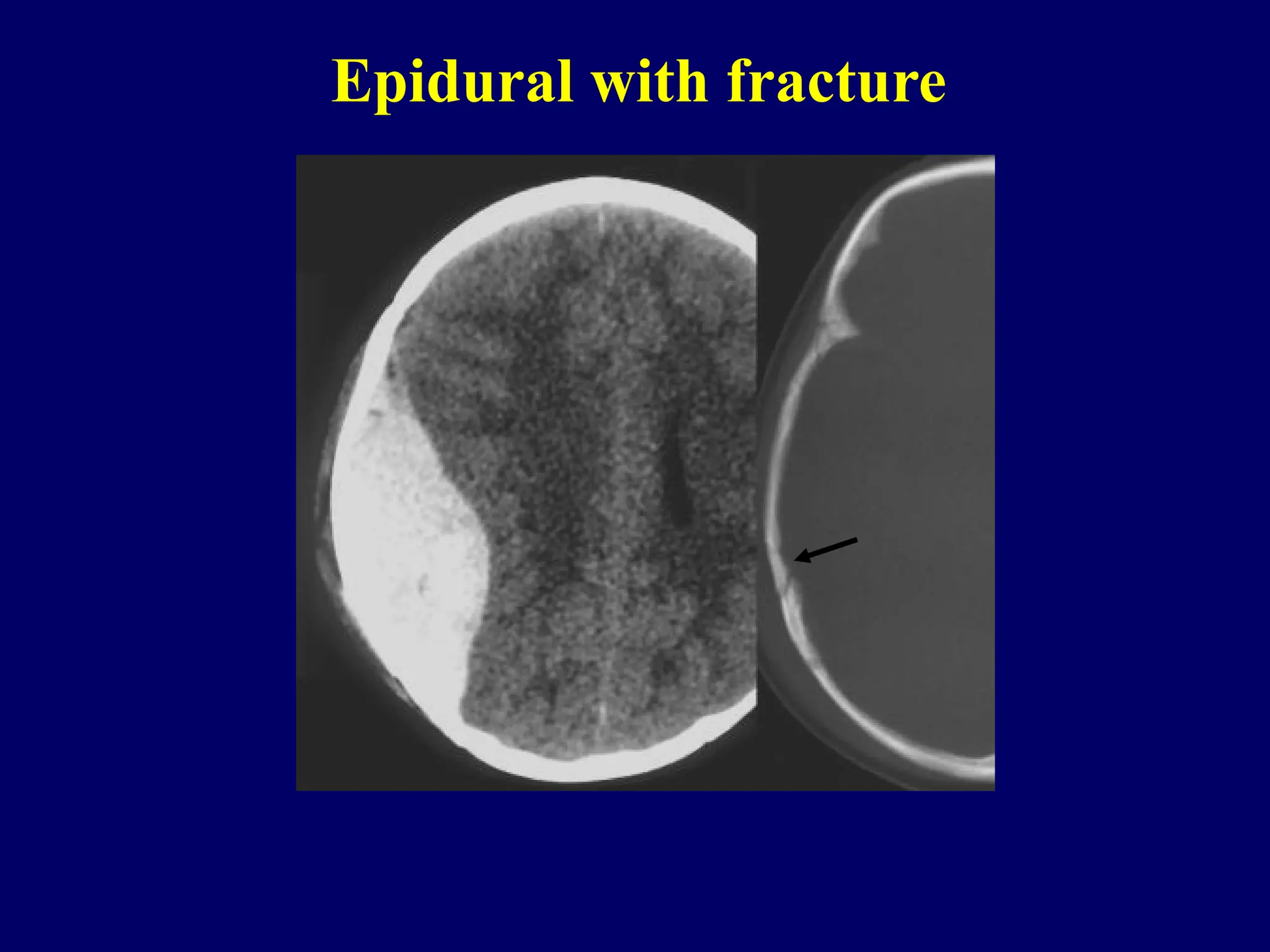

29. Epidural with fracture

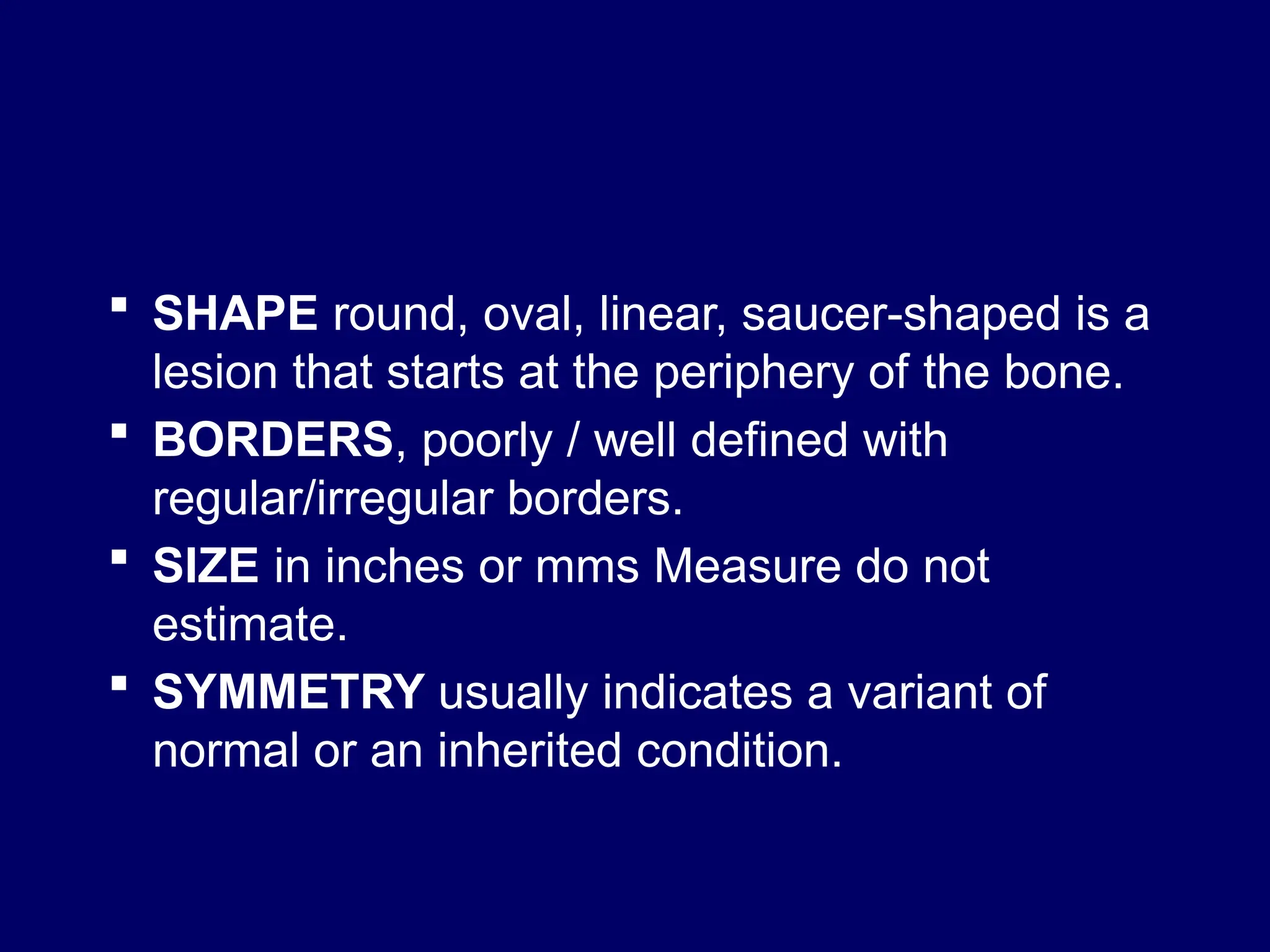

30.  SHAPE round, oval, linear, saucer-shaped is a
lesion that starts at the periphery of the bone.
 BORDERS, poorly / well defined with
regular/irregular borders.
 SIZE in inches or mms Measure do not
estimate.
 SYMMETRY usually indicates a variant of
normal or an inherited condition.

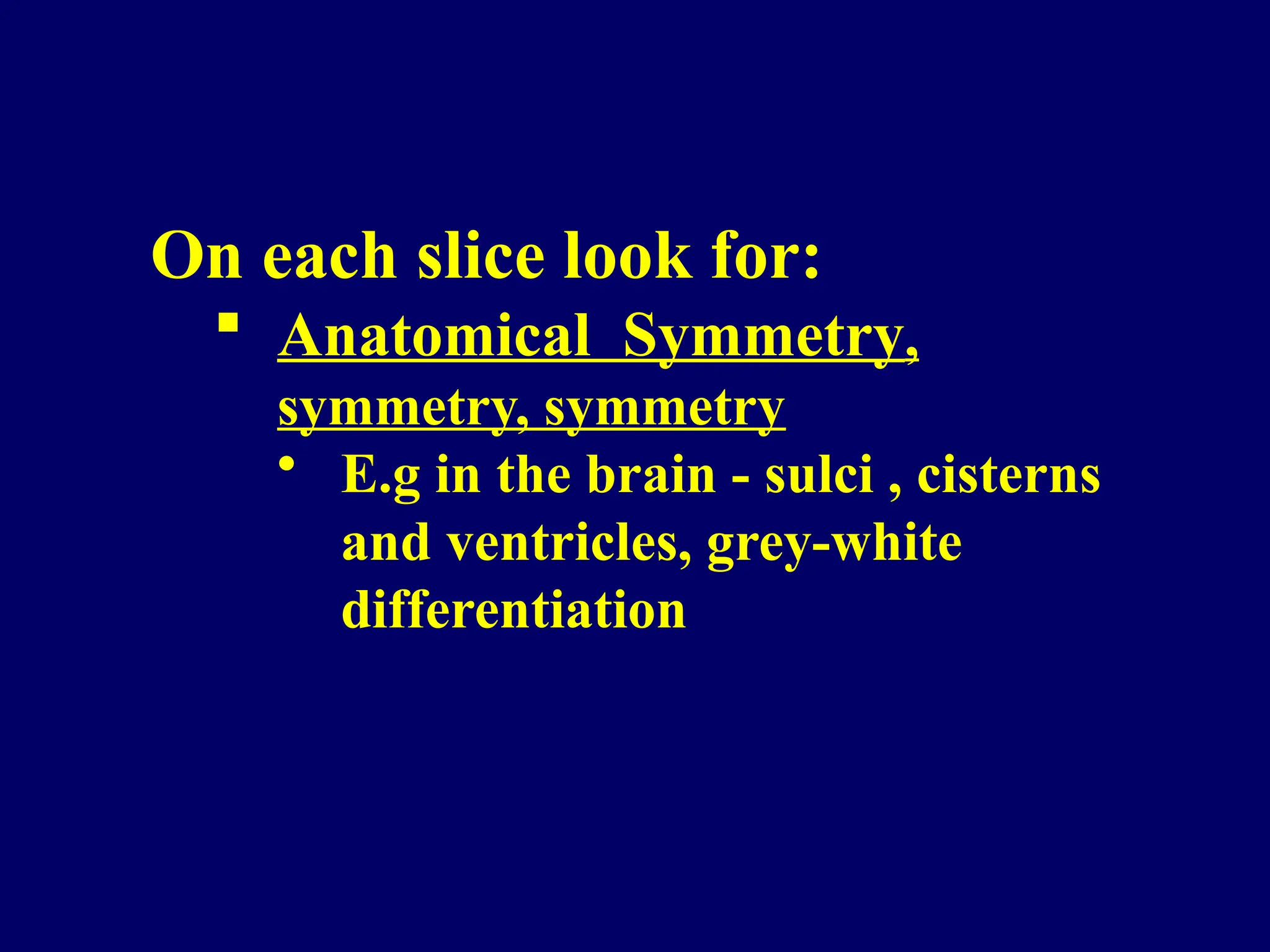

31. On each slice look for:
 Anatomical Symmetry,
symmetry, symmetry
• E.g in the brain - sulci , cisterns
and ventricles, grey-white
differentiation

32. Identify What Doesn’t Belong
• Hyperdensities (whiter), e.g
• extra-axial hematomas (SDH, EDH)
• ICB or contusion
• SAH in sulci, cisterns or ventricles
• Hypodensities (darker)
• pneumocephaly (air is darker than CSF)
• infarction

33. Isodense Subdural Hematoma

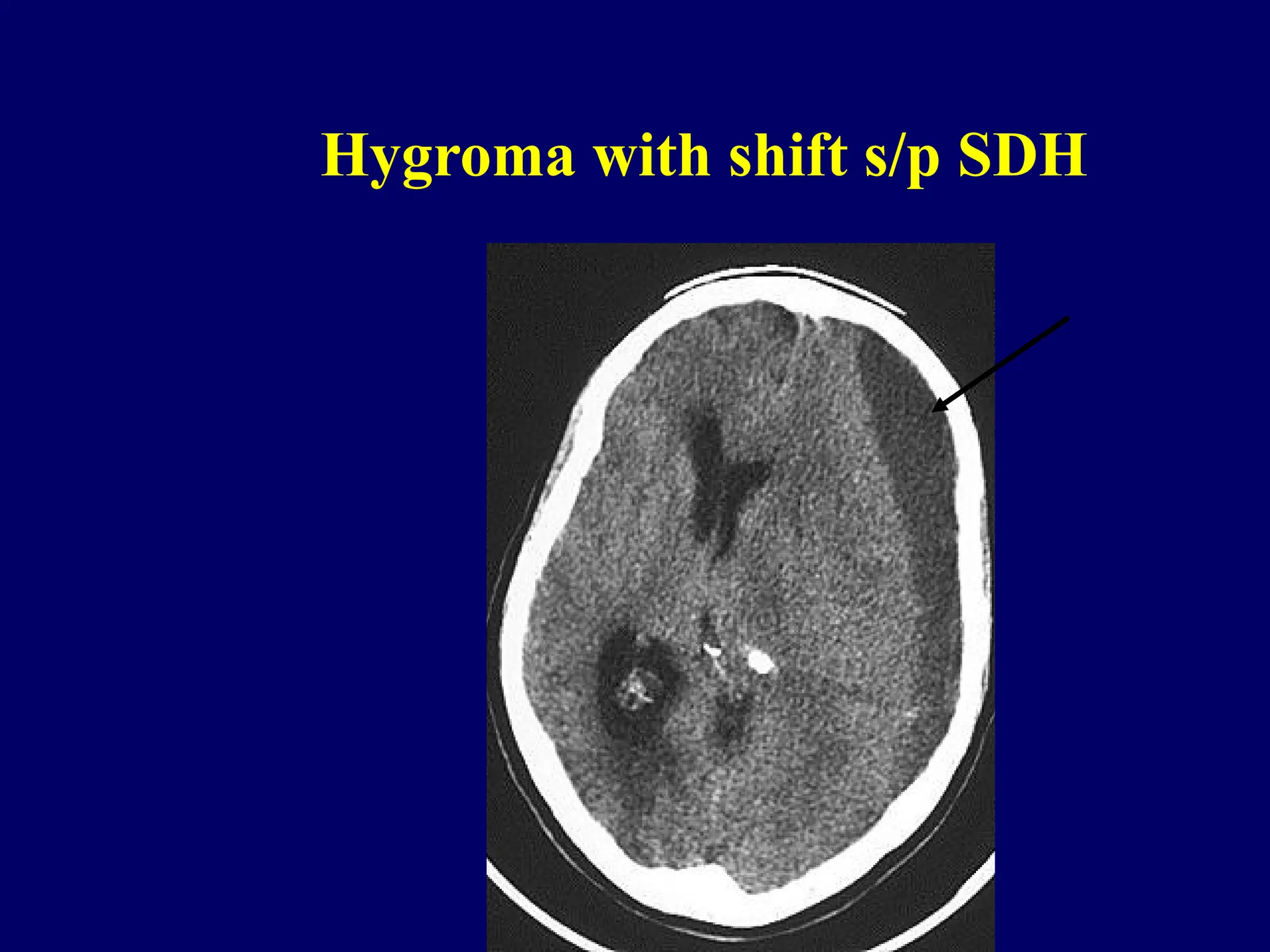

34. Hygroma with shift s/p SDH

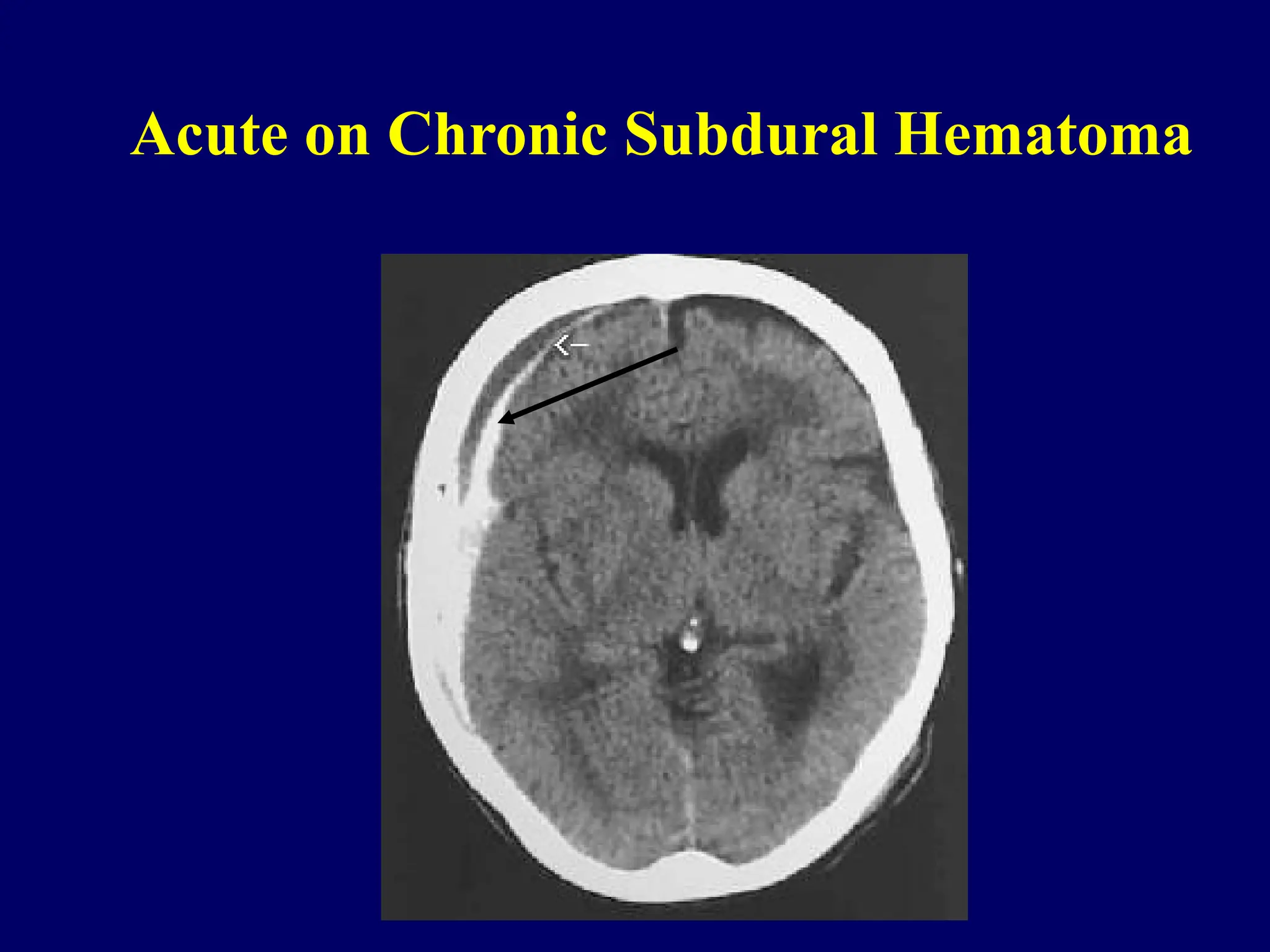

35. Acute on Chronic Subdural Hematoma

36. Intraparenchymal Bleed

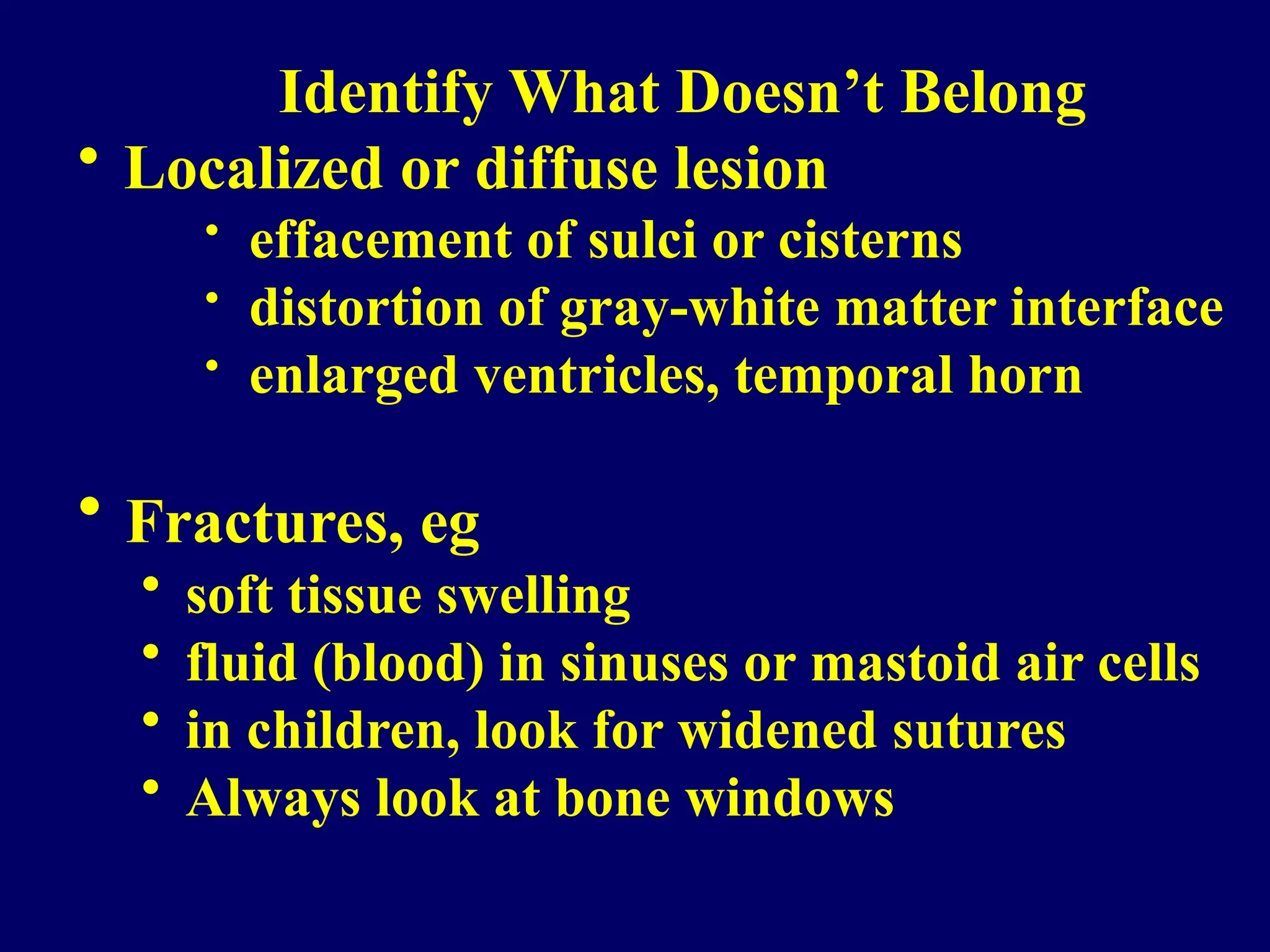

37. Identify What Doesn’t Belong
• Localized or diffuse lesion
• effacement of sulci or cisterns
• distortion of gray-white matter interface
• enlarged ventricles, temporal horn
• Fractures, eg
• soft tissue swelling
• fluid (blood) in sinuses or mastoid air cells
• in children, look for widened sutures
• Always look at bone windows

38. Diffuse Edema, SAH tracking across tentorium

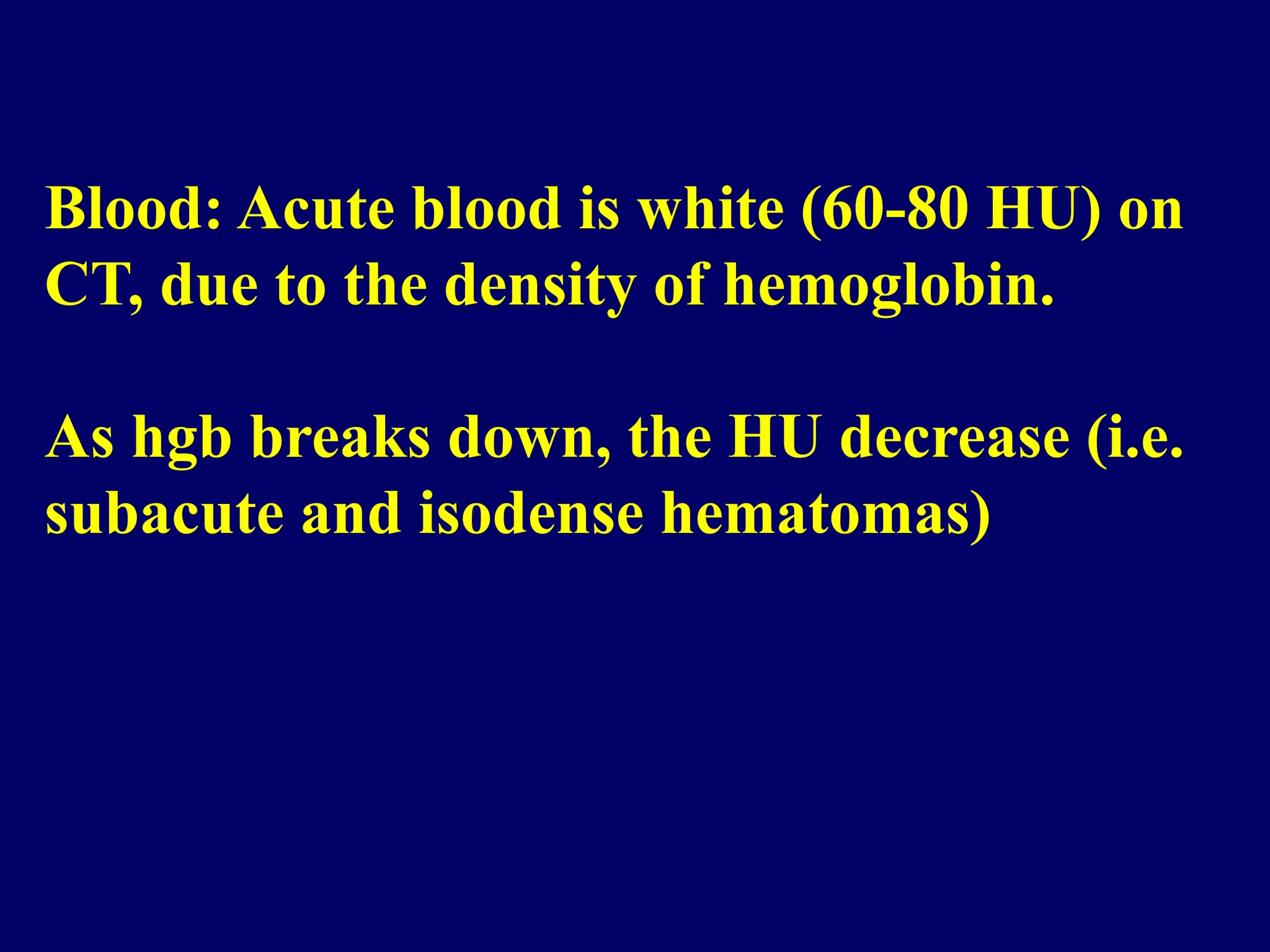

39. Blood: Acute blood is white (60-80 HU) on
CT, due to the density of hemoglobin.
As hgb breaks down, the HU decrease (i.e.
subacute and isodense hematomas)

40.  Relationship to OTHER ANATOMY

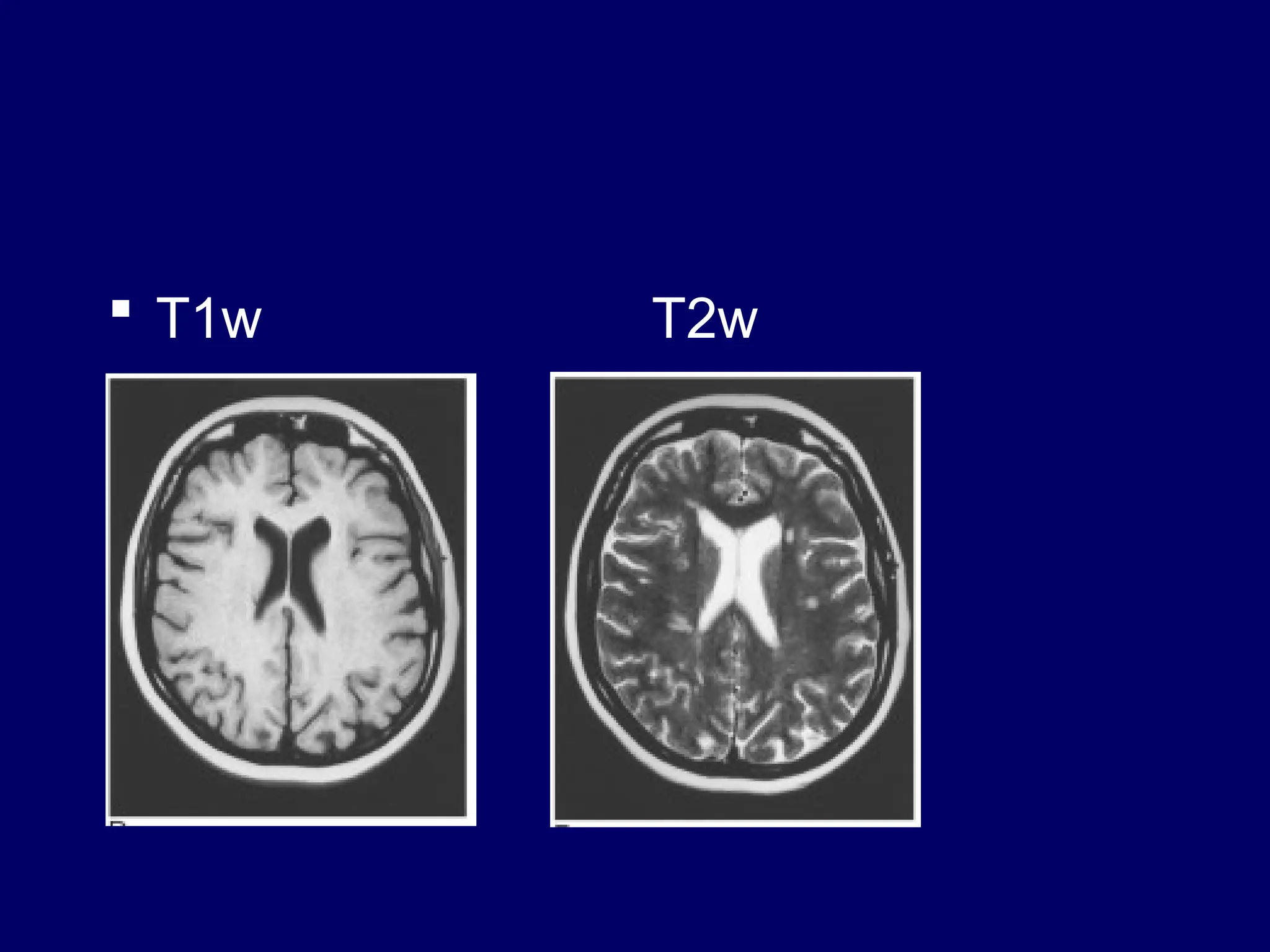

41.  T1w T2w

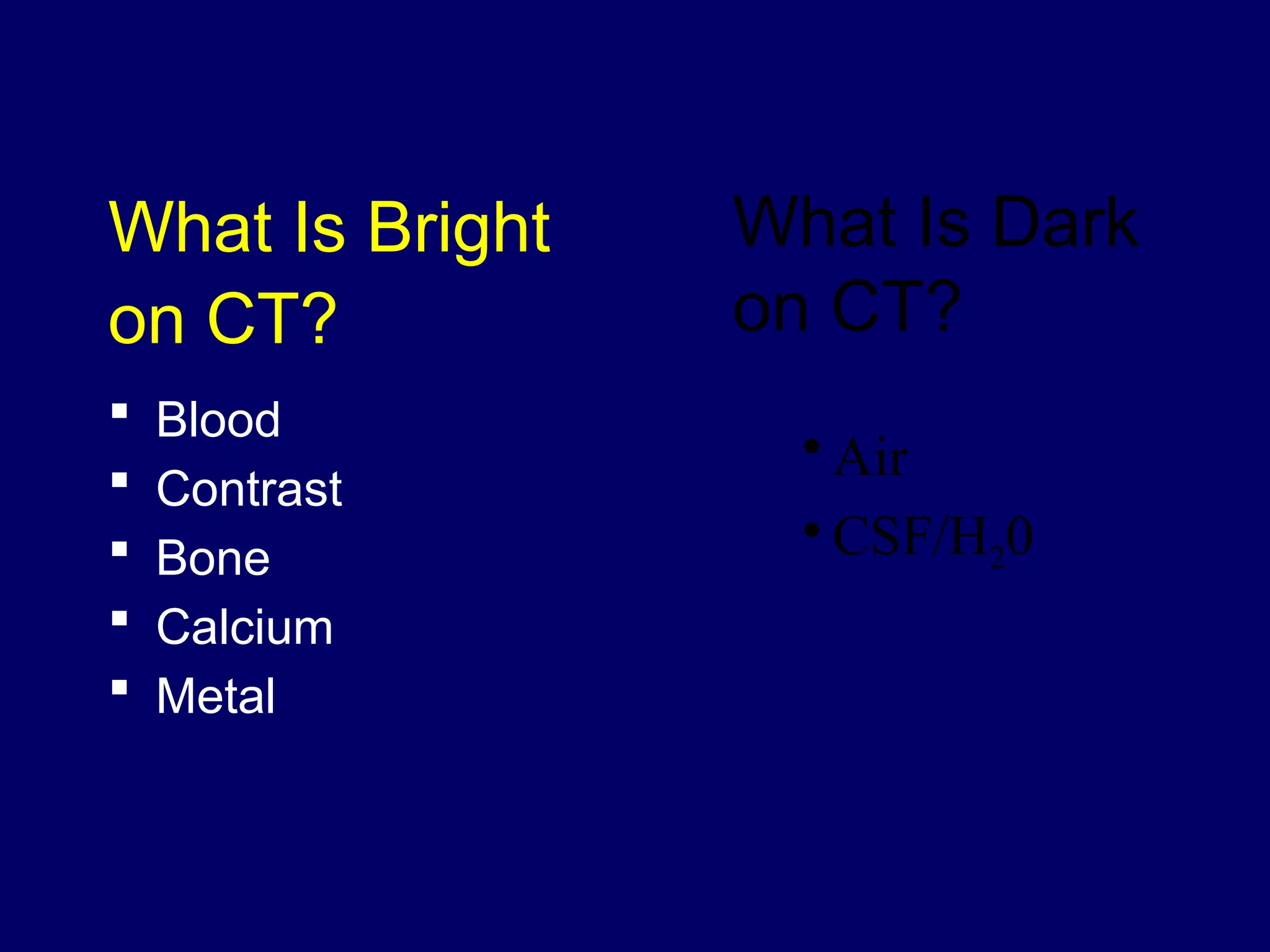

42. What Is Bright
on CT?
 Blood
 Contrast
 Bone
 Calcium
 Metal
What Is Dark
on CT?
• Air
• CSF/H20

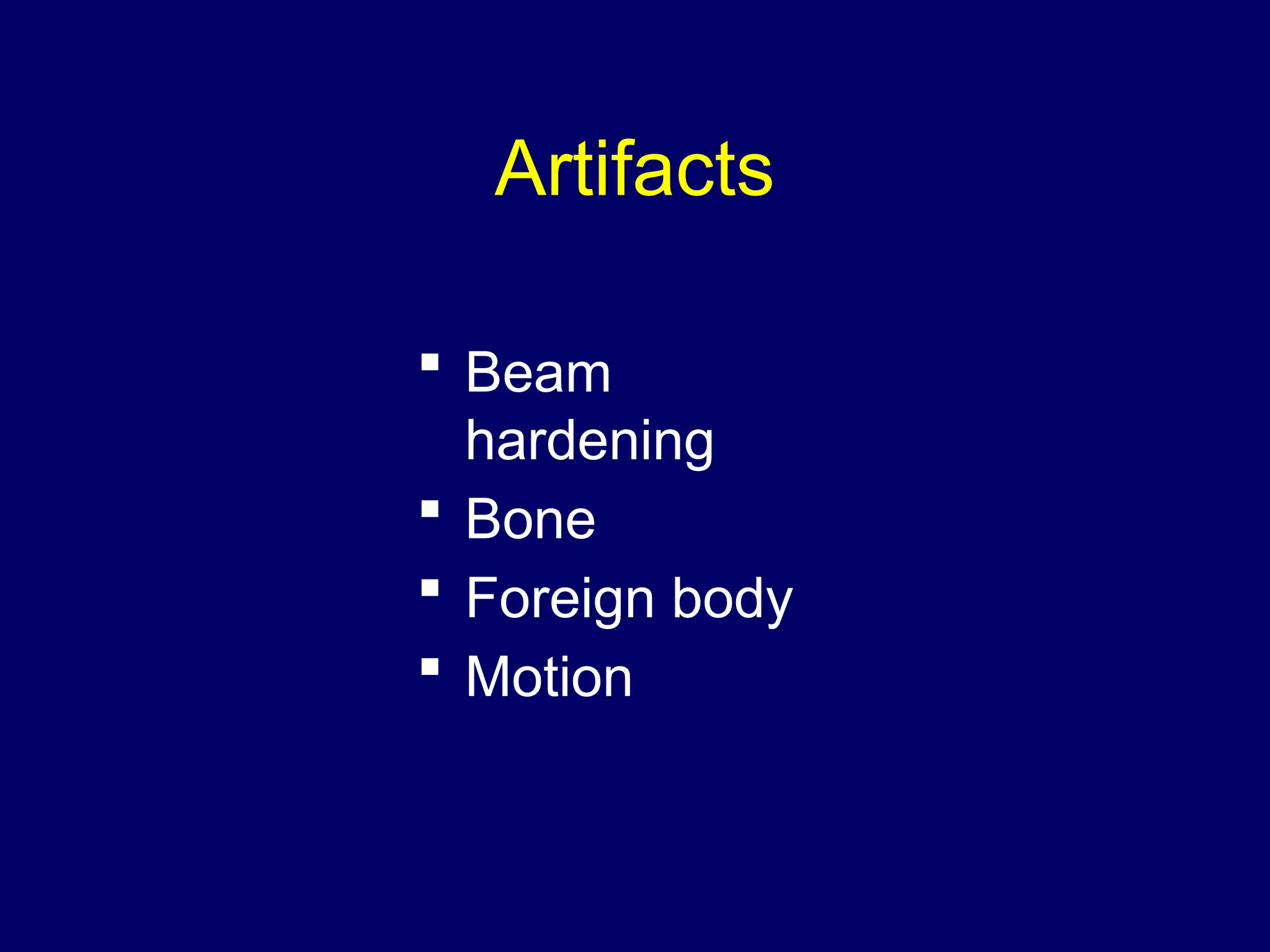

43. Artifacts
 Beam
hardening
 Bone
 Foreign body
 Motion

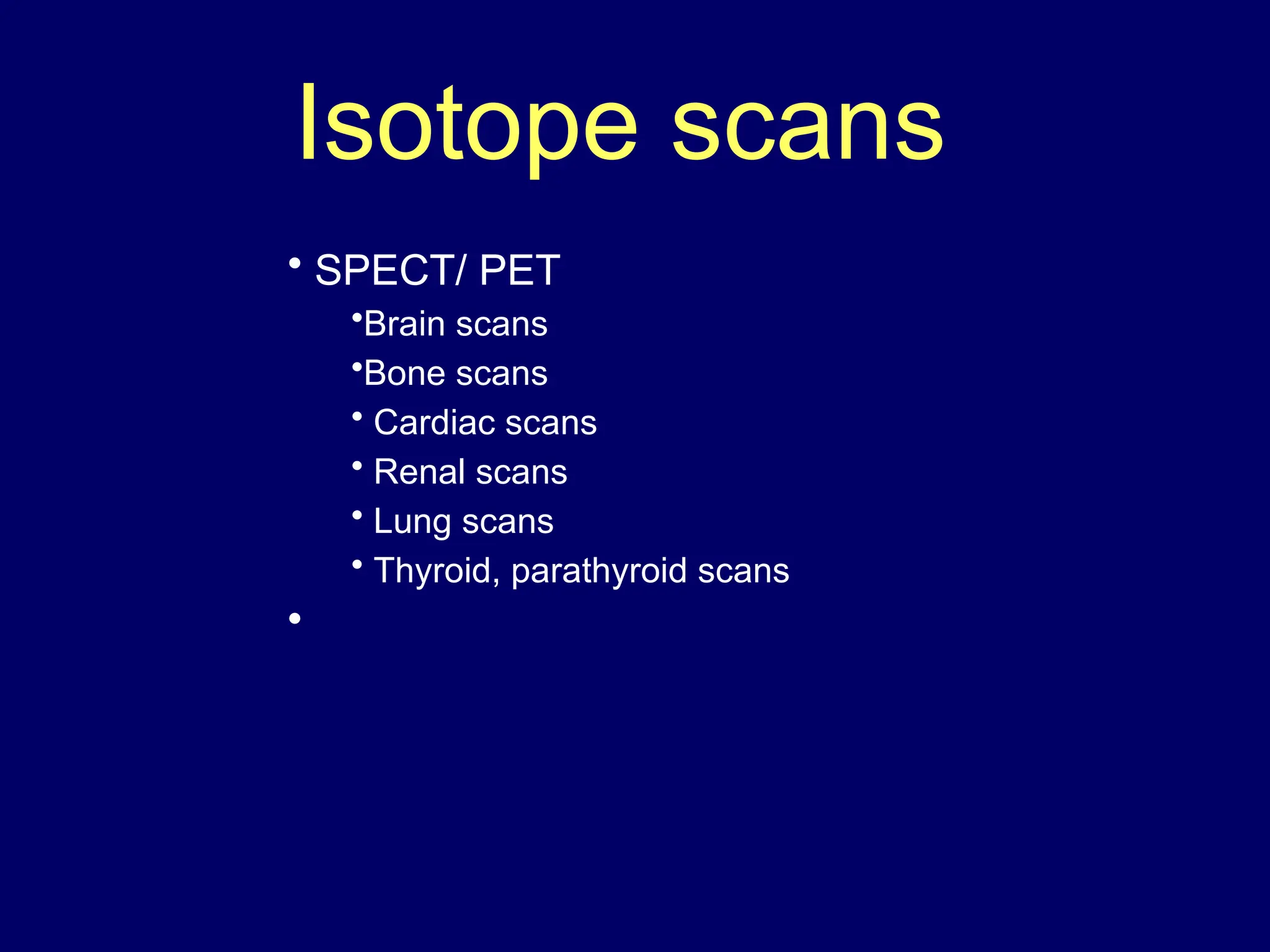

45. • SPECT/ PET
•Brain scans
•Bone scans
• Cardiac scans
• Renal scans
• Lung scans
• Thyroid, parathyroid scans
•
Isotope scans

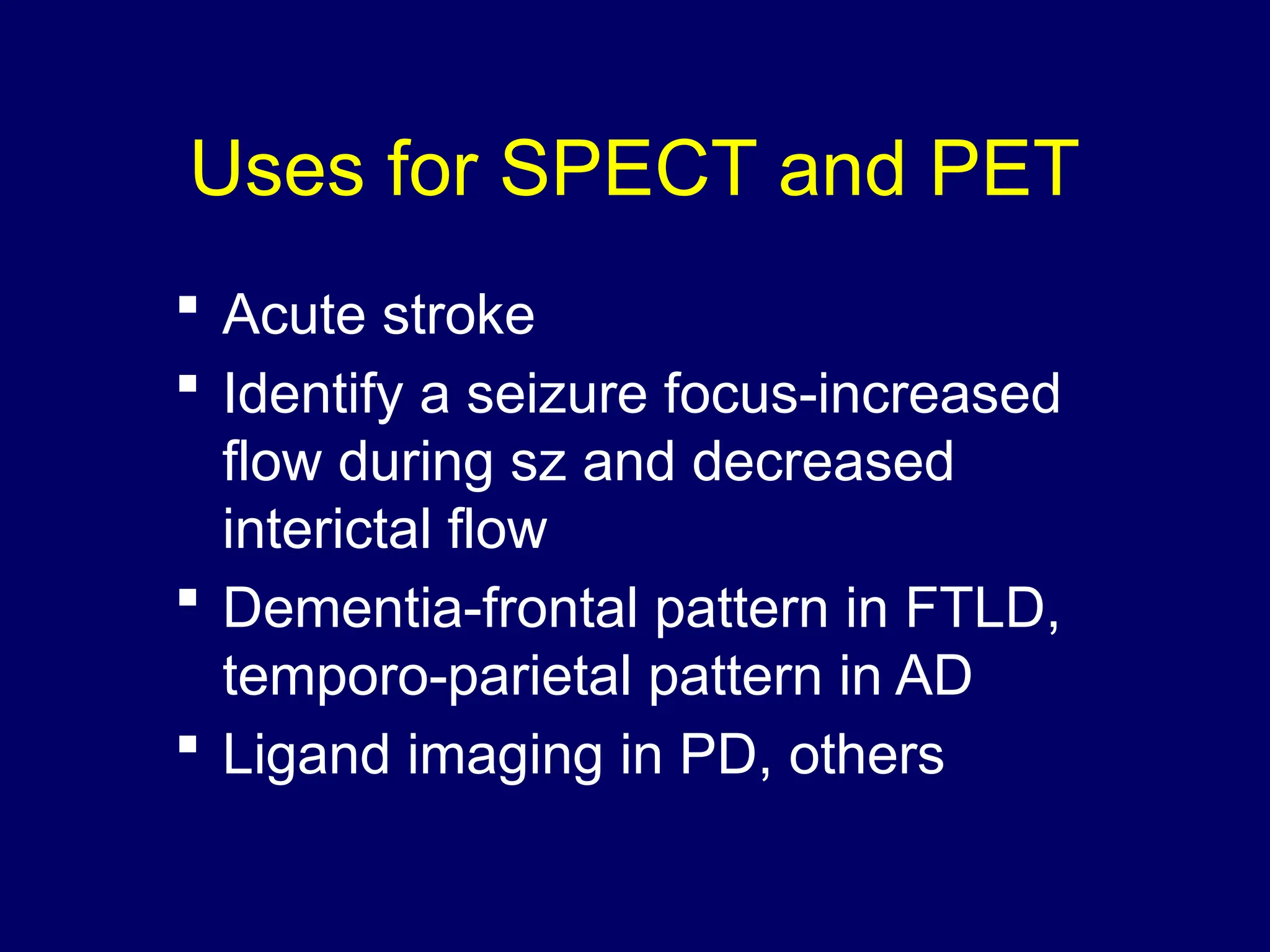

46. Uses for SPECT and PET
 Acute stroke
 Identify a seizure focus-increased
flow during sz and decreased
interictal flow
 Dementia-frontal pattern in FTLD,
temporo-parietal pattern in AD
 Ligand imaging in PD, others

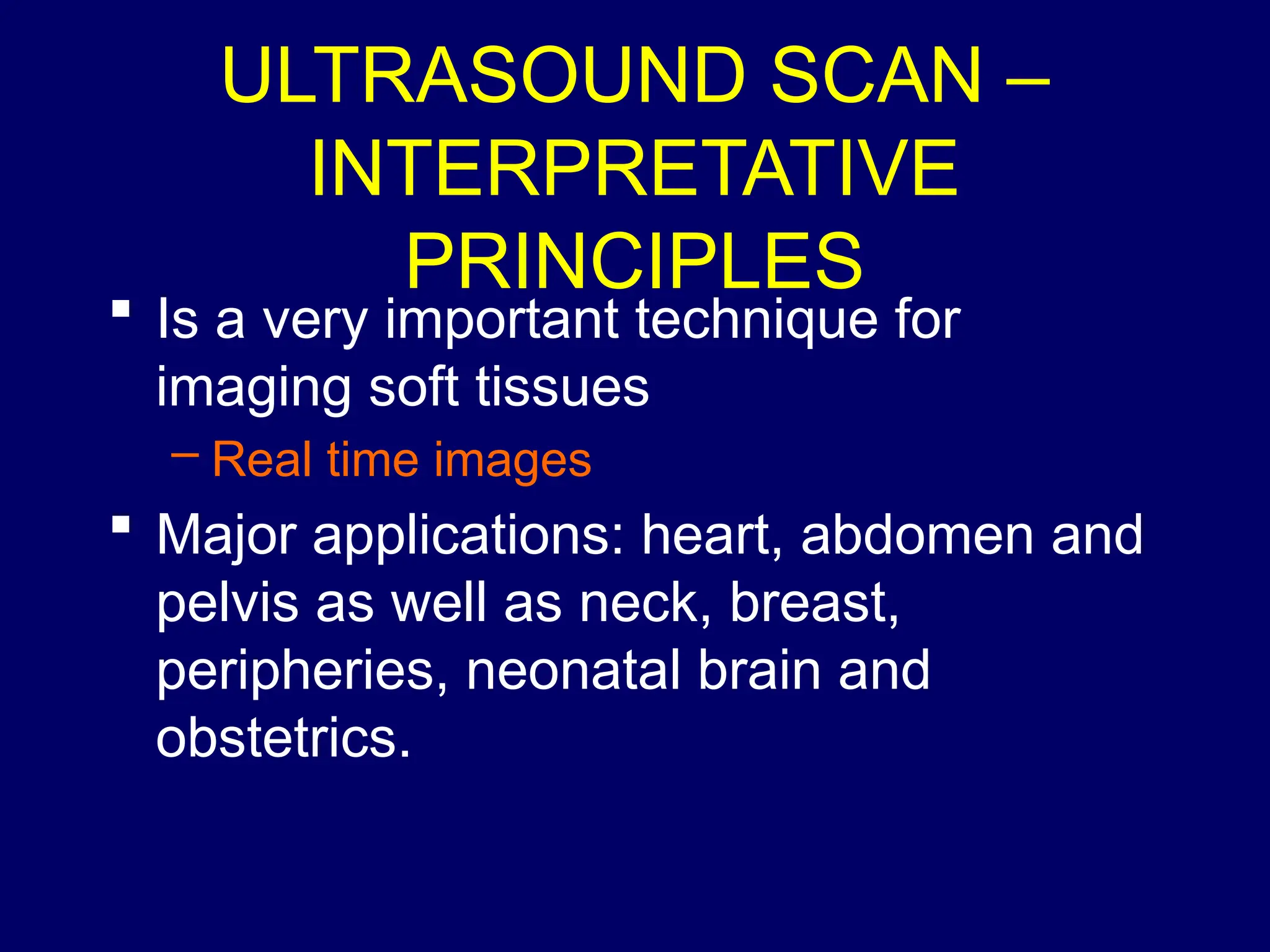

47. ULTRASOUND SCAN –
INTERPRETATIVE
PRINCIPLES
 Is a very important technique for
imaging soft tissues
– Real time images
 Major applications: heart, abdomen and
pelvis as well as neck, breast,
peripheries, neonatal brain and
obstetrics.

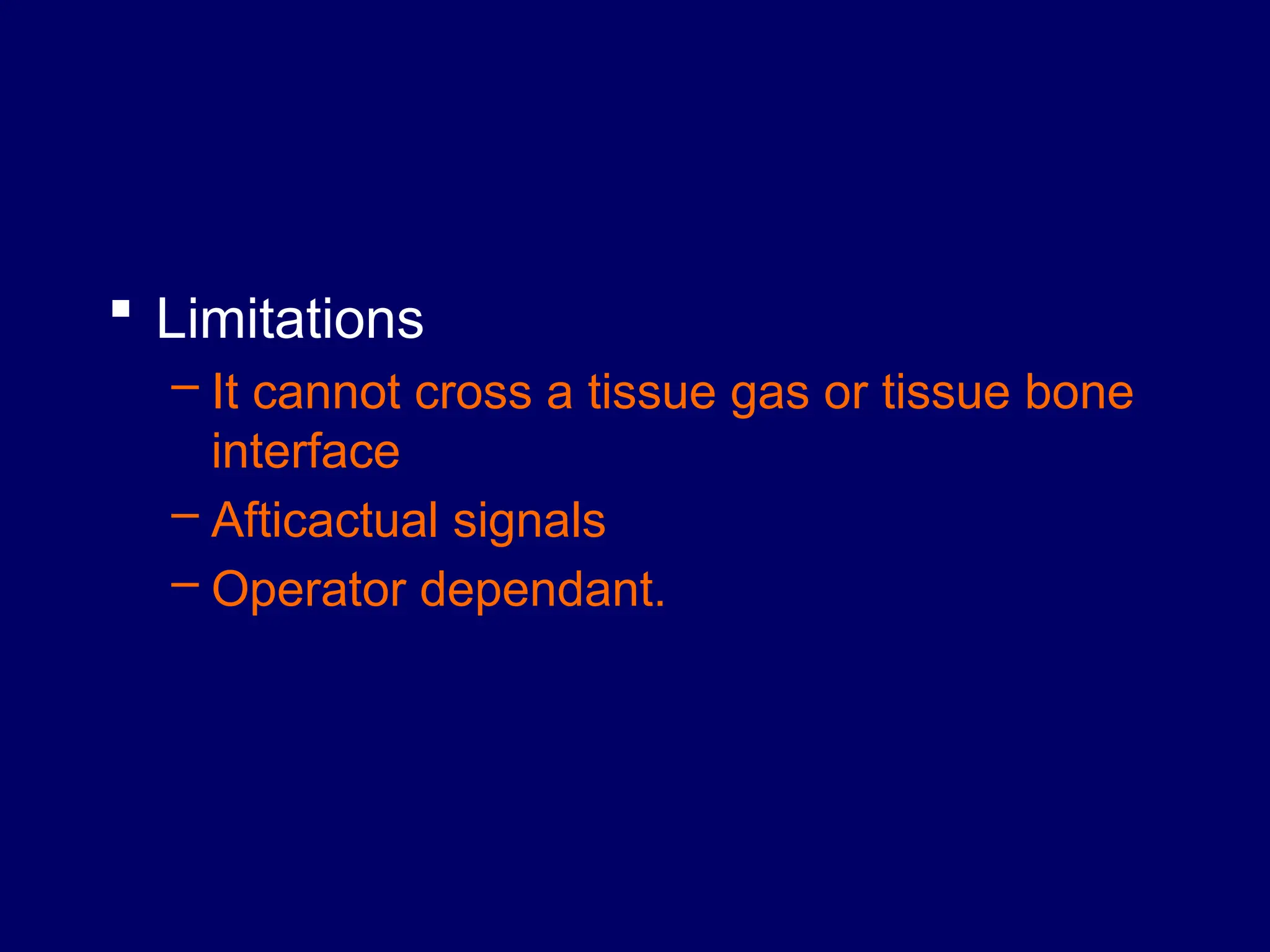

48.  Limitations
– It cannot cross a tissue gas or tissue bone
interface
– Afticactual signals
– Operator dependant.

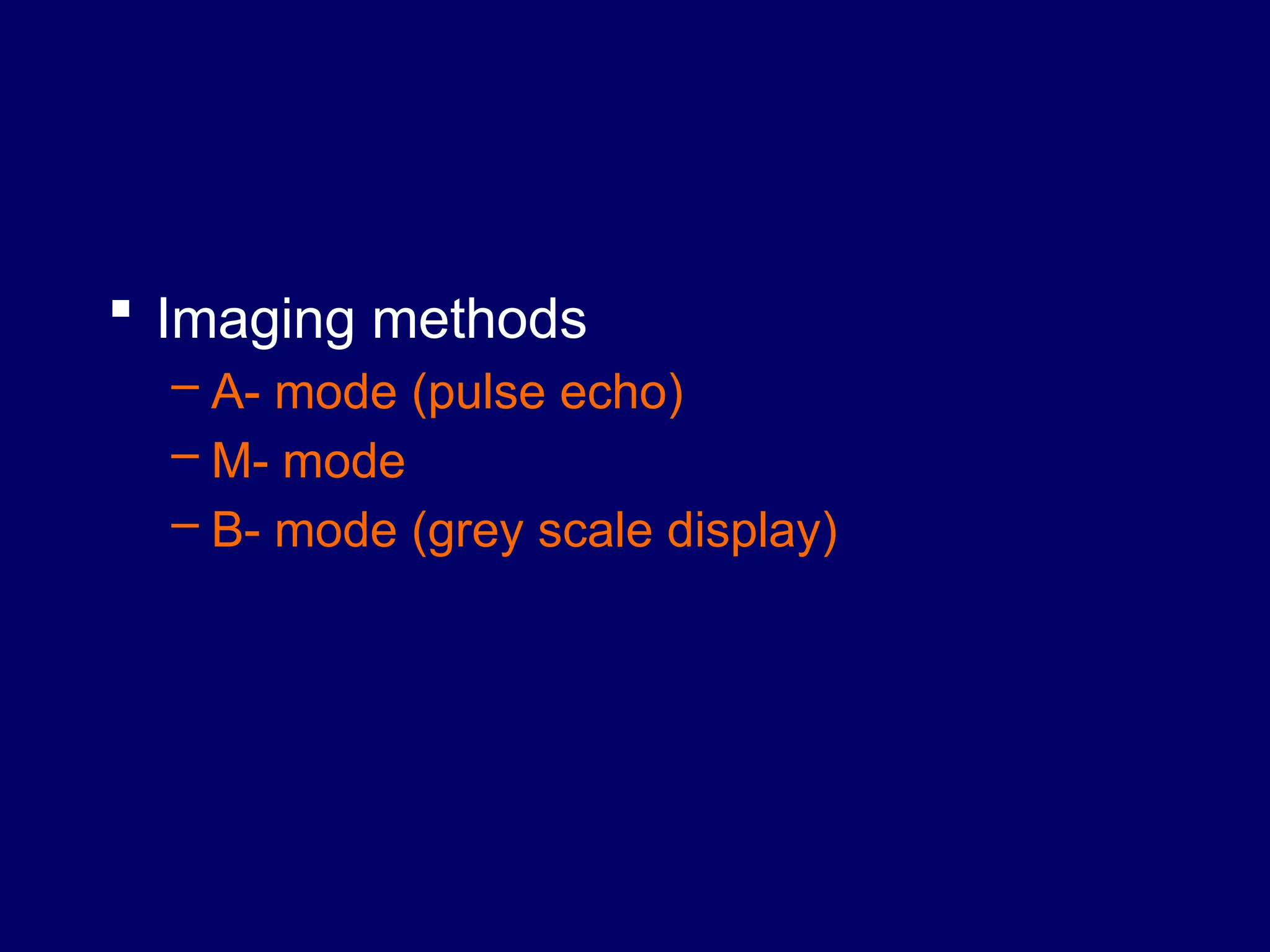

49.  Imaging methods
– A- mode (pulse echo)
– M- mode
– B- mode (grey scale display)

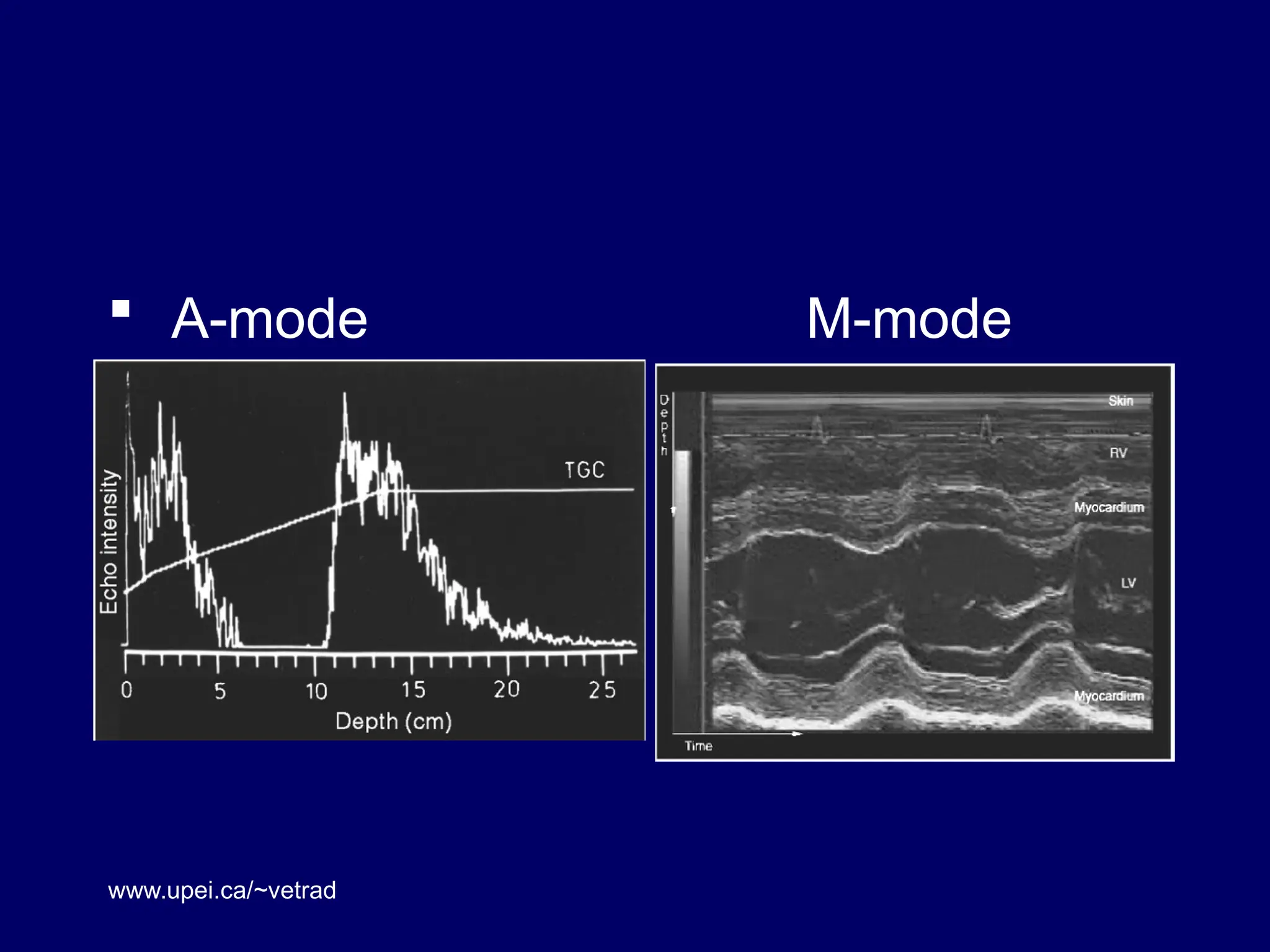

50.  A-mode M-mode
www.upei.ca/~vetrad

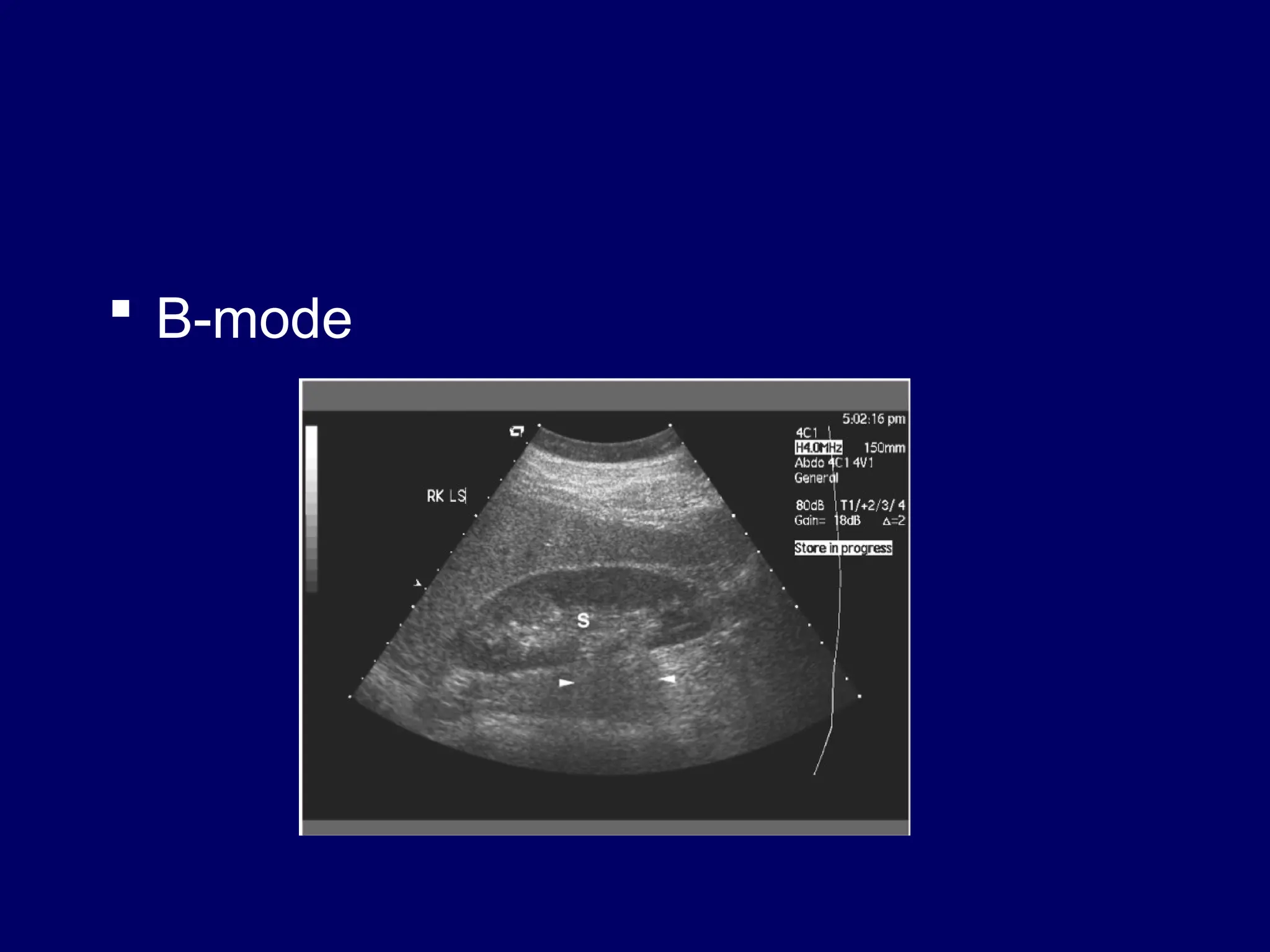

51.  B-mode

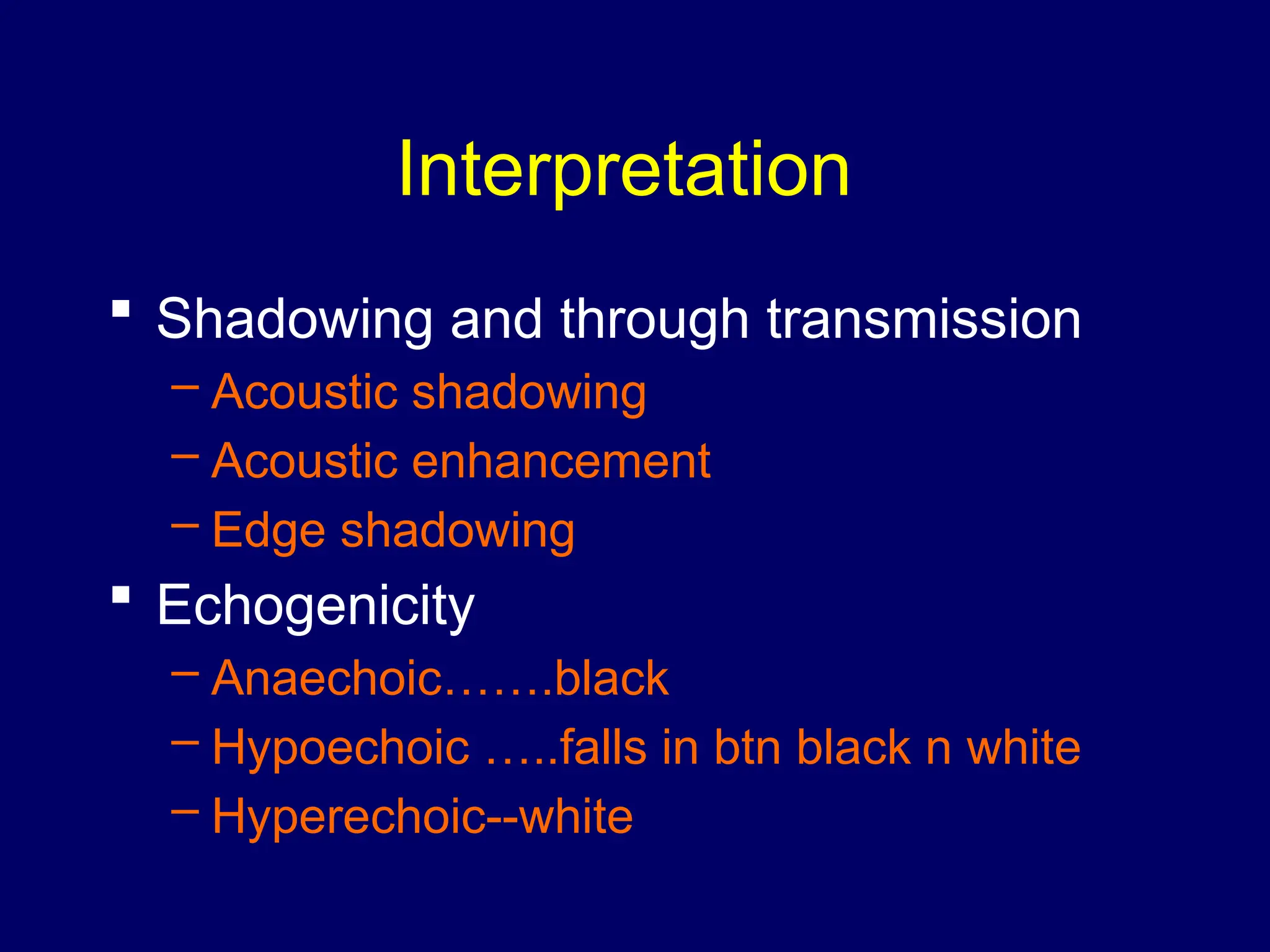

52. Interpretation
 Shadowing and through transmission
– Acoustic shadowing
– Acoustic enhancement
– Edge shadowing
 Echogenicity
– Anaechoic…….black
– Hypoechoic …..falls in btn black n white
– Hyperechoic--white

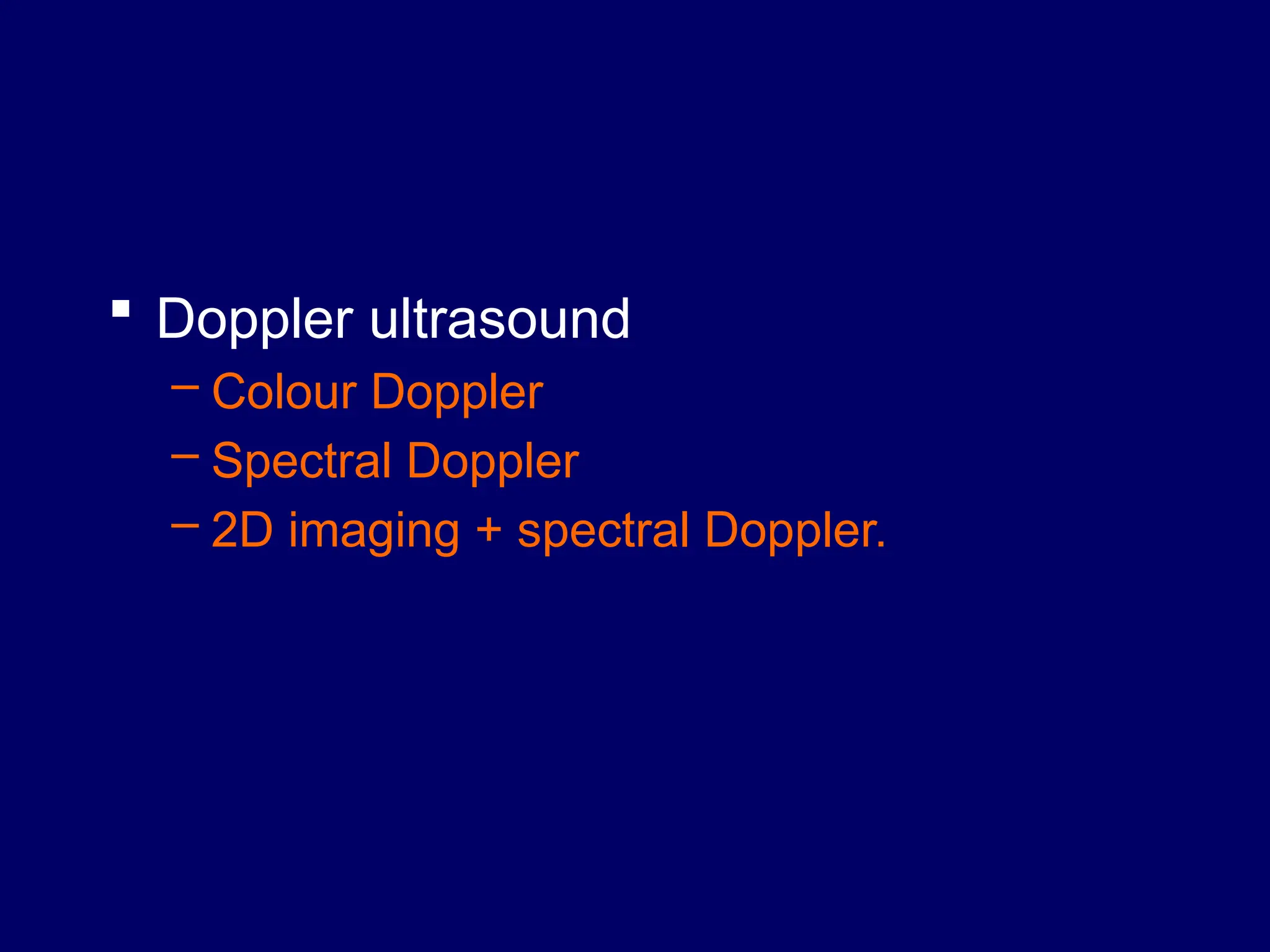

53.  Doppler ultrasound
– Colour Doppler
– Spectral Doppler
– 2D imaging + spectral Doppler.

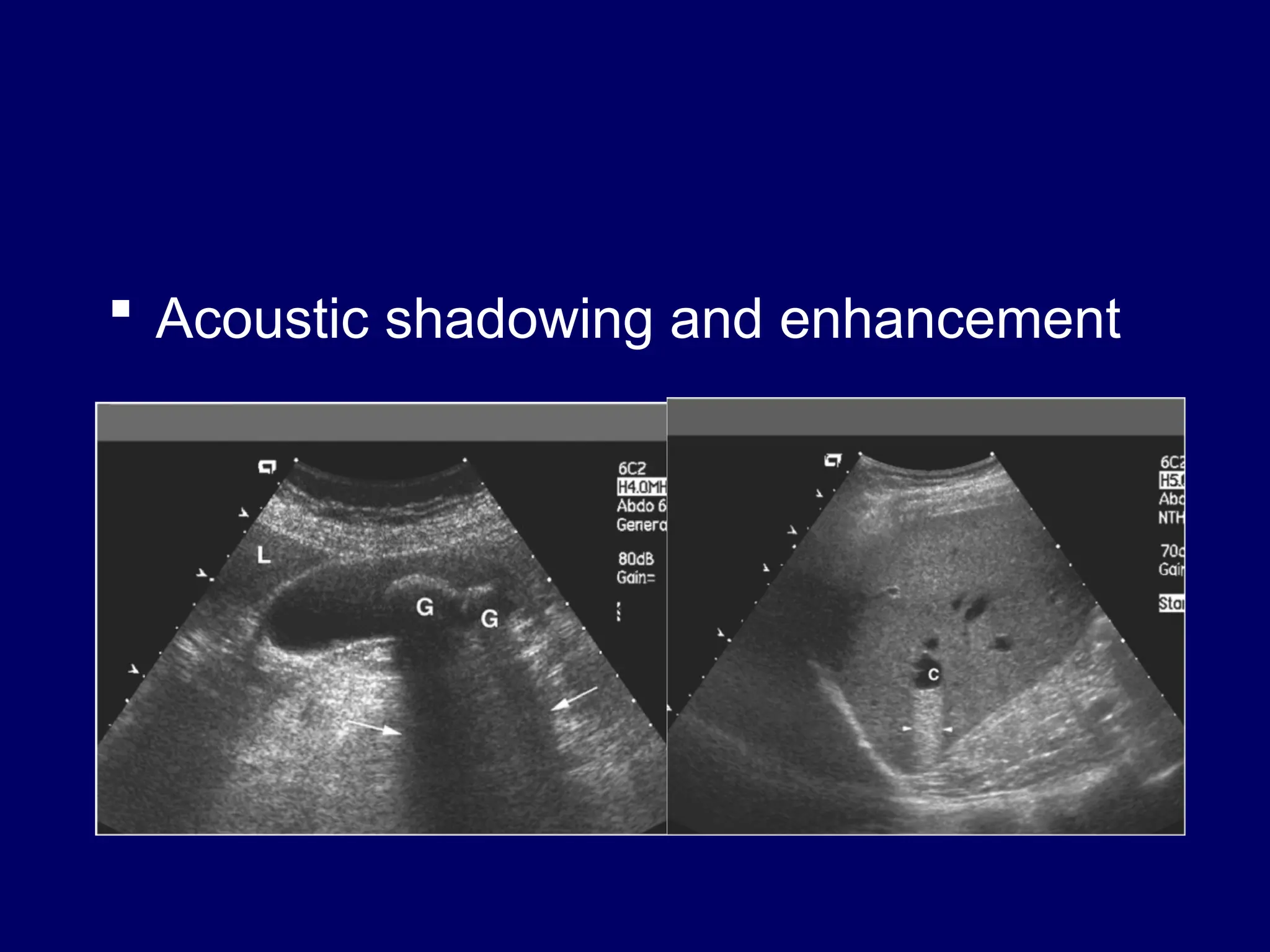

54.  Acoustic shadowing and enhancement

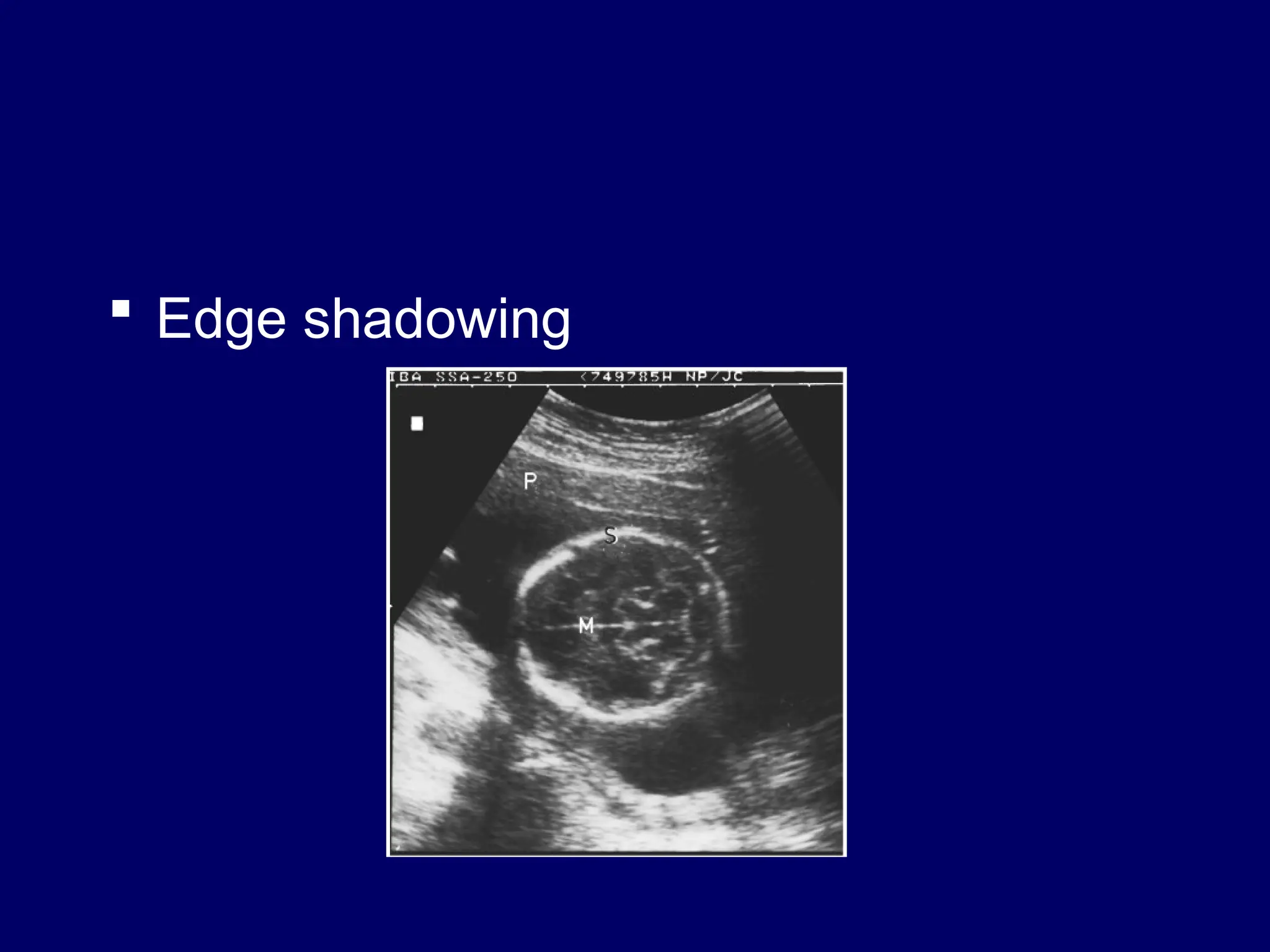

55.  Edge shadowing

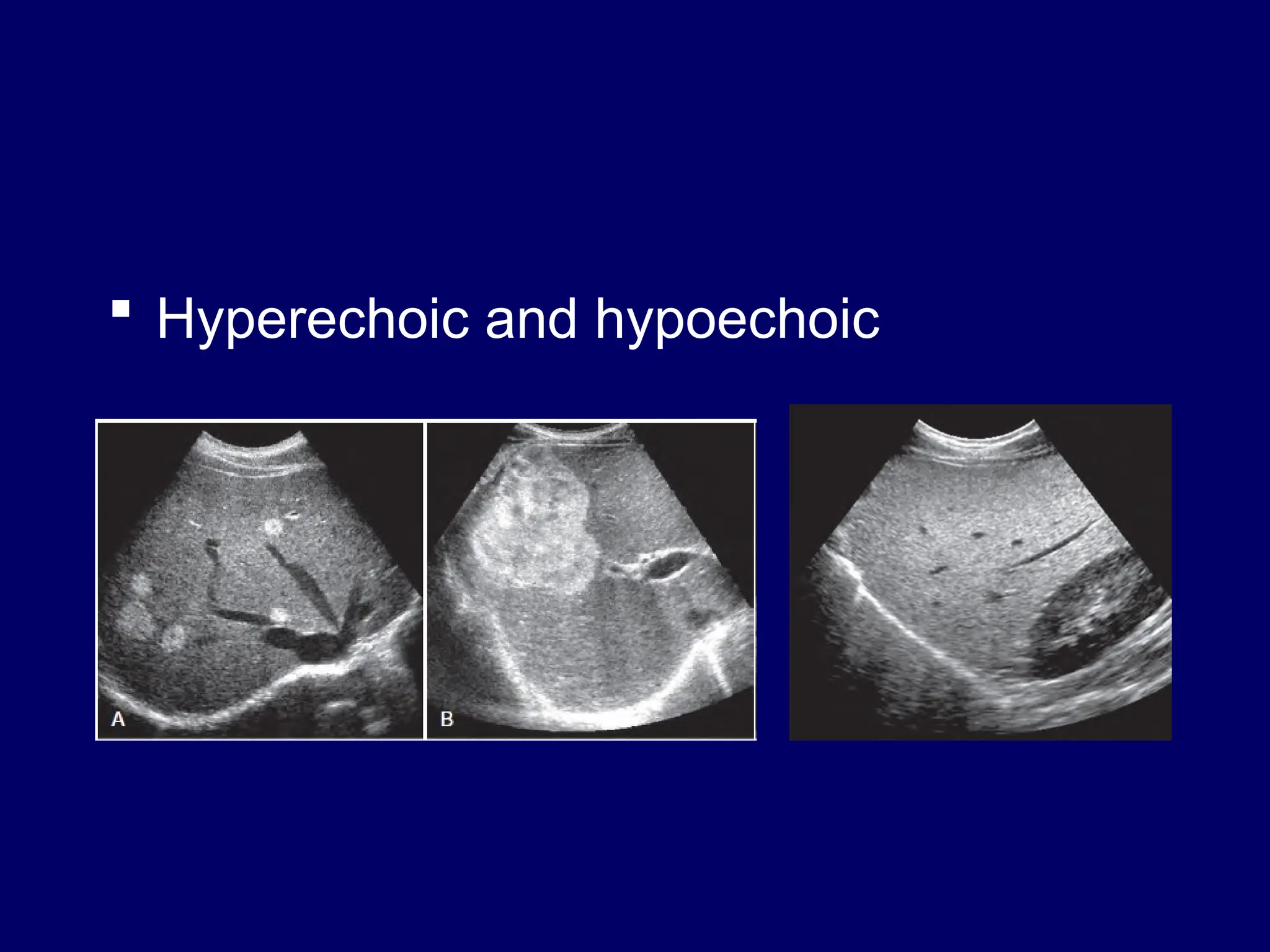

56.  Hyperechoic and hypoechoic

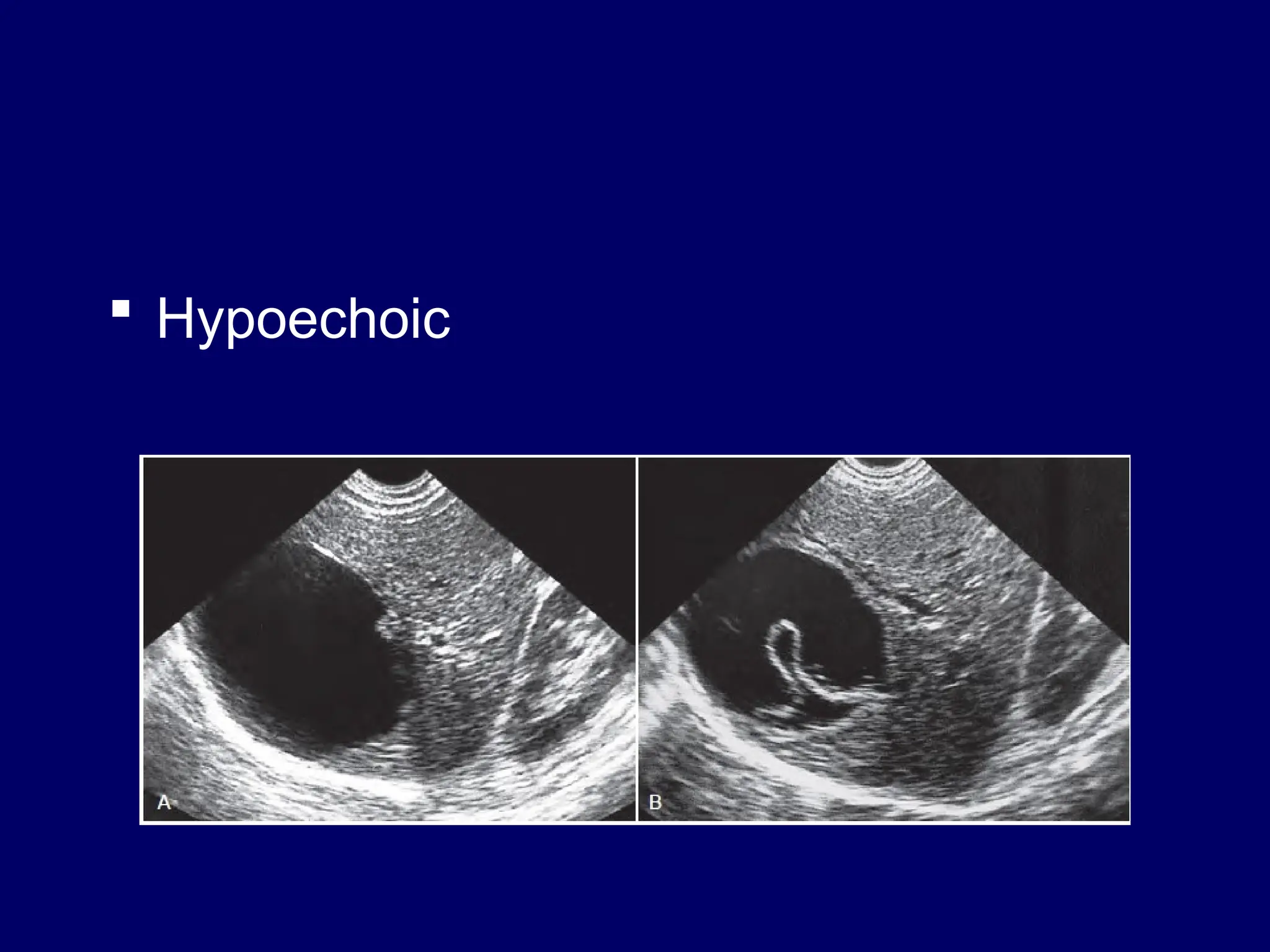

57.  Hypoechoic

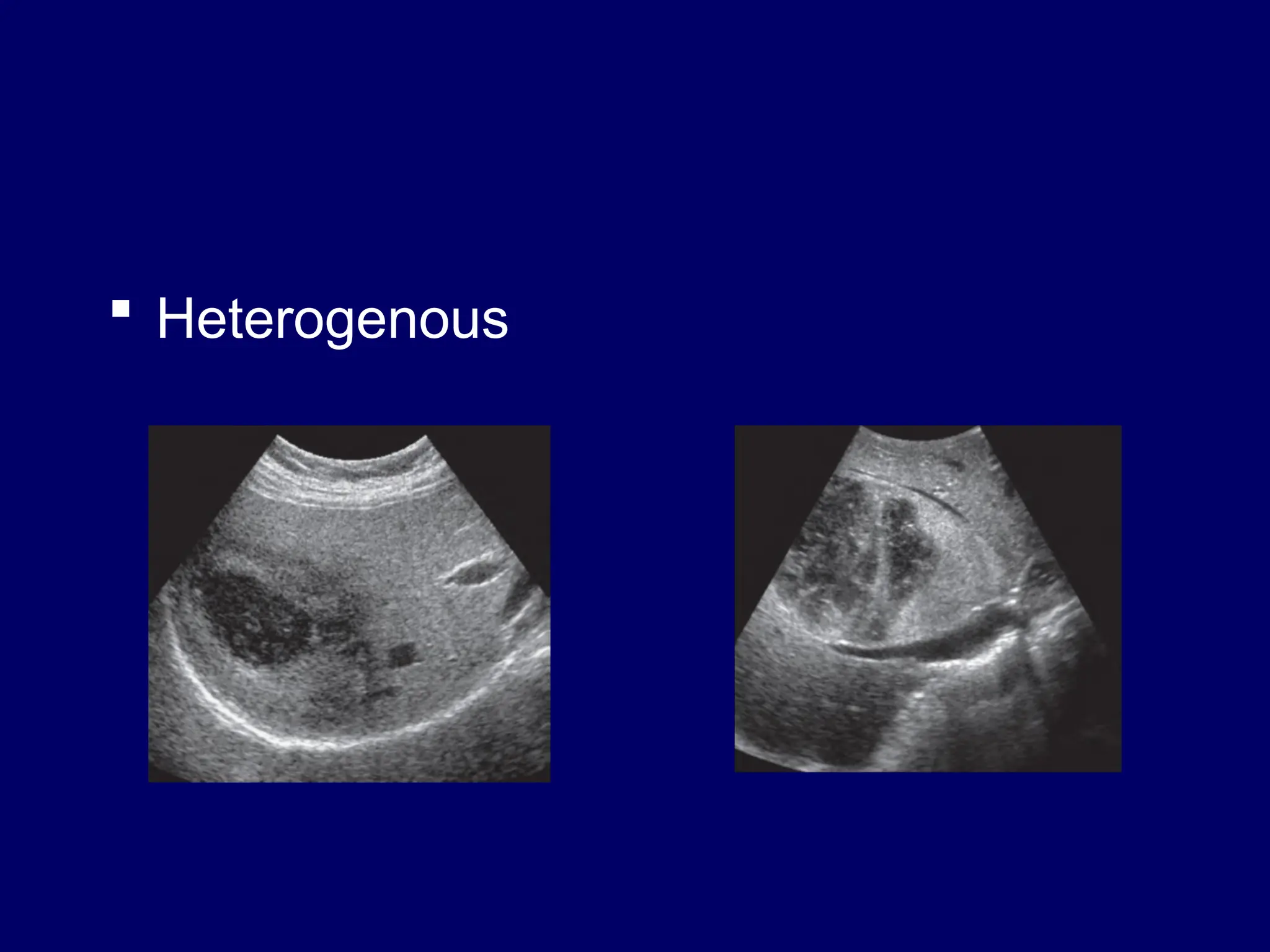

58.  Heterogenous

59. A FEW CASES…

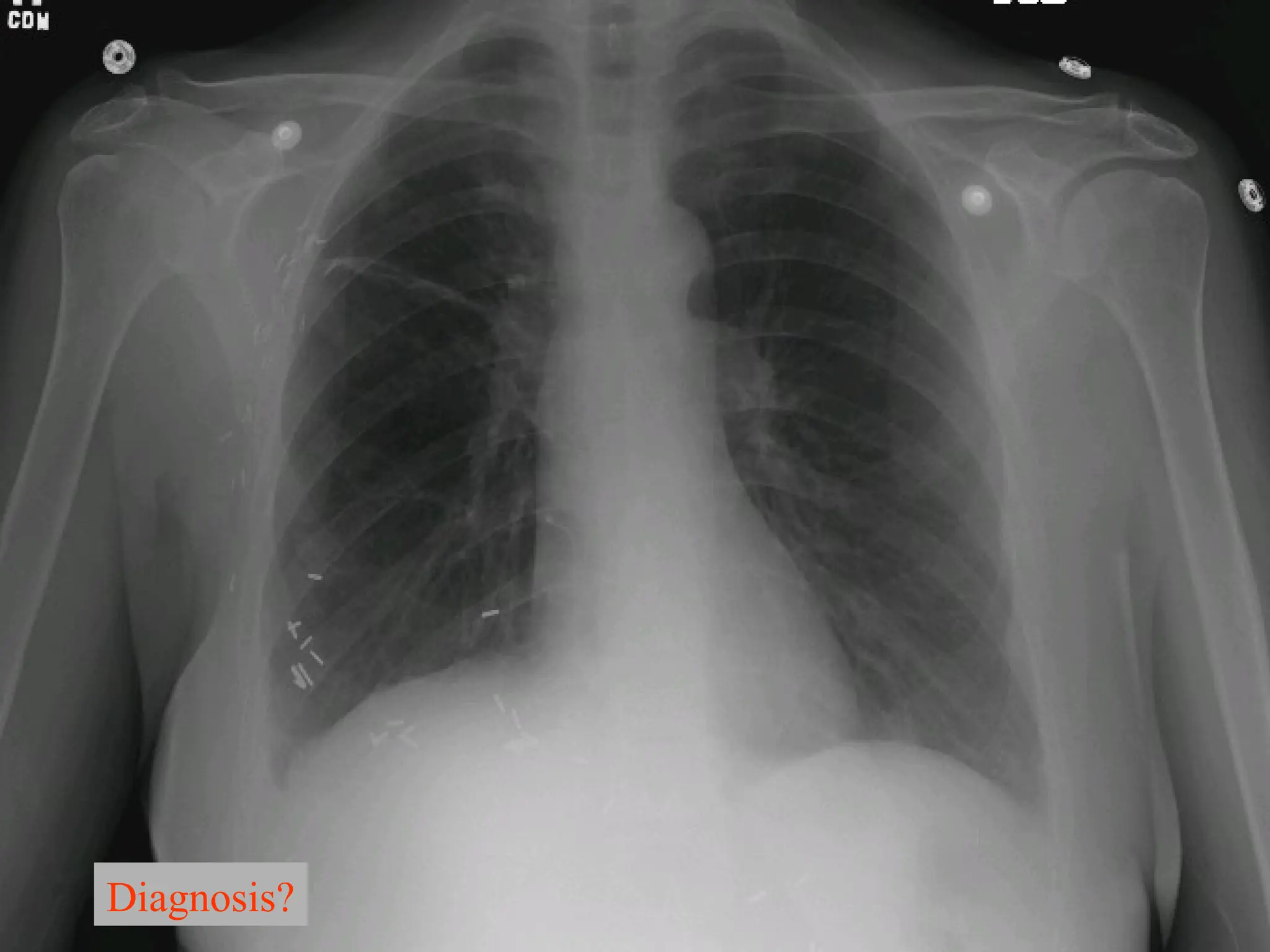

60. Diagnosis?

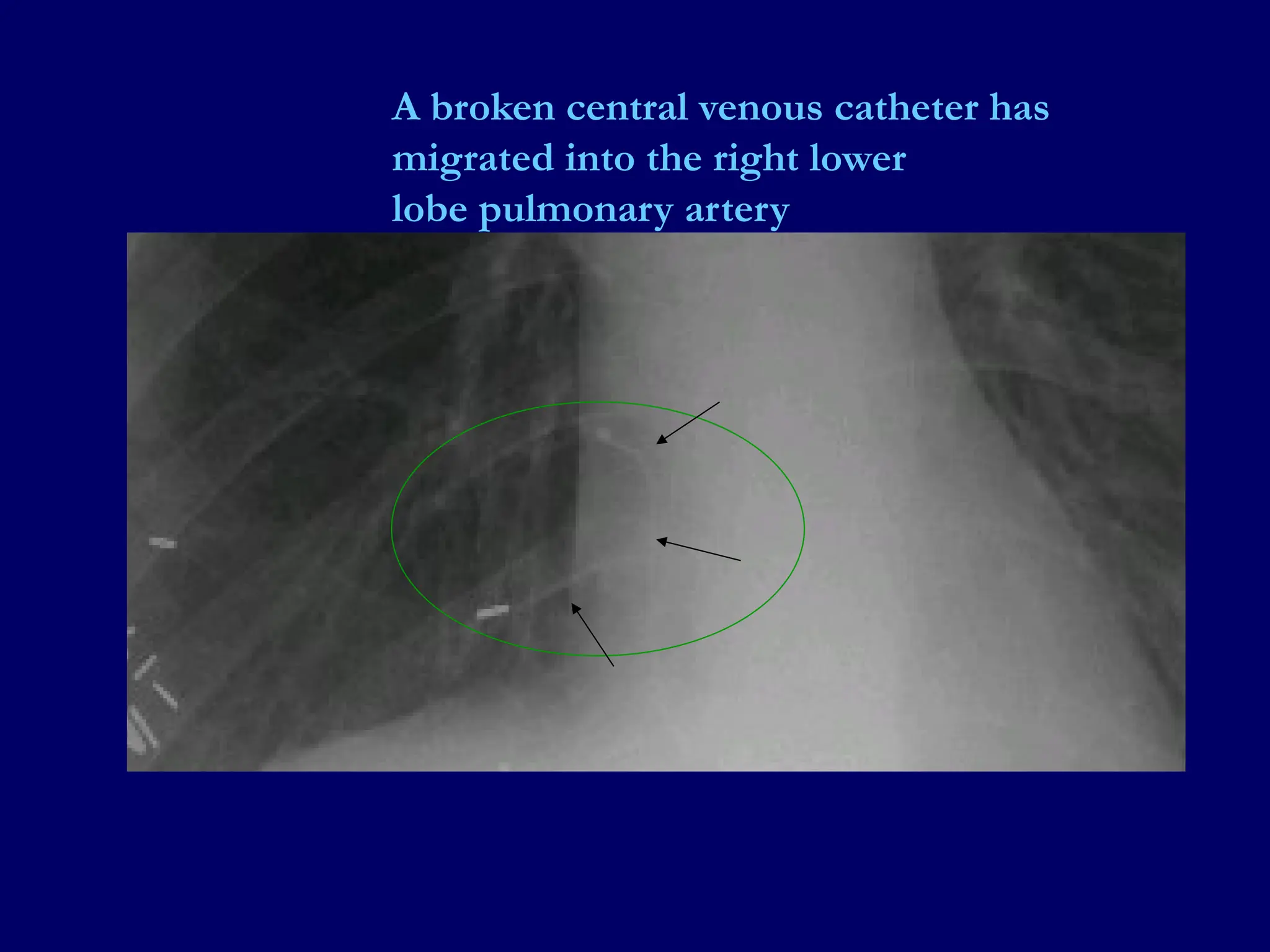

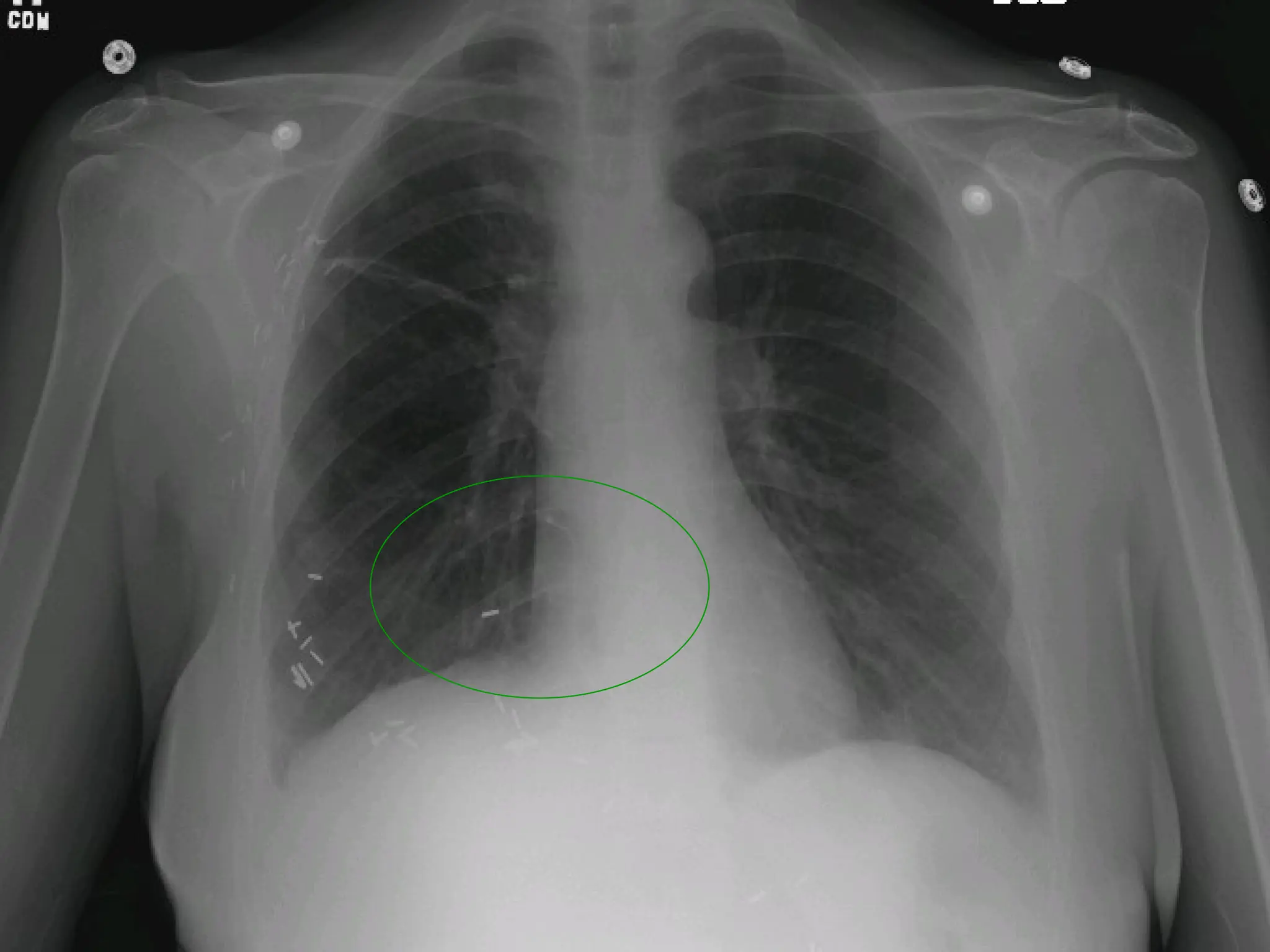

62. A broken central venous catheter has
migrated into the right lower
lobe pulmonary artery

63. Can you recognize
shapes and density?

64. D
i
Diagnosis?

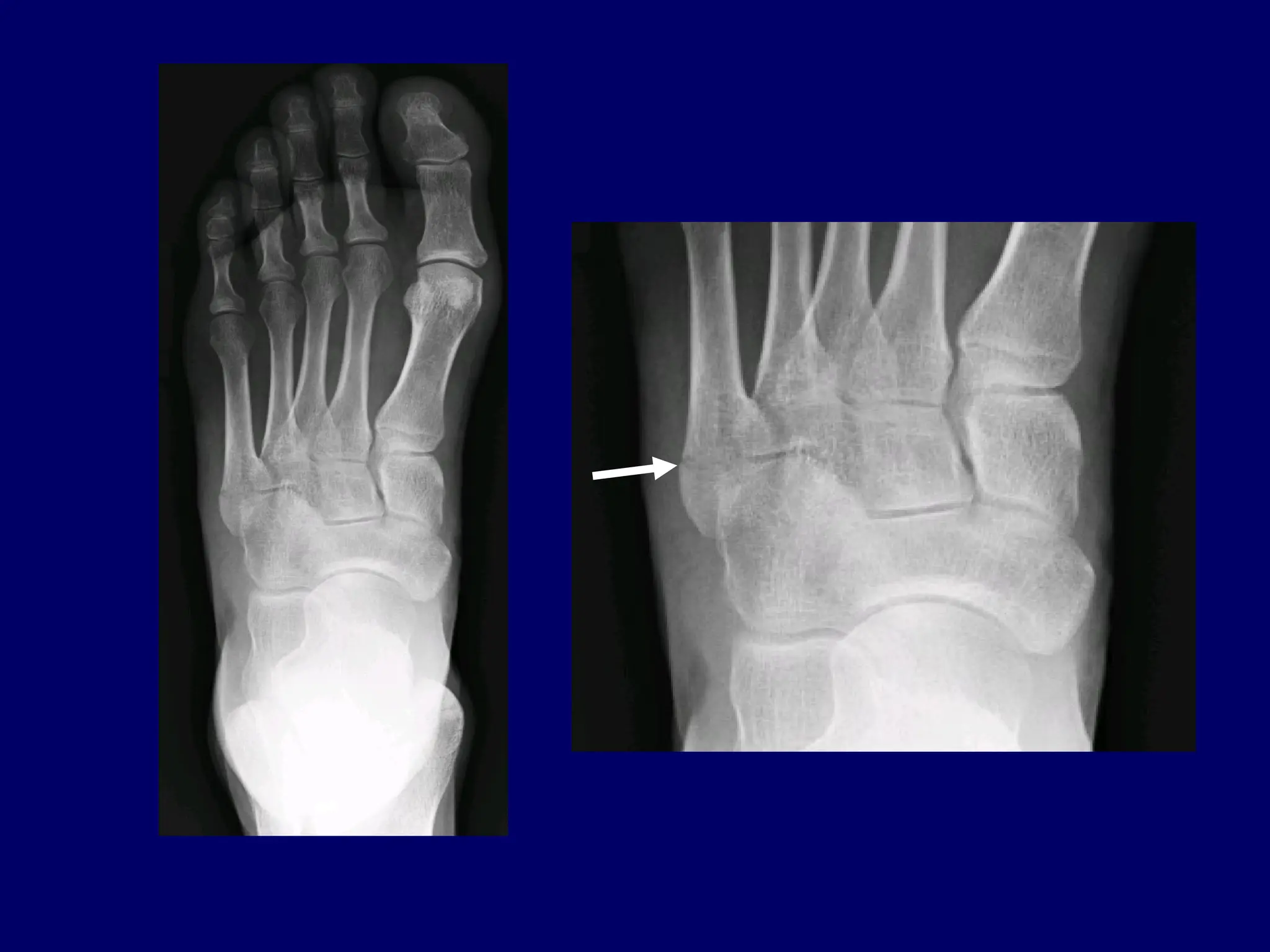

65. History: 11 y/o twisting
injury of the foot

67. 1.
2.
3.
4.
Please name these bones
Word bank:
Cuboid
Navicular
Medial cuneiform
Os naviculare

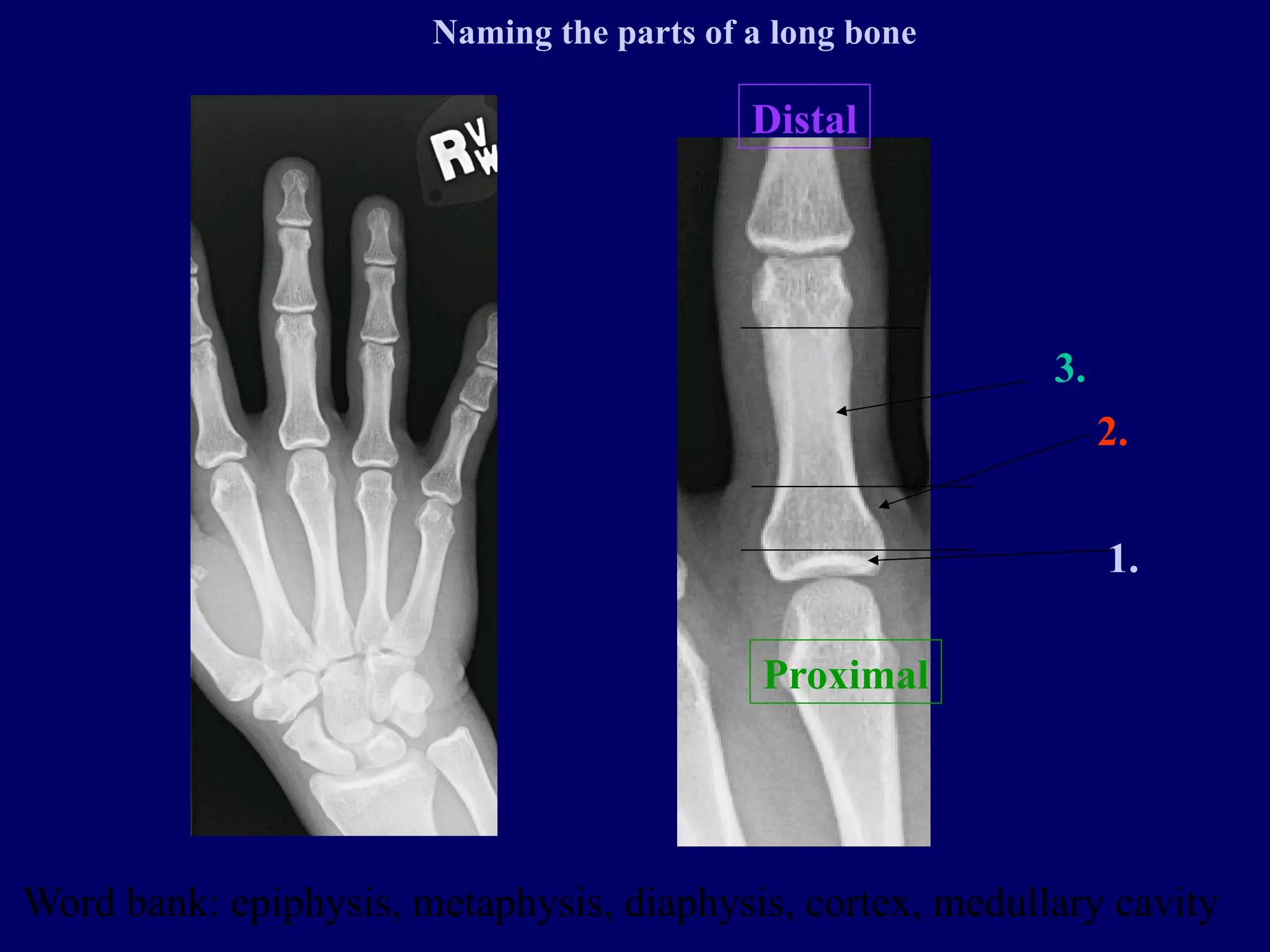

68. Proximal
Distal
1.
2.
3.
Word bank: epiphysis, metaphysis, diaphysis, cortex, medullary cavity
Naming the parts of a long bone

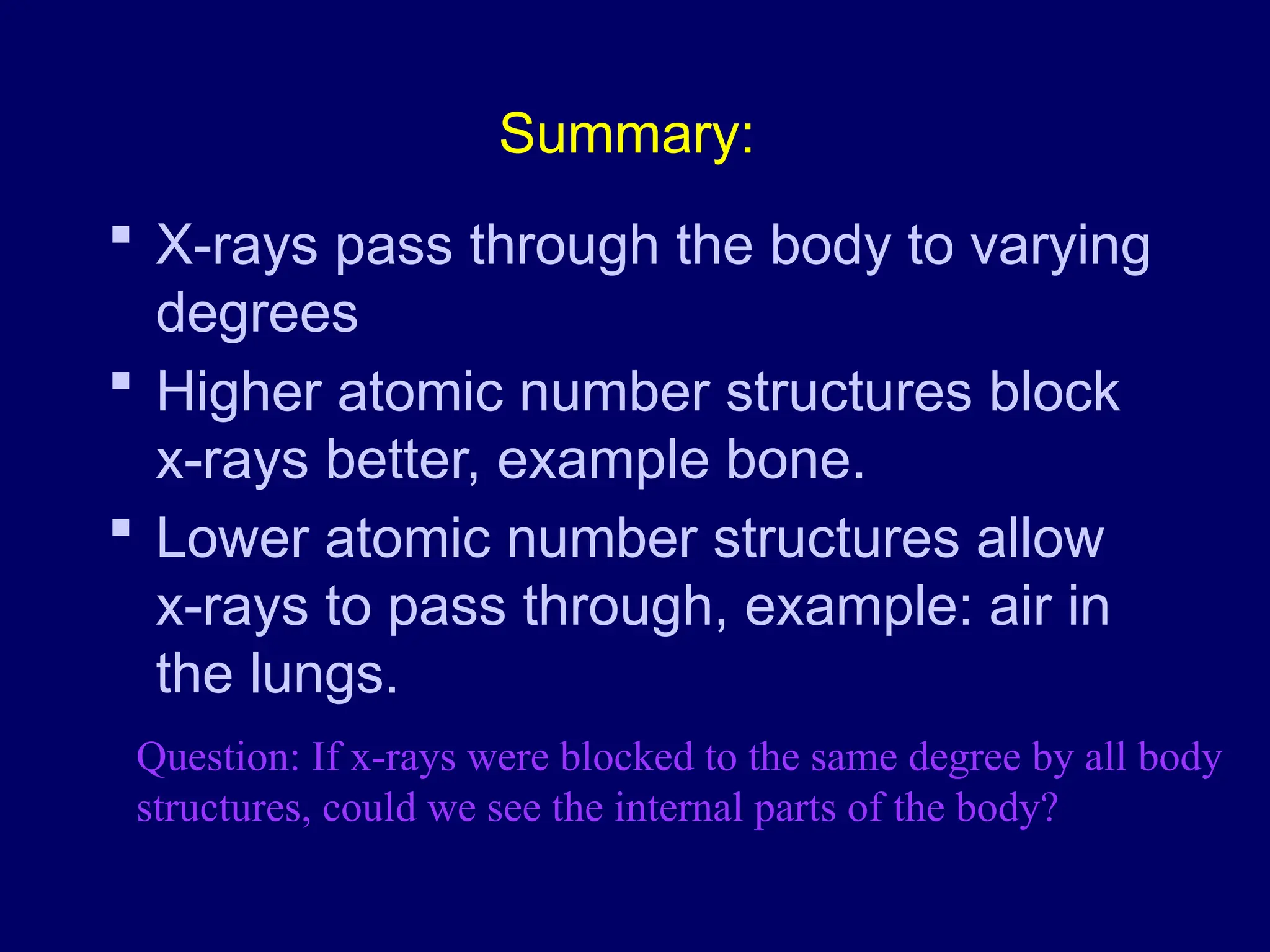

69. Summary:
 X-rays pass through the body to varying
degrees
 Higher atomic number structures block
x-rays better, example bone.
 Lower atomic number structures allow
x-rays to pass through, example: air in
the lungs.
Question: If x-rays were blocked to the same degree by all body
structures, could we see the internal parts of the body?

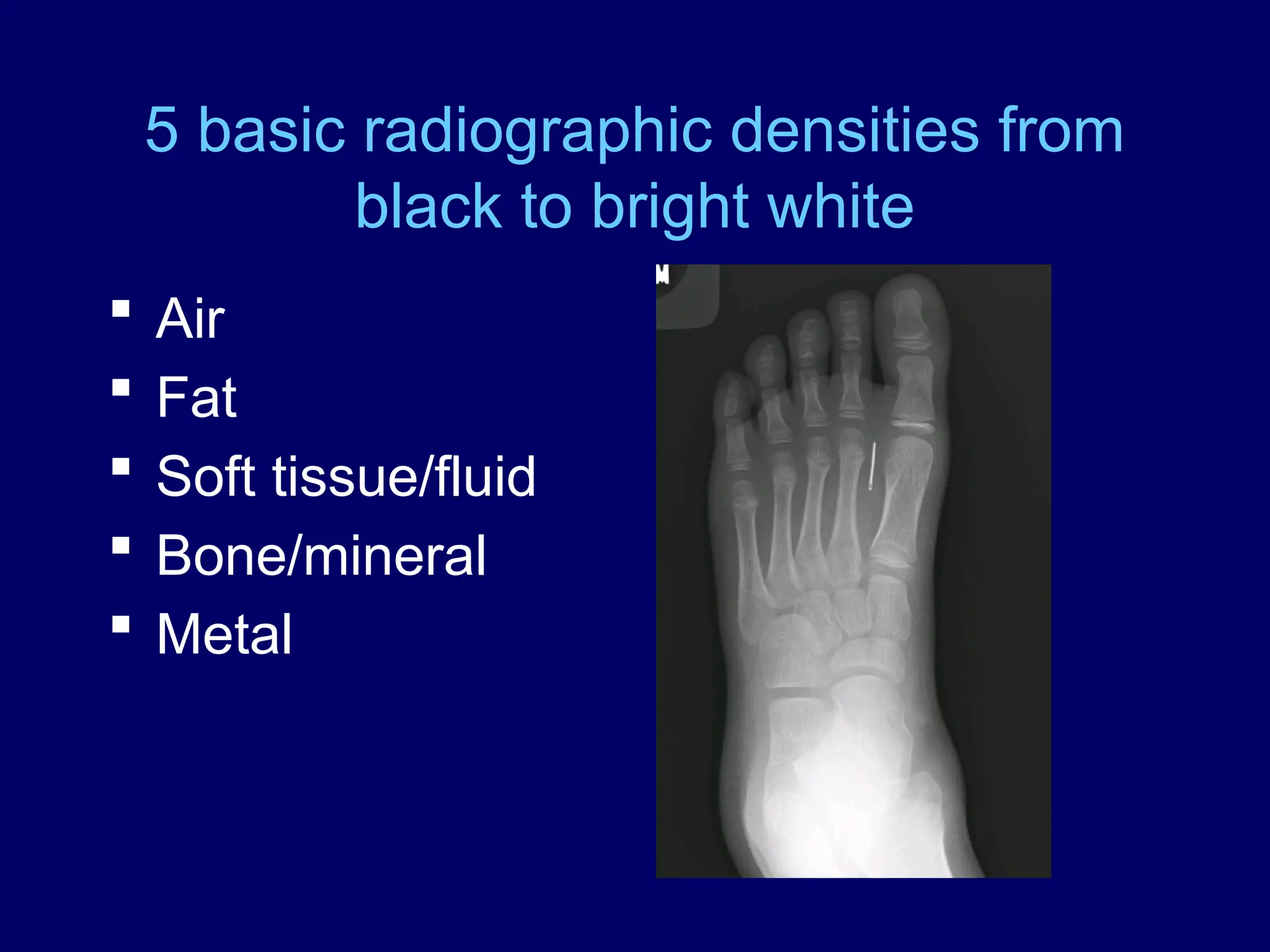

70. 5 basic radiographic densities from
black to bright white
 Air
 Fat
 Soft tissue/fluid
 Bone/mineral
 Metal

71. What density
are the
lungs?
Why?
The list: air, fat, soft tissue, mineral and metal

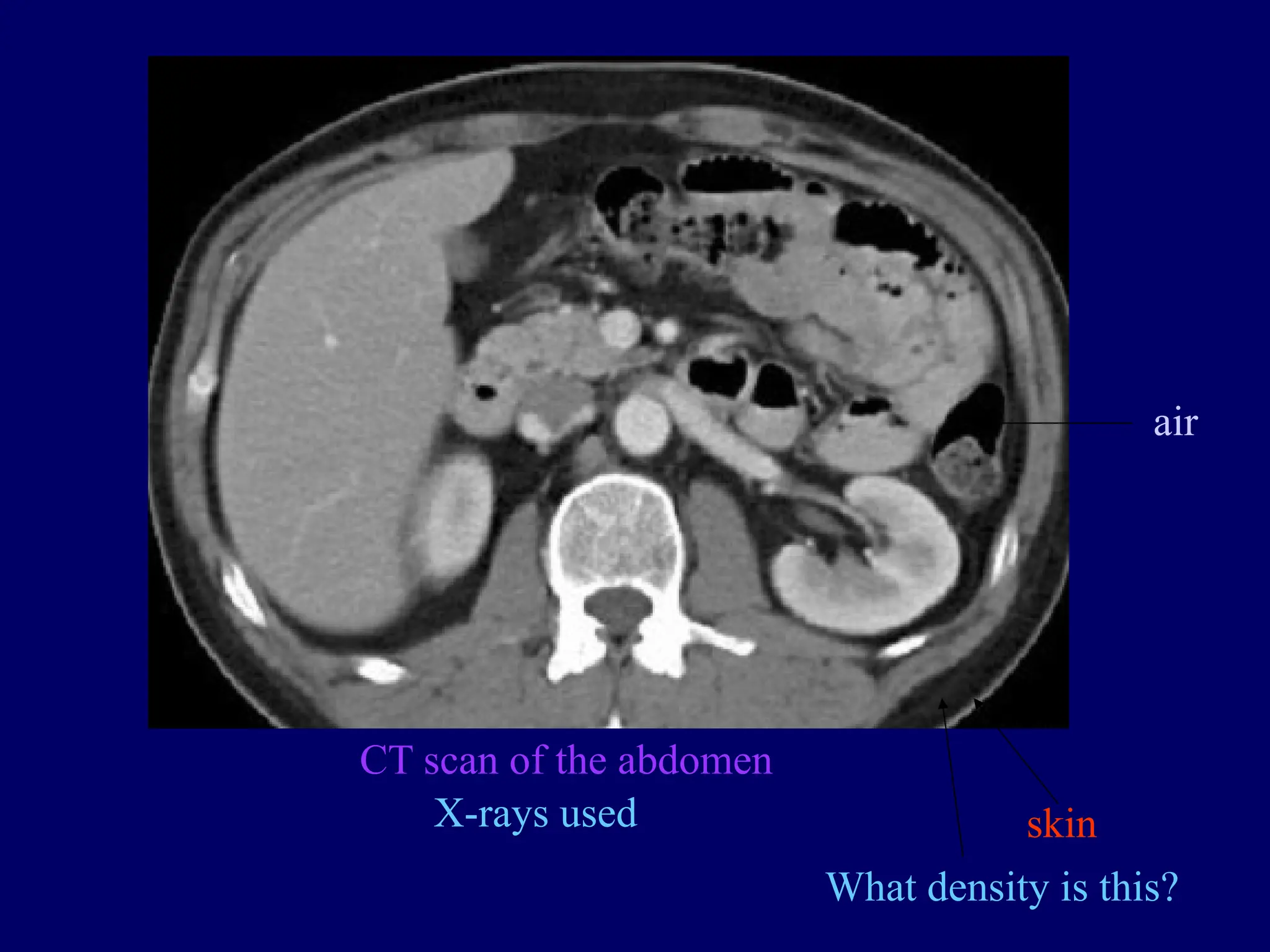

72. CT scan of the abdomen
X-rays used skin
What density is this?
air

73. Absorbed
Passed through

74. Medullary bone
Soft tissue
Metal
Note:
Right-left marker

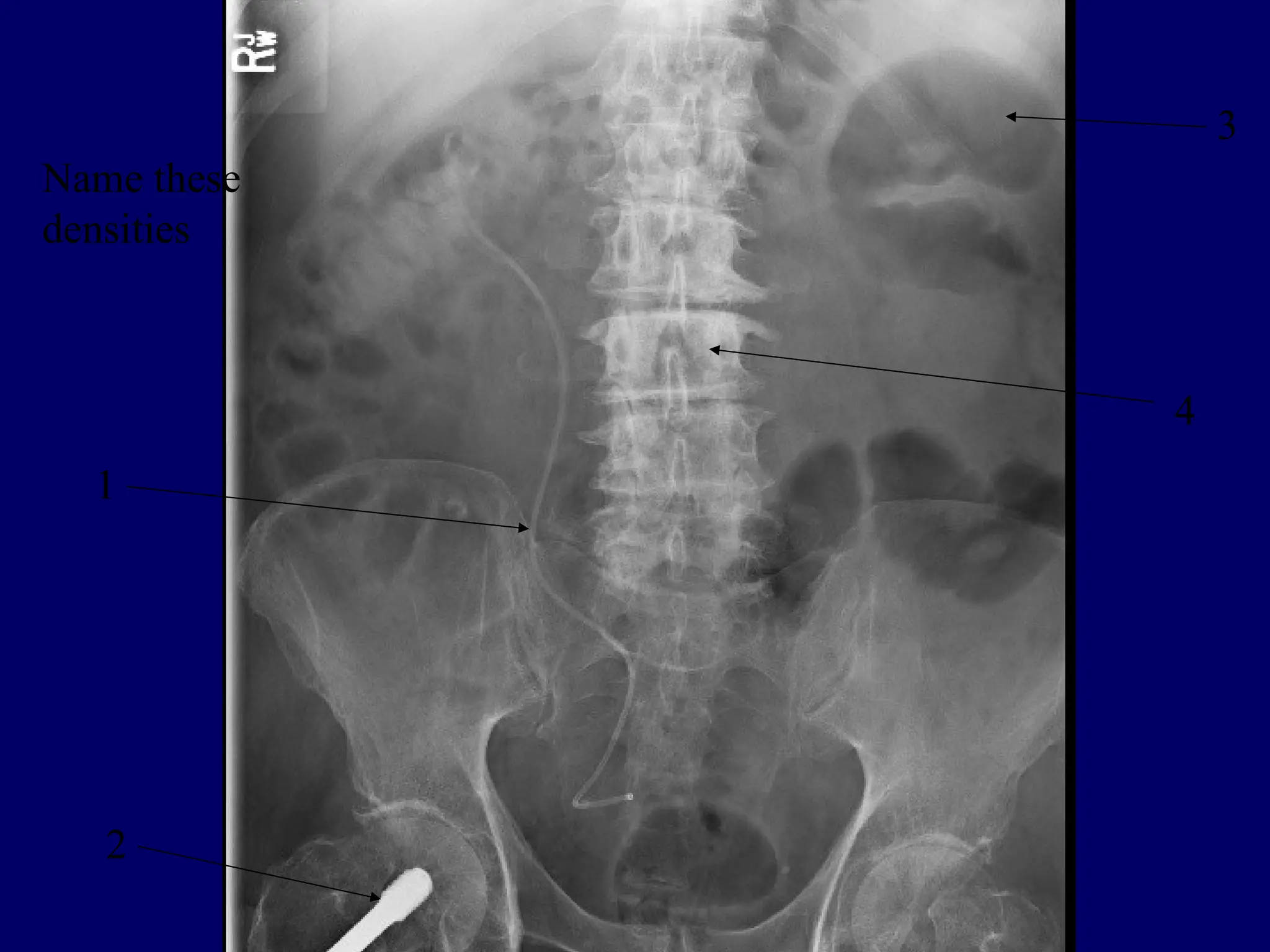

75. 2
4
3
1
Name these
densities

76. What densit
is this?

77. Remember…..

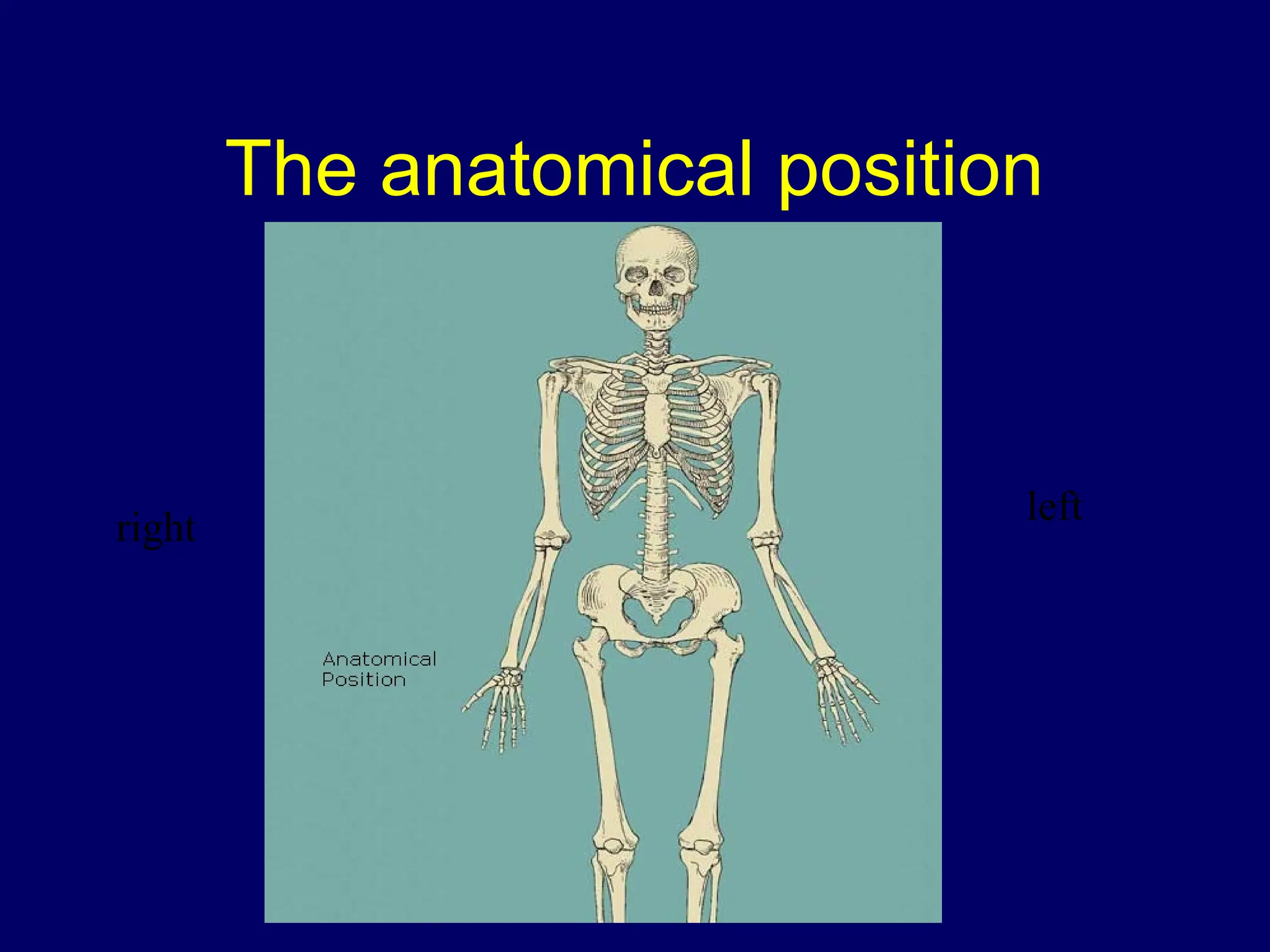

78. The anatomical position
right left

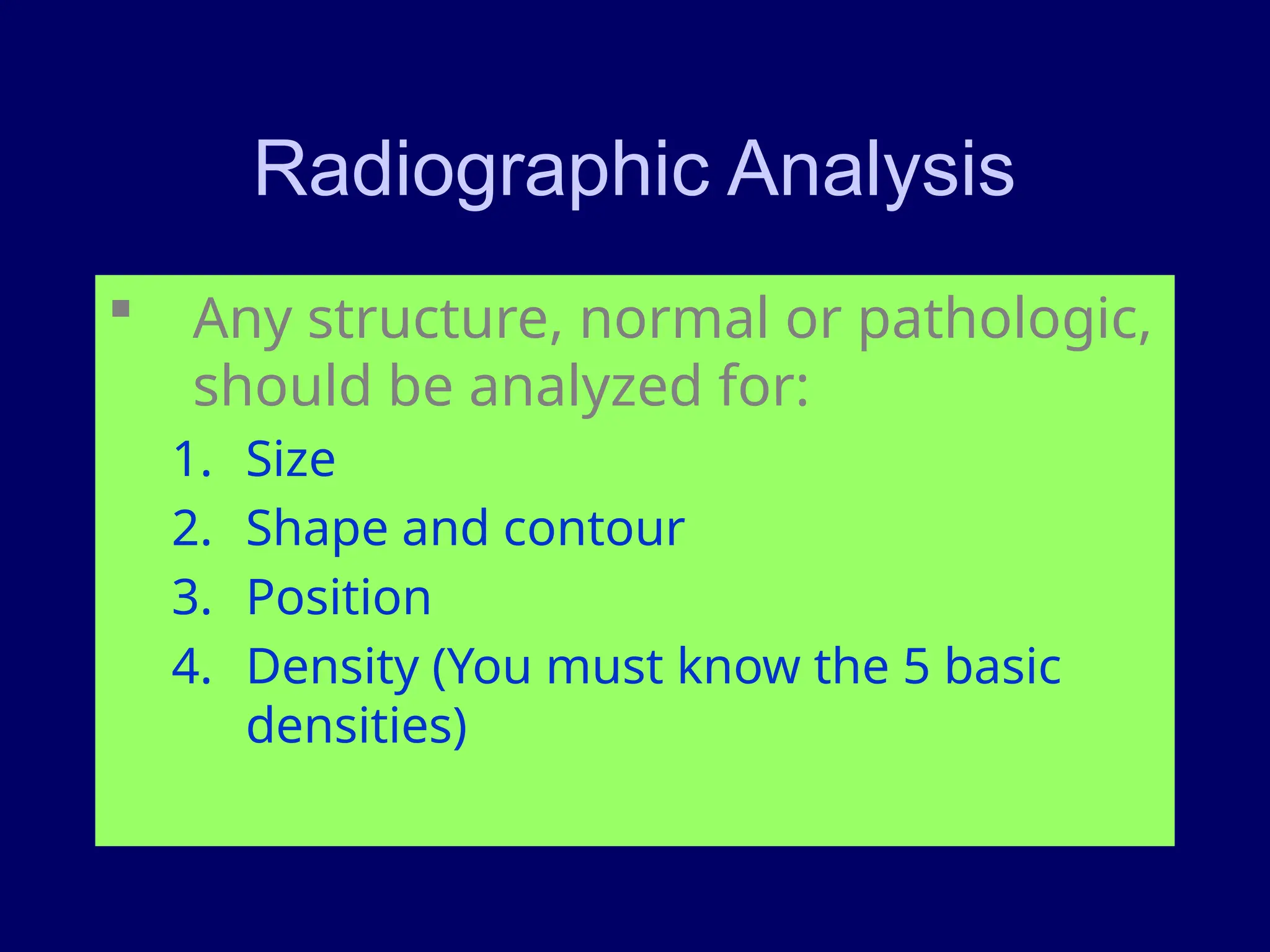

79. Radiographic Analysis
 Any structure, normal or pathologic,
should be analyzed for:
1. Size
2. Shape and contour
3. Position
4. Density (You must know the 5 basic
densities)

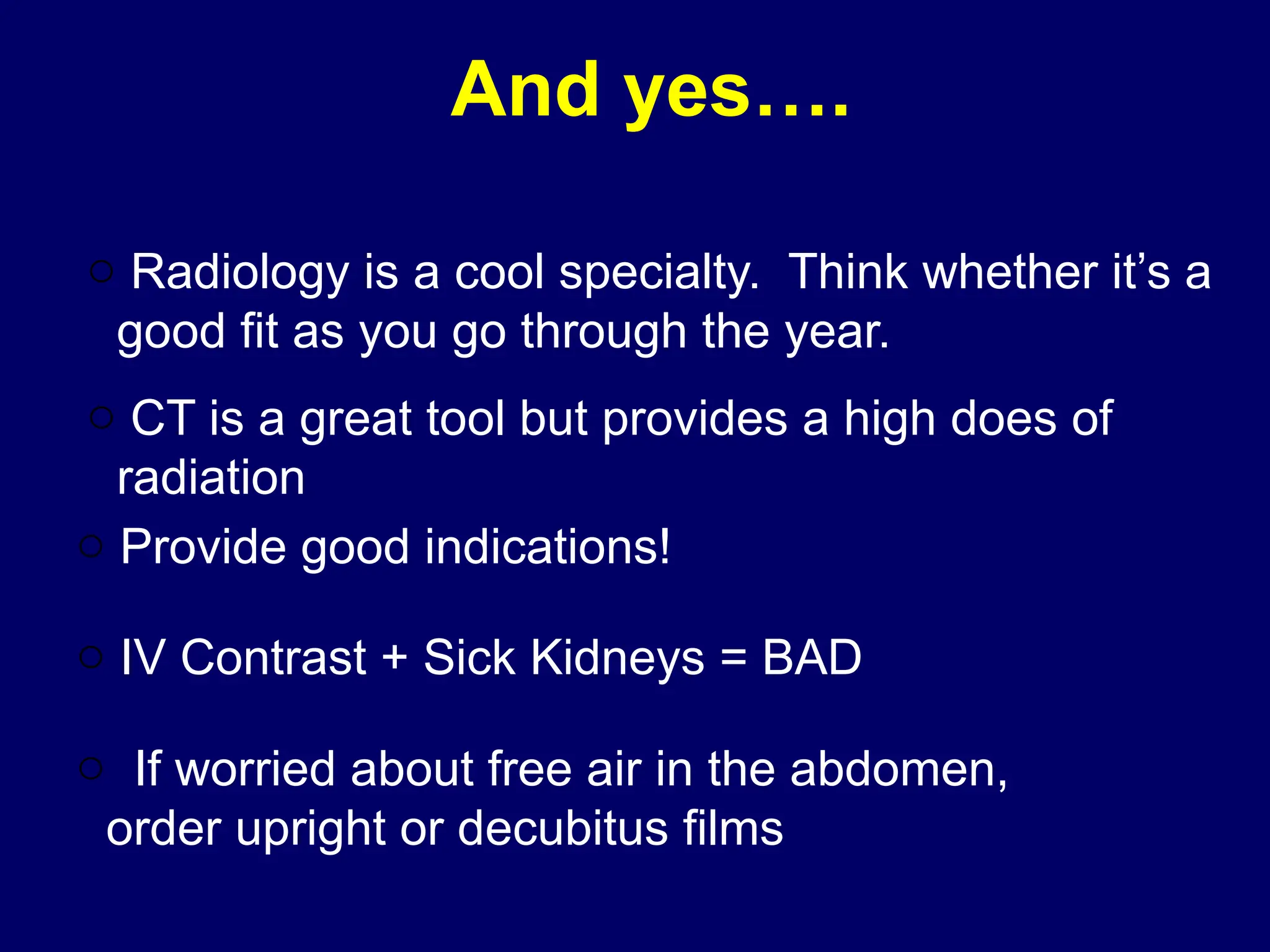

80. And yes….
o CT is a great tool but provides a high does of
radiation
o Provide good indications!
o IV Contrast + Sick Kidneys = BAD
o If worried about free air in the abdomen,
order upright or decubitus films
o Radiology is a cool specialty. Think whether it’s a
good fit as you go through the year.

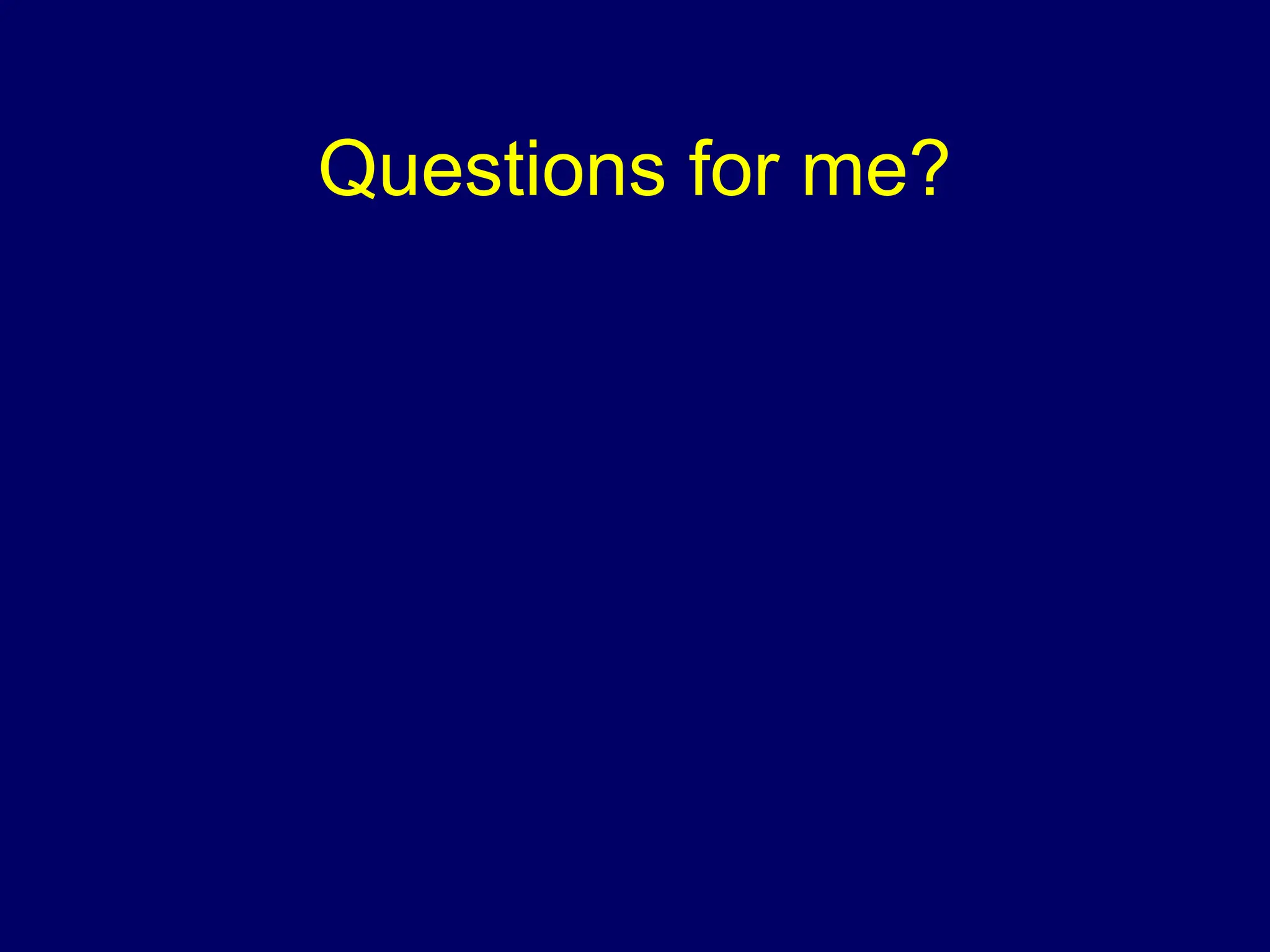

81. Questions for me?
