1. Imaging in Surgery

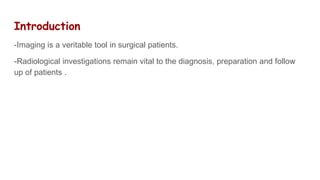

2. Introduction
-Imaging is a veritable tool in surgical patients.
-Radiological investigations remain vital to the diagnosis, preparation and follow
up of patients .

3. Uses
# To aid in diagnosis of a surgical disorder
# To guide a surgical procedure
# Monitoring
# Interventional radiological techniques

4. Imaging Techniques
X rays
Fluoroscopy
Ultrasound
CT
MRI
Nuclear medicine

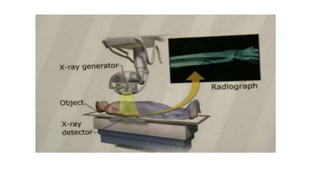

5. Radiography
- Oldest and commonest imaging technique
- Uses ionising radiations
- Parts : X ray tube , collimator, table , film
- Principle : X-rays emitted from an X-ray source are absorbed to varying
degrees by different materials and tissues and therefore causes different
degree of darkening of radiographic films , resulting in an image

7. Advantages
- cheap
- Available
- Short developing time
- Good for assessing bone

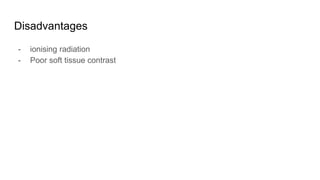

8. Disadvantages
- ionising radiation
- Poor soft tissue contrast

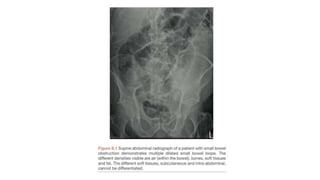

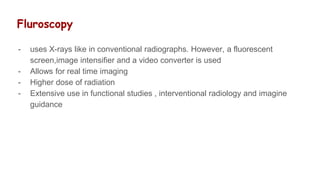

10. Fluroscopy
- uses X-rays like in conventional radiographs. However, a fluorescent
screen,image intensifier and a video converter is used
- Allows for real time imaging
- Higher dose of radiation
- Extensive use in functional studies , interventional radiology and imagine
guidance

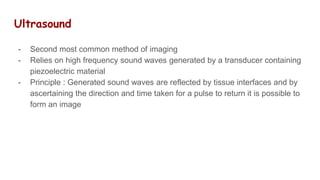

12. Ultrasound
- Second most common method of imaging
- Relies on high frequency sound waves generated by a transducer containing
piezoelectric material
- Principle : Generated sound waves are reflected by tissue interfaces and by
ascertaining the direction and time taken for a pulse to return it is possible to
form an image

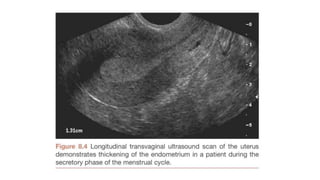

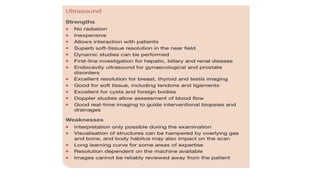

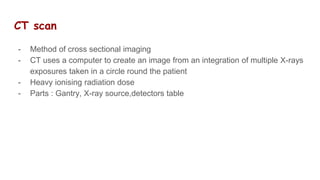

16. CT scan
- Method of cross sectional imaging
- CT uses a computer to create an image from an integration of multiple X-rays
exposures taken in a circle round the patient
- Heavy ionising radiation dose
- Parts : Gantry, X-ray source,detectors table

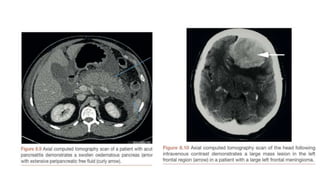

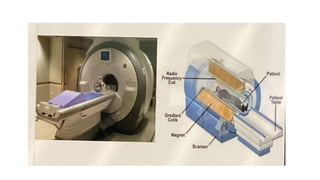

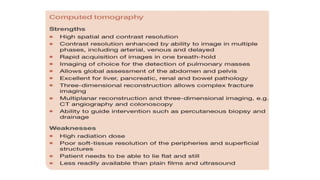

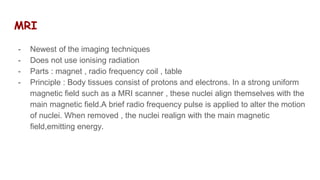

19. MRI
- Newest of the imaging techniques
- Does not use ionising radiation
- Parts : magnet , radio frequency coil , table
- Principle : Body tissues consist of protons and electrons. In a strong uniform
magnetic field such as a MRI scanner , these nuclei align themselves with the
main magnetic field.A brief radio frequency pulse is applied to alter the motion
of nuclei. When removed , the nuclei realign with the main magnetic
field,emitting energy.

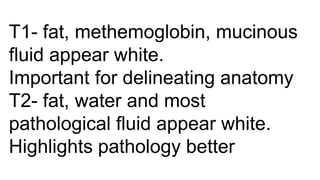

20. T1- fat, methemoglobin, mucinous
fluid appear white.
Important for delineating anatomy
T2- fat, water and most
pathological fluid appear white.
Highlights pathology better

24. Radionuclide scan
- A radioactive element (radionuclide) is administered as a radio
pharmaceutical agent and a detector ( gamma camera ) is used to record and
localise the emission ( gamma ray ) and thus form an image
- Agents : technetium,gallium,thallium,iodine
- These are usually labelled for organ specificity

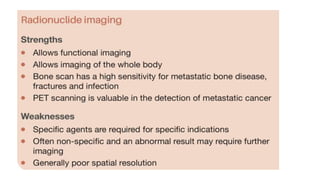

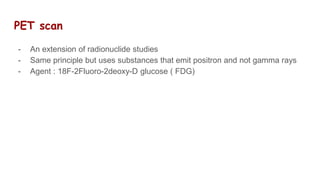

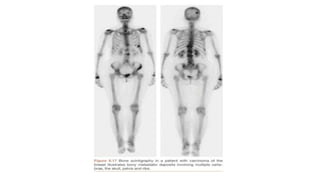

25. PET scan
- An extension of radionuclide studies
- Same principle but uses substances that emit positron and not gamma rays
- Agent : 18F-2Fluoro-2deoxy-D glucose ( FDG)

28. Others
- CONTRAST STUDIES
- * positive , negative and combine
- * Radiocontrast
- * MRI contrast
- * USS contrast
- SPECT

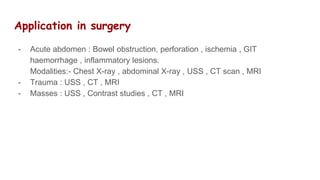

29. Application in surgery
- Acute abdomen : Bowel obstruction, perforation , ischemia , GIT
haemorrhage , inflammatory lesions.
Modalities:- Chest X-ray , abdominal X-ray , USS , CT scan , MRI
- Trauma : USS , CT , MRI
- Masses : USS , Contrast studies , CT , MRI
