This document discusses the process of mapping an entity-relationship diagram (ERD) to a relational database schema. It outlines 7 steps: 1) creating relations for entity types, 2) handling weak entities, 3) mapping binary 1-to-1 relationships, 4) mapping binary 1-to-many relationships, 5) handling multi-valued attributes, 6) an example application of the steps, and 7) strategies for mapping specialization/generalization relationships between entity types. The document provides examples and diagrams to illustrate how each step in the mapping process transforms the ERD into a relational schema.

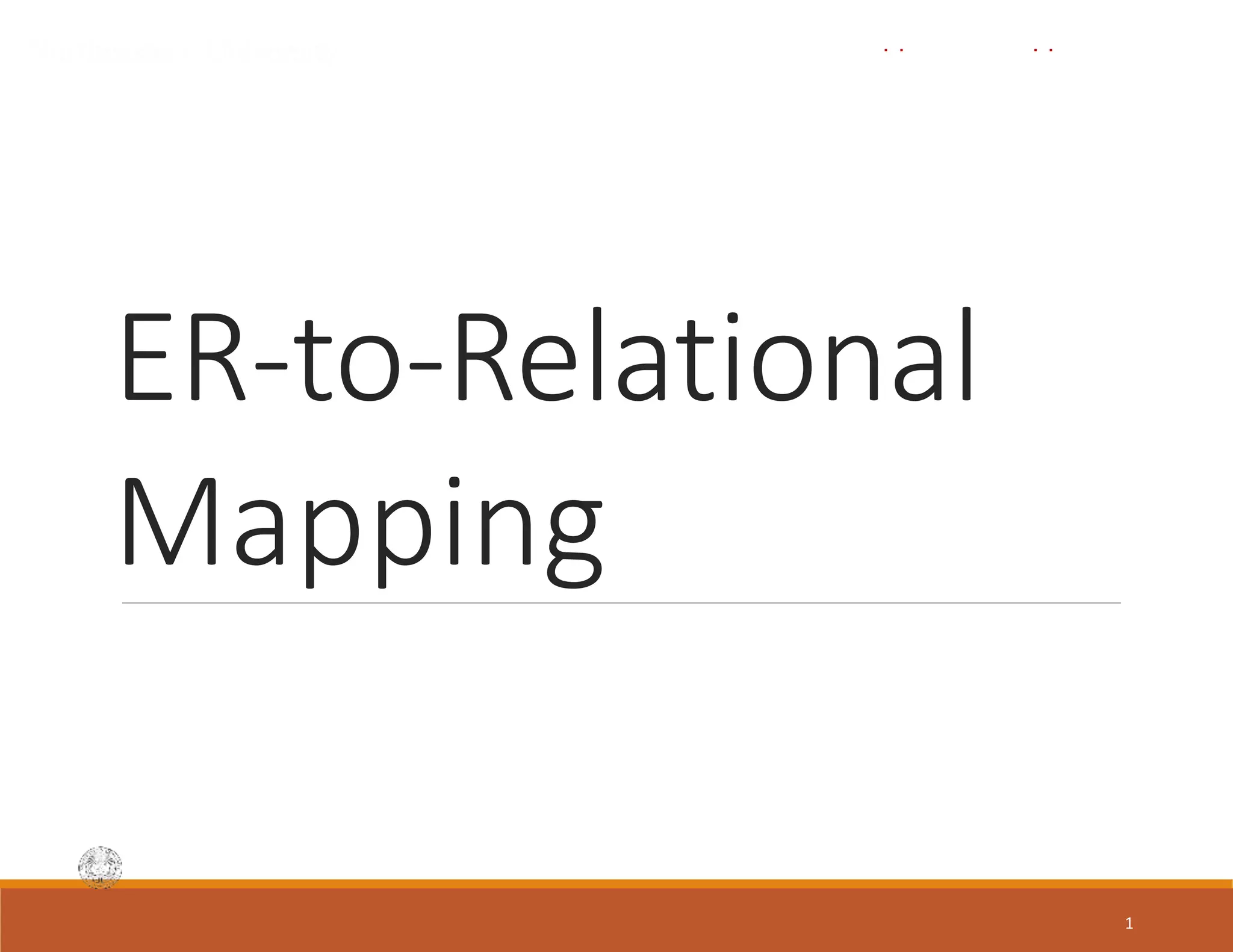

1. CS3200 – Database Design···Spring 2018···Derbinsky
ER-to-Relational
Mapping
1

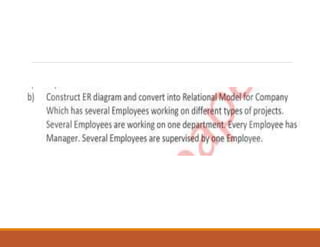

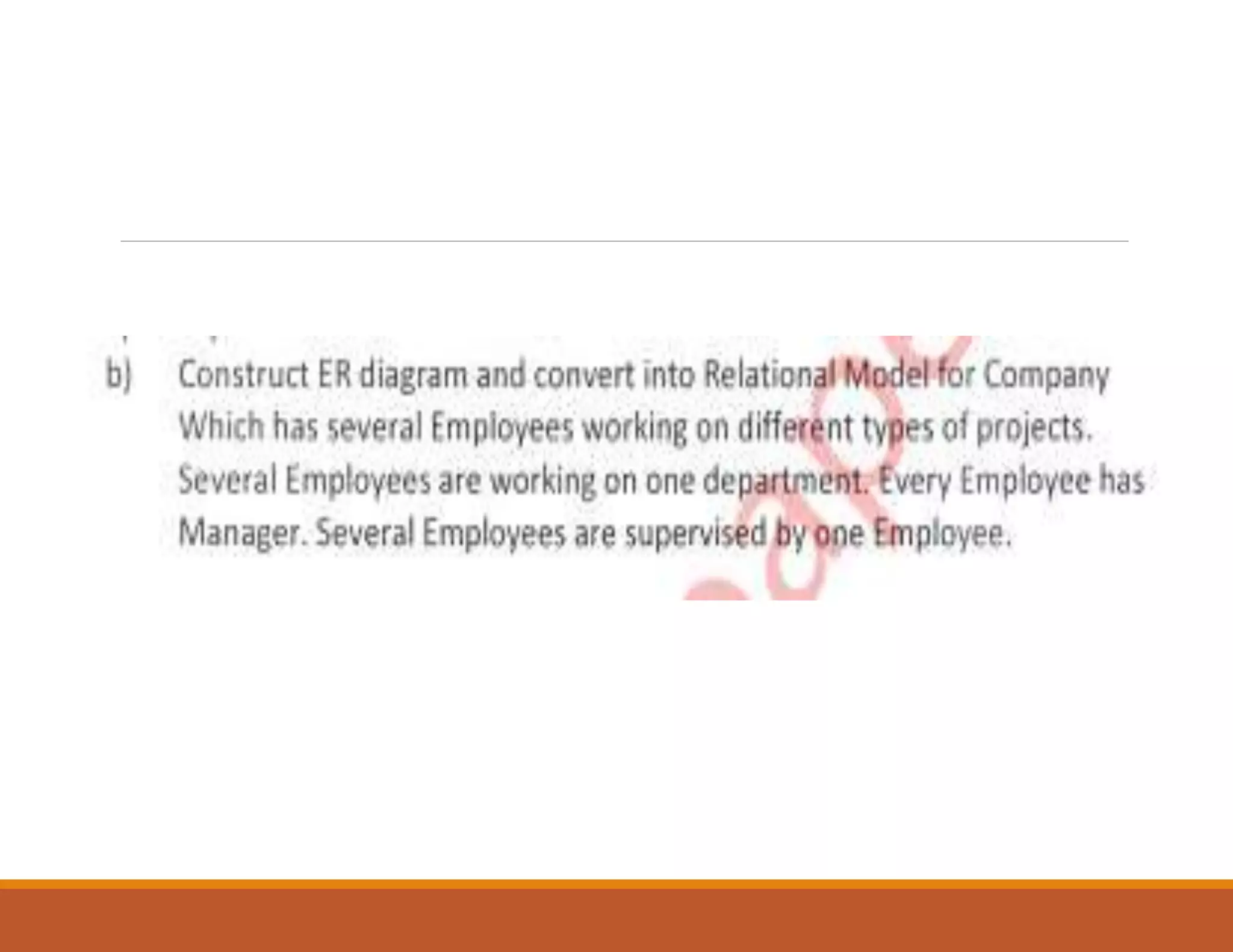

4. CS3200 – Database Design···Spring 2018···Derbinsky
Resulting Relational Schema
ER-TO-RELATIONAL MAPPING
MARCH 1, 2018
4

5. CS3200 – Database Design···Spring 2018···Derbinsky
Example ERD
ER-TO-RELATIONAL MAPPING
MARCH 1, 2018
5

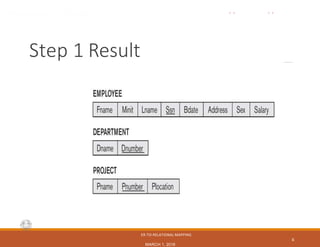

6. CS3200 – Database Design···Spring 2018···Derbinsky
Step 1 Result
ER-TO-RELATIONAL MAPPING
MARCH 1, 2018
6

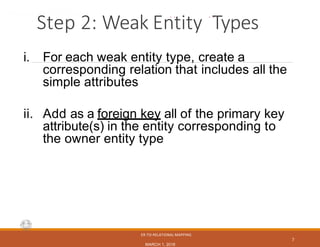

7. CS3200 – Database Design···Spring 2018···Derbinsky
Step 2: Weak Entity Types
ER-TO-RELATIONAL MAPPING
MARCH 1, 2018
7
i. For each weak entity type, create a
corresponding relation that includes all the
simple attributes
ii. Add as a foreign key all of the primary key
attribute(s) in the entity corresponding to
the owner entity type

8. CS3200 – Database Design···Spring 2018···DerbinskyExample
ERD
ER-TO-RELATIONAL MAPPING
MARCH 1, 2018
8

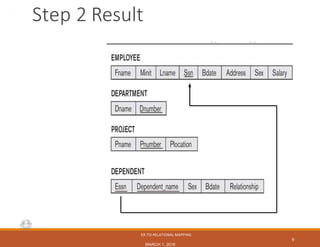

9. CS3200 – Database Design···Spring 2018···Derbinsky
Step 2 Result
ER-TO-RELATIONAL MAPPING
MARCH 1, 2018
9

10. CS3200 – Database Design···Spring 2018···DerbinskyStep 3: Mapping Binary 1 -to-1
ER-TO-RELATIONAL MAPPING
MARCH 1, 2018
10
Foreign Key
i. Choose one relation as S, the other T
 Better if S has total participation (reduces
number of NULL values)
ii. Add to S all the simple attributes of the
relationship
iii. Add as a foreign key in S the primary key
attributes of T

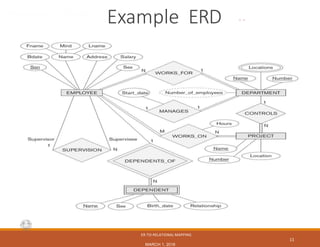

11. CS3200 – Database Design···Spring 2018···DerbinskyExample ERD
ER-TO-RELATIONAL MAPPING
MARCH 1, 2018
11

12. CS3200 – Database Design···Spring 2018···Derbinsky
Step 3 Result
ER-TO-RELATIONAL MAPPING
MARCH 1, 2018
12

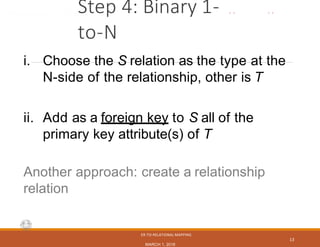

13. CS3200 – Database Design···Spring 2018···DerbinskyStep 4: Binary 1-
to-N
ER-TO-RELATIONAL MAPPING
MARCH 1, 2018
13
i. Choose the S relation as the type at the
N-side of the relationship, other is T
ii. Add as a foreign key to S all of the
primary key attribute(s) of T
Another approach: create a relationship
relation

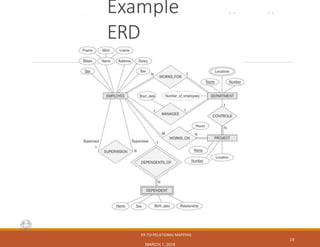

14. CS3200 – Database Design···Spring 2018···DerbinskyExample
ERD
ER-TO-RELATIONAL MAPPING
MARCH 1, 2018
14

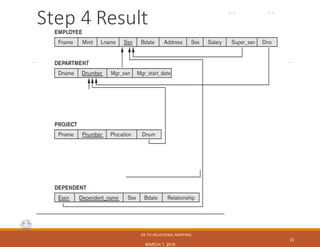

15. CS3200 – Database Design···Spring 2018···Derbinsky
Step 4 Result
ER-TO-RELATIONAL MAPPING
MARCH 1, 2018
15

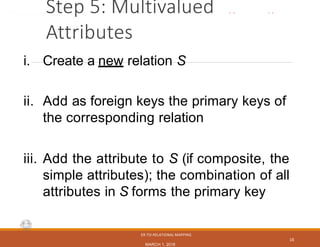

16. CS3200 – Database Design···Spring 2018···DerbinskyStep 5: Multivalued
Attributes
ER-TO-RELATIONAL MAPPING
MARCH 1, 2018
16
i. Create a new relation S
ii. Add as foreign keys the primary keys of
the corresponding relation
iii. Add the attribute to S (if composite, the
simple attributes); the combination of all
attributes in S forms the primary key

17. CS3200 – Database Design···Spring 2018···DerbinskyExample
ERD
ER-TO-RELATIONAL MAPPING
MARCH 1, 2018
17

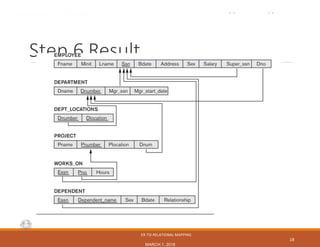

18. CS3200 – Database Design···Spring 2018···Derbinsky
Step 6 Result
ER-TO-RELATIONAL MAPPING
MARCH 1, 2018
18

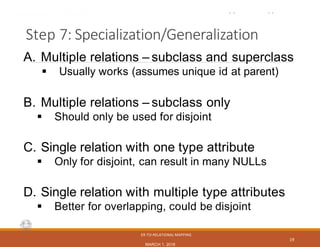

19. CS3200 – Database Design···Spring 2018···Derbinsky
Step 7: Specialization/Generalization
ER-TO-RELATIONAL MAPPING
MARCH 1, 2018
19
A. Multiple relations – subclass and superclass
 Usually works (assumes unique id at parent)
B. Multiple relations – subclass only
 Should only be used for disjoint
C. Single relation with one type attribute
 Only for disjoint, can result in many NULLs
D. Single relation with multiple type attributes
 Better for overlapping, could be disjoint

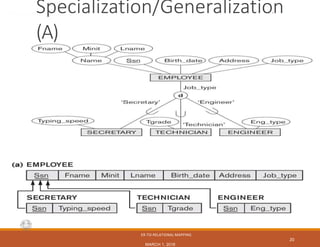

20. CS3200 – Database Design···Spring 2018···DerbinskySpecialization/Generalization
(A)
ER-TO-RELATIONAL MAPPING
MARCH 1, 2018
20

21. CS3200 – Database Design···Spring 2018···DerbinskySpecialization/Generalization
(B)
ER-TO-RELATIONAL MAPPING
MARCH 1, 2018
21

22. CS3200 – Database Design···Spring 2018···DerbinskySpecialization/Generalization
(C)
ER-TO-RELATIONAL MAPPING
MARCH 1, 2018
22

23. CS3200 – Database Design···Spring 2018···DerbinskySpecialization/Generalization
(D)
ER-TO-RELATIONAL MAPPING
MARCH 1, 2018
23
