1. 11
Ionic Security PUBLIC
Timothy Van Heest, Mi Yan, Robert Beatty
Ionic Security
LAYING THE FOUNDATION
FOR IONIC PLATFORM
INSIGHTS ON SPARK

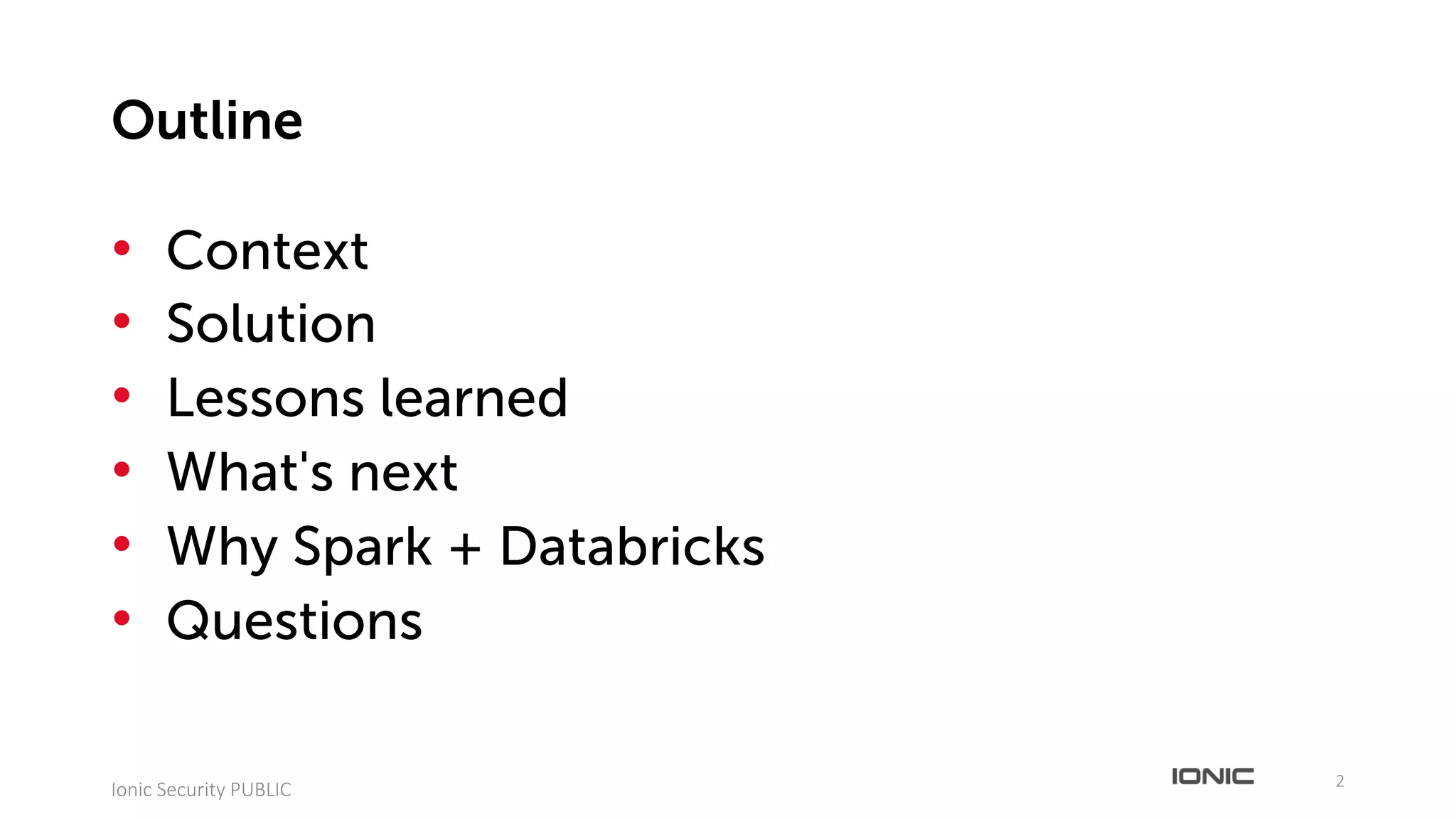

2. • Context
• Solution
• Lessons learned
• What's next
• Why Spark + Databricks
• Questions
2
Ionic Security PUBLIC
Outline

3. Mi Yan
3
Ionic Security PUBLIC
Context: Who we are
Robert Beatty Timothy Van Heest
mi@ionic.com rbeatty@ionic.com timothy@ionic.com

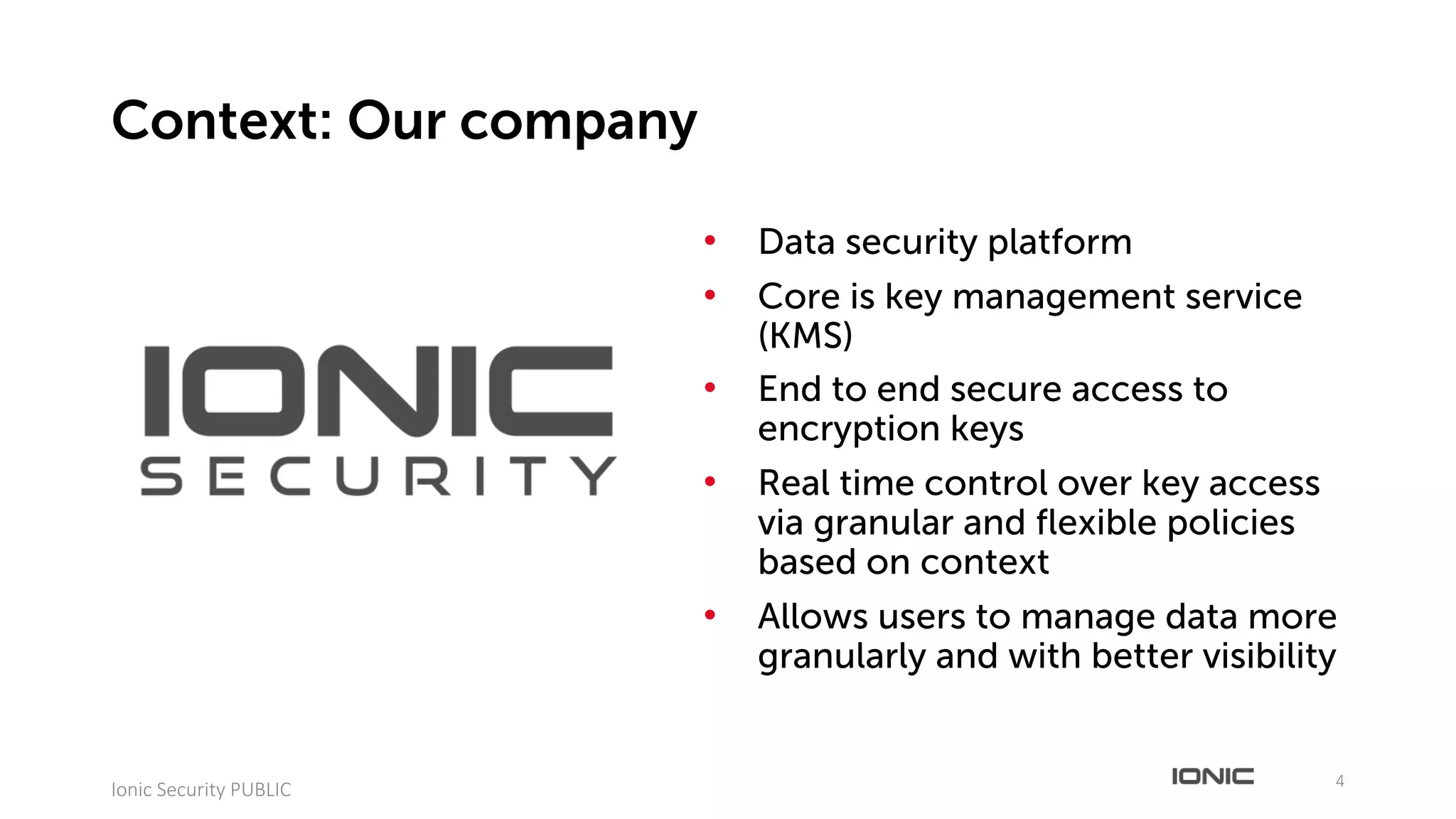

4. • Data security platform
• Core is key management service
(KMS)
• End to end secure access to
encryption keys
• Real time control over key access
via granular and flexible policies
based on context
• Allows users to manage data more
granularly and with better visibility
4
Ionic Security PUBLIC
Context: Our company

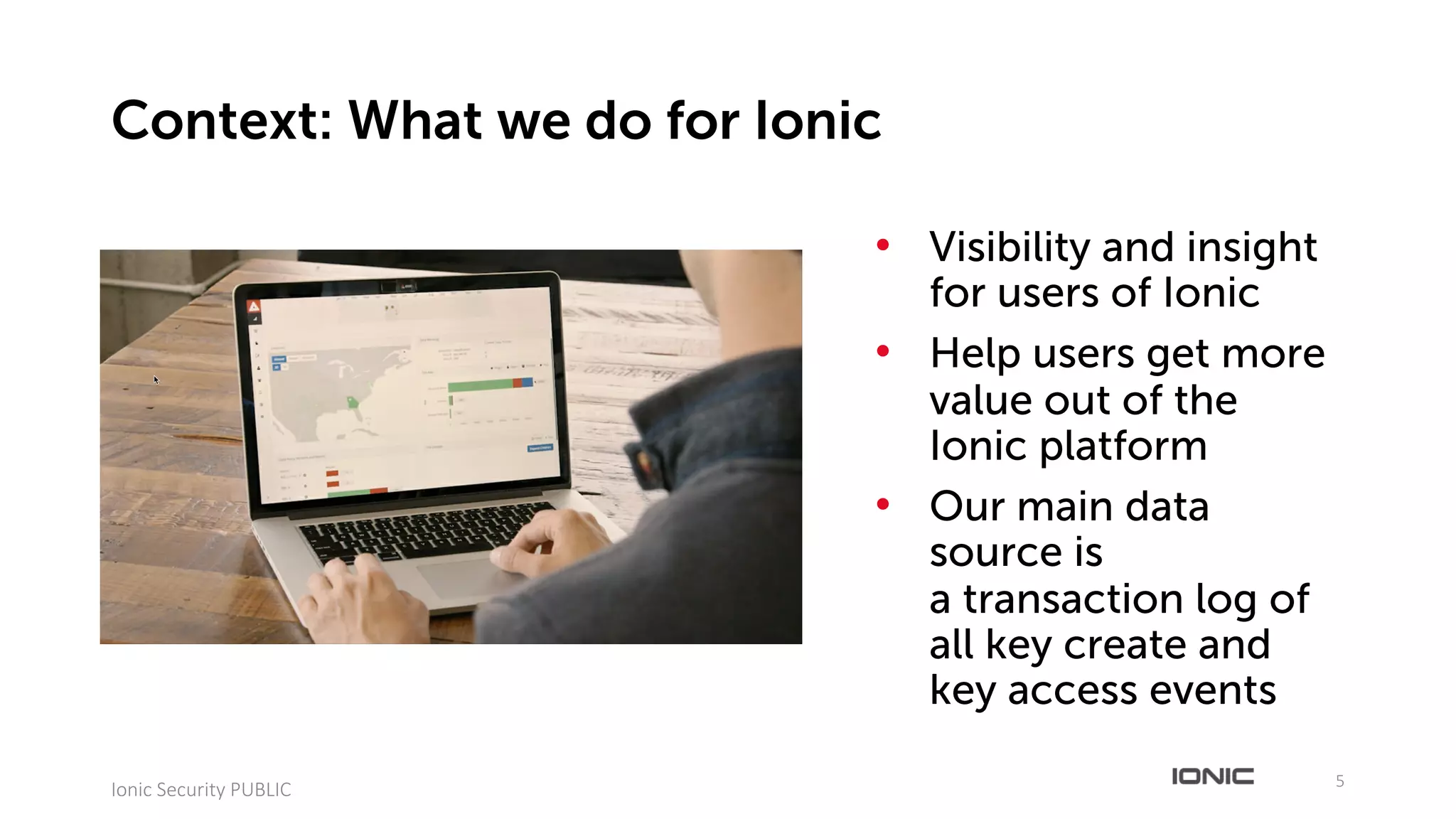

5. • Visibility and insight
for users of Ionic
• Help users get more
value out of the
Ionic platform
• Our main data
source is
a transaction log of
all key create and
key access events
5
Ionic Security PUBLIC
Context: What we do for Ionic

6. 1. Phase out existing solution
2. Enable low cost reporting
3. Remain flexible and agile
4. Lay foundation for advanced analytics
6
Ionic Security PUBLIC
Context: Our goals for this project

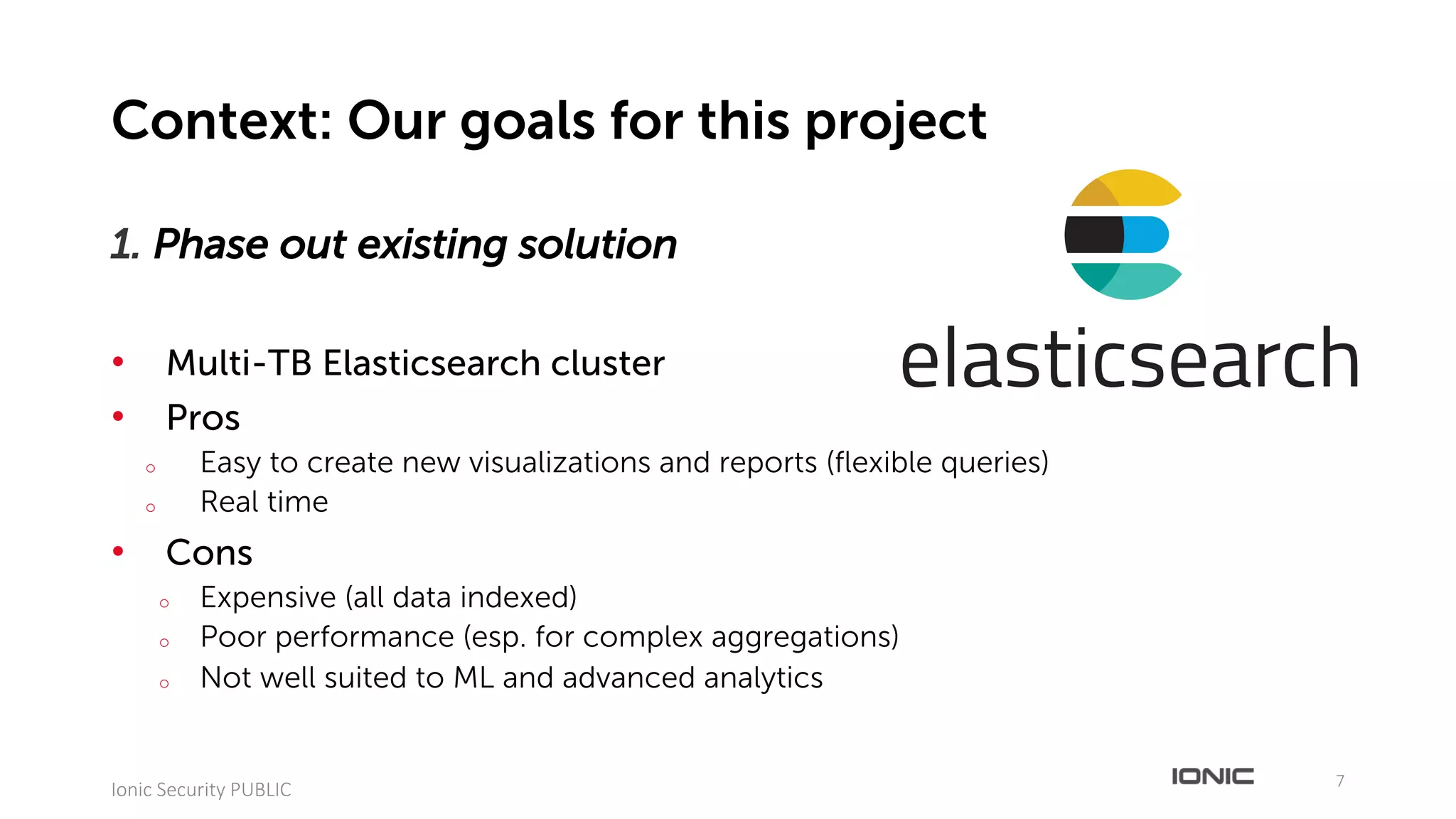

7. 1. Phase out existing solution
• Multi-TB Elasticsearch cluster
• Pros
o Easy to create new visualizations and reports (flexible queries)
o Real time
• Cons
o Expensive (all data indexed)
o Poor performance (esp. for complex aggregations)
o Not well suited to ML and advanced analytics
7
Ionic Security PUBLIC
Context: Our goals for this project

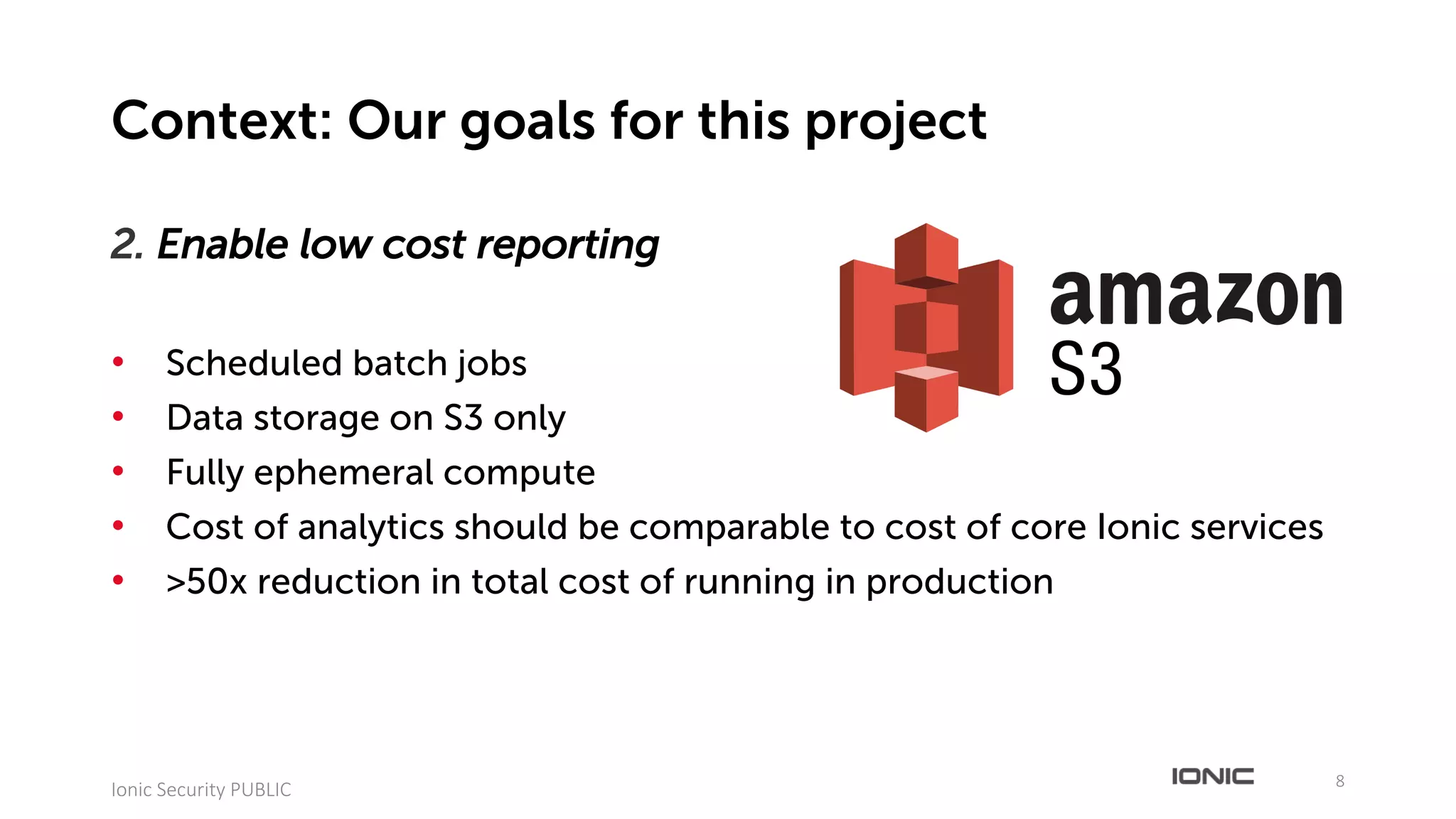

8. 2. Enable low cost reporting
• Scheduled batch jobs
• Data storage on S3 only
• Fully ephemeral compute
• Cost of analytics should be comparable to cost of core Ionic services
• >50x reduction in total cost of running in production
8
Ionic Security PUBLIC
Context: Our goals for this project

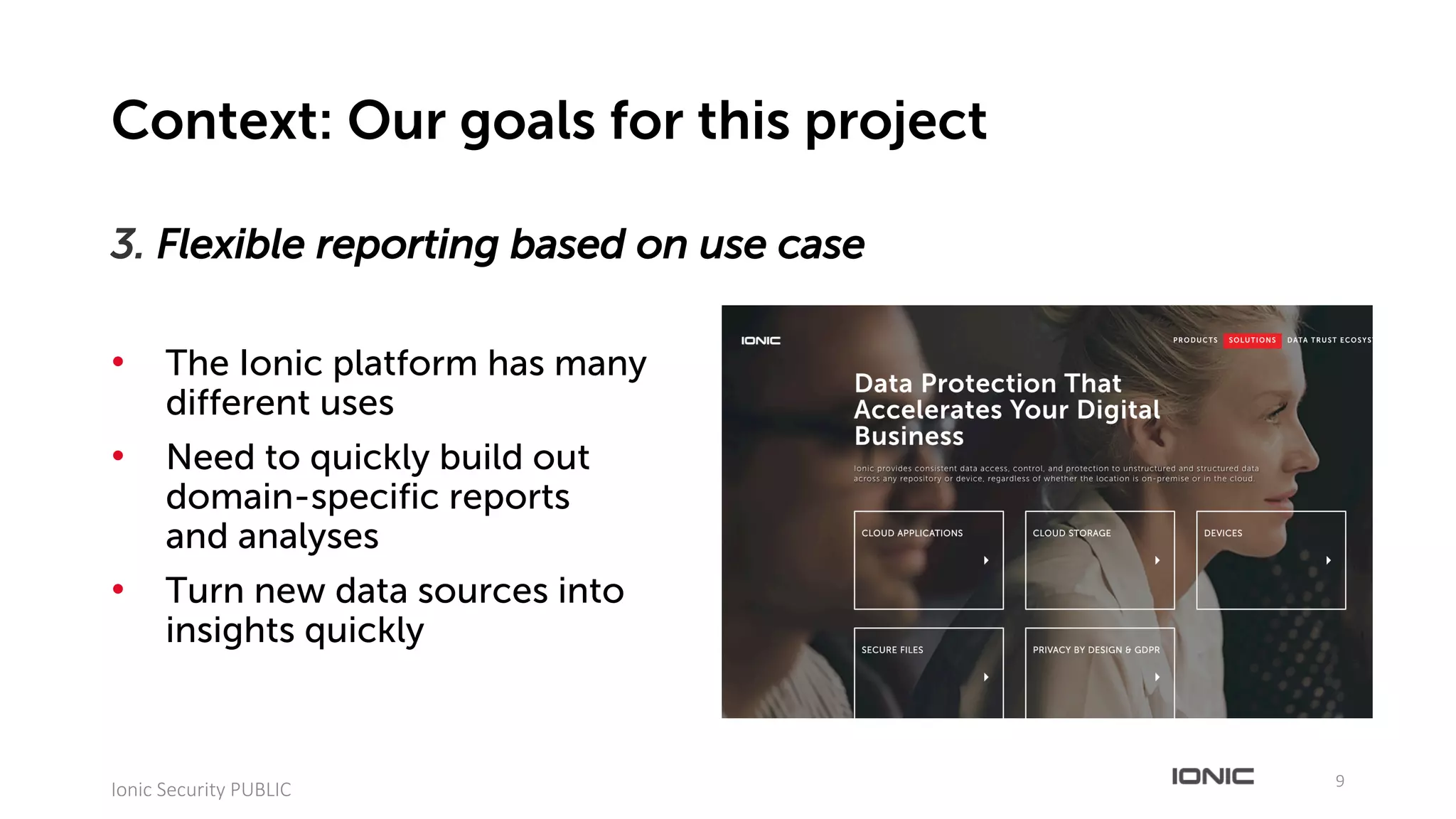

9. 3. Flexible reporting based on use case
• The Ionic platform has many
different uses
• Need to quickly build out
domain-specific reports
and analyses
• Turn new data sources into
insights quickly
9
Ionic Security PUBLIC
Context: Our goals for this project

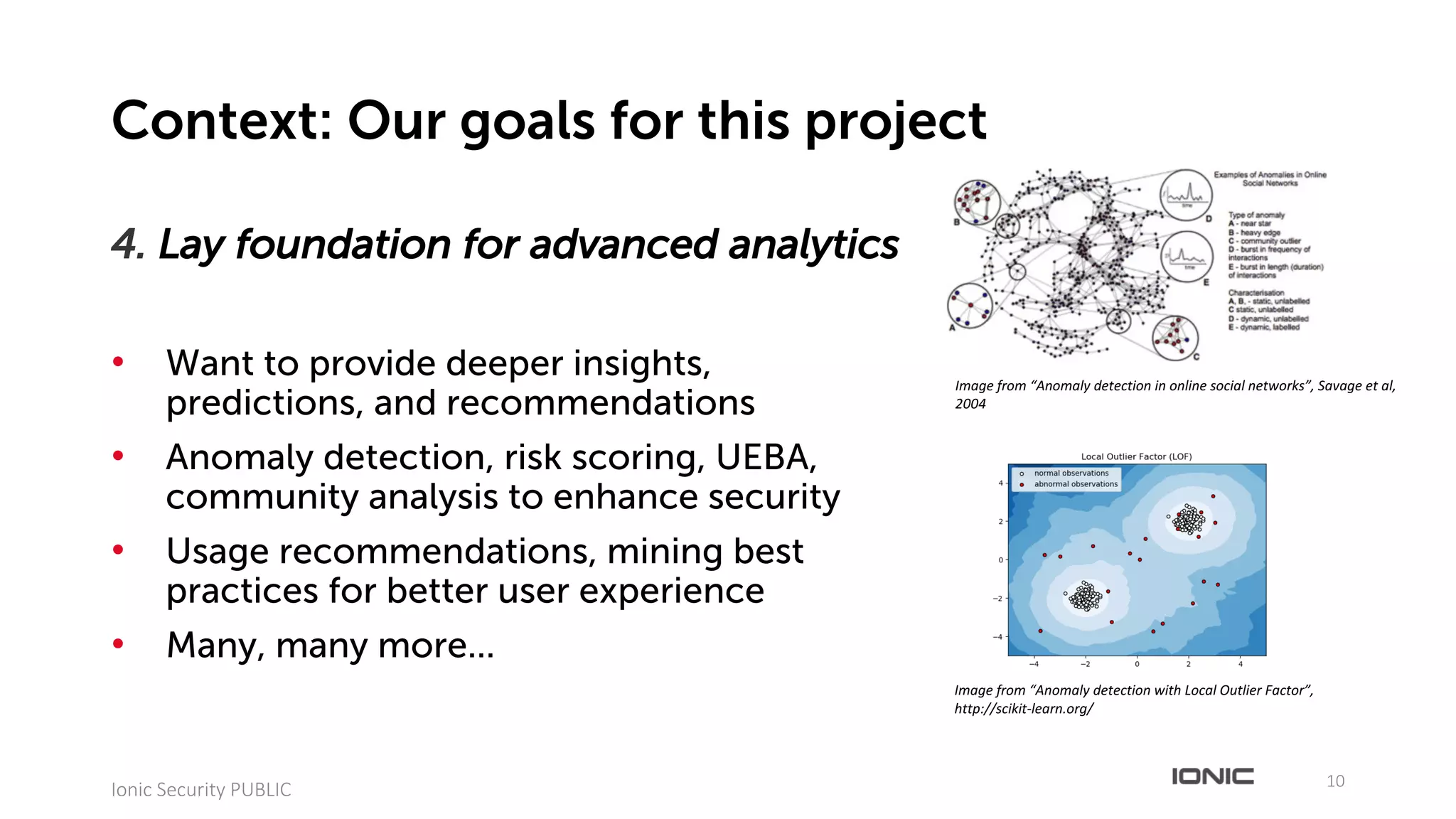

10. 4. Lay foundation for advanced analytics
• Want to provide deeper insights,
predictions, and recommendations
• Anomaly detection, risk scoring, UEBA,
community analysis to enhance security
• Usage recommendations, mining best
practices for better user experience
• Many, many more...
10
Ionic Security PUBLIC
Context: Our goals for this project
Image from “Anomaly detection in online social networks”, Savage et al,
2004
Image from “Anomaly detection with Local Outlier Factor”,
http://scikit-learn.org/

11. 1111
Ionic Security PUBLIC
The system we built using Spark + Databricks to enable
low cost, flexible reporting and lay a foundation for advanced analytics
SOLUTION

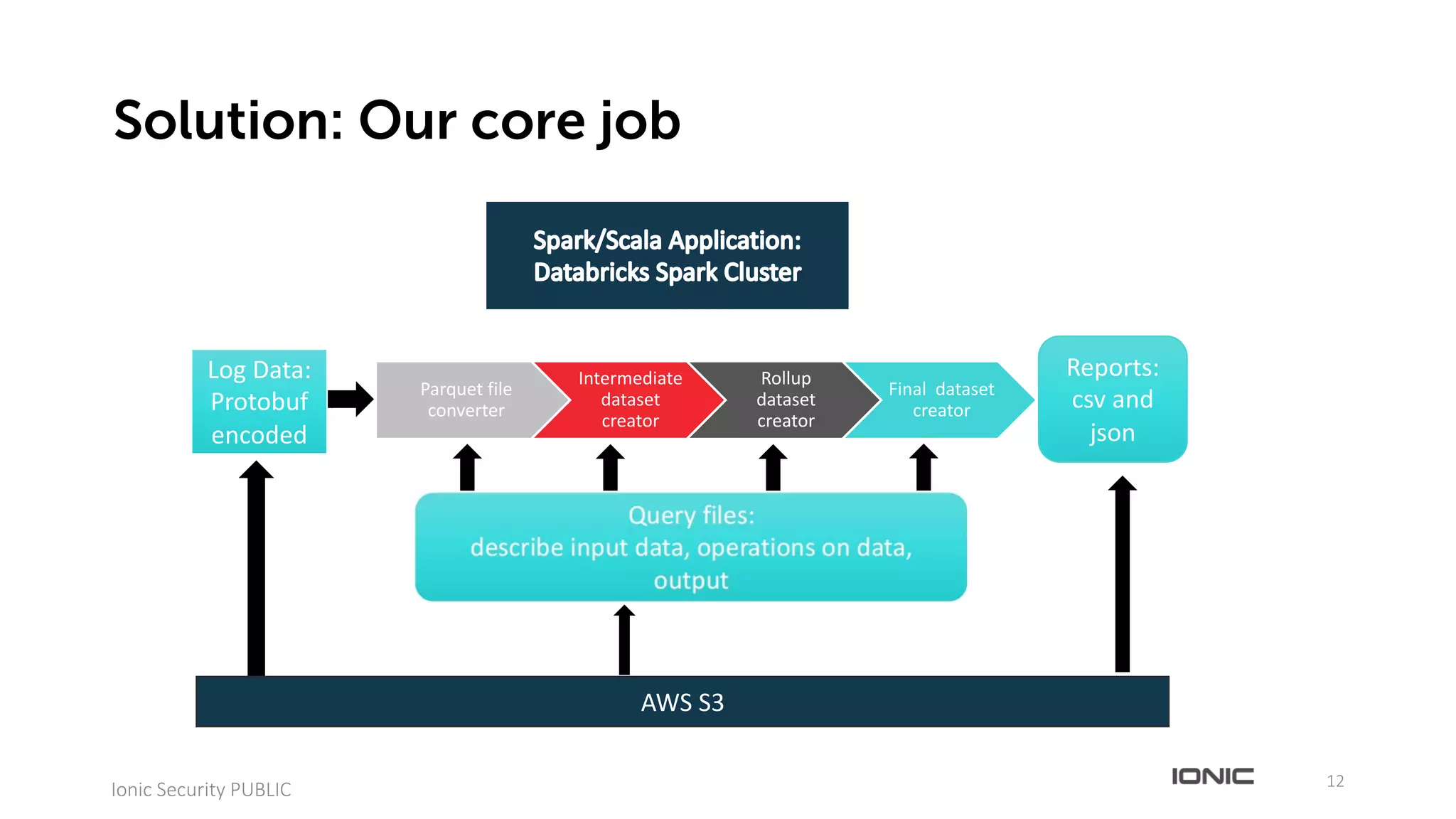

12. Parquet file
converter
Intermediate
dataset
creator
Rollup
dataset
creator
Final dataset
creator
12
Ionic Security PUBLIC
Solution: Our core job
Log Data:
Protobuf
encoded
Reports:
csv and
json
AWS S3
Query files:
describe input data, operations on data,
output

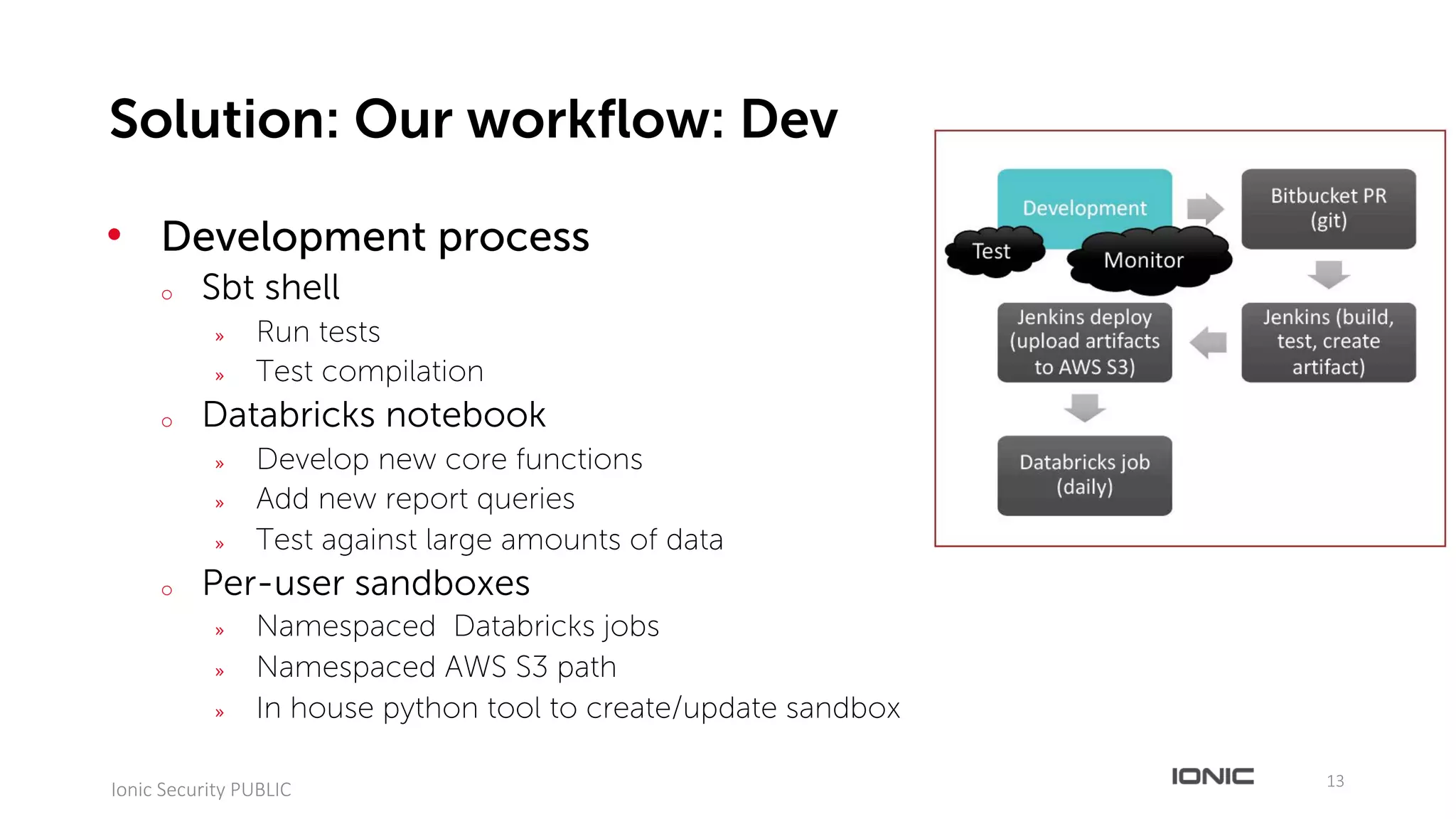

13. • Development process
o Sbt shell
» Run tests
» Test compilation
o Databricks notebook
» Develop new core functions
» Add new report queries
» Test against large amounts of data
o Per-user sandboxes
» Namespaced Databricks jobs
» Namespaced AWS S3 path
» In house python tool to create/update sandbox
13
Ionic Security PUBLIC
Solution: Our workflow: Dev
Development
Bitbucket PR
(git)
Jenkins (build,
test, create
artifact)
Jenkins deploy
(upload artifacts
to AWS S3)
Databricks job
(daily)
Test Monitor

14. • Test setup
o Areas of focus
» Spark UDF, UDAF, Aggregators
» Dataframe transformations, esp. Report creators
» End-to-end test for some query types (local IO)
o Test fixtures
» Most tests use small data sets to cover edge cases
» All end-to-end tests use the same larger test fixture (~2 MB gzipped protocol
buffers)
o Running tests
» testOnly com.ionic.report.creator.EndToEndTest -- -z "categorical stats"
» Full tests are usually run just on Jenkins
» For larger changes, manually run Databricks job to process data in sandbox
14
Ionic Security PUBLIC
Solution: Our workflow: Test
Development
Bitbucket PR
(git)
Jenkins (build,
test, create
artifact)
Jenkins deploy
(upload artifacts
to AWS S3)
Databricks job
(daily)
Test Monitor

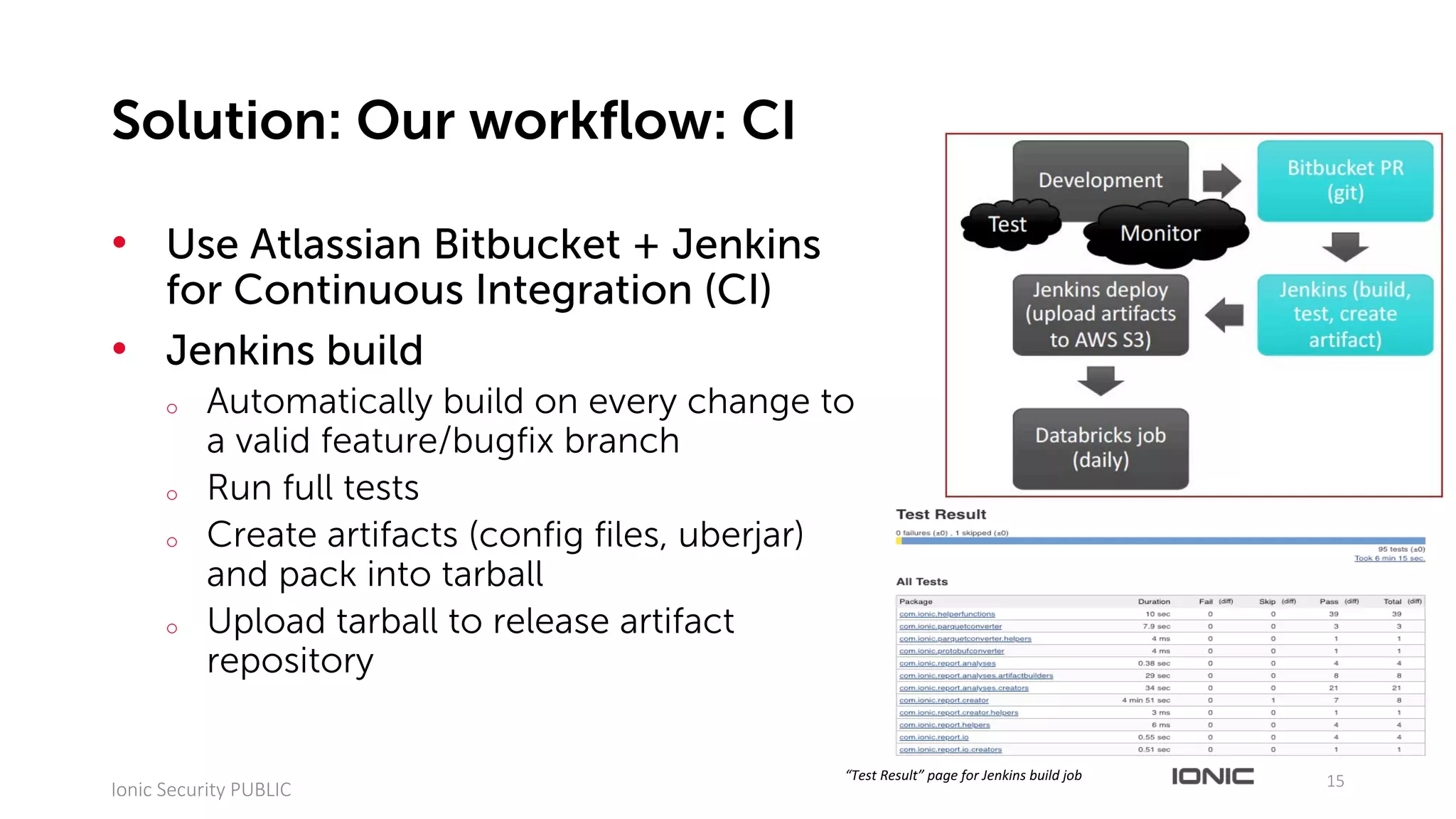

15. • Use Atlassian Bitbucket + Jenkins
for Continuous Integration (CI)
• Jenkins build
o Automatically build on every change to
a valid feature/bugfix branch
o Run full tests
o Create artifacts (config files, uberjar)
and pack into tarball
o Upload tarball to release artifact
repository
15
Ionic Security PUBLIC
Solution: Our workflow: CI
“Test Result” page for Jenkins build job
Development
Bitbucket PR
(git)
Jenkins (build,
test, create
artifact)
Jenkins deploy
(upload artifacts
to AWS S3)
Databricks job
(daily)
Test Monitor

16. • Jenkins deployment
o Auto deploy main branch to development
environment on change
o Steps
» Grab settings from AWS Param Store
» Download artifact + unpack
» Upload config / settings files to S3
» Create / update Databricks jobs
• Scheduled daily job on Databricks
o Runs latest stable version of code
16
Ionic Security PUBLIC
Solution: Our workflow: CI
Development
Bitbucket PR
(git)
Jenkins (build,
test, create
artifact)
Jenkins deploy
(upload artifacts
to AWS S3)
Databricks job
(daily)
Test Monitor
“Build with Parameters” page for Jenkins deployment job

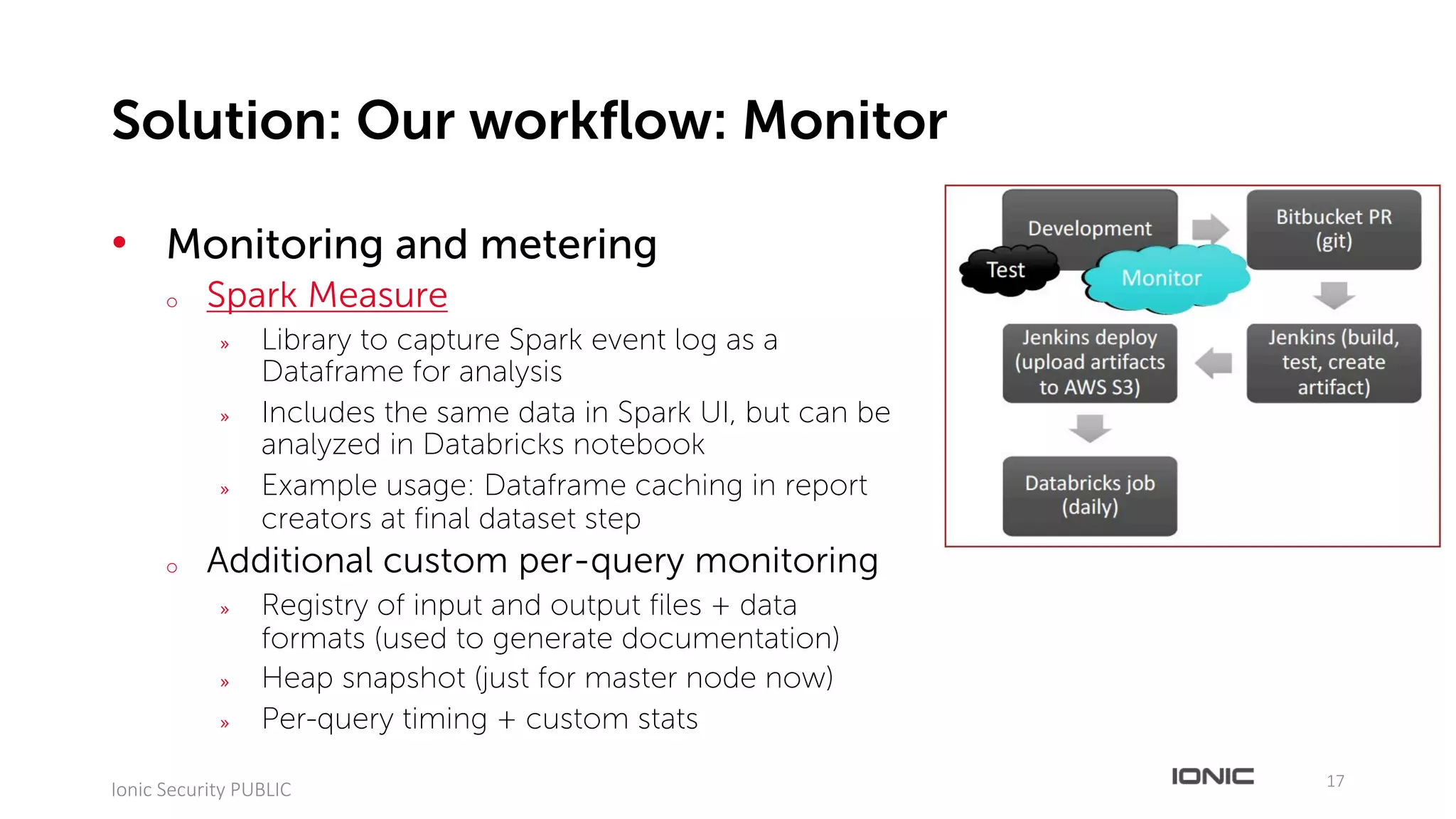

17. • Monitoring and metering
o Spark Measure
» Library to capture Spark event log as a
Dataframe for analysis
» Includes the same data in Spark UI, but can be
analyzed in Databricks notebook
» Example usage: Dataframe caching in report
creators at final dataset step
o Additional custom per-query monitoring
» Registry of input and output files + data
formats (used to generate documentation)
» Heap snapshot (just for master node now)
» Per-query timing + custom stats
17
Ionic Security PUBLIC
Solution: Our workflow: Monitor
Development
Bitbucket PR
(git)
Jenkins (build,
test, create
artifact)
Jenkins deploy
(upload artifacts
to AWS S3)
Databricks job
(daily)
Test MonitorMonitor

18. 1818
Ionic Security PUBLIC
+ Rationale behind design choices
LESSONS LEARNED

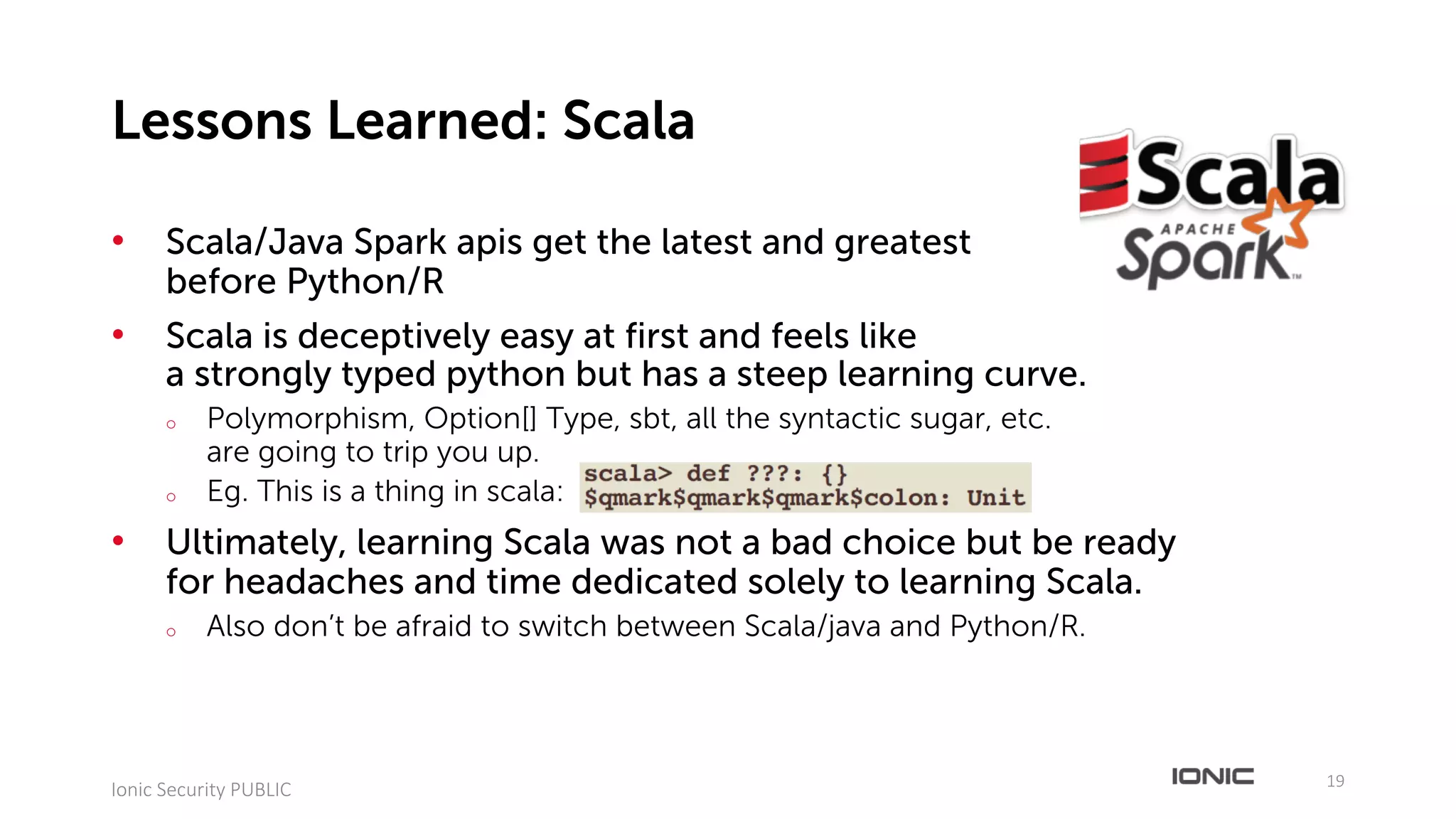

19. • Scala/Java Spark apis get the latest and greatest
before Python/R
• Scala is deceptively easy at first and feels like
a strongly typed python but has a steep learning curve.
o Polymorphism, Option[] Type, sbt, all the syntactic sugar, etc.
are going to trip you up.
o Eg. This is a thing in scala:
• Ultimately, learning Scala was not a bad choice but be ready
for headaches and time dedicated solely to learning Scala.
o Also don’t be afraid to switch between Scala/java and Python/R.
19
Ionic Security PUBLIC
Lessons Learned: Scala

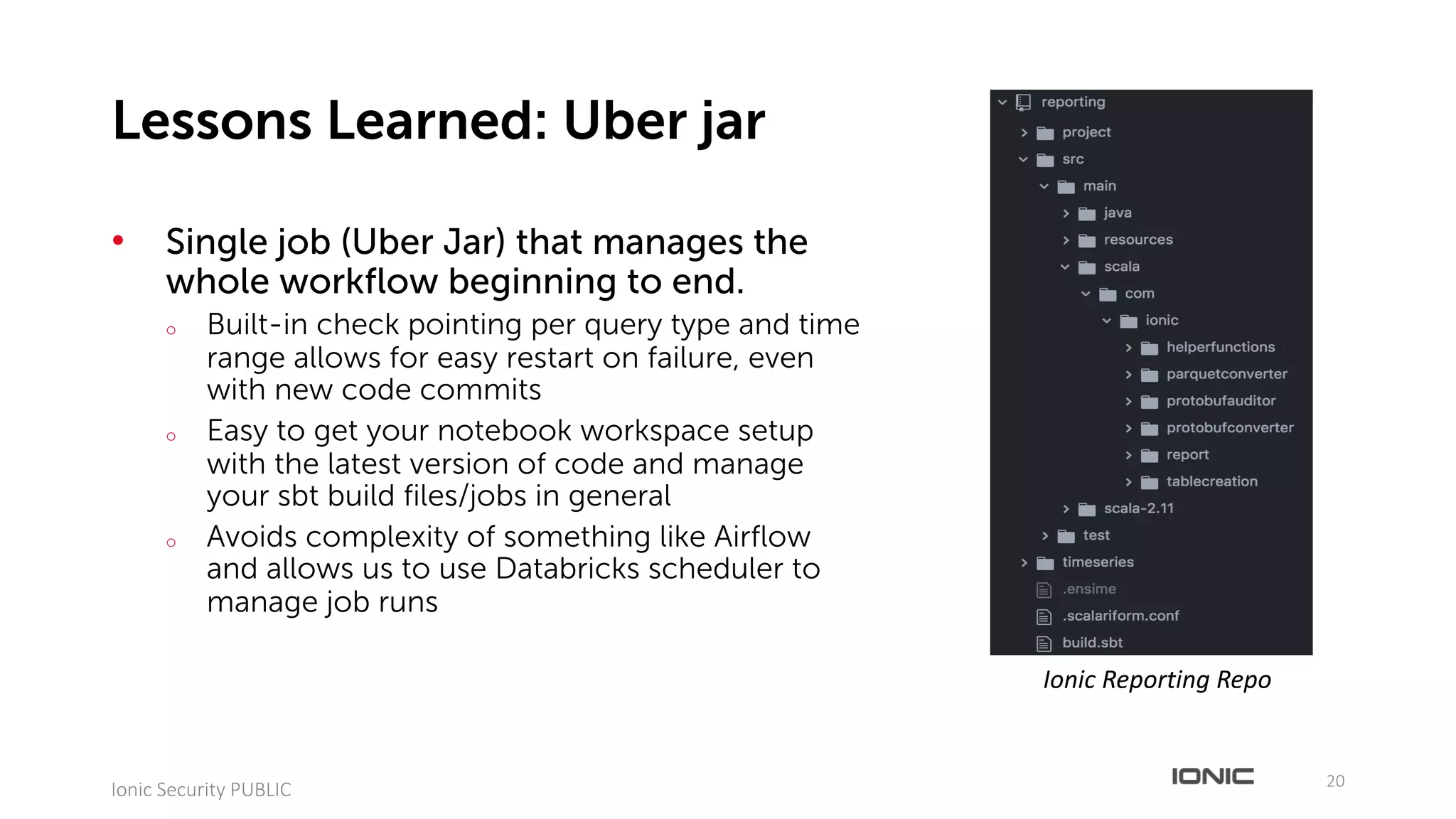

20. • Single job (Uber Jar) that manages the
whole workflow beginning to end.
o Built-in check pointing per query type and time
range allows for easy restart on failure, even
with new code commits
o Easy to get your notebook workspace setup
with the latest version of code and manage
your sbt build files/jobs in general
o Avoids complexity of something like Airflow
and allows us to use Databricks scheduler to
manage job runs
20
Ionic Security PUBLIC
Lessons Learned: Uber jar
Ionic Reporting Repo

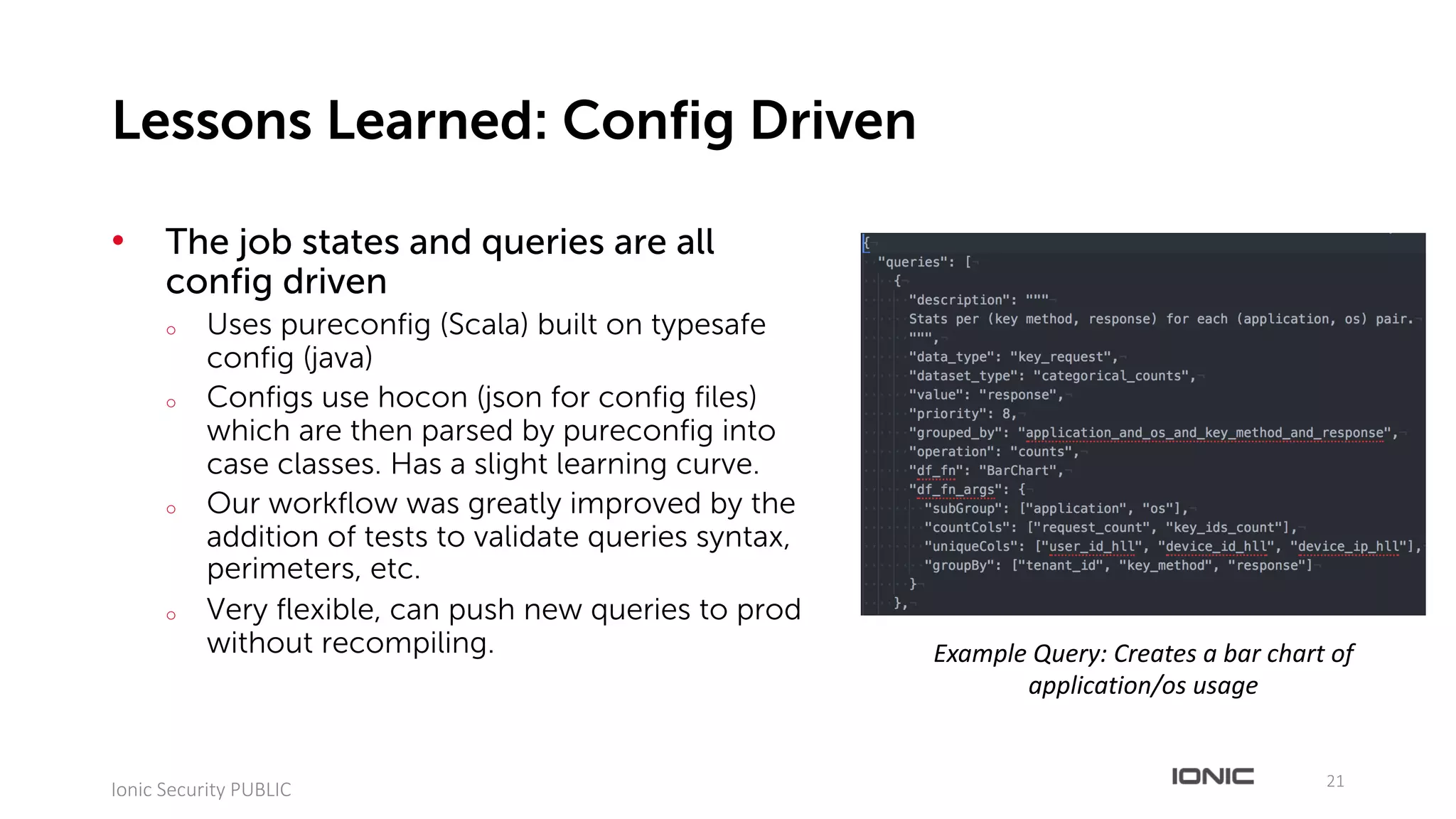

21. • The job states and queries are all
config driven
o Uses pureconfig (Scala) built on typesafe
config (java)
o Configs use hocon (json for config files)
which are then parsed by pureconfig into
case classes. Has a slight learning curve.
o Our workflow was greatly improved by the
addition of tests to validate queries syntax,
perimeters, etc.
o Very flexible, can push new queries to prod
without recompiling.
21
Ionic Security PUBLIC
Lessons Learned: Config Driven
Example Query: Creates a bar chart of
application/os usage

22. • All IO operations go through the HDFS driver
o we used AWS java S3 API, but we moved all these to HDFS
o simpler testing, more portable
• We process all of the tenants together in the same Dataframe.
However, we want to save one csv and JSON file per tenant.
o This was originally done with a for loop over tenant ids (uses one executor)
o Switched to “repartition” the data by tenant id then call "partitionBy" on the writer,
with tenant id as the partition key (uses all executors)
o We also have a custom partitioner for large tenants that breaks the csv/JSON into
multiple smaller files
22
Ionic Security PUBLIC
Lessons Learned: IO

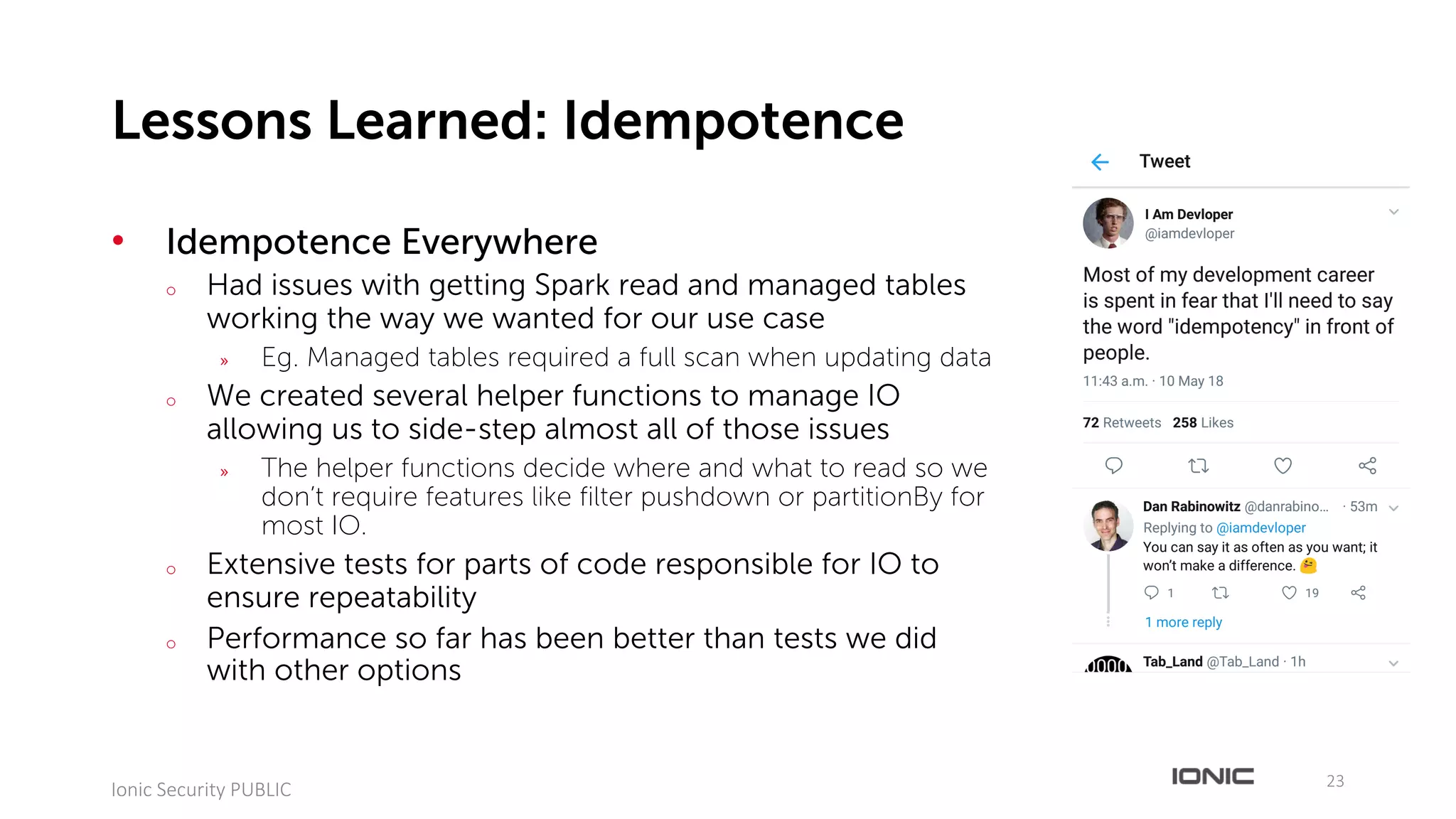

23. • Idempotence Everywhere
o Had issues with getting Spark read and managed tables
working the way we wanted for our use case
» Eg. Managed tables required a full scan when updating data
o We created several helper functions to manage IO
allowing us to side-step almost all of those issues
» The helper functions decide where and what to read so we
don’t require features like filter pushdown or partitionBy for
most IO.
o Extensive tests for parts of code responsible for IO to
ensure repeatability
o Performance so far has been better than tests we did
with other options
23
Ionic Security PUBLIC
Lessons Learned: Idempotence

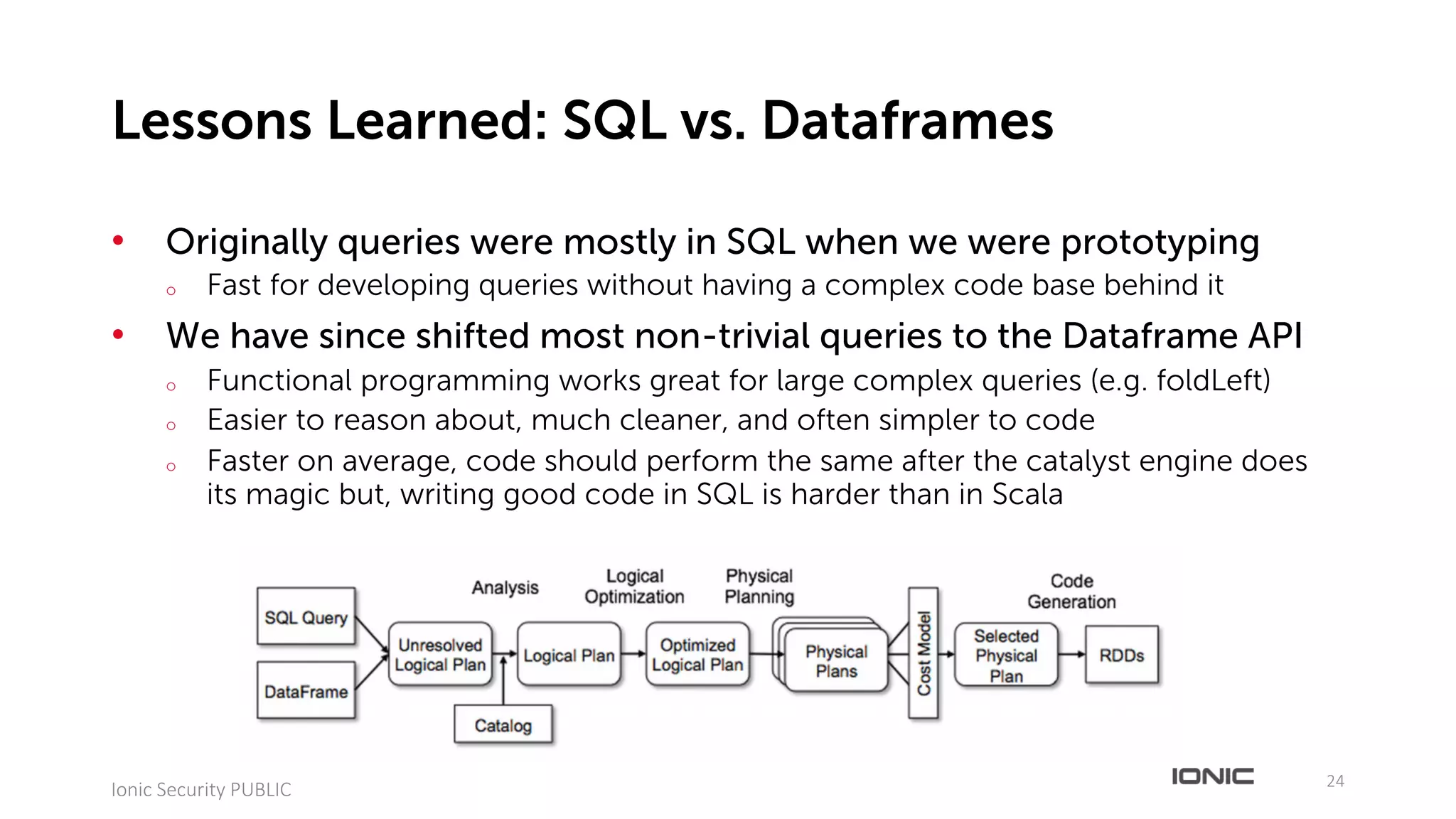

24. • Originally queries were mostly in SQL when we were prototyping
o Fast for developing queries without having a complex code base behind it
• We have since shifted most non-trivial queries to the Dataframe API
o Functional programming works great for large complex queries (e.g. foldLeft)
o Easier to reason about, much cleaner, and often simpler to code
o Faster on average, code should perform the same after the catalyst engine does
its magic but, writing good code in SQL is harder than in Scala
24
Ionic Security PUBLIC
Lessons Learned: SQL vs. Dataframes

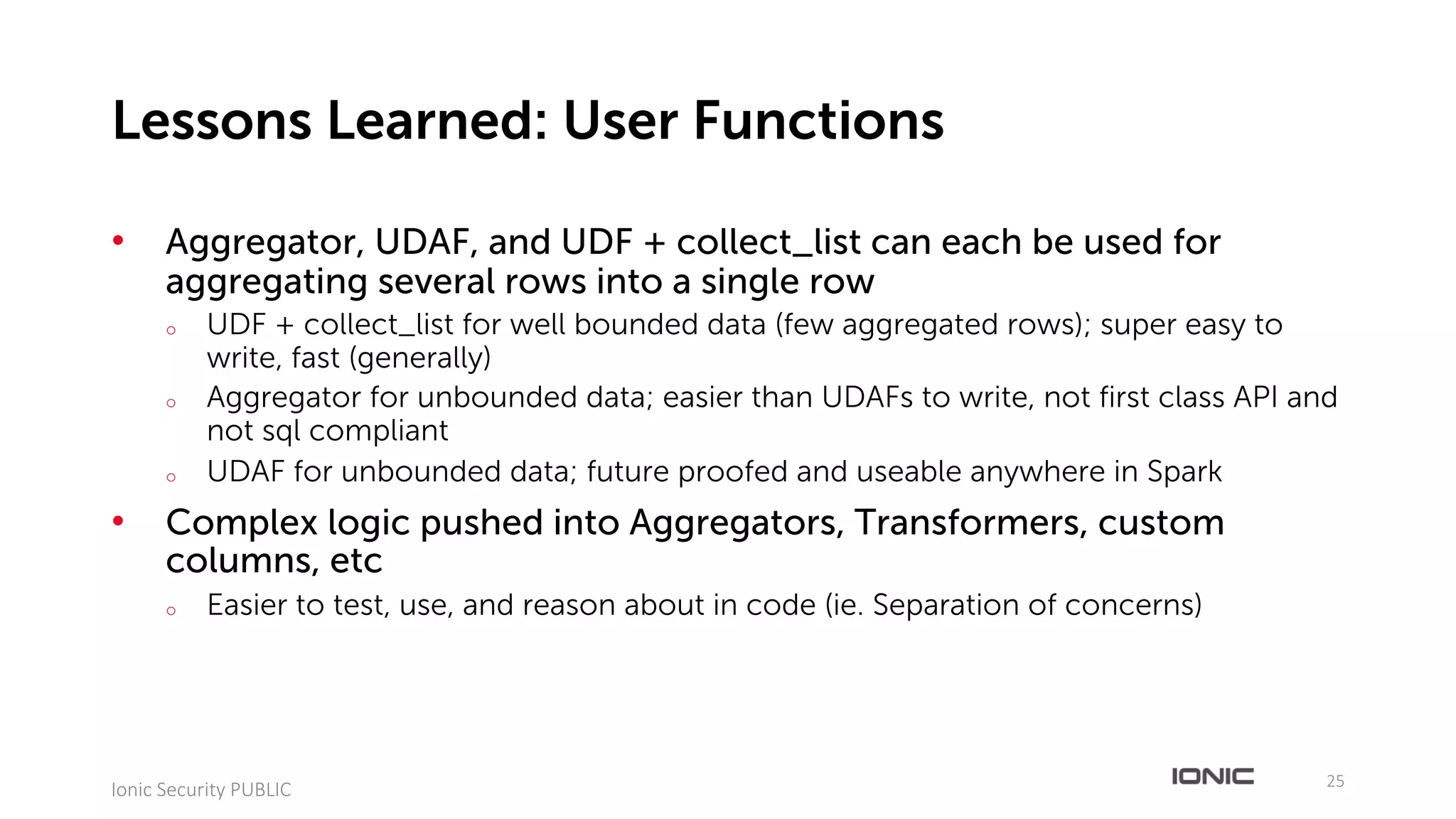

25. • Aggregator, UDAF, and UDF + collect_list can each be used for
aggregating several rows into a single row
o UDF + collect_list for well bounded data (few aggregated rows); super easy to
write, fast (generally)
o Aggregator for unbounded data; easier than UDAFs to write, not first class API and
not sql compliant
o UDAF for unbounded data; future proofed and useable anywhere in Spark
• Complex logic pushed into Aggregators, Transformers, custom
columns, etc
o Easier to test, use, and reason about in code (ie. Separation of concerns)
25
Ionic Security PUBLIC
Lessons Learned: User Functions

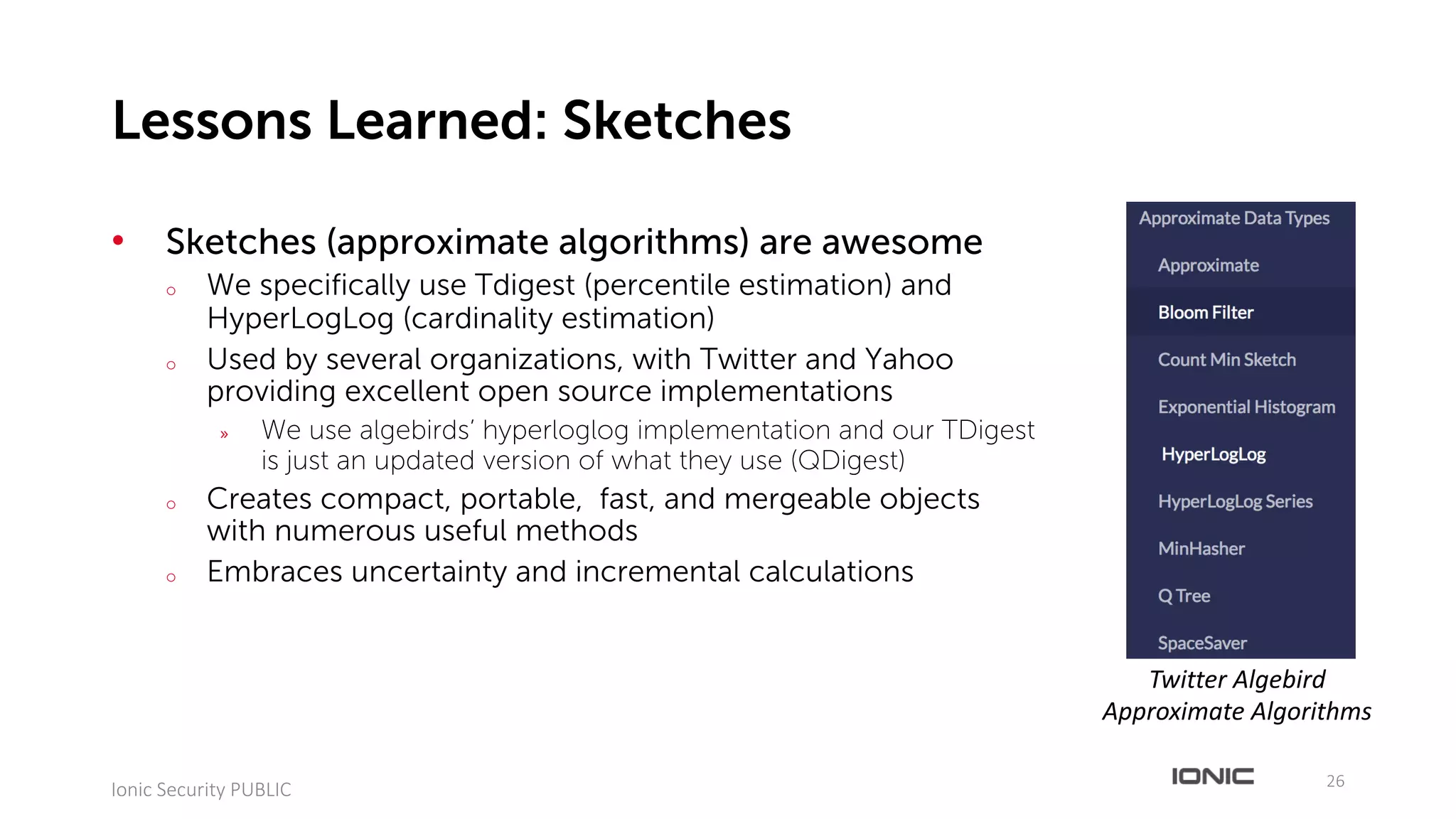

26. • Sketches (approximate algorithms) are awesome
o We specifically use Tdigest (percentile estimation) and
HyperLogLog (cardinality estimation)
o Used by several organizations, with Twitter and Yahoo
providing excellent open source implementations
» We use algebirds’ hyperloglog implementation and our TDigest
is just an updated version of what they use (QDigest)
o Creates compact, portable, fast, and mergeable objects
with numerous useful methods
o Embraces uncertainty and incremental calculations
26
Ionic Security PUBLIC
Lessons Learned: Sketches
Twitter Algebird
Approximate Algorithms

27. • Real-time via Spark streaming (kinesis + redis)
• More graph analysis (user-user, key-key)
• More anomaly detection
• More job performance analysis
• Integration with core platform (UI)
• More data streams (additional data types)
27
Ionic Security PUBLIC
What's next

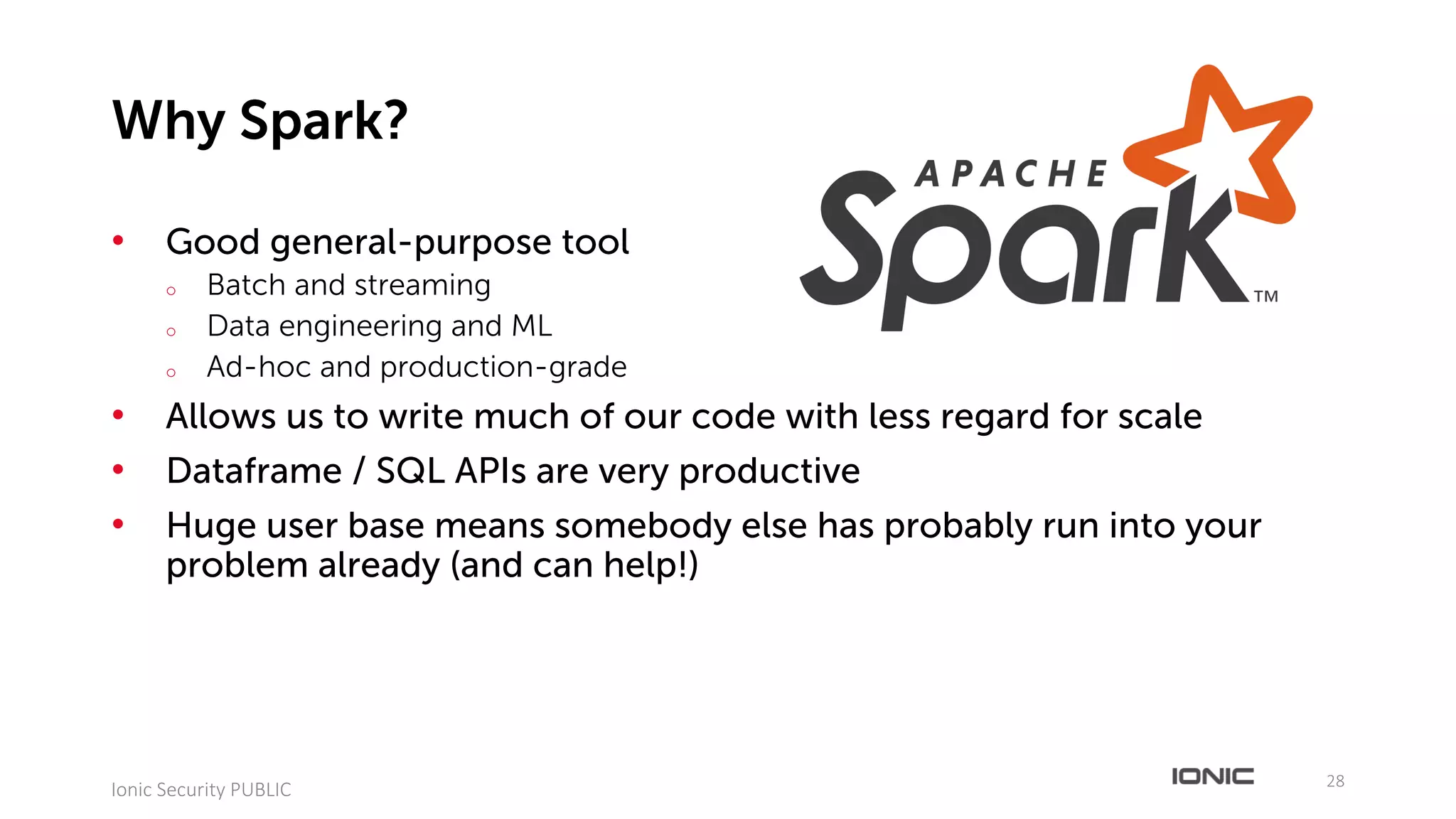

28. • Good general-purpose tool
o Batch and streaming
o Data engineering and ML
o Ad-hoc and production-grade
• Allows us to write much of our code with less regard for scale
• Dataframe / SQL APIs are very productive
• Huge user base means somebody else has probably run into your
problem already (and can help!)
28
Ionic Security PUBLIC
Why Spark?

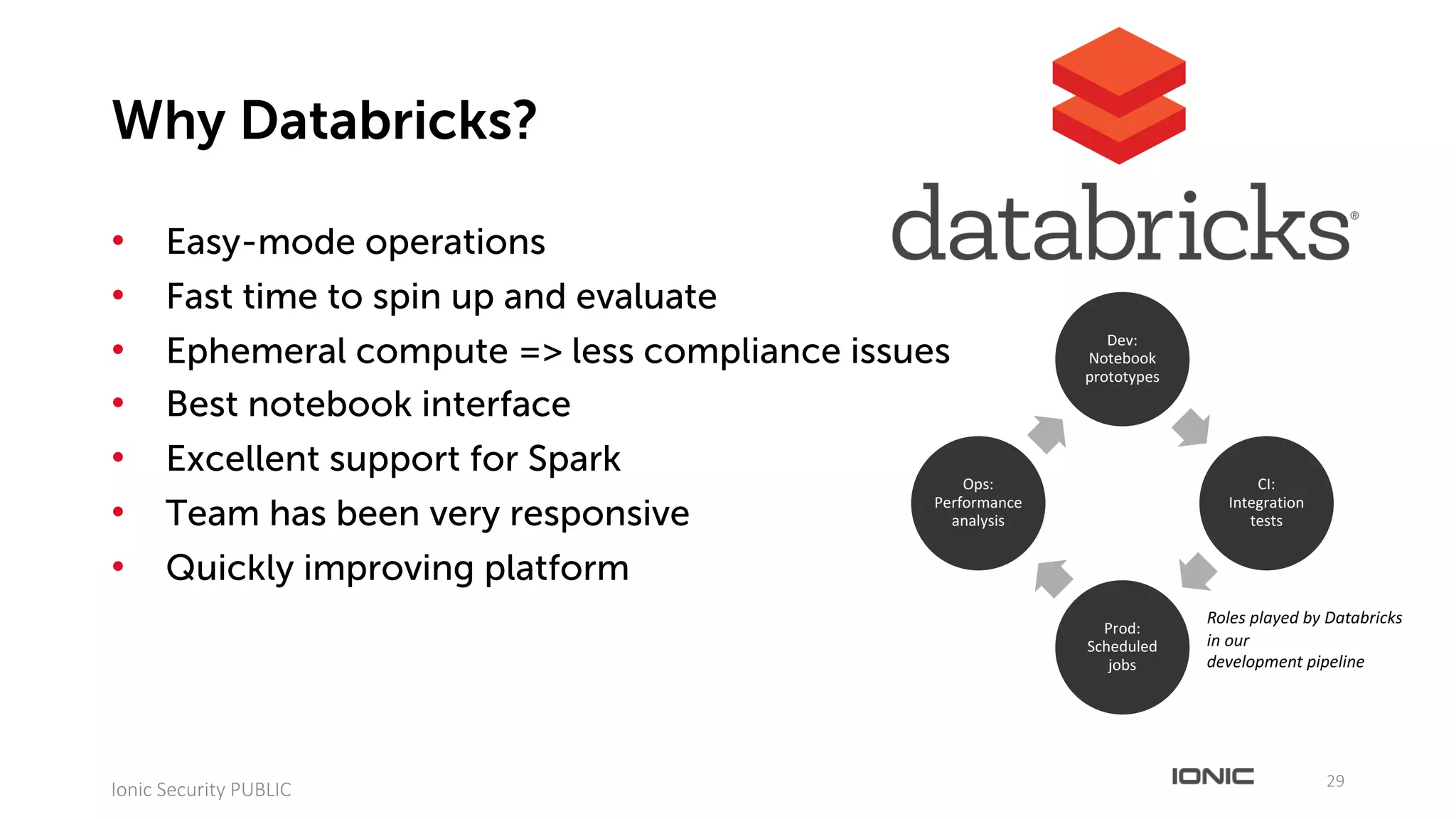

29. • Easy-mode operations
• Fast time to spin up and evaluate
• Ephemeral compute => less compliance issues
• Best notebook interface
• Excellent support for Spark
• Team has been very responsive
• Quickly improving platform
29
Ionic Security PUBLIC
Why Databricks?
Dev:
Notebook
prototypes
CI:
Integration
tests
Prod:
Scheduled
jobs
Ops:
Performance
analysis
Roles played by Databricks
in our
development pipeline

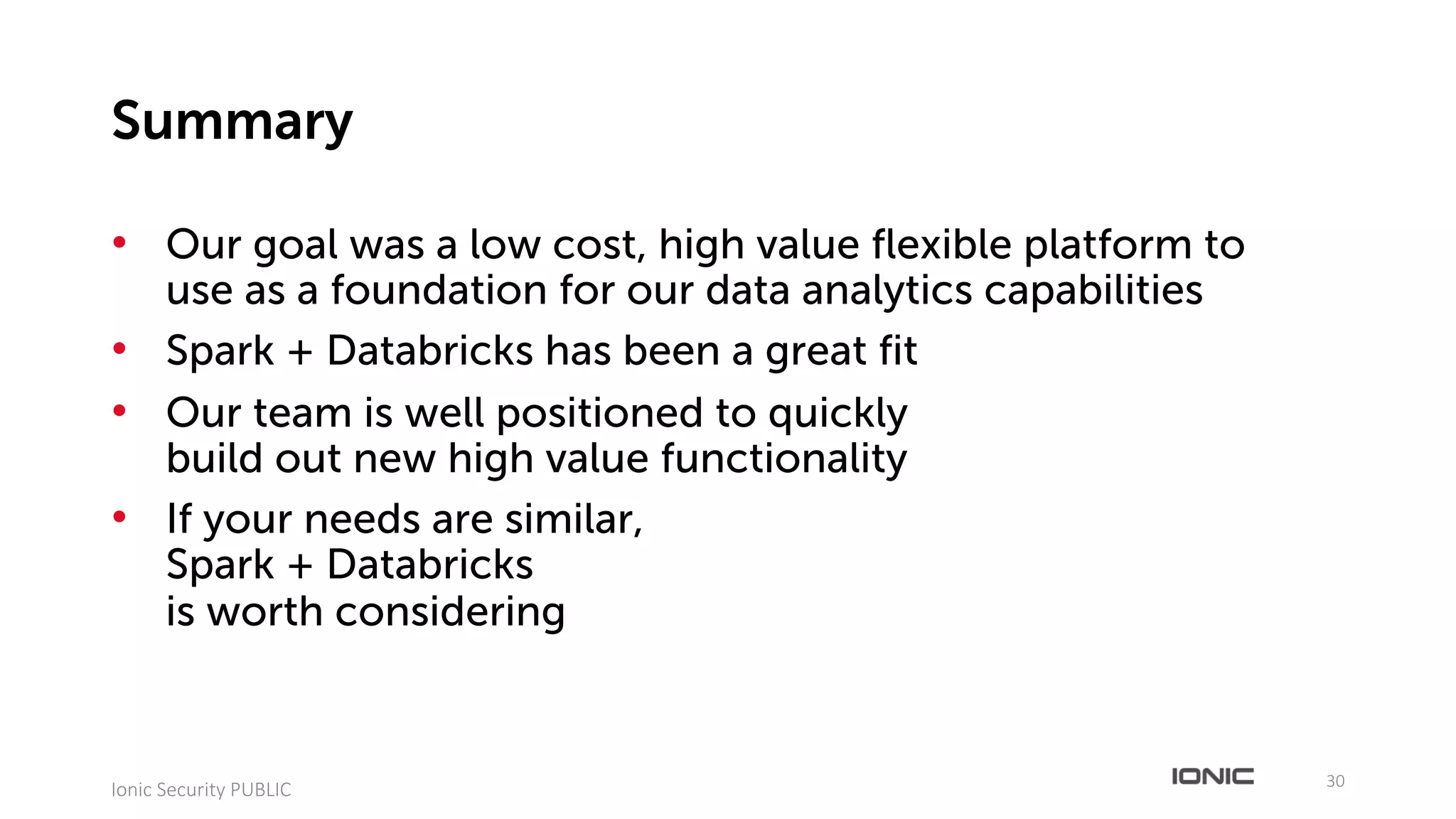

30. • Our goal was a low cost, high value flexible platform to
use as a foundation for our data analytics capabilities
• Spark + Databricks has been a great fit
• Our team is well positioned to quickly
build out new high value functionality
• If your needs are similar,
Spark + Databricks
is worth considering
30
Ionic Security PUBLIC
Summary

31. 3131
Ionic Security PUBLIC
Thank you for your time and attention.
QUESTIONS?
